Phytoremediation of PAH- and Cu-Contaminated Soil by Cannabis sativa L.: Preliminary Experiments on a Laboratory Scale

Department of Civil and Mechanical Engineering, University of Cassino and Southern Lazio, Via Di Biasio 43, 03043 Cassino, Italy
Department of Civil, Architectural and Environmental Engineering, University of Napoli Federico II, Via Claudio 21, 80125 Napoli, Italy
Authors to whom correspondence should be addressed.
Sustainability 2023, 15(3), 1852;
Submission received: 21 December 2022 / Revised: 12 January 2023 / Accepted: 14 January 2023 / Published: 18 January 2023


This study proposes the phytoremediation of phenanthrene (PHE)-, pyrene (PYR)-, and copper (Cu)-contaminated soil by Cannabis sativa L. The experimental campaign was conducted in 300 mL volume pots over a 50 d period using different initial polycyclic aromatic hydrocarbon (PAH) concentrations, i.e., 100 (PC1), 200 (PC2), and 300 (PC3) mg ƩPAHs kg−1 dry weight of soil, while maintaining a constant Cu concentration of 350 mg∙kg−1. PHE and PYR removal was 93 and 61%, 98 and 48%, and 97 and 36% in PC1, PC2, and PC3, respectively, in the greenhouse condition. The highest Cu extraction amounted to 58 mg∙kg−1. In general, the growth of C. sativa L. under the PC1, PC2, and PC3 conditions decreased by approximately 25, 65, and 71% (dry biomass), respectively, compared to the uncontaminated control. The present study is aimed at highlighting the phytoremediation potential of C. sativa L. and providing the preliminary results necessary for future field-scale investigations.

1. Introduction

Soil co-contamination by polycyclic aromatic hydrocarbons (PAHs) and heavy metals (HMs) due to productive activities, intensive farming practices, and waste incineration has caused growing concern in the last decade [1]. PAHs are widespread organic pollutants in the soil compartment and consist of two or more aromatic rings fused in different structures, thus resulting in high toxicity, mutability, and possible carcinogenic effects on humans [2,3]. HMs naturally occur throughout the rigid upper part of the lithosphere, whereas several HMs, such as copper (Cu), can be used by factories (e.g., the petrochemical industry) and agriculture practices and subsequently released into the environment [4,5]. Therefore, HMs can be present in the soil in different forms such as free metal ions and soluble metal complexes or incorporated into silicate structures and/or soil organic matter, oxides, hydroxides, and carbonates [6,7].
As a result of the adsorption of PAHs and HMs onto soil particles, urban soils generally reflect centuries of practices or the legacy of industrial activities. Indeed, soil is the main sink for PAHs due to their affinity to naturally occurring organic matter [8]. Adsorption of contaminants onto soil particles represents a key mechanism determining the fate of PAHs and HMs in the environment due to various interactions (e.g., hydrophobic, electrostatic) [9,10]. In addition, particle dimension and pore volume can improve PAH adsorption in the soil matrix [10] and affect the migration patterns of HMs at different scales [11]. For instance, Zhao et al. [12] showed PAH adsorption of up to 160 mg∙kg−1 onto organic substances in soil after 24 h. Additionally, Lim et al. [13] obtained adsorption (i.e., up to about 4 mg Pb∙kg−1) of HMs ions onto soil particles after only 90 min.
An increase in the urban population has also led to new sources of the mentioned pollutants accumulating in soils [14]. Indeed, various types of combined pollution (e.g., multiple HMs, multiple PAHs, and HMs + PAHs) have been recently found in some global survey areas (e.g., China, Poland, Australia) and even in far-off Antarctic continents [15]. It has been estimated that approximately half a billion hectares of soil were contaminated worldwide by HMs and/or PAHs, which exceeded the regulatory levels [16]. To define a soil as harmless, EU national legislations impose maximum acceptable PAH and HM concentrations in soil (e.g., 50 mg each PAH kg−1 for industrial use and 50 mg∙Cu kg−1) [17,18].
The co-existence of both PAHs and HMs in the environment is a more complex condition compared to the presence of a single class of those pollutants [19]. Thus, the remediation of such polluted soils represents a systemic challenge for environmental science and management [20], and the use of sustainable, effective, and eco-friendly remediation practices is increasingly crucial to tackle the costs and preserve the environment [21]. In this context, several conventional strategies are currently available for the remediation of PAH- and HM-contaminated soils and can only deal with a single type of pollutant rather than a complex mixture, thus requiring a sequence of remediation processes to be performed [22]. Overviewing the literature, remediation techniques that can contemporarily remove both PAHs and HMs in contaminated soils mainly include physical–chemical processes (i.e., soil washing, electrokinetic technology, and supercritical fluid extraction), which are generally invasive and can cause deterioration and damage to natural resources [23]. Therefore, bioremediation can be alternatively employed [24].
Among the biological processes, phytoremediation has been effectively applied for the remediation of co-contaminated soils by PAHs and HMs [20]. Phytoremediation refers to the employment of plants and living species associated with them to remove contaminants from the soil through several mechanisms, such as phytoextraction and rhizodegradation [25]. Phytoremediation has largely been used in recent years due to its improved costs and benefits compared to other conventional techniques, in addition to the less impacting interaction with the ecosystem [26]. On the contrary, the thickness of the contaminated soil layer to be treated can be a problem as it can limit the application of the technique at the field scale [27]. However, only a small amount of information is available in the literature on the phytoremediation of co-contaminated soils by PAHs and HMs, indicating the need for further research [28]. For instance, PAHs could alter the HM uptake mechanism by plants, whereas HMs could influence the PAH biodegradation process by rhizobacteria [29,30,31].
Cannabis sativa L. has recently been reported as an affordable option for phytoremediation and bioenergy production purposes [32,33]. For instance, C. sativa L. was shown to grow under potential stress conditions induced by the presence of PAHs such as pyrene (PYR) in contaminated soil, being suitable for the phytoremediation of soils contaminated by up of 150 mg PYR kg−1 [34]. C. sativa L. has also been observed to be capable of phytoextracting HMs, the distribution of which was found throughout the roots and aerial parts of the plant at different HM concentrations [33]. To the best of our knowledge, however, the phytoremediation potential of C. sativa L. under PAH and HM co-contamination conditions has never been tested.
In the present study, we investigate for the first time the phytoremediation of PAH- and HM-contaminated soil (i.e., 50–150 and 350 mg∙kg−1, respectively) by C. sativa L. The type and concentration of pollutants were selected to represent the contamination of several real polluted sites in which the co-existence of PAHs and HMs is a common environmental issue [35,36]. Phytoremediation is a complex phenomenon involving several influencing factors to the used soil, the contaminant, the plant species, and external parameters (e.g., precipitation, temperature distribution, terrain slope) [27,37]. Since most of the abovementioned variables are not directly manageable in the field condition due to the spatial and temporal variability of soil, which affect the processes occurring in the root layer, the experiments were conducted at a laboratory scale. The ultimate goal of this lab-scale experiment is to provide the preliminary results necessary for the future implementation of a field-scale study.
Therefore, the initial and final concentrations of extractable PYR, PHE, and Cu in soil were evaluated. The height of C. sativa L. was monitored every week, while the dry hemp biomass of roots and aerial parts was determined after 50 d when harvested. Finally, a cost evaluation of phytoremediation to assess its upscaling perspective was conducted.

2. Materials and Methods

2.1. Chemicals

PYR (purity ≥ 98%) and PHE (purity ≥ 98%) were purchased from Sigma–Aldrich (Steinheim, Germany). Cu as copper (II) chloride anhydrous (purity ≥ 99%) was provided by Acros Organics–Thermo Fisher Scientific (New Jersey, USA). Acetone (purity 100%) and acetonitrile (HPLC purity) were purchased by VWR (Fontenay-sous-Bois, France). MilliQ water with an electrolytic conductivity equal to 0.05 μS cm−1 was used as the background for preparing all solutions.

2.2. Soil

A portion of uncontaminated soil was collected at a depth of 0–20 cm from topsoil in Sora, Lazio region, Frosinone province, Italy (41°43′05″ N, 13°36′48″ E). The soil was placed in a hermetically sealed glass vessel, then transferred to the laboratory, dried in a TCF-50 oven (Argolab, Carpi, Italy) at 45 °C until reaching a constant weight, and finally sieved through a 2 mm mesh. The soil was classified as silt loam, by containing sand (0.05–2.00 mm) at 32.4%, silt (0.002–0.050 mm) at 57.3%, and clay (<0.002 mm) at 10.3%. The soil was characterized by total solid (TS) and volatile solid (VS) contents of 97.92 and 1.62%, respectively, a pH value of 7.80, an electric conductivity (EC) of 1.79 mS·cm−1, total organic carbon (TOC) of 3.20 g kg −1, and total nitrogen (TN) of 0.22 g kg−1.

2.3. Spiking Procedure for Soil

The same amount of PHE and PYR was firstly dissolved in acetone, which was subsequently added to the uncontaminated soil in order to obtain initial theoretical concentrations of 100 (PC1), 200 (PC2), and 300 (PC3) mg ƩPAHs kg−1 in the contaminated soil. An identical amount of acetone (1 L∙kg−1) was also added to the uncontaminated control soil (PC0) to guarantee the same initial conditions [34]. After the complete evaporation of the solvent in the fume hood, copper (II) chloride anhydrous was dissolved in a water solution, which was subsequently added to the PAH-polluted soil by achieving a constant concentration of 350 mg Cu∙kg−1 under all conditions tested, as reported by Bonilla-Bird et al. [38].

2.4. Experimental Setup

The artificially contaminated soil was placed in 300 mL pots covered at the bottom with 5–13 µm filter paper (VWR, Germany) to avoid soil and chemical losses. Three different concentrations of phenanthrene (PHE) and PYR, here used as model compounds for low (LMW) and high molecular weight (HMW) PAHs, respectively, were tested (i.e., 50, 100, and 150 mg each PAH·kg−1 dry weight of soil). Additionally, a constant copper concentration of 350 mg·kg−1 was considered. Plants were placed in a grow box under controlled conditions for 50 d in 300 mL volume pots. Three replicates were prepared for each operating condition (i.e., PC1, PC2, and PC3 planted) in the presence of the plant by adding one seed of C. sativa L. (Carmagnola variety) in a single pot, and three replicates were prepared for the controls without the plant (i.e., PC1, PC2, and PC3 unplanted) [39]. Prior to sowing, the seeds were soaked in a water bath for 12 h. Afterwards, the pots with the planted PAH- and Cu-contaminated soil were placed in a growth chamber in the dark until the first leaves appeared [40]. The growth chamber was utilized to provide an 18/6 h light/dark cycle required for plant vegetative growth [41]. Additionally, unplanted pots (i.e., without the plant) were operated as control groups under the same operating conditions (i.e., duration of the test, water content, temperature, light/dark cycles) of the planted tests. The temperature varied from 15 to 22 °C, while the humidity was between 45 and 50% during the 50-day growth period. Each pot was watered with distilled water at 50% of the soil water holding capacity to maintain a constant soil moisture, which was monitored by weighing the pots and avoiding unwanted drainage [42,43]. The position of the pots was sporadically and randomly changed to avoid edge effects [44]. Fresh and dry biomass of the plant was measured at the end of the 50 d treatment when harvested. The plant was divided into roots and aerial parts, which were weighed separately.

2.5. Analytical Methods and Sampling

TS and VS contents were determined according to standard methods [45]. TOC was extracted from soil by a 0.1 mol·L−1 pyrophosphate and sodium hydroxide solution and subsequently evaluated by using a TOC-L Series (Shimadzu, Kyoto, Japan) apparatus [46]. pH was quantified with a Sentix/940 pH electrode (WTW, Welheim, Germany) in a 1:2 suspension (soil:water). A TetraCon/925 (WTW, USA) conductivity cell was employed to determine the electrical conductivity (EC) in a 1:5 soil-to-water suspension. TN was spectrophotometrically measured using a Spectroquant® nitrogen cell test (Merk, Darmstadt, Germany). In order to constitute the representative samples for analysis, after the 50 d treatment, 3–4 sub-samples were taken from the selected pots and finally mixed. Possible anomalous areas such as topsoil and the edges of the pot were avoided, mainly sampling from the middle–central part of the pot. Afterwards, 0.5 g of the soil sample was dried under ventilated and dark conditions and finally extracted for PYR and PHE quantification according to Sun et al. [47]. The sample was filtered on a 0.45 μm glass microfiber filter (Whatman, Little Chalfont, UK) prior to the analysis. A LC-20AD HPLC (Shimadzu, Kyoto, Japan) equipped with a Kinetex® 3.5 µm PAH (150 × 4.6 mm) column (Phenomenex, Torrance, CA, USA) heated at 35 °C and an SPD-20A UV detector (Shimadzu, Japan) set at 254 nm was employed to analyze the amount of each PAH [34]. The total concentration of Cu in the soil samples, after 50 d phytoremediation, was obtained by an acidic mineralization process. Atomic adsorption spectrometry (AAS) using a Varian Model 55B SpectrAA (Agilent Technologies, Palo Alto, CA, USA) F-AAS equipped with a flame (acetylene/air) and a deuterium lamp for background correction was employed to evaluate the concentrations of Cu ions in the solution [48]. The plant height was measured every week to monitor the evolution of the biomass growth. At the end of the experiments (i.e., 50 d), the C. sativa L. plants were harvested in soil by cutting the stem at the bottom of the topsoil. The plants were divided into roots and above parts, washed with tap water, and then rinsed with deionized water. The fresh biomass weight was evaluated when harvested. The biomass was then oven-dried at 50 °C until a constant weight [49] and then weighed.

2.6. Statistical Analysis

Statistically significant differences between the obtained parameters were processed by a one-way analysis of variance (ANOVA) followed by a Tukey‘s honestly significant difference (HSD) test. According to the standard of the study, the results were assumed to be statistically significant when p < 0.05.

2.7. Economic Evaluation

A rough cost assessment in dollar currency was conducted on the entire phytoremediation process. The cost considered for the purchase of the C. sativa L. seeds was 0.22 $∙seed−1. The input costs for planting, management, and monitoring procedures were estimated according to da Silva Benevenute et al. [50]. Taking into account a biomass production of 1.23 kg∙plant−1, the maximum hemp yield was 3600 plants∙ha−1. The required working hours for C. sativa L. pre-plant cultivation, planting, harvesting and post-harvesting operations, and the general remediation management was 0.033, 0.033, 0.19, and 0.017 h plant−1, respectively. The used cost for hourly field and laboratory work and general expenses were USD 12 and 15, respectively. Among PC1, PC2 and PC3, the condition with the highest biomass yield was selected for the economic evaluation [51]. A soil density of 1.2 ton m−3 was used for the calculation.

3. Results and Discussion

3.1. Residual PAH Concentrations in Soil after the Growth of C. sativa L.

In the present study, plants of C. sativa L. were used for the phytoremediation of PAH- and HM-contaminated soil. The residual PYR and PHE concentrations in both planted and unplanted soil after 50 d of treatment in greenhouse conditions are illustrated in Figure 1. Final PHE concentrations of 2.93, 1.77, and 4.28 mg PHE·kg−1 (Figure 1) were obtained in the planted conditions (i.e., PC1, PC2, and PC3, respectively). Under the same conditions, a significantly lower (p < 0.05) removal was obtained for PYR than that achieved for PHE. Indeed, the residual concentrations of PYR in PC1, PC2, and PC3 were 18.19, 31.14, and 66.33 mg·kg−1 (Figure 1), respectively, which approximately halved under all planted conditions compared to the initial concentration (i.e., 100, 200, and 300 mg ƩPAHs kg−1).
Being characterized by 3 and 4 rings, respectively, PHE and PYR have different structural features, which induce distinct ecological effects and consequently different responses of the bacterial communities towards their degradation [52]. Additionally, compared to HMW PAHs, an LMW compound can be more volatile, show higher solubility in water, and be less prone to be adsorbed onto suspended particles and biota, thus being more susceptible to biodegradation [53]. The results shown in Figure 1 are supported by previous studies reporting bioremediation techniques in which the biodegradation of LMW PAHs was faster and simpler than that of HMW compounds [54]. Similarly, Sun et al. [55] showed that PHE and PYR concentrations were reduced from 100 to 1.6 mg kg−1 and 25 mg kg−1, respectively, after planting soil with ryegrass (Lolium perenne) for 60 d. Additionally, Campbell et al. [51] showed a lower removal of benzo[a]pyrene (i.e., 14–21%) compared to that obtained for chrysene (i.e., 20–30%) in soil remediated by C. sativa L. after 45 d of growth. The removal of PHE and PYR can also be deeply influenced by the initial PAH concentration in soil [56]. The PYR removal efficiency decreased as the initial mg ƩPAHs kg−1 in soil increased, while similar values of PHE removal efficiency were observed under the PC1, PC2, and PC3 conditions.
The total PAH removals in the planted PC1, PC2, and PC3 (i.e., 100, 200, and 300 ƩPAHs kg−1, respectively) were 78, 75, and 68%, respectively, which were significantly higher (p < 0.05) than those obtained in the corresponding unplanted controls (Figure 2) after 50 d. These results suggest that an important fraction of PHE and PYR was removed through rhizodegradation mechanisms in the presence of C. sativa L., as recently reported by Gabriele et al. [34]. In the unplanted controls, both abiotic (i.e., volatilization, percolation, photo-degradation) and biotic (i.e., biodegradation by autochthonous microorganisms) contributions could occur (Figure 2) [55]. Plant-promoted PAH biodegradation was previously reported by Lu et al. [57] as the major mechanism involved in soil during PHE and PYR removal. The growth of Kandelia candel supported the removal of 48 and 38% of PHE and PYR, respectively, after 60 days, with an initial concentration of 20 ƩPAHs kg−1 (i.e., 10 mg each PAH kg−1). Approximately 98 and 85% of PHE and PYR removal, respectively, was observed by Cheema et al. [58] in the planted soils with tall fescue (Festuca arundinacea) contaminated by about 400 ƩPAHs kg−1, due to increased biological activity in the rhizosphere. The lower PHE and PYR removals obtained here can be attributed to the presence of copper in the soil affecting rhizobacterial activity.
The presence of nutrients and organic acids can stimulate the metabolic activity of bacteria, which in turn can produce enzymes (e.g., dehydrogenase) and other substances, improving plant growth [59,60]. Microorganisms in the rhizosphere could degrade PHE and PYR by releasing extracellular enzymes in the soil that mediate metabolic pathways, such as redox reactions, using these compounds as growth substrates and carbon sources [61]. For instance, Ghosal et al. [62] observed the assimilation of PHE by the Ochrobactrum sp. strain PWTJD, which was isolated from contaminated soil using PHE as a sole source of carbon and energy supply. Among different bacterial genera and species, the presence of bacterial varieties identified as being capable of biodegrading organic compounds such as Bacteroidetes, Sphingomonas, and Rhodococcus can be positively correlated with the degradation of PYR and PHE in soil [63,64,65]. In the co-presence of PHE and PYR, biodegradation likely occurred by co-metabolism, which consists of the microorganism’s ability to degrade an HMW compound while using an LMW compound as a growth substrate [66].

3.2. Copper Removal from Soil after 50 d of Phytoremediation with C. sativa L.

The amount of Cu per gram of dry C. sativa L. biomass and the Cu removal efficiency after 50 d of phytoremediation under the PC1, PC2, and PC3 conditions are presented in Table 1.
In the present study, a removal of about 57 and 46 mg Cu g−1 of dry biomass (Table 1) was achieved in PC1 and PC2, respectively. The obtained result was higher compared to the Cu removal of about 1.5 mg·g−1 recently reported in the literature by Placido and Lee (2022) [67]. In this context, the presence of PAHs can alter the mechanisms of metal uptake, thus affecting the phytoextraction kinetics and extent [68]. The improvement of bacterial activity in the presence of hemp at a specific PAH concentration in the soil (i.e., up to 200 ƩPAHs kg−1) can alleviate the stress on the plant induced by toxic metals and enhance metal extraction [69]. However, this effect vanished as the amount of PAHs increased above a certain threshold (i.e., 300 ƩPAHs kg−1), at which point the Cu concentration did not vary in the soil after the 50 d phytoremediation (Table 1). Therefore, the phytoextraction potential of C. sativa L. was also dependent on the biomass development and growth [70], which was significantly lower (p < 0.05) in PC3 than the other examined conditions (Figure 3). Most of the existing literature reported the inhibition of biomass growth as a function of the initial PAH concentration in the presence of toxic metals above a certain threshold. For instance, Lin et al. [71] showed that the copper phytoextraction potential of corn (Zea mays L.) was reduced by 50% above 100 mg·kg−1 PYR, thus leading to a decrease in the biomass growth rate [72].
With regard to the removal mechanisms, it has been reported that C. sativa L. could accumulate Cu in the plant tissue [73], likely due to glutathione-sulfide reductase and phospholipase D-α as the antioxidant enzymes, which can protect the plant from oxidative stress induced by reactive species in the presence of Cu [74]. Additionally, other studies reported an increase in aldo-keto reductase, an NAD(P)H-dependent enzyme in C. sativa L. grown under Cu stress. Consequently, the relative abundance of these enzymes could influence the accumulation of Cu in plant tissues [75]. Therefore, Cu can be highly accumulated in the root system architecture compared to the upper parts of the plant. This is further supported by the achievements of other studies that reported a maximum copper accumulation of 0.01, 1.5, and 0.03 mg·g−1 of C. sativa L. in flowers, roots, and shoots, respectively [76,77,78].

3.3. C. sativa L. Biomass Response to PYR-PHE and Cu-Contaminated Soil over 50 d Phytoremediation

The occurrence of biomass growth in roots and aerial components is one of the key factors for PYR and PHE removal and Cu extraction from contaminated soil through phytoremediation [79,80]. The presence of a large root biomass promotes degradation through the action of rhizosphere microorganisms while providing a larger surface area for metal accumulation [81,82].
In this study, the development of C. sativa L. biomass was monitored during the 50 d of phytoremediation, measuring the plant height under the PC1, PC2, and PC3 conditions tested (Figure 3). The results are summarized in Table 2. The height of the plants decreased with the increase of the initial concentration of PYR and PHE (Figure 3). The height of the plants grown under the PC3 condition was found to be the lowest, reaching a final value of 10.5 cm (Figure 3), about three times lower than the plants grown in the uncontaminated condition. The final heights achieved under the PC1 and PC2 conditions were 26.5 and 20 cm, respectively, which were 35 and 43% lower than those obtained in the uncontaminated controls (Figure 3). The most elevated plant (i.e., 35 cm) was detected in the PC0, which was the condition without PHE, PYR, and Cu contamination (Figure 3). These results are supported by Cameselle and Gouveia (2019) [83], who showed that a high PAH concentration of 300 mg kg−1 of soil led to a reduction of turnip (Brassica rapa) height from 11 to 9.9 cm after 26 days. Likewise, Reddy et al. [84] obtained a decreased height of tall fescue by 55% in PAH- and HM-contaminated soil (i.e., 150 and 750 mg kg−1, respectively) compared to the uncontaminated control after 61 days of phytoremediation.
In general, by considering the dry biomass of C. sativa L., the root growth in the contaminated soil decreased by approximately 25, 65, and 71% (Table 2) in PC1, PC2, and PC3, respectively, compared to the uncontaminated soil. The condition PC2 (i.e., 200 mg ƩPAHs kg−1) was found to be the threshold above which a severe biomass reduction was observed (i.e., 65% less, Table 2). This result is in agreement with those obtained by Lu et al. [19], who observed a drastic inhibition (i.e., approximately 50%) of tall fescue growth in PYR-contaminated soil (i.e., 200–500 mg∙kg−1). This is likely due to contamination with both PAHs and Cu, which hindered plant development [85].

3.4. Preliminary Economic Evaluation

This study shows that PAH- and Cu-contaminated soil can be remediated through phytoremediation by C. sativa L. (Figure 2 and Table 1). Therefore, a rough economic assessment considering the seed purchase, the required working hours for C. sativa L. pre-planting, planting, harvesting, and post-harvesting operations, and the general remediation management was performed.
A total cost of USD 47 per ton was obtained for the PC1 condition (i.e., 100 mg ƩPAHs kg−1, Table 3), which achieved a higher PAH and Cu removal, and biomass production (i.e., 78 and 11%, and 0.32 g, respectively) compared to the PC2 and PC3 conditions (Figure 2, Table 1 and Table 2) after 50 d. In a realistic approach, additional long-term monitoring and in-field studies are needed to verify time and cost data of in situ phytoremediation since several factors (e.g., autochthonous microorganisms, genetic assortment, and vegetation competition) could severely affect the remediation technique [86,87]. Additionally, the treatment cost of the obtained biomass after each phytoremediation cycle should be considered. In this context, the employment of plant biomass as an energy source is attractive due to further profits [88,89] deriving from bioenergy production (e.g., biogas). For instance, Hunce et al. [90] demonstrated that the presence of trace contaminants in plant biomass (e.g., HMs) did not limit their biomethane potential during anaerobic digestion. Moreover, an integrated approach combining soil remediation with post-process valuable elements recovery has been proven to enhance the economic feasibility of the phytoremediation treatment [91].
The mentioned cost value (i.e., USD 47 per ton, Table 3) was slightly higher than that indicated by Cristaldi et al. [92] (i.e., USD 5–40 per ton), who did not take the monitoring costs into account. Indeed, the achieved cost here evaluated can be halved to approximately USD 27 per ton by neglecting the cost of monitoring. In each case, the phytoremediation cost was lower than that necessary for performing other conventional remediation techniques [93,94]. For instance, the employment of physical–chemical techniques (i.e., USD 100–500 per ton), such as soil washing, requires a high cost for extracting agents (e.g., surfactants, chelating agents), which should be further increased by the treatment of spent soil washing solution (e.g., about USD 50 per ton) [24]. Additionally, thermal remediation (e.g., vitrification) can show a cost of up to USD 425 per ton due to the involvement of a high energy demand to reach the desired temperatures and the need for long-term monitoring [16]. Other solutions such as landfilling are costly (i.e., up to USD 500 per ton) and should be integrated with soil excavation and transportation procedures, as well as biogas production monitoring costs [92].
Considering the removal efficiencies, the application of the conventional Fenton technique resulted in a PAH removal comprised between 43 and 69% after 24 h [95]. Sequential application of chelating agents and innovative surfactants for enhanced electro-remediation exhibited a ∑PAH removal of 43 and 48%, respectively [96]. Up to 40 and 90% of PAHs (i.e., fluorene acenaphthene and fluoranthene) and HMs (i.e., Pb, Ni, and Zn), respectively, were removed after the application of soil flushing with Triton X-100 and EDTA at a flow rate of 0.534 mL min−1 through column experiments [22]. Although the higher HM removal efficiencies and shorter application times compared to the phytoremediation, the abovementioned techniques could lead to severe issues towards the ecosystem.
Moreover, it is largely accepted that a conventional remediation process of a site contaminated by hazardous compounds (e.g., PAHs, toxic metals) can also lead to greenhouse gas emissions (e.g., 58,000 ton of CO2 per year for thermal desorption) [97]. Thus, it is increasingly important to adopt soil remediation approaches entailing the fulfilment of sustainable development principles, promoting energy-saving and low carbon-emitting or even carbon-neutral technologies as much as possible [98].

4. Conclusions

This study demonstrates that C. sativa L. can grow under stress conditions induced by the co-occurrence of PAHs and Cu in the soil. PHE and PYR removal up to 152 and 54 mg∙kg−1, respectively, was obtained after a 50 d treatment. Additionally, approximately 57 and 46 mg Cu∙g−1 of dry C. sativa L. biomass were removed under the PC2 and PC1 conditions, respectively. Under the PC2 and PC3 conditions, a severe biomass reduction was achieved (i.e., >65%). Considering the plant height, the biomass decreased with the increase of the initial PYR and PHE concentrations. The economic assessment revealed a total cost of USD 47 per ton of soil, which was lower than that of conventional remediation techniques.
Although this study provides encouraging preliminary results, the influencing factors to calibrate a future field-scale experiment need further investigation. In order to understand the phytoremediation mechanisms primarily involved in this study, further analyses (e.g., microbiological analyses, plant tissue extractions) are also required. Finally, other studies should be aimed, for instance, at improving phytoremediation with soil conditioners and non-toxic chelating agents (e.g., ethylenediamine-N,N’-disuccinic acid) for enhancing PAH rhizodegradation and metal mobilization, respectively.

Author Contributions

Conceptualization, data curation, investigation, writing—original draft, writing—review and editing, I.G.; data curation, writing—review and editing, F.B.; conceptualization, supervision, writing—review and editing, M.R.; conceptualization, supervision, writing—review and editing, S.P.; supervision, writing and editing, administration, funding acquisition, G.E. All authors have read and agreed to the published version of the manuscript.


This research was funded by the Italian Ministry of University and Research (MUR).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.


We would like to thank the Italian Ministry of University and Research (MUR) for funding the doctoral scholarship of Ilaria Gabriele.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Liu, S.-H.; Zeng, G.-M.; Niu, Q.-Y.; Liu, Y.; Zhou, L.; Jiang, L.-H.; Tan, X.-F.; Xu, P.; Zhang, C.; Cheng, M. Bioremediation mechanisms of combined pollution of PAHs and heavy metals by bacteria and fungi: A mini review. Bioresour. Technol. 2017, 224, 25–33. [Google Scholar] [CrossRef]
  2. Polachova, A.; Gramblicka, T.; Parizek, O.; Sram, R.J.; Stupak, M.; Hajslova, J.; Pulkrabova, J. Estimation of human exposure to polycyclic aromatic hydrocarbons (PAHs) based on the dietary and outdoor atmospheric monitoring in the Czech Republic. Environ. Res. 2019, 182, 108977. [Google Scholar] [CrossRef] [PubMed]
  3. Bianco, F.; Marcińczyk, M.; Race, M.; Papirio, S.; Esposito, G.; Oleszczuk, P. Low temperature–produced and VFA–coated biochar enhances phenanthrene adsorption and mitigates toxicity in marine sediments. Sep. Purif. Technol. 2022, 296, 121414. [Google Scholar] [CrossRef]
  4. Nawrot, N.; Wojciechowska, E.; Rezania, S.; Walkusz-Miotk, J.; Pazdro, K. The effects of urban vehicle traffic on heavy metal contamination in road sweeping waste and bottom sediments of retention tanks. Sci. Total Environ. 2020, 749, 141511. [Google Scholar] [CrossRef]
  5. Tchounwou, P.B.; Yedjou, C.G.; Patlolla, A.K.; Sutton, D.J. Heavy metal toxicity and the environment. Mol. Clin. Environ. Toxicol. 2012, 101, 133–164. [Google Scholar] [CrossRef] [Green Version]
  6. Bradl, H.B. Adsorption of heavy metal ions on soils and soils constituents. J. Colloid Interface Sci. 2004, 277, 1–18. [Google Scholar] [CrossRef] [PubMed]
  7. Young, S.D. Chemistry of Heavy Metals and Metalloids in Soils. In Heavy Metals in Soils; Springer: Berlin/Heidelberg, Germany, 2012; pp. 51–95. [Google Scholar] [CrossRef]
  8. Yang, Y.; Zhang, N.; Xue, M.; Tao, S. Impact of soil organic matter on the distribution of polycyclic aromatic hydrocarbons (PAHs) in soils. Environ. Pollut. 2010, 158, 2170–2174. [Google Scholar] [CrossRef] [PubMed]
  9. Guo, X.; Luo, L.; Ma, Y.; Zhang, S. Sorption of polycyclic aromatic hydrocarbons on particulate organic matters. J. Hazard. Mater. 2010, 173, 130–136. [Google Scholar] [CrossRef] [PubMed]
  10. Tang, L.; Gudda, F.O.; Wu, C.; Ling, W.; El-Ramady, H.; Mosa, A.; Wang, J. Contributions of partition and adsorption to polycyclic aromatic hydrocarbons sorption by fractionated soil at different particle sizes. Chemosphere 2022, 301, 134715. [Google Scholar] [CrossRef]
  11. Huang, B.; Yuan, Z.; Li, D.; Zheng, M.; Nie, X.; Liao, Y. Effects of soil particle size on the adsorption, distribution, and migration behaviors of heavy metal(loid)s in soil: A review. Environ. Sci. Process. Impacts 2020, 22, 1596–1615. [Google Scholar] [CrossRef] [PubMed]
  12. Zhao, N.; Ju, F.; Pan, H.; Tang, Z.; Ling, H. Molecular dynamics simulation of the interaction of water and humic acid in the adsorption of polycyclic aromatic hydrocarbons. Environ. Sci. Pollut. Res. 2020, 27, 25754–25765. [Google Scholar] [CrossRef] [PubMed]
  13. Lim, S.-F.; Lee, A.Y.W. Kinetic study on removal of heavy metal ions from aqueous solution by using soil. Environ. Sci. Pollut. Res. 2015, 22, 10144–10158. [Google Scholar] [CrossRef]
  14. Ciarkowska, K.; Gambus, F.; Antonkiewicz, J.; Koliopoulos, T. Polycyclic aromatic hydrocarbon and heavy metal contents in the urban soils in southern Poland. Chemosphere 2019, 229, 214–226. [Google Scholar] [CrossRef]
  15. Zeng, J.; Zhu, Q.; Li, Y.; Dai, Y.; Wu, Y.; Sun, Y.; Miu, L.; Chen, H.; Lin, X. Isolation of diverse pyrene-degrading bacteria via introducing readily utilized phenanthrene. Chemosphere 2019, 222, 534–540. [Google Scholar] [CrossRef] [PubMed]
  16. Liu, L.; Li, W.; Song, W.; Guo, M. Remediation techniques for heavy metal-contaminated soils: Principles and applicability. Sci. Total Environ. 2018, 633, 206–219. [Google Scholar] [CrossRef]
  17. Thiombane, M.; Albanese, S.; Di Bonito, M.; Lima, A.; Zuzolo, D.; Rolandi, R.; Qi, S.; De Vivo, B. Source patterns and contamination level of polycyclic aromatic hydrocarbons (PAHs) in urban and rural areas of Southern Italian soils. Environ. Geochem. Health 2018, 41, 507–528. [Google Scholar] [CrossRef]
  18. Grifoni, M.; Rosellini, I.; Angelini, P.; Petruzzelli, G.; Pezzarossa, B. The effect of residual hydrocarbons in soil following oil spillages on the growth of Zea mays plants. Environ. Pollut. 2020, 265, 114950. [Google Scholar] [CrossRef]
  19. Lu, M.; Zhang, Z.-Z.; Wang, J.-X.; Zhang, M.; Xu, Y.-X.; Wu, X.-J. Interaction of Heavy Metals and Pyrene on Their Fates in Soil and Tall Fescue (Festuca arundinacea). Environ. Sci. Technol. 2014, 48, 1158–1165. [Google Scholar] [CrossRef]
  20. Cao, X.; Cui, X.; Xie, M.; Zhao, R.; Xu, L.; Ni, S.; Cui, Z. Amendments and bioaugmentation enhanced phytoremediation and micro-ecology for PAHs and heavy metals co-contaminated soils. J. Hazard. Mater. 2021, 426, 128096. [Google Scholar] [CrossRef] [PubMed]
  21. Wu, C.; Li, F.; Yi, S.; Ge, F. Genetically engineered microbial remediation of soils co-contaminated by heavy metals and polycyclic aromatic hydrocarbons: Advances and ecological risk assessment. J. Environ. Manag. 2021, 296, 113185. [Google Scholar] [CrossRef]
  22. Saeedi, M.; Li, L.Y.; Grace, J.R. Simultaneous removal of polycyclic aromatic hydrocarbons and heavy metals from natural soil by combined non-ionic surfactants and EDTA as extracting reagents: Laboratory column tests. J. Environ. Manag. 2019, 248, 109258. [Google Scholar] [CrossRef]
  23. Reddy, K.R.; Al-Hamdan, A.Z.; Ala, P. Enhanced Soil Flushing for Simultaneous Removal of PAHs and Heavy Metals from Industrial Contaminated Soil. J. Hazard. Toxic Radioact. Waste 2011, 15, 166–174. [Google Scholar] [CrossRef]
  24. Bianco, F.; Race, M.; Papirio, S.; Oleszczuk, P.; Esposito, G. Coupling of desorption of phenanthrene from marine sediments and biodegradation of the sediment washing solution in a novel biochar immobilized–cell reactor. Environ. Pollut. 2022, 308, 119621. [Google Scholar] [CrossRef] [PubMed]
  25. Fernández Rodríguez, M.D.; García Gómez, M.C.; Alonso Blazquez, N.; Tarazona, J.V. Soil Pollution Remediation. In Encyclopedia of Toxicology; Elsevier: Amsterdam, The Netherlands, 2014; pp. 344–355. [Google Scholar] [CrossRef]
  26. Sharma, I. Bioremediation Techniques for Polluted Environment: Concept, Advantages, Limitations, and Prospects. In Trace Metals in the Environment—New Approaches and Recent Advances; IntechOpen: London, UK, 2021. [Google Scholar] [CrossRef]
  27. Laghlimi, M.; Baghdad, B.; El Hadi, H.; Bouabdli, A. Phytoremediation Mechanisms of Heavy Metal Contaminated Soils: A Review. Open J. Ecol. 2015, 5, 375–388. [Google Scholar] [CrossRef] [Green Version]
  28. Li, L.; Zhu, P.; Wang, X.; Zhang, Z. Phytoremediation effect of Medicago sativa colonized by Piriformospora indica in the phenanthrene and cadmium co-contaminated soil. BMC Biotechnol. 2020, 20, 20. [Google Scholar] [CrossRef]
  29. Deng, S.; Ke, T.; Wu, Y.; Zhang, C.; Hu, Z.; Yin, H.; Guo, L.; Chen, L.; Zhang, D. Heavy Metal Exposure Alters the Uptake Behavior of 16 Priority Polycyclic Aromatic Hydrocarbons (PAHs) by Pak Choi (Brassica chinensis L.). Environ. Sci. Technol. 2018, 52, 13457–13468. [Google Scholar] [CrossRef] [PubMed]
  30. Zhang, S.; Yao, H.; Lu, Y.; Yu, X.; Wang, J.; Sun, S.; Liu, M.; Li, D.; Li, Y.-F.; Zhang, D. Uptake and translocation of polycyclic aromatic hydrocarbons (PAHs) and heavy metals by maize from soil irrigated with wastewater. Sci. Rep. 2017, 7, 12165. [Google Scholar] [CrossRef] [PubMed]
  31. Meers, E.; Ruttens, A.; Hopgood, M.; Lesage, E.; Tack, F. Potential of Brassic rapa, Cannabis sativa, Helianthus annuus and Zea mays for phytoextraction of heavy metals from calcareous dredged sediment derived soils. Chemosphere 2005, 61, 561–572. [Google Scholar] [CrossRef]
  32. Moscariello, C.; Matassa, S.; Esposito, G.; Papirio, S. From residue to resource: The multifaceted environmental and bioeconomy potential of industrial hemp (Cannabis sativa L.). Resour. Conserv. Recycl. 2021, 175, 105864. [Google Scholar] [CrossRef]
  33. Rheay, H.T.; Omondi, E.C.; Brewer, C.E. Potential of hemp (Cannabis sativa L.) for paired phytoremediation and bioenergy production. GCB Bioenergy 2020, 13, 525–536. [Google Scholar] [CrossRef]
  34. Gabriele, I.; Race, M.; Papirio, S.; Papetti, P.; Esposito, G. Phytoremediation of a pyrene-contaminated soil by Cannabis sativa L. at different initial pyrene concentrations. Chemosphere 2022, 300, 134578. [Google Scholar] [CrossRef] [PubMed]
  35. Song, X.; Li, C.; Chen, W. Phytoremediation potential of Bermuda grass (Cynodon dactylon (L.) pers.) in soils co-contaminated with polycyclic aromatic hydrocarbons and cadmium. Ecotoxicol. Environ. Saf. 2022, 234, 113389. [Google Scholar] [CrossRef] [PubMed]
  36. Tao, Q.; Li, J.; Liu, Y.; Luo, J.; Xu, Q.; Li, B.; Li, Q.; Li, T.; Wang, C. Ochrobactrum intermedium and saponin assisted phytoremediation of Cd and B[a]P co-contaminated soil by Cd-hyperaccumulator Sedum alfredii. Chemosphere 2019, 245, 125547. [Google Scholar] [CrossRef] [PubMed]
  37. Yadav, K.K.; Gupta, N.; Kumar, A.; Reece, L.M.; Singh, N.; Rezania, S.; Khan, S.A. Mechanistic understanding and holistic approach of phytoremediation: A review on application and future prospects. Ecol. Eng. 2018, 120, 274–298. [Google Scholar] [CrossRef]
  38. Bonilla-Bird, N.; Ye, Y.; Akter, T.; Valdes-Bracamontes, C.; Darrouzet-Nardi, A.; Saupe, G.; Flores-Marges, J.; Ma, L.; Hernandez-Viezcas, J.; Peralta-Videa, J.; et al. Effect of copper oxide nanoparticles on two varieties of sweetpotato plants. Plant Physiol. Biochem. 2020, 154, 277–286. [Google Scholar] [CrossRef] [PubMed]
  39. Jayanthy, V.; Geetha, R.; Rajendran, R.; Prabhavathi, P.; Sundaram, S.K.; Kumar, S.D.; Santhanam, P. Phytoremediation of dye contaminated soil by Leucaena leucocephala (subabul) seed and growth assessment of Vigna radiata in the remediated soil. Saudi J. Biol. Sci. 2013, 21, 324–333. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  40. Cook, L.L.; Inouye, R.S.; McGonigle, T.P. Evaluation of four grasses for use in phytoremediation of Cs-contaminated arid land soil. Plant Soil 2009, 324, 169–184. [Google Scholar] [CrossRef]
  41. Borille, B.T.; Marcelo, M.C.A.; Ortiz, R.S.; Mariotti, K.D.C.; Ferrão, M.F.; Limberger, R.P. Near infrared spectroscopy combined with chemometrics for growth stage classification of cannabis cultivated in a greenhouse from seized seeds. Spectrochim. Acta Part A Mol. Biomol. Spectrosc. 2017, 173, 318–323. [Google Scholar] [CrossRef]
  42. Liao, C.; Liang, X.; Lu, G.; Thai, T.; Xu, W.; Dang, Z. Effect of surfactant amendment to PAHs-contaminated soil for phytoremediation by maize (Zea mays L.). Ecotoxicol. Environ. Saf. 2015, 112, 1–6. [Google Scholar] [CrossRef] [PubMed]
  43. Kaya, C.; Tuna, L.; Higgs, D. Effect of Silicon on Plant Growth and Mineral Nutrition of Maize Grown Under Water-Stress Conditions. J. Plant Nutr. 2006, 29, 1469–1480. [Google Scholar] [CrossRef]
  44. Shen, C.; Tang, X.; Alam Cheema, S.; Zhang, C.; Khan, M.I.; Liang, F.; Chen, X.; Zhu, Y.; Lin, Q.; Chen, Y. Enhanced phytoremediation potential of polychlorinated biphenyl contaminated soil from e-waste recycling area in the presence of randomly methylated-β-cyclodextrins. J. Hazard. Mater. 2009, 172, 1671–1676. [Google Scholar] [CrossRef] [PubMed]
  45. APHA; AWWA; WEF. Standard Methods for the Examination of Water and Wastewater; American Water Works Association: Denver, CO, USA, 2007. [Google Scholar]
  46. Mattei, P.; Cincinelli, A.; Martellini, T.; Natalini, R.; Pascale, E.; Renella, G. Reclamation of river dredged sediments polluted by PAHs by co-composting with green waste. Sci. Total Environ. 2016, 566–567, 567–574. [Google Scholar] [CrossRef] [PubMed]
  47. Sun, F.; Littlejohn, D.; Gibson, M.D. Ultrasonication extraction and solid phase extraction clean-up for determination of US EPA 16 priority pollutant polycyclic aromatic hydrocarbons in soils by reversed-phase liquid chromatography with ultraviolet absorption detection. Anal. Chim. Acta 1998, 364, 1–11. [Google Scholar] [CrossRef]
  48. Trancone, G.; Spasiano, D.; Race, M.; Luongo, V.; Petrella, A.; Pirozzi, F.; Fratino, U.; Piccinni, A. A combined system for asbestos-cement waste degradation by dark fermentation and resulting supernatant valorization in anaerobic digestion. Chemosphere 2022, 300, 134500. [Google Scholar] [CrossRef]
  49. Wang, M.; Chen, Y.; Chen, S.; Chien, S.C.; Sunkara, S. Phytoremediation of pyrene contaminated soils amended with compost and planted with ryegrass and alfalfa. Chemosphere 2012, 87, 217–225. [Google Scholar] [CrossRef]
  50. Benevenute, S.D.S.; Freeman, J.H.; Yang, R. How do pinching and plant density affect industrial hemp produced for cannabinoids in open field conditions? Agron. J. 2021, 114, 618–626. [Google Scholar] [CrossRef]
  51. Campbell, S.; Paquin, D.; Awaya, J.D.; Li, Q.X. Remediation of Benzo[a]pyrene and Chrysene-Contaminated Soil with Industrial Hemp (Cannabis sativa). Int. J. Phytoremed. 2002, 4, 157–168. [Google Scholar] [CrossRef] [PubMed]
  52. Ahmad, M.; Ling, J.; Zhang, Y.; Sajjad, W.; Yang, Q.; Zhou, W.; Dong, J. Effect of pyrene and phenanthrene in shaping bacterial communities in seagrass meadows sediments. Arch. Microbiol. 2021, 203, 4259–4272. [Google Scholar] [CrossRef] [PubMed]
  53. Pannu, J.K.; Singh, A.; Ward, O.P. Influence of peanut oil on microbial degradation of polycyclic aromatic hydrocarbons. Can. J. Microbiol. 2003, 49, 508–513. [Google Scholar] [CrossRef]
  54. Silva, P.T.D.S.E.; da Silva, V.L.; Neto, B.D.B.; Simonnot, M.-O. Phenanthrene and pyrene oxidation in contaminated soils using Fenton’s reagent. J. Hazard. Mater. 2009, 161, 967–973. [Google Scholar] [CrossRef]
  55. Sun, T.-R.; Cang, L.; Wang, Q.-Y.; Zhou, D.-M.; Cheng, J.-M.; Xu, H. Roles of abiotic losses, microbes, plant roots, and root exudates on phytoremediation of PAHs in a barren soil. J. Hazard. Mater. 2010, 176, 919–925. [Google Scholar] [CrossRef] [PubMed]
  56. Alves, W.S.; Manoel, E.A.; Santos, N.S.; Nunes, R.O.; Domiciano, G.C.; Soares, M.R. Phytoremediation of polycyclic aromatic hydrocarbons (PAH) by cv. Crioula: A Brazilian alfalfa cultivar. Int. J. Phytoremed. 2018, 20, 747–755. [Google Scholar] [CrossRef] [PubMed]
  57. Lu, H.; Zhang, Y.; Liu, B.; Liu, J.; Ye, J.; Yan, C. Rhizodegradation gradients of phenanthrene and pyrene in sediment of mangrove (Kandelia candel (L.) Druce). J. Hazard. Mater. 2011, 196, 263–269. [Google Scholar] [CrossRef] [PubMed]
  58. Alam Cheema, S.; Khan, M.I.; Tang, X.; Zhang, C.; Shen, C.; Malik, Z.; Ali, S.; Yang, J.; Shen, K.; Chen, X. Enhancement of phenanthrene and pyrene degradation in rhizosphere of tall fescue (Festuca arundinacea). J. Hazard. Mater. 2009, 166, 1226–1231. [Google Scholar] [CrossRef]
  59. Singh, B.M.; Singh, D.; Dhal, N.K. Enhanced phytoremediation strategy for sustainable management of heavy metals and radionuclides. Case Stud. Chem. Environ. Eng. 2021, 5, 100176. [Google Scholar] [CrossRef]
  60. Gabriele, I.; Race, M.; Papirio, S.; Esposito, G. Phytoremediation of pyrene-contaminated soils: A critical review of the key factors affecting the fate of pyrene. J. Environ. Manag. 2021, 293, 112805. [Google Scholar] [CrossRef] [PubMed]
  61. Sarma, H.; Nava, A.; Prasad, M. Mechanistic understanding and future prospect of microbe-enhanced phytoremediation of polycyclic aromatic hydrocarbons in soil. Environ. Technol. Innov. 2019, 13, 318–330. [Google Scholar] [CrossRef]
  62. Ghosal, D.; Dutta, A.; Chakraborty, J.; Basu, S.; Dutta, T.K. Characterization of the metabolic pathway involved in assimilation of acenaphthene in Acinetobacter sp. strain AGAT-W. Res. Microbiol. 2013, 164, 155–163. [Google Scholar] [CrossRef]
  63. Li, X.; Song, Y.; Bian, Y.; Gu, C.; Yang, X.; Wang, F.; Jiang, X. Insights into the mechanisms underlying efficient Rhizodegradation of PAHs in biochar-amended soil: From microbial communities to soil metabolomics. Environ. Int. 2020, 144, 105995. [Google Scholar] [CrossRef]
  64. Lu, H.; Wang, W.; Li, F.; Zhu, L. Mixed-surfactant-enhanced phytoremediation of PAHs in soil: Bioavailability of PAHs and responses of microbial community structure. Sci. Total Environ. 2018, 653, 658–666. [Google Scholar] [CrossRef]
  65. Roy, M.; Khara, P.; Basu, S.; Dutta, T.K. Catabolic Versatility of Sphingobium sp. Strain PNB Capable of Degrading Structurally Diverse Aromatic Compounds. J. Bioremed. Biodegrad. 2013, 4, 2. [Google Scholar] [CrossRef]
  66. Nzila, A. Update on the cometabolism of organic pollutants by bacteria. Environ. Pollut. 2013, 178, 474–482. [Google Scholar] [CrossRef] [PubMed]
  67. Placido, D.F.; Lee, C.C. Potential of Industrial Hemp for Phytoremediation of Heavy Metals. Plants 2022, 11, 595. [Google Scholar] [CrossRef] [PubMed]
  68. Almeida, C.M.R.; Mucha, A.P.; Delgado, M.F.; Caçador, M.I.; Bordalo, A.; Vasconcelos, M.T.S. Can PAHs influence Cu accumulation by salt marsh plants? Mar. Environ. Res. 2008, 66, 311–318. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  69. Agnello, A.C.; Bagard, M.; van Hullebusch, E.D.; Esposito, G.; Huguenot, D. Comparative bioremediation of heavy metals and petroleum hydrocarbons co-contaminated soil by natural attenuation, phytoremediation, bioaugmentation and bioaugmentation-assisted phytoremediation. Sci. Total Environ. 2016, 563–564, 693–703. [Google Scholar] [CrossRef]
  70. Ali, H.; Khan, E.; Sajad, M.A. Phytoremediation of heavy metals—Concepts and applications. Chemosphere 2013, 91, 869–881. [Google Scholar] [CrossRef]
  71. Lin, Q.; Shen, K.-L.; Zhao, H.-M.; Li, W.-H. Growth response of Zea mays L. in pyrene–copper co-contaminated soil and the fate of pollutants. J. Hazard. Mater. 2008, 150, 515–521. [Google Scholar] [CrossRef]
  72. Kashyap, N.; Roy, K.; Moholkar, V.S. Mechanistic investigation in Co-biodegradation of phenanthrene and pyrene by Candida tropicalis MTCC 184. Chem. Eng. J. 2020, 399, 125659. [Google Scholar] [CrossRef]
  73. Arru, L.; Rognoni, S.; Baroncini, M.; Bonatti, P.M.; Perata, P. Copper localization in Cannabis sativa L. grown in a copper-rich solution. Euphytica 2004, 140, 33–38. [Google Scholar] [CrossRef]
  74. Bona, E.; Marsano, F.; Cavaletto, M.; Berta, G. Proteomic characterization of copper stress response in Cannabis sativa roots. Proteomics 2007, 7, 1121–1130. [Google Scholar] [CrossRef]
  75. Elisa, B.; Marsano, F.; Cavaletto, M.; Berta, G. Copper stress in Cannabis sativaroots: Morphological and pro-teomic analysis. Caryologia 2007, 60, 96–101. [Google Scholar] [CrossRef] [Green Version]
  76. Angelova, V.; Ivanova, R.; Delibaltova, V.; Ivanov, K. Bio-accumulation and distribution of heavy metals in fibre crops (flax, cotton and hemp). Ind. Crops Prod. 2004, 19, 197–205. [Google Scholar] [CrossRef]
  77. Malik, R.; Husain, S.; Nazir, I. Heavy metal contamination and accumulation in soil and wild plant species from industrial area of Islamabad, Pakistan. Pak. J. Bot. 2010, 42, 291–301. [Google Scholar]
  78. Ahmad, R.; Tehsin, Z.; Malik, S.T.; Asad, S.A.; Shahzad, M.; Bilal, M.; Shah, M.M.; Khan, S.A. Phytoremediation Potential of Hemp (Cannabis sativa L.): Identification and Characterization of Heavy Metals Responsive Genes. CLEAN—Soil Air Water 2015, 44, 195–201. [Google Scholar] [CrossRef]
  79. Amin, H.; Arain, B.A.; Jahangir, T.M.; Abbasi, A.R.; Mangi, J.; Abbasi, M.S.; Amin, F. Copper (Cu) tolerance and accumulation potential in four native plant species: A comparative study for effective phytoextraction technique. Geol. Ecol. Landsc. 2019, 5, 53–64. [Google Scholar] [CrossRef] [Green Version]
  80. Xu, S.; Chen, Y.; Wu, W.; Wang, K.; Lin, Q.; Liang, X. Enhanced dissipation of phenanthrene and pyrene in spiked soils by combined plants cultivation. Sci. Total Environ. 2006, 363, 206–215. [Google Scholar] [CrossRef]
  81. Goswami, S.; Das, S. Copper phytoremediation potential of Calandula officinalis L. and the role of antioxidant enzymes in metal tolerance. Ecotoxicol. Environ. Saf. 2016, 126, 211–218. [Google Scholar] [CrossRef]
  82. Sivaram, A.K.; Logeshwaran, P.; Subashchandrabose, S.R.; Lockington, R.; Naidu, R.; Megharaj, M. Comparison of plants with C3 and C4 carbon fixation pathways for remediation of polycyclic aromatic hydrocarbon contaminated soils. Sci. Rep. 2018, 8, 2100. [Google Scholar] [CrossRef]
  83. Cameselle, C.; Gouveia, S. Phytoremediation of mixed contaminated soil enhanced with electric current. J. Hazard. Mater. 2018, 361, 95–102. [Google Scholar] [CrossRef]
  84. Reddy, K.R.; Amaya-Santos, G.; Yargicoglu, E.; Cooper, D.E.; Negri, M.C. Phytoremediation of heavy metals and PAHs at slag fill site: Three-year field-scale investigation. Int. J. Geotech. Eng. 2019, 13, 32–47. [Google Scholar] [CrossRef]
  85. Wang, K.; Zhang, J.; Zhu, Z.; Huang, H.; Li, T.; He, Z.; Yang, X.; Alva, A. Pig manure vermicompost (PMVC) can improve phytoremediation of Cd and PAHs co-contaminated soil by Sedum alfredii. J. Soils Sediments 2012, 12, 1089–1099. [Google Scholar] [CrossRef]
  86. Vangronsveld, J.; Herzig, R.; Weyens, N.; Boulet, J.; Adriaensen, K.; Ruttens, A.; Thewys, T.; Vassilev, A.; Meers, E.; Nehnevajova, E.; et al. Phytoremediation of contaminated soils and groundwater: Lessons from the field. Environ. Sci. Pollut. Res. 2009, 16, 765–794. [Google Scholar] [CrossRef]
  87. Saxena, G.; Purchase, D.; Mulla, S.I.; Saratale, G.D.; Bharagava, R.N. Phytoremediation of Heavy Metal-Contaminated Sites: Eco-environmental Concerns, Field Studies, Sustainability Issues, and Future Prospects. In Reviews of Environmental Contamination and Toxicology; Springer: Cham, Swizerland, 2019; Volume 249, pp. 71–131. [Google Scholar] [CrossRef] [Green Version]
  88. Licht, L.A.; Isebrands, J. Linking phytoremediated pollutant removal to biomass economic opportunities. Biomass Bioenergy 2005, 28, 203–218. [Google Scholar] [CrossRef]
  89. Tripathi, V.; Edrisi, S.A.; Abhilash, P. Towards the coupling of phytoremediation with bioenergy production. Renew. Sustain. Energy Rev. 2016, 57, 1386–1389. [Google Scholar] [CrossRef]
  90. Hunce, S.Y.; Clemente, R.; Bernal, M.P. Energy production potential of phytoremediation plant biomass: Helianthus annuus and Silybum marianum. Ind. Crops Prod. 2019, 135, 206–216. [Google Scholar] [CrossRef]
  91. Jiang, Y.; Lei, M.; Duan, L.; Longhurst, P. Integrating phytoremediation with biomass valorisation and critical element recovery: A UK contaminated land perspective. Biomass Bioenergy 2015, 83, 328–339. [Google Scholar] [CrossRef] [Green Version]
  92. Cristaldi, A.; Conti, G.O.; Jho, E.H.; Zuccarello, P.; Grasso, A.; Copat, C.; Ferrante, M. Phytoremediation of contaminated soils by heavy metals and PAHs. A brief review. Environ. Technol. Innov. 2017, 8, 309–326. [Google Scholar] [CrossRef]
  93. Chen, W.; Li, H. Cost-Effectiveness Analysis for Soil Heavy Metal Contamination Treatments. Water Air Soil Pollut. 2018, 229, 126. [Google Scholar] [CrossRef]
  94. Lasat, M.M. Phytoextraction of Metals from Contaminated Soil: A Review of Plant/Soil/Metal Interaction and Assessment of Pertinent Agronomic Issues. J. Hazard. Subst. Res. 1999, 2, 5. [Google Scholar] [CrossRef] [Green Version]
  95. Yap, C.L.; Gan, S.; Ng, H.K. Ethyl lactate-Fenton treatment of soil highly contaminated with polycyclic aromatic hydrocarbons (PAHs). Chem. Eng. J. 2012, 200–202, 247–256. [Google Scholar] [CrossRef]
  96. Hahladakis, J.N.; Lekkas, N.; Smponias, A.; Gidarakos, E. Sequential application of chelating agents and innovative surfactants for the enhanced electroremediation of real sediments from toxic metals and PAHs. Chemosphere 2014, 105, 44–52. [Google Scholar] [CrossRef] [PubMed]
  97. Witters, N.; Mendelsohn, R.; Van Slycken, S.; Weyens, N.; Schreurs, E.; Meers, E.; Tack, F.; Carleer, R.; Vangronsveld, J. Phytoremediation, a sustainable remediation technology? Conclusions from a case study. I: Energy production and carbon dioxide abatement. Biomass Bioenergy 2012, 39, 454–469. [Google Scholar] [CrossRef]
  98. USEPA. Green Remediation: Incorporating Sustainable Environmental Practices into Remediation of Contaminated Sites; Office of Solid Waste and Emergency Response: Washington, DC, USA, 2008.

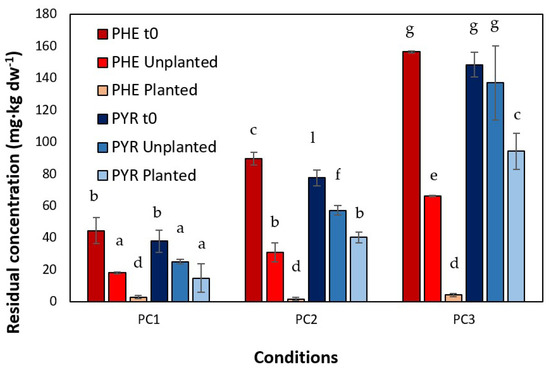

Figure 1. Residual pyrene (PYR) and phenanthrene (PHE) concentrations (mg each PAH kg−1) in the unplanted and planted soil, the latter being treated with 50 d phytoremediation by Cannabis sativa L. PYR t0 and PHE t0 represent the initial concentrations. The reported values are the means of three replicate analyses. The error bars display the RSD (residual standard deviations). The same letter represents no significant differences (p > 0.05) among total PAH removal after 50 days of phytoremediation.
Figure 1. Residual pyrene (PYR) and phenanthrene (PHE) concentrations (mg each PAH kg−1) in the unplanted and planted soil, the latter being treated with 50 d phytoremediation by Cannabis sativa L. PYR t0 and PHE t0 represent the initial concentrations. The reported values are the means of three replicate analyses. The error bars display the RSD (residual standard deviations). The same letter represents no significant differences (p > 0.05) among total PAH removal after 50 days of phytoremediation.
Sustainability 15 01852 g001

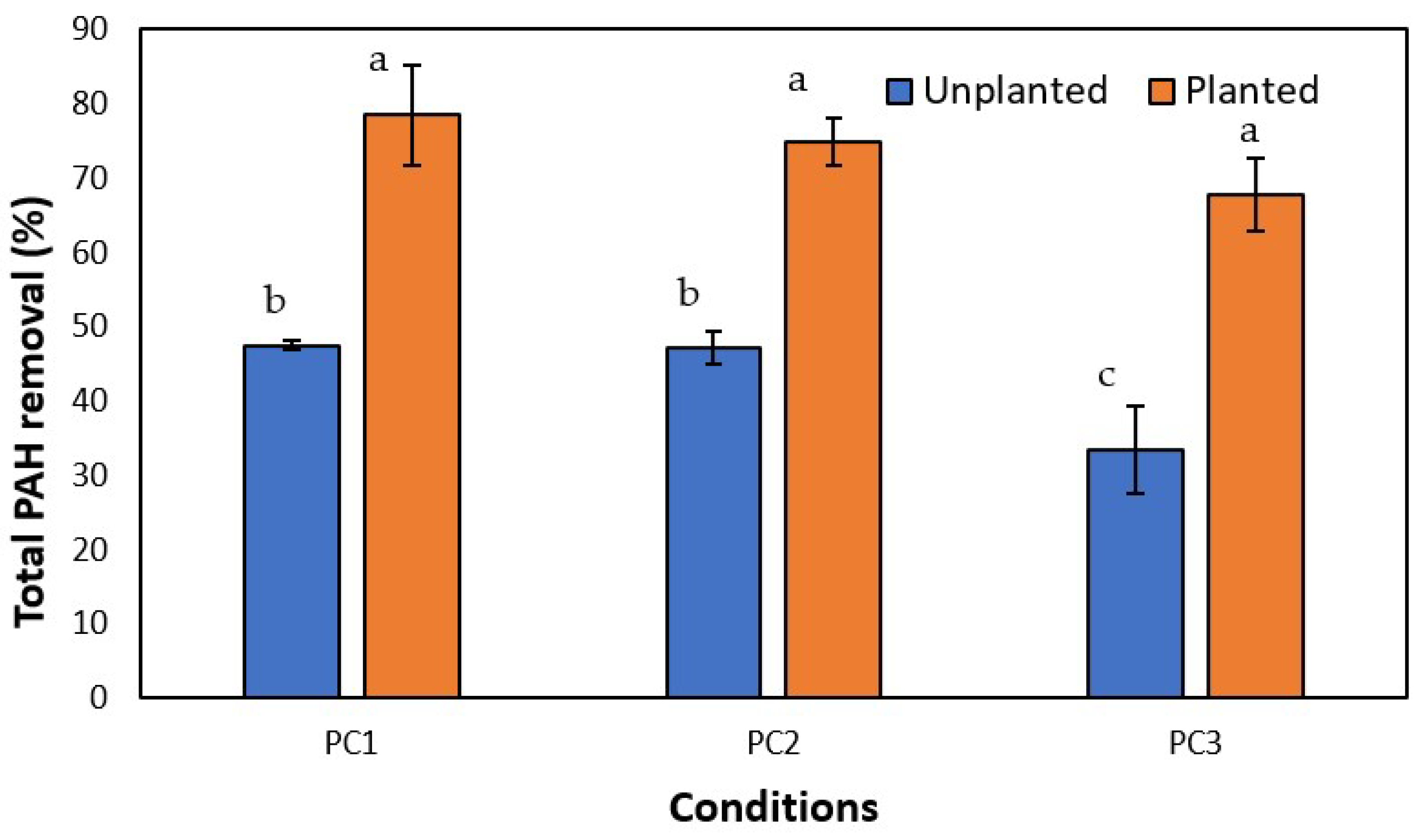

Figure 2. Total PAH removal (%) in the unplanted and planted conditions after 50 d of Cannabis sativa L.-induced phytoremediation. The reported values are the means of three replicate analyses. The error bars display the RSD (residual standard deviations). The same letter represents no significant differences (p > 0.05) among total PAH removal after 50 days of phytoremediation.
Figure 2. Total PAH removal (%) in the unplanted and planted conditions after 50 d of Cannabis sativa L.-induced phytoremediation. The reported values are the means of three replicate analyses. The error bars display the RSD (residual standard deviations). The same letter represents no significant differences (p > 0.05) among total PAH removal after 50 days of phytoremediation.
Sustainability 15 01852 g002

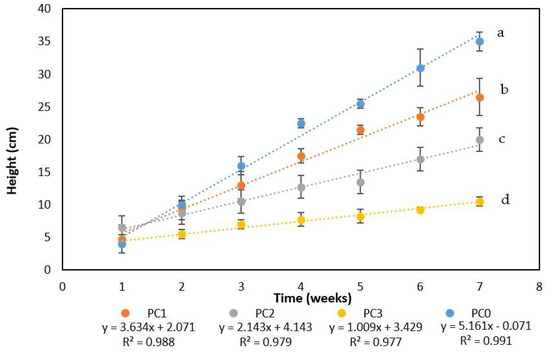

Figure 3. Measurements of the height (cm) of Cannabis sativa L. during the phytoremediation of PAH- and Cu-contaminated soil (PC1, PC2, and PC3 conditions) and the unspiked control. Values are the means of three replicate analyses. The error bars display the RSD (residual standard deviations). The means are interpolated with linear regressions, which are described by equations and determination coefficients (R2) on the graph. The same letter represents no significant differences (p > 0.05) between the reached height at the end of the experiment.
Figure 3. Measurements of the height (cm) of Cannabis sativa L. during the phytoremediation of PAH- and Cu-contaminated soil (PC1, PC2, and PC3 conditions) and the unspiked control. Values are the means of three replicate analyses. The error bars display the RSD (residual standard deviations). The means are interpolated with linear regressions, which are described by equations and determination coefficients (R2) on the graph. The same letter represents no significant differences (p > 0.05) between the reached height at the end of the experiment.
Sustainability 15 01852 g003
Table 1. Cu removed per g of dry biomass (mg g−1) and Cu removal efficiency after 50 days of Cannabis sativa L. growth under the PC1, PC2, and PC3 operating conditions. The same letter represents no significant differences (p > 0.05) among total Cu removal efficiency after 50 days of phytoremediation.
Table 1. Cu removed per g of dry biomass (mg g−1) and Cu removal efficiency after 50 days of Cannabis sativa L. growth under the PC1, PC2, and PC3 operating conditions. The same letter represents no significant differences (p > 0.05) among total Cu removal efficiency after 50 days of phytoremediation.
ConditionsCu Removed per Gram of Dry Biomass (mg·g−1) Cu Removal Efficiency
Values (%)Tukey’s HSD Test
PC146.0411.06 ± 6.01a
PC257.666.91 ± 12.95a
n.d. = not detectable; n.a. = not applicable.
Table 2. Fresh and dry biomass (g) of aerial parts and roots of Cannabis sativa L. after 50 d of phytoremediation in PC1, PC2, and PC3 (i.e., 100, 200, and 300 mg ƩPAHs kg−1). The obtained values are the means of three replicate analyses and the RSD (residual standard deviations).
Table 2. Fresh and dry biomass (g) of aerial parts and roots of Cannabis sativa L. after 50 d of phytoremediation in PC1, PC2, and PC3 (i.e., 100, 200, and 300 mg ƩPAHs kg−1). The obtained values are the means of three replicate analyses and the RSD (residual standard deviations).
ConditionsAerial PartsRootsTotal
Fresh weight (g)
PC03.59 ± 0.130.59 ± 0.022.10 ± 0.01
PC13.33 ± 0.140.29 ± 0.041.81 ± 0.01
PC21.20 ± 0.030.22 ± 0.010.71 ± 0.01
PC31.05 ± 0.070.12 ± 0.020.59 ± 0.05
Dry weight (g)
PC00.37 ± 0.010.063 ± 0.010.43± 0.01
PC10.29 ± 0.010.031 ± 0.010.32 ± 0.01
PC20.12 ± 0.020.028 ± 0.010.15 ± 0.02
PC30.11 ± 0.020.016 ± 0.020.12 ± 0.02
Table 3. Obtained costs for working hours (i.e., pre-plant cultivation, planting, harvesting and post-harvesting operations), management (i.e., field and laboratory work, and general expenses) and seed purchase.
Table 3. Obtained costs for working hours (i.e., pre-plant cultivation, planting, harvesting and post-harvesting operations), management (i.e., field and laboratory work, and general expenses) and seed purchase.
OperationsCost (USD per Ton)
Purchase of the C. sativa L. seeds1.35
Pre-plant cultivation25.30
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Gabriele, I.; Bianco, F.; Race, M.; Papirio, S.; Esposito, G. Phytoremediation of PAH- and Cu-Contaminated Soil by Cannabis sativa L.: Preliminary Experiments on a Laboratory Scale. Sustainability 2023, 15, 1852.

AMA Style

Gabriele I, Bianco F, Race M, Papirio S, Esposito G. Phytoremediation of PAH- and Cu-Contaminated Soil by Cannabis sativa L.: Preliminary Experiments on a Laboratory Scale. Sustainability. 2023; 15(3):1852.

Chicago/Turabian Style

Gabriele, Ilaria, Francesco Bianco, Marco Race, Stefano Papirio, and Giovanni Esposito. 2023. "Phytoremediation of PAH- and Cu-Contaminated Soil by Cannabis sativa L.: Preliminary Experiments on a Laboratory Scale" Sustainability 15, no. 3: 1852.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
