The Use of Artificial Neural Networks for Determining Values of Selected Strength Parameters of Miscanthus × Giganteus

Abstract

The aim of this paper is to develop neural models enabling the determination of biomechanical parameters for giant miscanthus stems. The static three-point bending test is used to determine the bending strength parameters of the miscanthus stem. In this study, we assume the modulus of elasticity bending and maximum stress in bending as the dependent variables. As independent variables (inputs of the neural network) we assume water content, internode number, maximum bending force value and dimensions characterizing the cross-section of miscanthus stem: maximum and minimum stem diameter and stem wall thickness. The four developed neural models, enabling the determination of the value of the modulus of elasticity in bending and the maximum stress in bending, demonstrate sufficient and even very high accuracy. The neural networks have an average relative error of 2.18%, 2.21%, 3.24% and 0.18% for all data subsets, respectively. The results of the sensitivity analysis confirmed that all input variables are important for the accuracy of the developed neural models—correct semantic models.

1. Introduction

At the UN Sustainable Development Summit in 2015, the 2030 Agenda for Sustainable Development with the 17 Sustainable Development Goals was adopted. Goal number 7—“Clean and affordable energy” is related to activities for the development of sustainable and modern energy—renewable energy sources.

One of the very important applications of plant (lignocellulosic) biomass is its use as a renewable energy source. The percentage share of cellulose, hemicellulose and lignin in a given type of biomass may vary, which significantly affects its energy parameters and the possibility of using it for the production of biofuels [1]. Research is carried out on woody [2,3,4] and herbaceous biomass [5], but also pomaces, fruit stones, kernel shells and other residuals [6,7,8,9], and recently on so-called water biomass (algae) [10,11].

The giant miscanthus (miscanthus × giganteus) is one of the most productive plant species, which, thanks to the fast and abundant biomass production, can provide the required amounts of the raw material. It is characterized by a high biomass production potential, which means that it is used to establish industrial biomass plantations throughout Europe and the USA [12,13,14,15]. Giant miscanthus can be successfully used in the production of compact solid biofuels [16,17,18,19], biogas and bioethanol [20,21,22]. Miscanthus’ biomass is used in the production of technical papers, cardboard, packaging plywood or fibers for lining packaging. It can also be a substitute for plastics in the production of packaging [23]. Studies are carried out on miscanthus fibers to develop renewable construction materials—lightweight concrete [24].

The necessity to determine the mechanical properties of materials of plant origin is crucial in the process of designing specific machines for their processing, as well as in the selection of optimal conditions for their operation. It is difficult because the mechanical properties of these types of materials change depending on the environmental conditions (e.g., water content). The results of research on the biomechanical properties of industrial plant stems are used in designing better and more efficient biomass processing equipment (e.g., harvesting and grinding machines) [25,26,27,28,29,30,31,32]. Biomechanical properties can also be used as a selection criterion in a plant breeding program—assessing and adjusting stem mechanical traits may improve stem lodging resistance [33].

Typical laboratory tests aimed at determining the biomechanical properties of plant stems include: bending tests [27,28,29,33,34,35,36], compression tests along or across the stem [36,37], tensile tests [27,32,36], shearing tests [27,29,36] and cutting tests [26,27,28].

In the case of bending, the typical strength parameters determined in the studies of stems of various plants are the modulus of elasticity for bending [27,29,34,35,38] and maximum stress in bending [29,36,38], while the results of the studies conducted so far clearly confirm the influence of the water content and the internode on the values of these strength parameters [27,29,34,35].

Artificial neural network (ANN) is a robust data-modeling tool that is widely used in many applications, such as regression, classification and approximation-based learning processes. Implementation of artificial neural networks for different research proved to be very efficient and accurate. ANNs are characterized by very high accuracy in comparison with other models in certain applications [39,40,41,42,43,44,45].

ANNs are used in various scientific fields, including bioinformatics, biochemistry, medicine, meteorology, economic sciences, robotics, aquaculture, food security and climatology. An example of that is the use of ANNs to approximate the gas volumetric percentage in a gas-oil two phase flow [46]. Multilayer perceptron type ANNs have been used as well to enhance the spatial resolution in detector modules constituting the PET (positron emission tomography) scanner [47]. Artificial neural networks are also used in agriculture, agrophysics or agricultural engineering [16,40,41,43,44,45,48,49,50,51,52,53,54,55,56].

Many ANN applications are related to renewable energy sources (different uses of ANN models for better energy production predictions). Research addresses, for example, the use of ANNs to forecast solar radiation (the main problem for the best use of photovoltaic systems) and wind power forecasting [57,58,59,60,61].

In the field of engineering, ANN was used, among others, to detect accidental damage to the support bearings on the assembly conveyor [62] and to predict tool wear and surface roughness during turning [63]. Several papers have used ANNs to predict paper properties in order to achieve a high-performance process [64].

There are many uses of artificial neural networks in agriculture [49]. The multilayer perceptron neural network was developed to predict the normalized shear strength of organic soils without drainage [65]. ANNs are also employed to control and predict variables in agricultural drying processes, e.g., to identify the dynamics of said processes for tomato, tobacco and willow woodchips [45,66]. Feed-forward artificial neural networks were used to predict energy consumption in closed production plant systems [67]. One very important application area of artificial neural networks in agriculture is the modeling of the greenhouse environment (the greenhouse system is non-linear and variable with time) [68]. Many greenhouse environment predictive models [49,69,70,71,72,73], as well as greenhouse environment and greenhouse energy consumption control systems [74,75,76], have been developed.

The diversification of artificial neural networks applications is large, demonstrating the importance of this tool. They achieve high accuracy, are computationally efficient, and require no knowledge of the physical relationships between inputs and outputs [16,42,43,44,45,49,77,78,79,80,81].

The aim of the paper was to develop neural models enabling the determination of biomechanical parameters for giant miscanthus stems.

In the literature no information has been found on the creation of neural models for determining biomechanical parameters of plant stems, so our approach is innovative.

2. Materials and Methods

2.1. Gathering Experimental Data

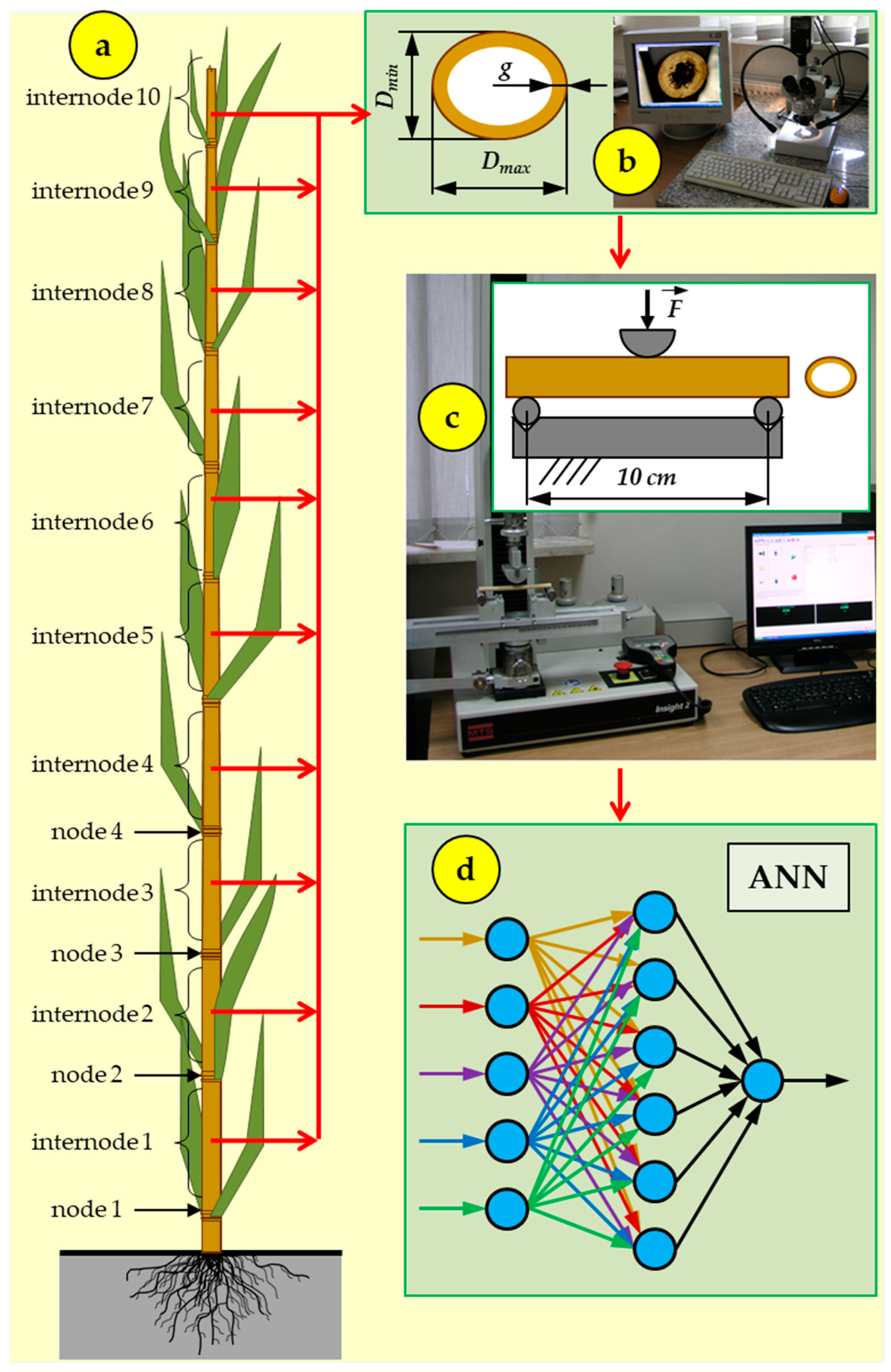

The plant material used for the research (miscanthus stalks) was harvested in February and March. Samples were taken from individual internodes of miscanthus stalks (Figure 1a), then, the dimensions of the cross-section for each sample were determined (Figure 1b) and subjected to three-point bending strength tests (Figure 1c). Three-point bending tests were carried out in the laboratory of the Department of Mechanical Engineering and Agrophysics. The water content of miscanthus stalks was determined with the drying method, independently for each internode.

The static three-point bending test was used to determine the bending strength parameters of the miscanthus stem. The elliptical shape of the miscanthus stalk cross-section was adopted.

The modulus of elasticity for bending (MOE_bend) and maximum stress in bending (σ_bend) for miscanthus stem was calculated from the equations:

$${\mathrm{MOE}}_{\mathrm{bend}}=\frac{\Delta {\mathrm{F}}_{\mathrm{bend}}·{\mathrm{L}}^3}{48·{\mathrm{I}}_{\mathrm{major}}·\Delta \mathrm{f}}=\frac{\left({\mathrm{F}}_{\mathrm{bend}2}-{\mathrm{F}}_{\mathrm{bend}1}\right)·{\mathrm{L}}^3}{12·\mathsf{\pi }·\left({\mathrm{f}}_2-{\mathrm{f}}_1\right)·\left({\mathrm{a}}^3·\mathrm{b}-{\mathrm{a}}_1^3·{\mathrm{b}}_1\right)}$$

(1)

$${\mathsf{\sigma }}_{\mathrm{bend}\max }=\frac{{\mathrm{M}}_{\mathrm{bendmax}}·\mathrm{a}}{{\mathrm{I}}_{\mathrm{major}}}=\frac{{\mathrm{F}}_{\mathrm{bend}}·\mathrm{L}·\mathrm{a}}{\mathsf{\pi }·\left({\mathrm{a}}^3·\mathrm{b}-{\mathrm{a}}_1^3·{\mathrm{b}}_1\right)}$$

(2)

where:

• MOE_bend—modulus of elasticity bending (MPa),
• ΔF_bend—change in the value of the bending force in the range of the linear characteristic (N),
• L—distance between supports (mm),
• I_major—moment of inertia around neutral axis (ellipse major axis) (mm⁴),
• Δf—the deflection of the stem in the range of the linear characteristic (mm),
• F_bend1—value of the initial bending force (N),
• F_bend2—value of the main bending force (N),
• f₁—initial deflection of the stem (mm),
• f₂—stem deflection for F_bend2 (mm),
• a—the length of the semi-minor axis of the ellipse (mm),
• b—the length of the semi-major axis of the ellipse (mm),
• a₁—the semi-minor axis of the ellipse a minus the stalk wall thickness g (mm),
• b₁—the semi-major axis of the ellipse b minus the stalk wall thickness g (mm).
• σ_{bend max}—maximum stress in bending (MPa),
• M_bendmax—maximum bending moment about neutral axis (N·mm),
• I_major—moment of inertia around neutral axis (ellipse major axis), (mm⁴),
• F_bend—maximum bending force value (N).

The static three-point bending tests of the stalks were performed in replicates of 15 for each of the five internodes and for each of the two humidities.

2.2. Semantic Models Formulation

The creation of an ANN model begins with adopting a semantic–conceptual model. Such a model should be logically resemble to the theory describing modeled phenomenon in the form of a system of objects and relations between them.

In the case of models using artificial neural networks, the development of a semantic model requires the selection of independent variables (network inputs) and dependent variable or variables (network outputs). If the goal is to determine the value of several dependent variables, better results are obtained by developing several neural models (one ANN for each variable) than one model with several outputs.

In this study, we assumed the modulus of elasticity bending and maximum stress in bending as the dependent variables (biomechanical parameters characterizing the strength of the miscanthus stem).

As independent variables (inputs of the neural network), we assumed water content Wcont, internode number NrNod, maximum bending force value F_bend and dimensions characterizing the cross-section of miscanthus stem: maximum stem diameter D_{stem Max}, minimum stem diameter D_{stem min} and stem wall thickness Th_{stem wall}.

Four semantic models were formulated:

Model A: MOE_bend = f (Wcont, NrNod, D_{stem Max}, D_{stem min}, Th_{stem wall}),

(3)

Model B: σ_bend = f (Wcont, NrNod, D_{stem Max}, D_{stem min}, Th_{stem wall}),

(4)

Model C: MOE_bend = f (Wcont, NrNod, D_{stem Max}, D_{stem min}, Th_{stem wall}, F_bend),

(5)

Model D: σ_bend = f (Wcont, NrNod, D_{stem Max}, D_{stem min}, Th_{stem wall}, F_bend),

(6)

where:

• MOE_bend—modulus of elasticity bending (MPa),
• σ_bend—maximum stress in bending (MPa),
• Wcont—water content (kg_water·kg_{dry mass}⁻¹),
• NrNod—internode number (-),
• D_{stem Max}—maximum stem diameter (mm),
• D_{stem min}—minimum stem diameter (mm),
• Th_{stem wall}—stem wall thickness (mm),
• F_bend—maximum bending force value (N).

Semantic models A and B allow one to determine the values of the modulus of elasticity bending and maximum stress in bending without performing a three-point bending test. However, an additional variable introduced in models C and D (F_bend—maximum bending force value) requires an endurance test.

2.3. Selecting Neural Network’s Type and Carrying Out the Process of Learning

In preliminary studies, the accuracy of models using two different types of feed-forward ANNs—multilayer radial basis function networks and multilayer perceptron neural networks (MLP) networks were checked. As MLP networks demonstrated much greater accuracy in further research, only this type of network was used.

The number of neurons in the input and output layers is determined by the number of inputs and outputs from the neural network. In our research, the number of neurons in the input layer was 5 (for models A and B) and 6 (for models C and D), while there was 1 neuron in the output layer. The number of neurons in the hidden layer was changed from 3 to 11 in the course of a repeated process of network learning.

The development of neural models was performed using the specialized software Statistica Neural Networks (Dell Inc. (2016). Dell Statistica (data analysis software system), version 13, StatSoft, Inc., Tulsa, OK, USA). To obtain as accurate models as possible, we applied the procedure of multiple repeats using the function “Automatic Designer”. Such a procedure allows for obtaining accurate neural models, as the ANN learning process is stochastic.

For each of the four semantic models (Equations (3)–(6)), 100 ANNs with different architectures were developed, with the 10 most accurate networks for each of the four semantic models retained for further analysis.

The entire data set obtained from the measurements, consisting of 1050 patterns (7 water content, 10 internodes and 15 repetitions for each Wcont value and each internode) was randomly divided into learning, testing and validation subsets.

The learning subset is used to create neural models in the ANNs’ learning process. The other two subsets are not used in the learning process. The test subset is used to select the best ANNs, while the validation subset is used to assess the ability to generalize the acquired knowledge by the ANN—it allows one to assess the accuracy of the neural network for completely new data.

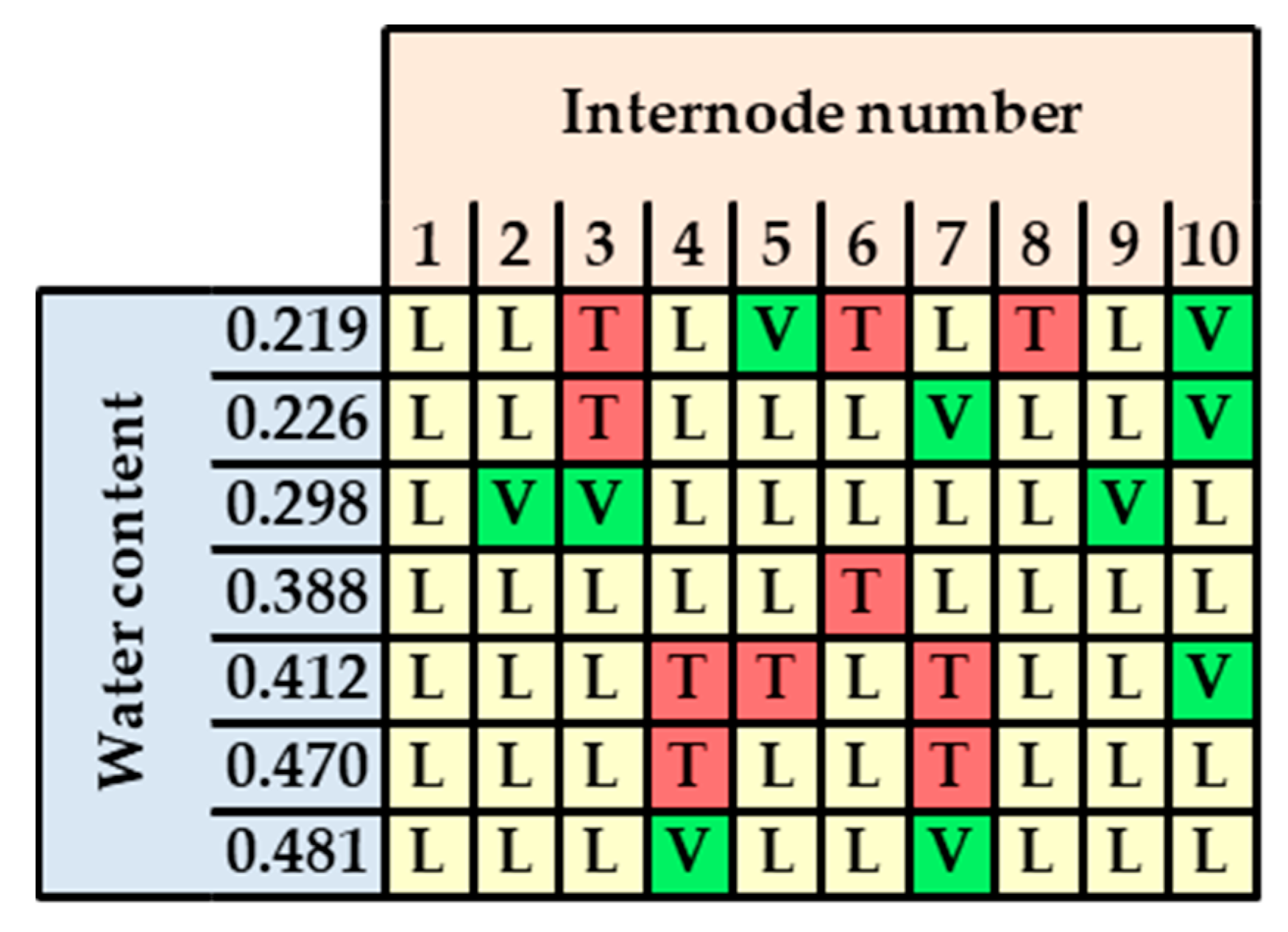

The division was carried out for groups of measurements—for the individual values of Wcont and NrNod (Figure 2), assuming that 70% are learning subset, 15% testing subset and 15% validation subset:

• learning subset: Wcont = 0.219 (NrNod = 1, 2, 4, 7, 9); Wcont = 0.226 (NrNod = 1, 2, 4, 5, 6, 8, 9); Wcont= 0.298 (NrNod = 1, 4, 5, 6, 7, 8, 10); Wcont = 0.388 (NrNod = 1, 2, 3, 4, 5, 7, 8, 9, 10); Wcont = 0.412 (NrNod = 1, 2, 3, 6, 8, 9); Wcont = 0.470 (NrNod = 1, 2, 3, 5, 6, 8, 9, 10); Wcont = 0.481 (NrNod = 1, 2, 3, 5, 6, 8, 9, 10);
• testing subset: Wcont = 0.219 (NrNod = 3, 6, 8); Wcont = 0.226 (NrNod = 3); Wcont = 0.388 (NrNod = 6); Wcont = 0.412 (NrNod = 4, 5, 7); Wcont = 0.470 (NrNod = 4, 7);
• validation subset: Wcont = 0.219 (NrNod = 5); Wcont = 0.226 (NrNod = 7, 10); Wcont = 0.298 (NrNod = 2, 3, 9); Wcont = 0.412 (NrNod = 10); Wcont = 0.481 (NrNod = 4, 7).

In the learning process, four different activation functions were used: linear, logistic, hyperbolic tangent and exponential. The BFGS (Broyden-Fletcher-Goldfarb-Shanno) algorithm was used in the learning process. The BFGS algotithm is a quasi-Newton optimization method, which provides good convergence and is the most recommended technique for training neural networks [82,83,84].

2.4. Choosing and Assessing the Best Neural Models

As the criterion for selecting the best ANN, the value of root mean-square error (RMSE) was selected for testing the data subset, independently for the four adopted semantic models, calculated according to the formula:

$$\mathrm{RMSE}=\sqrt{\frac{1}{n}{\displaystyle \sum }_{i=1}^n{\left(Y_{ME,i}-Y_{ANN,i}\right)}^2}$$

(7)

where:

• RMSE—root mean-square error (MPa),
• Y_ME,i—measured value of output (MPa),
• Y_ANN,i—calculated by ANN value of output (MPa),
• n—number of observations (-).

RSME is a commonly used statistical error to evaluate the model’s performance [54,73,75,85].

For the analysis of selected neural models, the mean absolute percentage error (MAPE) was used:

$$\mathrm{MAPE}=\frac{1}{n}{\displaystyle \sum }_{i=1}^n\left|\frac{Y_{ME,i}-Y_{ANN,i}}{Y_{ME,i}}\right|·100\%$$

(8)

where:

• MAPE—mean absolute percentage error (%),
• |…|—absolute value (-).
• Y_ME,i—measured value of output (MPa),
• Y_ANN,i—calculated by ANN value of output (MPa),
• n—number of observations (-).

In order to evaluate the assumed independent variables in the semantic models, a sensitivity analysis was performed for selected neural models. Sensitivity analysis, based on the value of the error quotient, allows one to determine which variables in the model are important for its accuracy. The greater the value of this quotient, the more important the input field is for the accuracy of the model.

3. Results

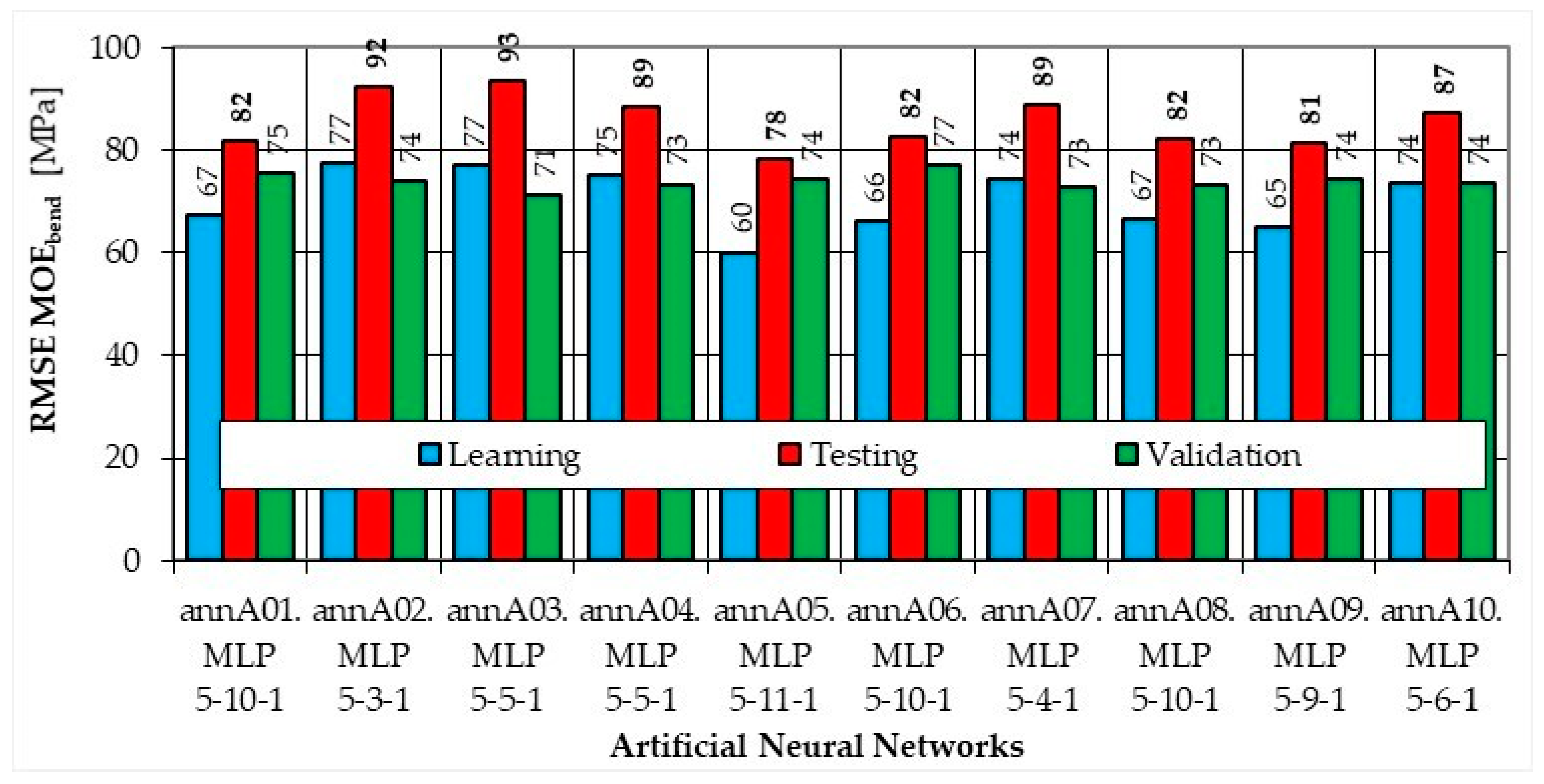

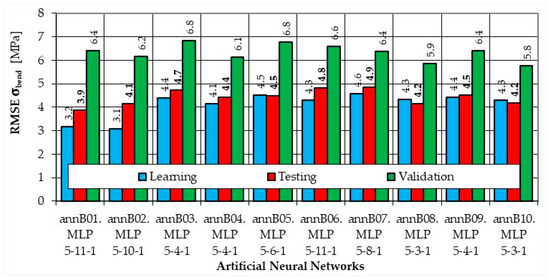

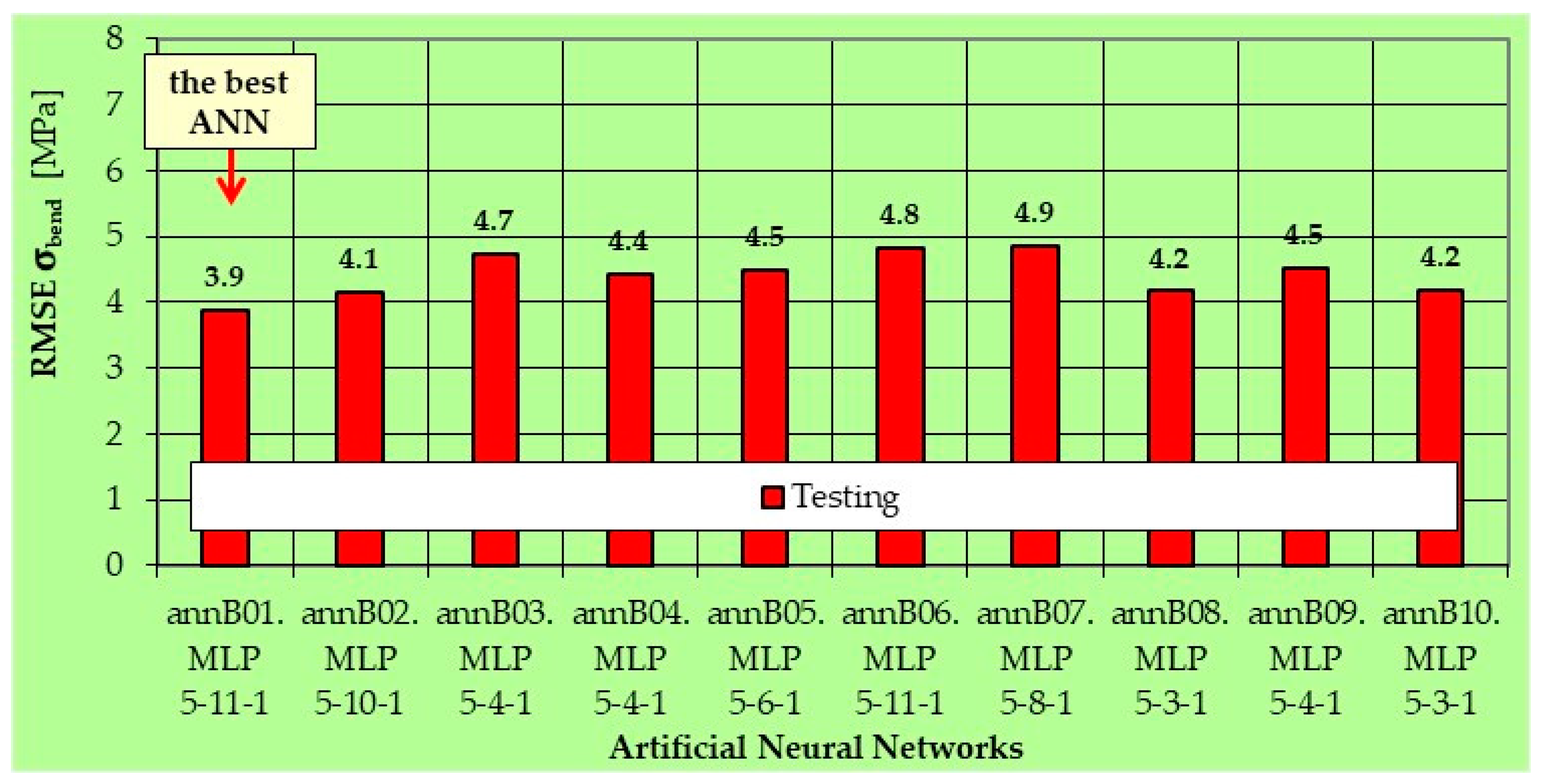

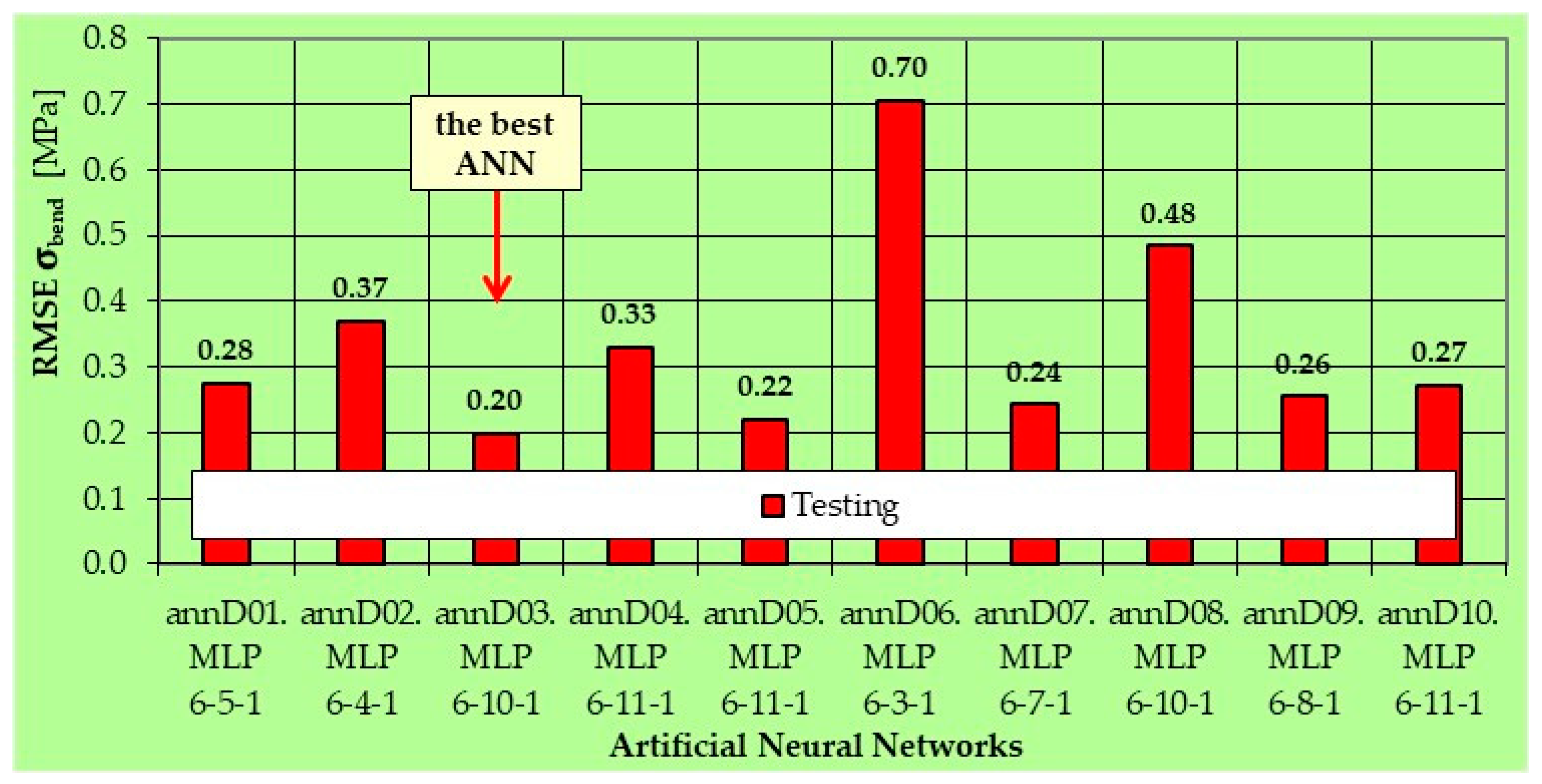

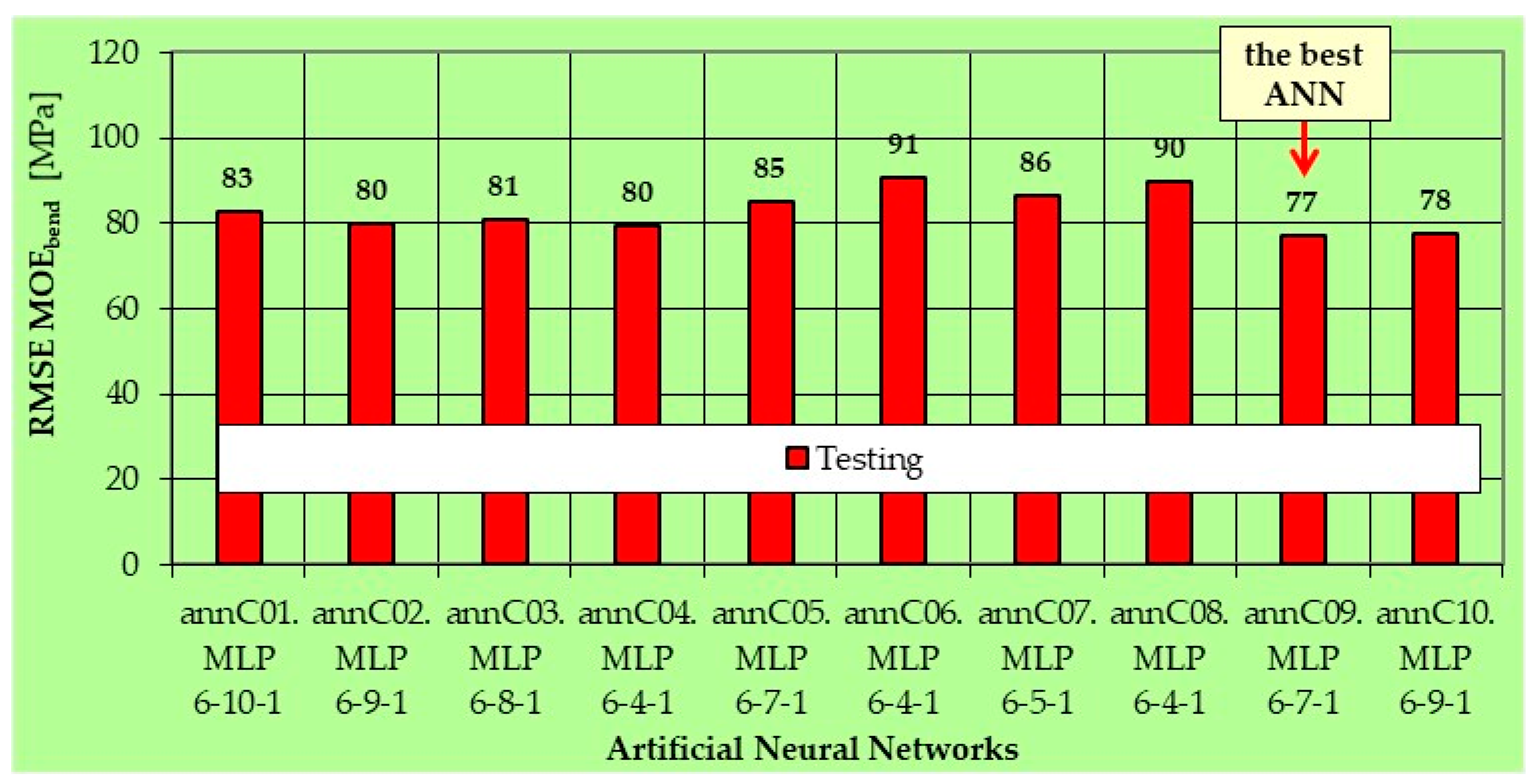

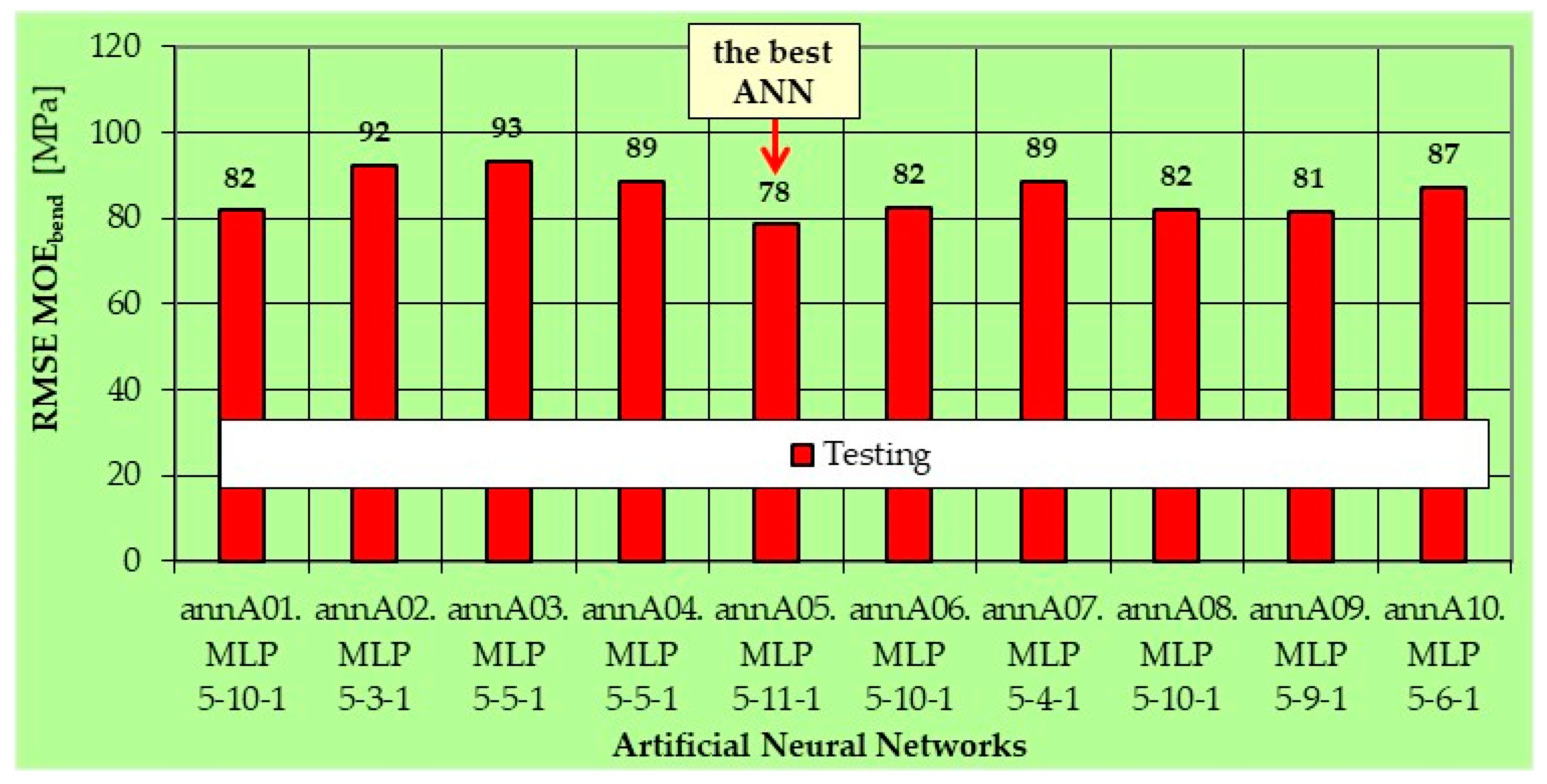

Figure 3, Figure 4, Figure 5 and Figure 6 summarize the RMSE values for all developed neural networks for the testing subsets. Based on these values, the best neural networks were selected. RMSE values for all subsets of data (learning, testing and validation) are provided in Appendix A (Figure A1, Figure A2, Figure A3 and Figure A4).

For the MOE_bend variable, for the testing subset, the smallest RMSE error value = 78 MPa was calculated for the annA05 MLP 5-11-1 neural network (Figure 3). For σ_bend, the smallest error for the testing subset (RMSE = 3.9 MPa) was calculated for the annB01 MLP 5-11-1 network (Figure 4). For the neural networks developed in accordance with the C semantic model, the lowest RMSE value = 77 MPa for the testing subset was obtained for annC09 MLP 6-7-1 (Figure 5). The developed neural networks in accordance with the semantic model D, which allow for the determination of σ_bend, achieved very high accuracy. The minimum RMSE error value = 0.20 MPa (for the testing subset) had annD03 MLP 6-10-1 (Figure 6). The above neural networks were selected as the best and subjected to further analysis.

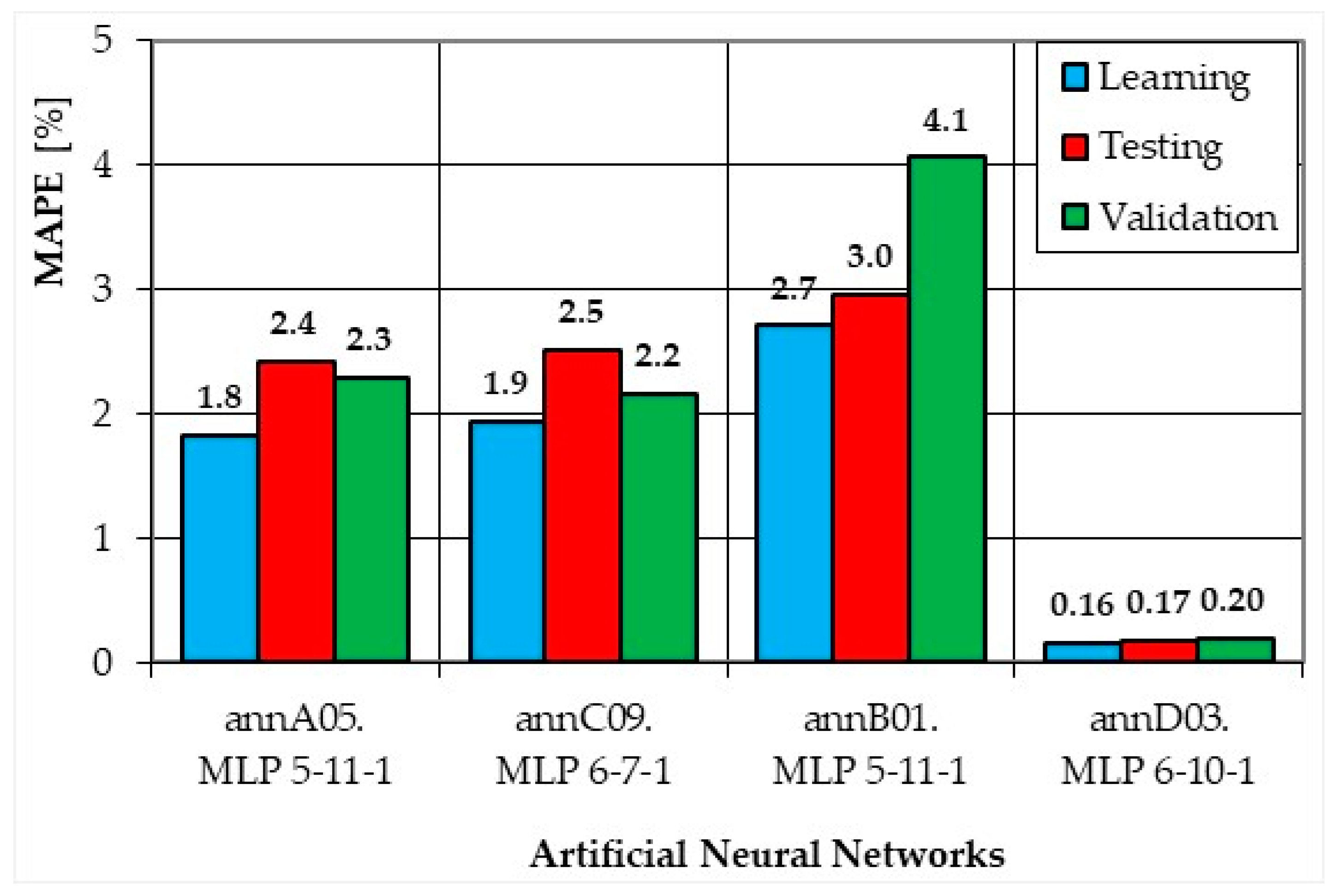

Figure 7 summarizes the MAPE error values for the selected four best neural models for the learning, testing and validation data subsets. MAPE values for all developed neural networks are included in Appendix B (Figure A5, Figure A6, Figure A7 and Figure A8).

The sensitivity analysis results for selected neural networks annA05, annB01, annC09 and annD03 are presented in

Table 1. Sensitivity analysis for selected neural models annA05 and annB051 for validation data subset.

Dependent Variable ANN Model		Independent Variables (ANN Inputs)
		Wcont *	NrNod *	Dstem Max *	Dstem min *	Thstem wall *
MOEbend annA05 (MLP 5-11-1)	Error quotient	4.3	1.8	2.6	8.3	6.5
	rank	3	5	4	1	2
σbend annB01 (MLP 5-11-1)	Error quotient	8.7	4.7	6.0	8.9	19.7
	rank	3	5	4	2	1

* Wcont—water content (kg_water·kg_{dry mass}⁻¹), NrNod—internode numer (-), D_{stem Max}—maximum stem diameter (mm), D_{stem min}—minimum stem diameter (mm) and Th_{stem wall}—stem wall thickness (mm).

and

Table 2. Sensitivity analysis for selected neural models, annC09 and annD03, for the validation data subset.

Dependent Variable ANN Model		Independent Variables (ANN Inputs)
		Wcont *	NrNod *	Dstem Max *	Dstem min *	Thstem wall *	Fbend Max *
MOEbend annC09 (MLP 6-7-1)	Error quotient	2.4	3.1	1.3	5.5	2.2	2.6
	rank	4	2	6	1	5	3
σbend annD03 (MLP 6-10-1)	Error quotient	3.3	9.7	4826	11,964	7021	29,524
	rank	6	5	4	2	3	1

* Wcont—water content (kg_water·kg_{dry mass}⁻¹), NrNod—internode numer (-), D_{stem Max}—maximum stem diameter (mm), D_{stem min}—minimum stem diameter (mm), Th_{stem wall}—stem wall thickness (mm) and F_{bend Max}—maximum bending force value (N).

(for validation subset). Error ratio values (greater than 1) indicate that all adopted semantic models A, B, C and D are correct.

Table 3. Characteristic of selected neural models.

ANN	Type and Architecture of the Neural Network	Neuron Number in Input Layer	Liczba Neuronów in Hidden Layer	Liczba Neuronów in Ouput Layer	Learning Algorithm	Activation Function in Hidden Layer	Activation Function in Ouput Layer
annA05	MLP 5-11-1	5	11	1	BFGS 170	Logistic	Exponential
annB01	MLP 5-11-1	5	11	1	BFGS 178	Logistic	Exponential
annC09	MLP 6-7-1	6	7	1	BFGS 82	Logistic	Exponential
annD03	MLP 6-10-1	6	10	1	BFGS 237	Logistic	Linear

BFGS—Broyden-Fletcher-Goldfarb-Shanno algorithm; MLP—multilayer perceptron.

lists the architecture, training algorithm and activation functions of the selected ANNs.

Figure 8 and Figure 9 show the MAPE error values for selected (best) models developed in accordance with the semantic models A, B, C and D (annA05, annC09, annB01 and annD03), for validation subsets. MAPE errors were calculated for individual measurement conditions—for the set levels of the independent variables Wcont and NrNod.

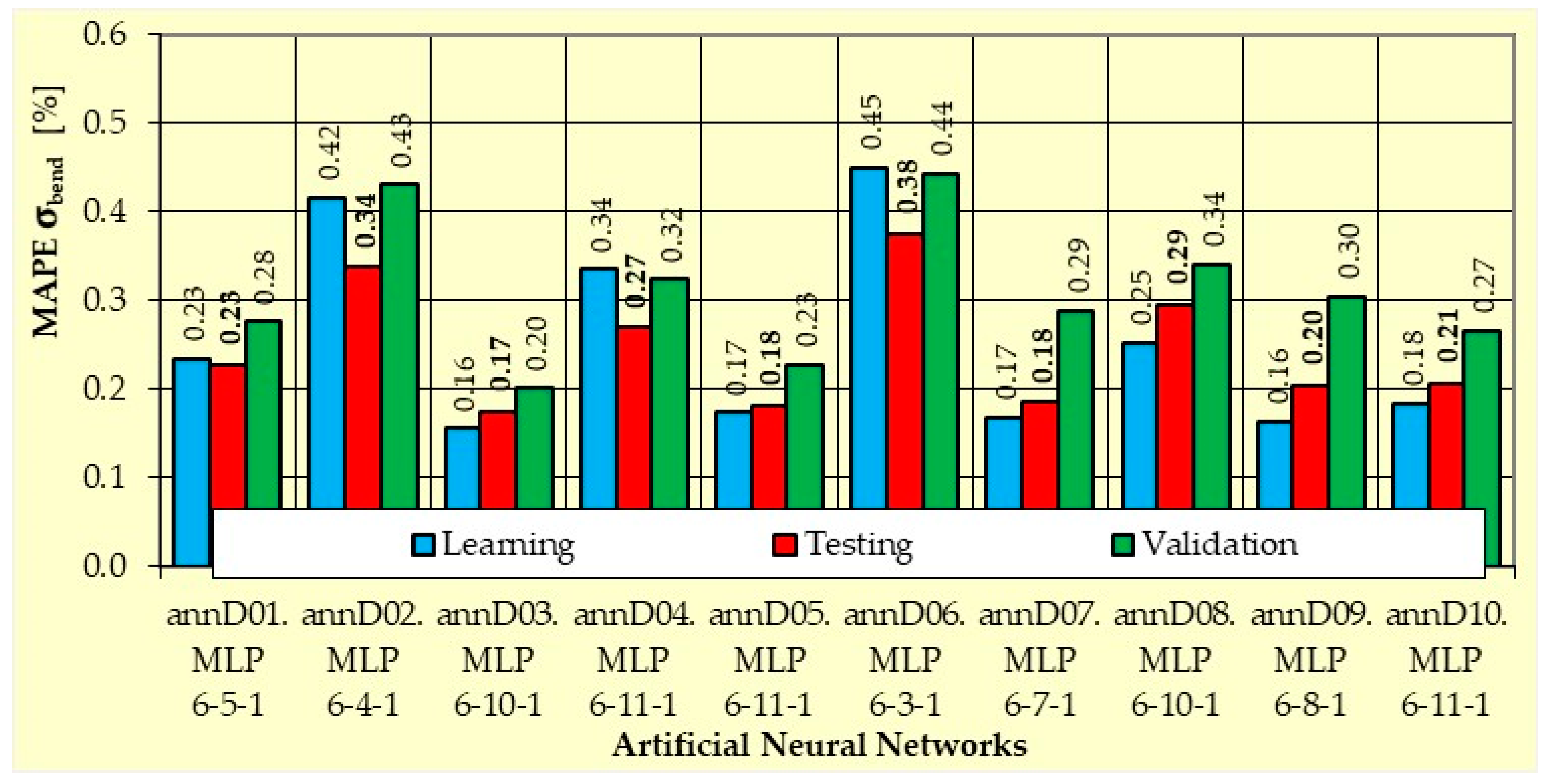

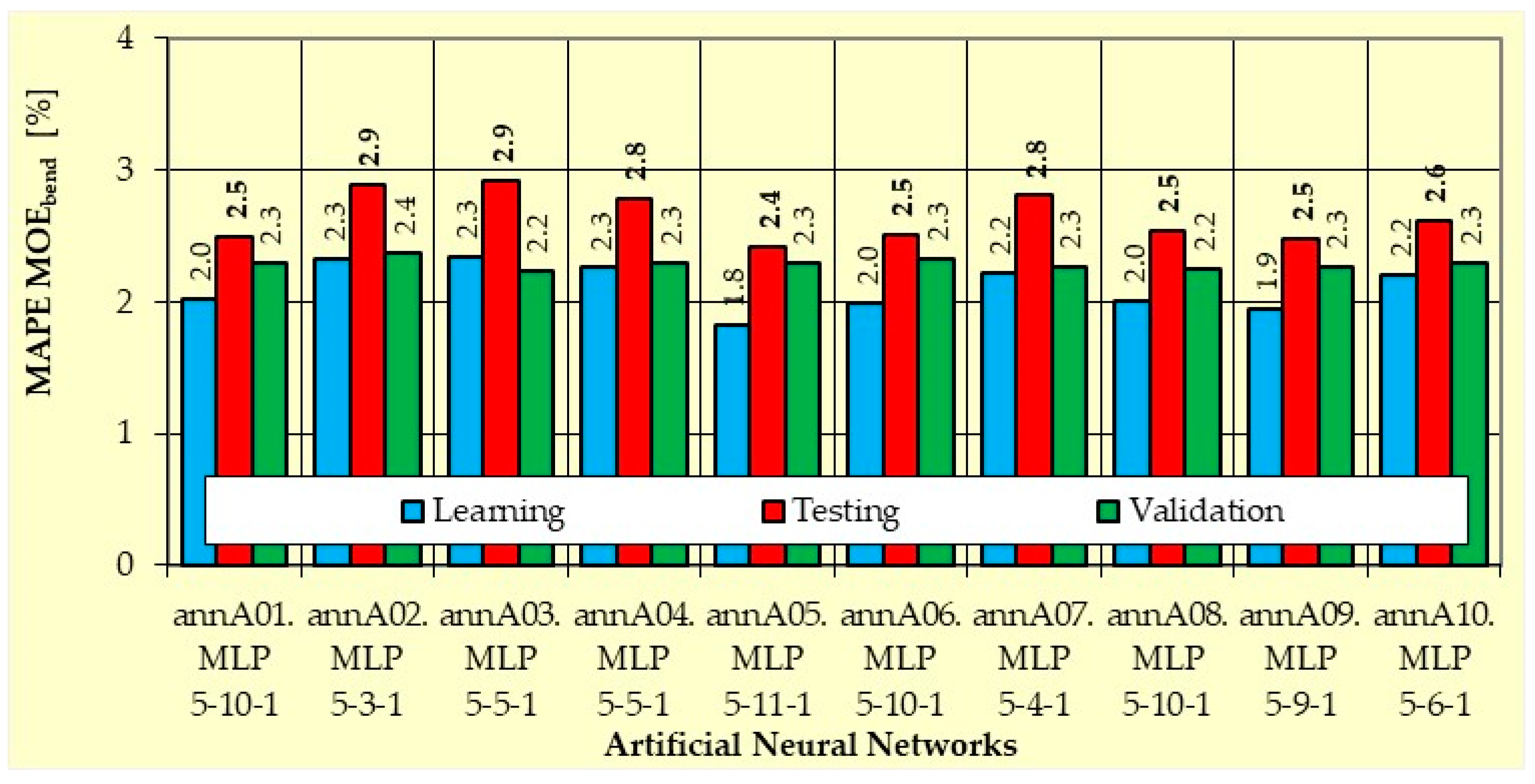

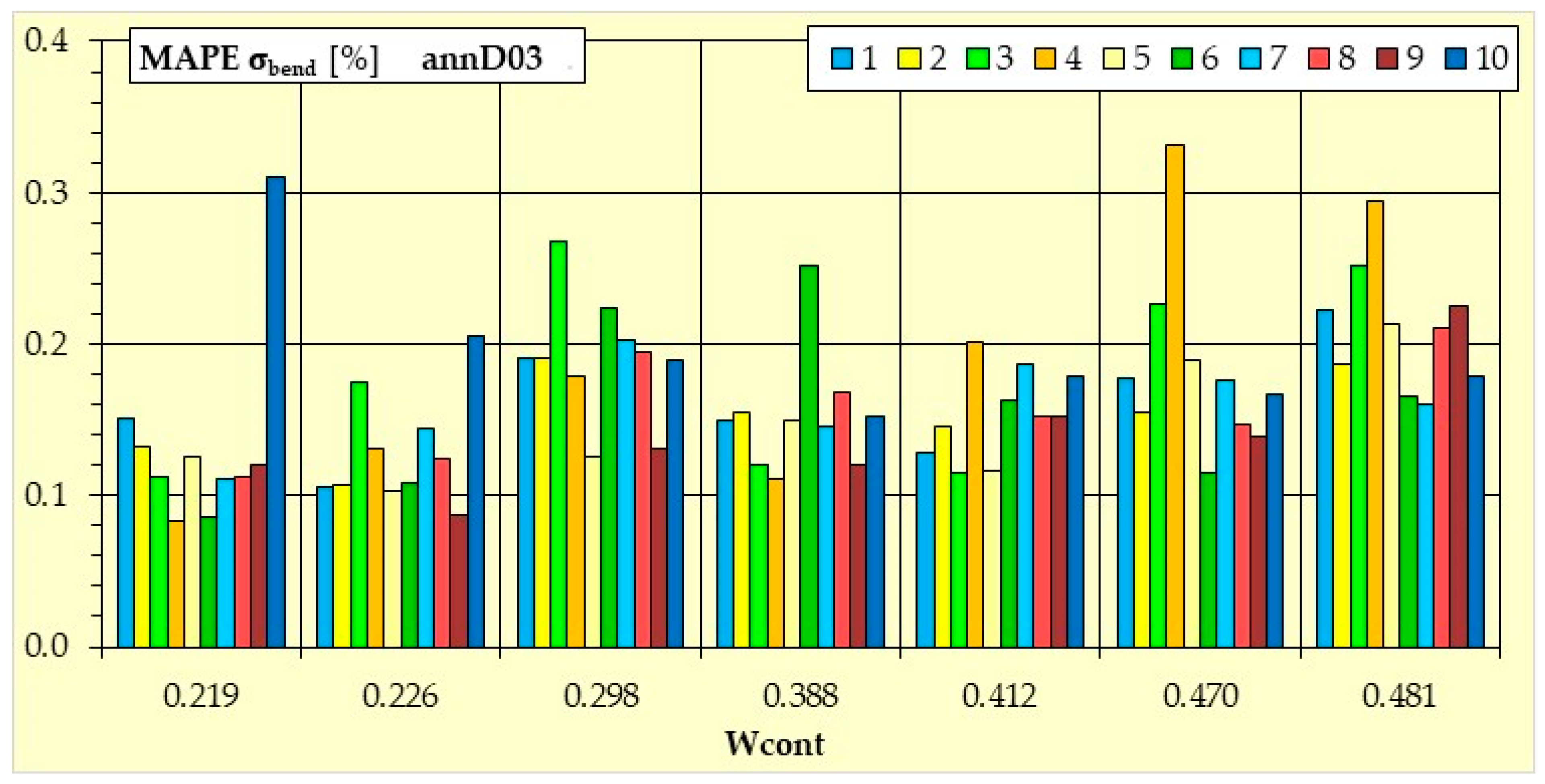

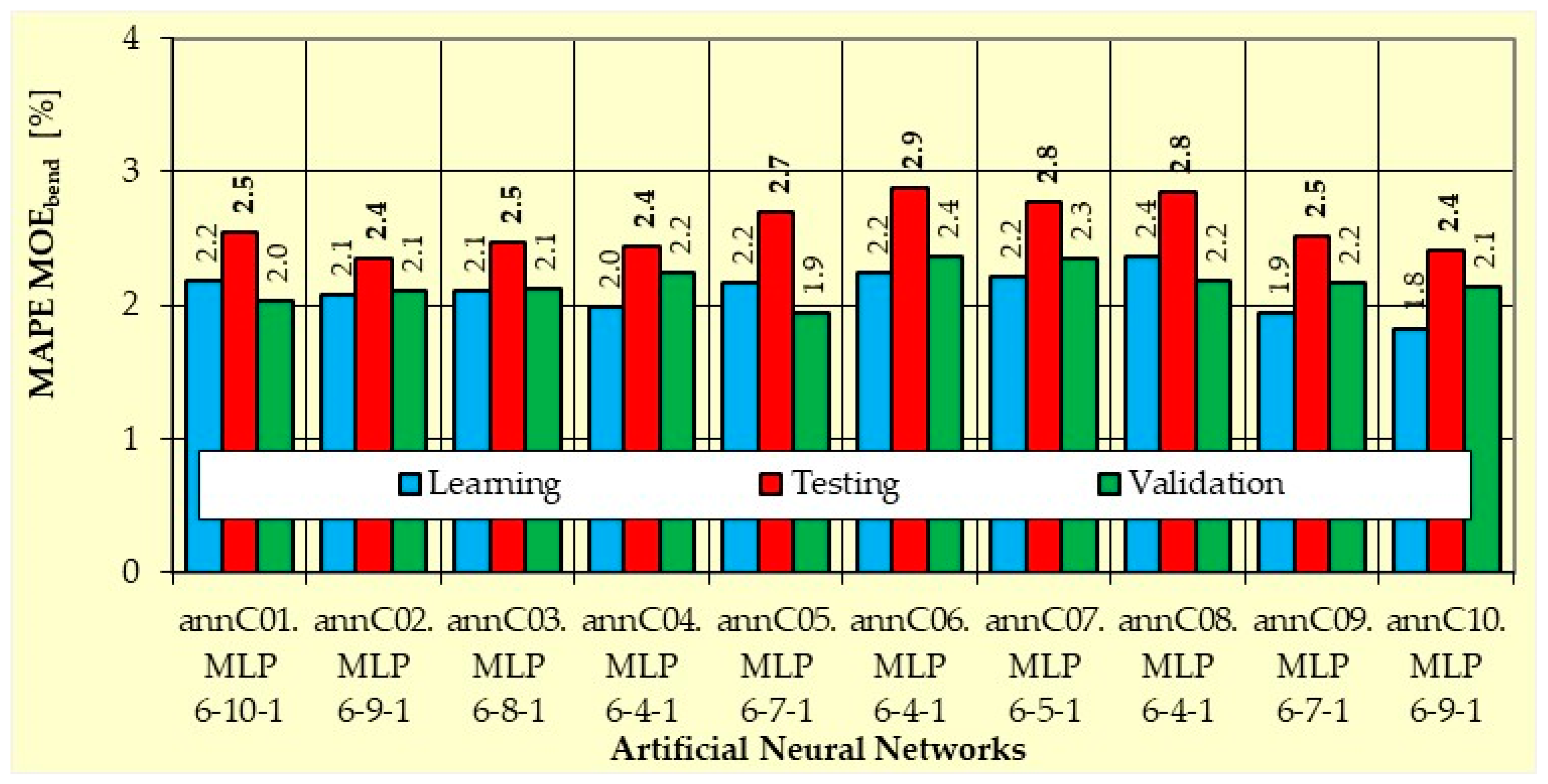

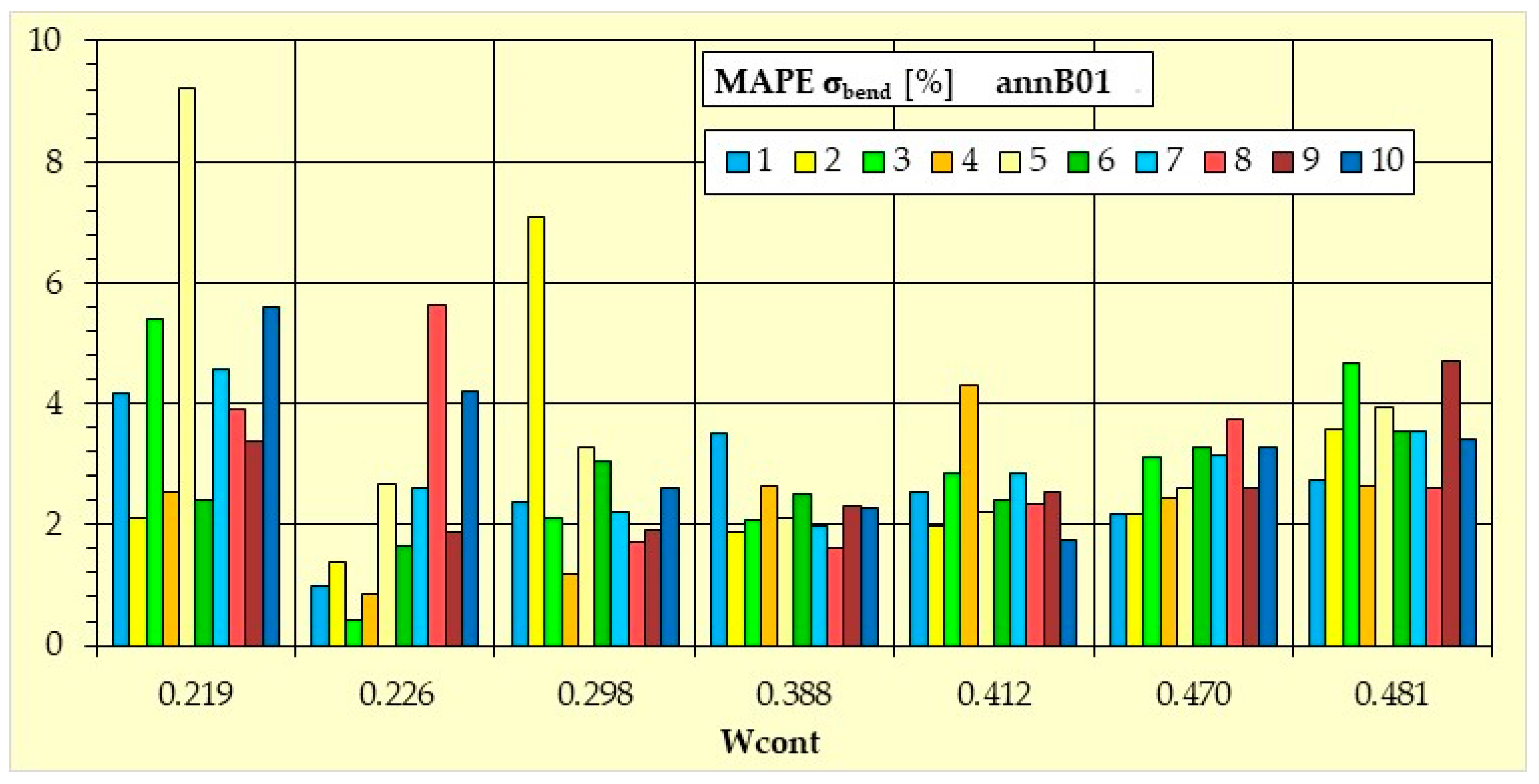

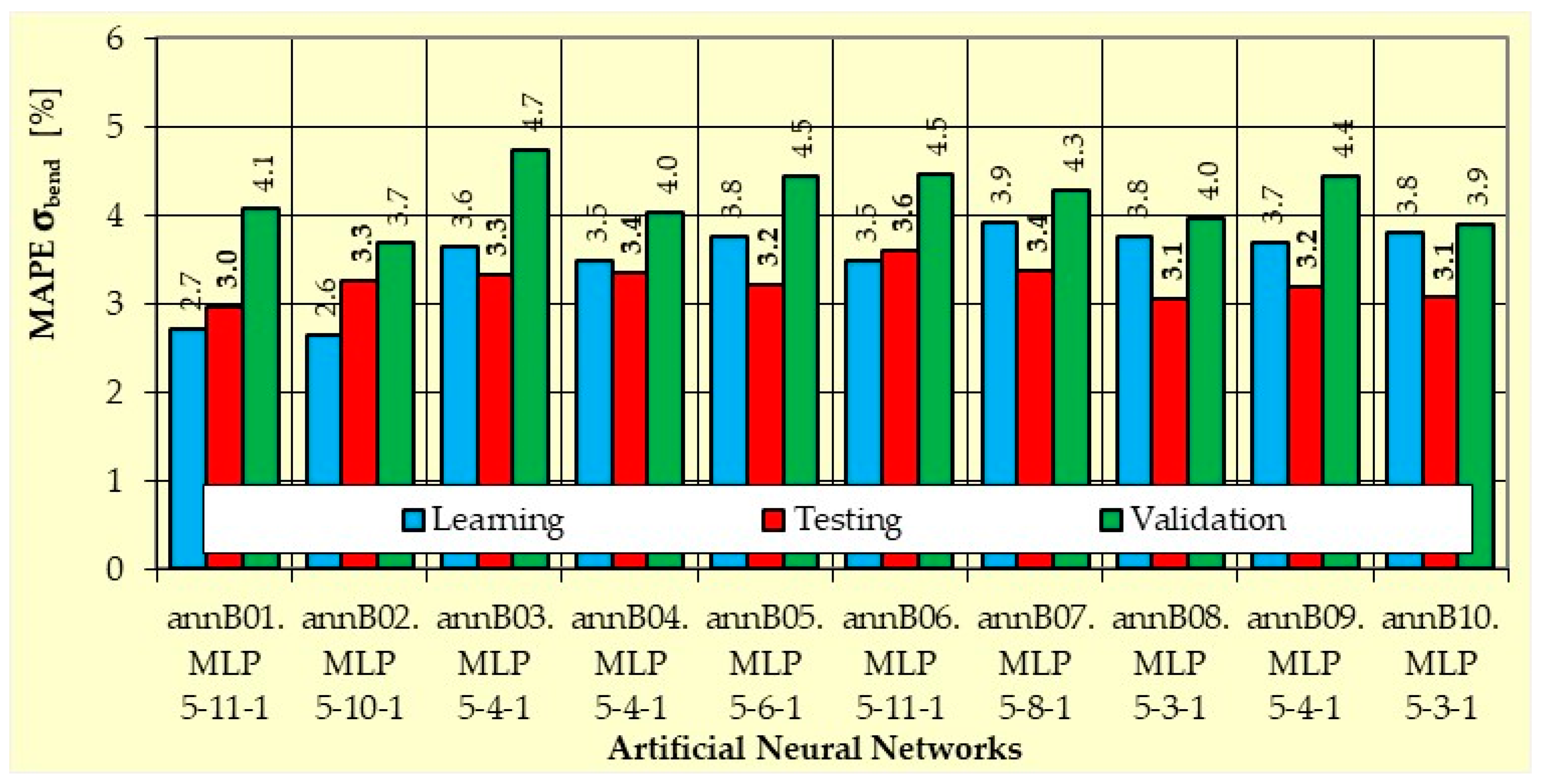

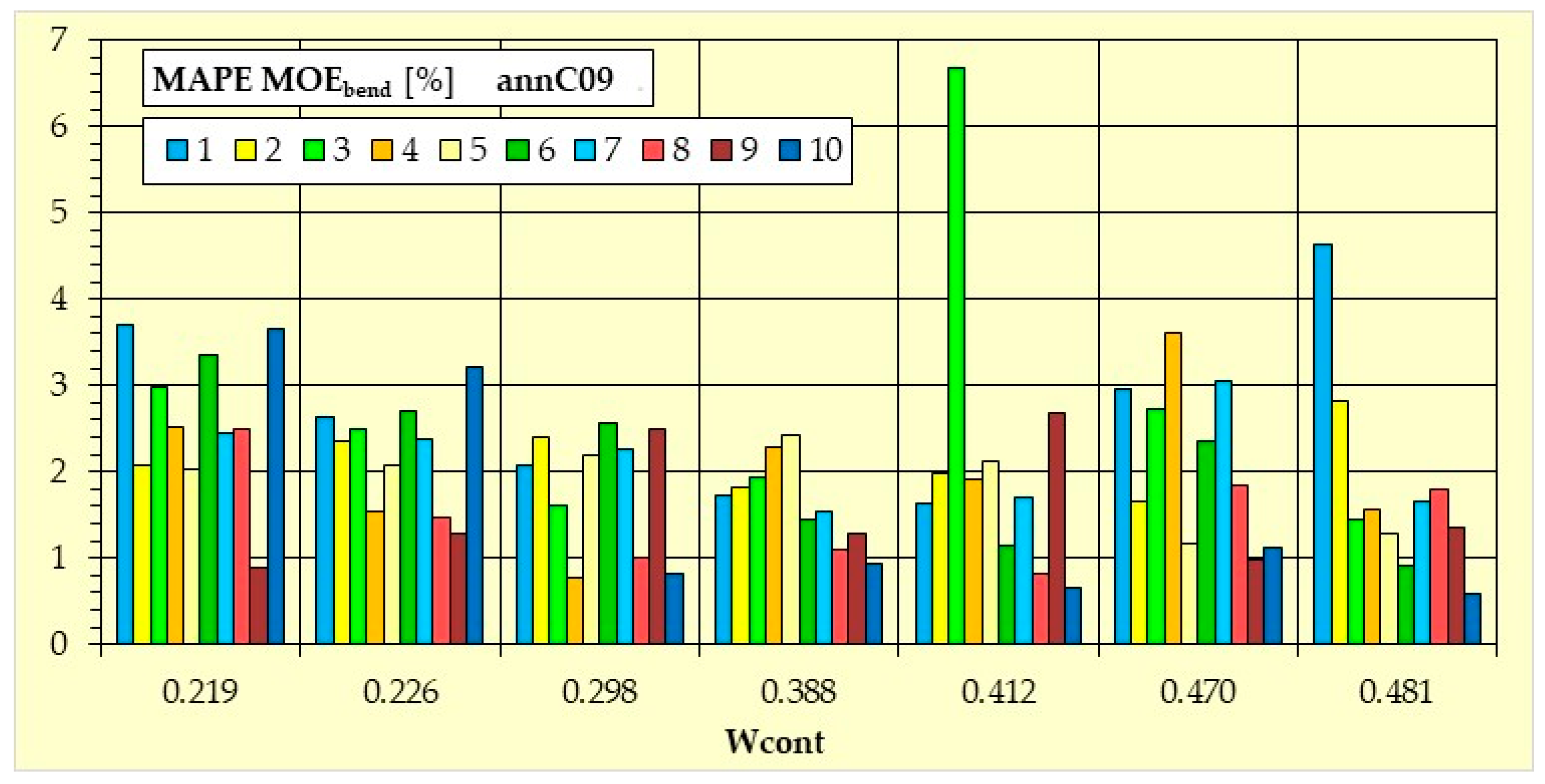

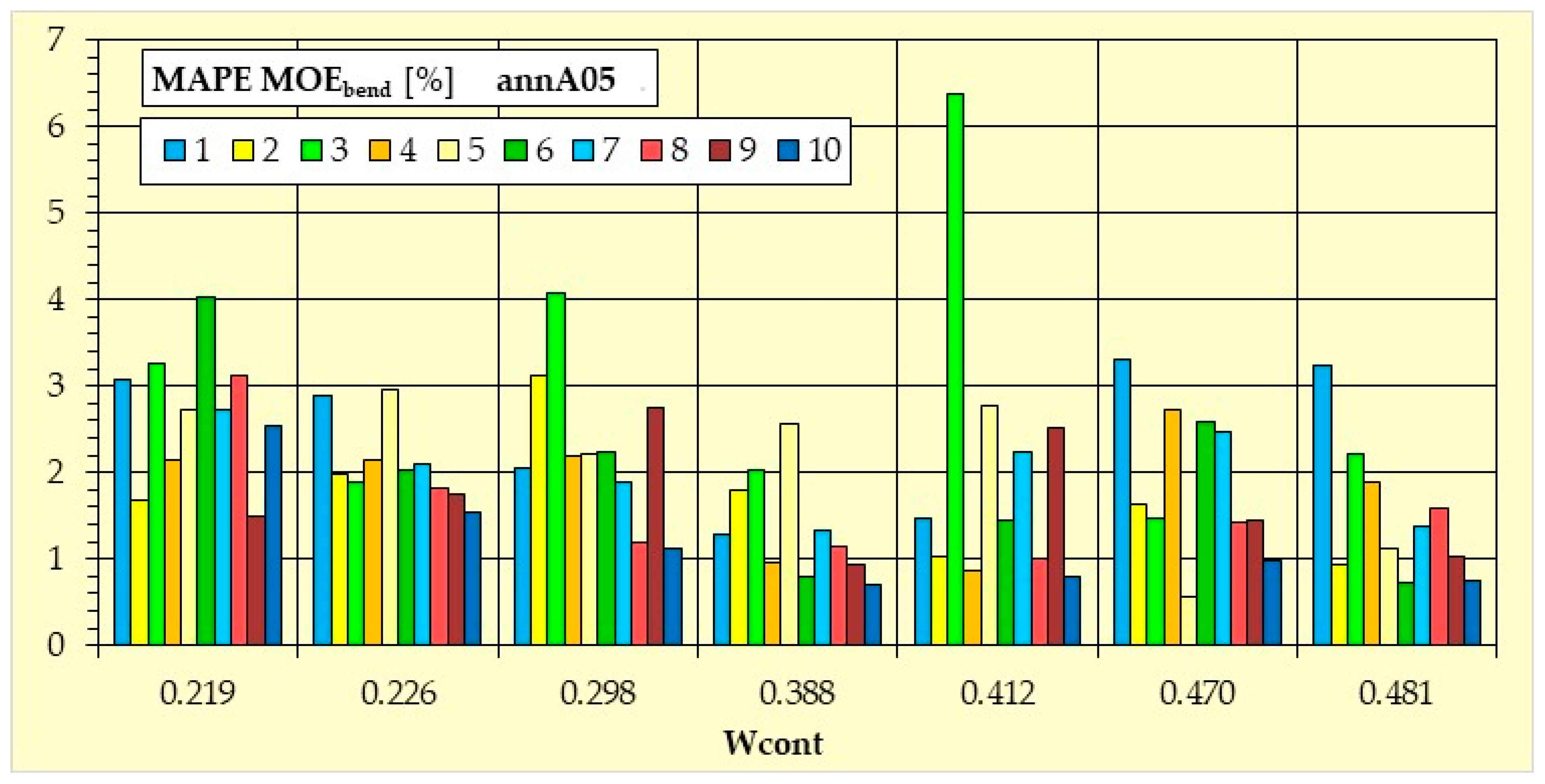

In Appendix C (Figure A9, Figure A10, Figure A11 and Figure A12), MAPE error values for all data subsets (learning, testing and validation) were compiled.

4. Discussion

Based on the conducted sensitivity analysis, it was demonstrated that four semantic models were correctly adopted—all input variables are important for the accuracy of selected neural models (annA05, annB01, annC09 and annD03).

For the annA05 network, which enables the determination of modulus of elasticity in bending (MOE_bend) value, the values of the error quotient (Table 1) demonstrated that the most important inputs of the neural network are the minimum diameter of the stalk (D_{stem min}) and the thickness of the stalk wall (Th_{stem wall}).

For the annC09 network (Table 2), the most important inputs of the neural network are the minimum diameter of the stalk (D_{stem min}). The internode number (NrNod) came second, and the maximum bending force (F_{bend Max}) came third as an additional network input compared to annA05.

A slightly different ranking of the neural network inputs occurred in the case of the annB01 model (Table 1), which made it possible to determine the maximum bending stress (σ_bend). The most important input (the highest value of the error quotient) is the stalk wall thickness (Th_{stem wall}), followed by the minimum diameter of the stalk (D_{stem min}) and the water content (Wcont).

However, for the annD03 model, in which the maximum bending force was introduced as an additional network input, the ranking of the inputs is also different (Table 2). The first is F_{bend Max}, with 2.5 times the error quotient value compared to the second D_{stem min}, and about four times greater than the third D_{stem Max}. NrNod and Wcont, which are fifth and sixth in the ranking and have error quotient values several thousand times lower than F_{bend Max}.

Such order is understandable because the geometric dimensions of the cross-section of the stalk, which is a biocomposite pipe with an oval cross-section, determine the value of the moment of inertia that is used to calculate the modulus of elasticity and the maximum bending stress (σ_bend). The value of F_{bend Max} appears in the formula for calculating σ_bend. The significant influence of NrNod on the value of MOE_bend may result from the fact that the internodes are formed by the miscanthus gradually, from the lowest to the highest. On the other hand, the influence of water content on biomechanical parameters of plants has been demonstrated in many studies.

Neural networks used to determine MOE_bend, developed in accordance with the semantic models A and C, are characterized by similar accuracy. The MAPE error values are similar for the validation subset: 2.2–2.4% and 1.9–2.4% (Appendix B: Figure A5 and Figure A7). The MAPE values for the learning subset are at a similar level, and slightly higher for the testing subset (2.4–2.9%). The best ANNs selected (annA05 and annC09) have almost identical MAPE error values: 1.8% and 1.9% for the learning subset, 2.4% and 2.5% for the testing subset, and 2.3% and 2.2% for the validation subset (Figure 7).

Taking into account such small differences in errors between these ANNs and the fact that with the annC09 model it is necessary to carry out an endurance test in order to determine the F_{bend Max} value, the annA05 network is the more appropriate one. To determine the MOE_bend value with similar accuracy, annA05 requires only knowledge of the dimensions of the stalk cross-sectional dimensions, internode number and water content.

In the case of neural models used to determine the σ_bend value (developed in accordance with the B and D semantic models), the differences in the MAPE error values are much greater.

For B-type neural networks, the MAPE error for the validation subset varies from 3.7% to 4.7% and for D models it is about 10 times smaller—from 0.20% to 0.44% (Appen-dix B: Figure A6 and Figure A8). The best-selected models (annB01 and annD03) have MAPE error values of 2.7% and 0.16% for the learning subset, 3.0% and 0.17% for the testing subset and 4.1% and 0.20% for the validation subset (Figure 7).

Such significant differences in the error values between the annB01 and annD03 networks mean that the annD03 network is the recommended model for determining the σ_bend value, despite the need to perform a bending test.

Figure 8 and Figure 9 enable detailed MAPE error analysis for selected models (annA05, annC09, annB01 and annD03), for validation data subset. The MAPE values calculated for individual Wcont and NrNod values (measurement conditions) were summarized—in groups of 15 repetitions. It can be determined for which water contents and internode numbers the ANNs are least accurate.

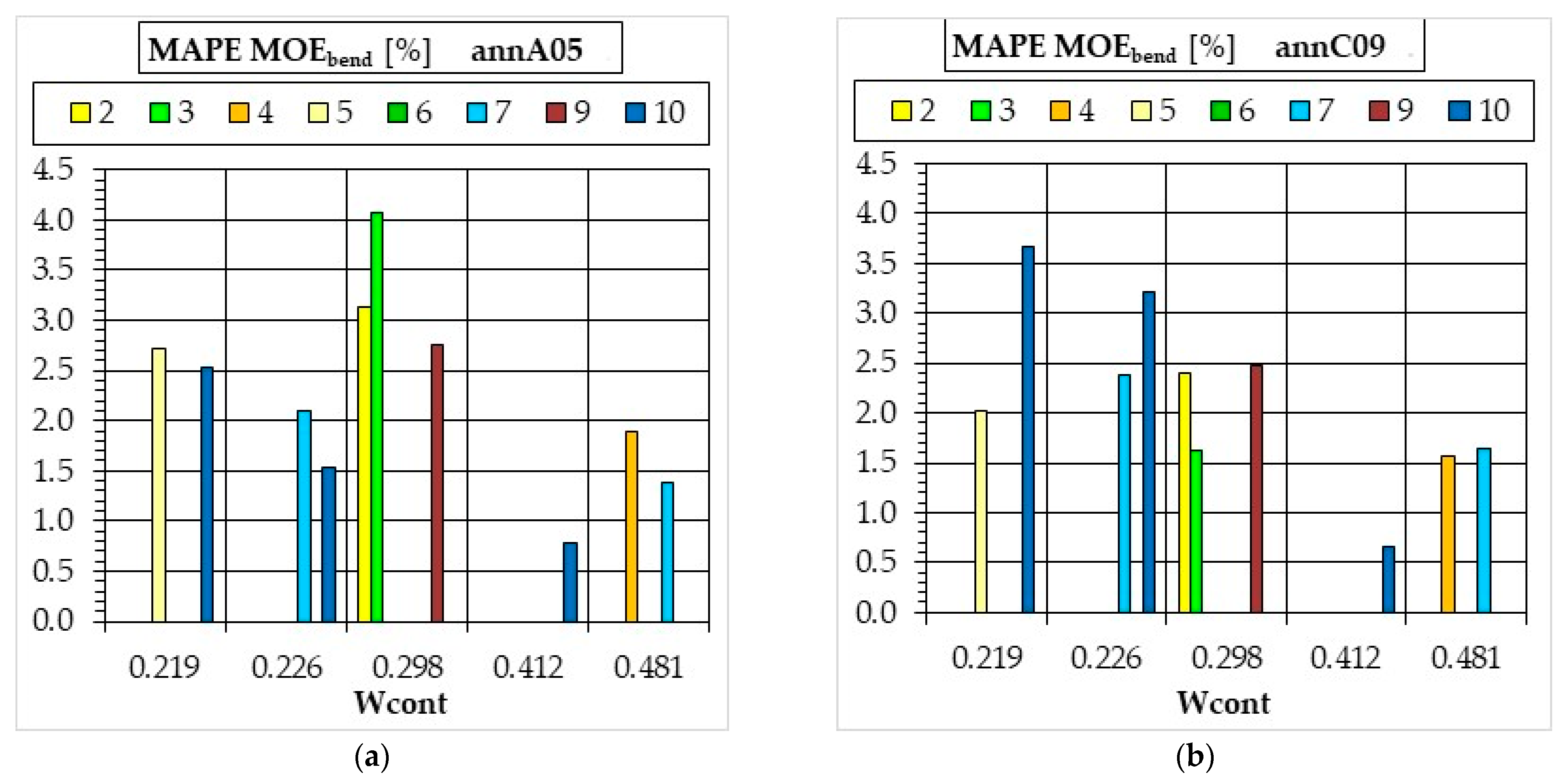

The MAPE errors for MOE_bend-determining ANNs (Figure 8) are similar for both models (annA05 and annC09). In the case of the validation subset, these errors are smaller for high water contents (Wcont = 0.412 kg_water·kg_{dry mass}⁻¹ and 0.481 kg_water·kg_{dry mass}⁻¹). The maximum MAPE for annC09 (3.7%) is only slightly lower than that for annA05 (4.1%).

The highest value of MAPE for annA05 occurs for NrNod = 3 and Wcont = 0.412 kg_water·kg_{dry mass}⁻¹ (learning subset) and amounts to 6.4% (Appendix C, Figure A9). In addition, for annC09, the highest value of MAPE occurs for NrNod = 3 and Wcont = 0.412 kg_water·kg_{dry mass}⁻¹ and amounts to 6.7% (Appendix C, Figure A11). As there is the same “measuring point”, it can be concluded that the increase in error is the result of a particularly large data noise.

The most even distribution of MAPE values occurs for Wcont = 0.388 kg_water·kg_{dry mass}⁻¹, for annA05 from 0.7% to 2.6% (Appendix C, Figure A11) and for annC09 from 0.9% to 2.4% (Appendix C, Figure A11). On the other hand, the least uniform distribution of MAPE values was found for Wcont = 0.412 kg_water·kg_{dry mass}⁻¹, for both neural models. The spread of values is almost identical: for annA05 from 0.8% to 6.4%, and for annC09 from 0.7% to 6.7%.

The above analysis demonstrates that both developed neural models (annA05 and annC09) are similar in terms of error values for different Wcont and NrNod values. They are most accurate at Wcont = 0.388 kg_water·kg_{dry mass}⁻¹, for all internodes.

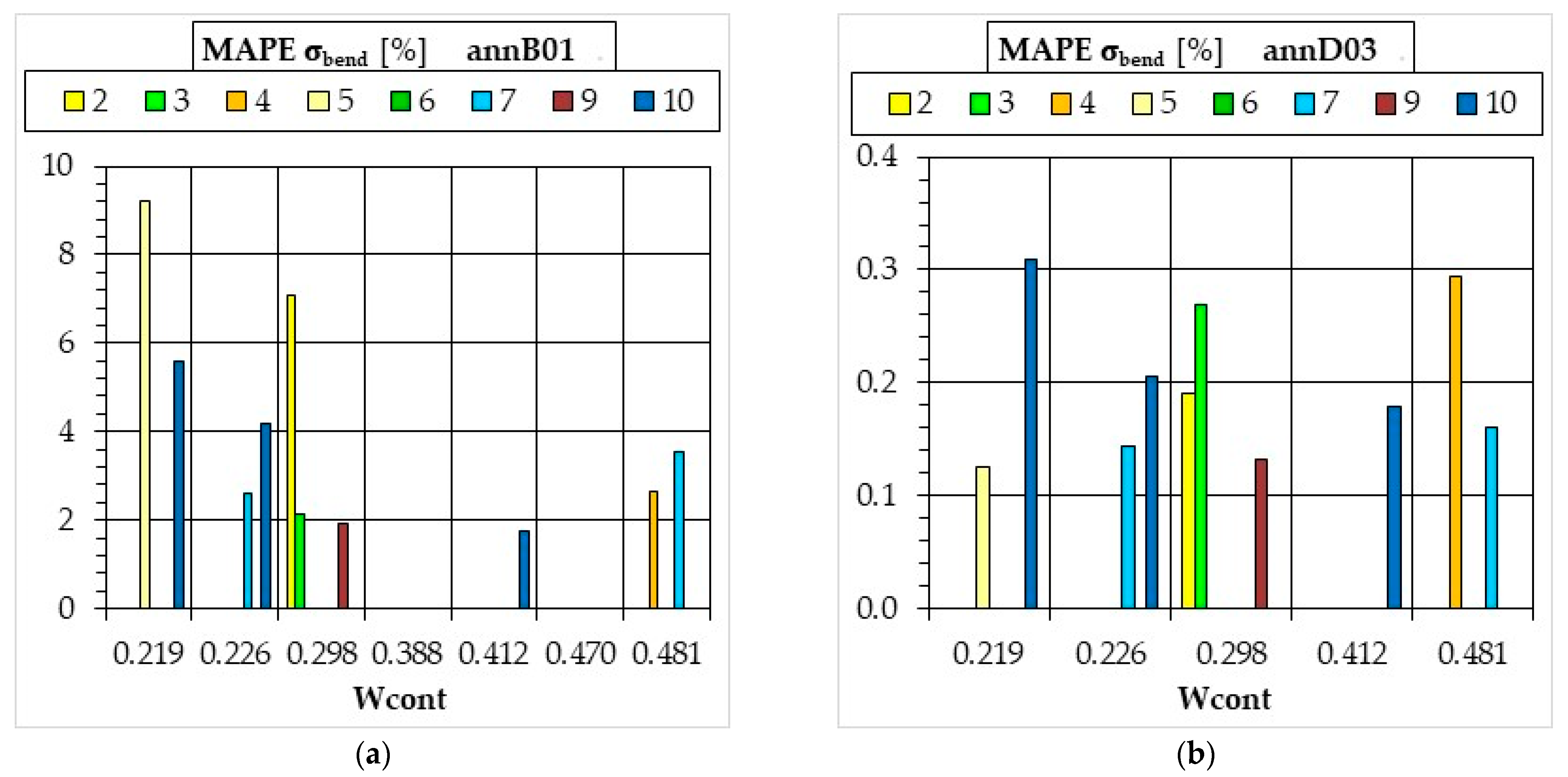

The MAPE errors for σ_bend-determining ANNs (Figure 9) are very different for both models (annB01 and annD03). In the case of the validation set, for annB01, these errors are smaller for high water contents (Wcont = 0.412 kg_water·kg_{dry mass}⁻¹ and 0.481 kg_water·kg_{dry mass}⁻¹). The maximum MAPE for annB01 is 9.2% and the lowest is 1.7% (Figure 9a). For annD03, the MAPE values are much smaller. For the validation set, the highest value is 0.31% and the lowest 0.13% (Figure 9b).

The highest MAPE value for annB01 occurs for NrNod = 5 and Wcont = 0.219 kg_water·kg_{dry mass}⁻¹ (validation subset) and amounts to 9.2% (Appendix C, Figure A10). On the other hand, for annD03, the highest MAPE value occurs for NrNod = 4 and Wcont = 0.470 kg_water·kg_{dry mass}⁻¹ (testing subset) and is 0.33% (Appendix C, Figure A12).

The most even distribution of MAPE values occurs for Wcont = 0.470 kg_water·kg_{dry mass}⁻¹, for annB01 from 2.2% to 3.7% (Appendix C, Figure A10), and for Wcont = 0.412 kg_water·kg_{dry mass}⁻¹, for annD03 from 0.12% to 0.20% (Appendix C, Figure A12). On the other hand, the least uniform distribution of MAPE values was found for Wcont = 0.219 kg_water·kg_{dry mass}⁻¹, for both neural models. The spread of values is: for annB01 from 2.1% to 9.2%, and for annD03 from 0.08% to 3.1%.

5. Conclusions

The four developed neural models, enabling the determination of the value of the modulus of elasticity in bending (annA05 and annC09) and the maximum stress in bending (annB01 and annD03), demonstrate sufficient and even very high accuracy. The neural networks, annA05, annC09 and annB01, respectively, have an average relative error of 2.18%, 2.21% and 3.24% for all data subsets. On the other hand, the average relative error for annD03 is an order of magnitude lower and amounts to 0.18%.

The results of the sensitivity analysis confirmed that all input variables are important for the accuracy of the developed neural models—correct semantic models.

To determine the MOE_bend value, we propose the annA05 neural model, which requires only knowledge of the dimensions of the stalk cross-section, internode number and water content (the annC09 model is just as accurate but requires a three-point bending test). However, for the determination of the value of σ_bend, we propose the neural model annD03, which is about 18 times more accurate than annB01, although it has an additional input variable (F_bend obtained from the three-point bending test).

Our further research will be conducted towards increasing the operability of ANNs models used to determine the biomechanical parameters of miscanthus. We will try to develop a tool that will reduce the need to carry out labor-intensive strength tests when determining the MOE_bend and σ_bend values for individual parts of the stem (individual internodes).
