Post-Mortem Analysis of Inhomogeneous Induced Pressure on Commercial Lithium-Ion Pouch Cells and Their Effects

1
Chair of Electrochemical Energy Conversion and Storage Systems, Institute for Power Electronics and Electrical Drives (ISEA), RWTH Aachen University, Jaegerstr. 17/19, 52066 Aachen, Germany
2
Jülich Aachen Research Alliance, JARA-Energy, Forschungszentrum Jülich GmbH, 52425 Jülich, Germany
3
Institute for Power Generation and Storage Systems (PGS), E.ON ERC, RWTH Aachen University, Mathieustraße 10, 52074 Aachen, Germany
4
Helmholtz Institute Münster (HI MS), IEK-12, Forschungszentrum Jülich GmbH, 52425 Jülich, Germany
*
Author to whom correspondence should be addressed.
Sustainability 2019, 11(23), 6738; https://doi.org/10.3390/su11236738
Received: 1 November 2019 / Revised: 20 November 2019 / Accepted: 21 November 2019 / Published: 27 November 2019

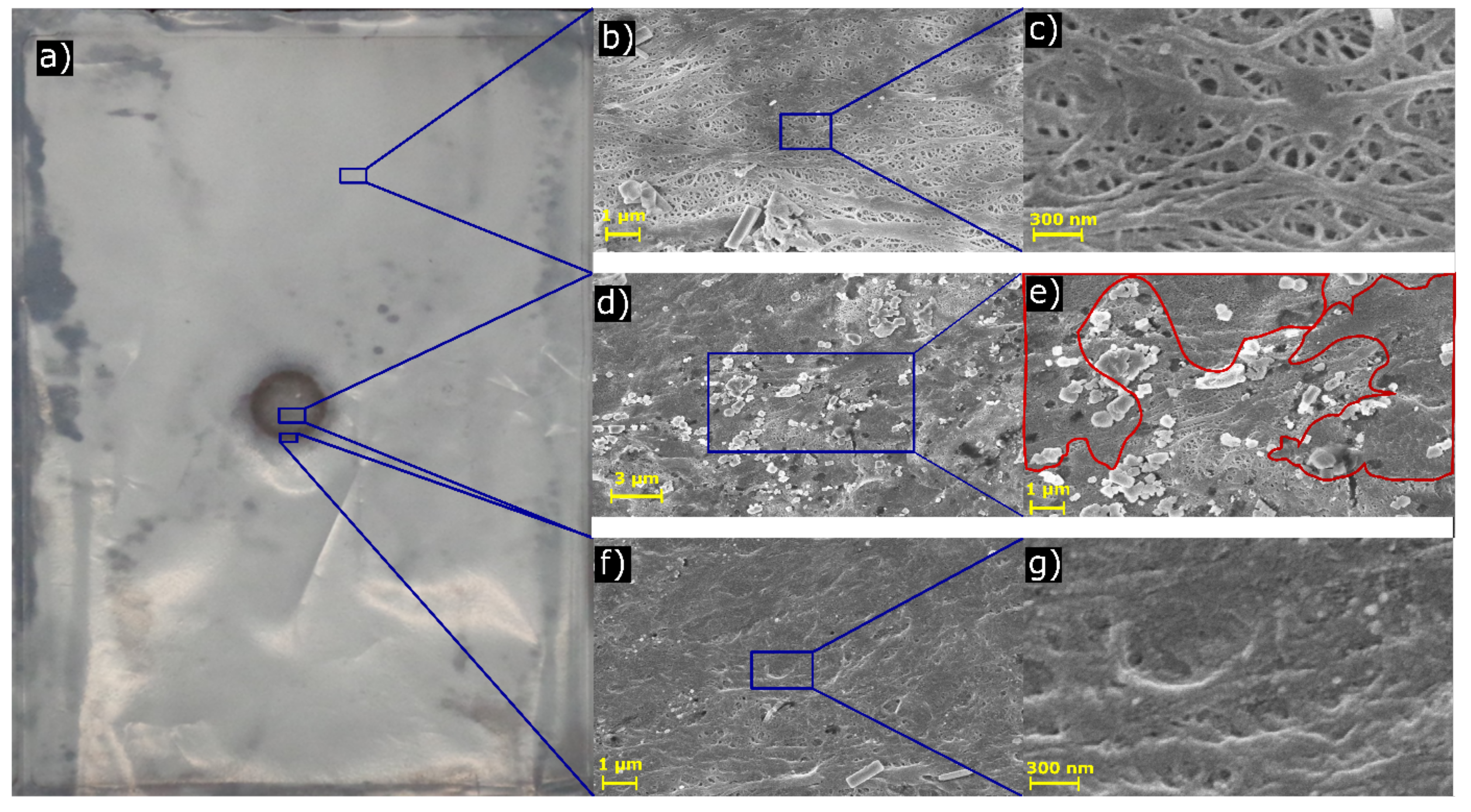

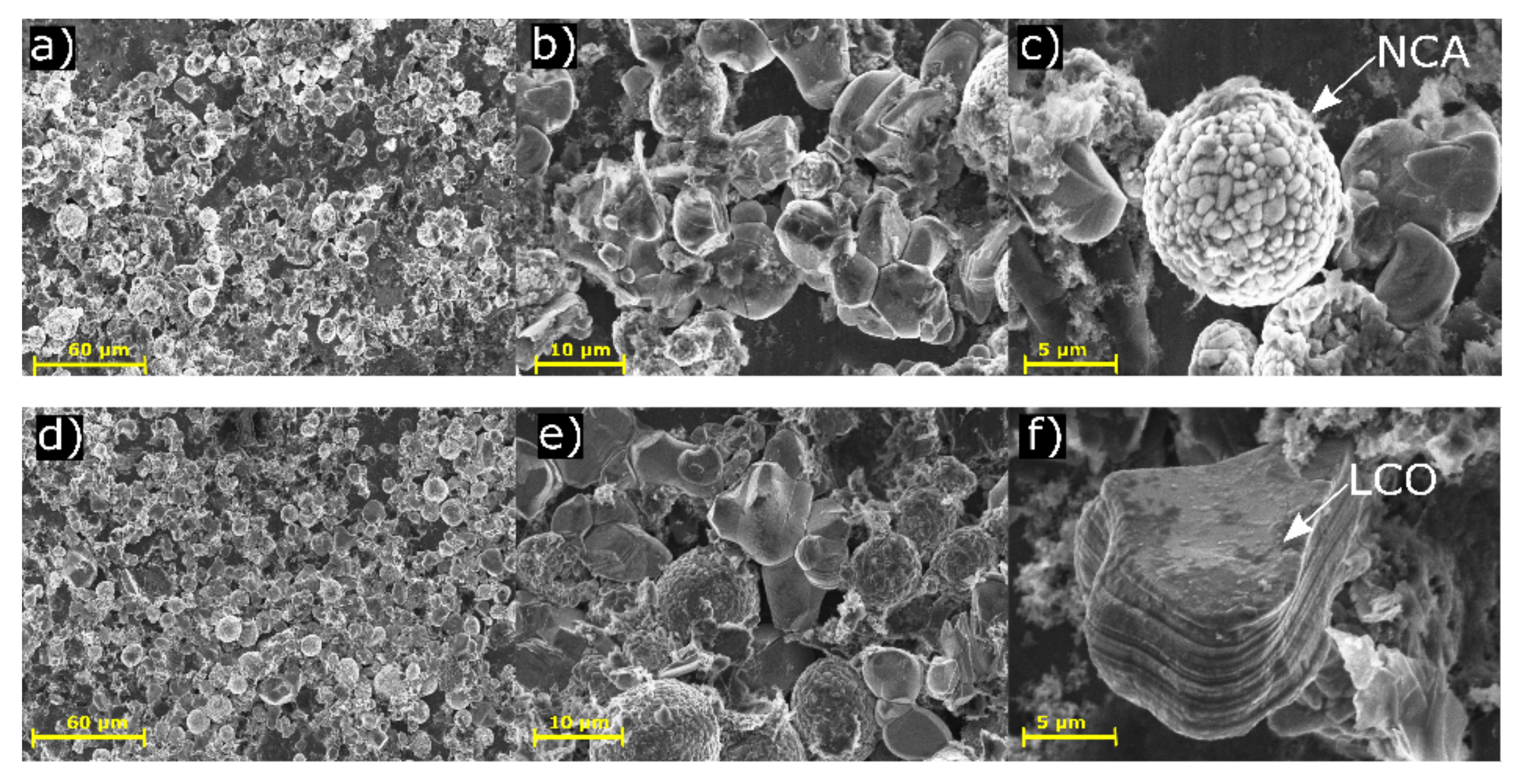

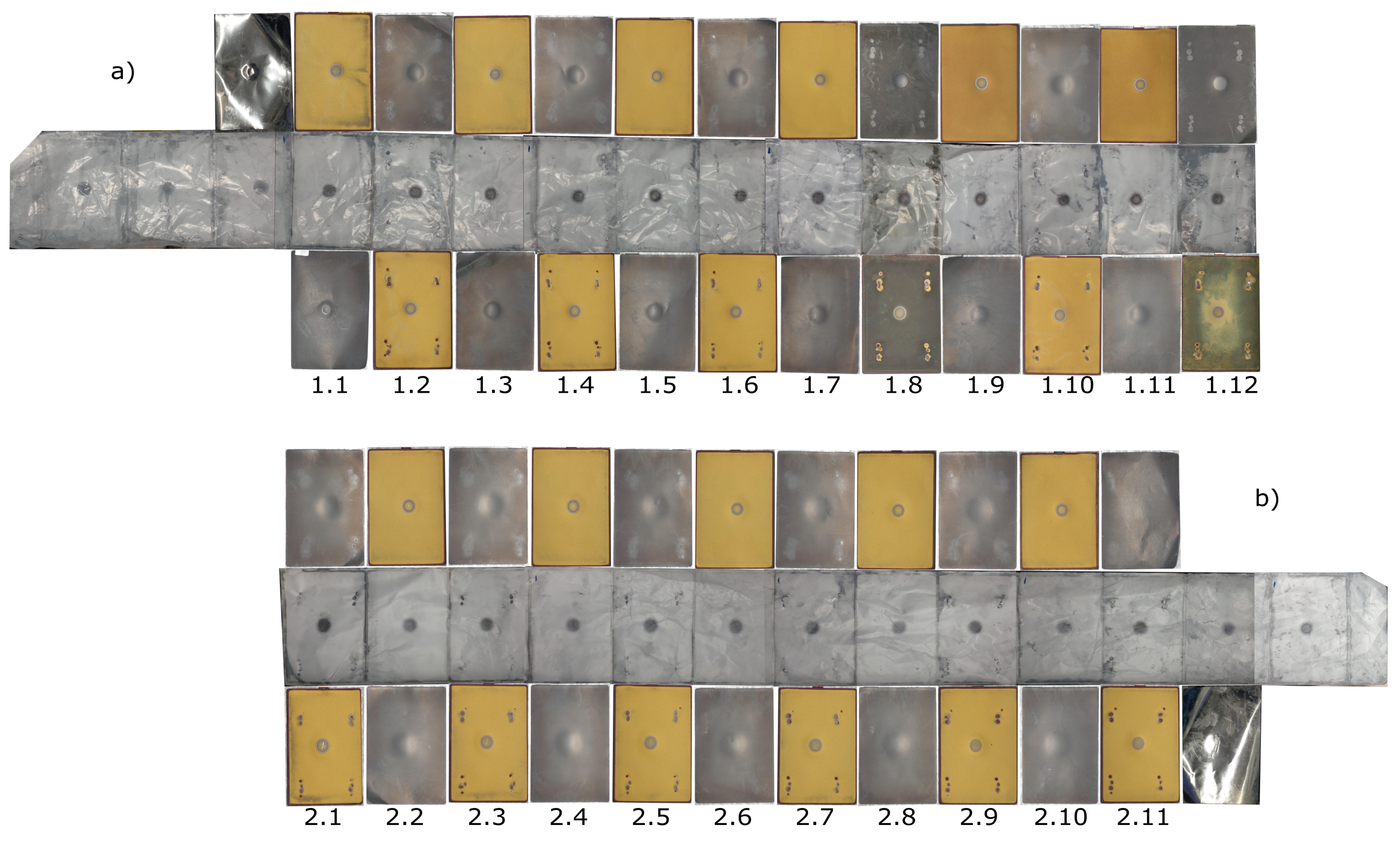

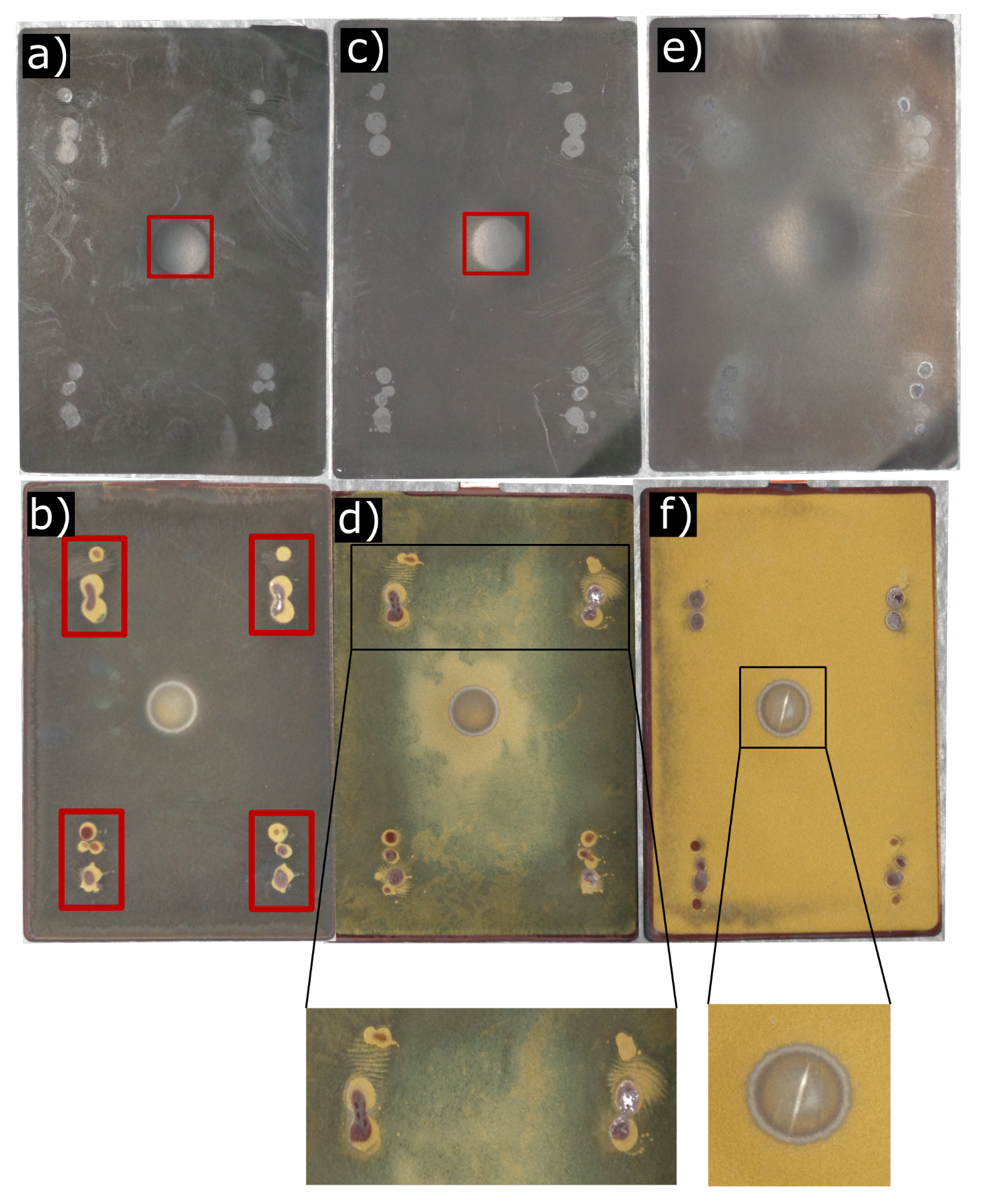

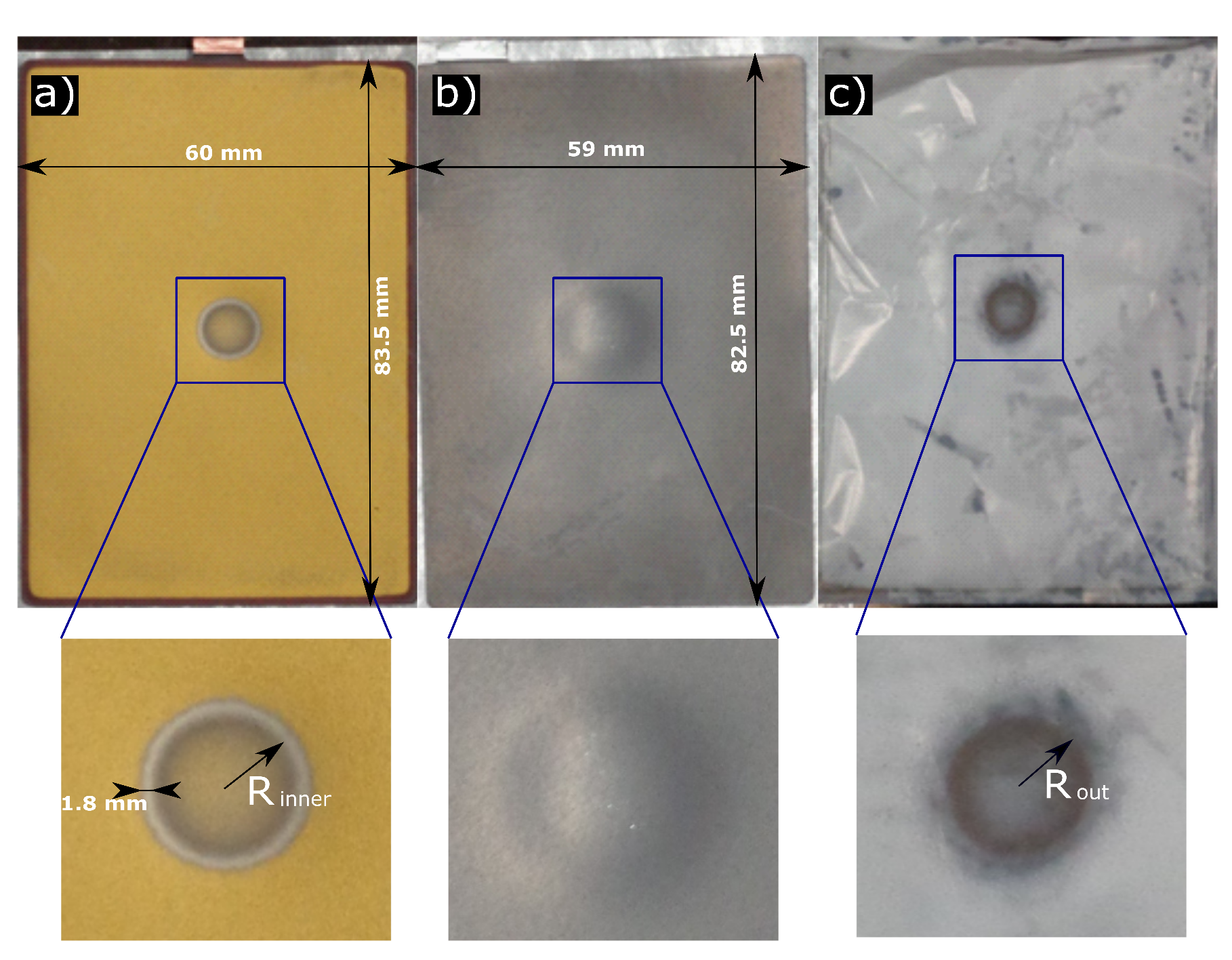

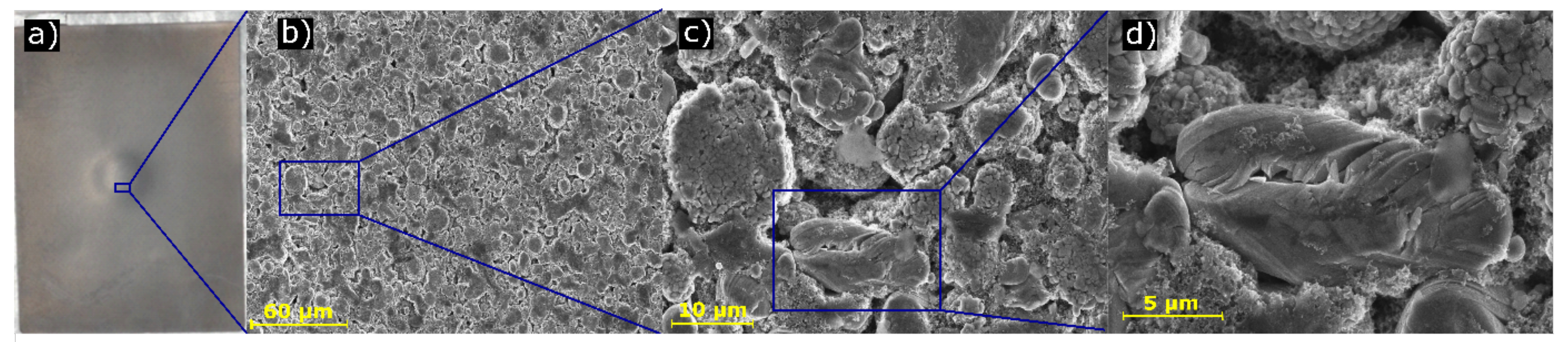

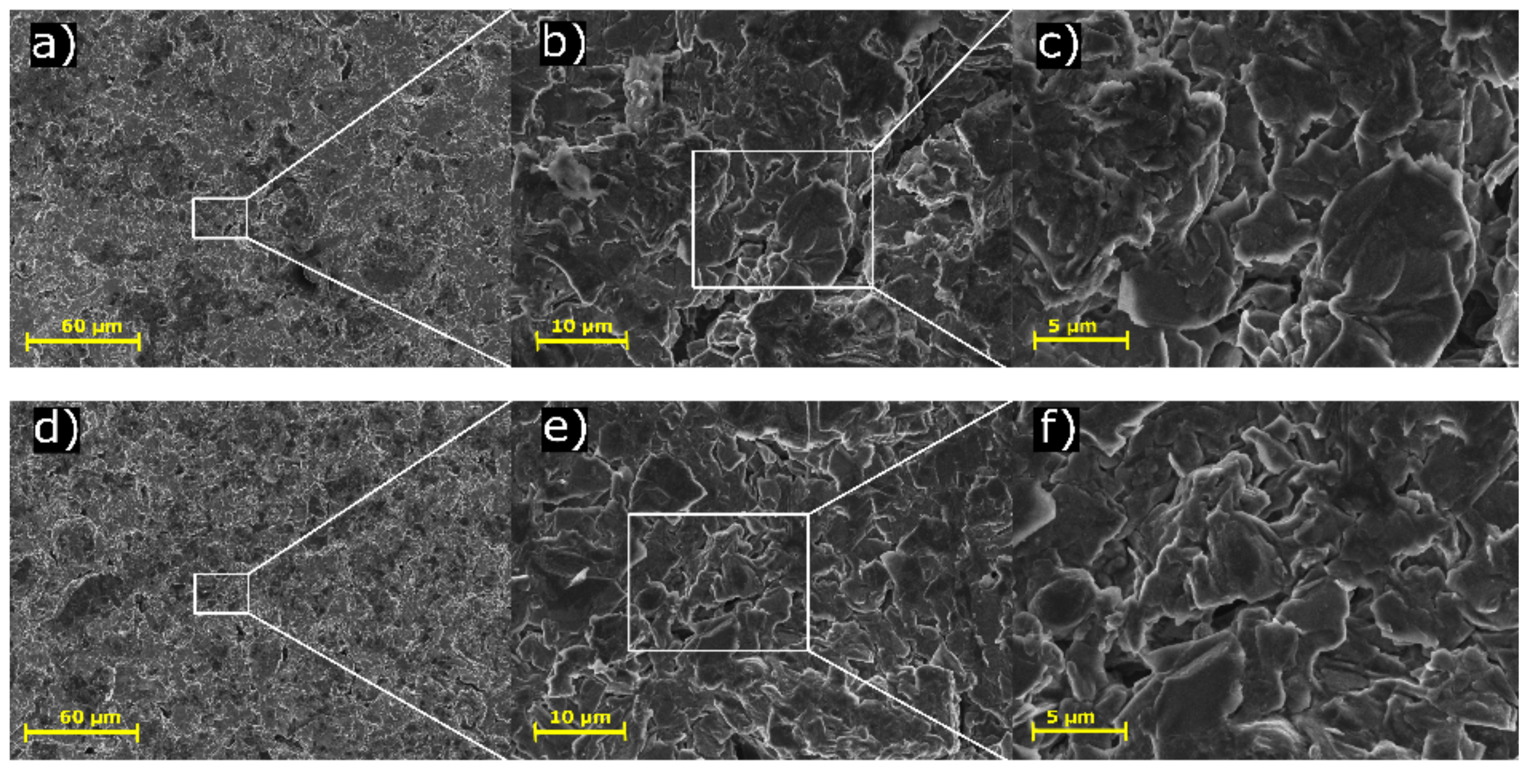

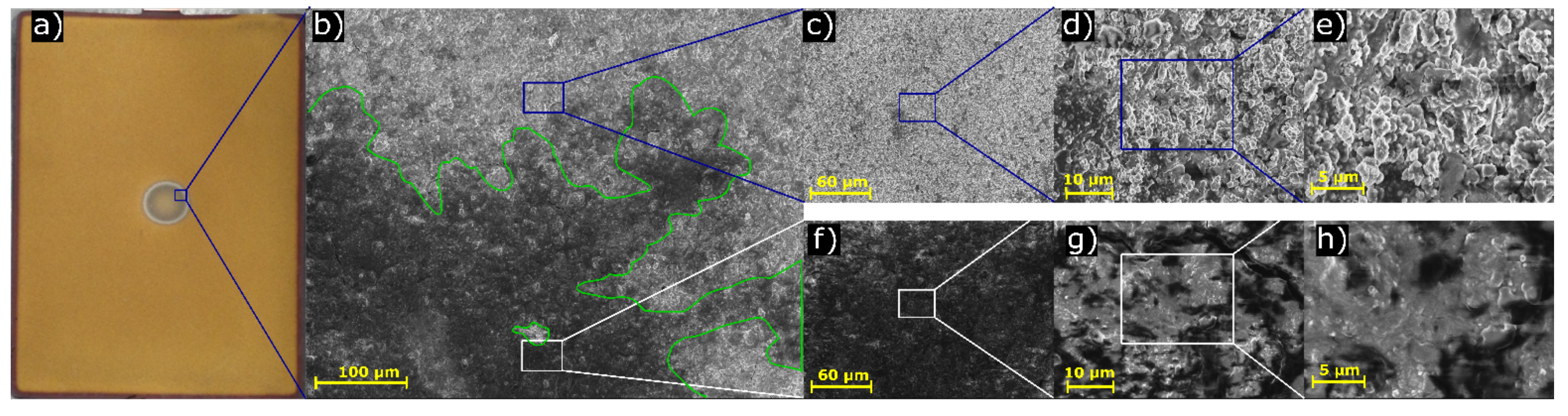

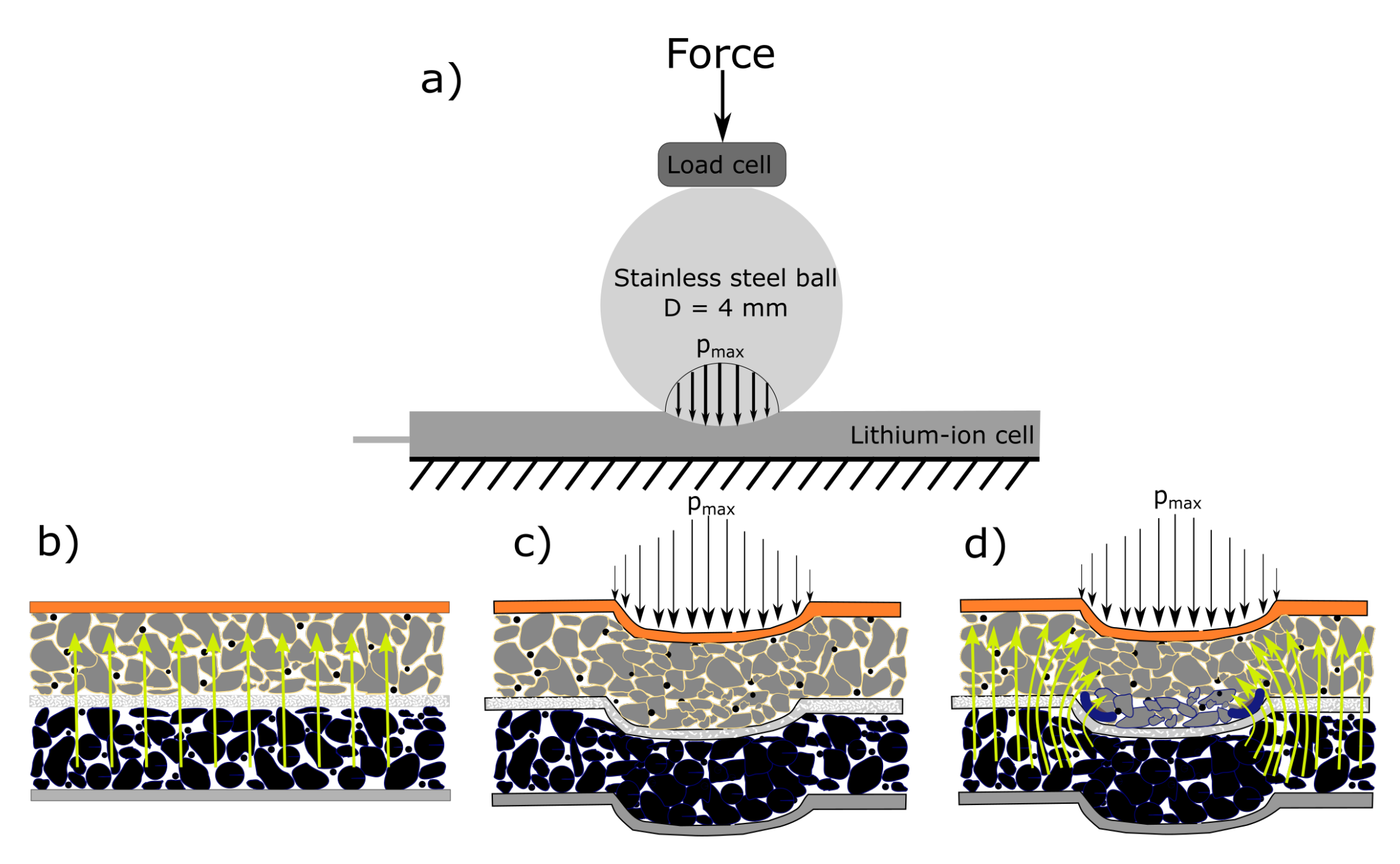

This work conducts a post-mortem analysis of a cycled commercial lithium-ion pouch cell under an induced inhomogeneous pressure by using a stainless-steel sphere as a force transmitter to induce an inhomogeneous pressure distribution on a cycled lithium-ion battery. After the cycling, a macroscopic and microscopic optical analysis of the active and passive materials was executed. Also, scanning electron microscopy was used to analyze active material particles. The sphere shape results in a heterogenic pressure distribution on the lithium-ion battery and induces a ring of locally high electrochemical activity, which leads to lithium plating. Furthermore, a surface layer found on the anode, which is a possible cause of electrolyte degradation at the particle–electrolyte interface. Significant deformation and destruction of particles by the local pressure was observed on the cathode. The analysis results validate previous simulations and theories regarding lithium plating on edge effects. These results show that pressure has a strong influence on electrolyte-soaked active materials. View Full-Text
Keywords: inhomogeneous pressure; localized plating; mechanical stress; separator; tortuosity; ICP-OES; scanning electron microscope; lithium-ion battery inhomogeneous pressure; localized plating; mechanical stress; separator; tortuosity; ICP-OES; scanning electron microscope; lithium-ion battery
Show Figures

Figure 1

MDPI and ACS Style

Fuchs, G.; Willenberg, L.; Ringbeck, F.; Sauer, D.U. Post-Mortem Analysis of Inhomogeneous Induced Pressure on Commercial Lithium-Ion Pouch Cells and Their Effects. Sustainability 2019, 11, 6738.
