Transcriptome and Expression Analysis of Genes Related to Regulatory Mechanisms in Holly (Ilex dabieshanensis) under Cold Stress

Abstract

Ilex dabieshanensis (K. Yao and M. B. Deng) is not only an important economic tree species, but also has the characteristics of evergreens in all seasons, as well as strong cold resistance. In order to understand the molecular mechanism of holly’s response to cold stress, we used transcriptome analysis to identify the main signaling pathways and key genes involved in cold stress. The result showed that 5750 differentially expressed genes (DEGs) were identified under different cold treatment times compared with the control (cold—0 h). The Kyoto Encyclopedia of Genes and Genomes (KEGG) analysis of DEGs showed that seven phytohormone signal transduction were the most highly enriched, including abscisic acid (ABA), ethylene (ET), cytokinin (CK), auxin (IAA), gibberellin (GA), jasmonate (JA), and brassinosteroids (BR). In addition, proline metabolism, arginine metabolism, flavonoid biosynthesis, and anthocyanin biosynthesis were also implicated in response to cold stress. The weighted gene co-expression network analysis (WGCNA) showed that the genes in two modules were significantly up-regulated after 12 h and 24 h treatments, suggesting these two module genes may participate in the cold stress. The gene ontology (GO) results of the two module genes showed that calcium, scavenging reactive oxygen species, and nitric oxide might act as signaling molecules to regulate cold tolerance in holly. By calculating the connectivity and function prediction of genes in the two modules, five genes (evm.TU.CHR2.244, evm.TU.CHR1.1507, evm.TU.CHR1.1821, evm.TU.CHR2.89, and evm.TU.CHR2.210) were identified as the key hub genes of I. dabieshanensis response to cold stress. These results provided candidate genes and clues for further studies on the molecular genetic mechanism of cold stress in holly.

1. Introduction

Ilex L. (holly) is the largest woody dioecious genus of angiosperms, with approximately 600 species and wide geographical distribution. Many holly species are economically important trees used in various ways, including manufacturing beverages, medicines, and wood [1,2,3]. Ilex dabieshanensis (K. Yao and M. B. Deng) (I. dabieshanensis) is a species of Ilex, which was first discovered and named by the Institute of Botany, Chinese Academy of Sciences in Jiangsu Province. This plant is a precious native tree species with multiple uses in medicine, ornamental landscaping, and tea. I. dabieshanensis also has unique ecological characteristics, such as pruning resistance, wide adaptability, cold resistance (Figure 1), pollution resistance, and fewer pests and diseases [4]. Most of the research conducted on holly involves processed products, extract functions, origin and distribution, physiological characteristics, cultivation methods, and ornamental applications [5,6,7,8,9]. A recent article has reported the whole genome of I. polyneura, which provides a necessary basis for advancing research on Ilex to the molecular level [7]. As a perennial woody plant, I. dabieshanensis undergoes seasonal changes and is evergreen throughout the year. Due to the cyclical changes in seasons, plants are inevitably affected by the adversity of low temperatures. Low temperatures are one of the most harmful environmental stressors encountered by vascular plants [10,11]. Throughout long-term evolution, plants have gradually developed unique biological characteristics, physiological functions, and other adaptive mechanisms, which have given them the ability to adapt to and resist low-temperature conditions. These adaptations vary by species, geographic distribution, and even developmental stage. Each plant has different enrichment pathways during different cold stress periods, and every gene has a unique mechanism in response to cold stress [12]. Currently, there are no reports on the cold tolerance mechanism of holly.

When plants are subjected to low-temperature stress, they undergo a series of physiological and biochemical reactions and gene expression regulation from sensing low-temperature signals, which produce cold resistance. At the physiological level, many substances or protective proteins are synthesized in the plant, such as soluble sugars, proline, and cold resistance proteins [13,14]. These substances or proteins regulate osmotic potential, ice crystal formation, cell membrane stability, and scavenging reactive oxygen species (ROS) [15,16]. At the molecular level, according to the function of low temperature-induced expression genes, genes can be divided into two categories: regulatory genes, which play a role in regulating gene expression and signal transduction, including transcription factors (TFs) such as C-repeat binding factors (CBF) and protein kinases that sense and transmit signals such as mitogen-activated protein kinase (MAPKs) [17,18,19,20,21]; and cold-regulated (COR) genes, which are early responsive to dehydration (ERD) genes, responsive to dehydration (ED) genes, low-temperature induced (LTI) genes, and cold inducible (KIN) genes [22,23]. Previous studies found that the inducer of CBF expression (ICE)-CBF-COR pathway plays a crucial role in plant cold tolerance and is one of the most widely reported pathways [24]. In most plant species, the ICE-CBF-COR pathway is induced by cold stress, activating the expression of downstream genes encoding osmotic regulators [25]. In detail, ICE1 can be released from DELLA-binding Jasmonate ZIM-domain (JAZ) to induce the expression of CBF3 under low-temperature stress. CBFs, also known as dehydration-responsive element-binding proteins (DREBs), are members of the APETALA2/ethylene-responsive factor (AP2/ERF) family that activates cold-responsive (COR) gene expression by binding to cis-elements on the COR gene promoter [26]. Winter barley has a vernalization gene (VRN1) that can synergize with the CBF gene, inducing a stronger cold resistance than spring barley [27]. ICE acts upstream to induce and regulate the expression of CBF [28,29,30]. Two homologs of the ICE gene (ICE1 and ICE2) have been characterized in multiple plant species, and their role in cold tolerance has been elucidated [31]. In Arabidopsis, many COR genes are activated or repressed by the action of CBF1/2/3 and have been shown to directly or indirectly increase cold stress tolerance in plants [32]. Many TFs that regulate cold signaling and stress have been identified, such as CBF1-3, ICE1-2, CAMTA3, MYB15, COR15a, COR15b, etc. [33]. In addition, some protein kinases (MEKK1-MKK1/2-MPK4) were found to induce the expression of CBF, especially CBF2, which is involved in the mitogen-activated protein kinase (MAPK) cascade [34,35]. In detail, cold stress receptor kinase-like 1 (CRKL1) is regulated by calcium/calmodulin binding, and CRLK1/2 interacts with MEKK1, a MAPK module that responds to lower temperatures [19,20]. MEKK1 then phosphorylates MKK2, which activates MPK4/6, forming an upstream pathway, CRLK1-MEKK1-MKK2-MPK4-MPK3/6, that enhances CBF gene expression [21,36].

Plant hormones play an important role in plant growth and development and protect plants from abiotic stresses, such as cold stress. It has been reported that many hormones regulate cold stress by regulating CBF. One of the most important hormones in cold stress is abscisic acid (ABA) [37]. Previous studies have shown that ABA can induce the expression of CBF and COR genes [38]. Gibberellin (GA) plays a powerful role in the ICE-CBF-COR pathway [39]. It is also understood that anthocyanin content in plants is higher under cold stress conditions. Brassica napus transformed with the AtGA2ox8 gene has a reduced amount of bioactive GA and can produce more anthocyanins in winter [40]. Ethylene (ET), ABA, and jasmonate (JA) induce the expression of ethylene-responsive factor (ERF) genes. ERFs can bind to the GCC box and DRE elements at low temperatures to enhance plant tolerance to cold stress [41]. In addition, methyl jasmonate can induce the expression of guaiacol peroxidase (POD), catalase (CAT), and ascorbate peroxidase (APX)-related genes that reduce reactive oxygen species, enhancing bell pepper tolerance to low-temperature stress [33]. Two brassinosteroids (BR)-responsive transcription factors, Brassinazole-resistant 1 (BZR1) and CES (CESTA), are also direct regulators of CBF [39,42].

Due to these differences in signal transduction pathways and metabolisms, the plant mechanisms associated with cold stress are complex [43]. Studying transcriptional changes in plants during cold stress is crucial for understanding and identifying plants’ molecular mechanisms under cold stress. In this study, we designed cold treatments at different time markers to investigate the transcriptome changes of I. dabieshanensis. A comprehensive comparative analysis identified the major signaling pathways and key genes involved or shared by cold stress. These results broadened our understanding of the molecular mechanisms by which holly responds to low temperatures and provided information for further studies on key gene functions.

2. Materials and Methods

2.1. Plant Materials and Experimental Design

The research material is the annual cutting seedlings of I. dabieshanensis, and the cuttings are all derived from the same mother plant. This ensures the consistency of the genetic background and physiological state of the experimental material. The seedlings with consistent growth (about 10 leaves) were selected and placed in an artificial climate room at 25 °C for 4 weeks. After 4 weeks, they were treated at a low temperature of 4 °C, and samples were taken at 0 h, 3 h, 6 h, 9 h, 12 h, and 24 h, respectively [44], and the leaves of 6 plants were mixed as a sample in each time period, and three biological replicates were set for each treatment. Samples were immediately stored in liquid nitrogen. A part was directly used for transcriptome sequencing, and the rest was stored in a −80 °C ultra-low temperature freezer for later use.

2.2. Total RNA Extraction and mRNA Libraries Construction

Total RNA was extracted from leaves using a plant RNA purification reagent. We used the Illumina TruseqTM RNA sample prep Kit method to construct the library. Detailed experimental steps are as follows. The starting amount of 1 μg total RNA was used to build the library; after the mRNA was isolated by magnetic beads, the mRNA was interrupted by ions (TruseqTM RNA sample prep Kit); double-stranded cDNA synthesis, filling, adding A at the 3′ end, and connecting the index adapter (TruseqTM RNA sample prep Kit) were performed; library enrichment and PCR amplification for 15 cycles were performed; 2% agarose gel recovery of the target band (Certified Low Range Ultra Agarose); TBS380 (Picogreen) quantification was performed, mixed according to the data ratio; cBot Bridge PCR amplification was performed on the top to generate clusters; and the Illumina Novaseq sequencing platform was used for 2×150 bp sequencing.

2.3. mRNA Sequence Data Processing

The original image data obtained by Illumina sequencing was converted into sequence data through base calling, and the results are stored in the FASTQ file format. The FASTQ file is the most original data file, and the file contains the sequence information of the sequencing read and the sequencing quality information. The raw sequencing data were first filtered by using trimmomatic (ILLUMINACLIP:adapters.fa:2:30:10 SLIDINGWINDOW:4:15 MINLEN:75) (http://www.usadellab.org/cms/index.php?page= trimmomatic) (accessed on 12 August 2021), so as to obtain high-quality sequencing data (clean data) to ensure the smooth progress of subsequent analysis (Bioproject accession number: PRJNA897070). Next, the high-quality sequencing sequences obtained after quality control were compared with the designated I. polyneura reference genome (https://ngdc.cncb.ac.cn/search/?dbId=gwh&q=GWHBDNW00000000&page=1) (accessed on 7 April 2022), using Hisat2 (http://://ccb.jhu.edu/software/hisat2/faq.shtml) (accessed on 7 April 2022) with default parameters. The FPKM value (fragments per kilobase of exon model per million mapped reads) was calculated using featureCounts (http://subread.sourceforge.net/) (accessed on 7 April 2022).

2.4. Screening of Differentially Expressed Genes

Use edgeR software was used to analyze differentially expressed genes, and it was used to compare different cold treatment groups in pairs to obtain Cold-3 h vs. Cold-ck (0 h), Cold-6 h vs. Cold-ck, Cold-9 h vs. Cold-ck, Cold-12 h vs. Cold-ck, Cold-24 h vs.Cold-ck, Cold-6 h vs. Cold-3 h, Cold-9 h vs. Cold-3 h, Cold-12 h vs.Cold-3 h, Cold-24 h vs. Cold-3 h, Cold-9 h vs. Cold-6 h, Cold-12 h vs. Cold-6 h, Cold-24 h vs. Cold-6 h, Cold-12 h vs. Cold-9 h, Cold-24 h vs. Cold-9 h, and Cold-24 h vs. Cold-12 h as differentially expressed genes. The fold change (FC) and false discovery rate (FDR) were used as the screening conditions for differentially expressed genes, and the screening threshold was FDR ≤ 0.05 and FC ≥ 2. The differential expression was analyzed visually.

2.5. Differentially Expressed Gene Enrichment Analysis

The software Goatools (https://github.com/tanghaibao/GOatools) (accessed on 7 April 2022) was used for GO enrichment analysis, and the method was Fisher’s exact test. The p-values were corrected using the FDR (false discovery rate) multiple testing method to control for the calculated false positive rate. Typically, this GO function was considered significantly enriched when the p-value ≤ 0.05. Generally, the top 30 results of the GO enrichment analysis were selected as the main nodes of the directed acyclic graph, and the associated GO term was displayed together through the inclusion relationship. The depth of the color represents the degree of enrichment. In our project, we drew DAG diagrams of biological process, molecular function, and cellular component, respectively.

The software KOBAS (http://kobas.cbi.pku.edu.cn/kobas3/?t=1) (accessed on 7 April 2022) was used for KEGGPATHWAY enrichment analysis. The calculation principle was the same as that of GO functional enrichment analysis, and Fisher’s exact test was used for calculation. In order to control the calculated false positive rate, the BH (FDR) method was used for multiple testing. The calculation formula was the same as the previous section, and the p value was 0.05 as the threshold. The KEGG pathway that met this condition was defined as the KEGG pathway that was significantly enriched in differentially expressed genes.

2.6. Construction of Weighted Gene Co-Expression Network

The WGCNA algorithm is a common algorithm for constructing gene co-expression networks, and the R language package [45] was used for analysis. The WGCNA algorithm first assumes that the gene network obeys a scale-free distribution and defines the gene co-expression correlation matrix and the adjacency function formed by the gene network, and then it calculates the dissimilarity coefficients of different nodes and builds a hierarchical clustering tree accordingly. Different branches of the clustering tree represent different gene modules. To identify biologically meaningful modules, module features are used to calculate correlation coefficients. Principal component analysis (PCA) was performed on all genes in each co-expression module, and the principal component 1 (PC1) was called the eigengene of this module (Module eigengene, ME) in order to screen the cold stress-related specificity module, as well as to calculate the correlation coefficient r and p value of ME values of each module and different traits (here, different cold stress time). In this study, a module was considered to be a specific module if the correlation coefficient between its ME value and the trait |r| > 0.70 and p < 0.05. The top 30 genes connected in the module were selected as hub genes (highly connected genes). In this study, the connection relationship with edge weight > 0.3 was selected, and the hub gene interaction network was visualized using Cytoscape_3.3.0.

2.7. Validation of Gene Expression by qRT-PCR

To verify the RNA-seq results, we selected five DEGs for quantitative reverse transcription PCR (RT-qPCR) analysis. Total RNA of 18 samples was isolated by Trizol reagent following the protocol. The cDNA was generated by Primerscript RT reagent Kit with gDNA Erase (Takara), according to the manufacturer’s protocol. Quantitative PCR (qPCR) was performed using SYBR Premix Ex Tag (Takara), with actin as an internal reference gene. The relative expression levels of five DEGs normalized to the expression level of the internal reference control were calculated using the 2^−∆∆Ct method [46]. The primers are listed in Table S1.

3. Results

3.1. Differential Analysis of Gene Expression in I. dabieshanensis under Cold Stress

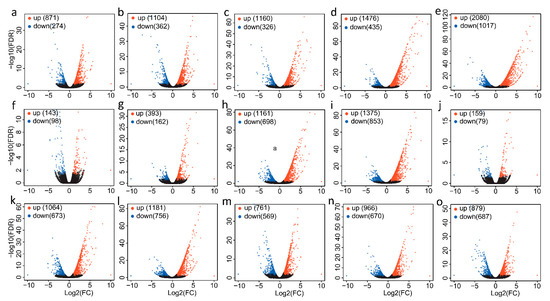

Taking the genome annotation file as a reference, the FPKM value of each transcript in each sample was counted, and this value was used as the transcript’s expression level. The significant differences in expression were analyzed for different cold treatments [0 h (h), 3 h, 6 h, 9 h, 12 h, and 24 h] to study the gene expression of I. dabieshanensis under cold stress. The significantly different gene (DEG) screening conditions were FDR ≤ 0.05 and FC ≥ 2. A total of 5750 DEGs were obtained, and differential expression was visualized (Table S2). Compared to no cold stress (CK), gene expression was significantly up-regulated or down-regulated during different cold stress time markers. As the period of stress increased, the number of up-regulated DEGs and down-regulated DEGs increased (Figure 2a–e). Compared to 3 h, the number of DEGs under stress for 6 h, 9 h, 12 h, and 24 h were 241, 555, 1859, and 2228, respectively (Figure 2f–i). Compared to 6 h, the number of DEGs under stress for 9 h, 12 h, and 24 h were 238, 1737, and 1937, respectively (Figure 2j–l). Compared to 9 h, the number of DEGs under stress for 12 h and 24 h was 1330 and 1636, respectively (Figure 2m,n). Compared to 12 h, the number of DEGs under stress for 24 h was 1566 (Figure 2o). These results indicated that the expression of some genes was significantly different between different stress treatments, and the number of DEGs showed an upward trend as the treatment time gap increased.

3.2. GO Enrichment Analysis of DEGs

To fully understand the gene function classification of holly in response to cold stress, GO annotation was first performed on DEGs. GO annotation includes three aspects: biological process (BP), cellular component (CC), and molecular function (MF). The results showed that, compared to 0 h, DEGs under different cold treatments were annotated in BP, CC, and MF, with differences. From the analysis of level 2, the DEGs of 3 h vs. 0 h were mainly annotated to 8, 3, and 17 GO terms for MF, CC, and BP, respectively (Figure S1). The DEGs of 6 h vs. 0 h were mainly annotated to 8, 3, and 19 GO terms for MF, CC, and BP, respectively (Figure S1). The DEGs of 9 h vs. 0 h were mainly annotated to 8, 3, and 19 GO terms for MF, CC, and BP, respectively (Figure S1). The DEGs of 12 h vs. 0 h were mainly annotated to 9, 3, and 18 GO terms for MF, CC, and BP, respectively (Figure S1). The DEGs of 24 h vs. 0 h were mainly annotated to 8, 3, and 20 GO terms for MF, CC, and BP, respectively (Figure S1). Although the GO terms were different, they were mainly annotated to catalytic activity, intracellular entities, cellular anatomical entities, cellular processes, biological regulation, response to stimuli, and metabolic processes (Figure S1).

Canonically, GO functions are considered to be significantly enriched when the p-value ≤ 0.05. According to the GO enrichment analysis, compared to 0 h, the number of GO-enriched terms of DEGs under stress for 3 h, 6 h, 9 h, 12 h, and 24 h were 160 (BP: 124, CC: 17, MF: 19), 240 (BP: 184, CC: 17, MF: 39), 239 (BP: 197, CC: 10, MF: 32), 329 (BP: 271, CC: 6, MF: 52), and 319 (BP: 224, CC: 10, MF:76), respectively (

Table 1. GO enrichment analysis statistics of DEGs (p-value ≤ 0.05).

Sample	DEG-Type	GO Term_ Enrich_Num.	BP	CC	MF
Cold-3_vs_Cold-ck	DEG-all	160	124	17	19
Cold-3_vs_Cold-ck	DEG-up	162	127	18	17
Cold-3_vs_Cold-ck	DEG-down	37	32	5	0
Cold-6_vs_Cold-ck	DEG-all	240	184	17	39
Cold-6_vs_Cold-ck	DEG-up	215	165	18	32
Cold-6_vs_Cold-ck	DEG-down	107	90	1	16
Cold-9_vs_Cold-ck	DEG-all	239	197	10	32
Cold-9_vs_Cold-ck	DEG-up	225	173	13	39
Cold-9_vs_Cold-ck	DEG-down	70	65	1	4
Cold-12_vs_Cold-ck	DEG-all	329	271	6	52
Cold-12_vs_Cold-ck	DEG-up	339	274	10	55
Cold-12_vs_Cold-ck	DEG-down	60	56	0	4
Cold-24_vs_Cold-ck	DEG-all	310	224	10	76
Cold-24_vs_Cold-ck	DEG-up	395	303	19	73
Cold-24_vs_Cold-ck	DEG-down	79	44	5	30

). With prolonged cold-treatment time, the terms of DEGs related to BP and MF were increasingly abundant, while the terms related to CC decreased.

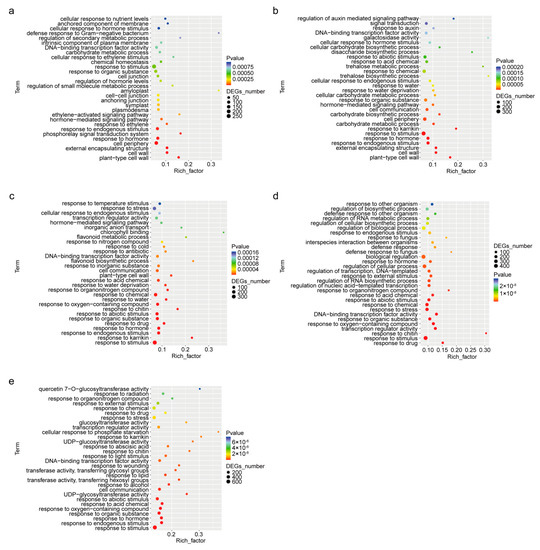

In terms of MF, DEGs under cold stress at different times were significantly enriched in “DNA-binding transcription factor activity” (Figure 3) and “calcium ion binding” (Tables S2–S7). According to statistics, there are 425 transcription factors in DEGs, which are distributed in 42 transcription factor families. The larger transcription factor families are ERF (58), MYB (33), NAC (32), bHLH (28), WRKY (28), C2 H2 (24), GRAS (21), MYB_ Related (21), HD-ZIP (14), G2-like (13), Trihelix (11), bZIP (10), Dof (10), HSF (10), etc. (Figure S2). In addition, the activities of some enzymes may be affected differently in different stress stages (Tables S3–S7). For example, “galactosidase activity” and “trehalose-phosphatase activity” were mainly affected in the early cold treatment stage, while “ubiquitin-protein transferase activity” and “UDP-glucosyltransferase activity” were mainly affected in the later stages. In terms of CC, GO terms are few, and DEGs were mainly enriched in “plant-type cell wall”, “plasmodesma”, “amyloplast”, “intrinsic component of plasma membrane”, and “anchored component of membrane” (Figure 3a–c).

The most abundant GO terms for BP were cold-treatment-induced processes related to hormone metabolism and signal transduction pathways. Under cold stress at different time markers, DEGs were significantly enriched in “response to hormone” (Figure 3). Some DEGs under cold stress were also significantly enriched in “hormone transport”, “hormone metabolic process”, “Regulation of hormone levels”, “regulation of hormone metabolic process”, and “regulation of hormone biosynthetic process” (Tables S3–S7). In more detail, cold-induced DEGs were significantly enriched in a variety of hormone-related terms. For example, cold-induced DEGs were involved in ten IAA-related GO terms, including “response to auxin”, “auxin-activated signaling pathway”, “auxin transport”, “auxin homeostasis”, and “auxin efflux”, etc. (Tables S3–S7). Six ABA-related GO terms were significantly enriched, including “response to abscisic acid”, “abscisic acid-activated signaling pathway”, and “abscisic acid metabolic process”, etc. (Tables S3–S7). Four JA-related GO terms were significantly enriched, including “response to jasmonic acid”, “jasmonic acid mediated signaling pathway”, and “regulation of jasmonic acid mediated signaling pathway”, etc. (Tables S3–S7). Two ET-related GO terms were significantly enriched, including “response to ethylene” and “ethylene-activated signaling pathway” (Tables S3–S7). Two GA-related GO terms were significantly enriched, including “response to gibberellin” and “regulation of gibberellic acid mediated signaling pathway”) (Tables S3–S7). Two CK-related GO terms were significantly enriched, including “response to cytokine” and “cytokinein-activated signaling pathway” (Tables S3–S7). Three salicylic acid-related GO terms were significantly enriched, including “response to salicylic acid”, “regulation of salicylic acid mediated signaling pathway”, and “regulation of salicylic acid metabolic process” (Tables S3–S7). Additionally, three BR-related GO terms were significantly enriched, including “response to brassinosteroid”, “brassinosteroid biosynthetic process”, and “brassinosteroid homeostasis” (Tables S3–S7). In addition, “response to larrikin”, “response to water”, “response to temperature stimulus”, “response to cold”, and “response to chitin” were also highly enriched (Figure 3b–e).

3.3. KEGG Enrichment Analysis of DEGs

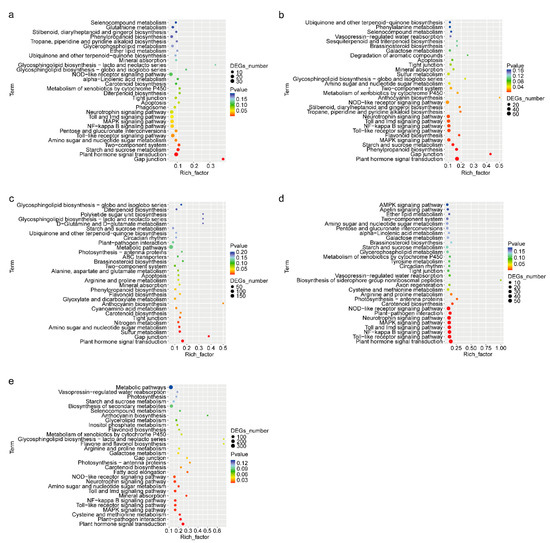

The results of the Kyoto Encyclopedia of Genes and Genomes (KEGG) enrichment analysis showed that the DEGs induced by cold treatment were significantly enriched in various metabolic pathways, including carbohydrate metabolism, biosynthesis of other secondary metabolites, energy metabolism, amino acid metabolism, xenobiotics biodegradation and metabolism, lipid metabolism, glycan biosynthesis and metabolism, and metabolism of terpenoids and polyketides (Tables S8–S12). Among them, “Pentose and glucuronate interconversions” and “Starch and sucrose metabolism” were significantly enriched in the early stages of cold stress, but not during later stages. In contrast, some metabolic pathways were significantly enriched in the middle and late stages of cold stress and not significantly enriched in earlier periods, such as “Arginine and proline metabolism”, “Carotenoid biosynthesis”, “Cysteine and methionine metabolism”, “Galactose metabolism”, “Inositol phosphate metabolism”, “Photosynthesis—antenna proteins”, “Fatty acid elongation”, and “Flavone and flavonol biosynthesis” (Tables S8–S12).

In terms of cellular processes, DEGs were significantly enriched in “Cellular community—eukaryotes”, “involving Gap junction” and “Tight junction” (Figure 4a–d). In organismal systems, DEGs were significantly enriched in the “Toll-like receptor signaling pathway”, “NOD-like receptor signaling pathway”, “Toll and Imd signaling pathway”, “Plant-pathogen interaction”, “Mineral absorption”, and “Neurotrophin signaling pathway” (Figure 4). In organismal systems, cold stress only induced significant enrichment of “Mineral absorption” (Figure 4e) and “Plant-pathogen interaction” (Figure 4d,e) in the middle and late stages.

Notably, signal transduction pathways in environmental information processing were significantly enriched, including “Plant hormone signal transduction”, “MAPK signaling pathway”, “NF-kappa B signaling pathway”, and “Two-component system” (Figure 4). In particular, “Plant hormone signal transduction” was a significantly enriched pathway of DEGs in each cold stress stage and was also the most significantly enriched pathway, except for during the 3 h time marker (Figure 4). The “MAPK signaling pathway” and the “NF-kappa B signaling pathway” were significantly enriched in four of the cold stress stages (Figure 4a–e).

3.4. The Expression Patterns of DEGs Response to Cold Tolerance in I. dabieshanensis

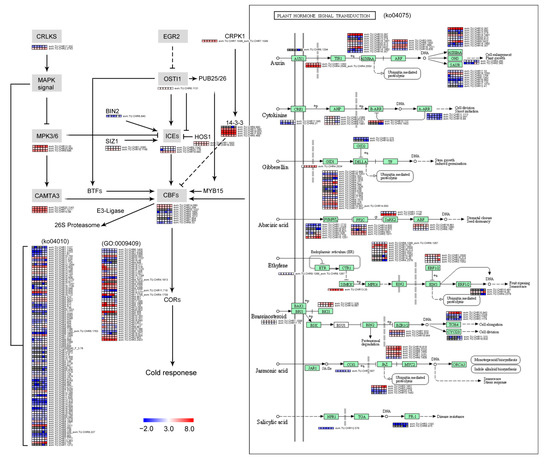

To understand the gene expression profile of I. dabieshanensis in response to cold stress, we used Delight Hwarari’s figure [24] as a reference to show the expression pattern of DEGs under cold stress. The results showed that various hormone signaling pathways, MAPK signaling pathways, and some “cold-responsive” genes played essential roles during cold stress in holly. We found that seven hormone (IAA, ABA, CK, ET, GA, BR, and JA) signal transduction-related genes were up-regulated or down-regulated to varying degrees by cold stress (Figure 5, Table S13). Some MAPK signaling-related genes were up-regulated, such as four serine/threonine protein kinase genes (evm.TU.CHR18.1145, evm.TU.CHR2.571, evm.TU.CHR8.589, and evm.TU.CHR9.656), one HSP gene (evm.TU.CHR2.705), and one mitogen-activated protein kinase gene (evm.TU.CHR13.25) (Figure 5, Tables S14 and S15). The ICE-CBF-COR pathway-related gene ICE1 (evm.TU.CHR20.178) gene and two CBF genes (evm.TU.CHR4.1892 and evm.TU.CHR8.33) were shown to be up-regulated by cold stress (Figure 5, Table S16). Among some “response to cold” genes, one ERF gene (evm.TU.CHR11.908) and one peroxidase gene (evm.TU.CHR17.727) were up-regulated (Figure 5, Table S15). In contrast, more “response to cold” genes were significantly down-regulated, such as C-repeat/DRE binding factor 1 (evm.TU.CHR19.317), dehydrin, and dehydration-responsive element-binding protein 1D (Figure 5, Table S15).

3.5. Construction and Analysis of Weighted Gene Co-Expression Network

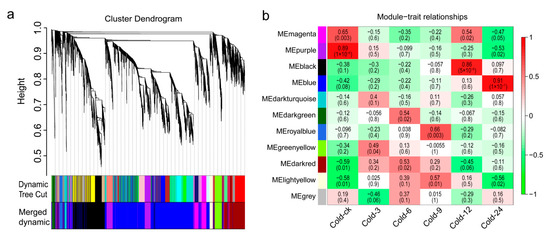

We performed a weighted gene co-expression network analysis (WGCNA) to identify genes associated with cold stress. All the DEGs obtained by cold treatment of holly during 0 h (CK), 2 h, 6 h, 12 h, and 24 h were selected, and the WGCNA package in the R software environment was used to construct the weighted gene co-expression network. According to Figure S3, a soft threshold β = 6 was chosen to construct the co-expression network. The modules were divided by the dynamic shearing method and merged into 11 co-expression modules by choosing a cutting height of 0.25. Different colors represented different modules, and the grey modules represented genes that could not be classified into modules (Figure 6a). Two modules were significantly associated with cold traits (showing regular changes with increasing cold treatment time). The black module (r = 0.86, p = 5 × 10⁻⁶) was significantly positively correlated with cold stress for 12 h, and the blue module (r = 0.91, p = 1 × 10⁻⁷) was significantly positively correlated with cold stress for 24 h (Figure 6b). We found that black and blue modules’ gene expression profiles significantly differed between cold-stressed and unstressed samples. The genes of the black module were significantly up-regulated by cold stress for 12 h, while the genes of the blue module were significantly up-regulated by cold stress for 24 h (Figure S4). These results suggested that genes in these two modules may trigger and participate in the cold mediation process within the plant.

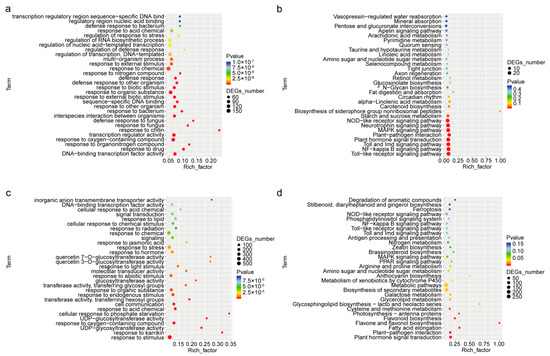

To find the key genes involved in low-temperature stress, GO and KEGG enrichment analyses were performed on the genes identified in the black and blue modules. GO enrichment analysis showed that some GO terms were common to the black and blue modules and were arranged in the front, such as “response to acid chemical”, “response to oxygen-containing compound”, “response to organic substance”, and “response to acid chemical”, etc. (Figure 7a,c). In addition, some GO terms were also significantly enriched in the black and blue modules, such as “response to cold”, “calcium ion binding”, and some hormone-related terms (“response to abscisic acid”, “cellular response to jasmonic acid stimulus”, and “response to ethylene”) (Tables S17 and S18). Some GO terms, such as “UDP-glycosyltransferase activity”, “UDP-glucosyltransferase activity”, “glucosyltransferase activity”, “quercetin 3-O-glucosyltransferase activity”, and “quercetin 7-O-glucosyltransferase activity”, were unique to the blue module and had a high degree of enrichment (Figure 7a,c). KEGG pathway enrichment analysis showed that “Plant hormone signal transduction” and “Plant-pathogen interaction” were significantly enriched pathways for both black and blue modules (Figure 7b,d). “Toll-like receptor signaling pathway”, “NF-kappa B signaling pathway”, “Toll and Imd signaling pathway”, “MAPK signaling pathway”, and “NOD-like receptor signaling pathway” were significantly enriched in the black module, but were not significantly enriched in the blue module (Tables S19 and S20). Conversely, some pathways were significantly enriched in the blue module but not significantly or not enriched in the black module, such as “Fatty acid elongation”, “Flavone and flavonol biosynthesis”, and “Flavonoid biosynthesis” (Tables S19 and S20).

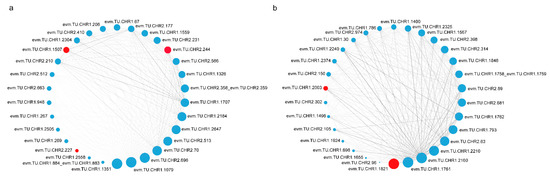

Next, the highly connected genes of the black and blue modules were used as hub genes to construct gene co-expression networks for holly cold stress, in which each node represented a gene and the lines between genes represented the co-expression relationship. The internal connectivity of a gene in a module reflected the network location and importance of the gene to the module. In the hub gene co-expression network of the black module, the connectivity and edge weight of nine genes were high, such as evm.TU.CHR2.70, evm.TU.CHR1.2647, evm.TU.CHR1.2184, evm.TU.CHR1.1707, evm.TU.CHR2.566, evm.TU.CHR2.244, evm.TU.CHR2.177, evm.TU.CHR1.1507, and evm.TU.CHR2.210 (Figure 8a). Through functional annotation of the genes, we found that evm.TU.CHR2.244 and evm.TU.CHR1.1507 were transcription factors (Table S21). In contrast, evm.TU.CHR2.227, a transcription factor, had low connectivity and edge weight values in this network. Additionally, three genes (evm.TU.CHR1.1351, evm.TU.CHR1.1079, and evm.TU.CHR2.696) had higher connectivity but lower edge weight values (Figure 8a). Eleven genes (evm.TU.CHR1.1761, evm.TU.CHR1.2160, evm.TU.CHR2.63, evm.TU.CHR1.1762, evm.TU.CHR2.89, evm.TU.CHR1.1567, evm.TU.CHR1.2325, evm.TU.CHR2.974, evm.TU.CHR1.30, evm.TU.CHR1.2240, and evm.TU.CHR1.2003) in the blue module had high connectivity and edge weights (Figure 8b), and evm.TU.CHR1.2003 was functionally annotated as a transcription factor (Table S22). Another transcription factor, evm.TU.CHR1.1821, was found to have the highest number of connections in this network, but the edge weights were all low (Figure 8b, Table S22). The identified hub genes had close interactions or indirect cross-regulation, suggesting that these genes may play crucial roles in regulating cold stress.

3.6. Validation of RNA-Seq Data by qRT-PCR Analysis

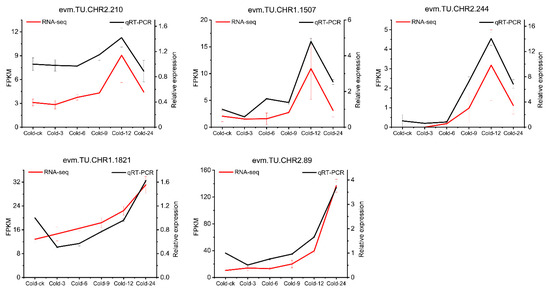

In order to confirm our calculation and analysis results, we selected five important hub genes from the black and blue modules and performed a quantitative reverse-transcription PCR (qRT-PCR) analysis of their expression levels under cold treatment (0 h (ck), 3 h, 6 h, 9 h, 12 h, and 24 h). The results showed that the change trend of transcription level based on qRT-PCR was basically consistent with RNA-Seq (Figure 9). Compared with the control, the expression levels of five genes were significantly up-regulated by cold stress for 12 h or 24 h (Figure 9). This indicates that the RNA-Seq data obtained in this study are reliable and can support the above transcriptome analysis.

4. Discussion

Many previous studies have investigated and described the molecular mechanisms of plant cold tolerance [47,48,49,50,51,52]. The current understanding of the complex mechanisms of cold resistance in holly is limited. This study used transcriptome sequencing to elucidate the cold tolerance mechanisms of holly undergoing cold stress by comparing and analyzing the DEGs of holly under cold treatment (3 h, 6 h, 9 h, 12 h, 24 h, and untreated control conditions).

4.1. Expression Patterns of Plant Hormone Signal Transduction-Related Genes in the Regulation of Cold Stress in I. dabieshanensis

Cold signaling and other signaling pathways that coordinate stress adaptation responds to plant growth and development. Hormonal signals, such as BR, JA, ET, IAA, GA, and ABA, have been reported to regulate cold tolerance [24]. For example, low temperature induces the expression of CBF to inhibit growth, reducing the GA content by stimulating the expression of the GA 2-oxidase gene, thereby enhancing the accumulation of DELLA proteins [53]. The GRETCHEN HAGEN 3 (GH3) family gene OsGH3-2 encodes an enzyme that catalyzes the binding of IAA to amino acids. OsGH3-2 overexpression can enhance cold resistance and reduce ABA levels in rice. F-box protein transport inhibitor response 1 (TIR1) is a receptor for auxin [54], and as putative orthologs of TIR1, the transcript levels of OsAFB2 and OsTIR1 decreased under cold stress [55]. Small auxin-up RNAs (SAURs) are negative regulators of auxin synthesis and transport [56], and nine OsSAUR genes were significantly down-regulated under cold stress in Oryza sativa, and two OsSAUR genes were induced by cold stress [55]. In Arabidopsis thaliana, the cytokinin receptor histidine kinases AHK2-AHK4 and Arabidopsis histidine phosphor-transferase (AHP) may play negative roles under adverse environmental conditions [57]. Most type A response regulators (A-ARRs) are partially redundant negative regulators of cytokinin signaling, induced by cytokinins and cold stress [58]. Ethylene negatively regulates cold signaling through direct transcriptional control of the COR, CBF, and A-ARR genes [59]. Overexpression of ethylene-responsive factor 13 (ERF13) can significantly increase the cold tolerance of birch [60]. Drought stress leads to higher expression levels of SIMKK (salt stress-induced MAPK kinase) genes in Medicago sativa L. and Medicago arborea L. When plants encounter cold stress, they trigger a series of intracellular responses that help them tolerate stress by producing BRs. Activated BZR 1 can induce cold tolerance in plants through a CBF-dependent or CBF-independent pathway [61]. The Arabidopsis Tetracycline hydrochloride (TCH) gene encoding a calmodulin-related protein and xyloglucan endotransglycosylase is known to be up-regulated after cold shock [62]. The basic helix-loop-helix (bHLH) transcription factor MYC2, a master regulator of the core JA signaling machinery, is involved in methyl jasmonate (MeJA)-induced cold tolerance in banana fruit in synergy with MaICE1 [63].

Plant hormone signal transduction was this study’s most highly enriched pathway, excluding cold stress at 3 h (Figure 3). Expression results of differentially expressed genes indicated that seven hormones (ABA, ET, CK, IAA, GA, JA, and BR) were involved in response to cold stress (Figure 5). Under cold stress, the expression of a large number of DELLA genes in holly increased significantly (Figure 5, Table S13). In particular, evm.TU.CHR17.303 was up-regulated 5.9-fold under cold stress at 24 h, and evm.TU.CHR4.1916 was up-regulated 7.2-fold under cold stress at 9 h (Figure 5, Table S13). The expression levels of two ABA receptor genes, pyrabactin resistance (PYR)/PYR1-like (PYL) genes (evm.TU.CHR2.528 and evm.TU.CHR12.725) were up-regulated by cold stress. The evm.TU.CHR2.528 gene was not expressed at 0 h, but its FPKM values were 14.18 and 14.01 at 12 h and 24 h, respectively (Figure 5, Table S13). The above results indicate that holly can also respond to cold stress under low temperatures by regulating the accumulation of DELLA proteins. The expression levels of the two GH3 genes (evm.TU.CHR4.280 and evm.TU.CHR5.340) in holly were significantly changed at the later stage of cold stress (12 h and 24 h), but the expressions were opposite. Two putative TIR1s (evm.TU.CHR1.1393 and evm.TU.CHR4.2549_evm.TU.CHR4.2550) genes were down-regulated by more than 1-fold at 24 h cold treatment (Figure 5, Table S13). Two SAUR genes (evm.TU.CHR5.1764 and evm.TU.CHR19.132) were up-regulated, and one SAUR gene (evm.TU.CHR11.1410) was down-regulated by cold in I. dabieshanensis (Figure 5, Table S13). Under cold stress, I. dabieshanensis adapted to unfavorable environmental factors by regulating auxin homeostasis, signal transduction, and transport. One putative AHP gene (evm.TU.CHR8.1461) was consistent with previous findings, and its expression decreased gradually as cold stress time increased (Figure 5, Table S13). The putative B-ARR genes evm.TU.CHR10.112 and evm.TU.CHR5.1852 were slightly up-regulated by cold stress (Figure 5, Table S13), which was consistent with previous studies. However, the putative A-ARR genes evm.TU.CHR11.1113 and evm.TU.CHR15.84 in I. dabieshanensis were up-regulated and down-regulated (Figure 5, Table S13). Therefore, further exploration is needed to determine the exact role of the cytokinin signaling pathway in holly freezing tolerance. The SIMKK gene (evm.TU.CHR13.25) was up-regulated by cold stress at different times, especially at 24 (up-regulated by about 4 times) (Figure 5, Table S13). The expression levels of two EBF1/2 genes (evm.TU.CHR16.373 and evm.TU.CHR 3.2027) were higher than the control at 12 h and 24 h, especially evm.TU.CHR3.2027, which increased by 1.28 times and 8.43 times, respectively (Figure 5, Table S13). One ERF gene, evm.TU.CHR14.26, was slightly down-regulated by cold stress at 3 h, 6 h, and 9 h, but not significantly. Then evm.TU.CHR14.26 was up-regulated by cold stress at 12 h and 24 h (4.36 times at 24 h). The other two ERF genes were not expressed at 0 h, 3 h, 6 h, and 9 h, but were expressed at 12 h or 24 h (Figure 5, Table S13). In conclusion, I. dabieshanensis’s response to cold stress may involve the participation of ethylene signals, mainly by up-regulating the expression of SIMKK, EBF1/2, and ERF genes. One BZR 1/2 gene (evm.TU.CHR4.816) was induced by cold stress and was up-regulated by 1.23 times after 24 h of cold stress (Figure 5, Table S13). Consistent with previous findings, the expression of the four TCH 4 genes (evm.TU.CHR10.943, evm.TU.CHR3.2328, evm.TU.CHR3.1162, and evm.TU.CHR3.1174) were all up-regulated to varying degrees (Figure 5, Table S13). These results suggest that BR signaling was also involved in mediating the process of low-temperature tolerance in I. dabieshanensis. Under cold stress, the expression levels of four holly MYC2 genes (evm.TU.CHR16.819, evm.TU.CHR5.2033, evm.TU.CHR1.2022, and evm.TU.CHR6.1409) increased to varying degrees at different stress times, especially evm.TU.CHR16.819, evm.TU.CHR5.2033, evm.TU.CHR16.819, and evm.TU.CHR5.2033, which increased by more than two times at 12 h or 24 h (Figure 5, Table S13). This result suggests that JA signaling may positively regulate cold tolerance in I. dabieshanensis through the up-regulation of MYC2 expression. Overall, seven hormonal signaling pathways were involved in holly’s response and tolerance to cold stress. Crosstalk may exist between these hormonal signals, so further research is needed to clarify these relationships.

4.2. Metabolic Pathways during Cold Stress Response in I. dabieshanensis

During cold stress, the oxidation reaction in chloroplasts becomes more intense, resulting in an increase in glycolate content and conversion to glyoxylic acid, which is accompanied by the accumulation of a reactive oxygen species (ROS), hydrogen peroxide (H₂O₂) [12]. In this study, “Glyoxylate and dicarboxylate metabolism” (ko00630) were highly enriched for DEGs at 9 h of cold stress (Figure 4c) and were also enriched (but not significantly) at other stages of cold stress (Tables S8–S12). This observation indicated that glyoxylic acid metabolism changed the most in I. dabieshanensis under cold stress for 9 h. Proline protects and stabilizes ROS scavenging enzymes and activates alternative detoxification pathways when plants are exposed to various abiotic stresses [64]. Arginine also significantly reduces chilling symptoms and H₂O₂ accumulation [65]. The DEGs at 12 h and 24 h of I. dabieshanensis cold stress were significantly enriched in “Arginine and proline metabolism” (ko00330) (Figure 4d,e). In particular, 11 genes were enriched at 24 h, and all were up-regulated, of which two genes (evm.TU.CHR2.2709 and evm.TU.CHR5.126) were up-regulated by more than four times (Tables S12 and S16). The red peel is associated with the accumulation of anthocyanins and flavonoids, exhibiting increased resistance to cold and pathogens [66]. In our study, the DEGs of each stage of cold stress were enriched in “Flavonoid biosynthesis” (ko00941) (Tables S8–S12) and were significantly enriched at 6 h, 9 h, and 24 h of cold stress (Figure 4b,c,e). “Anthocyanin biosynthesis” (ko00942) was enriched at 6 h, 9 h, and 24 h (Tables S9, S10 and S12) and was significantly enriched at 6 h and 9 h (Figure 4b,c). This result suggests that the biosynthesis of anthocyanins and flavonoids may play an important role in fruit reddening and low-temperature resistance in I. dabieshanensis. The metabolism of glycolate, arginine, proline, flavonoid, and anthocyanin may regulate the process by which holly responds and tolerates cold stress.

4.3. Peroxisome Pathway during Cold Stress Response in I. dabieshanensis

Usually, low temperatures induce oxidative stress in plants. Mitochondria (in the Ubichinon (UQ)/Ubichinol (UQH2) cycle) activate the plant’s internal antioxidant system consisting of scavenging enzymes and antioxidants to scavenge excess ROS [67,68]. In this study, “Peroxisome” (ko04146) was enriched in each stage of I. dabieshanensis cold stress, but not significantly (Tables S8–S12). The 24 h DEGs under cold stress were most enriched in “Peroxisome” (ko04146) (Tables S8–S12), including six up-regulated genes (two SOD genes, two MPV17 genes, one Epoxide Hydrolase 2 (EPHX2) gene, and one long-chain acyl-coenzyme A synthase (ACSL) gene), and one was down-regulated Nudix Hydrolase 7 (NUDT7) (Figure S5). MPV17 directly scavenges excess ROS [69]. Two MPV17 analogs, evm.TU.CHR18.801 and evm.TU.CHR5.351, were up-regulated by 1.8 and 2.1 times, respectively, at 24 h of cold stress (Table S16). In Brassica rapa L., many cold-induced genes were enriched in the “Peroxisome”, and MPV17 and ACSL were up-regulated [69]. Overall, the peroxisomal pathway is an important cellular process for holly to respond to and defend against cold rapidly.

4.4. Gene Co-Expression Network in the Regulation of Cold Stress in I. dabieshanensis

In this study, 11 co-expression network modules were obtained. Two black and blue modules were significantly associated with cold stress in I. dabieshanensis. Cold-induced film hardening is considered a primary cold-induced event [70]. Plasma membrane fluidity correlates with the proportion of desaturated fatty acids [71]. In this study, “Fatty acid elongation” (ko00062) and “Glycerolipid metabolism” (ko00561), as lipid metabolism-related pathways, were significantly enriched in the blue module. This result suggests lipid metabolism changes in I. dabieshanensis under cold stress, which is consistent with previous studies. Sensing and intracellular transduction of stress signals are critical for the adaptation and survival of organisms to environmental stressors [72]. The GO enrichment analysis results of the black and blue module genes revealed that there were “cellular response to stimulus” (GO:0051716), “cell communication” (GO:0007154), “cell surface receptor signaling pathway” (GO:0007166), and “intracellular signal transduction” (GO:0035556) terms (Tables S17 and S18). This result indicated that stress signaling was also an important component of cold stress tolerance in I. dabieshanensis. Messenger molecules, such as calcium (Ca²⁺), ROS, and nitric oxide (NO), are known to be involved in plant responses to cold stress [73]. In this study, “response to oxygen-containing compound” (GO:1901700), “response to nitrogen compound” (GO:1901698), and “calcium ion binding” (GO:0005509) were enriched in two cold-related modules (Tables S17 and S18). This result shows that Ca²⁺, ROS, and nitric oxide (NO) may regulate cold tolerance as signaling molecules in I. dabieshanensis.

Gene regulatory networks mediated by transcription factors play an essential role in plant resistance to various stresses. ERFs serve as a key regulatory center, integrating ET, ABA, JA, and redox signaling in plant responses to many abiotic stressors [41]. HvWRKY1 was reported to play an important role during abiotic stress, possibly regulating cold and drought stress in barley [74]. MYBS3 represses the well-known DREB1/CBF-dependent cold signaling pathway in rice, and this repression appears to operate at the transcriptional level [75]. MpMYBS3, as a key transcription factor in cold signaling, confers cold tolerance in bananas [76]. This study found three genes with higher connectivity in the two cold-related modules (evm.TU.CHR2.244, evm.TU.CHR1.1507, and evm.TU.CHR1.1821) were annotated as “ERF025-like”, “WRKY1b”, and “MYBS3-like”, respectively (Figure 9, Tables S21 and S22). The prediction results of promoter elements of genes co-expressed with these transcription factors show that many genes contain one or more transcription factor action sites in their promoters, while some genes also have some hormone and cold response sites. This result further proves the credibility of the co expression network and the importance of these three key transcription factors (Figure S6). In addition to transcription factors, many receptor-like protein kinases (RLKs) are involved in abiotic stress responses, including ABA response, calcium signaling, and antioxidant defense, implicated in drought, salt, and cold stress [77]. Previous studies have found that the A-type ARR serves as a critical node that integrates ethylene and cytokinin signaling to regulate plant responses to environmental stressors [78]. In addition, it has been reported that cold-induced A-type ARRs play a negative regulatory role in cold stress signaling by inhibiting ABA response, independent of the CBF/DREB pathway [79]. Two highly connected hub genes (evm.TU.CHR2.210 and evm.TU.CHR2.89) in two cold-related modules were functionally described as “a receptor-like serine/threonine- protein kinase”, and “Two-component response regulator-like”, respectively (Figure 9, Tables S21 and S22). In conclusion, five I. dabieshanensis genes (evm.TU.CHR2.244, evm.TU.CHR1.1507, evm.TU. CHR1.1821, evm.TU.CHR2.89, and evm.TU.CHR2.210) have high connectivity and edge weight value, and their analogs have also been shown to play important roles in cold stress. These genes may be the key to holly responding to and tolerating cold stress.

5. Conclusions

Our current study shows that cold stress leads to dramatic changes in gene expression profiles. There were differences in the reaction process of holly under different cold treatment time. Proline metabolism, arginine metabolism, flavonoid biosynthesis, anthocyanin biosynthesis, and various hormone signaling pathways may play an important role in the response of holly to cold stress. The results of WGCNA analysis indicated that some holly genes may be the key genes regulating cold tolerance. These results provide candidate genes and insights for studying the regulatory mechanisms of holly in response to low temperature conditions.
