Generalized Algorithm Based on Equivalent Circuits for Evaluating Shielding Effectiveness of Electronic Equipment Enclosures

Abstract

The article proposes a generalized algorithm for evaluating the shielding effectiveness (SE) of electronic equipment enclosures. The algorithm is based on a number of analytical models that use equivalent circuits to obtain SE values. The article begins with a brief review and interpretation of the mathematical formulation used in the algorithm. Then, we describe the proposed algorithm using flowcharts, and we perform its validation. The validation results show that the proposed algorithm has acceptable accuracy and gives SE values comparable to numerical methods or measurements, with much less time costs. The last part of the article presents the software developed to evaluate SE based on analytical models.

1. Introduction

Electromagnetic shielding by enclosures is one of the main ways of protecting electronic equipment against the influence of radiated emissions [1]. The main objective of shielding enclosure design is to find the parameters that ensure the maximum of shielding effectiveness (SE), which indicates, in dB, how well the shield reflects or suppresses emissions. However, SE values depend on many factors, such as excitation source frequency [2], the shield material [3], the enclosure shape and size [4], apertures [5,6], internal filling [7,8,9], the observation point position, etc. All of this makes the SE evaluation a challenging task. Accurate SE values for an enclosure with a complex and highly detailed structure can be obtained using full-wave numerical analysis based on the Finite Element Method (FEM) [10], Finite-Difference Time-Domain Method [11], Transmission Line Matrix Method [12], etc. However, these methods consume a large amount of RAM and are characterized by long computation times [13]. For these reasons, full-wave analysis is poorly suited at the early stages of the enclosure design, where multiple SE evaluations can be required. In such situations, it is advisable to use analytical models, since they have acceptable accuracy and low computational complexity.

At the moment, a large number of analytical models for evaluating the SE of enclosures are known. Some of them are based on the power balance [14,15] and diffusion [16,17] equations, others use Bethe’s theory of diffraction by small holes [18,19]. However, models based on equivalent circuits are the most widely used. For shielding enclosures, the equivalent circuit model was first proposed by Robinson et al. [20]. It has since undergone many modifications. However, until now, these modifications have not been systematized and generalized so that equivalent circuits can be applied to arbitrary enclosures. The purpose of this article is to fill this gap and develop a generalized algorithm based on equivalent circuits for evaluating the SE of electronic equipment enclosures.

In addition to the introduction, the article contains several other sections. Section 2 presents mathematical formulation of the equivalent circuit model and gives a brief review of its modifications. Section 3 describes the generalized algorithm that we developed to evaluate the SE of shielding enclosures. Section 4 contains the results of the algorithm validation on several typical electronic equipment enclosures. Section 5 presents the results of the authors’ work on new software for analytical evaluation of the SE. Finally, Section 6 concludes the main outcomes of the article.

2. Mathematical Foundation of Generalized Algorithm

This section presents a brief review of the model from [20] and its modifications, which we used to develop the generalized algorithm of the SE evaluation.

2.1. Formulation of Equivalent Circuit Model

According to [20], the rectangular enclosure with a volume of a × b × d m³ and a rectangular aperture (with an area of w × l m²) in the front wall (Figure 1a) are replaced by the equivalent circuit, shown in Figure 1b. In this circuit, a plane wave with frequency f, exciting the enclosure, is represented by a voltage source V₀ and electrical resistance Z₀ equal to the free-space impedance (120π Ω). This representation assumes that the plane wave is incident normal to the enclosure front wall, and the E-field vector is perpendicular to the length l of the aperture, giving a worst-case SE. The enclosure is replaced by segments of a rectangular waveguide with characteristic impedance Z_g and propagation constant k_g. The front wall with the aperture is represented by the Z_ap impedance. To calculate the SE, the equivalent circuit is transformed with respect to the observation point p, using Thevenin’s theorem and the transmission line theory. As a result, the SE values are determined from the current i_p or voltage V_p in the equivalent circuit obtained after the transformation. Next, let us look at the SE calculation procedure using the model from [20] in more detail.

According to [20], in the first calculation step, the Z_ap impedance of the enclosure front wall is determined. It is assumed that the wall is replaced by two short-circuited segments of a coplanar stripline, each with a length of l/2 (i.e., half of the aperture width). The Z_ap value is calculated as the product of the correction factor l/a (where a is the width of the front wall) and the total input impedance of two segments connected in parallel:

$$Z_{ap}=j\frac{1}{2}\frac{l}{a}{Z}_{0s}\tan \left(k_0\frac{l}{2}\right),$$

(1)

where; j is the imaginary unit, k₀ = 2π/λ is the free-space wavenumber, λ is the wavelength of the excitation source, and Z_0s is the characteristic impedance of coplanar stripline, which can be calculated as:

$$Z_{0s}=120{\pi }^2{\left[\ln \left(2\frac{1+\sqrt[4]{1-{\left(w_e/b\right)}^2}}{1-\sqrt[4]{1-{\left(w_e/b\right)}^2}}\right)\right]}^{-1},$$

(2)

where; b is the height of the enclosure, and w_e is the effective height of the aperture, defined as:

$$w_e=w-\frac{5t}{4\pi }\left(1+\ln \frac{4\pi w}{t}\right),$$

(3)

where; w is the height of the aperture, and t is the enclosure thickness.

Next, before transforming the equivalent circuit, the Z_g and k_g values are calculated for the rectangular waveguide segments replacing the enclosure. In [20], it is assumed that a dominant mode (TE₁₀) is propagated in the enclosure, so Z_g and k_g are calculated as:

$$Z_g=Z_0/\sqrt{1-{\left(\frac{\mathsf{\lambda }}{2a}\right)}^2},$$

(4)

$$k_g=k_0\sqrt{1-{\left(\frac{\mathsf{\lambda }}{2a}\right)}^2}.$$

(5)

Once Z_ap, Z_g, and k_g have been calculated, the procedure of the equivalent circuit transformation begins. First, the voltage source is transformed to point q in the circuit (see Figure 1b). For this purpose, V₀ and Z₀ are combined with Z_ap as:

$$V_1=V_0{Z}_{ap}/\left(Z_0+Z_{ap}\right),$$

(6)

$$Z_1=Z_0{Z}_{ap}/\left(Z_0+Z_{ap}\right).$$

(7)

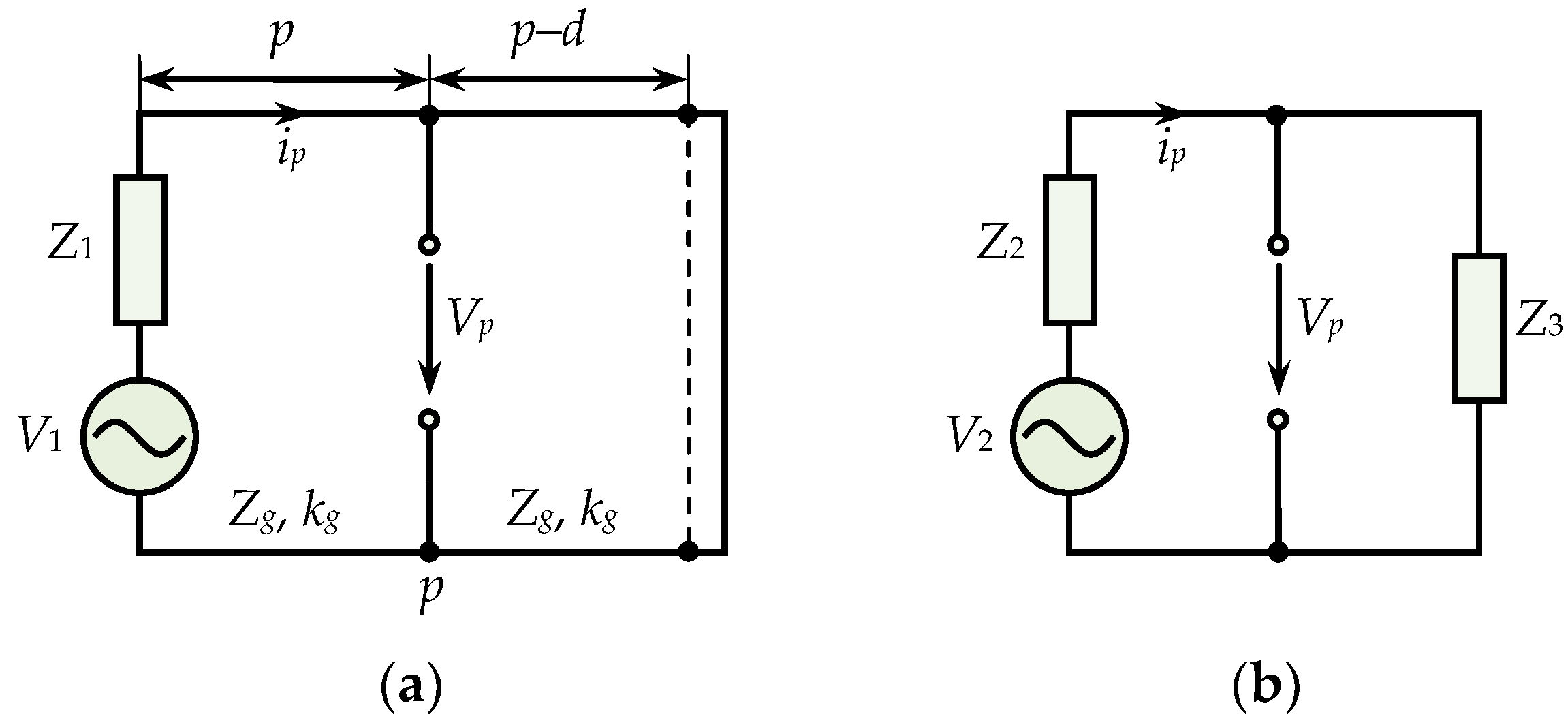

As a result of (4) and (5), the equivalent circuit takes the form shown in Figure 2a. The resulting excitation source is further transformed from point q to the observation point p. This gives the values of voltage V₂ and impedance Z₂. At the same time, the load impedance Z₃ of the equivalent circuit is calculated, which is the input impedance of the short-circuited segment of the waveguide behind the observation point p. The following equations are used to calculate V₂, Z₂, and Z₃ in [20]:

$$V_2=\frac{V_1}{\cos \left(k_{g}p\right)+j\left(Z_1/Z_g\right)\sin \left(k_{g}p\right)},$$

(8)

$$Z_2=\frac{Z_1+j{Z}_g\tan \left(k_{g}p\right)}{1_1+j\left(Z_1/Z_g\right)\tan \left(k_{g}p\right)},$$

(9)

$$Z_3=j{Z}_g\tan \left[k_g\left(d-p\right)\right],$$

(10)

where; d is the depth of the enclosure.

After calculating (6)–(8), the equivalent circuit takes the form shown in Figure 2b. In this circuit, it is easy to find the V_p and i_p values needed to calculate the electrical and magnetic SE, respectively. For example, V_p can be calculated as:

$$V_p=\frac{V_2{Z}_3}{Z_2+Z_3}.$$

(11)

The electric SE at the observation point p is then defined as:

$$\mathrm{SE}=-20{\log }_{10}\left|\frac{2V_p}{V_0}\right|.$$

(12)

In its original form, as described in [20], the analytical model, based on equivalent circuits, has a number of limitations. First, the shielding enclosure contains only one aperture with a rectangular shape and a central position on the front wall. Second, the SE evaluation technique does not take into account the resonances corresponding to higher-order modes (TE_mn and TM_mn) excited in the enclosure. Third, the equivalent circuit from Figure 1b does not take into account the internal filling of the enclosure or the aperture. There are other limitations, such as those imposed on the polarization and incidence angle of the plane wave exciting the enclosure due to its representation by a voltage source. However, a number of modifications to the model from [20] are known to overcome most of these limitations. We will look at some of them below.

2.2. Modifications of Aperture Representation

Several modified models have been proposed in [21,22,23] to evaluate the SE of an enclosure with arbitrarily positioned aperture. However, the simplest and most accurate model has been developed by the authors of [24]. According to this model, the value of Z_ap at an arbitrary location of the aperture on the frontal wall can be calculated as the product of (1) and the following factor:

$$C_{mn}=\sin \left(\frac{m\mathsf{\pi }X}{a}\right)\cos \left(\frac{n\mathsf{\pi }Y}{b}\right),$$

(13)

where; m and n are the not-negative integers, defining the numbers of TE_mn and TM_mn modes, and X and Y are the coordinates of the aperture centre on the front wall (see Figure 3).

In [25], a modified analytical model for evaluating the SE of an enclosure with a circular aperture of radius r was proposed. The Z_ap value can be calculated using (1) or (11), but, first, the geometric dimensions of an equivalent rectangular aperture must be determined. The following equation is used for this purpose:

$$l=w=r\sqrt{\mathsf{\pi }}.$$

(14)

According to [26], the Z_ap value for an elliptical shape aperture can be calculated as the product of (1) and (11). However, the characteristic impedance Z_0s in (1) must be replaced by:

$$Z_{0s}=\frac{Z_m{Z}_e}{Z_m+Z_e},$$

(15)

where;

$$Z_m=\frac{1}{2}{\left[\frac{k_g^{2}S}{3\mathsf{\pi }{Z}_g}+\frac{S}{j2\mathsf{\pi }f{\mathsf{\mu }}_0{\mathsf{\chi }}_m}\right]}^{-1},$$

(16)

$$Z_e=2{\left[\frac{k_g^4{b}^{2}S}{3\mathsf{\pi }{Z}_g}+\frac{j2\mathsf{\pi }f{\mathsf{\epsilon }}_0{b}^{2}S}{{\mathsf{\chi }}_e}\right]}^{-1},$$

(17)

where; S is the area of the elliptic aperture, ε₀ and μ₀ are the electric and magnetic constants, and χ_e and χ_m are the electric and magnetic polarizabilities of the aperture calculated from its dimensions and complete elliptic integrals of the first and second kind (for more details see [26]), respectively.

Based on equivalent circuits, the SE evaluation for an enclosure with an arbitrary-shaped aperture can also be realized. For this purpose, according to [27,28], Z_ap can be calculated from the results of full-wave numerical analysis. However, in [29], a fully analytical formulation for determining the Z_ap impedance for an arbitrary-shaped aperture has been proposed. Starting from the centre, the aperture is divided into several intervals (Figure 3b). Each of these intervals is replaced by a segment of a regular coplanar stripline with length l_i and width w_i. The transmission line segments replacing the aperture edges are assumed to be short-circuited. First, the input impedance Z_{in i} of these segments is calculated, similar to (8). The calculated values act as loads for the following segments of the coplanar stripline, for which the input impedance is again calculated as:

$$Z_{in}=Z_{0s\hspace{0.17em}i}\frac{Z_{in\hspace{0.17em}i-1}+j{Z}_{0s\hspace{0.17em}i}\tan \left(k_0{l}_i\right)}{Z_{0s\hspace{0.17em}i}+j{Z}_{in\hspace{0.17em}i}\tan \left(k_0{l}_i\right)}.$$

(18)

The calculation by (14) continues until the two input impedances to the left and right of the aperture centre have been determined. Eventually, Z_ap is determined from the parallel connection of these two input impedances.

Real shielding enclosures of electronic equipment usually contain several apertures with different shapes and sizes. To take this into account in the analytical SE evaluation, the following procedure was proposed in [25]. First, using (1) or (11)–(14), Z_{ap N} values are calculated separately for each aperture located on the front wall. Next, the total impedance of the enclosure wall with a set of N apertures is defined as:

$$Z_{ap}={\displaystyle \sum _N{Z}_{ap\hspace{0.17em}N}}.$$

(19)

This procedure is well suited to apertures separated from each other because it ignores the mutual coupling between the apertures. For the same reason, it cannot be used for enclosures with perforated walls where the apertures are quite close. One model for calculating the impedance of a perforated wall has been proposed in [30], but it does not take into account the thickness (t) of the enclosure wall. This drawback is deprived by the model from [31]. In accordance with it, when a plane wave is incident normally to the enclosure wall, the Z_ap values are calculated as:

$$Z_{ap}=j{Z}_0\frac{l_a{w}_a}{2ab}{\left[1+\left(\frac{3d_h{d}_v\mathsf{\lambda }}{16\mathsf{\pi }{r}^3}\right)\right]}^{-\frac{1}{2}}{10}^{-\frac{4}{5}\frac{t}{r}},$$

(20)

where; l_a and w_a are the width and height of the aperture array (see Figure 4a), d_h and d_v are the horizontal and vertical distances between the centers of apertures, and r is the radius of a single aperture.

Unfortunately, (16) gives correct results only when the aperture array is positioned in the centre of the front wall and cannot be used if the apertures are staggered (as in Figure 4b). A modified model from [32] was proposed for such cases. To take into account the arbitrary position of the aperture array, Equation (16) is multiplied by the correction factor C, defined as:

$$C=\frac{{\displaystyle {\int }_{x_0}^{x_0+l_a}{\displaystyle {\int }_{y_0}^{y_0+w_a}\cos \left(\frac{\mathsf{\pi }y}{b}\right)\cos \left[\frac{\mathsf{\pi }\left(y-y_0\right)}{w_a}\right]\sin \left(\frac{\mathsf{\pi }x}{a}\right)\sin \left[\frac{\mathsf{\pi }\left(x-x_0\right)}{l_a}\right]}}\hspace{0.17em}dy\hspace{0.17em}dx}{XY},$$

(21)

where X, Y and x₀, y₀ are the coordinates of the centre and beginning (bottom left corner) of the array, respectively. The array of staggered apertures in [32] is considered as two separate arrays with doubled vertical distances d_v between the apertures. In this case, Z_ap = Z_{arr 1} + Z_{arr 2}, where Z_{arr 1} and Z_{arr 2} are the impedances of two separate arrays, which are calculated by multiplying (16) and (17).

2.3. Internal Filling of Apertures

The apertures of real electronic equipment enclosures can be filled, e.g., with metal ventilation grilles, glass, rubber gaskets, etc. Such structures can affect the electromagnetic field inside the enclosure and resonances exciting in the apertures, thus they are worth considering in the SE evaluation. Several modifications of the equivalent circuit model have been developed to take into account the internal filling of the aperture. Thus, in [33], the authors proposed a formula for calculating the impedance Z_ap of a rectangular aperture populated with wire grid (Figure 5). The Z_ap value is defined as:

$$Z_{ap}=\frac{lw}{ab}\left[\frac{4q_w}{\mathsf{\pi }{D}_w^2\mathsf{\sigma }}\frac{\mathsf{\psi }{I}_0\left(\mathsf{\psi }\right)}{2I_1\left(\mathsf{\psi }\right)}+j{q}_w{\mathsf{\mu }}_{0}f\ln \left(\frac{1}{1-\exp \left[-\mathsf{\pi }{D}_w/q_w\right]}\right)\right],$$

(22)

where; q_w is the size of the grid cell, D_w is the wire diameter, ψ² = j 0.5πμσ(D_w)², σ and μ are the conductivity and absolute permeability of wires, and I₀(ψ) and I₁(ψ) are the modified Bessel functions of the first kind (zero and first order, respectively).

In [34], a formula for calculating Z_ap for an aperture filled with dielectric or magnetic material was proposed. As in [20], a front wall with the aperture is replaced by a coplanar stripline, but a material is added in the space between the line conductors. According to [34], Z_ap can be obtained as:

$$Z_{ap}=j\frac{1}{2}\frac{l}{a}\frac{1}{c\sqrt{C^{\prime }C}}\tan \left(\frac{\mathsf{\pi }l}{\mathsf{\lambda }}\sqrt{\frac{C}{C^{\prime }}}\right),$$

(23)

where; c is the speed of light in vacuum; C is the per-unit-length capacitance of the coplanar stripline, which only takes into account the relative permittivity ε_r of the material between the conductors; and Cʹ is the same capacitance, but at ε_r = 1/μ_r (μ_r is the relative permeability of the material filling the aperture). In [35], another modification of the equivalent circuit model was proposed, which is suitable for an aperture populated with a liquid crystal display. However, this problem can also be solved using Formula (19). For this reason, we did not describe the model [35] in this section.

2.4. Higher Order Modes

The model from [20] assumes that only dominant mode TE₁₀ propagates in the enclosure. However, if the electronic equipment enclosure is electrically small or is affected by broadband electromagnetic interference, higher-order modes TE_mn or TM_mn can be excited in the enclosure. In [23], a modification of the equivalent circuit model was proposed that takes into account higher-order modes in SE calculations. As in [20], the SE is determined from the current i_p or voltage V_p values in the equivalent circuit, but these values are calculated iteratively. First, the characteristic impedance Z_{g mn} and the propagation constant k_{g mn} are calculated, depending on the non-negative integers m and n that determine the numbers of modes excited in the enclosure. For TE_mn modes, Z_{g mn} and k_{g mn} are calculated as:

$$Z_{g\hspace{0.17em}mn}=Z_0/\sqrt{1-{\left(\frac{\mathsf{\lambda }m}{2a}\right)}^2-{\left(\frac{\mathsf{\lambda }n}{2b}\right)}^2},$$

(24)

$$k_{g\hspace{0.17em}mn}=k_0\sqrt{1-{\left(\frac{\mathsf{\lambda }m}{2a}\right)}^2-{\left(\frac{\mathsf{\lambda }n}{2b}\right)}^2}.$$

(25)

For TM_mn modes, the k_{g mn} value is also calculated using (21), and Z_{g m} is defined as:

$$Z_{g\hspace{0.17em}mn}=Z_0\sqrt{1-{\left(\frac{\mathsf{\lambda }m}{2a}\right)}^2-{\left(\frac{\mathsf{\lambda }n}{2b}\right)}^2}.$$

(26)

At the fixed values of Z_{g mn} and k_{g mn}, the transformation of the equivalent circuit is performed using expressions (4)–(8). Using (9), the voltage V_{p mn} for the current mode type and number is calculated and written to the counter. Then, the m and n indexes are changed, and the calculation is repeated again. As a result, based on the principle of superposition, voltages $V_{p\hspace{0.17em}mn}^{TE}$ and $V_{p\hspace{0.17em}mn}^{TM}$ are calculated, correspondingly, to TE_mn and TM_mn modes. The V_p value used to calculate the SE is then defined as:

$$V_p=\sqrt{{\left(V_{p\hspace{0.17em}mn}^{TE}\right)}^2+{\left(V_{p\hspace{0.17em}mn}^{TM}\right)}^2}.$$

(27)

Note that another approach for taking into account higher-order modes was proposed in [24]. However, the procedure of equivalent circuit transformation used in this approach is very different from the model [20], which makes it difficult to use this procedure in the generalized algorithm of SE evaluation.

2.5. Cylindrical Shaped Enclosure

Enclosures of electronic equipment elements can have not only a rectangular shape, but also a cylindrical one. Accordingly, a modified analytical model was proposed in [36] to evaluate the SE of such enclosures. It assumes that the aperture is located at the base of the cylindrical enclosure (see Figure 6), and SE is calculated using the same equivalent circuit as in [20].

To take into account the cylindrical shape of the enclosure, expressions for calculating the characteristic impedance and propagation constant in [36] are replaced by:

$$Z_{g\hspace{0.17em}mn}=Z_0/\sqrt{1-{\left(\mathsf{\lambda }/{\mathsf{\lambda }}_{c\hspace{0.17em}mn}\right)}^2},$$

(28)

$$k_{g\hspace{0.17em}mn}=k_0\sqrt{1-{\left(\mathsf{\lambda }/{\mathsf{\lambda }}_{c\hspace{0.17em}mn}\right)}^2},$$

(29)

where; λ_{c mn} is the cut-off wavelength for the mode with indexes m and n, which can be calculated as [37]:

$${\mathsf{\lambda }}_{c\hspace{0.17em}mn}=2\mathsf{\pi }R/{\mathsf{\xi }}_{mn},$$

(30)

where; R is the enclosure radius, ξ_mn is the n-th root of equations J’_m(α_mn) = 0 (for TE_mn modes), and J_m(α_mn) = 0 (for TM_mn modes), where J_m(α_mn) is the Bessel function of order m, and J’_m(α_mn) is the first derivative of this function.

2.6. Internal Filling of Enclosures

Internal fillings, such as printed circuit boards, electronic components, cable assemblies, etc., can have a significant effect on the shielding and resonance performances of the enclosure. Several modifications of the equivalent circuit model have been developed to analyze filled enclosures. For example, in [38], a model was proposed to evaluate the SE of a rectangular enclosure populated with dielectric plates replacing the dielectric layers of printed circuit boards. In this equivalent circuit, the enclosure is represented as a set of rectangular waveguide sections with the same dimensions, but different dielectric properties of the materials filling their cross-sections (see Figure 7).

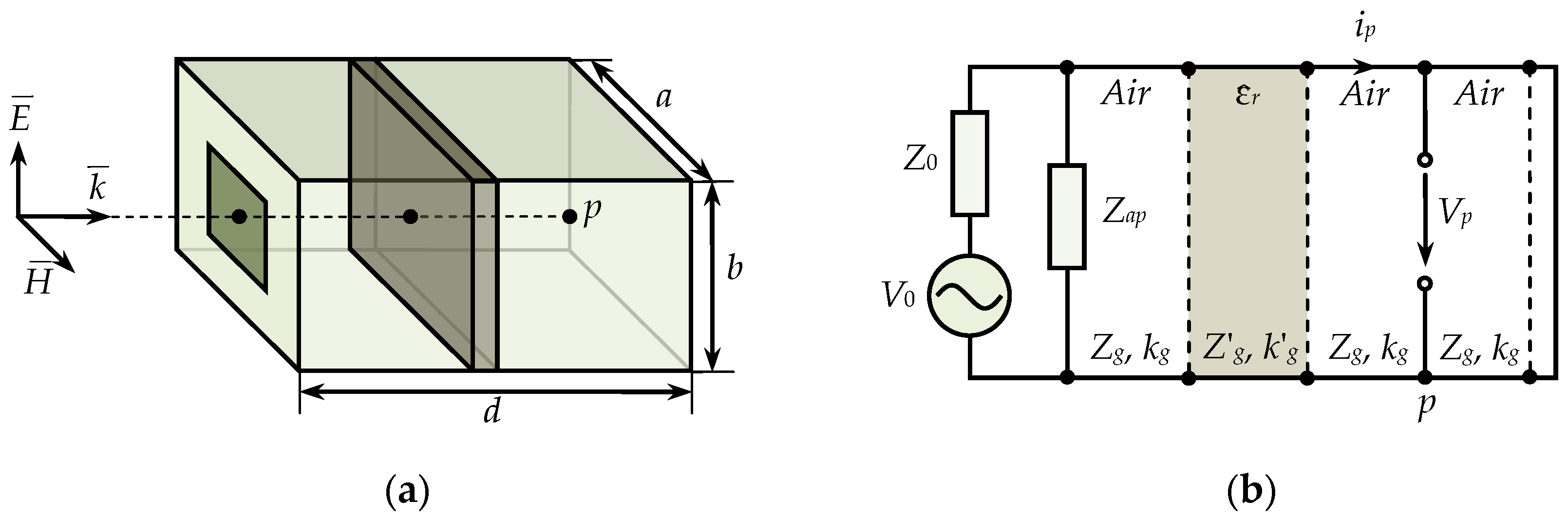

In waveguide sections populated with a dielectric, the characteristic impedance and propagation constant are calculated as:

$${Z^{\prime }}_g=\frac{Z_0}{\sqrt{{\hat{\mathsf{\epsilon }}}_r}\sqrt{1-{\left(\frac{ \mathsf{\lambda } \prime }{2a}\right)}^2}},$$

(31)

$${k^{\prime }}_g=\frac{2\mathsf{\pi }}{ \mathsf{\lambda } \prime }\sqrt{1-{\left(\frac{ \mathsf{\lambda } \prime }{2a}\right)}^2},$$

(32)

where; ${\hat{\mathsf{\epsilon }}}_r$= ε’ – jε’’ is the complex relative permittivity of this dielectric, and $\mathsf{\lambda } \prime =\mathsf{\lambda }/\sqrt{{\hat{\mathsf{\epsilon }}}_r}$.

A similar approach was used in [39] to analyze the SE of cylindrical enclosures filled with dielectrics. To calculate Z’_g and k’_g, the same expressions, (27)–(28), were used, but they had component 2a replaced by λ_{c mn}, calculated using (26). Another modification of the model from [20] is proposed in [40], in which the value of ${\hat{\mathsf{\epsilon }}}_r$ in (27)–(28) is replaced by the effective relative permittivity ε_eff. This version allows one to calculate the SE of an enclosure with dielectric structures of an arbitrary shape (but only when the TE₁₀ dominant mode is excited).

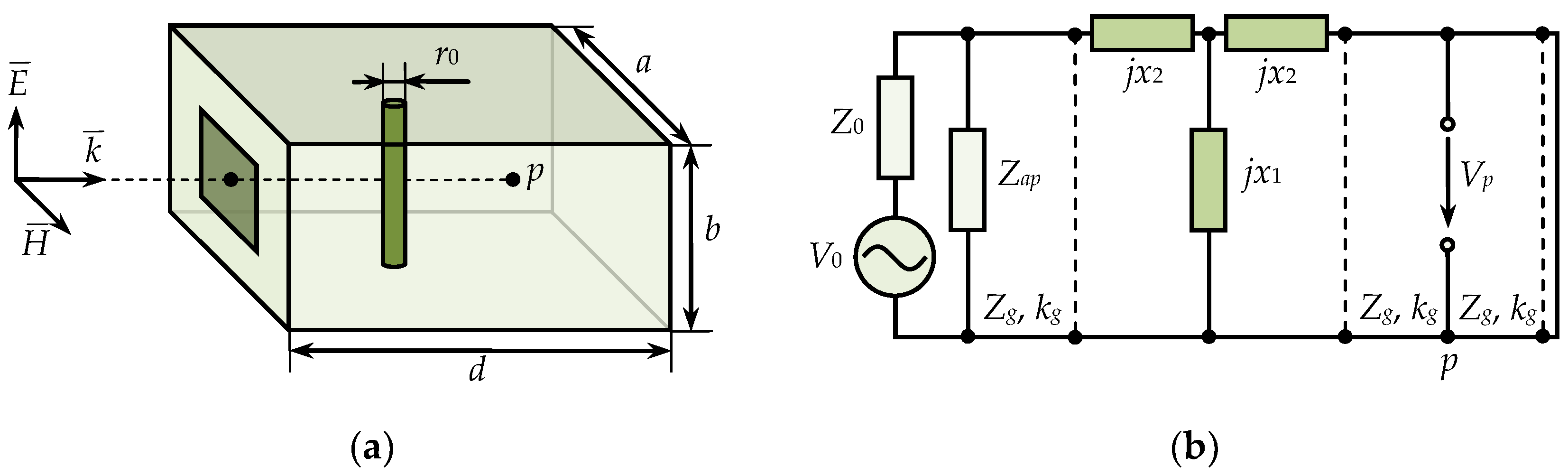

In [41], the authors proposed a model to evaluate the SE of a rectangular enclosure filled with conductive posts, which can be used to approximate dipole antennas, wires, cable assemblies, etc. In the equivalent circuit, the post is replaced by a T-section formed by impedances jx₁ and jx₂ (see Figure 8).

The values of jx₁ and jx₂ are calculated as:

$$x_2=-\left(a/{\mathsf{\lambda }}_g\right){\left(\frac{2\mathsf{\pi }{r}_0}{a}\right)}^2{\left(1+F_1\right)}^{-1},$$

(33)

$$x_1=\left(\frac{a}{2{\mathsf{\lambda }}_g}\right)\left(S^{\prime }-{F^{\prime }}_0-{F^{″}}_0\right)-\frac{x_2}{2},$$

(34)

where; r₀ is the radius of the post, ${\mathsf{\lambda }}_g=\mathsf{\lambda }/\sqrt{1-{\left(\mathsf{\lambda }/2a\right)}^2}$ is the wavelength in the waveguide, and the expressions for calculating F₁, $S^{\prime }$, $F^{\prime }$, and $F^{″}$ are not given in this paper to save space and to preserve narrative integrity.

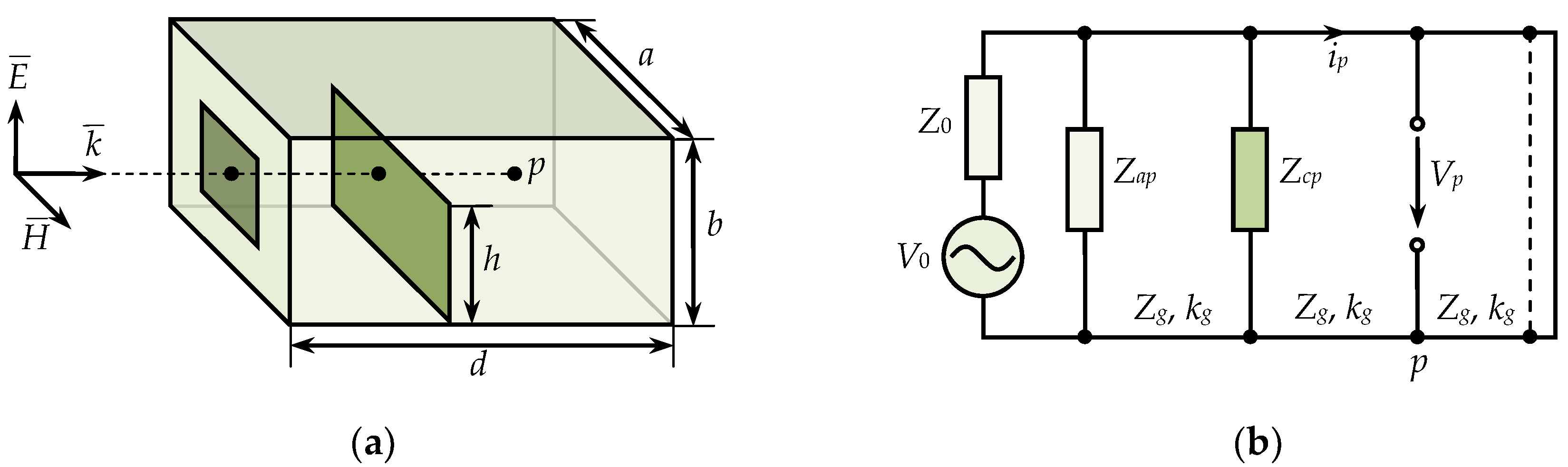

In [42], the model was developed to evaluate the SE of an enclosure filled with conductive plates. This model can be used to approximate the conductive layers of printed circuit boards. The plate is considered as a capacitive waveguide diaphragm that fills the entire width of the enclosure (Figure 9a). In the equivalent circuit, the plate is replaced by the impedance Z_cp (see Figure 9b), which is defined as:

$$Z_{cp}=j{B}^{-1},$$

(35)

where; B is the susceptance of a capacitive diaphragm.

Several expressions for calculating the B values, depending on the plate height h, are given in [42]. For example, if the plate and enclosure heights are close (i.e., h ≈ b), B can be calculated as:

$$B=\frac{4b}{{\mathsf{\lambda }}_g{Z}_0}\left\{\frac{\mathsf{\pi }h}{2b}+\frac{1}{6}{\left(\frac{\mathsf{\pi }h}{2b}\right)}^2+\frac{3}{2}{\left(\frac{b}{{\mathsf{\lambda }}_g}\right)}^2{\left(\frac{\mathsf{\pi }h}{2b}\right)}^4\right\}.$$

(36)

However, the model from [42] has some limitations. For example, the plate is considered to be electrically connected to the enclosure and also always fills its entire width. The model proposed in [43] does not have these limitations. However, it uses numerical integration and Green’s functions to calculate the Z_gp value, which makes it difficult to implement and use in engineering problems.

2.7. Summary

This review shows that most analytical models for evaluating the SE of electronic equipment enclosures are based on the same approach, i.e., they use equivalent circuits. With this in mind, these analytical models can easily be combined in calculating the SE of different shielding structures. Moreover, all these models can be combined into a generalized algorithm, since the equivalent circuits replacing the enclosures are transformed according to a strict step-by-step procedure based on well established principles of transmission line and circuit theories.

3. Generalized Algorithm

Here, we present a generalized algorithm for evaluating the SE of electronic equipment enclosures. For convenience, the algorithm is divided into separate functional parts, described below, in the form of flowcharts.

3.1. Main Flowchart

The main flowchart of the developed generalized algorithm is shown in Figure 10. SE calculations start with setting the excitation source parameters, the observation point position, as well as the characteristics of the enclosure, its apertures, and the inhomogeneities that fill the enclosure or apertures. The parameters are fed to the f loop input, which performs frequency sweeping from f_s to f_e. First of all, the expression for calculating Z_ap impedance is selected within the f loop. In addition, the Z_ap values can be calculated for a single aperture, an array, or a group of apertures. This is performed using flowcharts that can be found in the next section. Then, based on the calculated Z_ap value and Thevenin’s theorem, the values of voltage V₁ and impedance Z₁ are calculated using Equations (4) and (5). To take into account the higher-order modes excited in the enclosure, all subsequent transformations of the equivalent circuit are performed inside the M and N loops. Based on the results of these loops, we calculate the voltage V_p or current i_p at the observation point. These values are then used to determine the electric and magnetic SE. When the f loop is complete, the SE values are output as a frequency dependence.

3.2. Algorithms for Calculating Aperture Impedance

In the main flowchart, the calculation of the Z_ap impedance for an enclosure wall with a single aperture follows the algorithm shown in Figure 11. The choice of analytical expression is made, depending on the shape and internal filling of the aperture. In particular, the algorithm takes into account the filling of the aperture with dielectric, magnetic, or magnetodielectric (MDM) materials, as well as wire grids. It also provides a procedure for calculating Z_ap for an arbitrarily shaped aperture, in accordance with the model from [29].

The expression for calculating the Z_ap impedance of the aperture array (i.e., perforated wall) is chosen based on the flowchart from Figure 12. When the aperture array is located outside the centre of the enclosure front wall, and when the apertures are staggered, the model from [32] is used to calculate Z_ap. This algorithm also allows Z_ap to be calculated for arrays of round or square apertures, which are implemented by expression (12) from [25].

Figure 13 illustrates a flowchart of the algorithm for selecting an analytical expression to calculate the Z_ap impedance for an enclosure wall with a group of apertures. If the enclosure wall contains an ordered group of identical circular or square apertures, then Z_ap is calculated according to [32]. In other cases, the expression for calculating Z_ap is chosen according to the algorithm from Figure 11.

3.3. Algorithms for Equivalent Circuit Transformation

In the generalized algorithm, the transformation of equivalent circuits is carried out according to the flowchart shown in Figure 14. It provides four options for transforming the equivalent circuit, depending on the shape and internal filling of the enclosure. Thus, for empty enclosures, the first transformation step calculates the values of Z_{g mn} and k_{g mn}. The subsequent calculations are carried out in full accordance with the analytical model from [20]. For internally-filled enclosures, transformation of equivalent circuits is performed in accordance with the flowcharts shown in Figure 15 and Figure 16.

Figure 15 shows the algorithm used to transform an equivalent circuit for a filled rectangular enclosure. It starts by processing vector D containing all the d_x points that define the positions of enclosure content. First, the “Sort (D)” block sorts points d_x in ascending order (from 0 to d). The algorithm then determines the size (x_max) of vector D, and the number of the element x_d corresponding to the observation point p. Next, for each point d_x in the range x = 1, 2, …, x_d − 1, the algorithm sequentially calculates filling parameters and intermediate values of voltages V_x and impedances Z_x. When x = x_d, the transformation for the left-hand side of the equivalent circuit ends. The last values of V_x and Z_x are stored in the V_L and Z_L variables, and the algorithm proceeds to calculate the load impedance. The right-hand side of the circuit is transformed in reverse order from x_max to x_d + 1. In each segment from d to p, intermediate values of Z_x are calculated. The final load impedance Z_R is determined when x = x_d + 1. The values of V_L, Z_L, and Z_R from the algorithm are then used to calculate V_p and i_p.

Figure 16 presents a flowchart of the algorithm for transforming an equivalent circuit of filled cylindrical enclosure. It operates in a similar way to the algorithm in Figure 15, but the calculation does not take into account the conductive structures that fill the enclosure.

4. Algorithm Validation

Here, we present and discuss the validation results for the generalized algorithm we proposed for evaluating the SE.

4.1. Validation by Measurement

First of all, validation of the developed algorithm was carried out by means of measurement. The SE frequency dependencies were calculated analytically and measured for an enclosure with dimensions a = d = 300 mm and b = 120 mm, taken from IEEE STD 1597.2 standard. A total of three cases were considered. In case 1, the enclosure was empty, and, in its front wall, there was a squared aperture with dimensions w = l = 80 mm (Figure 17). In case 2, the aperture was the same, but the enclosure was filled with a 100 mm high conductive plate, located at a distance of 75 mm from the front wall (Figure 18a). In case 3, the enclosure was empty again, and, in its front wall, there was a slot with w = 4 mm and l = 190 mm, which was filled with a dielectric with ε_r ≈ 3.3. In all cases, the SE was determined relative to the E-field at the observation point located in the centre of the enclosure, i.e., at p = 150 mm.

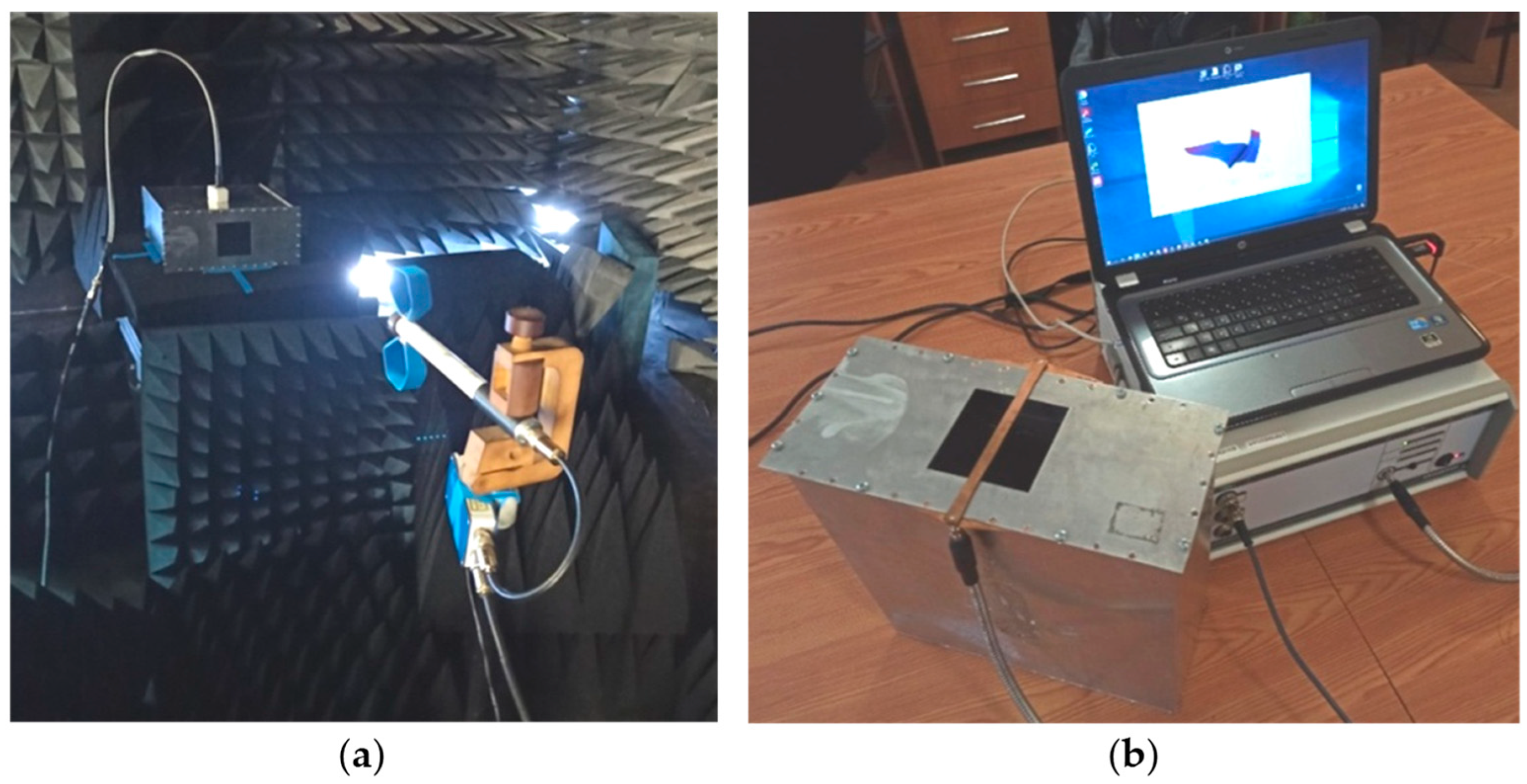

To measure the SE, we used a test setup that complies with the IEEE STD 299.1 standard. All measurements were carried out in a radio frequency anechoic chamber (Figure 19a). The SE values were determined from the transmission coefficient modules |S₂₁| between the two antennas, using the following equation:

$$\mathrm{SE}=20{\log }_{10}\frac{\left|S_{21}^0\right|}{\left|S_{21}\right|},$$

(37)

where; index “0” denotes the values of |S₂₁| measured in the absence of the enclosure.

The first antenna used in the test setup was an active Rusintell AI dipole with a maximum measurement error of 2 dB, which can only be used as a receiver. The dipole was placed outside of the enclosure and was vertically polarized. The dipole arms were oriented perpendicular to the wide wall of the enclosure, so that the maximum of the antenna pattern was directed towards the aperture. We did not place the receiving dipole antenna inside the enclosure, as it is quite large and could affect the field in the enclosure, i.e., shift the resonant frequencies, leading to incorrect SE results. The second antenna, which was used as a transmitter, was in the form of a small-sized quarter-wave monopole with a length of 25 mm and was placed in the center of the enclosure. Although IEEE STD 299.1 implies that the transmitting antenna must be outside the enclosure, the approach we have taken is consistent with the reciprocity principle of scattering and radiation problems and allows us to determine the SE quite accurately. The distance between two antennas was 1.5 m in all cases of |S₂₁| measurement, including those where there was no enclosure. A Rohde & Schwarz (Munich, Germany) ZNL20 vector network analyzer, with less than 1 dB error, was used to obtain |S₂₁| values. The test setup was used, starting from 500 MHz, due to the limited frequency range of the receiving dipole antenna.

For the enclosure from case 1 (with a squared aperture), the SE was also obtained by indirect measurement using the methodology proposed in [44]. For this purpose, a stripline with a 50 Ω impedance and a microwave resistor as a load was used (Figure 19b). The SE values were calculated, according to [44], based on the frequency dependence of the reflection coefficient modulus |S₁₁| of this stripline when it is placed over the aperture of the shielding enclosure. The values of |S₁₁| were determined with a Micran (Tomsk, Russia) R2M series scalar network analyzer, having less than 1.5 dB measurement error.

In order to calculate SE analytically, the separate parts of the proposed algorithm were implemented in GNU Octave. According to the algorithm, in case 1, Z_ap was determined, using Flowchart 2, based on Equation (13) at X = a/2 and Y = b/2. The equivalent circuit transformation was performed using Flowchart 5, taking into account only the TE₁₀ mode. In case 2, Z_ap was defined, as in case 1, but the circuit transformation was performed according to Flowchart 6, calculating Z_cp using (35). In case 3, the circuit was transformed, as in case 1, and Equation (23) was used to obtain Z_ap at Cʹ ≈ 62.8 pF/m and C ≈ 31.9 pF/m.

When we performed indirect measurements and calculations using the proposed algorithm, the frequency dependencies of the SE were determined at a frequency resolution of about 1 MHz. For the measurement in the anechoic chamber, the frequency resolution was different for all three cases, but it was not less than 20 MHz. Additionally, in the resonance region, the number of frequency points was deliberately increased in order to determine the level of SE more accurately. To confirm the validity of the proposed algorithm, the average values of the absolute error modulus |Δ| were estimated. The calculation of |Δ| took into account all obtained SE values, including those in the resonance range. Frequency error (difference between resonances in SE frequency dependencies) was not taken into account. The |Δ| values were calculated as:

$$|\Delta |=\frac{{\displaystyle {\sum }_{i=1}^{T_f}\left|{\mathrm{SE}}^T\left(f_i\right)-{\mathrm{SE}}^A\left(f_i\right)\right|}}{T_f}$$

(38)

where; f_i is some frequency point, indices T and A denote “true” (measured) and “observed” (calculated by the algorithm) values of the SE, and T_f is the number of points in the frequency dependence of “true” SE values.

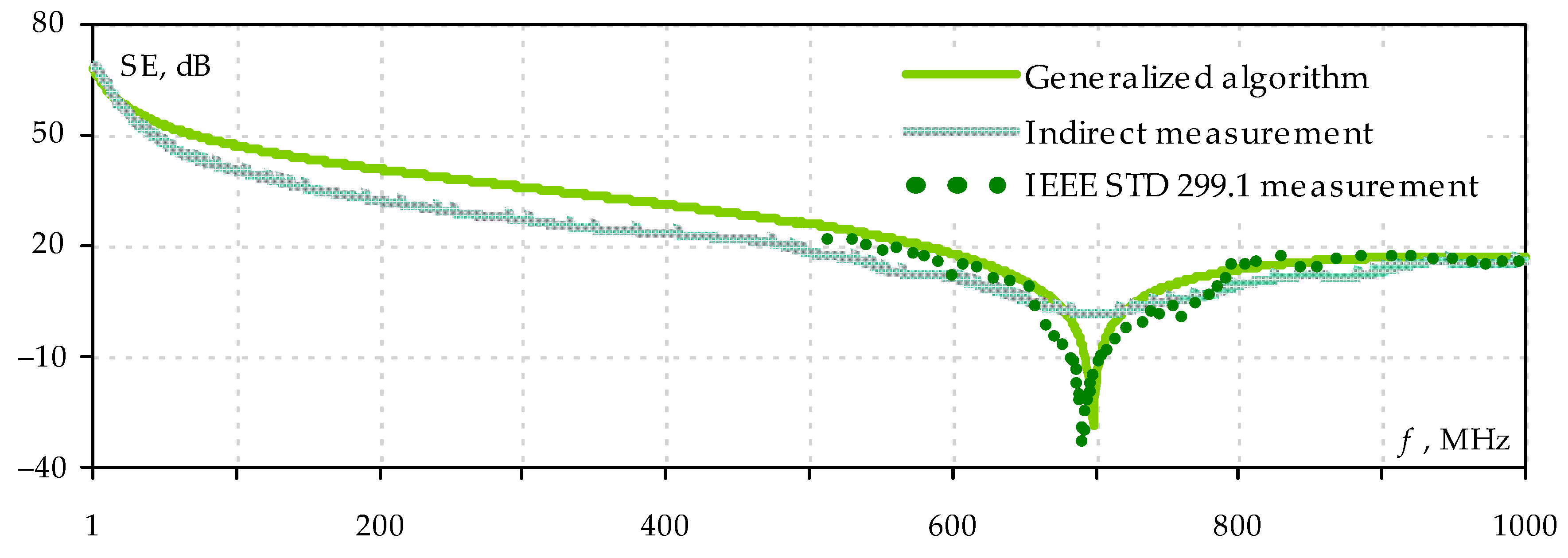

Figure 20 shows the results of the analytical calculation and measurements for case 1 (for an empty enclosure with an 80 × 80 mm² aperture). First of all, it can be seen that the enclosure SE is complex and can take positive and negative values when the frequency is changed. Negative SE occurs when coherent waves with the same phase are combined inside the enclosure, leading to cavity resonances. These resonances are a serious problem for electromagnetic compatibility of electronic equipment, as, at their frequencies, the shielding enclosure can amplify, rather than attenuate, interferences. Figure 20 also shows that the SE frequency dependencies obtained by different approaches are quite similar. The value of |Δ| between the results of the generalized algorithm and the indirect measurement was 5.7 dB. When comparing the results of the analytical calculation and the IEEE STD 299.1 measurement, a small difference (not more than 10 MHz) can be seen between the resonance frequencies. This difference may be caused by inaccuracy in the enclosure manufacture and the influence of the monopole antenna used in the measurement. Despite this, |Δ| = 5.2 dB.

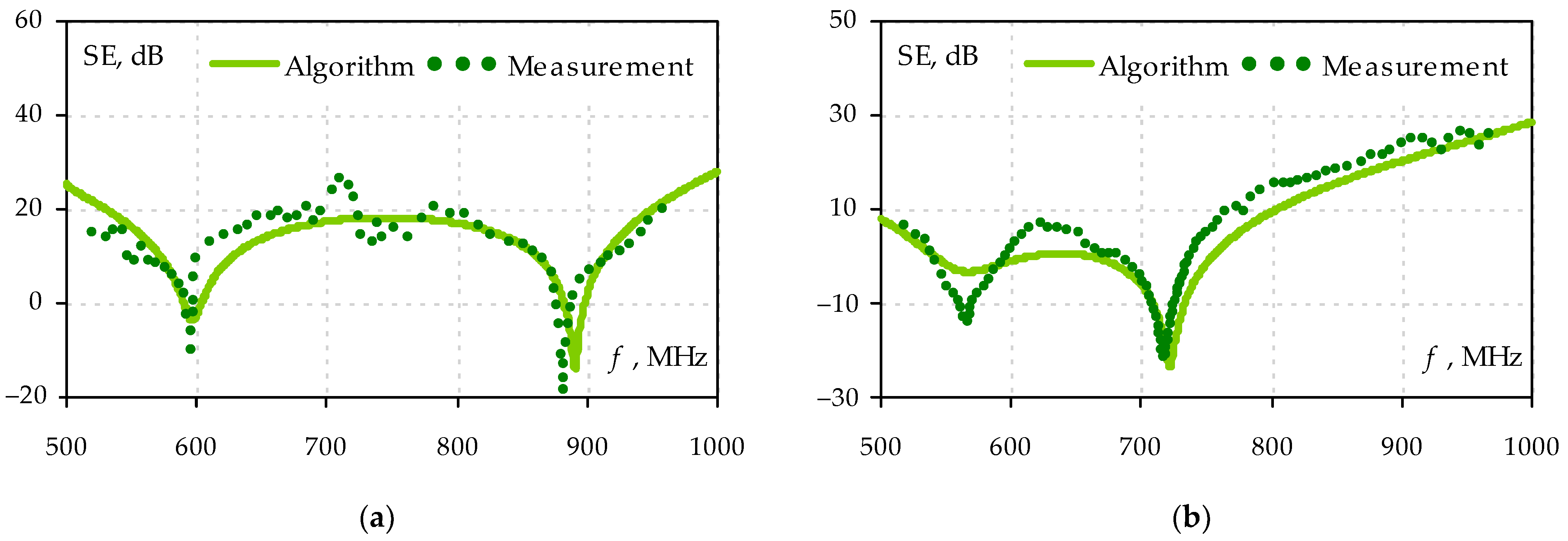

Figure 21 illustrates the SE frequency dependencies for cases 2 and 3, obtained by measurements and the proposed algorithm. It can be seen that, in both cases, the measured and calculated dependencies are close. The |Δ| values were 5.6 dB and 4.2 dB for cases 2 and 3, respectively. Thus, the results shown in Figure 20 and Figure 21 confirm that the generalized algorithm can evaluate the SE with acceptable accuracy.

4.2. Validation by Numerical Analysis

Next, the generalized algorithm was validated using FEM-based numerical analysis. The COMSOL Multiphysics^® (Stockholm, Sweden) RF Module was used for this purpose. In the FEM simulation, a perfect electrical conductor was used as the enclosure material. A hexagonal mesh with adaptive refinement was used to discretize the enclosures. The initial number of cells per wavelength was 45, and the mesh refinement percentage did not exceed 25% of the total number of elements at each step. The SE values were defined as:

$$\mathrm{SE}=20{\log }_{10}\frac{\left|E_{}^0\right|}{\left|E\right|},$$

(39)

where; E and E⁰ are the electric field strengths (intensities) at the observation point in the presence and absence of the enclosure, respectively. In all the cases considered below, the SE was calculated in the range from 1 MHz to 1 GHz with a resolution of just under 1 MHz, giving frequency dependencies consisting of 1000 points.

First, using FEM and the proposed algorithm, we calculated the SE for the enclosure of the Ethernet filter (Figure 22a). It has a volume of 440 × 42 × 197.5 mm³, a wall thickness of 1 mm, and it has 12 square apertures (16 × 16 mm²) on the front wall. The analysis was performed without the internal filling of the enclosure, and only the dominant mode excitation was taken into account in the analytical calculation (m = 1 and n = 0). When using the generalized algorithm, Z_ap was determined, according to Flowchart 4, based on the combination of Equations (14) and (20). The results are shown in Figure 22b. It can be seen that frequency dependencies of the SE, obtained by FEM and the proposed algorithm, are in good agreement, and |Δ| = 2.9 dB.

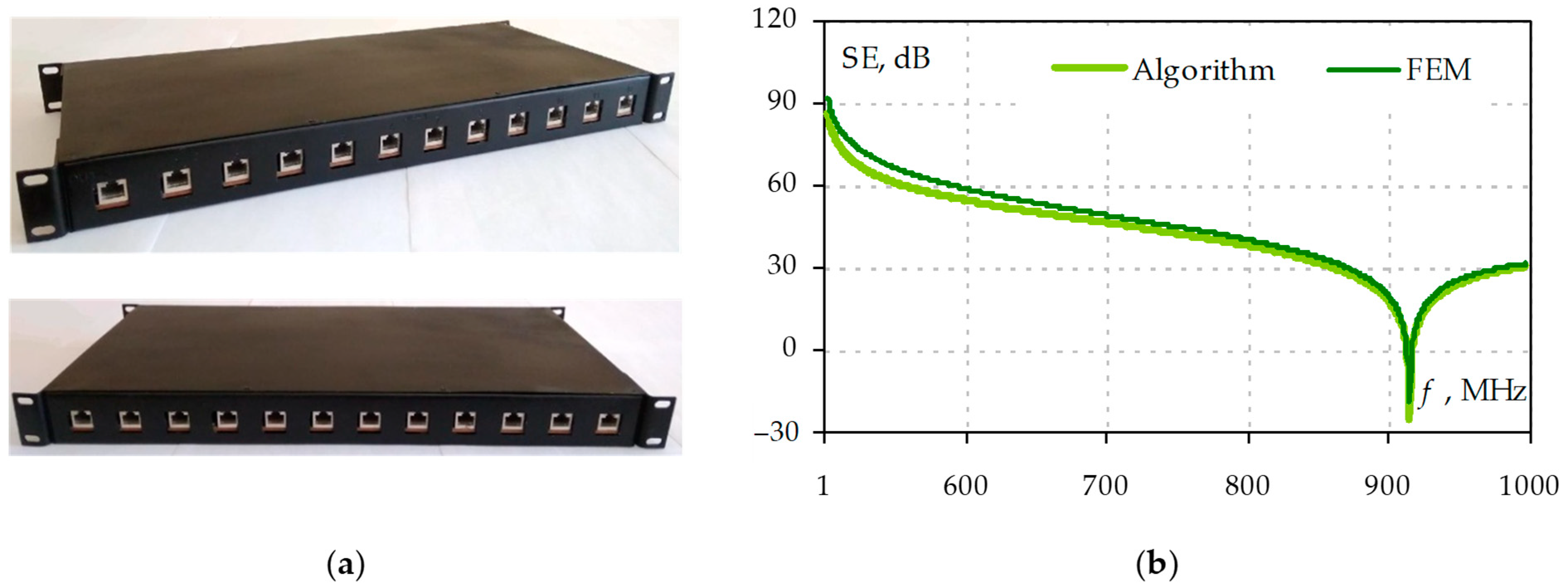

Next, we analyzed the enclosure of the ABB FOX 515 multiplexer (Figure 23a) with a volume of 445 × 270 × 278 mm³, a wall thickness of 1.5 mm, and an array of 108 × 15 circular staggered apertures (r = 1.5 mm) located at the top of the front wall. In the analytical calculation, the Z_ap was determined according to Flowchart 3 using Equations (20) and (21). The equivalent circuit transformation was performed, taking into account the excitation of higher-order modes in the enclosure (mixture of TE₁₀, TE₂₀ and TE₃₀ modes). Figure 23b shows the SE frequency dependencies of the multiplexer enclosure calculated by FEM and the proposed algorithm. A small discrepancy can be seen between the frequency dependencies at low frequencies and in the region of 750 MHz. For the most part, however, the results are in good agreement, and the value of |Δ| is only 1.52 dB.

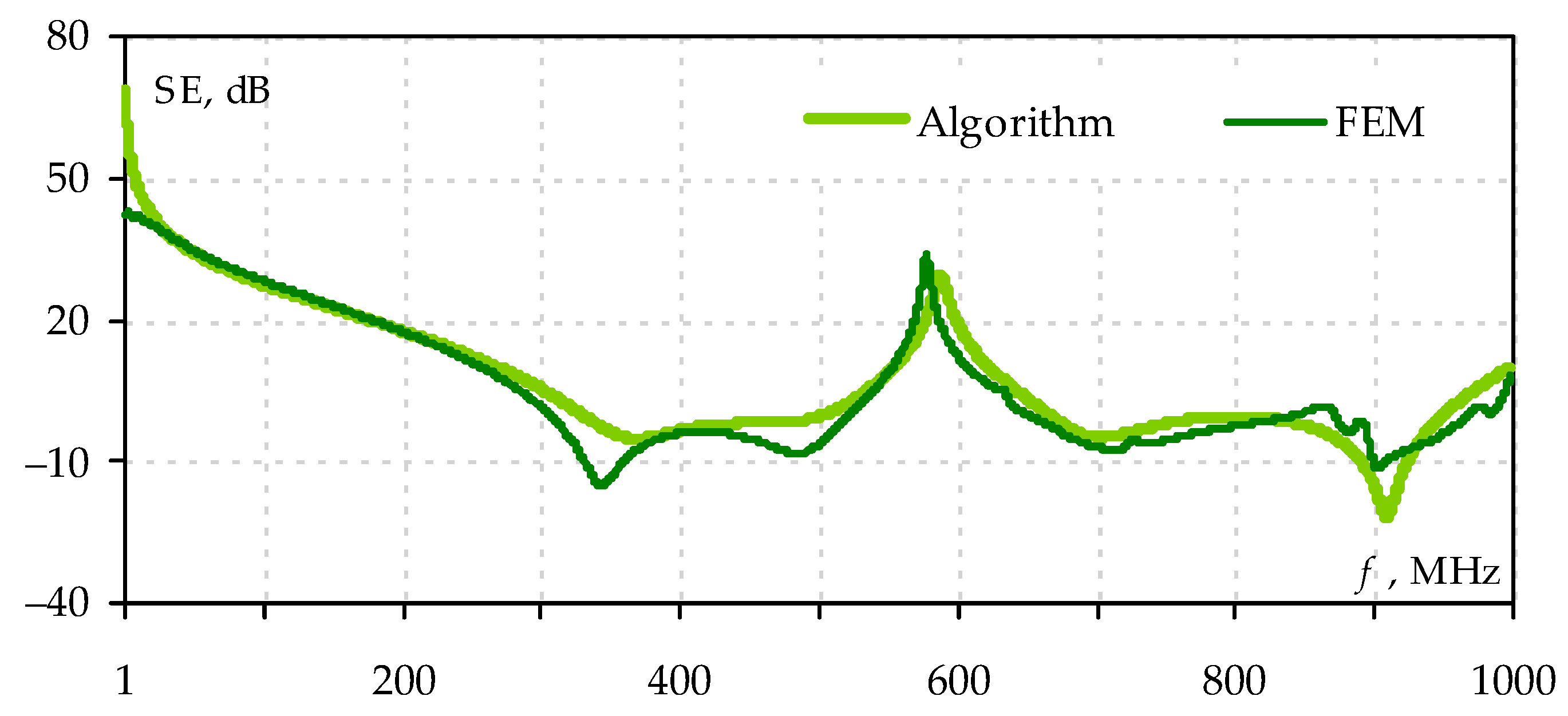

Finally, using FEM and the proposed algorithm, we calculated the frequency dependencies of the SE for a cylindrical enclosure with a circular aperture at R = r = 150 mm and d = 300 mm. Moreover, the enclosure under study was completely filled with dielectric material, with ε_r = 3.7. In the calculation by the proposed algorithm, Z_ap was determined using (13) and (14). The transformation of the equivalent circuit was performed according to Flowchart 7, and λ_{c mn} was determined at m = n = 1. Figure 24 illustrates that the results obtained by the generalized algorithm and FEM are in agreement. In this case, the value of |Δ| is 3.12 dB.

4.3. Computation Time Analysis

Table 1. Time required to calculate SE.

Enclosure	Generalized Algorithm, s	FEM, s
Ethernet filter	0.017	2063
Multiplexer	0.026	2764
Filled cylinder	0.014	3267

presents the SE computation times for enclosures from Section 4.2 using the proposed generalized algorithm and FEM. Note that all calculations were performed on an outdated PC with a 6th-generation quad-core Intel Core i5 processor and 16 GB of RAM. It can be seen that the SE calculation by FEM takes considerably longer than that using the generalized algorithm based on equivalent circuits. In all cases, the time difference is more than 10⁶ times.

Thus, the results of the algorithm validation prove that it has acceptable accuracy and low computation time. Consequently, using this algorithm in the early stages of designing electronic equipment, one can quickly evaluate the SE, which will significantly reduce the time for developing the final product.

5. Software Development

Based on the presented algorithm, we are currently developing software for the fast SE evaluation of electronic equipment enclosures. By the time of writing, our team has developed a prototype of this software. In this section, we briefly describe this prototype and its features.

5.1. Programming Tools and Software Architecture

The C++ language and the Qt framework were chosen to develop the software prototype. The GUI of the prototype was developed using Qt Designer and the JavaScript-based Tree.js and Csg.js libraries, which have been adapted for QML (Qt’s built-in markup language). These libraries were used to create and visualise 3D-models of shielding enclosures.

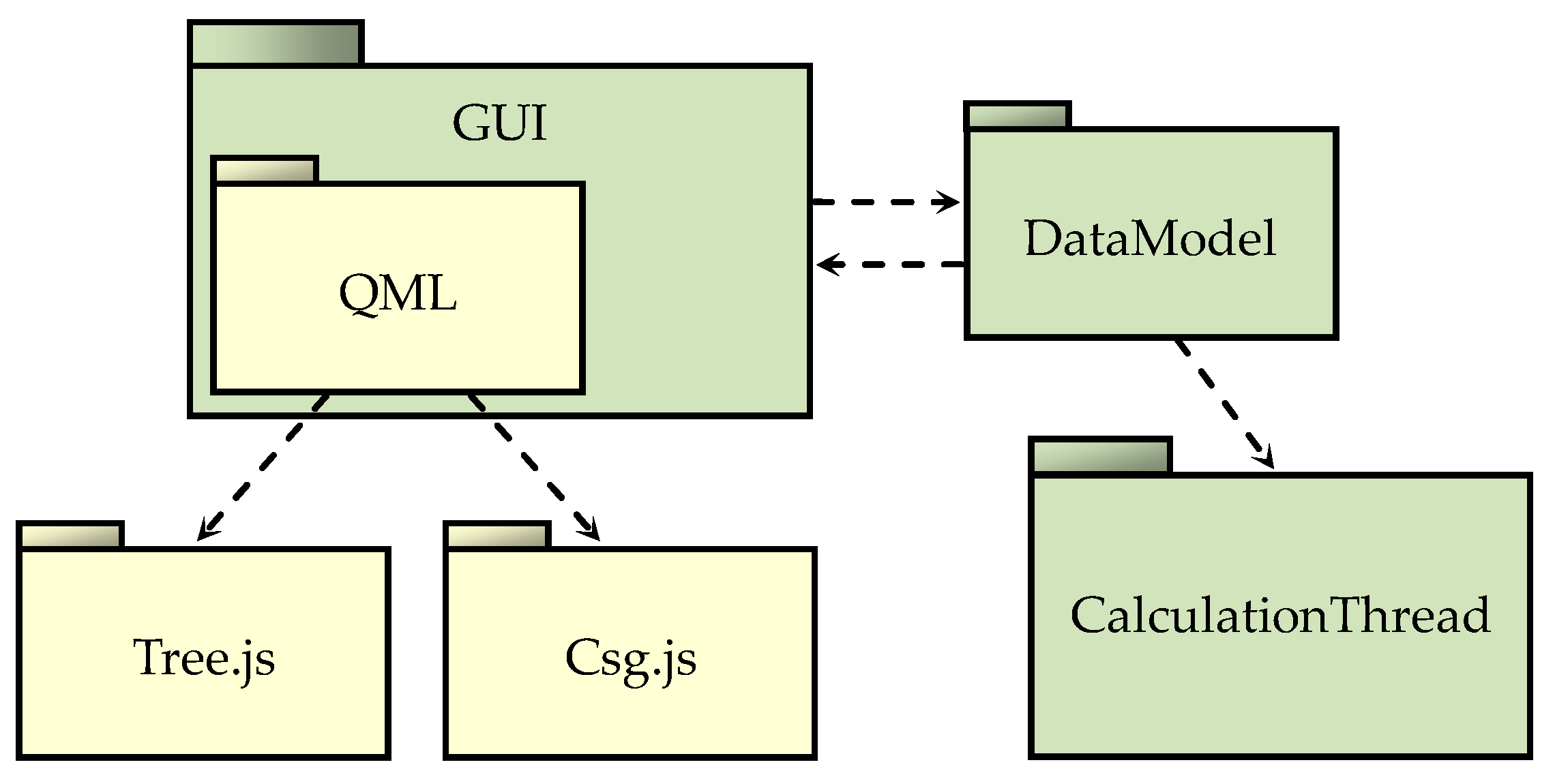

Figure 25 presents the architecture of the software prototype in the form of a UML package diagram. The GUI is responsible for retrieving data from the DataModel and displaying it. The DataModel is an object model of the subject domain, which stores the input parameters for calculations, the data for displaying the SE, and the methods for operating with them. SE calculations are performed in the CalculationThread class, which implements the analytical expressions from Section 2. In addition, SE calculations are performed in a separate thread, which allows one to interact with the GUI at any time.

5.2. Software Feature

The software prototype developed so far implements only one part of the algorithm proposed in Section 3, which allows one to evaluate the SE of empty enclosures. However, some distinctive features and useful functionalities have been added to the prototype, and the authors feel that they should be presented in this article.

The main feature of the prototype is the ability to calculate and display a three-dimensional SE pattern, depending on the frequency of excitation source and the position of the observation point inside the enclosure. This feature makes it possible to identify areas where the SE has the worst values, which can be useful for selecting the optimum arrangement of electronic equipment parts within the shielding enclosure at the initial stage of design. An example of calculating a three-dimensional SE pattern in the prototype GUI is shown in Figure 26. Thus, Figure 26a illustrates the parameters and appearance of the enclosure under analysis. Figure 26b presents the SE pattern, depending on the frequency and the position of the observation point. The SEs are plotted along the vertical axis, and the frequency values (from 1 MHz to 2 GHz) and observation points along the enclosure (from 1 mm to 299 mm) are plotted along the other two axes.

The prototype also contains a functional for calculating the error between the SE frequency dependencies obtained in the software and in the external source. For this purpose, mechanisms for loading text files and data interpolation are implemented. To calculate the integrals in expression (17), the prototype uses the trapezoidal technique, together with Runge’s error estimation rule. The maximum error was set at 0.3%, which allowed us to reduce the computation time of Z_ap without losing the accuracy of the SE evaluation. The prototype also contains a functional for predicting the complexity of the SE computation, which operates based on data about the RAM of the PC running the software. This functional allows one to adjust the initial data or to abort an unreasonably long calculation before it begins.

6. Conclusions

This article has proposed a generalized algorithm, based on equivalent circuits, for evaluating the SEs of electronic equipment enclosures. We first reviewed and systematized most of the existing analytical models that use equivalent circuits in calculating the SE. After generalizing these models, we developed the SE evaluation algorithm and described it in the form of flowcharts. Next, using six different enclosures as examples, the algorithm was validated by two measurement methods and numerical analysis based on FEM. The validation results showed that the proposed algorithm allows one to calculate the SE more than 10⁶ times faster than FEM. At the same time, it has an acceptable accuracy, since the average value of the absolute error modulus in all considered cases did not exceed 5.6 dB. The last part of this article presented a prototype of our software for analyzing shielding enclosures of electronic equipment, which we plan to develop further.

In conclusion, we prefer to note that, despite the good accuracy and low computation time, the algorithm proposed in this article has some disadvantages. The main one is its low variability due to the use of analytical models that cannot describe any arbitrary enclosure structure. For example, the algorithm cannot be used to analyze nested enclosures, unshielded cables penetrating the shield, enclosures with uneven or curved walls, etc. In contrast, almost any enclosure can be analyzed using numerical methods, although, as mentioned in the introduction, this requires significant computational costs. We believe that a new tool for a fast SE evaluation in the future could be a machine learning model. For this reason, some of our future research is expected to be devoted to developing and analyzing such a model. Another important disadvantage of the algorithm is that the enclosure is assumed to be perfectly conductive, i.e., penetration directly through the walls is ignored. This means that the algorithm is not well suited to the analysis of shields exposed to low-frequency and static H-fields.
