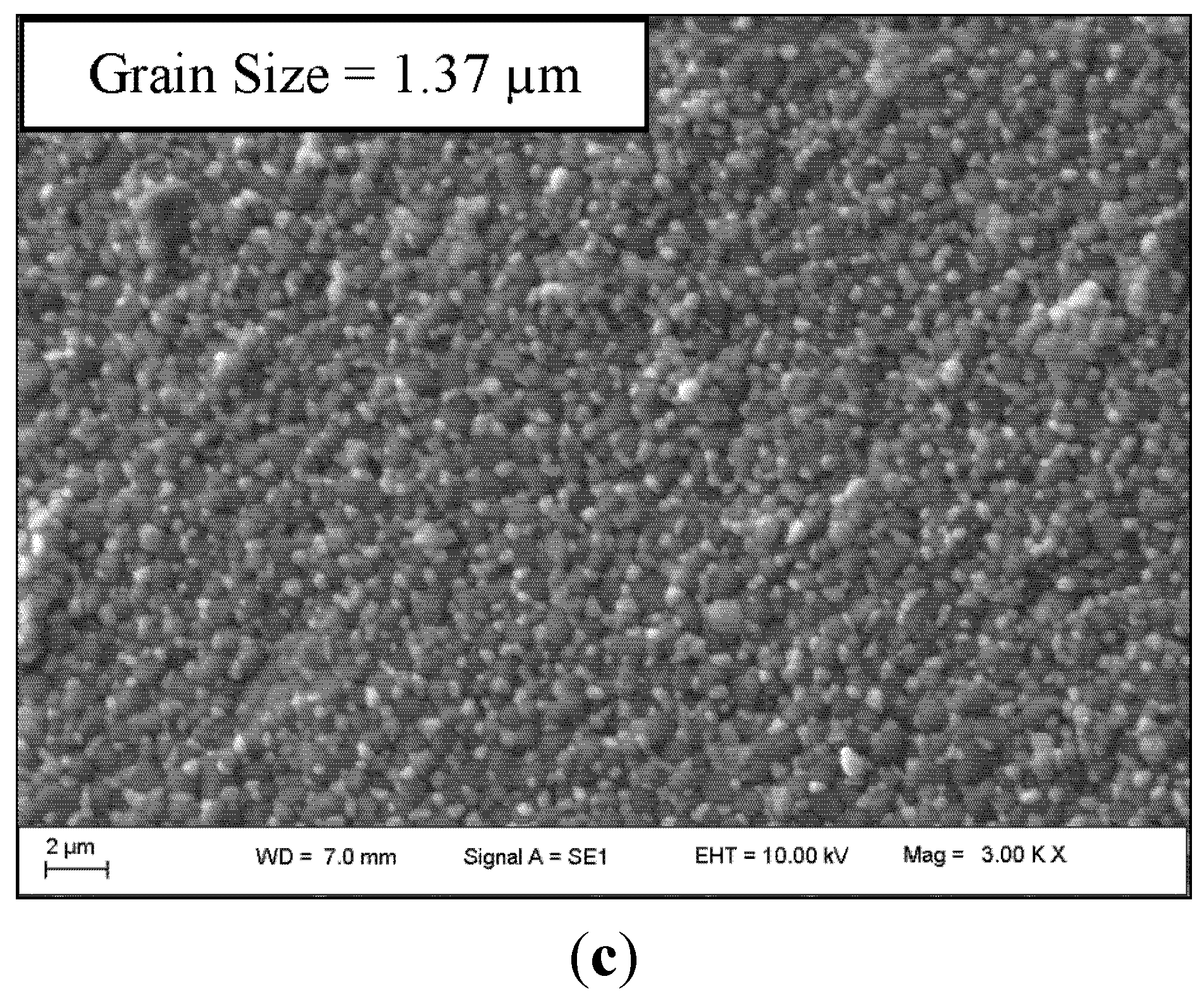

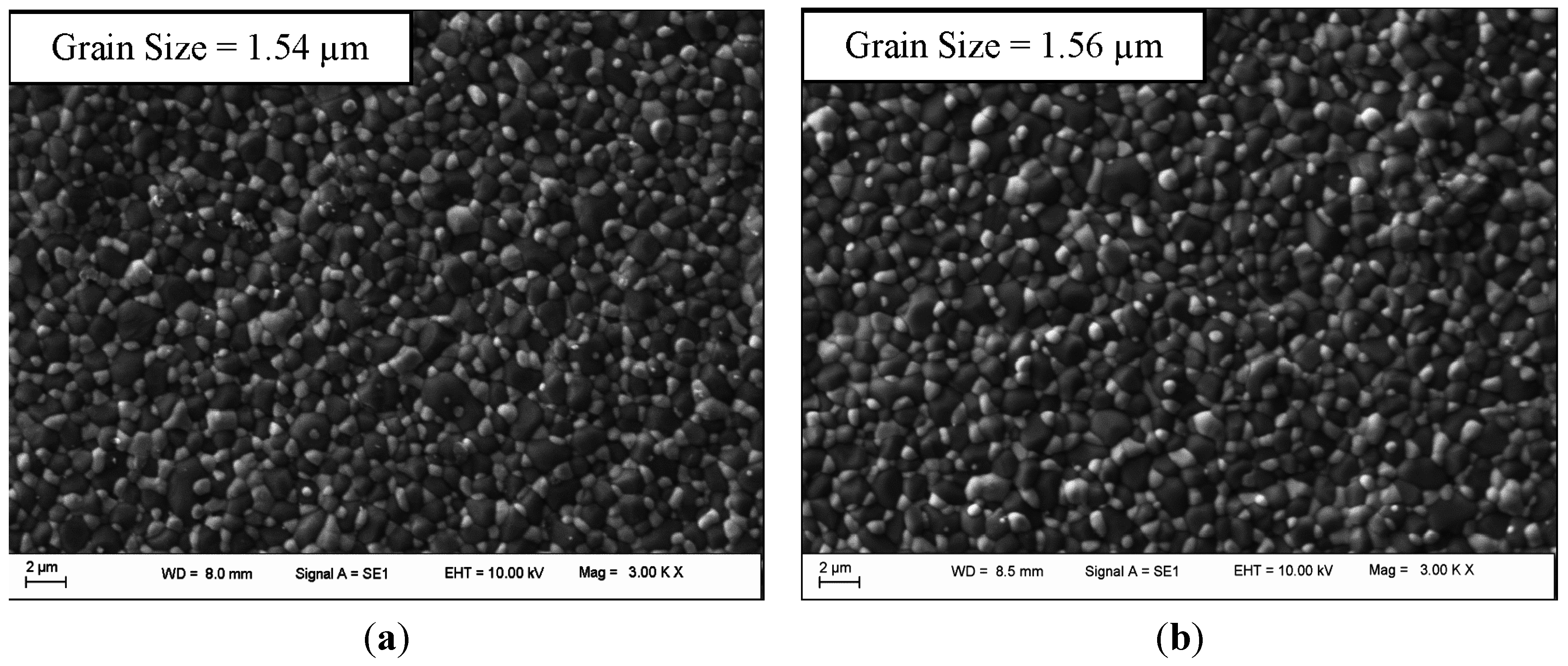

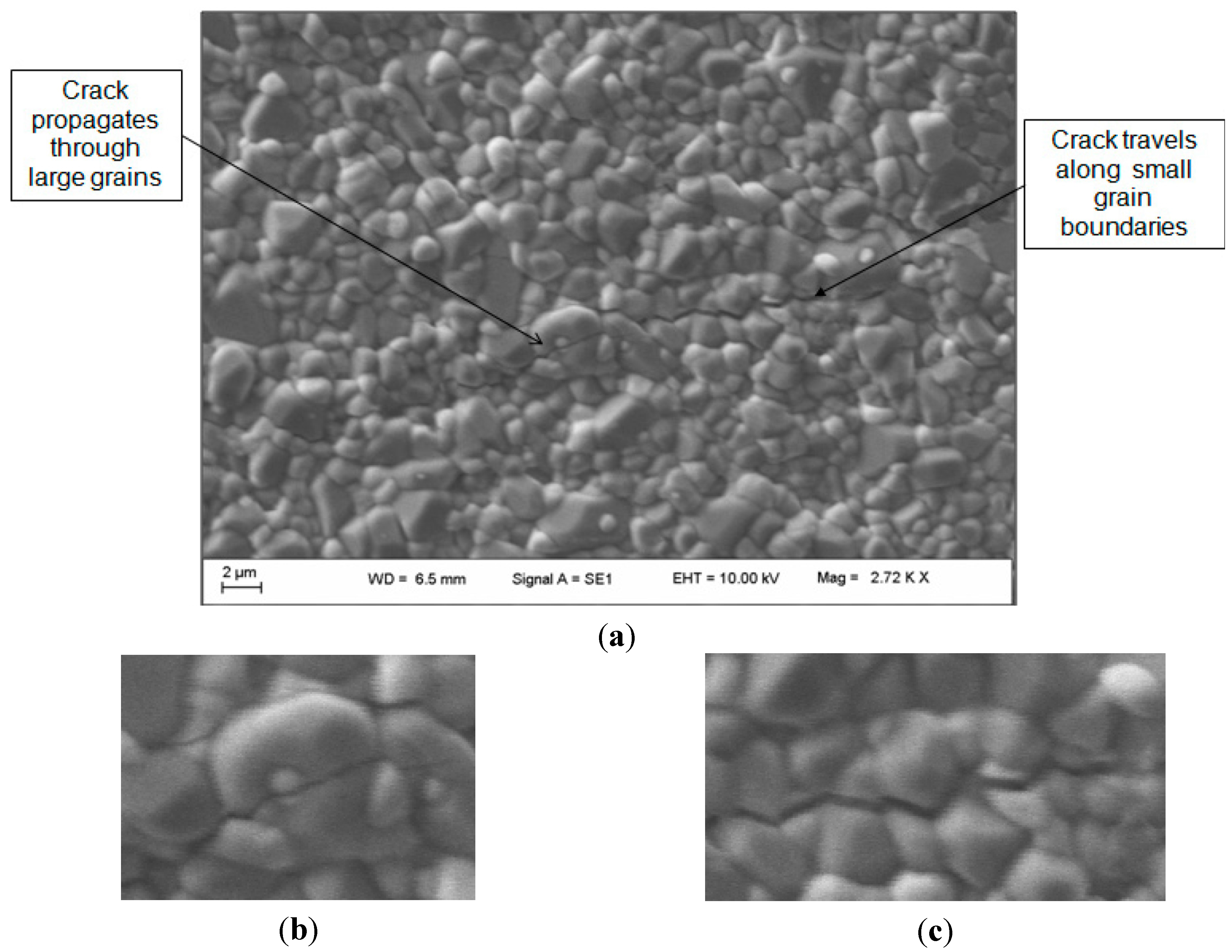

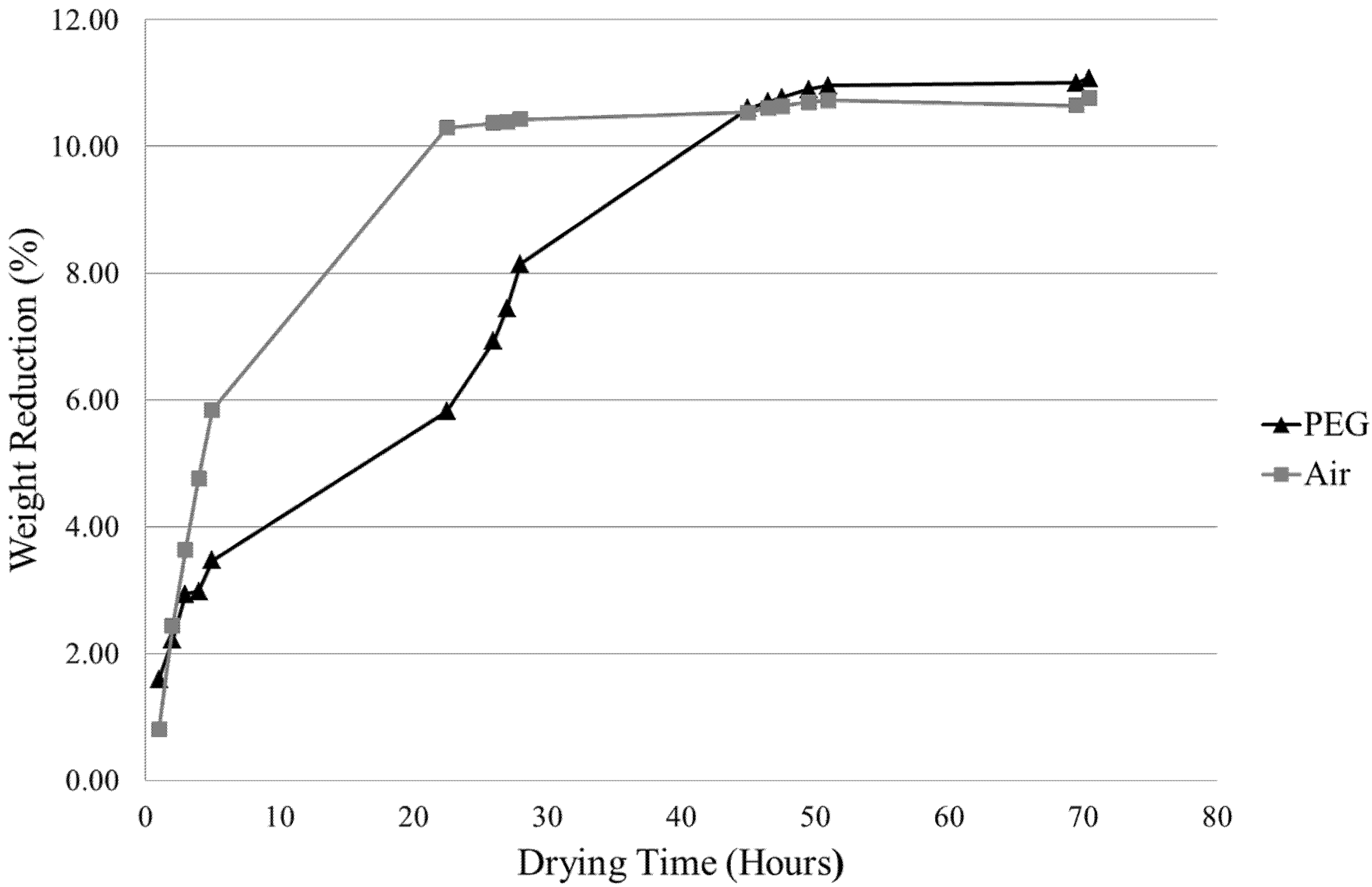

Zirconia-toughened alumina (ZTA) using yttria-stabilised zirconia is a good option for ceramic-ceramic bearing couples for hip joint replacement. Gelcasting is a colloidal processing technique capable of producing complex products with a range of dimensions and materials by a relatively low-cost production process. Using gelcasting, ZTA samples were prepared, optimising the stages of fabrication, including slurry preparation with varying solid loadings, moulding and de-moulding, drying and sintering. Density, hardness, fracture toughness, flexural strength and grain size were observed relative to slurry solid loadings between 58 and 62 vol. %, as well as sintering temperatures of 1550 °C and 1650 °C. Optimal conditions found were plastic mould, 4000 g/mol PEG with 30 vol. % concentration, 61% solid loading and Ts
= 1550 °C. ZTA samples of high density (maximum 99.1%), high hardness (maximum 1902 HV), high fracture toughness (maximum 5.43 MPa m1/2

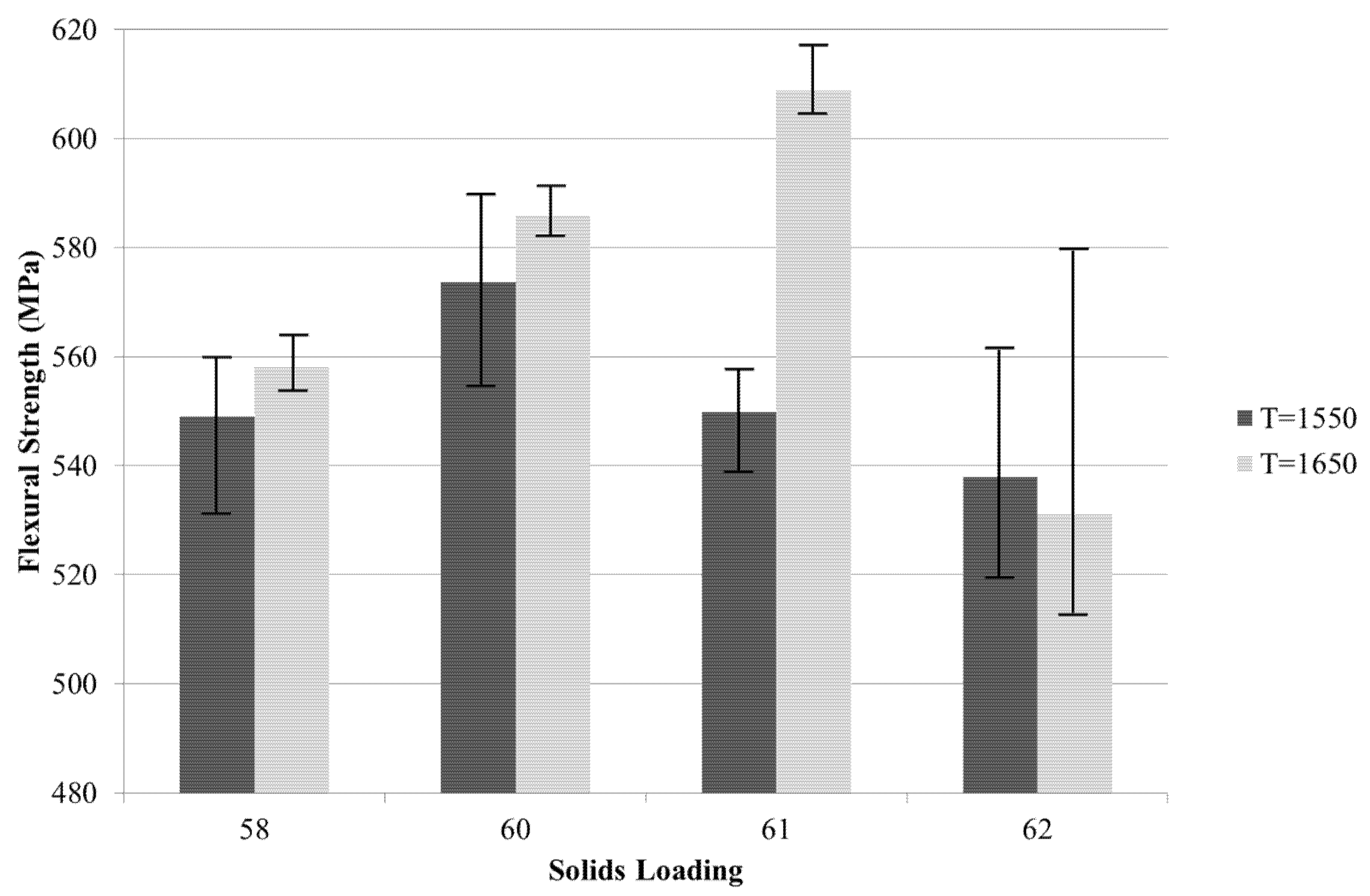

) and high flexural strength (maximum 618 MPa) were successfully prepared by gelcasting and pressureless sintering.
This is an open access article distributed under the Creative Commons Attribution License
which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited
