Kaolinite Nanocomposite Platelets Synthesized by Intercalation and Imidization of Poly(styrene-co-maleic anhydride)

Chair for Bio-based Materials Engineering, Faculty for Environment and Natural Resources, Freiburg Institute for Advanced Studies (FRIAS), University of Freiburg, Werthmannstrasse 6, D-79085 Freiburg, Germany
Department of Textiles, Ghent University, Technologiepark 907, B-9052 Zwijnaarde, Belgium
Topchim N.V., Nijverheidstraat 98, B-2160 Wommelgem, Belgium
Author to whom correspondence should be addressed.
These authors contributed equally to this work.
Academic Editor: Harold Freeman
Materials 2015, 8(7), 4363-4388;
Received: 7 June 2015 / Revised: 4 July 2015 / Accepted: 9 July 2015 / Published: 16 July 2015
(This article belongs to the Special Issue Developments in Organic Dyes and Pigments)

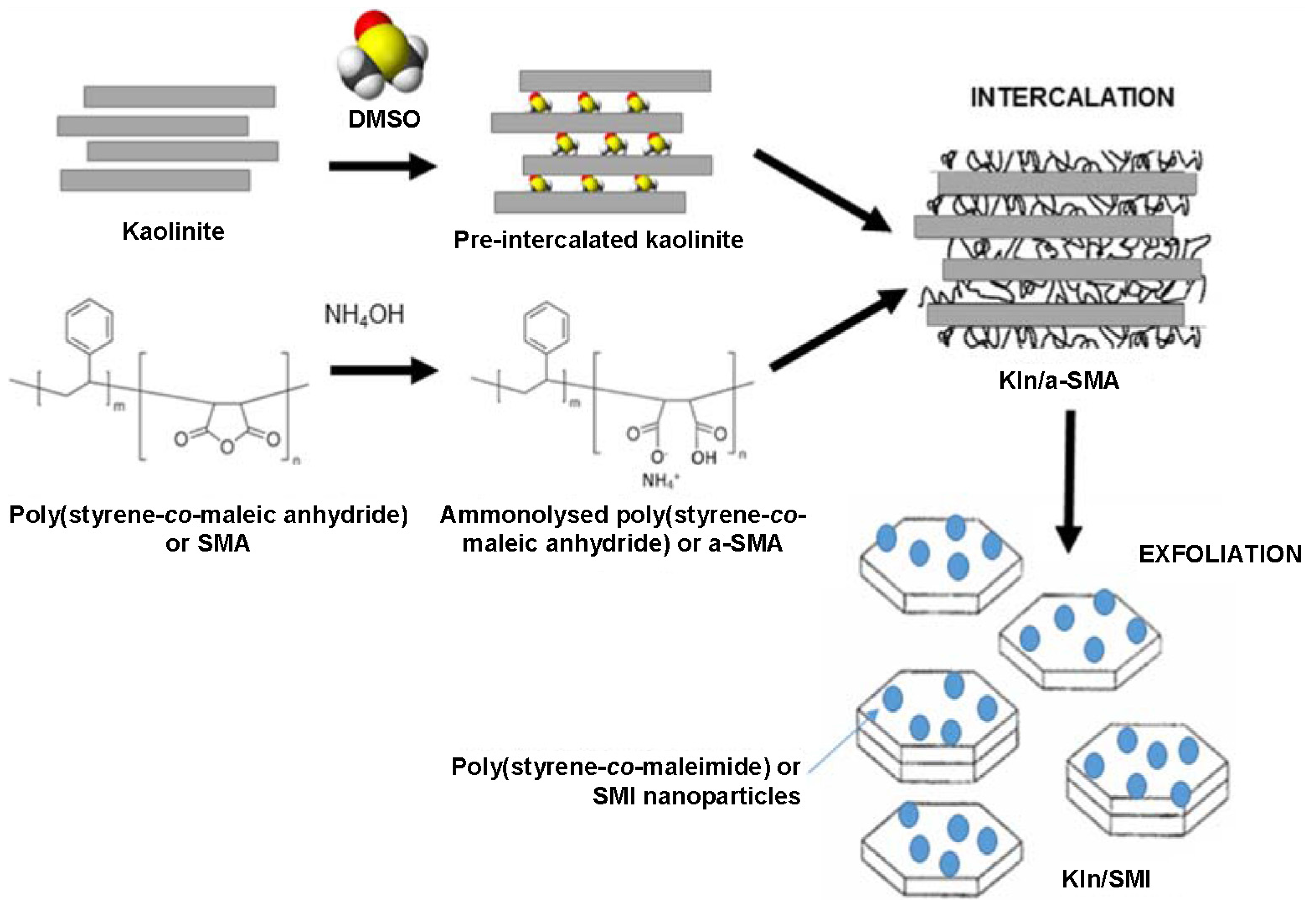

A synthesis route is presented for the subsequent intercalation, exfoliation and surface modification of kaolinite (Kln) by an imidization reaction of high-molecular weight poly(styrene-co-maleic anhydride) or SMA in the presence of ammonium hydroxide. In a first step, the intercalation of ammonolyzed SMA by guest displacement of intercalated dimethylsulfoxide has been proven. In a second step, the imidization of ammonolyzed SMA at 160 °C results in exfoliation of the kaolinite layers and deposition of poly(styrene-co-maleimide) or SMI nanoparticles onto the kaolinite surfaces. Compared with a physical mixture of Kln/SMI, the chemically reacted Kln/SMI provides more efficient exfoliation and hydrogen bonding between the nanoparticles and the kaolinite. The kaolinite nanocomposite particles are synthesized in aqueous dispersion with solid content of 65 wt %. The intercalation and exfoliation are optimized for a concentration ratio of Kln/SMI = 70:30, resulting in maximum intercalation and interlayer distance in combination with highest imide content. After thermal curing at 135 °C, the imidization proceeds towards a maximum conversion of the intermediate amic acid moieties. The changes in O–H stretching and kaolinite lattice vibrations have been illustrated by infrared and FT-Raman spectroscopy, which allow for a good quantification of concentration and imidization effects. View Full-Text
Keywords: kaolinite; guest displacement; poly(styrene-co-maleimide); nanoparticles kaolinite; guest displacement; poly(styrene-co-maleimide); nanoparticles
Show Figures

Graphical abstract

MDPI and ACS Style

Samyn, P.; Schoukens, G.; Stanssens, D. Kaolinite Nanocomposite Platelets Synthesized by Intercalation and Imidization of Poly(styrene-co-maleic anhydride). Materials 2015, 8, 4363-4388.
