Characterization of a Lithium Disilicate CAD/CAM Material with Firing Temperature-Controlled Translucency

by
Alvaro Munoz
,
Chris Louca
and
Alessandro Vichi
*
School of Dental, Health and Care Professions, University of Portsmouth, Portsmouth PO1 2QG, UK
*
Author to whom correspondence should be addressed.
Materials 2025, 18(7), 1591; https://doi.org/10.3390/ma18071591
Submission received: 12 February 2025 / Revised: 23 March 2025 / Accepted: 27 March 2025 / Published: 1 April 2025
(This article belongs to the Special Issue Materials for Prosthodontics, Implantology, and Digital Dentistry)
Browse Figures
Versions Notes

Abstract

:
Lithium disilicates are widely used in restorative dentistry due to their aesthetics, strength, and durability. Increased strength can be achieved by increasing crystal fraction, but this modification also reduces translucency. Recently developed lithium disilicates like Amber Mill claim to offer customizable translucency via firing protocols without changes in flexural strength. This study evaluated whether Amber Mill’s firing protocols produce significant differences in translucency without changing flexural strength. Forty specimens (n = 10) were assessed for translucency using Contrast Ratio (CR) and Translucency Parameter (TP) tests under four firing protocols designed to obtain high translucency (HT), medium translucency (MT), low translucency (LT), and medium opacity (MO). Using the three-point bending test, sixty specimens (n = 15) were tested for flexural strength with the same four firing protocols. The Weibull modulus and characteristic strength were also calculated, and SEM observation was performed. The CR and TP tests revealed statistically significant translucency differences only between MO and LT/MT/HT. Flexural strength ranked as MO > LT > MT > HT, with significant differences observed between MO vs. MT/HT and LT vs. HT. The findings indicate that the recommended firing protocols for the same shaded blocks resulted in limited differences in translucency. Additionally, higher translucencies were associated with reduced flexural strength, highlighting a trade-off between aesthetic and mechanical properties for Amber Mill.

1. Introduction

Lithium silicate glass ceramics have become central to restorative dentistry due to their outstanding aesthetic and mechanical qualities. Since the introduction of IPS Empress 2 in the late 1990s, which incorporated 65 vol% lithium disilicate into a glass matrix, significant advancements have been made, particularly with the development of IPS e.max Press. This material improved mechanical properties by incorporating densely packed, elongated lithium disilicate crystals, thereby enhancing crack resistance and toughness [1,2]. Due to their durability, aesthetics, and biocompatibility, these materials have become one of the preferred choices for monolithic restorations, such as crowns, veneers, and inlays [3].
The advent of Computer-Aided Design/Computer-Aided Manufacturing (CAD/CAM) technology has further revolutionized indirect restorations by allowing for greater precision and efficiency [4,5]. IPS e.max CAD, launched in 2006, introduced a pre-crystallized block that could achieve desirable translucency and strength after heat treatment, thereby expanding the aesthetic and functional possibilities in dental restorations [6,7,8,9,10]. However, each block has a pre-determined translucency, which, added to the numerous shades available, necessitates quite a large stock.
One of lithium disilicate’s most appreciated clinical qualities is its aesthetics, a pivotal factor in restorative dentistry. Among the optical properties, translucency is essential for achieving a pleasing and tooth-like appearance [11,12,13], as well as minimizing the influence of a discolored substrate [14]. Therefore, translucency is a key feature of ceramic materials, including porcelain, lithium disilicate, and zirconia, and it plays a critical role in material selection [15,16].
The crystallization of CAD/CAM blocks to obtain lithium disilicate (Li2Si2O5) is a heat-mediated process that follows milling [17,18], and it is influenced by nucleating agents, which control crystal shape and size. Lithium disilicate crystals typically range from 1 to 3–4 μm and can exhibit round, plate-like, or rod-like morphologies, with manufacturers adjusting these parameters to optimize the trade-off between strength and translucency [2,19]. The crystallization process involves two major steps: nucleation and crystal growth [20,21]. The type and concentration of nucleating agents determine the final microstructure of the glass ceramic, affecting its mechanical and aesthetic properties [22,23]. Increasing the volume fraction of crystals typically improves strength and toughness [23] but negatively impacts translucency. Crystals act as an obstacle to the passage of light [24,25], promoting incoherent scattering due to the difference in the refractive index between the glass and crystalline phases, accentuated by the birefringence of the lithium disilicate crystals, which exhibit strong anisotropy in both their crystallographic structure and microstructure [26].
With the expiration of early patents, new lithium disilicate-based materials, such as Initial LiSi (GC), Cerec Tessera (Dentsply Sirona), and Amber Mill (HassBio), have entered the market. According to the manufacturer, Amber Mill uniquely offers customizable translucency through specific firing conditions, where temperature and holding time can be adjusted to influence the material’s final appearance [3,27]. However, while the manufacturer claims that these firing protocols allow for significant control over translucency without compromising flexural strength, few independent studies have validated these claims.
This study aims to critically assess whether the firing conditions produce differences in translucency without affecting the material’s flexural strength. The formulated null hypotheses are that varying the firing conditions to obtain different translucencies, according to the manufacturer’s indications, (i) does not significantly affect the material’s flexural strength and (ii) does not result in significant differences in the material’s translucency.

2. Materials and Methods

This study employed a quantitative research design to assess the effects of varying heating protocols on the flexural strength and translucency of one CAD/CAM material (Amber Mill, Haas Bio, Gangneung-si, Republic of Korea) (Figure 1). The blocks of the material were C14 size and A1 Vita shade. Using a proprietary device, the blocks were cut to obtain the desired shape depending on the test to be performed, flexural strength or translucency. The composition of the materials is reported in Table 1.

2.1. Flexural Strength

For the 3-Point Bending Test (3-PBT), sixty beam-shaped specimens were cut using a water-cooled cutting machine (low-speed saw, Buehler, Lake Bluff, IL, USA) and wet-finished in a grinder/polisher machine (Minimet, Buehler, Lake Bluff, IL, USA) with 600 grit paper until dimensions of 1.2 ± 0.2 mm in thickness, 4.0 ± 0.2 mm in width, and 15.0 ± 0.2 mm in length were obtained. Specimens were subsequently wet polished with 1200 and 2400 grit paper.
According to ISO 6872:2024, a 45° edge chamfer was made at each major edge [28]. After cutting, the Amber Mill specimens were randomly divided into four groups (n = 15) and submitted to four different crystallization firing processes in a ceramic furnace (VITA Vacumat 6000M, VITA Zahnfabrik, Bad Sackingen, Germany), following the Amber Mill manufacturer’s instructions to achieve the four different translucencies. The four crystallization processes (firing conditions) are reported in Table 2.
After firing, specimens were ultrasonically cleaned in distilled water for 10 minutes before the measurement procedure. Tests were performed using a universal testing machine (ESM 301, Mark-10, Copiague, NY, USA) equipped with a 50 N load cell (M5-50, Mark-10, Copiague, NY, USA) at a crosshead speed of 1 mm/min. The span was set at 13.0 mm. Specimens were tested dry at room temperature. The fracture load was recorded in N, and the flexural strength (σ) was calculated in MPa by using the following equation:
σ = 3 P l 2 w b 2
where P is the fracture load in N, l is the distance between the center of the supports in mm, w is the width in mm, and b is the height in mm.
The Weibull characteristic strength (σ0) and the Weibull modulus (m) were calculated according to the following equation:
P f = 1 − e x p − σ σ 0 m
where Pf is the probability of failure between 0 and 1, σ is the flexural strength in MPa, σ0 is the Weibull characteristic strength in MPa, and m is the Weibull modulus.

2.2. Translucency Measurement

For optical evaluation, forty tab-shaped specimens with final dimensions of 15.0 ± 0.5 mm in length, 15.0 ± 0.5 mm in width, and 1.0 ± 0.1 mm in thickness were obtained by cutting blocks perpendicularly to the long axis and wet polishing with 600 and 1200 grit paper. The specimens were then randomly divided into four groups (n = 10) and fired according to the four crystallization processes reported in Table 2. The specimens were then ultrasonically cleaned in distilled water for 10 min before the measurement procedure. The measurements were performed with a colorimeter (Color Meter Pro, Vetus Technology Co., Hefei, China) with an 8mm aperture and D/8 viewing geometry, which was calibrated for white and black following the manufacturer’s instructions. The colorimeter was connected to a smartphone running a dedicated app (ColorMeter V2.3.3). D65 illumination and a 10-degree standard observation angle were selected. Data were recorded in the CIEXYZ and CIELab colorimetric systems.
For every specimen, the Contrast Ratio (CR) was calculated with the following equation [14]:
C R = Y b Y w
The Translucency Parameter (TP) was calculated using the following CIELab formula [30]:
T P = L B * − L W * 2 + a B * − a W * 2 + b B * − b W * 2 2
For both formulas, the “W” refers to values on a white background, while the “B” refers to values on a black background.

2.3. Scanning Electron Microscopy Observation

Two extra specimens per group were produced in the same way as the translucency specimens for microscopic evaluation of the glass ceramic microstructure.
Specimens were etched for 120 s with 9% hydrofluoric acid (Porcelain Etch, Ultradent, South Jordan, UT, USA) and then cleaned under running water.
The preparation for SEM observations involved ultrasonic cleansing in a 95% alcohol solution for 3 min and air drying with an oil-free air spray.
Specimens were then secured onto SEM (Tescan MIRA 3, Brno, Czech Republic) slabs using gold conducting tape and gold coated in a vacuum sputter coater (Quorum Q150R sputter coater, Quorum Technologies, Laughton, UK).
The treated surfaces were then observed at 20,000× magnification to evaluate the crystal morphology.

2.4. Statistical Analysis

The normality of data distribution was assessed using the Kolmogorov–Smirnov test, and the homogeneity of variances was verified with Levene’s test. For flexural strength and the Translucency Parameter (TP), the data met the assumptions for parametric analysis; thus, a one-way ANOVA was performed, followed by the Tukey test for post hoc comparisons. In contrast, for Contrast Ratio (CR), the assumption of homogeneity of variance was not satisfied; therefore, a Kruskal–Wallis one-way ANOVA on ranks was applied, followed by the Tukey test for post hoc analysis. The level of significance was set at p < 0.05 for all statistical tests. Analyses were conducted using SigmaPlot 11.0 (Systat Software, Inc., San Jose, CA, USA).

3. Results

3.1. Flexural Strength

The flexural strength results are presented in Table 3. The ANOVA showed a statistically significant difference among the four tested groups (p < 0.001). MO showed the highest flexural strength values, although they were not statistically different from those of LT. HT showed the lowest results, but there was no statistically significant difference compared with MT. LT and MT did not show a statistically significant difference (Table 3).
The Weibull analysis of the flexural strength is presented in Table 3.
Amber Mill MO obtained the lowest Weibull modulus (m), and MT obtained the highest.
Concerning Weibull characteristic strength, MO showed the highest σ0, while HT exhibited the lowest. Figure 2 displays the calculated data for the fracture results of 15 specimens in each group, along with the fitting of the dataset for each material using the least-squares method; the best-fit straight line with the smallest error determines the failure probability line for each material. According to the fitting line, MO can withstand the maximum force, while HT can withstand the lowest.

3.2. Translucency–Contrast Ratio

The four different crystallization firing processes resulted in statistically significant differences in translucency (p < 0.001). Increasing CR values were in agreement with the declared opacities of the specimens. However, statistically significant differences were found only between Amber MO and the other groups (Table 4).

3.3. Translucency—Translucency Parameter

The results obtained for TP are presented in Table 5. Decreasing TP values were observed, which were related to decreasing degrees of translucency. Similar to the values obtained by analyzing CR, significant differences between groups were observed only between Amber MO and the other groups (p < 0.001) (Table 5).

3.4. Scanning Electron Microscopy Observation

Scanning electron microscopy images of Amber Mill, subjected to four different firing processes, are presented in Figure 3.
The Amber Mill HT image displays small oblate- and plate-like crystals, which contrast with the larger and more densely packed crystals exhibited by Amber MT and Amber LT, where clearer boundaries between the crystals and matrix (removed by acid etching) are observed. Amber MO presented a denser and irregularly shaped crystal microstructure.

4. Discussion

In CAD/CAM procedures, materials like Amber Mill are provided in a partially crystallized state with moderate strength, allowing for easier milling [31,32,33,34,35]. After milling, heat treatment in a furnace converts the material into its final form, which consists of glass and crystalline phases. Different heat treatment protocols affect the growth of lithium disilicate crystals and the percentage of residual glass [35]. However, when oxides such as phosphorous pentoxide (P2O5), zirconium dioxide (ZrO2), vanadium pentoxide (V2O5), and cerium dioxide (CeO2) [8] are present in the composition, they act as co-nucleating agents to achieve the desired shade and translucency. These oxides interact with the nucleation and crystallization processes, altering crystal size and, thus, impacting the ceramic’s physical and mechanical properties [36]. When higher concentrations of nucleating agents are used, the microstructure becomes denser, and the crystals form smaller and rounder shapes [37], leading to reduced light scattering and increased opacity [11,38]. Although adding pigments can improve opacity without altering flexural strength [39], the final translucency depends more on crystal size and volume than specific compounds.
This study compared four different translucencies by applying four firing protocols to CAD/CAM blocks of a single shade of Amber Mill Nano-Lithium Disilicate. These protocols adhered to the manufacturer’s recommended heat treatment factors to achieve the desired translucency. The results suggest that the firing processes used to obtain lower translucency/higher opacity are linked to increased flexural strength. The statistical analysis led to the rejection of the first null hypothesis, as it revealed significant differences in flexural strength among the various translucencies.
Additionally, and differing from the manufacturer’s indications for the material, the recorded flexural strength values did not meet the ISO 6872:2024 clinical recommendations for ISO class 3 (three-unit bridge not involving molar restoration), as none of the groups surpassed the necessary threshold of 300 MPa [28]. However, it should be emphasized that the type of flexural strength test for class determination is not reported in the aforementioned ISO standards. Indeed, while test methods like flexural strength are crucial for comparing brittle materials, it has been demonstrated that changes in the test method alone can significantly affect flexural strength values [40]. In the case of biaxial flexural strength (BFT), where a disk is loaded at the center, it is believed that this reduces the probability of edge failure [41] since ceramic specimens are highly sensitive to edge or surface machining damage [42]. In this study, a three-point bending test (3-PBT) was preferred over BFT, because it does not require milling, the specimens can be obtained by cutting the blocks, and also because it is more widely used in research, therefore it allows for easier comparison with other studies/materials. It is well known that BFT yields higher results for dental ceramics than 3-PBT [43,44]. Therefore, the outcome indicating that the values measured in the present study using 3-PBT are lower than those found in the literature for BFT [45,46] was expected. No studies other than the present one have previously tested Amber Mill with 3-PBT.
One of the primary strengthening mechanisms in glass ceramics is the interlocking of crystals within the microstructure [47,48]. Crack propagation tends to occur at the crystal-glass interface, resulting in fractures [49,50]. This process is conditioned by metal oxides present in the ceramic [27]. Unfortunately, the complete composition of oxides within the ceramics’ microstructure, which may explain variations in physical properties like flexural strength, is not fully disclosed by manufacturers, limiting the potential for understanding the reasons for the measured differences. However, differences in flexural strength could be attributed to the crystal structures observed in the SEM images, where Amber Mill MO showed fewer voids and had lost its elongated crystal structure.
As chewing forces are unevenly distributed, a single strength value like flexural strength alone does not fully reflect a material’s mechanical performance. In this regard, the Weibull analysis is a valid method for evaluating the reliability and lifespan of engineering materials, particularly brittle materials like dental ceramics, which must withstand chewing forces. Weibull analysis accounts for variability by determining the probability of failure under different pressures, thereby providing deeper insights into material properties [51]. In the Weibull analysis, the Weibull characteristic strength (σ0) indicates the 63.21st percentile of the strength distribution, while the Weibull modulus (m) represents flaw distribution. A higher m value suggests better structural reliability [44,52]. Generally speaking, it is preferable to have a higher m, even with a slightly lower mean fracture strength, than a lower m associated with a higher mean fracture strength. Materials with higher Weibull moduli exhibit a more uniform distribution of defects, which describes the lifetime and frequency of failure of brittle materials. Materials with m > 20 demonstrate high structural integrity and reliability [53]. In the present study, Amber Mill HT and MT obtained m values higher than 20 (26.25 and 44.55, respectively), suggesting greater structural integrity and reliability than Amber Mill LT and MO, although the latter showed values close to the reported threshold (respectively 19.37 and 18.43). It is interesting to note that although Amber Mill fired with the MO program presented the highest flexural strength, at the same time, it showed the lowest Weibull modulus. Simba et al. [26], comparing the effects of temperature on the mechanical properties of IPS e.max CAD, found a similar reduction in the Weibull modulus at increasing temperatures due to the transient phases of cristobalite, lithium metasilicate, and lithium disilicate, which might have caused localized residual stresses, resulting in a wider spread of the flexural strength values.
According to the manufacturer, Amber Mill’s translucency can be controlled by firing at different temperatures. To achieve high translucency, the final crystallization temperature should be set at 815 °C; for medium translucency, it should be 825 °C; for low translucency, it should be 840 °C; and for medium opacity, it should be 860 °C. These variations in firing temperatures cause changes in crystal distribution and density, which affect visible light transmission. This ability to adjust translucency by choosing the firing temperature offers clinicians great flexibility and reduces stock requirements [10]. However, the results obtained in the present study differ from those presented by the manufacturer, with only Amber MO achieving significant differences compared to the other translucencies.
Thus, the second null hypothesis was rejected.
Translucency refers to the amount of light that passes through a material, where it is scattered, reflected, or transmitted [54]. Higher light transmission results in greater translucency. The translucency of dental ceramics increases as thickness decreases, showing a significant relationship between material type and thickness [55]. Two parameters are commonly used to measure the translucency of dental materials: the Translucency Parameter (TP) [13,30,56,57,58,59,60] and the Contrast Ratio (CR) [12,58,61,62]. TP is the difference between the reflected colors of a material with uniform thickness viewed over black and white backgrounds, providing a direct perception of translucency [30]. CR is the ratio of reflectance over black to that over white, representing opacity [63]. CR values range from 0 to 100, where 0 indicates total translucency, and 100 indicates total opacity [54].
Ideally, different thicknesses should be tested to better represent the material’s optical behavior.
According to Liu et al. [64], CR differences below 7 are not perceptible to the human eye, based on the mean translucency perception threshold (TPT), although experienced clinicians may have a TPT of 4.
In this study, the CR differences for HT (52.6 ± 3.9), MT (54.3 ± 4.1), and LT (56.4 ± 2) were below 7, indicating no visible differences in translucency for a layperson. In contrast, HT and MT showed a CR difference greater than 7 when compared to MO (63 ± 1.8). LT showed a difference slightly lower than 7, but very close to this threshold. Comparing these values to those reported by Dietschi et al. [65], MO’s CR is similar to dentine (CR 62 to 70), while HT, MT, and LT fall between enamel (CR 40 to 49) and dentine.
No TPT has been identified for the Translucency Parameter yet. However, the study by Yu et al. [66] reported TP values for 1 mm-thick human enamel and dentin of 18.7 and 16.4, respectively. Therefore, according to those values, for the Translucency Parameter, only MO showed values approximately intermediate between the two natural tissues, while LT, MT, and HT showed higher translucency at the same thickness.
Understanding the reasons for translucency differences among materials is quite complex. SEM observation provides limited insight, as interactions between crystal size, shape, number, and the glass phase play a role in translucency [53]. Crystal size influences translucency, as light transmission through lithium disilicate ceramics is disrupted by crystals [67]. Phark and Duarte [8] reported that Amber Mill’s crystal size is 0.2 μm, which is quite small compared to that of other lithium disilicates; however, they did not report which firing protocol was used in their study. Jurado et al. [68] found differences in translucency between lithium disilicate crowns subjected to one and two sintering processes. In the same paper, while IPS e.max CAD translucency increased after multiple firings, Amber Mill’s translucency was reported to decrease, possibly due to its higher glass composition and smaller crystal size.
These can be considered relevant, but they provide little information, and further studies are necessary to expand the knowledge on the optical behavior of glass ceramic materials.

5. Conclusions

  • The use of different firing protocols resulted in different translucencies of the tested material (Amber Mill).
  • The translucencies obtained are ranked according to the manufacturer’s indications. However, the differences between HT, MT, and LT were statistically not significant for both CR and TP and were below the available thresholds for translucency perceptibility. Only MO was significantly more opaque than the other three translucencies and above the threshold.
  • The different translucencies obtained showed statistically significant differences in flexural strength when measured using the 3-PBT.
The manufacturer’s approach, which aimed to reduce the need for multiple stocks of translucencies through firing protocols, was only partially successful. Further studies exploring the influence of different firing protocols on other mechanical characteristics, like fracture toughness and fatigue, are advisable.

Author Contributions

Conceptualization, A.V.; methodology, A.V.; formal analysis, A.V. and A.M.; investigation, A.V.; resources, A.V. and C.L.; data curation, A.V.; writing—original draft preparation, A.M. and A.V.; writing—review and editing, A.V., A.M. and C.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available upon request from the corresponding author. Due to the university’s policy on access, they are not publicly available.

Conflicts of Interest

The authors declare no conflicts of interest.

Abbreviations

The following abbreviations are used in this manuscript:
TPTranslucency Parameter
CRContrast Ratio
3-PBTThree-Point Bending Test
HTHigh Translucency
MTMedium Translucency
LTLow Translucency
MOMedium Opacity
CAD/CAMComputer-Aided Design/Computer-Aided Manufacturing
SEMScanning Electron Microscopy
TPTTranslucency Perception Threshold

References

  1. Denry, I.; Holloway, J.A. Ceramics for Dental Applications: A Review. Materials 2010, 3, 351–368. [Google Scholar] [CrossRef]
  2. Zarone, F.; Di Mauro, M.I.; Ausiello, P.; Ruggiero, G.; Sorrentino, R. Current Status on Lithium Disilicate and Zirconia: A Narrative Review. BMC Oral Health 2019, 19, 134. [Google Scholar] [CrossRef]
  3. Munoz, A.; Zhao, Z.; Paolone, G.; Louca, C.; Vichi, A. Flexural Strength of CAD/CAM Lithium-Based Silicate Glass-Ceramics: A Narrative Review. Materials 2023, 16, 4398. [Google Scholar] [CrossRef] [PubMed]
  4. Liu, P.R.; Essig, M.E. Panorama of Dental CAD/CAM Restorative Systems. Compend. Contin. Educ. Dent. 2008, 29, 482, 484, 486–488. [Google Scholar]
  5. Furtado de Mendonca, A.; Shahmoradi, M.; Gouvêa, C.V.D.; De Souza, G.M.; Ellakwa, A. Microstructural and Mechanical Characterization of CAD/CAM Materials for Monolithic Dental Restorations. J. Prosthodont. 2019, 28, e587–e594. [Google Scholar] [CrossRef] [PubMed]
  6. Li, R.W.; Chow, T.W.; Matinlinna, J.P. Ceramic Dental Biomaterials and CAD/CAM Technology: State of the Art. J. Prosthodont. Res 2014, 58, 208–216. [Google Scholar] [CrossRef] [PubMed]
  7. Lubauer, J.; Belli, R.; Peterlik, H.; Hurle, K.; Lohbauer, U. Grasping the Lithium Hype: Insights into Modern Dental Lithium Silicate Glass-Ceramics. Dent. Mater. 2022, 38, 318–332. [Google Scholar] [CrossRef]
  8. Phark, J.H.; Duarte, S., Jr. Microstructural Considerations for Novel Lithium Disilicate Glass Ceramics: A Review. J. Esthet. Restor. Dent. 2022, 34, 92–103. [Google Scholar] [CrossRef]
  9. Culp, L.; McLaren, E.A. Lithium Disilicate: The Restorative Material of Multiple Options. Compend. Contin. Educ. Dent. 2010, 31, 716–720+722+724–725. [Google Scholar]
  10. Stawarczyk, B.; Mandl, A.; Liebermann, A. Modern CAD/CAM Silicate Ceramics, Their Translucency Level and Impact of Hydrothermal Aging on Translucency, Martens Hardness, Biaxial Flexural Strength and Their Reliability. J. Mech. Behav. Biomed. Mater. 2021, 118, 104456. [Google Scholar] [CrossRef]
  11. Vichi, A.; Carrabba, M.; Paravina, R.; Ferrari, M. Translucency of Ceramic Materials for CEREC CAD/CAM System. J. Esthet. Restor. Dent. 2014, 26, 224–231. [Google Scholar] [CrossRef] [PubMed]
  12. Lee, Y.-K. Influence of Scattering/Absorption Characteristics on the Color of Resin Composites. Dent. Mater. 2007, 23, 124–131. [Google Scholar] [CrossRef] [PubMed]
  13. Della Bona, A. Bonding to Ceramics: Scientific Evidences for Clinical Dentistry; Artes Medicas: São Paulo, Brazil, 2009; ISBN 85-367-0091-2. [Google Scholar]
  14. Heffernan, M.J.; Aquilino, S.A.; Diaz-Arnold, A.M.; Haselton, D.R.; Stanford, C.M.; Vargas, M.A. Relative Translucency of Six All-Ceramic Systems. Part II: Core and Veneer Materials. J. Prosthet. Dent. 2002, 88, 10–15. [Google Scholar] [CrossRef]
  15. Miyagawa, Y.; Powers, J.M.; O’Brien, W.J. Optical Properties of Direct Restorative Materials. J. Dent. Res. 1981, 60, 890–894. [Google Scholar] [CrossRef]
  16. Bayindir, F.; Ozbayram, O. Effect of Number of Firings on the Color and Translucency of Ceramic Core Materials with Veneer Ceramic of Different Thicknesses. J. Prosthet. Dent. 2018, 119, 152–158. [Google Scholar] [CrossRef] [PubMed]
  17. Bischoff, C.; Eckert, H.; Apel, E.; Rheinberger, V.M.; Höland, W. Phase Evolution in Lithium Disilicate Glass-Ceramics Based on Non-Stoichiometric Compositions of a Multi-Component System: Structural Studies by 29Si Single and Double Resonance Solid State NMR. Phys. Chem. Chem. Phys. 2011, 13, 4540–4551. [Google Scholar] [CrossRef]
  18. Plengsombut, K.; Brewer, J.D.; Monaco, E.A., Jr.; Davis, E.L. Effect of Two Connector Designs on the Fracture Resistance of All-Ceramic Core Materials for Fixed Dental Prostheses. J. Prosthet. Dent. 2009, 101, 166–173. [Google Scholar] [CrossRef]
  19. Wang, F.; Gao, J.; Wang, H.; Chen, J. Flexural Strength and Translucent Characteristics of Lithium Disilicate Glass–Ceramics with Different P2O5 Content. Mater. Des. 2010, 31, 3270–3274. [Google Scholar] [CrossRef]
  20. Huang, S.; Huang, Z.; Gao, W.; Cao, P. Trace Phase Formation, Crystallization Kinetics and Crystallographic Evolution of a Lithium Disilicate Glass Probed by Synchrotron XRD Technique. Sci. Rep. 2015, 5, 9159. [Google Scholar] [CrossRef]
  21. Apel, E.; van’t Hoen, C.; Rheinberger, V.; Höland, W. Influence of ZrO2 on the Crystallization and Properties of Lithium Disilicate Glass-Ceramics Derived from a Multi-Component System. J. Eur. Ceram. Soc. 2007, 27, 1571–1577. [Google Scholar] [CrossRef]
  22. Anusavice, K.J.; Zhang, N.Z. Effect of Crystallinity on Strength and Fracture Toughness of Li2O-Al2O3-CaO-SiO2 Glass-Ceramics. J. Am. Ceram. Soc. 1997, 80, 1353–1358. [Google Scholar] [CrossRef]
  23. Hasselman, D.P.H.; Fulrath, R.M. Proposed Fracture Theory of a Dispersion-Strengthened Glass Matrix. J. Am. Ceram. Soc. 1966, 49, 68–72. [Google Scholar] [CrossRef]
  24. Heffernan, M.J.; Aquilino, S.A.; Diaz-Arnold, A.M.; Haselton, D.R.; Stanford, C.M.; Vargas, M.A. Relative Translucency of Six All-Ceramic Systems. Part I: Core Materials. J. Prosthet. Dent. 2002, 88, 4–9. [Google Scholar] [CrossRef] [PubMed]
  25. Antonson, S.A.; Anusavice, K.J. Contrast Ratio of Veneering and Core Ceramics as a Function of Thickness. Int. J. Prosthodont. 2001, 14, 316–320. [Google Scholar]
  26. Simba, B.G.; Ribeiro, M.V.; R.P.Alves, M.F.; Vasconcelos Amarante, J.E.; Strecker, K.; dos Santos, C. Effect of the Temperature on the Mechanical Properties and Translucency of Lithium Silicate Dental Glass-Ceramic. Ceram. Int. 2021, 47, 9933–9940. [Google Scholar] [CrossRef]
  27. Fabian Fonzar, R.; Carrabba, M.; Sedda, M.; Ferrari, M.; Goracci, C.; Vichi, A. Flexural Resistance of Heat-Pressed and CAD-CAM Lithium Disilicate with Different Translucencies. Dent. Mater. 2017, 33, 63–70. [Google Scholar] [CrossRef]
  28. ISO 6872:2024; Dentistry-Ceramic Materials. International Organization for Standardization: Geneva, Switzerland, 2024.
  29. HASSBio. Amber Mill Instruction for Use. Available online: https://hassbio.com/eng/board/detail.html?f_uid=1025&f_div=&page=3&s_value=amber%20mill&s_ref=14&s_ref_2=32&s_c1=2 (accessed on 22 January 2025).
  30. Johnston, W.M.; Ma, T.; Kienle, B.H. Translucency Parameter of Colorants for Maxillofacial Prostheses. Int. J. Prosthodont. 1995, 8, 79–86. [Google Scholar]
  31. Borom, M.P.; Turkalo, A.M.; Dorms, R.H. Strength and Microstructure in Lithium Disilicate Glass-Ceramics. J. Am. Ceram. Soc. 1975, 58, 385–391. [Google Scholar] [CrossRef]
  32. Albakry, M.; Guazzato, M.; Swain, M.V. Biaxial Flexural Strength, Elastic Moduli, and x-Ray Diffraction Characterization of Three Pressable All-Ceramic Materials. J. Prosthet. Dent. 2003, 89, 374–380. [Google Scholar] [CrossRef]
  33. Albakry, M.; Guazzato, M.; Swain, M.V. Fracture Toughness and Hardness Evaluation of Three Pressable All-Ceramic Dental Materials. J. Dent. 2003, 31, 181–188. [Google Scholar] [CrossRef]
  34. Gao, J.; Chen, J.H.; Wang, F.; Deng, Z.X.; Li, F.; Wu, D. Effect of Heat-Pressing on the Microstructure and Properties of a Novel Lithium Disilicate Glass-Ceramic. Adv. Mater. Res. 2011, 177, 441–446. [Google Scholar] [CrossRef]
  35. Lien, W.; Roberts, H.W.; Platt, J.A.; Vandewalle, K.S.; Hill, T.J.; Chu, T.-M.G. Microstructural Evolution and Physical Behavior of a Lithium Disilicate Glass–Ceramic. Dent. Mater. 2015, 31, 928–940. [Google Scholar] [CrossRef] [PubMed]
  36. Anusavice, K.J.; Zhang, N.Z.; Moorhead, J.E. Influence of Colorants on Crystallization and Mechanical Properties of Lithia-Based Glass-Ceramics. Dent. Mater. 1994, 10, 141–146. [Google Scholar] [CrossRef]
  37. Wen, G.; Zheng, X.; Song, L. Effects of P2O5 and Sintering Temperature on Microstructure and Mechanical Properties of Lithium Disilicate Glass-Ceramics. Acta Mater. 2007, 55, 3583–3591. [Google Scholar] [CrossRef]
  38. Anusavice, K.J.; Zhang, N.Z.; Moorhead, J.E. Influence of P2O5, AgNO3, and FeCl3 on Color and Translucency of Lithia-Based Glass-Ceramics. Dent. Mater. 1994, 10, 230–235. [Google Scholar] [CrossRef]
  39. Yuan, K.; Wang, F.; Gao, J.; Sun, X.; Deng, Z.X.; Wang, H.; Jin, L.; Chen, J.H. Effect of Zircon-Based Tricolor Pigments on the Color, Microstructure, Flexural Strength and Translucency of a Novel Dental Lithium Disilicate Glass-Ceramic. J. Biomed. Mater. Res. Part B Appl. Biomater. 2014, 102, 98–107. [Google Scholar] [CrossRef]
  40. Rodrigues, S.A., Jr.; Ferracane, J.L.; Della Bona, A. Flexural Strength and Weibull Analysis of a Microhybrid and a Nanofill Composite Evaluated by 3- and 4-Point Bending Tests. Dent. Mater. 2008, 24, 426–431. [Google Scholar] [CrossRef]
  41. Anusavice, K.J.; Kakar, K.; Ferree, N. Which Mechanical and Physical Testing Methods Are Relevant for Predicting the Clinical Performance of Ceramic-Based Dental Prostheses? Clin. Oral Implant. Res. 2007, 18 (Suppl. S3), 218–231. [Google Scholar] [CrossRef]
  42. Ritter, J.E. Critique of Test Methods for Lifetime Predictions. Dent. Mater. 1995, 11, 147–151. [Google Scholar] [CrossRef]
  43. Miura, D.; Ishida, Y.; Miyasaka, T.; Aoki, H.; Shinya, A. Reliability of Different Bending Test Methods for Dental Press Ceramics. Materials 2020, 13, 5162. [Google Scholar] [CrossRef]
  44. Jin, J.; Takahashi, H.; Iwasaki, N. Effect of Test Method on Flexural Strength of Recent Dental Ceramics. Dent. Mater. J. 2004, 23, 490–496. [Google Scholar] [CrossRef] [PubMed]
  45. Diken Türksayar, A.A.; Demirel, M.; Donmez, M.B. Optical Properties, Biaxial Flexural Strength, and Reliability of New-Generation Lithium Disilicate Glass-Ceramics after Thermal Cycling. J. Prosthodont. 2023, 32, 815–820. [Google Scholar] [CrossRef] [PubMed]
  46. Yin, R.; Jang, Y.-S.; Lee, M.-H.; Bae, T.-S. Comparative Evaluation of Mechanical Properties and Wear Ability of Five CAD/CAM Dental Blocks. Materials 2019, 12, 2252. [Google Scholar] [CrossRef]
  47. Zhang, P.; Li, X.; Yang, J.; Xu, S. The Crystallization and Microstructure Evolution of Lithium Disilicate-Based Glass-Ceramic. J. Non-Cryst. Solids 2014, 392–393, 26–30. [Google Scholar] [CrossRef]
  48. Fu, L.; Engqvist, H.; Xia, W. Glass-Ceramics in Dentistry: A Review. Materials 2020, 13, 1049. [Google Scholar] [CrossRef]
  49. Anderson, T.L. Fracture Mechanics: Fundamentals and Applications, 4th ed.; CRC Press: Boca Raton, FL, USA, 2017; ISBN 978-1-4987-2813-3. [Google Scholar]
  50. Quinn, G. NIST Recommended Practice Guide: Fractography of Ceramics and Glasses, 3rd ed.; NIST: Gaithersburg, MD, USA, 2020. [Google Scholar] [CrossRef]
  51. Matinlinna, J. Handbook of Oral Biomaterials; Pan Stanford Publishing: Singapore, 2014; ISBN 978-981-4463-13-3. [Google Scholar]
  52. McCabe, J.F.; Carrick, T.E. A Statistical Approach to the Mechanical Testing of Dental Materials. Dent. Mater. 1986, 2, 139–142. [Google Scholar] [CrossRef]
  53. Vichi, A.; Zhao, Z.; Paolone, G.; Scotti, N.; Mutahar, M.; Goracci, C.; Louca, C. Factory Crystallized Silicates for Monolithic Metal-Free Restorations: A Flexural Strength and Translucency Comparison Test. Materials 2022, 15, 7834. [Google Scholar] [CrossRef]
  54. Vichi, A.; Zhao, Z.; Mutahar, M.; Paolone, G.; Louca, C. Translucency of Lithium-Based Silicate Glass-Ceramics Blocks for CAD/CAM Procedures: A Narrative Review. Materials 2023, 16, 6441. [Google Scholar] [CrossRef] [PubMed]
  55. Wang, F.; Takahashi, H.; Iwasaki, N. Translucency of Dental Ceramics with Different Thicknesses. J. Prosthet. Dent. 2013, 110, 14–20. [Google Scholar] [CrossRef]
  56. Basegio, M.M.; Pecho, O.E.; Ghinea, R.; Perez, M.M.; Della Bona, A. Masking Ability of Indirect Restorative Systems on Tooth-Colored Resin Substrates. Dent. Mater. 2019, 35, e122–e130. [Google Scholar] [CrossRef]
  57. Bagis, B.; Turgut, S. Optical Properties of Current Ceramics Systems for Laminate Veneers. J. Dent. 2013, 41 (Suppl. S3), e24–e30. [Google Scholar] [CrossRef]
  58. Barizon, K.T.L.; Bergeron, C.; Vargas, M.A.; Qian, F.; Cobb, D.S.; Gratton, D.G.; Geraldeli, S. Ceramic Materials for Porcelain Veneers. Part I: Correlation between Translucency Parameters and Contrast Ratio. J. Prosthet. Dent. 2013, 110, 397–401. [Google Scholar] [CrossRef]
  59. Hernández, M.; Cobb, D.; Swift, E.J., Jr. Current Strategies in Dentin Remineralization. J. Esthet. Restor. Dent. 2014, 26, 139–145. [Google Scholar]
  60. Pérez, M.M.; Ghinea, R.; Ugarte-Alván, L.I.; Pulgar, R.; Paravina, R.D. Color and Translucency in Silorane-Based Resin Composite Compared to Universal and Nanofilled Composites. J. Dent. 2010, 38 (Suppl. S2), e110–e116. [Google Scholar] [CrossRef]
  61. Shono, N.N.; Al Nahedh, H.N.A. Contrast Ratio and Masking Ability of Three Ceramic Veneering Materials. Oper. Dent. 2012, 37, 406–416. [Google Scholar] [CrossRef]
  62. Pecho, O.E.; Ghinea, R.; Ionescu, A.M.; de la Cruz Cardona, J.; Paravina, R.D.; del Mar Pérez, M. Color and Translucency of Zirconia Ceramics, Human Dentine and Bovine Dentine. J. Dent. 2012, 40 (Suppl. S2), e34–e40. [Google Scholar] [CrossRef]
  63. Spink, L.S.; Rungruanganut, P.; Megremis, S.; Kelly, J.R. Comparison of an Absolute and Surrogate Measure of Relative Translucency in Dental Ceramics. Dent. Mater. 2013, 29, 702–707. [Google Scholar] [CrossRef]
  64. Liu, M.-C.; Aquilino, S.A.; Lund, P.S.; Vargas, M.A.; Diaz-Arnold, A.M.; Gratton, D.G.; Qian, F. Human Perception of Dental Porcelain Translucency Correlated to Spectrophotometric Measurements. J. Prosthodont. 2010, 19, 187–193. [Google Scholar] [CrossRef]
  65. Dietschi, D.; Ardu, S.; Krejci, I. A New Shading Concept Based on Natural Tooth Color Applied to Direct Composite Restaurations. Quintessence Int. 2006, 37, 91–102. [Google Scholar]
  66. Yu, B.; Ahn, J.-S.; Lee, Y.-K. Measurement of Translucency of Tooth Enamel and Dentin. Acta Odontol. Scand. 2009, 67, 57–64. [Google Scholar] [CrossRef]
  67. Campanelli de Morais, D.; de Oliveira Abu-Izze, F.; Rivoli Rossi, N.; Gallo Oliani, M.; de Assunção E Souza, R.O.; de Siqueira Anzolini Saavedra, G.; Bottino, M.A.; Marques de Melo Marinho, R. Effect of Consecutive Firings on the Optical and Mechanical Properties of Silicate and Lithium Disilicate Based Glass-Ceramics. J. Prosthodont. 2021, 30, 776–782. [Google Scholar] [CrossRef] [PubMed]
  68. Jurado, C.A.; Afrashtehfar, K.I.; Hyer, J.; Alhotan, A. Effect of Sintering on the Translucency of CAD-CAM Lithium Disilicate Restorations: A Comparative in Vitro Study. J. Prosthodont. 2023, 32, 861–866. [Google Scholar] [CrossRef] [PubMed]
Materials 18 01591 g001

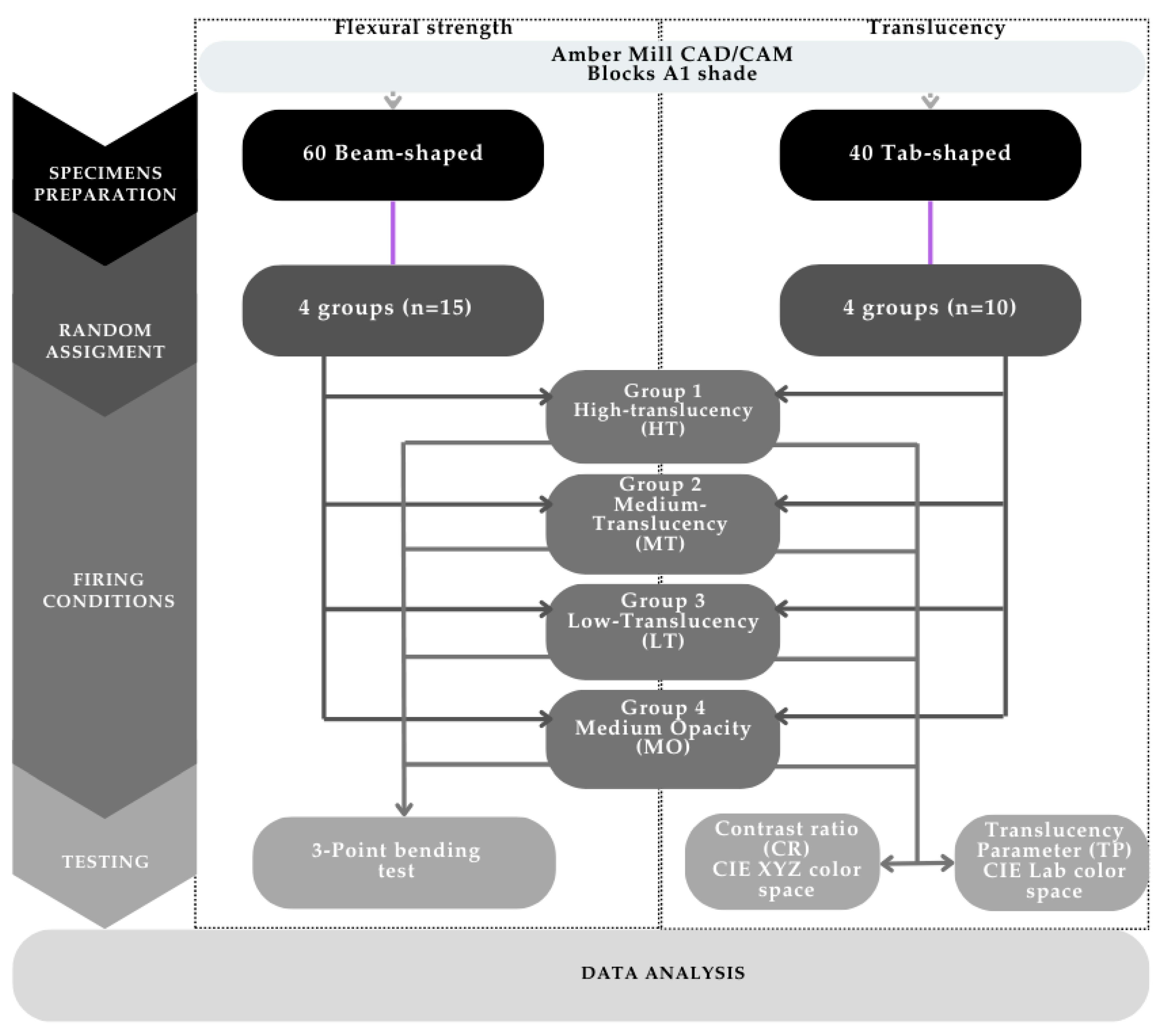

Figure 1. Experimental flowchart.
Figure 1. Experimental flowchart.
Materials 18 01591 g001
Materials 18 01591 g002

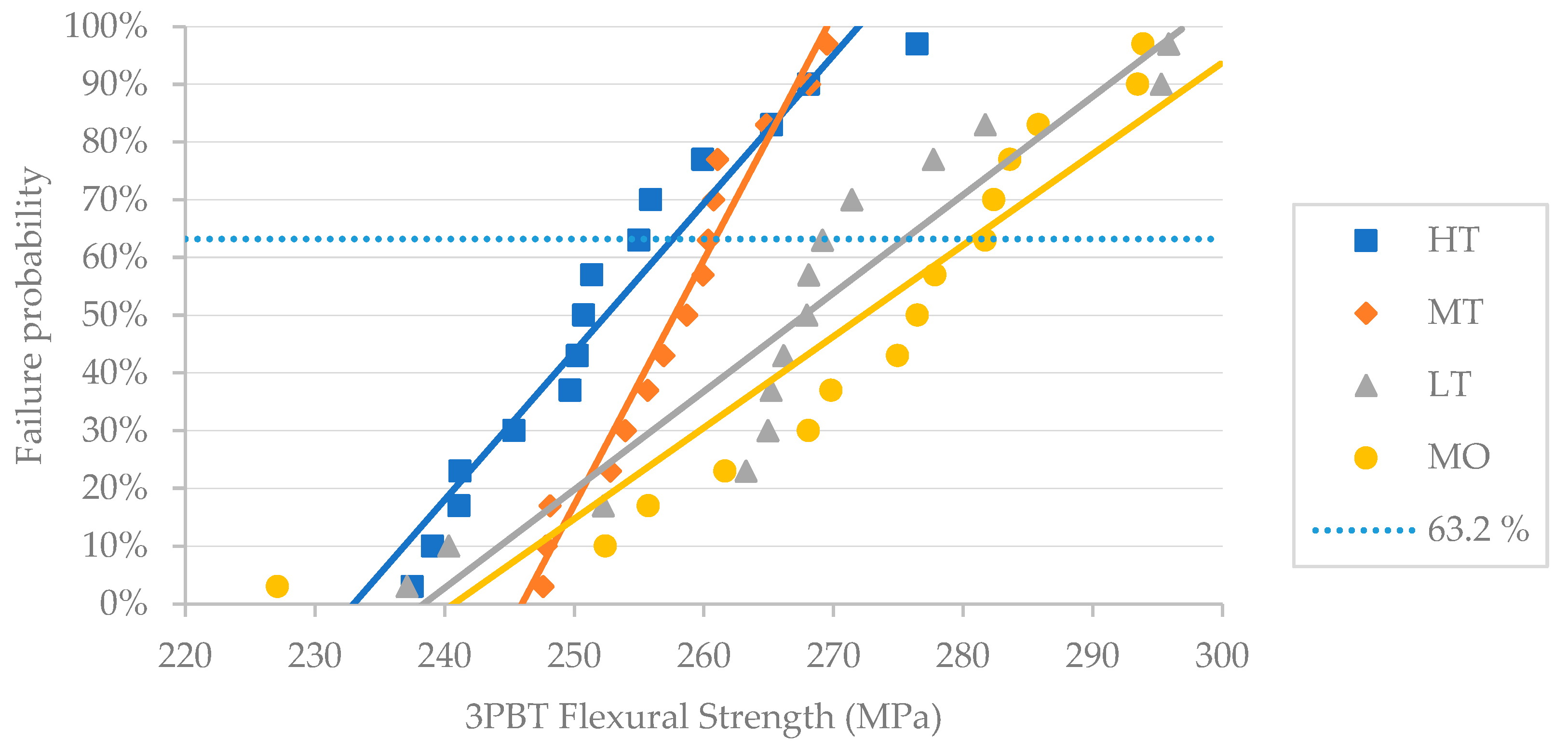

Figure 2. Failure probability of Amber Mill HT, MT, LT, and MO according to the Weibull analysis of 3PBT flexural strength. Failure probability at 63.2% corresponds to the Weibull characteristic strength (σ0). Fitting lines by method of least squares depict Weibull modulus (m).
Figure 2. Failure probability of Amber Mill HT, MT, LT, and MO according to the Weibull analysis of 3PBT flexural strength. Failure probability at 63.2% corresponds to the Weibull characteristic strength (σ0). Fitting lines by method of least squares depict Weibull modulus (m).
Materials 18 01591 g002
Materials 18 01591 g003
Figure 3. SEM images of Amber Mill after different heat treatment protocols. (20,000×). (a) Amber Mill HT; (b) Amber Mill MT; (c) Amber Mill LT; and (d) Amber Mill MO. Different crystal shapes and sizes are observed, with Amber MT and LT exhibiting larger and elongated particles compared to Amber HT and MO.
Figure 3. SEM images of Amber Mill after different heat treatment protocols. (20,000×). (a) Amber Mill HT; (b) Amber Mill MT; (c) Amber Mill LT; and (d) Amber Mill MO. Different crystal shapes and sizes are observed, with Amber MT and LT exhibiting larger and elongated particles compared to Amber HT and MO.
Materials 18 01591 g003
Table 1. Characteristics of the material tested.
Table 1. Characteristics of the material tested.
MaterialAcronymManufacturerTranslucency *Chemical Composition [8] ±DefinitionThermal TreatmentBatch
Amber MillAMHassbio, Gangneung-si, Republic of KoreaHT, MT, LT, MO<78% SiO2;
<12% Li2O;
<12% coloring oxides		Lithium
disilicate		YesEBE05ND0801
* According to the manufacturer, different translucencies are achieved by selecting the corresponding translucency heat treatment. HT: high translucency, MT: medium translucency, LT: low translucency, MO: medium opacity. ± Chemical composition stated by the manufacturer.
Table 2. Recommended crystallization heat treatment [29].
Table 2. Recommended crystallization heat treatment [29].
Materials 18 01591 i001Materials 18 01591 i002Materials 18 01591 i002TMaterials 18 01591 i001VACMaterials 18 01591 i003
Predrying
Temperature		Predrying
Time		Heating
Time		Temperature
Rise Rate		End TemperatureHolding TimeVacuum Holding TimeLong-Term Cooling
°Cmin.min.°C/min.°Cmin.min.°C *
4003.00HT6.5060HT81515.00HT21.50690
MT7.05MT825MT22.05
LT7.20LT840LT22.20
MO7.40MO860MO22.40
* The firing chamber must not be opened during long term cooling.
Table 3. Results of tested materials ordered by flexural strength.
Table 3. Results of tested materials ordered by flexural strength.
Flexural StrengthWeibull Statistics
MaterialFiring Protocolσ (MPa)Sigmσ0 (MPa)
Amber MillMO272.31 ± 17.57a18.43279.96
Amber MillLT267.74 ± 16.53ab19.37274.53
Amber MillMT257.73 ± 6.91bc44.55260.61
Amber MillHT252.45 ± 11.29c26.24256.89
σ = Flexural strength (mean and standard deviation); Sig = Significance; m = Weibull modulus; σ0 = Weibull characteristic strength. The same letter of significance indicates no statistically significant difference.
Table 4. Results of tested materials ranked by translucency (CR).
Table 4. Results of tested materials ranked by translucency (CR).
Translucency
MaterialFiring ProtocolCRSig
Amber MillHT52.6 ± 3.9a
Amber MillMT54.3 ± 4.1a
Amber MillLT56.4 ± 2.0a
Amber MillMO63.0 ± 1.8b
CR = Contrast Ratio (mean ± standard deviation); Sig = Significance; same letter of significance indicates no statistically significant difference (p < 0.001).
Table 5. Results of tested materials ranked by translucency (TP).
Table 5. Results of tested materials ranked by translucency (TP).
Translucency
MaterialFiring ProtocolTPSig
Amber MillHT21.7 ± 1.9a
Amber MillMT21.2 ± 1.6a
Amber MillLT20.1 ± 1.1a
Amber MillMO17.5 ± 1.1b
TP = Translucency Parameter (mean ± standard deviation); Sig = Significance; same letter of significance indicates no statistically significant difference (p < 0.001).
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Munoz, A.; Louca, C.; Vichi, A. Characterization of a Lithium Disilicate CAD/CAM Material with Firing Temperature-Controlled Translucency. Materials 2025, 18, 1591. https://doi.org/10.3390/ma18071591

AMA Style

Munoz A, Louca C, Vichi A. Characterization of a Lithium Disilicate CAD/CAM Material with Firing Temperature-Controlled Translucency. Materials. 2025; 18(7):1591. https://doi.org/10.3390/ma18071591

Chicago/Turabian Style

Munoz, Alvaro, Chris Louca, and Alessandro Vichi. 2025. "Characterization of a Lithium Disilicate CAD/CAM Material with Firing Temperature-Controlled Translucency" Materials 18, no. 7: 1591. https://doi.org/10.3390/ma18071591

APA Style

Munoz, A., Louca, C., & Vichi, A. (2025). Characterization of a Lithium Disilicate CAD/CAM Material with Firing Temperature-Controlled Translucency. Materials, 18(7), 1591. https://doi.org/10.3390/ma18071591

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
