TaF₄: A Novel Two-Dimensional Antiferromagnetic Material with a High Néel Temperature Investigated Using First-Principles Calculations

Abstract

The structural, electronic, and magnetic properties of a novel two-dimensional monolayer material, TaF₄, are investigated using first-principles calculations. The dynamical and thermal stabilities of two-dimensional monolayer TaF₄ were confirmed using its phonon dispersion spectrum and molecular dynamics calculations. The band structure obtained via the high-accuracy HSE06 (Heyd–Scuseria–Ernzerhof 2006) functional theory revealed that monolayer two-dimensional TaF₄ is an indirect bandgap semiconductor with a bandgap width of 2.58 eV. By extracting the exchange interaction intensities and magnetocrystalline anisotropy energy in a J₁-J₂-J₃-K Heisenberg model, it was found that two-dimensional monolayer TaF₄ possesses a Néel-type antiferromagnetic ground state and has a relatively high Néel temperature (208 K) and strong magnetocrystalline anisotropy energy (2.06 meV). These results are verified via the magnon spectrum.

1. Introduction

Two-dimensional (2D) antiferromagnetic (AFM) materials, which have traditionally been emphasized less in spintronics compared to two-dimensional ferromagnetic materials, have gained significant attention in recent years due to their atomic arrangement, structural characteristics, and exceptional physical properties [1,2,3,4]. Their magnetic moments are arranged anti-parallel in a two-dimensional plane, forming an ordered magnetic structure [5]. Characterized by an anti-parallel alignment of adjacent valence electron spins, these materials exhibit no net macroscopic magnetization, avoiding stray magnetic fields [1]. This feature facilitates high-frequency spin dynamics, positioning antiferromagnets as promising materials for next-generation high-speed and high-density spintronics [1,2,6,7,8,9,10,11,12,13].

In recent years, significant progress has been made in the study of two-dimensional antiferromagnetic materials. For example, the anomalous Hall effect and the antiferromagnetic-spin Hall effect in collinear antiferromagnetism were confirmed [14,15]. Researchers rely on magnetic fields, electric fields, light fields, external pressure, and other methods to control the antiferromagnetic sequence [16,17,18]. Efforts have also been made to manipulate spin and magnetism in two-dimensional limits for efficient applications of two-dimensional materials [19,20,21,22,23,24]. However, although some important results have been achieved, many problems remain to be solved, such as determining how to precisely control growth conditions and parameters to prepare high-quality, uniform two-dimensional antiferromagnetic materials with large areas, how to further improve the stability of two-dimensional antiferromagnetic materials, how to precisely regulate their magnetic properties, and how to use them effectively.

Two-dimensional tetrafluorides have become a research hotspot due to the low level of lattice symmetry and band splitting in their antiferromagnetic ordering. Novel 2D tetrafluoride structures such as VF₄, MnF₄, and RuF₄ have been successively reported [25,26,27]. In this study, we utilized first-principles calculations based on the density functional theory (DFT) to predict a novel 2D monolayer antiferromagnetic material—TaF₄. It exhibits both dynamical and thermodynamical stability. Through an investigation of its structural, electrical, and magnetic properties, we found it possesses a Néel-type antiferromagnetic ground state and has a relatively high Néel temperature. These results suggest its potential application as a novel 2D antiferromagnetic material in spintronics.

2. Methods

Spin-polarized first-principles calculations were performed within the density functional theory framework, which we implemented in the Vienna Ab-initio Simulation Package (VASP 5.4.1) [28,29]. The electron configurations selected in the calculation were Ta(5p⁶ 5d³ 6s²) and F(2s² 2p⁵), the core electrons were treated within projector-augmented wave (PAW) pseudopotentials [30], the exchange and correlation interactions between electrons were described through the generalized gradient approximation (GGA) of the revised Perdew, Burke, and Ernzerhof functional for solids (PBEsol) [31,32]. The kinetic energy cutoff was set to 520 eV, electronic energy minimization was performed with a tolerance of 1.0 × 10⁻⁷ eV, and the convergence criterion for the force on each atom was set to 0.001 eV/Å. Brillouin zone (BZ) sampling was performed using a 7 × 7 × 1 grid for unit cell relaxation calculations and a 9 × 9 × 1 grid for static calculations. A vacuum larger than 22 Å was applied to avoid an interaction between the monolayers caused by the periodic boundary condition. In particular, we used the HSE06 (Heyd–Scuseria–Ernzerhof 2006) hybrid functional including a 25% non-local Hartree–Fock exchange to correct the underestimated bandgaps and achieve a more accurate prediction of the electronic structure and the energies of the magnetic states [33]. Phonon dispersion was calculated using the density functional perturbation theory, which was implemented in the PHONOPY (2.22.1) package [34,35], to check the dynamical stability of the TaF₄. The thermal stability of the structure was tested by Ab-initio molecular dynamics simulations at 500 K for 1000 steps with a time step of 2 fs. Monte Carlo (MC) simulations were performed in 80 × 80 × 1 TaF₄ supercell structures using mcsolver (21.03.08) [36].

3. Results and Discussion

With a sufficiently large vacuum layer (22 Å), by relaxing the lattice structure to achieve sufficiently low system energy and meet the force convergence criteria, the lattice constants after structural optimization can be obtained. The optimized geometric structure of the 2D TaF₄ under consideration is presented in Figure 1. The geometry of the 2D TaF₄ is composed of three atomic planes: the two layers of F atoms are symmetrically distributed on both sides of the middle layer composed of Ta and F atoms, which is different to the well-known transition-metal dichalcogenides (TMDCs). Obviously, each Ta atom is surrounded by six neighboring F atoms, forming six Ta–F bonds and an octahedron. We determined the stable and minimum energy structures by optimizing all atomic positions and lattice constants. The optimized bond lengths of the 2D TaF₄ are 2.05 Å (parallel to the plane) and 1.87 Å (perpendicular to the plane).

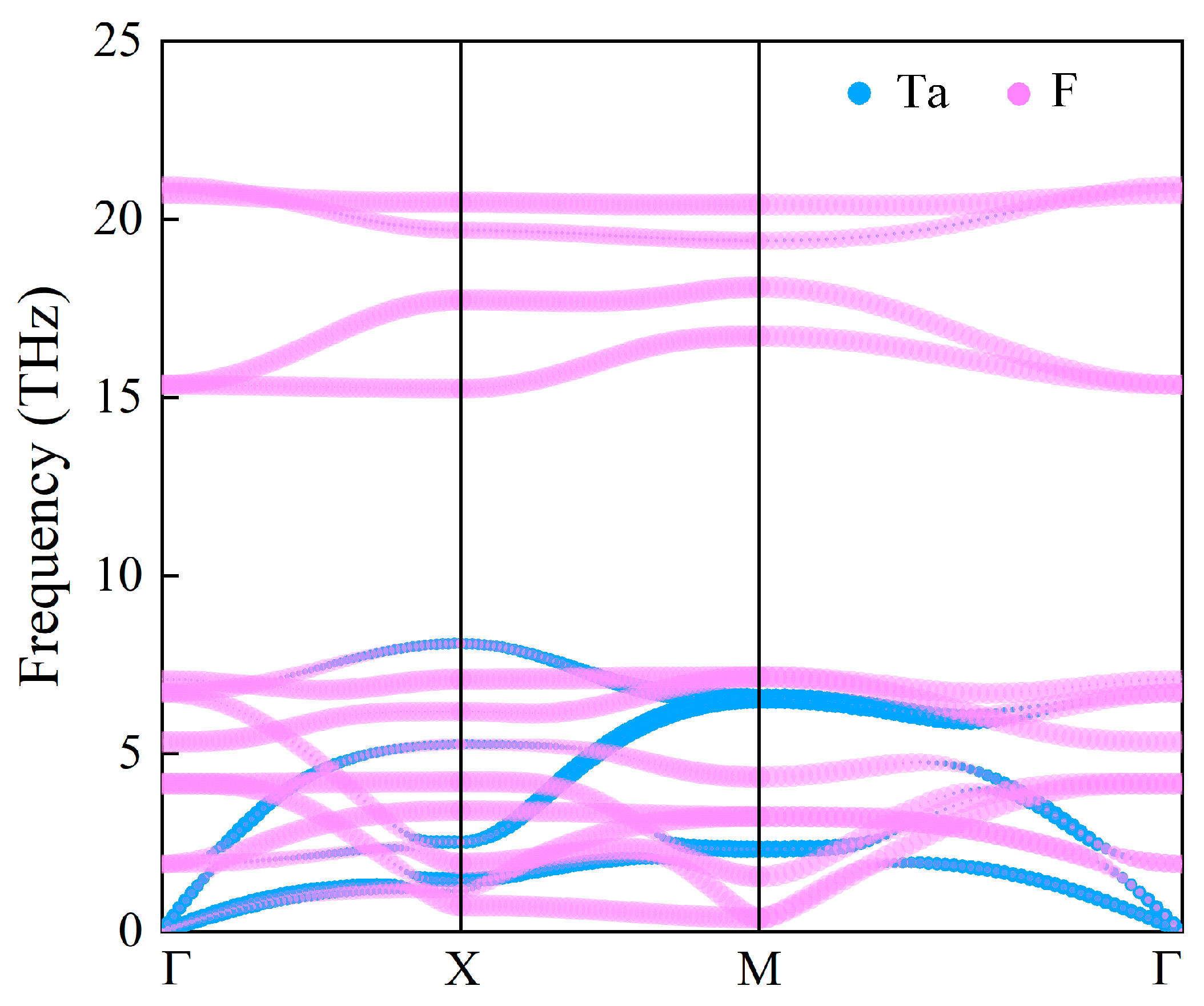

Before studying the electric and magnetic properties of the 2D TaF₄, its dynamical stability and thermodynamical stability should be verified first. Figure 2 illustrates the phonon spectrum of the 2D TaF₄. No appreciable imaginary frequencies are found in the whole Brillouin zone, which confirms that the TaF₄ monolayers are dynamically stable. The phonon dispersion of the TaF₄ contains 3 acoustic branches and 12 optical branches as one unit cell contains one Ta atom and four F atoms. It can be observed that the contribution of the vibration of the Ta atoms is mainly concentrated in low-energy phonon bands, while the high-energy phonon bands are primarily formed by the vibration of F atoms. As the lattice structure belongs to the space group P4/mmm, the 2D TaF₄ exhibits higher symmetry than other 2D tetrafluoride compounds, such as VF₄, MnF₄, and RuF₄ [25,26,27]. As shown in

Table 1. Energy (unit: THz), irreducible representations (Irreps.), and activity (R for Raman and IR for infrared) of long-wave-limit phonons.

E (THz)	Irreps.	Activity
0	Eu	-
0	A2u	-
1.904	Eu	IR
4.159	Eg	R
5.327	B2u	-
6.706	Eu	IR
7.081	A2u	IR
15.351	Eu	IR
20.727	A1g	R
20.967	A2u	IR

, the vibration modes of the optical branches in the long-wave limit could manifest as Raman activity, which is detectable through Raman spectroscopy, infrared (IR) activity, observable via IR spectroscopy, or they could be silent. The vibration modes of the 2D TaF₄ monolayer can be visualized in Supplementary Materials S1. One can also notice the existence of a considerable phonon band gap, spanning approximately from 8 GHz to 15 GHz, within the optical branches. This indicates that 2D TaF₄ could be used as a low-dimensional thermal resistance material because the introduction of a phonon gap can significantly reduce thermal conductivity.

Ab initio molecular dynamics simulations were performed to investigate thermodynamical stability; they were performed at an ambient temperature for 1000 steps with a time step of 2 fs. After the molecular dynamics simulations, the structure was slightly rippled but remained intact and did not collapse; this confirmed the thermodynamical stability of the 2D TaF₄ monolayer (Supplementary Material S2).

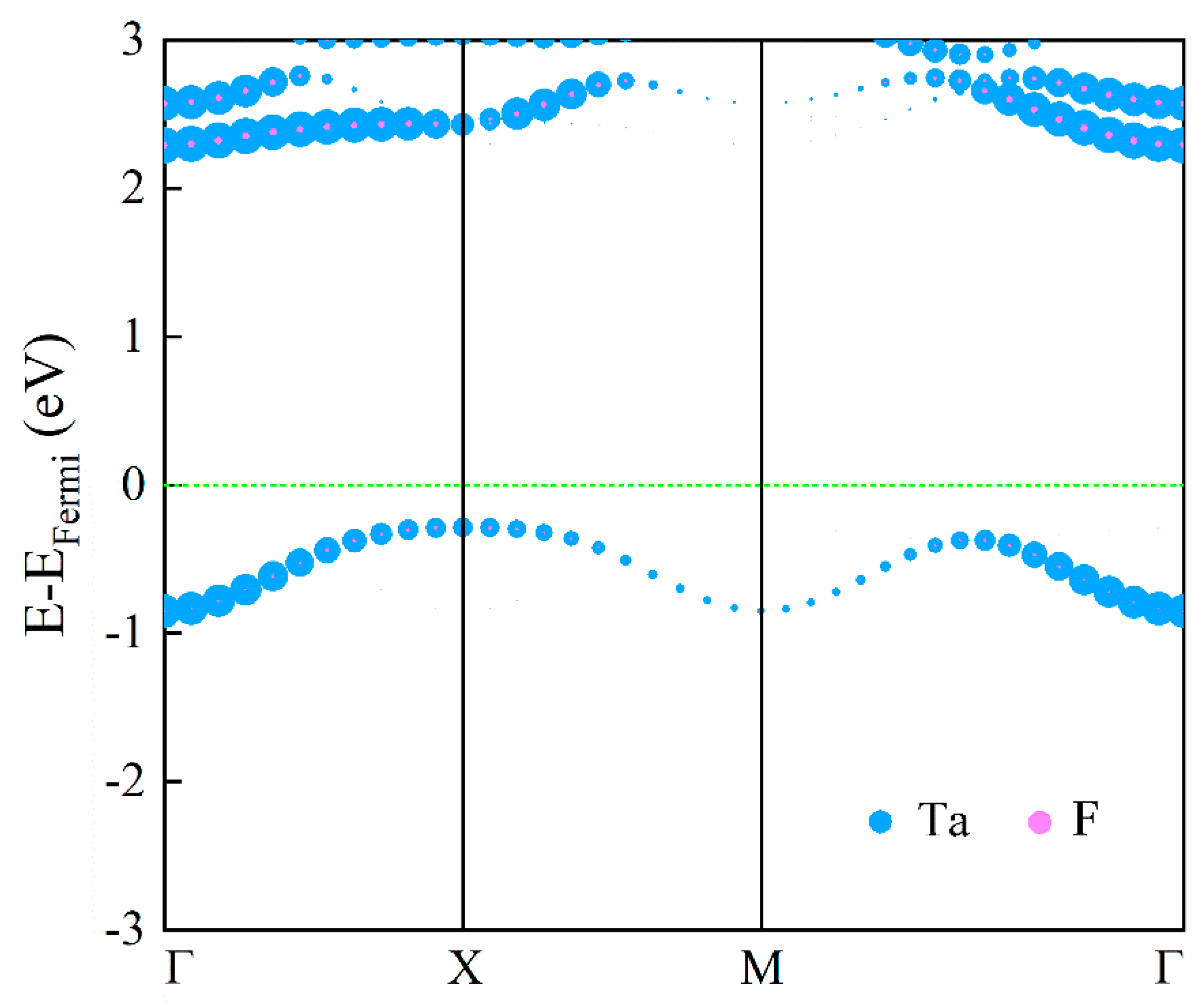

In Figure 3, we depict the electronic band structure of the antiferromagnetic state of 2D TaF₄ in the first Brillouin zone, which was unfolded from the band of the AFM state in a $\sqrt{2}\times \sqrt{2}$ cell. Due to the degeneration of two spin channels in the AFM state, we do not display the spin-up and spin-down bands separately while including spin–orbit coupling. The blue and pink lines represent the contributions of the Ta and F atoms, respectively. With the HSE06 hybrid functional theory, one can obviously note that no energy band passes through the Fermi level, and the valence band maximum (VBM) is located at the X point, while the conduction band minimum (CBM) is located at the Γ point. Thus, the 2D TaF₄ is an indirect bandgap semiconductor with a bandgap of about 2.58 eV.

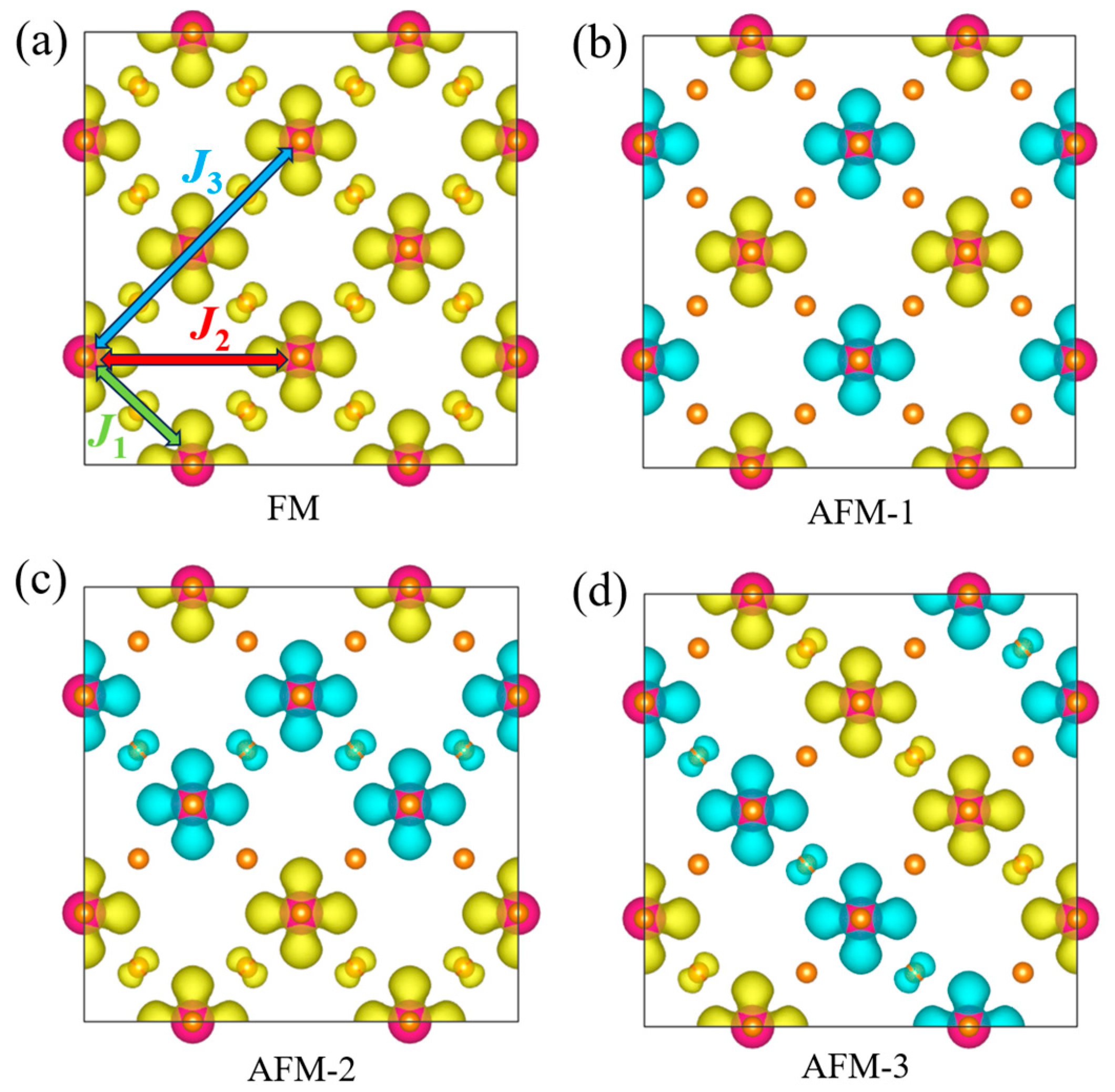

In order to discuss the magnetic properties of the 2D TaF₄, we compared the energies of a ferromagnetic (FM) order (shown in Figure 4a) and three different AFM orders (shown in Figure 4b–d) to confirm the ground state of the monolayer 2D TaF₄. As a result, the 2D TaF₄ prefers to adopt a Néel-type AFM order, labeled AFM-1 in Figure 4b. To discuss the magnetic stability of the 2D TaF₄, we need to determine the exchange interaction intensities between the atoms in the monolayer. From Figure 4, we can see that little spin charge pervades near the F atoms, while the spin density is mainly concentrated on the Ta atoms. Thus, we could omit the existence of the F atoms, and simplify the magnetic lattice of the 2D TaF₄ into a J₁-J₂-J₃-K Heisenberg model in a square lattice where the J₁, J₂, and J₃ represent the nearest, next-nearest, and third-nearest exchange interactions, respectively. Comparing the energy difference in the FM and three different AFM orders of this system, we can extract the exchange interactions between Ta atoms. For each type of magnetic order, we have the following relationships:

E_FM = E₀ − 16J₁S² − 16J₂S² − 16J₃S²

(1)

E_AFM-1 = E₀ + 16J₁S² − 16J₂S² − 16J₃S²

(2)

E_AFM-2 = E₀ + 16J₃S²

(3)

E_AFM-3 = E₀ + 16J₂S² − 16J₃S²

(4)

where E₀ represents energy without considering spin, and S represents the spin on Ta atoms. After bonding with six F atoms, the tetravalent Ta has one 5d electron left unbonded. Thus, the Ta atom shows spin with S = 1/2. The calculated exchange parameters J₁, J₂, and J₃ are −92.00 meV, −1.48 meV, and −3.28 meV, respectively. The negative values of the exchange interactions prefer to spin antiparallel to two Ta atoms. As J₁ is apparently stronger than J₂ and J₃, the nearest exchange dominates the spin arrangement. Thus, we can deduce that without thermal fluctuation, the spin of a Ta atom should align oppositely with its four nearest Ta atoms, which have the same spin orientation. As a result, the ground state of the Néel-type AFM order of the 2D TaF₄ should be stable at low temperatures.

As the Ta atom is relatively heavy, its existence could lead to significant spin–orbit coupling interactions, which might lead to a large magnetocrystalline anisotropy energy (MAE). Thus, we can evaluate the MAE as described in the formula below:

$$K=\frac{E_{in-plane}-E_{tilt}}{S^2{\cos }^2\left(\mathsf{\theta }\right)}$$

(5)

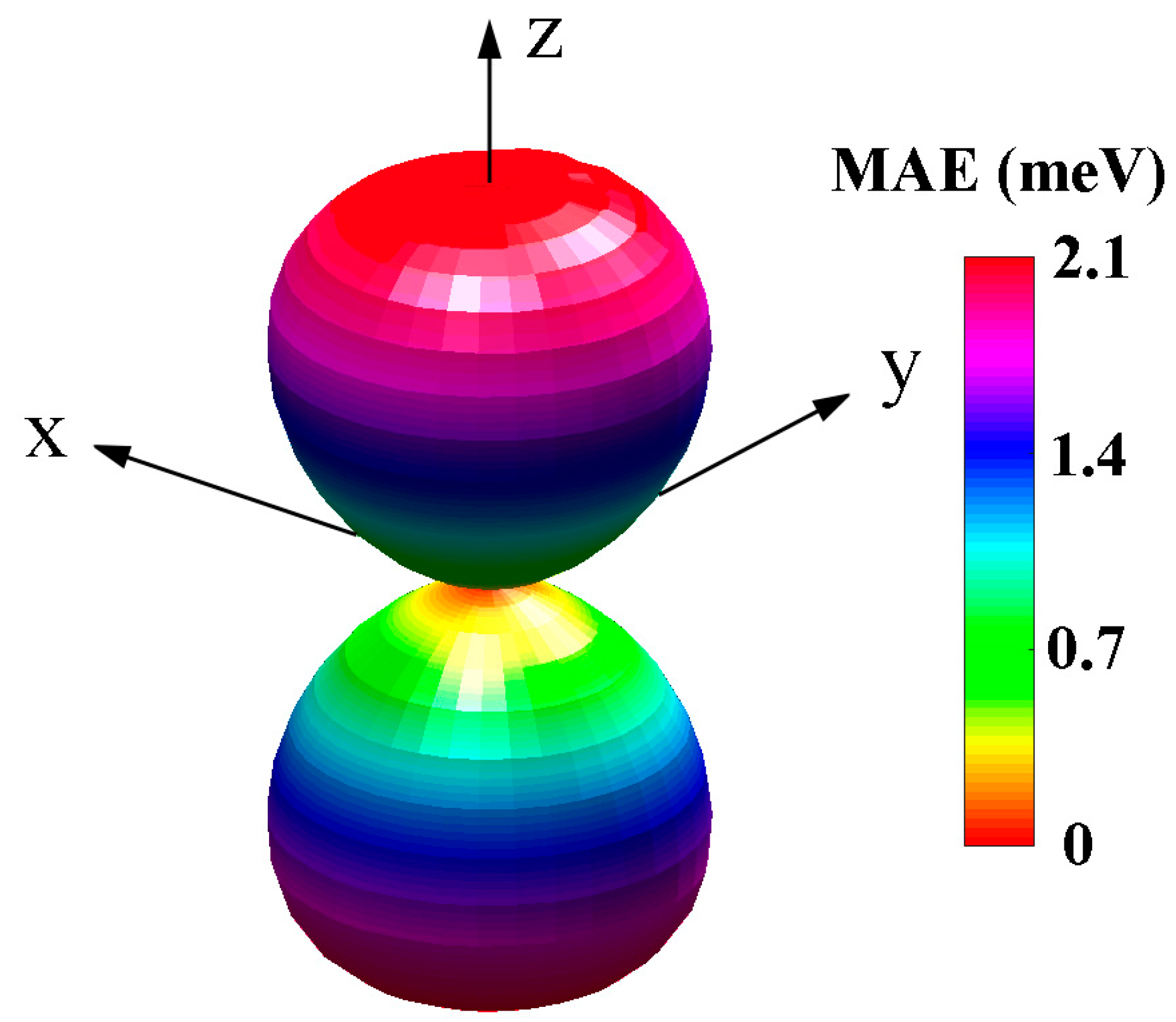

where $E_{in-plane}$ and $E_{tilt}$ represent energy with a magnetic moment parallel to the plane and inclined to the plane with θ degrees. As shown in Figure 5, it can be seen that the anisotropic energy results in the 2D TaF₄ having an out-of-plane easy axis, which indicates that the magnetic moments tend to be perpendicular to the plane of the monolayer. In the z direction perpendicular to the plane is the maximum magnetocrystalline anisotropy energy of about 2.06 meV, this value is much larger than those in MnX₂ and GdX₂ [37,38].

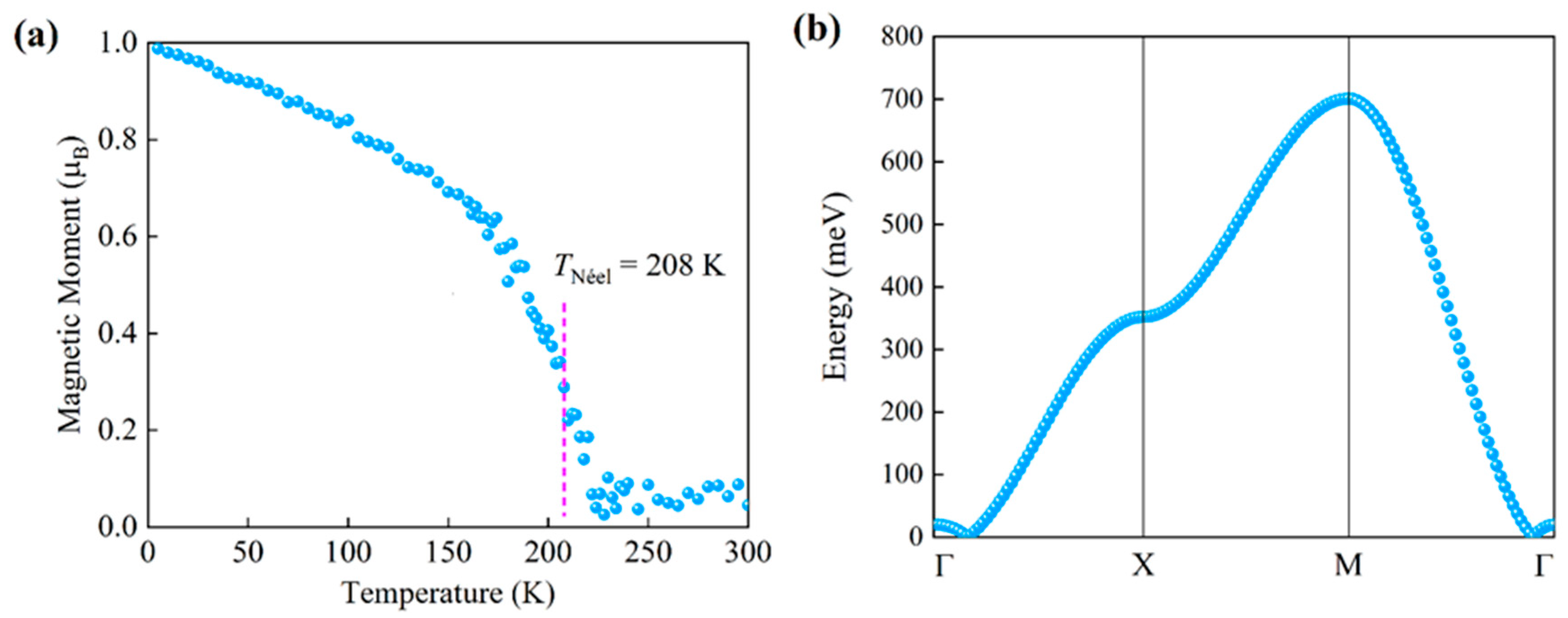

With the strong AFM nearest the exchange interactions and MAE, we can imagine that the 2D TaF₄ could possess a stable Néel-type AFM order. Based on the J₁-J₂-J₃-K Heisenberg model, we evaluated the antiferromagnetic-to-paramagnetic phase transition temperature, namely the Néel temperature (T_N), using Monte Carlo simulations. Based on the calculated exchange interactions and magnetocrystalline anisotropy intensities, Monte Carlo simulations were carried out, conducting 200,000 steps at different temperatures on an 80 × 80 supercell of monolayer TaF₄. The magnetic moments of the Ta atoms in the 2D TaF₄ can be variously influenced by thermal fluctuations depending on the varying temperatures. The temperature dependence of the average magnetic moment on one sublattice of Ta atoms in the 2D TaF₄ AFM order is shown in Figure 6a. We can notice that the magnetic moment on the Ta atom in the TaF₄ monolayer gradually drops as the temperature rises. The point with the highest slope during the moment decrease corresponds to the T_N of the structure. At this temperature, the antiferromagnetic order of the structure disappears, and the structure undergoes a transition from an antiferromagnetic state to a paramagnetic state. It can be seen that the calculated T_N of the TaF₄ monolayer is about 208 K. This indicates that the monolayer TaF₄ might be a good candidate as a 2D material for spintronic and electronic applications.

Using the exchange interactions we obtained and based on the Landau–Lifshitz–Gilbert equations, the magnon dispersion of the monolayer TaF₄ was studied with the atomistic spin dynamics approach. As shown in Figure 6b, it can be seen that one acoustic branch of magnon in the dispersion is found while no optical branch is observed because only one TaF₄ layer is involved. The magnon curve of the monolayer TaF₄ satisfies a nearly linear relationship near the Γ point, indicating that the monolayer TaF₄ possesses an antiferromagnetic state. The nonzero energy at the Γ point corresponds to the strong MAE. The magnon energy at the Brillouin zone boundary is relatively large compared with other two-dimensional materials and the local maximum magnon energy of the monolayer TaF₄ is about 700 meV at M point, which implies the strong stability of its Néel-type AFM order.

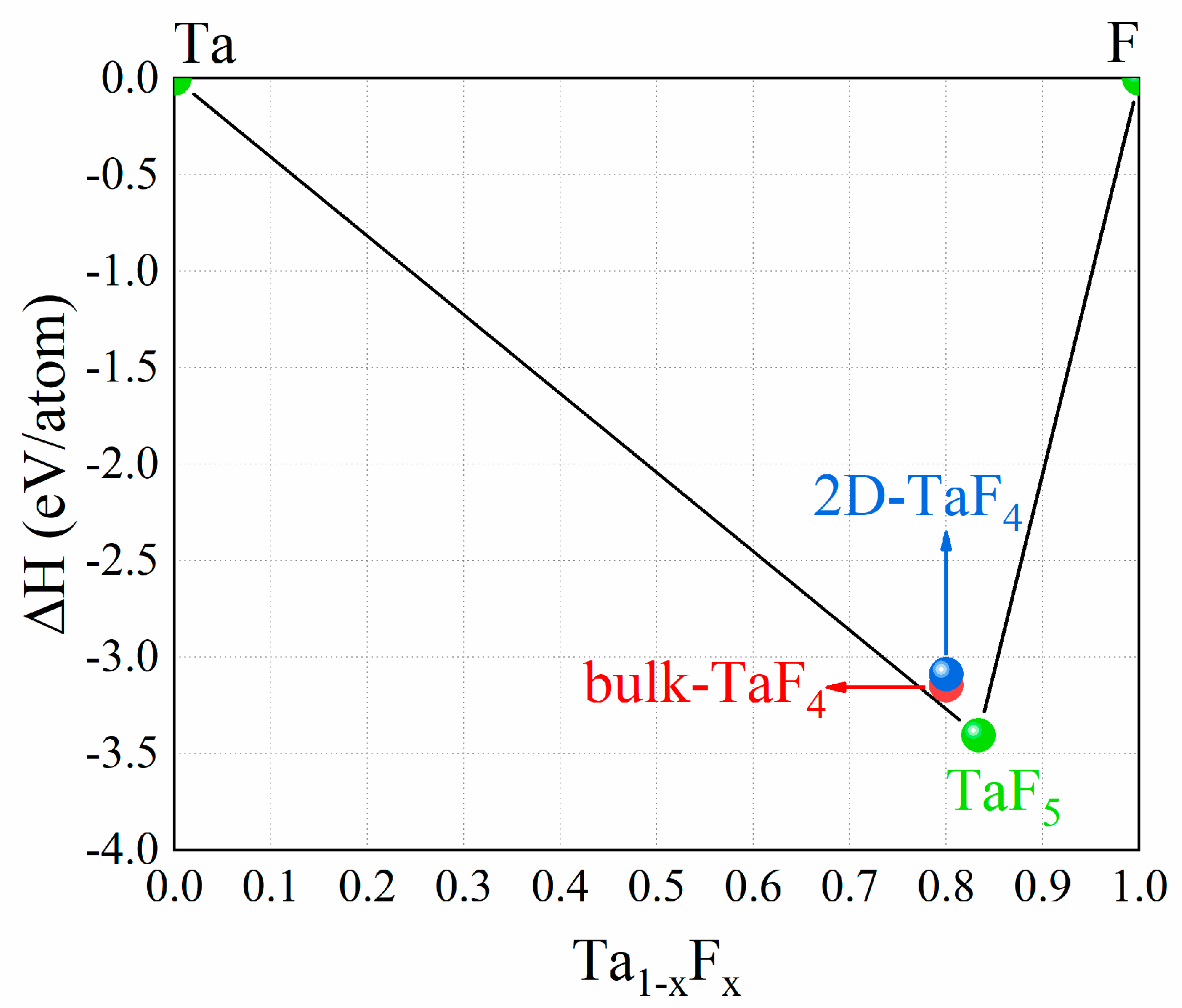

Lastly, to consider the experimental feasibility of the 2D TaF₄, we calculated its formation energy and interlayer binding energy. Figure 7 shows that the formation energy of the 2D TaF₄ is 0.056 eV/atom higher than its bulk counterpart and 0.180 eV/atom above the convex hull. These minimal energy differences suggest that the 2D TaF₄ is very likely to exist in a metastable form [39]. Additionally, we calculated its interlayer binding energy. The calculated interlayer binding energy of the 2D TaF₄ is about 17.68 meV/Ų, which is not much higher than that of graphene (11.83 meV/Ų) [40], indicating that 2D TaF₄ could potentially be obtained through mechanical exfoliation.

4. Conclusions

In summary, a novel monolayer 2D material, TaF₄, was investigated using first-principles methods. Its dynamical stability and thermodynamic stability were confirmed via phonon spectrum and ab initio molecular dynamics simulations. Employing the high-accuracy HSE06 functional theory, we determined that 2D TaF₄ is an indirect bandgap semiconductor with a bandgap of 2.58 eV. Based on the Heisenberg model, by comparing the energy differences between different magnetic orders, we obtained the exchange interaction intensities between Ta atoms and the magnetic anisotropy of the system. The strong AFM nearest-neighbor exchange interaction and MAE illustrate that the 2D TaF₄ could possess a stable Néel-type AFM order at low temperatures, and a relatively high Néel temperature (208 K) was predicted. The antiferromagnetic ground state and strong magnetic crystalline anisotropy of the 2D TaF₄ were verified by its magnon spectrum. Through calculations of its formation energy and interlayer binding energy, we speculate that the 2D TaF₄ has the possibility to be obtained through mechanical exfoliation. This work suggests that TaF₄ could serve as a low-dimensional thermal resistance material and might be a promising candidate for spintronic and electronic applications.
