A Critical Review of Snail Shell Material Modification for Applications in Wastewater Treatment

Nguyen Thi Hong Nhung
Vo Dinh Long
2 and
Toyohisa Fujita
School of Resources, Environment and Materials, Guangxi University, Nanning 530004, China
Institute of Environmental Science, Engineering and Management, Industrial University of Ho Chi Minh City, Ho Chi Minh City 700000, Vietnam
School of Chemistry and Chemical Engineering, Guangxi University, Nanning 530004, China
Author to whom correspondence should be addressed.
Materials 2023, 16(3), 1095;
Submission received: 8 December 2022 / Revised: 23 December 2022 / Accepted: 3 January 2023 / Published: 27 January 2023


Sea material is becoming increasingly popular and widely used as an adsorbent in wastewater treatment. Snail shell, a low-cost and natural animal waste material, has been shown to have a high calcium content (>99%) and a large potential surface area for the development of sustainable adsorbents. This paper presents a novel synthesis of methods for using snail shell absorbent materials in the treatment of wastewater containing heavy metals, textile dyes, and other organic substances. Modified biochar made from snail shells has gained popularity in recent years due to its numerous benefits. This paper discusses and analyzes modification methods, including impregnating with supplements, combining other adsorbents, synthesis of hydroxyapatite, co-precipitation, and the sol–gel method. The analysis of factors influencing adsorption efficiency revealed that pH, contact time, temperature, initial concentration, and adsorbent dose all have a significant impact on the adsorption process. Future research directions are also discussed in this paper as a result of presenting challenges for current snail adsorbents.

1. Introduction

Water plays an extremely important role for humans as well as all other creatures on the planet [1]. However, the water environment is becoming increasingly depleted [2,3] and polluted as a result of economic development, such as industrial parks, factories, and agriculture [4,5]. Water pollution contains a lot of pollutants that affect the environment and human health [6]. Textile dyeing wastewater is one type of wastewater that has a significant impact on human health [7] and the aquatic environment [8]. The discharge of colored waste in natural water bodies has been prohibited under new environmental regulations governing textile products. Therefore, the cost-effective treatment of effluents containing a variety of textile dyes has become a requirement for clean production technology in the textile industry [9].
Furthermore, heavy metals are the most commonly found contaminants in wastewater that are a public-health concern due to their high toxicity [10]. Sources of heavy-metal pollution include mining waste [11,12], water leaks in landfills [13], municipal wastewater, and industrial wastewater [14], especially from industries, such as electroplating and electronic metal fabrication [15]. Heavy metals are necessary for human metabolism; however, high concentrations can be toxic and dangerous to humans [16,17]. Even more dangerously, if the body accumulates large amounts of heavy metals, it will cause many serious complications, including brain damage, shrinking muscle bundles, deformed fingers, legs, and joints, patients going insane, and death after a few hours to several months or years of exposure [18,19]. Therefore, studying the presence of heavy metals and how to treat them in polluted areas has been of great interest in developing countries [20,21]. Technologies for wastewater treatment of metals and textiles include biological [22] membrane [23] adsorption [24,25], using phosphonium-based ionic liquids [26]. However, these processing technologies are relatively expensive and complex in the treatment process.

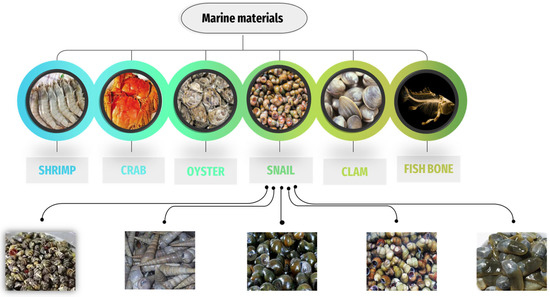

Marine animal farms are becoming more common in countries, particularly in Asian countries, such as Vietnam, China, and Thailand [27,28]. Food waste from marine animals is increasing day by day because food from the sea is always popular with people around the world [29]. Waste is treated from materials that have an abundant and low-cost source of calcium to be considered a good source of materials for waste treatment in the environment [30]. Due to their high calcium oxide content, various seashells have been studied and found to be similar to limestone [31]. Therefore, many studies have been conducted to investigate how to use these waste species to create materials for waste treatment in the soil and water environment, thereby lowering waste-treatment costs while also benefiting environmental treatment. The most recently studied marine materials in terms of using their wastes as adsorbents in wastewater treatment are shown in Figure 1.
There are many studies using adsorbent materials to treat different types of waste, such as heavy metals [32,33], antibiotics [34], inorganic, and organic compounds [35], in which the use of various types of adsorbents, such as agricultural wastes [36,37], industrial waste [38,39], environmental pollutants, such as fly ash [40,41], peat [42,43], blast furnace slag [44,45], and graphite materials [46], has been considered. However, in recent years, the use of adsorbent materials from the sea has been focused on due to treatment efficiency as well as solving environmental problems [47]. Shrimp [48,49,50], crabs [51,52], oysters [53,54], snails [55,56], clams [57,58], fish bone [59,60], and other marine species [61,62,63] are used as highly effective adsorbents in the removal of wastes from water pollution.
The use of snail shells is one of the effective and new adsorbent materials in textile dyeing and heavy-metal wastewater treatment, according to a survey of many recent research documents. There are many studies on using activated carbon from snail shells to absorb pollution in wastewater [55,64], but there are not many general reports on biochar modification from this material, especially for wastewater treatment of heavy metal and textile dyeing. Figure 2 summarizes the snail shell materials analyzed in this research for wastewater treatment.
A summary of review articles published in the last few years, as shown in Table 1, focuses on chitin/chitosan materials, mainly chitosan synthesized from chitin/chitosan, shrimp or oyster shells, for which there is no specific overview and focus on snail shell materials. Furthermore, there is a diversity of different types of snails for shell material, as well as specific characteristics of each species that will affect the adsorption of pollutants in wastewater. Therefore, a comprehensive article on separate snail shell materials in waste adsorption, focusing on heavy metals, textile dyeing wastewater, and other wastewater, is required to provide an overview of this potential material.

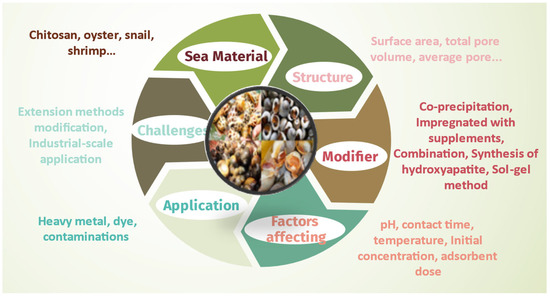

Furthermore, this paper analyzes the mechanism and process, as well as different methods, in biochar modification, comparing and discussing the effectiveness of the methods and, thus, providing an overview of biochar modification on snail shells in the use and modification of snail shell materials for wastewater treatment. This article is analyzed and discussed using a process of synthesizing and researching from over a hundred different articles and statistics in the form of tables to provide an overview, which is easy to understand for future readers.

2. Property, Structure, and Process of Snail Shell as Bio-Adsorbent

Many different types of snails have been studied as adsorbents in freshwater [82] and saltwater [47] in many areas of the world. Shells help mollusks survive in extreme conditions, protecting them from the tremendous pressure on the seabed [83]. However, humans use snails only for meat through the food chain, and such a large amount of shells creates a large amount of waste for the environment [84]. The characteristics of snail shells were analyzed using FTIR, SEM, MAP, EDAX, and BET analyses in most studies [85]. The findings of the shell material composition analysis almost entirely include the ingredients listed in Table 2, including ash, calcium, fiber content, fat... and some heavy metals or minerals [86]. The calcium carbonate content of snail shells is extremely high, possibly exceeding 95% [87]. The amount of calcium in the shells of each species varies depending on the thickness of the shell as well as morphology and other environmental factors [88]. The calcium carbonate concentrations in five different species of snails collected in different lakes in the United States range from 97 to 98.8% [88]. Considering the structure of a freshwater snail of Physa sp., the results of morphology and crystalline characterization of calcium carbonate polymorphs show calcium, as the main element, as well as sulfur, phosphorus, and other elements [89].
The ash content shows the existence of carbon compounds and inorganic components in snail shells, which plays an important role in becoming adsorbents in water treatment [90]. Analysis of heavy-metal composition in snail shells found that iron content was highest for other metal components, such as zinc, manganese, copper, and iron [91]. Other minor components, Cr, P, Al, Ni, Mg, Si, and K, also exist in snail shells [92,93]. This is also a demonstration of the effective use of snail shells as coagulant materials in wastewater treatment. According to Saida Parveen’s research on physical and chemical analysis of three different freshwater snail species, the shells of these snails can make strong and mechanically sustainable biological materials applied in various fields including bioremediation [94]. The structure of the snail shell varies in shape, size, and shell layers to different species depending on the geographical location and characteristics of the snail [89,95].
Table 2. Snail shell material structure for absorbing different types of waste.
Table 2. Snail shell material structure for absorbing different types of waste.
Snail Name/CountryModifier/MethodPorosity (°C)StructureComponents (%)AdsorptionRef.
Snail (Nigeria)Furnace to powder200, 300 and 400Surface area: 0.99 m2/g-Pb(II)[53]
Achatina achatina (African)Co-precipitation-Moisture content: 2.1%Ash: 93.76,
Calcium: 99.74
Aniline blue[96]
Achatina achatina (African)No--Protein: 0.12,
Fiber: 4.06,
Fat: 0.79,
Ash: 2,
NFE: 93.04
Wastewater from the brewery industry[91]
Archatina maginata (African)No--Protein: 0.42,
Fiber: 3.37,
Fat: 0.75,
Ash: 10,
NFE: 82.36
Wastewater from the brewery industry[91]
Archatina fulica (African)No--Protein: 0.3,
Fiber: 3.96,
Fat: 0.38,
Ash: 10,
NFE: 82.36
Wastewater from the brewery industry[91]
Limucalaria sp. (African)No--Protein: 0.23,
Fiber: 4.14,
Fat: 0.48,
Ash: 13,
NFE: 82.15
Wastewater from the brewery industry[91]
Pomacea canaliculata L. (Indonesia)No 900-O: 63.28,
P: 11.79,
Ca: 24.93
Pb (II)[97]
Pomacea canaliculata L. (Indonesia)Hydroxyapatite-SiO2
900-O: 58.17,
P: 10.33,
Ca: 22.16,
Si: 9.34
Pb (II)[97]
Bellamya chinensis (Vietnam)No-Surface area <2 m2/g,
total pore volume <0.001 cm3/g
C: 28.15,
O: 62.68,
Ca: 9.57,
Cr (VI)[98]
Bellamya chinensis (Vietnam)Impregnating with iron oxide-Surface area: 69.69 m2/g,
total pore volume: 0.104 cm3/g
C: 6.05,
O: 70.84,
Cl: 9.31,
Ca: 6.64,
Fe: 7.16
Cr (VI)[99]
Rostellaria (Iraq)No-Surface area: 295 m2/g,
moisture content: 24.33%
CaO: 52.7,
SiO2: 2.4,
Al2O3: 0.68,
Fe2O3 0.44,
MgO 1.5,
SO3 0.28
Azure A, B Dye[100]
Umbonium vestiarium (Iran)No-Surface area: 17.01 m2/g,
pore volume: 0.038 cm3/g,
pore size: 90.42 Å
-Co (II)[102]
Helix pomatia (Nigeria)ZnCl2500–800Moisture content: 1.75%Ash: 85 Methylene blue[103]
Helix pomatia (Nigeria)CaCl2500–800Moisture content: 1.75%Ash: 91Methylene blue[103]
Snail (Nigeria)No500Surface area: 2567.32 m2/g,
moisture content: 0.32%,
porosity: 48%
Ash: 12.5Wastewater from beverage[104]
Snail (Nigeria)Activating agent of H3PO4500Surface area: 2987.69 m2/g,
moisture content: 0.27%,
porosity: 72%
Ash: 7.3Wastewater from beverage[104]
Snail (Nigeria)Coagulant aid in the alum precipitation-Bulk density: 1.33 g/cm3,
moisture content: 2.1%,
Ash: 93.76
Ca: 99.74,
Mg: 0.0002,
Na: 0.0008
K: 0.0009,
Cu: 0.00002,
Pb: 0.0005
Malachite green[105]
Snail (China)Mixture with activated chestnut shell500, 700, 900Surface area: 1705 m2/g
average pore diameter: 4.07 nm
C: 35.63,
O: 42.31,
Ca: 22.05
Methylene blue[106]
Physa acuta (India) No550Water content: 886.1 mg/gAsh: 54.95,
CaCO3: 98.9
Argopecten irradians (China)No-Surface area: 1.88 m2/g,
pore size: 10.49 nm,
pore volume: 0.005 cm3/g
-Cr(VI) and Cu(II)[108]
Argopecten irradians (China)Calcinated300Surface area: 2.78 m2/g
pore size: 14.86 nm
pore volume: 0.01 cm3/g
-Cr(VI) and Cu(II)[108]
Argopecten irradians (China)Acidification shell300Surface area: 2.75 m2/g
pore size: 16.19 nm
pore volume: 0.01 cm3/g
-Cr(VI) and Cu(II)[108]
Snail (Morocco)No 700, 900, and 1200Surface area: 0.72 m2/g-Cu (II)[109]
Anadara uropigimelana (Egypt)No-Surface area: 2.82 m2/gC: 11.1,
O: 41.1,
Ca: 47.6
Methylene blue[110]
Snail shells are typically modified after being pre-treated through washing and drying processes to increase surface and adsorption area. Some unmodified pretreated materials have an adsorption surface of less than 2 m2/g and 0.001 cm3/g with BET and total pore volume [99]. The average surface area of the unmodified shell material is significantly lower than that of the modified biochar, as shown in Table 2. A study on the modification of snail shell materials by impregnation with Fe found that the shell material increased to over 69.69 m2/g and 0.104 cm3/g for the surface area and total pore volume, respectively [111]. To evaluate the degree of adsorption structure of snail shells, three types of shell powder were studied: raw material, calcined material, and acidic-treated calcined material. The results revealed that the structure of the calcined materials had a larger specific surface area than the raw materials, and the acidic-treated calcined materials had a larger pore size and volume than the calcined materials [108]. Therefore, recent research mainly focused on modification improvements to create optimal materials that give the highest performance in wastewater treatment. Based on surface area properties, the adsorption capacity of snail shells demonstrates that shells have a high ability to treat wastes, such as heavy metals, textiles, and other wastes [106]. According to Stevens et al., the adsorption efficiency of snail shells for Pb2+ is higher than that of oysters and periwinkles based on material properties [53]. A study on the synthesis of sea materials showed that the shell material also has very good characterization results compared to other chitosan materials made from materials, such as crab, lobster, and squid [112].
The biochar production process consists of three stages: pre-pyrolysis, main pyrolysis, and after pyrolysis [112]. After the shell is recovered, it will undergo treatment and pyrolysis to form a material that can adsorb waste. Most snail shells need to go through this important pyrolysis step to become an adsorbent. After being washed and dried under various conditions and temperatures ranging from 200 to 1000 °C, all shells will be soaked in an acid solution to remove unnecessary substances. The snail shell processing will affect the efficiency of the adsorption process. Table 3 is a summary table of different shell-processing processes to form materials for the adsorption process.
Pyrolysis can be used to process shells at a variety of temperatures. In some other treatments, however, the snail shell is finely ground before being dried and screened. Most studies will select a sieve size that is not too large because too-large particles will not be able to absorb much of the pollutant. A study on particle-size classification in Cadmium wastewater treatment found that particles smaller than 200 μm perform better than particles between 200 and 500 μm [107].
Table 3. Snail shell material processing methods.
Table 3. Snail shell material processing methods.
NameDry Condition (°C/Time)Temperature (°C)Time Furnace (h)ReagentpHAdsorptionRef
Snail shell-rice husk100/24 h681.12.61-9Brilliant green dye[113]
Pomacea canaliculata L.In the sun/24 h9004(NH4)2HPO4 Pb(II)[97]
Solamen Vaillanti100/0.5 h4003H3PO4 solution6.5Cu(II), Co(II), and Pb(II)[114]
Fresh snail shell80/24 h--H2SO4 solution2Cr (VI)[98]
Rostellaria100/24 h---6.8Azure B dye[100]
Umbonium vestiarium105/24 h10004-7Co (II)[102]
Helix pomatia105/3 h500–8003ZnCl2 and CaCl2--[103]
Snail110/2 h5001H3PO4 solution7.04 [104]
Oncomelania hupensis Gredler80/24 h500, 700, and 9001H3PO4 solution4.7Methylene Blue[106]
Physa acuta50/1 h----Cd(II)[107]
Argopecten irradians60/48 h200, 300, 400, and 5003HCl solution-Cr(VI) and Cu(II)[108]
Snail shell100/12 h10001--Cu(II)[109]
Various model types are analyzed and evaluated to determine their suitability for the waste treatment of snail shells. The most-adapted models include Temkin, Freundlich, and Langmuir adsorption isotherms [53].
According to the survey results on kinetic model analysis, the three most-studied types are pseudo-first order, pseudo-second order, and intraparticle diffusion, with pseudo-first-order kinetics being the best fit with the results of other remaining types. The adsorption kinetics of magnetic shell materials impregnated by LP. Hoang were well described by the pseudo-second-order model and the best-fitting model that described the Cr(VI) adsorption isotherm was the Langmuir model [111]. Similarly, studies on the modification of shell material via the sol–gel method also showed Langmuir isotherm and pseudo-second-order kinetics that are consistent with the studies.
However, in some cases, depending on the pollution characteristics, there are different suitable models for research. In the same study, using snail shells to treat Cr(VI) and Cu(II) ions from wastewater, the Freundlich model was appropriate for Cr(VI) adsorption, whereas the Langmuir model was appropriate for Cu(II) adsorption [108].

3. Popular Biochar-Modification Methodologies for Snail Shell Materials

There are many different biochar-modification methods. Common methods are listed in Table 4.
Impregnated with supplements: For this method, the snail shells are washed to remove unnecessary substances and dried. Then, they will be soaked with a solution to increase the adsorption process. After being soaked in biochar, substances will experience interactions between the admixture molecules and calcium carbonate, resulting in the release of carbon molecules and a change in the structure of the adsorbent [99]. Many studies have used different types of substances and varied mixing ratios, such as phosphoric acid [114], FeCl3 [99], ZnCl2, and CaCl2 [103]. A study using Fe as an impregnated agent in combination with a snail shell revealed that the effect of Fe3O4 formed on the material was very good and had an expected effect on Cr(VI) adsorption in wastewater [111].
Combination of other adsorbents: The incorporation of other adsorbent materials into snail shell biochar is a current trend when the specific adsorption efficiency of the shell material is not high. The substances associated with the snail shell material come from a variety of sources, the majority of which are agricultural waste. Snail shell and rice husk were combined and calcined for more than two hours at 681.1 °C to produce mixed adsorbent materials with quite high adsorption results when compared to individual materials [113]. Another study on the combination of snail shell and chestnut using a simple combination method and different ratios of snail shell and chestnut resulted in methylene blue treatment efficiency of up to 92% [106]. A combination of snail shell and pine cone powder also demonstrated high potential for heavy-metal treatment in wastewater due to the combination of cellulose in an amorphous crystalline phase and calcium carbonate compound [115].
Synthesis of hydroxyapatite: This method involves heating the shell to a high temperature to convert CaCO3 to CaO phase; the process can be supplemented with a variety of acidic solutions [97]. The thermal treatment range has a large range of values to find the right temperature for each shell. The results of a temperature range study from 200 to 1000 °C to compare the particle evaluation of different raw materials and pyrolysis materials revealed that a calcined snail shell at 200 °C was aragonite polymorphs, calcite at 400–600 °C, and calcium oxide at 800–1000 °C [92].
Co-precipitation: Because wastes from sea material have a high calcium carbonate content, using these wastes for research as an adjunct to co-precipitation is considered a method with high efficiency. This method has the advantage of being able to use a wide range of materials, adapt to a wide range of reaction conditions, and produce particles with relatively even, uniform, and small sizes. The shell material can be considered an effective adsorbent as a coagulant aid due to its high iron content for the easy high-coagulating property [116]. N.A. Oladoja’s research on African snails used as a coagulant aid in alum precipitation to treat dye molecules from wastewater produced better results than treating alum and shell precipitates separately. In addition, the sludge obtained from this co-precipitation has better properties than the sludge obtained using the precipitate alone [96]. However, this method of co-precipitation also has some limitations in terms of time consumption; if co-precipitates have different precipitation rates or trace impurities, this can also cause precipitation [117]. Another study showed that using snail shell material and alum alone does not bring good results in the treatment of malachite green; however, using snail shell as a coagulant combined with alum precipitation results in a much higher processing result, increasing efficiency [105].
Sol–gel method: This method has been widely used in past years because of its advantages and is also used for other types of sea material, as studied by Tetyana M Budnyak et al. [118] or research by Guillermo J. Copello et al. [119] on the synthesis of chitosan–silica materials via the sol–gel method. A study on snail shell in situ hybridization of different dyes via the sol–gel method showed that the treatment efficiency of Congo Red (>95%) was higher than that of Methylene blue (<80%) at an initial waste concentration of 100 mg/l. The synthesis of hydroxyapatite with Silica gives a better Pb(II) adsorption efficiency than that of hydroxyapatite from snail shells of 123.46 and 135.14 mg/g, respectively.
Table 4. Waste treatment efficiency of shell materials with different methods.
Table 4. Waste treatment efficiency of shell materials with different methods.
Type of SnailMethodPollutantConcentration of Pollution (mg/L)Efficiency (%)RemarksRef.
Achatina achatinaCo-precipitationAniline blue100 >95Evaluation of the effect of pH, time, and sludge settling on textile dyeing waste removal[96]
Achatina AchatinaSol–gelMethylene blue and Congo Red 100 >95Investigate the influencing factors on initial waste concentration. pH is not affected, but sludge settlement is affected by waste removal[120]
Bellamya chinensisImpregnating of iron oxideCr (VI)60 76.8 The adsorbent material has the characteristics of CaCO3 and Fe3O4 to increase the adsorption surface compared to unmodified material, suitable with Langmuir and Pseudo-second-order model[111]
Solamen VaillantiImpregnating Cu(II), Co(II), and Pb(II)10 94.4, 96.5, and 96.7Evaluation of the removal of three different heavy metals present in real wastewater and the influence of factors including pH, temperature, contact time, waste initial concentration, and adsorbent dosage[114]
Golden Snail ShellSol–gelPb(II)2597.1Comparison of composites hydroxyapatite with SiO2 and hydroxyapatite from shells shows that modification material gives better performance [97]
Helix pomatiaImpregnating of ZnCl2 and CaCl2Methylene blue1000 98 and 67Evaluated as a raw material for the production of activated carbon with ZnCl2 and CaCl2 at temperatures ranging from 500 °C to 800 °C[103]
Oncomelania hupensis GredlerCombination of other adsorbentsMethylene blue130092 The mixture of activated chestnut shell biochar and pyrolyzed snail shell material in a simple process for high-concentration wastewater treatment[106]
RostellariaMixing with melamineAzure A dye593.9Compare the adsorption capacity of snail shell- Melamine Complex and this polymer modification biochar based on the addition of formaldehyde.[121]
The results show that modifying the shell materials results in significantly higher adsorption than untreated ones. The adsorption capacity of Rostellaria snail shell for Azure A dye was 89.5% [122], Azure B dye was 83% [100], and Malachite Green was 86.66% [101], however, if the material is modified up to 93.9% when treating Azure A in wastewater [121].

4. Effect of Nutrient to Adsorption Biochar

Many factors influence the efficiency of adsorbent adsorption of pollutants in water, including solution pH, contact time, temperature, initial concentration, adsorbent dose, and nutrients. Recent studies on the effects of snail shell materials on the adsorption of pollutants in the aquatic environment are summarized in Table 5.

4.1. pH

pH greatly affects the adsorption process of almost all adsorbents. Under different pH conditions, there will be different adsorption efficiency, influence, and adsorption efficiency of textile dyeing wastes shown in the table below. Investigating the influence of pH on adsorption efficiency within a very large range from 2 to 12, Cr(VI) adsorption studies showed the highest efficiency at pH 2 [98]. Another study on Cd2+ adsorption found that the optimal pH was 6 rather than low pH with high protonation [107]. The functional groups are protonated and become positive under acidic pH conditions. Cationic dye adsorption is favored at higher pH levels, whereas anionic dye adsorption is favored at lower pH levels [51]. Similarly, An et al. discovered that as the pH increased, the value of the zeta potential decreased, implying that more functional groups were exposed to the surface material, which facilitated the adsorption process [106].
A coagulant’s chemistry is affected by its pH during coagulation. Hydrolysis products of alum are primarily medium polymers or monomers with a high ability to remove dissolved organic carbon via complex adsorption, charge neutralization, or co-precipitation [96].

4.2. Contact Time

Contact time is an important factor influencing adsorption efficiency. The change in contact time will affect both the process equilibrium and the treatment reaction rate. The contact time in the adsorption process was studied from 0 to 240 min in most research. When the contact time increases, the adsorption efficiency increases as well, but after a certain threshold, the effect saturates and no longer increases. When investigating the influence range of 0 to 180 min, Redouane Ouaf et al. found the highest Cu(II) removal efficiency at 90 min in a study on snail shells [109]. A study of Cd2+ treatment at pH 6 over a survey period of 10 to 80 min found that treatment efficiency was lowest at 10 min and highest at 60 min. Michelle Castaneda et al. studied the effect of time on the biosorption of Pb2+ at pH 5.5 and a temperature of 30 °C, giving the optimal time at 80 min [123]. To fit the kinetic models, different values of waste treatment with time intervals are used.

4.3. Temperature

Temperature is the factor that has received the least attention in the survey of factors affecting adsorption efficiency according to Table 5. Almost from the beginning of the pyrolysis of snail shells, studies have chosen a specific temperature to obtain biochar material from snail shells from which to conduct other studies on the degree of influence. However, when the effect of temperature on the structure of the adsorbent is considered, the results show that as the temperature rises, the carbon content also increases [29]. The effect of temperature was studied by Pranesh Paul et al. in four different temperature values ranging from 20 to 35 °C, with the highest adsorption efficiency at 35 °C due to increased calcium content by dissolving material for phosphate processing [124].

4.4. Initial Concentration

Studies frequently take the difference between initial concentrations to be very wide, with approximately different values. In contrast to the contact time, the adsorption of Pb ions in wastewater increased as the contact time increased and the initial concentration decreased in solution [53]. As the initial concentration rose, the concentration occupied the adsorbent’s active sites on the surface during the adsorption process, and the active sites on the surface reduced until adsorption saturation was reached. Benliang Zhao et al. discovered that the cadmium treatment efficiency decreased as the Cd temperature gradually increased to 500 mg/L in a study of golden apple snails on cadmium treatment in water [125].

4.5. Adsorbent Dose

An important parameter in treatment studies is the amount of adsorbent used. Adsorption of both metals increased as the amount of snail shell materials increased. For textile dyeing wastewater, the textile dyeing wastewater removal efficiency increased when increasing the snail shell dosage per wastewater concentration for studies on low textile dyeing wastewater concentration [96]. According to the findings of Olayinka John Akinyeye et al., in an adsorbent dose range of 0.25 g to 1.5 g for the adsorption of Pb2+ and Ni2+ ions, different effects will be obtained at different doses. At a 0.25 g dose, it can be 99.81% effective and 99.3% effective at a 0.5 g dose [127]. However, as the adsorbent dose is increased, the adsorption efficiency does not increase, indicating that the maximum effect will occur at a certain dose and cannot be higher. Similarly, Khalid Z. Elwakeel et al. discovered that increasing the adsorbent dosage from 25 to 150 g/L increases methylene blue processing efficiency to a maximum of 93.6% [110].
Table 5. Parameters and conditions affecting the heavy-metal adsorption process of snail shell.
Table 5. Parameters and conditions affecting the heavy-metal adsorption process of snail shell.
Snail NamepHContact Time (Min)Temperature (°C)Initial Adsorbent ConcentrationPollutant Concentration (mg/L)Efficiency (%)PollutantRef.
Snail-10, 20, 30 and 40 200, 300 and 400100 g/100 mL30–120 99 Pb ion[53]
Snail3–610–90 -0.1–0.7 g/100 mL5, 10, 20, 50, 100 89.61Aniline blue[96]
Bellamya chinensis2–920–180 20–400.2–3 g/100 mL30–200 42Cr (VI)[98]
Bellamya chinensis2–125–240 -0.04–0.48 mg/100 mL5–80 76.8Cr (VI)[111]
Golden snail2–100–90 -0.08 mg/100 mL25–200 97.1Pb(II)[97]
Rostellaria2–1210–140 25–650.01–0.08 g2583Azure B Dye[100]
Rostellaria2–1210–120 25–650.01–0.08 g589.5Azure A Dye[122]
Rostellaria2–1210–120 25–650.005–0.08 g7 86.66Malachite Green[101]
Umbonium vestiarium3–95–120 -0.025–0.6 g/100 mL10–50 93.87Co (II)[102]
Oncomelania hupensis Gredler4–1215, 30, 60, 120, 180, 300, 600 and 1440500, 700 and 90020 mg500, 900, 1300, 1700, 1900 and 2100 92Methylene blue[106]
Physa acuta Asif2–710, 20, 40, 60 and 80 -0.2–1 g/100 ml25–1000 87Cd(II)[107]
Argopecten irradians1.5–1030–390 200–5001–14 g/100 mL50–400 32.86Cr(VI)[108]
Argopecten irradians-30–180200–500-100–2000 99.04Cu(II)[108]
Snail 2–80–180 700, 900 and 10000.05–1.2 mg50–500 99Cu (II)[109]
Snail2–1210–120 25–650.005–0.08 g3099.09Remazol Brilliant Blue dye[127]
Hexaplex kuesterianus2–960–180 -0.2–1 g4094.4Pb (II)[128]
Hexaplex kuesterianus2–960–180-0.2–1 g1075.3Cu (II)[128]
Golden snail1.5–5.52–100 10–500.005–1 g/100 mL5–500 99.2Cd(II)[125]
Snail1–95–360 32–820.25–1.5 g100–500 99.93 and 70.58Pb (II) and Ni(II)[126]
Snail3–115–240 20–500.04–0.6 g/100 mL25–55 95Basic Yellow 28[129]
In addition to the important influencing parameters listed above, some studies also evaluated the effect of different particle sizes and the ratio of admixture on adsorption efficiency or ionic strength on adsorption capacity. Specifically, in the study of Redouane Ouaf and colleagues, the different particle sizes were evaluated from 50 to 800 μm and the results showed that the effect of particle size on waste removal efficiency was not significant [109]. However, when comparing the effect, it is a good choice for the shell adsorbent for particle sizes larger than 300 μm. The higher the adsorption surface, the smaller the adsorbent particles, specifically at a particle size of 212 μm of the snail shell of Hexaplex kuesterianus, resulting in higher adsorption than 400 μm for both heavy metals of Pb (II) and Ni (II) adsorption [128]. The mixing ratio also greatly determines the adsorption efficiency, with adsorbents usually being mixed with different substances under many kinds of ratios. Research on mixing chestnut and snail shells at a ratio of 3:1 gave better results than ratios of 1:3 and 1:1, with methylene blue adsorption efficiency of up to 92% [106]. When different concentrations of NaCl, KCl, MgCl2, and CaCl2 salts were used to evaluate the effect of ionic strength on the adsorption of Azure A, the influence of CaCl2 showed higher results than the remaining salts, but this effect was not significant on the adsorption results [122].

5. Challenges and Future Research Directions

From the research results of snail shell materials, it is shown that modification will be a good research direction to increase the adsorption capacity by increasing the surface of the shell material. However, the adsorption results have not yet reached the maximum and are still limited in some studies. Therefore, the combination of snail shell adsorbent and other adsorbents from chitosan or agricultural materials can be considered for further studies.
The research results are also applied to samples tested in the laboratory, where possible, using actual or more-advanced samples applied in real conditions of some production facilities, factories, or industrial zones because real wastewater samples often have many different pollutants and the treatment depends on the reciprocal reaction in the adsorption process. From there, a larger commercial scale can be applied if the actual experimental results are as effective as those found in the laboratory. Furthermore, nanocomposites containing calcium carbonate nanoparticles should be investigated using snail shell materials with a high calcium content.
In summary, based on the results of adsorption, recyclability, economic efficiency, and environmental friendliness, modification methods to improve snail shell adsorbent and adsorption conditions should be considered selectively.

6. Conclusions and Remarks

Adsorbents from marine materials, including shrimp, crabs, snails, and fish bones, are currently being recovered and used as cheap and highly effective adsorbents. In particular, the snail shell material is being focused on because of its adsorption capacity for different types of wastewater and its high efficiency. In comparison to other materials from the sea as well as agricultural materials, snail material has a high surface area, indicating the potential for waste adsorption. Although the calcium content of the snail shell is very high, the crystallinity of the shell is higher after being sintered, making the shell easy to precipitate and difficult to dissolve, which is also a disadvantage in handling. Therefore, to increase the adsorption efficiency, most recent studies have used modifications to increase the adsorption surface of the material. The synthesis of hydroxyapatite from snail shell material yields diverse results in terms of morphology and composition from the low to high temperature range. The results show that the average particle size of synthesized hydroxyapatite increases with reaction temperature response. When combining agricultural materials, the material combination shell material promoted the adsorption of textile dyeing wastewater, demonstrating material complementarity. Furthermore, the material combination shell material provides high efficiency through photocatalysis. The impregnation method used before or after pyrolysis altered the structure and functional properties of the adsorbent. In addition, acidic modification is used during shell processing to adjust pH and remove mineral elements. The co-precipitation method has many advantages for preparing adsorbents from snail shells, but it is time-consuming and sometimes has reproducibility issues. In contrast, the sol–gel method has the advantages of composition control, a stable surface, and good adsorption. In addition, the factors of pH, temperature, catalyst, initial pollutant concentration, and adsorption time also affect the adsorption process of pollutants in the aqueous environment.

Author Contributions

N.T.H.N.: Writing—original draft, Investigation, Formal analysis. V.D.L.: Investigation, Validation, Writing—review and editing. T.F.: Writing—review and editing. All authors have read and agreed to the published version of the manuscript.


A part of this research was funded by the Natural Science Foundation of China, grant number NSFC 21976039.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The authors confirm that the findings of this study are available within the article.


A part of this research was funded by the Natural Science Foundation of China, grant number NSFC 21976039. We also appreciate the Asean Talented Young Scientist Guangxi Program (ATYSP) and the special fund support by “Guangxi Bagui scholars”.

Conflicts of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.


  1. Ball, P. Water is an active matrix of life for cell and molecular biology. Proc. Natl. Acad. Sci. USA 2017, 114, 13327–13335. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Boretti, A.; Rosa, L. Reassessing the projections of the World Water Development Report. Clean Water 2019, 2, 1. [Google Scholar] [CrossRef] [Green Version]
  3. Dolan, F.; Lamontagne, J.; Link, R.; Hejazi, M.; Reed, P.; Edmonds, J. Evaluating the economic impact of water scarcity in a changing world. Nat. Commun. 2021, 12, 1915. [Google Scholar] [CrossRef]
  4. FAO. Water for Sustainable Food and Agriculture Water for Sustainable Food and Agriculture; FAO: Rome, Italy, 2017. [Google Scholar]
  5. Debaere, P.; Konar, M. Water resources and trade: A research vision. PLoS Water 2022, 1, e0000010. [Google Scholar] [CrossRef]
  6. Zheng, S.; Yang, Y.; Wen, C.; Liu, W.; Cao, L.; Feng, X.; Chen, J.; Wang, H.; Tang, Y.; Tian, L.; et al. Effects of environmental contaminants in water resources on nonalcoholic fatty liver disease. Environ. Int. 2021, 154, 106555. [Google Scholar] [CrossRef]
  7. Al-Tohamy, R.; Ali, S.S.; Li, F.; Okasha, K.M.; Mahmoud, Y.A.-G.; Elsamahy, T.; Jiao, H.; Fu, Y.; Sun, J. A critical review on the treatment of dye-containing wastewater: Ecotoxicological and health concerns of textile dyes and possible remediation approaches for environmental safety. Ecotoxicol. Environ. Saf. 2022, 231, 113160. [Google Scholar] [CrossRef]
  8. Sharma, J.; Sharma, S.; Soni, V. Classification and impact of synthetic textile dyes on Aquatic Flora: A review. Reg. Stud. Mar. Sci. 2021, 45, 101802. [Google Scholar] [CrossRef]
  9. Khan, S.; Malik, A. Environmental and Health Effects of Textile Industry Wastewater. Environ. Deterior. Hum. Health Nat. Anthropog. Determ. 2014, 9789400778900, 55–71. [Google Scholar] [CrossRef]
  10. Kumar, M.; Seth, A.; Singh, A.K.; Rajput, M.S.; Sikandar, M. Remediation strategies for heavy metals contaminated ecosystem: A review. Environ. Sustain. Indic. 2021, 12, 100155. [Google Scholar] [CrossRef]
  11. Boumaza, B.; Chekushina, T.V.; Vorobyev, K.A.; Schesnyak, L.E. The heavy metal pollution in groundwater, surface and spring water in phosphorite mining area of Tebessa (Algeria). Environ. Nanotechnol. Monit. Manag. 2021, 16, 100591. [Google Scholar] [CrossRef]
  12. Chen, Y.; Jiang, X.; Wang, Y.; Zhuang, D. Spatial characteristics of heavy metal pollution and the potential ecological risk of a typical mining area: A case study in China. Process Saf. Environ. Prot. 2018, 113, 204–219. [Google Scholar] [CrossRef]
  13. Wang, S.; Han, Z.; Wang, J.; He, X.; Zhou, Z.; Hu, X. Environmental risk assessment and factors influencing heavy metal concentrations in the soil of municipal solid waste landfills. Waste Manag. 2022, 139, 330–340. [Google Scholar] [CrossRef] [PubMed]
  14. Khorshidi, N.; Parsa, M.; Lentz, D.R.; Sobhanverdi, J. Identification of heavy metal pollution sources and its associated risk assessment in an industrial town using the K-means clustering technique. Appl. Geochem. 2021, 135, 105113. [Google Scholar] [CrossRef]
  15. De Beni, E.; Giurlani, W.; Fabbri, L.; Emanuele, R.; Santini, S.; Sarti, C.; Martellini, T.; Piciollo, E.; Cincinelli, A.; Innocenti, M. Graphene-based nanomaterials in the electroplating industry: A suitable choice for heavy metal removal from wastewater. Chemosphere 2021, 292, 133448. [Google Scholar] [CrossRef] [PubMed]
  16. Zamora-Ledezma, C.; Negrete-Bolagay, D.; Figueroa, F.; Zamora-Ledezma, E.; Ni, M.; Alexis, F.; Guerrero, V.H. Heavy metal water pollution: A fresh look about hazards, novel and conventional remediation methods. Environ. Technol. Innov. 2021, 22, 101504. [Google Scholar] [CrossRef]
  17. Zaynab, M.; Al-Yahyai, R.; Ameen, A.; Sharif, Y.; Ali, L.; Fatima, M.; Khan, K.A.; Li, S. Health and environmental effects of heavy metals. J. King Saud Univ.-Sci. 2021, 34, 101653. [Google Scholar] [CrossRef]
  18. Vajargah, M.F. A Review on the Effects of Heavy Metals on Aquatic Animals. J. Biomed. Res. Environ. Sci. 2021, 2, 865–869. [Google Scholar] [CrossRef]
  19. Canli, M.; Furness, R. Toxicity of heavy metals dissolved in sea water and influences of sex and size on metal accumulation and tissue distribution in the norway lobster Nephrops norvegicus. Mar. Environ. Res. 1993, 36, 217–236. [Google Scholar] [CrossRef]
  20. Buccolieri, A.; Buccolieri, G.; Cardellicchio, N.; Dell’Atti, A.; Di Leo, A.; Maci, A. Heavy metals in marine sediments of Taranto Gulf (Ionian Sea, Southern Italy). Mar. Chem. 2006, 99, 227–235. [Google Scholar] [CrossRef]
  21. Trujillo-Cárdenas, J.L.; Saucedo-Torres, N.P.; Del Valle, P.F.Z.; Ríos-Donato, N.; Mendizabal, E.; Gómez-Salazar, S. Speciation and Sources of Toxic Metals in Sediments of Lake Chapala, Mexico. J. Mex. Chem. Soc. 2010, 54, 78–87. [Google Scholar] [CrossRef]
  22. Priyadarshanee, M.; Das, S. Biosorption and removal of toxic heavy metals by metal tolerating bacteria for bioremediation of metal contamination: A comprehensive review. J. Environ. Chem. Eng. 2020, 9, 104686. [Google Scholar] [CrossRef]
  23. Sreeramareddygari, M.; Shivanna, J.M.; Somasundrum, M.; Soontarapa, K.; Surareungchai, W. Polythiocyanuric acid-functionalized MoS2 nanosheet-based high flux membranes for removal of toxic heavy metal ions and congo red. Chem. Eng. J. 2021, 425, 130592. [Google Scholar] [CrossRef]
  24. Li, Y.; Dong, X.; Zhao, L. Application of magnetic chitosan nanocomposites modified by graphene oxide and polyethyleneimine for removal of toxic heavy metals and dyes from water. Int. J. Biol. Macromol. 2021, 192, 118–125. [Google Scholar] [CrossRef]
  25. Mansoor, S.; Kour, N.; Manhas, S.; Zahid, S.; Wani, O.A.; Sharma, V.; Wijaya, L.; Alyemeni, M.N.; Alsahli, A.A.; El-Serehy, H.A.; et al. Biochar as a tool for effective management of drought and heavy metal toxicity. Chemosphere 2020, 271, 129458. [Google Scholar] [CrossRef]
  26. Thasneema, K.; Dipin, T.; Thayyil, M.S.; Sahu, P.K.; Messali, M.; Rosalin, T.; Elyas, K.; Saharuba, P.; Anjitha, T.; Ben Hadda, T. Removal of toxic heavy metals, phenolic compounds and textile dyes from industrial waste water using phosphonium based ionic liquids. J. Mol. Liq. 2020, 323, 114645. [Google Scholar] [CrossRef]
  27. Luo, J.; Sun, Z.; Lu, L.; Xiong, Z.; Cui, L.; Mao, Z. Rapid expansion of coastal aquaculture ponds in Southeast Asia: Patterns, drivers and impacts. J. Environ. Manag. 2022, 315, 115100. [Google Scholar] [CrossRef]
  28. Agbogidi, O.; Okonta, B. Reducing poverty through snail farming in Nigeria. Agric. Biol. J. N. Am. 2011, 2, 169–172. [Google Scholar] [CrossRef]
  29. Lubell, D. Are land snail a signature for the Mesolithic-Neolithic transition. Doc. Praehist. 2004, 31, 1–24. [Google Scholar] [CrossRef]
  30. Xu, Y.; Ye, J.; Zhou, D.; Su, L. Research progress on applications of calcium derived from marine organisms. Sci. Rep. 2020, 10, 18425. [Google Scholar] [CrossRef]
  31. Mo, K.H.; Alengaram, U.J.; Jumaat, M.Z.; Lee, S.C.; Goh, W.I.; Yuen, C.W. Recycling of seashell waste in concrete: A review. Constr. Build. Mater. 2018, 162, 751–764. [Google Scholar] [CrossRef]
  32. Pan, X.; Gu, Z.; Chen, W.; Li, Q. Preparation of biochar and biochar composites and their application in a Fenton-like process for wastewater decontamination: A review. Sci. Total. Environ. 2020, 754, 142104. [Google Scholar] [CrossRef]
  33. Wang, L.; Wang, Y.; Ma, F.; Tankpa, V.; Bai, S.; Guo, X.; Wang, X. Mechanisms and reutilization of modified biochar used for removal of heavy metals from wastewater: A review. Sci. Total. Environ. 2019, 668, 1298–1309. [Google Scholar] [CrossRef]
  34. Ahmed, M.B.; Zhou, J.L.; Ngo, H.H.; Guo, W. Adsorptive removal of antibiotics from water and wastewater: Progress and challenges. Sci. Total. Environ. 2015, 532, 112–126. [Google Scholar] [CrossRef]
  35. Premarathna, K.; Rajapaksha, A.U.; Sarkar, B.; Kwon, E.E.; Bhatnagar, A.; Ok, Y.S.; Vithanage, M. Biochar-based engineered composites for sorptive decontamination of water: A review. Chem. Eng. J. 2019, 372, 536–550. [Google Scholar] [CrossRef]
  36. Kumar, P.S.; Gayathri, R.; Rathi, B.S. A review on adsorptive separation of toxic metals from aquatic system using biochar produced from agro-waste. Chemosphere 2021, 285, 131438. [Google Scholar] [CrossRef]
  37. Li, H.; Dong, X.; da Silva, E.B.; de Oliveira, L.M.; Chen, Y.; Ma, L.Q. Mechanisms of metal sorption by biochars: Biochar characteristics and modifications. Chemosphere 2017, 178, 466–478. [Google Scholar] [CrossRef]
  38. Janbooranapinij, K.; Yimponpipatpol, A.; Ngamthanacom, N.; Panomsuwan, G. Conversion of industrial carpet waste into adsorbent materials for organic dye removal from water. Clean. Eng. Technol. 2021, 4, 100150. [Google Scholar] [CrossRef]
  39. Ayala, J.; Fernández, B. Industrial waste materials as adsorbents for the removal of As and other toxic elements from an abandoned mine spoil heap leachate: A case study in Asturias. J. Hazard. Mater. 2020, 384, 121446. [Google Scholar] [CrossRef]
  40. Asl, S.M.H.; Javadian, H.; Khavarpour, M.; Belviso, C.; Taghavi, M.; Maghsudi, M. Porous adsorbents derived from coal fly ash as cost-effective and environmentally-friendly sources of aluminosilicate for sequestration of aqueous and gaseous pollutants: A review. J. Clean. Prod. 2019, 208, 1131–1147. [Google Scholar] [CrossRef]
  41. Aigbe, U.O.; Ukhurebor, K.E.; Onyancha, R.B.; Osibote, O.A.; Darmokoesoemo, H.; Kusuma, H.S. Fly ash-based adsorbent for adsorption of heavy metals and dyes from aqueous solution: A review. J. Mater. Res. Technol. 2021, 14, 2751–2774. [Google Scholar] [CrossRef]
  42. Shukla, V.; Panchal, D.; Prakash, O.; Mondal, P.; Hiwrale, I.; Dhodapkar, R.S.; Pal, S. Bioresource Technology Magnetically engineered sulfurized peat-based activated carbon for remediation of emerging pharmaceutical contaminants. Bioresour. Technol. 2023, 369, 128399. [Google Scholar] [CrossRef] [PubMed]
  43. Budihardjo, M.A.; Wibowo, Y.G.; Ramadan, B.S.; Serunting, M.A.; Yohana, E. Syafrudin Mercury removal using modified activated carbon of peat soil and coal in simulated landfill leachate. Environ. Technol. Innov. 2021, 24, 102022. [Google Scholar] [CrossRef]
  44. Ramos, F.J.H.T.V.; Marques, M.D.F.V.; Rodrigues, J.G.P.; Aguiar, V.D.O.; da Luz, F.S.; de Azevedo, A.R.G.; Monteiro, S.N. Development of novel geopolymeric foam composites coated with polylactic acid to remove heavy metals from contaminated water. Case Stud. Constr. Mater. 2021, 16, e00795. [Google Scholar] [CrossRef]
  45. Abdel-Gawwad, H.A.; Sikora, P.; Mohammed, A.H.; Arif, M.A.; Al-Kroom, H.; Elrahman, M.A. Resistance of alkali-activated slag mixed with wastewater towards biogenic sulfuric acid attack. Case Stud. Constr. Mater. 2022, 17, e01164. [Google Scholar] [CrossRef]
  46. Nizam, N.U.M.; Hanafiah, M.M.; Mahmoudi, E.; Mohammad, A.W.; Oyekanmi, A.A. Effective adsorptive removal of dyes and heavy metal using graphene oxide based Pre-treated with NaOH/H2SO4 rubber seed shells synthetic graphite Precursor: Equilibrium Isotherm, kinetics and thermodynamic studies. Sep. Purif. Technol. 2022, 289, 120730. [Google Scholar] [CrossRef]
  47. Tamjidi, S.; Ameri, A. A review of the application of sea material shells as low cost and effective bio-adsorbent for removal of heavy metals from wastewater. Environ. Sci. Pollut. Res. 2020, 27, 31105–31119. [Google Scholar] [CrossRef]
  48. Zazycki, M.A.; Borba, P.A.; Silva, R.N.; Peres, E.C.; Perondi, D.; Collazzo, G.C.; Dotto, G.L. Chitin derived biochar as an alternative adsorbent to treat colored effluents containing methyl violet dye. Adv. Powder Technol. 2019, 30, 1494–1503. [Google Scholar] [CrossRef]
  49. Salawu, O.A.; Han, Z.; Adeleye, A.S. Shrimp waste-derived porous carbon adsorbent: Performance, mechanism, and application of machine learning. J. Hazard. Mater. 2022, 437, 129266. [Google Scholar] [CrossRef]
  50. Nurfatihayati; Azis, Y.; Mutamima, A.; Herman, S.; Alfarisi, C.D.; Ikrima, H. Isotherms studies of equilibrium sorption of Cu2+ unto hydrochloric acid modified shrimp shell waste. Mater. Today Proc. 2022, 63, S496–S500. [Google Scholar] [CrossRef]
  51. Dai, L.; Zhu, W.; He, L.; Tan, F.; Zhu, N.; Zhou, Q.; He, M.; Hu, G. Calcium-rich biochar from crab shell: An unexpected super adsorbent for dye removal. Bioresour. Technol. 2018, 267, 510–516. [Google Scholar] [CrossRef]
  52. Wu, J.; Yang, J.; Feng, P.; Wen, L.; Huang, G.; Xu, C.; Lin, B. Highly efficient and ultra-rapid adsorption of malachite green by recyclable crab shell biochar. J. Ind. Eng. Chem. 2022, 113, 206–214. [Google Scholar] [CrossRef]
  53. Odoemelam, S.A.; Eddy, N.O. Studies on the Use of Oyster, Snail and Periwinkle Shells as Adsorbents for the Removalof Pb 2+ Aqueous Solution. E-J. Chem. 2009, 6, 213–222. [Google Scholar] [CrossRef] [Green Version]
  54. Wang, H.; Xing, H.; Yan, K.; Han, D.; Chen, J. Oyster shell derived hydroxyapatite microspheres as an effective adsorbent for remediation of Coomassie brilliant blue. Adv. Powder Technol. 2022, 33, 103425. [Google Scholar] [CrossRef]
  55. Fatimah, I.; Aulia, G.R.; Puspitasari, W.; Nurillahi, R.; Sopia, L.; Herianto, R. Microwave-synthesized hydroxyapatite from paddy field snail (Pila ampullacea) shell for adsorption of bichromate ion. Sustain. Environ. Res. 2018, 28, 462–471. [Google Scholar] [CrossRef]
  56. Ovuoraye, P.E.; Ifeanyi, V.; Abdullah, M.; Ayodele, P. Kinetics-driven coagulation treatment of petroleum refinery effluent using land snail shells: An empirical approach to Environmental sustainability. Clean. Chem. Eng. 2022, 4, 100084. [Google Scholar] [CrossRef]
  57. Singh, S.; Naik, T.S.K.; Anil, A.G.; Khasnabis, S.; Nath, B.; Basavaraju, U.; Kumar, V.; Garg, V.; Subramanian, S.; Singh, J.; et al. A novel CaO nanocomposite cross linked graphene oxide for Cr(VI) removal and sensing from wastewater. Chemosphere 2022, 301, 134714. [Google Scholar] [CrossRef]
  58. Eljiedi, A.A.A.; Kamari, A.; Sunardi; Fatimah, I. Lala clam (Orbicularia orbiculata) shell as an eco-friendly adsorbent for Cd(II), Cu(II) and Pb(II) ions. Arab. J. Basic Appl. Sci. 2019, 26, 462–475. [Google Scholar] [CrossRef] [Green Version]
  59. Mukkanti, V.B.; Tembhurkar, A. Defluoridation of water using adsorbent derived from the Labeo rohita (rohu) fish scales waste: Optimization, isotherms, kinetics, and thermodynamic study. Sustain. Chem. Pharm. 2021, 23, 100520. [Google Scholar] [CrossRef]
  60. Mostofa, S.; Jahan, S.A.; Saha, B.; Sharmin, N.; Ahmed, S. Kinetic and thermodynamic investigation on adsorption of lead onto apatite extracted from mixed fish bone. Environ. Nanotechnol. Monit. Manag. 2022, 18, 100738. [Google Scholar] [CrossRef]
  61. Lv, J.; Lv, X.; Ma, M.; Oh, D.-H.; Jiang, Z.; Fu, X. Chitin and chitin-based biomaterials: A review of advances in processing and food applications. Carbohydr. Polym. 2023, 299, 120142. [Google Scholar] [CrossRef]
  62. Atugoda, T.; Gunawardane, C.; Ahmad, M.; Vithanage, M. Mechanistic interaction of ciprofloxacin on zeolite modified seaweed (Sargassum crassifolium) derived biochar: Kinetics, isotherm and thermodynamics. Chemosphere 2021, 281, 130676. [Google Scholar] [CrossRef] [PubMed]
  63. Cataldo, S.; Chiodo, V.; Crea, F.; Maisano, S.; Milea, D.; Pettignano, A. Biochar from byproduct to high value added material—A new adsorbent for toxic metal ions removal from aqueous solutions. J. Mol. Liq. 2018, 271, 481–489. [Google Scholar] [CrossRef]
  64. Bambaeero, A.; Bazargan-Lari, R. Simultaneous removal of copper and zinc ions by low cost natural snail shell/hydroxyapatite/chitosan composite. Chin. J. Chem. Eng. 2021, 33, 221–230. [Google Scholar] [CrossRef]
  65. Vakili, M.; Deng, S.; Cagnetta, G.; Wang, W.; Meng, P.; Liu, D.; Yu, G. Regeneration of chitosan-based adsorbents used in heavy metal adsorption: A review. Sep. Purif. Technol. 2019, 224, 373–387. [Google Scholar] [CrossRef]
  66. Saheed, I.O.; Da, O.W.; Bukhari, F.; Suah, M. Chitosan modifications for adsorption of pollutants—A review. J. Hazard. Mater. 2020, 408, 124889. [Google Scholar] [CrossRef] [PubMed]
  67. Hopkins, D.; Hawboldt, K. Biochar for the removal of metals from solution: A review of lignocellulosic and novel marine feedstocks. J. Environ. Chem. Eng. 2020, 8, 103975. [Google Scholar] [CrossRef]
  68. Pal, P.; Pal, A.; Nakashima, K.; Yadav, B.K. Applications of chitosan in environmental remediation: A review. Chemosphere 2020, 266, 128934. [Google Scholar] [CrossRef] [PubMed]
  69. Ahmed, M.J.; Hameed, B.; Hummadi, E.H. Review on recent progress in chitosan/chitin-carbonaceous material composites for the adsorption of water pollutants. Carbohydr. Polym. 2020, 247, 116690. [Google Scholar] [CrossRef]
  70. Sirajudheen, P.; Chettithodi, N.; Vigneshwaran, S. Applications of chitin and chitosan based biomaterials for the adsorptive removal of textile dyes from water—A comprehensive review. Carbohydr. Polym. 2021, 273, 118604. [Google Scholar] [CrossRef]
  71. Upadhyay, U.; Sreedhar, I.; Singh, S.A.; Patel, C.M.; Anitha, K.L. Recent advances in heavy metal removal by chitosan based adsorbents. Carbohydr. Polym. 2021, 251, 117000. [Google Scholar] [CrossRef]
  72. Keshvardoostchokami, M.; Majidi, M.; Zamani, A.; Liu, B. A review on the use of chitosan and chitosan derivatives as the bio-adsorbents for the water treatment: Removal of nitrogen-containing pollutants. Carbohydr. Polym. 2021, 273, 118625. [Google Scholar] [CrossRef] [PubMed]
  73. Alsamman, M.T.; Sa, J. Recent advances on hydrogels based on chitosan and alginate for the adsorption of dyes and metal ions from water. Arab. J. Chem. 2021, 14, 103455. [Google Scholar] [CrossRef]
  74. Zhang, Y.; Zhao, M.; Cheng, Q.; Wang, C.; Li, H.; Han, X.; Fan, Z.; Su, G.; Pan, D.; Li, Z. Research progress of adsorption and removal of heavy metals by chitosan and its derivatives: A review. Chemosphere 2021, 279, 130927. [Google Scholar] [CrossRef] [PubMed]
  75. Sadiq, A.C.; Olasupo, A.; Ngah, W.S.W.; Rahim, N.Y.; Suah, F.B.M. A decade development in the application of chitosan-based materials for dye adsorption: A short review. Int. J. Biol. Macromol. 2021, 191, 1151–1163. [Google Scholar] [CrossRef] [PubMed]
  76. Fu, J.; Wei, Z.; Chieh, H.; Chan, W.; Ling, Y. Chemosphere Recent development of magnetic biochar crosslinked chitosan on heavy metal removal from wastewater—Modification, application and mechanism. Chemosphere 2022, 291, 133035. [Google Scholar] [CrossRef]
  77. Manohara, H.M.; Nayak, S.S.; Franklin, G.; Nataraj, S.K.; Mondal, D. Progress in marine derived renewable functional materials and biochar for sustainable water purification. Green Chem. 2021, 23, 8305–8331. [Google Scholar] [CrossRef]
  78. El-Monaem, E.M.A.; Eltaweil, A.S.; Elshishini, H.M.; Hosny, M.; Alsoaud, M.M.A.; Attia, N.F.; El-Subruiti, G.M.; Omer, A.M. Sustainable adsorptive removal of antibiotic residues by chitosan composites: An insight into current developments and future recommendations. Arab. J. Chem. 2022, 15, 103743. [Google Scholar] [CrossRef]
  79. Gao, N.; Du, W.; Zhang, M.; Ling, G.; Zhang, P. Chitosan-modified biochar: Preparation, modifications, mechanisms and applications. Int. J. Biol. Macromol. 2022, 209, 31–49. [Google Scholar] [CrossRef]
  80. Wang, J.; Zhuang, S. Chitosan-based materials: Preparation, modification and application. J. Clean. Prod. 2022, 355, 131825. [Google Scholar] [CrossRef]
  81. Mahari, W.A.W.; Waiho, K.; Azwar, E.; Fazhan, H.; Peng, W.; Ishak, S.D.; Tabatabaei, M.; Yek, P.N.Y.; Almomani, F.; Aghbashlo, M.; et al. A state-of-the-art review on producing engineered biochar from shellfish waste and its application in aquaculture wastewater treatment. Chemosphere 2022, 288, 132559. [Google Scholar] [CrossRef]
  82. Hossain, A.; Aditya, G. Biosorption of Cadmium from Aqueous Solution by Shell Dust of the Fresh Water Snail Melanoides tuberculata. Bioremediation J. 2015, 19, 80–91. [Google Scholar] [CrossRef]
  83. Yoshikawa, A.; Nakazawa, S.; Asakura, A. A Brief Description of Surface Structure and Composition of the Pseudo-Snail Shell Formed by a Sea Anemone Stylobates sp. Symbiotic with Hermit Crabs from the Deep-Sea Floor. Zoolog. Sci. 2019, 36, 284. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  84. Rygało-Galewska, A.; Zglińska, K.; Niemiec, T. Edible Snail Production in Europe. Animals 2022, 12, 2732. [Google Scholar] [CrossRef]
  85. Gbenebor, O.P.; Akpan, E.I.; Adeosun, S.O. Thermal, structural and acetylation behavior of snail and periwinkle shells chitin. Prog. Biomater. 2017, 6, 97–111. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  86. Alla, S.; Asadi, S. Investigation on fluidity, microstructure, mechanical and durability properties of snail shell-based graphene oxide cement composite material. Asian J. Civ. Eng. 2022, 362, 129767. [Google Scholar] [CrossRef]
  87. White, M.M.; Chejlava, M.; Fried, B.; Sherma, J. The concentration of calcium carbonate in shells of freshwater snails. Am. Malacol. Bull. 2007, 22, 139–142. [Google Scholar] [CrossRef]
  88. Jordaens, K.; De Wolf, H.; Vandecasteele, B.; Blust, R.; Backeljau, T. Associations between shell strength, shell morphology and heavy metals in the land snail Cepaea nemoralis (Gastropoda, Helicidae). Sci. Total Environ. 2006, 363, 285–293. [Google Scholar] [CrossRef]
  89. de Paula, S.M.; Silveira, M. Microstructural characterization of shell components in the mollusc Physa sp. Scanning 2005, 27, 120–125. [Google Scholar] [CrossRef]
  90. Balakrishnan, M.; Batra, V.S.; Hargreaves, J.S.J.; Pulford, I.D. Waste materials—Catalytic opportunities: An overview of the application of large scale waste materials as resources for catalytic applications. Green Chem. 2011, 13, 16–24. [Google Scholar] [CrossRef]
  91. Jatto, O.E.; Asia, I.O.; Medjor, W.E. Proximate and Mineral Composition of Different Species of Snail Shell. Pac. J. Sci. Technol. 2010, 11, 416–419. Available online: (accessed on 10 October 2022).
  92. Ouafi, R.; Ibrahim, A.; Mehdaoui, I.; Asri, M.; Taleb, M.; Rais, Z. Spectroscopic Analysis of Chemical Compounds Derived from the Calcination of Snail Shells Waste at Different Temperatures. Chem. Afr. 2021, 4, 923–933. [Google Scholar] [CrossRef]
  93. Leelatawonchai, P.; Laonapakul, T. Preparation and Characterization of Calcium Sources from Golden Apple Snail Shell for Naturally Based Biomaterials. Adv. Mater. Res. 2014, 931–932, 370–374. [Google Scholar] [CrossRef]
  94. Parveen, S.; Chakraborty, A.; Chanda, D.K.; Pramanik, S.; Barik, A.; Aditya, G. Microstructure Analysis and Chemical and Mechanical Characterization of the Shells of Three Freshwater Snails. ACS Omega 2020, 5, 25757–25771. [Google Scholar] [CrossRef] [PubMed]
  95. Chateigner, D.; Hedegaard, C.; Wenk, H.-R. Mollusc shell microstructures and crystallographic textures. J. Struct. Geol. 2000, 22, 1723–1735. [Google Scholar] [CrossRef]
  96. Oladoja, N.; Aliu, Y.; Ofomaja, A. Evaluation of snail shell as a coagulant aid in the alum precipitation of aniline blue from aqueous solution. Environ. Technol. 2011, 32, 639–652. [Google Scholar] [CrossRef] [PubMed]
  97. Hariani, P.L.; Riyanti, F.; Fatma, F.; Rachmat, A.; Herbanu, A. Removal of Pb(II) using Hydroxyapatite from Golden Snail Shell (Pomacea canaliculata L.) Modified with Silica. Molekul 2020, 15, 130–139. [Google Scholar] [CrossRef]
  98. Vu, X.H.; Nguyen, L.H.; Van, H.T.; Nguyen, D.V.; Nguyen, T.H.; Nguyen, Q.T.; Ha, L.T. Adsorption of Chromium(VI) onto Freshwater Snail Shell-Derived Biosorbent from Aqueous Solutions: Equilibrium, Kinetics, and Thermodynamics. J. Chem. 2019, 2019, 3038103. [Google Scholar] [CrossRef]
  99. Hoang, L.P.; Nguyen, T.M.P.; Van, H.T.; Hoang, T.K.D.; Vu, X.H.; Nguyen, T.V.; Ca, N.X. Cr(VI) Removal from Aqueous Solution Using a Magnetite Snail Shell. Water Air Soil Pollut. 2020, 231, 1–13. [Google Scholar] [CrossRef]
  100. Ibrahim, H.K.; Kareem, E.; Al-Da’amy, M.A. Effective Adsorption of Azure B Dye from Aqueous Solution Using Snail Shell Powder. J. Biochem. Tech. 2018, 9, 39–44. [Google Scholar]
  101. K.Abbas, R.; Al-Da’Amy, M.A. Study of removal Malachite Green dye from aqueous solution using snail shell powder as low-cost adsorbent. IOP Conf. Ser. Mater. Sci. Eng. 2020, 928, 052011. [Google Scholar] [CrossRef]
  102. Foroutan, R.; Oujifard, A.; Papari, F.; Esmaeili, H. Calcined Umbonium vestiarium snail shell as an efficient adsorbent for treatment of wastewater containing Co (II). 3 Biotech 2019, 9, 78. [Google Scholar] [CrossRef] [PubMed]
  103. Gumus, R.H.; Okpeku, I. Production of Activated Carbon and Characterization from Snail Shell Waste (Helix pomatia). Adv. Chem. Eng. Sci. 2015, 05, 51–61. [Google Scholar] [CrossRef]
  104. Udeozor, S.O. The Effectiveness of Snail Shell as Adsorbent for the Treatment of Waste Water from Beverage Industries Using H3 Po4 As Activating Agent. IOSR J. Eng. 2014, 4, 37–41. [Google Scholar] [CrossRef]
  105. Oladoja, N.A.; Aliu, Y.D. Snail shell as coagulant aid in the alum precipitation of malachite green from aqua system. J. Hazard. Mater. 2009, 164, 1496–1502. [Google Scholar] [CrossRef]
  106. An, J.; Nhung, N.T.H.; Ding, Y.; Chen, H.; He, C.; Wang, X.; Fujita, T. Chestnut Shell-Activated Carbon Mixed with Pyrolytic Snail Shells for Methylene Blue Adsorption. Materials 2022, 15, 8227. [Google Scholar] [CrossRef] [PubMed]
  107. Hossain, A.; Aditya, G. Cadmium biosorption potential of shell dust of the fresh water invasive snail Physa acuta. J. Environ. Chem. Eng. 2013, 1, 574–580. [Google Scholar] [CrossRef]
  108. Xu, Y.; Huang, G. Removal of Cr(VI) and Cu(II) from wastewater by an Argopecten irradians shell powder adsorbent. Int. J. Environ. Technol. Manag. 2019, 22, 56. [Google Scholar] [CrossRef]
  109. Ouafi, R.; Asri, M.; Omor, A.; Taleb, M.; Rais, Z. Snail Shells Adsorbent for Copper Removal from Aqueous Solutions and the Production of Valuable Compounds. J. Chem. 2021, 2021, 9537680. [Google Scholar] [CrossRef]
  110. Elwakeel, K.Z.; Elgarahy, A.M.; Mohammad, S.H. Use of beach bivalve shells located at Port Said coast (Egypt) as a green approach for methylene blue removal. J. Environ. Chem. Eng. 2017, 5, 578–587. [Google Scholar] [CrossRef]
  111. Madhu, S.; Devarajan, Y.; Balasubramanian, M.; Raj, M.P. Synthesis and characterization of nano chitosan obtained using different seafood waste. Mater. Lett. 2022, 329, 133195. [Google Scholar] [CrossRef]
  112. Tomczyk, A.; Sokołowska, Z.; Boguta, P. Biochar physicochemical properties: Pyrolysis temperature and feedstock kind effects. Rev. Environ. Sci. Bio/Technol. 2020, 19, 191–215. [Google Scholar] [CrossRef] [Green Version]
  113. Popoola, L.T. Characterization and adsorptive behaviour of snail shell-rice husk (SS-RH) calcined particles (CPs) towards cationic dye. Heliyon 2019, 5, e01153. [Google Scholar] [CrossRef] [PubMed]
  114. Esmaeili, H.; Tamjidi, S.; Abed, M. Removal of Cu(II), Co(II) and Pb(II) from synthetic and real wastewater using calcified Solamen Vaillanti snail shell. Desalin. Water Treat. 2020, 174, 24880. [Google Scholar] [CrossRef]
  115. Ouafi, R.; Rais, Z.; Taleb, M. Identification of natural wastes for application in water treatment. Desalin. Water Treat. 2020, 180, 185–192. [Google Scholar] [CrossRef]
  116. Jatto, E.; Asia, I.; Egharevba, F.; Ewansiha, C. Kinetics studies of the treatment of wastewater from brewery industry, using powdered snail shell. Water-Energy Nexus 2020, 3, 95–102. [Google Scholar] [CrossRef]
  117. Rane, A.V.; Kanny, K.; Abitha, V.K.; Thomas, S. Methods for Synthesis of Nanoparticles and Fabrication of Nanocomposites; Elsevier Ltd.: Amsterdam, The Netherlands, 2018. [Google Scholar]
  118. Budnyak, T.M.; Pylypchuk, I.V.; Tertykh, V.A.; Yanovska, E.S.; Kołodyńska, D. Synthesis and adsorption properties of chitosan-silica nanocomposite prepared by sol-gel method. Nanoscale Res. Lett. 2015, 10, 87. [Google Scholar] [CrossRef] [Green Version]
  119. Copello, G.J.; Mebert, A.M.; Raineri, M.; Pesenti, M.P.; Diaz, L.E. Removal of dyes from water using chitosan hydrogel/SiO2 and chitin hydrogel/SiO2 hybrid materials obtained by the sol–gel method. J. Hazard. Mater. 2011, 186, 932–939. [Google Scholar] [CrossRef]
  120. Oladoja, N.; Raji, I.; Olaseni, S.; Onimisi, T. In situ hybridization of waste dyes into growing particles of calcium derivatives synthesized from a Gastropod shell (Achatina Achatina). Chem. Eng. J. 2011, 171, 941–950. [Google Scholar] [CrossRef]
  121. Al-Shemary, R.Q.; Ibrahim, H.K.; Al-Da’Amy, M.A.; Kareem, E.T.; Albo Hay Allah, M.A. Study the Azure A dye adsorption on the surface of the Snail shell modification. IOP Conf. Ser. Mater. Sci. Eng. 2020, 928, 052021. [Google Scholar] [CrossRef]
  122. Al-Da, M.A.; Kareem, E.; AAL-Da, M.; QAL-Shemary, R.; Talib Kareem, E. Study on the Use of Snail Shell as Adsorbent for the Removal of Azure A Dye from Aqueous solution. Artic. J. Int. Pharm. Res. 2018, 45. Available online: (accessed on 12 November 2022).
  123. Othman, F.; Sadeghian, M.S.; Ebrahimi, F.; Heydari, M. A Study on Sedimentation in Sefidroud Dam by Using Depth Evaluation and Comparing the Results with USBR and FAO Methods. Int. Proc. Chem. Biol. Environ. Eng. 2013, 51, 6. [Google Scholar] [CrossRef]
  124. Paul, P.; Parbat, S.; Aditya, G. Phosphate ion removal from aqueous solution using snail shell dust: Biosorption potential of waste shells of edible snails. RSC Adv. 2022, 12, 30011–30023. [Google Scholar] [CrossRef] [PubMed]
  125. Zhao, B.; Zhang, J.-E.; Yan, W.; Kang, X.; Cheng, C.; Ouyang, Y. Removal of cadmium from aqueous solution using waste shells of golden apple snail. Desalin. Water Treat. 2016, 57, 23987–24003. [Google Scholar] [CrossRef]
  126. Akinyeye, O.J. Effect of Chitosan Powder Prepared from Snail Shells to Remove Lead (II) Ion and Nickel (II) Ion from Aqueous Solution and Its Adsorption Isotherm Model. Am. J. Appl. Chem. 2016, 4, 146. [Google Scholar] [CrossRef] [Green Version]
  127. Al-Ogaili, A.H.; Al-Da’Amy, M.A. Equilibrium and Thermodynamic studies of Adsorption of Remazol Brilliant Blue dye on snail shell powder. IOP Conf. Ser. Mater. Sci. Eng. 2020, 871. [Google Scholar] [CrossRef]
  128. Al Qarooni, I.; Al-Saeedi, J.Y.; Akbar, M.M.; Hadi Al-Qarooni, I.; Author, C. Removal of Pb (II) and Ni (II) Ions from aqueous solution by Sea Snail Shells. J. Biodivers. Environ. Sci. 2019, 17, 17–23. Available online: (accessed on 15 November 2022).
  129. Ouahabi, I.E.; Slimani, R.; Benkaddour, S.; Hiyane, H.; Rhallabi, N.; Cagnon, B.; El Haddad, M.; El Antri, S.; Lazar, S. Adsorption of textile dye from aqueous solution onto a low cost conch shells. J. Mater. Environ. 2018, 9, 1987–1998. [Google Scholar]
Figure 1. Popular marine materials in recent years in the application of adsorbents for wastewater treatment.
Figure 1. Popular marine materials in recent years in the application of adsorbents for wastewater treatment.
Materials 16 01095 g001
Figure 2. General overview of snail shell materials for wastewater treatment.
Figure 2. General overview of snail shell materials for wastewater treatment.
Materials 16 01095 g002
Table 1. Summary of review articles on wastewater treatment related to sea material in recent years.
Table 1. Summary of review articles on wastewater treatment related to sea material in recent years.
No.Type of MaterialYearGeneral ContentPollution AdsorptionRef.
1Chitosan-based adsorbents2019Summarize heavy metal ion desorption and potential regeneration of chitosan-based adsorbents using different desorption agentsHeavy metal[65]
2Chitosan Modifications2020The trend in chitosan modification and adsorption capacity of cross-linked chitosan-based materialsMetal ion, dye, and pharmaceuticals[66]
3Sea material shells: oyster, snail, and shrimp shell2020A brief description and literature review of the heavy metal ion adsorption process’s equilibrium, kinetic, and thermodynamic behaviorsHeavy metals[47]
4Marine-shell2020Studying the mechanisms of heavy metal absorption with different pyrolysis conditions of biochar materialsHeavy metals[67]
5Chitosan2020Different chitosan modifications and their applications in water and soil pollutant removalHeavy metals, dyes, antibiotics, pesticides, and biological pollutants[68]
6Chitosan/chitin-carbonaceous material composites2020A review of the preparation of chitosan/chitin-carbonaceous material composites, adsorbent regeneration, and reusabilityHeavy metals, dyes, and other contaminants[69]
7Chitin and chitosan-based biomaterials2021Detailed analysis of chitin and chitosan adsorption property modificationsTextile dyes[70]
8Chitosan-based adsorbents2021Detail on chitosan modification methods and the influence of co-existing ions on the synthesis processes, adsorbent efficiency, and regeneration methodsHeavy metal[71]
9Chitosan and chitosan bio-adsorbents2021The effects of chitosan and its derivatives on preparation strategies, adsorbent structure modification, and adsorbent variables using batch and fixed column studiesNitrogen-containing pollutants[72]
10Hydrogels based on chitosan and alginate2021The use of chitosan and alginate in biobased hydrogel adsorbents and potential combinations with other ingredientsDyes and metal ions[73]
11chitosan and its derivatives2021Preparation of chitosan and its derivatives and their application in wastewater treatmentHeavy metals[74]
12chitosan-based materials2021Overview of chitosan and its modification materials for dye adsorption from 2009 to 2020Dye[75]
13Chitosan-modified magnetic biochar2021Analyses of various modified biochars, mechanisms, dynamics, and factors influencing the adsorption processHeavy metals[76]
14Chitin/chitosan, seaweeds, and seaweed-based polysaccharides2021Analyzing various types of marine-derived materials in water purificationVarious contaminants[77]
15Chitosan composites2022A comprehensive overview of antibiotic removal, adsorption mechanisms, and influencing factorsAntibiotic residues[78]
16Chitosan-modified biochar2022Types, characterization, adsorption models, mechanisms, and applications of chitosan-biochar composites in wastewater treatmentDrug residues, dyes, phosphates, radionuclides, and perfluorochemicals,...[79]
17Chitosan2022Recent advances in the modification of chitosan-based materials by physical, chemical, and biological methods in many industriesVarious contaminants[80]
18Shellfish waste2022The biochar from shellfish waste with higher adsorption capacities compared to lignocellulose biochar effectively removes emerging contaminants from aquaculture wastewaterAntibiotics, heavy metals, and excessive nutrients[81]
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Nhung, N.T.H.; Long, V.D.; Fujita, T. A Critical Review of Snail Shell Material Modification for Applications in Wastewater Treatment. Materials 2023, 16, 1095.

AMA Style

Nhung NTH, Long VD, Fujita T. A Critical Review of Snail Shell Material Modification for Applications in Wastewater Treatment. Materials. 2023; 16(3):1095.

Chicago/Turabian Style

Nhung, Nguyen Thi Hong, Vo Dinh Long, and Toyohisa Fujita. 2023. "A Critical Review of Snail Shell Material Modification for Applications in Wastewater Treatment" Materials 16, no. 3: 1095.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
