Article

Wide Concentration Range of Tb3+ Doping Influence on Scintillation Properties of (Ce, Tb, Gd)3Ga2Al3O12 Crystals Grown by the Optical Floating Zone Method

1
State Key Laboratory of High Performance Ceramics and Superfine Microstructure, Shanghai Institute of Ceramics, Chinese Academy of Sciences, Shanghai 200050, China
2
College of Physical Science and Technology, Central China Normal University, Wuhan 430079, China
3
Center of Materials Science and Optoelectronics Engineering, University of Chinese Academy of Sciences, Beijing 100049, China
4
School of Materials Science and Engineering, Zhengzhou University, Zhengzhou 450001, China
5
College of Material Science and Engineering, Nanjing Tech University, Nanjing 211816, China
6
Laboratory of Nuclear Technology, Institute of High Technologies and Advanced Materials, Far Eastern Federal University, 690091 Vladivostok, Russia
*
Authors to whom correspondence should be addressed.
Materials 2022, 15(6), 2044; https://doi.org/10.3390/ma15062044
Submission received: 30 December 2021 / Revised: 18 February 2022 / Accepted: 4 March 2022 / Published: 10 March 2022

Abstract

:
To obtain a deeper understand of the energy transfer mechanism between Ce3+ and Tb3+ ions in the aluminum garnet hosts, (Ce, Tb, Gd)3Ga2Al3O12 (GGAG:Ce, Tb) single crystals grown by the optical floating zone (OFZ) method were investigated systematically in a wide range of Tb3+ doping concentration (1–66 at.%). Among those, crystal with 7 at.% Tb reached a single garnet phase while the crystals with other Tb3+ concentrations are mixed phases of garnet and perovskite. Obvious Ce and Ga loss can be observed by an energy dispersive X-ray spectroscope (EDS) technology. The absorption bands belonging to both Ce3+ and Tb3+ ions can be observed in all crystals. Photoluminescence (PL) spectra show the presence of an efficient energy transfer from the Tb3+ to Ce3+ and the gradually quenching effect with increasing of Tb3+ concentration. GGAG: 1% Ce3+, 7% Tb3+ crystal was found to possess the highest PL intensity under excitation of 450 nm. The maximum light yield (LY) reaches 18,941 pho/MeV. The improved luminescent and scintillation characteristics indicate that the cation engineering of Tb3+ can optimize the photoconversion performance of GGAG:Ce.

1. Introduction

The scintillator crystals with garnet structure have been proved to possess good chemical stability, high lattice isomorphic capacity and effective conversion of high energy ionizing radiation to visible luminescence when doped with luminescent rare earth ions in the host [1,2]. Those various garnet structure compounds, when coupling with photodetectors, are widely used for applications in industry inspection, nuclear medicine, and high energy physics [3,4]. Ce3+ doped Gd3(Ga, Al)5O12 (GGAG) is considered a promising new generation of scintillators in view of its allowed electric dipole 5d–4f transition, high theoretical light yield (LY), i.e., 73,500 pho/MeV [5], high density (6.63 g/cm3) and effective atomic number (Zeff = 54), as well as hard radiation hardness performance [6].
Till now, the successful growth of GGAG:Ce crystals by melt method have been widely reported [7,8,9,10]. However, instability of the molten zone due to the incongruent melting trend in low Ga/Al ratio GGAG compositions remarkably affect the optical quality and performance by introducing cracks and composition un-uniformity [10,11,12]. Possible solutions to improve the molten zone stability include the introduction of a composition engineering in the host or modification of growth technology, such as using the traveling solvent floating zone (TSFZ) method. In the last decade, composition engineering strategy has demonstrated its positive effects in scintillation performance improvement and the crystal structure stabilization through changing the crystal field strength and the energy level position of the luminescence activators in the bandgap [8,13,14,15,16]. To stabilize the garnet crystal lattice, the cations at the dodecahedral can be replaced by the smaller Ln3+ ions (Ln = Y, Lu, Tb) [8,14,17], the octahedral and tetrahedral lattice sites can be substituted by the larger M3+ (M = Sc, Ga) [17,18,19]. Furthermore, doping rare-earth ions which is smaller than Gd3+ at the dodecahedral site was proved to be able to facilitate the garnet phase formation (Ln3Al5O12, LnAG) [20,21,22]. Among them, Tb3+ is regarded as a suitable co-activator to achieve the energy transfer since its absorption levels located between absorption of the host lattice and Ce3+ emission, and its 5d4–7f6 transition overlaps the 4f–5d1 absorption transition energy of Ce3+ ion [23,24].
Ogiegło, J.M. et al. [24] reported that efficient energy transfer from Tb3+ to Ce3+ where fast diffusion over the Tb3+ sublattice is followed by efficient emission from Ce3+ in the co-doped system LuAG:Ce, Tb. It was also found that substitution of the smaller Lu3+ ion by the larger Tb3+ ion would shift the lowest 5d state of Ce3+ to lower energies, and therefore the red shift of the Ce emission could be observed, even below the 5d4 state of Tb3+. Subsequently, Xin Teng et al. [25] investigated the Tb3+ concentration effect (between 0.07 at.% and 0.15 at.%) in Ce:(Gd, Tb)AG phosphors and successively shorter lifetime was found with the Tb3+ concentration increasing. Recently, Ce3+, Tb3+ co- doped Gd3(Ga, Al)5O12 garnet transparent ceramics, single crystalline films (SCF) and single crystal (SC) have been extensively studied [26,27,28,29]. Under α-particles excitation, the Tb1.5Gd1.5 Al3Ga2O12:Ce SCF grown from the PbO/BaO-based flux, LY is comparable with that of high-quality Gd3Al2.5Ga2.5O12:Ce single crystal (SC) scintillator, but its scintillation decay time is slow, which may be related to the contamination by lead ions from the PbO/BaO-based flux [30]. The growth, luminescent properties and energy transfer processes in Ce3+ doped Tb3−xGdxAl5-yGayO12 (x = 0–1.5 and y = 2–2.5) SCs grown by μ-PD method [26] were also reported, the inhomogeneity of the dopant distribution in the SCs negatively influence their LY and decay time characteristics [8,14].
Hence, it is necessary to investigate Tb3+ concentration effect in GGAG:Ce crystals by OFZ method, which can allow us to obtain the crystals in an efficient way for the new material exploration. In this work, 1 at.% Ce3+ and x Tb3+ co-doped Gd3Ga2Al3O12 (GGAG:Ce, xTb) garnet crystals were grown by OFZ method, where x = 1 at.%, 7 at.%, 15 at.%, 33 at.%, 50 at.% and 66 at.%, respectively. The decomposition of Ga2O3 (Ga2O3→Ga2O + O2) and oxidation of Ce3+ and Tb3+ at high temperature were inhibited by N2 + 30% CO2 (CO2→O2 + CO) atmosphere. The chemical composition, luminescence and scintillation properties were also characterized.

2. Experimental Procedures

2.1. Crystal Growth

High pure CeO2, Gd2O3, Ga2O3, Al2O3 and Tb4O7 commercial powders (>4N) were used as starting material. They were mixed according to 6 kind of chemical stoichiometric of (Ce0.01TbxGd0.99-x)3Ga2Al3O12 (abbreviated as GGAG:Ce, xTb) (x = 1%, 7%, 15%, 33%, 50% and 66%, respectively), i.e., the seven compounds can be represented by Ce0.03Tb0.03Gd2.94Ga2Al3O12, Ce0.03Tb0.21Gd2.76Ga2Al3O12, Ce0.03Tb0.45Gd2.52Ga2Al3O12, Ce0.03Tb0.99Gd1.98Ga2Al3O12, Ce0.03Tb1.485Gd1.485Ga2Al3O12, Ce0.03Tb1.98Gd0.99Ga2Al3O12, respectively. Then they were sintered at 1350 °C for 8 h in air. After that, the powders were ball milled again and then rubber-pressed under a hydrostatic pressure of 70 MPa to form green ceramic rods which were sintered in success at 1600 °C for 8 h in tube furnace with fluent O2 atmosphere. The crystal growth apparatus used is an optical floating zone furnace (FZ-T1000H CSC Cop., Tokyo, Japan), in which halogen lamps of 4 × 1 kW were set as heating source focused by four polished elliptical mirrors. The rotate rate of a ceramic rod and seed crystal was tuned in the 15–20 rpm range to realize full stirring of the molten zone. Subsequently, the molten zone moved continuously at rate of 3–5 mm/h and N2 atmosphere (containing 30% CO2) with auxiliary pressure of 0.3 MPa were slowly introduced into the quartz tube and maintained during crystal growth. The growth rate was kept at 3 mm/h during the whole process. The obtained crystals were cut into wafers perpendicularly to the growth direction for measurement of scintillation properties. Crystals were double face polished to 2 mm thickness for the evaluation of their optical absorptance.

2.2. Characterization

All measurements were carried out at room temperature. The crystals were crushed and ground into powders for powder X-ray diffraction (PXRD) measurement in the 2θ range of 10–90° using the Rigaku Ultima IV diffractometer (Cu-Kα, 40 kV, 40 mA, Rigaku Ultima IV, Tokyo, Japan); scanning speed was 5 °/min, the baseline of the obtained data was subtracted by Jade6 software. The X-ray photoelectron spectroscopy (XPS) measurement was conducted in a XPS spectrometer (ESCALAB 250, ThermoFisher, London, UK) using the GGAG:Ce, 7% Tb and GGAG:Ce, 55% Tb crystals, high pure (>4N) commercial Tb4O7 powders were used as reference sample. The SEM-EDS mapping images were characterized by a high-resolution SEM (S-3400 N, Hitachi, Tokyo, Japan) equipped with an energy dispersive X-ray spectroscope (EDS).
Absorption spectra in UV-Vis-NIR regions were recorded by the Varian Cary 5000 spectrometer. The photoluminescence (PL) and excitation (PLE) spectra were characterized on a Horiba FluoroMax-4 (Edinburgh, UK) fluorescence spectrometer. The PL quantum yield (QY) were measured by MCPD-7000 multichannel spectrometer (Otsuka Electronics Company, Osaka, Japan) under the excitation of 450 nm wavelength light.
Stead-state radioluminescence spectra of the samples were measured by the self-assembled X-ray fluorescence spectrometer (X-ray tube: 70 kV, 1.5 mA). LY values of the seven compound crystals were obtained from the pulse height spectra measured using 137Cs as the radiation source of γ-ray with a Hamamatsu R878 photomultiplier (1 kV) (Hamamatsu Photonics K. K, Hamamatsu, Japan).

3. Results and Discussions

The crystals were grown under the same crystal growth parameters to finally obtain the crystal rods with a length of 40–50 mm and diameter of about 6 mm. The color of crystals changed with the Tb3+ concentrations, as shown in Figure 1. The crystal with lower Tb3+ concentration is a pale-yellow color, whereas the samples with 66% Tb3+ concentration are yellow-brown. All crystals rods have a regular shape, indicating a stable crystal growth process.
Powder X-ray diffraction was performed to identify phases for the pre-sintered raw material powders and the as grown crystals. In Figure 2, the XRD analysis reveals that the ceramic powders, after sintering at 1350 °C, contain detectable secondary perovskite phases (see Figure 2a), while the patterns from crystal powders show that there is single garnet phase in GGAG:Ce, 7 at.% crystal, but in the rest Tb3+ doped components (x = 1%, 15%, 33%, 50% and 66%), detectable perovskite (GdAlO3, GAP) phase could be observed, see Figure 2b). It might be related to the Tb3+ doping saturation effect owing to lattice mismatch, as well as the decreasing of crystal field symmetry after more replacement of Tb3+ to Gd3+ ions in a dodecahedral position. The stability of GGAG lattice structure can be achieved by partially substituting Gd3+ with smaller rare earth ions, while a radius of Ce3+ ions is larger [31]. While with the increasing of Tb3+ concentration, as shown in Figure 2c, the prominent peak slightly shifts to a higher angle, which indicates the shrink of unit cells according to the Bragg equation (2dsinθ = nλ), and the lattice parameters measured by refinement decrease from 12.2286 Å to 12.1744 Å for the substitution of Gd3+ (1.05 Å) by the smaller Tb3+ (1.04 Å) ions in garnet structure [32]. We also analyzed the percentage of second GAP phase of each component, and the results were summarized in Figure 2d. It can be seen that most of the GGAG:Ce, Tb crystals contains second perovskite phase except 7% Tb3+ case. It was proposed that GdAG will decompose at 1500 °C to GAP and Al2O3 [32,33], and at least 50% Tb3+ substitution to Gd3+ is needed to stabilize the GdAG structure, while Ga3+ substitution to Al3+ is helpful to expend and stabilize the lattice. However, in this study 7% Tb3+ can obtain single garnet phase, and the Laue photograph demonstrated the formation of integral crystal (Figure 2e). Besides, it seems that there is a random variation in the dependence of the second GAP phase percentage and Tb concentration in Figure 2d. Figure 2e presented the Laue photograph of doped GGAG:Ce, 7% Tb crystal. The Laue diffraction spots (white dot) were clear with good symmetry, which match well with that of the standard pattern of Gd3Ga2Al3O12 (GGAG) (100), indicating a high crystallinity of GGAG:Ce, 7% Tb crystal.
The results in previous published work [33,34] show that GdAG will decompose at 1500 °C to GAP and Al2O3, and at least 50% Tb substitution to Gd is needed to stabilize the GdAG structure, while Ga3+ substitution to Al3+ is helpful to expend and stabilize the lattice. However, in our case, 7% Tb3+ can obtain a single garnet phase. We suspect the formation of a second phase might be due to (1) the composition deviation origin from the evaporation of Ga, Ce during high temperature crystal growth process; (2) The formation of Tb4+ origin from the N2 atmosphere (containing 30% CO2), oxygen produced by CO2 decomposition at high temperature may promote the oxidation of Tb3+ (1.04 Å, 8 coordination number) to Tb4+ (0.88 Å, 8 coordination number) [35], resulting in a sharp reduction of lattice constant and further increasing the degree of lattice distortion. Serious lattice distortion occurs when the Tb3+ doping content is too high or too low, and that is probably the formation of a second perovskite phase; this will be further investigated by the following XPS and EDS measurement.
Figure 3 shows the XPS spectra which explore the valence state of Tb3+ in the as grown GGAG:Ce, 7% Tb and GGAG:Ce, 50% Tb crystals using commercial Tb4O7 powder as reference sample. Due to the detect limitation of the instrument, the valence signal of Ce3+ cannot be well separated since it’s doping concentration (1 at.%) is low. The fitting results of valence state energy levels of corresponding orbitals are summarized in Table 1. According to the study of Nagpure, I.M. et al. [36], we carried out the peak fitting of 3d3/2 and 3d5/2 orbitals of Tb elements. As shown in Figure 3, the spectrum line of 3d5/2 and 3d3/2 of Tb3+ can be divided into two sub-bands, respectively, indicating that Tb3+ and Tb4+ co-exist in the compounds. In addition, the valence ratio of Tb elements is listed in Table 1, i.e., Tb3+ ratio (defined as Tb3+/(Tb3++Tb4+)). The ratio of Tb3+ in GGAG:Ce, 50% Tb crystal is similar to that of in Tb4O7 commercial powders, which is much higher than that in a GGAG:Ce, 7% Tb single crystal.
The SEM-EDS mapping images for Ce, Tb element of the GGAG:Ce, 7% Tb and GGAG:Ce, 55% Tb crystals were presented in Figure 4a,c and Figure 4b,d, respectively. All of the 6 compounds were systematically investigated, and homogeneous element distribution can be found. Moreover, the deviation to nominal stochiometric concentration of Ce, Tb, Gd, Ga, Al elements were listed in Table 2, and an obvious loss of Ce and Ga element was revealed, which might be due to an evaporation effect during the high temperature crystal growth process. The origin of second phases observed in Figure 2 can thus be mainly ascribed to the Ce and Ga evaporation introduced composition deviation, as well as the formation and existence of Tb4+ valence state in those crystals.
The absorption spectra in the 200–800 nm range of the GGAG:Ce, xTb crystals are shown in Figure 5. All spectra show characteristic broad absorption in 425–475 nm range, which are ascribed to the allowed 4f–5d1 transitions of the Ce3+ ions in the garnet host, and the wide flat absorption phenomenon might be due to the energy level overlapping effect and/or absorption saturation [10]. It is worth noting that the 4f→5d2 (E2) transition of Ce3+ ions located approximately at 325–350 nm distorted by last Tb3+ absorption band when Tb3+ (≥7%) concentration, and 4f–5d2 absorption bands of Ce3+ ions are only observed in GGAG:Ce,1% Tb. The high saturation absorption in UV below 360 nm is unlikely to be due to the Ce4+ charge transfer band, since we used a N2 + CO2 gas mixture as the crystal growth atmosphere. Hence, the disappeared 4f–5d2 absorption bands of Ce3+ ions may result from the characteristic strong absorption of Tb3+ ions at the higher energy region that overlaps the nearby absorption peaks of Ce3+ and Gd3+ ions.
To further investigate the energy transfer mechanism and luminescence of Ce3+, Tb3+ and Gd3+ in GGAG garnet host, the photoluminescence (PL) and excitation (PLE) spectra of as grown GGAG:Ce, xTb crystal were measured at room temperature and shown in Figure 6. The excitation spectrum of Ce3+ emission at 530 nm is composed of three sets of broad bands, which belong to the characteristic excitation transition of Ce3+ and Tb3+ ions, respectively. The band peaking at around 340 nm and 450 nm were commonly ascribed to 4f–5d2 and 4f–5d1 transition of the Ce3+, respectively [37,38]. The sharp lines observed at 302–313 nm are related to the characterized 8S7/2–6Ij, 6Pj excitation transition of Gd3+ ion [39]. In addition, it can be seen that the weak excitation bands centered at 319 nm and 372 nm related with due to (4f–5d1) Tb3+ and (7f6–5d3) Tb3+ transitions [26,40], respectively. In the nominal concentration range of 1–66 at.% Tb3+, GGAG:Ce, 7% Tb crystal was found to have the strongest excitation peak centered at 275 nm which might be corresponding to the Tb3+ 4f-5d2 transition. However, it overlaps partially with the f-f transition of Gd3+, i.e., 8S–6I. The presence of Tb3+ and Gd3+ related excitation bands monitored at Ce3+ emission indicates an occurrence of Gd3+/Tb3+→Ce3+ non-radiative energy transfer in the GGAG garnet host [28,29,41].
An obvious strong emission located at 490 nm, 543 nm, 591 nm, and 625 nm corresponding to the 5d4–7f6, 5d4–7f5, 5d4–7f4, and 5d4–7f3 transitions of Tb3+ can be observed [25] in Figure 6b, when excited by the characteristic Gd3+ and Tb3+ related excitation wavelength (275 nm). Besides, a broad emission in the 490–700 nm range can be observed, which is related to the broad 5d1–4f transition of Ce3+. It is reasonable to assume that the presence of effective energy transfer from the host lattice to the Ce3+ activator ion. In the case of GGAG:Ce,1% Tb crystals, an emission band located at 383 nm can be observed which could be attributed to GAP: Ce, a second phase in GGAG:Ce, Tb crystal related emission [31]. In Figure 6c, the PL spectra were recorded for Tb3+ excitation at 320 nm. It is interesting to note that the characteristic emission of Tb3+ is broadened and intensity decreased obviously by the board emission band of Ce3+, since its 5d4–7f6 emission transition energy is basically resonant with the 4f–5d1 absorption transition of Ce3+ ion [23,24].
In Figure 6d, the photoluminescence spectra are shown under excited at 450 nm for GGAG:Ce, xTb crystals. The emission bands centered at 540 nm belongs to the 5d1–4f transition of Ce3+ in the garnet phase. In addition, it was found that the PL intensity under different excitation wavelength significantly decreased with increasing of Tb3+ concentration. The highest integral luminescence intensity in the 450–700 nm range is observed in lower Tb3+ concentration (see Figure 7), in accordance with the Tb3+ and Gd3+ cations in GAG can sensitizer Ce3+ to enhance the Ce3+ luminescence intensity. The Tb3+ substitution caused significant changes in the position of the Ce3+ emission bands related to garnet phase, as seen from the normalized photoluminescence (PL) (under the 450 nm excitation) spectra (in Figure 6e), the maximum of emission peak at around 540 nm shifts to lower energy (blue wavelength shift) with the increasing of Tb3+ content. Observed blue shift is due to weakening of the crystal field of the GGAG:Ce, Tb crystal. The 5d1 energy level of Ce3+ moved upward while the 5d2 level moved in the opposite direction, with replacing Tb3+ for Gd3+ (decreasing ionic radius) in the octahedral sites in the garnet structure [42,43].
It has become the norm to list measurements of QY when discussing luminescent materials [44]. The measurement of PL external QY is generally divided into three steps: Firstly, the 450 nm excitation light source was directly irradiated into the integrating sphere without any subjects to measure the total excitation spectrum; secondly, the crystal was placed in the integrating sphere, and the excitation light source irradiated while avoiding the sample to obtain the emission spectrum after secondary absorption; finally, the excitation light source was directly irradiated on the sample to measure the sum of the emission light of the sample origin from both primary and secondary absorption; i.e., the total emission spectrum of the sample. Therefore, the specific calculation formula of external quantum light yield is according to:
η = λ 1 λ 2 P e m ( λ ) λ d λ λ 1 λ 2 P a b s ( λ ) λ d λ = E C ( A D ) ( A B ) = E C B D
where A is integral area of total excitation spectrum, B and D is integral area of the excitation spectrum after secondary absorption in second and third step, respectively; C and E is integral area of the emission spectrum in second and third step, respectively.
The calculated PL external QY of the as-grown GGAG:Ce, xTb (x = 0–66 at.%) crystals were shown in Figure 8. The GGAG:Ce, xTb crystals performed optimum QY (430–700 nm) when x = 15%, and then QY value decreased from 48.6% to 33% with the increase of Tb3+ concentration, which might be ascribed to the concentration quench effect.
The scintillation properties of GGAG:Ce3+, xTb3+ (x = 1–66 at.%) crystals were also investigated. The XEL spectra of the crystals were presented in Figure 9. Besides the broad band located at 500–700 nm range which belongs to the internal 5d1–4f (2F5/2, 2F7/2) emission transition of Ce3+, it’s interesting to note that the sharp lines peaking at around 490 nm, 543 nm and 591 nm, they were considered to be related to the 5d4–7f6, 5d4–7f5, 5d4–7f4, and 5d4–7f3 transitions of Tb3+, respectively. However, the emission peak of Tb3+ decreased apparently in the heavily Tb3+doped crystals, which are consistent with the PL intensity changing trend shown in Figure 7.
The different intensity dependence on Tb3+ concentrations between PL and RL spectra may be due to different luminescence mechanisms, as well as different defect concentrations between crystals. For scintillation luminescence under high energy X-rays, there includes the process of the energy transfer and charge trapping in the transfer stage, which is complex, radiative electron-hole recombination at the luminescent center emission center Ce3+ (in the garnet phase) is the main contribution. The re-trap of charge carriers at shallow traps (i.e., energy levels introduced by material point defects, flaws, the second phase, surfaces and interfaces) may result in a considerable loss or delay [15]. GAP:Ce related emission located at high energy region can be observed in doped GGAG:Ce, 1% Tb crystal under 275 nm and 312 nm excitation, respectively, as shown in Figure 4c and Figure 6b, which may be considered as another origin to further enhance the luminescence intensity [45]. However, for photoluminescence, only the 5d–4f level transition of Ce3+ is monitored under the 450 nm excitation.
Pulse height spectra of GGAG:Ce3+, xTb3+ (x = 1–66%) crystals excited by 137Cs were obtained as shown in Figure 10. All the crystals were placed in darkness for 12 h before measurement to reduce phosphorescence. The relative scintillation LY value of the as grown crystals was calculated by comparing with reference GGAG:Ce crystal (absolute LY 58,000 pho/MeV, size: 27 × 15 × 2.37 mm3) with corresponding pulse height peak at 481.6, FWHM 33.60, E.R 6.98% and presented in Figure 11.
3–4 samples of each component were selected for a light yield test to ensure the reproducibility, as shown in Figures S1 and S2 and Table S1. The light yield value of all samples fluctuated in a fine range, indicating the uniform element distribution in the crystals. Besides, it is noted that the decrease of LY values with Tb3+ concentration is in a similar trend with that of QY value (see Figure 8). The light yield value in high Tb3+ concentrations decreased remarkably which might be due to the concentration quench effect. The GGAG:Ce, xTb crystals perform optimum LY when x = 7%, reaching to 18,841 pho/MeV, whereas in XEL the peak intensity is observed when x = 15%. This difference indicates that the GGAG:Ce, 7% Tb may probably have a lower defect concentration considering the 0.75 μs time gate [46] were used in scintillation LY measurement while XEL spectra give overall stead state radioluminescence intensity.

4. Conclusions

(Ce0.01TbxGd1-x)3Ga2Al3O12 (GGAG:Ce3+, xTb3+) (x = 0, 1%, 7%, 15%, 33%, 50% and 66%, respectively) scintillator crystals with uniform diameter were successfully grown by the OFZ method, which were rarely reported before. The XRD patterns show that integral cubic garnet structure can be obtained in GGAG: 1% Ce3+, 7% Tb3+ crystal. All crystals show characteristic broad absorption in 425–475 nm range, which originated from the allowed 4f–5d1 transition of Ce3+. The presence of Tb3+ excitation bands at lower Tb3+ concentration and the disappearance of Tb3+ emission lines at higher Tb3+ concentration under monitoring the Ce3+ emission demonstrate the occurrence of Tb3+→Ce3+ energy transfer. Obvious strong emission band located at 490 nm, 543 nm, 591 nm, and 625 nm corresponding to the 5d4–7f6, 5d4–7f5, 5d4–7f4, and 5d4–7f3 transitions of Tb3+, when excited by the characteristic Gd3+ and Tb3+ related absorption wavelength (320 nm and 275 nm, respectively). In the nominal Tb3+ concentration range of 1–66 at.%, the optimal content of Tb3+ is 7 at.%, which was found to have the most intense PL intensity and the comparatively highest LY value (18,941 pho/MeV). Therefore, with high emission intensity and good crystallinity, as well as high scintillation efficiency, the GGAG:Ce, Tb crystals are expected to be potential candidate for the application of high energy detection or white LED lighting.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/ma15062044/s1, Figure S1 Pulse height spectra of the as grown GGAG:Ce, xTb (x = 1, 7, 15 at.%) crystals. The shaping time is 0.75 μs, under gamma ray (137Cs 662 keV source) (1, 2 and 3 represent three crystals of the same component at different locations). Figure S2 Pulse height spectra of the as grown GGAG:Ce, xTb (x = 33, 50, 66 at.%) crystals. The shaping time is 0.75 μs, under gamma ray (137Cs 662 keV source) (1, 2 and 3 represent three crystals of the same component at different locations). Table S1 Calculated Relative Light Yield with respect to the standard GGAG:Ce crystal (channel 481.6) of the as grown GGAG:Ce, xTb (x = 1, 7, 15, 33, 50, 66 at.%) crystals under gamma ray excitation (137Cs 662 keV source).

Author Contributions

Conceptualization, Y.S.; Methodology, T.W. and J.Y.; Software, H.W., J.F., H.H. and C.W.; Validation, T.W., L.W., Q.Z., Y.X. and Z.Z.; Formal analysis, T.W., L.W., Y.S., X.H., Q.Z. and Y.X.; Data curation, L.W., Q.Z., Y.X., Z.Z. and Q.L. (Qian Liu); Writing—Original draft preparation, T.W.; Writing—review and editing, T.W., Y.S., X.H., Z.Z., Q.L. (Qian Liu), Q.L. (Qin Li), J.Y. and O.S.; Visualization, O.S.; Supervision, Y.S. and X.H.; Project administration, J.N. and Q.L. (Qin Li); Funding acquisition, Y.S., X.H. and E.P. All authors have read and agreed to the published version of the manuscript.

Funding

The authors are thankful for the financial support by the National Natural Science Foundation of China (No. 62175249); Strategic Priority Research Program of the Chinese Academy of Sciences (XDA22010301); Research Program of Shanghai Sciences and Technology Commission Foundation (19DZ1100703 and 18511110400); Evgeniy Papynov acknowledges the support by the Russian Ministry of Science and Higher Education (00657-2020-0006).

Data Availability Statement

https://pan.baidu.com/s/1iTxKriBGW6mcevbDYSY83A?pwd=lfuj, accessed on 15 December 2012, Code:lfuj.

Acknowledgments

Shuwen Zhao, Zhongjun Xue, and Dongzhou Ding from Artificial Crystal Research Center, Shanghai Institute of Ceramics, Chinese Academy of Sciences are thanked for their helpful contribution on the measurement of scintillation light yield.

Conflicts of Interest

There is no conflict to declare.

References

  1. Hostaša, J.; Cova, F.; Piancastelli, A.; Fasoli, M.; Zanelli, C.; Vedda, A.; Biasini, V. Fabrication and luminescence of Ce-doped GGAG transparent ceramics, effect of sintering parameters and additives. Ceram. Int. 2019, 45, 23283–23288. [Google Scholar] [CrossRef]
  2. Boyarintseva, Y.; Neicheva, S.; Zhmurin, P.; Arhipov, P.; Gerasymov, I.; Tkachenko, S.; Sidletskiy, O.; Baumer, V.; Vovk, O.; Nizhankovskyi, S. Optical study of Y3-xGdxAl5O12:Ce crystals grown from the melt. Opt. Mater. 2019, 96, 109283. [Google Scholar] [CrossRef]
  3. Geras, Y.; Mov, I.; Nepokupnaya, T.; Boyarintsev, A.; Sidletskiy, O.; Tretyak, S.J.O.M. GAGG:Ce composite scintillator for X-ray imaging. Opt. Mater. 2020, 109, 110305. [Google Scholar]
  4. Dantelle, G.; Boulon, G.; Guyot, Y.; Testemale, D.; Guzik, M.; Kurosawa, S.; Kamada, K.; Yoshikawa, A. Research on Efficient Fast Scintillators: Evidence and X-ray Absorption Near Edge Spectroscopy Characterization of Ce4+ in Ce3+, Mg2+-co-Doped Gd3Al2Ga3O12 Garnet Crystal. Phys. Status Solidi (B) 2020, 257, 1900510. [Google Scholar] [CrossRef]
  5. Wu, Y.; Luo, Z.; Jiang, H.; Meng, F.; Koschan, M.; Melcher, C.L. Single crystal and optical ceramic multicomponent garnet scintillators: A comparative study. Nuclear Inst. Methods Phys. Res. A 2015, 780, 45–50. [Google Scholar] [CrossRef]
  6. Wu, T.; Wang, L.; Xu, T.; Wang, H.; Wang, C.; Huang, X.; Shen, H.; Shi, Y. Recent Progress of (Ce, Gd)3(Ga, Al)5O12 (Ce:GGAG)Scintillator for medical CT application. Chin. J. Technol. 2021, 21, 109–125. [Google Scholar]
  7. Suzuki, A.; Kurosawa, S.; Pejchal, J.; Babin, V.; Fujimoto, Y.; Yamaji, A.; Seki, M.; Futami, Y.; Yokota, Y.; Yubuta, K. The effect of different oxidative growth conditions on the scintillation properties of Ce:Gd3Al3Ga2O12crystal. Phys. Status Solidi 2012, 9, 2251–2254. [Google Scholar] [CrossRef]
  8. Kamada, K.; Yanagida, T.; Pejchal, J.; Nikl, M.; Endo, T.; Tsutumi, K.; Fujimoto, Y.; Fukabori, A.; Yoshikawa, A. Scintillator-oriented combinatorial search in Ce-doped (Y,Gd)3(Ga,Al)5O12 multicomponent garnet compounds. J. Phys. D Appl. Phys. 2011, 44, 505104. [Google Scholar] [CrossRef]
  9. Kochurikhin, V.; Kamada, K.; Jin Kim, K.; Ivanov, M.; Gushchina, L.; Shoji, Y.; Yoshino, M.; Yoshikawa, A. Czochralski growth of 4-inch diameter Ce:Gd3Al2Ga3O12 single crystals for scintillator applications. J. Cryst. Growth 2020, 531, 125384. [Google Scholar] [CrossRef]
  10. Wu, T.; Wang, L.; Shi, Y.; Xu, T.; Wang, H.; Fang, J.; Ni, J.; He, H.; Wang, C.; Wan, B.; et al. Fast (Ce,Gd)3Ga2Al3O12 Scintillators Grown by the Optical Floating Zone Method. Cryst. Growth Des. 2021, 22, 180–190. [Google Scholar] [CrossRef]
  11. Shishido, T.; Okamura, K.; Yajima, S. Gd3Al5O12 Phase Obtained by Crystallization of Amorphous Gd2O3·5/3Al2O3. J. Am. Ceram. Soc. 1978, 6, 373–375. [Google Scholar] [CrossRef]
  12. Kamada, K.; Kurosawa, S.; Prusa, P.; Nikl, M. Cz grown 2-in. size Ce:Gd3(Al,Ga)5O12 single crystal; relationship between Al, Ga site occupancy and scintillation properties. Opt. Mater. 2014, 36, 1942–1945. [Google Scholar] [CrossRef] [Green Version]
  13. Bartosiewicz, K.; Babin, V.; Kamada, K.; Yoshikawa, A.; Beitlerova, A.; Nikl, M. Effects of Gd/Lu ratio on the luminescence properties and garnet phase stability of Ce3+ activated GdxLu3-xAl5O12 single crystals. Opt. Mater. 2018, 80, 98–105. [Google Scholar] [CrossRef]
  14. Kamada, K.; Endo, T.; Tsutumi, K.; Yanagida, T.; Fujimoto, Y.; Fukabori, A.; Yoshikawa, A.; Pejchal, J.; Nikl, M. Composition Engineering in Cerium-Doped (Lu,Gd)3(Ga,Al)5O12 Single-Crystal Scintillators. Cryst. Growth Des. 2011, 11, 4484–4490. [Google Scholar] [CrossRef]
  15. Chewpraditkul, W.; Pattanaboonmee, N.; Sakthong, O.; Chewpraditkul, W.; Szczesniak, T.; Moszynski, M.; Kamada, K.; Yoshikawa, A.; Nikl, M. Luminescence and scintillation characteristics of (GdxY3-x)Al2Ga3O12:Ce (x = 1,2,3) single crystals. Opt. Mater. 2018, 76, 162–168. [Google Scholar] [CrossRef]
  16. Qi, Q.; Meng, M.; Ding, D.-z.; Zhao, S.-w.; Shi, J.-j.; Ren, G.-h. Effects of Trace MgO Addition on Optical and Scintillation Properties of GAGG:Ce Crystal. Chin.J. Lumin. 2021, 42, 28–36. [Google Scholar] [CrossRef]
  17. Mukherjee, P.; Hamilton, A.C.S.; Glass, H.F.J.; Dutton, S.E. Sensitivity of magnetic properties to chemical pressure in lanthanide garnets Ln3A2X3O12, Ln = Gd, Tb, Dy, Ho, A = Ga, Sc, In, Te, X = Ga, Al, Li. J. Phys.-Condens. Mat. 2017, 29, 405808. [Google Scholar] [CrossRef] [Green Version]
  18. Zorenko, T.; Gorbenko, V.; Witkiewicz-Lukaszek, S.; Zorenko, Y. Luminescent properties of (La,Lu,Gd)(3)(Al,Sc,Ga)(5)O-12:Ce mixed garnets under synchrotron radiation excitation. J. Lumin. 2018, 199, 483–487. [Google Scholar] [CrossRef]
  19. Jumpei Ueda, K.A. Setsuhisa Tanabe Temperature and compositional dependence of optical and optoelectronic properties in Ce3+-doped Y3Sc2Al3-xGaxO12 (x = 0,1,2,3). Opt. Mater. 2013, 35, 1952–1957. [Google Scholar] [CrossRef]
  20. Kanke, Y.; Navrotsky, A. A calorimetric study of the lanthanide aluminum oxides and the lanthanide gallium oxides: Stability of the perovskites and the garnets. J. Solid State Chem. 1998, 141, 424–436. [Google Scholar] [CrossRef]
  21. Ji-Guang, L.; Sakka, Y. Recent progress in advanced optical materials based on gadolinium aluminate garnet (Gd3Al5O12). Sci. Technol. Adv. Mat. 2015, 16, 14902–14919. [Google Scholar]
  22. Wu, T.; Wang, L.; He, H.; Wang, H.; Shen, H.; Liu, Q.; Shi, Y. Research progress of Lu3Al5O12-based scintillation ceramics. Chin. J. Lumin. 2021, 42, 917–937. [Google Scholar] [CrossRef]
  23. Setlur, A.A.; Shiang, J.J.; Vess, C.J. Transition from Long-Range to Short-Range Energy Transfer through Donor Migration in Garnet Hosts. J. Phys. Chem. C 2011, 115, 3475–3480. [Google Scholar] [CrossRef]
  24. Ogieglo, J.M.; Zych, A.; Ivanovskikh, K.V.; Justel, T.; Ronda, C.R.; Meijerink, A. Luminescence and Energy Transfer in Lu3Al5O12 Scintillators Co-Doped with Ce3+ and Tb3+. J. Phys. Chem. A 2012, 116, 8464–8474. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Teng, X.; Li, J.K.; Duan, G.B.; Liu, Z.M. Development of Tb3+ activated gadolinium aluminate garnet (Gd3Al5O12) as highly efficient green-emitting phosphors. J. Lumin. 2016, 179, 165–170. [Google Scholar] [CrossRef]
  26. Markovskyi, A.; Gieszczyk, W.; Bilski, P.; Fedorov, A.; Bartosiewicz, K.; Paprocki, K.; Zorenko, T.; Zorenko, Y. Composition engineering of Tb3-xGdxAl5-yGayO12:Ce single crystals and their luminescent, scintillation and photoconversion properties. J. Alloys Compd. 2020, 849, 155808. [Google Scholar] [CrossRef]
  27. Gorbenko, V.; Zorenko, T.; Witkiewicz, S.; Paprocki, K.; Sidletskiy, O.; Fedorov, A.; Bilski, P.; Twardak, A.; Zorenko, Y. LPE Growth of Single Crystalline Film Scintillators Based on Ce3+ Doped Tb3-xGdxAl5-yGayO12 Mixed Garnets. Crystals 2017, 7, 262. [Google Scholar] [CrossRef] [Green Version]
  28. Bartosiewicz, K.; Babin, V.; Mares, J.A.; Beitlerova, A.; Zorenko, Y.; Iskaliyeva, A.; Gorbenko, V.; Bryknar, Z.; Nikl, M.J.J.o.L. Luminescence and energy transfer processes in Ce3+ activated (Gd,Tb)3Al5O12 single crystalline films. J. Lumin. 2017, 188, 60–66. [Google Scholar] [CrossRef]
  29. Chen, J.; Tang, Y.R.; Yi, X.Z.; Tian, Y.N.; Ao, G.; Hao, D.M.; Lin, Y.D.; Zhou, S.M. Fabrication of (Tb, Gd)3Al5O12:Ce3+ phosphor ceramics for warm white light-emitting diodes application. Opt. Mater. Express 2019, 9, 3333–3341. [Google Scholar] [CrossRef]
  30. Babin, V.; Gorbenko, V.; Makhov, A.; Mares, J.A.; Nikl, M.; Zazubovich, S.; Zorenko, Y. Luminescence characteristics of Pb2+ centres in undoped and Ce3+-doped Lu3Al5O12 single-crystalline films and Pb2+-> Ce3+ energy transfer processes. J. Lumin. 2007, 127, 384–390. [Google Scholar] [CrossRef]
  31. Meng, M.; Qi, Q.; Ding, D.Z.; He, C.J.; Zhao, S.W.; Wan, B.; Chen, L.; Shi, J.J.; Ren, G.H. Twisted Growth, Component Segregation and Characteristics of Gd3(Al,Ga)5O12:Ce Scintillation Crystal. J. Inorg. Mater. 2021, 36, 188–196. [Google Scholar] [CrossRef]
  32. Velchuri, R.; Kumar, B.V.; Devi, V.R.; Prasad, G.; Prakash, D.J.; Vithal, M. Preparation and characterization of rare earth orthoborates, LnBO3 (Ln = Tb, La, Pr, Nd, Sm, Eu, Gd, Dy, Y) and LaBO3:Gd, Tb, Eu by metathesis reaction: ESR of LaBO3:Gd and luminescence of LaBO3:Tb, Eu. Mater. Res. Bull. 2011, 46, 1219–1226. [Google Scholar] [CrossRef]
  33. Xue, B.; Lyu, Q.; Wang, T.; Liu, L.; Wang, S.; Zhu, H.; Liu, S.; Sun, X. Research Progress of Gd3Al5O12 based Luminescent Materials. Chin. J. Lumin. 2020, 41, 1538–1553. [Google Scholar] [CrossRef]
  34. Liu, G.; Wang, B.; Li, J.; Cao, B.; Lu, Y.; Liu, Z. Research progress of gadolinium aluminum garnet based optical materials. Physica B 2021, 603, 412775. [Google Scholar] [CrossRef]
  35. Speight, J.G. LANGE’s Handbook of Chemistry, 16th ed.; CD&W Inc.: Laramie, WY, USA, 2008. [Google Scholar]
  36. Nagpure, I.M.; Pitale, S.S.; Coetsee, E.; Ntwaeaborwa, O.M.; Terblans, J.J.; Swart, H.C. Low voltage electron induced cathodoluminescence degradation and surface characterization of Sr3(PO4)2:Tb phosphor. Appl. Surf. Sci. 2011, 257, 10147–10155. [Google Scholar] [CrossRef]
  37. Kumar, V.; Luo, Z.P. A Review on X-ray Excited Emission Decay Dynamics in Inorganic Scintillator Materials. Photonics 2021, 8, 71. [Google Scholar] [CrossRef]
  38. Blasse, G.; Bril, A. Investigation of Some Ce3+-Activated Phosphors. J. Chem. Phys. 1967, 47, 5139–5145. [Google Scholar] [CrossRef]
  39. Kučera, M.; Nikl, M.; Hanuš, M.; Onderišinová, Z. Gd3+ to Ce3+ energy transfer in multi-component GdLuAG and GdYAG garnet scintillators. Phys. Status Solidi (RRL) 2013, 7, 571–574. [Google Scholar] [CrossRef]
  40. Dorenbos, P. The 4fn↔4fn-15d transitions of the trivalent lanthanides in halogenides and chalcogenides. J. Lumin. 2000, 91, 91–106. [Google Scholar] [CrossRef]
  41. Peng, G.H.; Zou, Z.G.; Li, J.Q.; Liao, J.S.; Wen, H.R. (Gd1-xTbx)3(Al1-yGay)5O12 green phosphors with high quantum yield and low thermal quenching via modulation the Ga3+ admixture. J. Lumin. 2021, 236, 118066. [Google Scholar] [CrossRef]
  42. Ueda, J.; Tanabe, S.; Nakanishi, T. Analysis of Ce3+ luminescence quenching in solid solutions between Y3Al5O12 and Y3Ga5O12 by temperature dependence of photoconductivity measurement. J. Appl. Phys. 2011, 110, 053102. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Dorenbos, P. 5d-level energies of Ce3+ and the crystalline environment. IV. Aluminates and “simple” oxides. J. Lumin. 2002, 99, 283–299. [Google Scholar] [CrossRef]
  44. Wong, K.-L.; Bünzli, J.-C.G.; Tanner, P.A. Quantum yield and brightness. J. Lumin. 2020, 224, 117256. [Google Scholar] [CrossRef]
  45. Crosswhite, H.M.; Judd, B.R. The Spectra of Doubly and Triply Ionized Rare Earths. J. Opt. Soc. Am. 1961, 51, 820–827. [Google Scholar]
  46. Chen, X.P.; Hu, Z.W.; Dai, J.W.; Chen, H.H.; Shi, Y.; Kou, H.M.; Wang, T.T.; Vedda, A.; Beitlerova, A.; Kucerkova, R.; et al. The influence of air annealing on the microstructure and scintillation properties of Ce,Mg:LuAG ceramics. J. Am. Ceram. Soc. 2019, 102, 1805–1813. [Google Scholar] [CrossRef]

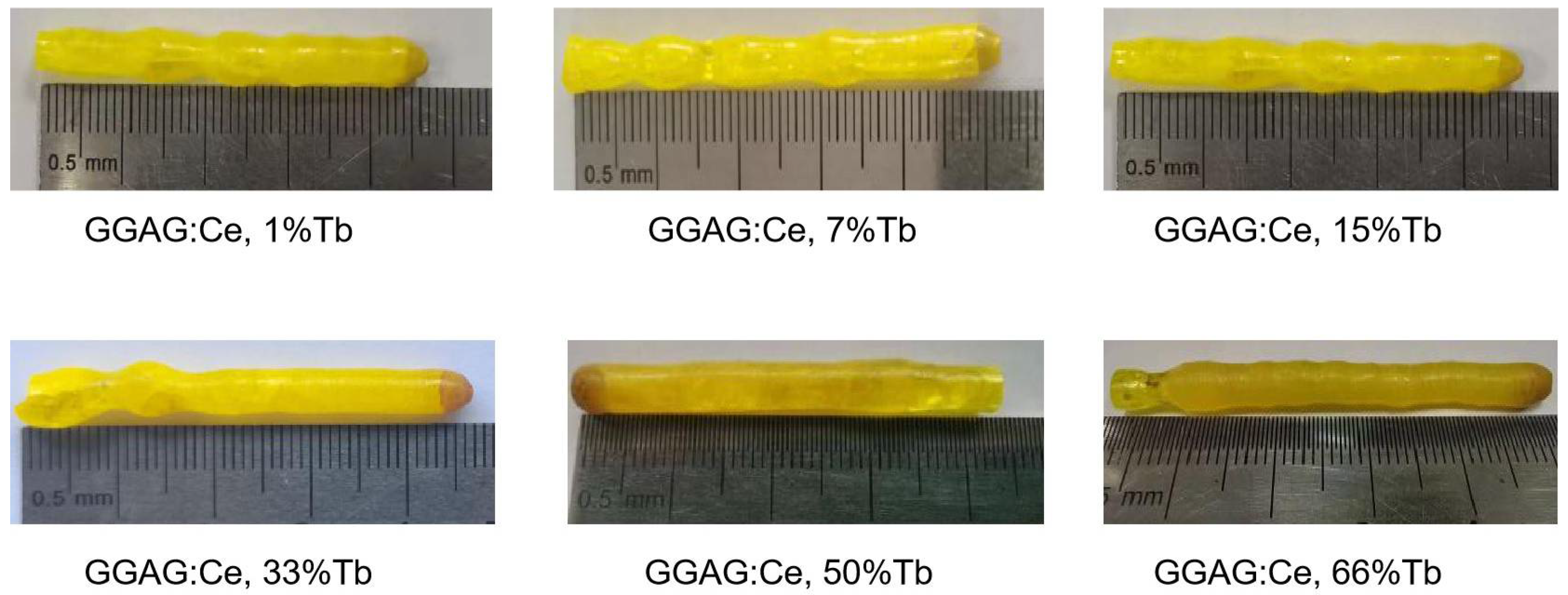

Figure 1. Photographs of the 1 at.% Ce doped (TbxGd1-x)3Ga2Al3O12 (GGAG:Ce, xTb) (x = 0–66 at.%) crystals grown by the optical floating zone method.
Figure 1. Photographs of the 1 at.% Ce doped (TbxGd1-x)3Ga2Al3O12 (GGAG:Ce, xTb) (x = 0–66 at.%) crystals grown by the optical floating zone method.
Materials 15 02044 g001

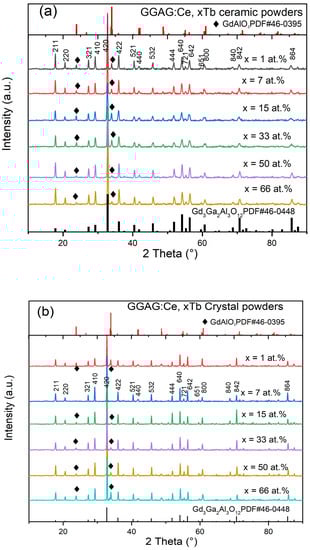

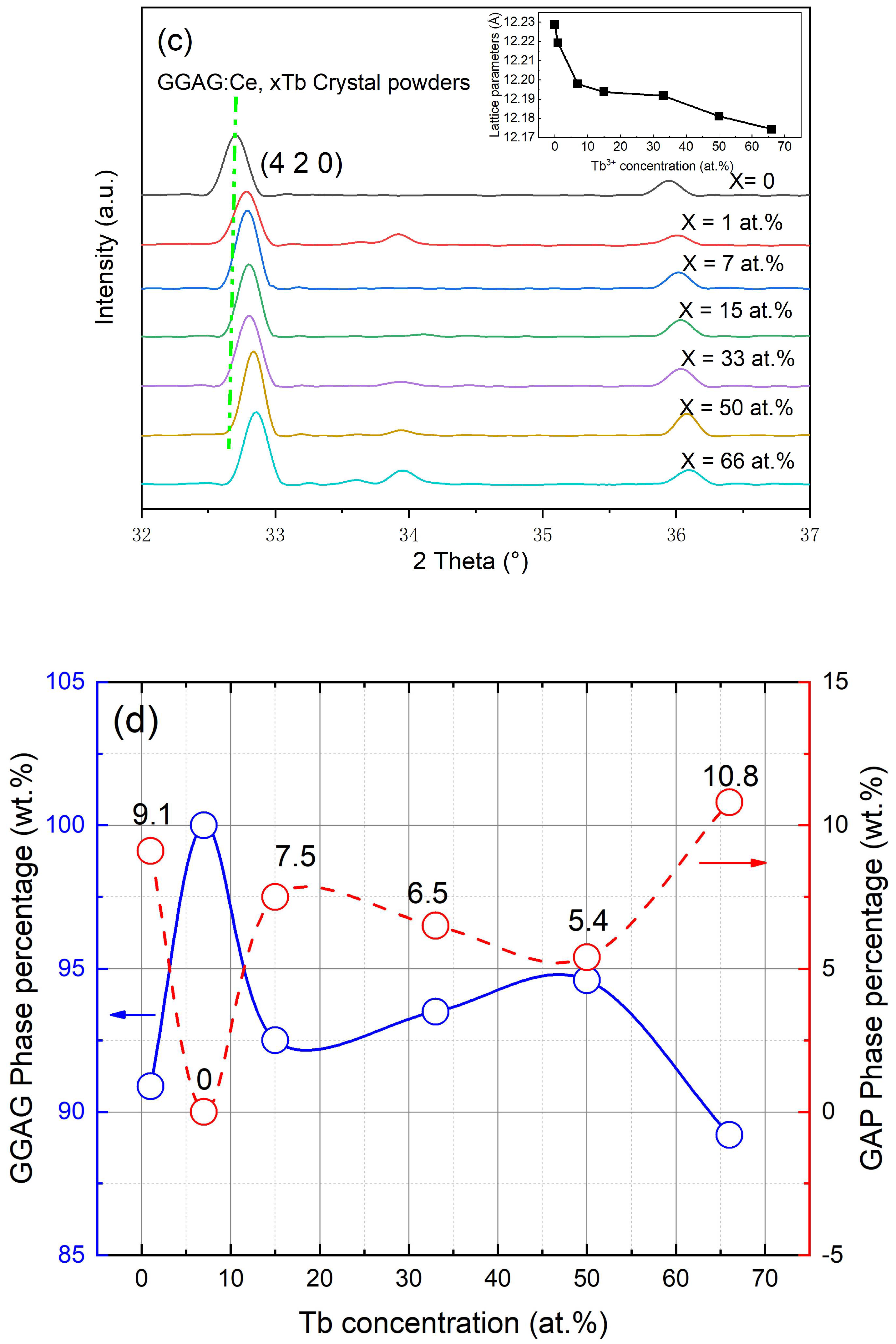

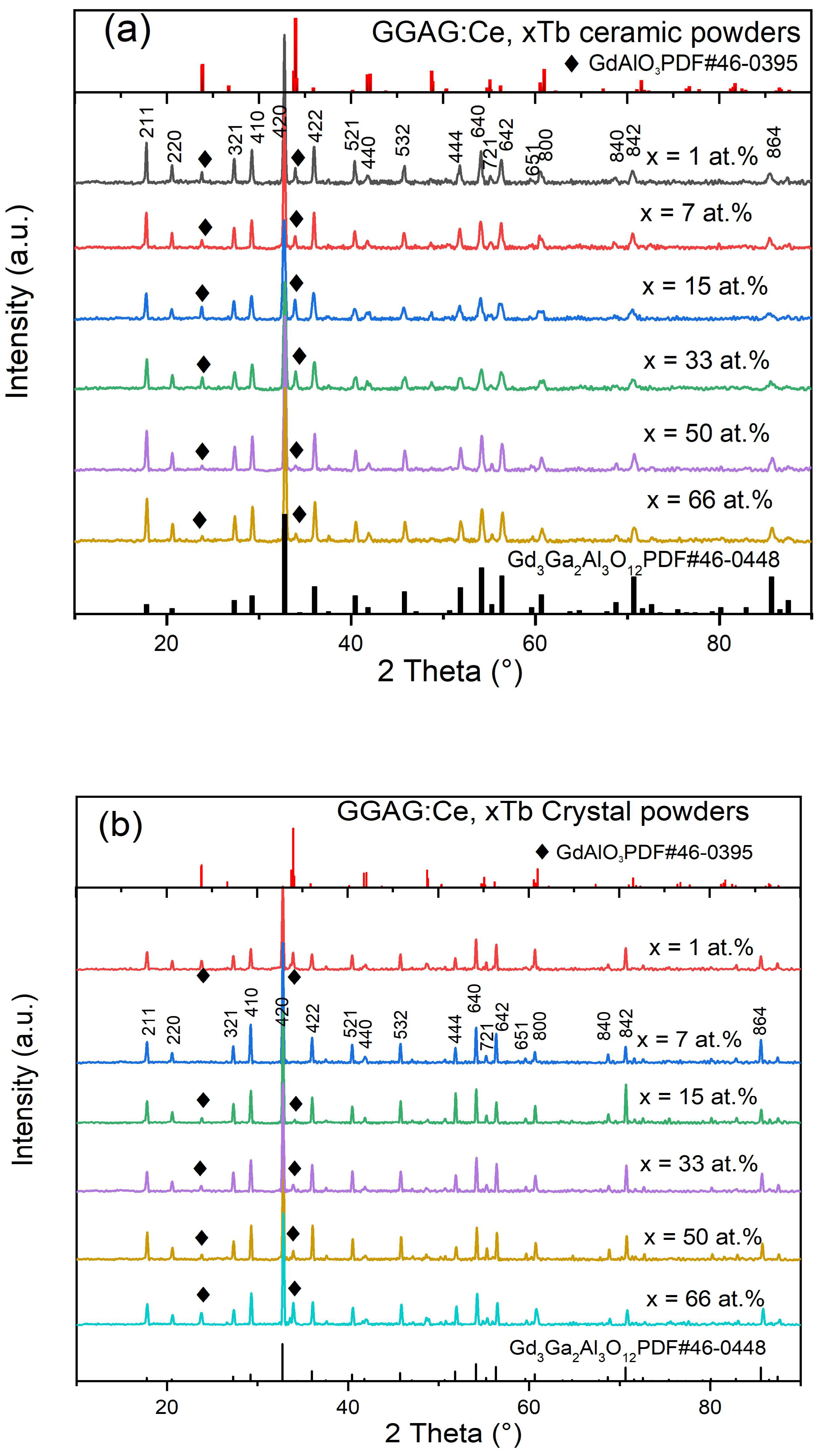

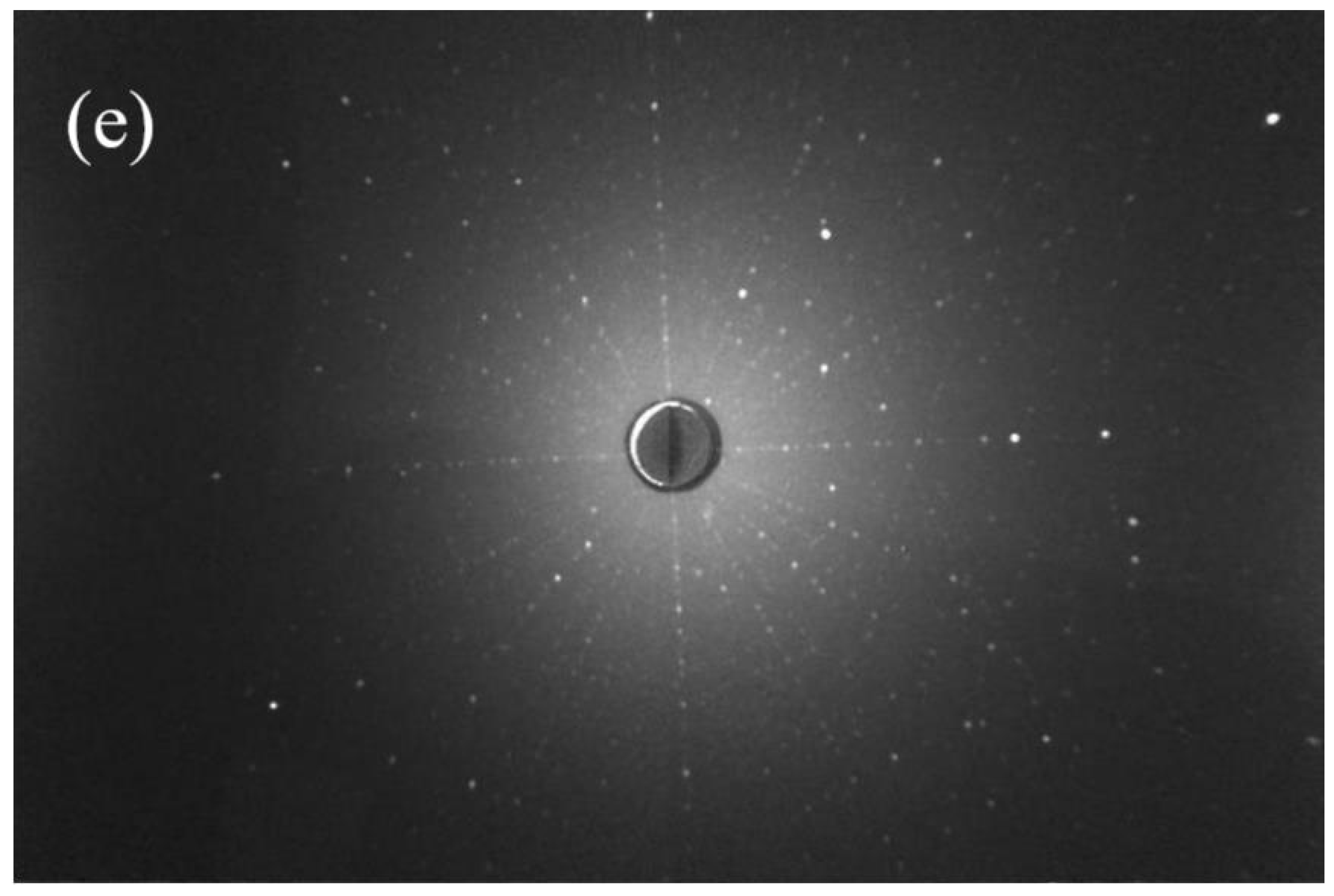

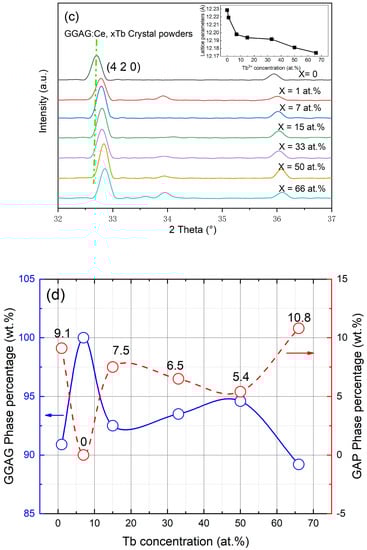

Figure 2. Powder XRD pattern of (a) the powders sintered at 1350 °C for 8 h in air, (b) GGAG:Ce, xTb crystals, (c) expanded view of diffraction peaks between 32° and 38°; (d) calculated percentage of perovskite phase; (e) Laue photograph of GGAG:Ce, 7% Tb3+ crystal.
Figure 2. Powder XRD pattern of (a) the powders sintered at 1350 °C for 8 h in air, (b) GGAG:Ce, xTb crystals, (c) expanded view of diffraction peaks between 32° and 38°; (d) calculated percentage of perovskite phase; (e) Laue photograph of GGAG:Ce, 7% Tb3+ crystal.
Materials 15 02044 g002aMaterials 15 02044 g002bMaterials 15 02044 g002c

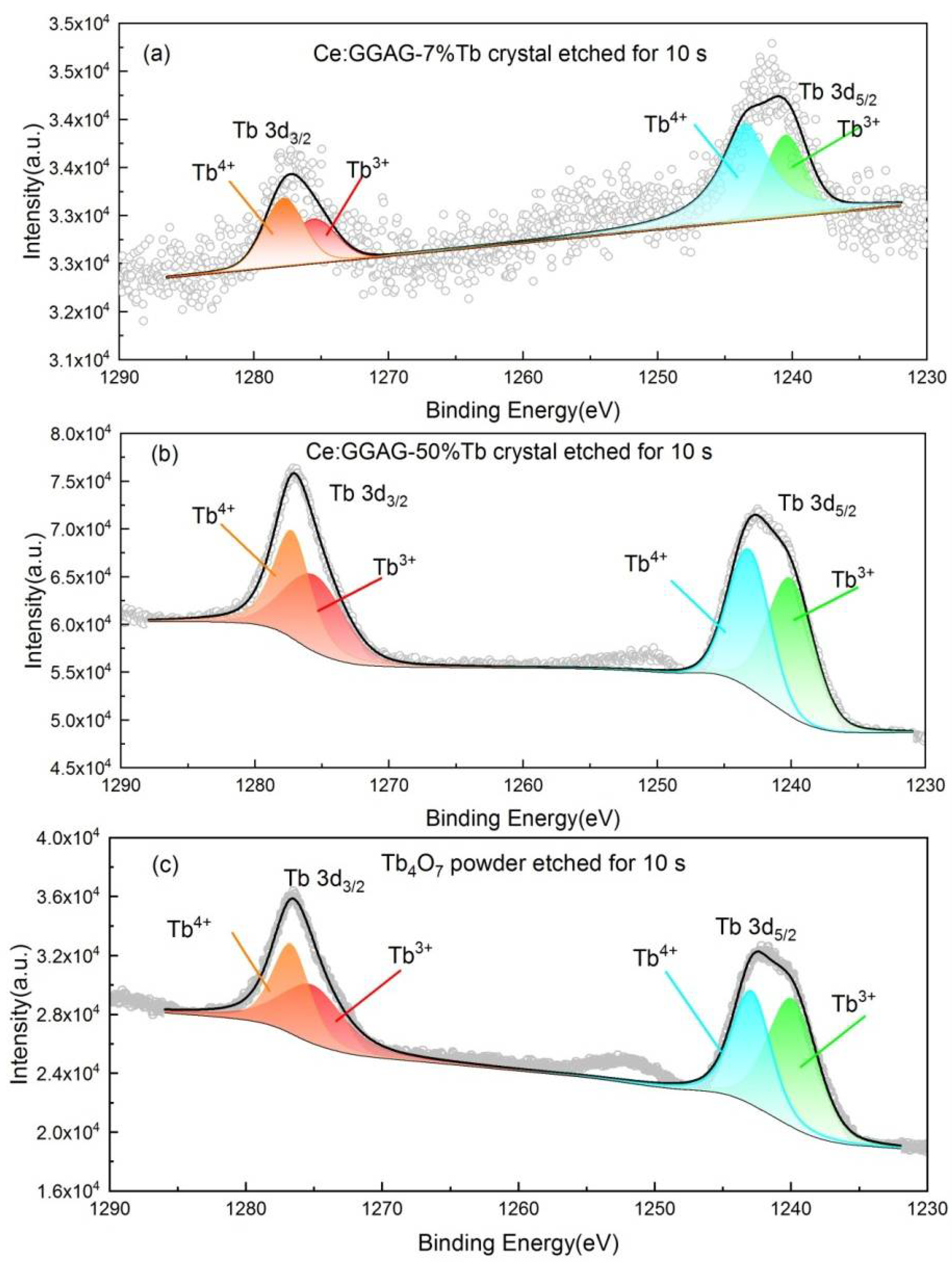

Figure 3. XPS spectra of the as grown (a) GGAG:Ce, 7% and (b) GGAG:Ce , 50% Tb3+ crystals using commercial (c) Tb4O7 powder as reference sample.
Figure 3. XPS spectra of the as grown (a) GGAG:Ce, 7% and (b) GGAG:Ce , 50% Tb3+ crystals using commercial (c) Tb4O7 powder as reference sample.
Materials 15 02044 g003

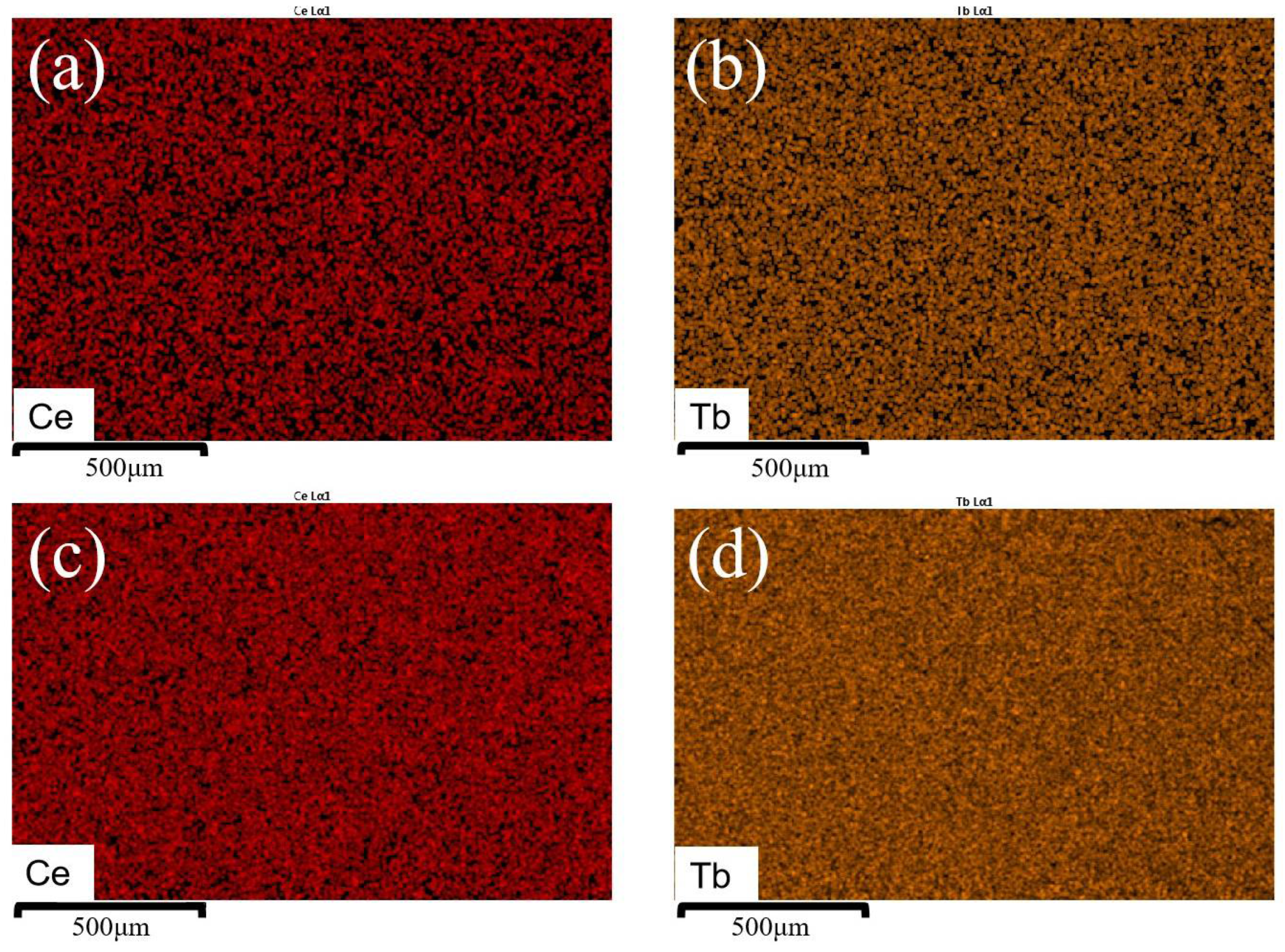

Figure 4. SEM-EDS mapping images for (a) Ce element (b) Tb element of GGAG:Ce, 7% Tb3+ crystal and (c) Ce element (d) Tb element of GGAG:Ce, 50% Tb3+ crystal.
Figure 4. SEM-EDS mapping images for (a) Ce element (b) Tb element of GGAG:Ce, 7% Tb3+ crystal and (c) Ce element (d) Tb element of GGAG:Ce, 50% Tb3+ crystal.
Materials 15 02044 g004

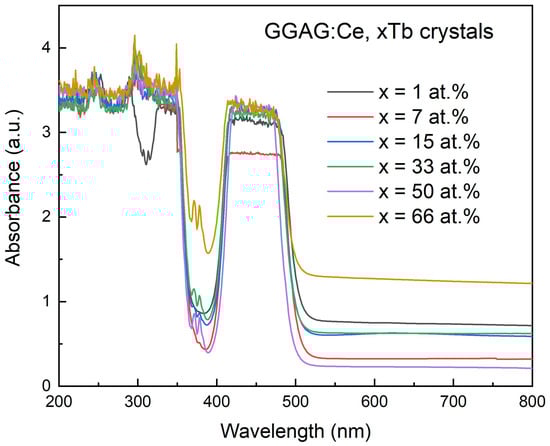

Figure 5. Absorptance spectra of the as grown GGAG:Ce, xTb (x = 0–66 at.%) crystals (after double face polished to1.0 mm thickness).
Figure 5. Absorptance spectra of the as grown GGAG:Ce, xTb (x = 0–66 at.%) crystals (after double face polished to1.0 mm thickness).
Materials 15 02044 g005

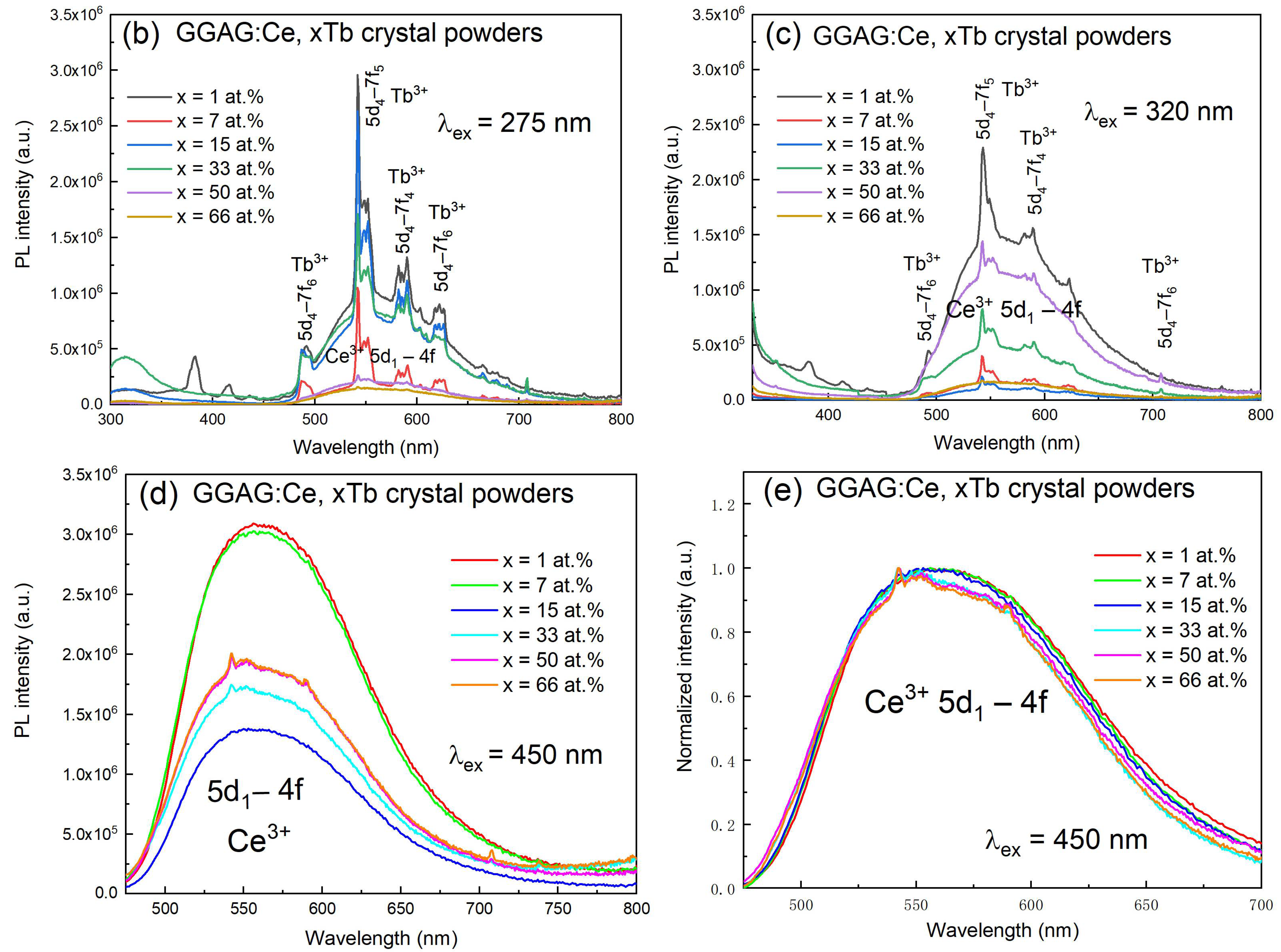

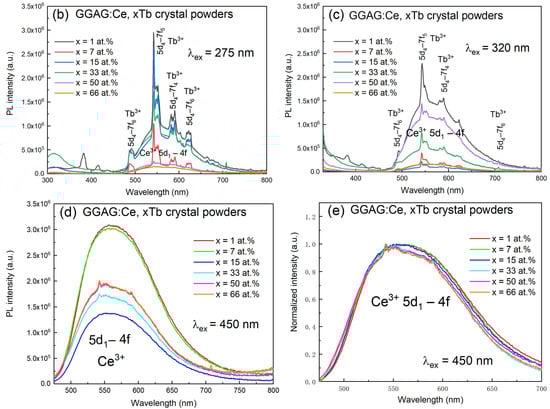

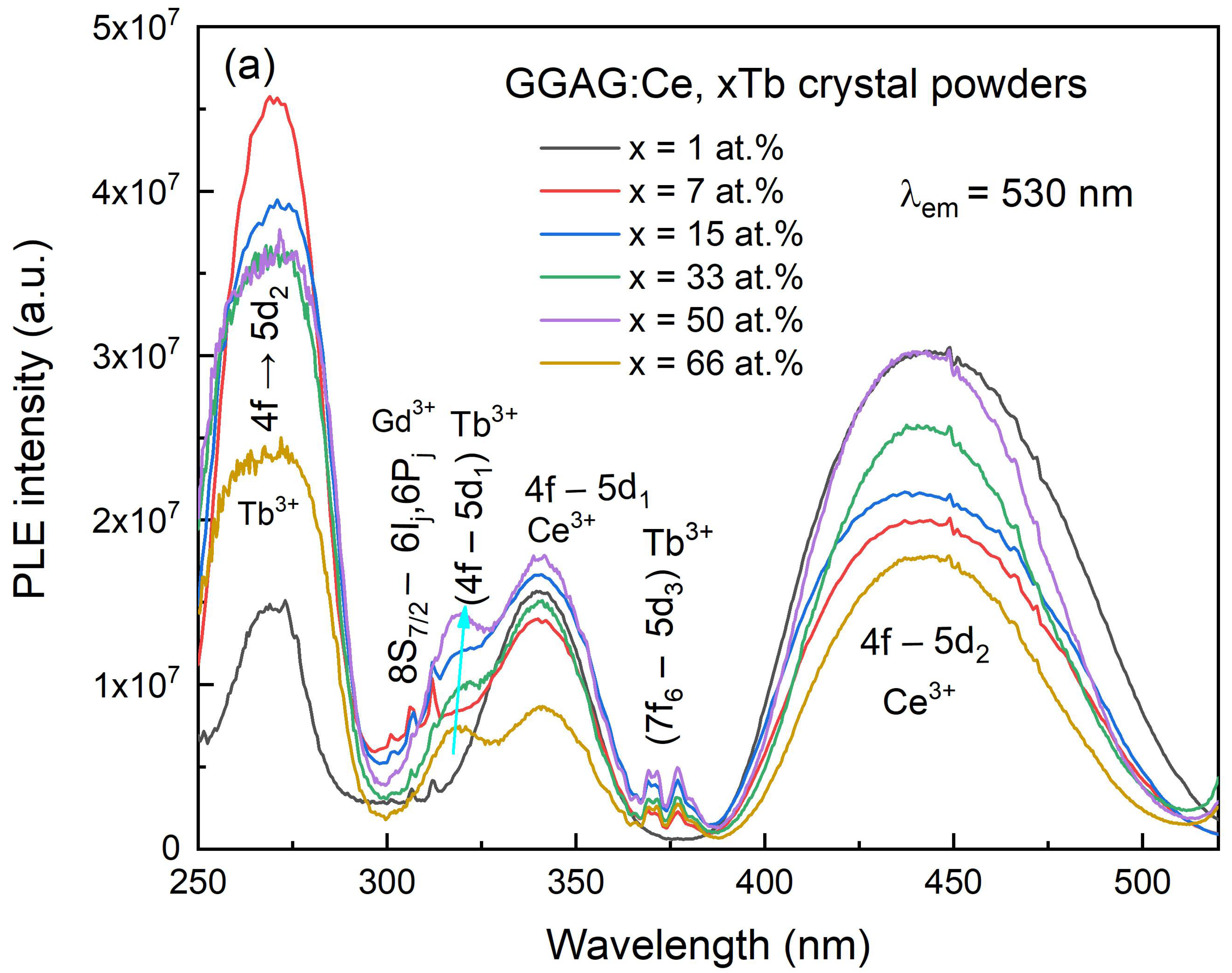

Figure 6. Photo-luminescence spectra of the as grown GGAG:Ce, xTb (x = 0–66 at.%) crystals; (a) PLE λem = 530 nm; (b) PL λex = 270 nm; (c) PL λex = 320 nm; (d) PL λex = 450 nm; (e) Normalized PL spectra, λex = 450 nm.
Figure 6. Photo-luminescence spectra of the as grown GGAG:Ce, xTb (x = 0–66 at.%) crystals; (a) PLE λem = 530 nm; (b) PL λex = 270 nm; (c) PL λex = 320 nm; (d) PL λex = 450 nm; (e) Normalized PL spectra, λex = 450 nm.
Materials 15 02044 g006aMaterials 15 02044 g006b

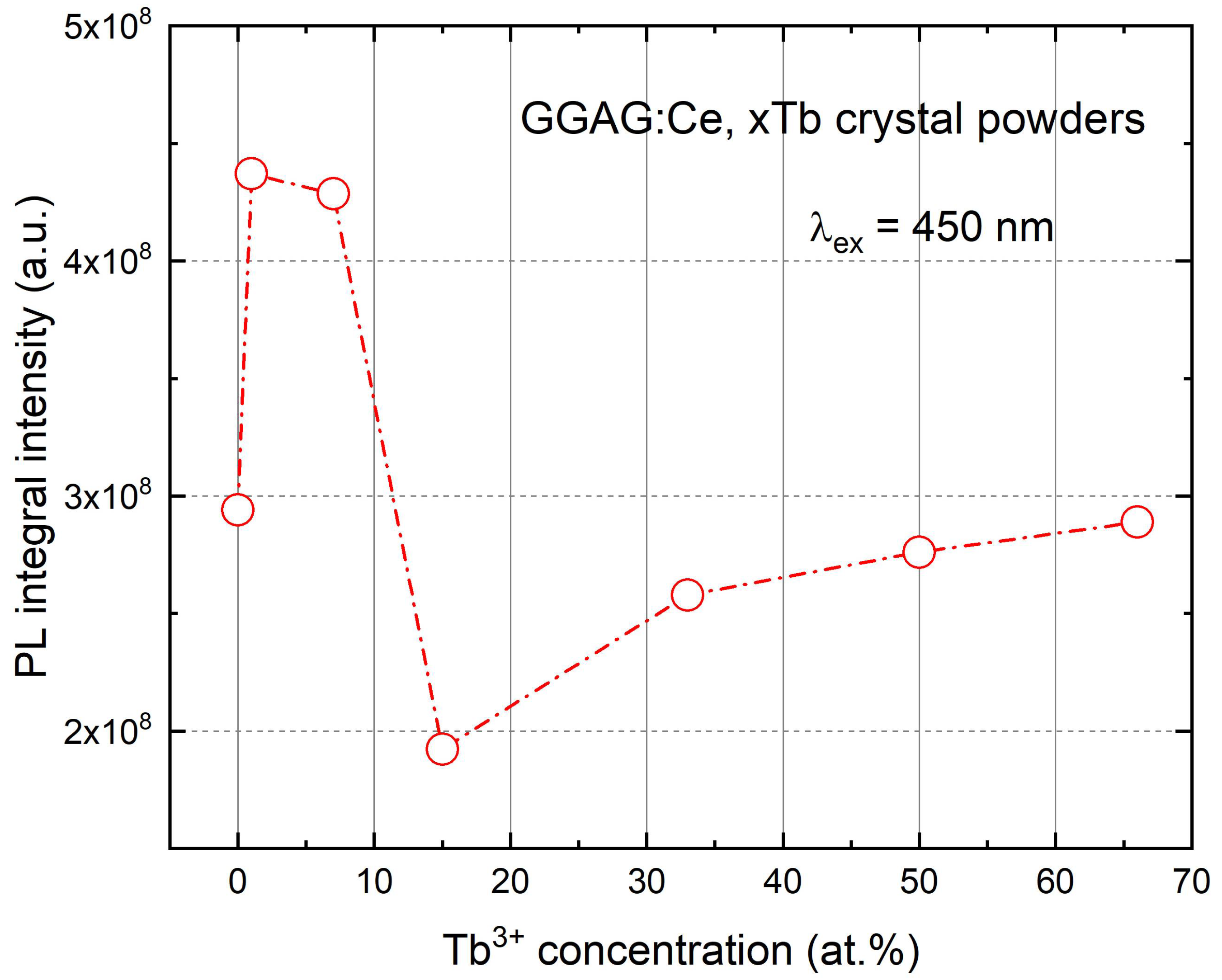

Figure 7. Photo-luminescence integral intensity of the as grown GGAG:Ce, xTb (x = 0–66 at.%) crystals, λex = 450 nm.
Figure 7. Photo-luminescence integral intensity of the as grown GGAG:Ce, xTb (x = 0–66 at.%) crystals, λex = 450 nm.
Materials 15 02044 g007

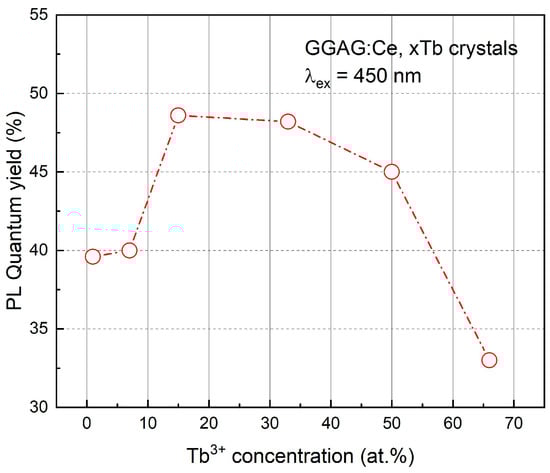

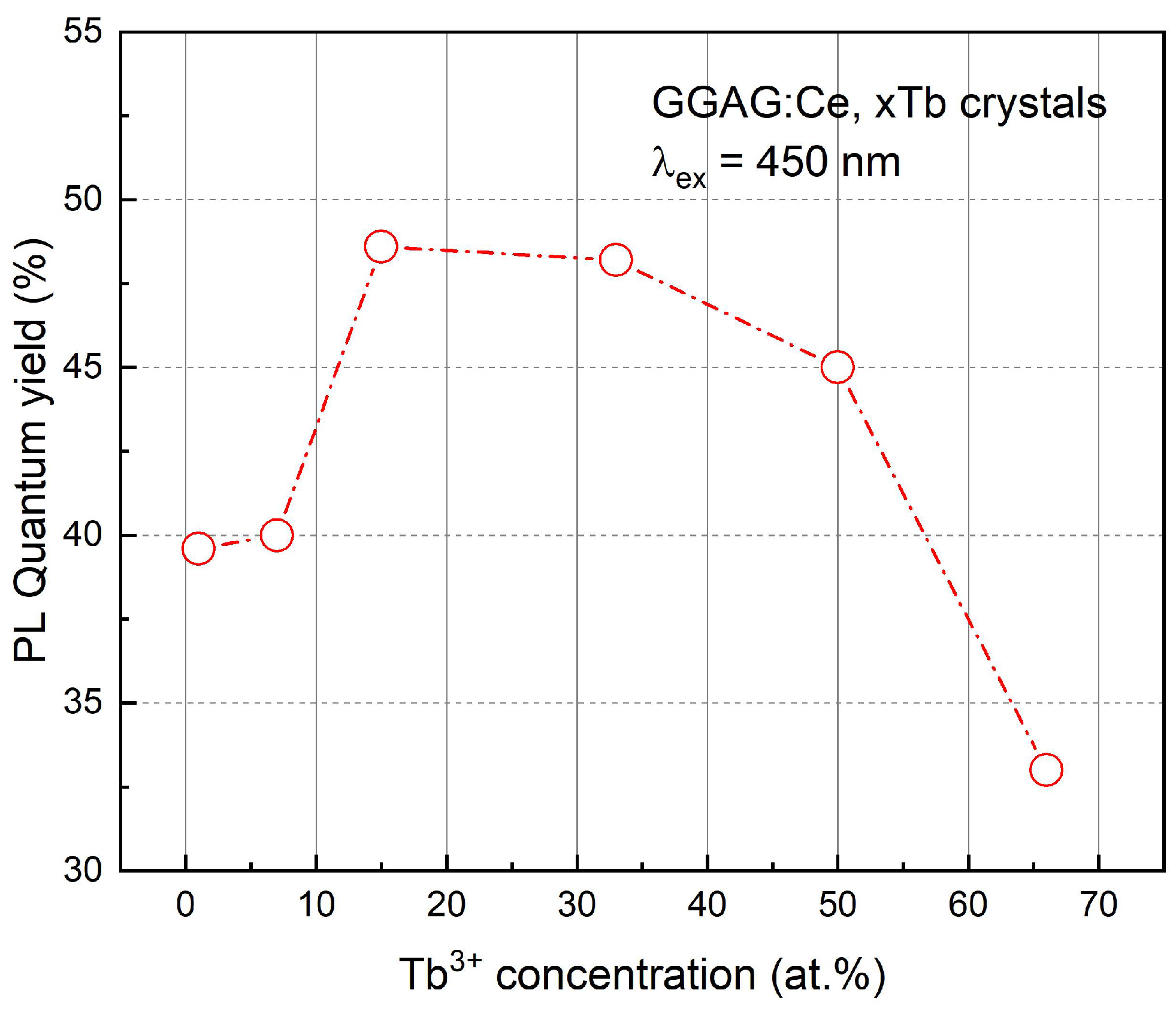

Figure 8. The PL QY of the as-grown GGAG:Ce, xTb (x = 0–66 at.%) crystals.
Figure 8. The PL QY of the as-grown GGAG:Ce, xTb (x = 0–66 at.%) crystals.
Materials 15 02044 g008

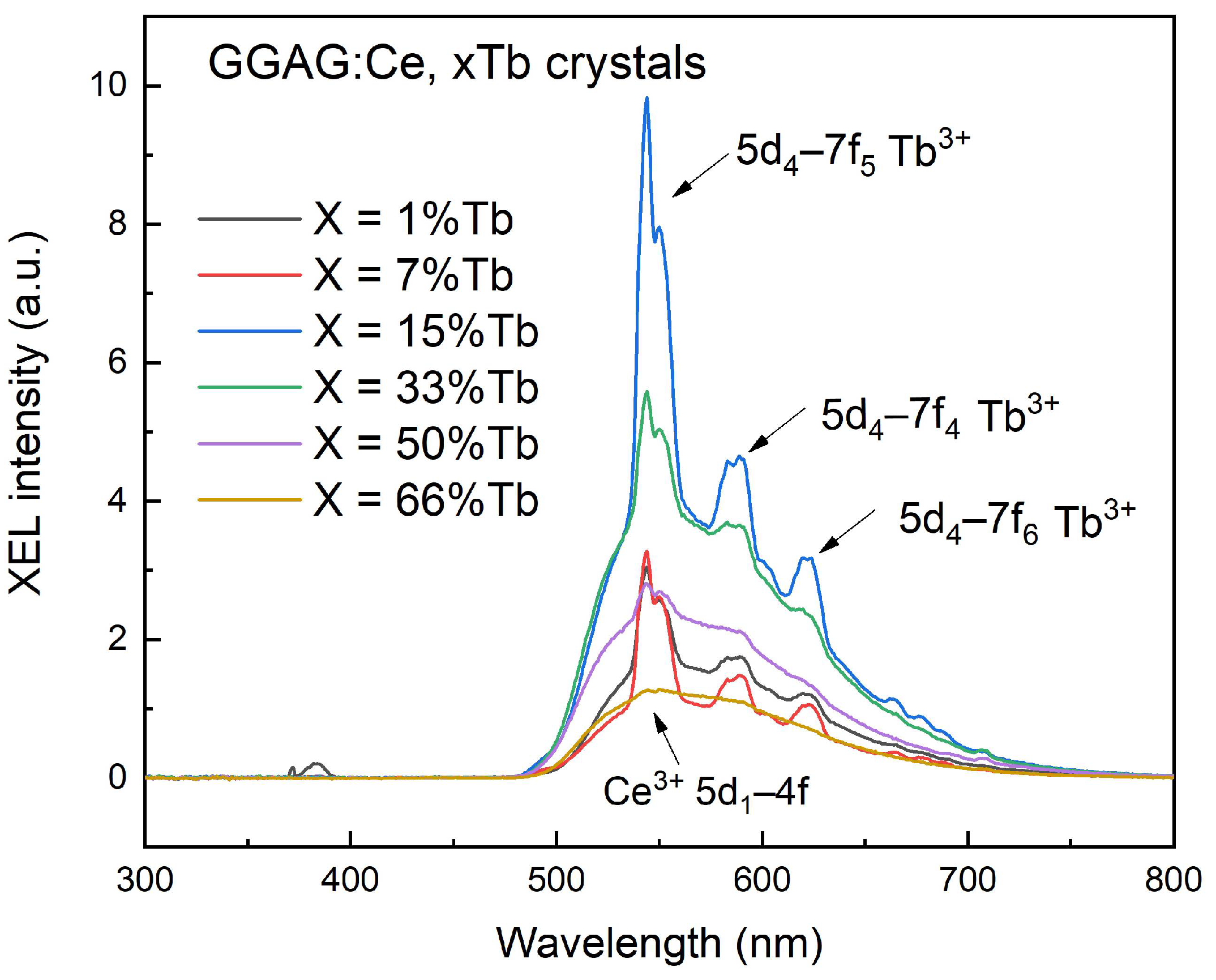

Figure 9. Radio-luminescence spectra of the as grown GGAG:Ce, xTb (x = 0–66 at.%) crystals, X-ray tube: 70 kV, 1.5 mA.
Figure 9. Radio-luminescence spectra of the as grown GGAG:Ce, xTb (x = 0–66 at.%) crystals, X-ray tube: 70 kV, 1.5 mA.
Materials 15 02044 g009

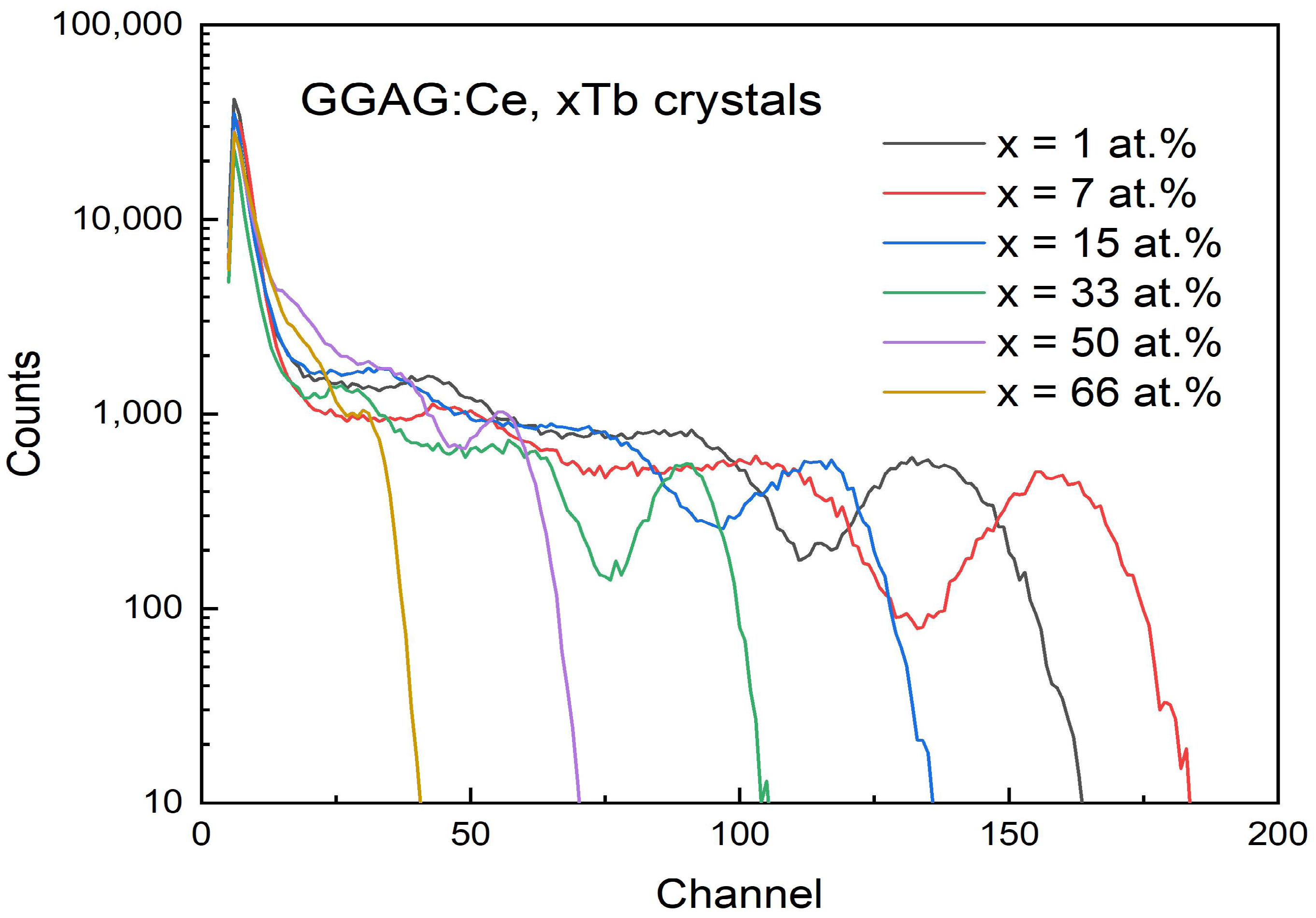

Figure 10. Pulse height spectra of the as grown GGAG:Ce, xTb (x = 0–66 at.%) crystals. The shaping time is 0.75 μs, under 137Cs (662 keV) gamma ray.
Figure 10. Pulse height spectra of the as grown GGAG:Ce, xTb (x = 0–66 at.%) crystals. The shaping time is 0.75 μs, under 137Cs (662 keV) gamma ray.
Materials 15 02044 g010

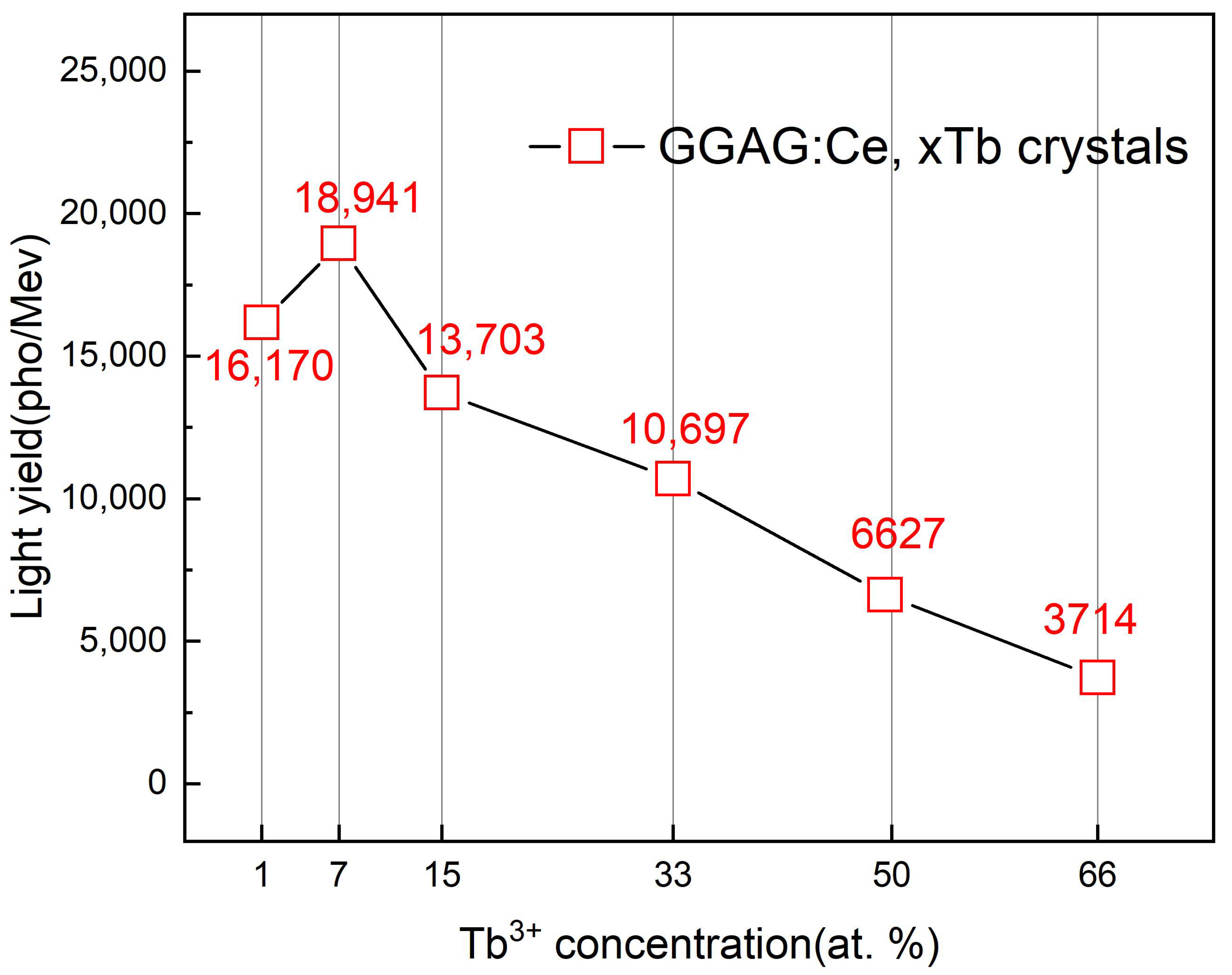

Figure 11. Calculated relative light yield of as grown GGAG:Ce, xTb (x = 0–66 at.%) crystals with respect to the reference GGAG:Ce crystal (LY 58,000 pho/MeV).
Figure 11. Calculated relative light yield of as grown GGAG:Ce, xTb (x = 0–66 at.%) crystals with respect to the reference GGAG:Ce crystal (LY 58,000 pho/MeV).
Materials 15 02044 g011
Table 1. The Binding Energy (eV) and Tb3+ ratio in the GGAG:Ce, 7% Tb and GGAG:Ce, 50% Tb crystals by fitting the XPS spectra and comparing with high pure commercial Tb4O7 powder as reference.
Table 1. The Binding Energy (eV) and Tb3+ ratio in the GGAG:Ce, 7% Tb and GGAG:Ce, 50% Tb crystals by fitting the XPS spectra and comparing with high pure commercial Tb4O7 powder as reference.
SampleBinding Energy (eV)Radio
Tb 3d3/2Tb 3d5/2Tb3+/
(Tb3+ + Tb4+)
Tb4+Tb3+Tb4+Tb3+
GGAG:Ce, 7% Tb1277.81275.61243.51240.5
Integral area278219686397320536%
GGAG:Ce, 50% Tb1277.31275.61243.21240.1
Integral area47,17746,83157,34266,18852%
Tb4O7 powder1276.71275.11242.91239.9
Integral area24,44226,65231,21241,57355%
Table 2. The SEM-EDS mapping analysis for chemical concentration of the Ce element, Tb element, Gd element, Ga element and Al element in the obtained GGAG:Ce, xTb crystals.
Table 2. The SEM-EDS mapping analysis for chemical concentration of the Ce element, Tb element, Gd element, Ga element and Al element in the obtained GGAG:Ce, xTb crystals.
Nominal Chemical Composition of GGAG:Ce, xTb CrystalsExperimental Mol Value of Different Elements in Per Mol Compositions by SEM-EDS
CeTbGdGaAl
Ce0.03Tb0.03Gd2.94Ga2Al3O120.020.042.951.683.32
Ce0.03Tb0.21Gd2.76Ga2Al3O120.020.202.711.883.18
Ce0.03Tb0.45Gd2.52Ga2Al3O120.020.452.481.823.24
Ce0.03Tb0.99Gd1.98Ga2Al3O120.020.961.941.843.24
Ce0.03Tb1.485Gd1.485Ga2Al3O120.021.431.491.783.28
Ce0.03Tb1.98Gd0.99Ga2A3O120.021.970.981.703.33
