# Study of Optimal Cam Design of Dual-Axle Spring-Loaded Camming Device

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

#### 1.1. Description of Protection Gears

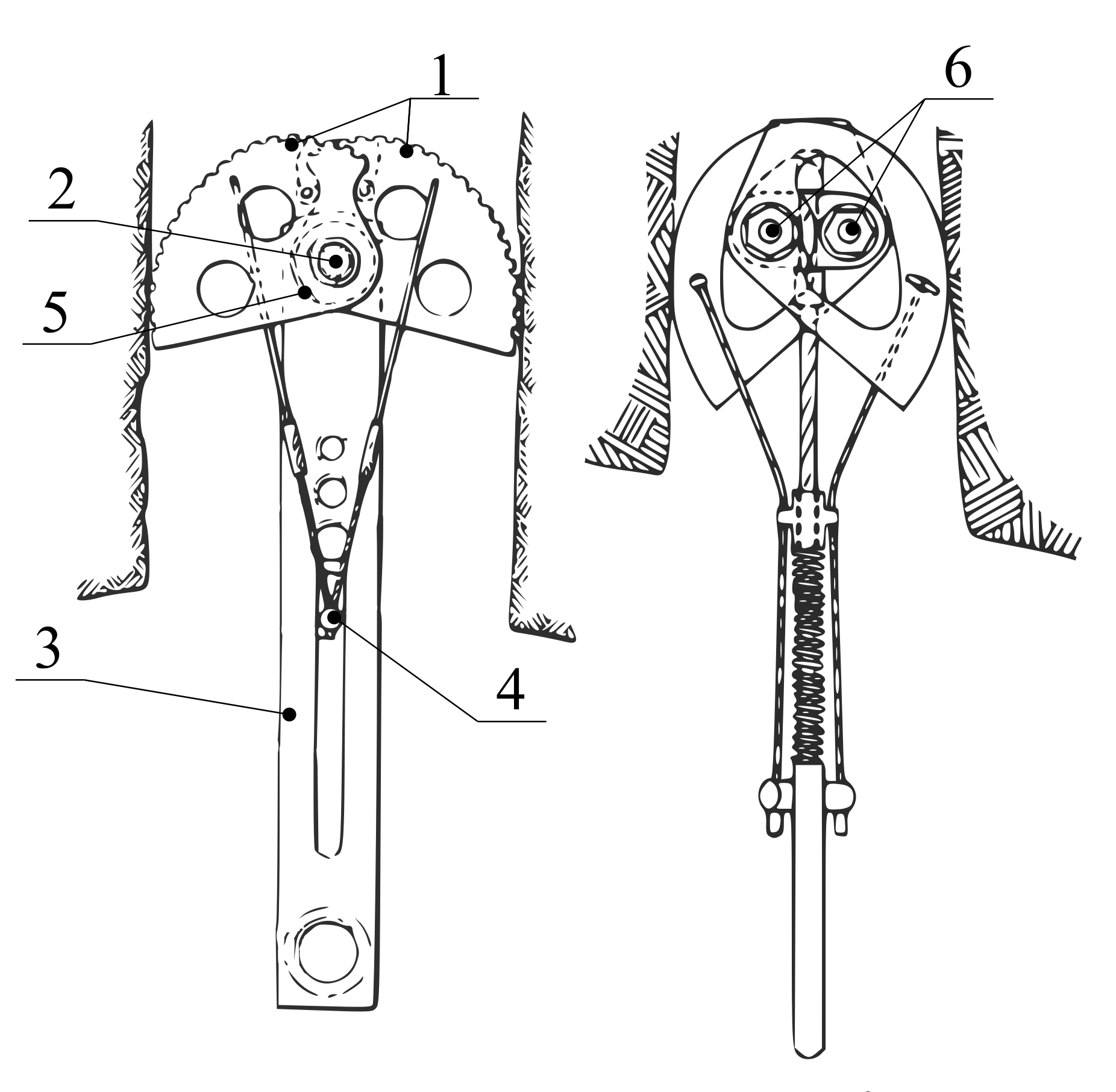

#### 1.2. Properties of Dual-Axle Spring-Loaded Camming Device

#### 1.3. Analysis of the Current Dual-Axle Cam Design

#### 1.4. Possibilities of Dual-Axle Cam Design Improvement

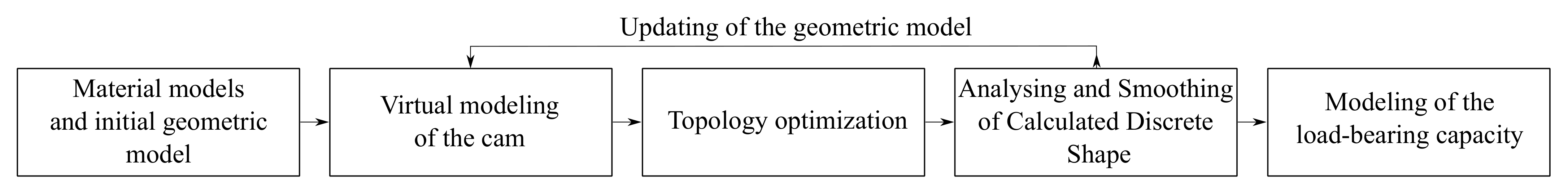

## 2. Materials and Methods

#### 2.1. Stage I: Material Models and Initial Geometry Model

#### 2.2. Stage II: Virtual Modeling of Cam

#### 2.3. Stage III: Topology Optimization

#### 2.4. Stage IV: Analysis and Smoothing of the Calculated Discrete Shape

#### 2.5. Stage V: Modeling Load-Bearing Capacity

## 3. Results

#### 3.1. Topology Optimization

#### 3.2. Analyzing and Smoothing of the Calculated Discrete Shape

#### 3.3. Modeling of Load-Bearing Capacity

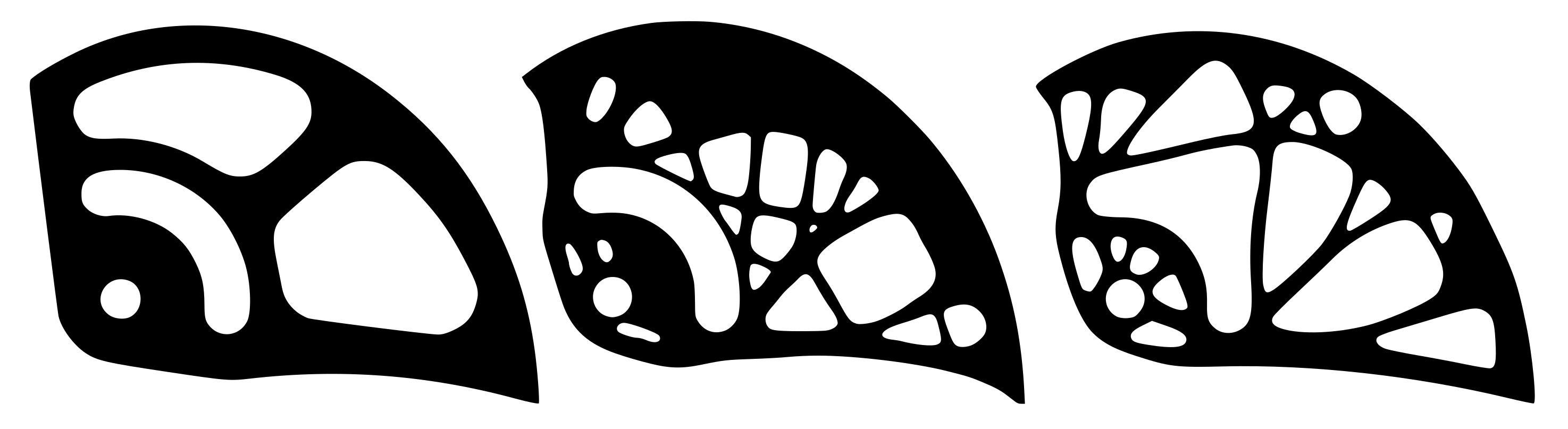

## 4. Discussion

## 5. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## Abbreviations

AWB | Ansys Workbench |

SLCD | Spring-Loaded Camming Device |

FE | Finite Element |

FEM | Finite Element Method |

NURBS | Non-Uniform Rational Basis Splines |

PRG | Protection Gears |

LTMS | Lever-Type Mechanical Stopper |

TOP | Topology Optimization |

SCDM | SpaceClaim Direct Modeler |

2D | Two-dimensional |

3D | Three-dimensional |

SIMP | Solid Isotropic Material with Penalty |

DOF | Degrees of Freedom |

CAD | Computed Aided Design |

STL | Standart Triangle Language |

CNC | Computer Numerical Control |

MPC | Multiple Point constraints |

PB6 | Permon Biaxial 6 |

## References

- Legaszewski, M. Introduction to Spring Loaded Camming Devices (SLCD’s); ZESPÓŁ SZKÓŁ OGÓLNOKSZTAŁCĄCYCH NR 10—I LO: Gliwice, Poland, 2015. [Google Scholar]
- Tusting, P.; Belcourt, B.; Skrivan, J.; Mellon, D.; Santurbane, M.; Narajowski, D. Active Camming Device. US7278618B2, 22 December 2004. [Google Scholar]
- Marsalek, P.; Frantisek, O.; Karasek, T. Lever-Type Mechanical Stopper. CZ306178B6, 24 April 2014. [Google Scholar]
- Zondlak, P.; Marsalek, P.; Karasek, T. Modelling of holding power of lever-type mechanical stopper. AIP Conf. Proc.
**2019**, 2116, 320016. [Google Scholar] [CrossRef] - Blatnický, M.; Sága, M.; Dižo, J.; Bruna, M. Application of Light Metal Alloy EN AW 6063 to Vehicle Frame Construction with an Innovated Steering Mechanism. Materials
**2020**, 13, 817. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Mountaineering Equipment. In Frictional Anchors-Safety Requirements and Test Method; European Standard EN12276; European Standard: Brussels, Belgium, 2014.
- Kouba, P. Climbing Equipments. Available online: https://koubaclimbing.cz/ (accessed on 3 February 2021).
- Jardine, R.D. Climbing Aids. US4184657A, 4 June 1977. [Google Scholar]
- Christianson, T. Mechanically Expanding Climbing Aid. US4643377A, 26 October 1985. [Google Scholar]
- Handžić, I.; Reed, K.B. Kinetic Shapes. J. Mech. Des.
**2014**, 136. [Google Scholar] [CrossRef] - Rybansky, D. Topological Optimization of Spring-Loaded Camming Device; VSB—Technicial University of Ostrava: Ostrava, Czech Republic, 2020. [Google Scholar]
- Mechanical Characteristics AlCu4PbMg. Available online: https://www.euralliage.com/2030_english.htm (accessed on 12 March 2020).
- Jozić, S.; Dumanić, I.; Bajić, D. Experimental Analysis and Optimization of the Controllable Parameters in Turning of EN AW-2011 Alloy; Dry Machining and Alternative Cooling Techniques. Facta Univ. Ser. Mech. Eng.
**2020**, 18, 013–029. [Google Scholar] [CrossRef] - Seitl, S.; Pokorny, P.; Miarka, P.; Klusák, J.; Kala, Z.; Kunz, L. Comparison of fatigue crack propagation behaviour in two steel grades S235, S355 and a steel from old crane way. MATEC Web Conf.
**2020**, 310, 00034. [Google Scholar] [CrossRef] - Javadi, M.; Tajdari, M. Experimental investigation of the friction coefficient between aluminium and steel. Mater. Sci. Pol.
**2006**, 24, 305–310. [Google Scholar] - Rummel, F.; Alheid, H.J.; Frohn, C. Dilatancy and fracture induced velocity changes in rock and their relation to frictional sliding. Pure Appl. Geophys.
**1978**, 116, 743–764. [Google Scholar] [CrossRef] - Bhatti, M.A. Fundamental Finite Element Analysis and Applications; John Wiley: Hoboken, NJ, USA, 2005. [Google Scholar]
- Bhatti, M.A. Advanced Topics in Finite Element Analysis of Structures, 2nd ed.; John Wiley: Hoboken, NJ, USA, 2006. [Google Scholar]
- Kminek, T.; Maršálek, P.; Karasek, T. Analysis of Steel Tanks for Water Storage Using Shell Elements. AIP Conf. Proc.
**2019**, 2116, 320007. [Google Scholar] [CrossRef] - Horyl, P.; Šňupárek, R.; Maršálek, P.; Poruba, Z.; Pacześniowski, K. Parametric Studies of Total Load-Bearing Capacity of Steel Arch Supports. Acta Montan. Slovaca
**2019**, 24, 213–222. [Google Scholar] - Lesnak, M.; Maršálek, P.; Horyl, P.; Pistora, J. Load-Bearing Capacity Modelling and Testing of Single-Stranded Wire Rope. Acta Montan. Slovaca
**2020**, 25, 192–200. [Google Scholar] [CrossRef] - Bathe, K.J. Finite Element Procedures, 1st ed.; Prentice Hall: Englewood Cliffs, NJ, USA, 2006. [Google Scholar]
- Klemenc, M.; Markopoulos, A.; Marsalek, P. Analysing of critical force effects of aircraft seat belt using truss elements. AIP Conf. Proc.
**2017**, 1863, 340005. [Google Scholar] - Bendsøe, M.P.; Sigmund, O. Topology Optimization, 2nd ed.; Corrected Printing ed.; Springer: Berlin/Heidelberg, Germany, 2004. [Google Scholar]
- Andreassen, E.; Clausen, A.; Schevenels, M.; Lazarov, B.; Sigmund, O. Efficient topology optimization in MATLAB using 88 lines of code. Struct. Multidiscip. Optim.
**2011**, 43, 1–16. [Google Scholar] [CrossRef] [Green Version] - Sotola, M.; Stareczek, D.; Rybansky, D.; Prokop, J.; Marsalek, P. New Design Procedure of Transtibial ProsthesisBed Stump Using Topological Optimization Method. Symmetry
**2020**, 12, 1837. [Google Scholar] [CrossRef] - Jancar, L.; Pagac, M.; Mesicek, J.; Stefek, P. Design Procedure of a Topologically Optimized Scooter Frame Part. Symmetry
**2020**, 12, 755. [Google Scholar] [CrossRef] - Bendsøe, M.; Sigmund, O. Material interpolation schemes in topology optimization. Arch. Appl. Mech.
**1999**, 69, 635–654. [Google Scholar] [CrossRef] - Koga, J.I.; Koga, J.; Homma, S. Checkerboard Problem to Topology Optimization of Continuum Structures; Computational Engineering, Finance, and Science; Unpublished Work; 2013. [Google Scholar]
- Sigmund, O. Morphology-based black and white filters for topology optimization. Struct. Multidiscip. Optim.
**2007**, 33, 401–424. [Google Scholar] [CrossRef] [Green Version] - Ohbuchi, R.; Masuda, H.; Aono, M. A shape-preserving data embedding algorithm for NURBS curves and surfaces. In Proceedings of the 1999 Proceedings Computer Graphics International, Canmore, AB, Canada, 7–11 June 1999; pp. 180–187. [Google Scholar] [CrossRef] [Green Version]
- Piegl, L.; Tiller, W. The Nurbs Book, 2nd ed.; Springer: Berlin/Heidelberg, Germany, 1997. [Google Scholar]
- Kořínek, M.; Halama, R.; Fojtík, F.; Pagáč, M.; Krček, J.; Krzikalla, D.; Kocich, R.; Kunčická, L. Monotonic Tension-Torsion Experiments and FE Modeling on Notched Specimens Produced by SLM Technology from SS316L. Materials
**2021**, 14, 33. [Google Scholar] [CrossRef] - Marsalek, P.; Sotola, M.; Rybansky, D.; Repa, V.; Halama, R.; Fusek, M.; Prokop, J. Modeling and Testing of Flexible Structures with Selected Planar Patterns Used in Biomedical Applications. Materials
**2021**, 14, 140. [Google Scholar] [CrossRef] - Maršálek, P.; Horyl, P. Modelling of Bolted Connection with Flexible Yokes Used in Mining Industry. AIP Conf. Proc.
**2017**, 1863, 340008. [Google Scholar] [CrossRef] - Čech, R.; Horyl, P.; Maršálek, P. Modelling of Two-Seat Connection to the Frame of Rail Wagon in Terms of Resistance at Impact Test. Stroj. Cas. J. Mech. Eng.
**2016**, 66, 101–106. [Google Scholar] [CrossRef] [Green Version] - Vaško, M.; Sága, M.; Majko, J.; Vaško, A.; Handrik, M. Impact Toughness of FRTP Composites Produced by 3D Printing. Materials
**2020**, 13, 5654. [Google Scholar] [CrossRef] [PubMed] - Markopoulos, A.; Hapla, V.; Cermak, M.; Fusek, M. Massively parallel solution of elastoplasticity problems with tens of millions of unknowns using PermonCube and FLLOP packages. Appl. Math. Comput.
**2015**, 267, 698–710. [Google Scholar] [CrossRef] - Costa, G.; Montemurro, M.; Pailhès, J. NURBS hyper-surfaces for 3D topology optimization problems. Mech. Adv. Mater. Struct.
**2019**, 1–20. [Google Scholar] [CrossRef]

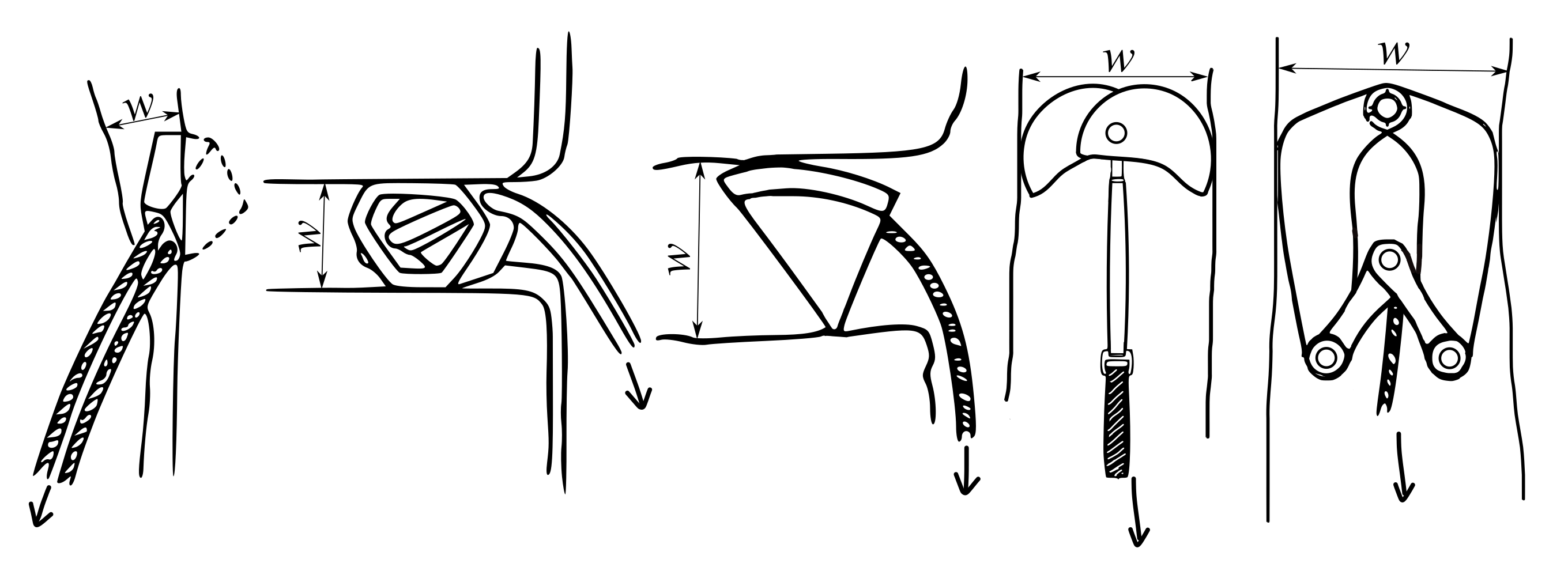

**Figure 1.**The passive PRG (from left): Nut, Hexentric, Tricam, and the active PRG (from right): LTMS and single-axle SLCD.

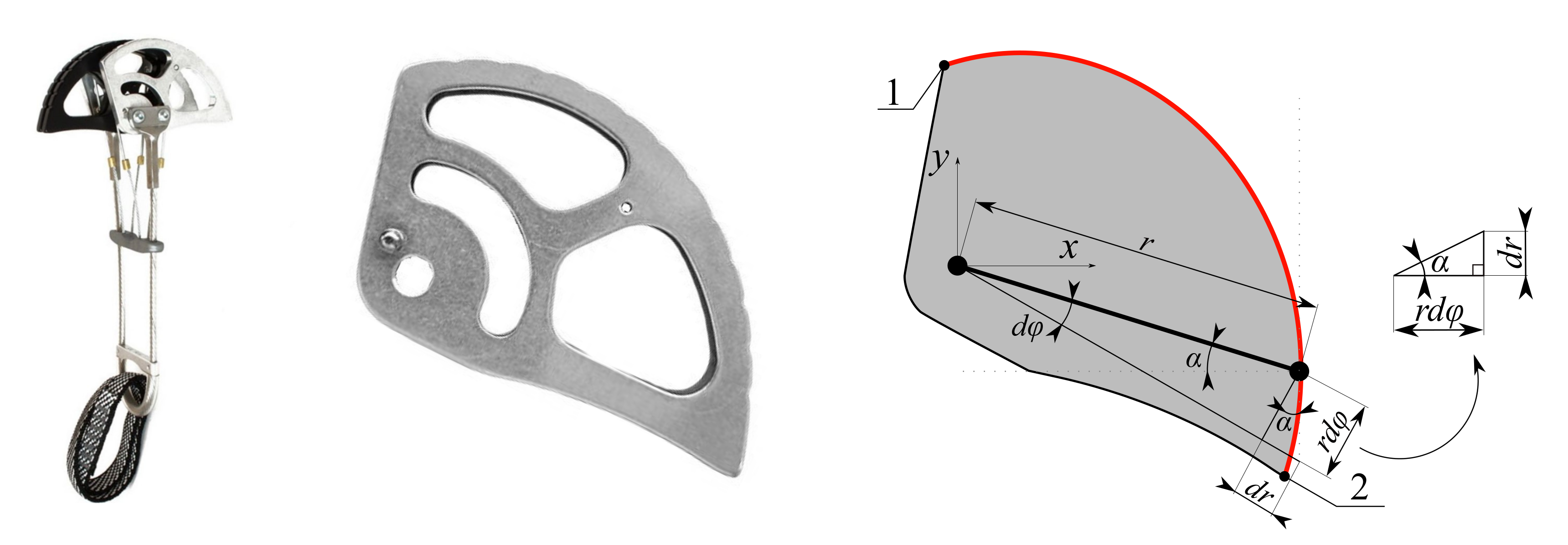

**Figure 3.**The PB6 SLCD produced by Petr Kouba [7], its cam and a simplified cam model for determination of its contact shape (points on curve: 1—starting point, 2—end point).

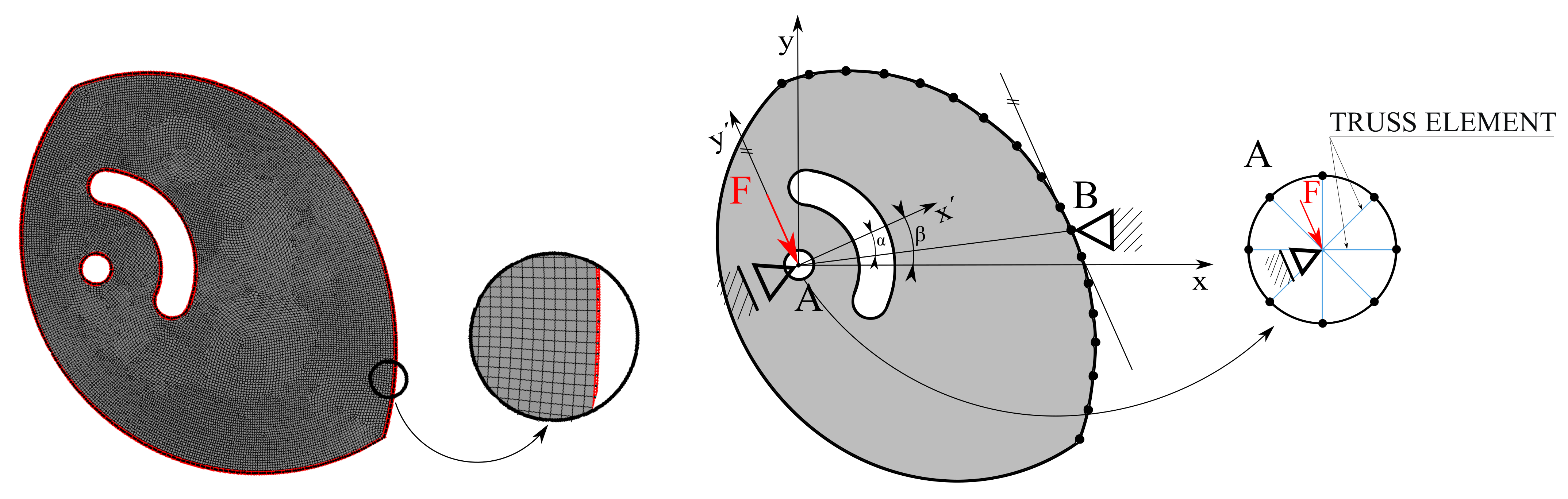

**Figure 6.**The finite element mesh used for description of the cam (

**left**) and boundary conditions of linear computational model (

**right**).

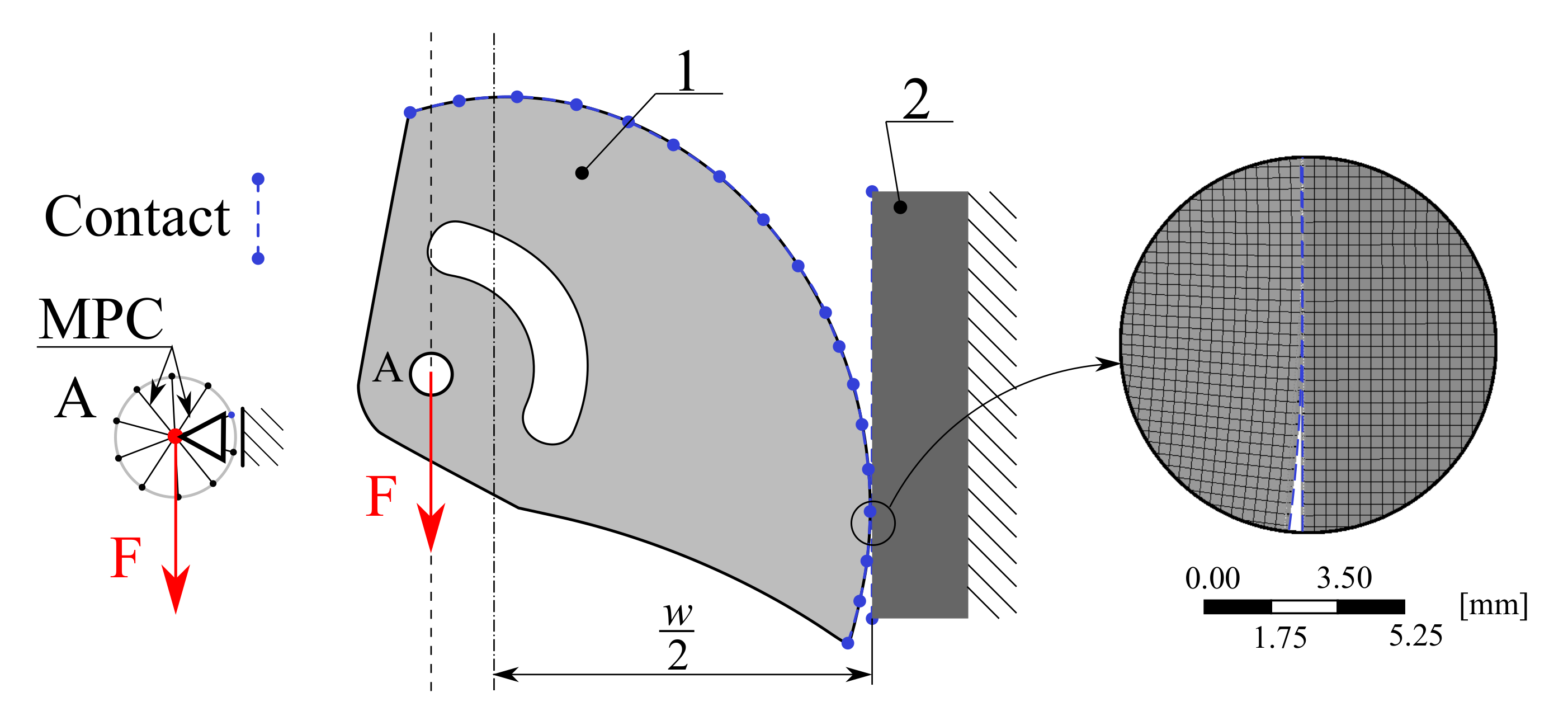

**Figure 7.**Boundary conditions for the nonlinear computational model (1—scheme of the cam, 2—jaw) and detail of mesh.

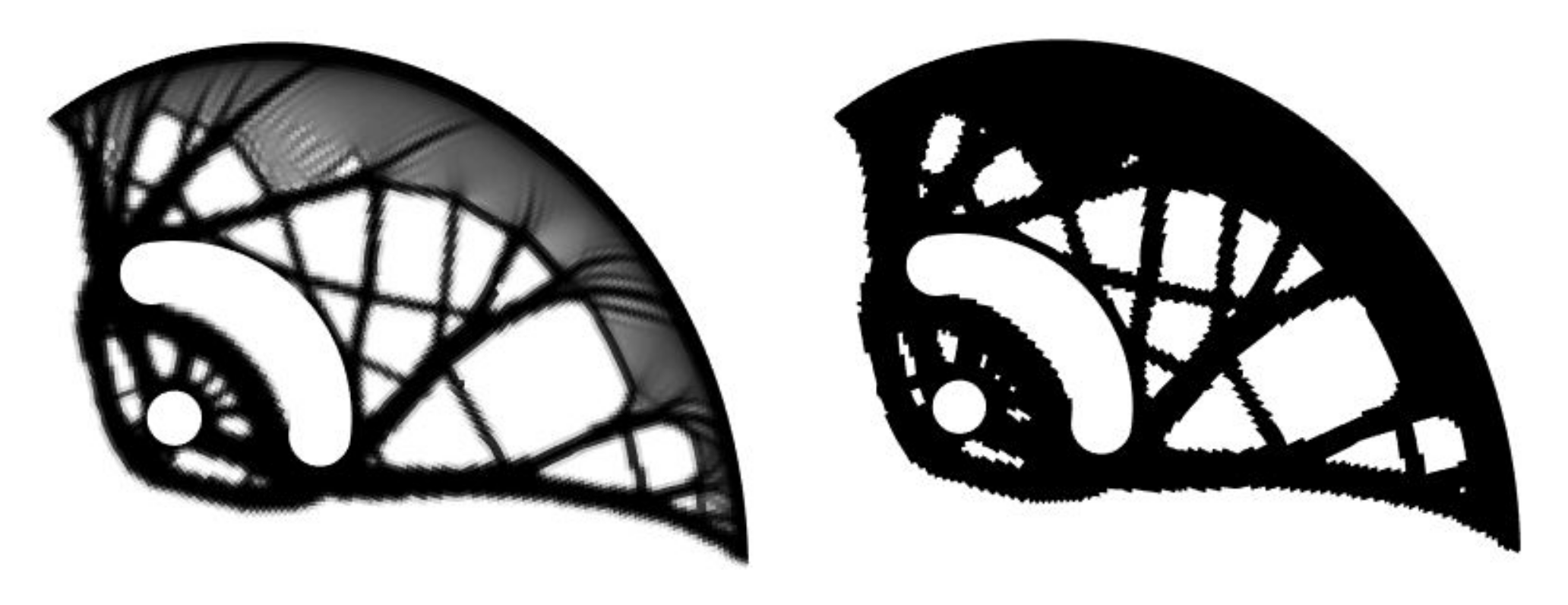

**Figure 8.**The first optimization run–density distribution field in grey-scale: black color—keep element, white color—remove element (

**left**) and pseudo-density distribution field using the density limit value ${x}_{lim}=$ 0.1 (

**right**).

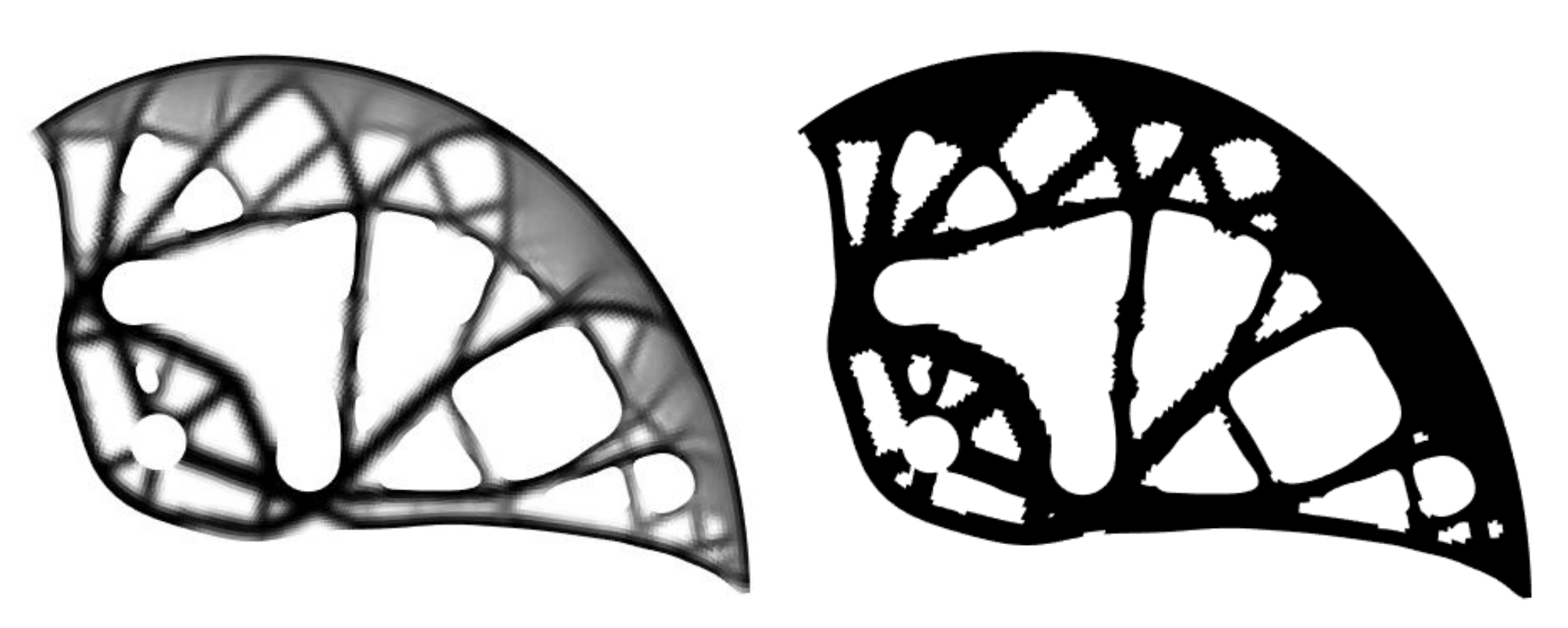

**Figure 9.**The second optimization run–density distribution field in grey-scale: black color—keep element, white color—remove element (

**left**) and pseudo-density distribution field using the density limit value ${x}_{lim}=$ 0.1 (

**right**).

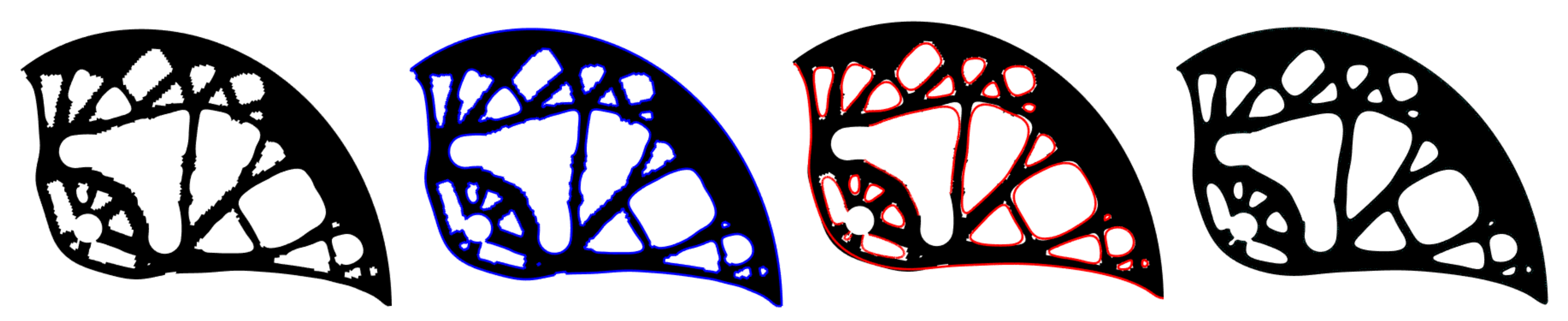

**Figure 10.**Four steps of the smoothing process (from the left): (i) importing the calculated shape, (ii) analyzing the external shape, (iii) approximation of external nodes, and (iv) generation of the smoothed geometric model.

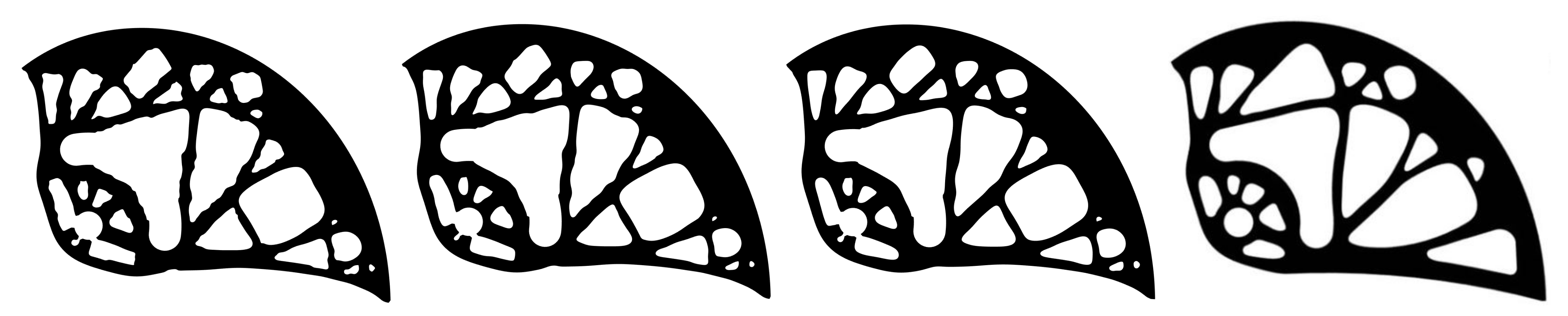

**Figure 11.**Cam shape after smoothing achieved by calculations using various values of polynomial degrees of k = 5, 10, and 100 (from the left), and the optimal cam design with k = 250 (right).

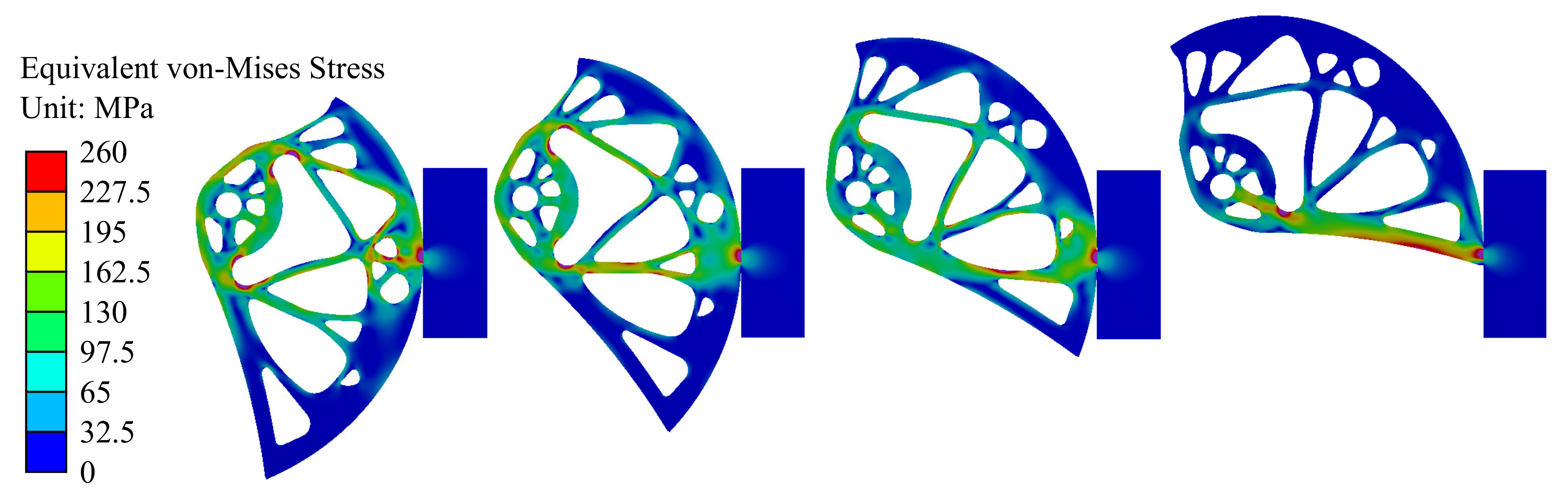

**Figure 12.**Von Mises stress fields corresponding to the force ${F}_{min}$ = 5.00 kN (F = 1.25 kN) for different widths of the rock crack w = 75, 86, 97, 108 mm (from left).

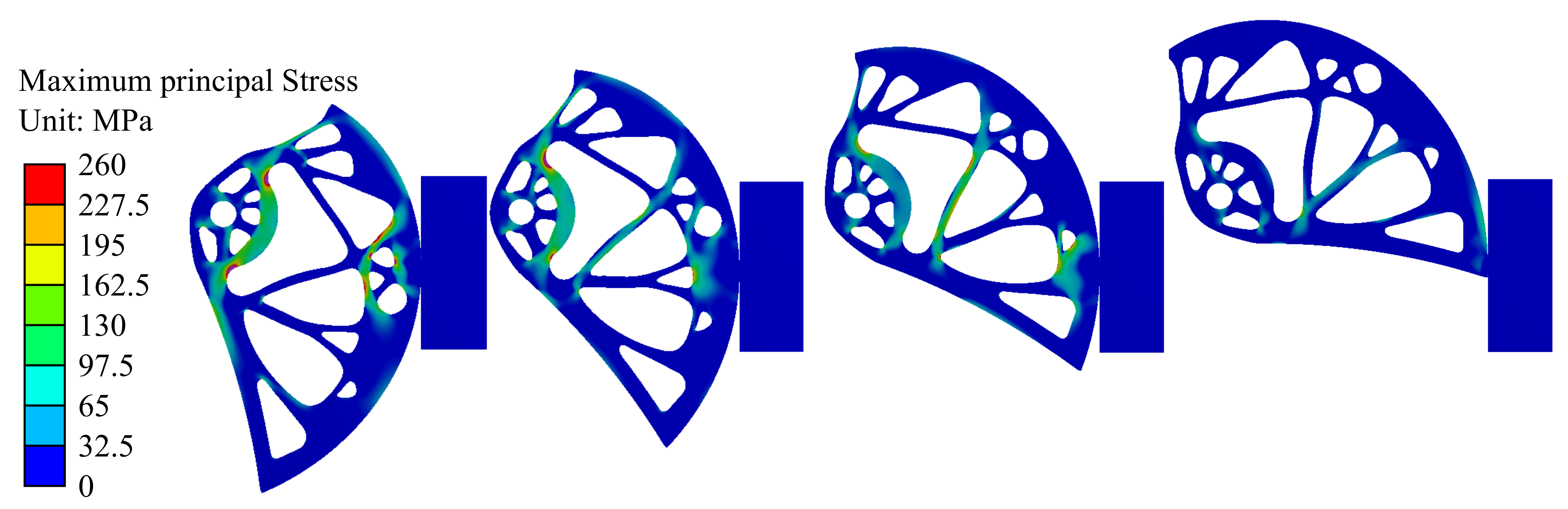

**Figure 13.**Maximum principal stress fields corresponding to the force ${F}_{min}$ = 5.00 kN (F = 1.25 kN) for different widths of the rock crack w = 75, 86, 97, 108 mm (from left).

Active PRG | Ratio of the Working Range | Passive PRG | Ratio of the Working Range |
---|---|---|---|

Dual-Axle SLCD | R = 41% | Tricam | R = 37% |

Single-Axle SLCD | R = 35% | Hexentrics | R = 26% |

LTMS | R = 22% | Nuts | R = 10% |

Property | Symbol | Value | Unit |
---|---|---|---|

Poisson ratio | $\mu $ | 0.33 | - |

Young’s modulus | E | 72.5 | GPa |

Yield stress | ${\sigma}_{y}$ | 260 | MPa |

Ultimate stress | ${\sigma}_{u}$ | 370 | MPa |

Elongation | A | 0.06 | - |

Tangent modulus | ${E}_{T}$ | 2 343 | MPa |

Limit plastic strain | ${\epsilon}_{pl}$ | 0.055 | - |

Density | $\rho $ | 2 820 | kg·m ${}^{-3}$ |

Property | Symbol | Value | Unit |
---|---|---|---|

Poisson ratio | $\mu $ | 0.30 | - |

Young’s modulus | E | 206 | GPa |

Material | Material | Coefficient of Static Friction | Limit Angle of the Beam |
---|---|---|---|

AW2011 | S235 | ${f}_{T}$ = 0.27 | $\alpha $ = 15.1${}^{\circ}$ |

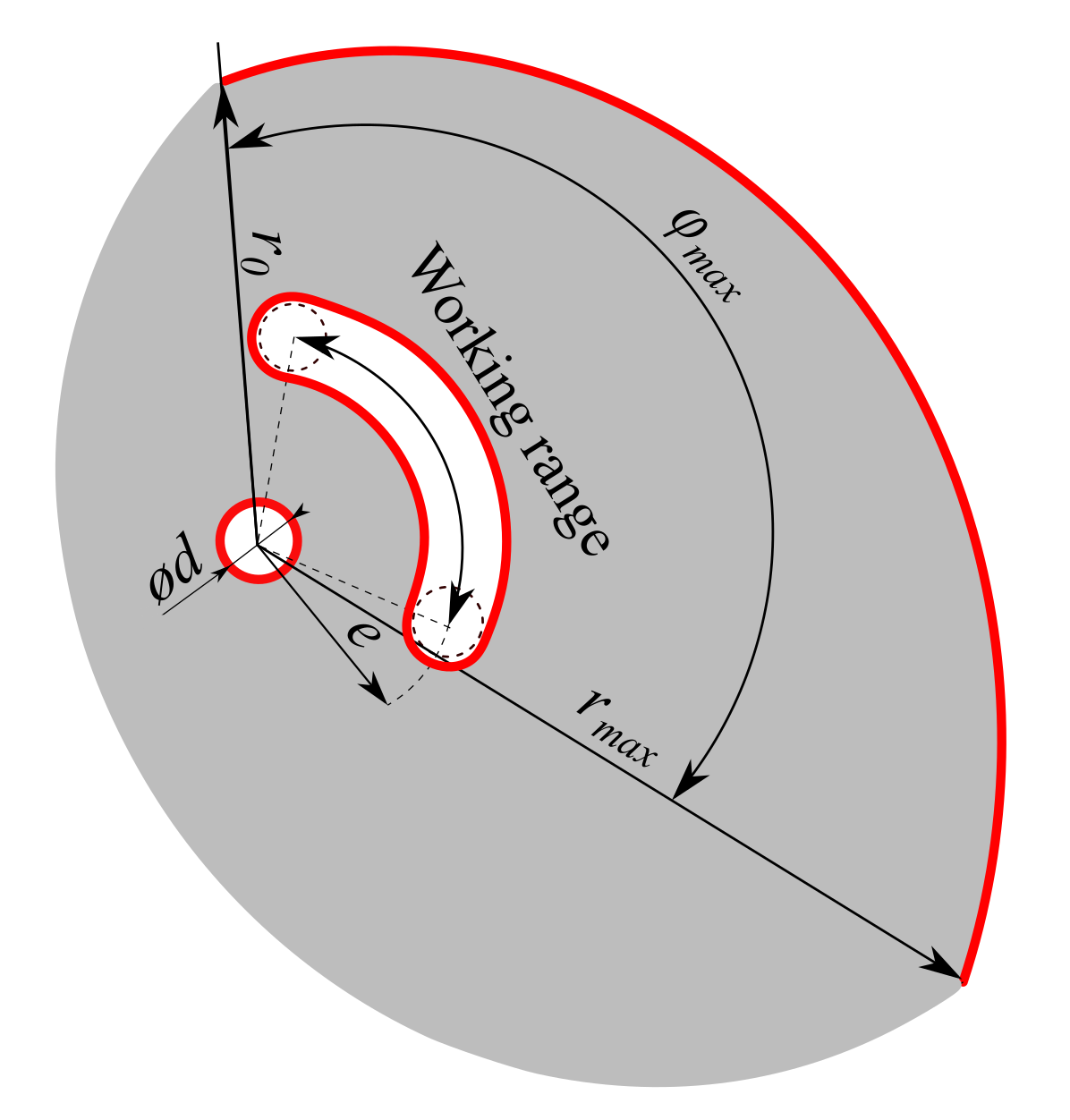

Parameter | Symbol | Value | Unit |
---|---|---|---|

Initial radius of the cam | ${r}_{0}$ | 35.7 | mm |

Coefficient of static friction | ${f}_{T}$ | 0.27 | - |

Maximal radius of the cam | ${r}_{max}$ | 65.0 | mm |

Maximal rotation of the cam | ${\phi}_{max}$ | 127 | ${}^{\circ}$ |

Diameter of the hole for pin | $\varphi d$ | 6.00 | mm |

Distance between pins | e | 16.0 | mm |

Thickness of the cam | t | 6.00 | mm |

Nodes | Elements | DOF |
---|---|---|

17,800 | 17,500 | 35,600 |

Nodes | Elements | DOF |
---|---|---|

121,000 | 39,000 | 242,000 |

Width of the Rock Crack w [mm] | Plastic Strain ${\mathit{\epsilon}}_{\mathit{pl}}$ [%] for Force ${\mathit{F}}_{\mathit{min}}$ = 5.00 kN | Load-Bearing Capacity ${\mathit{F}}_{\mathit{max}}$ [kN] for Limit Plastic Strain ${\mathit{\epsilon}}_{\mathit{pl}}$ = 5.50% |
---|---|---|

64.0 | 2.74 | 7.33 |

69.5 | 2.75 | 7.34 |

75.0 | 2.49 | 7.83 |

80.5 | 2.21 | 8.26 |

86.0 | 1.97 | 8.98 |

91.5 | 1.87 | 8.13 |

97.0 | 1.76 | 9.88 |

102.5 | 3.02 | 10.21 |

108.0 | 0.90 | 7.09 |

Type | Weight of the Cam | Load-Bearing Capacity |
---|---|---|

PB6’s cam | ${m}_{c}$ = 33.8 g | ${F}_{max}$ = 14.0 kN |

Optimal cam design | ${m}_{c}$ = 28.9 g (14.5%) | ${F}_{max}$ = 7.09 kN (49.3%) |

EN 12276 limit | - | ${F}_{max}$ = 5.00 kN |
