Electronic, Structural, and Optical Properties of Mono-Doped and Co-Doped (210) TiO₂ Brookite Surfaces for Application in Dye-Sensitized Solar Cells—A First Principles Study

Abstract

Titanium dioxide (TiO₂) polymorphs have recently gained a lot of attention in dye-sensitized solar cells (DSSCs). The brookite polymorph, among other TiO₂ polymorphs, is now becoming the focus of research in DSSC applications, despite the difficulties in obtaining it as a pure phase experimentally. The current theoretical study used different nonmetals (C, S and N) and (C-S, C-N and S-N) as dopants and co-dopants, respectively, to investigate the effects of mono-doping and co-doping on the electronic, structural, and optical structure properties of (210) TiO₂ brookite surfaces, which is the most exposed surface of brookite. The results show that due to the narrowing of the band gap and the presence of impurity levels in the band gap, all mono-doped and co-doped TiO₂ brookite (210) surfaces exhibit some redshift. In particular, the C-doped, and C-N co-doped TiO₂ brookite (210) surfaces exhibit better absorption in the visible region of the electromagnetic spectrum in comparison to the pure, S-doped, N-doped, C-S co-doped and N-S co-doped TiO₂ brookite (210) surfaces.

1. Introduction

The answer to the growing energy demand, sustainability of energy sources and conservation of the environment for the world might lie in the ability to capture and utilize renewable energy sources. Even when the cost of solar energy is decreasing, the dye-sensitized solar cells (DSSCs) have attracted more attention as one of the most popular solar cells as they have been shown to have a simple fabrication process, low manufacturing cost and relatively high conversion efficiencies [1,2].

In the DSCCs, the TiO₂ semiconductor is very important for the efficiency of the cell as the dye molecules adsorb on its surface. The dye molecules are used for the photonadsorption and they are the source of the photocurrent of the solar cells [3,4,5,6]. However, the electron band gap of TiO₂ is relatively large (3.2 eV for anatase, 3.0 eV for rutile and 3.4 eV for brookite) [7,8,9,10]. To improve the efficiency of the DSSC, the requirements will include: (1) reduction of the TiO₂ band gaps, so that its absorption properties will match the visible solar spectrum, and (2) modification of the sensitizer or dye so that it can absorb the over most of the entire solar spectrum [2]. Therefore, the modification of different electronic and optical properties of TiO₂ polymorphs (anatase, rutile and brookite) is very important for the application of DSCC and related technologies such as photo-catalysis. Several demonstrations of the performance of DSSCs based on the photoanode made up of sulfur-doped, vanadium-doped, cobalt-doped TiO₂ nanoparticles synthesized using different methods have been reported [11,12,13].

Improving the visible light response of oxide semiconductor materials by reducing the band gap energy has become a universal research focus in the photocatalytic field using both experimental and theoretical techniques. Although TiO₂ is an attractive semiconductor for DSCCs, it can only make use of less than 5% of the solar spectrum in its pristine state owing to its large band gap [1,6,7,8,10].

Different experimental and theoretical work has been performed to improve the photocatalysis of different surfaces of anatase and rutile TiO₂ through mono-doping and co-doping with different metals and non-metals, such as; vanadium, tantalum, nitrogen, carbon, platinum, sulfur, etc [11,12,14,15,16,17,18]. It was reported that N-doped TiO₂ shows a relatively high level of visible light activity. Co-doping of nitrogen and other elements into the TiO₂ lattice has also been reported [19,20,21,22].

Chen et al. [23] used density functional calculations to analyze the geometrical parameters, the density of states, charge densities, relative dielectric functions, and UV–Vis absorption spectra of N-S co-doped rutile TiO₂ with two doping mechanisms (substitution and interstitial) to obtain a more efficient (N-S) co-doping scheme. They discovered that, when compared to (N-S) substitution, co-doped TiO₂, (N-S) interstitial co-doped TiO₂ exhibits a more obvious red-shift of the absorption edge due to a smaller band gap. They also reported shallow impurity levels coupling with the top of the valence band. Their calculated UV–Vis’s absorption spectra revealed that TiO₂ with (N-S) interstitial co-doping has significantly higher photocatalytic activity in the visible light region.

Guo et. al. [24] reported that the C–N–S co-doped TiO₂ mixed crystal exhibited a unique isoband gap characteristic and a prominent red-shift in the ultraviolet and visible absorption spectra and a much narrower band [24]. The effects of doping different materials can be evaluated easily by the calculation of electronic structure and related properties.

Brookite, one of the three crystallographic types of TiO₂, has received much less attention and understanding than rutile and anatase, owing to the difficulty in producing large quantities of high-quality material. However, efficient methods for synthesizing high purity brookite TiO₂ have recently been developed [25]. This has sparked increased interest in the physicochemical properties and potential applications of this TiO₂ polymorph, which were found to exhibit higher activity in photocatalysis and catalytic reactions involving TiO₂-assisted metal clusters in a few cases than rutile and anatase. Li et al. [26] reported that the commonly exposed brookite (210) surface is more reactive than the ubiquitous anatase (101) surface and might be useful in catalytic and photocatalytic applications; this was performed using the density functional theory (DFT) calculations. In this paper, we report a comparative density functional theory study of nonmetals (C, S and N) mono-doping and co-doping of the brookite (210) surface. The main discussion is focused on how the structural, electronic, and optical properties of the (210) brookite surface change owing to non-metals (C, S and N) mono-doping and co-doping. This paper will report for the first time on the DFT study of the (C, S, and N) mono- and co-doped (210) brookite surfaces. As a result, a novel approach will be presented in this work that will aid in the design of structures with increased photocatalytic activity when exposed to visible light from the surface of brookite (210).

2. Materials and Methods

To determine the structural, electronic, and optical properties of mono-doped, co-doped, and un-doped (210) brookite surfaces, density functional theory (DFT) calculations were performed using the plane-wave pseudopotential method. The exchange-correlation functional was described using the generalized gradient approximation (GGA) in the Perdew–Burke–Ernzerhof (PBE) scheme. All calculations were performed in BIOVIA Inc’s Materials Studio, San Diego, CA, USA, using the CASTEP code [27]. According to the convergence test, the cut-off kinetic energy of plane waves is 650 eV. A Monkhorst–Pack mesh was used for the Brillouin zone k-point sampling, 4 × 4 × 2. The convergence criteria for structural optimization were set to medium quality, with tolerances of 2.0106 eV/atom, 2.0105 eV/atom, 0.05 eV/atom, and 2.0103 eV/atom for the self-consistent field (SCF), energy, maximum force, and maximum displacement, respectively. The calculated equilibrium geometry was used to derive the (210) surface structure of brookite from an unreconstructed bulk structure slab model. The (210) surface slab model had a vacuum thickness of ten. The relaxation of these surfaces was accomplished by optimizing all the slab’s layers. The surfaces of the (210) brookite were mono-doped by replacing one O atom with either (C, N, or S) and co-doped by replacing two O atoms with either (C-S, C-N, or S-N) (substitutional doping). The orbital electrons involved in the calculations have the following valence electrons: Ti: 3s23p63d24s2, O: 2s²2p⁴, N: 2s²2p³, S: 3s²3p4, C: 2s²2p².

3. Results and Discussion

3.1. Bulk TiO₂ Brookite

3.1.1. Structural Properties

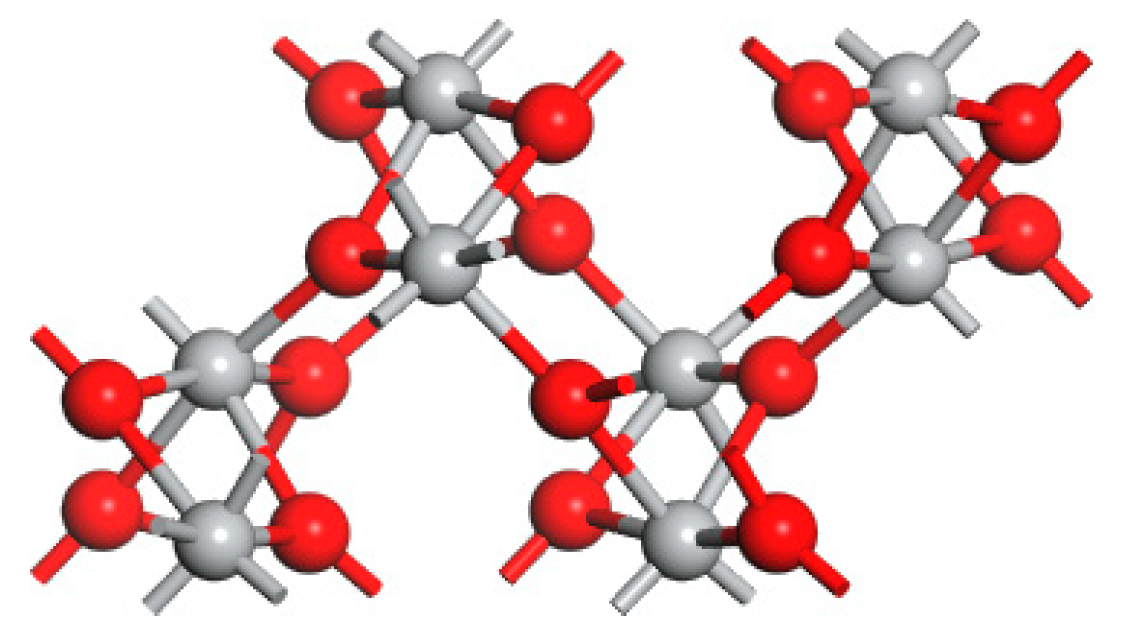

The crystal structure of brookite TiO₂ (orthorhombic, space group Pbca) was visualized as shown in Figure 1. Brookite’s unit cell contains 24 atoms, eight of which are titanium (Ti) and sixteen are oxygen (O) atoms with eight formula units. The brookite is a TiO₆ octahedron, where Ti binds with six O-atoms. The Ti-O bond length ranges from 1.8534 to 2.063 Å.

The experimental and calculated structural data for bulk brookite are presented in

Table 1. Calculated lattice parameters for bulk brookite TiO₂ compared with experimental and previous theoretical results.

Lattice Parameter	Literature Experimental [9]	Literature Calculations [10]	This Work Calculations
a (Å)	9.184	9.157	9.166
b (Å)	5.447	5.430	5.436
c (Å)	5.145	5.122	5.135
V (Å)3	25,8.40	27,0.37	25,5.86

. The calculated results are in agreement with both the experimental and reported theoretical results [9,10]. The obtained lattice parameters deviate from experimental data by 0.1967% along the a-axis, 0.203% along the b-axis and 0.196% along the c-axis. In comparison with the previous theoretical results reported, the calculated results are more accurate relative to experimental data, and thus validating the starting models and method used. The results show that the atomic internal coordinates also vary isotopically at different positions. The theoretical determination of the stability and structure of materials under conditions that are difficult to reproduce in the laboratory is an added value of the present calculations.

3.1.2. Electronic Properties

Using the measured lattice parameters listed in Table 1, the band structure of brookite TiO₂ was built along with the appropriate high-symmetry directions of the corresponding irreducible Brillouin zone. A 2.353 eV measured energy band gap for bulk brookite TiO₂ was obtained. The band gap value obtained in this study is similar to that reported by Mo and Ching [8], who calculated a value of 2.20 eV using the self-consistent orthogonalized linear combination of atomic orbitals method to arrive at their result. Due to the limitations of DFT, both values were found to be underestimated as compared to the experimentally tested value of 3.40 eV. The restriction is due to a discontinuity in the exchange-correlation potential that is not taken into account in the DFT calculations.

The debate over the energy difference, on the other hand, would be unaffected because only relative energy shifts are of interest. To compensate for the underestimation of the band gap, the scissor operation of 1.047 eV was used in this study [28]. The scissors scheme aligns the theoretical valence band energy (VBE) and conduction band energy (CBE) with their experimental equivalents by stretching the theoretical gap states over the experimental gap using a “scissors” process. The experimental value for the scissor operation is 3.40 eV, as stated by Koelsch et al. [7] in their study of brookite nanoparticles dispersed in water. The band gap value after the scissor operation is 3.42 eV, as shown in Figure 2. Both the conduction band minimum (CBM) and the valence band maximum (VBM) are located at G. Therefore, brookite TiO₂ is considered to be a direct band gap semiconductor. The upper valence band (VB) is lying in the range of 0 to 87eV consisting of O 2p orbitals hybridized with Ti 3d orbitals. The bottom of the conduction band (CB) at −1.24 eV is composed of Ti 3d orbitals.

3.2. (210). TiO₂ Surface

3.2.1. Structural Properties

The (210) surface is a step surface composed of oxygen ions that are two-fold coordinated in both the top and bottom layers. Additionally, it contains a mixture of two- and three-fold coordinated oxygen ions in the middle layers. Titanium ions are coordinated five-fold and six-fold. While terminating with both oxygen and titanium, the atoms in these structures have some cleaved bonds in the termination positions. The surface structures of both undoped and doped (210) brookite were optimized by relaxing surface atoms to eliminate surface atomic tension.

3.2.2. Electronic Properties

The energy band gap of pure TiO₂ (210) surface is 3.54 eV and it is 1.161 eV larger than that of the bulk system. The larger band gap of brookite (210) indicates that the electron’s distribution probability is greatest near the surface, implying that the electron is constrained near the surface. This type of electronic state is referred to as a surface state, and the associated energy level is referred to as the surface level.

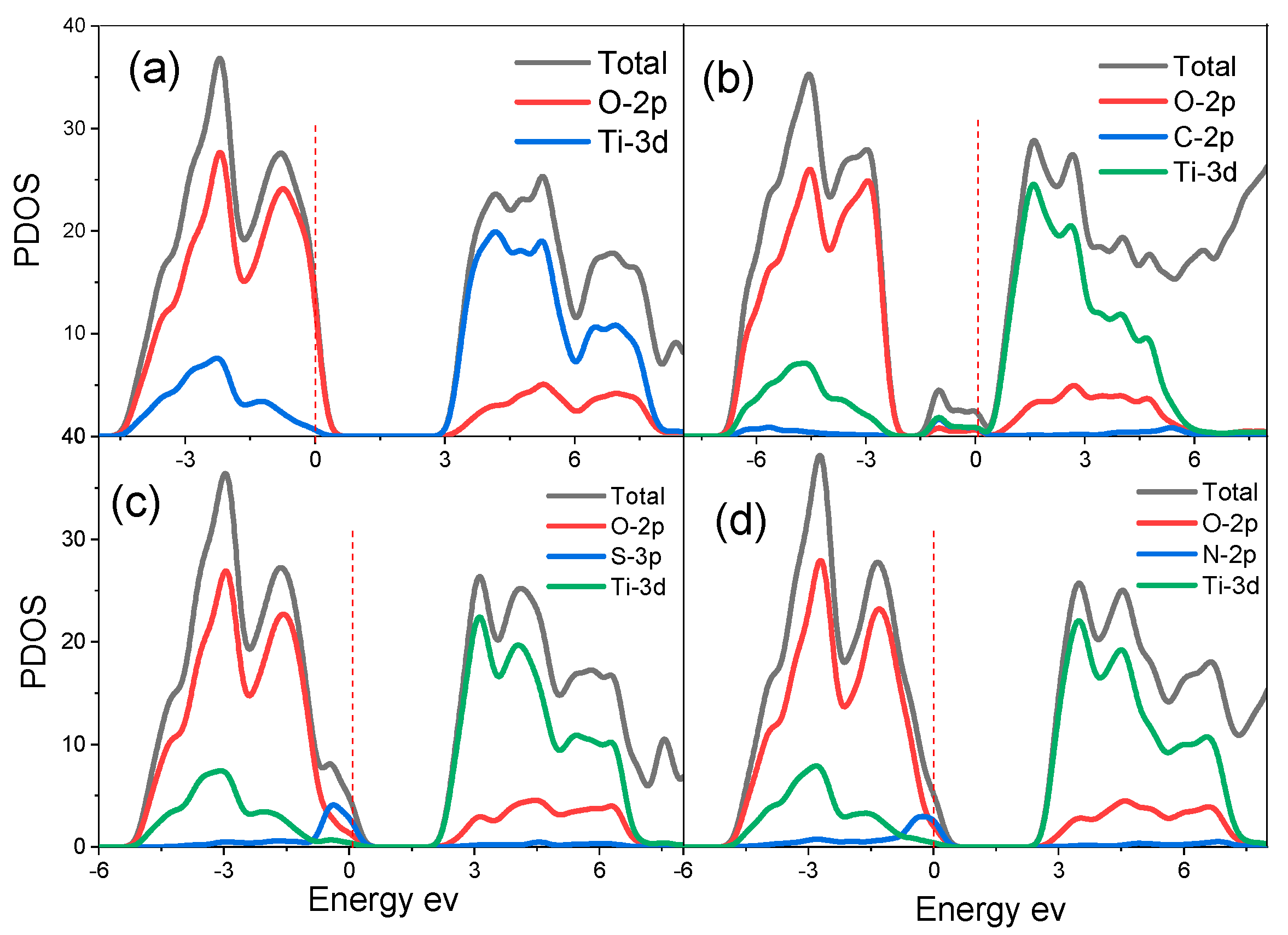

Figure 3a illustrates unequivocally that no surface level appears near the Fermi level on the (210) surface, indicating that no surface states exist. These modifications are primarily due to the redundant electronics of the brookite TiO₂ (210) surface transfer to the other atoms. The conduction band energy ranges from 2.870 to 6.14 eV and a width of 3.27 eV, with the Ti 3d track accounting for the majority of the energy and a small amount of O 2p track accounting for the remainder. The valence band energy near the Fermi level is between 0.509 and 5.005 eV, which is also attributed to the hybridization of the O 2p and Ti 3d orbits. In comparison to the bulk system’s band, the brookite TiO₂ (210) surface band is smoother, and the corresponding surface state density peak is larger. Similar results were reported by Beltran et al. [10] on (110) brookite surface. This result is due to two factors: first, the system contains a variable number of atoms; and second, the band gap width changes, thereby strengthening the surface electronic density of states and localization.

In the case of N-, C- and S-doped brookite TiO₂ (210) surfaces, the band gaps were determined as 3.042 eV, 1.363 eV and 2.656 eV and represented in Figure 3b–d, respectively. A smaller band gap value of the doped systems in comparison with the undoped (210) suggests that doping with N, C and S results in the narrowing of the band. The curves also show that N-doped (210) surface caused a small narrowing of the band gap. The lowest band gap was observed in C-doping, giving the highest narrowing of the band gap. This narrowing of the doped (210) surfaces arises from the formation of the impurity energy levels (IELs), which are a result of hybridizing with O 2p states or Ti 3d states and C 2p states. The IELs contribute to the separation of photo-generated electron–hole pairs and favor the migration of photoexcited carriers and the process of photocatalysis. The impurity energy levels are located below the CB and overlap with the VB. These kinds of IELs could act as trap centers for photoexcited holes, and hence reduce the recombination rate of charge carriers.

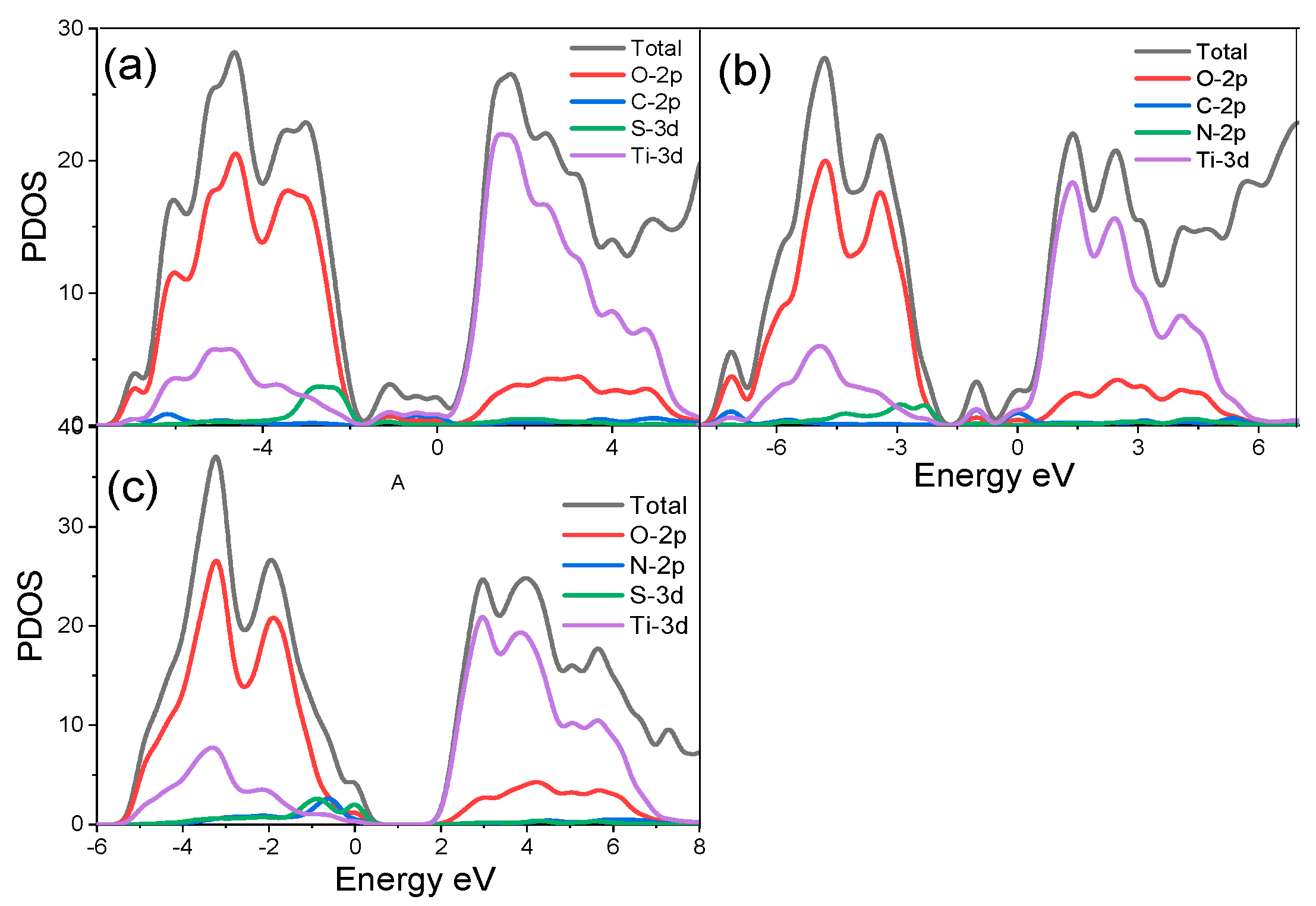

Three different co-doped surface structures were modelled, and their DOSs are shown in Figure 4.

Similarly, the C-N, N-S and S-C co-doping of (210) surface narrowed the band gaps of the surfaces and yielded energy band gap values of 0.920 eV, 2.37 eV and 1.456 eV, respectively. The N-C and S-C co-doping of (210) surface shifted the semiconductor from p-type to n-type. Again, the narrowing of the band gap is due to the formation of the IELs, which are a result of hybridizing with O 2p states or Ti 3d states and C 2p states. Further exploration of the electronic properties of (210) brookite surface from Ti, O, C, N and S atoms can be obtained from the Mulliken population analysis. The partial atomic charges of Ti, O, C, N and S atoms are shown in

Table 2. Mulliken population analysis of (210) brookite surface for s, p, and d orbitals.

		s	p	d	Total	Charge
Pure	O	1.89	4.90	0	6.79	−0.76
	Ti	2.21	6.24	2.26	10.69	1.32
C-doped	O	1.89	4.90	0	6.79	−0.45
	C	1.4	3.06	0	4.52	−0.52
	Ti	2.27	6.27	2.31	10.85	1.32
N-doped	O	1.89	4.90	0	6.79	−0.56
	N	1.78	3.93	0	5.71	−0.71
	Ti	2.23	6.25	2.29	10.77	−1.33
S-doped	O	1.89	4.90	0	6.79	−0.54
	S	1.87	4.54	0	6.42	−0.42
	Ti	2.26	6.32	2.32	10.90	1.35
C- S-doped	O	1.89	4.91	0	6.80	−0.54
	C	1.50	3.01	0	4.51	−0.31
	S	1.88	4.44	0	6.35	−0.32
	Ti	2.29	6.30	2.49	11.08	1.34
C-N-doped	O	1.89	4.90	0	6.79	−0.77
	C	1.51	2.78	0	4.30	−0.30
	N	1.74	4.06	0	5.08	−0.80
	Ti	2.25	6.27	2.38	10.90	−1.19
N-S-doped	O	1.90	4.90	0	6.80	−0.79
	N	1.76	4.03	0	5.79	−0.79
	S	1.91	4.38	0	6.29	−0.29
	Ti	2.25	6.31	2.36	10.92	1.15

.

The results from C-N, N-S and S-N co-doping of (210) surface show that the partial charges of about 1.15 to 1.35e for Ti, −0.45 to −0.79e for O, −0.30 to −0.52e for C, −0.71 to −0.80e for N and −0.29 to −0.42e for S, these charges are larger than +1 for Ti and less than −0.6 for O and S. The present net charges (e) of Ti, O, C, N and S atoms indicate a charge transfer between the atoms.

3.3. Optical Properties

The dielectric function and optical absorption coefficient of various doped systems are calculated using a non-polarization model, which provides additional insight into the doping effect. The dielectric function serves as a bridge between interband transition microphysical processes and solid-state electronic structure, allowing solids to reveal their optical properties. The dielectric function in the virtual $i{\mathsf{\epsilon }}_2\left(\omega \right)$ shows the electrons in the electromagnetic radiation perturbation effect from low level to high-level processes, namely the absorption of interband transitions. The imaginary part of the dielectric function indicates the material’s absorptive capacity for photons, the larger the imaginary part, the greater the possibility of photon absorption. The electronic instability at a high energy level will spontaneously shift to a low energy level, which is represented by the real part of the dielectric function ${\mathsf{\epsilon }}_1\left(\omega \right)$, depicts the material’s ability to reflect light. As a result, the dielectric function directly reveals the material’s absorption and reflection of light. Within the range of linear optical response, the macroscopic optical response function of the solid is typically described by the complex dielectric function of light. The frequency-dependent dielectric function is given by Equation (1):

$$\mathsf{\epsilon }\left(\omega \right)={\mathsf{\epsilon }}_1\left(\omega \right)+i{\mathsf{\epsilon }}_2\left(\omega \right).$$

(1)

The dielectric function is closely related to the electronic band structure. It fully describes the optical properties of any homogeneous medium at all photon energies. The imaginary part ${\mathsf{\epsilon }}_2\left(\omega \right)$ of the complex dielectric function is obtained from the momentum matrix elements between the occupied and unoccupied electronic states. It is calculated using the analytical expression in Equation (2):

$${\mathsf{\epsilon }}_2\left(\omega \right)=\frac{2e^2\pi }{\Omega {\mathsf{\epsilon }}_0}{\displaystyle \sum }_{k,v,c}|\langle {\mathsf{\psi }}_k^c|\widehat{u}\ast \overrightarrow{r}|\langle {\mathsf{\psi }}_k^v{\Vert }^2\delta \left(E_k^c-E_k^v-E\right)$$

(2)

where ω is the frequency of light, e is the electronic charge, û is the vector defining the polarization of the incident electric field, ${\mathsf{\psi }}_k^c$ and ${\mathsf{\psi }}_k^v$ are the conduction and valence band wave functions at k, respectively.

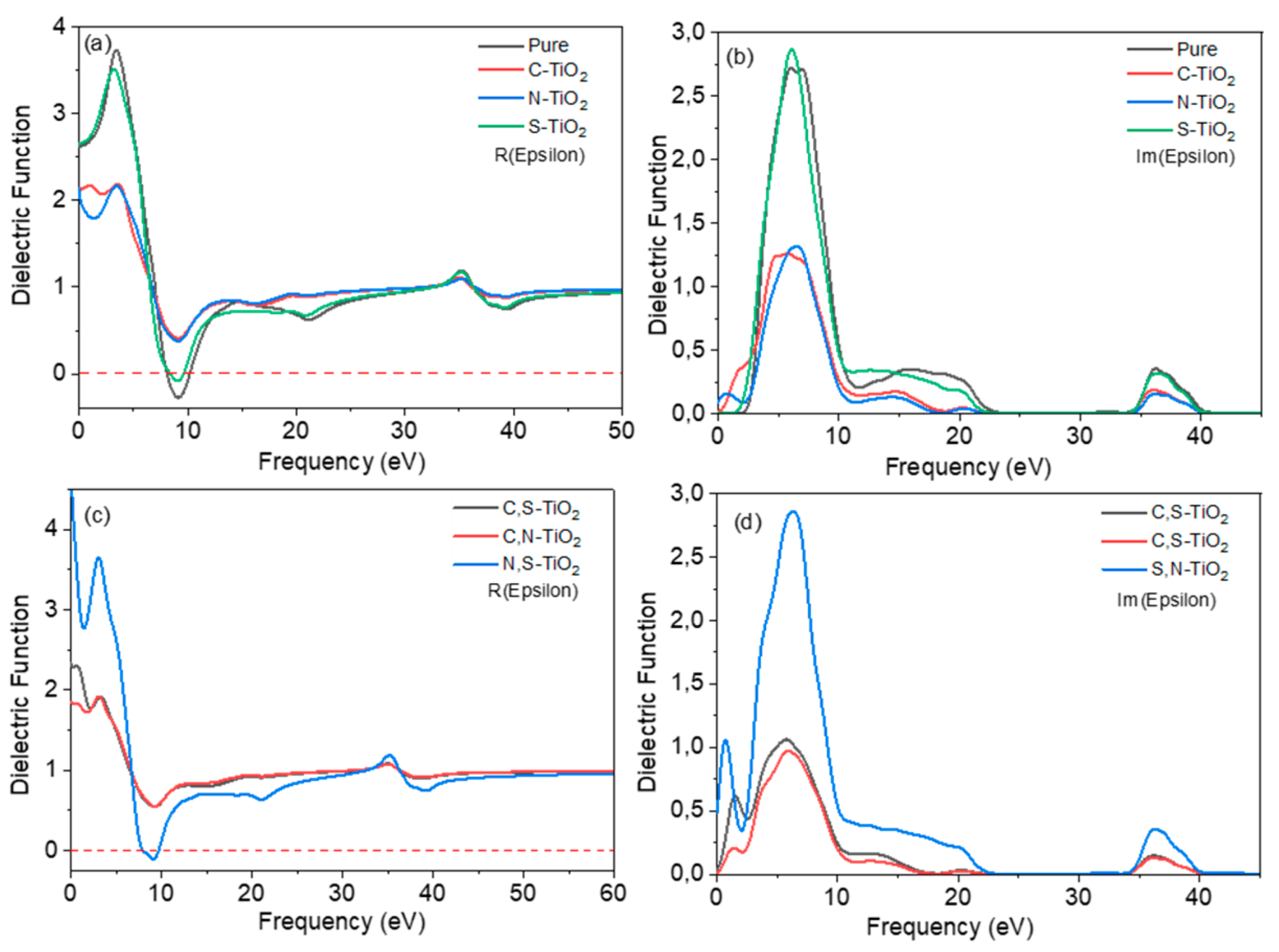

The dielectric function describes the polarization and absorption of the material. The real and imaginary parts of the dielectric function versus photon energy change curve are shown in Figure 5a–d. The dielectric constant ${\mathsf{\epsilon }}_0$ of pure as well as, C-, N- and S-doped surfaces from the standard functional presented the values of 2.629, 2.143, 2.142 and 2.660, respectively. For N-S, N-C and S-C co-doped brookite systems, the dielectric constant ε₀ from the standard functional were 2.330, 1.851 and 5.085, respectively. The real part ${\mathsf{\epsilon }}_1\left(\omega \right)$ of the dielectric function shows the highest peak intensity at 2.717, 1.252, 1.314 and 2.865 for pure, C-doped, N-doped and S-doped, respectively. For N-S, N-C and S-C co-doped surfaces, the real parts ${\mathsf{\epsilon }}_1\left(\omega \right)$ of the dielectric function show the highest peak intensity at 1.062, 0.973 and 2.858, respectively.

For the imaginary part of all the surfaces, the peaks associated with ${\mathsf{\epsilon }}_0$ less than 4 eV are due to intraband transitions and this peak for mono doping was found to have lower intensity as compared to those of co-doped surfaces. These peaks belong to the electronic transition from Ti 3d to O 2p states and the new 2p from C and N and 3p from S at the conduction band and valence band. These peaks of the imaginary part of the dielectric function are related to the electron excitation. It can be observed that the value of the imaginary part of the dielectric function is zero between ~24 and 35 eV for all the mono-doped and co-doped (210) brookite surfaces. Therefore, these materials become transparent in this region and above 50 eV. The real part of the dielectric function falls below zero at about ~9.8 eV for pure, S-doped and N-S co-doped (210) brookite surfaces.

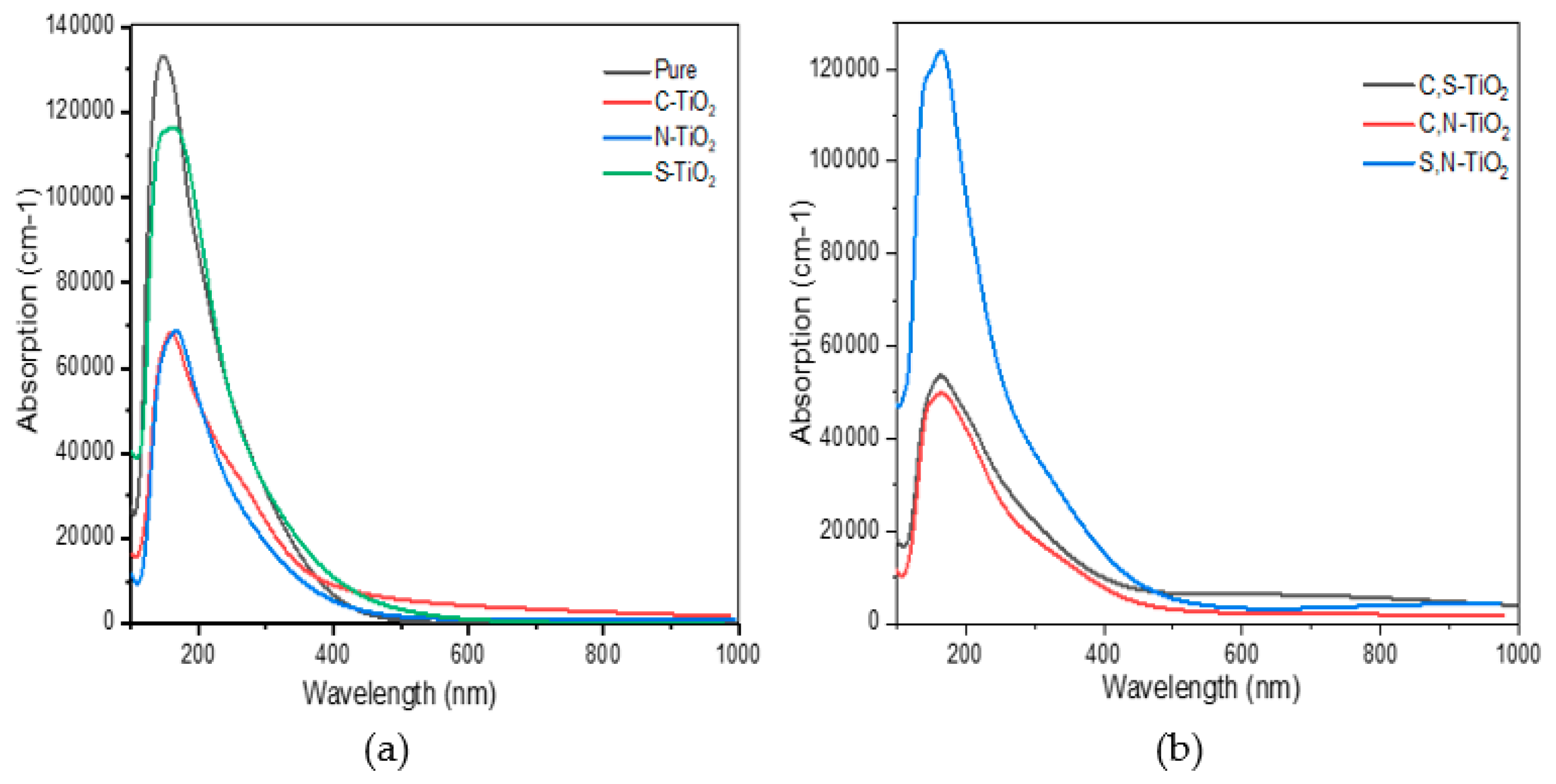

The absorption coefficient gives important information about solar energy conversion efficiency and how far light of a specific frequency can penetrate into the material before being absorbed. Figure 6 reveals that the absorption edges of mono-doped and co-doped (210) surfaces, move absorption capability toward the longer wavelength, implying that there is an enhancement of visible light absorption. C-doped and N-S doped has stronger light absorption in both the visible region and the near-infrared region as compared to pure, (C-S) mono-doped, C-N- doped and N-S- doped (210) brookite surfaces. Thus, C-doped and C-S-doped surfaces have higher photocatalytic activity. The doping creates IELs within the band structures, which can act as a “step” that reduces the electronic transition energy. Thus, more electrons can be excited and hence there is an enhanced probability that photoexcited electrons can migrate to the surface. Meanwhile, IELs could also act as a separating center, where the photoexcited electron–holes can separate rapidly and effectively, thus promoting the carrier’s diffusion and enhance the charge carrier lifetime.

4. Conclusions

In this study, we systematically analyzed geometrical parameters and the electronic structures of bulk TiO₂ brookite, using density functional calculations and the results are consistent with the experimental and other theoretical work. The analysis of electronic structures and optical properties for pure, C-doped, S-doped, N-doped, C-S co-doped, C-N-doped and N-S co-doped TiO₂ brookite (210) surfaces were conducted. The results showed that due to the narrowing of the band gap and the presence of impurity levels in the band gap, all mono-doped and co-doped TiO₂ brookite (210) surfaces exhibit some redshift. In particular, the C-doped, S-N co-doped and C-N co-doped TiO₂ brookite (210) surfaces exhibit better absorption in the visible region of the electromagnetic spectrum.

For the C-doping and S-N co-doping, impurity states appear in the valence band, coupling with the top of the valence band edge, which not only narrows the band gap but also effectively captures photoinduced electrons and reduces charge carrier recombination in the crystal lattice of the brookite (210) surfaces. The reduction in the recombination may arise because C-doping and S-N co-doping generate surface oxygen vacancies that serve as traps for photogenerated electrons and reduced electron–hole pair recombination. As a result, C-doping and S-N co-doping suggest enhanced photocatalytic activity.
