Cu Patterning Using Femtosecond Laser Reductive Sintering of CuO Nanoparticles under Inert Gas Injection

Department of Mechanical Engineering, Nagaoka University of Technology, Niigata 940-2188, Japan
*
Author to whom correspondence should be addressed.
Academic Editor: Alina A. Manshina
Materials 2021, 14(12), 3285; https://doi.org/10.3390/ma14123285
Received: 14 May 2021 / Revised: 1 June 2021 / Accepted: 7 June 2021 / Published: 14 June 2021
(This article belongs to the Special Issue Laser Technologies in Metal-Based Materials)

Abstract

In this paper, we report the effect of inert gas injection on Cu patterning generated by femtosecond laser reductive sintering of CuO nanoparticles (NPs). Femtosecond laser reductive sintering for metal patterning has been restricted to metal and metal-oxide composite materials. By irradiating CuO-nanoparticle paste with femtosecond laser pulses under inert gas injection, we intended to reduce the generation of metal oxides in the formed patterns. In an experimental evaluation, the X-ray diffraction peaks corresponding to copper oxides, such as CuO and Cu2O, were much smaller under N2 and Ar gas injections than under air injection. Increasing the injection rates of both gases increased the reduction degree of the X-ray diffraction peaks of the CuO NPs, but excessively high injection rates (≥100 mL/min) significantly decreased the surface density of the patterns. These results qualitatively agreed with the ratio of sintered/melted area. The femtosecond laser reductive sintering under inert gas injection achieved a vacuum-free direct writing of metal patterns.
Keywords: Cu pattern; CuO nanoparticle ink; femtosecond laser reductive sintering; inert gas injection Cu pattern; CuO nanoparticle ink; femtosecond laser reductive sintering; inert gas injection

1. Introduction

Direct laser writing of metals is a promising technique for wiring and fabricating electric devices because it achieves both metallization and formation of the desired patterns. In laser direct writing, various inks based on metal nanoparticles (NPs), metal complexes, metal–organic decompositions, and metal-oxide NPs are coated on substrates, and then selectively metallized by irradiation with focused laser light. Inks that comprised noble metal (such as Au and Ag) NPs are commercially available and achieve highly electroconductive patterns in ambient atmospheres [1,2].
Meanwhile, Cu patterning is a potential candidate for a low-cost printing [3]. Presently, Cu nanoparticle inks are selectively sintered by continuous-wave (CW) lasers or by nanosecond, picosecond, and femtosecond pulsed lasers [4,5,6,7]. However, unlike noble metal patterns, Cu patterns are not easily formed in air because the Cu NPs in the inks and fabricated patterns are easily oxidized by the atmospheric oxygen. Therefore, the development of various inks based on Cu-organic decomposition, Cu complexes, and Cu-oxide NPs are carried out. Cu patterns are formed through laser light-induced thermochemical reduction. For example, Cu-organic decomposition and Cu-complex inks coated on substrates are selectively reduced by irradiating them with a CW or pulsed laser, which precipitates the Cu [8,9,10]. In Cu-organic decomposition ink, Cu patterns are formed from Cu(II) formate by a thermal reaction. The gases generated in the decomposition process (CO2 and H2) provide a reductive atmosphere that prevents the oxidation of the Cu patterns [10]. A glyoxylic acid Cu complex ink for Cu laser direct writing in air has also been developed. On glass substrates coated with this ink, Cu patterns without significant oxidation are formed by a CO2 laser-induced thermochemical reaction [8,9]. Other promising candidates for Cu pattering are Cu-oxide NP inks that comprised Cu-oxide NPs, a reductant, and a dispersant. When mixed with a reductant and a dispersant, Cu2O NPs are reduced to Cu by a laser-induced thermochemical reaction (where the laser is CW, nanosecond-pulsed, or femtosecond pulsed [11,12,13]). In addition, CuO nanoparticles are also reduced and sintered by various lasers, such as continuous-wave, nanosecond, and femtosecond pulse lasers with green and near-infrared wavelength [3,14,15,16,17,18,19,20]. The irradiated laser light reduces and sinters the Cu-oxide NPs while generating various gases such as CO, CO2, and H2O. The advantage of the use of Cu-oxide NP inks is their small volume change after irradiation with laser light. The volume remains more-or-less constant because the Cu in the inks has a higher volumetric composition than the Cu precipitated from Cu-organic decomposition and Cu-complex inks. Thermochemical reduction of CuO NPs using CW and nanosecond lasers generates Cu patterns with no significant oxidation [3,14]. The advantage of the femtosecond laser reductive sintering is that the CuO NPs were reductive-sintered under low pulse energy [15,17,21] by comparing to the use of CW and nanosecond pulsed lasers [3,14]. By contrast, reductive sintering with femtosecond lasers selectively form Cu-and Cu2O-rich patterns [15,17,21]. In the X-ray diffraction (XRD) spectra of Cu-rich patterns fabricated under femtosecond laser pulses, significant peaks corresponding to Cu2O and CuO are found, whereas the Cu patterns obtained by irradiation of CW and nanosecond lasers are almost single-phase Cu. These results typify femtosecond laser reductive sintering of Cu patterning on glass and polyimide film substrates and are commonly reported [15,17,21]. As the oxidation increases with decreasing laser scanning speed [15,17], we considered that Cu becomes re-oxidized by atmospheric oxygen.
In the present study, we investigated the effect of an atmospheric gas injection on reductive sintering of CuO NPs under femtosecond laser pulses. The patterns fabricated under various gases (air, and inert gases of N2, and Ar generally used in 3D printing and additive manufacturing) were examined for their crystal structures, surface oxidation, and morphology, and their electric resistances were evaluated.

2. Experimental Methods

2.1. Cu Patterning Based on Femtosecond Laser Reductive Sintering of CuO NPs under a Controlled Atmosphere

Figure 1 shows the proposed for Cu-patterning process based on femtosecond laser reductive sintering. First, a CuO-NP ink was prepared by using a previously reported process [14,15,17]. CuO NPs (<50 nm diameter, Sigma Aldrich, St. Louis, MS, USA) were dispersed in a mixed solution of polyvinylpyrrolidone (PVP, Mw ~10,000, Sigma Aldrich, MS, USA) and ethylene glycol (EG, Sigma Aldrich, MS, USA), and the resulting ink was spin-coated on glass substrates (thickness of ~1 mm). Before spin coating, the substrates were surface-treated with ultraviolet light for 1 min in air to improve their wettability (FLAT EXCIMER EX-mini, Hamamatsu Photonics, Hamamatsu, Japan). The surface of the glass substrates was changed to be hydrophilic by irradiating ultraviolet light which generated ozone from oxygen in air [22]. The CuO-NP ink film coated on the glass was irradiated with near-infrared femtosecond laser pulses with a wavelength, pulse duration, and repetition frequency of 780 nm, 120 fs, and 80 MHz, respectively, (Toptica, FemtoFiber pro NIR, TOPTICA Photonics AG, Munich, Germany). The laser pulses were focused through an objective lens with a numerical aperture of 0.45. The laser irradiation process was conducted under a controlled atmosphere of air, Ar gas, or N2 gas injection. The injection rates of the gases were verified using a flow meter. Finally, the non-sintered NPs in the ink were removed by sequentially rinsing the sample in EG and followed by in ethanol.

2.2. Evaluation Methods

The crystal structures of the Cu patterns were examined by XRD analysis using Cu-Kα radiation with a scan speed of 5°/min. The line width was measured by using an optical microscope (Keyence, VE-8800, Osaka, Japan). The morphology of the patterns was also evaluated by using the same optical microscope and a scanning electron microscope (SEM) (HITACHI High Technology Corporation, FlexSEM 1000 II, Tokyo, Japan). The atomic composition and surface oxidation of the patterns were investigated using an energy-dispersive X-ray spectroscopy (EDS, Oxford Instruments plc, Abingdon-on-Thames, United Kingdom). Additionally, a laser Raman spectrometer (JASCO, NRS-7200, Tokyo, Japan) with a laser wavelength of 532 nm, respectively. The resistances of the patterns were measured using a multimeter (Keysight Technology, Truevolt series 34465A, Santa Rosa, CA, USA).

3. Results

3.1. Effect of Air Injection on the Pattern Uniformity

We first investigated the effect of gas injection on the pattern uniformity. Figure 2a is a photograph of the patterns fabricated with and without air injection using compressed air with controlling the flow rate, and Figure 2b shows the Raman spectra of the patterns. The patterns were fabricated at a scan speed and pulse energy of 5 mm/s and 0.74 nJ, respectively. The Raman spectroscopy was performed at measurement points No. 1, No. 2, and No. 3, in Figure 2a. In the patterns written at the starting area (No. 1), the CuO NPs were highly reduced and significant oxidation-free regardless of air injection (absent or present). By contrast, at points No.2 and No.3, copper-oxidized Cu2O and Cu species, respectively, were found in the absence of air injection, but significant oxidation was not observed under air injection. These results suggest that air injection improves the uniformity of the beginning and end of the written area. The thermochemical reduction of CuO NPs to Cu creates water vapor that coats the surface of the objective lens, decreasing the laser pulse energy irradiated on the CuO NP paste and hence the degree of the reduction to Cu [14].

3.2. Effect of Scan Speed on the Crystal Structures of the Patterns

We next investigated the effect of scan speed on the crystal structures. Figure 3a shows the XRD spectra of the patterns fabricated at different scan speeds. Intense peaks corresponding to Cu were observed in all spectra. Small peaks corresponding to Cu2O and CuO were also observed. Figure 3b plots the degree of reduction as the intensity ratio of Cu(111)/CuO(111) versus the scan speed. The degree of reduction was maximized at 8 mm/s and was relatively small at higher and lower scan speeds. These results suggest low reduction and the re-oxidation of the patterns at high and low scan speeds, respectively.

3.3. Crystal Structures of the Patterns Fabricated under Various Gas Injections

This subsection investigates the crystal structures of the patterns fabricated under N2 and Ar gas injections. Figure 4a,b show the XRD spectra of the patterns fabricated under N2 and Ar gas injections, respectively. The XRD peaks corresponding to CuO and Cu2O decreased in both XRD spectra of both patterns. Figure 4c,d plot the degree of reductions, reported as the XRD intensity ratio ICu(111)/ICuO(111) and ICu(111)/ICu2O(111) of the patterns formed under various gas injection rates. The Cu generation in the patterns increased with gas injection rate. The degree of the reduction was not affected by the types of gasses. This result suggests that both gases removed O2 gas from atmospheric air during sintering and melting of the CuO NPs.

3.4. Surface Morphology

The surface morphologies of the patterns fabricated under N2 and Ar gases at various injection rates are revealed in the optical images (Figure 5). The copper-like brown and pore-like white area were observed under the injection rate of ≥100 mL/min. Figure 6 shows the SEM image EDS mappings of the brown-colored and white-colored areas of the pattern fabricated under the Ar gas injection rate of 125 mL/min, revealing that the brown-colored area was well-sintered and white-colored area was the bare glass substrates because the white-colored area was not Cu- and O-rich, established through EDS mapping, corresponding to glasses. The droplets were generated in the melted area. Table 1 lists the surface densities of the fabricated patterns. The Cu metal luster of the patterns were observed in all the optical images. The density decreased with the increasing injection rate of both gases. The patterns formed under high injection rates (100 and 125 mL/min) exhibited many droplets that apparently formed by the melting and cooling of the materials. These droplets were considered to markedly decrease the density of the patterns from those formed at lower injection rates (0–75 mL/min).
Figure 7 shows the concentration ratio of the patterns in sintered and melted area. The concentration of Cu in the sintered area was approximately 70% which was not affected by the kinds of gases and their injection rate. The concentration of oxygen decreased with increasing the injection rate, that of carbon increased with an increase in both the sintered and melted area. These results agreed with the degree of reductions, Cu/CuO and Cu/Cu2O shown in Figure 4.

3.5. Resistance

The resistances of the patterns were determined along their cross-sections. Figure 8a shows the height of the patterns fabricated at various injection rate of Ar gas. The resistance of the patterns fabricated under various gas injection rates is shown in Figure 8b. The resistance significantly increased over 100 mL/min of the Ar gas. This result qualitatively agreed with the ratio of sintered/melted area of the patterns as shown in Table 1. By improving the density by optimizing a concentration of CuO NPs or a size distribution of the CuO NPs in the CuO NP paste, the higher electrical conductivity of the patterns is expected to be formed by femtosecond laser reductive sintering of CuO NPs.

4. Discussion

The concentration of oxygen decreased with increasing the gas injection rate by XRD and EDS analyses. In contrast, the resistance of the patterns fabricated under high gas injection rate of ≥100 mL/min, increased with increasing the gas injection rate. By considering the porosity of the patterns, the high resistance of the patterns was induced by the low density of the patterns. These results indicate that the purity of the patterns was improved by increasing the gas injection rate.
The advantage of the femtosecond laser reductive sintering is that the CuO NPs were reductive-sintered under low pulse energy of ~0.5 nJ, namely low average power of ~50 mW, by comparing to the use of continuous-wave and nanosecond pulsed lasers of ~0.2 W [14]. However, the concentration of the oxide in the patterns fabricated using femtosecond laser pulses [15,17,21] was higher than the patterns fabricated using continuous-wave and nanosecond pulsed lasers by examining the fabricated patterns [14]. We experimentally demonstrated that the high concentration of oxygen in the patterns was caused by the atmospheric oxygen by controlling the ambient atmosphere in the femtosecond laser irradiation process. This result is believed to be important to obtain Cu patterns with high purity and to consider the reduction process of CuO nanoparticles. In the femtosecond laser irradiation process, a large intensity of the femtosecond laser pulses is advantageous to heat the CuO nanoparticles rapidly. In contrast, the rapid heating and cooling processes generated the non-equilibrium material of Cu2O in air [15,17,21]. The control of the ambient atmosphere is effective to improve the purity of the Cu in the patterns.

5. Conclusions

We evaluated the effect of the inert gas injections on the patterns fabricated by femtosecond laser reductive sintering of CuO nanoparticles.
(1) The XRD and EDS analysis suggest that the purity of the Cu in the patterns was improved by increasing the gas injection rate.
(2) The resistance of the patterns fabricated under excessively high injection rates (≥100 mL/min) increased. By considering the density of the patterns, the high resistance was caused by the low density of the patterns and not high oxidation.
These results suggest that the rapid heating and cooling in the femtosecond laser reductive sintering of CuO NPs generated the non-equilibrium materials of Cu2O due to the reoxidation in air, which was different from the irradiation of continuous-wave and nanosecond pulsed lasers to the CuO NP inks. The concentration of the oxygen in the patterns can be reduced by irradiating the femtosecond laser pulses under inert gas injection.

Author Contributions

Conceptualization, M.M.; methodology, M.M. and K.Y.; validation, M.M. and K.Y.; formal analysis, M.M. and K.Y.; investigation, K.Y.; resources, M.M.; data curation, M.M. and K.Y.; writing—original draft preparation, M.M. and K.Y.; writing—review and editing, M.M.; visualization, M.M. and K.Y.; supervision, M.M.; project administration, M.M.; funding acquisition, M.M. Both authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by Funds for the Development of Human Resources in Science and Technology “2019 Initiative for Realizing Diversity in the Research Environment (Leading Type)”; The Ministry of Education, Culture, Sports, Science, and Technology (MEXT); and KAKENHI 20H02043.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Zacharatos, F.; Theodorakos, I.; Karvounis, P.; Tuohy, S.; Braz, N.; Melamed, S.; Kabla, A.; De la Vega, F.; Andritsos, K.; Hatziapostolou, A.; et al. Selective Laser Sintering of Laser Printed Ag Nanoparticle Micropatterns at High Repetition Rates. Materials 2018, 11, 2142. [Google Scholar] [CrossRef][Green Version]
  2. Yang, L.; Gan, Y.; Zhang, Y.; Chen, J.K. Molecular dynamics simulation of neck growth in laser sintering of different-sized gold nanoparticles under different heating rates. Appl. Phys. A 2011, 106, 725–735. [Google Scholar] [CrossRef]
  3. Back, S.; Kang, B. Low-cost optical fabrication of flexible copper electrode via laser-induced reductive sintering and adhesive transfer. Opt. Lasers Eng. 2018, 101, 78–84. [Google Scholar] [CrossRef]
  4. Halonen, E.; Heinonen, E.; Mäntysalo, M. The Effect of Laser Sintering Process Parameters on Cu Nanoparticle Ink in Room Conditions. Opt. Photonics J. 2013, 3, 40–44. [Google Scholar] [CrossRef]
  5. Zenou, M.; Ermak, O.; Saar, A.; Kotler, Z. Laser sintering of copper nanoparticles. J. Phys. D Appl. Phys. 2014, 47, 025501. [Google Scholar] [CrossRef]
  6. Cheng, C.W.; Chen, J.K. Femtosecond laser sintering of copper nanoparticles. Appl. Phys. A 2016, 122, 289. [Google Scholar] [CrossRef]
  7. Soltani, A.; Khorramdel Vahed, B.; Mardoukhi, A.; Mantysalo, M. Laser sintering of copper nanoparticles on top of silicon substrates. Nanotechnology 2016, 27, 035203. [Google Scholar] [CrossRef]
  8. Ohishi, T.; Kimura, R. Fabrication of Copper Wire Using Glyoxylic Acid Copper Complex and Laser Irradiation in Air. Mater. Sci. Appl. 2015, 6, 799–808. [Google Scholar] [CrossRef][Green Version]
  9. Ohishi, T.; Takahashi, N. Preparation and Properties of Copper Fine Wire on Polyimide Film in Air by Laser Irradiation and Mixed-Copper-Complex Solution Containing Glyoxylic Acid Copper Complex and Methylamine Copper Complex. Mater. Sci. Appl. 2018, 9, 859–872. [Google Scholar] [CrossRef][Green Version]
  10. Yu, J.H.; Rho, Y.; Kang, H.; Jung, H.S.; Kang, K.-T. Electrical behavior of laser-sintered Cu based metal-organic decomposition ink in air environment and application as current collectors in supercapacitor. Int. J. Precis. Eng. Manuf.-Green Technol. 2015, 2, 333–337. [Google Scholar] [CrossRef][Green Version]
  11. Mizoshiri, M.; Kondo, Y. Direct writing of Cu-based fine micropatterns using femtosecond laser pulse-induced sintering of Cu2O nanospheres. Jpn. J. Appl. Phys. 2019, 58, SDDF05. [Google Scholar] [CrossRef]
  12. Mizoshiri, M.; Kondo, Y. Direct writing of two- and three-dimensional Cu-based microstructures by femtosecond laser reductive sintering of the Cu2O nanospheres. Opt. Mater. Express 2019, 9, 2828–2837. [Google Scholar] [CrossRef]
  13. Lee, H.; Yang, M. Effect of solvent and PVP on electrode conductivity in laser-induced reduction process. Appl. Phys. A 2015, 119, 317–323. [Google Scholar] [CrossRef]
  14. Kang, B.; Han, S.; Kim, J.; Ko, S.; Yang, M. One-Step Fabrication of Copper Electrode by Laser-Induced Direct Local Reduction and Agglomeration of Copper Oxide Nanoparticle. J. Phys. Chem. C 2011, 115, 23664–23670. [Google Scholar] [CrossRef]
  15. Mizoshiri, M.; Ito, Y.; Arakane, S.; Sakurai, J.; Hata, S. Direct fabrication of Cu/Cu2O composite micro-temperature sensor using femtosecond laser reduction patterning. Jpn. J. Appl. Phys. 2016, 55, 06GP05. [Google Scholar] [CrossRef]
  16. Arakane, S.; Mizoshiri, M.; Hata, S. Direct patterning of Cu microstructures using femtosecond laser-induced CuO nanoparticle reduction. Jpn. J. Appl. Phys. 2015, 54, 06FP07. [Google Scholar] [CrossRef]
  17. Mizoshiri, M.; Arakane, S.; Sakurai, J.; Hata, S. Direct writing of Cu-based micro -temperature detectors using femtosecond laser reduction of CuO nanoparticles. Appl. Phys. Express 2016, 9, 036701. [Google Scholar] [CrossRef]
  18. Arakane, S.; Mizoshiri, M.; Sakurai, J.; Hata, S. Direct writing of three-dimensional Cu-based thermal flow sensors using femtosecond laser-induced reduction of CuO nanoparticles. J. Micromech. Microeng. 2017, 27, 055013. [Google Scholar] [CrossRef]
  19. Roth, G.-L.; Haubner, J.; Kefer, S.; Esen, C.; Hellmann, R. Fs-laser based hybrid micromachining for polymer micro-opto electrical systems. Opt. Lasers Eng. 2021, 137, 106362. [Google Scholar] [CrossRef]
  20. Rahman, M.K.; Lu, Z.; Kwon, K.-S. Green laser sintering of copper oxide (CuO) nano particle (NP) film to form Cu conductive lines. AIP Adv. 2018, 8, 095008. [Google Scholar] [CrossRef][Green Version]
  21. Huang, Y.; Xie, X.; Li, M.; Xu, M.; Long, J. Copper circuits fabricated on flexible polymer substrates by a high repetition rate femtosecond laser-induced selective local reduction of copper oxide nanoparticles. Opt. Express 2021, 29, 4453–4463. [Google Scholar] [CrossRef] [PubMed]
  22. Mizoshiri, M.; Iijima, Y.; Hata, S. Preparation of Nonspherical Monodisperse Polydimethylsiloxane Microparticles for Self-assembly Fabrication of Periodic Structures. IEEJ Trans. Sens. Micromach. 2019, 139, 132–136. [Google Scholar] [CrossRef]

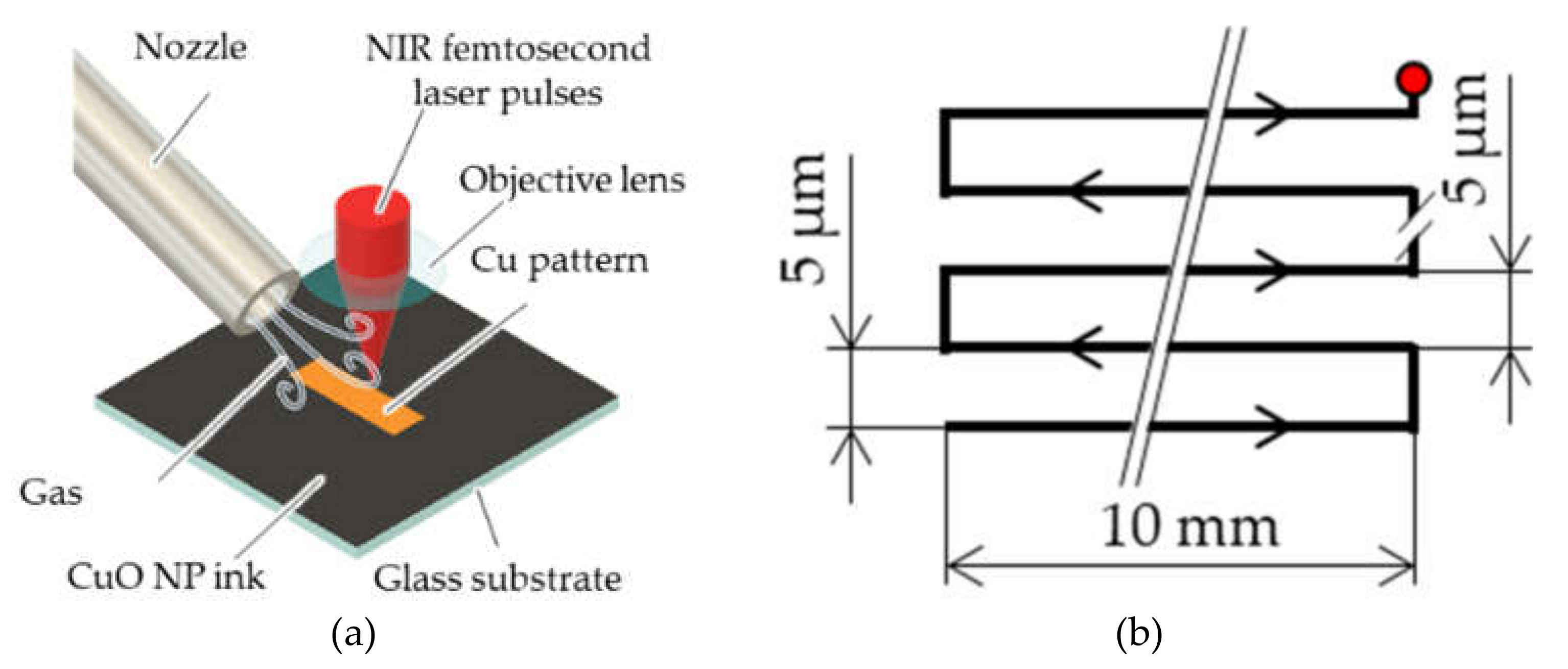

Figure 1. Schematic illustration of Cu patterning under a controlled atmosphere: (a) laser patterning and (b) scanning route of the focal spot over the paste.
Figure 1. Schematic illustration of Cu patterning under a controlled atmosphere: (a) laser patterning and (b) scanning route of the focal spot over the paste.
Materials 14 03285 g001

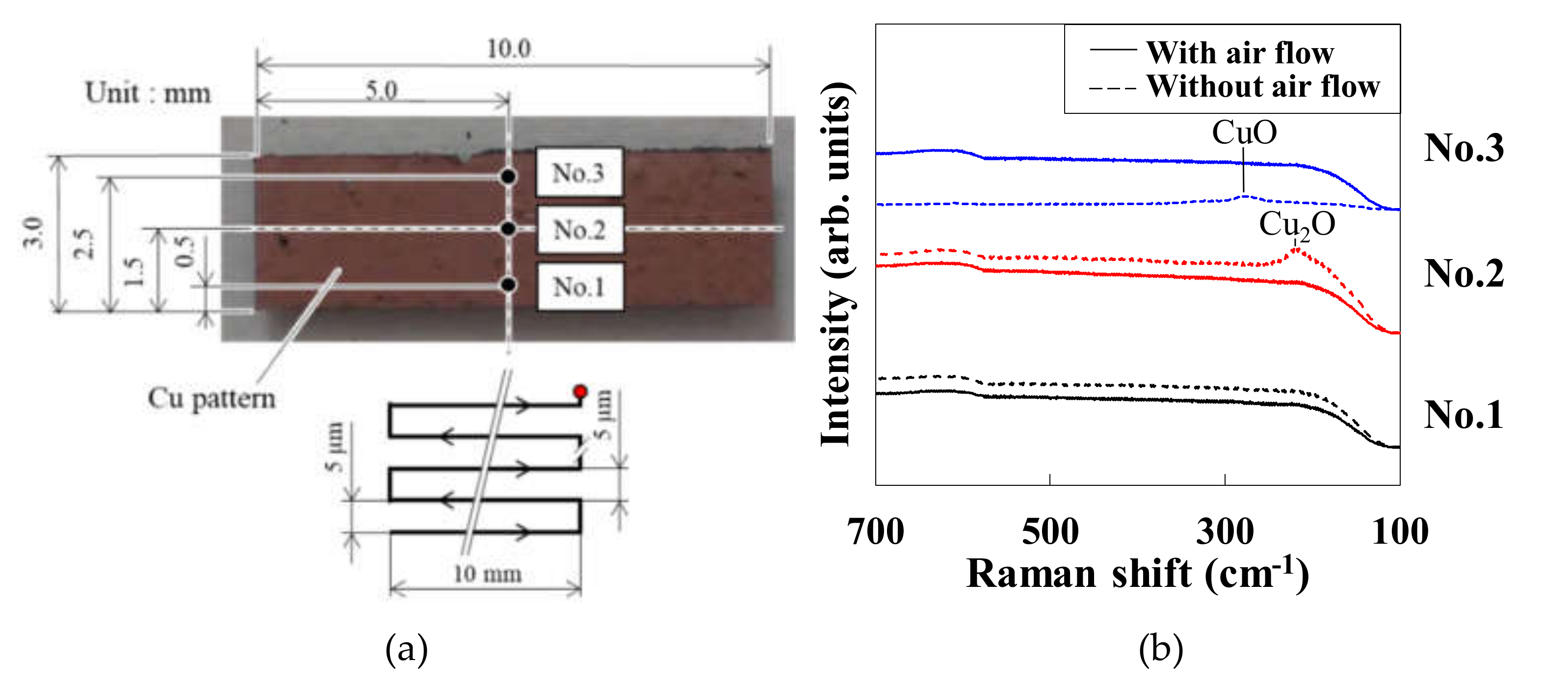

Figure 2. (a) Photograph of the pattern fabricated under an air injection at a scan speed and pulse energy of 5 mm/s and 0.74 nJ, respectively; (b) Raman spectra at points No. 1, No. 2, and No. 3 of the patterns fabricated in the presence and absence of air injection.
Figure 2. (a) Photograph of the pattern fabricated under an air injection at a scan speed and pulse energy of 5 mm/s and 0.74 nJ, respectively; (b) Raman spectra at points No. 1, No. 2, and No. 3 of the patterns fabricated in the presence and absence of air injection.
Materials 14 03285 g002

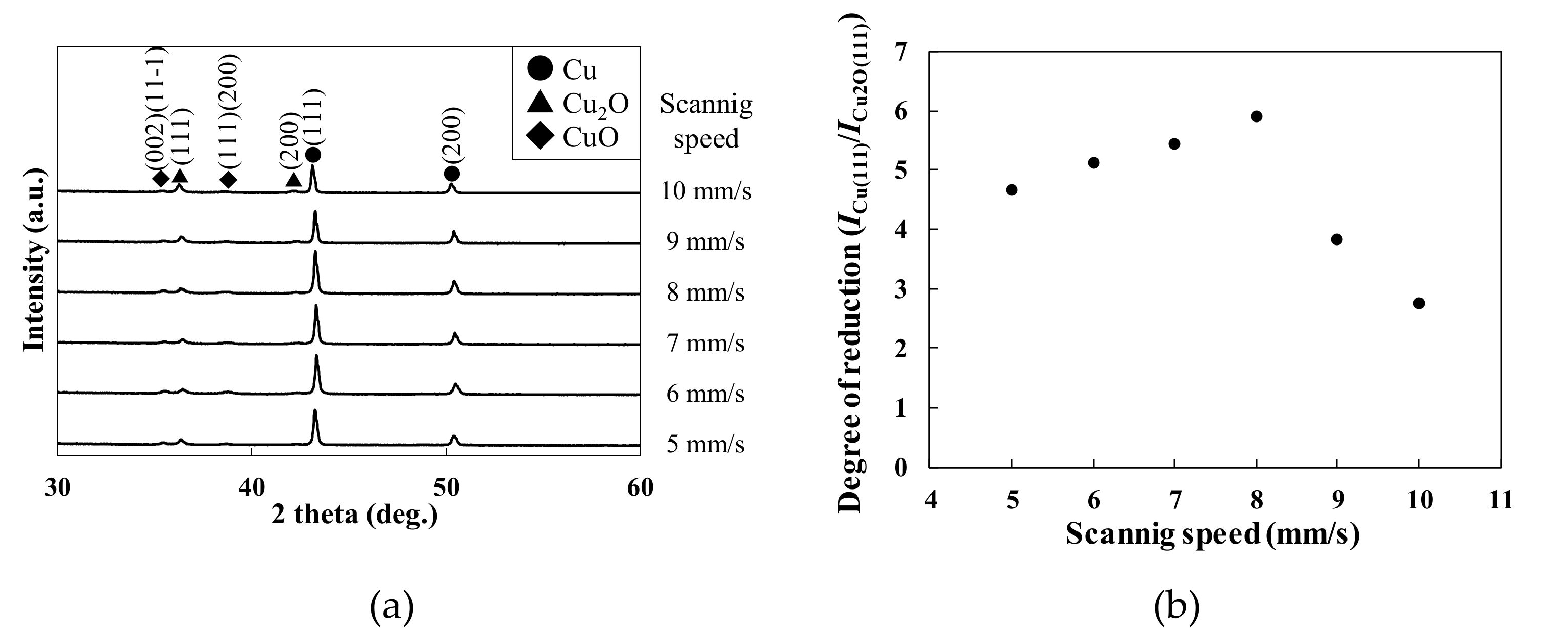

Figure 3. (a) XRD spectra of the patterns fabricated at various scan speeds under an air injection; (b) degree of reduction at various scan speeds.
Figure 3. (a) XRD spectra of the patterns fabricated at various scan speeds under an air injection; (b) degree of reduction at various scan speeds.
Materials 14 03285 g003

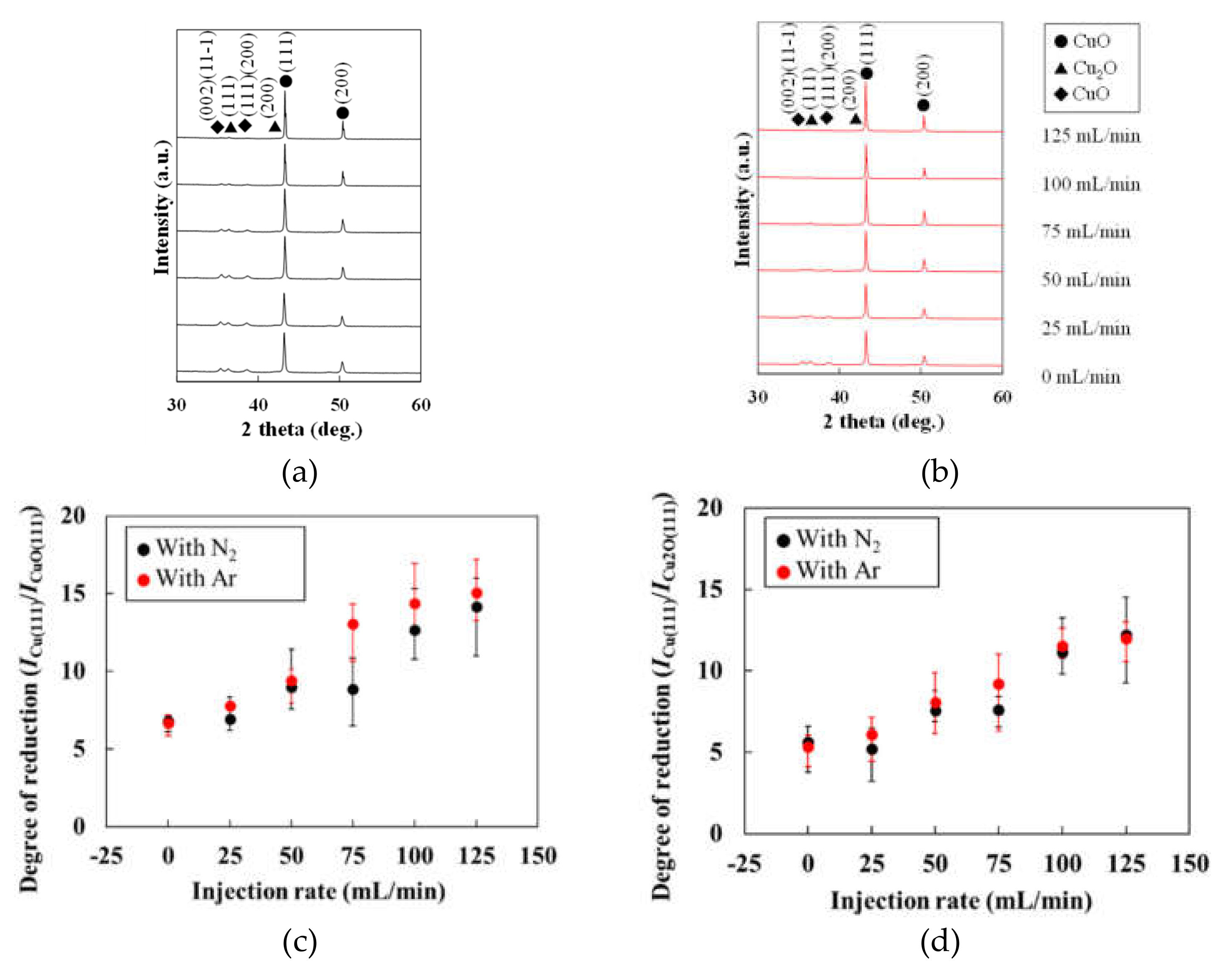

Figure 4. XRD spectra of the patterns fabricated under (a) N2 gas and (b) Ar gas; degrees of reduction, (c) Cu/CuO and (d) Cu/Cu2O of the patterns fabricated under gases with various injection rates.
Figure 4. XRD spectra of the patterns fabricated under (a) N2 gas and (b) Ar gas; degrees of reduction, (c) Cu/CuO and (d) Cu/Cu2O of the patterns fabricated under gases with various injection rates.
Materials 14 03285 g004
Figure 5. Optical microscope images of the patterns fabricated under various N2 and Ar gases at different injection rates.
Figure 5. Optical microscope images of the patterns fabricated under various N2 and Ar gases at different injection rates.
Materials 14 03285 g005
Figure 6. SEM images and EDS mappings of patterns fabricated under Ar gas injection rates of 125 mL/min.
Figure 6. SEM images and EDS mappings of patterns fabricated under Ar gas injection rates of 125 mL/min.
Materials 14 03285 g006

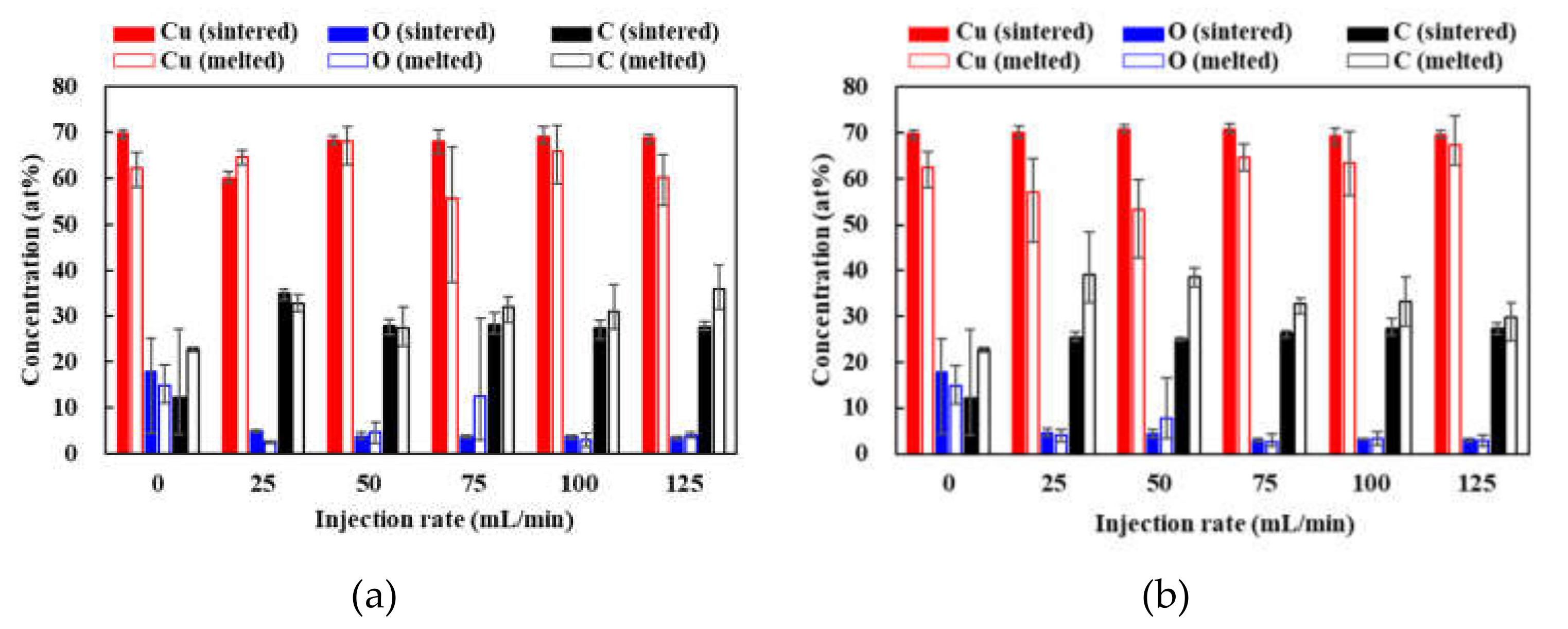

Figure 7. Concentration ratio of the patterns in sintered and melted area under (a) N2 and (b) Ar gas injections.
Figure 7. Concentration ratio of the patterns in sintered and melted area under (a) N2 and (b) Ar gas injections.
Materials 14 03285 g007

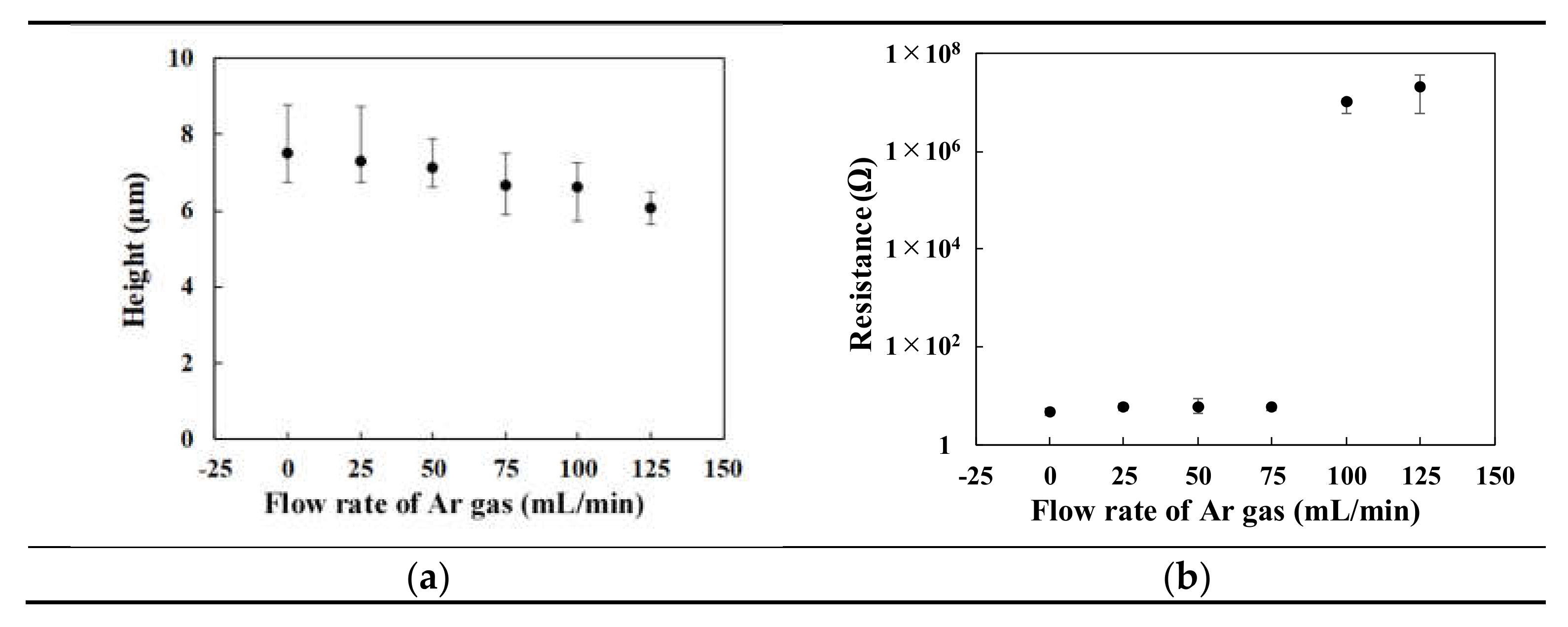

Figure 8. (a) Height and (b) resistance of the patterns fabricated under various injection rate of Ar gas.
Figure 8. (a) Height and (b) resistance of the patterns fabricated under various injection rate of Ar gas.
Materials 14 03285 g008
Table 1. The ratio of sintered/melted area of the patterns fabricated under N2 and Ar gases at different injection rates.
Table 1. The ratio of sintered/melted area of the patterns fabricated under N2 and Ar gases at different injection rates.
Injection Rate (mL/min)0255075100125
N2 gas95.1%94.5%94.0%93.2%81.8%68.8%
Ar gas95.9%96.4%96.6%95.7%84.9%76.9%
