Bimetallic Co-Based (CoM, M = Mo, Fe, Mn) Coatings for High-Efficiency Water Splitting

by
Jadranka Milikić
1,
Aldona Balčiūnaitė
2,
Zita Sukackienė
2,
Dušan Mladenović
1,
Diogo M. F. Santos
3,
Loreta Tamašauskaitė-Tamašiūnaitė
2 and
Biljana Šljukić
1,3,*
1
Faculty of Physical Chemistry, University of Belgrade, Studentski trg 12–16, 11158 Belgrade, Serbia
2
Department of Catalysis, Center for Physical Sciences and Technology, Saulėtekio ave. 3, Vilnius LT-10257, Lithuania
3
Center of Physics and Engineering of Advanced Materials, Instituto Superior Técnico, Universidade de Lisboa, 1049-001 Lisbon, Portugal
*
Author to whom correspondence should be addressed.
Materials 2021, 14(1), 92; https://doi.org/10.3390/ma14010092
Submission received: 2 December 2020 / Revised: 21 December 2020 / Accepted: 23 December 2020 / Published: 28 December 2020
(This article belongs to the Special Issue Advances in Electroless Metal Deposition)
Browse Figures
Versions Notes

Abstract

:
Bimetallic cobalt (Co)-based coatings were prepared by a facile, fast, and low-cost electroless deposition on a copper substrate (CoFe, CoMn, CoMo) and characterized by scanning electron microscopy with energy dispersive X-ray spectroscopy and X-ray diffraction analysis. Prepared coatings were thoroughly examined for hydrogen evolution reaction (HER) and oxygen evolution reaction (OER) in alkaline solution (1 M potassium hydroxide, KOH) and their activity compared to that of Co and Ni coatings. All five coatings showed activity for both reactions, where CoMo and Co showed the highest activity for HER and OER, respectively. Namely, the highest HER current density was recorded at CoMo coating with low overpotential (61 mV) to reach a current density of 10 mA·cm−2. The highest OER current density was recorded at Co coating with a low Tafel slope of 60 mV·dec−1. Furthermore, these coatings proved to be stable under HER and OER polarization conditions.

Graphical Abstract

1. Introduction

The electrochemical water splitting is a simple method to produce high purity hydrogen (H2) through cathodic reaction (hydrogen evolution reaction, HER) and on the other side, oxygen (O2) through anodic reaction (oxygen evolution reaction, OER) [1,2,3,4,5]. H2 gas produced by water electrolysis could be a great replacement for fossil fuels such as coal and petroleum as its consumption produces no carbon dioxide (CO2) or other greenhouse gasses [6]. Hence, the number of studies related to water electrolysis has increased significantly every year during the last decade, aiming to increase the process efficiency and decrease its cost [7,8,9,10,11,12]. OER proceeding via a 4-electron pathway is slower than HER proceeding via a 2-electron pathway [6]. Platinum (Pt) showed the best catalytic activity for HER, while iridium oxide (IrO2) and ruthenium oxide (RuO2) were presented as the best electrocatalysts for OER in alkaline media with low overpotential [1,13]. The major limitations of these electrocatalysts are their high cost, low abundance, and low catalytic stability. It is very important to find appropriate low-cost electrocatalysts that can improve HER and OER kinetics and efficiency. Transition metal-based electrocatalysts combined with noble metals are presented as good electrocatalysts for both HER and OER in alkaline media [14,15]. Also, transition metal phosphides [16,17], sulfides [18,19], selenides [20,21], carbides [22,23] and nitrides [24] have been tested as bifunctional electrocatalysts for HER and OER.
Strained cobalt(II) oxide (S-CoO) exhibited a Tafel slope of 94 mV·dec−1, confirming the Heyrovsky–Volmer HER mechanism [25]. Incorporation of a small amount of copper (Cu) impurities into Co3O4 precursor led to the formation of Co3O4–CuO nanowires and resulted in improved conductivity as well as good catalytic activity for HER [26]. This mixed transition metal oxide gave a current density of 10 mA·cm−2 at 0.288 V vs. reversible hydrogen electrode (RHE) and Tafel slope of 65 mV·dec−1 [26]. Fe- and Mn-doped CoP electrocatalysts were tested for HER in 1 M potassium hydroxide (KOH) with a low overpotential of 163 mV·dec−1 observed for HER at CoP–FeP [2]. The excellent activity of CoP–FeP for HER could be a consequence of the optimized electronic structure of Co centers and P upon the introduction of Fe [2]. Co0.85Se/nitrogen-doped graphene showed small Tafel slopes of 76.5 mV·dec−1 with a low HER onset potential of 111 mV in 1 M KOH [21]. A hybrid electrocatalyst of FeCo alloy nanoparticles deposited on a porous N-doped carbon (FeCo-TA@CMS) was also tested for HER in alkaline media where Tafel slope value of 102 mV·dec−1 revealed that the Volmer process is the rate-controlling step [27]. Factors affecting HER activity of bimetallic nickel MxNi1-x (M = Cr, Mo, and W; x = 0.2) alloys were defined by density functional theory (DFT) revealing that OH species on the surface preferred to adsorb on the top site of the M element, which could change the hydrogen adsorption energy (ΔGH*) on the active site [28].
As for OER, Co-based materials could easily form hydroperoxo (-OOH) species and after that deprotonate to O2 formation [29]. Co-, CoxFe-, and Fe-metal-organic frameworks (MOFs) with different Co/Fe molar ratios were tested for OER in 1 M KOH [30]. Co2Fe–MOF presented the best electrocatalytic activity for OER with low overpotential at 10 mA·cm−2 (280 mV) and low Tafel slope (44.7 mV·dec−1) [30]. Ag2S–CoS hetero-nanowires showed excellent OER activity with an overpotential of 275 mV, low charge transfer resistance, and high electrical conductivity due to the octahedral Co sites as active sites for the OER in 1 M KOH [6]. Tafel slopes of 52, 66, and 60 mV·dec−1 were obtained for OER at the activated multishell Mn–Co oxyphosphide, Mn–Co oxyphosphide, and Mn–Co oxide particles, respectively, in 1 M KOH [16]. These metal phosphide-based materials showed that during the electrochemical process, the oxyphosphides are oxidized to oxide or hydroxide species presenting active sites for OER [16]. Post-phosphorization treatment of NiMoO4 (P-NMO) induced new active sites and resulted in improved performance for OER in alkaline solution so that OER onset potential at 5 mA·cm−2 (370 mV) was lower than that of IrO2 (390 mV) along with lower Tafel slope (70.3 mV·dec−1) [31]. A three-dimensional self-operated Co-doped nickel selenide nanoflowers (3D Co–NiSe/NF) electrode showed low OER overpotential with Tafel slope of 111 mV·dec−1 in 1 M KOH [32].
Transition metal-based materials, such as molybdenum disulfide (MoS2) synthesized by the hydrothermal method, showed to be bifunctional electrocatalysts for water splitting with high HER and OER activities [1]. Furthermore, iron selenide on Ni foam (FeSe–NF) proved to be a good electrocatalyst for HER and OER in 1 M KOH [33] with the lowest OER onset potential (ca. 150 mV) compared to Se–NF (190 mV), Fe–NF (300 mV) and NF (320 mV) [33]. Tafel slopes of 201, 181, 155 and 145 mV·dec−1 were obtained during HER at NF, Se–NF, Fe–NF and FeSe–NF, respectively. Ni–Co alloy nanostructured electrodes with four different amounts of Ni and Co were also examined for both HER and OER in KOH aqueous solution. Ni–Co nanowires with ca. 95% of Co and 5% of Ni showed the highest HER and OER activity with a low potential of –0.231 V and 1.494 V required to attain a current density of 10 mA·cm−2 for HER and OER, respectively [34].
In this work, Co-based bimetallic coatings (CoM, M = Fe, Mn, Mo), as well as monometallic Co and Ni coatings, were prepared by a facile, fast, and low-cost electroless deposition method. The morphology and composition of prepared coatings were explored by scanning electron microscopy (SEM) with energy dispersive X-ray spectroscopy (EDX), X-ray diffraction analysis and inductively coupled plasma–optical emission spectrometry (ICP–OES) analysis. The effect of combining Co with left-hand side transition metals on activity for HER and OER in alkaline media (1 M KOH) was then systematically studied by linear sweep voltammetry (LSV), cyclic voltammetry (CV), electrochemical impedance spectroscopy (EIS), and chronoamperometry (CA).

2. Experimental

2.1. Preparation of Coatings

Electroless deposition of Co was performed on the copper (Cu) surface. Prior to electroless deposition of Co, Cu sheets (1 cm × 1 cm) were pre-treated with 50–100% calcium magnesium oxide, known as “Vienna Lime” (Kremer Pigmente GmbH & Co. KG, Aichstetten, Germany), and rinsed with deionized water. Cu sheets were then activated with Pd(II) ions by immersion in 0.5 g·L−1 PdCl2 solution for 10 s and again rinsed with deionized water. Activated Cu sheets were placed into the electroless cobalt plating bath containing 0.05 M cobalt sulfate (CoSO4), 0.05 M morpholine borane (C4H8ONH·BH3), and 0.2 M glycine (NH2CH2COOH). The bath operated at pH 7 at a temperature of 30 °C for 30 min. The thickness of the pure Co coating was determined gravimetrically and it was found to be ca. 1 μm. The deposition conditions for the rest of the coatings are presented in Table 1. Salts used were Na2MoO4·2H2O (≥99.5%), FeSO4·7H2O (≥99%), MnSO4·H2O (≥99%), and NiSO4·6H2O (≥98%), all from Sigma–Aldrich (Taufkirchen, Germany).

2.2. Characterization of CoM (M = Fe, Mn, Mo), Co and Ni Coatings

The morphology and composition of the prepared coatings were investigated by scanning electron microscopy (SEM) using a SEM/FIB workstation Helios Nanolab 650 (Hillsboro, OR, USA) with an energy dispersive X-ray (EDX) spectrometer INCA Energy 350 X-Max 20 (Oxford Instruments, Abingdon, UK).
The coatings’ composition and structure were further confirmed by X-ray diffraction (XRD) analysis with diffraction data collected using Rigaku Ultima IV diffractometer in Bragg–Brentano geometry over the scattering angle 2θ range 20–80°.
Mass of the elements and metal loadings were determined by inductively coupled plasma optical emission spectrometry (ICP–OES) analysis. Prior to the analysis, all the prepared coatings were dissolved in HCl solution and diluted up to 10 mL. The ICP–OES spectra were recorded using an Optima 7000DV spectrometer (Perkin Elmer, Waltham, MA, USA) at wavelengths of λCo 228.616 nm, λCo 238.892 nm, λB 249.677 nm, λMo 202.031 nm, λMo 203.845 nm, λFe 238.204 nm, λMn 257.610 nm, and λNi 231.604 nm.

2.3. Electrochemical Measurements

All electrochemical measurements were done using Ivium V01107 potentiostat (Eindhoven, The Netherlands) in a three-electrode system with saturated calomel (SCE) as a reference, graphite rod as counter and CoM (M = Fe, Mn, Mo), Co or Ni as the working electrode, in 1 M potassium hydroxide (KOH) as supporting electrolyte. All potentials in this work were converted to the reversible hydrogen electrode (RHE) scale using the following equation: ERHE = ESCE + 0.242 V + 0.059 V × pHsolution. Current densities were calculated using the electrodes’ geometric area of 1 cm2.
CVs were recorded from 1.02 to 1.22 V, at different polarization rates in the range from 5 to 100 mV·s−1 in 1 M KOH saturated with nitrogen (N2).
HER polarization curves were recorded from the open circuit potential (OCP) to −0.38 V at a polarization rate of 5 mV·s−1. HER electrochemical impedance spectroscopy (EIS) analysis was conducted in the frequency range of 100 kHz to 0.1 Hz, with 5 mV amplitude at a potential of −0.33 V.
OER polarization curves were recorded from OCP to 2.12 V at a polarization rate of 5 mV·s−1. OER EIS measurements were done at a potential of 1.67 V with an amplitude of 5 mV in the 100 kHz–0.1 Hz range.
Polarization curves and EIS measurements were recorded at several temperatures from 25 to 85 °C, setting the temperature with a water jacket connected to a Haake water bath.
Stability was studied by recording chronoamperometry (CA) curves under HER (potential of −0.24 V) and under OER (potential of 1.67 V) conditions for 1 h for all coatings and then for 24 h for the coatings that showed the highest HER/OER activity.

3. Results

3.1. Characterization of Coatings

Mass of the elements deposited onto Cu substrate surface and their loadings, determined by ICP–OES analysis, are given in Table 2. It can be seen that the formed Co, CoMo, CoFe, and CoMn coatings contained more than 90 wt.% of Co and between 0.64–1.8 wt.% of B. In the case of Ni coating, it contained more than 97 wt.% of Ni and ~3 wt.% of boron (B).
SEM analysis revealed somewhat different morphology of the prepared coatings (Figure 1A–E), with EDX analysis verifying uniform distribution of components. Namely, layers of the prepared catalysts were polycrystalline, but with particles of different sizes exhibiting agglomerates of oval structure. Surface morphology plays an important role in electrocatalysis as it determines both the contact surface area as well as the number of edge active sites where the charge distribution is localized [35]. Furthermore, it plays an important role in the generation of H2/O2 gas bubbles that might block access to the active sites [36]. In the competition between the nucleation and growth of gas bubbles, a flat surface will favor the growth process leading to the formation of large bubbles, while cracks will limit the growth of O2 bubbles within them [36,37].
The compositions of the five coatings were further investigated by XRD analysis (Figure 1F). In case of the Ni and CoFe coatings, with low metal loading, the peaks related to the Cu substrate are also visible at 2θ of ca. 43.5, 50.5 and 74.2°, overlapping with the reflections from the Ni (111), (200) and (220) planes, respectively, and Co (002), (101) and (110) planes, respectively [5].
Electrochemical characterization of coatings was conducted by recording CVs in N2-saturated 1 M KOH at different polarization rates (not shown). These results were used for the investigation of charge storage capability of the studied coatings, i.e., for determination of their double-layer capacitance (Cdl), which is proportional to their electrochemical active surface area (ECSA) [38,39,40]. Namely, adsorption of H and O (underpotential deposition) on the electrode material’s surface is a requirement for HER and OER, respectively [41]. CVs at different polarization rates indicate the rate capability of an electrode material, i.e., its efficiency to adsorb a substantial H/O amount and desorb with a high coulombic efficiency. Cdl was found to decrease in order CoMo (21.2 µF·cm−2) > Ni (21.0 µF·cm−2) > CoFe (6.2 µF·cm−2) > CoMn (3.0 µF·cm−2) > Co (2.1 µF·cm−2), with a value of 20 µF·cm−2 being reported as average Cdl value of a smooth metal surface [42]. Cdl values several times higher for CoMo and Ni than Cdl values of CoFe, CoMn, and Co coatings reflected the notably higher number of active sites at the former that could take part in the adsorption processes and lead to higher HER electrocatalytic activity. Nevertheless, the electrocatalytic reactivity of the active sites depends on their accessibility as well as their oxidation state.

3.2. Hydrogen Evolution Reaction Study

HER activity of studied coatings was evaluated in 1 M KOH by LSV method. CoMo gave the highest current density (j), followed by CoMn and Co coatings, and then by CoFe and Ni with notably lower current density during HER (Figure 2A). For instance, the current densities of −124.2, −74.1, −67.1, −16.6 and −9.5 mA·cm−2 were reached at −0.3 V using CoMo, CoMn, Co, CoFe, and Ni coatings, respectively. Overpotential to reach current density of 10 mA cm−2 (η10) was found to be as low as 61 mV for CoMo and increased in the order CoMo (61 mV) < CoMn (238 mV) < Co (246 mV) < CoFe (285 mV) < Ni (308 mV).
The HER kinetics was explored by Tafel analysis (Figure 2B), i.e., determination of Tafel slope (b) as a measure of a rate at which current density increases with the increase of overpotential, and exchange current density (j0), reflecting the electrode’s intrinsic activity for HER. Tafel slope values were found to be 83, 94, 100, 131, and 184 mV·dec−1 (Table 3) for CoMn, Co, CoFe, Ni, and CoMo, respectively. The exchange current density (j0) was calculated for HER at all five coatings by extrapolation of the Tafel plots, η vs. log j. Thus, j0 of 0.31, 0.04, 0.04, 0.02 and 0.01 mA·cm−2 were calculated for CoMo, Ni, Co, CoMn, and CoFe, respectively (Table 3). It is worth noting that the j0 value determined for HER at CoMo coating was ca. seven times higher than that determined for the rest of the studied coatings.
The EIS measurements were used for additional investigation of the coating/electrolyte interface and the related processes occurring at the coating surface under HER conditions in 1 M KOH. Figure 2C shows the Nyquist and Bode (inset) plots of the five coatings. The solution resistance (Rs) (2.48–3.20 Ω range), as well as the charge transfer resistance (Rct) (1.08–2.80 Ω range), were calculated using the equivalent circuit presented in Scheme 1 and found to be comparable for the studied coatings (Table 4).
Another crucial criterion for an advanced electrode material is its electrochemical stability. Chronoamperometric measurements with five coatings were done in 1 M KOH at −0.24 V for 1 h. CA results confirmed the result of LSV analysis in terms of CoMo giving the highest current density (−50.2 mA·cm−2 at 200 s) during HER (Figure 2D). More than two times lower current density was recorded with Ni (−22.4 mA·cm−2), CoMn (−21.7 mA·cm−2) and Co (18.2 mA·cm−2) coatings and notably lower value with CoFe (−5.7 mA·cm−2). Activity for HER of all coatings (in terms of the recorded current density) was found to be stable during one-hour measurement. Thus, current density under HER conditions at CoMo decreased ca. 13% after 1 h. Furthermore, CoMo showed relatively stable current density during 24 h with a decrease of ca. 18.6%. Thus, HER current density of CoMo was found to be −54.3 mA·cm−2 at 800 s and −44.2 mA·cm−2 at 86,400 s.
HER at five coatings was studied at temperatures ranging from 25 up to 85 °C. The current densities of CoMo increased from −124.2 to −164.8 mA·cm−2 with increasing temperature from 25 to 65 °C, respectively, and then somewhat decreased at 75 and 85 °C (e.g., to 156.3 mA·cm−2 at 85 °C). Ni and CoFe showed the same trend of increasing current densities with the increase of temperature, whereas CoMn and Co did not show a significant difference in current densities with increasing temperature during HER. Furthermore, Tafel slopes were calculated for HER at five studied coatings at different temperatures (Figure 3). A decrease of Tafel slope value with increasing temperature was observed, e.g., Tafel slope for HER at CoMo was determined to be 184 and 126 mV·dec−1 at 25 and 85 °C, respectively.

3.3. Oxygen Evolution Reaction

The activity of CoM (M = Fe, Mn, Mo), Co, and Ni coatings for oxygen evolution reaction was also thoroughly examined in alkaline media (1 M KOH). The polarization curves of studied coatings are presented in Figure 4, where it can be observed that the highest current density during OER was recorded at Co and CoMn, followed by CoFe and Ni, and then CoMo coating. An overpotential to reach a current density of 10 mA·cm−2 was found to be similar for Co (438 mV), CoMn (431 mV) and CoMo (431 mV) and ca. 120 mV higher for CoFe (553 mV) and Ni (559 mV) coatings (Table 5). Furthermore, the current density of 150 mA·cm−2 was reached at potential increasing in the following order Co (1.77 V) > CoMn (1.79 V) > Ni (1.86 V) > CoFe (1.92 V). Current density at CoMo coating did not reach a value of 150 mA cm−2 in the investigated potential range; it reached a value of only 99 mA cm−2 at 1.90 V.
OER polarization curves were then further used for constructing the Tafel plots and calculating the Tafel slope. Tafel slope values of 53 and 60 mV·dec−1 were found for OER at Ni and Co, respectively. Higher values of 94, 96, and 114 mV·dec−1 were determined for OER at CoMn, CoFe, and CoMo, respectively.
To get a deeper insight into the OER kinetics at studied coatings, EIS analysis was also performed in 1 M KOH under the OER conditions. Figure 4C shows the Nyquist plots at 1.67 V (amplitude of 5 mV in the 100 kHz–0.1 Hz range) and the Bode plots (inset of the figure) of the five coatings with Rct determined (using the equivalent circuit presented in Scheme 1) to be 1.01, 2.24, 7.44, 7.90, and 20.16 Ω for CoMo, Ni, CoFe, Co, and CoMn coatings, respectively (Table 6). Furthermore, Co coating showed a favorable Cdl value of 9.6 mF.
As mentioned, the electrode’s electrochemical stability is another key criterion for the evaluation of its potential application. Figure 4D presents chronoamperometric curves of studied coatings at the potential of 1.67 V where the highest current density at 3600 s was recorded at CoMn (27.9 mA·cm−2) and Co (23.5 mA·cm−2), followed by CoFe (7.76 mA·cm−2), Ni (5.08 mA·cm−2) and CoMo (3.48 mA·cm−2) coatings. Chronoamperometric curves of CoMn and CoFe coatings revealed somewhat lower stability of these two coatings as they showed a current density decrease of about 50 and 40%, respectively, when comparing the values in 180 and 3600 s. Co showed good stability during 24 h where current density decreased from 28.6 mA·cm−2 at 800 s to 25.5 mA·cm−2 at 27,700 s.
Additionally, the impact of temperature on OER activity of five studied coatings in 1 M KOH was thoroughly tested at temperatures ranging from 25 to 85 °C. A pronounced increase of current density with temperature was observed. Thus, the potential to reach a current density of 120 mA·cm−2 at Co coating decreased from 1.74 V at 25 °C to 1.52 V at 85 °C (Figure 5A). Figure 5B shows the corresponding Tafel plots of Co coating at different temperatures where Tafel slope values changed slightly; the same behavior was observed for the other coatings as well.

4. Discussion

HER in alkaline solution proceeds by the following three steps:
M + H2O + e− ↔ MHads + OH− (Volmer step, b = 120 mV·dec−1),
MHads + H2O + e− ↔ H2 + M + OH− (Heyrovsky step, b = 40 mV·dec−1),
MHads + MHads ↔ H2 + 2M (Tafel step, b = 30 mV·dec−1).
The Volmer step represents electrosorption of the hydrogen proton (H+) to form the surface adsorbed hydrogen atom (MHads) on the active metal sites (M), the Heyrovsky step is the electrochemical desorption of MHads to form H2, and the Tafel step represents recombination of two MHads on the metal surface to form H2 [32,33]. Tafel slope values suggest that HER at CoMn, Co, and CoFe proceeds by the Volmer–Heyrovsky mechanism where the electrochemical desorption of the MHads is the rate-limiting step [32,34], while during HER at Ni and CoMo, the Volmer step, i.e., electrochemical sorption of H+, represents the rate-determining step. It could be seen that the determined Tafel slope values deviated from the theoretical ones toward higher values that might have been caused by the formation of surface oxides of lower conductivity compared to the metallic surface [34].
The notably higher double-layer capacitance of CoMo coating could account for its higher activity toward HER compared to the other coatings. Furthermore, the overpotential value to reach the current density of 10 mA·cm−2 determined for CoMo was lower than the values of 73 and 288 mV reported for S-CoO nanorods [19,20] and Co3O4–CuO electrocatalyst [19,20], respectively (Table 7). It was also lower than the overpotential of 163.0 mV to achieve a current density of 10 mA·cm−2 for HER at CoP–FeP in alkaline electrolyte solution [2]. Furthermore, it was lower than the overpotential of 119 and 297 mV at 10 mA·cm−2 at Mo2C@C and Ni foam, respectively [37,38].
Obtained results showed that the combination of Co as right-hand side transition metal with Mo as left-hand side transition metal results in enhancement of the coating’s intrinsic activity. Material electrocatalytic activity for HER is governed by the H adsorption free energy [41]. The well-known volcano plot indicates noble metals as the best electrocatalysts for HER, while the activity of transition metals can be improved by combining multiple metals with different, weak and strong, bonds with hydrogen [43]. Consequently, metal forming a strong bond with H initiates the H adsorption, with the possibility of Hads moving via surface diffusion. Metal forming a weak bond with H then facilitates the H2 generation and its release from the electrode surface. Furthermore, the presence of a second metal of different size changes the lattice structure, which can result in the generation of active sites. Finally, a combination of two transition metals can improve the electrochemical stability compared to the components [41].
As for the state of the surface, it has been suggested that the presence of oxides on the metal surface is crucial for HER activity due to the oxides’ affinity to form OHads and thus promote water splitting [35]. Formed OH species adsorb on the metal oxide, while H atoms formed adsorb at the neighboring metal active sites. Thus, adequate tailoring metal/metal oxide interfaces can lead to a bifunctional HER mechanism.
An OER Tafel slope value lower than 60 mV·dec−1 suggests a four-electron transfer determining step while a value higher than 60 mV·dec−1 suggests a three-electron transfer determining step [36], with increased multiple electron transfer process (case of Ni and Co), indicating better electrocatalytic performance of a coating. Tafel slope for OER at NiFeMo oxide catalyst was reported to be 64 mV·dec−1 [38] and at NiCo2O4 89 mV·dec−1 [40] in 0.1 M KOH, i.e., higher than the values for herein tested Co coating (Table 8).
Overpotential at a current density of 10 mA·cm−2 values are somewhat higher than those given in the literature reports for OER at different transition metal-based electrodes (Table 8). Thus, CoMn, CoMo, and Co can be seen as good materials for OER, and CoFe and Ni as satisfactory ones [42]. Transition metals’ activity towards OER is governed, among other factors, by the number and accessibility of active sites, their oxidation state (+2, +3, or +4), 3D electrons number, and surface oxygen binding energy [48]. Namely, OER is reported ideally not to be a surface reaction, but to occur in a ca. 10 nm layer of the electrode material [37]. Furthermore, it has been reported that parallel with the OER occurs the phase conversion of Co-based materials (metal to oxides, oxides to hydroxides or oxyhydroxides), taking an active role during OER. Active sites in their high oxidation state, with the transition occurring at potentials lower than that of OER via a pseudocapacitive behavior, will favor activity for the OER [37]. Incorporation of a second transition metal typically should boost the OER activity by altering intermediate bonds and electronic structure, and, thus, increasing the electric conductivity [49]. The strength of the OHads–M2+δ bond increases in the order Ni < Co < Fe < Mn [50].

5. Conclusions

CoM (M = Fe, Mo, Mn), Co, and Ni coatings were prepared by electroless deposition with SEM revealing somewhat different morphology. The effect of combining Co with left-hand side transition metals (Fe, Mo, Mn) on the electrocatalytic activity for water electrolysis, i.e., for both HER and OER in alkaline media, was evaluated. CoMo coating gave the highest current densities as well as exchange current density during HER in 1 M KOH, showing a faster charge transfer through the metal–solution interface during HER. Low charge transfer resistance in the case of CoMo was confirmed by EIS analysis. Furthermore, CoMo showed the highest value of double-layer capacitance, reflecting the highest number of active sites.
On the other hand, Co and CoMn coating showed the highest current density during OER with ca. 120 mV lower overpotential to reach a current density of 10 mA·cm−2, compared to CoFe and Ni coatings. Co coating showed faster HER kinetics in terms of low Tafel slope (60 mV·dec−1) resulting from lower charge transfer resistance and higher double-layer capacitance.
Stability tests under HER as well as OER conditions in alkaline media revealed high stability of coatings studied.

Author Contributions

Conceptualization, J.M., A.B. and B.Š.; investigation, J.M., A.B., Z.S. and D.M.; data curation, J.M., A.B., D.M. and B.Š.; funding acquisition, L.T.-T.; writing—original draft preparation, J.M. and A.B.; writing—review and editing, L.T.-T., D.M.F.S. and B.Š.; visualization, J.M. and A.B.; supervision, L.T.-T. and B.Š. All authors have read and agreed to the published version of the manuscript.

Funding

The study was funded by the Ministry of Education, Science and Technological Development of Republic of Serbia (contract no. 451-03-68/2020-14/200146). The authors would also like to thank the Portuguese Foundation for Science and Technology (FCT, Portugal) for a research contract in the scope of programmatic funding UIDP/04540/2020 (D.M.F. Santos) and for contract IST-ID/156/2018 (B. Šljukić).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Niyitanga, T.; Jeong, H.K. Hydrogen and oxygen evolution reactions of molybdenum disulfide synthesized by hydrothermal and plasma method. J. Electroanal. Chem. 2019, 849, 113383. [Google Scholar] [CrossRef]
  2. Du, Y.; Wang, Z.; Li, H.; Han, Y.; Liu, Y.; Yang, Y.; Liu, Y.; Wang, L. Controllable synthesized CoP-MP (M=Fe, Mn) as efficient and stable electrocatalyst for hydrogen evolution reaction at all pH values. Int. J. Hydrogen Energy 2019, 44, 19978–19985. [Google Scholar] [CrossRef]
  3. Sial, M.A.Z.G.; Baskaran, S.; Jalil, A.; Talib, S.H.; Lin, H.; Yao, Y.; Zhang, Q.; Qian, H.; Zou, J.; Zeng, X. NiCoFe oxide amorphous nanohetrostructres for oxygen evolution reaction. Int. J. Hydrogen Energy 2019, 44, 22991–23001. [Google Scholar] [CrossRef]
  4. Yang, L.; Yu, G.; Ai, X.; Yan, W.; Duan, H.; Chen, W.; Li, X.; Wang, T.; Zhang, C.; Huang, X.; et al. Efficient oxygen evolution electrocatalysis in acid by a perovskite with face-sharing IrO6 octahedral dimers. Nat. Commun. 2018, 9, 5236. [Google Scholar] [CrossRef] [Green Version]
  5. Lv, Z.; Zhang, Y.; Wang, K.; Yu, T.; Liu, X.; Wang, G.; Xie, G.; Jiang, L. High performance of Co–P/NF electrocatalyst for oxygen evolution reaction. Mater. Chem. Phys. 2019, 235, 121772. [Google Scholar] [CrossRef]
  6. Lee, C.; Lee, C.; Shin, K.; Song, T.; Jeong, H.Y.; Jeon, D.Y.; Lee, H.M. Ag2S-CoS hetero-nanowires terminated with stepped surfaces for improved oxygen evolution reaction. Catal. Commun. 2019, 129, 105749. [Google Scholar] [CrossRef]
  7. Bockris, J.O.M.; Potter, E.C. The mechanism of hydrogen evolution at nickel cathodes in aqueous solutions. J. Chem. Phys. 1952, 20, 614–628. [Google Scholar] [CrossRef]
  8. Willems, H.; Kobussen, A.G.C.; De Wit, J.H.W.; Broers, G.H.J. The oxygen evolution reaction on cobalt. Part I. Reaction order experiments and impedance measurements. J. Electroanal. Chem. 1984, 170, 227–242. [Google Scholar] [CrossRef]
  9. Willems, H.; Kobussen, A.G.C.; Vinke, I.C.; De Wit, J.H.W.; Broers, G.H.J. The oxygen evolution reaction on cobalt. Part II. Transient measurements. J. Electroanal. Chem. 1985, 194, 287–303. [Google Scholar] [CrossRef]
  10. Lasia, A.; Rami, A. Kinetics of hydrogen evolution on nickel electrodes. J. Electroanal. Chem. 1990, 294, 123–141. [Google Scholar] [CrossRef]
  11. Kawashima, A.; Akiyama, E.; Habazaki, H.; Hashimoto, K. Characterization of sputter-deposited Ni-Mo and Ni-W alloy electrocatalysts for hydrogen evolution in alkaline solution. Mater. Sci. Eng. A 1997, 226–228, 905–909. [Google Scholar] [CrossRef]
  12. Neethu, R.M.; Hegde, A.C. Development of Ni-W alloy coatings and their electrocatalytic activity for water splitting reaction. Phys. B Condens. Matter 2020, 597. [Google Scholar] [CrossRef]
  13. Lin, X.; Zhou, J.; Zheng, D.; Guan, C.; Xiao, G.; Chen, N.; Liu, Q.; Bao, H.; Wang, J.Q. Rational synthesis of CaCo2O4 nanoplate as an earth-abundant electrocatalyst for oxygen evolution reaction. J. Energy Chem. 2019, 31, 125–131. [Google Scholar] [CrossRef] [Green Version]
  14. Weng, Z.; Liu, W.; Yin, L.C.; Fang, R.; Li, M.; Altman, E.I.; Fan, Q.; Li, F.; Cheng, H.M.; Wang, H. Metal/Oxide Interface Nanostructures Generated by Surface Segregation for Electrocatalysis. Nano Lett. 2015, 15, 7704–7710. [Google Scholar] [CrossRef]
  15. Xu, X.; Zhong, Y.; Shao, Z. Double Perovskites in Catalysis, Electrocatalysis, and Photo(electro)catalysis. Trends Chem. 2019, 1, 410–424. [Google Scholar] [CrossRef]
  16. Guan, B.Y.; Yu, L.; Lou, X.W.D. General Synthesis of Multishell Mixed-Metal Oxyphosphide Particles with Enhanced Electrocatalytic Activity in the Oxygen Evolution Reaction. Angew. Chemie Int. Ed. 2017, 56, 2386–2389. [Google Scholar] [CrossRef]
  17. Gao, W.; Yan, M.; Cheung, H.Y.; Xia, Z.; Zhou, X.; Qin, Y.; Wong, C.Y.; Qu, Y.; Chang, C.R.; Ho, J.C. Modulating electronic structure of CoP electrocatalysts towards enhanced hydrogen evolution by Ce chemical doping in both acidic and basic media. Nano Energy 2017, 38, 290–296. [Google Scholar] [CrossRef]
  18. Zhou, J.; Xiao, H.; Zhou, B.; Huang, F.; Zhou, S.; Xiao, W.; Wang, D. Hierarchical MoS2-rGO nanosheets with high MoS2 loading with enhanced electro-catalytic performance. Appl. Surf. Sci. 2015, 358, 152–158. [Google Scholar] [CrossRef]
  19. Worsley, M.A.; Shin, S.J.; Merrill, M.D.; Lenhardt, J.; Nelson, A.J.; Woo, L.Y.; Gash, A.E.; Baumann, T.F.; Orme, C.A. Ultralow density, monolithic WS2, MoS2, and MoS2/graphene aerogels. ACS Nano 2015, 9, 4698–4705. [Google Scholar] [CrossRef] [Green Version]
  20. Liu, T.; Asiri, A.M.; Sun, X. Electrodeposited Co-doped NiSe2 nanoparticles film: A good electrocatalyst for efficient water splitting. Nanoscale 2016, 8, 3911–3915. [Google Scholar] [CrossRef]
  21. Wang, H.; Wang, X.; Yang, D.; Zheng, B.; Chen, Y. Co0.85Se hollow nanospheres anchored on N-doped graphene nanosheets as highly efficient, nonprecious electrocatalyst for hydrogen evolution reaction in both acid and alkaline media. J. Power Sources 2018, 400, 232–241. [Google Scholar] [CrossRef]
  22. Hu, Y.; Guan, D.G.; Yu, B.; Hou, W.; Zheng, B.; Zhang, W.; Chen, Y. Scalable synthesis of Mo2C/CNT networks as highly efficient and stable electrocatalyst for hydrogen evolution reaction. Electrochim. Acta 2018, 263, 192–200. [Google Scholar] [CrossRef]
  23. Ma, F.X.; Wu, H.B.; Xia, B.Y.; Xu, C.Y.; Lou, X.W. Hierarchical β-Mo2C Nanotubes Organized by Ultrathin Nanosheets as a Highly Efficient Electrocatalyst for Hydrogen Production. Angew. Chemie Int. Ed. 2015, 54, 15395–15399. [Google Scholar] [CrossRef]
  24. Chen, P.; Xu, K.; Fang, Z.; Tong, Y.; Wu, J.; Lu, X.; Peng, X.; Ding, H.; Wu, C.; Xie, Y. Metallic Co4N porous nanowire arrays activated by surface oxidation as electrocatalysts for the oxygen evolution reaction. Angew. Chem. Int. Ed. 2015, 54, 14710–14714. [Google Scholar] [CrossRef]
  25. Ling, T.; Yan, D.Y.; Wang, H.; Jiao, Y.; Hu, Z.; Zheng, Y.; Zheng, L.; Mao, J.; Liu, H.; Du, X.W.; et al. Activating cobalt(II) oxide nanorods for efficient electrocatalysis by strain engineering. Nat. Commun. 2017, 8, 1509. [Google Scholar] [CrossRef] [Green Version]
  26. Tahira, A.; Ibupoto, Z.H.; Willander, M.; Nur, O. Advanced Co3O4–CuO nano-composite based electrocatalyst for efficient hydrogen evolution reaction in alkaline media. Int. J. Hydrogen Energy 2019, 44, 26148–26157. [Google Scholar] [CrossRef]
  27. Liu, H.; Yang, D.H.; Wang, X.Y.; Zhang, J.; Han, B.H. N-doped graphitic carbon shell-encapsulated FeCo alloy derived from metal–polyphenol network and melamine sponge for oxygen reduction, oxygen evolution, and hydrogen evolution reactions in alkaline media. J. Colloid Interface Sci. 2021, 581, 362–373. [Google Scholar] [CrossRef]
  28. Jiang, L.; Ji, S.J.; Xue, H.G.; Suen, N.T. HER activity of MxNi1−x (M = Cr, Mo and W; x ≈ 0.2) alloy in acid and alkaline media. Int. J. Hydrogen Energy 2020, 45, 17533–17539. [Google Scholar] [CrossRef]
  29. Yeo, B.S.; Bell, A.T. Enhanced activity of gold-supported cobalt oxide for the electrochemical evolution of oxygen. J. Am. Chem. Soc. 2011, 133, 5587–5593. [Google Scholar] [CrossRef]
  30. Xie, S.; Li, F.; Xu, S.; Li, J.; Zeng, W. Cobalt/iron bimetal-organic frameworks as efficient electrocatalysts for the oxygen evolution reaction. Chin. J. Catal. 2019, 40, 1205–1211. [Google Scholar] [CrossRef]
  31. Zhang, S.; She, G.; Li, S.; Qu, F.; Mu, L.; Shi, W. Enhancing the electrocatalytic activity of NiMoO4 through a post-phosphorization process for oxygen evolution reaction. Catal. Commun. 2019, 129, 105725. [Google Scholar] [CrossRef]
  32. Liang, D.; Mao, J.; Liu, P.; Li, J.; Yan, J.; Song, W. In-situ doping of Co in nickel selenide nanoflower for robust electrocatalysis towards oxygen evolution. Int. J. Hydrogen Energy 2020, 45, 27047–27055. [Google Scholar] [CrossRef]
  33. Chanda, D.; Tufa, R.A.; Birdja, Y.Y.; Basu, S.; Liu, S. Hydrothermally/electrochemically decorated FeSe on Ni-foam electrode: An efficient bifunctional electrocatalysts for overall water splitting in an alkaline medium. Int. J. Hydrogen Energy 2020, 45, 27182–27192. [Google Scholar] [CrossRef]
  34. Ganci, F.; Cusumano, V.; Livreri, P.; Aiello, G.; Sunseri, C.; Inguanta, R. Nanostructured Ni–Co alloy electrodes for both hydrogen and oxygen evolution reaction in alkaline electrolyzer. Int. J. Hydrogen Energy 2020. [Google Scholar] [CrossRef]
  35. Abbott, D.F.; Lebedev, D.; Waltar, K.; Povia, M.; Nachtegaal, M.; Fabbri, E.; Copéret, C.; Schmidt, T.J. Iridium oxide for the oxygen evolution reaction: Correlation between particle size, morphology, and the surface hydroxo layer from operando XAS. Chem. Mater. 2016, 28, 6591–6604. [Google Scholar] [CrossRef]
  36. Zeradjanin, A.R.; Topalov, A.A.; Van Overmeere, Q.; Cherevko, S.; Chen, X.; Ventosa, E.; Schuhmann, W.; Mayrhofer, K.J.J. Rational design of the electrode morphology for oxygen evolution-enhancing the performance for catalytic water oxidation. RSC Adv. 2014, 4, 9579–9587. [Google Scholar] [CrossRef] [Green Version]
  37. Eftekhari, A. From pseudocapacitive redox to intermediary adsorption in oxygen evolution reaction. Mater. Today Chem. 2017, 4, 117–132. [Google Scholar] [CrossRef]
  38. Gao, M.R.; Chan, M.K.Y.; Sun, Y. Edge-terminated molybdenum disulfide with a 9.4-Å interlayer spacing for electrochemical hydrogen production. Nat. Commun. 2015, 6, 7493. [Google Scholar] [CrossRef] [Green Version]
  39. Kong, D.; Wang, H.; Lu, Z.; Cui, Y. CoSe2 nanoparticles grown on carbon fiber paper: An efficient and stable electrocatalyst for hydrogen evolution reaction. J. Am. Chem. Soc. 2014, 136, 4897–4900. [Google Scholar] [CrossRef]
  40. Wang, R.; Sun, P.; Wang, H.; Wang, X. Hierarchical molybdenum carbide/N-doped carbon as efficient electrocatalyst for hydrogen evolution reaction in alkaline solution. Int. J. Hydrogen Energy 2018, 43, 17244–17251. [Google Scholar] [CrossRef]
  41. Eftekhari, A. Electrocatalysts for hydrogen evolution reaction. Int. J. Hydrogen Energy 2017, 42, 11053–11077. [Google Scholar] [CrossRef]
  42. Soares, C.O.; Carvalho, M.D.; Melo Jorge, M.E.; Gomes, A.; Silva, R.A.; Rangel, C.M.; Da Silva Pereira, M.I. High surface area LaNiO3 electrodes for oxygen electrocatalysis in alkaline media. J. Appl. Electrochem. 2012, 42, 325–332. [Google Scholar] [CrossRef] [Green Version]
  43. Miles, M.H. Evaluation of electrocatalysts for water electrolysis in alkaline solutions. J. Electroanal. Chem. 1975, 60, 89–96. [Google Scholar] [CrossRef]
  44. Zhao, Y.; Wang, S.; Liu, H.; Guo, X.; Zeng, X.; Wu, W.; Zhang, J.; Wang, G. Porous Mo2C nanorods as an efficient catalyst for the hydrogen evolution reaction. J. Phys. Chem. Solids 2019, 132, 230–235. [Google Scholar] [CrossRef]
  45. Wang, L.; Li, Y.; Xia, M.; Li, Z.; Chen, Z.; Ma, Z.; Qin, X.; Shao, G. Ni nanoparticles supported on graphene layers: An excellent 3D electrode for hydrogen evolution reaction in alkaline solution. J. Power Sources 2017, 347, 220–228. [Google Scholar] [CrossRef]
  46. Hao, Z.; Yang, S.; Niu, J.; Fang, Z.; Liu, L.; Dong, Q.; Song, S.; Zhao, Y. A bimetallic oxide Fe1.89Mo4.11O7 electrocatalyst with highly efficient hydrogen evolution reaction activity in alkaline and acidic media. Chem. Sci. 2018, 9, 5640–5645. [Google Scholar] [CrossRef] [Green Version]
  47. Diao, L.; Zhang, B.; Sun, Q.; Wang, N.; Zhao, N.; Shi, C.; Liu, E.; He, C. An in-plane Co9S8@MoS2 heterostructure for the hydrogen evolution reaction in alkaline media. Nanoscale 2019, 11, 21479–21486. [Google Scholar] [CrossRef]
  48. Yang, Y.; Fei, H.; Ruan, G.; Xiang, C.; Tour, J.M. Efficient electrocatalytic oxygen evolution on amorphous nickel-cobalt binary oxide nanoporous layers. ACS Nano 2014, 8, 9518–9523. [Google Scholar] [CrossRef]
  49. Tahir, M.; Pan, L.; Idrees, F.; Zhang, X.; Wang, L.; Zou, J.J.; Wang, Z.L. Electrocatalytic oxygen evolution reaction for energy conversion and storage: A comprehensive review. Nano Energy 2017, 37, 136–157. [Google Scholar] [CrossRef]
  50. Subbaraman, R.; Tripkovic, D.; Chang, K.C.; Strmcnik, D.; Paulikas, A.P.; Hirunsit, P.; Chan, M.; Greeley, J.; Stamenkovic, V.; Markovic, N.M. Trends in activity for the water electrolyser reactions on 3d M(Ni,Co,Fe,Mn) hydr(oxy)oxide catalysts. Nat. Mater. 2012, 11, 550–557. [Google Scholar] [CrossRef]
  51. Du, Y.; Qu, H.; Liu, Y.; Han, Y.; Wang, L.; Dong, B. Bimetallic CoFeP hollow microspheres as highly efficient bifunctional electrocatalysts for overall water splitting in alkaline media. Appl. Surf. Sci. 2019, 465, 816–823. [Google Scholar] [CrossRef]
  52. Duan, Y.; Yu, Z.; Hu, S.; Zheng, X.; Zhang, C.; Ding, H.; Hu, B.; Fu, Q.; Yu, Z.; Zheng, X.; et al. Scaled-Up Synthesis of Amorphous NiFeMo Oxides and Their Rapid Surface Reconstruction for Superior Oxygen Evolution Catalysis. Angew. Chem. 2019, 131, 15919–15924. [Google Scholar] [CrossRef]
  53. Omari, E.; Omari, M. Cu-doped GdFeO3 perovskites as electrocatalysts for the oxygen evolution reaction in alkaline media. Int. J. Hydrogen Energy 2019, 44, 28769–28779. [Google Scholar] [CrossRef]
  54. Béjar, J.; Álvarez-Contreras, L.; Ledesma-García, J.; Arjona, N.; Arriaga, L.G. Electrocatalytic evaluation of Co3O4 and NiCo2O4 rosettes-like hierarchical spinel as bifunctional materials for oxygen evolution (OER) and reduction (ORR) reactions in alkaline media. J. Electroanal. Chem. 2019, 847, 113190. [Google Scholar] [CrossRef]
Materials 14 00092 g001 550

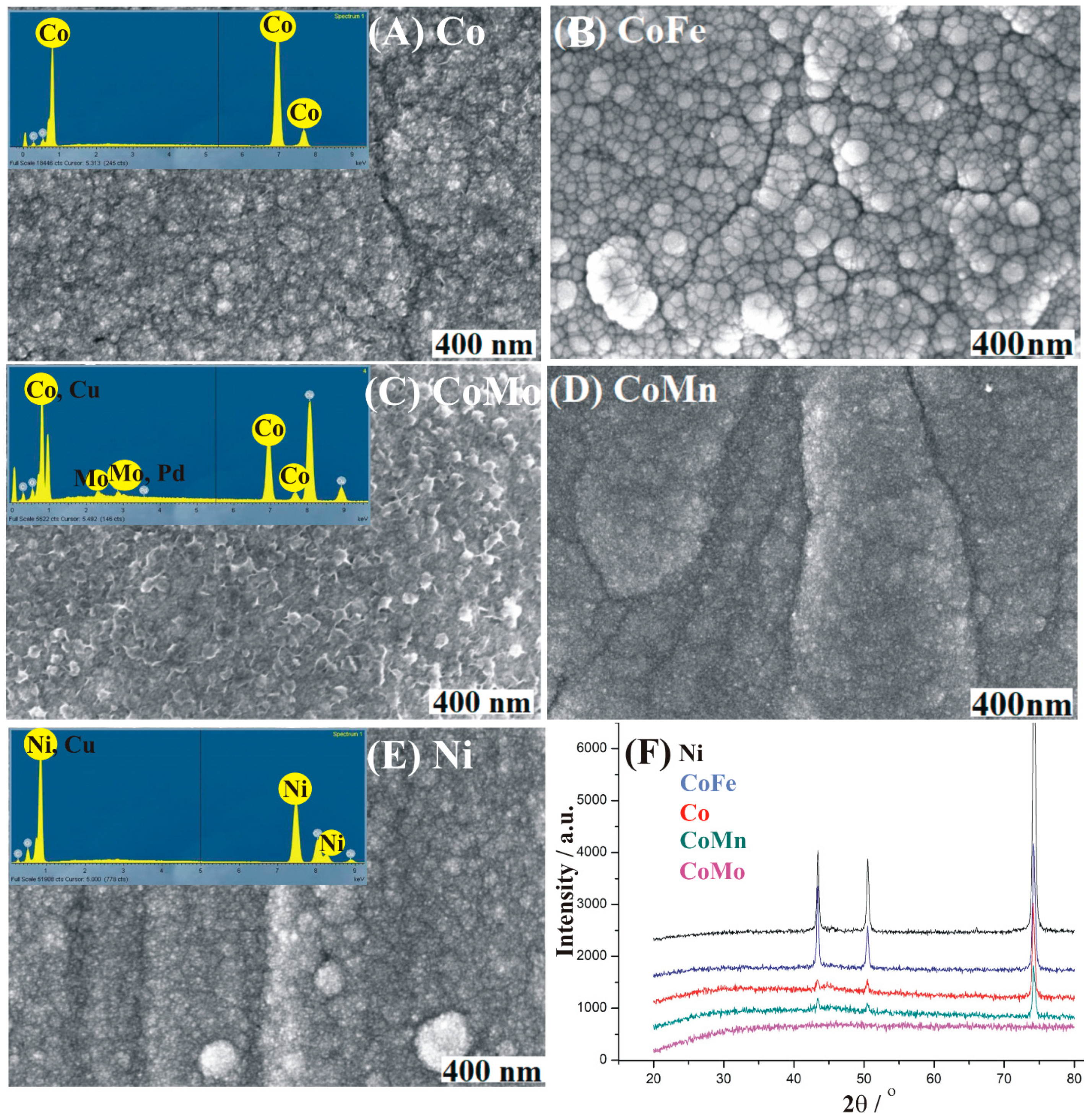

Figure 1. (A–E) SEM images (with EDX spectra in inset of (A,C,E)) of the five prepared coatings and (F) their XRD patterns.
Figure 1. (A–E) SEM images (with EDX spectra in inset of (A,C,E)) of the five prepared coatings and (F) their XRD patterns.
Materials 14 00092 g001
Materials 14 00092 g002 550
Figure 2. (A) Hydrogen evolution reaction (HER) polarization curves (iR-corrected) of five studied coatings at 5 mV·s−1 with (B) corresponding Tafel plots, (C) Nyquist plots at −0.33 V (amplitude of 5 mV in the 100 kHz–0.1 Hz range) with the corresponding Bode plots in the inset, and (D) chronoamperometric curves at −0.24 V for 1 h with the chronoamperometric curve of CoMo at the same potential for 24 h (inset). All measurements were done in 1 M KOH.
Figure 2. (A) Hydrogen evolution reaction (HER) polarization curves (iR-corrected) of five studied coatings at 5 mV·s−1 with (B) corresponding Tafel plots, (C) Nyquist plots at −0.33 V (amplitude of 5 mV in the 100 kHz–0.1 Hz range) with the corresponding Bode plots in the inset, and (D) chronoamperometric curves at −0.24 V for 1 h with the chronoamperometric curve of CoMo at the same potential for 24 h (inset). All measurements were done in 1 M KOH.
Materials 14 00092 g002
Materials 14 00092 sch001 550

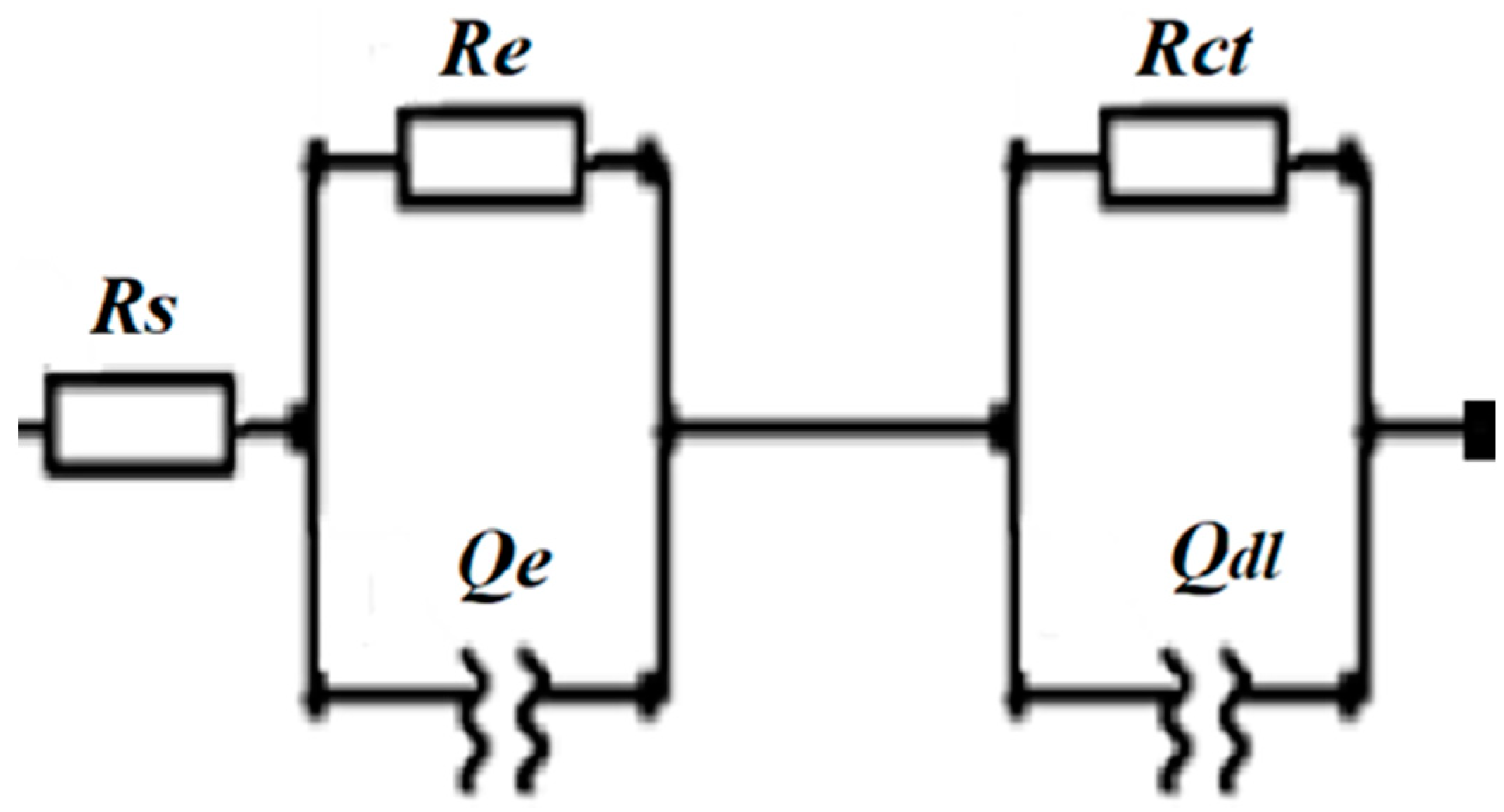

Scheme 1. Equivalent electric circuit used to fit the electrochemical impedance spectroscopy (EIS) data, where Rs is the electrolyte resistance, Re is the electronic resistance of the material and the associated capacitance Rct is the resistance of the charge transfer reaction, Qe is the constant phase element, and Qdl is an ideal double-layer capacitor.
Scheme 1. Equivalent electric circuit used to fit the electrochemical impedance spectroscopy (EIS) data, where Rs is the electrolyte resistance, Re is the electronic resistance of the material and the associated capacitance Rct is the resistance of the charge transfer reaction, Qe is the constant phase element, and Qdl is an ideal double-layer capacitor.
Materials 14 00092 sch001
Materials 14 00092 g003 550

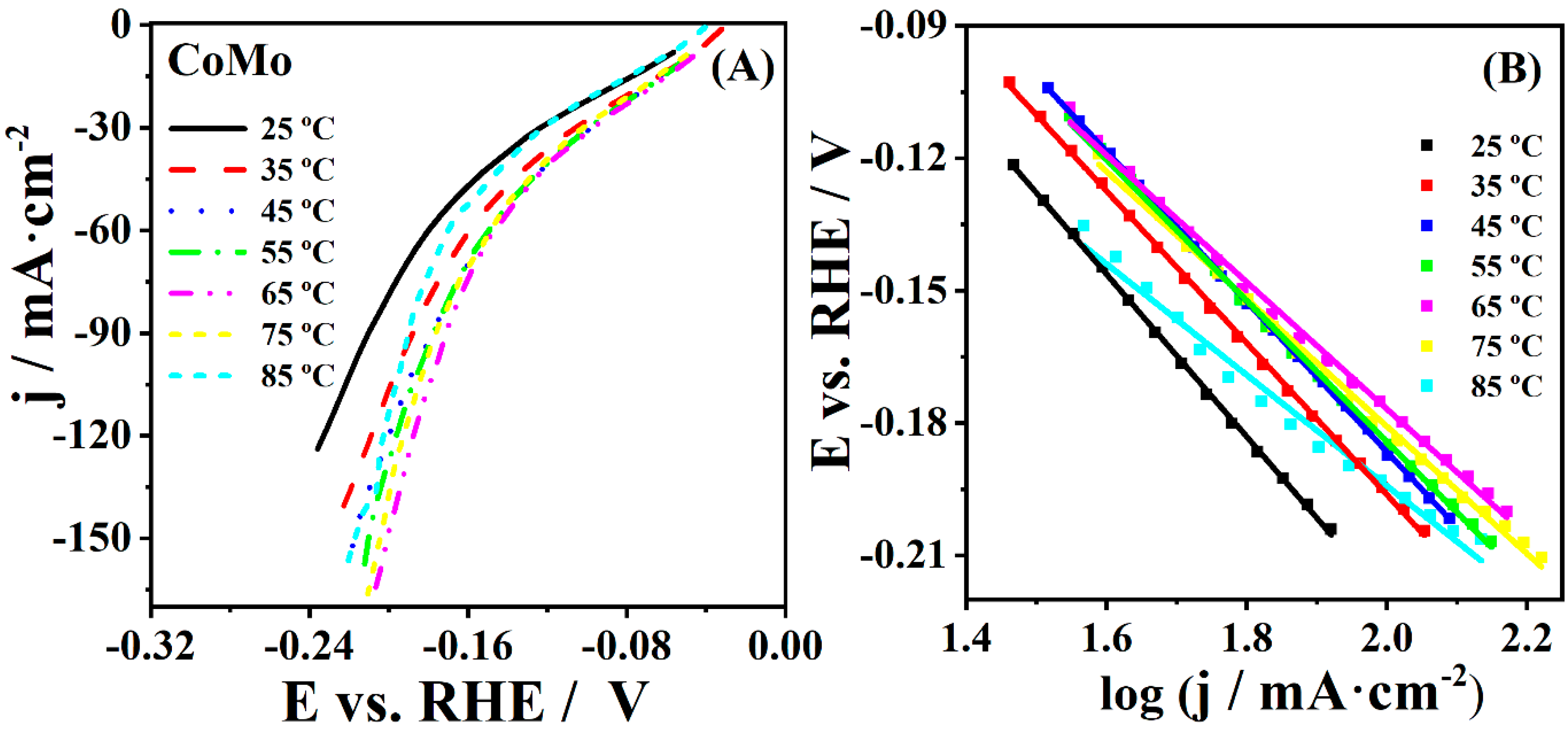

Figure 3. (A) HER polarization curves of CoMo coatings in 1 M KOH recorded at polarization rate of 5 mV·s−1 at different temperatures with (B) corresponding Tafel plots.
Figure 3. (A) HER polarization curves of CoMo coatings in 1 M KOH recorded at polarization rate of 5 mV·s−1 at different temperatures with (B) corresponding Tafel plots.
Materials 14 00092 g003
Materials 14 00092 g004 550

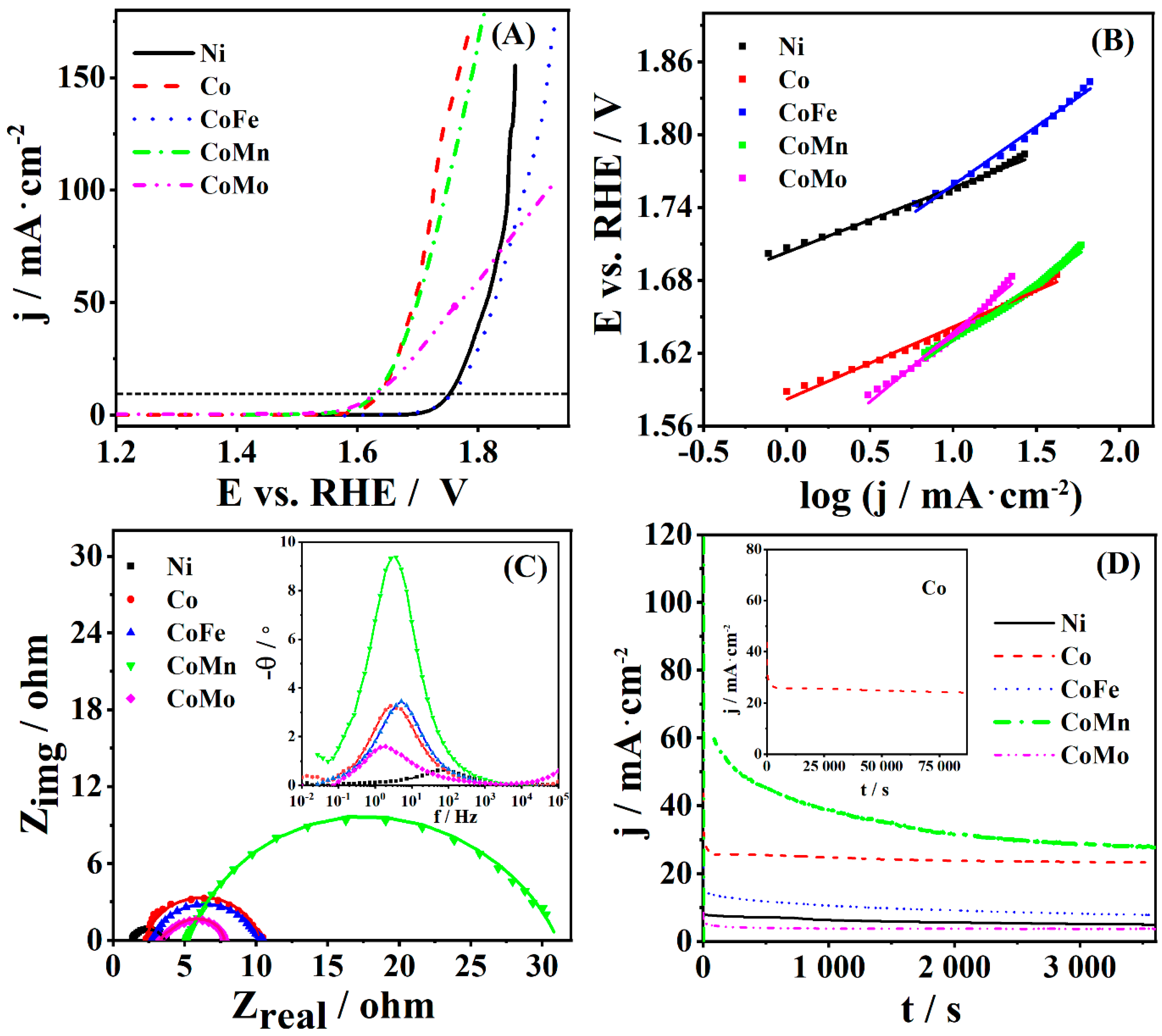

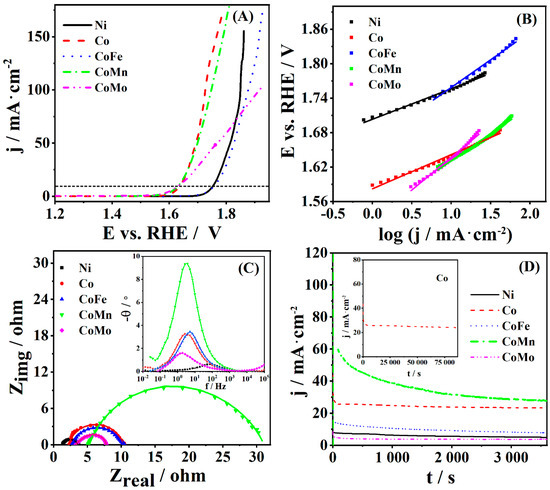

Figure 4. (A) Oxygen evolution reaction (OER) polarization curves (iR-corrected) of five studied coatings at 5 mV·s−1 with (B) corresponding Tafel plots, (C) Nyquist plots at 1.67 V (amplitude of 5 mV in the 100 kHz–0.1 Hz range) with the corresponding Bode plots in the inset, and (D) chronoamperometric curves at 1.67 V for 1 h with the chronoamperometric curve of Co coating at the same potential for 24 h (inset). All measurements were done in 1 M KOH.
Figure 4. (A) Oxygen evolution reaction (OER) polarization curves (iR-corrected) of five studied coatings at 5 mV·s−1 with (B) corresponding Tafel plots, (C) Nyquist plots at 1.67 V (amplitude of 5 mV in the 100 kHz–0.1 Hz range) with the corresponding Bode plots in the inset, and (D) chronoamperometric curves at 1.67 V for 1 h with the chronoamperometric curve of Co coating at the same potential for 24 h (inset). All measurements were done in 1 M KOH.
Materials 14 00092 g004
Materials 14 00092 g005 550

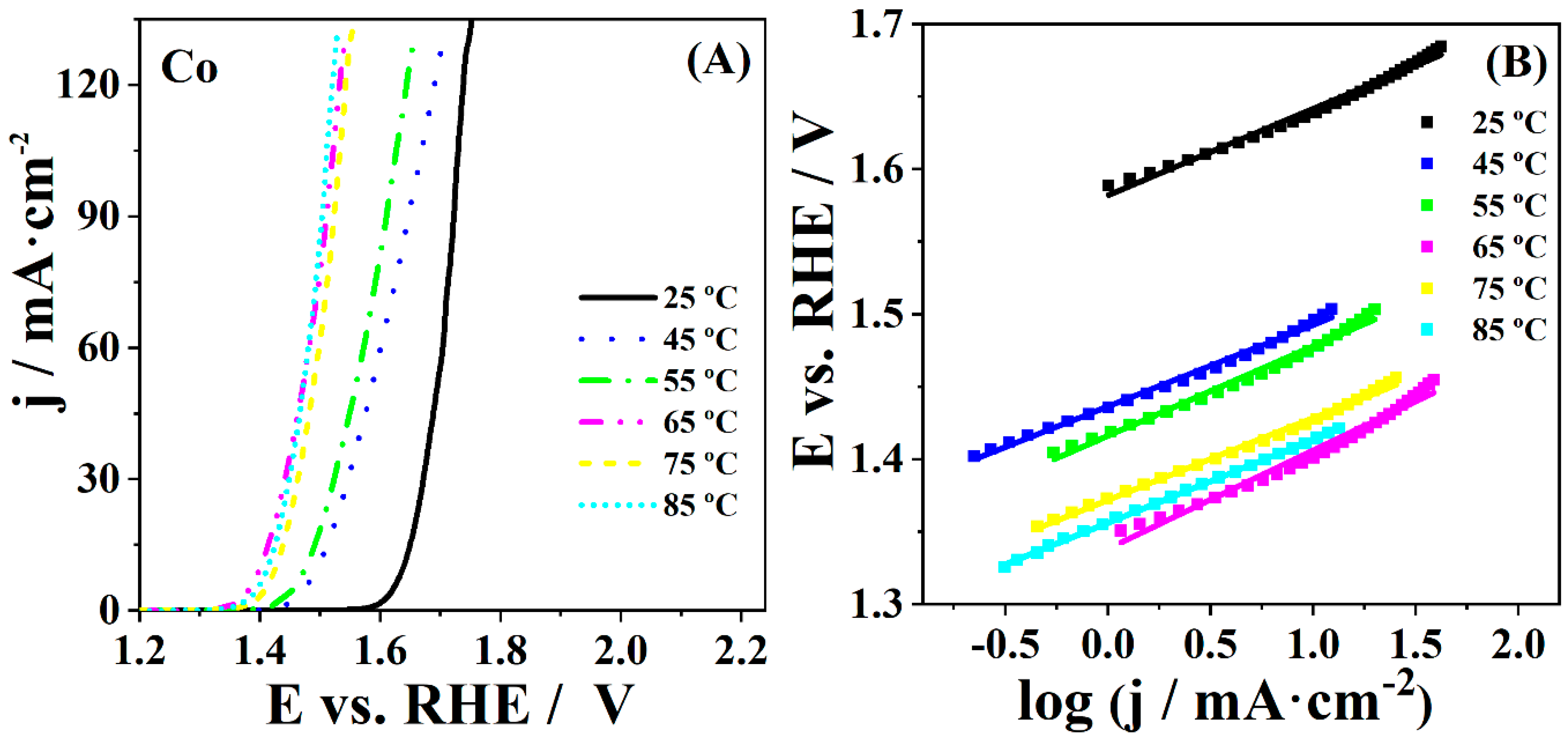

Figure 5. (A) OER polarization curves of Co coating in 1 M KOH recorded at polarization rate of 5 mV·s−1 at different temperatures with (B) corresponding Tafel plots.
Figure 5. (A) OER polarization curves of Co coating in 1 M KOH recorded at polarization rate of 5 mV·s−1 at different temperatures with (B) corresponding Tafel plots.
Materials 14 00092 g005
Table
Table 1. Deposition conditions during the preparation of the herein studied coatings.
Table 1. Deposition conditions during the preparation of the herein studied coatings.
Deposition Conditions
CoatingCoSO4/MMorpholine Borane/MGlycine/MMo6+/mMFe2+/mMMn2+/mMNi2+/mMTrisodium Citrate/mMpHT/°Ct/min
Co0.050.050.2-----73030
CoMo0.10.2-1----76030
CoFe0.070.060.2-5--1875030
CoMn0.070.060.2--5-1875030
Ni-0.020.2---504073030
Table
Table 2. Mass of the elements and total metal loading in the coatings as determined by inductively coupled plasma optical emission spectrometry (ICP–OES) analysis.
Table 2. Mass of the elements and total metal loading in the coatings as determined by inductively coupled plasma optical emission spectrometry (ICP–OES) analysis.
CoatingMass of Element/mgTotal Metal Loading/mg·cm−2
CoBMoFeMnNi
Co2.0270.01413----1.02057
CoMo3.1980.063670.2275---1.74459
CoFe0.54720.00384-0.05282--0.30193
CoMn3.0640.02331--0.0017-1.54451
Ni-0.01591---0.5250.27046
Table
Table 3. Electrochemical performance of the tested coatings toward HER in alkaline media.
Table 3. Electrochemical performance of the tested coatings toward HER in alkaline media.
CoatingTafel Slope (mV·dec−1)j0 (mA·cm−2)η10 (mV)Rct (Ω)Electrolyte
CoFe1000.022852.101 M KOH
CoMn830.022381.031 M KOH
CoMo1840.31611.151 M KOH
Co940.042462.801 M KOH
Ni1310.043081.071 M KOH
Table
Table 4. EIS parameters of the herein prepared coatings in 1 M KOH at –0.33 V (amplitude of 5 mV in the 100 kHz–0.1 Hz range).
Table 4. EIS parameters of the herein prepared coatings in 1 M KOH at –0.33 V (amplitude of 5 mV in the 100 kHz–0.1 Hz range).
CoatingRs (Ω)Re (Ω)Rct (Ω)Qe (mF)Qdl (mF)
CoMo2.566.601.15100.040.0
CoFe3.203.902.100.40.4
CoMn2.480.021.03637.46.8
Co2.850.432.8016.96.9
Ni3.062.421.071.83.3
Rs—the electrolyte resistance, Re—the electronic resistance of the material and the associated capacitance, Rct—resistance of the charge transfer reaction, Qe—the constant phase element, Qd—the ideal double-layer capacitor.
Table
Table 5. Electrochemical performance of the tested coatings toward OER in alkaline media.
Table 5. Electrochemical performance of the tested coatings toward OER in alkaline media.
CoatingTafel Slope (mV dec−1)η10 (mV)Rct (Ω)Electrolyte
CoFe965597.441 M KOH
CoMn9443120.161 M KOH
CoMo1144311.011 M KOH
Co604387.91 M KOH
Ni535532.241 M KOH
Table
Table 6. EIS parameters of OER at the studied coatings in 1 M KOH at 1.67 V (amplitude of 5 mV in the 100 kHz–0.1 Hz range).
Table 6. EIS parameters of OER at the studied coatings in 1 M KOH at 1.67 V (amplitude of 5 mV in the 100 kHz–0.1 Hz range).
CoatingRs (Ω)Re (Ω)Rct (Ω)Qe (mF)Qdl (mF)
CoMn5.1625.520.23.01.0 × 10−10
CoFe2.383.107.441.0 × 10−107.1
CoMo3.293.441.013225
Co0.451.827.908.3 × 10−39.6
Ni0.021.292.241.7 × 10−44.3
Rs—the electrolyte resistance, Re—the electronic resistance of the material and the associated capacitance, Rct—resistances of the charge transfer reaction, Qe—the constant phase element, Qdl—the ideal double-layer capacitor, W—Warburg element.
Table
Table 7. Electrochemical performance of herein tested coatings towards HER in alkaline media and comparison with that of transition metal-based electrodes reported in the literature.
Table 7. Electrochemical performance of herein tested coatings towards HER in alkaline media and comparison with that of transition metal-based electrodes reported in the literature.
ElectrodeTafel Slope (mV·dec−1)j0 (mA·cm−2)η10 (mV)Rct (Ω)ElectrolyteRef.
CoFe1000.022852.101 M KOHThis work
CoMn830.022381.031 M KOHThis work
CoMo1840.31611.151 M KOHThis work
Co940.042462.801 M KOHThis work
Ni1310.043081.071 M KOHThis work
Co3O4-CuO65-288173.201 M KOH[26]
Co3O494--384.501 M KOH[26]
CuO243--656.901 M KOH[26]
P-CoO NRs *164-208-1 M KOH[25]
CoP-FeP51.2-1631411 M KOH[2]
Mo2C@C51-119-1 M KOH[44]
Ni-rGO/Ni foam **1080.518732.301 M NaOH[45]
Fe1.89Mo4.11O7/MoO279-197-1 M KOH[46]
Co9S8-MoS2@3DC ***83.6-17741.421 M KOH[47]
MoS2@3DC102.8-252316.31 M KOH[47]
Co9S8@3DC97.1-242162.41 M KOH[47]
* NRs—nanorods, ** rGO—the reduced graphene oxide, *** 3DC—the three-dimensional interconnected hierarchical pore carbon.
Table
Table 8. Electrochemical performance of herein tested coatings toward OER in alkaline media and comparison with that of transition metal-based electrodes reported in the literature.
Table 8. Electrochemical performance of herein tested coatings toward OER in alkaline media and comparison with that of transition metal-based electrodes reported in the literature.
ElectrodeTafel Slope (mV·dec−1)η10 (mV)Rct (Ω)ElectrolyteRef.
CoFe965597.441 M KOHThis work
CoMn9443120.161 M KOHThis work
CoMo1144311.011 M KOHThis work
Co604387.91 M KOHThis work
Ni535532.241 M KOHThis work
Co3Fe-MOF55.6314-1 M KOH[51]
NiCoFeOx NSs/NF basal growth NHS612601.521 M KOH[3]
Ultrathin NiCoFeOx NSs/NF84305-1 M KOH[3]
P-NMO70.3370 at 5 mA·cm−2-1 M KOH[31]
NMO80.6440 at 5 mA·cm−2-1 M KOH[31]
Co–P/NF-1051.1306201 M KOH[5]
c-NiFeMo64440850.1 M KOH[52]
GFC20800180-110.31 M KOH[53]
GFC20700154-90.31 M KOH[53]
NiCo2O489--0.1 M KOH[54]
Co3O4113--0.1 M KOH[54]
Pt/C133--0.1 M KOH[54]
NSs—nanosheets; NF—nickel foam; NHS—nanoheterostructure; P-NMO—phosphorized NiMoO4; NMO—NiMoO4; GFC20800 and GFC20700—gadolinium ferrite perovskite doped with divalent cation Cu2+, GdFe1-xCuxO3 (0 ≤ x ≤ 0.3), calcination temperature of 800 and 700 °C, respectively.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Milikić, J.; Balčiūnaitė, A.; Sukackienė, Z.; Mladenović, D.; Santos, D.M.F.; Tamašauskaitė-Tamašiūnaitė, L.; Šljukić, B. Bimetallic Co-Based (CoM, M = Mo, Fe, Mn) Coatings for High-Efficiency Water Splitting. Materials 2021, 14, 92. https://doi.org/10.3390/ma14010092

AMA Style

Milikić J, Balčiūnaitė A, Sukackienė Z, Mladenović D, Santos DMF, Tamašauskaitė-Tamašiūnaitė L, Šljukić B. Bimetallic Co-Based (CoM, M = Mo, Fe, Mn) Coatings for High-Efficiency Water Splitting. Materials. 2021; 14(1):92. https://doi.org/10.3390/ma14010092

Chicago/Turabian Style

Milikić, Jadranka, Aldona Balčiūnaitė, Zita Sukackienė, Dušan Mladenović, Diogo M. F. Santos, Loreta Tamašauskaitė-Tamašiūnaitė, and Biljana Šljukić. 2021. "Bimetallic Co-Based (CoM, M = Mo, Fe, Mn) Coatings for High-Efficiency Water Splitting" Materials 14, no. 1: 92. https://doi.org/10.3390/ma14010092

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
