The Effects of Hybridisation of Composites Consisting of Aramid, Carbon, and Hemp Fibres in a Quasi-Static Penetration Test
Department of Lightweight Element Engineering, Foundry and Automation, Faculty of Mechanical Engineering, Wroclaw University of Science and Technology, Wyb. Wyspiańskiego 27, 50-370 Wroclaw, Poland
*
Author to whom correspondence should be addressed.
Materials 2020, 13(20), 4686; https://doi.org/10.3390/ma13204686
Received: 22 September 2020
/
Revised: 13 October 2020
/
Accepted: 19 October 2020
/
Published: 21 October 2020
(This article belongs to the Special Issue Multiobjective Design Optimization of Sandwich-Structured Composites and Their Mechanical Properties)

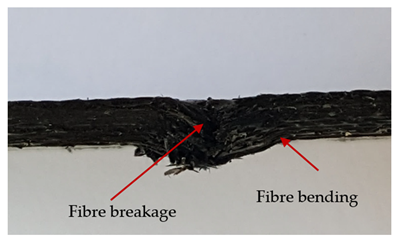

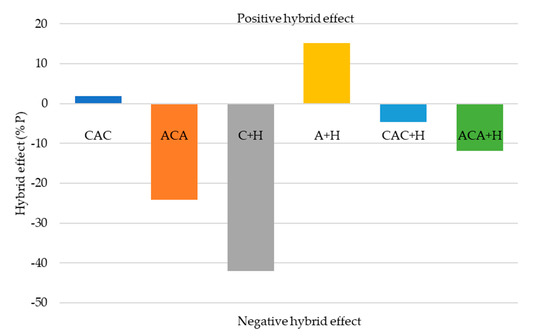

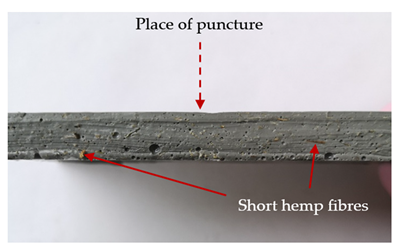

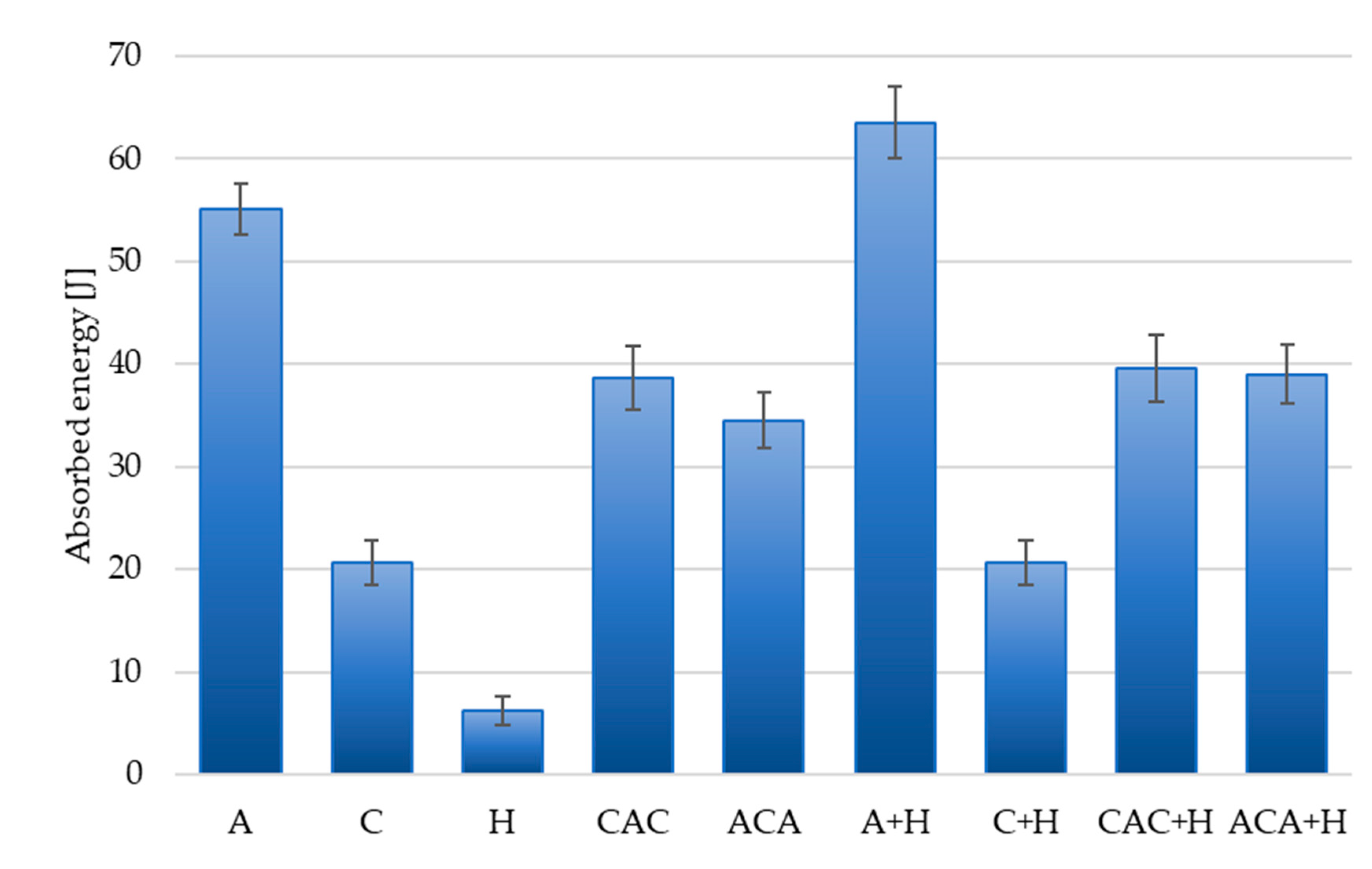

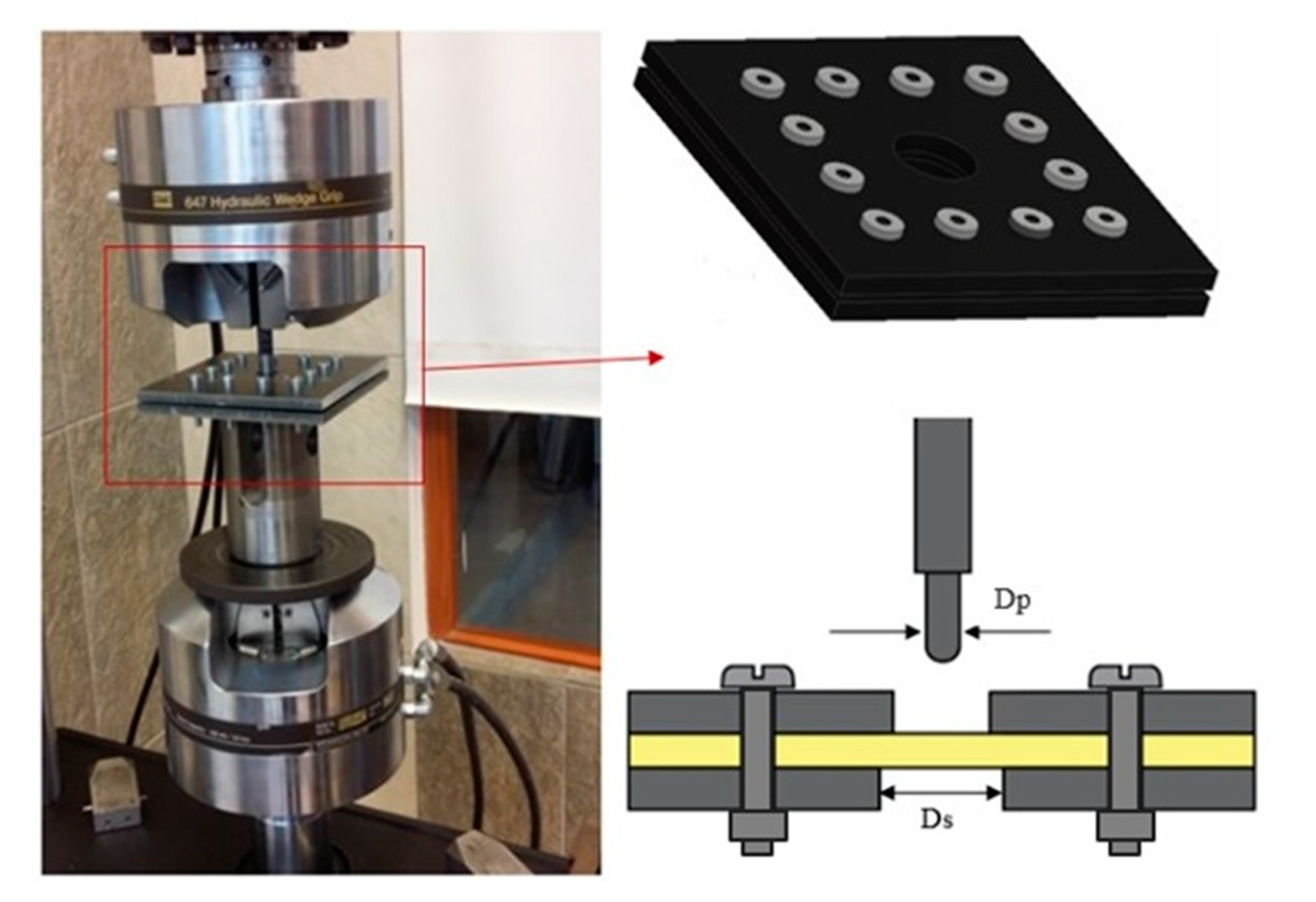

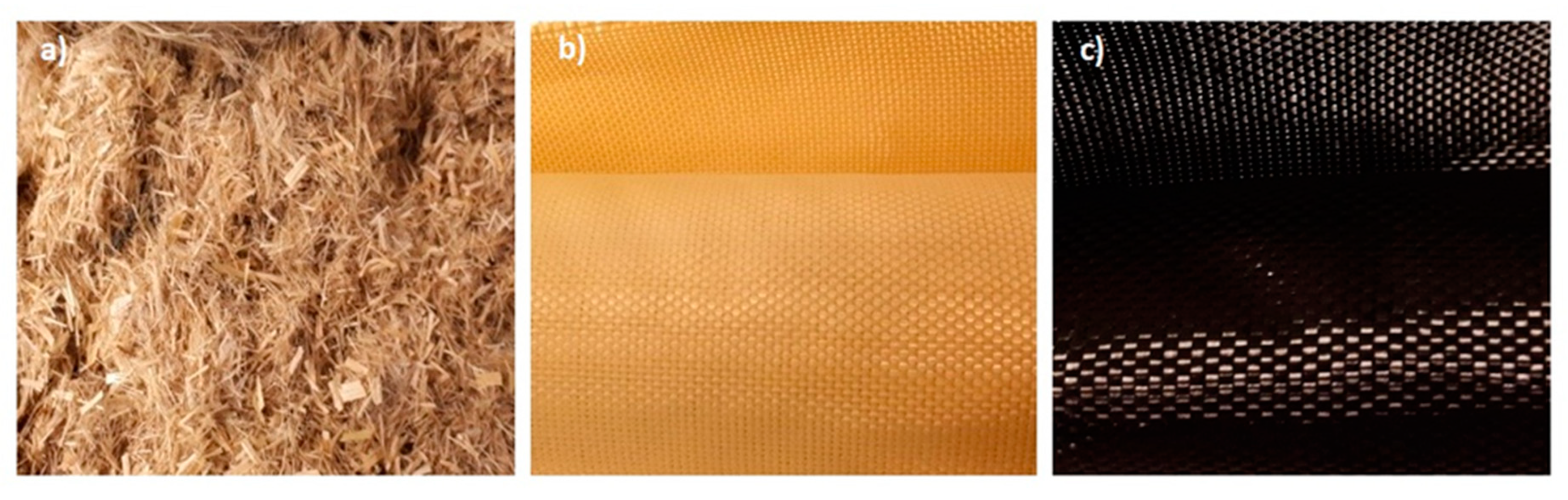

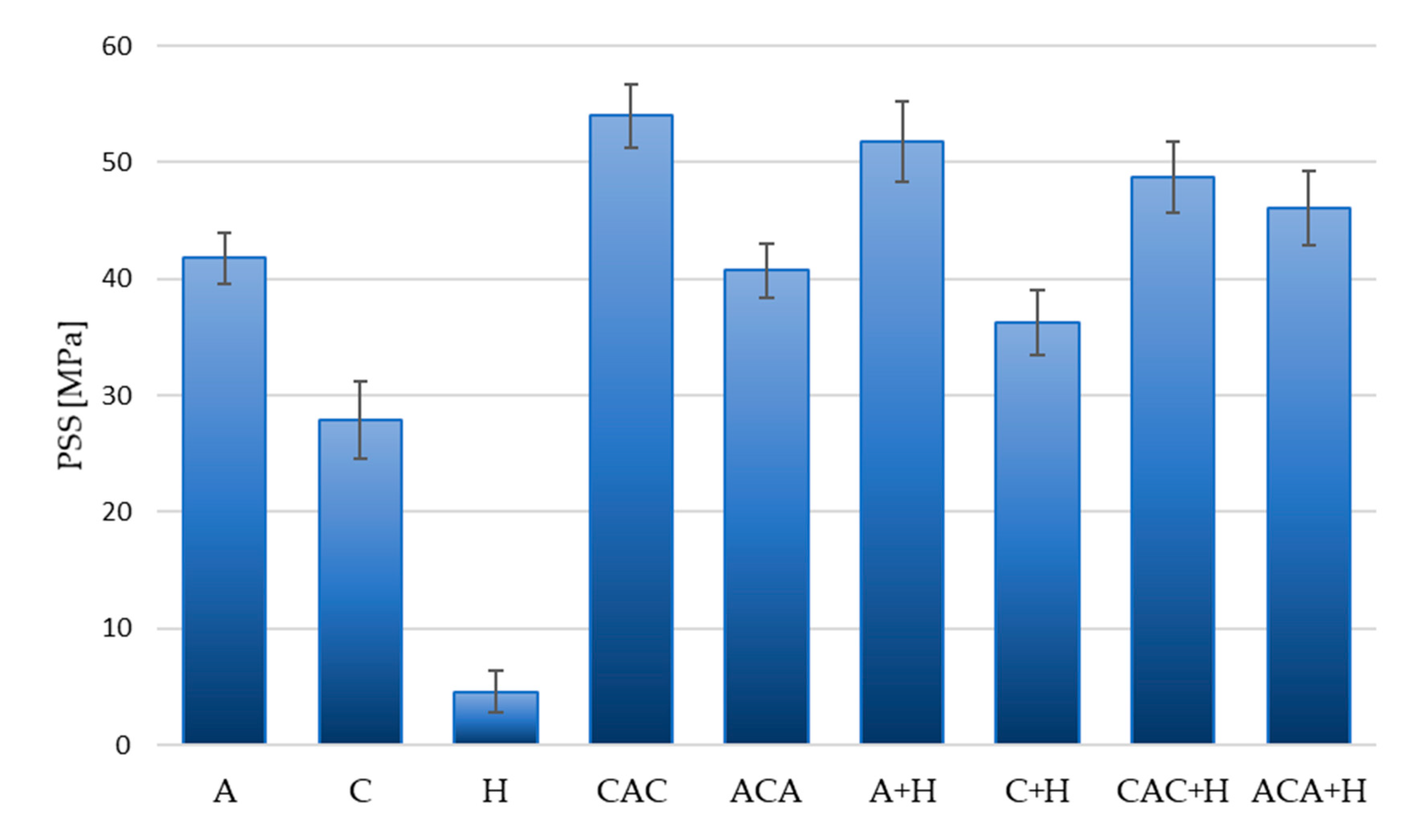

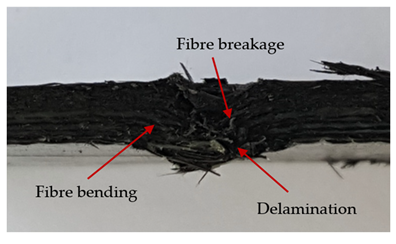

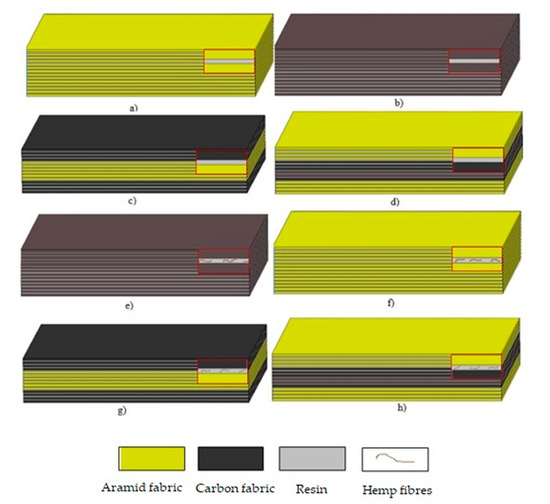

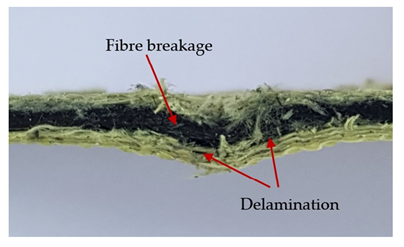

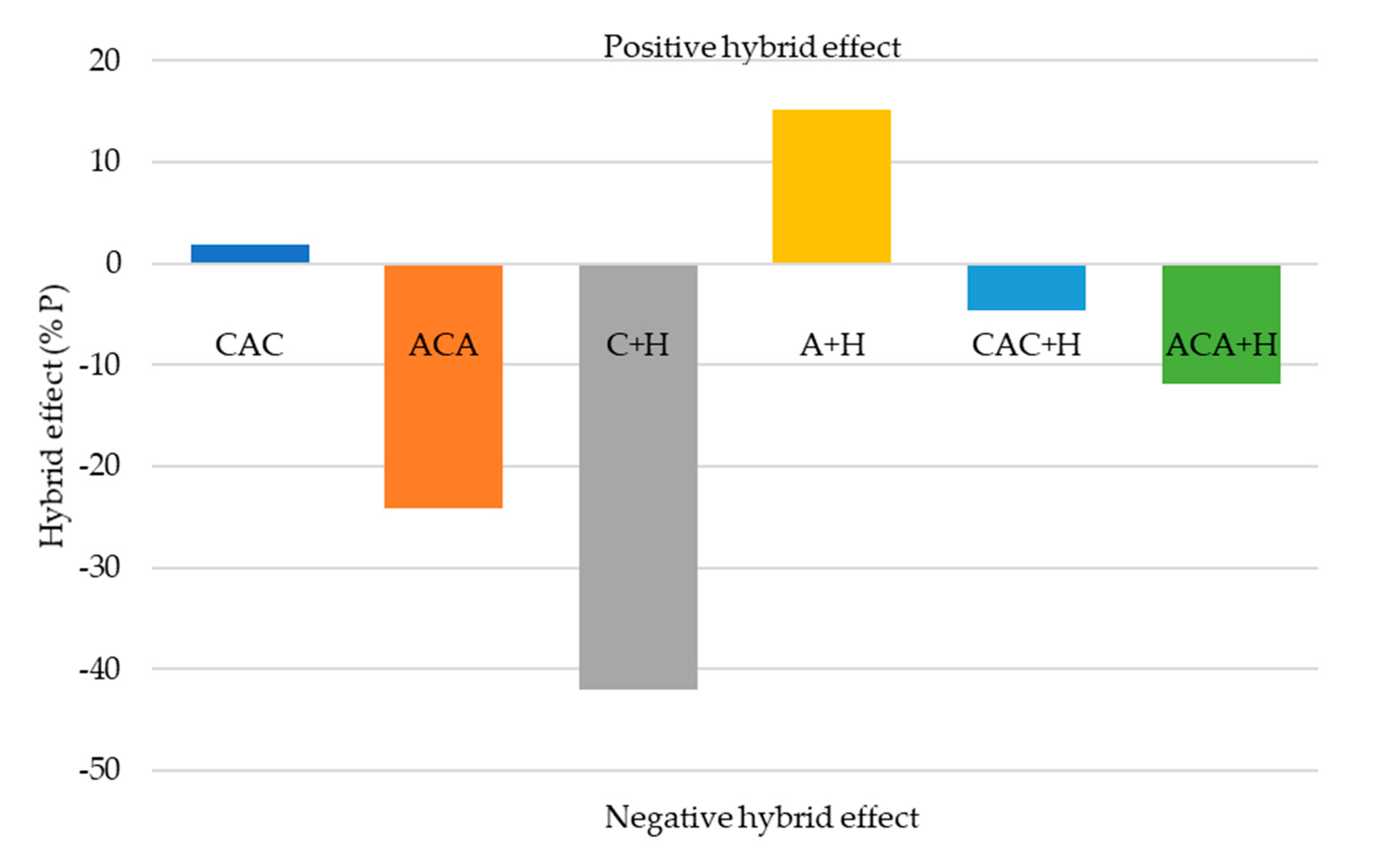

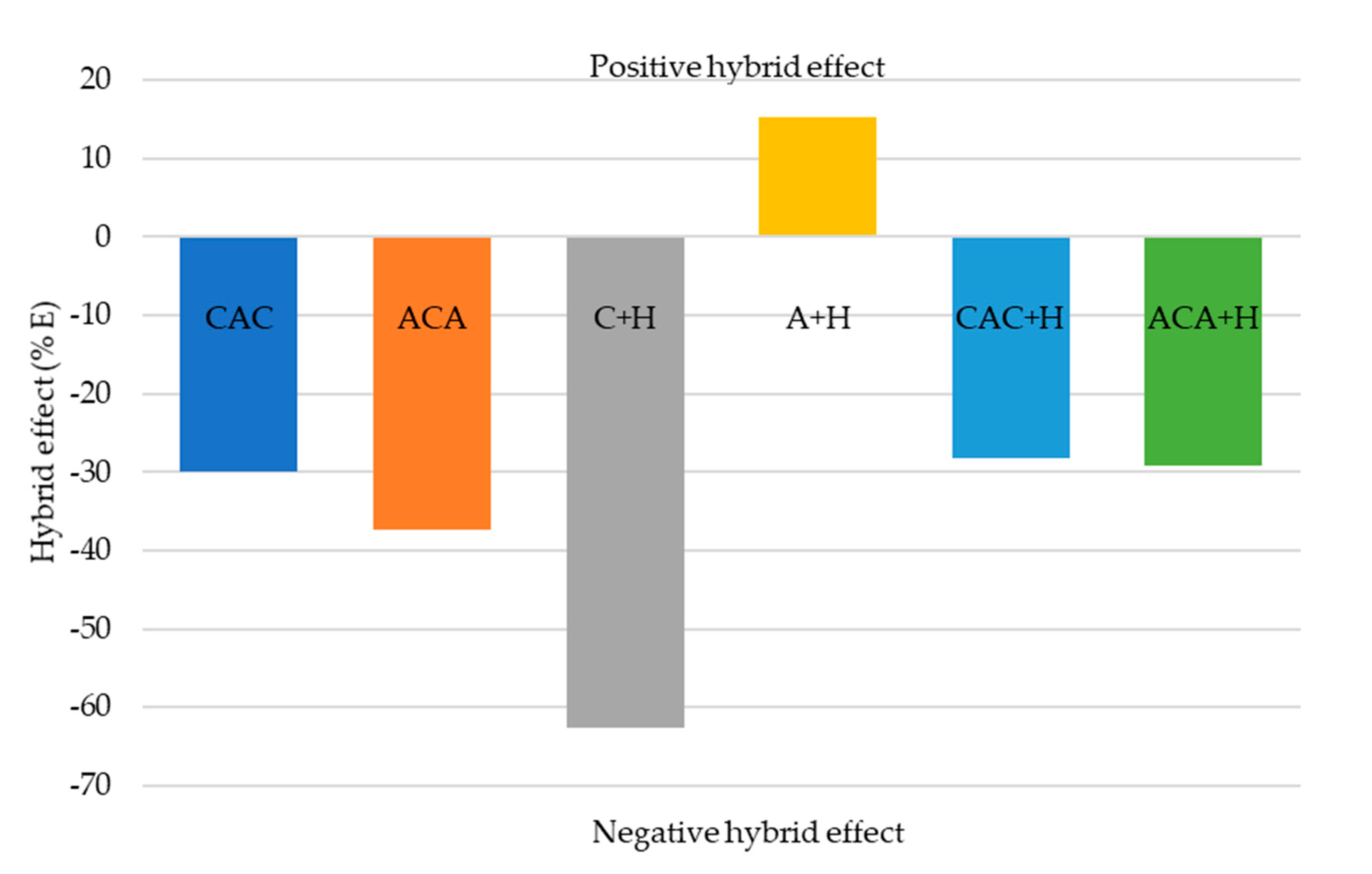

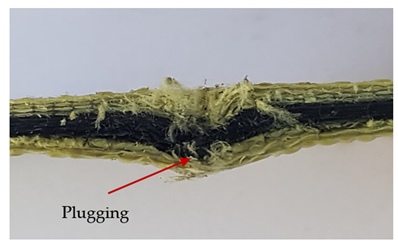

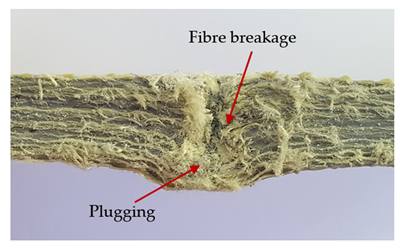

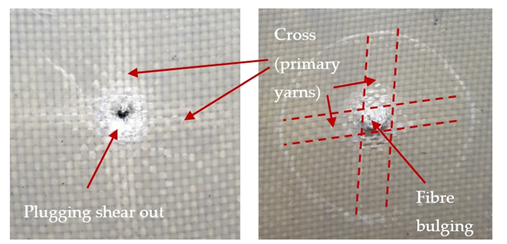

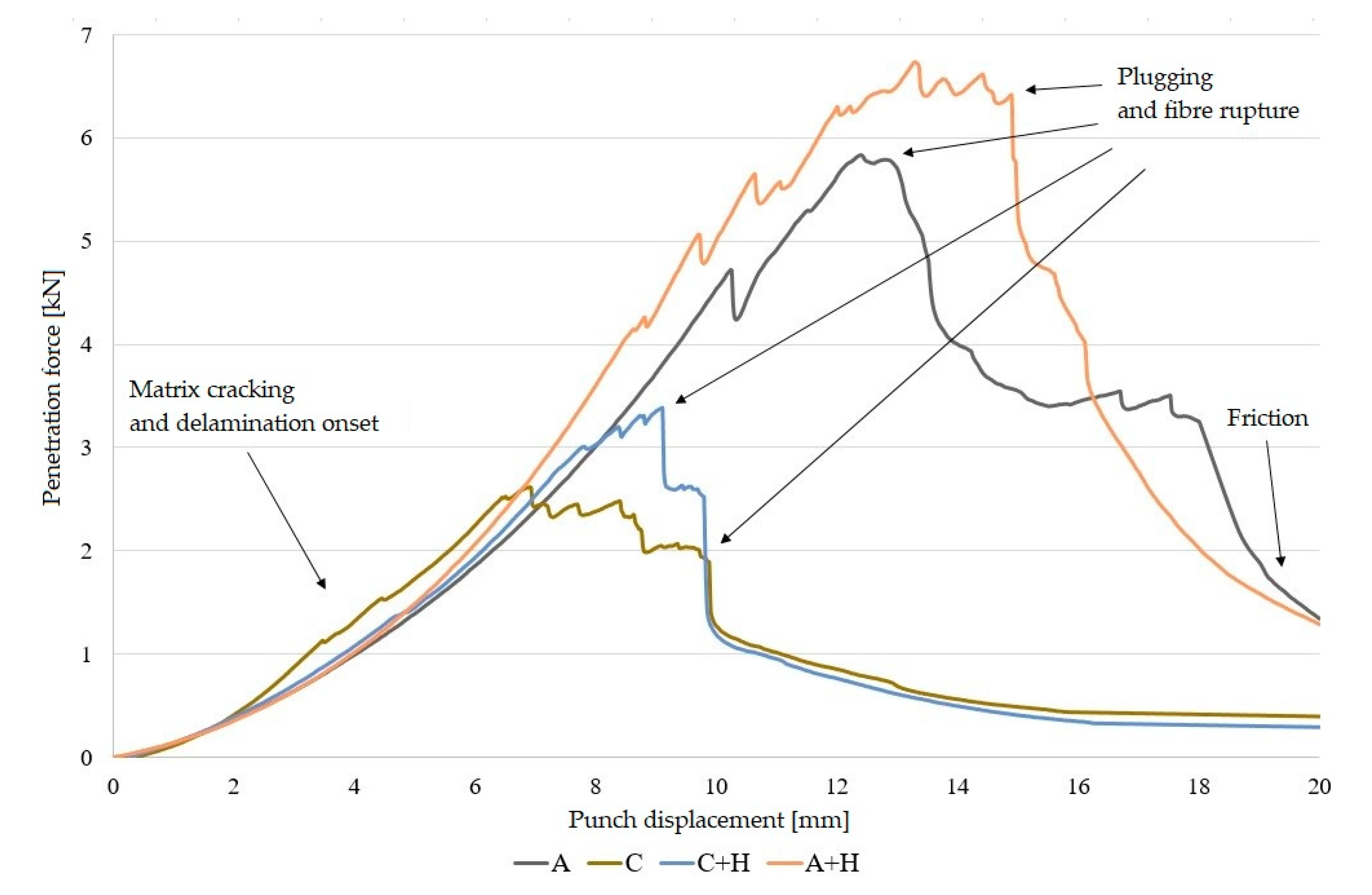

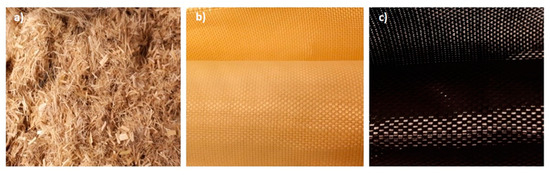

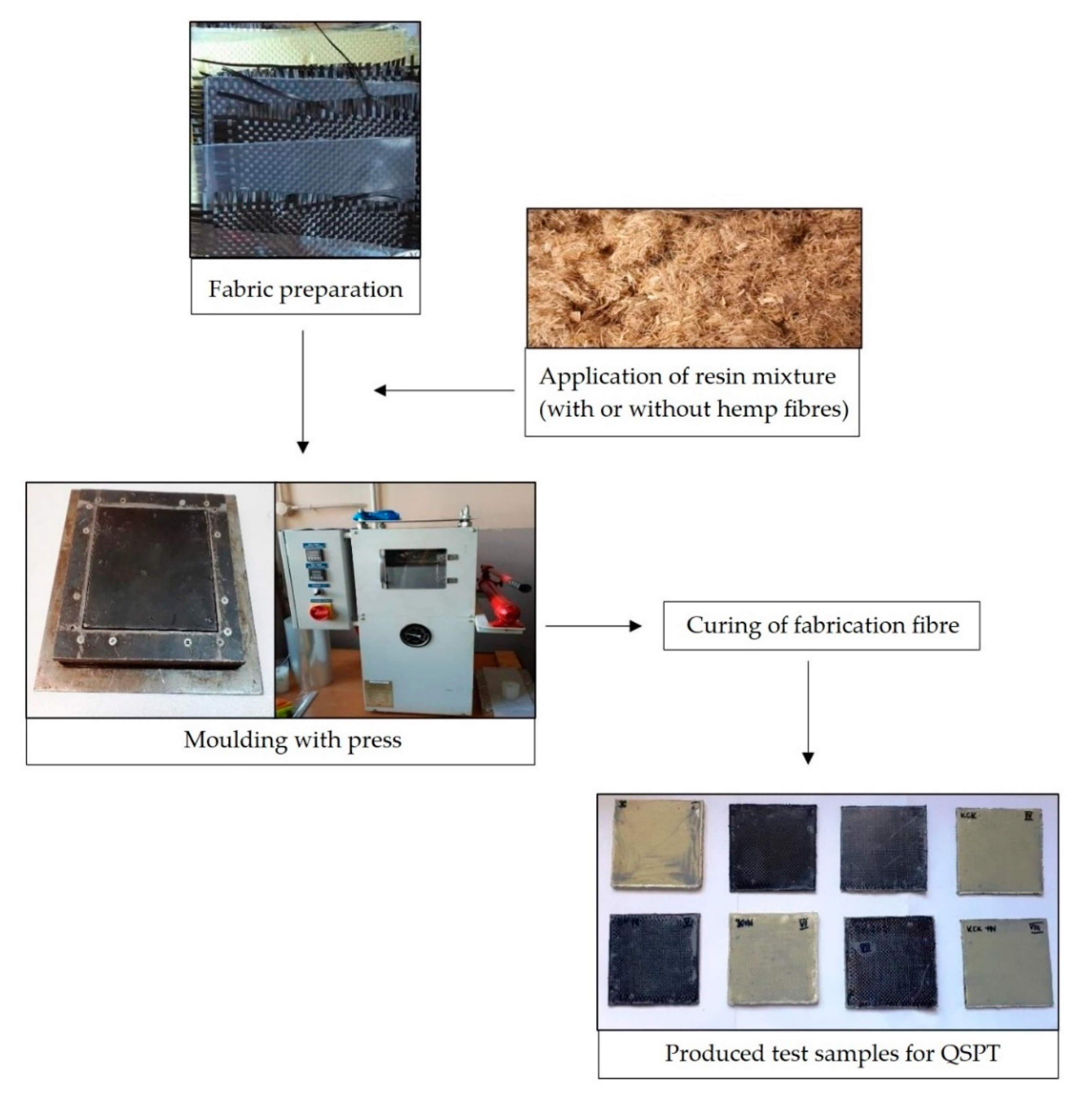

The quasi-static penetration properties of hybrid laminates were experimentally investigated. Aramid fabrics, carbon fabrics, and short hemp fibres were applied as the reinforcements of hybrid and non-hybrid composite laminates with polyurethane–polyurea (PUR/PUA) matrix. The laminates were made by hand, in a mould. They were cured at room temperature for 24 h. Hybrid laminates consisted of aramid and carbon layers in two different configurations, i.e., aramid at the innermost layers and outermost layers. Aramid/PUR/PUA and carbon/PUR/PUA composites were fabricated for comparison purposes. Laminates were also prepared via an analogue sequence of laying the reinforcement layers with the addition of 5% by weight of hemp fibres in the PUR/PUA matrix. Quasi-static penetration tests (QSPT) were conducted using a tensile testing machine with a surface-hardened, hemispherical, steel punch (9 mm diameter tip), reflecting the geometry of the Parabellum projectile. A quasi-static puncture test was carried out until the laminate was perforated. The ratio between the support span (Ds) and the punch diameter (Dp) was SPR = Ds/Dp = 5.0. The results showed the influences of laminate hybridisation on the values of absorbed energy, punch shear strength, and damage mechanism in the QSPT test. The addition of hemp fibres to aramid laminates resulted in a positive hybridisation effect. The order of layers of aramid and carbon fabrics in hybrid laminates influenced the results obtained in the QSPT test.
View Full-Text
Keywords:
hybrid composites; laminates; polymer-matrix composites; quasi-static penetration test; ballistic composites
▼
Show Figures

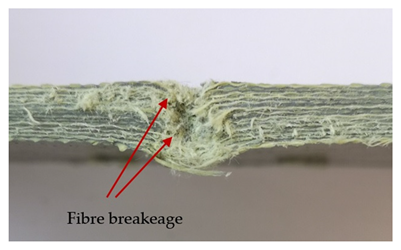

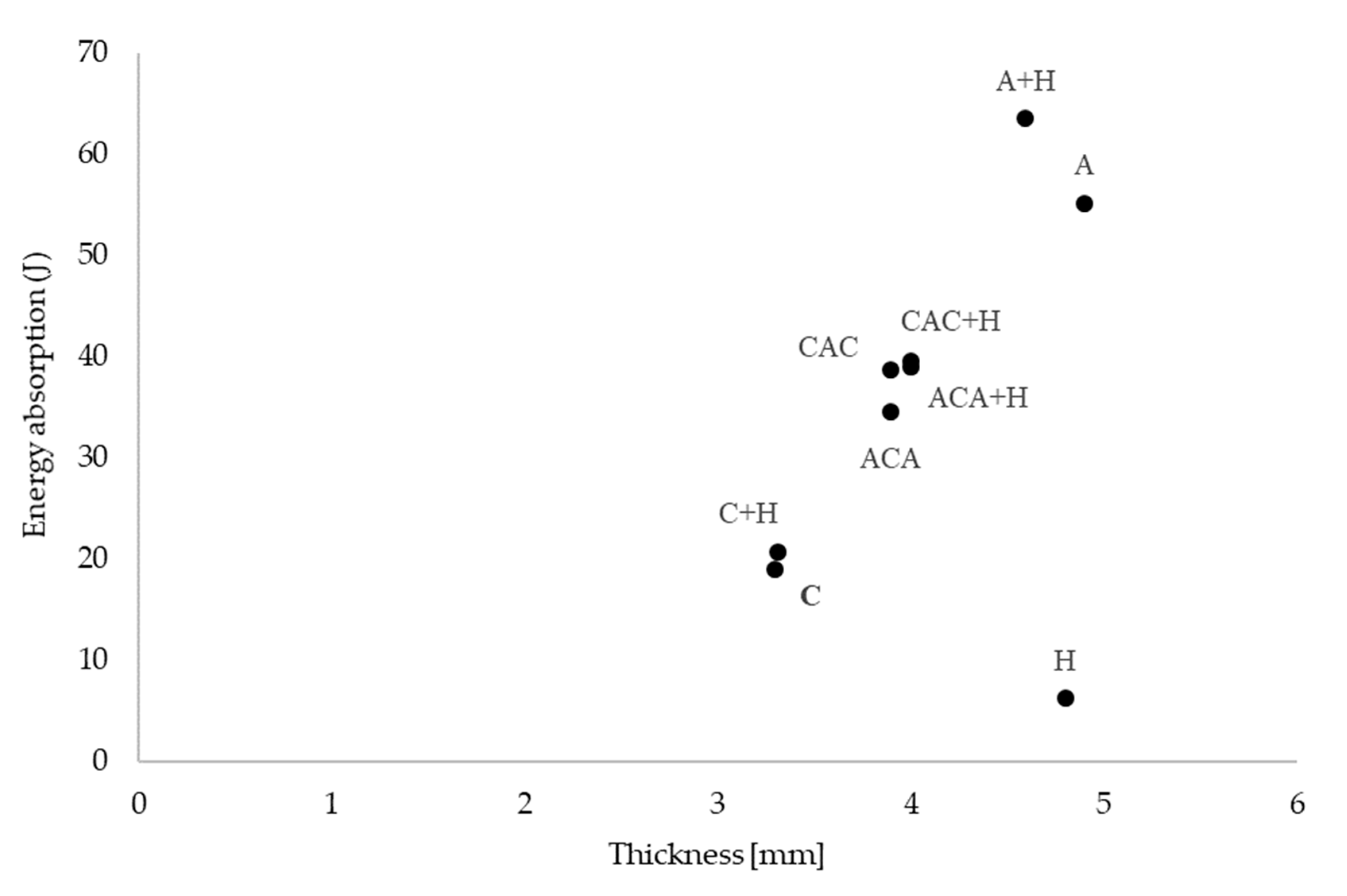

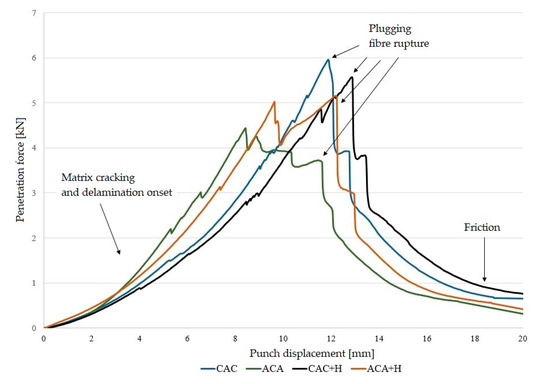

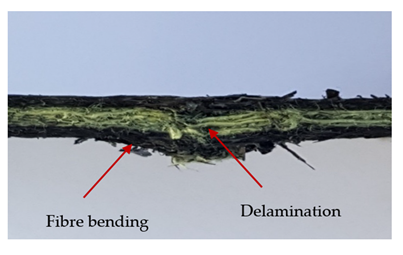

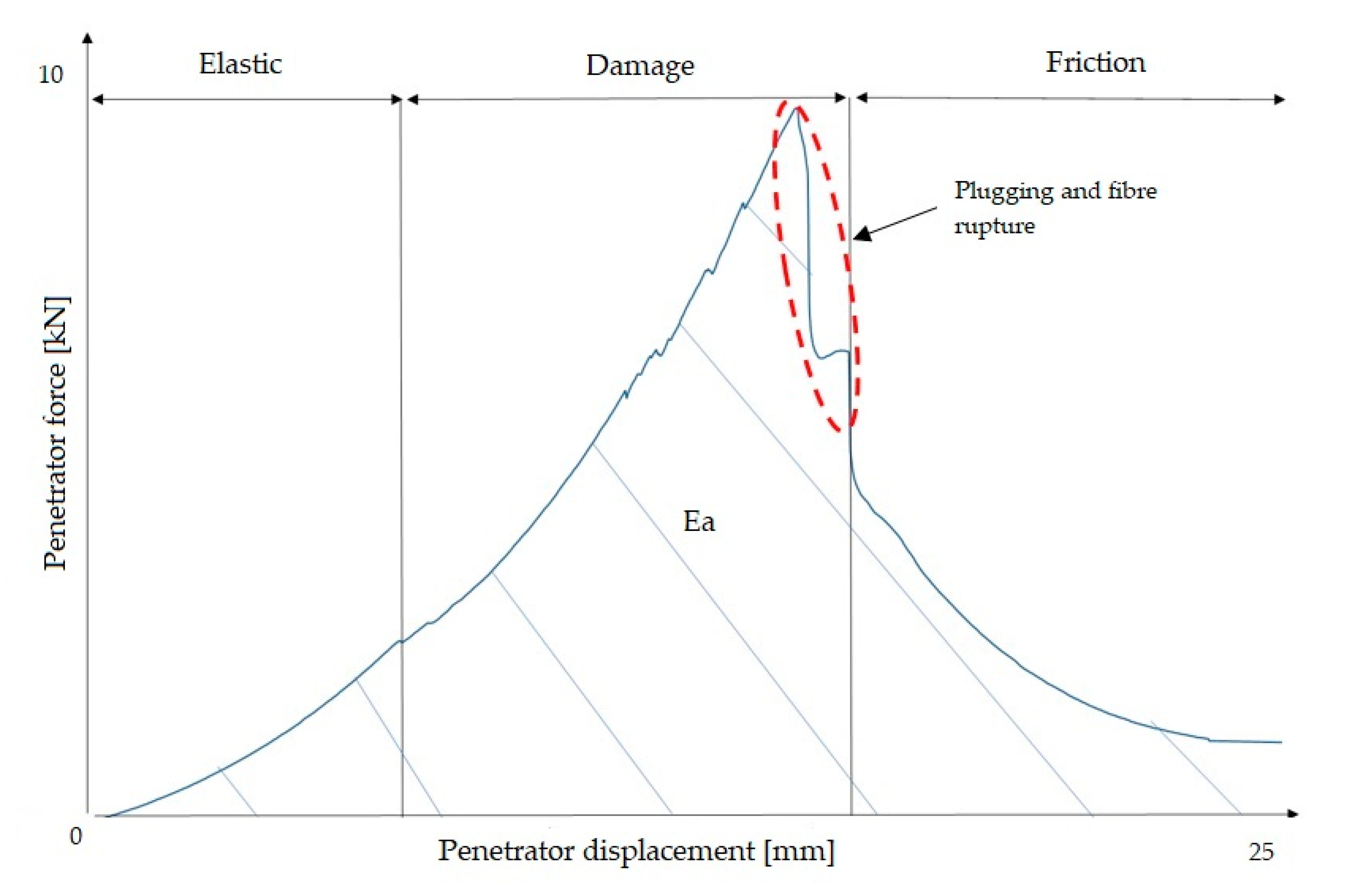

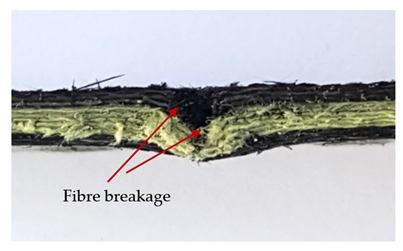

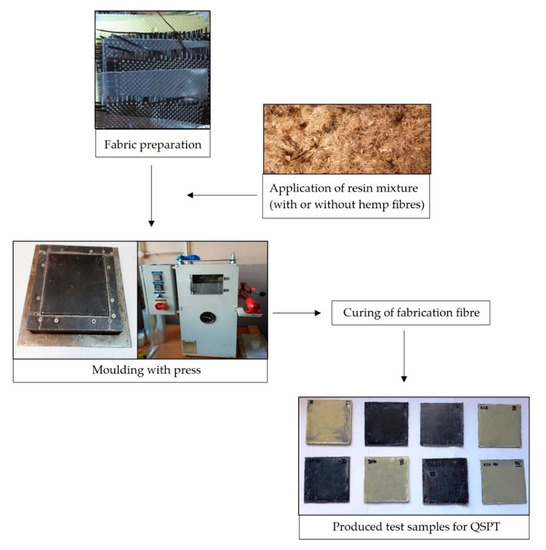

Figure 1
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited
MDPI and ACS Style
Pach, J.; Frączek, N.; Kaczmar, J. The Effects of Hybridisation of Composites Consisting of Aramid, Carbon, and Hemp Fibres in a Quasi-Static Penetration Test. Materials 2020, 13, 4686. https://doi.org/10.3390/ma13204686
AMA Style
Pach J, Frączek N, Kaczmar J. The Effects of Hybridisation of Composites Consisting of Aramid, Carbon, and Hemp Fibres in a Quasi-Static Penetration Test. Materials. 2020; 13(20):4686. https://doi.org/10.3390/ma13204686
Chicago/Turabian StylePach, Joanna, Natalia Frączek, and Jacek Kaczmar. 2020. "The Effects of Hybridisation of Composites Consisting of Aramid, Carbon, and Hemp Fibres in a Quasi-Static Penetration Test" Materials 13, no. 20: 4686. https://doi.org/10.3390/ma13204686
Find Other Styles
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.
