Next Article in Journal
InAs/GaAs Quantum Dot Microlasers Formed on Silicon Using Monolithic and Hybrid Integration Methods
Next Article in Special Issue
Flexible Electrode by Hydrographic Printing for Surface Electromyography Monitoring
Previous Article in Journal
Commercially Available Fluoride-Releasing Restorative Materials: A Review and a Proposal for Classification
Previous Article in Special Issue
Discrete Element Simulation of the Effect of Roller-Spreading Parameters on Powder-Bed Density in Additive Manufacturing
Open AccessArticle

Neutron Shielding Performance of 3D-Printed Boron Carbide PEEK Composites

by Yin Wu 1,2, Yi Cao 2,*, Ying Wu 3,* and Dichen Li 2
School of Aerospace Engineering, Xi’an Jiaotong University, Xi’an 710049, China
State Key Laboratory for Manufacturing Systems Engineering, Xi’an Jiaotong University, Xi’an 710049, China
Nuclear Power Institute of China, Chengdu 610213, China
Authors to whom correspondence should be addressed.
Materials 2020, 13(10), 2314;
Received: 7 April 2020 / Revised: 4 May 2020 / Accepted: 15 May 2020 / Published: 18 May 2020
(This article belongs to the Special Issue Additive Manufacturing Materials and Their Applications)

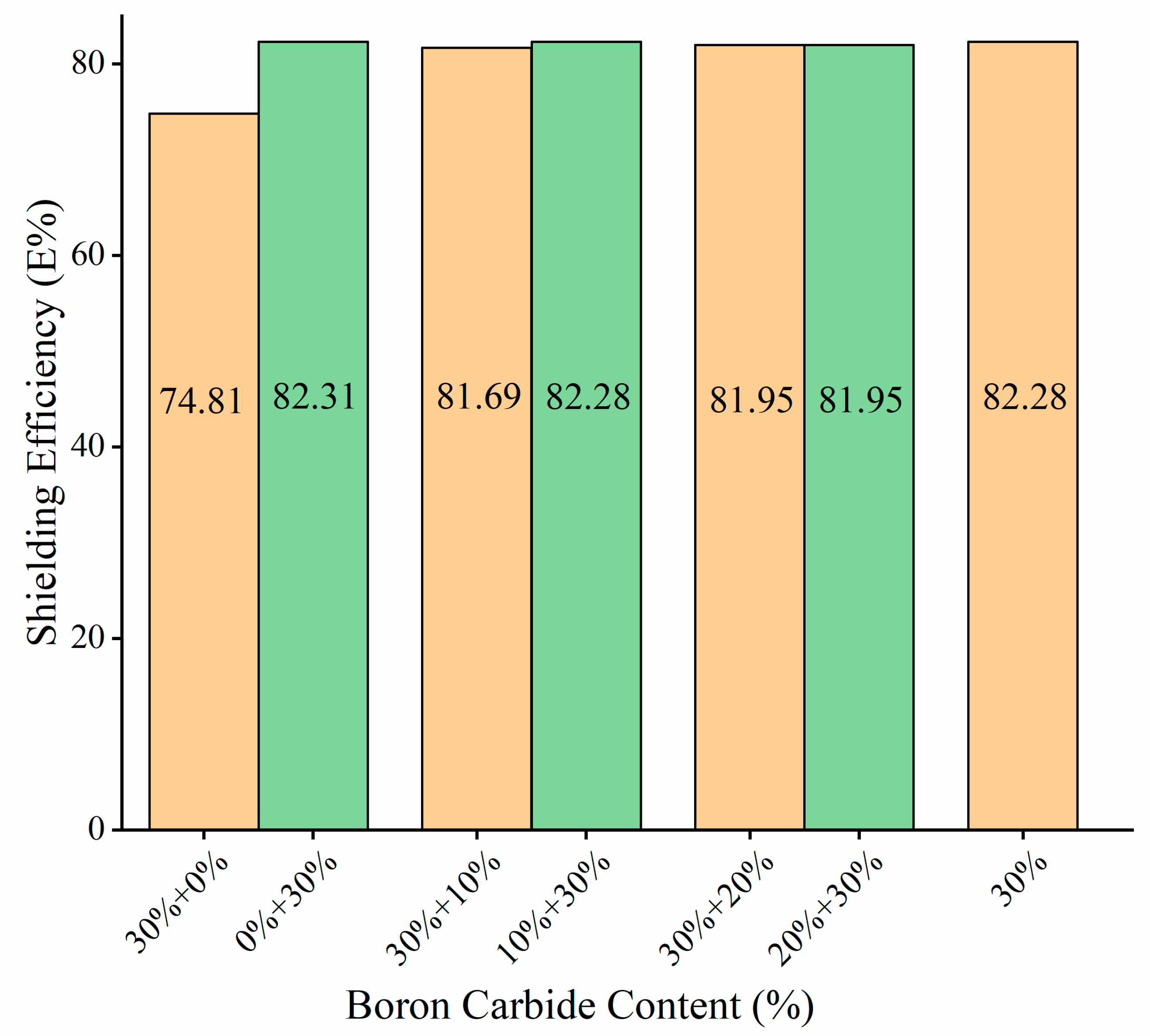

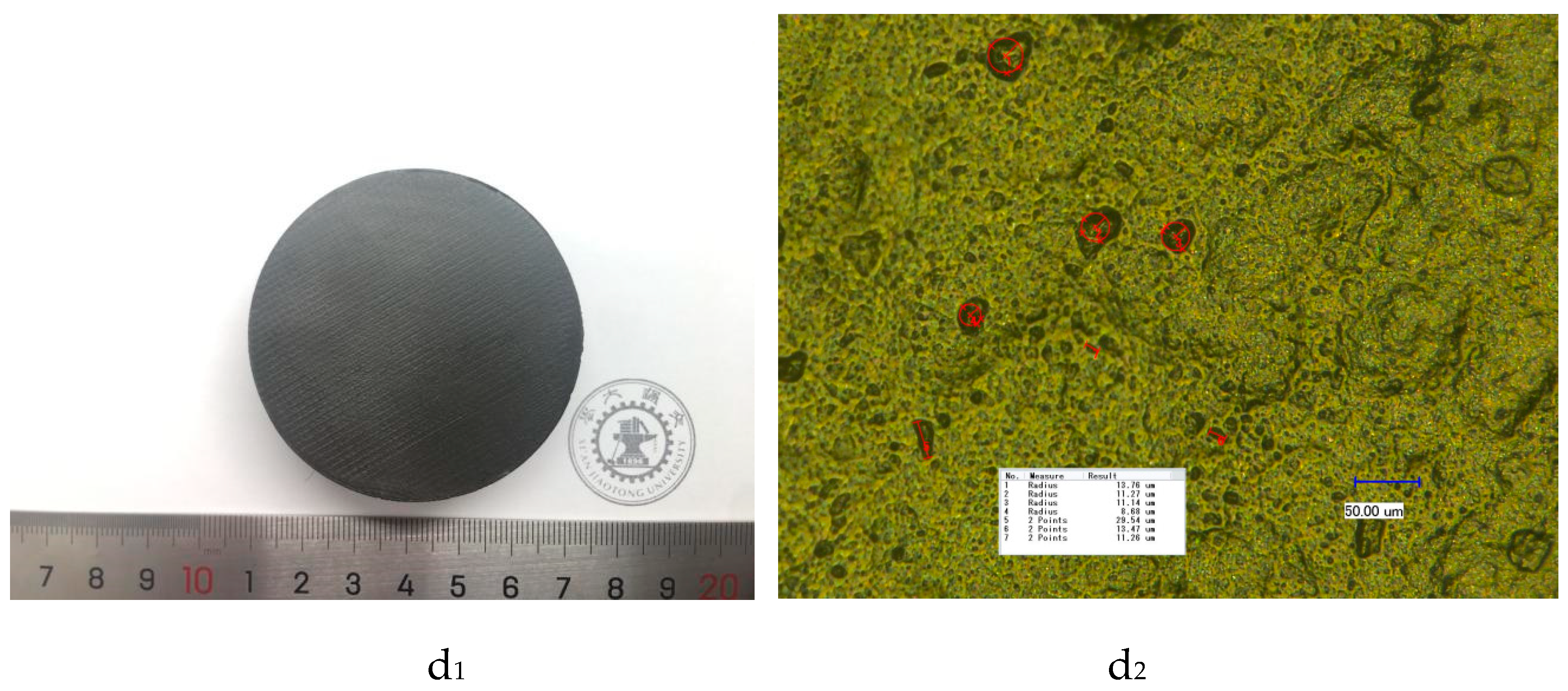

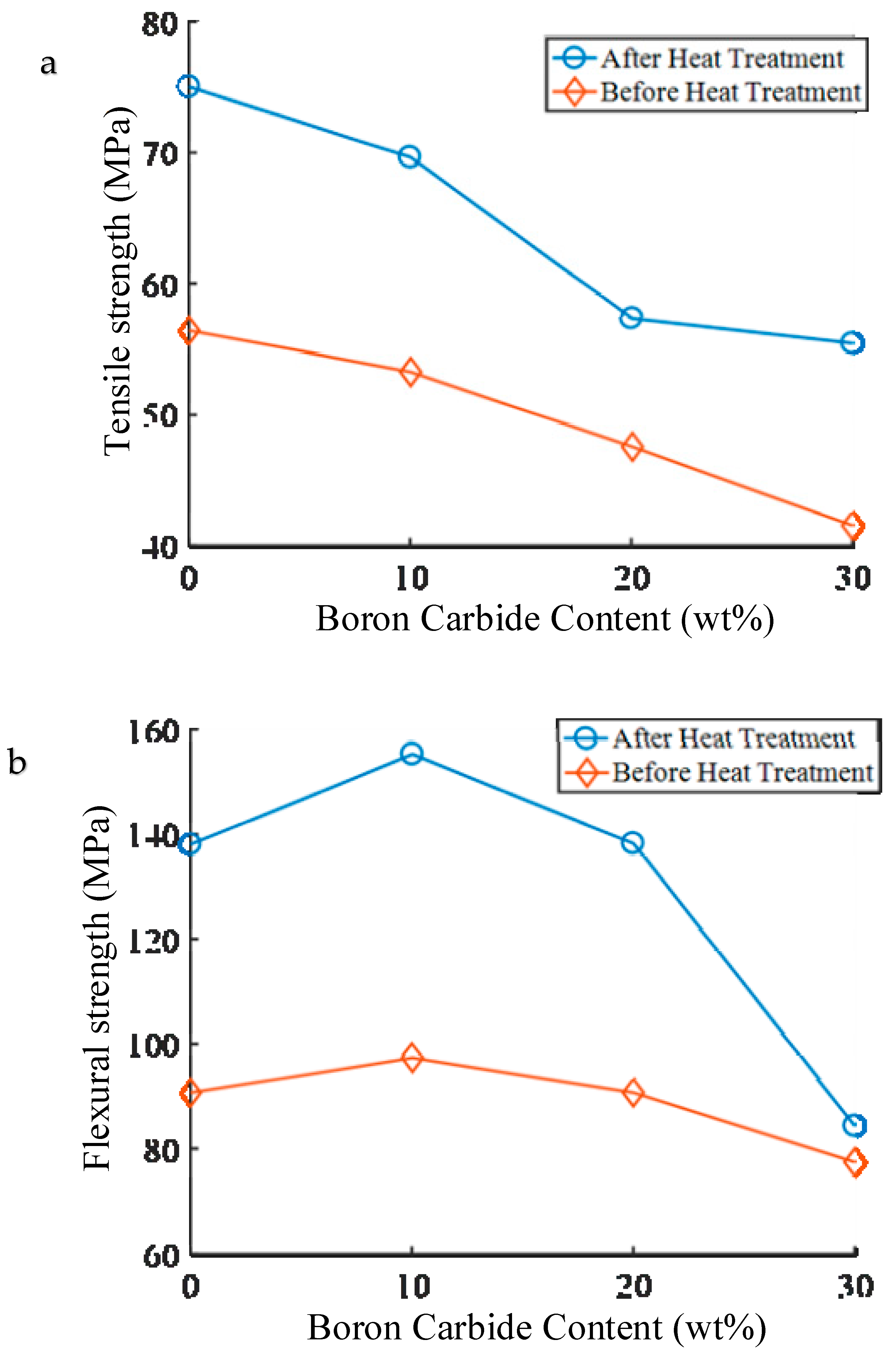

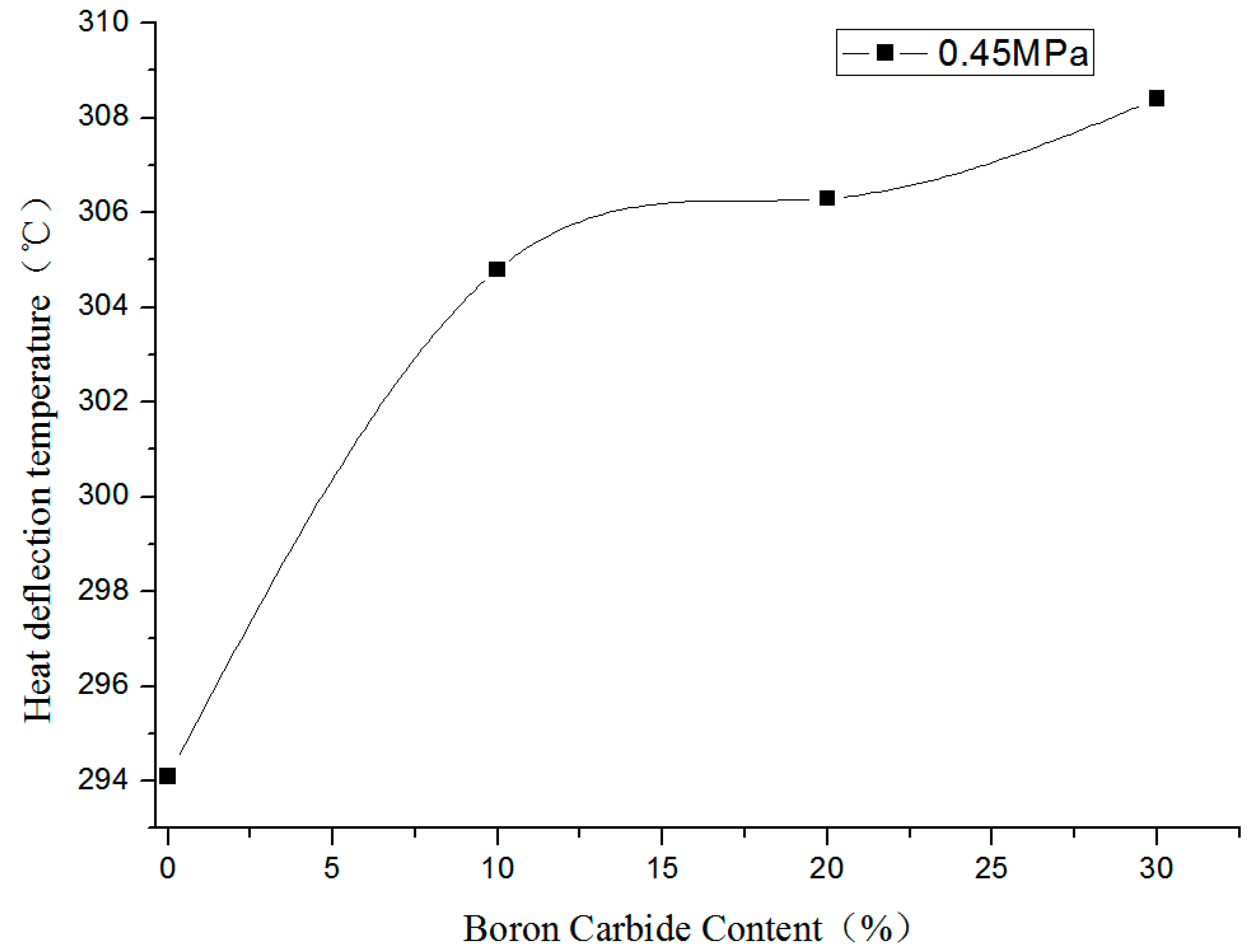

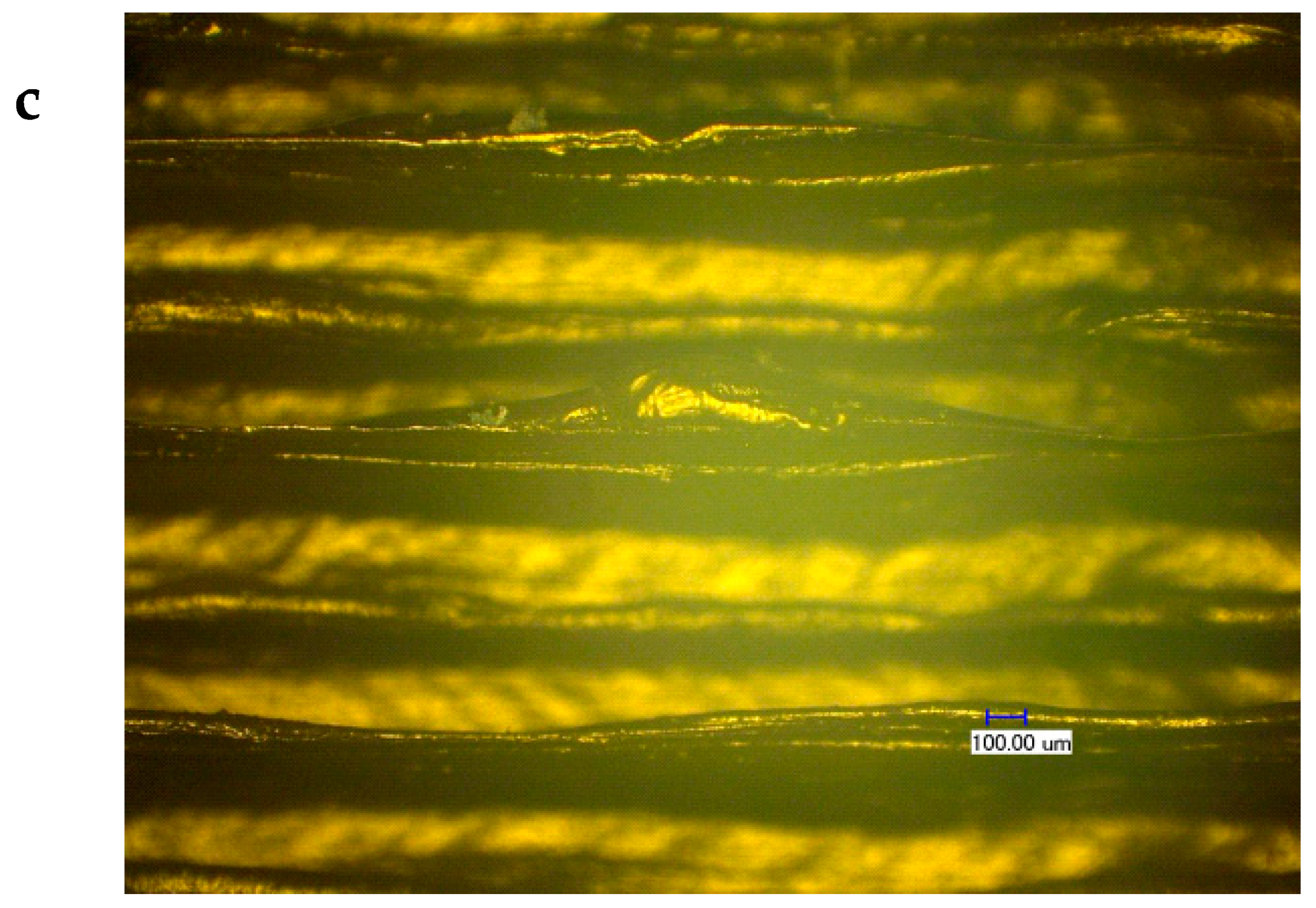

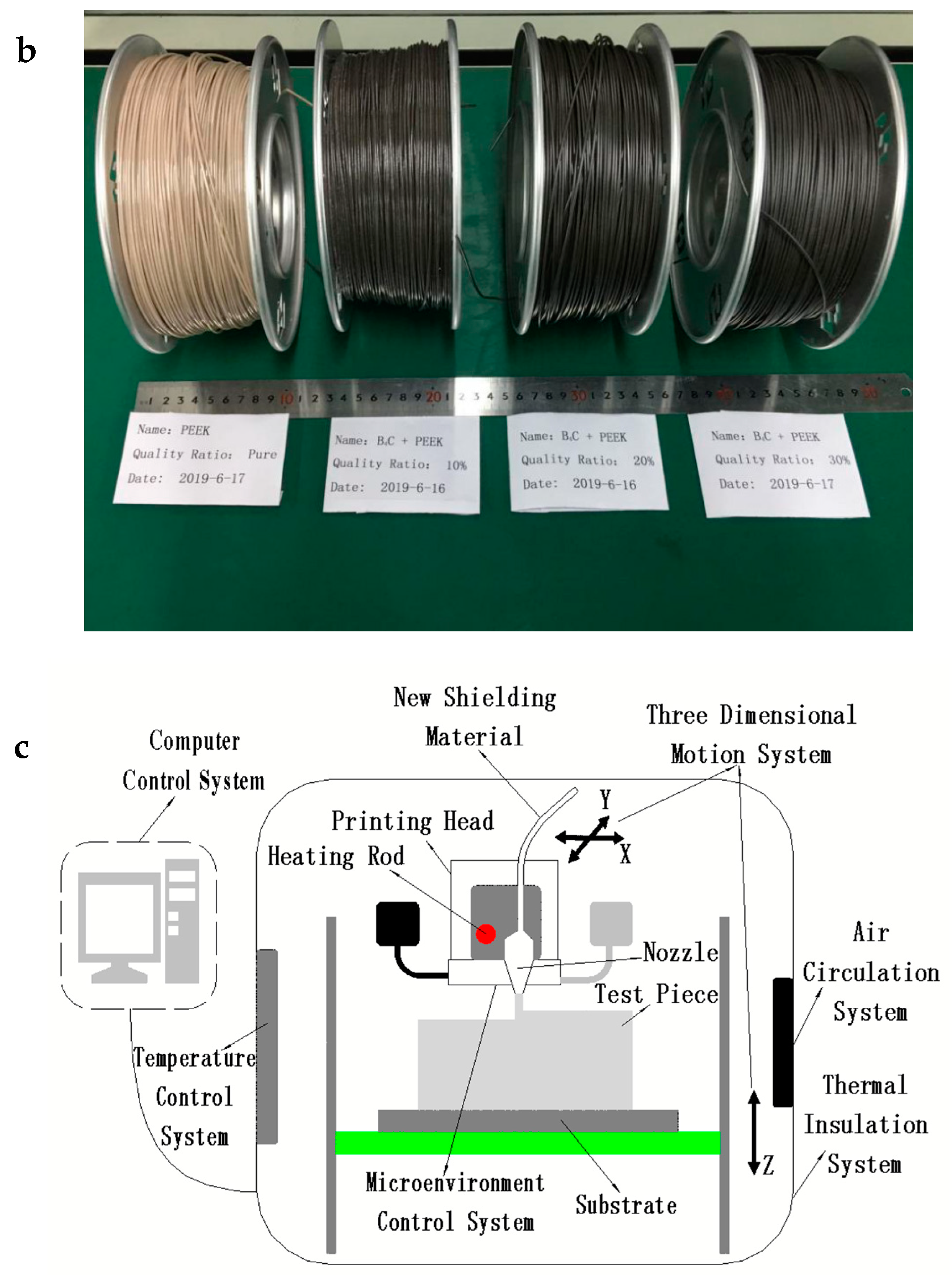

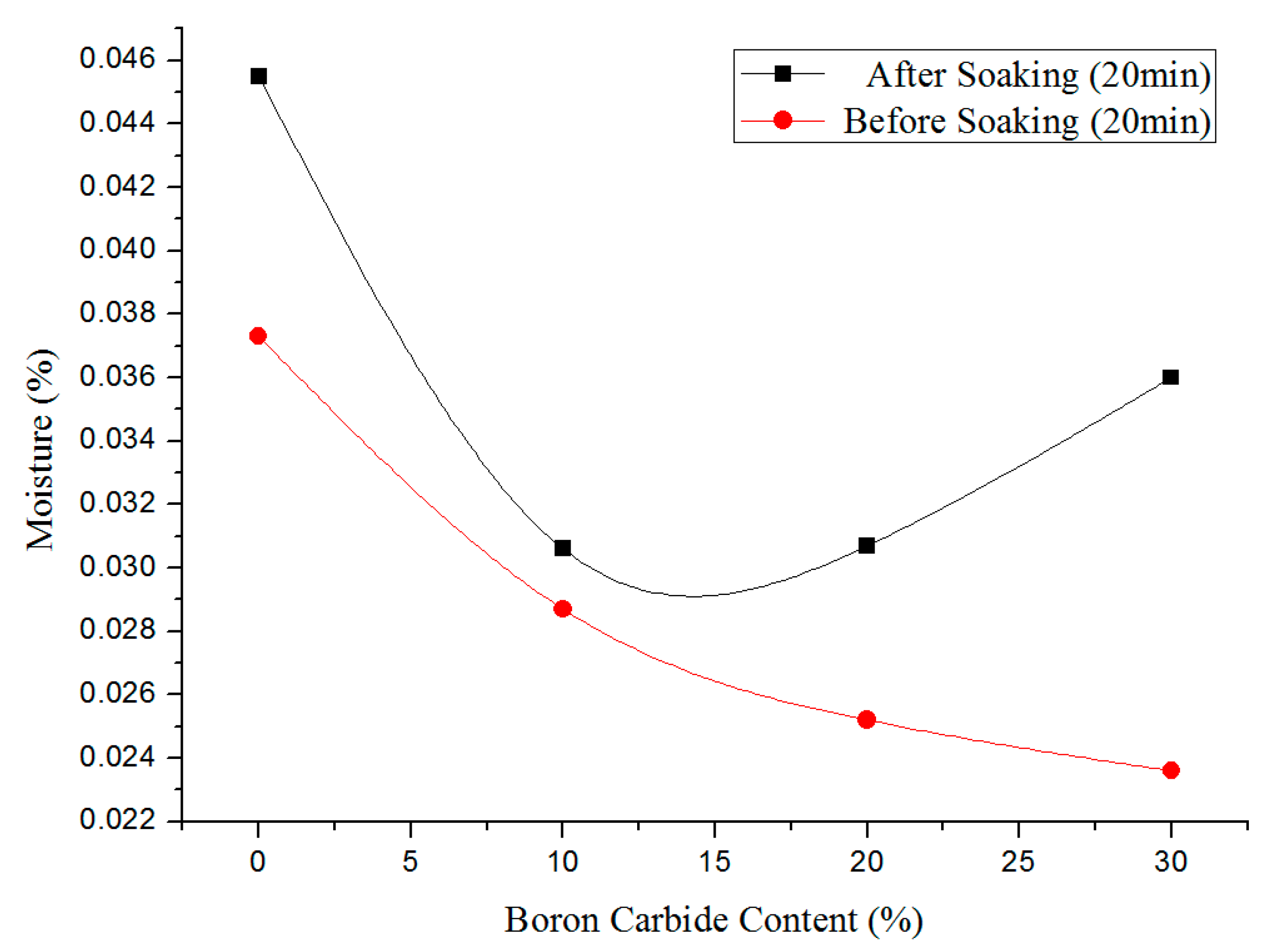

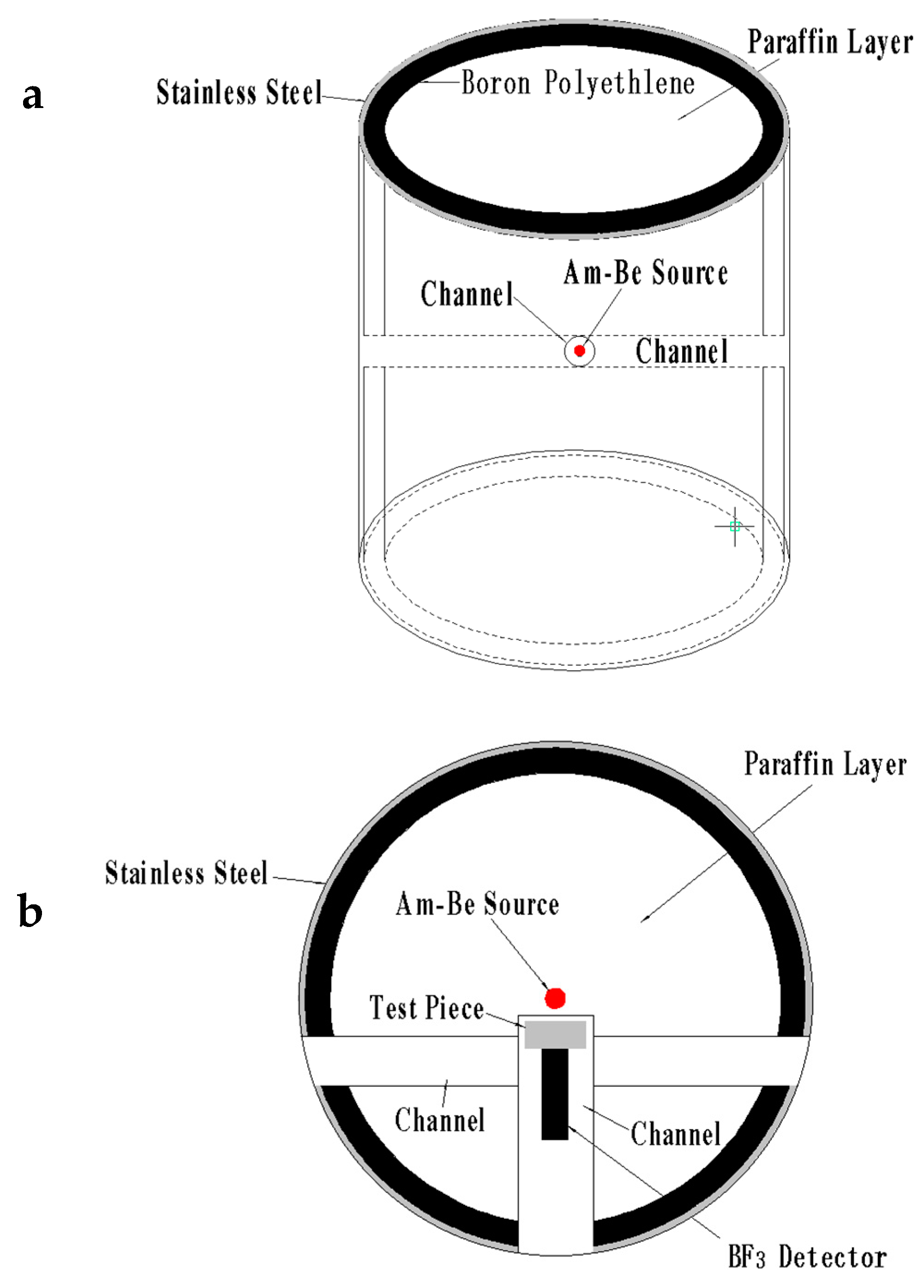

Polyethylene is used as a traditional shielding material in the nuclear industry, but still suffers from low softening point, poor mechanical properties, and difficult machining. In this study, novel boron carbide polyether-ether-ketone (PEEK) composites with different mass ratios were prepared and tested as fast neutron absorbers. Next, shielding test pieces with low porosity were rapidly manufactured through the fused deposition modeling (FDM)-3D printing optimization process. The respective heat resistances, mechanical properties, and neutron shielding characteristics of as-obtained PEEK and boron carbide PEEK composites with different thicknesses were then evaluated. At load of 0.45 MPa, the heat deformation temperature of boron carbide PEEK increased with the boron carbide content. The heat deformation temperature of 30% wt. boron carbide PEEK was recorded as 308.4 °C. After heat treatment, both tensile strength and flexural strength of PEEK and PEEK composites rose by 40%–50% and 65%–78%, respectively. Moreover, the as-prepared composites showed excellent fast neutron shielding performances. For shielding test pieces with thicknesses between 40 mm and 100 mm, the neutron shielding rates exhibited exponential variation as a function of boron carbide content. The addition of 5%–15% boron carbide significantly changed the curvature of the shielding rate curve, suggesting an optimal amount of boron carbide. Meanwhile, the integrated shielding/structure may effectively shield neutron radiation, thereby ensuring optimal shielding performances. In sum, further optimization of the proposed process could achieve lightweight materials with less consumables and small volume. View Full-Text
Keywords: FDM; PEEK composites; neutron shielding; boron carbide FDM; PEEK composites; neutron shielding; boron carbide

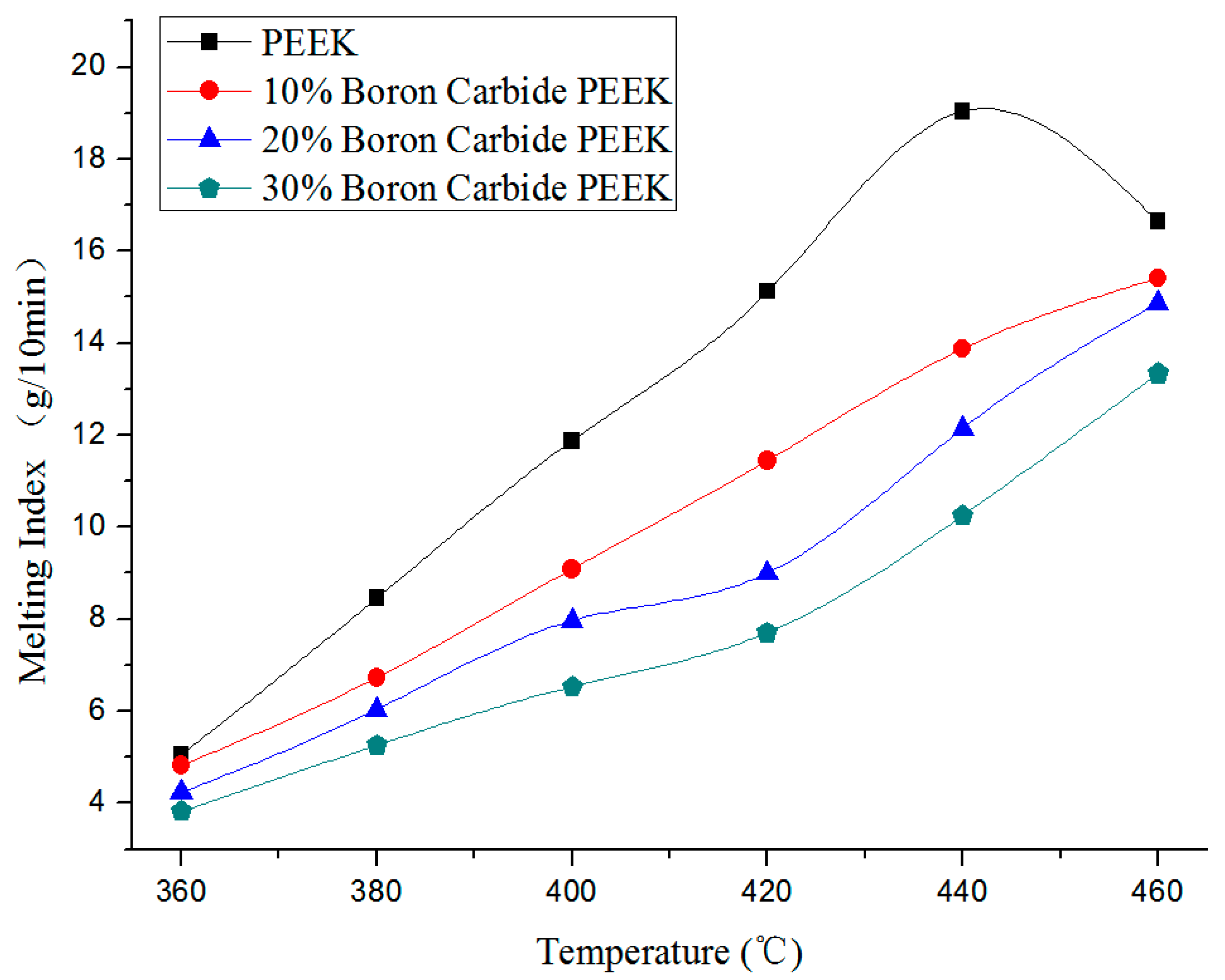

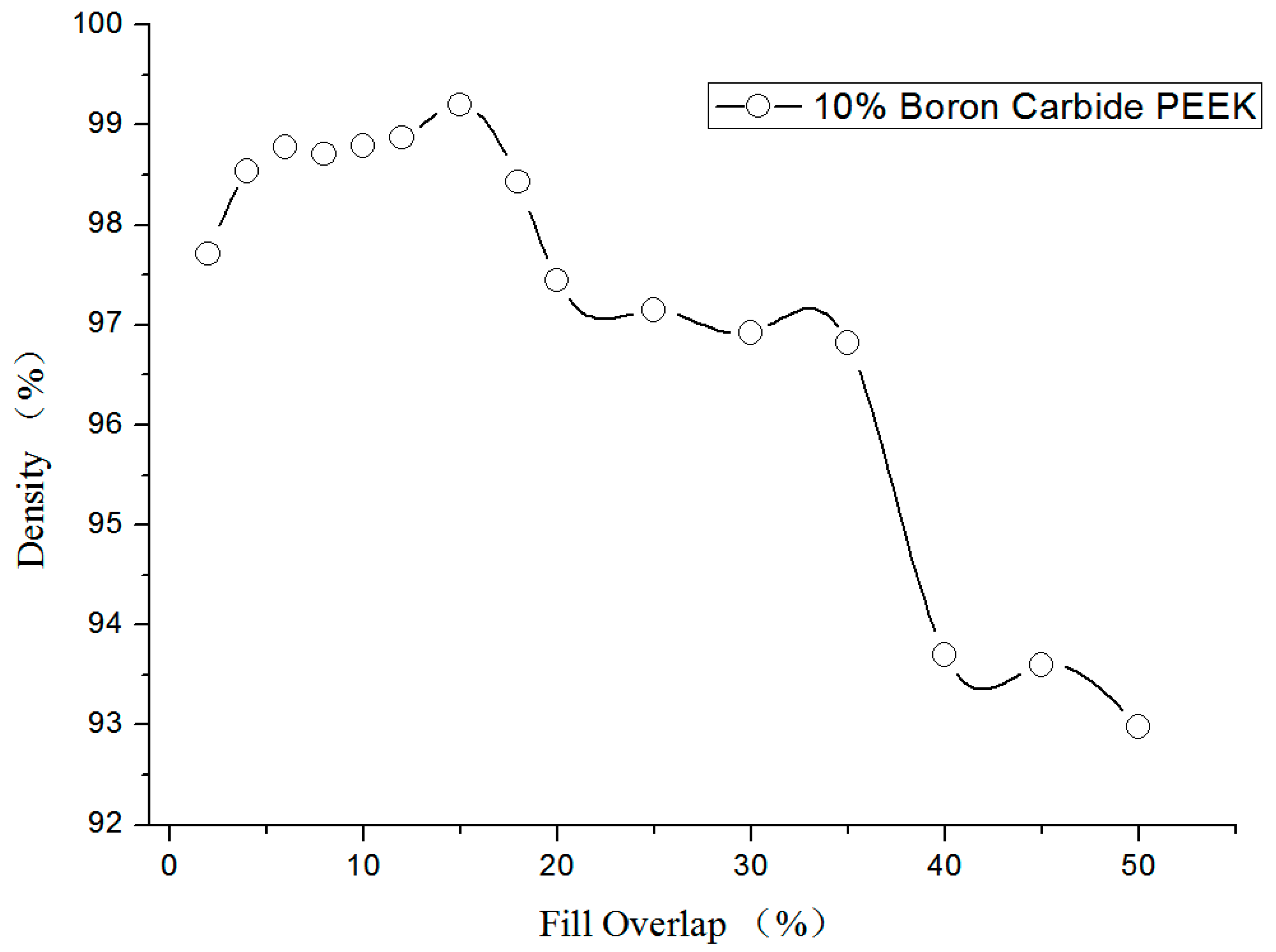

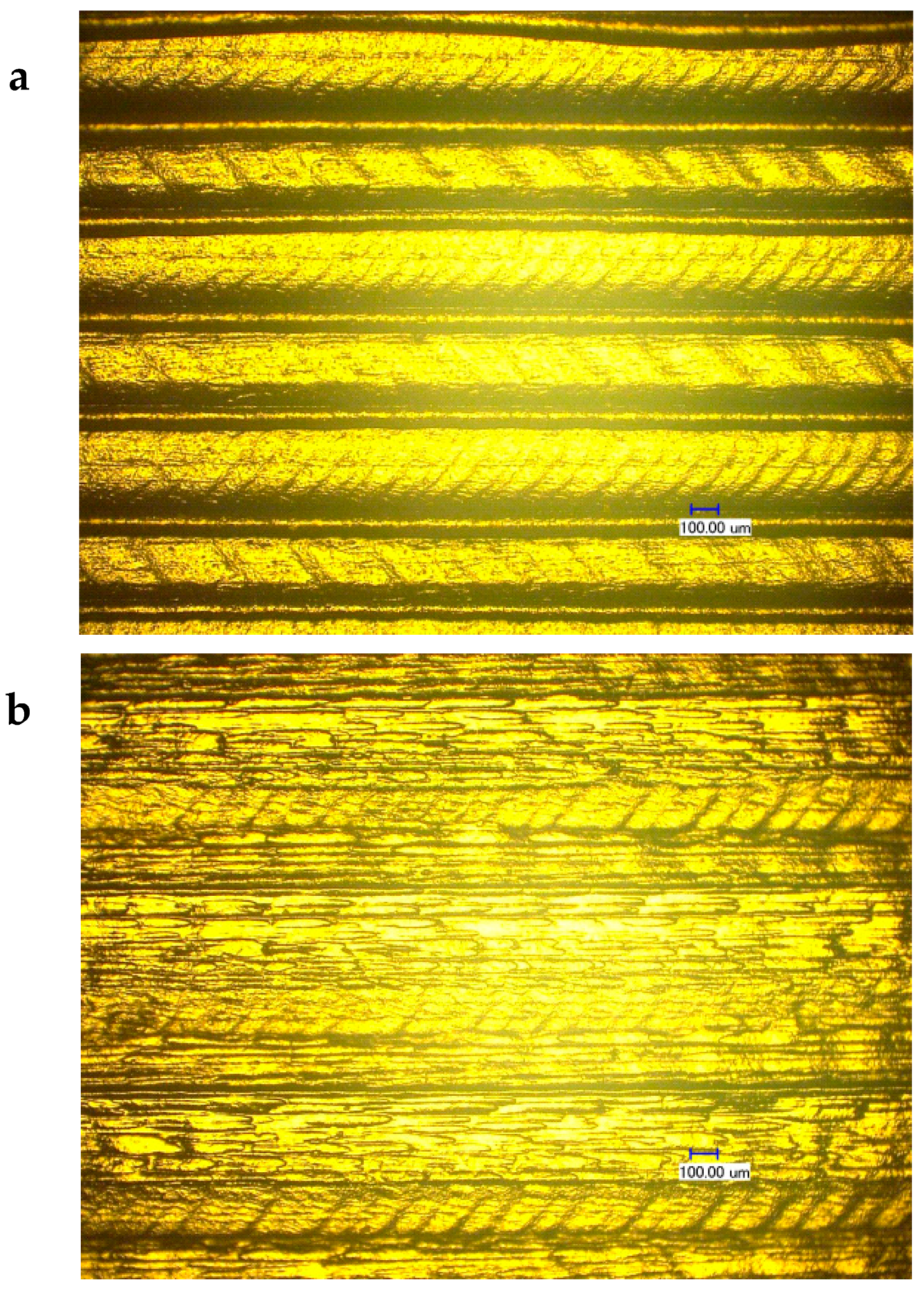

Show Figures

Figure 1

MDPI and ACS Style

Wu, Y.; Cao, Y.; Wu, Y.; Li, D. Neutron Shielding Performance of 3D-Printed Boron Carbide PEEK Composites. Materials 2020, 13, 2314.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

Search more from Scilit
Back to TopTop
