Skew Rolling of Rods from Scrap Rail Heads
Abstract
:1. Introduction

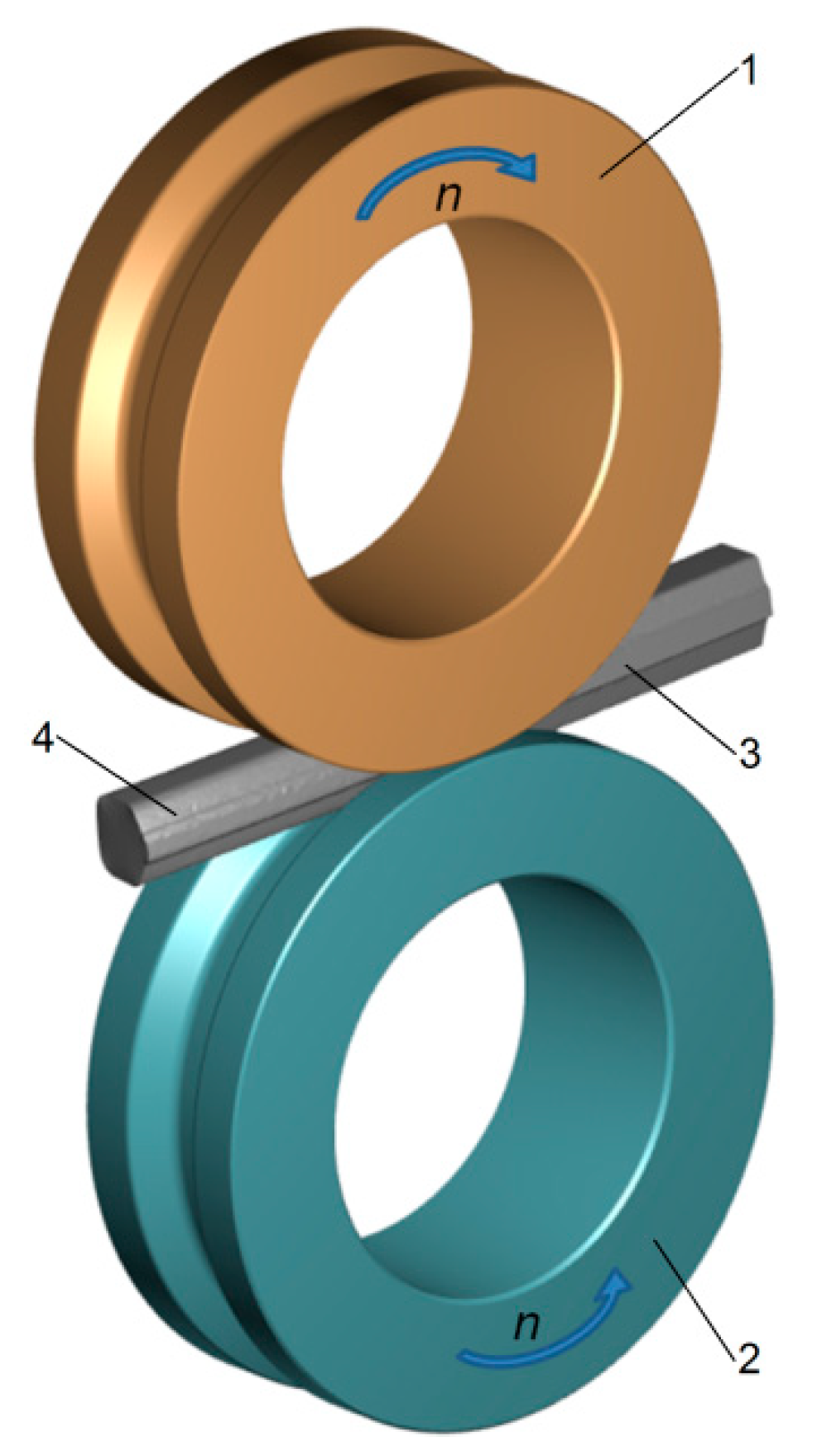

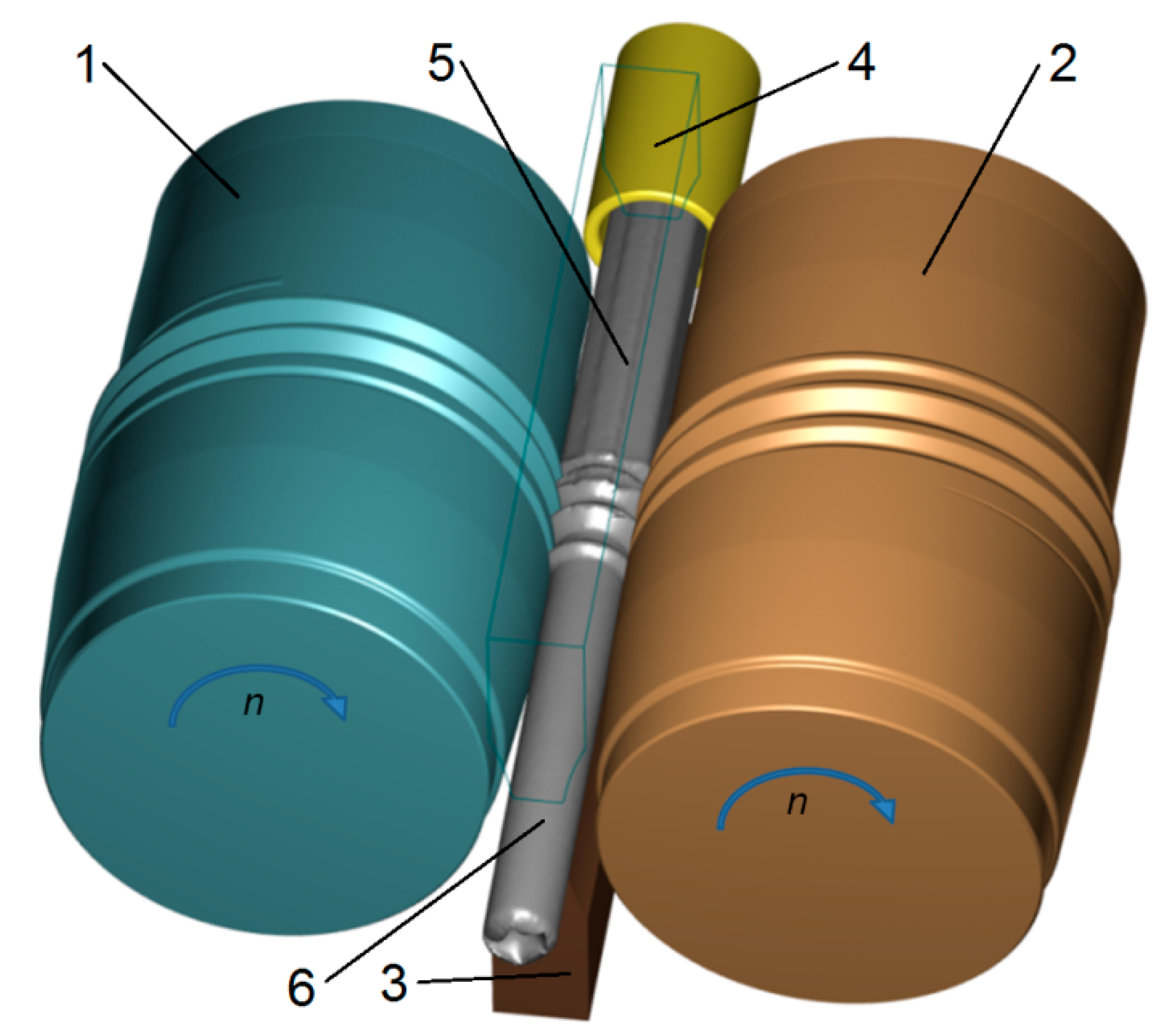

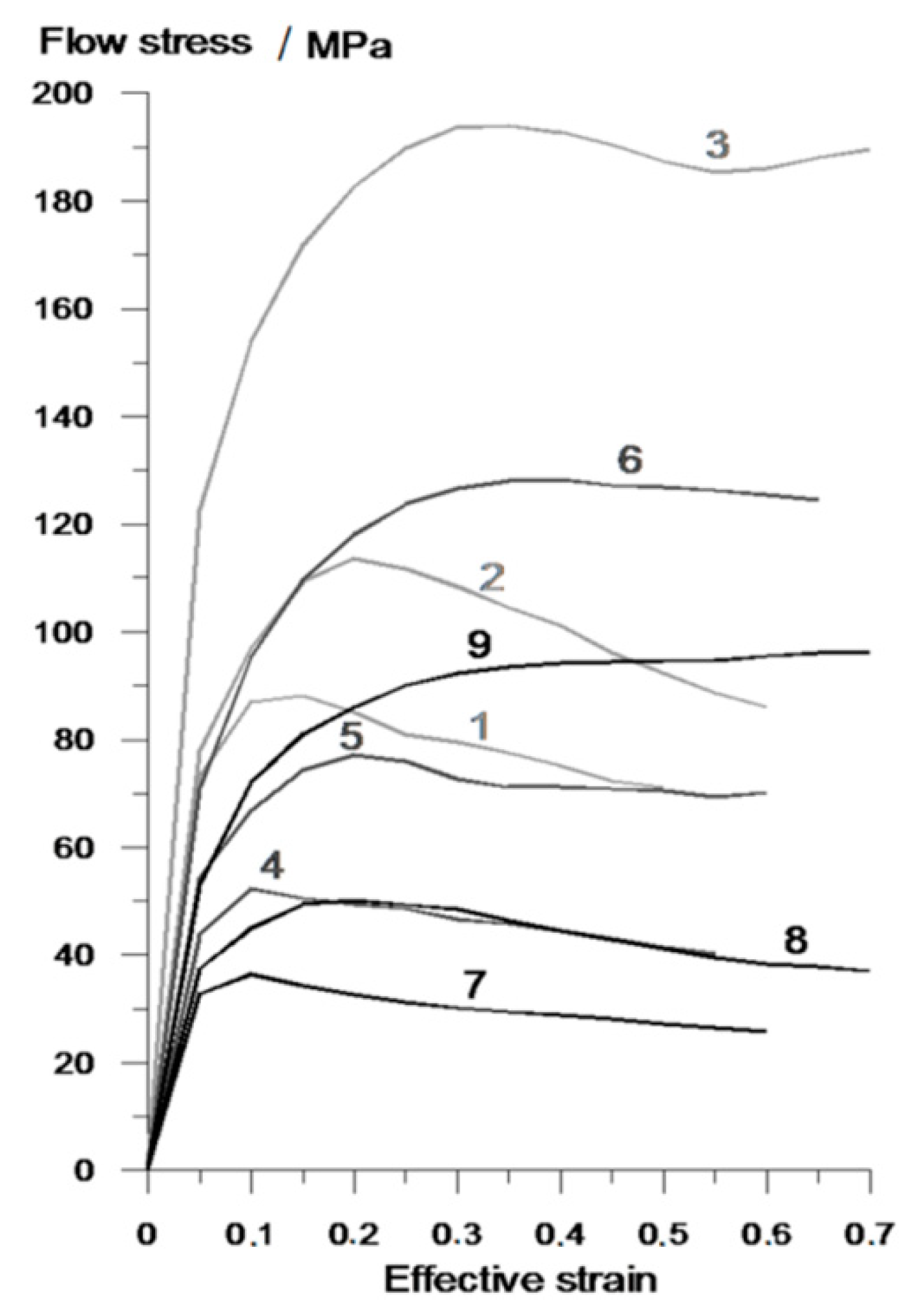

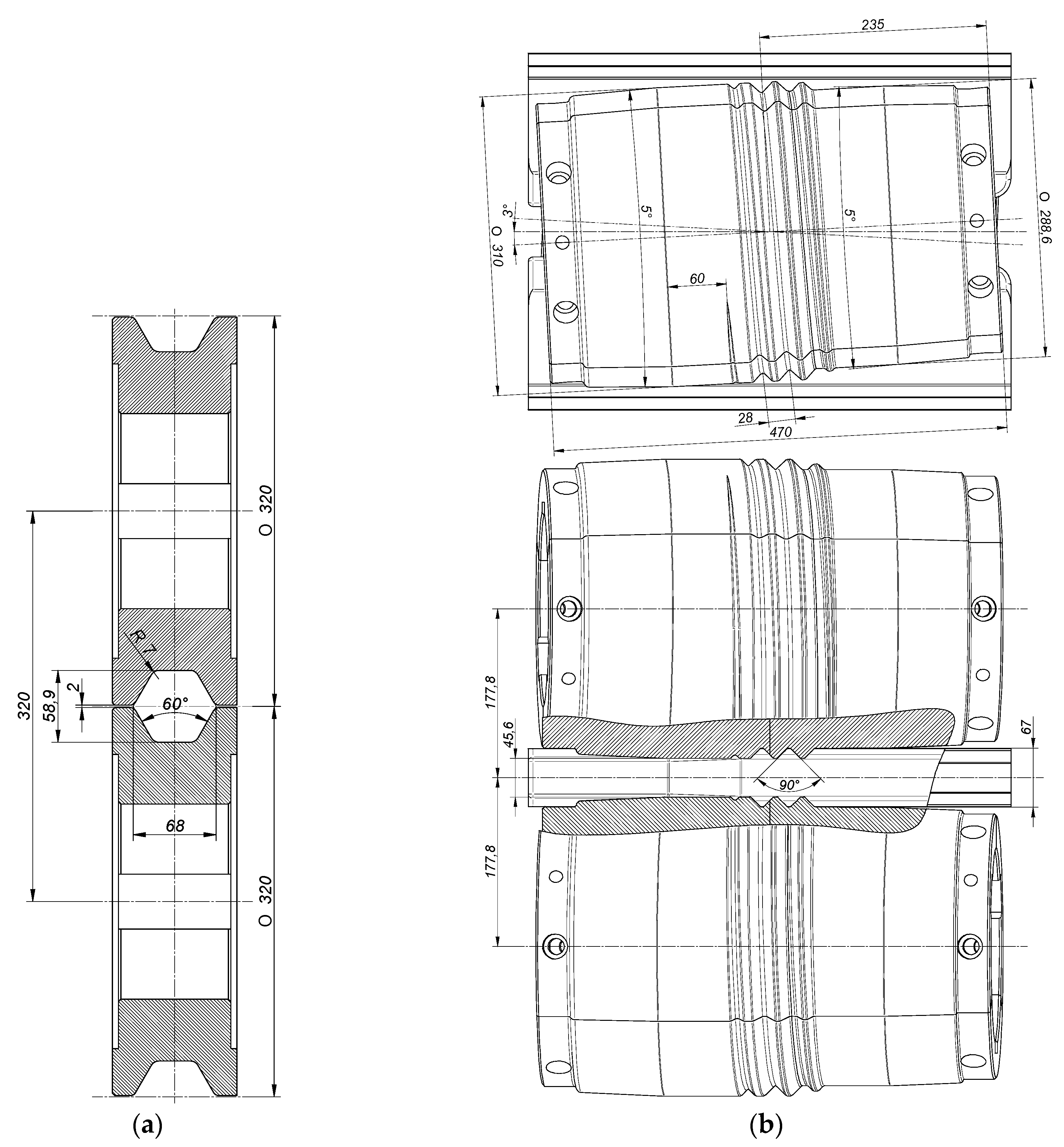

2. Finite Element Method (FEM) Analysis of Two-Stage Rolling of Rods from Scrap Rail Heads
3. Experimental Verification of Rod Rolling in Helical Passes
4. Conclusions

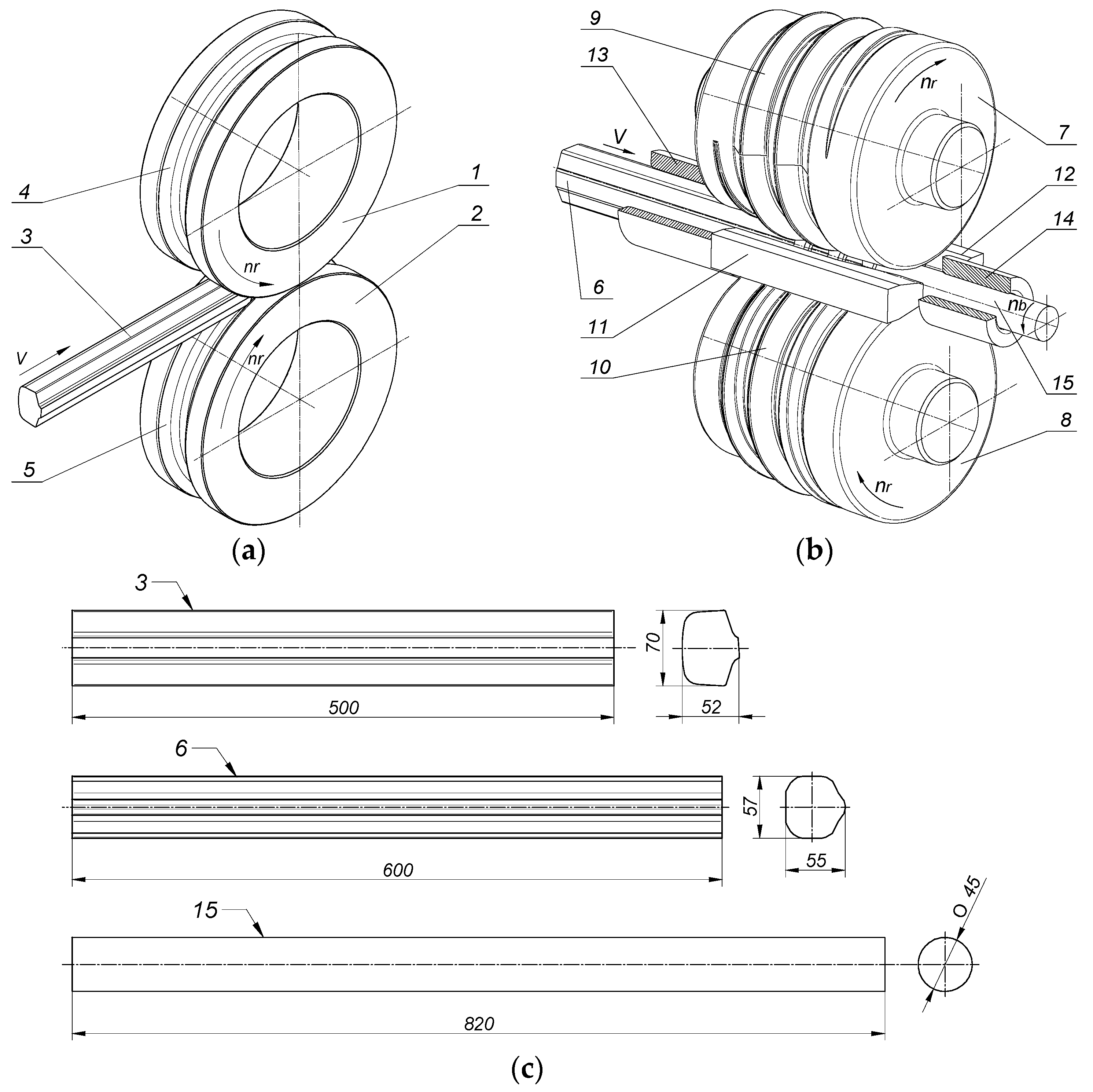

- Rods can be efficiently rolled from scrap rail heads in two passes in a process that combines longitudinal and skew rolling.
- The preform rolled from a scrap rail head in the longitudinal rolling mill can be used to roll rods with a wide range of diameters in one (skew) rolling mill and with one set of helical tools.

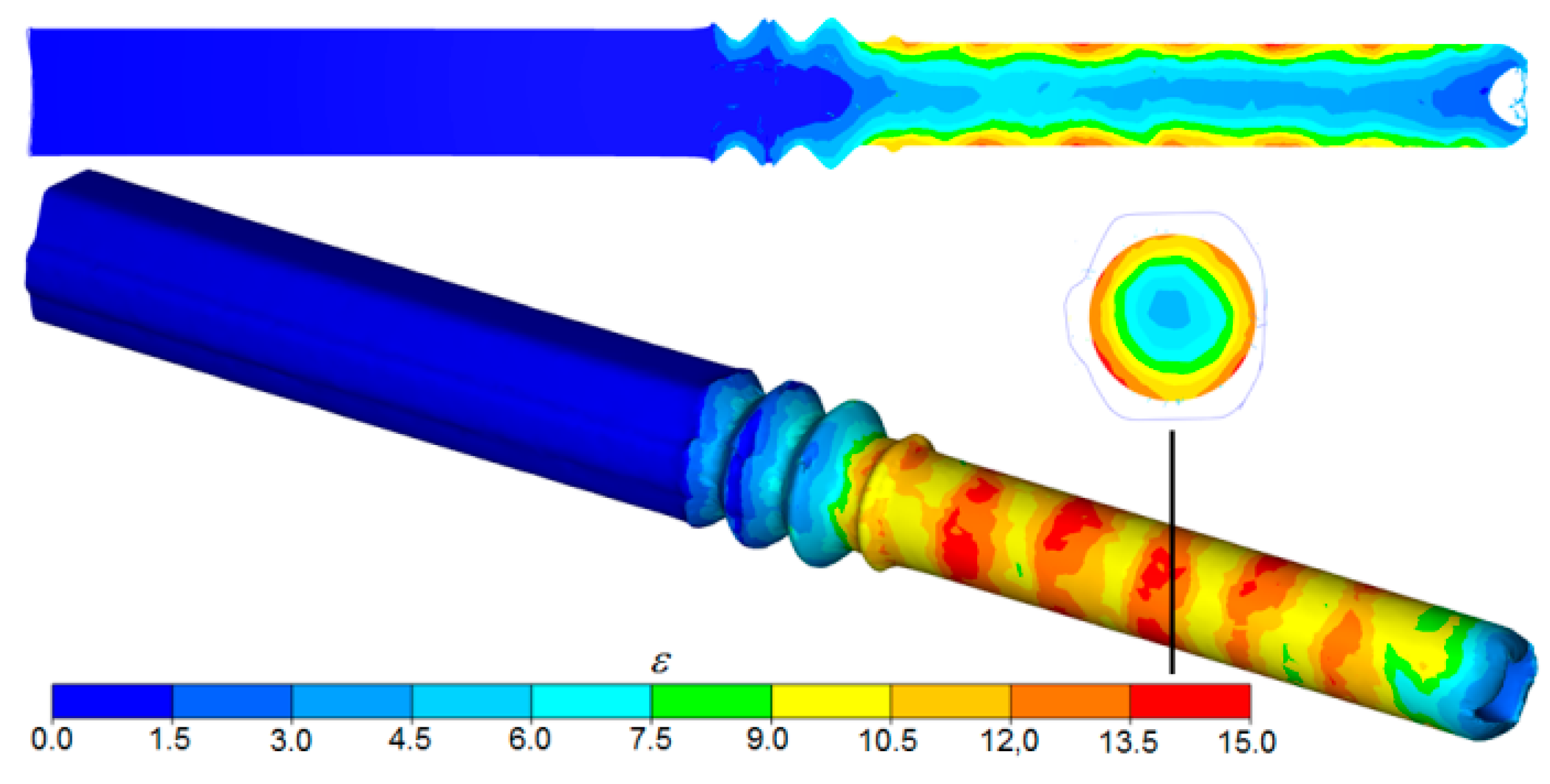

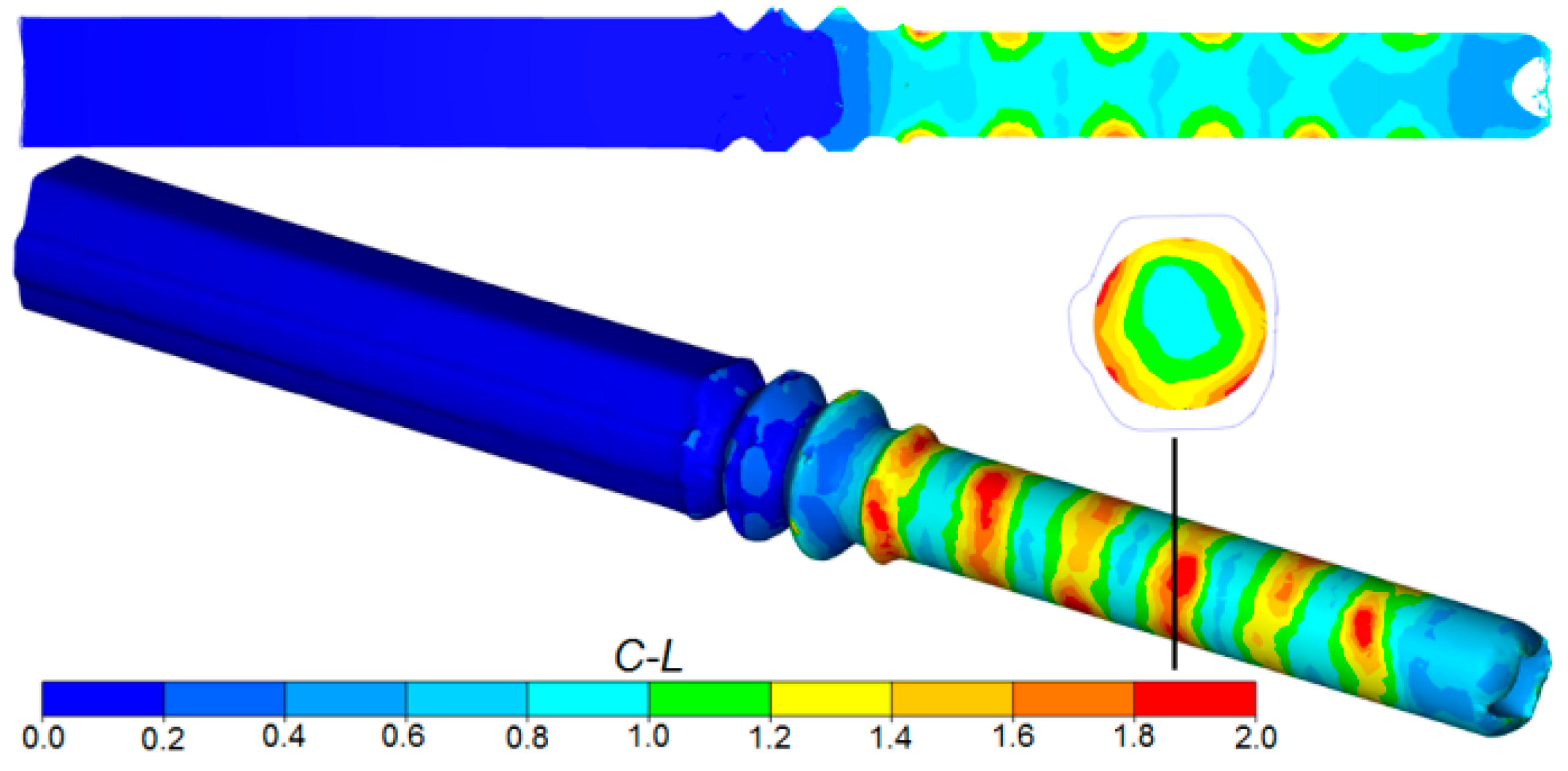

- The strains that develop during the rolling of rods in the helical passes are unevenly distributed.
- Despite a nonuniform cross-sectional outline of scrap rail head, the products rolled in the skew rolling mill are characterized by a high quality and precision.

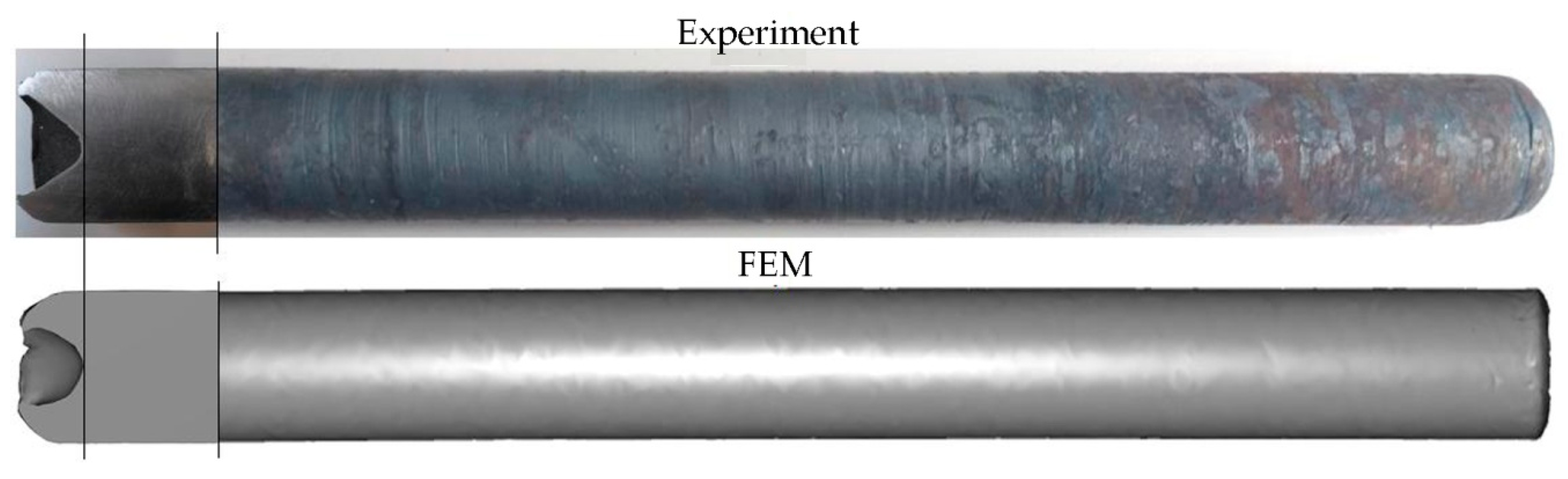

- During skew rolling of rods, cavities form on the end faces of the rods; they are treated as stock allowance.

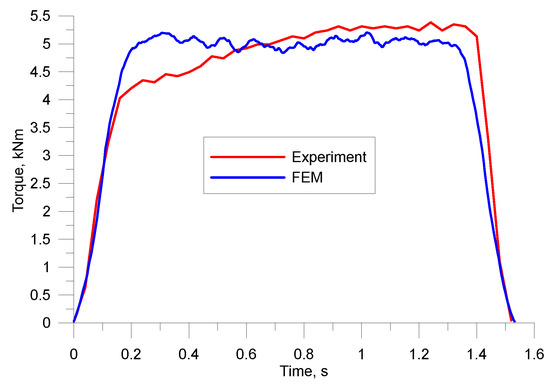

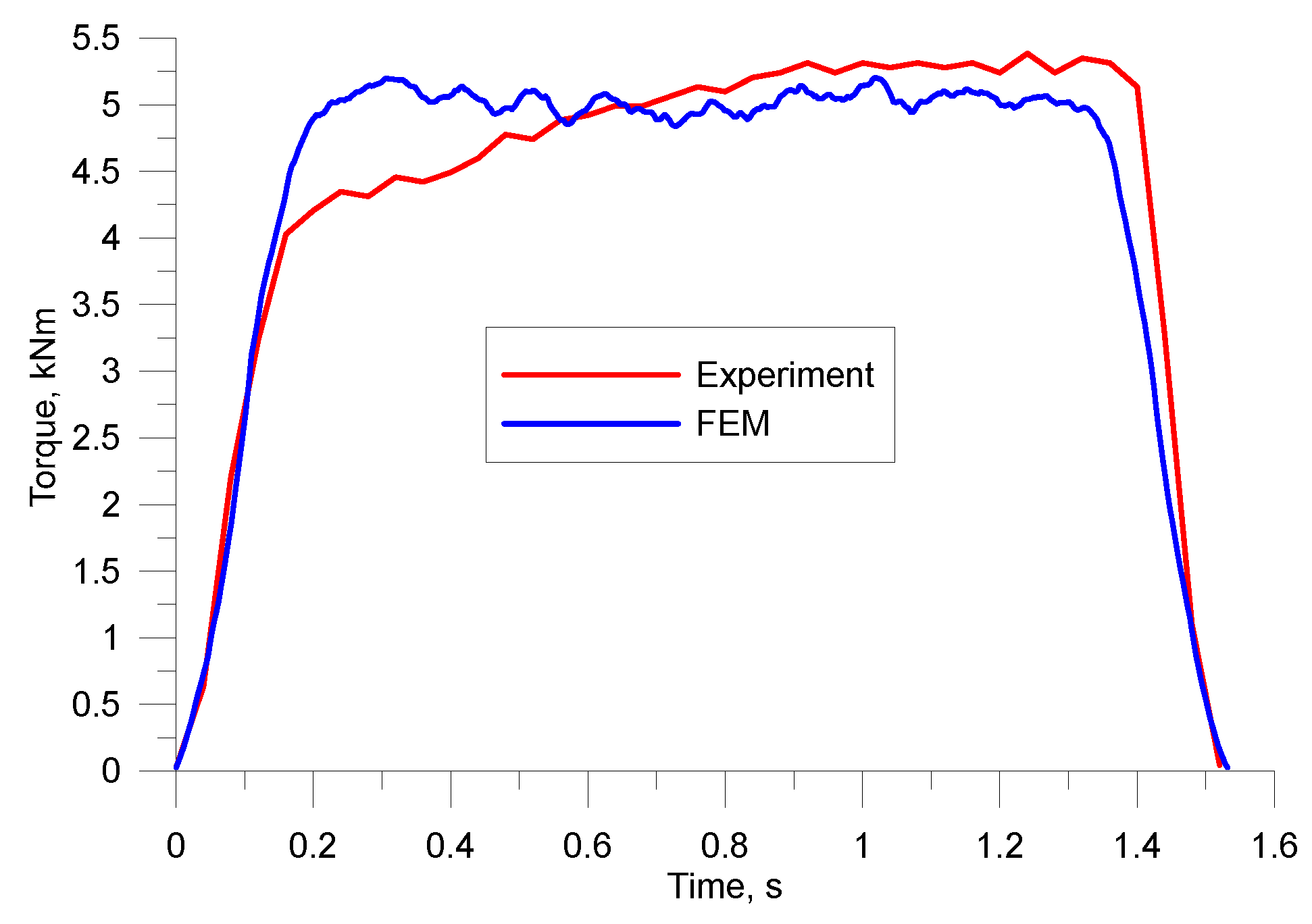

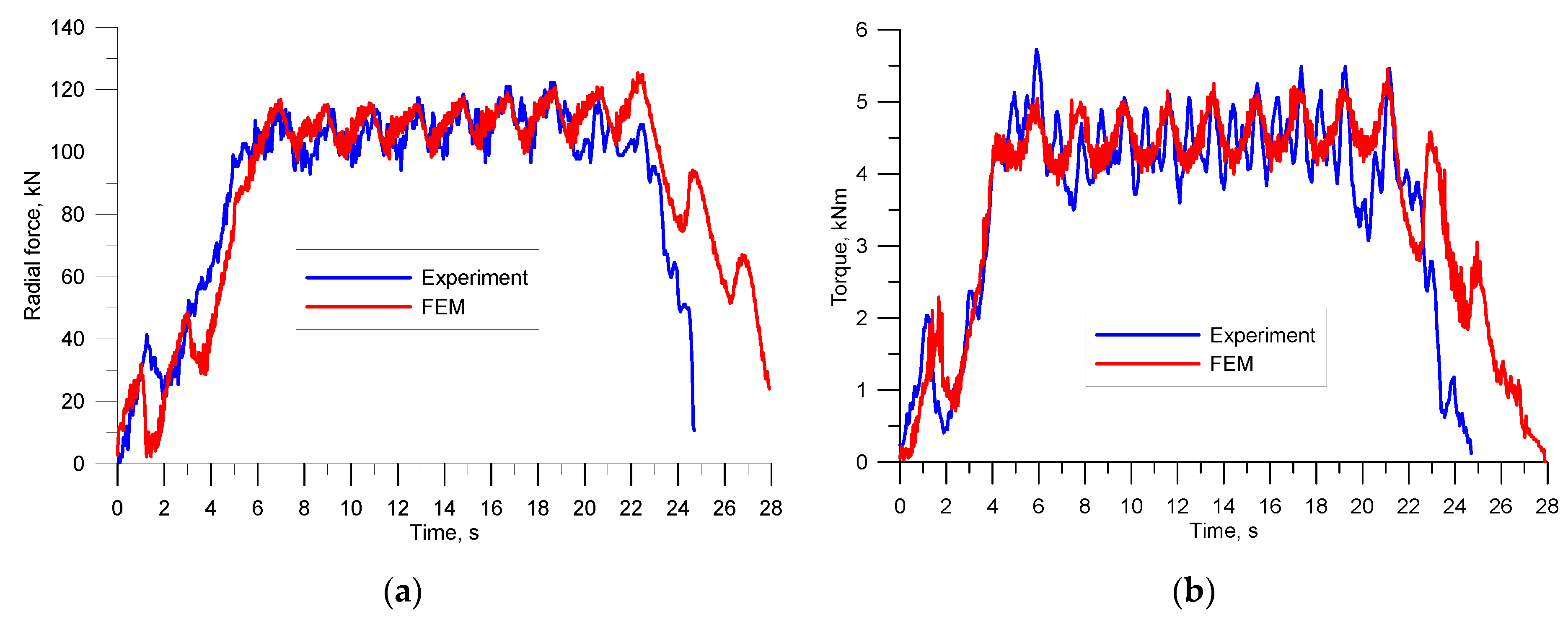

- Rolling in helical passes is performed at relatively low radial forces and torques.
- The good agreement between the experimental and simulation results supports the use of numerical modelling in the analysis of complex metalworking processes.
- Further research should be carried out to determine the impact of technological parameters on the course of the rolling process and the quality of the products obtained.
Author Contributions
Funding
Conflicts of Interest
References
- Silva, R.F.; Kaewunruen, S. Recycling of Rolling Stocks. Environments 2017, 4, 39. [Google Scholar] [CrossRef]
- Matsuoka, S. Recyclability of stainless steel railway vehicles. Proc. Inst. Mech. Eng. F J. Rail 2003, 217, 279–284. [Google Scholar] [CrossRef]
- Buekens, A.; Zhou, X. Recycling plastics from automotive shredder residues: A review. J. Mater. Cycles Waste Manag. 2014, 16, 398–414. [Google Scholar] [CrossRef]
- Pater, Z.; Tomczak, J.; Bulzak, T. A cross wedge rolling process for forming 70 mm diameter balls from heads of scrap railway rails. Procedia Manuf. 2017, 11, 466–473. [Google Scholar] [CrossRef]
- Pater, Z.; Tomczak, J.; Bulzak, T. An innovative method for forming balls from scrap rail heads. Adv. Sci. Technol. Res. J. 2016, 10, 151–157. [Google Scholar] [CrossRef]
- Mróz, S.; Szota, P.; Stefanik, A.; Dyja, H. Numerical modelling of round rods rolling process from the scrapped railway rail. Hutnik–WH 2011, 78, 400–403. [Google Scholar]
- Ohno, H.; Matsubae, K.; Nakajima, K.; Kondo, Y.; Nakamura, S.; Nagasaka, T. Toward the efficient recycling of alloying elements from the end of life vehicle steel scrap. Res. Conserv. Recycl. 2015, 100, 11–20. [Google Scholar] [CrossRef]
- Delogu, M.; Del Pero, F.; Pierini, M.; Bonaffini, D. End-of-Life in the railway sector: Analysis of recyclability and recoverability for different vehicle case studies. Waste Manag. 2017, 60, 439–450. [Google Scholar] [CrossRef] [PubMed]
- Tomczak, J.; Pater, Z.; Bulzak, T. The flat wedge rolling mill for forming balls from heads of scrap railway rails. Arch. Metall. Mater. 2018, 63, 5–12. [Google Scholar]
- Mueller, H. Economic production on bar and wire rod mills. Iron Steel Technol. 2007, 4, 50–57. [Google Scholar]
- Gałkin, A.M.; Rząsowska-Przala, A.; Górniak, A. A new method of manufacturing small-diameter bars and tubes from hardly deformable steels in skew rolling. Metalurgija 2007, 46, 281–284. [Google Scholar]
- Potapov, I.N.; Polukhin, P.I. Tekhnologija vintovoj prokatki. In Metallurgy; Metallurgija: Moskva, Russia, 1990. [Google Scholar]
- Karpov, B.V.; Skripalenko, M.M.; Galkin, S.P.; Skripalenko, M.N.; Samusev, S.V.; Ba Huy, T.; Pavlov, S.A. Studying the nonstationary stages of screw rolling of billets with profiled ends. Metallurgist 2017, 61, 257–264. [Google Scholar] [CrossRef]
- Skripalenko, M.M.; Bazhenov, V.E.; Romantsev, B.A.; Skripalenko, M.N.; Huy, T.B.; Gladkov, Y.A. Mannesmann piercing of ingots by plugs of different shapes. Mater. Sci. Tech. Lond. 2016, 32, 1712–1720. [Google Scholar] [CrossRef]
- Romantsev, B.A.; Skripalenko, M.M.; Skripalenko, M.N.; Hui, C.B. Modeling the Piercing of Semifinished Products in a Three-Roll Rotary Rolling Mill on a Hollow Mandrel. Metallurgist 2015, 7–8, 557–561. [Google Scholar] [CrossRef]
- Pater, Z.; Wójcik, Ł.; Walczuk, P. Comparative Analysis of Tube Piercing Processes in the Two-Roll and Three-Roll Mills. Adv. Sci. Technol. Res. J. 2019, 13, 37–45. [Google Scholar] [CrossRef]
- Lopatin, N.V. Effect of hot rolling by screw mill on microstructure of a Ti–6Al–4V titanium alloy. Int. J. Mater. Form. 2012, 6, 459–465. [Google Scholar] [CrossRef]
- Huang, G.X.; Sun, B.S.; Peng, W.F.; Shu, X.D.; Lu, W. Research on stable forming of titanium alloy bar using three-roll skew rolling. Adv. Mater. Res. 2015, 1095, 837–841. [Google Scholar] [CrossRef]
- Stefanik, S.; Szota, P.; Mróz, S.; Bajor, T.; Dyja, H. Properties of the az31 magnesium alloy round bars obtained in different rolling processes. Arch. Metall. Mater. 2015, 60, 3001–3005. [Google Scholar] [CrossRef]
- Das Talukder, N.K.; Johnson, W. On the arrangement of rolls in cross-roll straighteners. Int. J. Mech. Sci. 1981, 23, 213–220. [Google Scholar] [CrossRef]
- Badyuk, S.; Leshchenko, A. Polucheniye sortovykh profiley prokata iz iznoshennykh zheleznodorozhnykh rel’sov. Obrab. Mater. Davleniyem 2010, 25, 162–167. [Google Scholar]
- Pater, Z.; Tomczak, J.; Bulzak, T. Analysis of a process for forming round bars from heads of rails. Hutnik–WH 2016, 83, 91–95. [Google Scholar]
- Bulzak, T.; Pater, Z.; Tomczak, J. Rolling of circular bars from heads of scrapped railway rails. Hutnik–WH 2018, 85, 91–95. [Google Scholar]
- Komori, K. Ductile fracture criteria for simulating shear by no de separation method. Theor. Appl. Fract. Mech. 2005, 43, 101–114. [Google Scholar] [CrossRef]
- Pan, R.; Zhang, K.S.; Jia, Z. Analysis on processing boundary of stepped shaft during cross wedge rolling process. Adv. Mater. Res. 2012, 472–475, 775–780. [Google Scholar] [CrossRef]
- Pater, Z.; Kazanecki, J.; Tomczak, J. Helical—Wedge Rolling of Steel Balls. Steel Res. Int. 2012, s, 79–82. [Google Scholar]
- Pater, Z.; Walczuk, P.; Lis, K.; Wójcik, Ł. Preliminary analysis of a rotary compression test. Adv. Sci. Technol. Res. J. 2018, 12, 77–82. [Google Scholar] [CrossRef]
- Pater, Z.; Tomczak, J.; Bulzak, T.; Bartnicki, J.; Tofil, A. Prediction of Crack Formation for Cross Wedge Rolling of Harrow Tooth Preform. Materials 2019, 12, 2287. [Google Scholar] [CrossRef]
- Pater, Z. Limiting value of Cockroft-Latham integral for R200 rail steel grade. Hutnik–WH 2010, 77, 702–705. [Google Scholar]
- Bulzak, T.; Tomczak, J.; Pater, Z. Preduction of the effect of a roll forging mill desing on this operational use. Mechanik 2014, 87, 100–104. [Google Scholar]
- Pater, Z.; Tomczak, J.; Wójcik, Ł.; Bulzak, T. Physical Modelling of the Ball-Rolling Processes. Metals 2019, 9, 35. [Google Scholar] [CrossRef]
- General Purpose Hot Rolled Steel Bars-Dimensions and Tolerances of Shape and Dimensions; ISO PN-EN 10060; Polish Standard: Geneva, Switzerland, 2006.
Stage | Rail Head | Worn Rail Head | Preform | Rod |
---|---|---|---|---|
Cross-sectional area S, mm2 | 3050 | 2800 | 2400 | 1635 |
Elongation coefficient λ = S0/S1 | - | - | 1.16 | 1.45 |

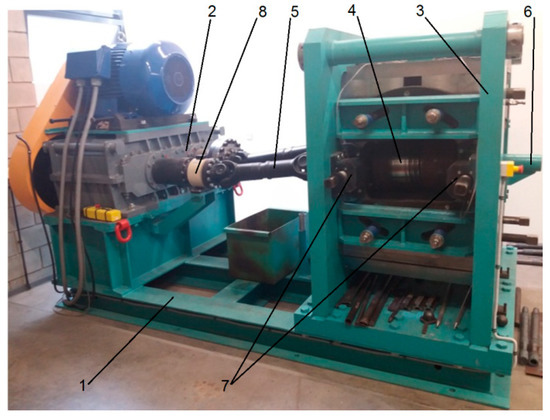

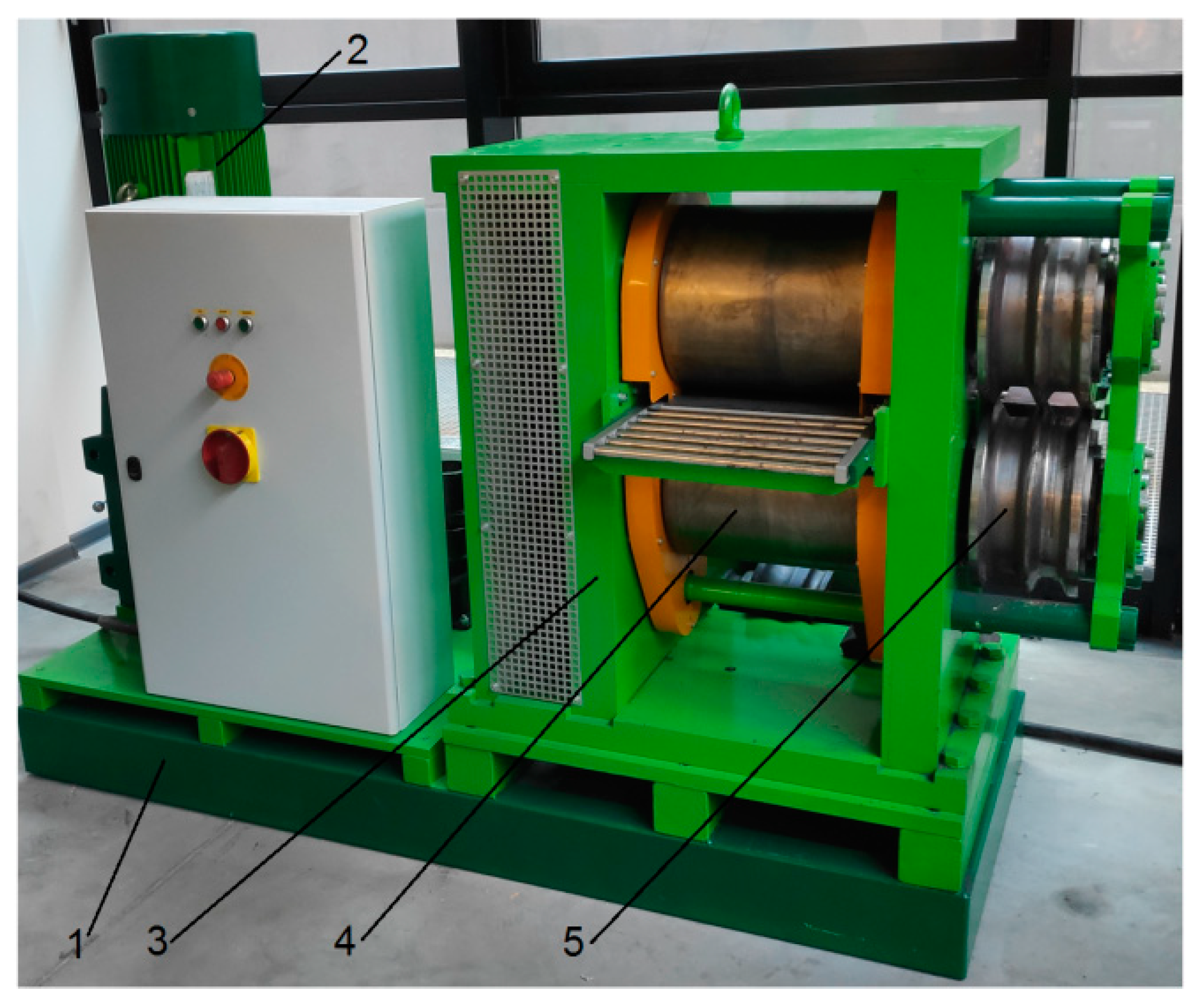

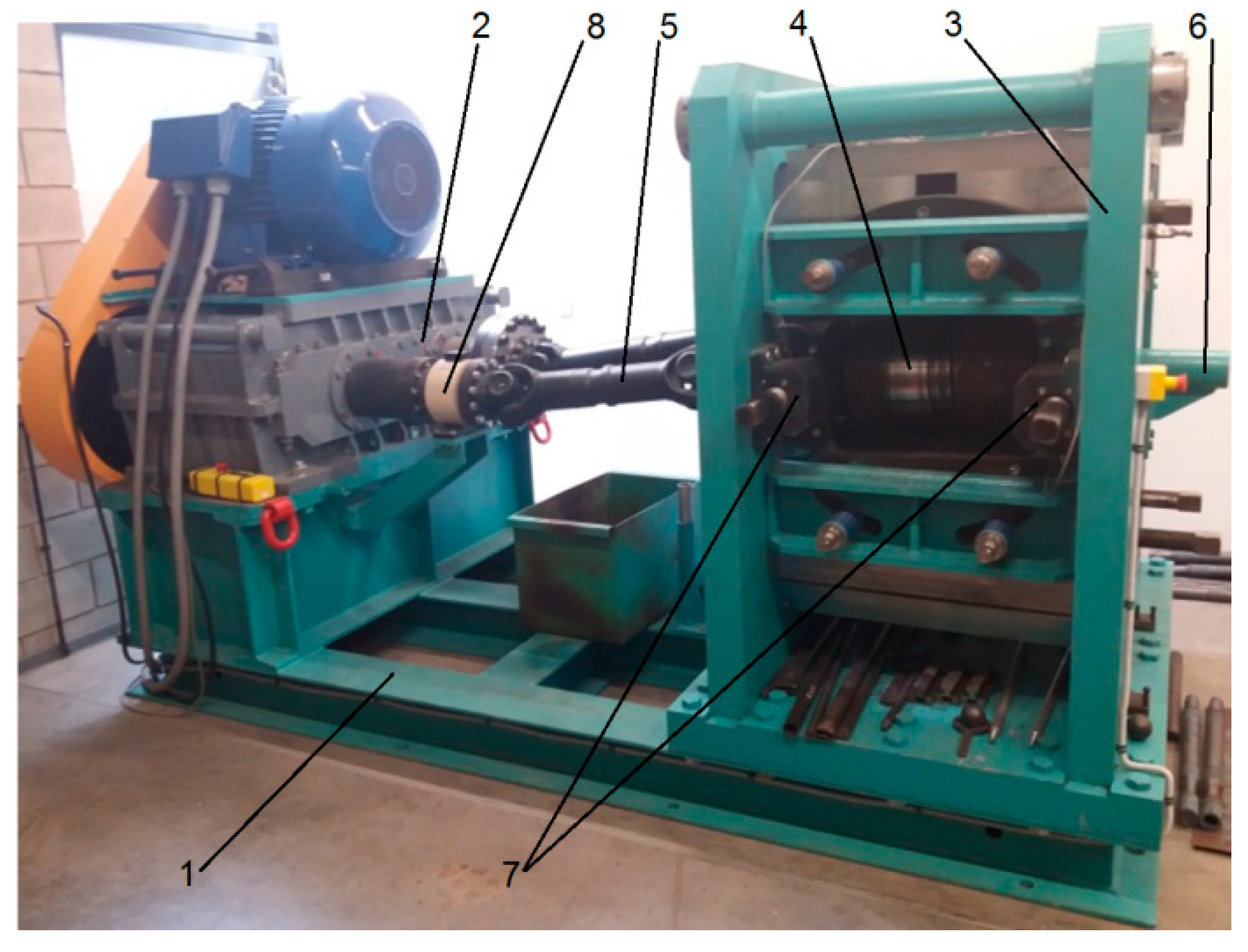

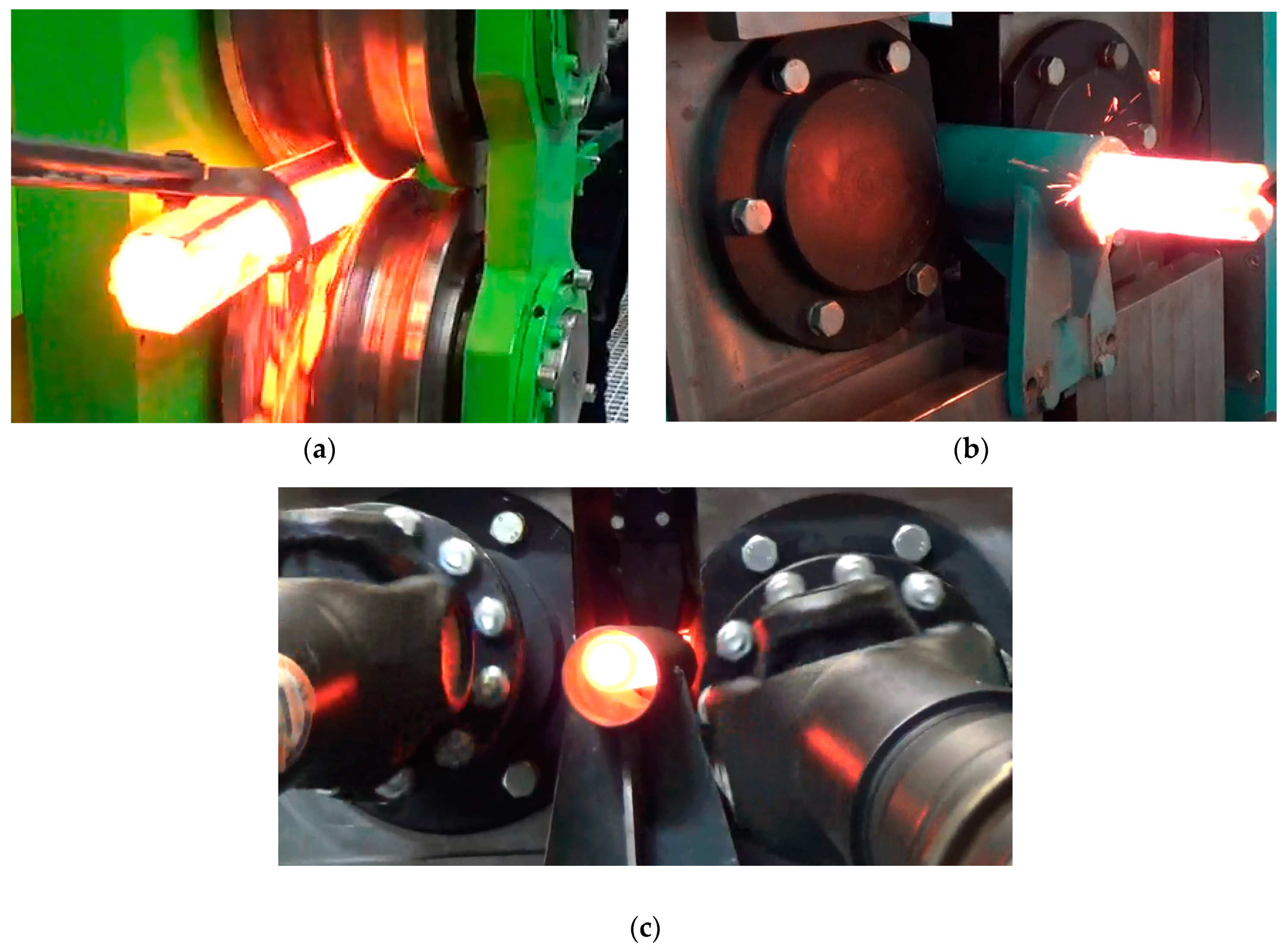

Parameter/Rolling Mill Type | Skew Rolling Mill | Longitudinal Rolling Mill |
---|---|---|
Position of rolls in the working cage; mm | horizontal | vertical |
Nominal roll diameter; mm | 320 | 320 |
Working length of roll barrel; mm | 400 | 320/160 |
Minimum distance between roll axes; mm | 300 | 310 |
Maximum distance between roll axes; mm | 350 | 330 |
Possible inclination of the shaft axis to the rolling axis; deg | ±12 | - |
Minimum rotational speed of rolls; rpm | 15 | - |
Minimum rotational speed of rolls; rpm | 30 | 30 |
Nominal torque on one roll (for 15 rpm); kNm | 20 | - |
Nominal torque on one roll (for 30 rpm); kNm | 10 | 5 |
Machine dimensions; m | 3.2 × 1.8 × 2.1 | 2.4 × 1.5 × 1.4 |
Machine weight; kg | 17,500 | 4200 |
Motor power; kW | 60/80 | 22 |

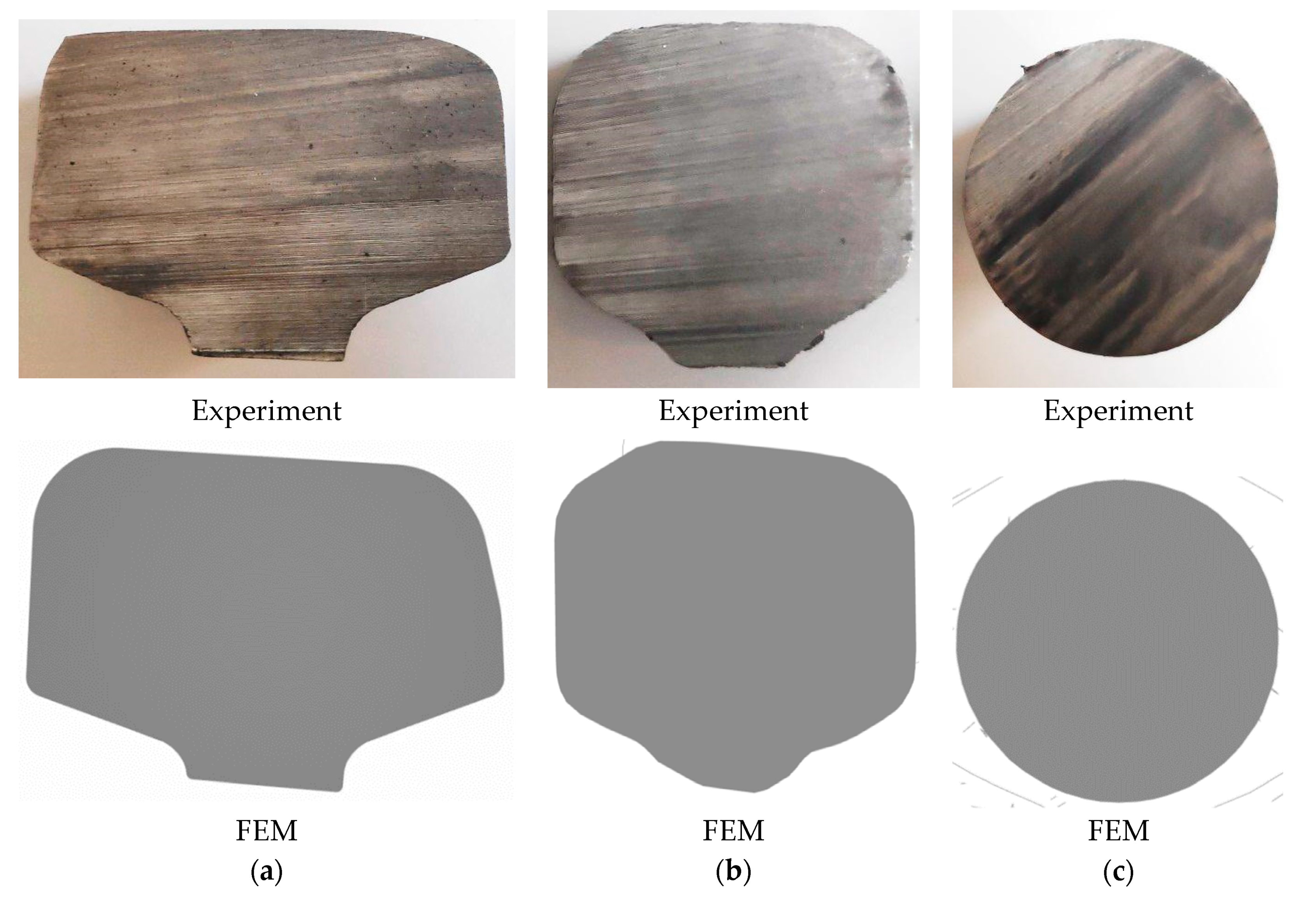

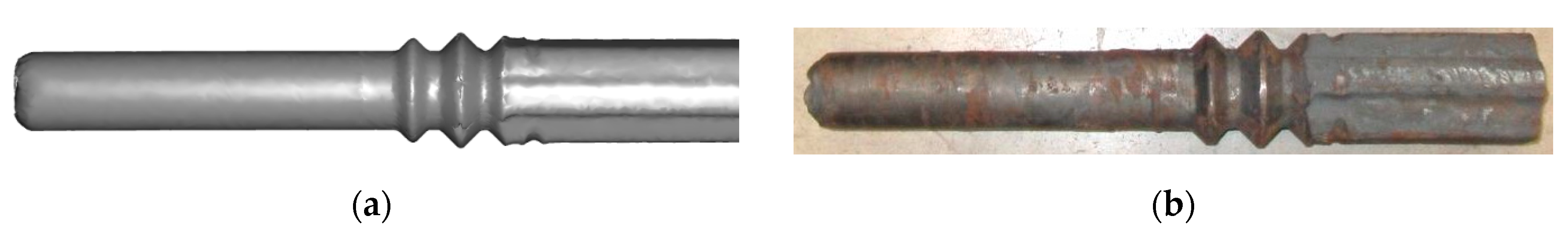

Research Method | H; mm | B; mm | h; mm | b; mm | d; mm |
---|---|---|---|---|---|
FEM | 73.9 | 52.5 | 58.9 | 57.6 | 45.1 |
Experiment | 73.9 | 53.0 | 59.2 | 58.0 | 45.3 |
