Next Article in Journal
Large Area Synthesis of Vertical Aligned Metal Oxide Nanosheets by Thermal Oxidation of Stainless Steel Mesh and Foil
Next Article in Special Issue
Behavior and Mechanism of High-Temperature Stability between Tial-Based Alloy and Y2O3-Al2O3 Composite Crucibles
Previous Article in Journal
Detection of Intracellular Gold Nanoparticles: An Overview
Previous Article in Special Issue
Tunable Synthesis of SiC/SiO2 Heterojunctions via Temperature Modulation
Open AccessArticle

Oxidation Resistance and Wetting Behavior of MgO-C Refractories: Effect of Carbon Content

School of Metallurgy, Northeastern University, Shenyang 110819, China
*
Author to whom correspondence should be addressed.
Materials 2018, 11(6), 883; https://doi.org/10.3390/ma11060883
Received: 10 May 2018 / Revised: 21 May 2018 / Accepted: 23 May 2018 / Published: 24 May 2018
(This article belongs to the Special Issue High Temperature Ceramic Materials)

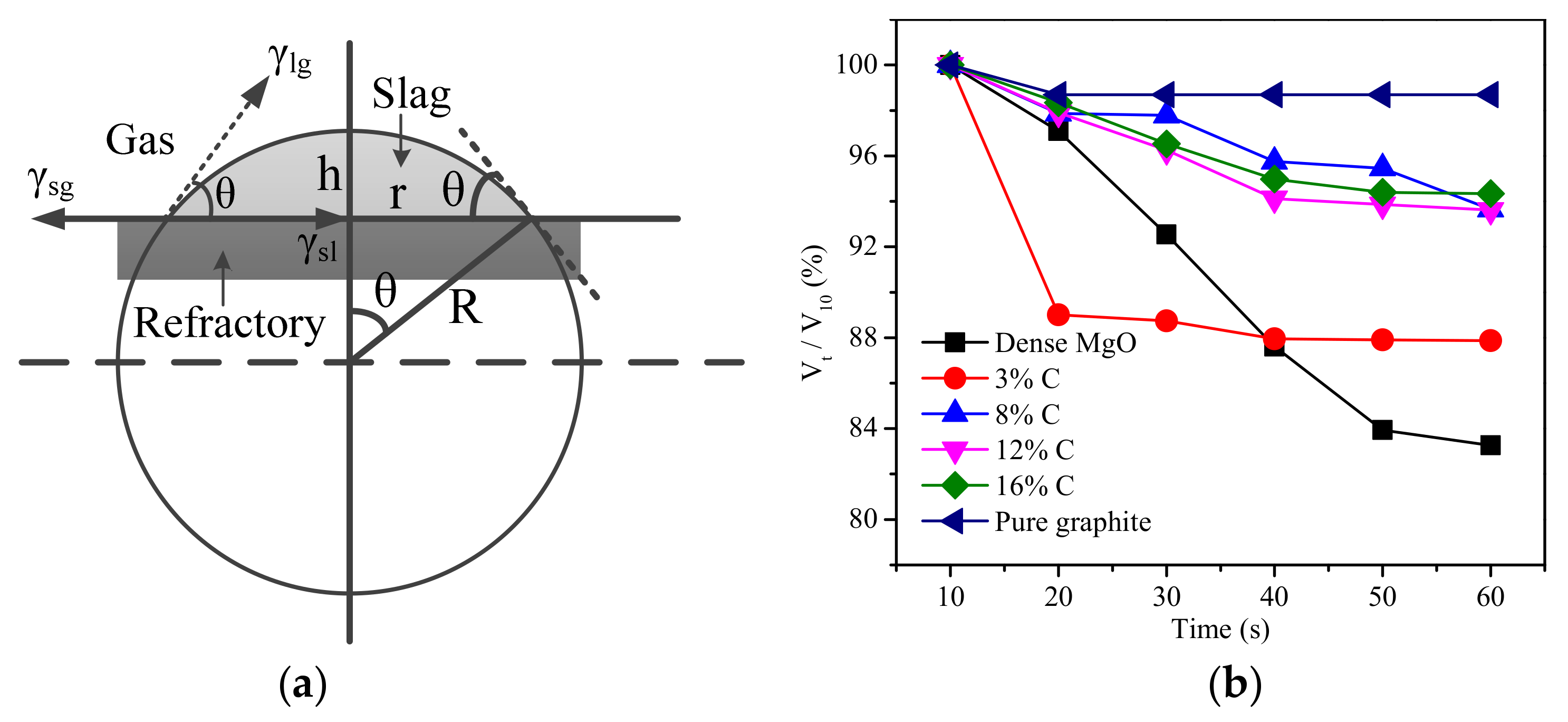

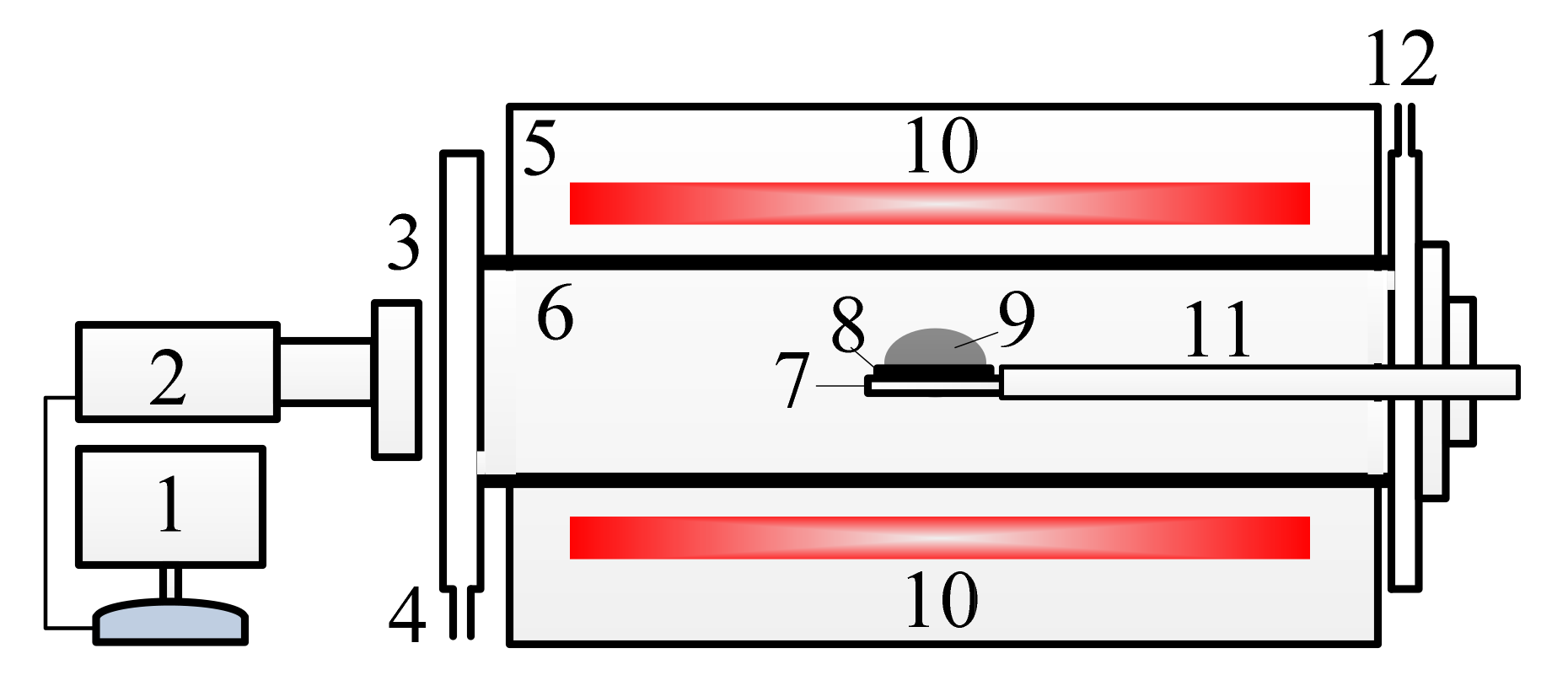

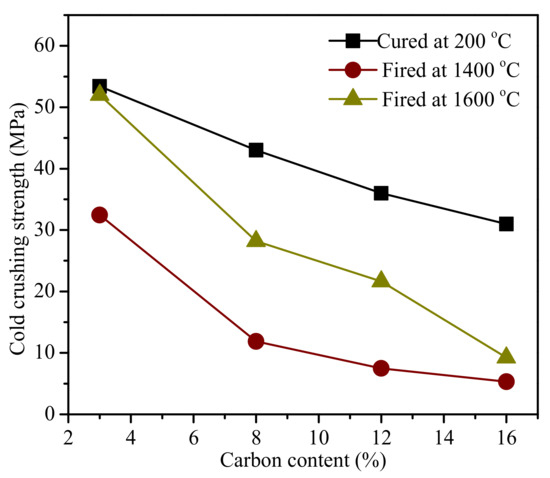

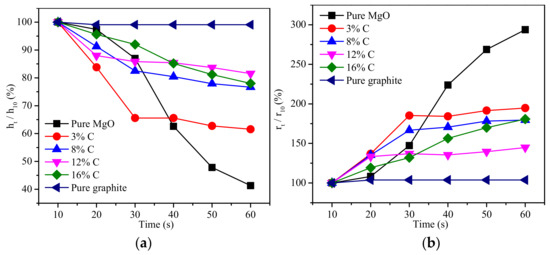

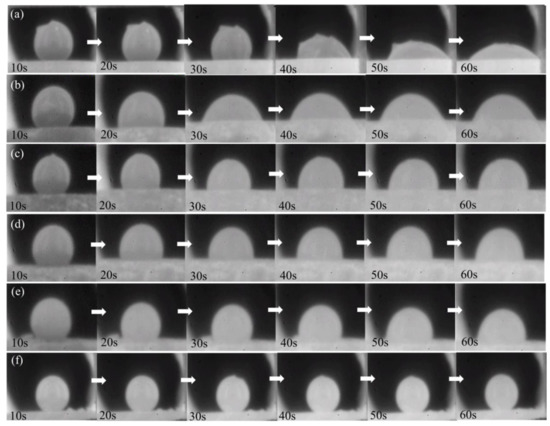

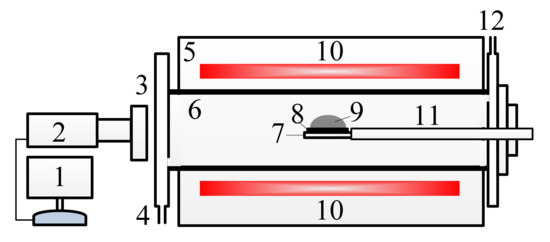

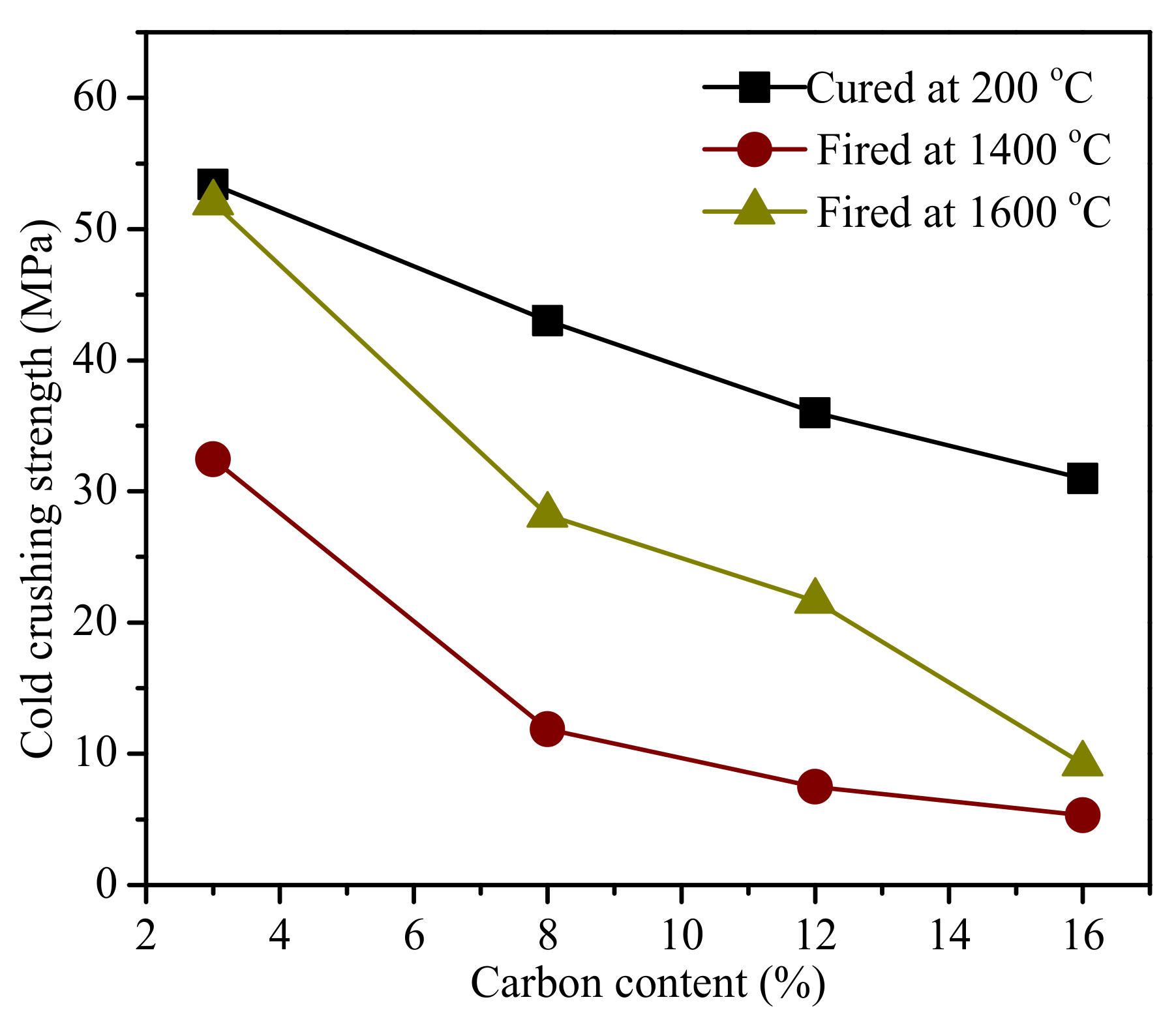

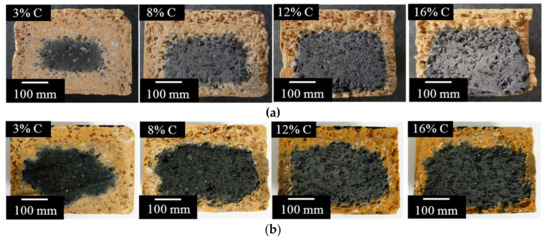

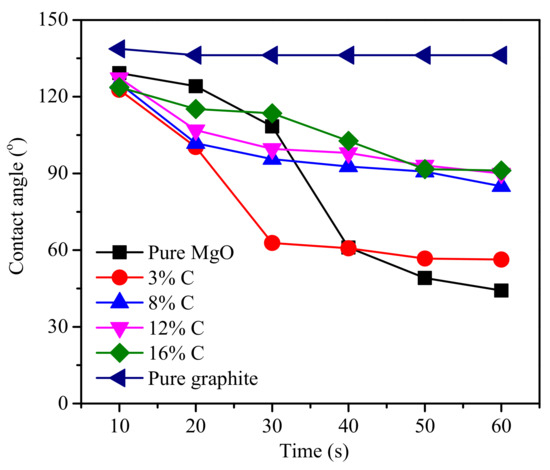

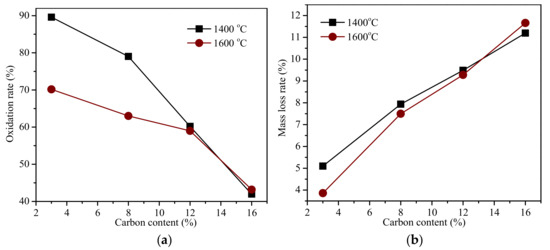

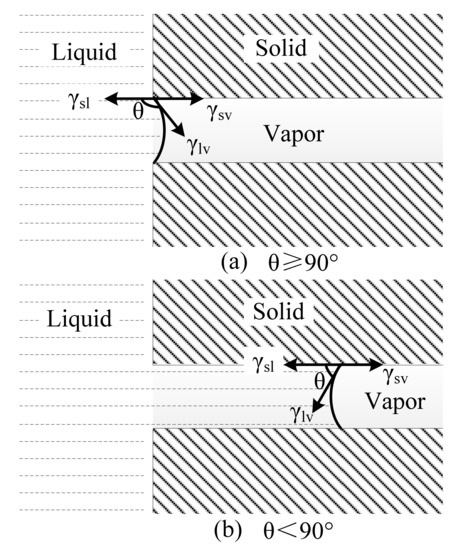

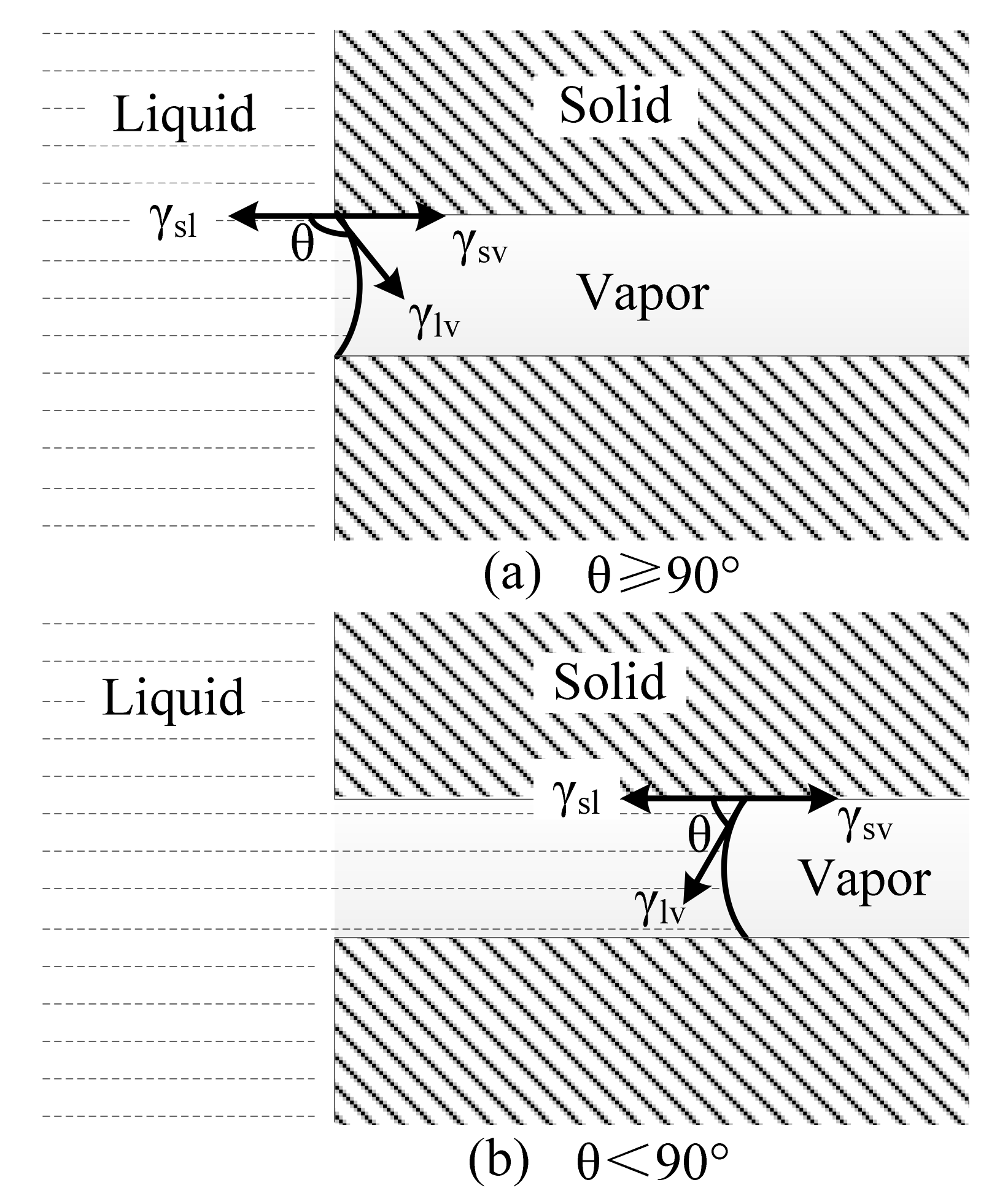

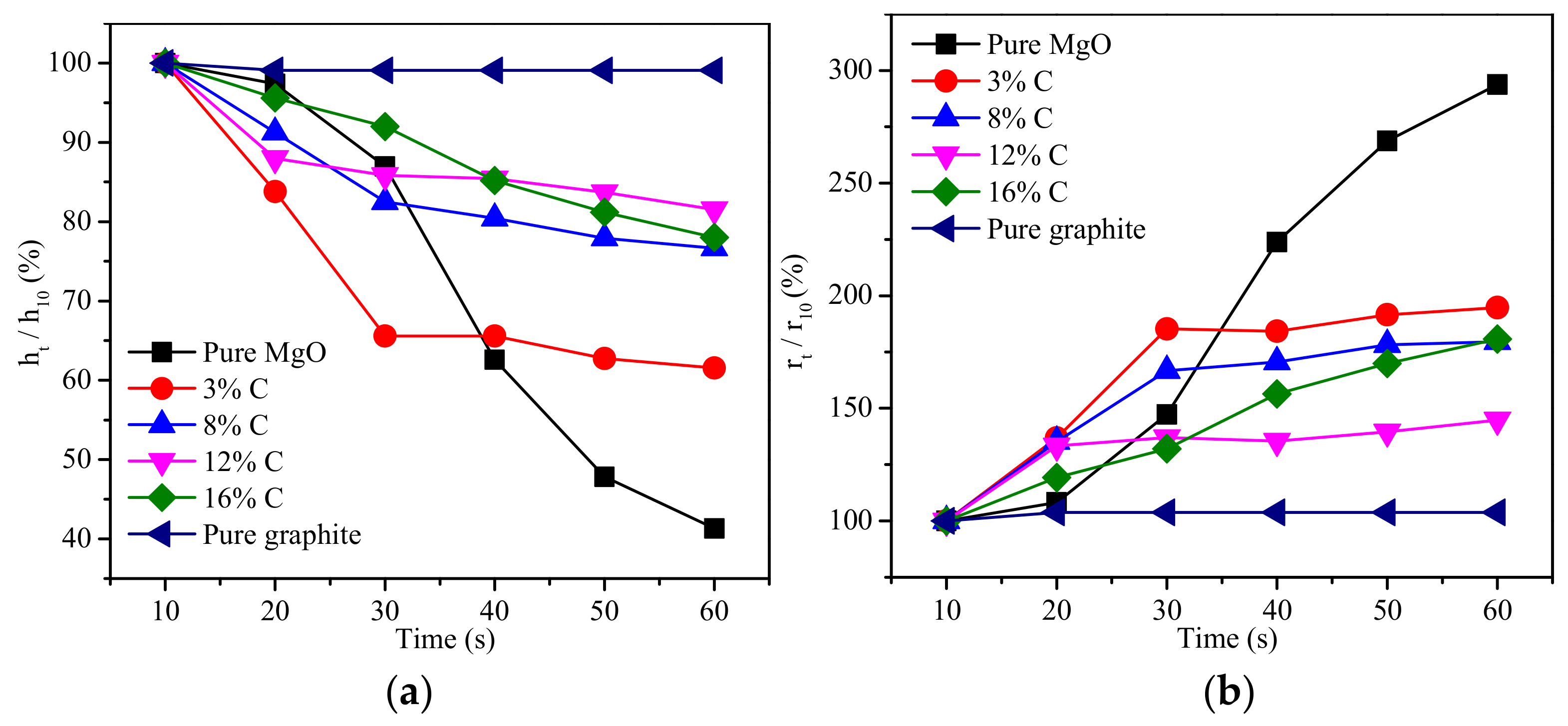

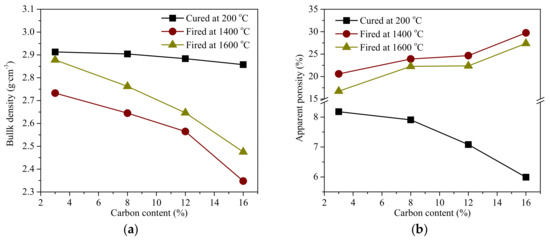

Various carbon contents in the MgO-C refractory were studied with respect to the oxidation resistance and the wetting behavior with slag. The bulk density, apparent porosity, cold crushing strength, oxidation rate, and mass loss rate of the fired MgO-C refractories with various carbon contents were measured and compared. The wetting and penetration behavior of the cured MgO-C refractory with the molten slag were observed in-situ. The contact angle and the shape parameters of molten slag, including the apparent radius, height, and volume were compared. The results showed that the regenerated MgO effectively restrained the carbon oxidation in the MgO-C refractory, which was more evident at the low carbon content refractory. The contact angle between the MgO-C refractory and the molten slag increased as the carbon content increased. The increased contact angle decreased the penetration of the molten slag. View Full-Text
Keywords: oxidation resistance; wetting behavior; MgO-C refractories; carbon content oxidation resistance; wetting behavior; MgO-C refractories; carbon content
Show Figures

Figure 1

MDPI and ACS Style

Liu, Z.; Yu, J.; Yang, X.; Jin, E.; Yuan, L. Oxidation Resistance and Wetting Behavior of MgO-C Refractories: Effect of Carbon Content. Materials 2018, 11, 883.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
