Materials 2018, 11(2), 268; https://doi.org/10.3390/ma11020268

Fully Solution-Processable Fabrication of Multi-Layered Circuits on a Flexible Substrate Using Laser Processing

1
Department of Nano Mechanics, Nanomechanical Systems Research Division, Korea Institute of Machinery and Materials (KIMM), 156 Gajeongbuk-Ro, Yuseong-Gu, Daejeon 34103, Korea
2
Department of Nano-Mechatronics, Korea University of Science and Technology (UST), 217 Gajeong-Ro, Yuseong-Gu, Daejeon 34113, Korea
3
Department of Laser & Electron Beam Application, Korea Institute of Machinery and Material (KIMM), 156 Gajeongbuk-Ro, Yuseong-Gu, Daejeon 34103, Korea
*
Author to whom correspondence should be addressed.
Received: 8 January 2018 / Revised: 2 February 2018 / Accepted: 5 February 2018 / Published: 9 February 2018
(This article belongs to the Section Advanced Nanomaterials)
Full-Text   |   PDF [3010 KB, uploaded 9 February 2018]   |

Abstract

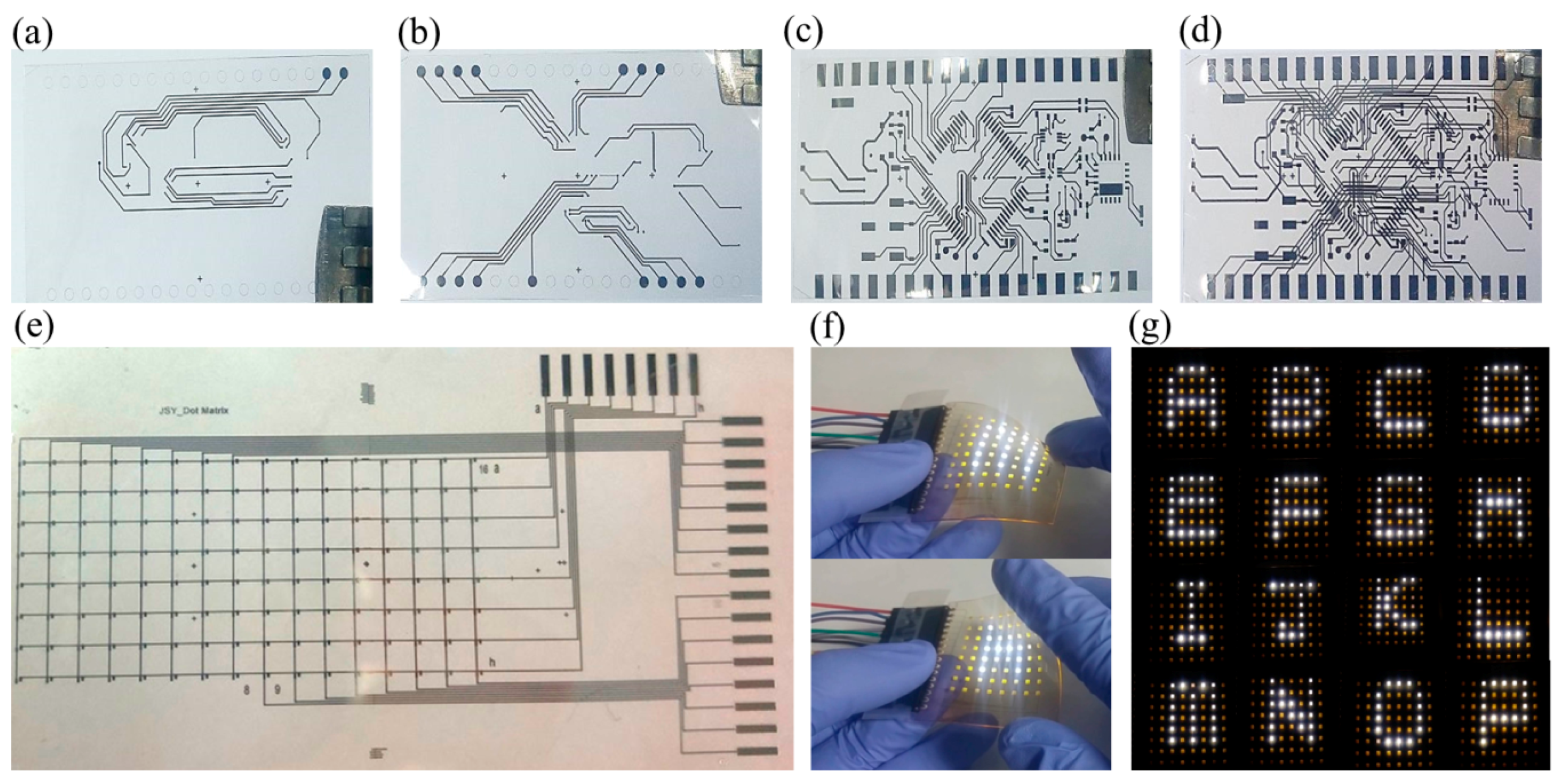

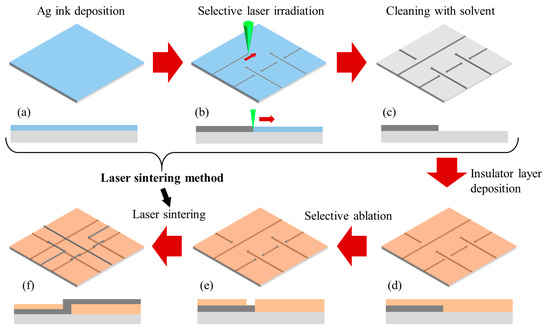

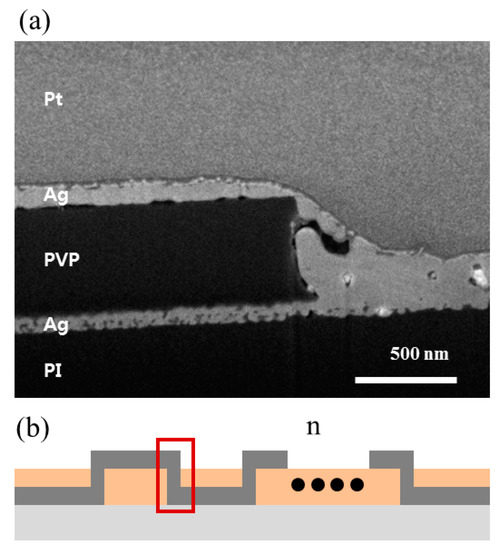

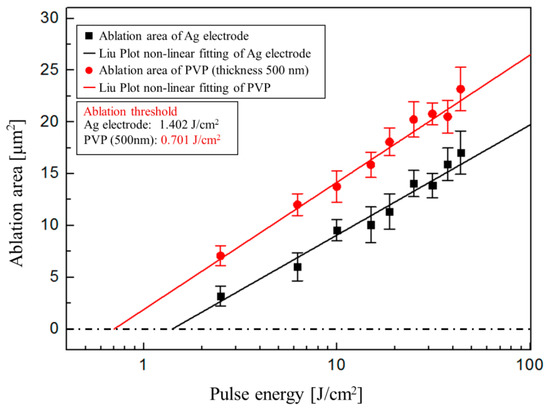

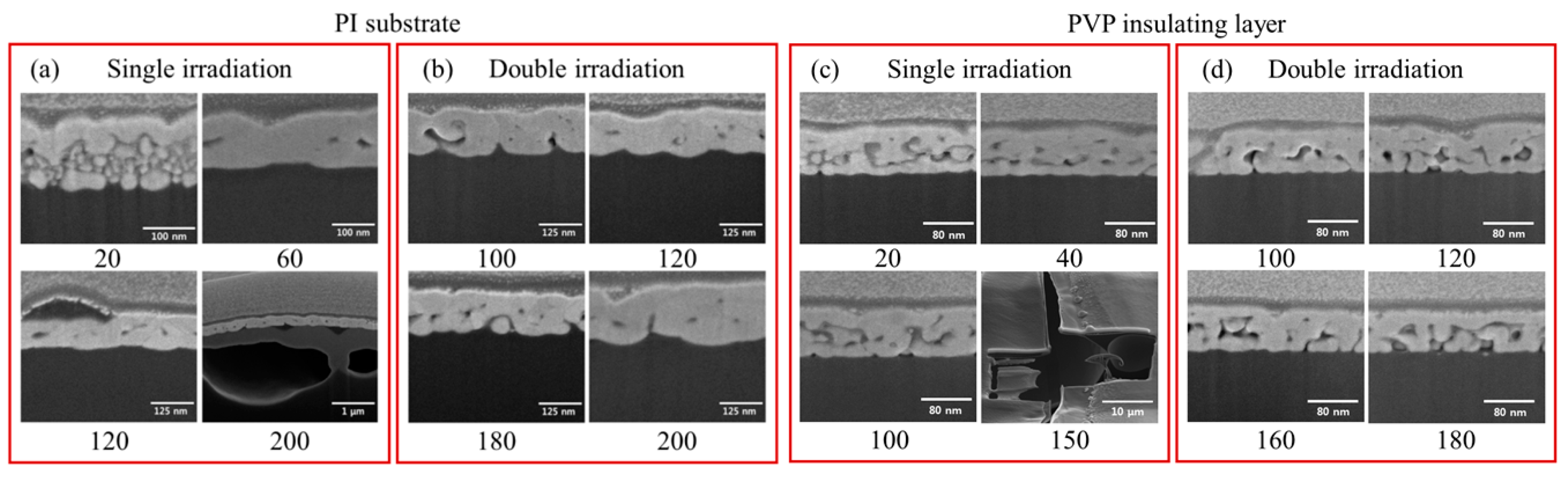

The development of printing technologies has enabled the realization of electric circuit fabrication on a flexible substrate. However, the current technique remains restricted to single-layer patterning. In this paper, we demonstrate a fully solution-processable patterning approach for multi-layer circuits using a combined method of laser sintering and ablation. Selective laser sintering of silver (Ag) nanoparticle-based ink is applied to make conductive patterns on a heat-sensitive substrate and insulating layer. The laser beam path and irradiation fluence are controlled to create circuit patterns for flexible electronics. Microvia drilling using femtosecond laser through the polyvinylphenol-film insulating layer by laser ablation, as well as sequential coating of Ag ink and laser sintering, achieves an interlayer interconnection between multi-layer circuits. The dimension of microvia is determined by a sophisticated adjustment of the laser focal position and intensity. Based on these methods, a flexible electronic circuit with chip-size-package light-emitting diodes was successfully fabricated and demonstrated to have functional operations. View Full-Text
Keywords: interconnection; multi-layer patterning; laser sintering; femtosecond laser ablation interconnection; multi-layer patterning; laser sintering; femtosecond laser ablation
Figures

Figure 1
