Next Article in Journal
Rare Earth Element Yttrium Modified Mg-Al-Zn Alloy: Microstructure, Degradation Properties and Hardness
Previous Article in Journal
Understanding the Stress Relaxation Behavior of Polymers Reinforced with Short Elastic Fibers
Open AccessArticle

Modelling Behaviour of a Carbon Epoxy Composite Exposed to Fire: Part II—Comparison with Experimental Results

1
UMR 8207, Unité Matériaux et Transformations (UMET), University of Lille, Lille F 59 000, France
2
Thermal Tech Centre, AIRBUS Operation S.A.S, 316 Route de Bayonne, Toulouse 31060, France
*
Author to whom correspondence should be addressed.
Academic Editor: George Papanicolaou
Materials 2017, 10(5), 470; https://doi.org/10.3390/ma10050470
Received: 7 March 2017 / Revised: 11 April 2017 / Accepted: 25 April 2017 / Published: 28 April 2017

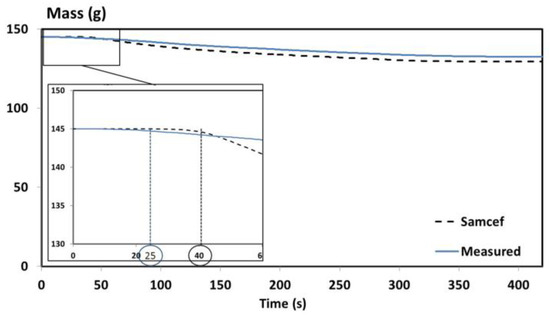

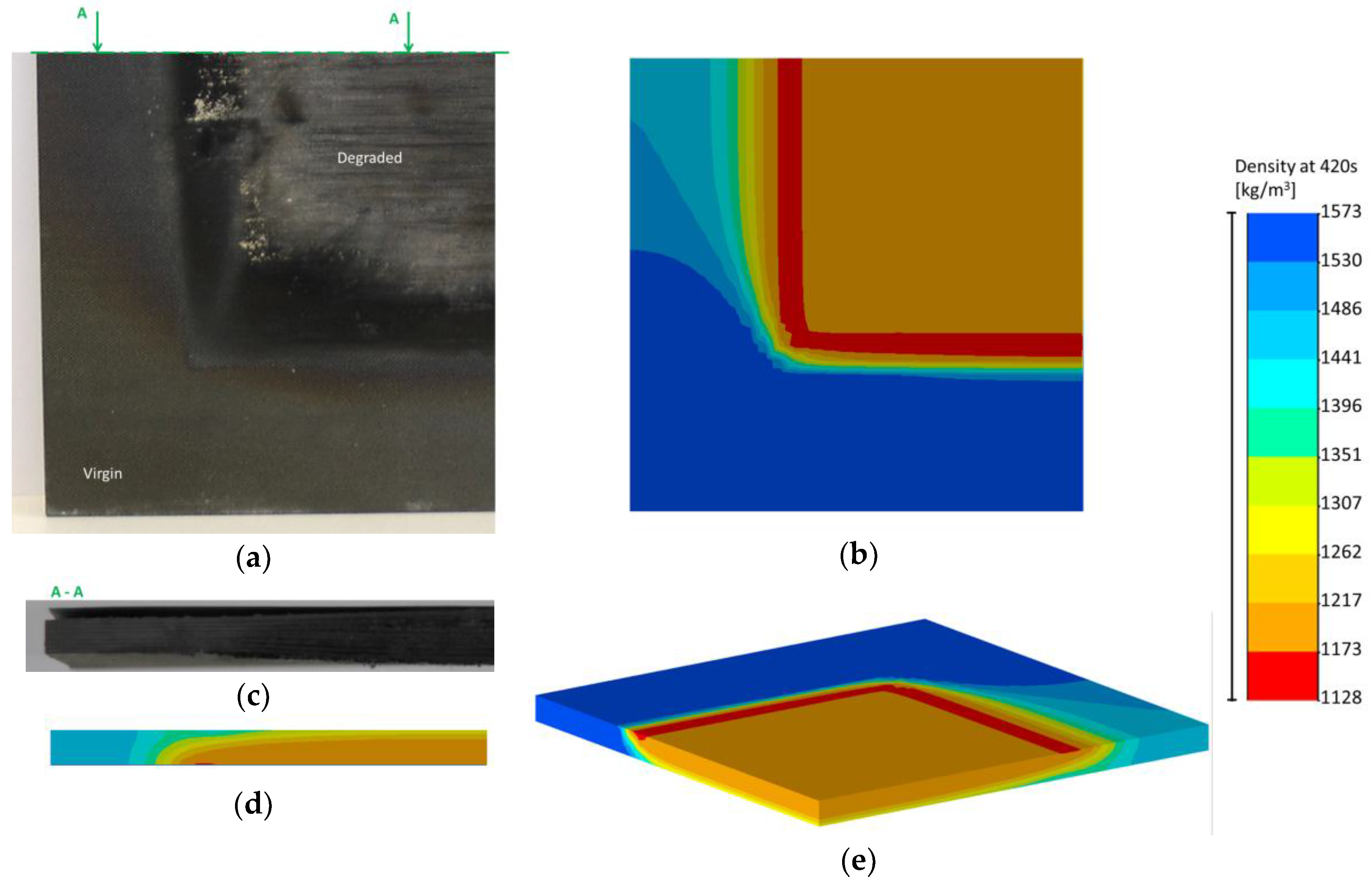

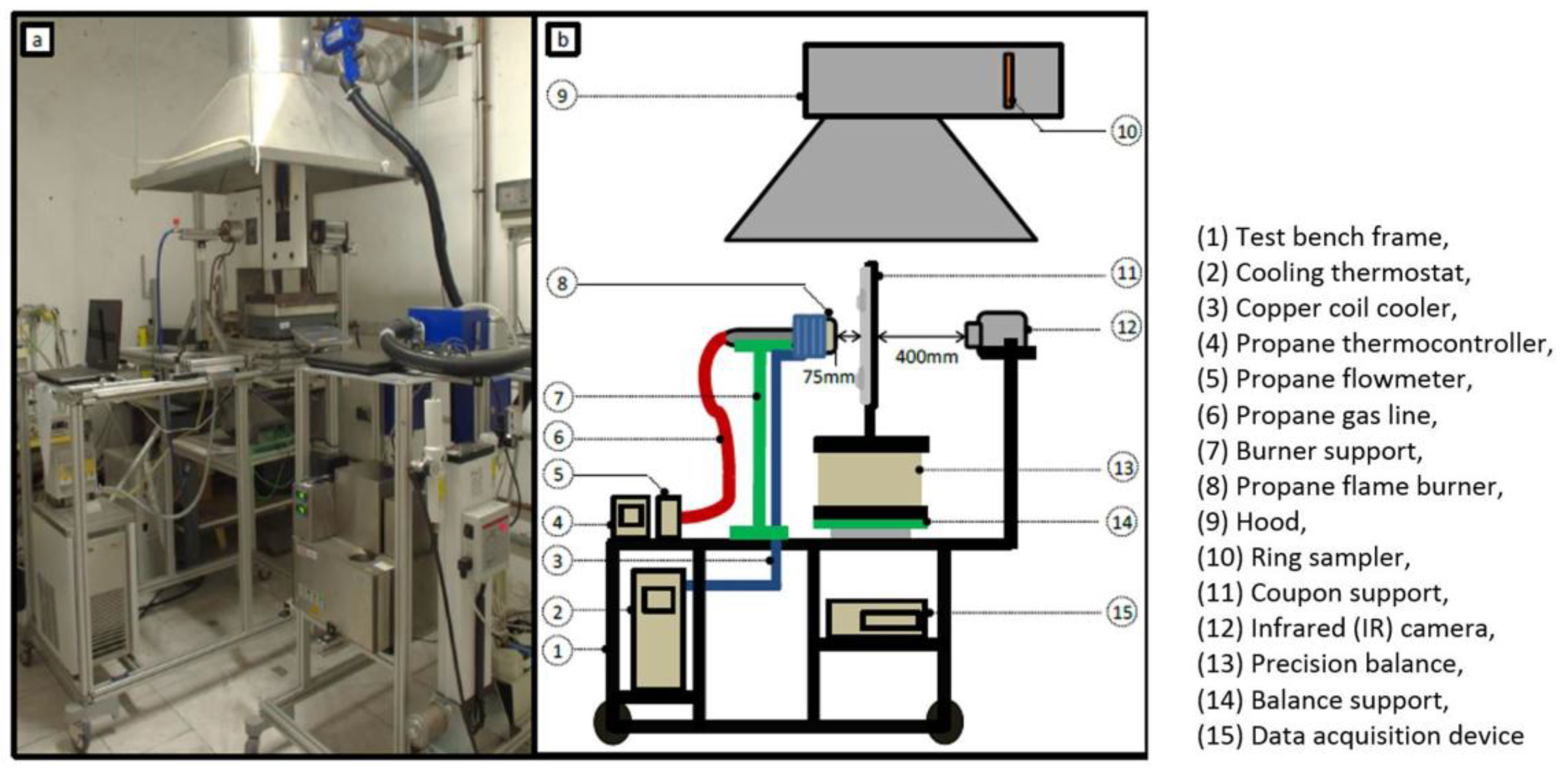

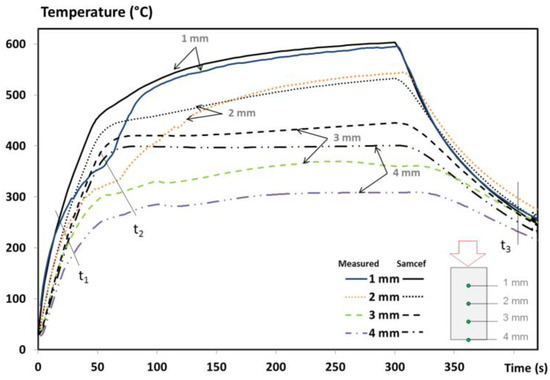

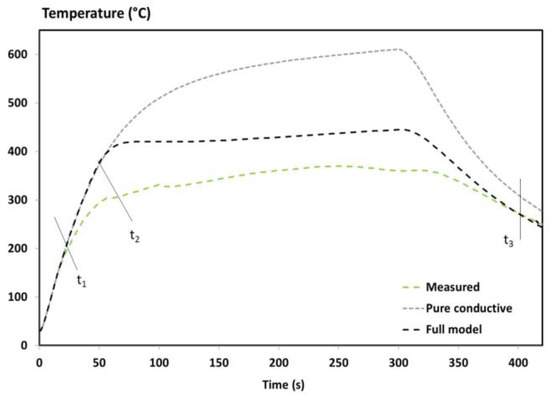

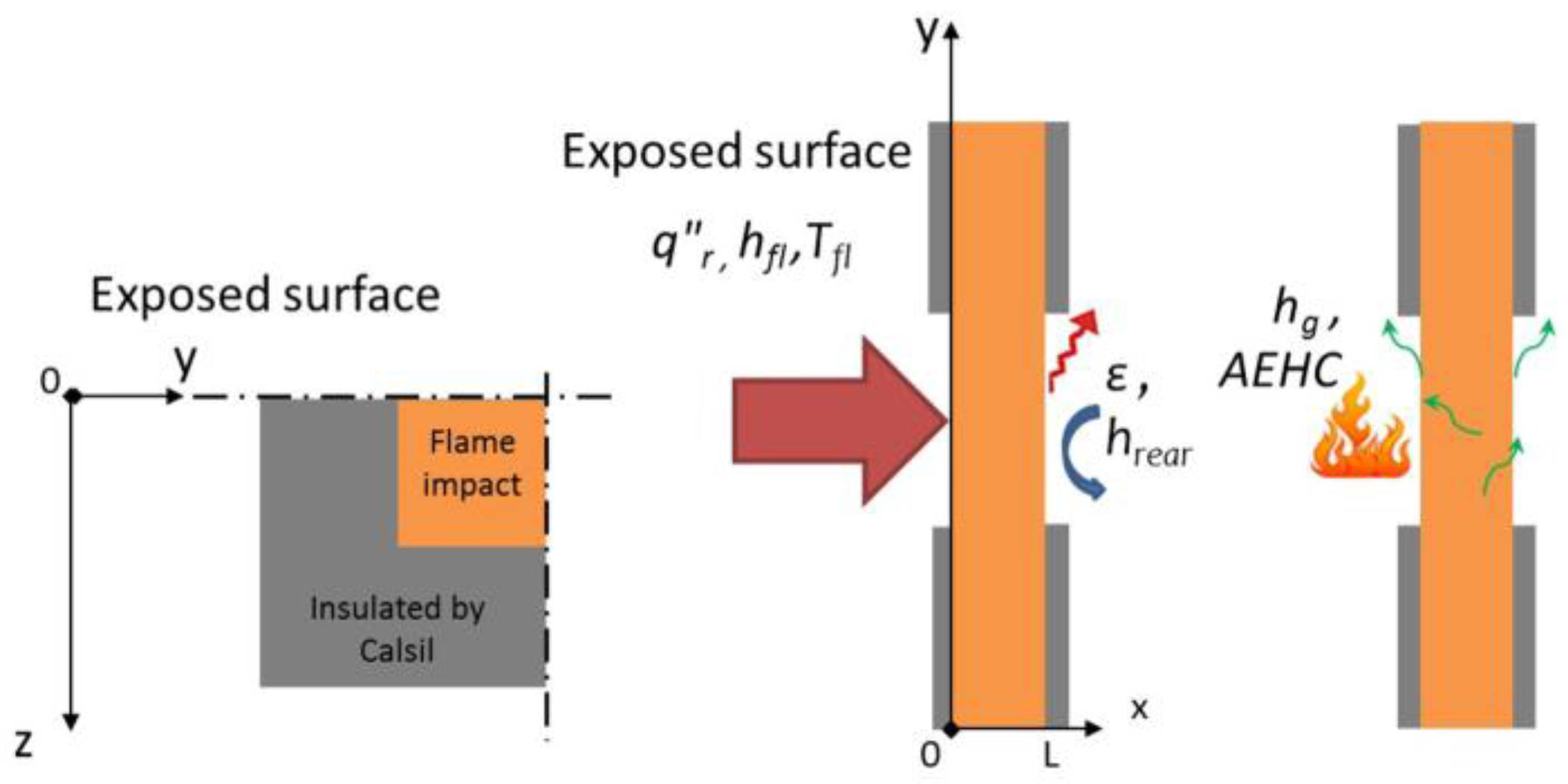

Based on a phenomenological methodology, a three dimensional (3D) thermochemical model was developed to predict the temperature profile, the mass loss and the decomposition front of a carbon-reinforced epoxy composite laminate (T700/M21 composite) exposed to fire conditions. This 3D model takes into account the energy accumulation by the solid material, the anisotropic heat conduction, the thermal decomposition of the material, the gas mass flow into the composite, and the internal pressure. Thermophysical properties defined as temperature dependant properties were characterised using existing as well as innovative methodologies in order to use them as inputs into our physical model. The 3D thermochemical model accurately predicts the measured mass loss and observed decomposition front when the carbon fibre/epoxy composite is directly impacted by a propane flame. In short, the model shows its capability to predict the fire behaviour of a carbon fibre reinforced composite for fire safety engineering. View Full-Text
Keywords: finite element analysis (FEA); fire testing; carbon fibre reinforced epoxy laminates; anisotropy; delamination; surface interactions finite element analysis (FEA); fire testing; carbon fibre reinforced epoxy laminates; anisotropy; delamination; surface interactions
Show Figures

Figure 1

MDPI and ACS Style

Tranchard, P.; Samyn, F.; Duquesne, S.; Estèbe, B.; Bourbigot, S. Modelling Behaviour of a Carbon Epoxy Composite Exposed to Fire: Part II—Comparison with Experimental Results. Materials 2017, 10, 470.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
