Next Article in Journal
In-Depth Analysis of the Structure and Properties of Two Varieties of Natural Luffa Sponge Fibers
Next Article in Special Issue
Stability of an Electrodeposited Nanocrystalline Ni-Based Alloy Coating in Oil and Gas Wells with the Coexistence of H2S and CO2
Previous Article in Journal
Modelling Behaviour of a Carbon Epoxy Composite Exposed to Fire: Part II—Comparison with Experimental Results
Previous Article in Special Issue
Effects of Tungsten Addition on the Microstructure and Corrosion Resistance of Fe-3.5B Alloy in Liquid Zinc
Article Menu
Issue 5 (May) cover image

Export Article

Open AccessArticle
Materials 2017, 10(5), 477;

Rare Earth Element Yttrium Modified Mg-Al-Zn Alloy: Microstructure, Degradation Properties and Hardness

State Key Laboratory of High Performance Complex Manufacturing, Central South University, Changsha 410083, China
Health Management Center, Xiangya Hospital, Central South University, Changsha 410008, China
School of Material Science and Engineering, Central South University, Changsha 410083, China
Human Reproduction Center, Shenzhen Hospital of Hongkong University, Shenzhen 518053, China
Key Laboratory of Organ Injury, Aging and Regenerative Medicine of Hunan Province, Changsha 410008, China
These authors contributed equally to this work.
Author to whom correspondence should be addressed.
Academic Editor: Javier Narciso
Received: 15 March 2017 / Revised: 12 April 2017 / Accepted: 26 April 2017 / Published: 28 April 2017
Full-Text   |   PDF [4238 KB, uploaded 28 April 2017]   |

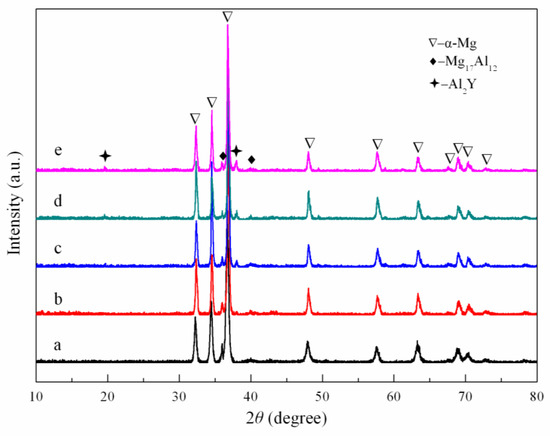

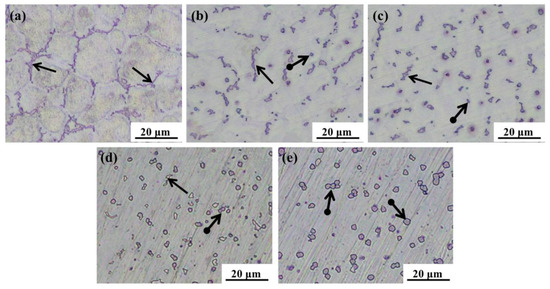

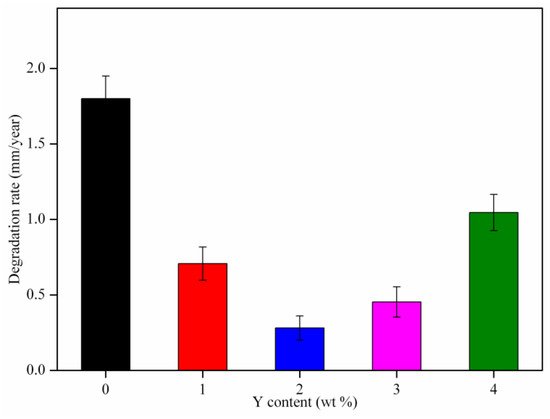

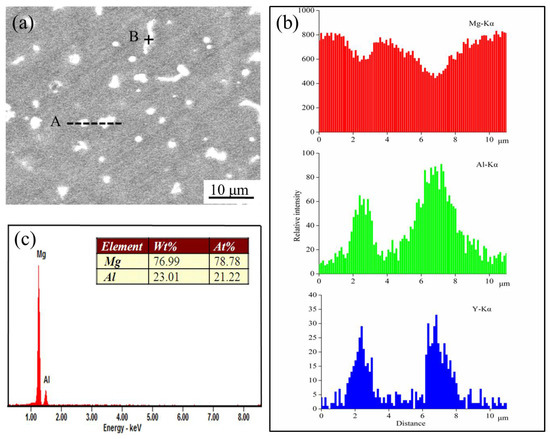

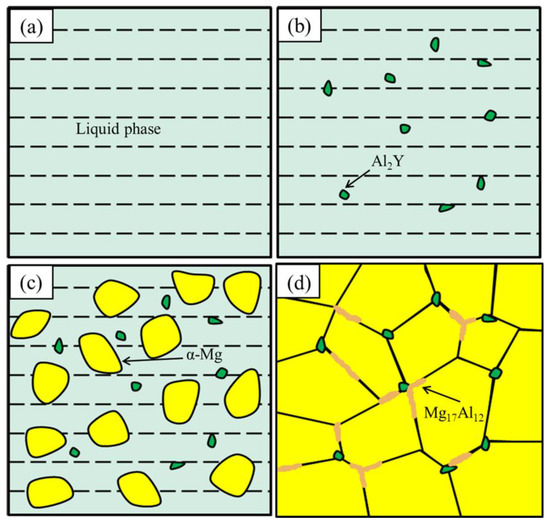

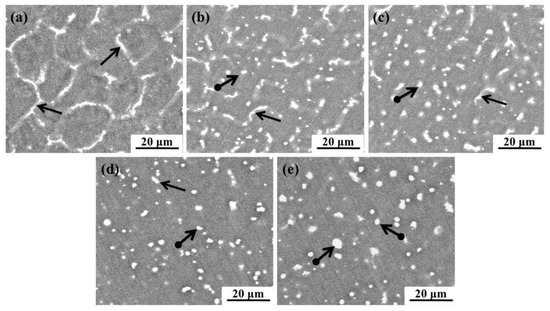

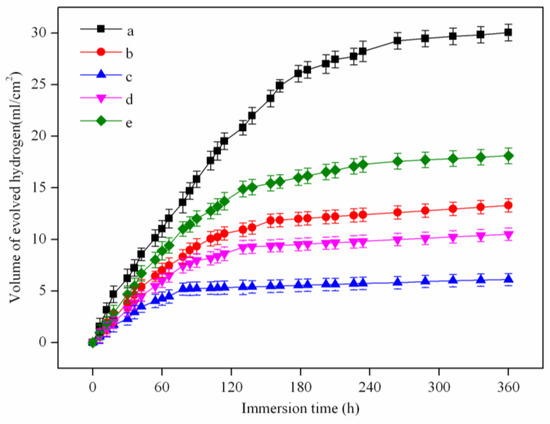

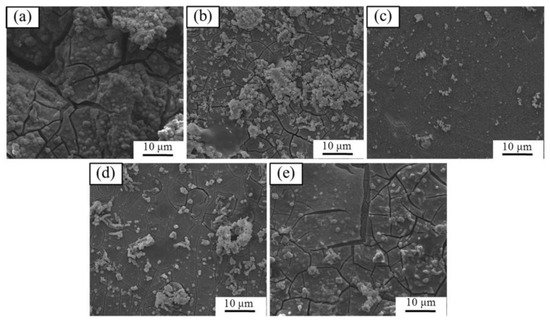

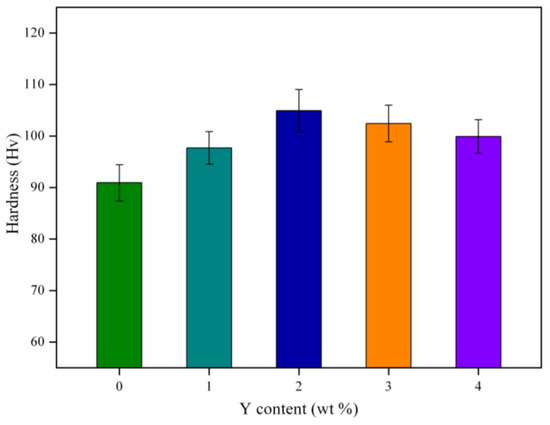

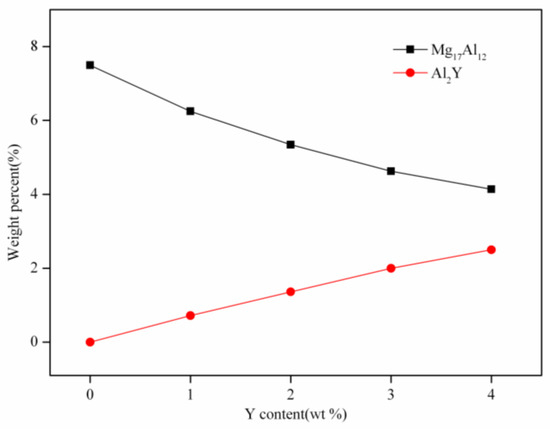

The overly-fast degradation rates of magnesium-based alloys in the biological environment have limited their applications as biodegradable bone implants. In this study, rare earth element yttrium (Y) was introduced into AZ61 magnesium alloy (Mg-6Al-1Zn wt %) to control the degradation rate by laser rapid melting. The results showed that the degradation rate of AZ61 magnesium alloy was slowed down by adding Y. This was attributed to the reduction of Mg17Al12 phase and the formation of Al2Y phase that has a more active potential, which decreased galvanic corrosion resulting from its coupling with the anodic matrix phase. Meanwhile, the hardness increased as Y contents increased due to the uniform distribution of the Al2Y and Mg17Al12 phases. However, as the Y contents increased further, the formation of excessive Al2Y phase resulted in the increasing of degradation rate and the decreasing of hardness due to its agglomeration. View Full-Text
Keywords: AZ61 magnesium alloy; microstructure; degradation properties; hardness AZ61 magnesium alloy; microstructure; degradation properties; hardness

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Liu, L.; Yuan, F.; Zhao, M.; Gao, C.; Feng, P.; Yang, Y.; Yang, S.; Shuai, C. Rare Earth Element Yttrium Modified Mg-Al-Zn Alloy: Microstructure, Degradation Properties and Hardness. Materials 2017, 10, 477.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics



[Return to top]
Materials EISSN 1996-1944 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
