Materials 2017, 10(4), 400;

Preparation and Chemical/Microstructural Characterization of Azacrown Ether-Crosslinked Chitosan Films

Freiburg Materials Research Center, University of Freiburg, Stefan-Meier-Straße 21, 79104 Freiburg, Germany
Forest Biomaterials, University of Freiburg, Werthmanstr. 6, 79085 Freiburg, Germany
Laboratory of Sensors, Institute of Microsystems Engineering IMTEK, University of Freiburg, Georges-Köhler-Allee 103, 79110 Freiburg, Germany
Author to whom correspondence should be addressed.
Academic Editor: Rafael Luque
Received: 15 March 2017 / Revised: 30 March 2017 / Accepted: 6 April 2017 / Published: 11 April 2017
(This article belongs to the Section Porous Materials)
Full-Text   |   PDF [5585 KB, uploaded 12 April 2017]   |

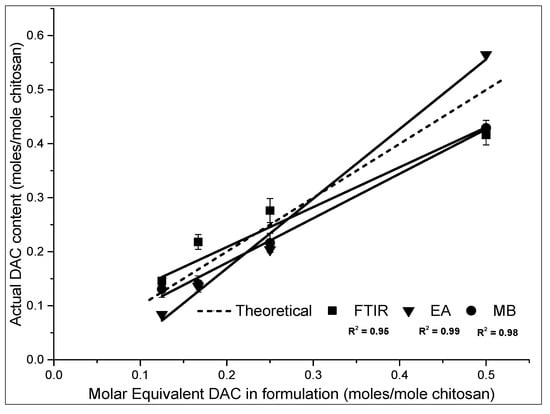

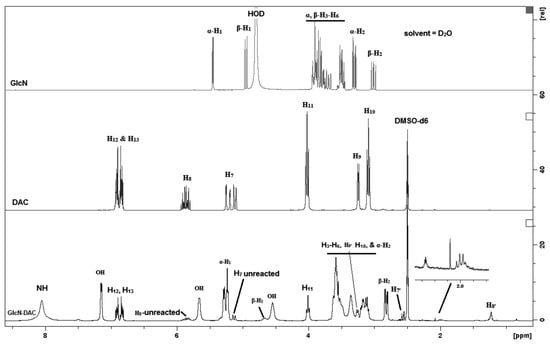

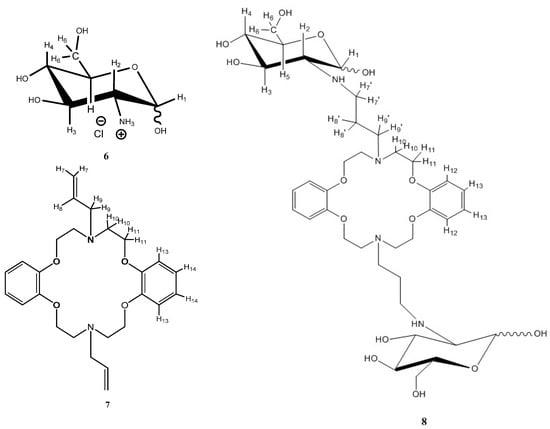

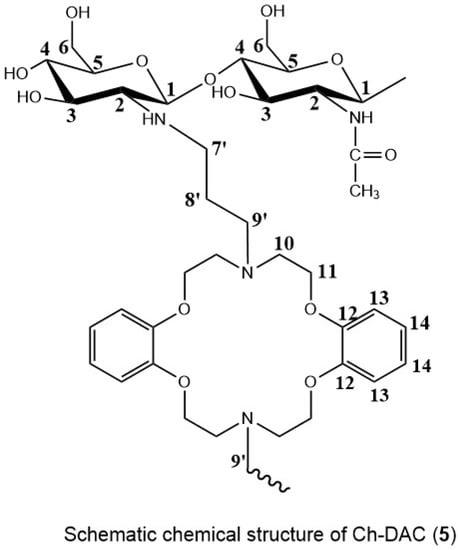

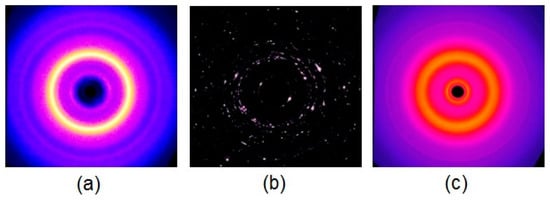

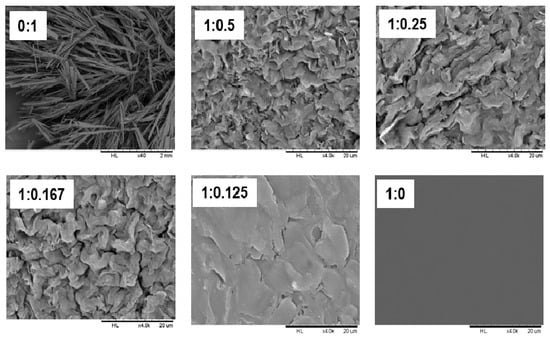

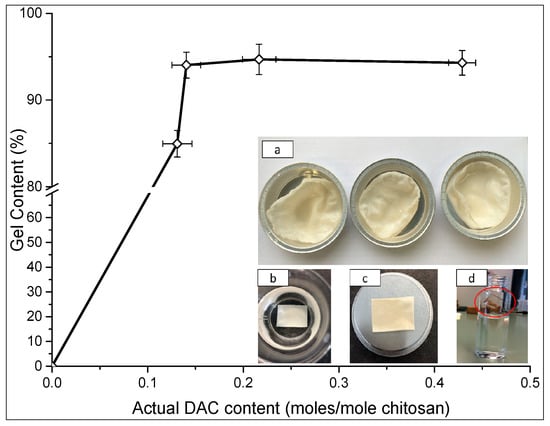

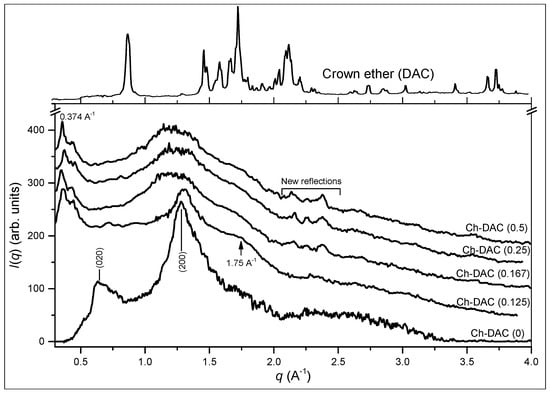

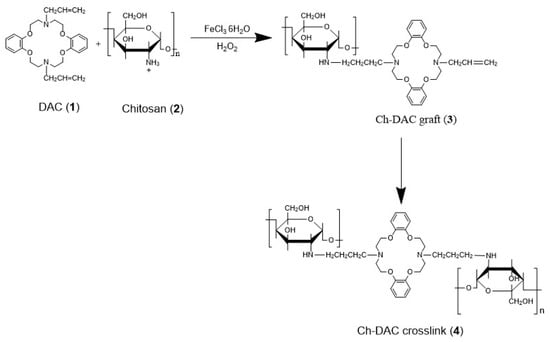

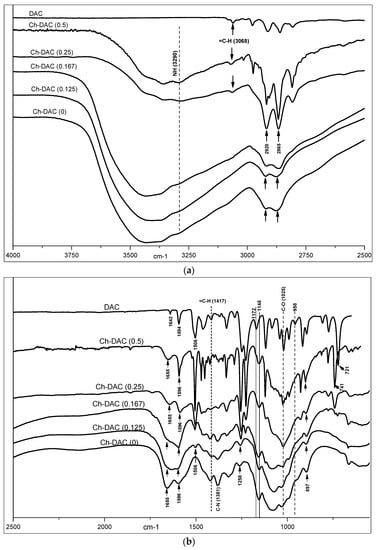

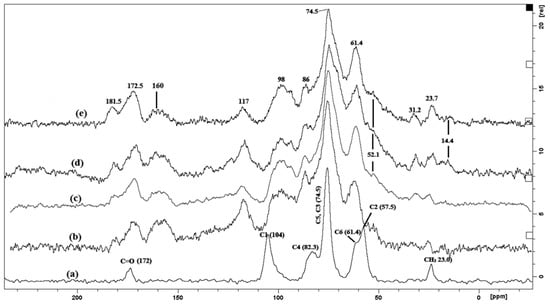

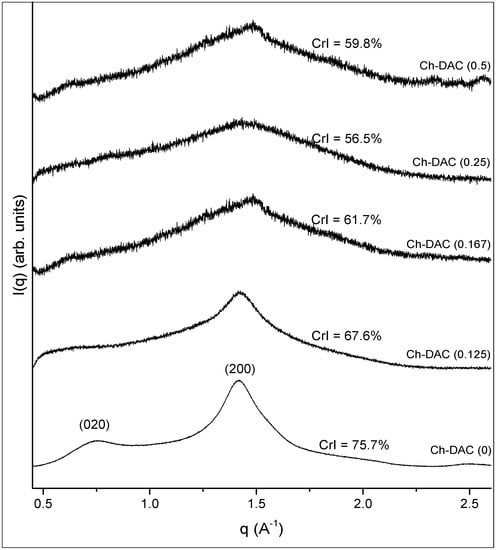

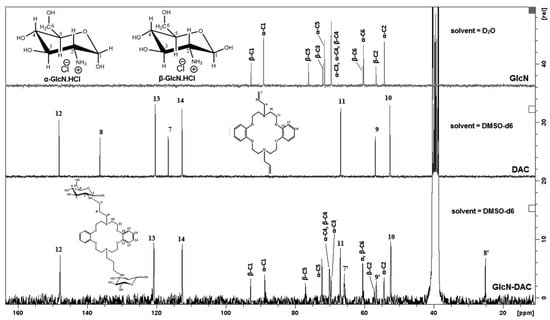

Chemically stable porous azacrown ether-crosslinked chitosan films were prepared by reacting varying molar amounts of N,N-diallyl-7,16-diaza-1,4,10,13-tetraoxa-dibenzo-18-crown-6 (molar equivalents ranging from 0, 0.125, 0.167, 0.25 and 0.5) with chitosan. Their chemical and structural properties were characterized by solid state-nuclear magnetic resonance (NMR), elemental, Fourier transform infrared (FTIR), microscopy, and X-ray analyses, as well as gel content. NMR and FTIR analyses of the reaction products suggested that new –CH2– crosslink bridges were produced between the amine groups of chitosan (Ch) and the allyl groups of the azacrown (DAC). The crosslinking chemistry between allyl and amine groups of the reactants was further evidenced with solution NMR studies on model compound of glucosamine with the azacrown. X-ray diffraction analysis of the Ch/azacrown films using wide angle X-ray scattering (WAXS), including synchrotron-WAXS, revealed that the crystalline arrangement of chitosan (Ch) was partially destroyed with increasing grafting of azacrown ether proportion on the Ch polymer chain. Solubility and gel content determination confirmed network formation with a gel content as high as 84–95 wt %. Microstructural analysis revealed microporous morphology with high surface area. The morphology and structure of the azacrown ether-crosslinked chitosan films could be tailored by stoichiometry of the reacting species. View Full-Text
Keywords: azacrown ether; chitosan crosslinking; chitosan films; synchrotron X-ray diffraction; adsorption azacrown ether; chitosan crosslinking; chitosan films; synchrotron X-ray diffraction; adsorption

Figure 1
