Materials 2017, 10(12), 1450; https://doi.org/10.3390/ma10121450

Article
A Wearable Textile 2D Touchpad Sensor Based on Screen-Printing Technology
1
Textile Research Institute (AITEX), 03801 Alicante, Spain
2
Instituto Interuniversitario de Investigación de Reconocimiento Molecular y Desarrollo Tecnológico (IDM), Universitat Politècnica de València, 46022 Valencia, Spain
*
Author to whom correspondence should be addressed.
Received: 19 October 2017 / Accepted: 15 December 2017 / Published: 20 December 2017

Abstract

:
Among many of the designs used in the detection of 2D gestures for portable technology, the touchpad is one of the most complex and with more functions to implement. Its development has undergone a great push due to its use in displays, but it is not widely used with other technologies. Its application on textiles could allow a wide range of applications in the field of medicine, sports, etc. Obtaining a flexible, robust touchpad with good response and low cost is one of the objectives of this work. A textile touchpad based on a diamond pattern design using screen printing technology has been developed. This technology is widely used in the textile industry and therefore does not require heavy investments. The developed prototypes were analyzed using a particular controller for projected capacitive technologies (pro-cap), which is the most used in gesture detection. Two different designs were used to obtain the best configuration, obtaining a good result in both cases.
Keywords:
wearable sensing; touchpad; textile; screen-printing technology

1. Introduction

The flexibility and portability that wearables devices can bring have increased their development and their use. The interface devices, among all wearable devices, can be considered as indispensable tools for the user to interact with other devices both external and wearable [1]. Different strategies have been devised to integrate electronics as wearables such as smartwatches [2], rings [3], bracelets [4] as well as garments [5] identified as smart textiles or smart garments [6]. Each one of them has its advantages and limitations, being perhaps a complex garment, but, on the contrary, it is supposed to be more comfortable due to its comfort, flexibility, fashion, ergonomics and possibilities of integration in a transparent way [7,8].
An important factor to take into account in the use of wearable devices is the communication between the person and the electronic control system. This is carried out through the interfaces, such as keyboards, buttons and touchpads. The typical characteristics of these interfaces are the necessity of a stretchable or flexible setup to follow the action of human body [9] and a significant sensor area to detect the fingers [10].
Regarding touchpads, different technologies have been developed during the last years as solutions for “touch panel” and “touchscreen” [11]. From all of them, analog resistive and capacitive touch technologies dominate the touch landscape today [12]. Others have used optical sensing [13], force sensing [14], or even inductive sensing [15]. In combination uses, flexible and stretch sensing approaches have also been popular using contact resistances between threads [16,17], with piezoelectric [18] and capacitive designs [19,20].
Several designs and techniques have been used for touchpad application in textiles; in general, they can be classified into two main techniques: weaving the pattern by using fibers [21] or drawing the pattern on the fabric by using a printing techniques [22].
With regard to fibers, and depending on the sensor technology, different approaches of structures multilayer are developed. In the last years, Gu [20] reported a capacitor fiber highly flexible with a dielectric multilayer structure and conductive polymer composite films, manufactured by drawing techniques. Gorgutsa [23] built a fully woven 2D touchpad sensor and a 1D slide sensor manufactured with soft conductive-polymer-based capacitor. A flexible textile keyboard, using carbon nanotube (CNT) filled polypropylene (PP) composite fibers, is introduced [24] using conductive buttons made with threads combined with a metallic thread layer using a spacer material between both layers. The use of a textile polymer based conducting yarn and its characteristics are discussed in [21], giving details of the development of a touch control woven fabric keypad. A 7-bit dynamic range of pressure sensing at each taxel of piezoresistive multitouch arrays is achieved in [25] for musical applications using multitouch arrays sensing sandwiched structures with non-conductive pieces of fabric combined with parallel lines of conductive thread sewn into them. Hamdan [26] presented Grabrics, a two-dimensional textile sensor that is manipulated by grabbing a fold and moving it between fingers by using sewing techniques.
Regarding transferring a pattern on the textile, Takamatsu [1] presented a PEDOT:PSS based stretchable keyboard which is based on capacitance sensors; the electrodes are patterned on a knitted textile by using spin-coat technique. Dong-Ki Kim [27] reported a touchpad based on a contact-resistance-type force sensor manufactured by using screen-printing techniques.
In this article we will demonstrate a novel touchpad design fabricated over textile layer using the screen printing technique [28]. The well-known screen-printing technique is widely used in the graphic arts industry, ceramics, etcetera, and, in recent years, it has been introduced into the printed electronics industry. Its direct application in manufacturing allows reducing costs, while increasing profitability and reproducibility. Directly printing the touchpad on textile with this industrial technique would allow its easy production in series and its application in various areas.

2. Design and Working Principle

The working principle used is based on projected capacitive (pro-cap) technologies [29], which are commonly used for display systems but can also be used in other applications, as presented in this work. Pro-cap technologies detect touch by measuring the capacitance at each addressable electrode; in other words, when a finger approaches an electrode, the electromagnetic field is disturbed and alters the capacitance. The X, Y location, where the touch has occurred, can be located by measuring the variation of the capacitance with an electronic equipment.
There are two main types of pro-cap sensing methods, namely self-capacitance and mutual capacitance, each having its own advantages and disadvantages.
There are several pro-cap controllers which offer both self-capacitance and mutual-capacitance types. MTCH6102 from Microchip has been used in this work. This device is a turnkey projected capacitive touch controller that simplifies adding gestures to touch interface designs with industry-leading low-power performance. It utilizes up to 15 channels to support taps, swipes, and scrolling on XY touch pads and touch screens [30].
MTCH6102 has an embedded Capacitive Voltage Divider (CVD) acquisition engine which requires only an Analog-to-Digital Converter (ADC) to preform capacitive touch sensing. Capacitive Voltage Divider is a charge/voltage-based technique to measure relative capacitance on a pin using only the ADC module. The advantages of this technique are low power supply dependence, low-frequency noise rejection, low temperature dependence and minimal hardware requirements. The theory of operation can be found in Appendix A.

2.1. Sensor Pattern

Sensor pattern is a very important aspect of capacitive sensor design because the capacitance of touch is dependent on the sensor pattern design. Features, such as X-Y layer-to-layer spacing, electrode geometry and pitch, on front panel thickness and shielding must be considered when looking for the best design pattern. Attributes such as accuracy, resolution and linearity of touch position are greatly dependent on the sensor pattern as well.
The sensor pattern of touchpad commonly consists of a set of electrodes in a row and columns to form a matrix. Based on this structure, several touchpad–sensor pattern designs can be found, which are usually referred to by names that are indicative of the shape or construction of the pattern, such as telephone poles, snowflakes, triangles, diamonds, and streets and alleys.
Among the well-known pattern designs, the diamond pattern [31,32,33] is one of the most commonly used. It consists of diamonds interconnected with a narrow neck sections (Figure 1a).
The structure consists of two layers, each having a host of conductive electrodes organized parallel to each other. An individual sensors node is formed by the region between the edges of the X and Y electrodes (Figure 1a).
The diamond shape elements are used to maximize the exposure of sensor electrodes to a touch. There are two main parameters related to diamond pattern, namely pitch and gap. The pitch is the distance between the electrodes (Figure 1a) and its dimension determines the range of finger sizes that can reliably be detected. Typical dimensions [33] of the pitch are a minimum of 4 mm and a maximum of 10 mm. The gap between the X and Y electrodes (Figure 1a) defines how far a signal is projected and the level of noise in the measured signal as well. A sensor with a larger gap can detect a user further away, but it will have more noise than a sensor with a smaller gap. A minimum of 0.1 mm and maximum of 0.5 mm have been reported [33].
The Y electrodes are arranged among rows on the top layer and the X electrodes are arranged along columns on the top layer or bottom layer (Figure 1b), forming a two-dimensional array of sensors. The layers isolated from each other.
A ground ring around the touchpad can be placed to reduce the electromagnetic interference (EMI) to the active sensor area.
The low power projected capacitive touch pad development kit (Microchip DM160219) based on MTCH6102 Microchip device is an example of diamond pattern capacitive sensor, but manufactured with Printed Circuit Board (PCB) technology. In this case, a matrix of nine X-electrodes and six Y-electrodes is used (Figure A3). Pitch (Row and Column) of 6.2 mm and Gap of 0.3 mm are the dimensions of this design. The capacitance measure between electrodes is 20 pF (1 kHz) (Agilent U1731A LCR Meter, Santa Clara, CA, USA).
The signal recorded on the RX0 line when there is no finger touching “released” (Figure A4a) shows a difference of 60 mV and, when there is finger touching “pressed” (Figure A4b), the difference is 70 mV.

2.2. Textile Touchpad Design

2.2.1. Screen-Printed Technology

Manufacturing technology used to implement this type of sensor was based on serigraphic technology of thick film. The screen-printing process consists of forcing pastes of different characteristics over a substrate through some screens using squeegees. Openings in the screen define the pattern that will be printed on the substrate by serigraphy. The final thickness of the pastes can be adjusted by varying the thickness of the screens.

2.2.2. Two Layers Design [TLD]

A sensor matrix formed by 9 × 6 electrodes has been designed. The sensor has been developed with two conductive layers for horizontal and vertical tracks and another layer of dielectric. The three patterns are shown in the Figure 2: Vertical or X layer (a); dielectric layer (b); Horizontal or Y layer (c); and the complete design (d).
The Pitch (Row and Column) of 8 mm and Gap of 0.4 mm are the main dimensions of pattern.

2.2.3. One Layers Design [OLD]

A sensor matrix also formed by 9 × 6 electrodes has been designed with only one layer of horizontal-vertical (X-Y) conductive tracks. Despite being a one layer design, two extra layers are needed because the horizontal or vertical tracks have to be connected to avoid short circuits between them. Therefore, an extra conductive layer is added to make the connection and another extra dielectric layer is added to provide via-holes. The three patterns are shown in Figure 3: conductive layer for connection tracks (a); dielectric layer with via-holes (b); X-Y layer (c); and the complete design (d).
The Pitch (Row and Column) of 8.3 mm, Gap of 0.5 mm and through-hole diameter of 1.6 mm are the main dimensions of pattern.

2.3. Design of Electronic System

The MTCH6102 low-power projected capacitive touch controller from Microchip was used to design the electronic system. As master controller a PIC16LF1454 was used. Finally, to make the system portable, a Bluetooth module was used (Figure A5).

3. Materials and Methods

Sensor Development

When screen-printing technology is used, it is necessary to manufacture frames with screen mesh for each layer of the design. Therefore, to build the sensor matrices, three screens were made in both designs.
The screen for the conductors was a 230 mesh polyester material (PET 1500 90/230-48 from Sefar, Hong Kong, China) and the screen for dielectric layer was a 175 mesh polyester material (PET 1500 68/175-64 PW from Sefar). Afterwards, to transfer the stencil to screen mesh, a UV film Dirasol 132 (Fujifilm, Tokyo, Japan) was used. The final screen thickness was 10 μm for the screen for conductors and 15 μm for the screen for the dielectric. The patterns were transferred to the screen by using a UV light source unit.
The materials used were, the textile Mediatex TT ACQ 120 μm (Technohard, São Paulo, Brazil) for the substrate, C2131014D3 Silver paste-58, 85% (Gwent Group, Pontypool, UK) as conductive paste and D2081009D6 Polymer dielectric (Gwent Group) as dielectric paste. Flexibility is one of the most important characteristic of these inks to use them with textiles.
Printing was carried out by using Ekra E2 XL screen- printer with a 75° shore squeegee hardness, 3.5 bar force, and 8 mm/s. After inks depositing, these were cured in an air oven at 130 °C for 10 min.
A high failure rate was found due to short-circuits between conductive layers. These short-circuits are due to pinholes in dielectric layer (Figure 4), which occur during the curing process.
To avoid this trouble, two solutions were found. The first solution was to increase the number of dielectric layers; however, this solution implies an increase in cost and processing time. Therefore, the ideal solution would be minimize the number of dielectric layers by using a different mesh screen size. For this reason, a study about the influence of dielectric layer mesh screen size was made. The mesh screen sizes selected were 123 inches (PET 1500 48/123-70 PW from Sefar), 137 inches (PET 1500 54/137-70 PW from Sefar), 175 inches (PET 1500 68/175-64 PW from Sefar), 230 inches (PET 1500 90/230-48 PW from Sefar) and 330 inches (PET 1500 130/330-34 PW from Sefar).
A single design pattern was designed (Figure 5) to study the influence of the mesh screen size for both cases, TLD and OLD. In both cases, three different single electrode sizes, which are designed called A, B and C; the conductive plates are square and their areas are 18, 24.5 and 32 mm2, respectively. Type C corresponds to the size of the electrodes used in the general design. The number of dielectric layers varied between one and three layers; to obtain the different layers, first one layer was printed and it was cured thermally; then the second one was printed and thermally cured; and, finally, the third one with the same process.
Table 1 and Table 2 show the percentage of failures found. Table 3 shows the dielectric layer total thickness obtained for each mesh value and number of layers. For total layer thicknesses less than 10 μm, insulation faults are detected, as shown in Table 1 and Table 2. As a result, with a minimum of two layers, and using a mesh between 123 and 230, no errors are obtained in the manufacture of the devices. It is important to note that, as can be seen in Table 3, a similar layer thickness with two or three layers of dielectric can be obtained. For example, the thickness obtained with two layers and mesh 137 (Figure A6b) is similar to the thickness obtained with three layers and 175 mesh (Figure A6a). However, in the case of three layers, the surface obtained is more uniform than in the case of two layers, so a design with three layers would be more reliable than one with two layers. This may be because the ink is distributed through the different hollows left in the lower layers.
To look for dielectrics with different viscosities, a second solution was used. However, this change of viscosity adds a problem: the dielectric constant of the ink can change the value of the capacitance; therefore, it was necessary to study the influence of the dielectric on the value of the electrode capacitance. The ink D2081009D6 (Gwent) has a viscosity of 13.0–17.0 Pas (Haake VT550, PK1.1° at 230 s−1 at 25 °C) so a new dielectric ink was used, D2070209P6 (Gwent), which has a viscosity of 1.4–2.3 Pas (Haake VT550, PK1.1° at 230 s−1 at 25 °C).
The capacitances of the sensors were measured by using an inductance-capacitance-resistence (LCR) meter at 1 kHz (Agilent U1731A). Table 4 and Table 5 show capacitances for the dielectric D2081009D6. It is observed that there is very little variation (between 9 and 13) in capacitance in the case of the TLD design. However, in the OLD design, there is greater variation (between 13 and 60 pF) because, in this design, the influence of the variation of the surface of the electrodes and of their layer thickness is more noticeable. At higher mesh value, the layer thickness decreases; therefore, the capacitance increases, and the greater the surface of the electrode, the greater the capacitance.
The measurements for dielectric D2070209P6 show an increase in the capacitance of the electrodes (Table 6; to simplify, in this case, only the results are shown for a mesh of 175). The resulting capacitances are higher than those obtained with dielectric D2081009D6. Dielectric D2081009D6 was chosen for the final development of the touchpad since an increase of the capacitance supposes an incorrect operation of the controller.
The dielectric layer for the final designs was made with a screen of 175 mesh, using ink D2081009D6 and with two layers of dielectric in each prototype.

4. Results

4.1. Physical Parameters

The magnification view of the two designs with their dimensions are shown in Figure 6 (Figure 6a for TLD; and Figure 6b for OLD). The dimensions considered in the design have been obtained after manufacturing with an almost negligible error.

4.2. Electrical Parameters

The capacitance of the sensors has been measured using a RCL meter to 1 kHz (Agilent U1731A). Figure 7a,b shows the capacitance distribution in each sensor. The TDL has an average of 13 pF and OLD of 50 pF. In the case of the OLD design, a difference is observed over the value obtained in the simple electrodes previously performed, which may be due to the influence of the rest of the sensor array; this effect is not so noticeable in the case of TDL. In any case, they do not influence the correct operation of the touchpad.
Scattering observed in both cases is due to the fabrication process because the thickness of different layers is not exactly the same along substrate, and, in the case of OLD, it could also be due to an incorrect alignment between the layers which entails different geometries along the substrate (Figure A7).
With regard to TLD, the signal recorded on the RXO line in “released case” (Figure 8a) shows a difference of 54 mV, while, in the “pressed case” (Figure 8b), it is 88 mV.
With respect to OLD, the signal recorded on the RX0 line in “released case” shows a difference of 160 mV (Figure 9a), while, in the “pressed case”, it is 168 mV (Figure 9b).

4.3. Design Using Different Types of Fabrics

Finally, after verifying the correct operation of the sensor, both TLD and OLD have been manufactured using the different types of fabrics shown in the Table A1.
Figure 10 shows the results for each type of fabric. In the case of OLD, all but Mediatex presented problems. The capacitance in this case is similar to that obtained previously. In TLD, there were no failures but the capacitance was not equal in all cases, with some dispersion of values in some cases such as that of 100% raw cotton. In the best cases, the capacitance was similar to that obtained previously.
The reason for failures and value dispersion may be due to loose threads, because they do not allow the dielectric to be an insulating layer. This is more notable in OLD as they have more conductive area faced.

4.4. Design Reducing the Size

A new version of OLD was designed; the size of electrodes was reduced in this new version. The main dimensions of this new design pattern are: Pitch (Row and Column) of 6 mm, Gap of 0.5 mm and through-hole diameter of 1.2 mm (Figure 11). The prototype works properly and similarly to its larger version.

4.5. Operation

The MTCH6102 GUI utility allows checking all gesture detection of this device: Single Click, Click and Hold, Double Click, Right Swipe, Right Swipe and Hold, Left Swipe, Left Swipe and hold, Up Swipe, Up swipe and Hold, Down Swipe, and Down Swipe and Hold. Both designs were connected to the electronic system and tested with this GUI utility.
In both designs, the operations worked correctly and all possible gestures could be checked; Figure 12a touching on a curved surface in two different points, and Figure 12b touching in the same point but on a flat surface (left) and on a curved surface (right), in both cases the resulting point is the same.

5. Conclusions

The capacitance obtained in both cases was similar to Microchip’s PCB design, but lower in the case of TLD. Capacitors in both cases have the same size; the difference lies in the dielectric: in TLD, there is a dielectric layer between the two conductive layers, whereas, in OLD, there is no dielectric layer. Despite the technology used, the distribution of capacitance along the sensors is quite uniform. Due to its low capacitance, the differential voltage obtained with TLD is higher than that obtained with OLD, as well as higher than Microchip’s PCB design. The initial failures found due to the manufacturing process have been solved.
A touchpad based on projected capacitive (pro-cap) technologies has been developed to be used with textile substrates using a low cost and habitual in the textile industry printing technique: screen-printing. The system works on both flat and curved surfaces, which allows it to be used in parts of clothes, such as sleeves, trouser legs or textiles for furniture such as sofas, armchairs, etc.
Touchpad design is based on a diamond type pattern. Two types of architecture with different sizes of electrodes and different types of textiles have been developed, and their correct operation has been verified. Being capacitive electrodes, the control of the capacitance is vital, which is why studies have been made on all those aspects that can modify the capacitance. The most important factor that conditions the capacitance is the thickness, thus it has been emphasized in the study of the factors that affect the thickness.
The application of this device to textiles depends on the type of textile surface, since it can modify the internal structure of the electrode; therefore, it is advisable to modify the surface of the fabric with a layer of dielectric.

Acknowledgments

This work was supported by Spanish Government/FEDER funds (grant number MAT2015-64139-C4-3-R (Mineco/Feder)). The work presented is also funded by the Conselleria d’Economia Sostenible, Sectors Productius i Treball, through IVACE (Instituto Valenciano de Competitividad Empresarial) and co-funded by ERDF funding from the EU. Application No. IMAMCI/2017/1.

Author Contributions

J.F. and E.G.B. conceived and designed the touchpad and their fabrication method and wrote the paper; J.V.L.-R. designed the experiments for the electrical characterization; and G.M. and J.M. analyzed the data.

Conflicts of Interest

The authors declare no conflict of interest. The founding sponsors had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, and in the decision to publish the results.

Appendix A

The theory of operation can be explained based on Figure A1: in the first phase (Sample A), two capacitors are charged to different voltages; and, in the second phase (Sample B), the capacitors are charged again to opposite voltages. After each phase, the two capacitors are connected in parallel and the charges are allowed to settle until reaching the final voltage on Chold, which is determined by the size of the external capacitance in relation to the size of internal capacitance. The difference between the two voltages (VB-VA) is used as the currents sensor reading (Figure A2a). In the case of having a user’s finger capacitance, the evaluation is the same but with an extra capacitor (Figure A2b).

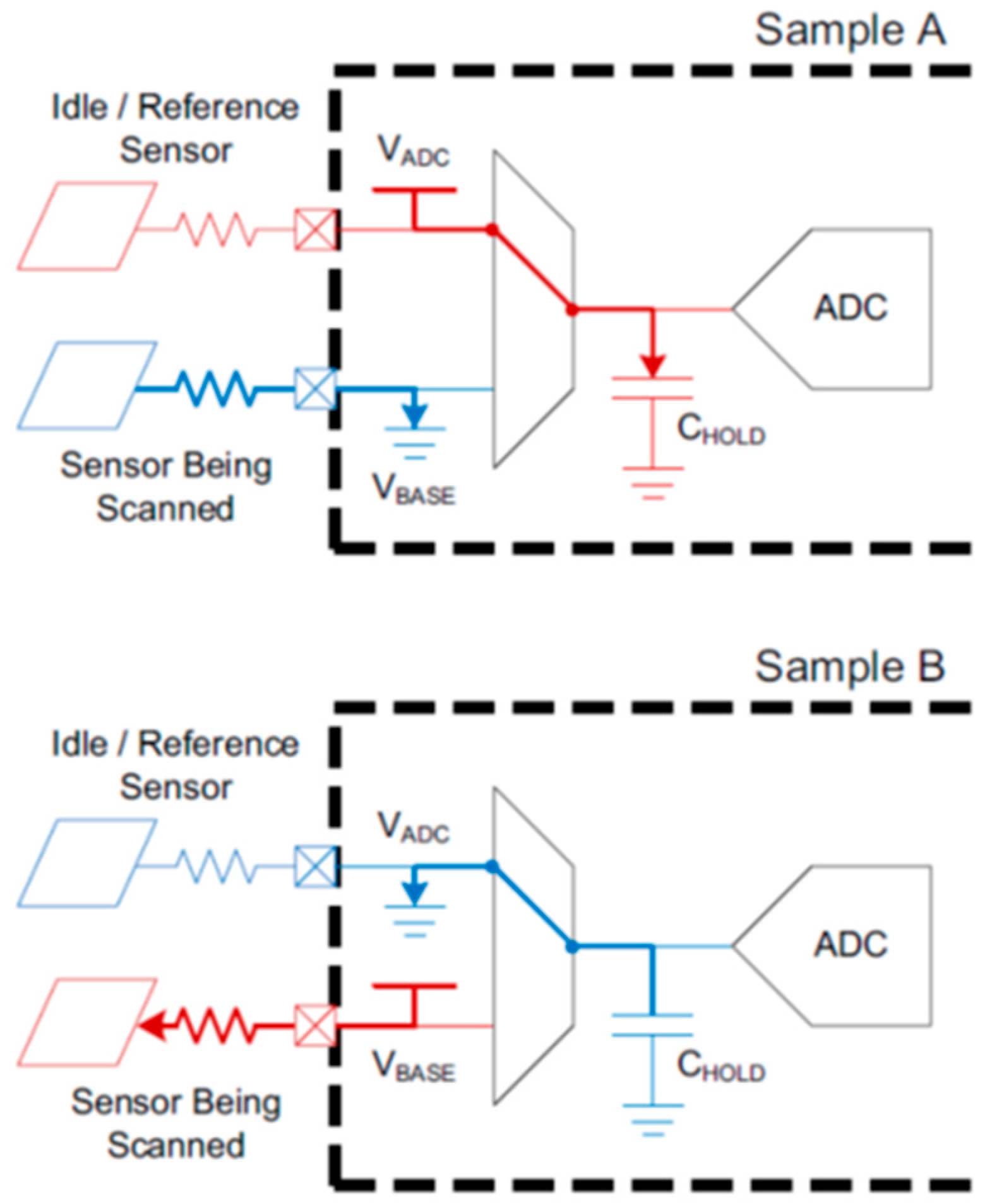

Figure A1. Precharge state: theory of operation [30].
Figure A1. Precharge state: theory of operation [30].
Materials 10 01450 g0a1

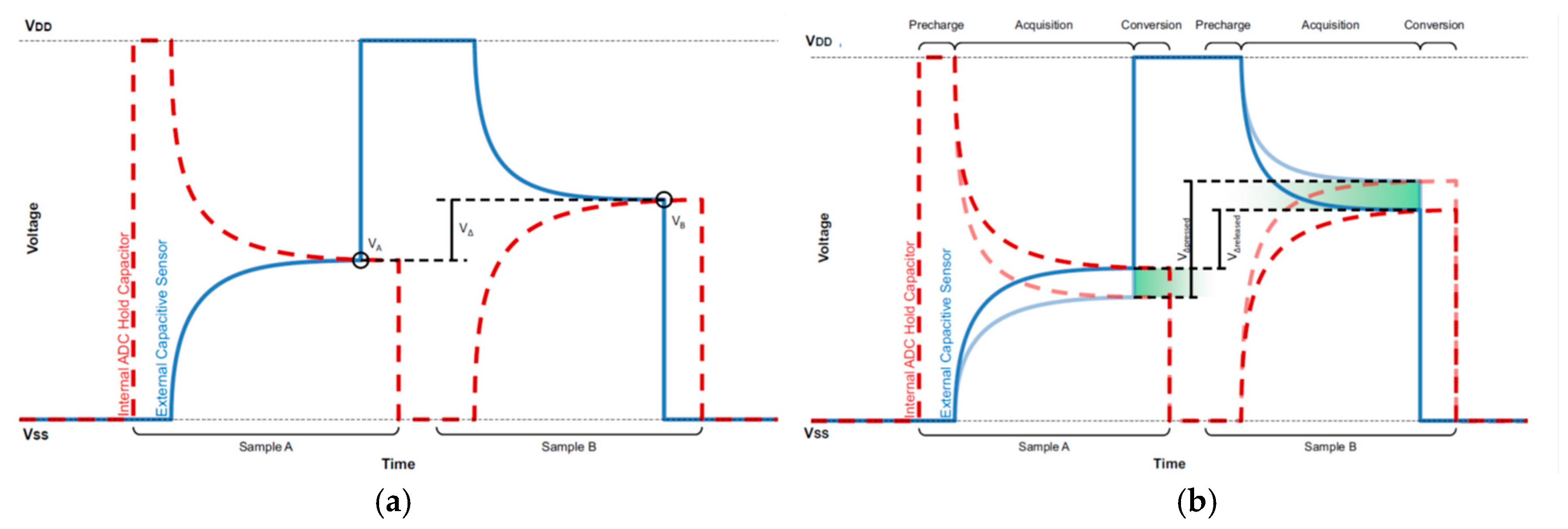

Figure A2. (a) Differential CVD waveform; and (b) difference between pressed and released differential values [30].
Figure A2. (a) Differential CVD waveform; and (b) difference between pressed and released differential values [30].
Materials 10 01450 g0a2

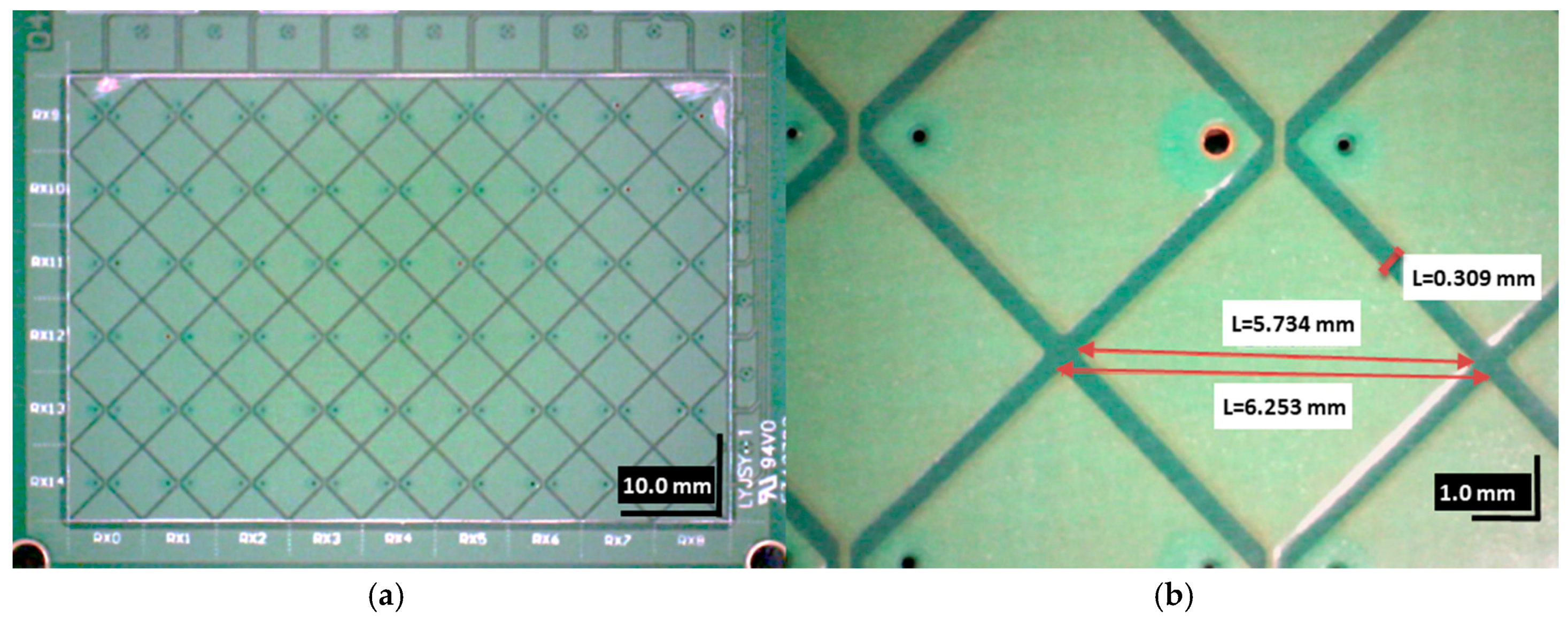

Figure A3. (a) One layer PCB 9 × 6 sensor matrix; and (b) gap and pitch size.
Figure A3. (a) One layer PCB 9 × 6 sensor matrix; and (b) gap and pitch size.
Materials 10 01450 g0a3
Figure A4. (a) “Released” signal; and (b) “pressed” signal.
Figure A4. (a) “Released” signal; and (b) “pressed” signal.
Materials 10 01450 g0a4

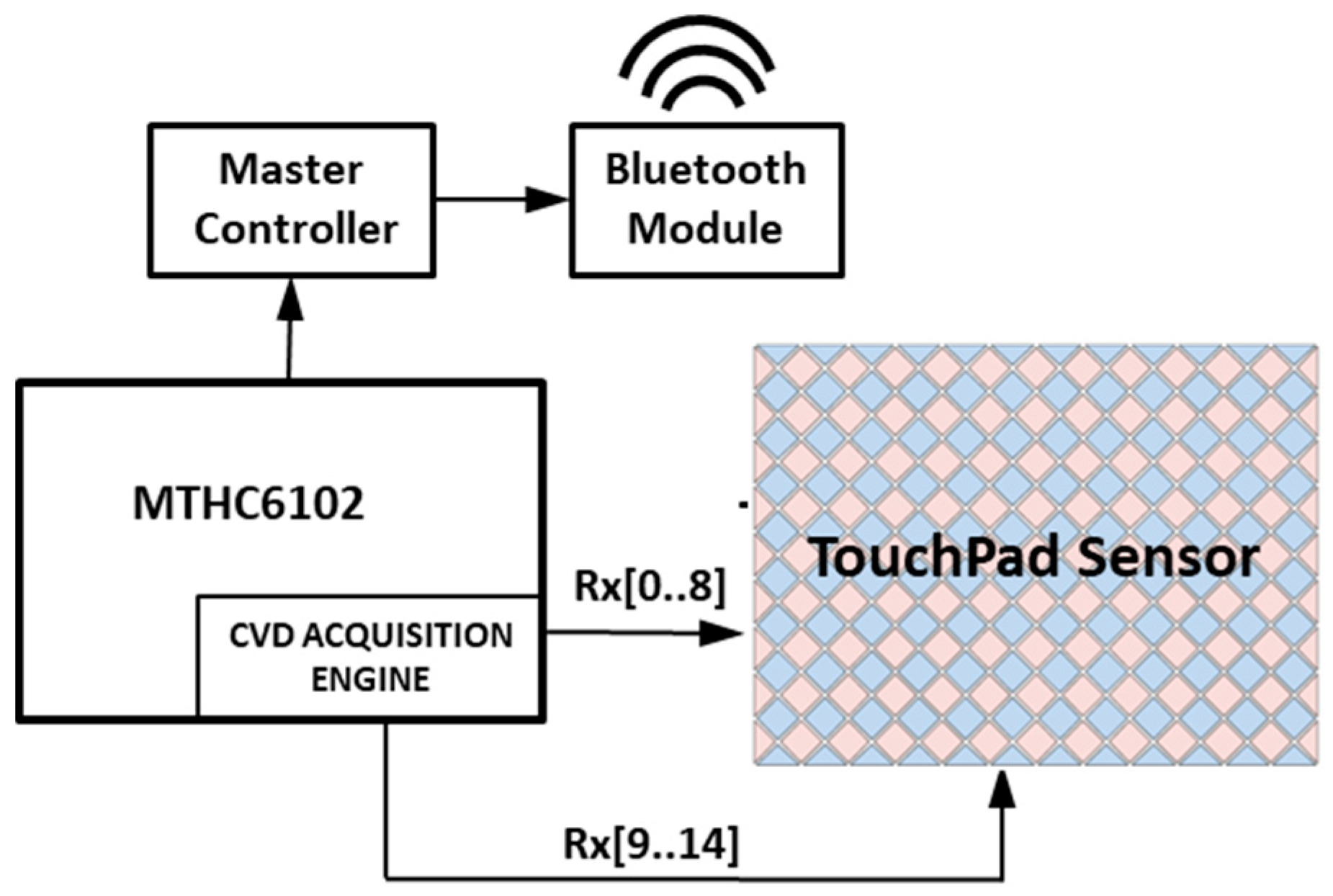

Figure A5. Electronic System Block Diagram.
Figure A5. Electronic System Block Diagram.
Materials 10 01450 g0a5

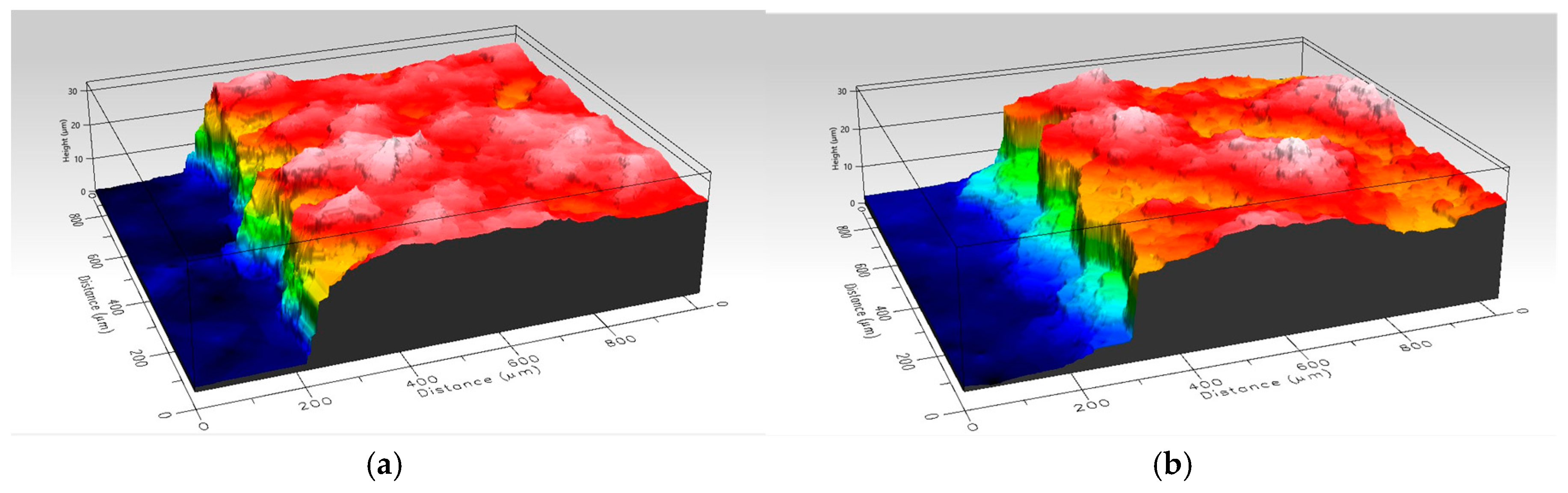

Figure A6. (a) Dielectric for a mesh of 175 and three layers; and (b) dielectric for a mesh of 137 and two layers.
Figure A6. (a) Dielectric for a mesh of 175 and three layers; and (b) dielectric for a mesh of 137 and two layers.
Materials 10 01450 g0a6

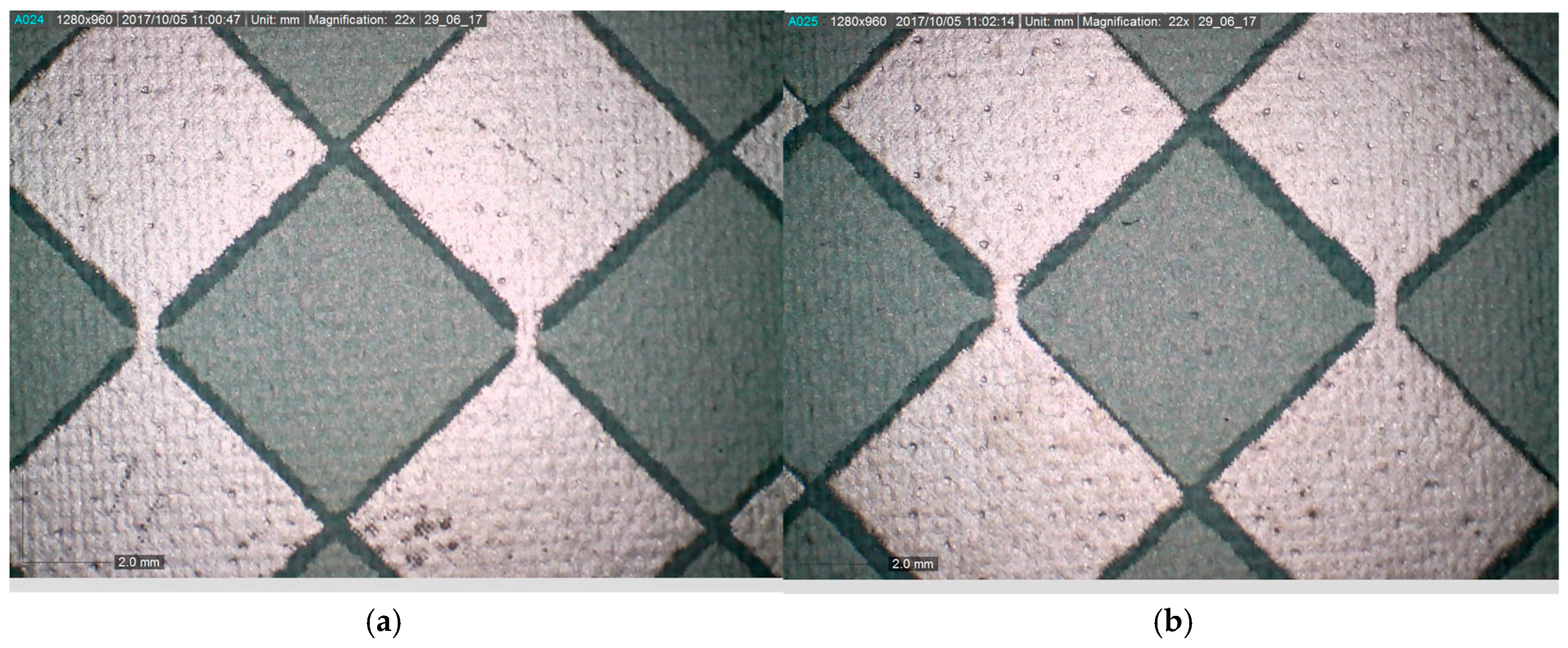

Figure A7. (a) Correct alignment; and (b) incorrect alignment.
Figure A7. (a) Correct alignment; and (b) incorrect alignment.
Materials 10 01450 g0a7
Table A1. Characteristics of the different fabrics used.
Table A1. Characteristics of the different fabrics used.
FabricWeft Density (Thread/cm)Warp Density (Thread/cm)LigamentGrammage (g/m2)Weft MaterialWarp Material
100% Cotton Waterproof3445Taffeta120CottonCotton
100% Cotton3030Taffeta120CottonCotton
100% Cotton Raw2532Satin245CottonCotton
65% Pol/35% Cot3046Taffeta110CottonPolyester
Mediatex2540Taffeta115PolyesterPolyester
100% Polyester2840Serge120PolyesterPolyester

References

  1. Takamatsu, S.; Lonjaret, T.; Ismailova, E.; Masuda, A.; Itoh, T.; Malliaras, G.G. Wearable keyboard using conducting polymer electrodes on textiles. Adv. Mater. 2015. [Google Scholar] [CrossRef] [PubMed]
  2. Mcmillan, D.; Brown, B.; Lampinen, A. Situating Wearables: Smartwatch Use in Context. In Proceedings of the 2017 CHI Conference on Human Factors in Computing Systems (CHI ’17), Denver, CO, USA, 6–11 May 2017; pp. 3582–3594. [Google Scholar] [CrossRef]
  3. Nirjon, S.; Gummeson, J.; Gelb, D.; Kim, K.-H. TypingRing: A Wearable Ring Platform for Text Input. In Proceedings of the 13th Annual International Conference on Mobile Systems, Applications, and Services (MobiSys ’15), Florence, Italy, 8–12 May 2015; pp. 227–239. [Google Scholar] [CrossRef]
  4. Rekimoto, J. GestureWrist and GesturePad: Unobtrusive wearable interaction devices. In Proceedings of the Fifth International Symposium on Wearable Computers, Zurich, Switzerland, 8–9 October 2001; pp. 21–27. [Google Scholar] [CrossRef]
  5. Kim, K.; Joo, D.; Lee, K.-P. Wearable-object-based interaction for a mobile audio device. In Proceedings of the 28th International Conference Extended Abstracts on Human Factors in Computing Systems (CHI EA ’10), Atlanta, GA, USA, 10–15 April 2010; pp. 3865–3870. [Google Scholar] [CrossRef]
  6. Suh, M.; Carroll, K.; Cassill, N. Critical Review on Smart Clothing Product Development. J. Text. Appar. 2010, 6, 1–18. [Google Scholar]
  7. Yoon, S.H.; Huo, K.; Ramani, K. Wearable textile input device with multimodal sensing for eyes-free mobile interaction during daily activities. Pervasive Mob. Comput. 2016, 33, 17–31. [Google Scholar] [CrossRef]
  8. Van Heek, J.; Schaar, A.K.; Trevisan, B.; Bosowski, P.; Ziefle, M. User requirements for wearable smart textiles. Does the usage context matter (medical vs. sports)? In Proceedings of the 8th International Conference on Pervasive Computing Technologies for Healthcare (PervasiveHealth ’14), Oldenburg, Germany, 20–23 May 2014. [Google Scholar] [CrossRef]
  9. Rogers, J.A.; Someya, T.; Huang, Y. Materials and Mechanics for Stretchable Electronics. Science 2010, 327, 1603–1607. [Google Scholar] [CrossRef] [PubMed]
  10. Fan, J.A.; Yeo, W.-H.; Su, Y.; Hattori, Y.; Lee, W.; Jung, S.-Y.; Zhang, Y.; Liu, Z.; Cheng, H.; Falgout, L.; et al. Fractal design concepts for stretchable electronics. Nat. Commun. 2014, 5, 1–8. [Google Scholar] [CrossRef] [PubMed]
  11. Bhalla, M.R.; Bhalla, A.V. Comparative Study of Various Touchscreen Technologies. Int. J. Comput. Appl. 2010, 6, 2–8. [Google Scholar] [CrossRef]
  12. Walker, G. A review of technologies for sensing contact location on the surface of a display. J. Soc. Inf. Disp. 2012, 20, 413–440. [Google Scholar] [CrossRef]
  13. Pedersen, H.C.; Jakobsen, M.L.; Hanson, S.G.; Mosgaard, M.; Iversen, T.; Korsgaard, J. Optical touch screen based on waveguide sensing. Appl. Phys. Lett. 2011, 99, 2–5. [Google Scholar] [CrossRef][Green Version]
  14. Emamian, S. Fully printed and flexible piezoelectric based touch sensitive skin. In Proceedings of the 2015 IEEE Sensors, Busan, Korea, 1–4 November 2015; pp. 1–4. [Google Scholar] [CrossRef]
  15. George, B.; Zangl, H.; Bretterklieber, T.; Brasseur, G. A Combined Inductive–Capacitive Proximity Sensor for Seat Occupancy Detection. IEEE Trans. Instrum. Meas. 2010, 59, 1463–1470. [Google Scholar] [CrossRef]
  16. Gunnarsson, E.; Karlsteen, M.; Berglin, L.; Stray, J. A novel technique for direct measurements of contact resistance between interlaced conductive yarns in a plain weave. Text. Res. J. 2015, 85, 499–511. [Google Scholar] [CrossRef]
  17. Parzer, P.; Sharma, A.; Vogl, A.; Olwal, A.; Haller, M. SmartSleeve: Real-time Sensing of Surface and Deformation Gestures on Flexible, Interactive Textiles, using a Hybrid Gesture Detection Pipeline. In Proceedings of the 30th Annual ACM Symposium on User Interface Software and Technology (UIST ’17), Quebec City, QC, Canada, 22–25 October 2017. [Google Scholar]
  18. Donneaud, M.; Honnet, C.; Strohmeier, P. Designing a Multi-Touch eTextile for Music Performances. In Proceedings of the 17th International Conference on New Interfaces for Musical Expression (NIME ’17), Aalborg, Denmark, 15–19 May 2017; pp. 7–12. [Google Scholar]
  19. Enokibori, Y.; Suzuki, A.; Mizuno, H.; Shimakami, Y.; Mase, K. E-textile pressure sensor based on conductive fiber and its structure. In Proceedings of the 2013 ACM Conference Pervasive and Ubiquitous Computing (UbiComp ’13), Zurich, Switzerland, 8–12 September 2013; pp. 207–210. [Google Scholar] [CrossRef]
  20. Gu, J.F.; Gorgutsa, S.; Skorobogatiy, M. A fully woven touchpad sensor based on soft capacitor fibers. arXiv, 2011; 1–19arXiv:1106.3881. [Google Scholar]
  21. Govindaraj, M.; Brookstein, D. Multi-component Multiple-layer Woven Textiles for Electronic Applications. In Proceedings of the Ambience 08 International Scientific Conference, Borås, Sweden, 25 March 2008; pp. 72–78. [Google Scholar]
  22. Wei, Y.; Torah, R.; Li, Y.; Tudor, J. Dispenser printed capacitive proximity sensor on fabric for applications in the creative industries. Sens. Actuators A Phys. 2016, 247, 239–246. [Google Scholar] [CrossRef]
  23. Gorgutsa, S.; Gu, J.F.; Skorobogatiy, M. A woven 2D touchpad sensor and a 1D slide sensor using soft capacitor fibers. Smart Mater. Struct. 2012, 21, 15010. [Google Scholar] [CrossRef]
  24. Guo, L.; Soroudi, A.; Berglin, L.; Mattila, H.; Skrifvars, M.; Torstensson, H. Fibre-based single-wire keyboard—The integration of a flexible tactile sensor into e-textiles. Autex Res. J. 2011, 11, 106–109. [Google Scholar]
  25. Roh, J.; Mann, Y.; Freed, A.; Wessel, D.; Berkeley, U.C.; Freed, A.; Street, A.; Wessel, D. Robust and Reliable Fabric and Piezoresistive Multitouch Sensing Surfaces for Musical Controllers. In Proceedings of the International Conference on New Interfaces for Musical Expression, Oslo, Norway, 30 May–1 June 2011; pp. 393–398. [Google Scholar]
  26. Al-huda Hamdan, N.; Heller, F.; Wacharamanotham, C.; Thar, J.; Borchers, J. Grabrics: A Foldable Two-Dimensional Textile Input Controller. In Proceedings of the 2016 CHI Conference Extended Abstracts on Human Factors in Computing Systems (CHI EA ’16), San Jose, CA, USA, 7–12 May 2016; pp. 2497–2503. [Google Scholar] [CrossRef]
  27. Kim, D.K.; Kim, J.H.; Kwon, H.J.; Kwon, Y.H. A touchpad for force and location sensing. ETRI J. 2010, 32, 722–728. [Google Scholar] [CrossRef]
  28. Ferri, J.; Moreno, J.; Martinez, G.; Lidón-Roger, J.V.; Garcia-Breijo, E. Printed Textile Touchpad. In Proceedings of the Eighth International Conference on Sensor Device Technologies and Applications (SensorDevices2017), Rome, Italy, 10–14 September 2017; pp. 118–123. [Google Scholar]
  29. Barrett, G.; Omote, R. Projected-capacitive touch technology. Inf. Disp. 2010, 26, 16–21. [Google Scholar]
  30. mTouch™ Sensing Solution Acquisition Methods Capacitive Voltage Divider; Application Note, AN1478; Microchip Technology Inc.: Chandler, AZ, USA, 2012.
  31. Qtouch Surface Design Guide; Application Note, AT11849; Atmel: Chandler, AZ, USA, 2015.
  32. A Short Guide on Trackpad Layout; Application Note, AZD068; Azoteq: Paarl, South Africa, 2016.
  33. FAQs-Sensor Design Guidelines; Application Note, AD120007-001; Microchip Technology Inc.: Chandler, AZ, USA, 2012.

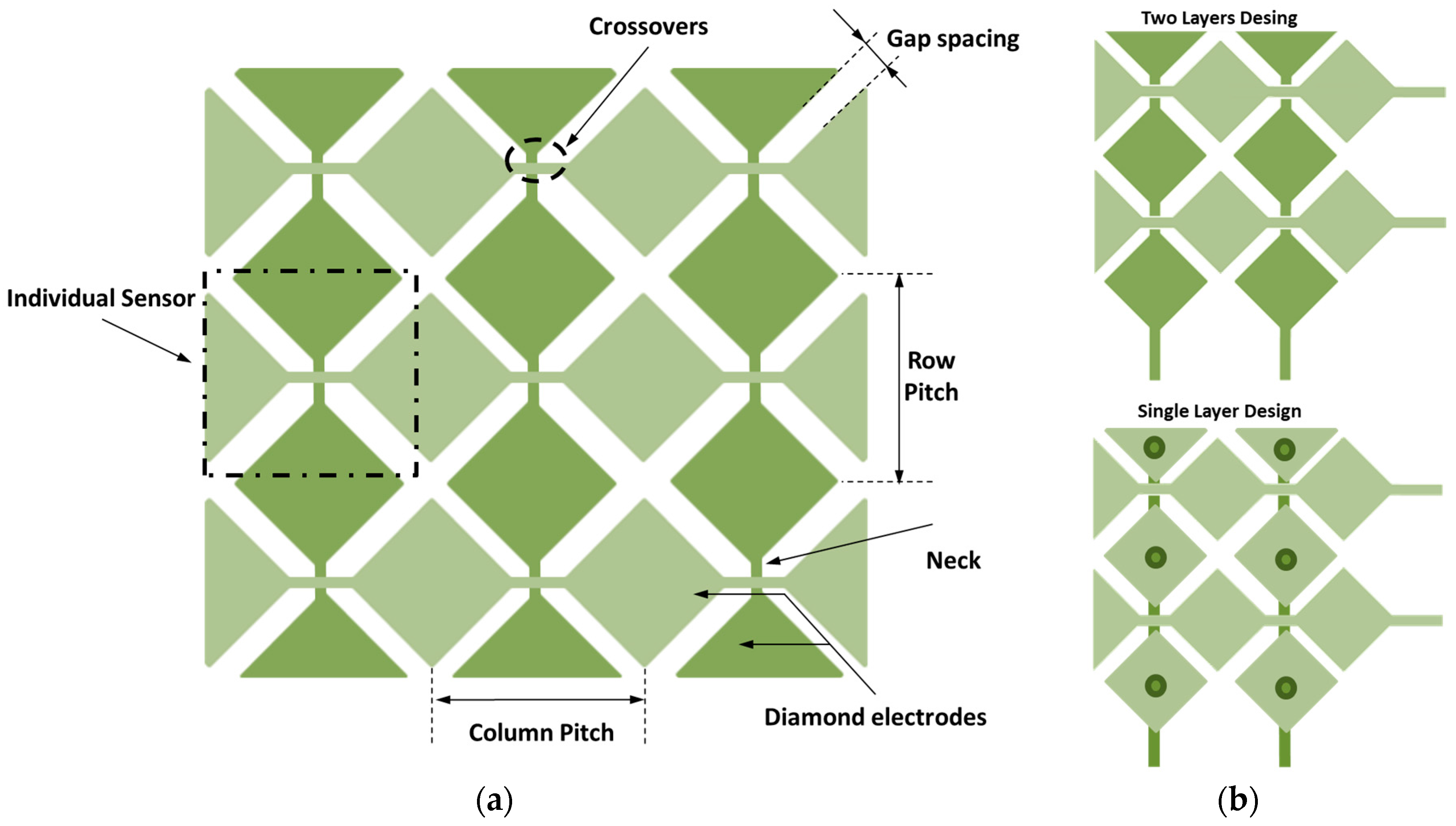

Figure 1. (a) Diamond pattern; and (b) 2D array sensors in the case of single layer or two layers.
Figure 1. (a) Diamond pattern; and (b) 2D array sensors in the case of single layer or two layers.
Materials 10 01450 g001

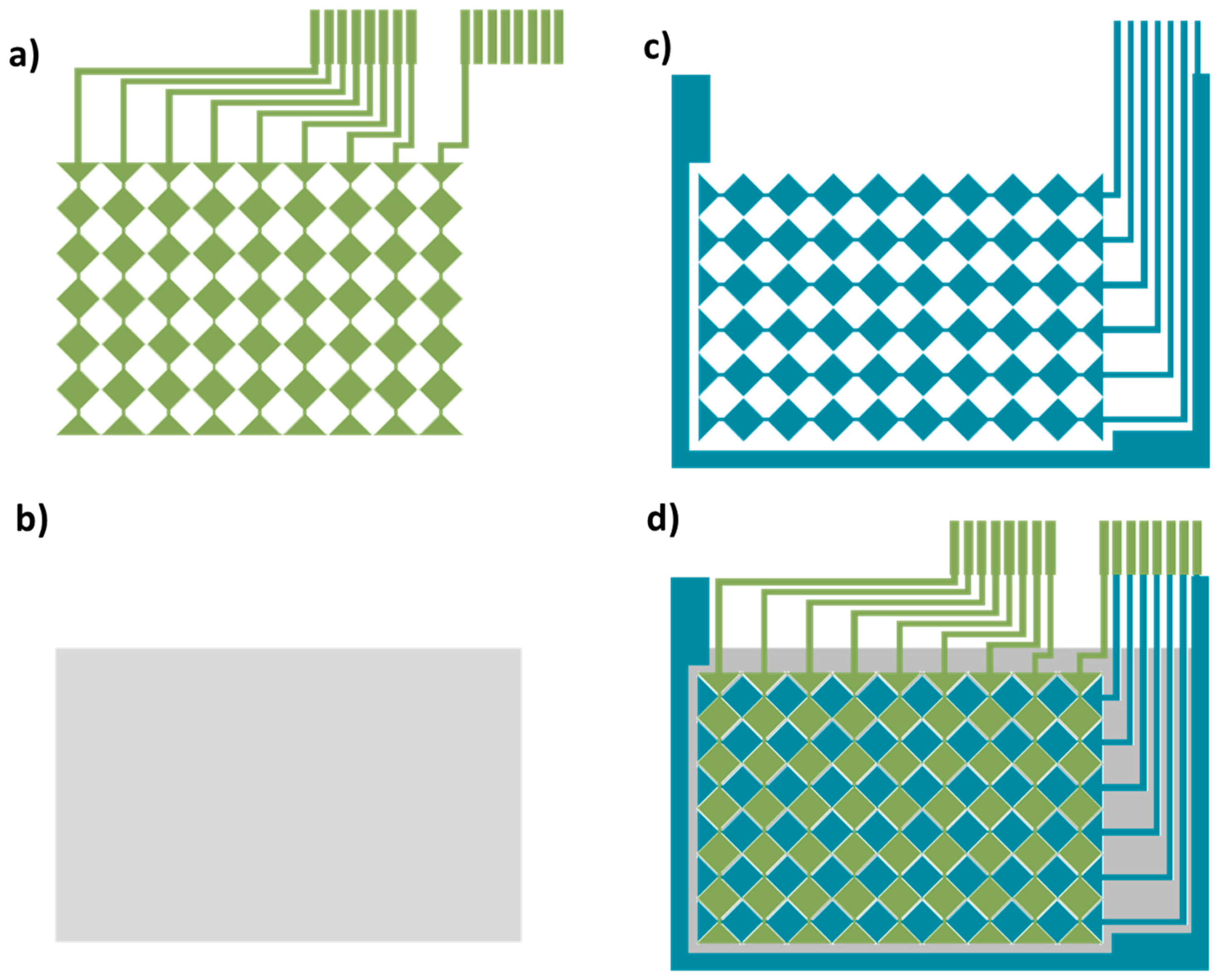

Figure 2. Two Layers Design (TLD): (a) Vertical or X layer; (b) dielectric layer; (c) Horizontal or Y layer; and (d) the complete design.
Figure 2. Two Layers Design (TLD): (a) Vertical or X layer; (b) dielectric layer; (c) Horizontal or Y layer; and (d) the complete design.
Materials 10 01450 g002

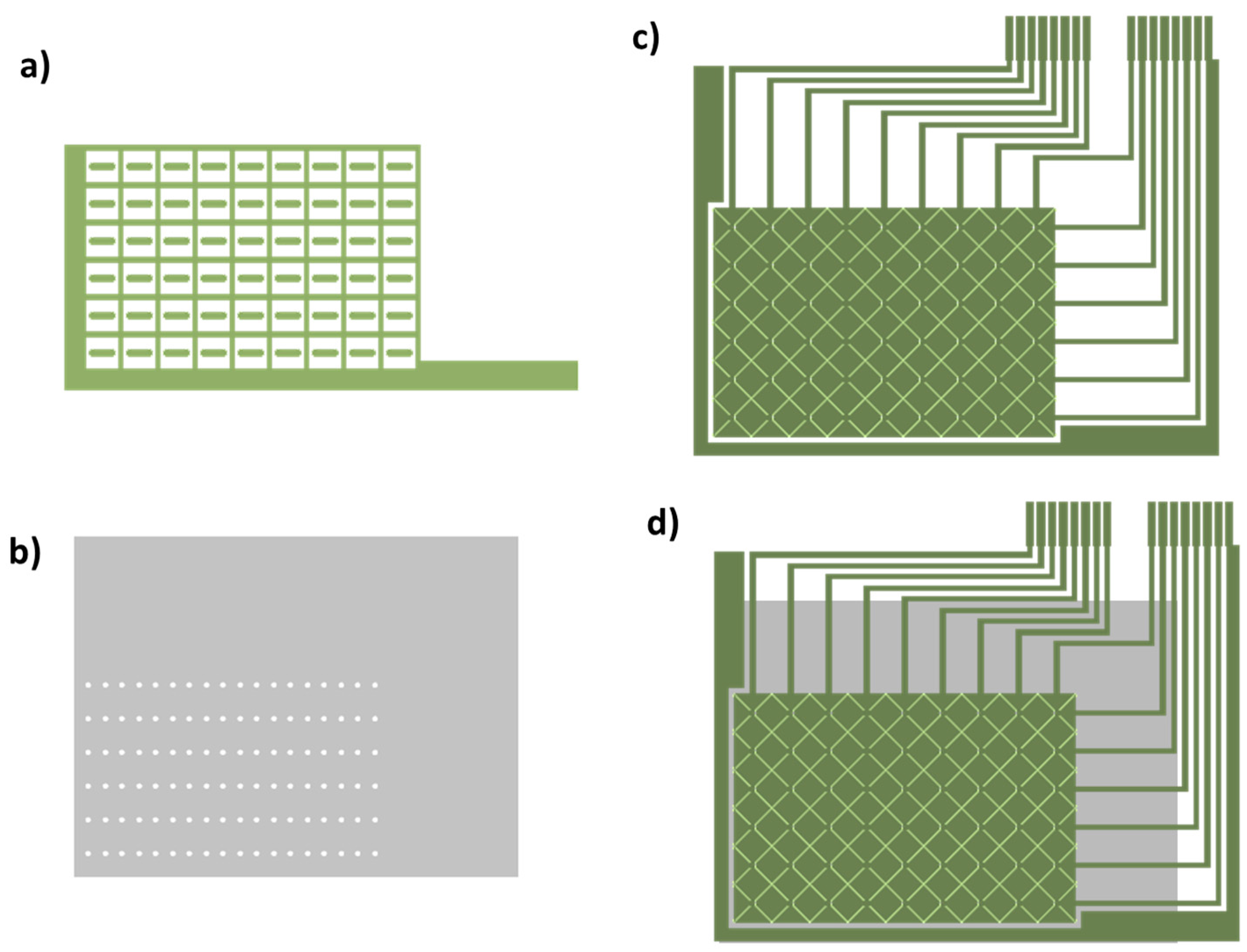

Figure 3. One Layer Design (OLD): (a) conductive layer for connection tracks; (b) dielectric layer with via-holes; (c) X-Y layer; and (d) the complete design.
Figure 3. One Layer Design (OLD): (a) conductive layer for connection tracks; (b) dielectric layer with via-holes; (c) X-Y layer; and (d) the complete design.
Materials 10 01450 g003

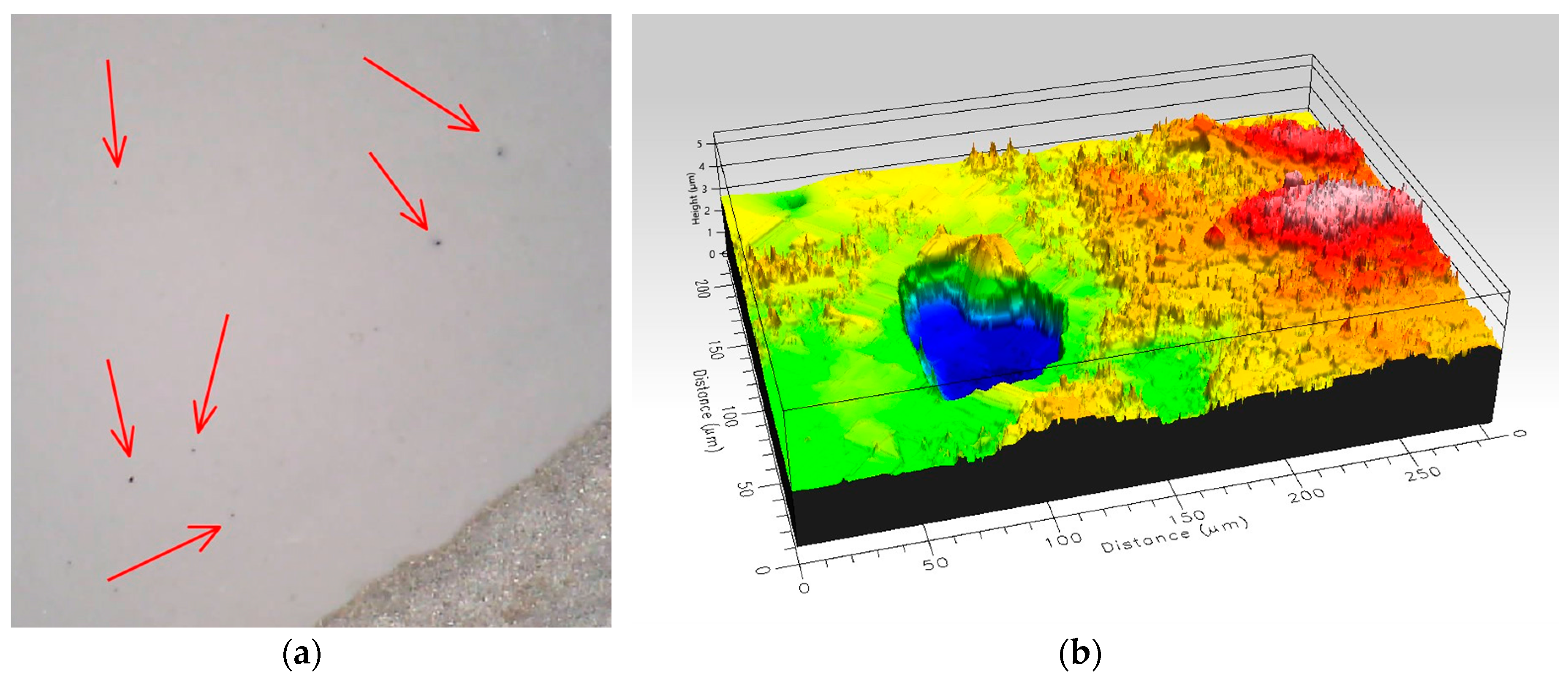

Figure 4. (a) Pinholes in the dielectric layer; and (b) detail of pinhole.
Figure 4. (a) Pinholes in the dielectric layer; and (b) detail of pinhole.
Materials 10 01450 g004

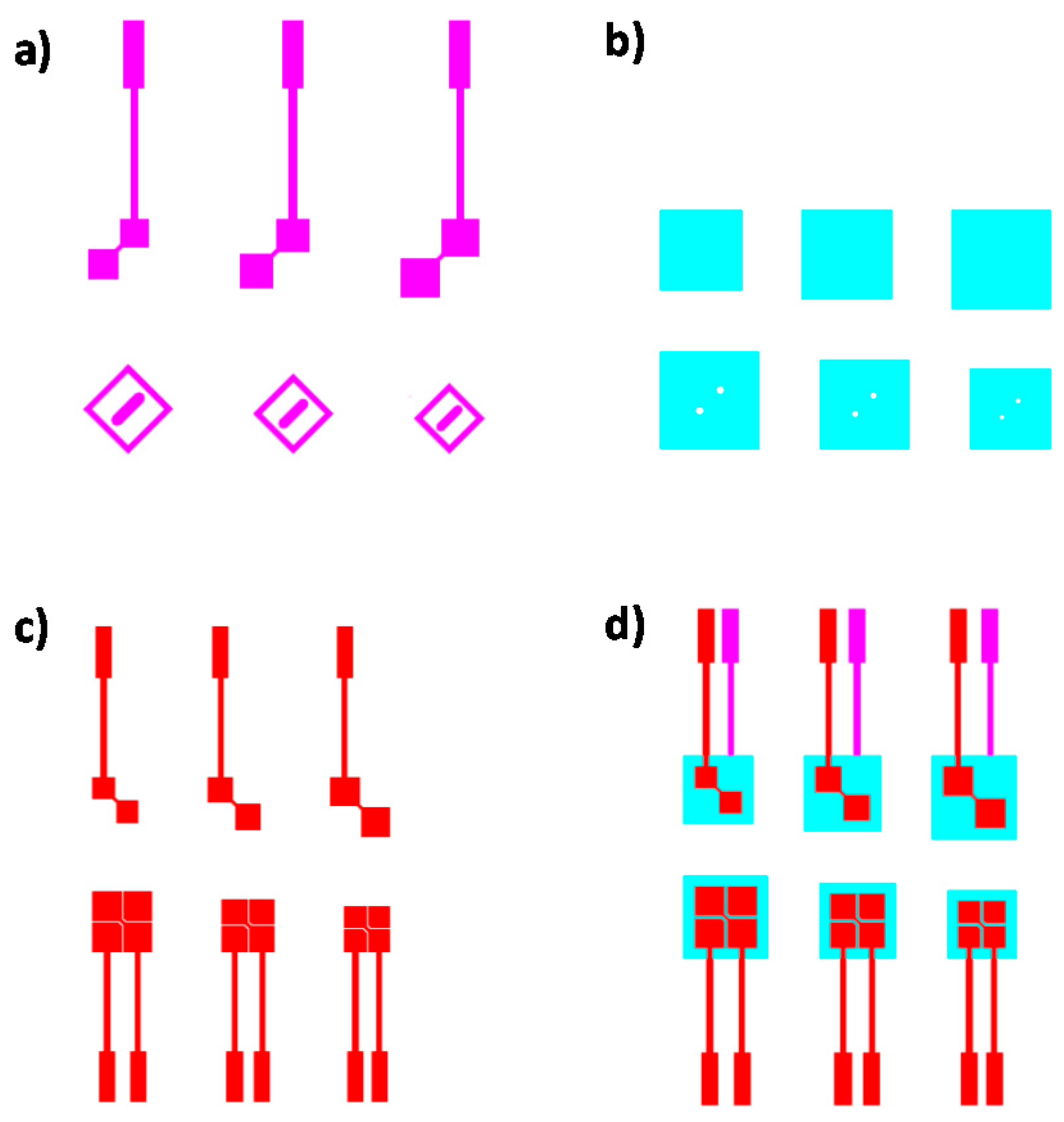

Figure 5. (a) First conductive layer, above for TLD and below for OLD; (b) dielectric layer; (c) second conductive layer; and (d) complete Design.
Figure 5. (a) First conductive layer, above for TLD and below for OLD; (b) dielectric layer; (c) second conductive layer; and (d) complete Design.
Materials 10 01450 g005
Figure 6. (a) Two-layer design; and (b) one-layer design magnification views.
Figure 6. (a) Two-layer design; and (b) one-layer design magnification views.
Materials 10 01450 g006

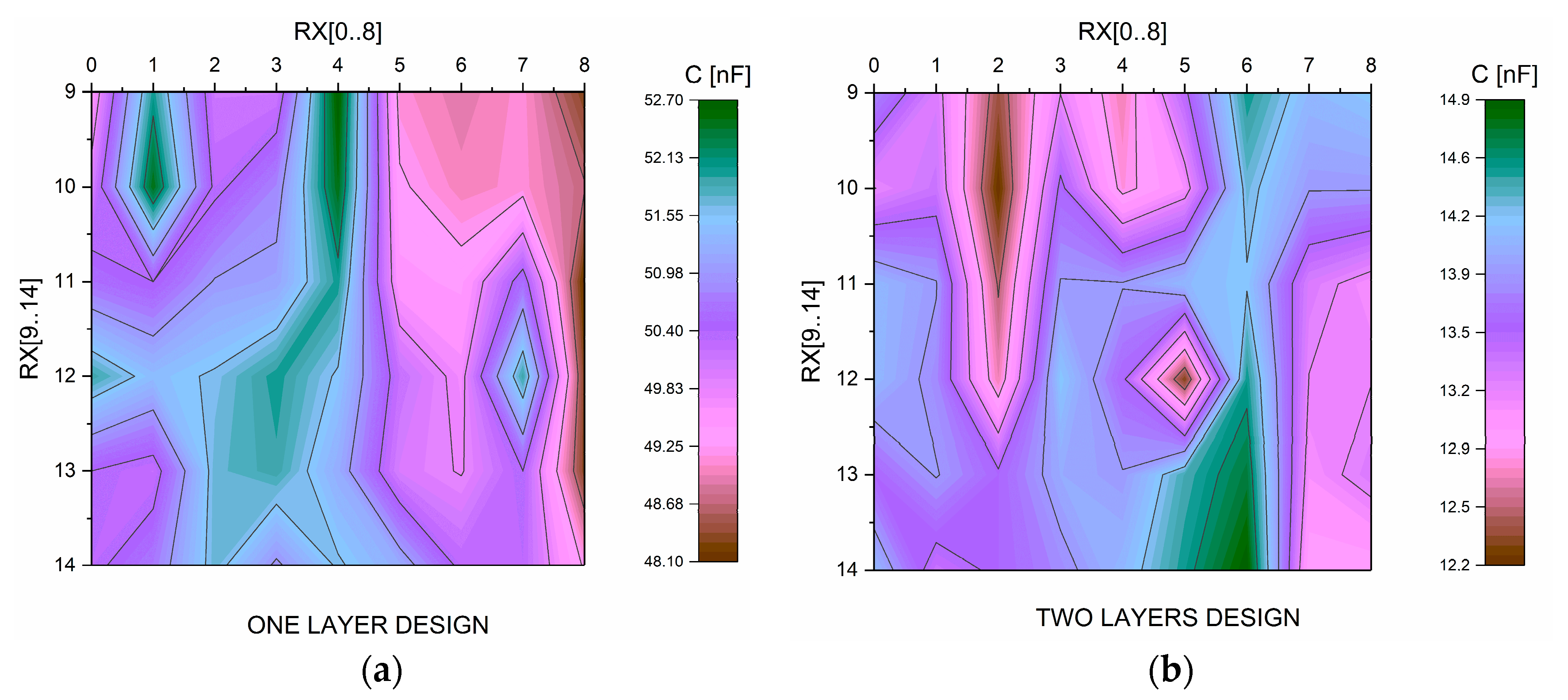

Figure 7. (a) Capacitance distribution on OLD; and (b) capacitance distribution on TLD.
Figure 7. (a) Capacitance distribution on OLD; and (b) capacitance distribution on TLD.
Materials 10 01450 g007

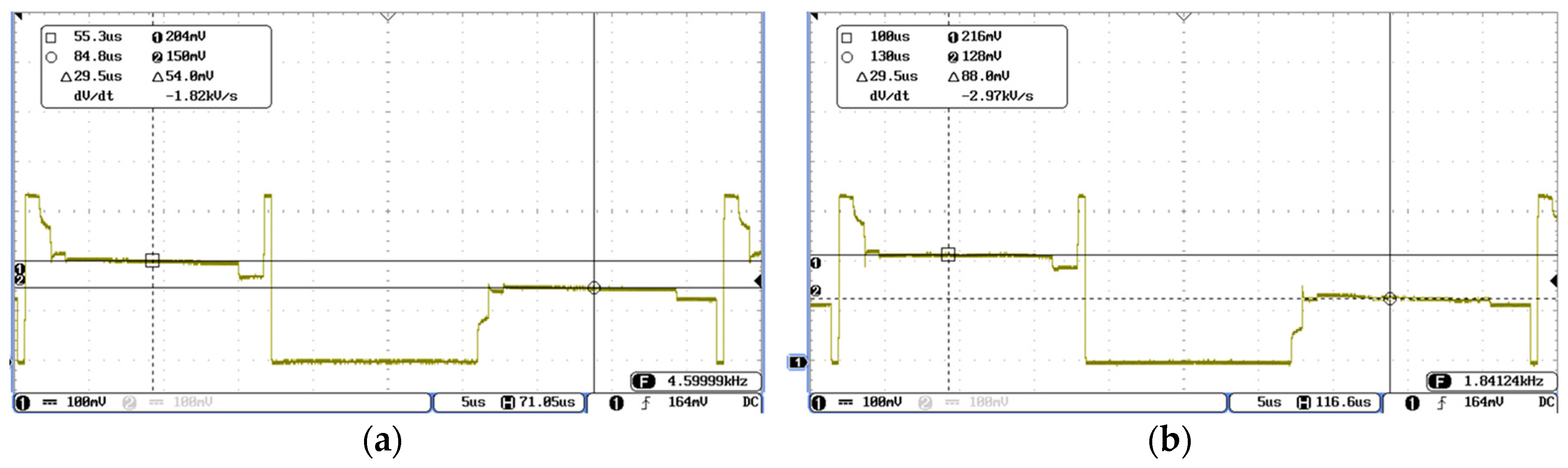

Figure 8. Two-layer design: (a) “released” signal; and (b) “pressed” signal.
Figure 8. Two-layer design: (a) “released” signal; and (b) “pressed” signal.
Materials 10 01450 g008

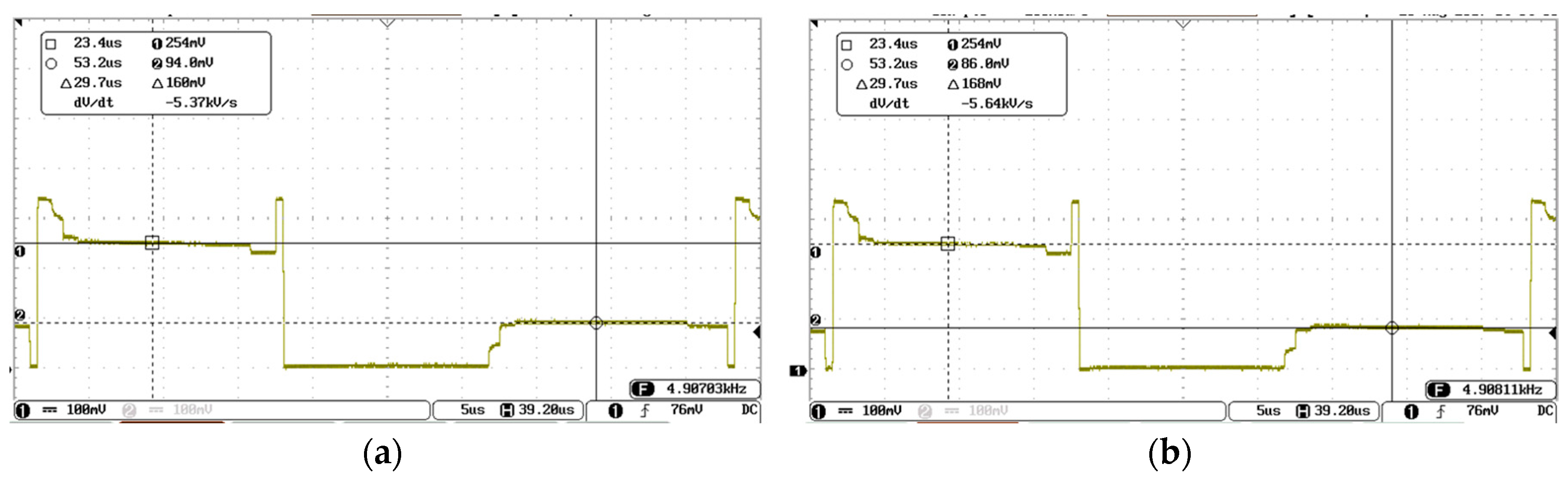

Figure 9. One-layer design: (a) “released” signal; and (b) “pressed” signal.
Figure 9. One-layer design: (a) “released” signal; and (b) “pressed” signal.
Materials 10 01450 g009

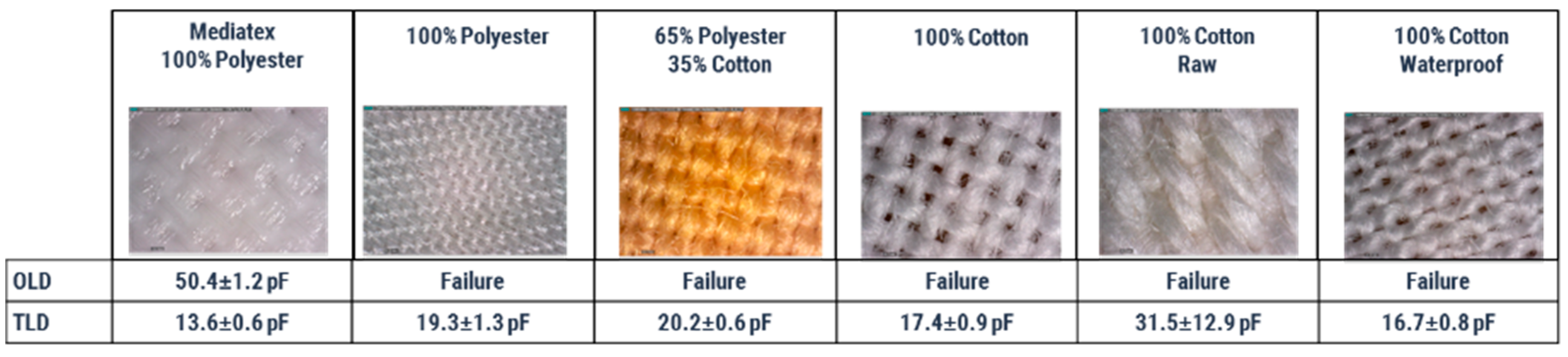

Figure 10. Capacitances and failures for each type of fabric and design.
Figure 10. Capacitances and failures for each type of fabric and design.
Materials 10 01450 g010

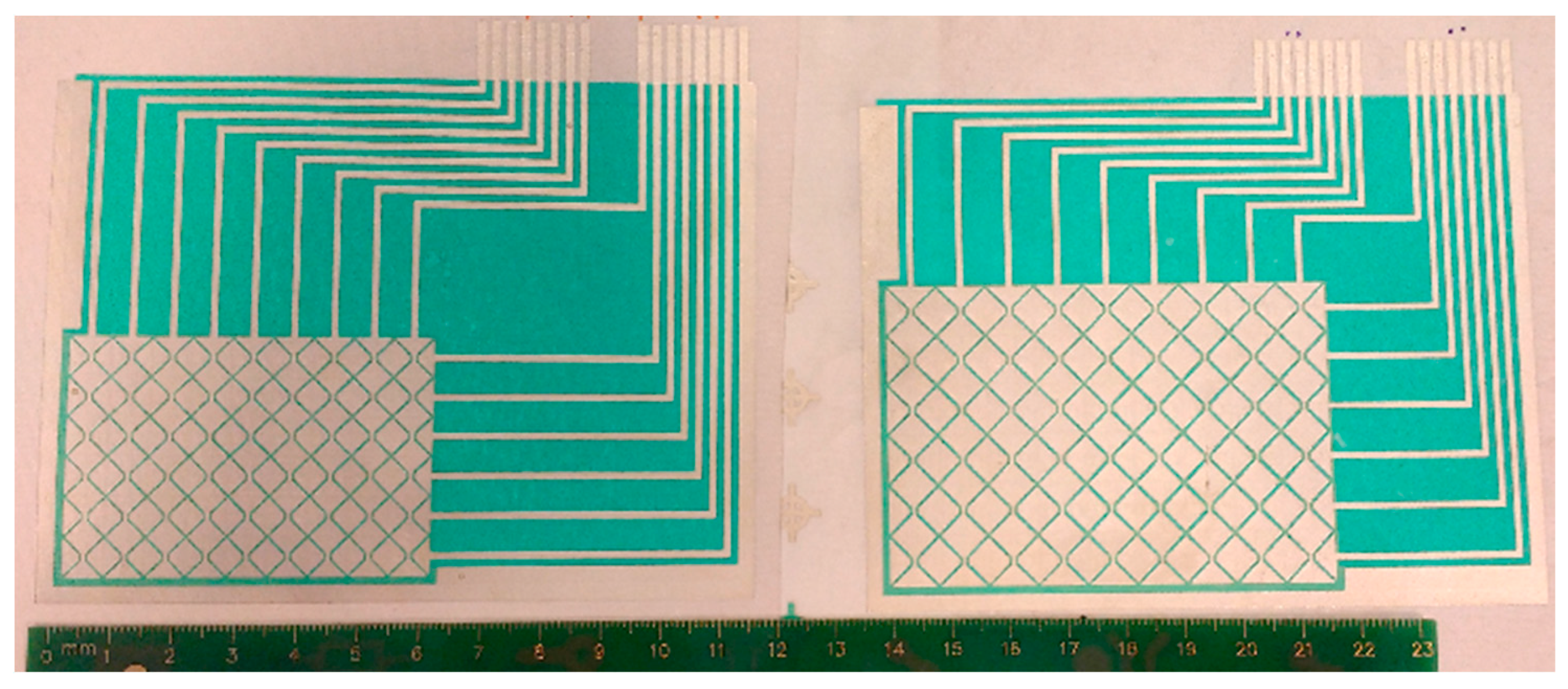

Figure 11. Touchpads with the same design but different size.
Figure 11. Touchpads with the same design but different size.
Materials 10 01450 g011
Figure 12. (a) Performance test on a curved surface touching two different points; and (b) performance test touching on the same point but on a flat and a curved surface, obtaining the same result.
Figure 12. (a) Performance test on a curved surface touching two different points; and (b) performance test touching on the same point but on a flat and a curved surface, obtaining the same result.
Materials 10 01450 g012
Table 1. Failures rate (%) for TLD when 1–3 layers of dielectric ink are used.
Table 1. Failures rate (%) for TLD when 1–3 layers of dielectric ink are used.
Mesh (Inch)1 Layer2 Layers3 Layers
TypeTypeType
ABCABCABC
330100100500100001000
23050050000000
175000000000
137000000000
123000000000
Table 2. Failures rate (%) for OLD when 1–3 layers of dielectric ink are used.
Table 2. Failures rate (%) for OLD when 1–3 layers of dielectric ink are used.
Mesh (Inch)1 Layer2 Layers3 Layers
TypeTypeType
ABCABCABC
33010010010010010050050100
23050100100000000
17550100100000000
13710010050000000
123505050000000
Table 3. Final layer thickness depending on mesh value and number of layers.
Table 3. Final layer thickness depending on mesh value and number of layers.
Mesh (Inch)1 Layer2 Layers3 Layers
3302.8 ± 0.6 μm7.8 ± 0.3 μm12.7 ± 1.1 μm
2304.8 ± 2.1 μm11.8 ± 0.8 μm18.1 ± 1.2 μm
1757.5 ± 2.4 μm15.4 ± 1.2 μm22.9 ± 1.5 μm
1379.1 ± 1.1 μm20.3 ± 1.4 μm30.3 ± 0.9 μm
12310.3 ± 0.2 μm21.6 ± 2.1 μm34.7 ± 2.3 μm
Table 4. Capacitance (pF) for TLD when 1–3 layers of D2081009D6 ink are used.
Table 4. Capacitance (pF) for TLD when 1–3 layers of D2081009D6 ink are used.
Mesh (Inch)1 Layer2 Layers3 Layers
TypeTypeType
ABCABCABC
330--6.796.1-6.475.89-7.02
2307.546.747.336.816.566.876.436.017.05
1756.726.286.2411.812.5135.825.675.97
1376.916.756.995.65.265.585.45.25.8
1235.215.616.375.856.736.095.354.465.35
Table 5. Capacitance (pF) for OLD when 1–3 layers of D2081009D6 ink are used.
Table 5. Capacitance (pF) for OLD when 1–3 layers of D2081009D6 ink are used.
Mesh (Inch)1 Layer2 Layers3 Layers
TypeTypeType
ABCABCABC
330-----7827.15106-
23053.42--17.7219.8125.7614.7915.0518.32
17553.7--21.325.4332.4512.2913.6516.34
13736-9912.113.317.29.510.3412.64
12319.630.838.311.6912.2239.29.511
Table 6. Capacitance (pF) for OLD and TLD when 1–3 layers of D2070209P6 ink are used for mesh of 175 inches.
Table 6. Capacitance (pF) for OLD and TLD when 1–3 layers of D2070209P6 ink are used for mesh of 175 inches.
Type of Design1 Layer2 Layers3 Layers
TypeTypeType
ABCABCABC
TLD-10.915.19.137.719.449.17.649.1
OLD---80.694.112157.566.885.8

© 2017 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Materials EISSN 1996-1944 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
