Potential Biogas Production from Artichoke Byproducts in Sardinia, Italy
Abstract
:1. Introduction
2. Materials and Methods
2.1. Field Trial
2.2. Plant Material and Crop Management
2.3. Data Collection and Analysis
2.4. Biomethane Potential Testing
2.5. Geo-Database Development at the Regional Scale
District | Denomination (n of Municipalities) | Area (ha) | Cultivar Distribution (%) | ||||
---|---|---|---|---|---|---|---|
Spinoso | Tema | Madrigal | C3 | Violetto | |||
D1 | Coros-Nurra (8) | 2250 | 100 | - | - | - | - |
D2 | Valle del Coghinas-Anglona (3) | 3451 | 95 | 5 | - | - | - |
D3 | Oristano (6) | 1050 | 80 | 10 | 10 | - | - |
D4 | Medio Campidano-Cagliari (4) | 3000 | 60 | - | 5 | 15 | 20 |
D5 | Sulcis (3) | 1000 | 100 | - | - | - | - |
Sardinia Region | 10,751 | 85 | 3 | 2 | 4 | 6 |
3. Results and Discussion
3.1. Difference between Cultivars
Cultivar | Heads: Yield (t·ha−1) | Byproduct: Yield (t·ha−1) | Byproduct: DM (%) | Byproduct: DOM (%DM) |
---|---|---|---|---|
Madrigal | 30.5 ± 0.06 a | 143.4 ± 0.23 a | 20.7 | 87.9 |
Spinoso sardo | 4.2 ± 0.02 b | 37.0 ± 0.31 b | 17.3 | 84.5 |
C3 | 4.3 ± 0.13 b | 50.0 ± 0.03 c | 22.5 | 87.1 |
Tema | 12.5 ± 0.07 c | 75.5 ± 0.87 d | 21.1 | 89.7 |
Violetto | 3.2 ± 0.02 b | 25.2 ± 0.24 e | 22.1 | 88.1 |

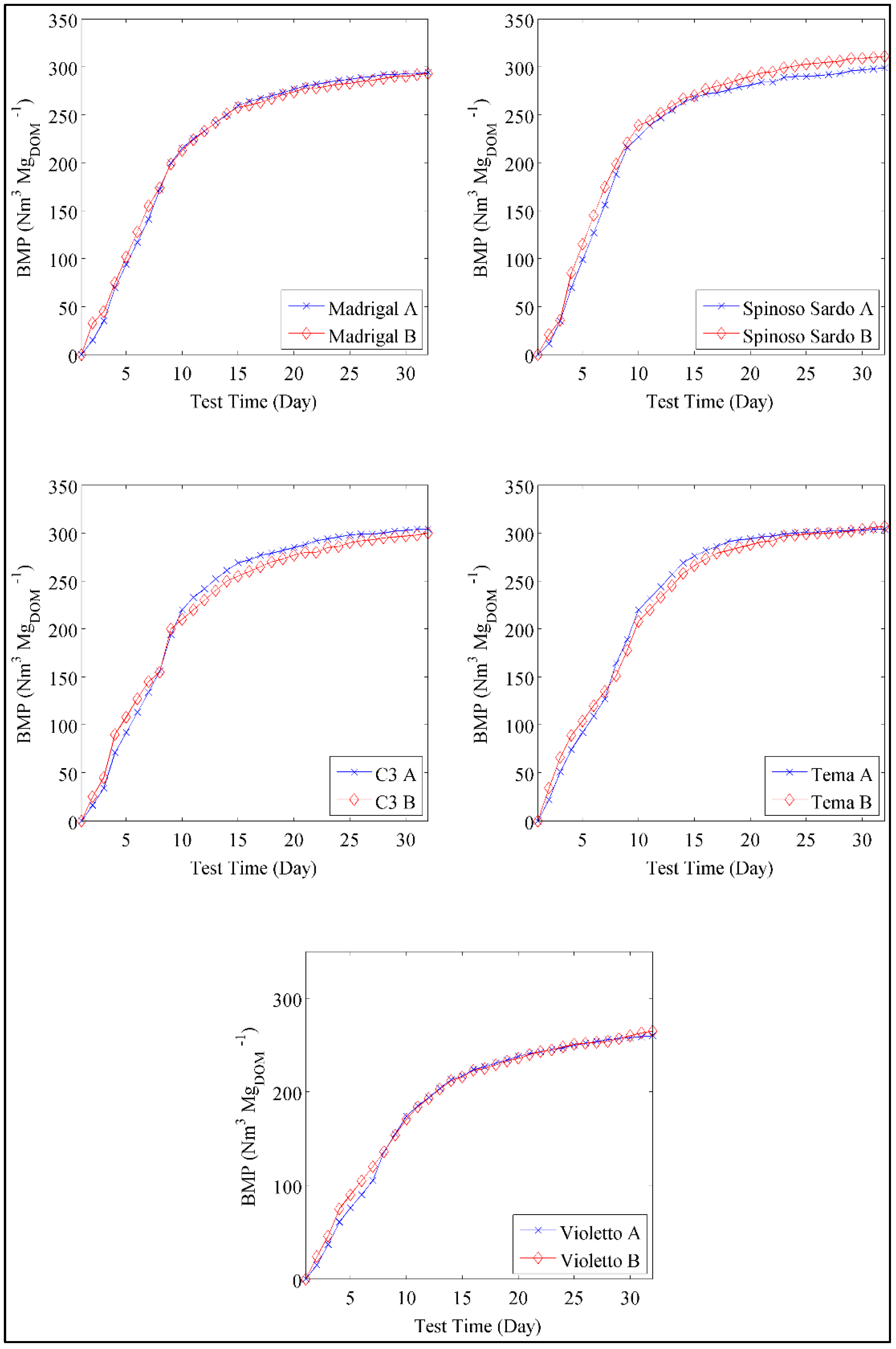

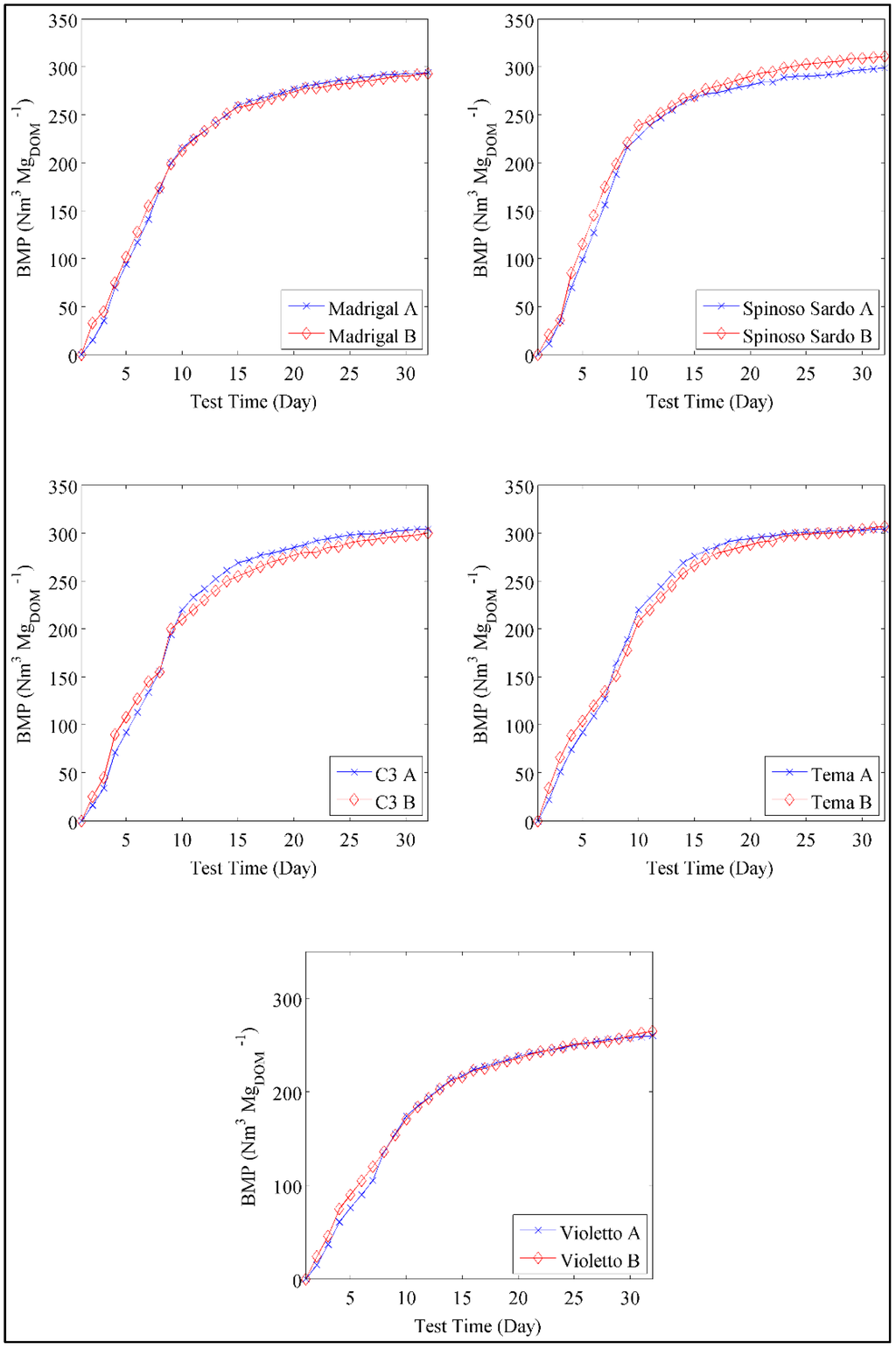

Cultivar | BMP (Nm3·tDOM−1) | |
---|---|---|
A | B | |
Madrigal | 293.9 ± 1.3 a | 292.9 ± 14.5 a, b |
Spinoso sardo | 298.9 ± 5.1 a | 310.5 ± 9.5 b |
C3 | 303.9 ± 2.0 a | 300.3 ± 9.0 a, b |
Tema | 304.0 ± 14.6 a | 306.9 ± 7.1 a, b |
Violetto | 259.9 ± 5.1 b | 265.2 ± 22.1 a |
Cultivar | (Nm3 ha−1) | |
---|---|---|
A | B | |
Madrigal | 7622.3–7714.7 | 7252.4–8033.6 |
Spinoso sardo | 1575.8–1658.1 | 1614.4–1745.3 |
C3 | 2956.5–2999.2 | 2852.7–3032.6 |
Tema | 4087.8–4605.1 | 4234.7–4538.7 |
Violetto | 1238.3–1312.6 | 1181.4–1423.1 |

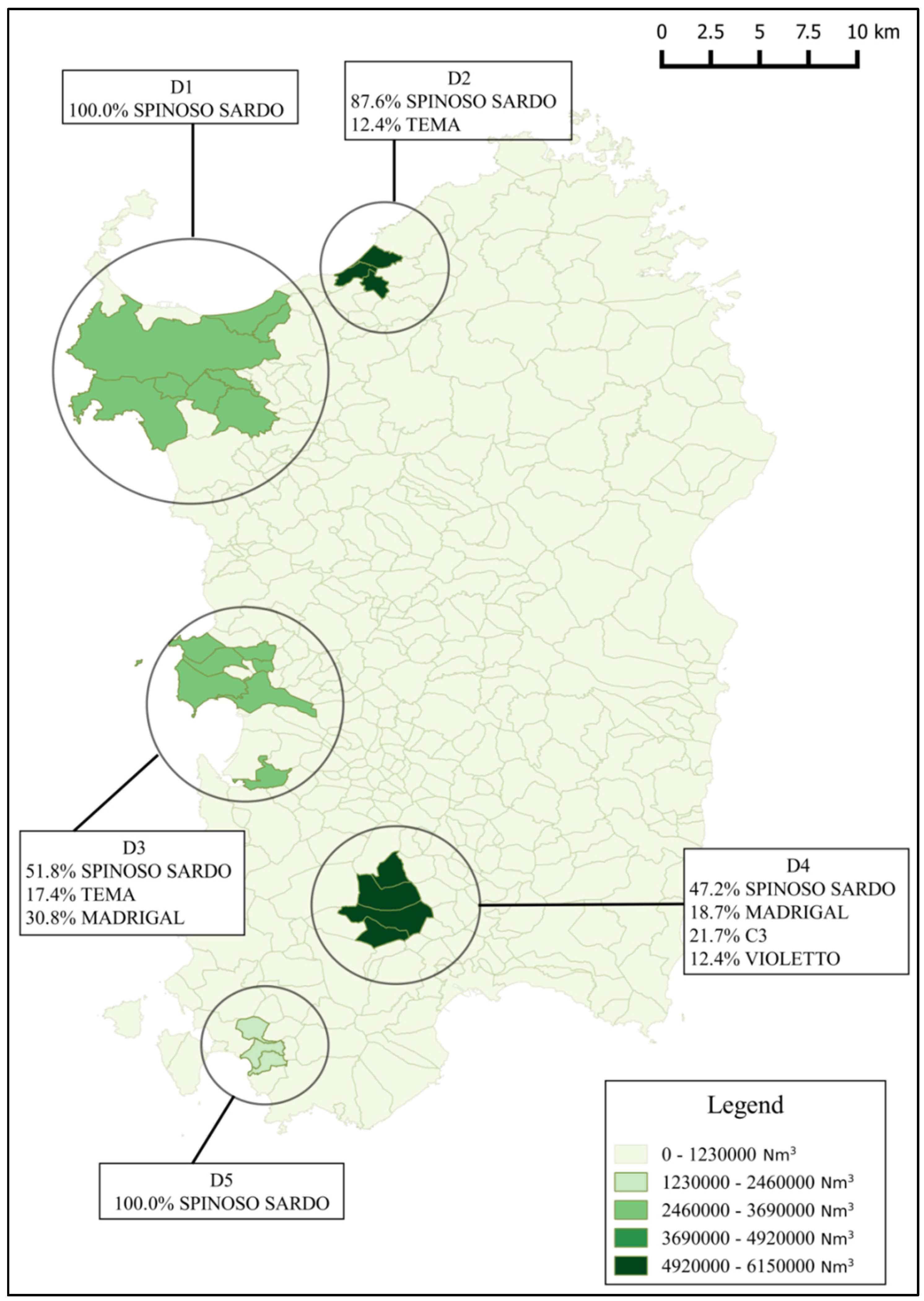

3.2. Regional Assessment
Districts | Biomethane (106 Nm3) |
---|---|
D1 | 3.5–3.9 |
D2 | 5.9–6.5 |
D3 | 2.6–2.8 |
D4 | 6.0–6.6 |
D5 | 1.6–1.7 |
Sardinia Region | 19.6–21.5 |
4. Conclusions
Acknowledgments
Author Contributions
Conflicts of Interest
References
- EurObserv’ER Biogas Barometer. 2014. Available online: http://www.eurobserv-er.org/biogas-barometer-2014/ (accessed on 10 September 2015).
- Britz, W.; Delzeit, R. The impact of German biogas production on European and global agricultural markets, land use and the environment. Energy Policy 2013, 62, 1268–1275. [Google Scholar] [CrossRef]
- Chinese, D.; Patrizio, P.; Nardin, G. Effects of changes in Italian bioenergy promotion schemes for agricultural biogas projects : Insights from a regional optimization model. Energy Policy 2014, 75, 189–205. [Google Scholar] [CrossRef] [Green Version]
- Carrosio, G. Energy production from biogas in the Italian countryside: Modernization vs. repeasantization. Biomass Bioenergy 2014, 70, 141–148. [Google Scholar] [CrossRef]
- Harvey, M.; Pilgrim, S. The new competition for land: Food, energy, and climate change. Food Policy 2011, 36, S40–S51. [Google Scholar] [CrossRef]
- Tilman, D.; Socolow, R.; Foley, J.A.; Hill, J.; Larson, E.; Lynd, L.; Pacala, S.; Reilly, J.; Searchinger, T.; Somerville, C.; et al. Beneficial biofuels—The food, energy, and environment trilemma. Science 2009, 325, 270–271. [Google Scholar] [CrossRef] [PubMed]
- Murphy, R.; Woods, J.; Black, M.; McManus, M. Global developments in the competition for land from biofuels. Food Policy 2011, 36, S52–S61. [Google Scholar] [CrossRef]
- Ciaian, P.; Kancs, D. Food, energy and environment: Is bioenergy the missing link? Food Policy 2011, 36, 571–580. [Google Scholar] [CrossRef]
- Molari, G.; Milani, M.; Toscano, A.; Borin, M.; Taglioli, G.; Villani, G.; Zema, D.A. Energy characterisation of herbaceous biomasses irrigated with marginal waters. Biomass Bioenergy 2014, 70, 392–399. [Google Scholar] [CrossRef]
- Styles, D.; Gibbons, J.; Williams, A.P.; Stichnothe, H.; Chadwick, D.R.; Healey, J.R. Cattle feed or bioenergy? Consequential life cycle assessment of biogas feedstock options on dairy farms. GCB Bioenergy 2014, 7, 1034–1049. [Google Scholar] [CrossRef]
- Lijó, L.; González-García, S.; Bacenetti, J.; Negri, M.; Fiala, M.; Feijoo, G.; Moreira, M.T. Environmental assessment of farm-scaled anaerobic co-digestion for bioenergy production. Waste Manag. 2015, 41, 50–59. [Google Scholar] [CrossRef] [PubMed]
- Huttunen, S.; Manninen, K.; Leskinen, P. Combining biogas LCA reviews with stakeholder interviews to analyse life cycle impacts at a practical level. J. Clean. Prod. 2014, 80, 5–16. [Google Scholar] [CrossRef]
- Dressler, D.; Loewen, A.; Nelles, M. Life cycle assessment of the supply and use of bioenergy: Impact of regional factors on biogas production. Int. J. Life Cycle Assess. 2012, 17, 1104–1115. [Google Scholar] [CrossRef]
- Italian Ministry of Economic Development. Incentives for Electric Renewable Energy Sources apart from PV. 2012, pp. 1–65. Available online: http://www.gse.it/_layouts/GSE_Portal2011.Structures/GSEPortal2011_FileDownload.aspx?FileUrl=http://www.gse.it//it/Qualifiche%20e%20certificati//GSE_Documenti%2fIncentiviDM%2fNormativa%2fDM_6_luglio_2012.pdf&SiteUrl=http://www.gse.it//it/Qualifiche%20e%20certificati/ (accessed on 13 September 2015).
- Jury, C.; Benetto, E.; Koster, D.; Schmitt, B.; Welfring, J. Life cycle assessment of biogas production by monofermentation of energy crops and injection into the natural gas grid. Biomass Bioenergy 2010, 34, 54–66. [Google Scholar] [CrossRef]
- Börjesson, P.; Berglund, M. Environmental systems analysis of biogas systems—Part II: The environmental impact of replacing various reference systems. Biomass Bioenergy 2007, 31, 326–344. [Google Scholar] [CrossRef]
- Schievano, A.; D’Imporzano, G.; Orzi, V.; Colombo, G.; Maggiore, T.; Adani, F. Biogas from dedicated energy crops in Northern Italy: electric energy generation costs. GCB Bioenergy 2015, 7, 899–908. [Google Scholar] [CrossRef]
- Kosseva, M.R. Management and processing of food wastes. In Comprehensive Biotechnology; Elsevier: Philadelphia, PA, USA, 2011; Volume 1, pp. 557–593. [Google Scholar]
- De Menna, F.; Vittuari, M.; Molari, G. Impact evaluation of integrated food-bioenergy systems: A comparative LCA of peach nectar. Biomass Bioenergy 2014, 73, 48–61. [Google Scholar] [CrossRef]
- Bonari, E.; Jodice, R.; Masini, S. L’impresa Agroenergetica. Ruolo e Prospettive Nello Scenario “2 Volte 20 per il 2020”; Edizioni Tullis: Rome, Italy, 2009. [Google Scholar]
- Cavicchi, B.; Bryden, J.M.; Vittuari, M. A comparison of bioenergy policies and institutional frameworks in the rural areas of Emilia Romagna and Norway. Energy Policy 2014, 67, 355–363. [Google Scholar] [CrossRef]
- Cocco, D.; Deligios, P.; Ledda, L.; Sulas, L.; Virdis, A.; Carboni, G. LCA study of oleaginous bioenergy chains in a mediterranean environment. Energies 2014, 7, 6258–6281. [Google Scholar] [CrossRef]
- Calabrò, P.S.; Greco, R.; Evangelou, A.; Komilis, D. Anaerobic digestion of tomato processing waste: Effect of alkaline pretreatment. J. Environ. Manag. 2015, 163, 49–52. [Google Scholar] [CrossRef] [PubMed]
- Schievano, A.; D’Imporzano, G.; Adani, F. Substituting energy crops with organic wastes and agro-industrial residues for biogas production. J. Environ. Manag. 2009, 90, 2537–2541. [Google Scholar] [CrossRef] [PubMed]
- Kryvoruchko, V.; Machmüller, A.; Bodiroza, V.; Amon, B.; Amon, T. Anaerobic digestion of by-products of sugar beet and starch potato processing. Biomass Bioenergy 2009, 33, 620–627. [Google Scholar] [CrossRef]
- Lanuzza, F.; Mondello, F.; Tripodo, M.M. Pathways to Environmental Sustainability; Salomone, R., Saija, G., Eds.; Springer International Publishing: Cham, Switzerland, 2014. [Google Scholar]
- FAOSTAT Artichoke, Production of Commodity in Selected Country, Italy. 2013. Available online: http://faostat3.fao.org/ (accessed on 17 September 2015).
- ISTAT Table C08—Area (ha) and Yield (Quintals): Asparagus, Chard, Turnip Greens, Artichoke. Detail per Province—Year 2013. Available online: http://agri.istat.it/jsp/dawinci.jsp?q=plC080000030000103200&an=2013&ig=1&ct=250&id=15A|18A|28A (accessed on 17 September 2015).
- Pandino, G.; Lombardo, S.; Mauromicale, G. Globe artichoke leaves and floral stems as a source of bioactive compounds. Ind. Crops Prod. 2013, 44, 44–49. [Google Scholar] [CrossRef]
- Raccuia, S.A.; Melilli, M.G.; Calderaro, P.; Scandurra, S. Globe artichoke genetic variability for residual biomass production as renewable resources of energy in South Italy. Acta Hortic. 2013, 983, 129–132. [Google Scholar] [CrossRef]
- Foti, S.; Mauromicale, G.; Raccuia, S.A.; Fallico, B.; Fanella, F. Possible alternative utilization of Cynara spp. I. Biomass, grain yield and chemical composition of grain. Ind. Crops Prod. 1999, 10, 219–228. [Google Scholar] [CrossRef]
- Ierna, A.; Mauromicale, G. Cynara cardunculus L. genotypes as a crop for energy purposes in a Mediterranean environment. Biomass Bioenergy 2010, 34, 754–760. [Google Scholar] [CrossRef]
- Ierna, A.; Mauro, R.P.; Mauromicale, G. Biomass, grain and energy yield in Cynara cardunculus L. as affected by fertilization, genotype and harvest time. Biomass Bioenergy 2012, 36, 404–410. [Google Scholar] [CrossRef]
- Cravero, V.; Martin, E.; Crippa, I.; Anido, F.L.; García, S.M.; Cointry, E. Fresh biomass production and partitioning of aboveground growth in the three botanical varieties of Cynara cardunculus L. Ind. Crops Prod. 2012, 37, 253–258. [Google Scholar] [CrossRef]
- Ledda, L.; Deligios, P.; Farci, R.; Sulas, L. Biomass supply for energetic purposes from some Cardueae species grown in Mediterranean farming systems. Ind. Crops Prod. 2013, 47, 218–226. [Google Scholar] [CrossRef]
- Scano, E.A.; Murroni, S.; Orrù, A.; Triverio, A.; Maxia, C.; Fenu, D.; Cossu, A.; Atzori, D. Documento di Indirizzo Sulle Fonti Energetiche Rinnovabili in Sardegna. Studio Sulle Potenzialità Energetiche Delle Biomasse. 2013. Available online: http://www.regione.sardegna.it/documenti/1_461_20131216100125.pdf (accessed on 14 September 2015).
- Zaghloul, R.A.; Estefanous, A.N.; Hanafy Ehsan, A.; El-Akshar, Y.S. Biogas production from Artichoke processing wastes by using semi- continuous feeding system. In Proceedings of the Tenth Microbiology Conference, Cairo, Egypt, 11–14 November 2000; pp. 279–294.
- Ros, M.; Franke-Whittle, I.H.; Morales, A.B.; Insam, H.; Ayuso, M.; Pascual, J.A. Archaeal community dynamics and abiotic characteristics in a mesophilic anaerobic co-digestion process treating fruit and vegetable processing waste sludge with chopped fresh artichoke waste. Bioresour. Technol. 2013, 136, 1–7. [Google Scholar] [CrossRef] [PubMed]
- Aymerich, E.; Esteban-Gutiérrez, M.; Sancho, L. Analysis of the stability of high-solids anaerobic digestion of agro-industrial waste and sewage sludge. Bioresour. Technol. 2013, 144, 107–114. [Google Scholar] [CrossRef] [PubMed]
- Fabbri, A.; Serranti, S.; Bonifazi, G. Biochemical methane potential (BMP) of artichoke waste: the inoculum effect. Waste Manag. Res. 2014, 32, 207–214. [Google Scholar] [CrossRef] [PubMed]
- Scano, E.A.; Asquer, C.; Pistis, A.; Ortu, L.; Demontis, V.; Cocco, D. Biogas from anaerobic digestion of fruit and vegetable wastes: Experimental results on pilot-scale and preliminary performance evaluation of a full-scale power plant. Energy Convers. Manag. 2014, 77, 22–30. [Google Scholar] [CrossRef]
- Oliveira, I.; Gominho, J.; Diberardino, S.; Duarte, E. Characterization of Cynara cardunculus L. stalks and their suitability for biogas production. Ind. Crops Prod. 2012, 40, 318–323. [Google Scholar] [CrossRef]
- Holmes, D.; Moody, P.; Dine, D. Research Methods for the Biosciences; Oxford University Press: New York, NY, USA, 2011. [Google Scholar]
- Taherzadeh, M.J.; Karimi, K. Pretreatment of lignocellulosic wastes to improve ethanol and biogas production: A review. Int. J. Mol. Sci. 2008, 9, 1621–1651. [Google Scholar] [CrossRef] [PubMed]
- Mahmoud, E.K.; Abd EL-Kader, N.K. How the nitrogen fertilization dose affects the biochemical composition and net mineralization of the artichoke residues. J. Soil Sci. Plant Nutr. 2012, 12, 23–31. [Google Scholar] [CrossRef]
- Plöchl, M.; Hilse, A.; Heiermann, M.; Suarez Quinones, T.; Budde, J.; Prochnow, A. Application of hydrolytic enzymes for improving biogas feedstock fluidity. CIGR Eng. J. 2009, IX, 1–16. [Google Scholar]
- Geng, A.; Zou, G.; Yan, X.; Wang, Q.; Zhang, J.; Liu, F.; Zhu, B.; Zhou, Z. Expression and characterization of a novel metagenome-derived cellulase Exo2b and its application to improve cellulase activity in Trichoderma reesei. Appl. Microbiol. Biotechnol. 2012, 96, 951–962. [Google Scholar] [CrossRef] [PubMed]
- VDI. VDI 4630 Fermentation of organic materials—Characterization of the substrate, sampling, collection of material data, fermentation tests; VDI-Gesellschaft Energie und Umwelt. 2014. Available online: http://www.vdi.eu/guidelines/vdi_4630-vergaerung_organischer_stoffe_substratcharakterisierung_probenahme_stoffdatenerhebung_gaerversuche/ (accessed on 18 September 2015).
- Müller, W.R.; Frommert, I.; Jörg, R. Standardized methods for anaerobic biodegradability testing. Rev. Environ. Sci. Biotechnol. 2004, 3, 141–158. [Google Scholar] [CrossRef]
- Muntoni, M.; Pisanu, A.B.; Ledda, L. Carciofo in Sardegna. In Il Carciofo e il Cardo; ART Servizi Editoriali S.p.A.: Bologna, Italy, 2010; pp. 124–135. [Google Scholar]
- Ledda, L.; Leoni, S. Con il traino del carciofo. Colt. Protette 2004, 12, 19–21. [Google Scholar]
- Poddighe, G.M. Personal Communication 2015; LAORE Sardegna (Unità organizzativa Produzioni vegetali Area 1): Valledoria, Sassari, Italy, 2015. [Google Scholar]
- Ward, A.J.; Hobbs, P.J.; Holliman, P.J.; Jones, D.L. Optimisation of the anaerobic digestion of agricultural resources. Bioresour. Technol. 2008, 99, 7928–7940. [Google Scholar] [CrossRef] [PubMed]
- Harikishan, S. Biogas processing and utilization as an energy source. In Anaerobic Biotechnology for Bioenergy Production; Wiley-Blackwell: Hoboken, NJ, USA; pp. 267–291.
- Godin, B.; Mayer, F.; Agneessens, R.; Gerin, P.; Dardenne, P.; Delfosse, P.; Delcarte, J. Biochemical methane potential prediction of plant biomasses: Comparing chemical composition versus near infrared methods and linear versus non-linear models. Bioresour. Technol. 2014, 175, 382–390. [Google Scholar] [CrossRef] [PubMed]
- Bruni, E.; Jensen, A.P.; Pedersen, E.S.; Angelidaki, I. Anaerobic digestion of maize focusing on variety, harvest time and pretreatment. Appl. Energy 2010, 87, 2212–2217. [Google Scholar] [CrossRef]
