Article

Incipient Fault Diagnosis of a Grid-Connected T-Type Multilevel Inverter Using Multilayer Perceptron and Walsh Transform

by
Tito G. Amaral
1,2,
Vitor Fernão Pires
1,2,3,*,
Armando Cordeiro
2,3,4,
Daniel Foito
1,2,5,
João F. Martins
5,6,
Julia Yamnenko
7,
Tetyana Tereschenko
7,
Liudmyla Laikova
7 and
Ihor Fedin
7
1
ESTSetúbal, Istituto Politécnico de Setúbal, 2914-508 Setúbal, Portugal
2
Sustain.RD, IPS—Instituto Politécnico de Setúbal, 2914-508 Setúbal, Portugal
3
INESC-ID, 1000-029 Lisboa, Portugal
4
ISEL, DEEEA, IPL—Instituto Politécnico de Lisboa, 1549-020 Lisboa, Portugal
5
Department of Superior Technical School of Setúbal, Polytechnic Institute of Setúbal, CTS-UNINOVA—Universidade Nova de Lisboa, 1099-085 Lisboa, Portugal
6
DEE—Department of Electrical Engineering, FCT, DEEC, UNL—Universidade Nova de Lisboa, 2829-516 Lisboa, Portugal
7
Faculty of Electronics, National Technical University of Ukraine, 03056 Kyiv, Ukraine
*
Author to whom correspondence should be addressed.
Energies 2023, 16(6), 2668; https://doi.org/10.3390/en16062668
Submission received: 14 February 2023 / Revised: 7 March 2023 / Accepted: 9 March 2023 / Published: 13 March 2023
(This article belongs to the Special Issue Progress in Design and Control of Power Converters)
Browse Figures
Versions Notes

Abstract

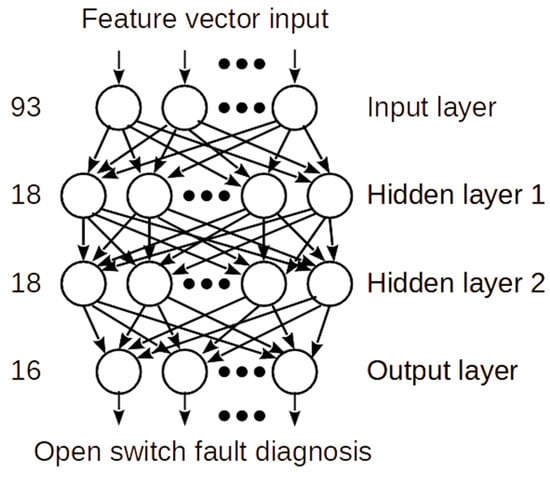

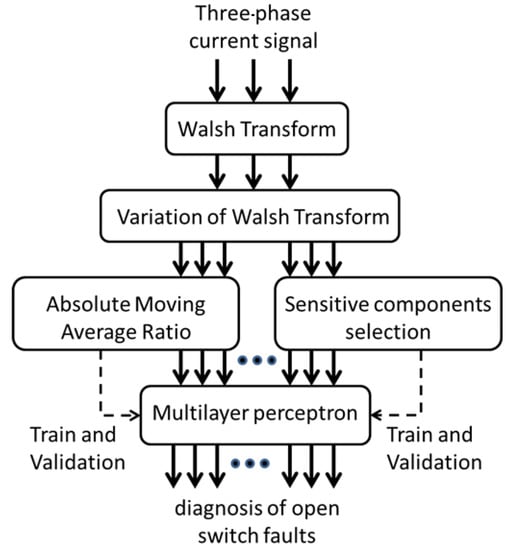

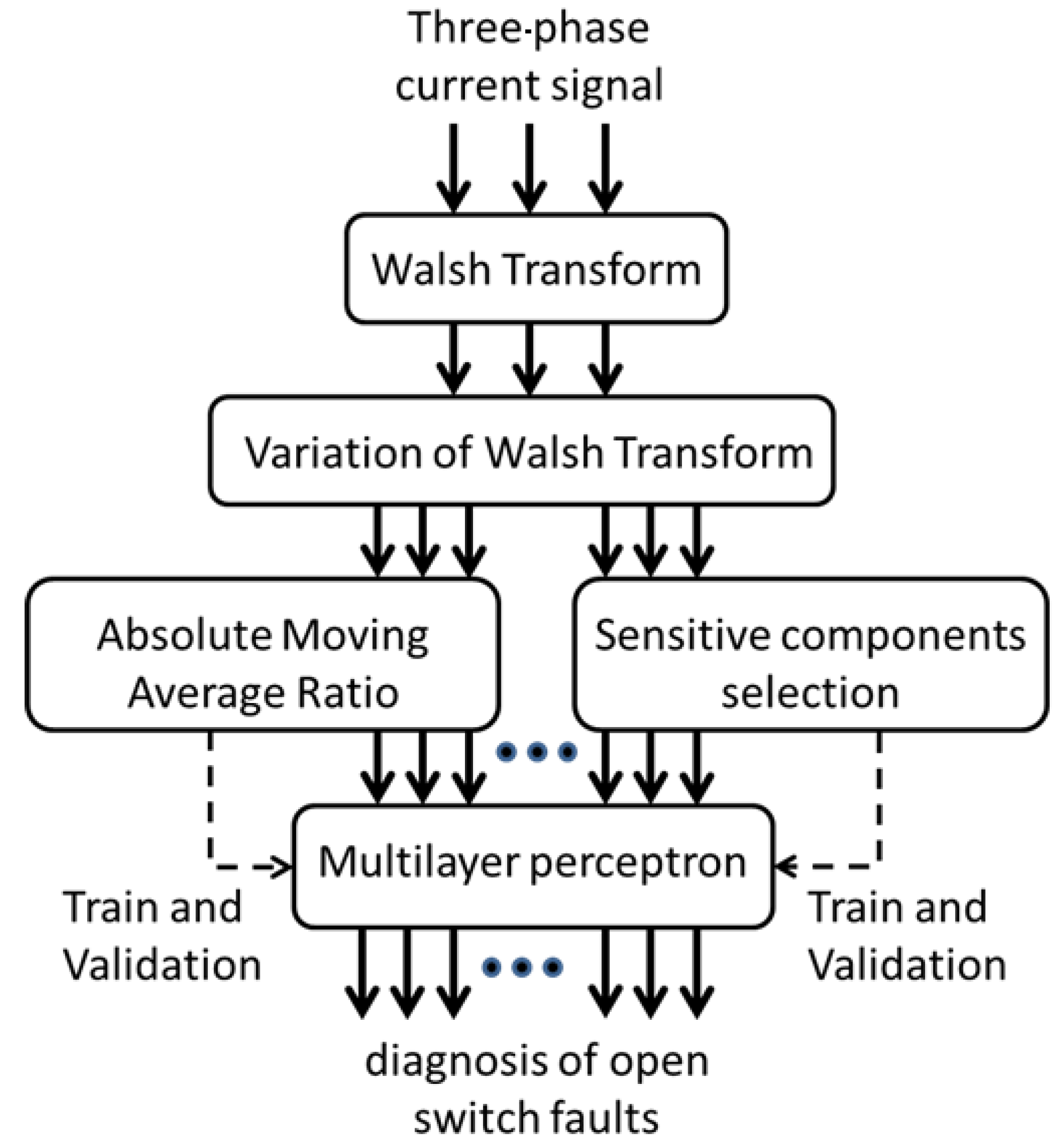

This article deals with fault detection and the classification of incipient and intermittent open-transistor faults in grid-connected three-level T-type inverters. Normally, open-transistor detection algorithms are developed for permanent faults. Nevertheless, the difficulty to detect incipient and intermittent faults is much greater, and appropriate methods are required. This requirement is due to the fact that over time, its repetition may lead to permanent failures that may lead to irreversible degradation. Therefore, the early detection of these failures is very important to ensure the reliability of the system and avoid unscheduled stops. For diagnosing these incipient and intermittent faults, a novel method based on a Walsh transform combined with a multilayer perceptron (MLP)-based classifier is proposed in this paper. This non-classical approach of using the Walsh transform not only allows accurate detections but is also very fast. This last characteristic is very important in these applications due to their practical implementation. The proposed method includes two main steps. First, the acquired AC currents are used by the control system and processed using the Walsh transform. This results in detailed information used to potentially identify open-transistor faults. Then, such information is processed using the MLP to finally determine whether a fault is present or not. Several experiments are conducted with different types of incipient transistor faults to create a relevant dataset.
Keywords: artificial neural networks (ANNs); Walsh transform; fault diagnosis; incipient and intermittent fault; open transistor; multilevel T-type inverter artificial neural networks (ANNs); Walsh transform; fault diagnosis; incipient and intermittent fault; open transistor; multilevel T-type inverter
