Production of Fuel Range Hydrocarbons from Pyrolysis of Lignin over Zeolite Y, Hydrogen
Abstract
:1. Introduction
2. Material and Methods
2.1. Materials
2.2. Thermogravimetric Analysis and Kinetic Study

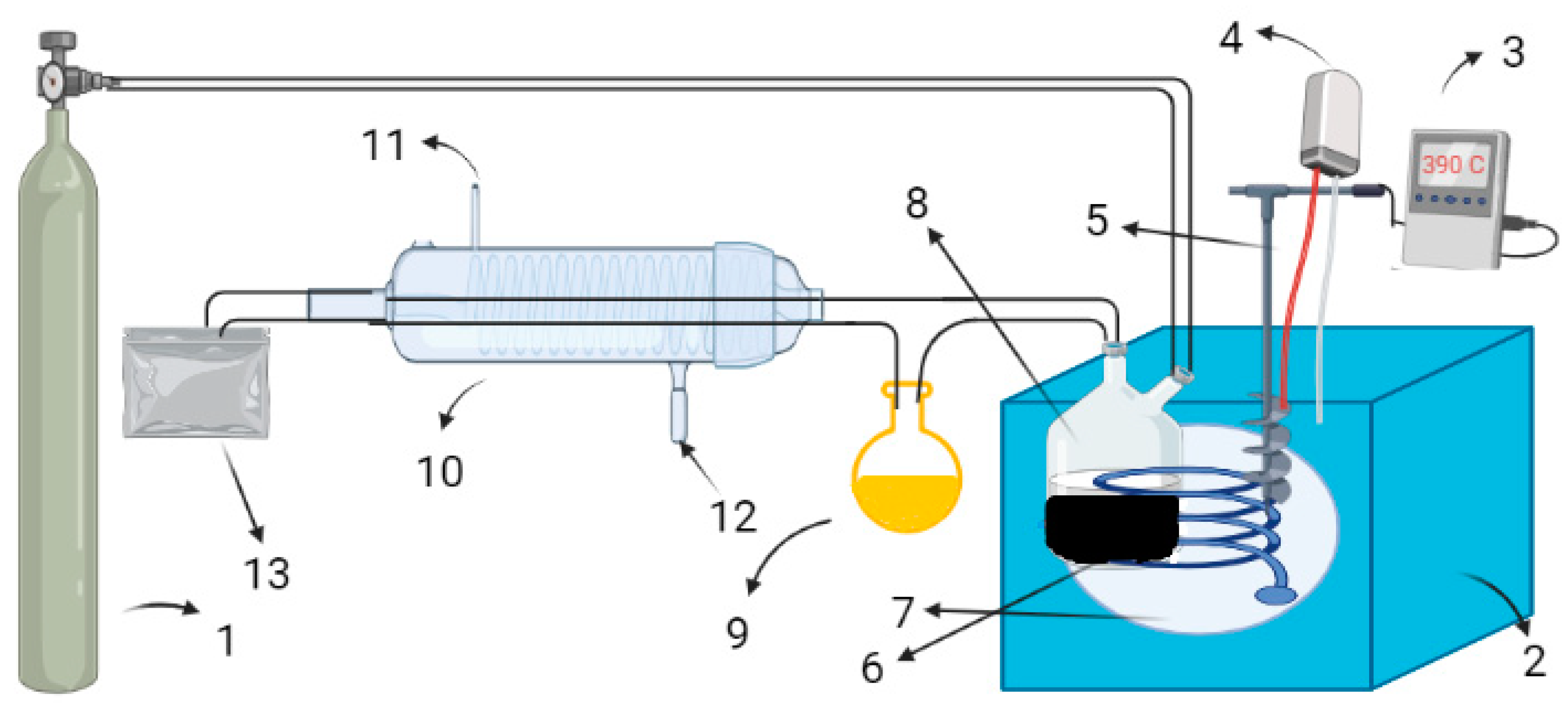

2.3. Pyrolysis Experiments and Products Characterization
3. Results and Discussion

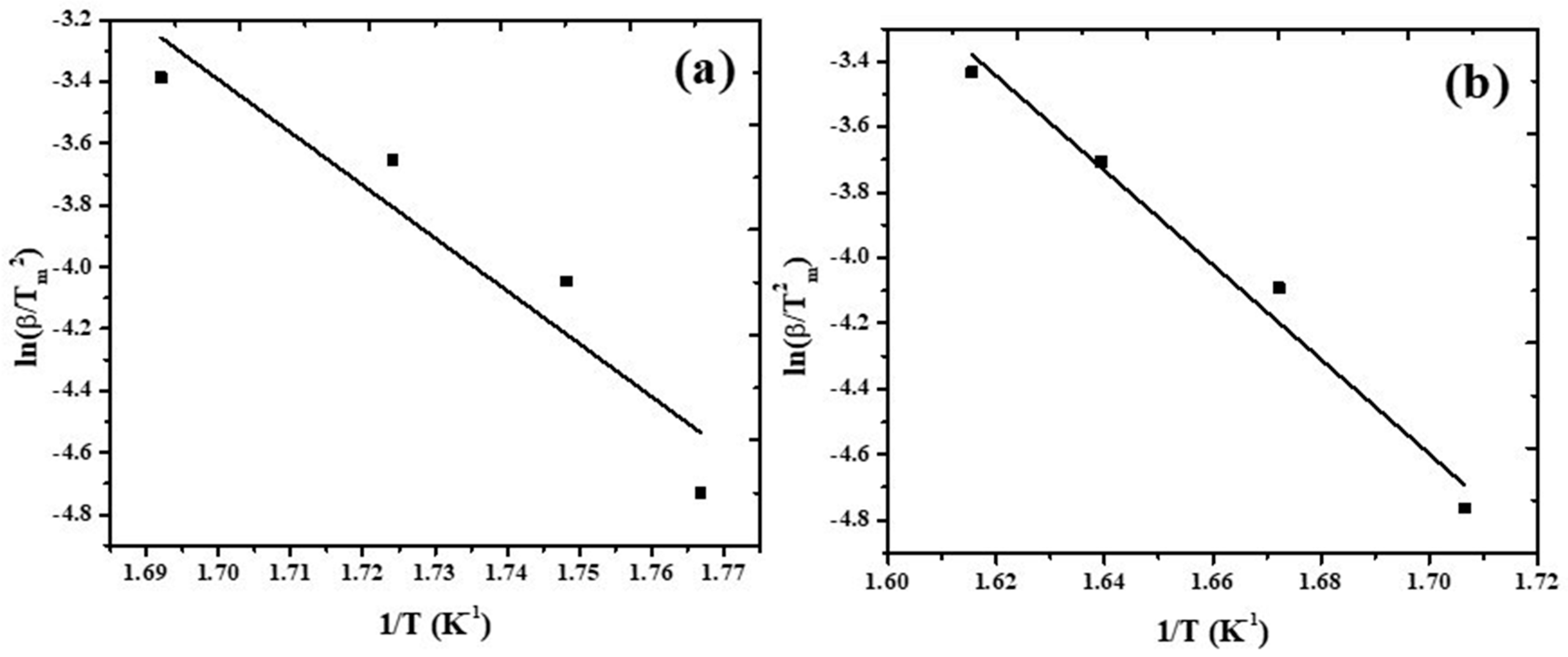

3.1. Thermogravimetric Analysis and Kinetic Study
3.2. Characterization of Biochar

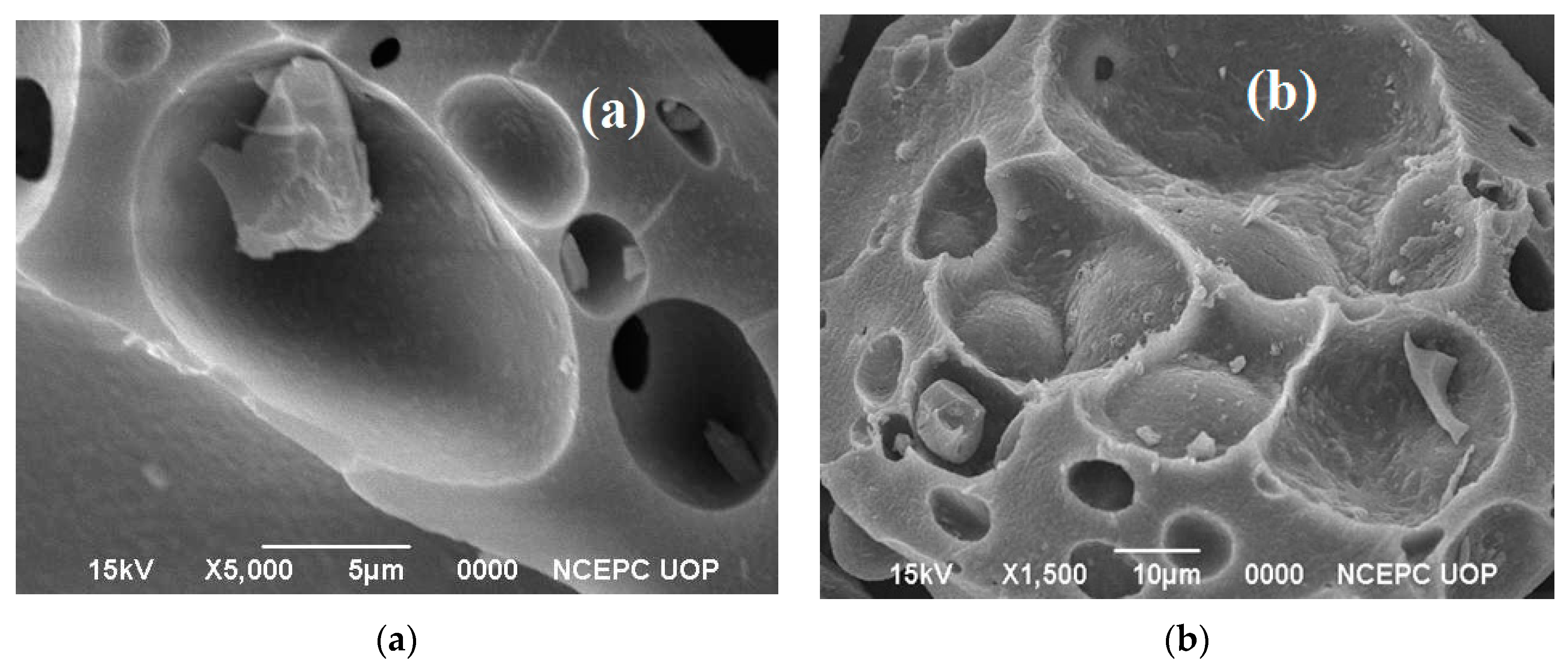

3.2.1. SEM Analysis

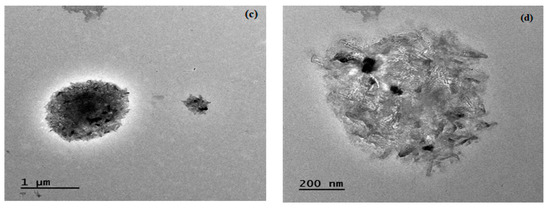

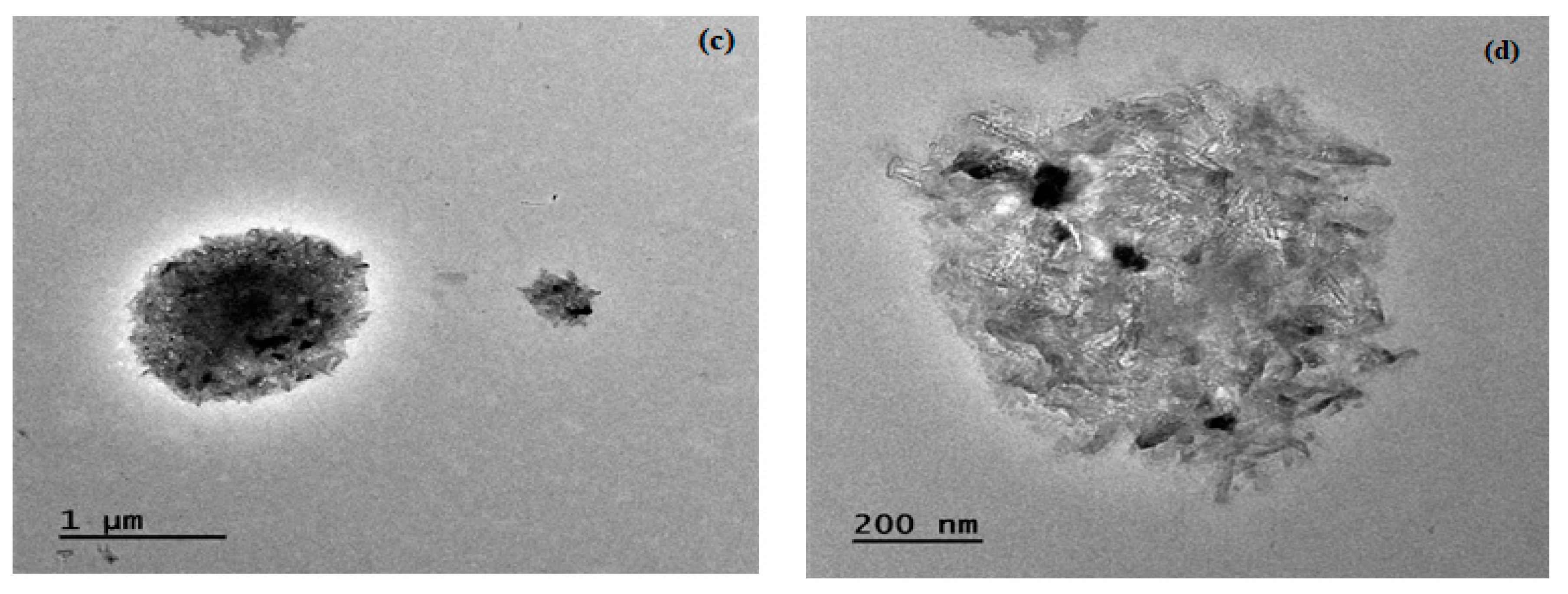

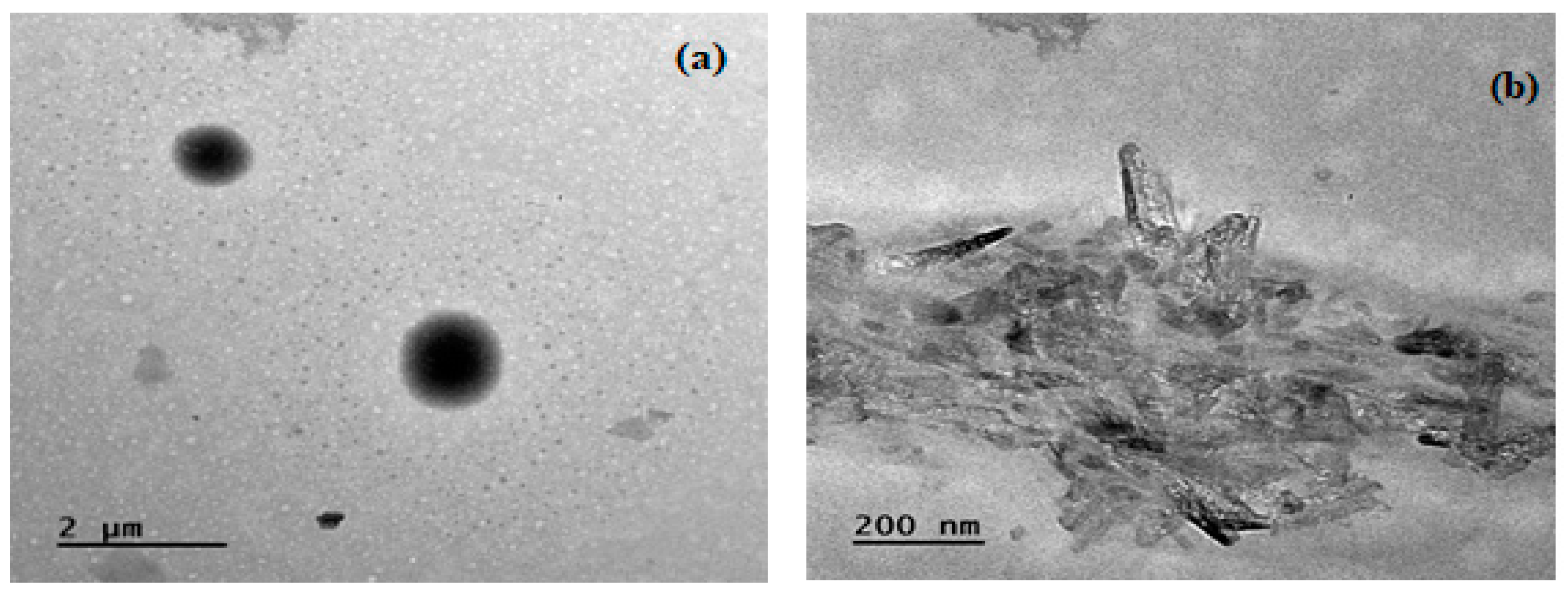

3.2.2. TEM Analysis

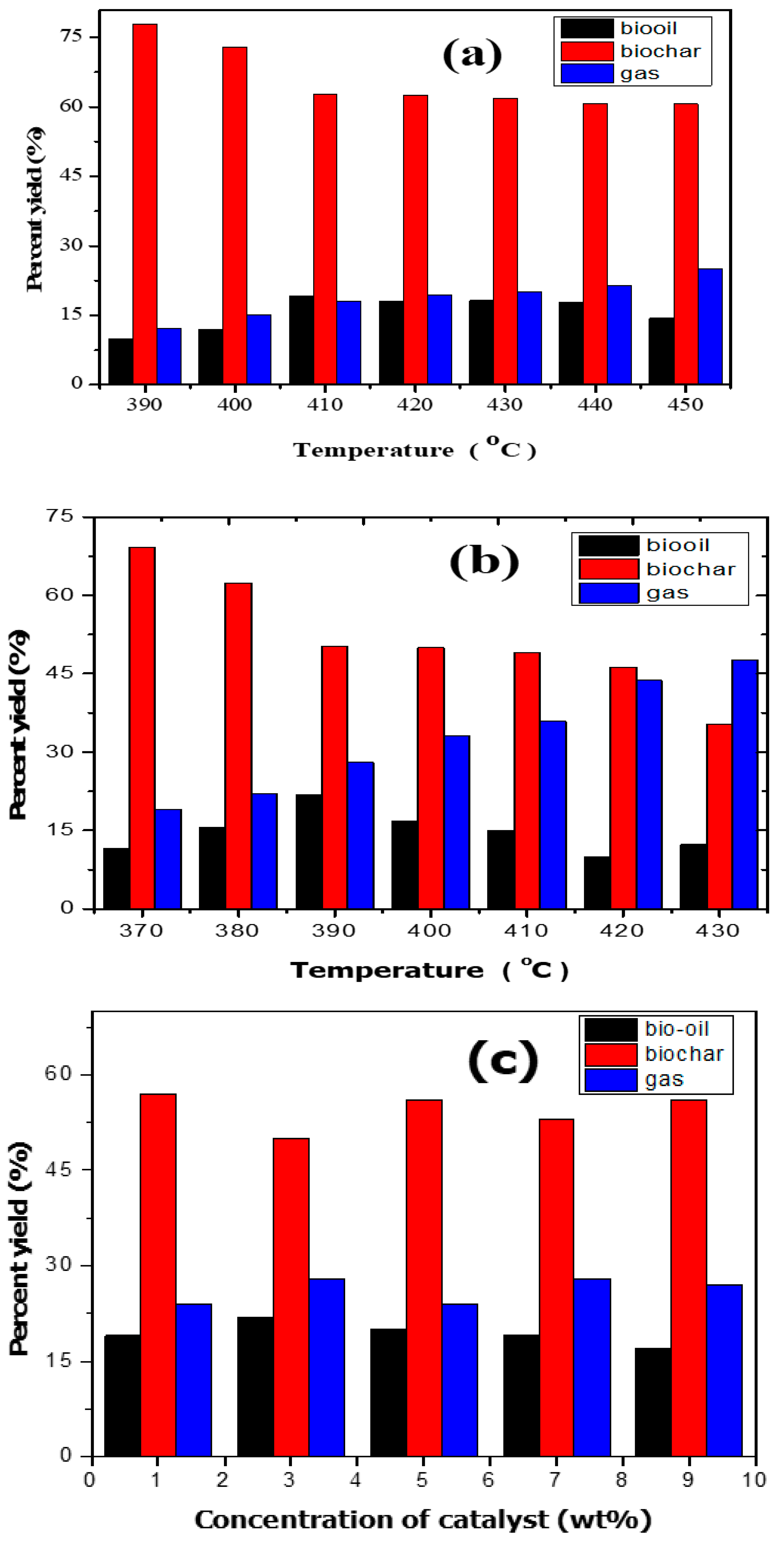

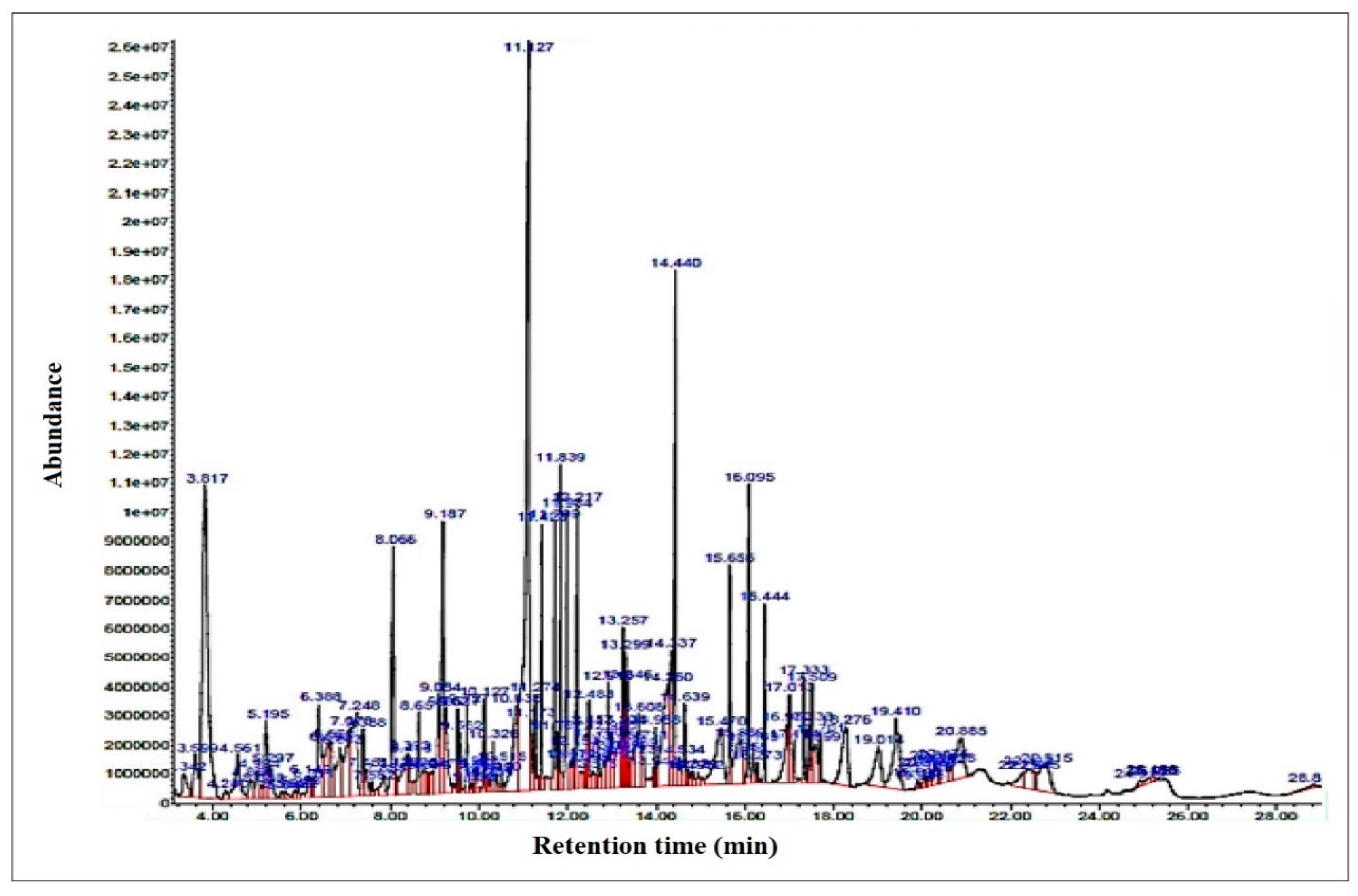

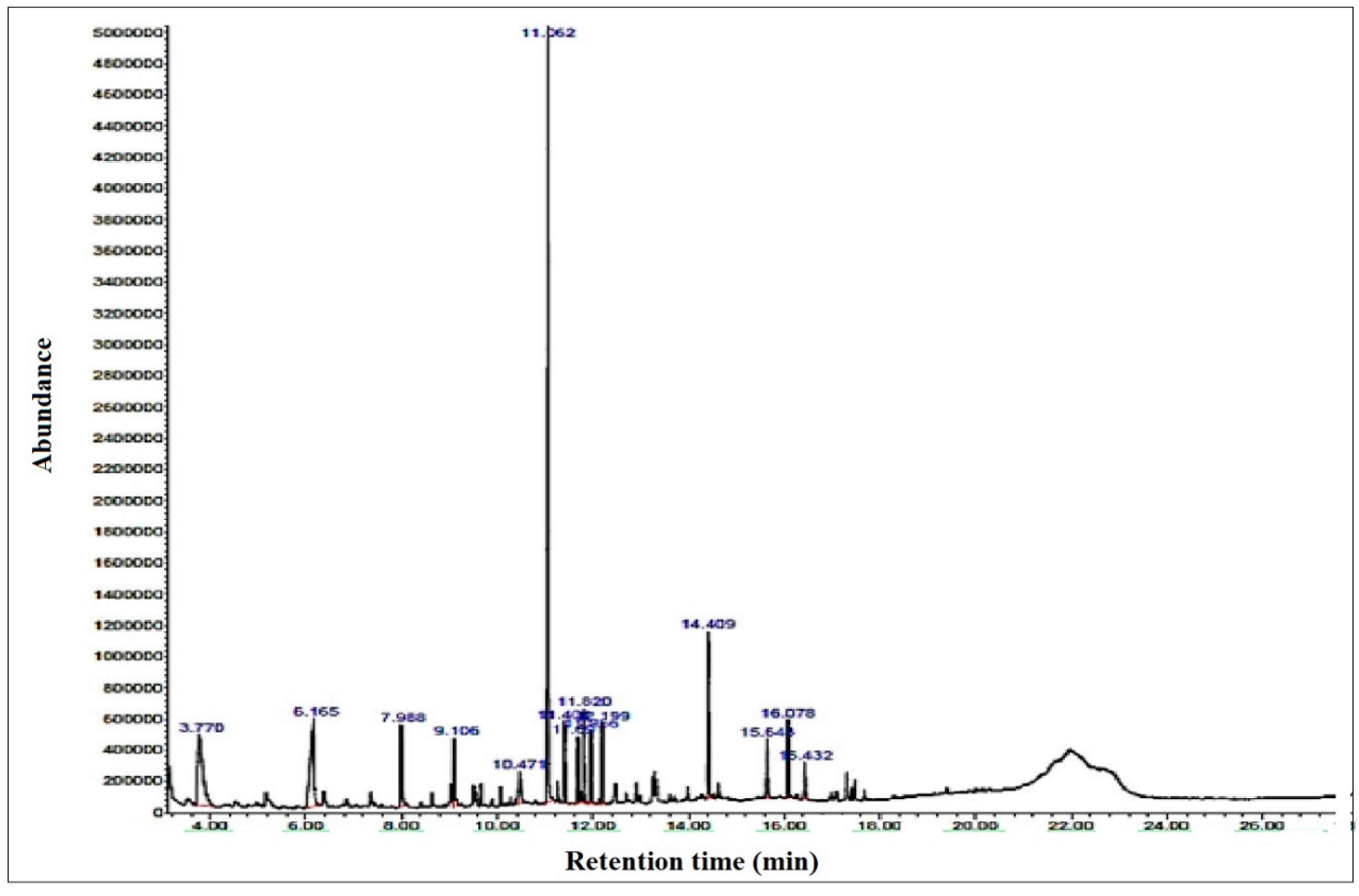

3.3. Pyrolysis Experiments and GC/MS of Bio-Oil
4. Conclusions
Author Contributions
Funding
Conflicts of Interest
References
- Raza, M.A.; Aman, M.M.; Rajpar, A.H.; Bashir, M.B.A.; Jumani, T.A. Towards Achieving 100% Renewable Energy Supply for Sustainable Climate Change in Pakistan. Sustainability 2022, 14, 16547. [Google Scholar] [CrossRef]
- Potrč, S.; Čuček, L.; Martin, M.; Kravanja, Z. Sustainable renewable energy supply networks optimization—The gradual transition to a renewable energy system within the European Union by 2050. Renew. Sustain. Energy Rev. 2021, 146, 111186. [Google Scholar] [CrossRef]
- Ioelovich, M. Recent findings and the energetic potential of plant biomass as a renewable source of biofuels—A review. Bioresources 2015, 10, 1879–1914. [Google Scholar]
- Ioelovich, M. Plant Biomass as a Renewable Source of Biofuels and Biochemicals; LAP LAMBERT Academic Publishing: Sunnyvale, CA, USA, 2013. [Google Scholar]
- Ahmed, M.M.; Nasri, N.S.; Hamza, D.U. Biomass as a renewable source of chemicals for industrial applications. Int. J. Eng. Sci. Technol. 2012, 4, 721–730. [Google Scholar]
- Włodarczyk, B.; Firoiu, D.; Ionescu, G.H.; Ghiocel, F.; Szturo, M.; Markowski, L. Assessing the Sustainable Development and Renewable Energy Sources Relationship in EU Countries. Energies 2021, 14, 2323. [Google Scholar] [CrossRef]
- Nisar, J.; Ullah, N.; Awan, I.A.; Iqbal, M.; Khan, T.A. Pyrolysis–Gas Chromatography of Sugar Beet Bagasse. Waste Biomass Valoriz. 2015, 7, 79–85. [Google Scholar] [CrossRef]
- Taarning, E.; Osmundsen, C.M.; Yang, X.; Voss, B.; Andersen, S.I.; Christensen, C.H. Zeolite based biomass conversion to fuels and chemicals. Energy Environ. Sci. 2011, 4, 793–804. [Google Scholar] [CrossRef] [Green Version]
- Galadima, A.; Muraza, O. In situ fast pyrolysis of biomass with zeolite catalysts for bioaromatics/gasoline production: A review. Energy Convers. Manag. 2015, 105, 338–354. [Google Scholar] [CrossRef]
- Jiang, G.; Nowakowski, D.J.; Bridgwater, A.V. A systematic study of the kinetics of lignin pyrolysis. Thermochim. Acta 2010, 498, 61–66. [Google Scholar] [CrossRef]
- Sharma, R.K.; Wooten, J.B.; Baliga, V.L.; Lin, X.; Chan, W.G.; Hajaligol, M.R. Characterization of chars from pyrolysis of lignin. Fuel 2004, 83, 1469–1482. [Google Scholar] [CrossRef]
- Kawamoto, H. Lignin pyrolysis reactions. J. Wood Sci. 2017, 63, 117–132. [Google Scholar] [CrossRef] [Green Version]
- Mu, W.; Ben, H.; Ragauskas, A.; Deng, Y. Lignin Pyrolysis Components and Upgrading—Technology Review. BioEnergy Res. 2013, 6, 1183–1204. [Google Scholar] [CrossRef]
- Liu, Q.; Wang, S.; Zheng, Y.; Luo, Z.; Cen, K. Mechanism study of wood lignin pyrolysis by using TG–FTIR analysis. J. Anal. Appl. Pyrolysis 2008, 82, 170–177. [Google Scholar] [CrossRef]
- Li, M.; Pu, Y.; Ragauskas, A.J. Current Understanding of the Correlation of Lignin Structure with Biomass Recalcitrance. Front. Chem. 2016, 4, 45. [Google Scholar] [CrossRef] [Green Version]
- Vanholme, R.; Morreel, K.; Ralph, J.; Boerjan, W. Lignin engineering. Curr. Opin. Plant Biol. 2008, 11, 278–285. [Google Scholar] [CrossRef] [PubMed]
- Novaes, E.; Kirst, M.; Chiang, V.; Winter-Sederoff, H.; Sederoff, R. Lignin and Biomass: A Negative Correlation for Wood Formation and Lignin Content in Trees. Plant Physiol. 2010, 154, 555–561. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Watkins, D.; Nuruddin, M.; Hosur, M.; Tcherbi-Narteh, A.; Jeelani, S. Extraction and characterization of lignin from different biomass resources. J. Mater. Res. Technol. 2015, 4, 26–32. [Google Scholar] [CrossRef] [Green Version]
- Lim, H.Y.; Yusup, S.; Loy, A.C.M.; Samsuri, S.; Ho, S.S.K.; Manaf, A.S.A.; Lam, S.S.; Chin, B.L.F.; Acda, M.N.; Unrean, P.; et al. Review on Conversion of Lignin Waste into Value-Added Resources in Tropical Countries. Waste Biomass Valoriz. 2020, 12, 5285–5302. [Google Scholar] [CrossRef]
- Ioelovich, M. Methods for determination of chemical composition of plant biomass. J. SITA 2015, 17, 208–214. [Google Scholar]
- Nisar, J.; Waris, S.; Shah, A.; Anwar, F.; Ali, G.; Ahmad, A.; Muhammad, F. Production of Bio-Oil from De-Oiled Karanja (Pongamia pinnata L.) Seed Press Cake via Pyrolysis: Kinetics and Evaluation of Anthill as the Catalyst. Sustain. Chem. 2022, 3, 345–357. [Google Scholar] [CrossRef]
- Blaine, R.L.; Kissinger, H.E. Homer Kissinger and the Kissinger equation. Thermochim. Acta 2012, 540, 1–6. [Google Scholar] [CrossRef]
- Nisar, J.; Rahman, A.; Ali, G.; Shah, A.; Farooqi, Z.H.; Bhatti, I.A.; Iqbal, M.; Rehman, N.U. Pyrolysis of almond shells waste: Effect of zinc oxide on kinetics and product distribution. Biomass Convers. Biorefin. 2020, 12, 2583–2595. [Google Scholar] [CrossRef]
- Nisar, J.; Sharaf, M.; Ali, G.; Farooqi, Z.H.; Iqbal, M.; Khan, S. Pyrolysis of juice-squeezed grapefruit waste: Effect of nickel oxide on kinetics and bio-oil yield. Int. J. Environ. Sci. Technol. 2022, 19, 10211–10222. [Google Scholar] [CrossRef]
- Wang, L.; Lei, H.; Liu, J.; Bu, Q. Thermal decomposition behavior and kinetics for pyrolysis and catalytic pyrolysis of Douglas fir. RSC Adv. 2018, 8, 2196–2202. [Google Scholar] [CrossRef] [Green Version]
- Shrestha, B.; Le Brech, Y.; Ghislain, T.; Leclerc, S.; Carré, V.; Aubriet, F.; Hoppe, S.; Marchal, P.; Pontvianne, S.; Brosse, N.; et al. A Multitechnique Characterization of Lignin Softening and Pyrolysis. ACS Sustain. Chem. Eng. 2017, 5, 6940–6949. [Google Scholar] [CrossRef]
- Nisar, J.; Ahmad, A.; Ali, G.; Rehman, N.U.; Shah, A.; Shah, I. Enhanced Bio-Oil Yield from Thermal Decomposition of Peanut Shells Using Termite Hill as the Catalyst. Energies 2022, 15, 1891. [Google Scholar] [CrossRef]
- Xiu, S.; Shahbazi, A.; Li, R. Characterization, Modification and Application of Biochar for Energy Storage and Catalysis: A Review. Trends Renew. Energy 2017, 3, 86–101. [Google Scholar] [CrossRef] [Green Version]
- Wang, W.; Liu, Y.; Wang, Y.; Liu, L.; Hu, C. Effect of nickel salts on the production of biochar derived from alkali lignin: Properties and applications. Bioresour. Technol. 2021, 341, 125876. [Google Scholar] [CrossRef]
- Li, C.; Hayashi, J.-I.; Sun, Y.; Zhang, L.; Zhang, S.; Wang, S.; Hu, X. Impact of heating rates on the evolution of function groups of the biochar from lignin pyrolysis. J. Anal. Appl. Pyrolysis 2021, 155, 105031. [Google Scholar] [CrossRef]
- Westerhof, R.J.M.; Brilman, D.W.F.; van Swaaij, W.P.M.; Kersten, S.R.A. Effect of Temperature in Fluidized Bed Fast Pyrolysis of Biomass: Oil Quality Assessment in Test Units. Ind. Eng. Chem. Res. 2010, 49, 1160–1168. [Google Scholar] [CrossRef]
- Demirbas, A. Effect of temperature on pyrolysis products from four nut shells. J. Anal. Appl. Pyrolysis 2006, 76, 285–289. [Google Scholar] [CrossRef]
- Nizamuddin, S.; Baloch, H.A.; Mubarak, N.M.; Riaz, S.; Siddiqui, M.T.H.; Takkalkar, P.; Tunio, M.M.; Mazari, S.; Bhutto, A.W. Solvothermal Liquefaction of Corn Stalk: Physico-Chemical Properties of Bio-oil and Biochar. Waste Biomass Valoriz. 2018, 10, 1957–1968. [Google Scholar] [CrossRef]
- Kalogiannis, K.G.; Stefanidis, S.D.; Michailof, C.M.; Lappas, A.A.; Sjöholm, E. Pyrolysis of lignin with 2DGC quantification of lignin oil: Effect of lignin type, process temperature and ZSM-5 in situ upgrading. J. Anal. Appl. Pyrolysis 2015, 115, 410–418. [Google Scholar] [CrossRef]
- Jung, K.A.; Nam, C.W.; Woo, S.H.; Park, J.M. Response surface method for optimization of phenolic compounds production by lignin pyrolysis. J. Anal. Appl. Pyrolysis 2016, 120, 409–415. [Google Scholar] [CrossRef]
- Jiang, G.; Nowakowski, D.J.; Bridgwater, A.V. Effect of the Temperature on the Composition of Lignin Pyrolysis Products. Energy Fuels 2010, 24, 4470–4475. [Google Scholar] [CrossRef]
- Ateş, F.; Pütün, E.; Pütün, A.E. Fast pyrolysis of sesame stalk: Yields and structural analysis of bio-oil. J. Anal. Appl. Pyrolysis 2004, 71, 779–790. [Google Scholar] [CrossRef]
- Jeon, M.-J.; Jeon, J.-K.; Suh, D.J.; Park, S.H.; Sa, Y.J.; Joo, S.H.; Park, Y.-K. Catalytic pyrolysis of biomass components over mesoporous catalysts using Py-GC/MS. Catal. Today 2013, 204, 170–178. [Google Scholar] [CrossRef]
- Mante, O.D.; Agblevor, F.A.; McClung, R. Fluid catalytic cracking of biomass pyrolysis vapors. Biomass Convers. Biorefin. 2011, 1, 189–201. [Google Scholar] [CrossRef]
- Ohra-Aho, T.; Linnekoski, J. Catalytic pyrolysis of lignin by using analytical pyrolysis-GC–MS. J. Anal. Appl. Pyrolysis 2015, 113, 186–192. [Google Scholar] [CrossRef]
- Hernando, H.; Moreno, I.; Fermoso, J.; Ochoa-Hernández, C.; Pizarro, P.; Coronado, J.M.; Cejik, J.; Serrano, D.P. Biomass catalytic fast pyrolysis over hierarchical ZSM-5 and Beta zeolites modified with Mg and Zn oxides. Biomass Convers. Biorefin. 2017, 7, 289–304. [Google Scholar] [CrossRef]
- Nisar, J.; Ali, F.; Malana, M.A.; Ali, G.; Iqbal, M.; Shah, A.; Bhatti, I.A.; Khan, T.A.; Rashid, U. Kinetics of the pyrolysis of cobalt-impregnated sesame stalk biomass. Biomass Convers. Biorefin. 2020, 10, 1179–1187. [Google Scholar] [CrossRef]
Component | Thermal | Thermo-Catalytic | ||
---|---|---|---|---|
Ea (kJmol−1) | A (min−1) | Ea (kJmol−1) | A (min−1) | |
Lignin | 157.96 | 2.66 × 1013 | 141.33 | 2.17 × 1010 |
S No | Retention Time | Compound Name | Chemical Formula | Mol.wt (g) | Area % |
---|---|---|---|---|---|
1 | 3.34 | Phenol, 2-methyl- | C7H6N2O5 | 198.13 | 0.7 |
2 | 3.60 | Phenol, 3-methyl- | C7H8O | 108.14 | 0.89 |
3 | 3.82 | Phenol, 2-methoxy- | C10H12O2 | 170.16 | 8.47 |
4 | 4.27 | Pentanoic acid, 2-methyl-, methyl ester | C7H14O2 | 130.18 | 0.32 |
5 | 4.55 | Benzene, 1,2-dimethoxy- | C8H10O2 | 138.16 | 2.01 |
6 | 4.84 | Phenol, 3-ethyl | C8H10O | 122.16 | 0.52 |
7 | 5.19 | Creosol | C8H10O2 | 138.16 | 0.96 |
8 | 5.29 | Catechol | C6H6O2 | 110.10 | 0.68 |
9 | 5.55 | Mequinol | C7H10O2 | 124.13 | 0.28 |
10 | 5.64 | Butanoic acid, 2-octyl ester | C12H24O2 | 200.38 | 0.32 |
11 | 5.83 | 3,4-Dimethoxytoluene | C9H12O2 | 152.19 | 0.29 |
12 | 5.92 | Tricyclo [6.3.0.0(4,7)]undec-2-en-5-one, 9-[(2methoxyethoxy)methoxy]-8methyl- | C16H24O4 | 280.36 | 0.31 |
13 | 6.14 | 1,2-Benzenediol, 3-methyl- | C7H8O2 | 124.13 | 0.53 |
14 | 6.21 | 1-Propanol, 2-methyl- | C4H10O | 74.12 | 0.14 |
15 | 6.38 | Phenol, 4-ethyl-2-methoxy- | C9H12O2 | 152.19 | 2.7 |
16 | 6.60 | Propanoic acid | C3H6O2 | 74.08 | 2.01 |
17 | 6.66 | Diethylhydroxylamine | C4H11NO | 89.14 | 0.99 |
18 | 6.86 | Butanoic acid, 2-methyl- | C5H10O2 | 102.13 | 2.08 |
19 | 7.07 | N,N-Dimethylformamide diisopropyl acetal | C9H21NO2 | 175.27 | 2.32 |
20 | 7.24 | Diethanolamine | C4H11NO2 | 105.13 | 3.02 |
21 | 7.39 | Phenol, 2,6-dimethoxy- | C8H10O3 | 154.16 | 0.57 |
22 | 7.45 | Phenol, 2-methoxy-3-(2propenyl)- | C8H10O3 | 154.26 | 0.27 |
23 | 7.58 | Benzenemethanol,.alpha.ethyl-4-methoxy- | C10H14O2 | 166.21 | 0.12 |
24 | 7.85 | Pentanedioic acid, 2-methyl- | C7H12O4 | 160.17 | 0.35 |
25 | 8.06 | Vanillin | C8H8O3 | 152.15 | 3.27 |
26 | 8.12 | trans-Isoeugenol | C10H12O | 164.20 | 0.21 |
27 | 8.39 | 1-(1-(Methylthio)propyl)-2propyldisulfane- | C7H16S3 | 196.39 | 0.99 |
28 | 8.41 | Diphenylmethane | C13H12 | 168.23 | 0.25 |
29 | 9.26 | Butanoic acid, 3,3-dimethyl-, methyl ester | C10H20O2 | 172.26 | 2.13 |
30 | 9.72 | 2-Propanone, 1-(4-hydroxy-3-methoxyphenyl)- | C10H12O4 | 196.20 | 0.57 |
31 | 9.95 | Butyrovanillone | C11H14O | 194.22 | 0.13 |
32 | 10.12 | Ethanone, 1-(3,4dimethoxyphenyl)- | C10H12O3 | 180.20 | 0.5 |
33 | 10.17 | 1,1′-Biphenyl, 2-ethyl- | C14H14 | 182.26 | 0.11 |
34 | 10.32 | 1-Propanone, 1-(4-hydroxy-3-methoxyphenyl)- | C10H12O4 | 196.19 | 0.85 |
35 | 10.38 | 4-Ethylbiphenyl | C14H14 | 182.26 | 0.87 |
36 | 10.51 | Benzene, 4-butyl-1,2dimethoxy- | C12H18O2 | 194.27 | 0.9 |
37 | 11.17 | Benzenepropanol, 4hydroxy-3-methoxy- | C10H14O | 182.21 | 0.93 |
38 | 11.27 | 1,2-Diphenylcyclopropane | C15H14 | 194.27 | 0.87 |
39 | 11.84 | 3-(Benzylthio)acrylic acid, methyl ester | C11H12O2S | 208.28 | 2.75 |
40 | 11.12 | Benzene, 1,1′-(1,3-propanediyl) bis | C15H16 | 196.28 | 14.13 |
41 | 11.42 | Benzene, 1,1′-(1-methyl-1,3-propan ediyl) bis- | C16H18 | 210.31 | 3.61 |
42 | 11.98 | 1,2-Diphenylcyclopropane | C15H14 | 194.27 | 3.66 |
43 | 12.21 | Benzene, 1,1′-(1,4-butanediyl) bis- | C16H18 | 210.31 | 3.6 |
44 | 13.25 | Beta.-Phenyl propiophenone | C16H13NO | 235.28 | 3.1 |
45 | 13.30 | Naphthalene, 1-phenyl- | C16H12 | 204.27 | 0.92 |
46 | 14.44 | Naphthalene, 2-phenyl- | C16H12 | 204.27 | 6.22 |
47 | 14.94 | 1,4-Diphenyl-1,3-butadiene benzene | C16H14 | 206.20 | 0.11 |
48 | 15.65 | Naphthalene, 2-(phenylmethyl)- | C17H14 | 218.29 | 2.18 |
49 | 16.09 | m-Terphenyl | C18H14 | 230.3 | 2.61 |
50 | 17.33 | 1-Methyl-2,4,5-trioxoimidazolidine | C4H4N2O3 | 128.09 | 0.96 |
51 | 17.43 | n-Butanol, 2-[3chlorophenoxy]- | C10H13ClO2 | 200.66 | 0.48 |
52 | 17.50 | L-Ornithine,N,N′-bis(methoxycarbo nyl)-, methyl ester | C5H12N2O2 | 132.26 | 0.95 |
53 | 18.27 | Cyclononasiloxane, octadecamethyl- | C18H54O9Si9 | 667.4 | 2.59 |
54 | 19.41 | Cyclooctasiloxane, hexadecamethyl- | C16H48O8Si8 | 593.2 | 2.87 |
55 | 19.01 | 2-Aminophenol,N,O-bis(pentafluoropropionyl)- | C6H7NO | 109.13 | 2.16 |
56 | 20.88 | Tetracosamethyl-cyclododecasiloxan | C24H72O12Si12 | 889.8 | 2.41 |
57 | 22.29 | Benzamide,4-methoxy-N-[4-(1-methylcyclopropyl)phenyl]- | C10H13NO2 | 179.22 | 0.73 |
58 | 25.25 | Tetracosamethylcyclododecasiloxan | C24H72O12 | 889.84 | 0.53 |
S.No | Retention Time | Compound Name | Chemical Formula | Mol. Wt. (g) | % Area |
---|---|---|---|---|---|
1 | 3.768 | Phenol, 2-methoxy | C7H8O2 | 124.13 | 13.37s |
2 | 6.165 | Thiirane, methyl- | C3H6S | 74.14 | 12.18 |
3 | 7.991 | Vanillin | C8H8O3 | 152.15 | 4.47 |
4 | 9.107 | Apocynin | C9H10O3 | 166.17 | 3.66 |
5 | 10.468 | Butanoic acid, 2-methyl- | C5H10O2 | 102.13 | 2.40 |
6 | 11.063 | Benzene, 1,1′-(1,3-propanediyl) bis- | C18H22 | 238.40 | 33.30 |
7 | 11.40 | Benzene, 1,1′-(1-methyl-1,3-propane ediyl)bis- | C16H18 | 210.31 | 3.62 |
8 | 11.69 | (E)-Stilbene | C14H12 | 180.25 | 2.75 |
9 | 11.81 | Benzene, (3-nitropropyl)- | C9H11NO2 | 165.19 | 2.92 |
10 | 11.96 | 1,2-Diphenylcyclopropane | C15H14 | 194.27 | 3.14 |
11 | 12.20 | Benzene,1,1′-(1,4 butanediyl)bis- | C16H18 | 210.31 | 3.39 |
12 | 14.41 | Naphthalene, 2-phenyl- | C16H12 | 204.27 | 7.18 |
13 | 15.64 | Naphthalene, 2-(phenylmethyl)- | C17H14 | 210.29 | 2.52 |
14 | 16.07 | m-Terphenyl | C18H14 | 230.30 | 3.35 |
15 | 16.43 | p-Terphenyl | C18H14 | 230.30 | 1.75 |
