Comprehensive Review on Fuel Cell Technology for Stationary Applications as Sustainable and Efficient Poly-Generation Energy Systems

Abstract

Fuel cell technologies have several applications in stationary power production, such as units for primary power generation, grid stabilization, systems adopted to generate backup power, and combined-heat-and-power configurations (CHP). The main sectors where stationary fuel cells have been employed are (a) micro-CHP, (b) large stationary applications, (c) UPS, and IPS. The fuel cell size for stationary applications is strongly related to the power needed from the load. Since this sector ranges from simple backup systems to large facilities, the stationary fuel cell market includes few kWs and less (micro-generation) to larger sizes of MWs. The design parameters for the stationary fuel cell system differ for fuel cell technology (PEM, AFC, PAFC, MCFC, and SOFC), as well as the fuel type and supply. This paper aims to present a comprehensive review of two main trends of research on fuel-cell-based poly-generation systems: tracking the market trends and performance analysis. In deeper detail, the present review will list a potential breakdown of the current costs of PEM/SOFC production for building applications over a range of production scales and at representative specifications, as well as broken down by component/material. Inherent to the technical performance, a concise estimation of FC system durability, efficiency, production, maintenance, and capital cost will be presented.

1. Introduction

Climate emergency and the unhealthfulness caused by air pollution are serious challenges being addressed by governments, industry, and the whole scientific community. Actions aiming to improve energy efficiency are surely key drivers for achieving climate mitigation goals and sustainable development targets [1]. Among the United Nations Sustainable Development Goals (SDGs), energy and climate actions are treated as key targets [2]. It is, therefore, necessary to change the energy model followed so far, to find an alternative and less aggressive environmental impact way for energy generation and reduce energy waste by using available resources more efficiently.

Among the several options that the scientific community is recognizing as key elements to address climate changes [3] and fossil fuel dependence [4], fuel cell (FC) technologies are worldwide recognized as the best options to decarbonize the stationary power production sectors [5], including primary power generation units, backup power systems, and combined-heat-and-power configurations (CHP) [6].

Fuel cell technologies are capable of providing very high efficiency, minimum pollution, and high reliability [7,8]. The technology is applied in industries ranging from a distributed generation for power companies [9,10,11], to residential and industrial co-generation [12], portable generation [13], and vehicles [14]. The fuel cells are receiving considerable attention as they constitute, thanks to their ability to optimally use hydrogen [15], the key technology for the development of this energy carrier [16,17]. The design parameters for the stationary fuel cell system differ for fuel cell technology (PEM, AFC, PAFC, MCFC, and SOFC), as well as the fuel choice and supply [18].

The main sectors where stationary fuel cells have been employed are (a) micro-CHP, (b) large stationary applications, (c) uninterruptible power supply (UPS), and integrated power supply (IPS). The fuel cell size for stationary applications is strongly related to the power needed from the load. Since this sector ranges from simple backup systems to large facilities, the stationary fuel cell market includes few kWs and even fewer (micro-generation) and larger sizes of MWs.

Several aspects of fuel cell technology are widely investigated in the literature, in terms of system integration with hybrid systems, improved materials, or actions to foster the performance of such units. However, given the important pace of installations and the existence of an early market for this technology, it is indeed important to track and investigate the performance of such systems, providing and reporting some interesting data on the state of the art of the performance, as well as on some forecasts in the upcoming years.

As a novelty, to address this research gap, the present paper aims to provide a comprehensive review of fuel cell technology, analyzing the technical performance of stationary fuel cells, both for micro-CHP and for large applications, as well as the financial state of the art and the 2030 forecast.

A specific focus is given to the investigation of country-level data on current sales and stock of stationary fuel cells, both for micro-CHP and for large applications, as well as their performance, focusing on literature and state-of-the-art investigation on the actual know-how inherent in the development of new systems based on fuel cell technology and the use of small and medium-sized plants with low environmental impact for the production of electricity and heat.

2. The Key Role of Fuel Cell Technology

Hydrogen, intended as an energy carrier, can provide and release energy via different methods and through several systems:

• Hydrogen injection and burned via direct combustion;
• Hydrogen oxidation via catalytic combustion, with no-flame production;
• Production of water as steam, when pure hydrogen is combined with oxygen at high temperature;
• Hydrogen as reactant gas in a fuel cell operation.

In terms of flexibility of applications, potentials, and integration with several energy systems, hydrogen adopted as reactant and reductant gas in fuel-cell-based energy systems is generally the most efficient and cleanest technology for releasing energy from hydrogen [19]. In a fuel cell, gaseous hydrogen and gaseous oxygen are combined in a catalyzed electrochemical reaction, producing electricity, water, and heat. This process can achieve higher efficiencies, both electrical and thermal, than those of internal combustion engines while being pollution-free [20].

In more detail, a fuel cell is an electrochemical device that uses hydrogen as chemical input and reductant, reacting with an oxidant to produce electrons, protons, heat, and water [21]. Fuel cell operation is based upon the redox reaction, shown in Equation (1), where both reduction (at the cathode) and oxidation (at the anode) takes place, producing an ideal electromagnetic force, in standard condition, of 1.229 V [22].

$$2{\mathrm{H}}_2+{ \mathrm{O}}_2\to 2{\mathrm{H}}_2\mathrm{O}$$

(1)

The system provides then electricity via an electrical circuit with a DC load. Problems arise when fuel cells are manufactured. More in detail, the electrochemical reaction needs a consistent area of contact, while normally fuel cells have a very small area of contact between the electrolyte, the sites of the electrode, and the flows of reactant gases [23,24]. Moreover, the geometric distances between the electrodes introduce resistances in the fuel cell operation, reducing the production of electricity. Therefore, to address these problems, fuel cells have been manufactured with improved design and new approaches to tackle these issues [25,26,27]. Among the common solutions, there is the adoption of porous electrodes and a thin electrolyte, to reduce the electrical resistances [28]. The porous structure allows interaction among gas, ions, and electrolyte molecules to occur more effectively, improving the electrochemistry of the cell [29]. In this way, the contact area is maximized, guaranteeing better performance, efficiency, and current production [30].

By considering a hydrogen/oxygen fuel cell operation, hydrogen flows and reacts at the anode (negative electrode), while oxygen flows and reacts at the cathode (positive electrode). Through an electrochemical reaction, hydrogen is split into an electron and a proton [31], producing electricity for a given load, and generating the harmless byproduct of water.

Currently, there is a lot of active research aiming to address and face several challenges that are preventing the final commercial rollout of such technologies. Some of these challenges are mainly related to the high initial manufacturing cost [21,32], the lack of a reliable infrastructure to deliver fuels to the cells (fuel supply infrastructure), and the as-yet immature perception and lack of familiarity in industrial settings [33]. A more enhanced industrial engagement will occur over time as fuel cell technology becomes more commonplace as a form of energy generation. In fact, fuel-cell-based systems are emerging technologies [34,35]; thus, R&D actions in collaboration with industrial realities are key steps to support the expected commercial rollout [36,37].

Additionally, there is the need to have several policy changes that can account for this technology, i.e., standardization [38,39], safety codes and analysis [40,41,42], and regulations and best practices for hydrogen production [43], distribution [44,45], and dispensing [46,47].

As mentioned above, the major disadvantage of the fuel cell is that the technology currently presents a more expensive capital expenditure than other forms of power conversion [48,49]. Once this barrier is overcome [50,51], thanks to the economy of scale and the adoption of cost-reduction actions, it is worldwide recognized that fuel cells will eventually become a dominant and efficient solution for energy conversion. Indeed, these technologies have an efficient operation, almost zero acoustic emissions and, if powered with green hydrogen, and zero polluting emissions [20]. Sound pollution is extremely important in on-site applications [52] and mobility [53,54]. By considering the current state of the art, fuel cells operate with an electric efficiency of about 40–50% and overall efficiency in cogeneration assets (production of combined heat and power) of more than 80% [55,56]. Their performance is indeed higher if compared to CHP internal combustion engines. Fuel cells have no moving parts, such as pistons, and for specific fuel cell types, most of the components are entirely made of solids, which simplifies the manufacturing process. Depending on the fuel cell type and the supplied fuel, the emissions can vary, but falling below the existing standards of emissions. Generally, a fuel cell system emits “<1 ppm of NO_x, 4 ppm of CO, and <1 ppm of reactive organic gases” [57]. All of these features make fuel cell technology an attractive and efficient solution in different energy sectors [58].

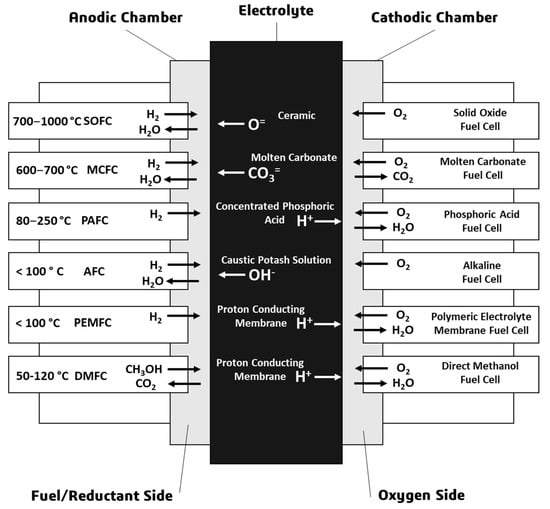

There are several types of fuel cells, according to the technology adopted and on the operating parameters, as shown in Figure 1, and the final application depends on the fuel cell chosen type and configuration [59].

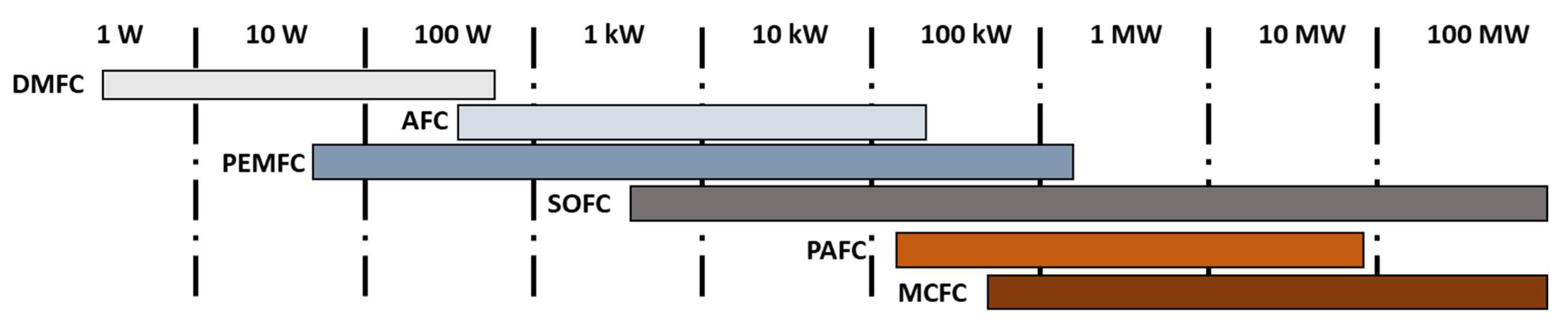

Given the fuel cell feature to be modular and assembled in stacks, such technologies can provide power in a wide range, between 1 Watt and several MWs, as shown in Figure 2. If low-power applications are considered, fuel cells can conceptually be adopted in phones, personal computers, or personal electronic equipment [60,61]. For high target power, between 1 kW and 100 kW, fuel cells find application in mobility as the main component of the vehicle power train [62,63], or as an auxiliary power unit [64]. For power generation of about 1 MW–10 MW, fuel cells can be adopted as distributed power generators (grid quality-AC) [65].

One of the main end-user fuel cell installations and applications will be in residential buildings for combined-heat-and-power production [66], and also in automotive and sustainable mobility, above all in heavy-duty and public transportation [67]. Thanks to their performance, modularity, and flexibility, they have a higher power-to-area ratio than batteries, and the unit can, therefore, be smaller while generating the required target power, allowing a more compact installation.

3. World Situation

According to market experts, such as 6Wresearch [68], the global market of stationary fuel cells is going to achieve high levels of growth in the coming years (2025).

In 2018, the world fuel cell market was characterized by a marked growth in Fuel Cell Shipments [69]: the overall shipment units increased to 57,500, with a total power of 240 MW. Compared to the situation in 2017, the market registered a 5% increase in shipments and an 8% increase in installed power. A better picture is noticeable if the 2018 market is compared to the 2012 situation: fuel cell shipments in 2012 were 125 MW, which means in 2018 the market has lived an increase of 92% than 2012 [70].

The value of the market has been estimated to be USD 1.8 billion in 2018, and a current study reported that such a market is projected to increase to USD 2.2 billion at the end of 2019 [70,71].

According to “Research and Market, 2019” [72,73], the stationary fuel cell market will grow up to USD 5.08 billion by 2030, with a CAGR increase of 3.9%. The total installed capacity is forecasted to grow from 220 to 612 MW, and the market will be led by the US in North America and Japan (and China soon) in Asia.

As reported in the “Solid Oxide Fuel Cell-Global Market Outlook (2017–2026)” [74], SOFC technology had an important market share in 2017, accounting for USD 389.21 million, and it is forecasted to increase up to USD 1356.51 million by 2026, with a CAGR of 14.9%. In North America, this expected to grow with a CARG of more than 13% by 2023, in Europe and Asia-Pacific of 15%, 13% in South America, and MEA [75]. With a lower market share, but with an important trend, Direct Methanol Fuel Cells has been valued at USD 137 million in 2018, expecting to grow up to USD 367 million by 2025 [76,77].

Supportive government policies, the economy of scale, and technology improvements are the main drivers of this important growth.

Several prototypes, experimental projects, and proof-of-concept studies are being executed and validated, allowing a deeper understanding of the technology’s performance to be obtained in real operating conditions. The fuel cell equipment adopted and installed up to 2018 is reported to have a rated power mostly following within the range of 0.5 kW–400 kW [78,79].

Within these projects, related to fuel cell systems applied to stationary applications, different configurations and end-user applications have been tested, namely as “back-up power supplies, power generation for remote locations, stand-alone power stations for one or more consumers, distributed generation for buildings and cogeneration” [80].

Depending on the fuel cell type, fuel cell companies are consolidated in different countries, and depending on the size of applications, if large-scale fuel cell stationary installations or micro-CHP fuel-cell-based installations, the predominant market, in terms of fuel cell adoption, can differ. Most of the big players are located in Europe, Japan, and the USA. For large-scale stationary applications, three main technologies (MCFC, SOFC, PAFC) are manufactured and mostly adopted within the US, with a specific reference to bigger sizes for large-scale fuel cell stationary installations. Japan and Europe have lower installations of large-scale fuel cell stationary installations, which are commonly based on PAFC and MCFC technology, while in South Korea, PAFC and MCFC are the most installed technologies.

For the residential micro-CHP applications, Europe and Japan are leading the market, thanks to ad hoc-aimed subsidies and programs, as shown in

Table 1. PEMFC and SOFC, micro-CHP installation.

Country/State	Technology	Cumulated Installed Capacity [MW] *	Installations [Thousands of Units]	Price per Sale [kEUR]
Europe	PEMFC/SOFC	7.5	~10	10
Japan	PEMFC/SOFC	270	~360	7–8.8

* Calculated by considering an average installation size of 0.75 kW_el.

, and several manufactures involved in the market, as shown in

Table 2. PEMFC and SOFC, micro-CHP Performance.

Country/State	Manufacturer	Technology	Electrical Output [kW]	Electric Efficiency [%]	Total Efficiency [%]
Europe	SenerTec [81]	PEMFC	0.75	38	92
	Remeha [82]	PEMFC	0.75	38	92
	Bosch [83]	SOFC	1.5	60	Up to 88
	SOLIDpower [84]	SOFC	1.5	Up to 57	Up to 90
	Sunfire [85]	SOFC	0.75	38	88
	Viessmann [86]	PEMFC	0.75	37	92
Japan	Panasonic [87]	PEMFC	0.7	40	97
	AISIN [88]	SOFC	0.7	55	87
	Kyocera [89]	SOFC	0.4	47	80

.

Europe has installed more than 4100 fuel cell units for combined heat and power applications [90], thanks to three main projects and actions [91]: Callux, PACE, and ene.field. The three programs have been key actions for the technology rolling out. Only in the ene.field program, 603 PEMFC micro-CHP units have been installed, and there have been 403 installations of SOFC. In Germany, an incentive program [92,93], namely KfW, is supporting the micro-CHP early market, at different levels: 5700EUR as a fixed amount for a new fuel cell, and other additional amount and flat-rate supplement. For every 100 watts of electrical power started, another EUR 450 are added, up to EUR 6750. When used in CHP mode, a subsidy is paid for each kilowatt-hour of electricity produced: EUR 0.04 per kilowatt-hour for electricity that is consumed and EUR 0.08 for electricity that is fed into the grid [94]. The program aims to provide funding for the installations of about 60,000 CHP units by 2022 [95]. The current cost of fuel cells in Europe for micro combined heat and power production is about EUR 10,000/kW [96], with more than 2000 micro-CHP fuel-cell-based adopted on the field, and another 2800 planned by 2021 [97]. The largest stationary fuel cell power plant currently operating in Europe is 1.4 MW.

Japan is the main leader in fuel-cell-based micro combined heat and power unit installations, with the ENEFARM program. They have been able to decrease the price per sale to USD 7000/unit for PEM, and USD 8800/unit for SOFC [69]. The overall installations can be counted for 360,000 units in 2020 [98]; almost 62% of them are PEMFCs and 38% are SOFCs. The program supported also subsides 50% of the cost—USD 730/unit for SOFC. However, there are no more subsidies for PEMFC, since the commercial price is now competitive without additional financial support.

Asia has been the more active area for installing fuel cell units, above all for commercial micro-CHP applications. This is particularly applicable to Japan in the last five years, which has seen an increase of almost 30% in 2018 (55,500 installed units) compared to 2014.

Most of the USA market is based on SOFC (300 MW installed), with subsidies between 600 and 1200 EUR/kW (NG or Biogas), and a price per sale of 10,000 USD/kW. PEMFC large installations in the USA are still not common (10 MW) compared to other technologies. Europe counts 1.8 MWs of SOFC systems and 1.5 MWs of PEMFC, with EUR 34 million available under the Horizon 2020 program for stationary fuel cells. Korea has 1.5 MWs of the PEMFC systems installed, which may be because the Hyundai NEXO Stack is also used in stationary applications. Subsidies for demonstration projects are helping these innovative technologies to spread. Japan has 2.5 MW of PEMFC installed, and research and development are considered key actions since USD 300–400 million are available for R&D on Stationary FC. For other fuel cell technologies, MCFC tech is the main tech applied to large stationary applications, as shown in

Table 3. MCFC and PAFC, Large-scale Installations.

Country/State	Technology	Cumulated Installed Capacity [MW]	Subsides	Price per Sale [EUR]
USA	MCFC	150	600–1200 EUR/kW (NG or Biogas)	8000–9000 USD/kW
Europe	MCFC	13	34 M Euro, Horizon 2020 for Stationary FC	NA
Korea	MCFC	150	NA	NA
Japan	MCFC	6	300–400 M USD for R&D on Stationary FC	NA
RoW	MCFC	NA	NA	NA
USA	PAFC	50	NA	NA
Europe	PAFC	1	34 M Euro, Horizon 2020 for Stationary FC	NA
Korea	PAFC	130	up to 80% of the costs for demonstration projects	NA
Japan	PAFC	8	300–400 M USD for R&D on Stationary FC	NA
RoW	PAFC	NA	NA	NA

, whose data were retrieved from [99].

Table 4. Zoom-in on important big players around the world on fuel cells.

Region	Company	Field of Interest	FC Type
Canada	Hydrogenics	Hydrogen	PEMFC
Europe	Hexis	Hydrogen, natural gas, city gas, biogas	SOFC
Europe	Siemens Power Generation, Inc.	H2 + CO, natural gas, jet fuel, diesel fuel	SOFC
Europe	Nedstack	Hydrogen	PEMFC
Europe	MTU CFU Solution	Waste gas, LP gas natural gas	MCFC
Europe	Ansaldo Fuel Cell	Waste gas, LP gas natural gas	MCFC
Europe	SolidPower	Natural gas, bio-methane	SOFC
Europe	AFC Energy	Direct hydrogen or cracked ammonia	AFC
Europe	AFC Energy	Direct hydrogen or cracked ammonia	AAEMFC
Europe	EFOY	Methanol	DMFC
Europe	Intelligent Energy	Hydrogen	PEMFC
Europe	Helbio SA	Natural Gas, Biogas, Propane/LPG, Ethanol	PEMFC
Europe	H2Planet	Hydrogen	PEMFC
Europe	EFOY	Hydrogen	PEMFC
Europe	Sunfire Fuel Cell	LPG/Propane or natural gas, biogas	SOFC
Europe	CeresPower	City Gas	SOFC
Japan	Mitsubishi Hitachi Power Systems	City gas	SOFC
Japan	Panasonic	Natural Gas	PEMFC
Japan	Aisin	Natural Gas	SOFC
Japan	Kyocera	utility-supplied gas or liquid petroleum (LP) gas	SOFC
Japan	Toshiba	Petroleum gas, biogas, town gas	PEMFC
Japan	Ishikawajima-Harima Heavy Industries (IHI)	Ammonia	SOFC
Japan	Ishikawajima-Harima Heavy Industries (IHI)	Waste gas, LP gas natural gas	PEMFC, MCFC
Japan	Fuji Electric	City gas, Biogas, Pure hydrogen	PEMFC, PAFC
Rep. KOREA	Posco Energy	LNG, Biogas, SNG	MCFC
USA	Technology Management, Inc. (TMI)	Natural Gas, Biogas, Propane/LPG, Ethanol	SOFC
USA	GenCell	Waste gas, LP gas natural gas	MCFC
USA	Power Innovations	Hydrogen	PEMFC
USA	Adaptive Energy	Natural Gas, Propane	SOFC
USA	Altergy	Hydrogen-Methanol	PEMFC
USA	Atrex Energy	Natural Gas, Propane	SOFC
USA	Bloom Energy	Natural Gas, Directed Biogas	SOFC
USA	Doosan Fuel Cell America	Natural Gas	PAFC
USA	FuelCell Energy	Natural Gas	MCFC
USA	Plug Power	Hydrogen	PEMFC
USA	Watt Fuel Cell	Natural Gas	SOFC
USA	Fuel Cell Technologies (FCT)	Biogas, natural gas, methanol	PEMFC, PAFC, DMFC
USA	Ballard Power Systems	Hydrogen	PEMFC
USA	FuelCell Energy	Biogas, natural gas, methanol	MCFC-SOFC
USA	UTC Power	Natural Gas, Hydrogen	PAFC-PEMFC
USA	H-Power Corp.	Natural gas, hydrogen, propane	PEMFC
USA	IdaTech	Natural gas, propane, methanol	PEMFC

shows the main big players in the fuel cell industry around the world, grouped for main geographical areas: Canada, Europe, Japan, Korea, and USA. The remaining worldwide areas are grouped in the category Rest of the World (RoW).

Emerging countries, such as China, are planning important investments in fuel cell deployment [100,101]. China is supporting the rollout of a large number of fuel cell-powered vehicles as well as hydrogen refueling stations [102,103], providing funding for an equivalent amount of 5 USD billion [104]. CHP units have been recently recognized by the Chinese “Ministry of Science and Technology (MOST)” [105] as a hydrogen end-user application that can foster the transition towards the hydrogen economy, also accelerating the market penetration of hydrogen fuel cell vehicles. Moreover, fuel cell technologies adopted in stationary applications will support the Chinese industrial sector decarbonization [106,107]. Thanks to the positive role that will be played by fuel-cell-based systems in China, the Chinese market has become very attractive; both international and national companies (see examples listed in

Table 5. Fuel cell suppliers in the Chinese market. Data retrieved from [108,109].

International Supplier	Chinese Supplier
Plug Power	Beijing Sinohytec
Ballard Power	Sunrise Power
Nikola	Vision Group
HYGS	Re-Fire
FuelCell	Shanghai Shenli Technology
SFC Power	SinoSynergy Power
Arcola Energy	Foresight Energy
Bloom Energy	Weichai Power
Nuvera	Broad-Ocean Motor

) have started to set the pace for fuel cell pilot projects and fuel cell deployment.

4. Fuel Cell Installations

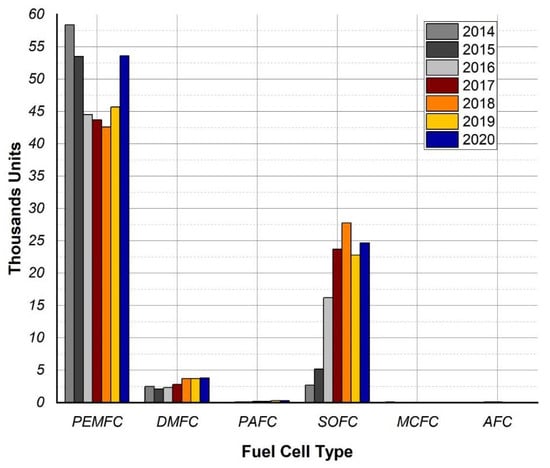

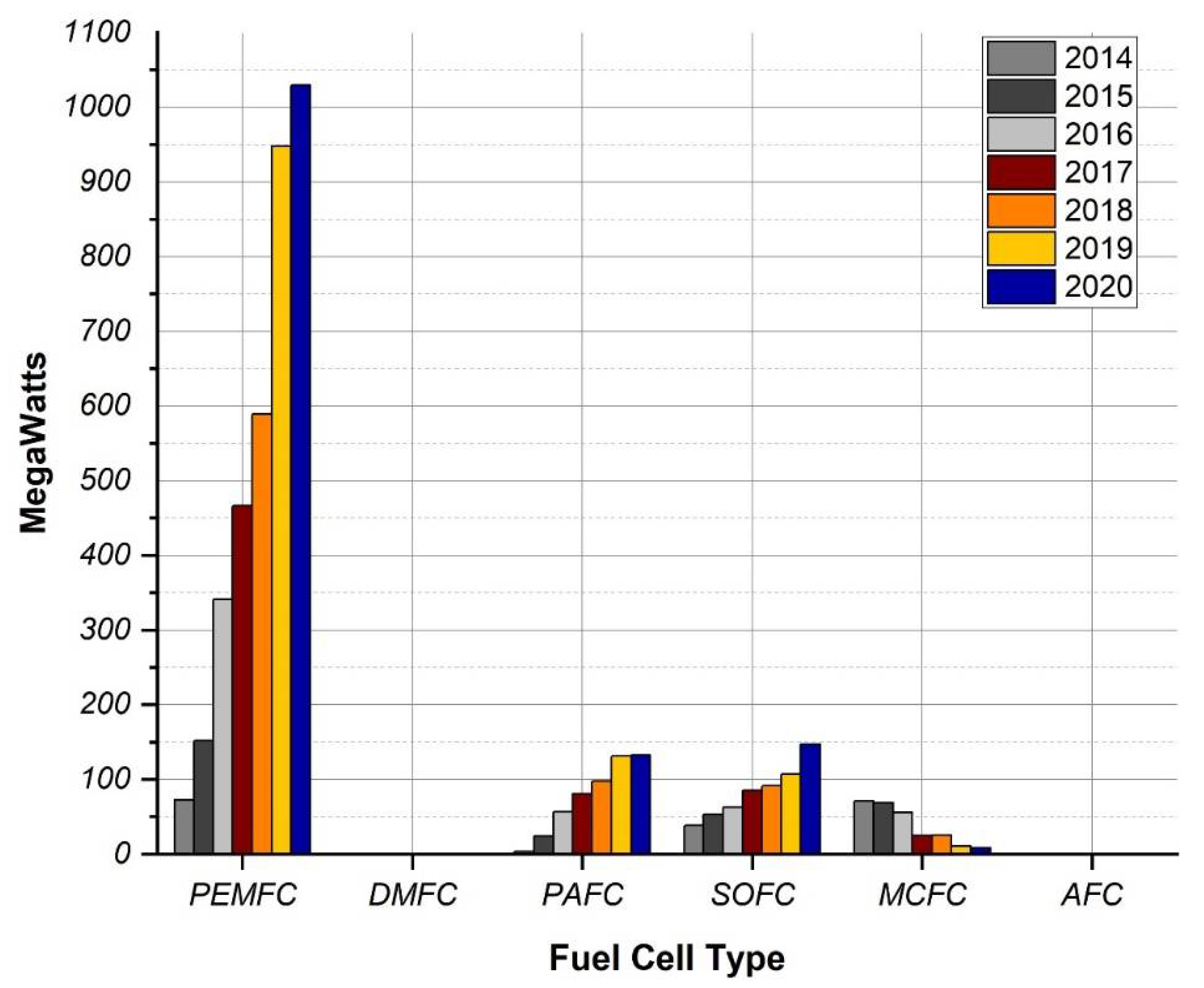

Figure 3 summarizes the shipments per fuel cell type [110]. While PEMFC seems to have a steady decreasing trend until 2018, in 2019 and 2020, PEMFC installations increased, thanks also to a new demand required by the mobility sector. The market is showing how big efforts are ongoing to strengthen the market for SOFC, since their performance is better and they possess high modularity and flexibility, leading to a wide range of applications. DMFCs are used for mobile and stationary applications, while AFC and MCFC had very few installations. However, their resulting size was bigger (MWs), as highlighted in Figure 4. MCFC had a high level of research interest until 2014 [111,112,113,114], but the trend is now decreasing. MCFC installations in 2018 [69] were slightly more than 25 MWs, while in 2020, they decreased down to 8.8 MWs. Even if PEMFC installations decreased until 2018, their size installation presents an increasing trend, a signal of their technology maturity. AFC installations are infrequent, while Korea has the leadership on PAFC installations. The PEM fuel cell is indeed used in several applications (both stationary and mobile applications), and it contributes to the highest number of installations. SOFCs (more shipments at lower size) and PAFCs (low shipments at higher size) had a slow implementation in 2014, but their trend is increasing.

5. Niche Applications

Other niche applications based on fuel cell technologies are BUP and UPS, as well as hydrogen boilers using catalytic burners/hydrogen gas turbines. For the latter, few references and available performances have been found, since the market is probably still too small.

Hydrogen Europe [96,115] has drafted a roadmap for new hydrogen technologies and R&D actions, since they could reveal themselves as the best options when CHP installations are not economically viable. For UPS, in the IEA Hydrogen and Fuel Cells roadmap [78], small uninterruptible power systems for backup power are considered key factors for autonomous power systems for either stationary or portable off-grid applications, but few commercial applications have been found. Larger uninterruptible power supplies have been installed, as described in the report [79], up to around 5 MW for uninterruptible power, in California, reflecting the importance of such installations for data centers, banks, hospitals, and similar organizations. It is estimated that 3000 of these systems have been deployed up to 2019 [116].

The mobile telecommunication industry is an example of a sector that needs backup and off-grid power, with an estimated 7 million stations worldwide, increasing every year by 100,000. For these applications, fuel cells can offer more reliable and stable operations, given their resilience to harsh environmental conditions rather than batteries, without the need to add extreme cooling equipment and withstand severe environmental conditions without affecting their performance.

Recent research trends pursue the possibility of blending green hydrogen up to a volume of 20% into natural gas pipelines. Current levels are about 5%, assuring between 32 and 58 kg of avoided carbon dioxide emissions per year and per household. In other cases, some countries are allowing, under certain circumstances, injections of up to 9–10% in volume [117]. In view of the 100% hydrogen scenario, pure hydrogen fuel-cell-based CHPs can become a competitive and viable from a financial point of view, most likely by 2030 when hydrogen cost is forecasted to drop to 1.9 USD/kg [117], with a system-specific cost of 2700 USD per household. Another option for hydrogen feeding and application is for hydrogen-fired combined-cycle gas turbines, already tested in Italy and Japan, providing electricity and heat [79].

6. Breakdown of the Current Costs

The main sectors where stationary fuel cells have been employed are micro-CHP and large stationary applications. With particular attention to the building sector, fuel cells were suitable for micro-cogeneration: these energy systems inherently produced both electricity and heat from only one source of fuel, which could be innovative and more efficient, even if more expensive, such as hydrogen, but these systems can also operate by adopting traditional fuels, such as biogas, methane and natural gas, after being properly reformed.

The design parameters for the stationary fuel cell system differ for fuel cell technology (PEM, AFC, PAFC, MCFC, SOFC), as well as the fuel choice and supply.

For building applications and micro-cogeneration, PEMFC systems are the most common fuel cell type used and installed, being more mature than other technologies, and guaranteeing high efficiency, covering the peak energy demand during the day, and also covering the energy needs at night. PEM fuel cell operation can benefit from its low-temperature requirement, a solid membrane electrolyte installation, which strongly reduces maintenance cost, degradation phenomena, and corrosion, and a quick start-up. On the other hand, low temperatures lead to the adoption of expensive catalysts, since the system is, thus, very sensitive to the presence of carbon impurities, mostly common when these systems run with reformed fuels.

As a rising technology, SOFC systems are gaining more credit [118]. A SOFC fuel cell can operate at higher temperatures, reducing the catalyst’s strict requirements, allowing a greater carbon monoxide level to be tolerated, thus simplifying the system in terms of the needed purification system at the reformer level [119]. This fuel flexibility can surely represent a key driver to support the transition towards the hydrogen economy, also allowing greater levels of efficiency to be achieved. The operation of SOFC fuel cells in a reversible mode (SOE) has also been investigated [120,121], and is capable of producing hydrogen when required. On the other hand, fuel cell operation with very high temperatures requires a longer start-up time, and a limited number of shut-down procedures; more severe conditions are caused by the thermal stress on the stack components, which consequently can lead to corrosion and breakdown of components in the stack itself.

It is indeed noticeable how these systems present potential solutions for cogeneration applications for buildings and districts. Currently, the units which have been installed in buildings provided for the energy needs of a small district system, composed of collective houses or apartments. In order to decrease the cost and to produce systems with lower power capacities, governments and states promoted financial programs to sustain the transition of these technologies, from research and development, towards early market adoption. Japan and Europe are taking the lead to provide and support applications for FC-based micro-cogeneration units. Japan is the leader in CHP installations with the ENEFARM program, which is responsible for the installation of more than 314,000 units. They have been able to decrease the price per sale to USD 7000/unit for PEM, and USD 8800/unit for SOFC [69,122]. In Europe, just within the ene.field program, 603 PEMFC micro-CHP units have been installed, and 403 SOFC.

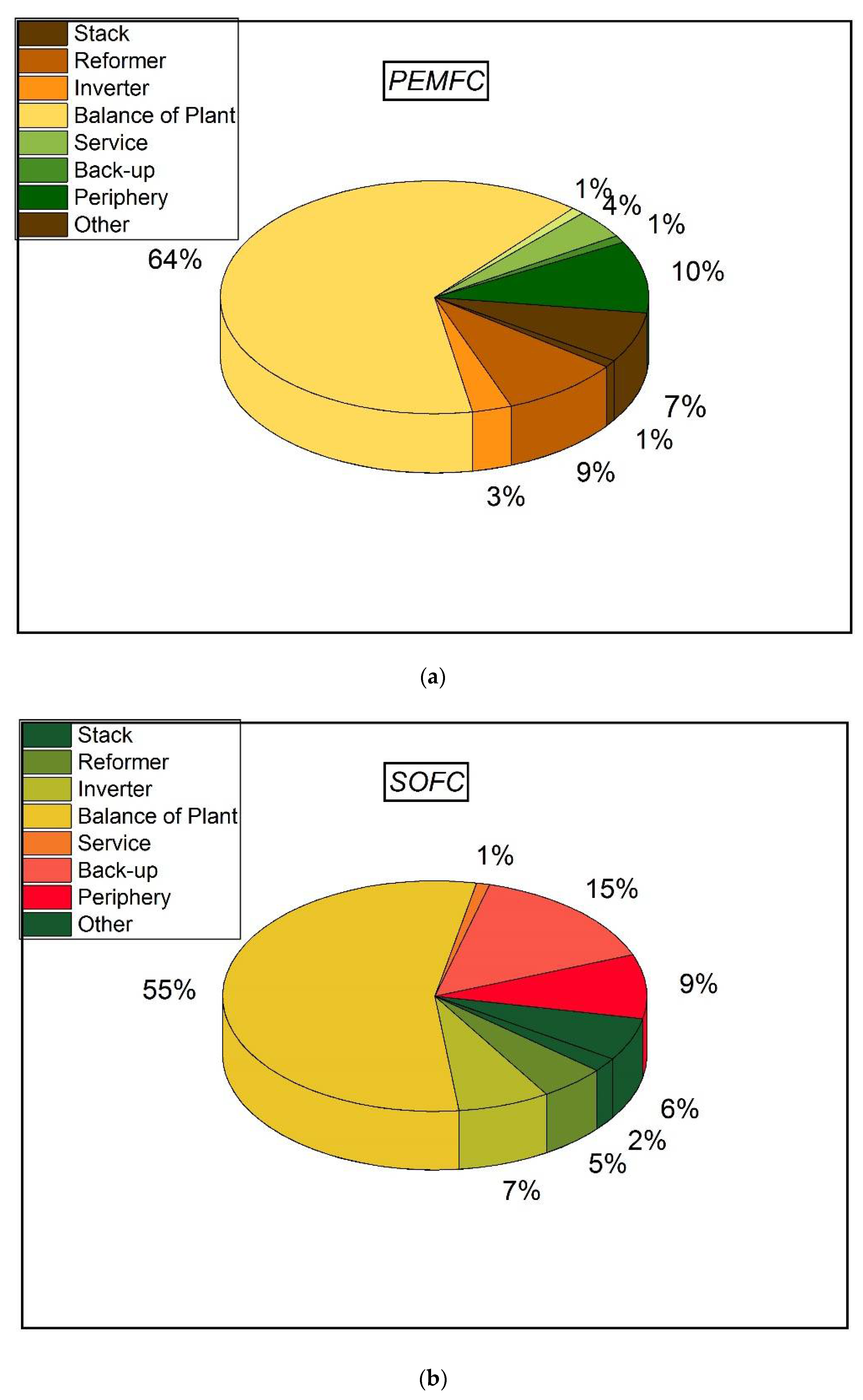

Within these European Projects, Nielson et al. [123] investigated the reliability, performance, and availability for 67 units, employing failure analysis, reporting interesting results, as shown in Figure 5, whose data was retrieved from [90,91,123].

The analysis showed how “45% experienced no failures in the first year of operation and availability of 100%”, followed by 19% with one failure, with an availability of 98.2%, and finally 24% with two failures (98.3% of availability), and 13% with more than three failures”. However, 86.9% were available for the overall operation. The authors have marked how “90% of the micro-CHP systems were available for at least 95% of the time”, claiming that most numbers of the occurred failures registered short periods of downtime. Hence, great performance has been achieved, under the circumstance that the project has involved the installations of such systems from 10 different companies, which have provided components and products with different levels of readiness and maturity.

It is noticeable how most of the failures did not occur at the stack level, whose downtime occurs for the 1% for PEMFC, and 2% for SOFC, as shown in Figure 5. The balance of the plant presented the most sensitive operation, accounting for 64% of the total failures for the PEMFC installations, and 55% for SOFC. The reformer systems have also accounted for important rates.

The Battelle Memorial Institute, with the funding and support of the United States Department of Energy (DOE) and Fuel Cell Technology-Based Office, prepared a comprehensive report [124] evaluating a breakdown analysis of the costs at a component level for four different sizes of combined heat and power systems (PEMFC and SOFCS), from 1 kW to 25 kW, to define the potential and hypothetical market for these technologies, in the absence of a commercially developed market analysis. The analysis received the support of important companies and research centers, such as Ballard, Hydrogenics, Watt Fuel Cell, Panasonic, and the National Renewable Energy Laboratory. Both technologies have been analyzed by considering a natural gas adoption operation instead of a direct hydrogen feeding.

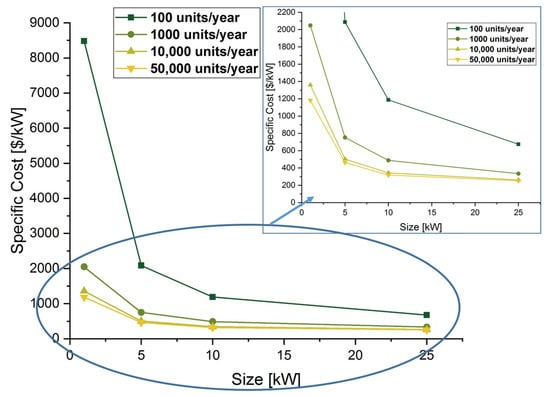

To take into account the transition towards large-scale production, the analysis has included the cost variations by considering from production volumes of 100 units per year up to 50,000 units per year.

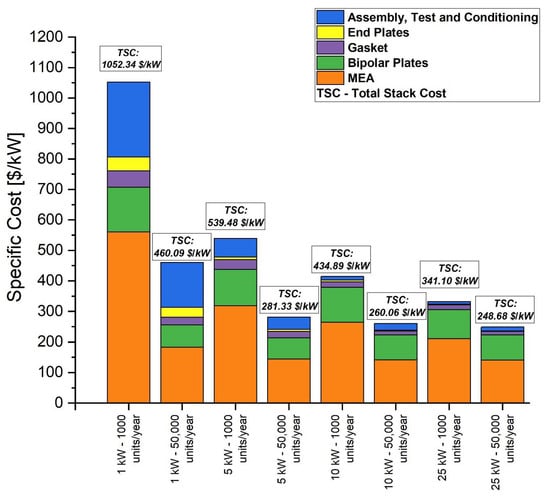

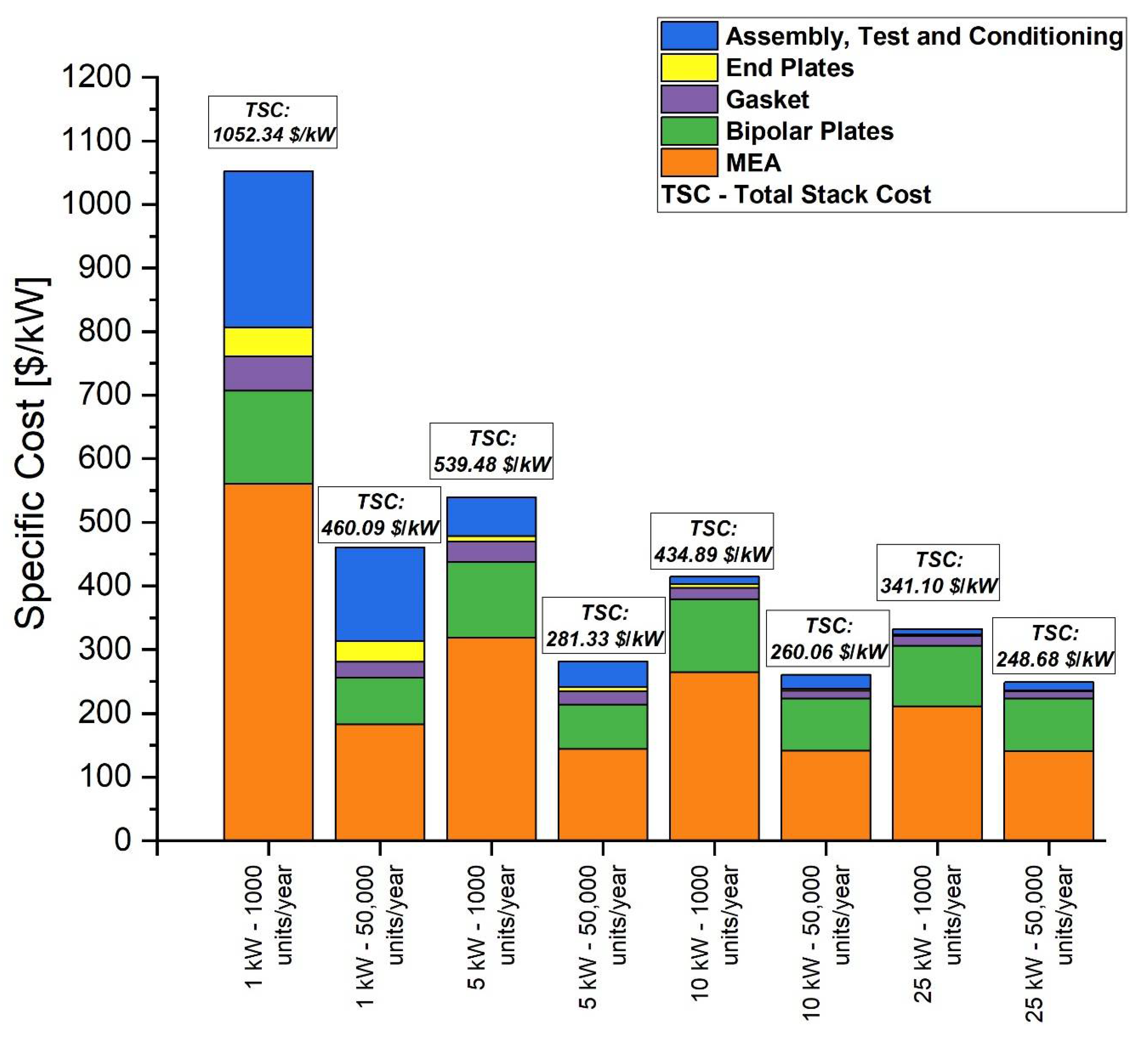

Figure 6 shows a re-arrangement of the above-mentioned analysis [124], for the PEM stack, summarizing the breakdown only for 1000 units produced per year and 50,000 units produced per year. Large-scale production will surely benefit the specific cost reduction: for 1 kW size, the total stack cost can be reduced by more than 50%, dropping from 1052.34 USD/kW to 460.09 USD/kW. The economy of scale effect is more visible for lower sizes; for 5 kW, the reduction was 27%. For every investigated scenario, the MEA presents the highest rate and share on the overall cost. The bipolar plate rates have almost an equal share coming from the anode and cathode sides (anode bipolar plates are slightly more expensive), while the anode/cooling gaskets contribute more than the cathode gasket to the overall gasket rate.

Similarly, the SOFC ceramic cell costs [124], shown in Figure 7, can be drastically reduced with a larger production scale, from 8482.51 USD/kW for the smallest investigated size of 1 kW, to 1183.04 USD/kW, when the annual production increases up to 50,000 units per year. For lower production rates, glass-ceramic sealing and laser weld account for the highest cost distribution rates, followed by the endplates and the ceramic cell itself. For higher production volumes, the highest contribution to the overall cost is given by the ceramic cells, while the other components and processes benefit more from the economy of scale.

As for the PACE/ene.field projects, the Battelle Memorial Institute has identified the balance of plant-related components as the main contributors to the final cost. If for a PEMFC system the stack cost ranges from 9.2 to 14.7% of the total system cost for an annual production volume of 1000 units, the components related to the balance of plant account for 64.5–71.8%. Among all, the fuel processing area is the most expensive component area, with a share between 27 and 32% of the BOP cost distribution, followed by the AC and DC power components. Fuel processing is, hence, composed of a reformer, steam generator, and several reactors, such as the water gas shift and PrOx reactors.

With a similar trend, SOFC BOP cost shares the highest rate (44.6–56.5%) for lower sizes, but for bigger installations, between 10 and 25 kW, the highest rate belongs to the CHP hardware components. Thanks to their higher temperatures and fuel flexibility, the fuel processing-related costs for the SOFC systems were significantly lower, benefiting from the natural process within the SOFC, the internal reforming, reducing the need for an external over-designed reformer. The presented results are in accordance with the more recent European Project deliverables for the micro-CHP system: “at large-scale production, micro-CHP units can become economically competitive. The analysis found that fuel cell micro-CHP could become competitive with competing heating technologies at 5000–10,000 units per manufacturer, in markets with attractive energy prices” [123].

It can be concluded that the balance of plant components, reformers, and stack were the key elements of potential failures and cost reduction.

7. System Durability and Performance

The fuel cell size for stationary applications is strongly related to the power needed from the load. Since this sector ranges from simple backup systems to large facilities, the stationary fuel cell market includes few kWs and less (micro-generation) to larger sizes of MWs.

PEMFC, above all in their high-temperature configuration up to 100 °C (HT-PEMFC) and SOFC systems, are mostly used for micro-cogeneration applications, mostly related to residential users, while SOFC, PAFC, and MCFC provide multi-energy services for large commercial and industrial applications.

Within a demonstration project in Europe [123], small PEMFC and SOFC systems have been installed and tested, and their performance is listed in

Table 6. PEM and SOFC System Performance.

Technology	PEMFC System	SOFC System
Electric capacity (kW)	0.3–5	0.7–2.5
Thermal capacity (kW)	1.4–22	0.6–25
System efficiency (LHV) (%)	85–90	80–95
Electric efficiency (%)	35–38	35–60

.

It is interesting how the real-life data and the on-field operation have presented a marked difference for SOFC systems than the optimal conditions tested in the laboratory: the average thermal efficiency was 46% (with a standard deviation between 30 and 59%) rather than 53%, while the electrical efficiency 37% (with a standard deviation between 28 and 47%) instead of 42%. On the other hand, the on-field operation of the PEMFC installed systems perfectly matched the laboratory data: 57% as the average value for the thermal efficiency (with a standard deviation between 48 and 66%) and electrical efficiency of 37% (with a standard deviation between 28 and 39%) [90]. The values listed in Table 5 are averaged, and they most probably differ among each other since real operating units differ in real operating conditions, gas supply composition, and ambient and environmental conditions, which can be controlled in a laboratory but are exposed to unpredictable variations in real operating conditions.

A summary of the investigated references to analyze the system durability is shown in

Table 7. Fuel Cell Maintenance and Lifetime Expected.

FC Technology	Lifetime Expected [h]	Degradation Rate [% Per Year]	Ref.
SOFC/MCFC	-	0.6% reduction in power output per 1000 h operation	[125]
PAFC	40,000	-	[126]
PEMFC	40,000–50,000	-	[126]
MCFC	15,000	-	[126]
SOFC	40,000	-	[126]
SOFC	20,000–90,000	1–2.5%	[80,127]
PEMFC	60,000–80,000	1%	[80,127]
MCFC	20,000	1.5	[80,127]
PAFC	80,000–130,000	0.5%	[80,127]
PEMFC	70,000	-	[128]
AFC	5000–8000	-	[78]
PEMFC	60,000	-	[78]
PAFC	30,000–60,000	-	[78]
MCFC	20,000–30,000	-	[78]
SOFC	90,000	-	[78]

, while the system performance is presented in

Table 8. Fuel Cell Energy Performance.

FC Technology	Electric Size [kW]	Thermal Size [kW]	Investment Cost [EUR]	Applications	Electric Efficiency [%]	CHP Efficiency [%]
SOFC [125]	-	-	3500 EUR/kW	Commercial	-	-
MCFC [125]	-	-	3500 EUR/kW	Commercial	-	-
PAFC [126]	50–1000 kW (250 kWmodule typical)	-	-	Commercial	40–42	85–90
PEMFC [126]	<1–100 kW	-	-	Commercial	30–40.0	85–90
MCFC [126]	1–1000 kW (250 kWmodule typical)	-	-	Commercial	43–47	85
SOFC [126]	5–3000.0	-	-	Home/Commercial	50–60	90
PEMFC [129]	0.5–5	-	-	Home	35–45	75–90
PEMFC [129]	0.5–5	-	-	Home	35–45	75–90
SOFC [129]	0.5–5	-	-	Home	35–45	75–90
AFC [129]	0.5–5	-	-	Laboratory	38–44	69–77
SOFC [80,127]	0.75–250	0.75–250	-	Home/Commercial	45–60%	75–95%
PEMFC [80,127]	0.75–2	0.75–2	-	Home	35–39	85–90
MCFC [80,127]	>300	>450	-	Commercial	47	90
PAFC [80,127]	100–400	110–450	-	Commercial	42	90
PEMFC [130]	500	-	-	Commercial	40	-
PEMFC [130]	1.00	-	-	Residential	34	-
PEMFC [130]	440	-	-	Commercial	43	-
PEMFC [130]	0.35	-	9000	Residential	33	-
PEMFC [130]	0.75	-	20,000–30,000	Residential	37–40	-
PEMFC [131]	1.5–5			Residential	34	-
PEMFC [130]	0.70	-	20,000–30,000	Residential	35	-
PEMFC [130]	0.75	-	36,000	Residential	39	-
PEMFC [130]	0.70	-	24,500–28,500	Residential	-	-
PEMFC [128]	0.70	-	11,800	Residential	38	95
PEMFC [128]	0.70	-	-	Residential	38–39	94–95
SOFC [128]	0.70	-	-	Residential	46.5	90
AFC [78]	up to 250	-	200–700/kW	Commercial	50 (HHV)	-
PEMFC [78]	0.5–400	-	3000–4000/kW	Commercial/Residential	32–49 (HHV)	-
PAFC [78]	up to 11,000	-	4000–5000/kW	Commercial	30–40 (HHV)	-
MCFC [78]	kW to MW	-	4000–6000/kW	Commercial	>60 (HHV)	-
SOFC [78]	up to 200	-	3000–4000/kW	Commercial/Residential	50–70 (HHV)	-

.

A 2015 study from the Fuel Cell and Hydrogen Joint Undertaking [131] outlined a potential analysis for several stationary fuel cell sizes and applications in Europe, in view of their commercialization. The main results are listed in

Table 9. Fuel cell system financial indicators.

	Micro-CHP (PEMFC, SOFC)	Mini-CHP (SOFC)	Commercial CHP (SOFC)	Prime Power 1.0 MW (SOFC, PEMFC)	CHP for Natural Gas (MCFC, SOFC, AFC)	CHP Biogas for Industrial Applications (MCFC, SOFC)
OPEX [kEUR]	0.5	0.85	6	60	800	30
CAPEX [kEUR/kW]	34	18.4	16.5	4.36	4028	5187
Installation, Control, Auxiliary [kEUR]	6.15	12.7	70.3	1200	1000	700
Added system [kEUR]	13.5	48.5	290	2500	2200	500
Stack [kEUR]	11.5	43.9	535.1	1500	2400	900
Maintenance [kEUR]	0.5	0.8	6	60	800	30
Stack Replacement [kEUR]	6.7	24	135.5	850	2150	790

.

According to the different applications, the fuel cell systems have been categorized in different sizes. A micro-CHP system, as already discussed, is mostly installed by adopting PEMFCs or SOFCs, fed by natural gas, biogas, or pure hydrogen. The installed capacity is usually 1 kW_el by contemporary producing 1.45 kW_th of thermal power. These applications can reach 88% (36% of electrical efficiency and 52% of thermal efficiency), growing with increasing development to 95% (42% electrical and 53% thermal), by being set both with a generic operating strategy and heat-driven operation. The capital cost reaches EUR 34,000 per installed kW capacity, and the stack replacement will account for operational cost up to 20% of the CAPEX cost, considering 10 years of life span with two replacements, improving to 15 years without replacement.

Similarly, mini-CHP (5 kW_el and 4 kW_th) and commercial CHP (50 kWel and 40 kW_th) systems usually operate by adopting the SOFC system, with a CAPEX cost, respectively, of 18.4 and 16.5 kEUR/kW. Prime power applications, up to 1 MW_el, operate in power-driven or load-following mode, achieving an electrical efficiency of up to 48% growing to 51% with increasing development over the years. The other two categories can be derived as follows: CHP for Natural Gas (up to 4 MW_el and 1.1 MW_th) and CHP Biogas for industrial applications (up to 400 kW_el and 315 kW_th).

These aforementioned data refer to 2015–2016. During the same period, in its Technology Roadmap Hydrogen and Fuel Cells [79], the International Energy Agency, provided similar data on fuel cell micro-CHP systems, considering commercial systems (up to 25 kW) with a cost slightly less than 10,000 USD/kW for the stack, and an electrical efficiency around 42%, and about 18,000–19,000 per kW for home systems. The reported lifetime ranged between 60,000 and 90,000 h.

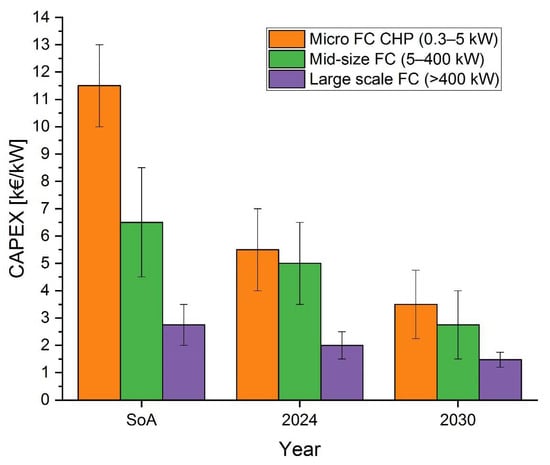

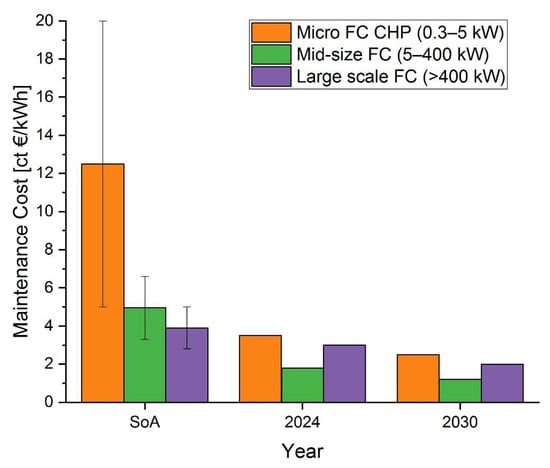

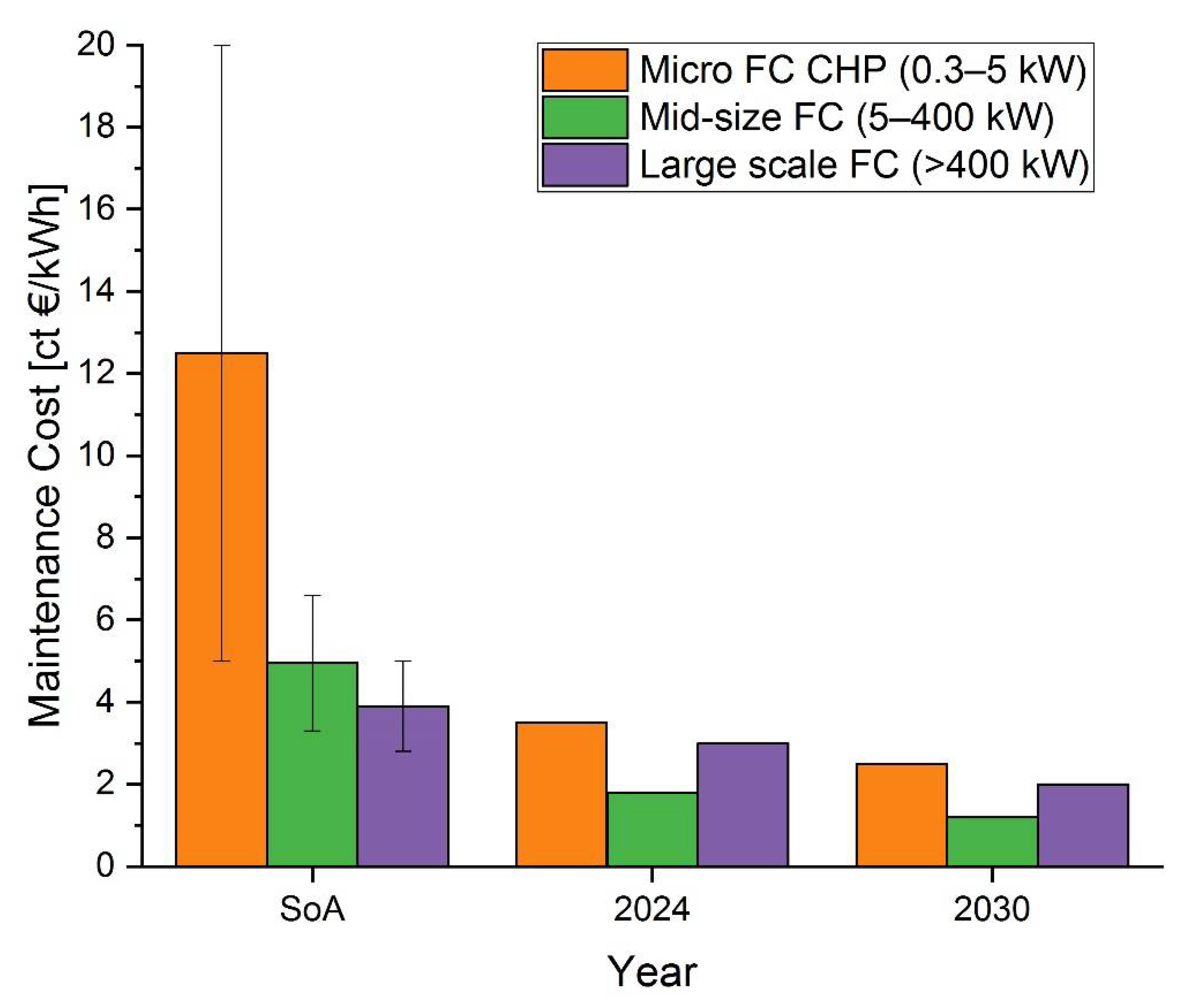

In June 2018, in the addendum to the Multi-Annual Work Plan, for 2014–2020 [96], the Fuel Cell and Hydrogen Joint Undertaking provided more data on CHP applications with fuel cell technologies. According to their analysis on the state of the art for residential micro-CHP for single-family homes and small buildings (0.3–5 kW), the 2017 CAPEX was 13,000 EUR/kW, decreasing since 2012, whose value was 16,000 EUR/kW. Maintenance costs drastically decreased, from 40 to 20 EURCt/kWh, as well as the installation volume per unit, from 330 L/kW to 240 L/kW. Hydrogen Europe, in their draft of the Strategic Research & Innovation Agenda [97], re-elaborated those data and other forecasts up to 2030, for capital expenditure and maintenance costs, as shown in Figure 8 and Figure 9.

Micro-CHP systems, up to 5 kW, will decrease their investment cost, dropping to 3500 EUR /kW in 2030 and increasing the lifetime, in terms of years of operation, from 12 to 15, as well as the stack durability, from 40,000 h to 80,000 h. The availability of the plant is high in current situations, up to 97%, and it will increase to 98% in the future. The system’s reliability will be strengthened even more, from 30,000 h up to 100,000, also decreasing maintenance costs, which will drop to 2.5 EUR Ct/kWh in 2030. Electrical and thermal efficiency will be improved; several programs are aiming to the performance improvements in terms of efficiency; according to the prevision, electrical efficiencies will raise to 65%, with a specific reference to SOFC technology, and 39% for PEMFC, while the thermal efficiency will maintain the upper bound (55%) and increase the lower bound from 25 to 35%.

For PEM fuel cells, the focus is on disruptive solutions, through ‘game-changer’ MEA and stack. The balance of plant components, reformer, and stacks was the key element of potential failures; thus, research on them is a key enabler for cost reduction, followed by the improvement for higher power density and stack tightness [132,133,134].

The other technology for deeply decarbonizing the stationary sector is represented by the SOFC systems. Being more flexible in the fuel feeding than the PEM fuel cell, the main issues here occur within the system operation, start-up and shut-down operations, high-temperature corrosion, materials degradation, better temperature distribution, and homogeneity during the transition phases. Feeding with biogas or low-quality biomass could also enable faster market penetration and cost reduction at the operation level.

The possibility of reverse mode (SOFC/SOE) and co-electrolysis operation represent also incredible potential for a carbon-free energy sector, even if the TRL of these technologies is still too low, and applied research actions are recommended.

The DOE, in the United States, is also pushing forward the scaling-up process, with the Programme H2@Scale, and important achievements have been reached in the fuel cell sector [135]. More research activities can be found in one of the latest volumes of the Fuel Cells Bulletin Journal [136].

For medium-size CHP systems, between 5 and 20 kW, little progress was made between 2012 and 2017: the CAPEX cost dropped from 6000–10,000 to 4500–8500 EUR/kW. More improvements are expected; in 2030, the specific investment cost is expected to be within the range of 1500–4000 EUR/kW. The lifetime of these systems will surely increase, from a minimum of 6 years to 20 years, with a stack-durability more than doubled (from 30,000 h to 80,000 h). As for the micro-CHP systems, mid-size fuel cell systems’ reliability will be strengthened even more, up to 80,000 h, also decreasing the maintenance costs, which will drop to 1.2 EUR Ct/kWh in 2030. The tolerated hydrogen content in natural gas volume percentage is also expected to grow up to 100%, reducing the cost of the components involved in the balance of plant, such as the reformer. The land use and the footprint are expected to decrease in 2030, from 0.15–0.08 square meters per kW of installed capacity to 0.06.

Concerning the large-scale fuel cell systems, converting hydrogen and renewable methane into power in various applications (0.4–30 MW), data belonging to 2012 showed a capital expenditure cost of 3000–4000 EUR/kW, while it decreased to 3000–3500 EUR/kW in 2017. The current picture presents a value between 2000 and 3500 EUR/kW, and the economy of scale is expected to make the cost drop to 1200–1750 EUR/kW. Research and development actions are aiming to bring down the maintenance costs, too, from 5 to 2 EURCt/kWh, with reliability up to 75,000 h and a stack durability of 60,000 h. Since most of these systems are adopting high-temperature fuel cells, the current start-up phase and shut-down characteristics are close to 4 h for a ramp of 0–100%. An improvement is also expected in this aspect, with the aim being to achieve 100% start-up phase and shut-down characteristics in 1 min.

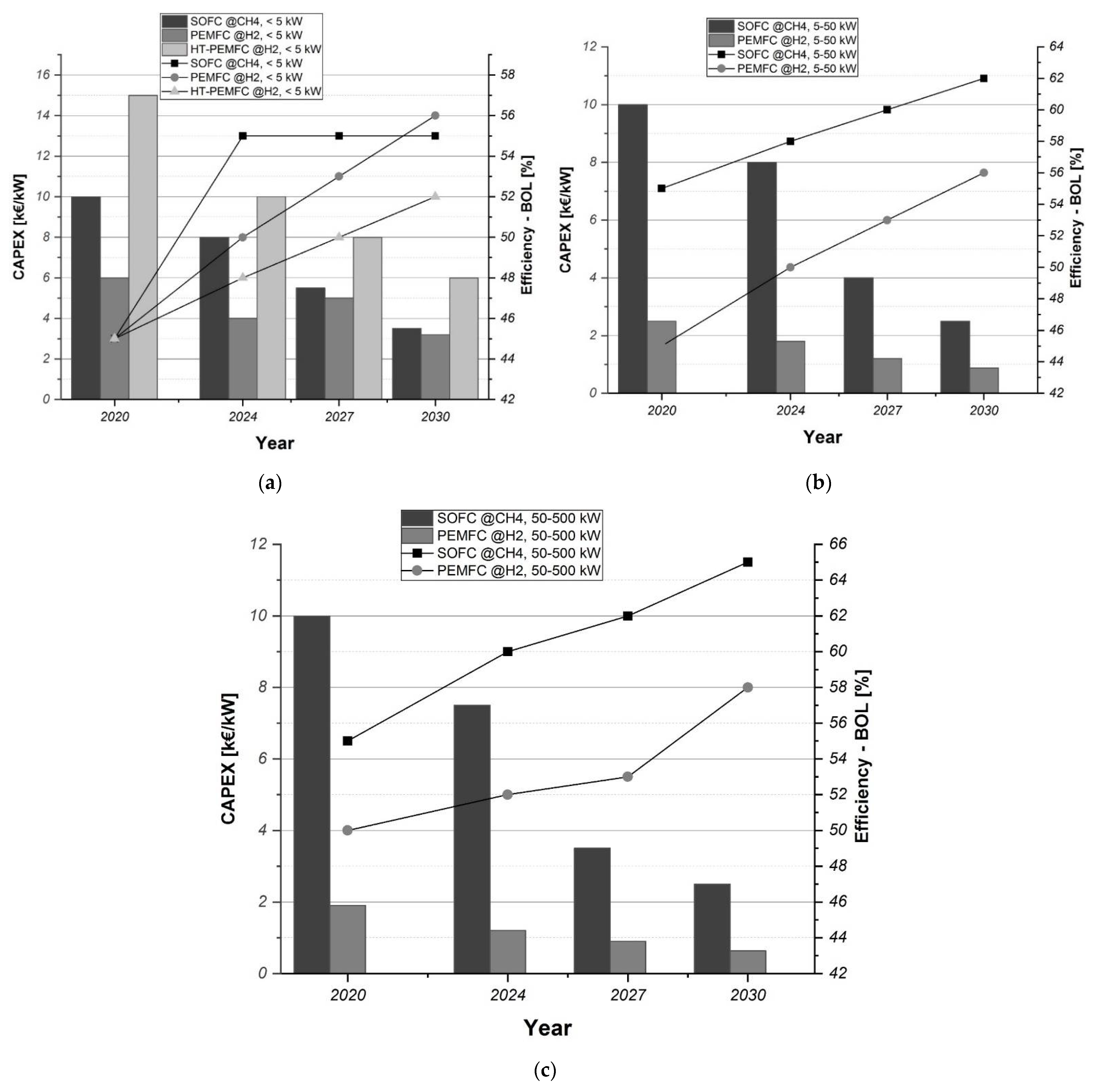

Recently, Hydrogen Europe released the Strategic Research and Innovation Agenda [96], also including fuel cell stationary applications. PEMFC and SOFC systems are identified as the most mature technologies that will find a prominent role in the future, with a drastic reduction in capital expenditure costs and an important increase in nominal efficiency. The retrieved trends are shown in Figure 10. Particularly, Figure 10a presents the CAPEX forecasts by considering the state of the art for PEMFCs powered by hydrogen, high-temperature (HT) PEMFCs powered by hydrogen, and SOFCs powered by methane (CH4), for sizes less than 5 kW_el, and thus applicable for micro-CHP systems. Micro- and mini-SOFCs have a higher CAPEX than low-temperature fuel cell systems, but also present a higher efficiency value, up to 55% instead of 52% of the PEMFC expected nominal efficiency. The efficiency values are reported by considering the nominal operation at the beginning of life (BOL). HT-PEMFCs, considering the state of the art, present the highest capital investment per kW_el, but in view of 2030, thanks to the related research actions aiming to improve the system efficiency, HT-PEMFCs are expected to have the highest electrical efficiency.

For higher sizes, Figure 10b,c show the CAPEX levels and the efficiency values for sizes between 5and 50 kW_el, and 50 and 500 kW_el, by conserving the state of the art, and the forecasts for 2024, 2027, and 2030. For these sizes, HT-PEMFCs are not considered, since they are mostly used only for mini- and micro-CHP systems. Besides, the forecasted performance of SOFC systems is very prominent and attractive, achieving very high values up to 62% for 5–50 kW and up to 65% for 50–500 kW of installed sizes. PEMFCs are also expected to have higher performance and lower capital expenditures.

8. Conclusions

The present paper analyzed the country-level data on current sales and stock of stationary fuel cells, both for micro-CHP and for large-scale applications.

The analysis highlighted how PEMFC and SOFC fuel cells share the most predominant rates in the market. For the micro-CHP market, Japan and Europe are leading the market and the R&D activities, thanks to ad hoc subsidies and programs. For larger stationary applications, the USA is leading the pictures, with a cumulated installed capacity of 500 MW. MCFCs present a high share in the American fuel cell markets among the operating multi-MWs fuel cell plants. PAFCs are most predominant in Korea since it is the home country of most of the PAFC manufacturers.

The paper has also analyzed the technical performance of stationary fuel cells, both for micro-CHP and for large applications, as well as the financial state of the art and the 2030 forecast. The analysis of the micro-CHP systems, adopting PEMFC and SOFC, has shown how the balance of plant presented the most sensitive operation, accounting for 64% of the total failures for the PEMFC installations, and 55% for SOFC.

Micro-CHP systems, up to 5 kW, will decrease their investment cost, dropping to 3500 EUR/kW in 2030 and increasing the lifetime, in terms of years of operation, from 12 to 15, as well as the stack durability, from 40,000 h to 80,000 h.

Bigger sizes have also been investigated. Mini-CHP (5 kW_el and 4 kW_th) and commercial CHP (50 kW_el and 40 kW_th) systems usually operate by adopting the SOFC system, with a CAPEX cost, respectively, of 18.4 and 16.5 kEUR/kW.

Prime power applications, up to 1 MW_el, operate in power-driven or load-following mode, achieving an electrical efficiency of up to 48% growing to 51% with increasing development. The current picture presents a value between 2000 and 3500 EUR/kW, and the economy of scale is expected to make the cost drop to 1200–1750 EUR/kW.

Finally, some potential for cost reductions and durability improvements have been presented, showing how cost reduction can be achieved with the economy of scale, but research and prototyping are still needed for bigger sizes (MW) to guarantee robustness and manufacturability for the next-generation fuel cells, to build a valuable supply chain and to increase the technology maturity and readiness level.
