1. Introduction
The demand for batteries to store and release electrical energy keeps increasing as electronic devices become widespread and fossil-based systems are replaced by electricity-based systems. Lithium-ion batteries have been considered one of the most promising power sources for mobile and transportation systems, but face the challenging issues of high cost, low capacity (i.e., short operation hours or driving ranges), and safety concerns. Therefore, it is necessary to find breakthrough technologies to resolve these issues.
In this research, we focus on characterizing aluminum as a promising anode material that is expected to bring new direction of research and development to overcome the challenging issues of the conventional battery system. Aluminum is cheap and abundant, benign to the environment, and stable in moisture. Moreover, it has the excellent volume charge–storage capacity of 8.0 Ah/cm
3 (or 3.0 Ah/g), which is approximately four times greater than that of lithium (i.e., 2.06 Ah/cm
3 or 3.9 Ah/g), leading to its energy contents comparable to those of gasoline (i.e., specific energy density: 8.1 kWh/kg for Al–air and 13 kWh/kg for gasoline, and volumetric energy density: 21.8 kWh/L for Al–air and 9.7 kWh/L for gasoline) [
1,
2,
3,
4,
5]. However, even with these promising features, an Al-based rechargeable battery could not reach the commercialization stage due to the problems of self-corrosion and aluminum oxide film formation during cell operation [
6]. Especially, due to the reduction potential of aluminum ion (−1.68 V vs. Standard Hydrogen Electrode (SHE)) which is lower than hydrogen reduction from water, the charge (or aluminum deposition) is not possible thermodynamically in aqueous systems [
1,
2,
3,
4,
5,
6].
As a promising electrolyte to resolve these issues, an ionic liquid which is molten salt in liquid form at room temperature is getting intense attention recently owing to the excellent benefits of no H
2-generating side reactions and stability in the reduction potential of Al ion, which allows the cell to be charged. The first research to apply ionic liquid to an aluminum–air battery system was reported by D. Gelman et al. [
4]. They utilized 1-Ethyl, 3-Methyl Imidazolium oligo-fluoro hydrogenate (EmIm-(HF)
2,3-F) because of its high conductivity (100 mS/cm), low viscosity, and chemical stability with oxygen and water. It was reported that Al was stable in the ionic liquid with a negligible corrosion rate, leading to a current density of 1.5 mA/cm
2 and a capacity of 140 mAh/cm
2.
R. Revel et al. [
7] reported the performance of an Al–air battery including relatively inexpensive and commercially available 1-Ethyl, 3-Methyl Imidazolium chloride ([EmIm]Cl) and aluminum chloride (AlCl
3). They controlled the acidity of ionic liquid by changing the ratio of [EmIm]Cl and AlCl
3, and its effects on the conductivity of the ionic liquid and the corrosion rate of Al metal were investigated. Cell performances of 0.6 mA/cm
2 and average voltage of 0.6 to 0.8 V were reported, and the charge behavior was reported for the first time in an Al–air battery. Especially, the capacity was reported to be 71 mAh/cm
2, equal to that of an Li–air battery and five to ten times superior than that of an Li-ion battery, suggesting that the Al–air battery is highly promising to outperform other existing metal–air batteries.
However, the promising ionic liquid-based Al–air battery faces challenging issues, and one of them is the formation of an inactive oxide layer on the Al surface which blocks electrochemical reactions at the Al surface. B. Shvartsev et al. and D. Gelman et al. reported that the inert oxide film could not be easily dissolved in the conventional ionic liquid solution, and various ionic liquids (i.e., EmIm(HF)
2,3-F, 1-Ethyl-3-methylimidazolium tri-fluoro-methanesulfonate (EmImOTF), and 1-Ethyl-3-Methylimidazolium bis-(tri-fluoro-methyl-sulfonyl) amide (EmImTFSI)) were utilized to investigate their effect on morphology change of the oxide film through electrochemical methods (i.e., two-electrode and three-electrode cells) and surface analysis (Transmission Electron Microscope (TEM), Energy Dispersive X-ray Spectroscopy (EDS), X-ray Photoelectron Spectroscopy (XPS), and Atomic force microscopy (AFM)). It was found that a new film was formed instead of the pristine oxide layer due to interaction between Al and the ionic liquid, transforming the passive state to the active behavior of the metal. Feng Wu et al. [
8] recently reported also that poor cycling performance is due to an interface problem between the anode and electrolyte, and by immersing Al into the electrolyte as a pretreatment method, the passive film could be removed. They also found that a stable SEI (solid-electrolyte interphase) layer on the anode surface was formed, which was beneficial for improving interface stability, demonstrating the interface–reconstruction effect by the way of an efficient facile pretreatment of the Al metal anode.
Issues on the cathode air side were also reported, and D. Gelman et al. [
9] found that adverse effect of Al
2O
3 precipitation on the cathode electrode was a critical issue in the cell performance. The Al
2O
3 is generated in the cathode side during discharge operation, but it is precipitated on the electrode surface once its solubility limit in the ionic liquid is exceeded, decreasing the porosity of the electrode, which impedes the reactant transport in the porous structure and covers the available active sites for the oxygen reduction reaction. They concluded that battery capacity is limited by the air electrode, and it is important to study and develop a robust air cathode, capable of extending the battery life.
However, to the best of our knowledge, there is no prior research which analyzed these challenging issues in both the anode and cathode sides of the ionic liquid-based Al–air (or O2) cell through mathematical modeling to define key controlling parameters to resolve those issues. It is necessary to understand the physics underlying the electrochemical reactions at electrode interfaces, including the formation/ breakdown mechanism of the inert oxide film formed on the Al electrode surface, and the effect of precipitation of Al2O3 on the cathode surface in the porous electrode, in order to define key parameters controlling the performance of the Al–air battery. In this study, systematic research which combines experimentation and mathematical modeling was conducted to elucidate the multiphysical cell behavior.
The cell-based experiment was conducted with ionic liquid electrolytes with various ratios of [EmIm]Cl to AlCl3, and the effect of the ratio (i.e., acidity) on the cell performance and the morphology of Al surface was measured with OCV and SEM images. In particular, thermodynamics relations were utilized to understand the acidity effect on Al-surface morphology. In addition, a one-dimensional micro–macro homogeneous mathematical model, which incorporates the properties of Al-surface morphology in the anode and the physics associated with Al2O3 precipitation in the cathode porous electrode, was developed to predict the cell performance and define the key control parameters which provide guidance for cell developers.
3. Modeling
A diagram of the Al–air cell is shown in

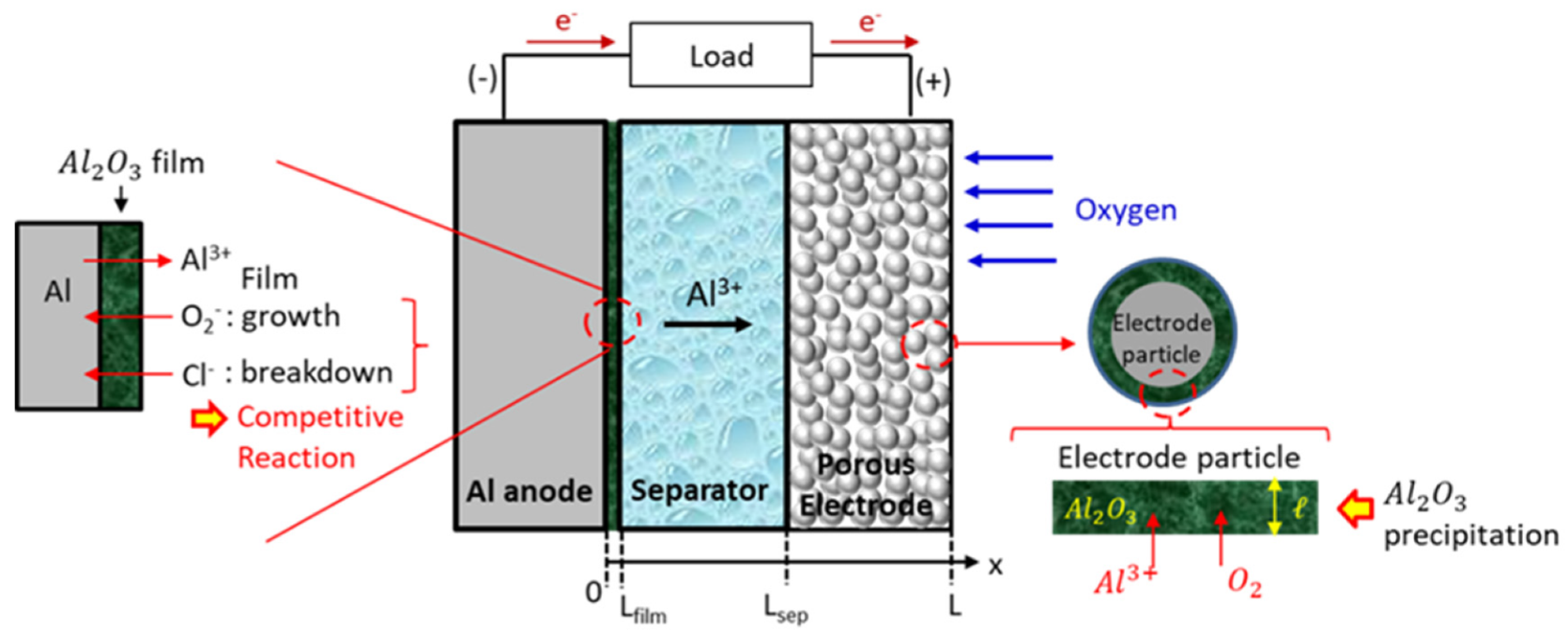

Figure 1. From left to right, the cell contains an aluminum metal anode, an Al
2O
3 film on the surface of the anode, a porous separator, and a porous carbon air cathode; all components except for the anode have their cracks and pores completely filled with 1:1.5 [EmIm]Cl–AlCl
3 concentrated electrolyte.
During discharge operation, the Al metal is dissolved in the [EmIm]Cl–AlCl
3 electrolyte, as described by Equation (1), which is the primary electrochemical reaction at the anode. The Al
2O
3 layer on the anode contains cracks that allow limited Al
3+ diffusion and electrolyte conductance. The layer greatly reduces the surface area available for Al dissolution, causing the film to have impedance and hence contributes to a potential drop between the solid anode and electrolyte at the film surface. The Al
3+ diffuses through the separator and into the porous carbon cathode. Atmospheric O
2 dissolves in the electrolyte and diffuses into the cathode at the side of the current collector and reacts with Al
3+ to form Al
2O
3, as in Equation (2), which is the primary cathodic electrochemical reaction. The Al
2O
3 produced is dissolved in the electrolyte before reaching a solubility limit after which it precipitates on the cathode’s carbon particle surfaces. The two electrochemical reaction equations for the electrodes are combined to form the full electrochemical reaction (Equation (3)) [
7].
Equation (1) is the net reaction of the reaction:
[
11]. Simulations will be conducted on the model developed in this study to predict the discharge performance, which will be verified by experimental data. The effects of important parameters such as anodic film crack density, solubility of oxygen in the electrolyte, and the initial porosity and thickness of the cathode on the cell performance will be analyzed in detail.
3.1. Assumptions for Model
Al
2O
3 is the primary product of the cell reaction [
4].
Species in the electrolyte have even initial distributions across the cell geometry.
Pore spaces of the electrode and separator are assumed to be filled with electrolyte.
Pure dry O2 is provided externally into the porous cathode at the current collector.
There is no Al2O3 in the cathode at the beginning of discharge.
Concentrated solution theory is used to consider ionic liquid-based electrolyte in the simulation.
There are no effects of convection.
Isothermal conditions at 300 K.
3.2. Volume Average Method
The porous electrode was utilized in the cathode side to increase the interfacial reaction area between the electrode and the electrolyte, resulting in the complicated microscopic and interfacial phenomena for the analysis. And thus, it is required to utilize the simpler macroscale models that capture the dominant physics in the microscale, and the macroscale models can be derived by averaging the microscopic equations over a representative elementary volume that contains all phases. The general averaging theorems [
12,
13,
14] are described for temporal derivatives,
and for spatial derivatives,
where
is any quantity in phase k,
is the volume of representative elementary volume,
is the velocity of the surface-bounding phase k,
is the normal unit vector pointing outward from phase k, and
is the total interfacial area of the k-phase adjacent to all other phases.
The averaging operators are for phase volume averages [
12,
13,
14]:
and for intrinsic volume averages:
where
denotes a phase function, equal to one in phase k and zero elsewhere, and
is the volume of phase k in
. The two averages are related by
These volume average methods were applied to convert microscopic equations to macroscopic continuum equations, and details can be found in the
Appendix A.
3.3. Application of the General Macroscopic Equations to Al–Air System
Equation (A20) can be simplified for conditions of single electrochemical reaction j and no convection effect of the electrolyte:
where the first and second terms in the right-hand side of the equation can be replaced by divergence of ionic flux with Equations (A8) and (A11), and the third term is defined by the reaction rate of the species (i.e., source term).
The final useful form of the macroscopic species conservation equation is obtained for the reactive species in the electrolyte (i.e., k phase is now electrolyte, and the average symbols were dropped out for convenience):
where
is the liquid phase volume fraction (porosity),
is the species molar concentration, and
and
are the mole flux and reaction rate of a species
j.
Because there are no convection effects, the molar flux, which is the rate of movement of a species over a cross section, is determined only by diffusion and migration for the AlCl
3 salt, and diffusion only for the oxygen. The molar flux rates of Al
3+, Cl
−, and O
2 are expressed as:
where
is the effective diffusivity,
is liquid phase current density, and
is the cation transference number.
The relation of solid phase current can be described from Equations (A21) and (A20):
And thus, the solid phase current is:
where
is one,
is the effective electric conductivity in the solid material, and
is the potential in the solid phase.
For the liquid phase, the current relation is obtained from Equations (A22) and (A20):
For the cation species in the electrolyte,
where
is one,
is the effective electrolyte ionic conductivity,
is the liquid potential. In the Al–air model,
= 4,
= 3,
= 1,
= 3,
= 0, and
= –1.
Due to porosity and increased path length, or tortuosity, the Bruggeman relationship [
15] with an exponent of 1.5 is used to determine conductivity and diffusivity affected by porosity and tortuosity in the porous media:
where
is the solid electrode volume fraction,
is the electrolyte volume fraction or porosity, and
,
, and
are the standard diffusivity, liquid phase conductivity, and solid phase conductivity without obstacles.
Between the solid and liquid phase, there must be conservation of charge. Therefore, from Equations (A23) and (A20),
The electrochemical reaction on the electrode surface involves electrons and reactive species, which can be described as:
where
s,
M, and
z are the stoichiometric coefficient, species symbol, and charge of a species. It tells that the reaction rate at the electrode surface must be proportional to the transfer current.
The charge transfer (i.e., superficial current density,
) from solid to electrolyte phase per unit volume of electrode is related to the product of specific area (i.e., interface area per unit volume of electrode,
) and the average interfacial current density (
) (for convenience, the overbar will be taken off in the relations hereafter). For a single reaction at the interface, from Equation (A20):
3.4. Equations for the Anode Side
The electrochemical reaction rate (aluminum dissolution) at the anode surface is described by the Butler–Volmer equation:
where
is the exchange current density,
is the charge transfer coefficient for the oxidation in the anode-side reaction,
is the fraction of the electrode surface which is exposed (i.e., crack density) due to the cracks of the oxide film covering the Al electrode surface, and
is the surface overpotential, defined as follows:
where
and
are the potentials of the solid electrode and liquid electrolyte at the interface in the anode side, and
is the anode equilibrium potential.
It is assumed that the electrochemical reaction takes place only within the exposed area of the anode (i.e., area under the cracked portion of the film). The crack is formed through competitive reactions between the film formation by the reaction of aluminum and water or oxygen dissolved in the ionic liquid and the film-breaking reaction of the aggressive chloride ions in the electrolyte. This reaction is assumed to occur immediately, and the formed crack fraction (i.e., crack density) is maintained during cell operation. The crack density was measured directly from the morphology of the aluminum surface in SEM by using ImageJ2 free software [
16].
The solid oxide material is considered inert and only the electrolyte filling the cracks is conductive, and the ohmic potential drop of the electrolyte through cracks of the film can be calculated by:
where A is the cross-sectional area of aluminum,
is the oxide film thickness on the anode surface, and
is the effective ionic conductivity of the electrolyte in the cracks, which is obtained from the Bruggeman relationship (Equation (22)).
3.5. Equations for the Cathode Side
The electrochemical reaction at the cathode surface is affected significantly by the concentration of reactive species at the reaction sites and the oxide film formed on the surfaces of electrode particles, which effects are considered by the modified Butler–Volmer equation:
where
is the kinetic or surface overpotential at the cathode surface and
is the charge transfer coefficients for the oxidation in the cathode-side reaction. The concentration of reactive species for anodic (
) and cathodic (
) reactions can be described:
where
and
are the anodic and cathodic reaction rate constants.
These species expressions are dependent on the concentrations of the reactants at the surface of the carbon electrode/electrolyte interface. When these concentrations are depleted, the species expression becomes zero and the transfer current is cut off (locally in the cathode). The surface concentrations result from the diffusion of species through the deposited Al
2O
3 film layer on the cathode surface. By conservation of species, the diffusion rate through the film must be proportional to the transfer current, which can be expressed as:
where
is the thickness of the Al
2O
3 deposition on the cathode surface.
The surface overpotential at the cathode is modified to implement the effect of the existence of the oxide film covering the electrode:
where
is the potential drop across the oxide film and
is the cathode equilibrium potential.
There is no information in the literature about crack density of Al
2O
3 deposited on the carbon electrode, and thus the approach in [
16] was utilized in this study to implement the effect of Al
2O
3 deposition.
The oxide (i.e., Al
2O
3) generated in the cathode side has a solubility limit in the electrolyte. When this limit is surpassed, the oxide precipitates on the carbon electrode surface. The concentration of the solid deposit of Al
2O
3 increases over discharge at a rate proportional to the transfer current in the cathode:
where
is the stoichiometric coefficient for Al
2O
3 and
is the solubility limit of Al
2O
3 in the electrolyte.
The oxide film covers the carbon cathode surface and decreases the specific area of the electrode. The amount of loss of active surface depends on the morphology of the deposit on the carbon particles, as shown in Equation (36) [
14,
17]:
where
is the initial specific interface area without any oxide film and
q is a geometric factor for the morphology of the oxide on the surface of the carbon cathode; small values of
q indicate a flat, plate-like precipitate, and large values reflect a needle-like solid. The value of 0.5 is used in this model. As the Al
2O
3 continues to precipitate on the carbon cathode, it fills in space previously occupied by the electrolyte, reducing the porosity of the cathode. The change rate of porosity is determined by the size of the Al
2O
3 particles and the rate of production.
The film potential drop in the cathode is due to electrical resistance for ion transport through the film and adds to the total potential drop between the solid phase and liquid phase. It increases over discharge as more Al
2O
3 is deposited in the porous cathode, leading to increased effective impedance. The film potential drop [
18] is expressed as:
where
is the resistance of oxide film and
is the volume fraction of the cathode occupied by the oxide film.
As the oxide volume fraction increases during discharge, the porosity of the electrode decreases. The total volume fractions of the electrolyte, solid Al
2O
3, and carbon electrode in the cathode equal one and is expressed as:
The porosity variation in the porous electrode can be calculated with the macroscopic mass conservation equation (Equation (A2)). The interface movement is caused by species transformation during the electrochemical reaction, and thus the average normal velocity (
) of the k–m interface in Equation (A2) for a single reaction in the cathode can be described as [
14]:
where
is partial molar volume of species in the solid phase.
Therefore, the porosity variation in the porous electrode can be defined from Equation (A2) and
:
where
and
are the molecular weight and density of the oxide deposit.
Locally on the carbon particles’ surfaces, the deposition of Al
2O
3 forms an oxide layer covering the surface. During discharge, this layer will increase in thickness according to the amount of Al
2O
3 deposited and the shape of the carbon particle. In other words, this thickness is determined by the volume fractions of the carbon and solid Al
2O
3 that can be shown for a spherical particle as:
where
r0 is the radius of the carbon particle.
3.6. Initial and Boundary Conditions
3.6.1. Initial conditions
Initial conditions for all the species concentration inside the cell, structure of cathode porous electrode (i.e. porosity, thickness, and specific interfacial area) were summarized in
Table 1. It was assumed that species in the electrolyte have even initial distributions across the cell geometry, pore spaces of the electrode and separator are filled with electrolyte, and there is no Al
2O
3 in the cathode at the beginning of discharge.
3.6.2. Boundary Conditions
Boundary conditions are based upon the schematic shown in
Figure 1. At the cathode current collector (i.e. x = L), the oxygen gas of constant concentration is provided into the cell externally, and the solid-phase current density is equal to the applied current density, but electrolyte current density is zero, and fluxes of species at this interface are zero. At the interfaces of cathode electrode/separator and separator/anode electrode, the solid-phase current density is zero, but the liquid-phase current density is equal to the applied current density, and species concentrations and fluxes are continuous. At the interface of x = 0, the flux is equal to the consuming/production rate of Al ions due to the electrochemical reaction occurring at the solid/liquid interface. The potential of the solid phase at x = 0 is set to zero, and the solid phase potential at x = L is set to the cell voltage.
The equations and boundary conditions were applied in the equation-based solver COMSOL multiphysics version 5.3. Simulations of the Al–air battery were performed on a 64 bit Windows computer with an Intel i7 3.20 GHz processor and 16 GB RAM. A time dependent solver was used for the equations and a variable tolerance of 0.001 was used.
4. Results and Discussion of Experiment and Modeling
4.1. Effect of Chloride ion Concentration
The effect of Cl
− concentration on film breakdown in the anode side was investigated with different Cl
− contents in the ionic liquid electrolyte. A piece of pure aluminum metal was submerged in the ionic liquid solution with the 1:0.5 molar ratio of [EmIm]Cl to AlCl
3 for about 4 hours. Isolated blisters (less than 20 μm in size) and minor cracks were formed on the surface of the aluminum (i.e., oxide film), as shown in

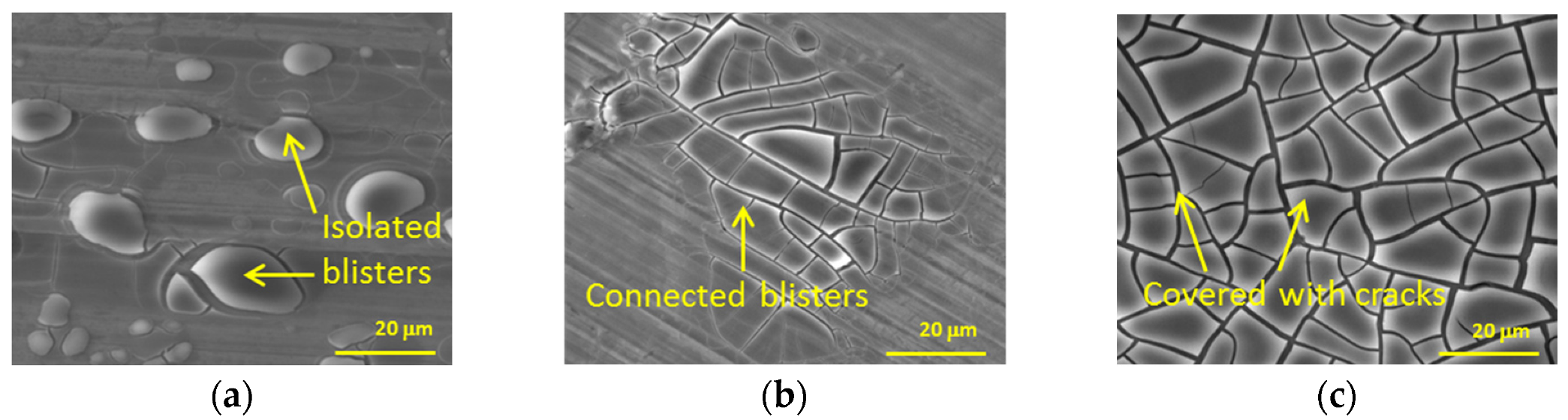

Figure 2a. The isolated blisters became larger in size and were connected, and cracks were enlarged as the ratio of [EmIm]Cl to AlCl
3 changed to 1:1. As the ratio increased further to 1:1.5, all the surfaces of Al were covered with cracks, and severe breakdown of the oxide film was found.

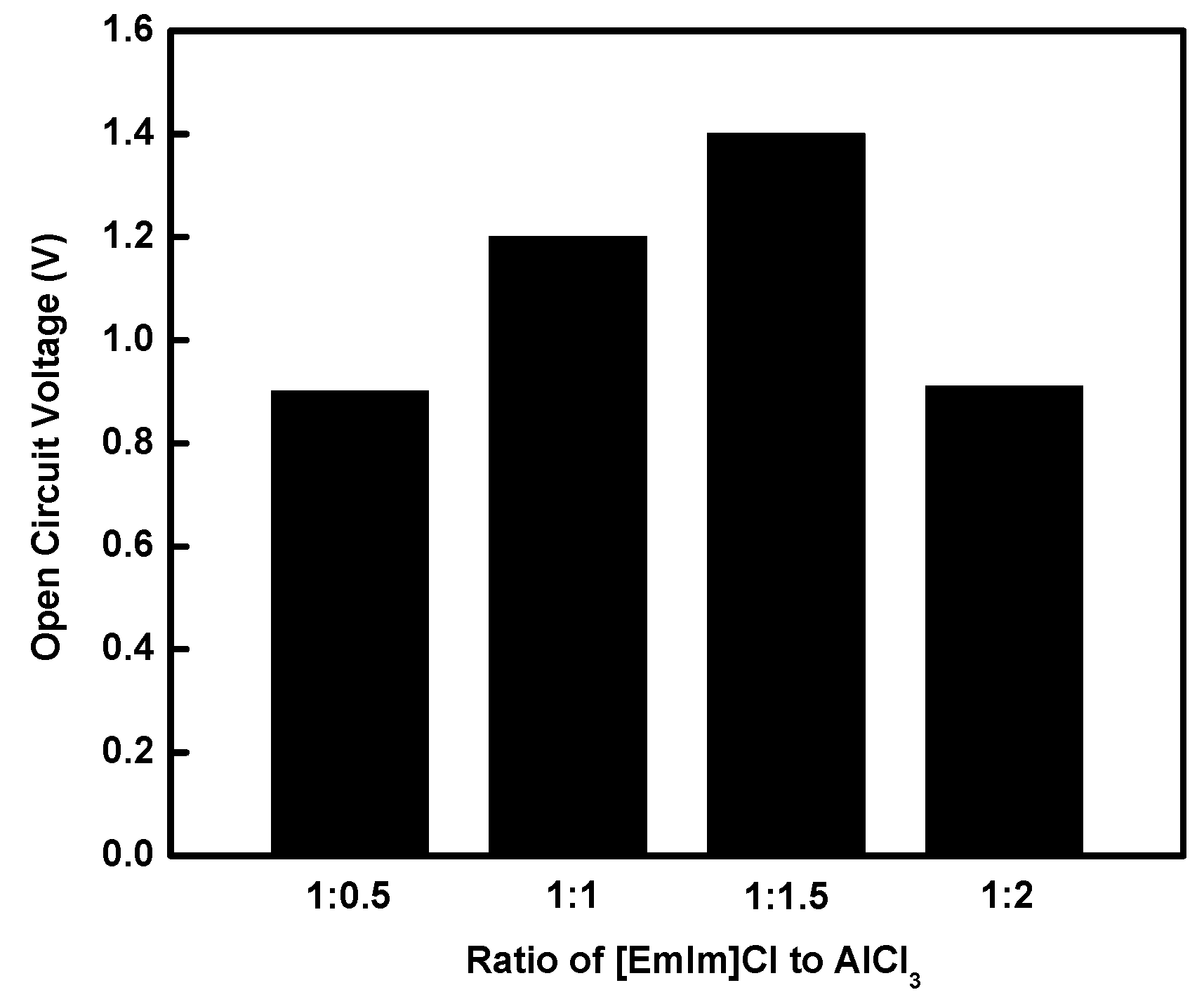

Effect of those morphology changes on the open circuit voltage (OCV) are compared in
Figure 3. The OCV was measured to be 0.9 V in the case of the 1 to 0.5 ratio, and it increased continuously with increasing molar ratio of AlCl
3, and reached 1.4 V for the 1:1.5 ratio. However, it dropped with further increase of AlCl
3. This decrease was considered due to the effect of the Cl
− ion, which is known to be adsorbed on the oxide film to enhance the breakdown process. As the ratio changed from 1:0.5 to 1:1.5, the more active area of Al electrode was available for electrochemical reaction due to the increased cracks on inert oxide film formed on the Al electrode, resulting in an OCV increase. However, the OCV decreased significantly at the ratio of 1:2, which may be interpreted as the direct effect of Cl
− ion (i.e., corrosion) on the active area of the Al electrode, and the Cl
− ion affected not only the oxide film but also the Al active area.
It is reported that at the ionic liquid ratio of 1:0.5, the dominant chloro-aluminate species in the electrolyte is AlCl
4− [
7,
8,
19,
33]. As the ratio of AlCl
3 is increased from 1:0.5 to 1:1.5, the ionic liquid contains AlCl
4− and Al
2Cl
7− species. At 1:0.5 ratio, the conductivity of ionic liquid was only 3.4 mS/cm due to a lesser amount of salt generating ions. As the AlCl
3 ratio increased from 1:0.5 to 1:1, conductivity was increased to 16.2 mS/cm, but then it decreased to 14.6 mS/cm at the 1:1.5 ratio, which may have been affected by the decreased mobility due to the larger size of the Al
2Cl
7− ion dominant at that ratio.
4.2. Theoretical Consideration
The effect of anion ion (i.e., Cl
−) on film breakdown can be understood from the fundamental thermodynamic relations. Studies to understand the mechanism of oxide film formation/breakdown have been conducted in the corrosion area especially for the aqueous system [
34,
35,
36,
37,
38], and their results can be utilized to understand fundamentals of the film breakdown. The oxide film can be modeled with the concept of double layer of dielectric constant
ε’ under the electric field
E’ as shown in
Figure 4.
Due to the potential difference between the metal surface and the solution, an electric field
E’ acts across the oxide film, generating electrostriction compressive pressure on the film. Whereas, the surface tension
γ formed on the oxide film stabilizes the film. Thus, net stress exerted on the oxide film can be described by a balance relation between the electrostriction (i.e., force to break the film, the first term in the right-hand side of Equation (42)) and surface tension effects (i.e., force to form and preserve the film, the second term in the right-hand side of the equation) [
35]:
where
p is pressure,
is the vacuum permittivity, 8.85 × 10
−12 (F/m) or (C
2/Nm
2),
is the dielectric constant,
is the electric field, (V/m) or (N/C),
γ is the surface tension, and
L is the thickness of the film.
The system of our interest contains anodic oxide film (MO), solution (IL), and salt AlCl
3 (i.e., Al
3+ and Cl
−). From the Gibbs isotherm [
39]:
where
is regarded as an electrically neutral oxide on the Gibbs surface, and
,
,
are assumed to be constant. Using these assumptions, the relation can be simplified:
This relation clearly shows the surface tension of the film is decreased as the chloride ion content (i.e., ) adsorbed on the Al metal increases, which well explains the experimental results of this study.
The effect of adsorbed ion on the breakdown potential can be understood with works conducted by Sato [
35]. Since electric field intensity is generally constant for a film of given thickness, growth or breakdown of the passive film can be controlled by controlling surface tension. The electric field intensity E’ in general is on the order of 10
6 V/cm, and the thickness of the barrier layer of the oxide film varies from 0.0005 to 0.01 μm. For aluminum oxides and hydroxides, the dielectric constant is in the range 1–10 and the surface tension is in the range 10–500 dyne/cm. Metal oxides and hydroxides start to breakdown when the electrostriction pressure is in the range 100–1000 kg
f/cm
2 [
35].
The point where electrostriction pressure reaches a breakdown stress of 600 kg
f/cm
2 is considered as the critical thickness of the oxide film [

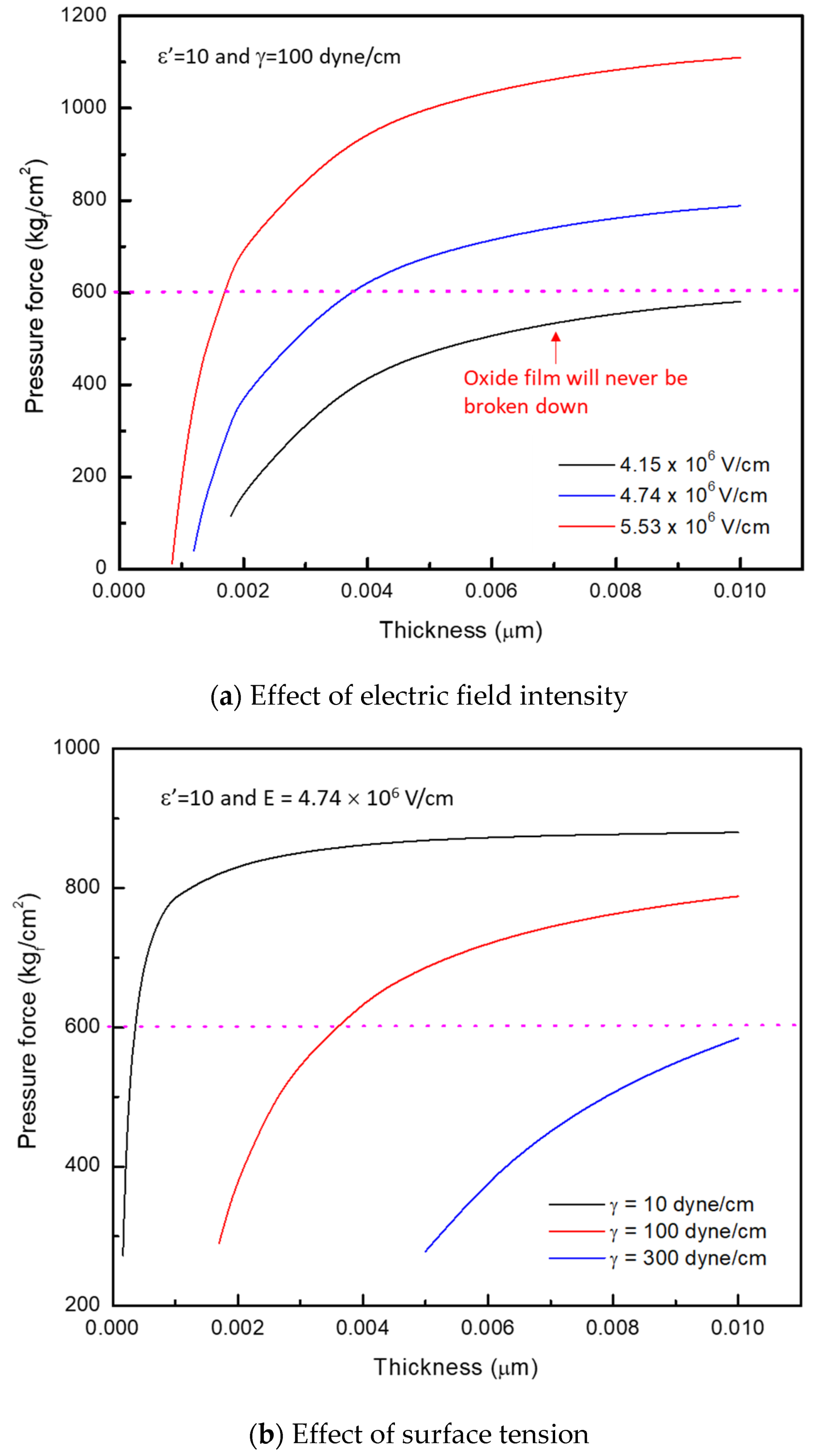

35]. A variation of critical film thickness with electric field intensity is shown in
Figure 5a. At an electric field intensity of 4.15 × 10
6 V/cm, the electrostriction pressure developed in the oxide film never exceeds the breakdown stress of 600 kg
f/cm
2. Increasing the electric field intensity to 4.74 × 10
6 V/cm causes the film to break down at a critical thickness of 0.035 μm. Critical thickness of the oxide film further decreases to 0.016 μm by increasing the electric field intensity to 5.53 × 10
6 V/cm. This high electric field intensity required for the film breakdown causes voltage loss in actual performance of the battery. Therefore, other methods need to be used to reduce voltage loss (i.e., decrease the electric field).
A variation of critical thickness with surface tension is plotted in
Figure 5b where the electric field is 4.74 × 10
6 V/m. At a surface tension of 300 dyne/cm, electrostriction pressure developed in the oxide film is less than the breakdown stress of 600 kg
f/cm
2, and the oxide film cannot be broken down at this surface tension. However, as the surface tension decreases from 300 to 100, and 10 dyne/cm, the critical thickness decreases, indicating the film can be easily broken down at low surface tension without using a large overpotential. Hence, it can be concluded that the surface tension is a key controlling parameter to breakdown the inert oxide film efficiently without causing significant voltage loss in actual battery performance.
4.3. Overall Discharge Behavior

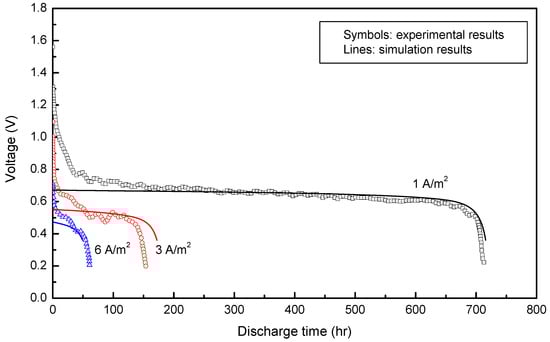

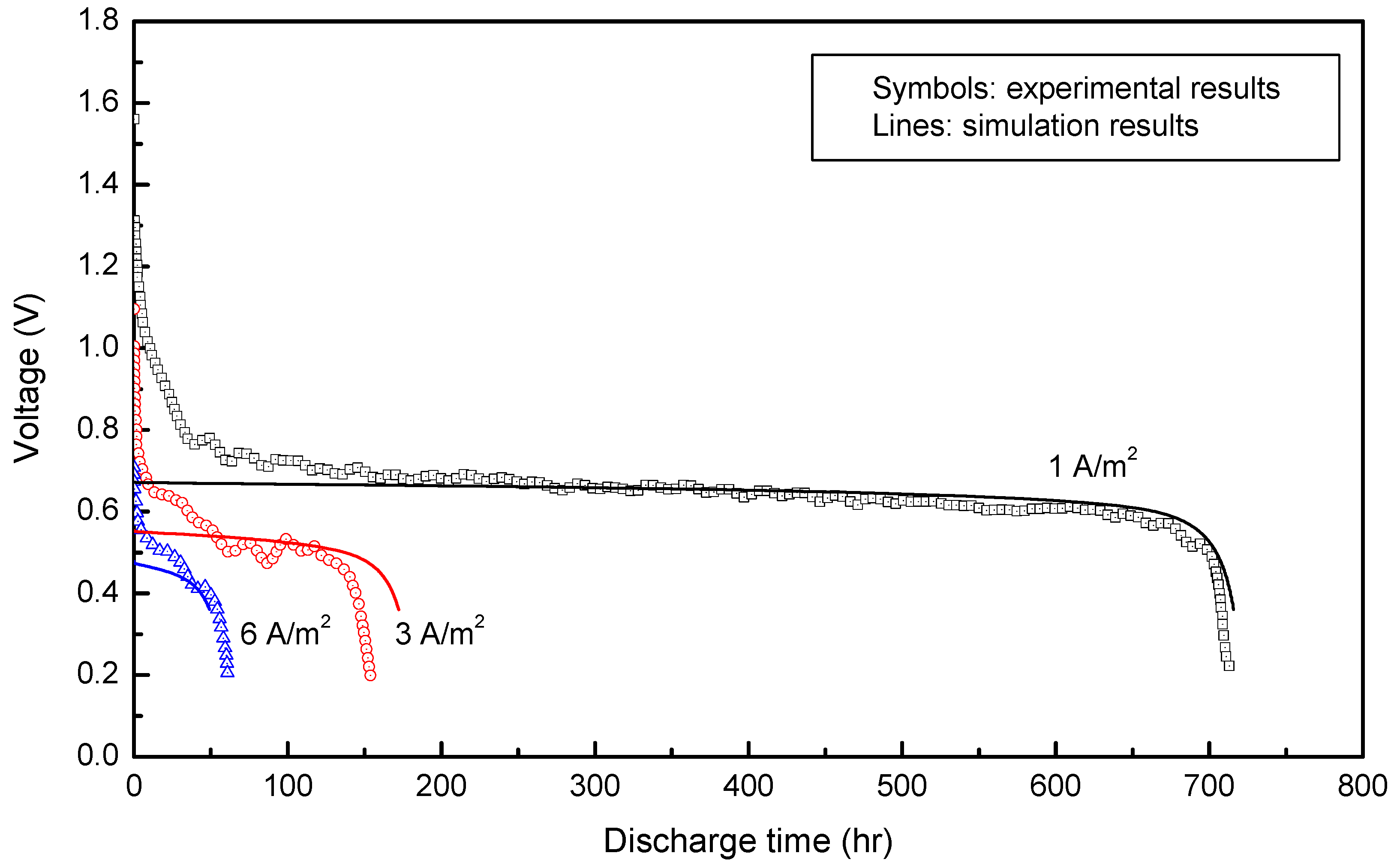

The discharge curves predicted from the model developed in this research were compared with full cell performance data of an Al–air battery in ref. [
7], as shown in
Figure 6. The model, which utilizes the parameters in
Table 1 (for all following sections unless specified otherwise), had an OCV of 1.56 V and the cell discharge time decreased with increasing current density, which agreed with experimental data. However, the initial potential drop in the simulation was immediate and followed directly by a voltage plateau, while in the experimental data, the cell voltage gradually dropped before reaching a voltage plateau. This discrepancy may be due to the simplified cell reactions and assumed kinetic parameter values used in the modeling study because of the lack of information (i.e., parameter data) in the literature, the simplified approach based on Butler–Volmer kinetics, or uncertainties associated with experimental data in the literature.
At 1 A/m2, the simulated voltage reached a plateau at roughly 0.66 V. The cell potential began to rapidly decrease at around 0.6 V and the cell showed a discharge time of just over 700 hours, which agreed with experimental data. At 3 A/m2, the experiment and simulation had roughly the same voltage plateau at 0.53 V. However, the discharge for the simulation lasted longer than that in the experiment, and this disagreement may have occurred due to the reasons described previously. At 6 A/m2, discharge duration was too short to distinguish a plateau voltage for the experiment, however, the discharge time agreed at roughly 60 hours. The model prediction contains a few deviations from the experimental results because of possible reasons described previously, but it described overall discharge behavior successfully. Thus, this model was utilized to analyze characteristic behavior of the ionic liquid-based Al–air cell for which modeling analysis has not been reported.
4.4. Anode Side: Effect of Oxide Film On Anodic Overpotential
A major contributor to the cell potential drop (loss) in the anode is the Al2O3 film layer formed on the Al surface. The passivation on the anode occurs as a result of deposition of Al2O3 and is counteracted by dissolution of the Al2O3 by chloride ions in the electrolyte. The areas under the cracks formed from the partial dissolution of the film exposed to the electrolyte allow Al to take part in the cell reaction. The effect of the cracks on the anode kinetic performance was investigated with various crack fractions, including 5%, 10%, 21%, 50%, and 100%. In particular, a 100% crack fraction corresponds to the case where all the films formed on the anode are broken down and no film exists on the Al surface.

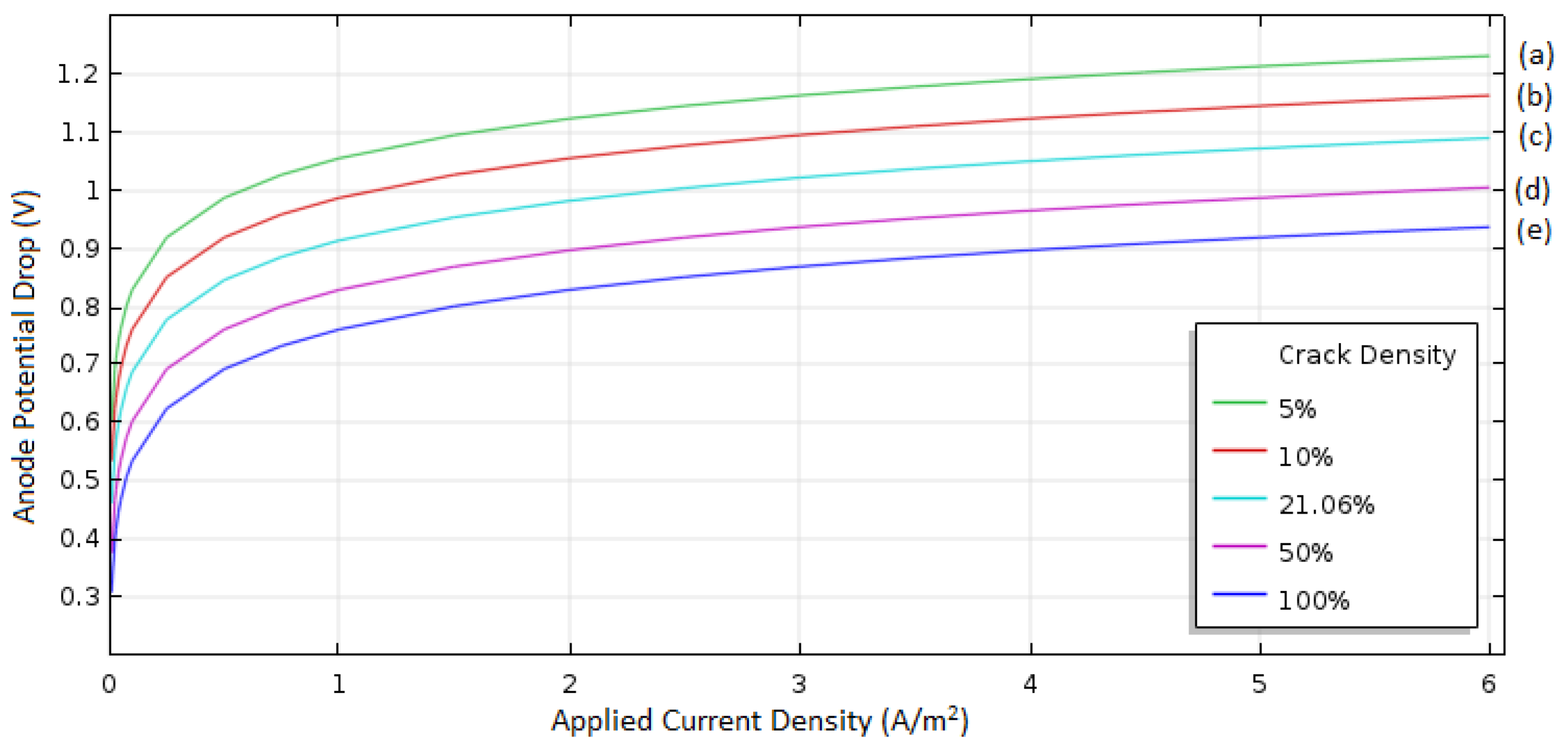

As illustrated in
Figure 7, the anodic potential loss increased exponentially at a low current range, and then linearly increased as the current increased (i.e. similar to the ohmic loss), which is due to the decreased reaction area caused by the film formation and the restricted transport of ionic species through narrow and tortuous cracks. The significant loss of voltage was found in the case of 5% crack fraction, and the loss was 1.23 V at 6 A/m
2, which is 31% higher than that of the no-oxide film case (i.e., 100% crack fraction case), and the loss was reduced as the crack fraction increased (i.e., 1.16 V for 10% crack fraction, 1.09 V for 21%, 1 V for 50%, and 0.94 for 100% at 6 A/cm
2). In particular, the 21% crack fraction is for the case where we found from the ex situ experiment in the electrolyte of 1 to 1.5 molar ratio of [EmIm]Cl to AlCl
3, and thus the film is expected to increase the anode overpotential by 16%. These results show that removing the oxide film on Al is important to reduce the anodic potential loss to improve the cell performance. It will be a future direction of research to find proper methods to efficiently remove all of the oxide film, which may be achievable from a fundamental understanding of the mechanism of growth/breakdown of oxide film in the ionic liquid solution.
4.5. Cathode Side: Effect of Solubility of O2 in the Electrolyte
Gaseous O2 is provided as a reactant into the cathode side from external sources, and it dissolves in the electrolyte first and diffuses into the reaction sites in the porous electrode to undergo electrochemical reactions. Therefore, the amount of O2 available at the reaction sites will be affected significantly by its solubility in the electrolyte, indicating the O2 solubility will be a critical factor in improving cell performance. In this study, the effect of solubility, or the fraction of maximum O2 concentration in the cathode (of which thickness and porosity are 195 μm and 0.73, respectively) over atmospheric O2 concentration was analyzed for the cases of 0.2 and 0.8 O2 solubilities at the current density of 1 A/m2.

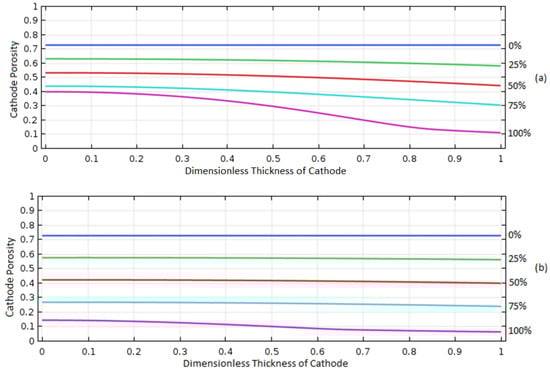

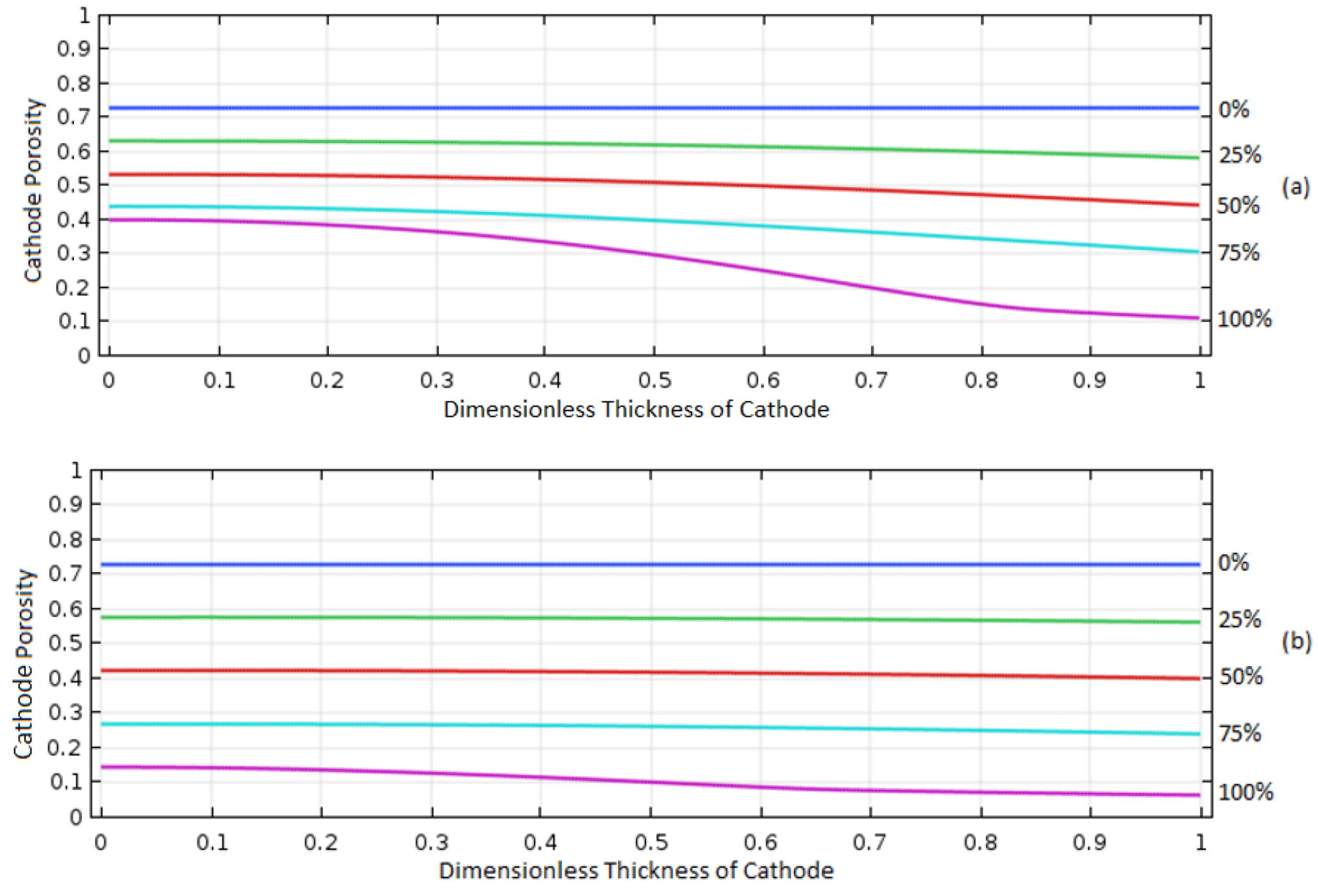

As illustrated in
Figure 8, the porosity distribution in the cathode electrode was measured over the normalized thickness of the electrode during operation from 0% to 100% discharge. The initial porosity was 0.73 at 0% discharge, and it decreased as the cell operated. This is because Al
2O
3, which is the discharge product, is precipitated in the electrode once it reaches its solubility limit in the electrolyte. Therefore, this porosity plot can be used to predict the distribution of electrochemical reactions over the porous electrode.
For the case of 0.2 solubility, porosity was decreased uniformly over the cathode thickness until it reached around 0.5, and then the porosity change was made mainly in the regions in the right (i.e., position of the dimensionless thickness is 1 in
Figure 8a) which exposes to the O
2 supply. It indicates that all the areas of electrode were uniformly used for the cell reaction until the porosity reached around 0.5, and then the reaction dominantly occurred near the right side of cathode facing the O
2 supply. This behavior can be understood with the characteristic behavior of diffusive transport of O
2 and the effect of precipitated Al
2O
3 in the electrode. As the porosity in the electrode decreased, the O
2 diffusion rate decreased due to the decrease of electrolyte volume available for the O
2 transport and the increase of tortuosity of the transport path in the porous electrode, impeding O
2 from traveling to the left side of the electrode-facing membrane. Thus, the reaction sites moved to the regions close to the O
2 supply where enough O
2 was available.
As the O2 solubility in the electrolyte increased to 0.8, the increased supply of oxygen allowed for increased O2 species diffusion to the reaction sites to the left of the electrode, allowing the electrochemical reaction to occur more uniformly over the entire region of electrode until a final porosity of 0.18 was reached.

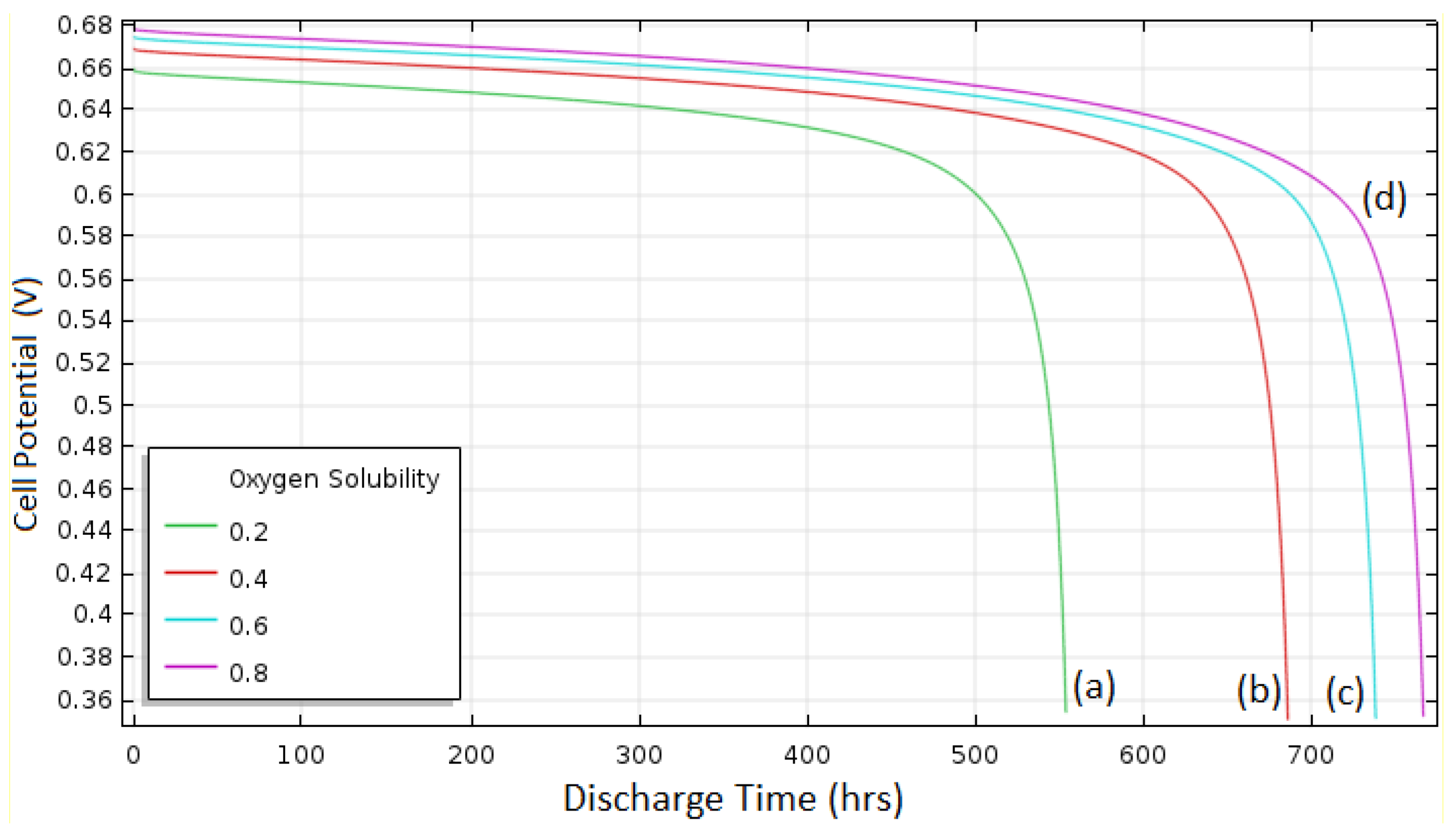

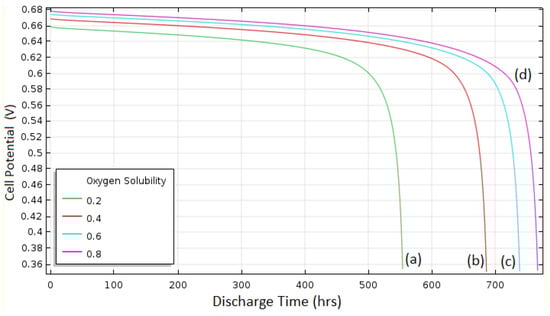

The effect of the O
2 solubility on discharge performance is illustrated in
Figure 9. The overall cell potential was greater for the higher O
2 solubility because of the increased amount of O
2 in the reaction sites, and the discharge capacity increased as the solubility increased (554 Ah/m
2 for solubility 0.2, 686 Ah/m
2 for 0.4, 738 Ah/m
2 for 0.6, and 767 Ah/m
2 for 0.8) due to the increased area of porous electrode available for the cell reaction, as described previously.
4.6. Cathode Side: Effect of Properties (Porosity and Thickness) of the Porous Electrode
4.6.1. Effect of Porosity
Understanding of the effect of properties of the porous electrode on the cell performance is very important to design and operate the cell optimally, and thus in this study the effect of initial porosity of the porous electrode was investigated for the cases of 0.2, 0.4, 0.6, 0.73, 0.8, 0.9, and 0.94 initial porosities.

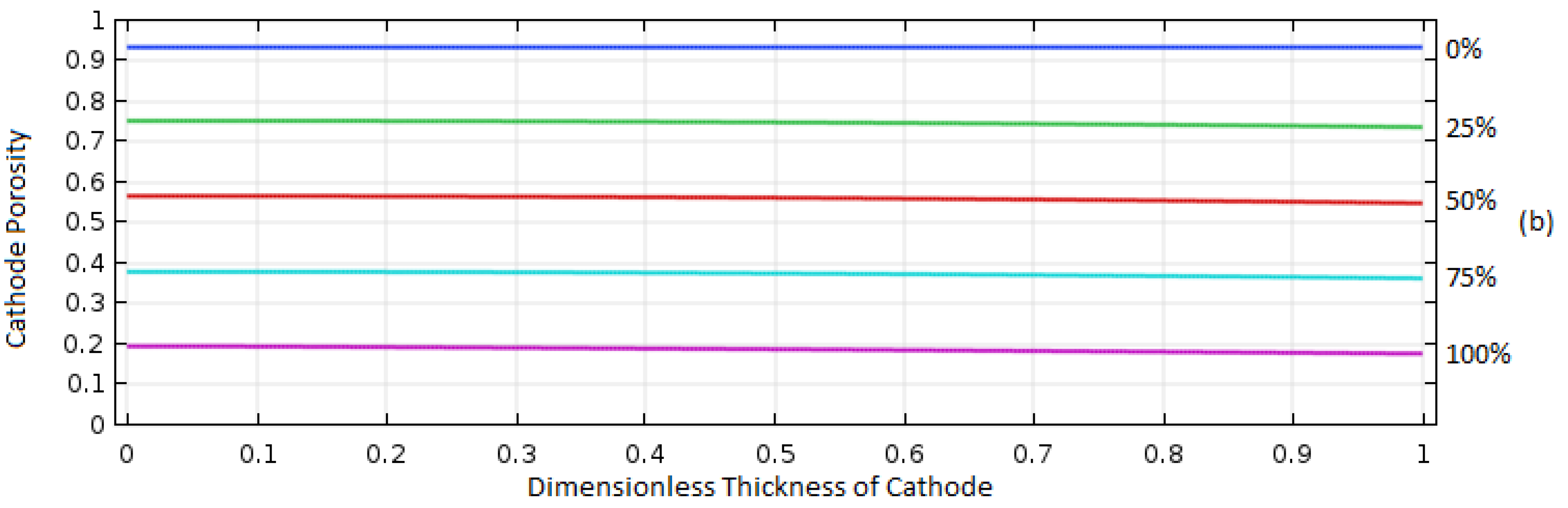

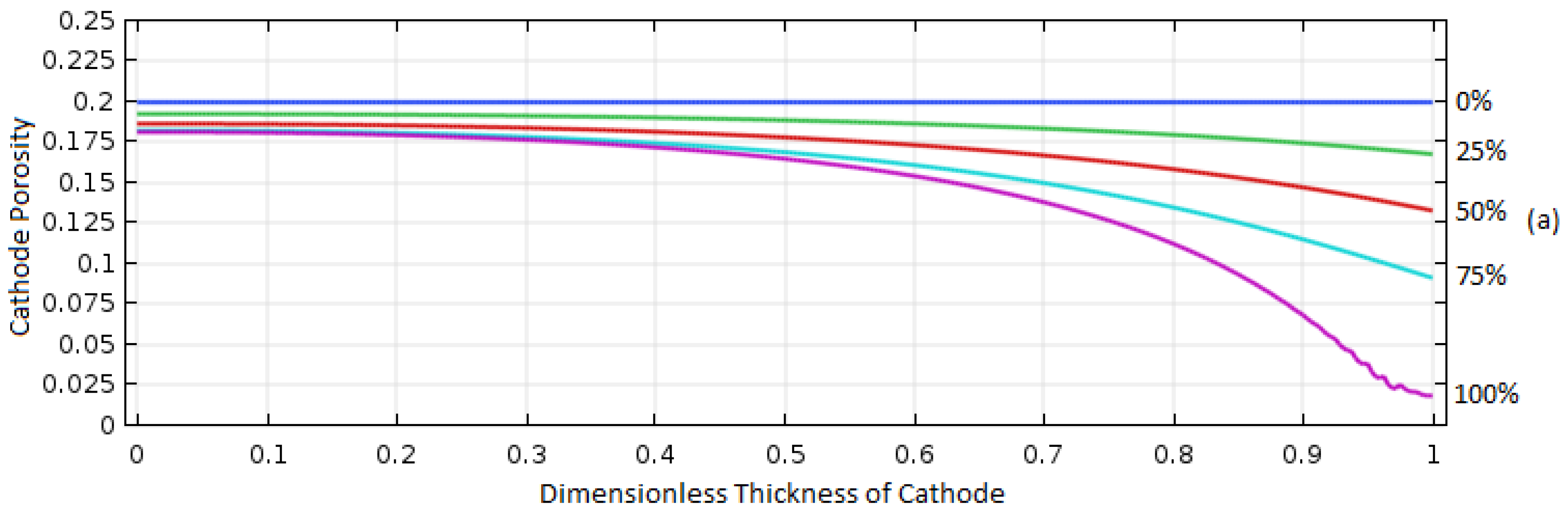

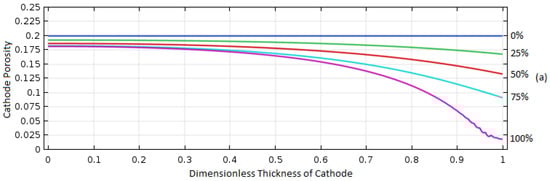

Figure 10 shows the porosity distribution for the 0.2 and 0.94 porosity cases during discharge at 1 A/m
2. For the case of 0.2 initial porosity, the porosity decreased almost entirely on the right side of the electrode where the O
2 was introduced, indicating the areas away from O
2 inlet were not used for the cell reaction due to the limited diffusion of O
2 caused by the deposition of Al
2O
3 on the cathode. However, for the case of 0.93 initial porosity, the distribution of the deposited Al
2O
3 was much more even due to the greater electrolyte volume for O
2 diffusion.

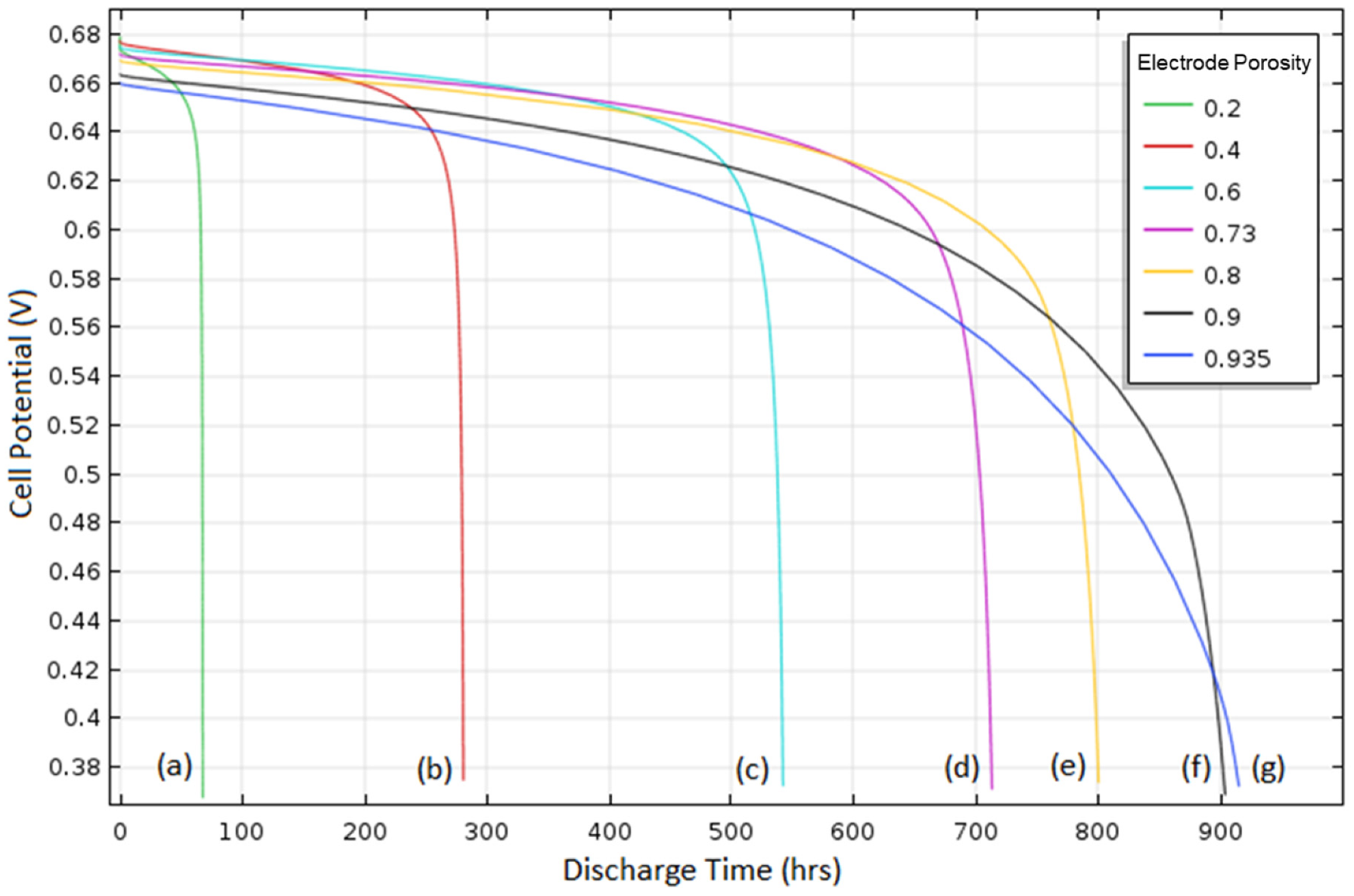

The effect of the initial porosity on discharge curves is shown in
Figure 11. With increasing initial porosity, the discharge time increased. The poor performance was obtained for the case of the 0.2 initial porosity, where the uneven and limited deposition of Al
2O
3 (i.e., cell reaction) was in accordance with a low discharge capacity. However, the capacity started to decrease as the initial porosity was greater than about 0.94, which may have been caused by reduction in active surface area and structural instability in the cathode [
17].
4.6.2. Effect of thickness of the porous electrode
Various thicknesses (25, 50, 100, 195, 400, 800, 1600 μm) of the cathode were investigated at 1 A/m
2 discharge with 0.49 O
2 solubility and 0.73 initial porosity to determine the effect of cathode thickness.

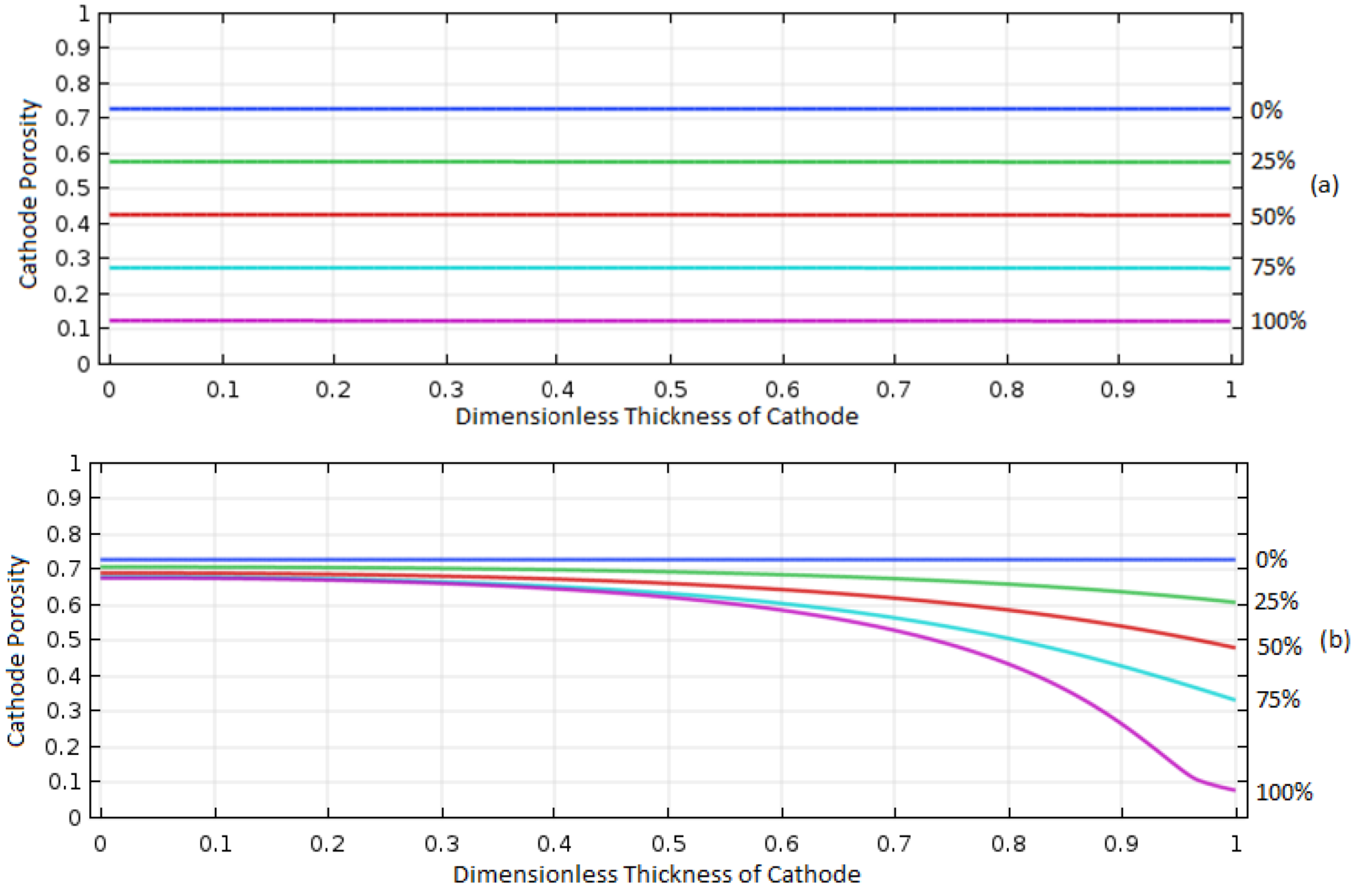

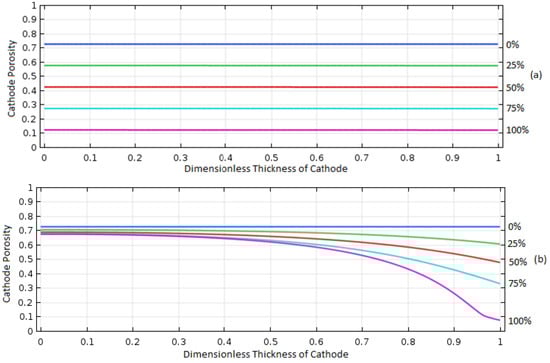

Figure 12 shows the porosity distribution over discharge for thicknesses of 25 μm and 1600 μm. For the 25 μm case, the porosity distribution was roughly even across the cathode during the entirety of discharge. Because of the short distance for the diffusion of O
2, the entire cathode was used for its potential capacity. For the 1600 μm case, the distribution was uneven and there was almost no Al
2O
3 deposition on the left-hand side of the cathode. The long distance for O
2 to diffuse through the cathode caused lower O
2 concentrations in the far end of the cathode, leading to less deposition and inefficient use of the cathode surface area.

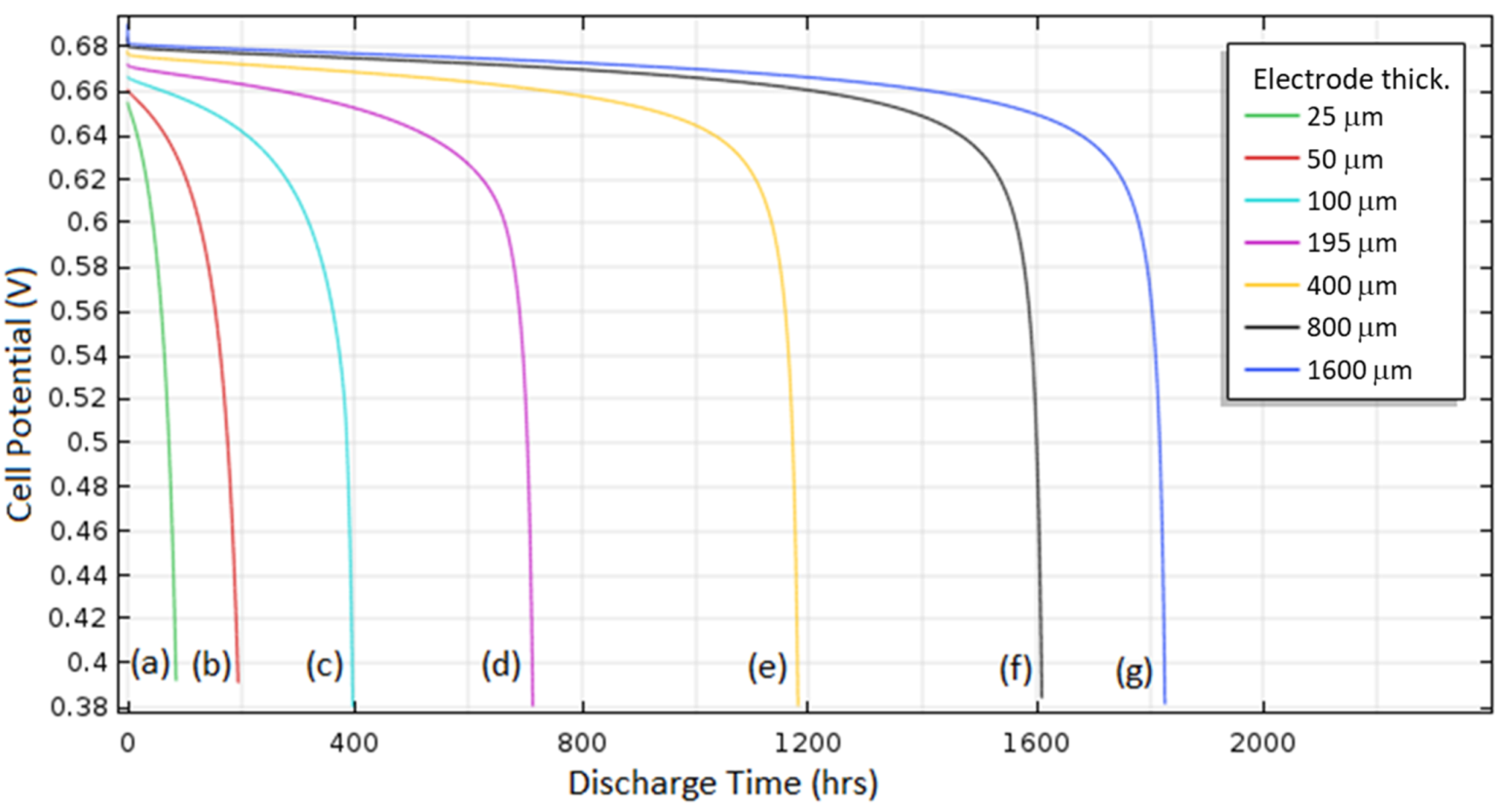

The discharge curves for different cathode thicknesses are shown in
Figure 13. For smaller thicknesses, the increase in cathode thickness caused a roughly proportional increase in battery capacity. At these small thicknesses, all the pore regions in the cathode were considered to be filled almost completely with Al
2O
3, providing the maximum possible battery capacity. However, at larger cathode thicknesses, increasing the cathode thickness provided diminishing returns on capacity due to the aforementioned long distance for O
2 diffusion and resulting uneven Al
2O
3 deposition.
When designing the cathode, the tradeoff is whether to use a small thickness with efficient but low capacity or use a large thickness with higher capacity but inefficient use of the cathode porous area. The optimal cathode thickness can be determined by the Damköhler number,
The Damköhler number represents the ratio of O2 electrochemical reaction at the cathode and the diffusion of O2 to reach the reacting surface. For optimal design of the cathode electrode, a Damköhler number of unity is desired. The ideal thickness was determined by comparing the specific capacities of different cathode thicknesses. For the Al–air battery, a cathode thickness of roughly 40–60 μm provided the maximum possible specific capacity of roughly 6850 C/kg of carbon at 1 A/m2. In this range, the maximum amount of Al2O3 (relative to cathode size) was deposited, so the diffusion and reaction of O2 throughout the cathode were roughly equal, meaning the Damköhler number in this range is unity.
5. Conclusions
In this research, we have revisited the promising aluminum–air (oxygen) battery system to investigate the challenging issues such as H2 evolution as a side reaction and oxide film formation on the surface of aluminum that hinder the practical application of these batteries. An electrolyte based on nonaqueous ionic liquid [EmIm]Cl with AlCl3 was utilized, and to understand the key controlling parameters for the Al–air system, systematic research was conducted through ex situ component-level and in situ cell OCV tests, thermodynamic-based analysis, and physics-based modeling.
From the ex situ/in situ tests and thermodynamic-based analysis, it was found that a key parameter to control growth of the inert oxide film is the surface tension, which could be controlled by using proper amount of chloride ions in the electrolyte, and the cracks were formed on the oxide film by 21% when it was submerged into the electrolyte of molar ratio 1:1.5 of [EmIm]Cl and AlCl
3, which is the electrolyte condition utilized in most research [
7,
19,
33].
The physics-based modeling was developed to analyze the effect of Al2O3 formation on the anode and cathode sides. The effect of the oxide film on anode overpotential was significant, and overpotential (voltage loss) for the film cracked by 21% was predicted to be 30% greater than that of no film covering the Al anode surface.
For the cathode side, the effect of O2 solubility in the electrolyte was analyzed with the porosity plot, and only areas of the porous electrode close to O2 inlet were used for the cell reaction when the solubility is low, decreasing the capacity of cell. As the solubility increased, more of the areas in the electrode could be used, resulting in higher capacity.
Furthermore, the effect of properties (i.e., porosity and thickness) of the porous electrode was also investigated, and it was found that the initial porosity significantly affected the reaction distribution over the electrode thickness and cell charge capacity due to the porosity effect on diffusive transport of O2, and as the porosity increased, more uniform distribution of reaction was found over the electrode. Thickness effect of the porous electrode was investigated, and for the thinner electrode, more uniform distribution of reaction over the electrode was found, but charge capacity itself was low. However, as thickness increased, the charge capacity increased, but the uniformity of the reaction over the electrode decreased, decreasing utilization of the area of the porous electrode.
Comparisons of specific capacity at different cathode thicknesses were used to define the optimal design of the cathode. It was found that a cathode thickness of roughly 40–60 μm gave optimal performance at 1 A/m2, 0.49 O2 solubility, and 0.73 cathode porosity, which provides a maximum specific capacity of roughly 6800 C/kg of carbon cathode material. The Damköhler number, the ratio of O2 electrochemical reaction at the cathode and the diffusion of O2 to reach the reacting surface, is unity in this range.
This research provides the first modeling analysis of the ionic liquid-based Al–air battery, which is a new system with limited availability of parameters and experimental results in literature, and thus parameter values assumed from similar systems were utilized, leading to some inaccurate predictions in certain operating conditions. Nonetheless, the developed model successfully predicted overall cell performance and behaviors, providing insight into the characteristic cell reaction and key controlling parameters to mitigate the effect of aluminum oxide formation. Thus, it is expected that the results from this research will be used as key information to guide future research and development of the Al–air (or O2) cell system.
