Open AccessArticle

Real-Time Digital Twin of a Wound Rotor Induction Machine Based on Finite Element Method

Department of Electrical and Computer Engineering, Laval University, Quebec, QC G1V 0A6, Canada
*
Author to whom correspondence should be addressed.
Energies 2020, 13(20), 5413; https://doi.org/10.3390/en13205413
Received: 30 September 2020 / Revised: 10 October 2020 / Accepted: 12 October 2020 / Published: 16 October 2020

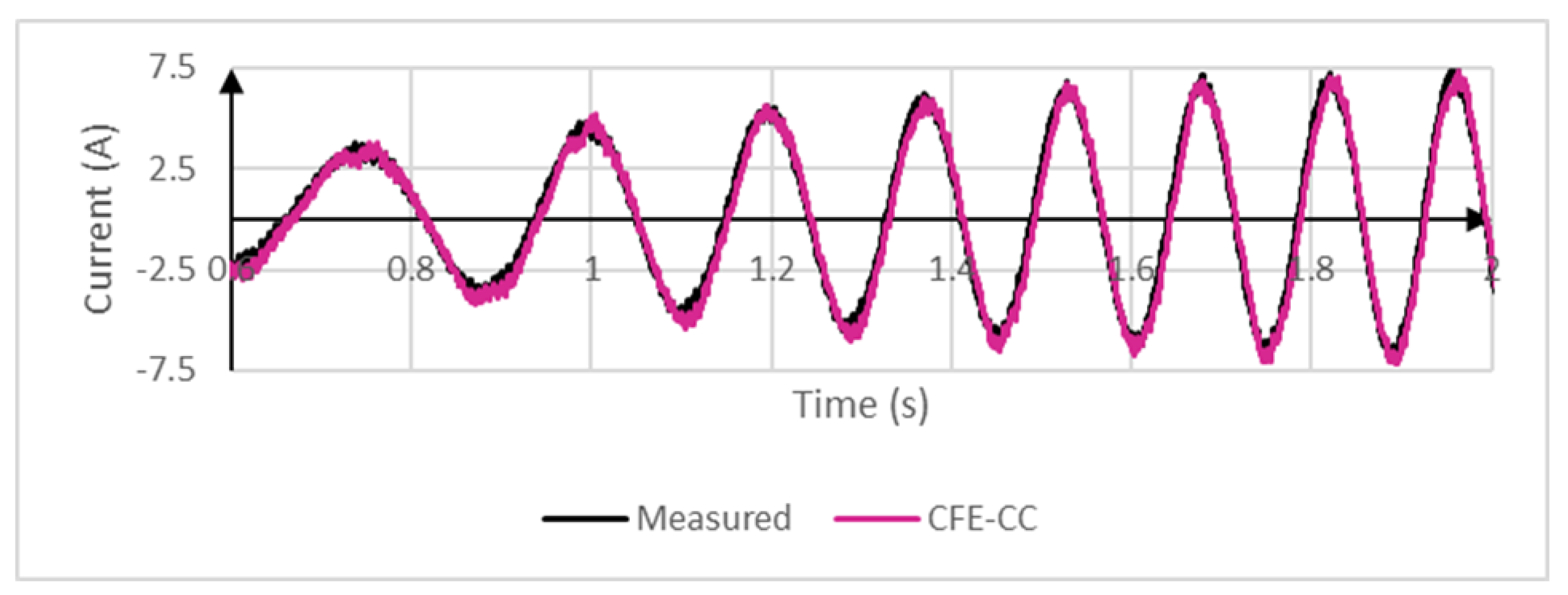

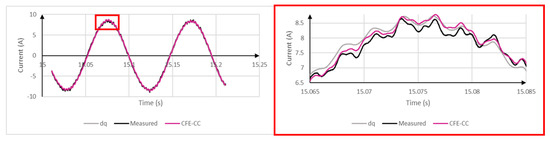

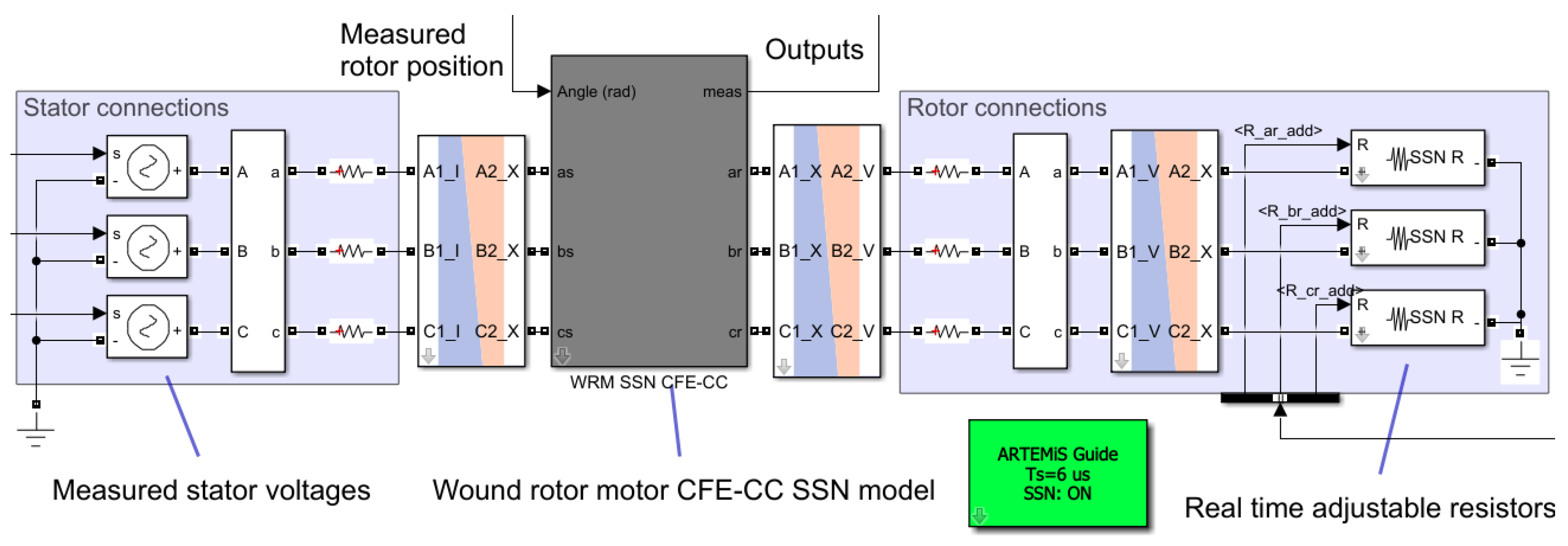

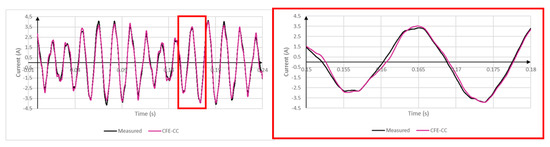

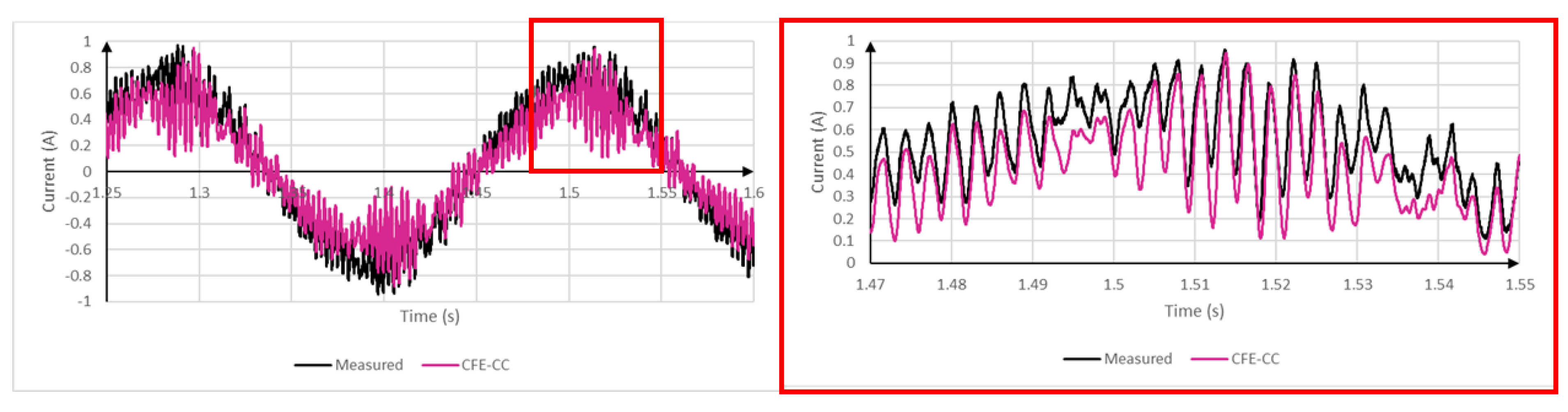

Monitoring and early fault prediction of large electrical machines is important to maintain a sustainable and safe power system. With the ever-increasing computational power of modern processors, real-time simulation based monitoring of electrical machines is becoming a topic of interest. This work describes the development of a real-time digital twin (RTDT) of a wound rotor induction machine (WRIM) using a precomputed finite element model fed with online measurements. It computes accurate outputs in real-time of electromagnetic quantities otherwise difficult to measure such as local magnetic flux, current in bars and torque. In addition, it considers space harmonics, magnetic imbalance and fault conditions. The development process of the RTDT is described thoroughly and outputs are compared in real-time to measurements taken from the actual machine in rotation. Results show that they are accurate with harmonic content respected. View Full-Text
Keywords: digital twin; doubly-fed induction generator, electrical machines; finite elements method; monitoring; real-time; wound rotor induction machine digital twin; doubly-fed induction generator, electrical machines; finite elements method; monitoring; real-time; wound rotor induction machine
Show Figures

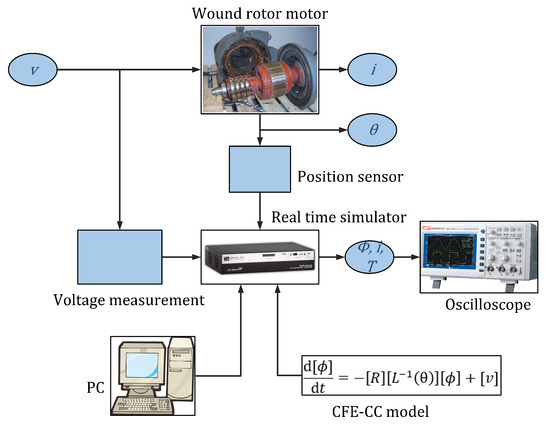

Graphical abstract

MDPI and ACS Style

Bouzid, S.; Viarouge, P.; Cros, J. Real-Time Digital Twin of a Wound Rotor Induction Machine Based on Finite Element Method. Energies 2020, 13, 5413.
