# A General Investigation on the Differential Leakage Factor for Symmetrical and Asymmetrical Multiphase Winding Design

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Symmetry Conditions and Degree of Unbalance in m-Phase Machine Windings

## 3. The Differential Leakage Factor in m-Phase Machine Windings

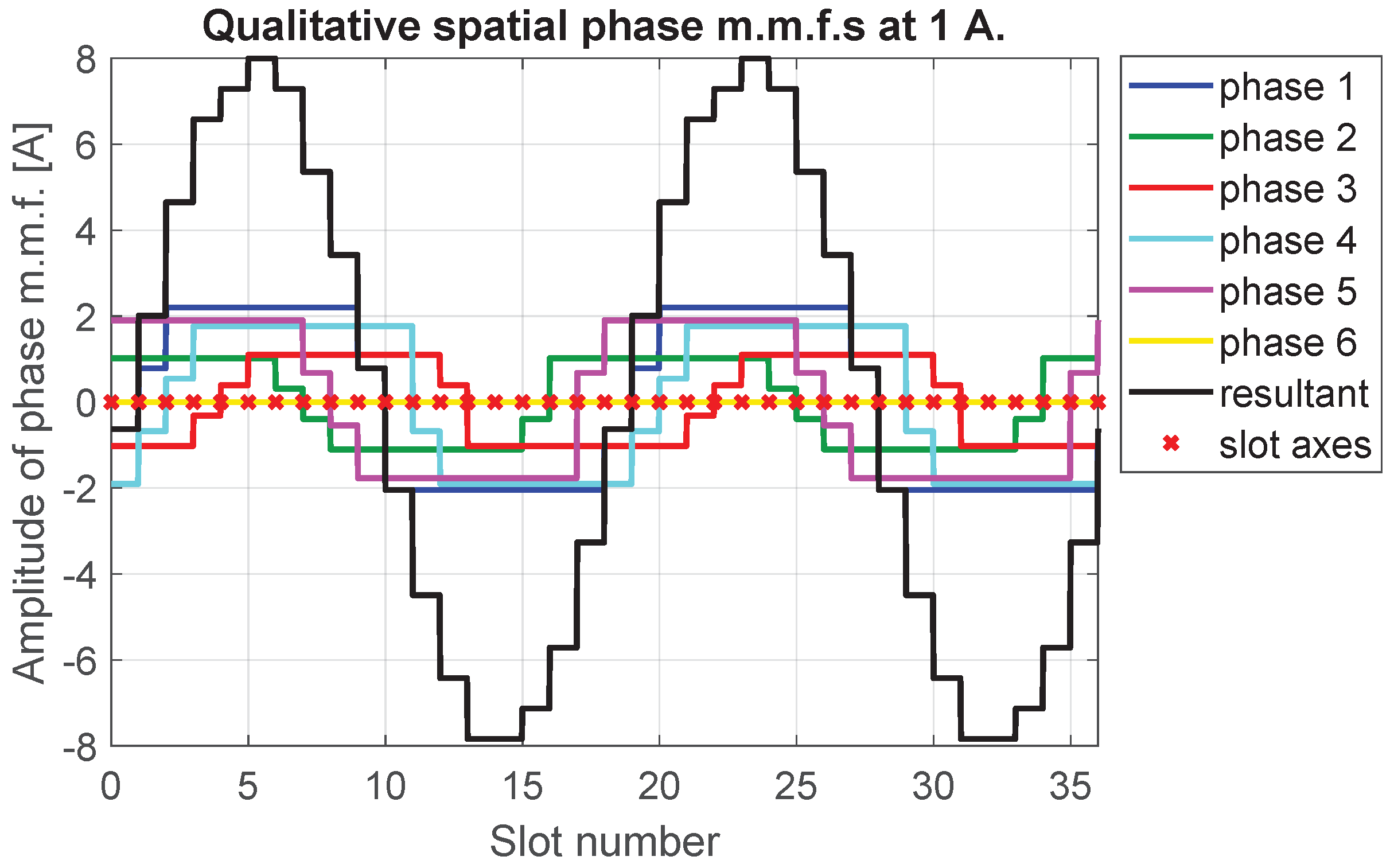

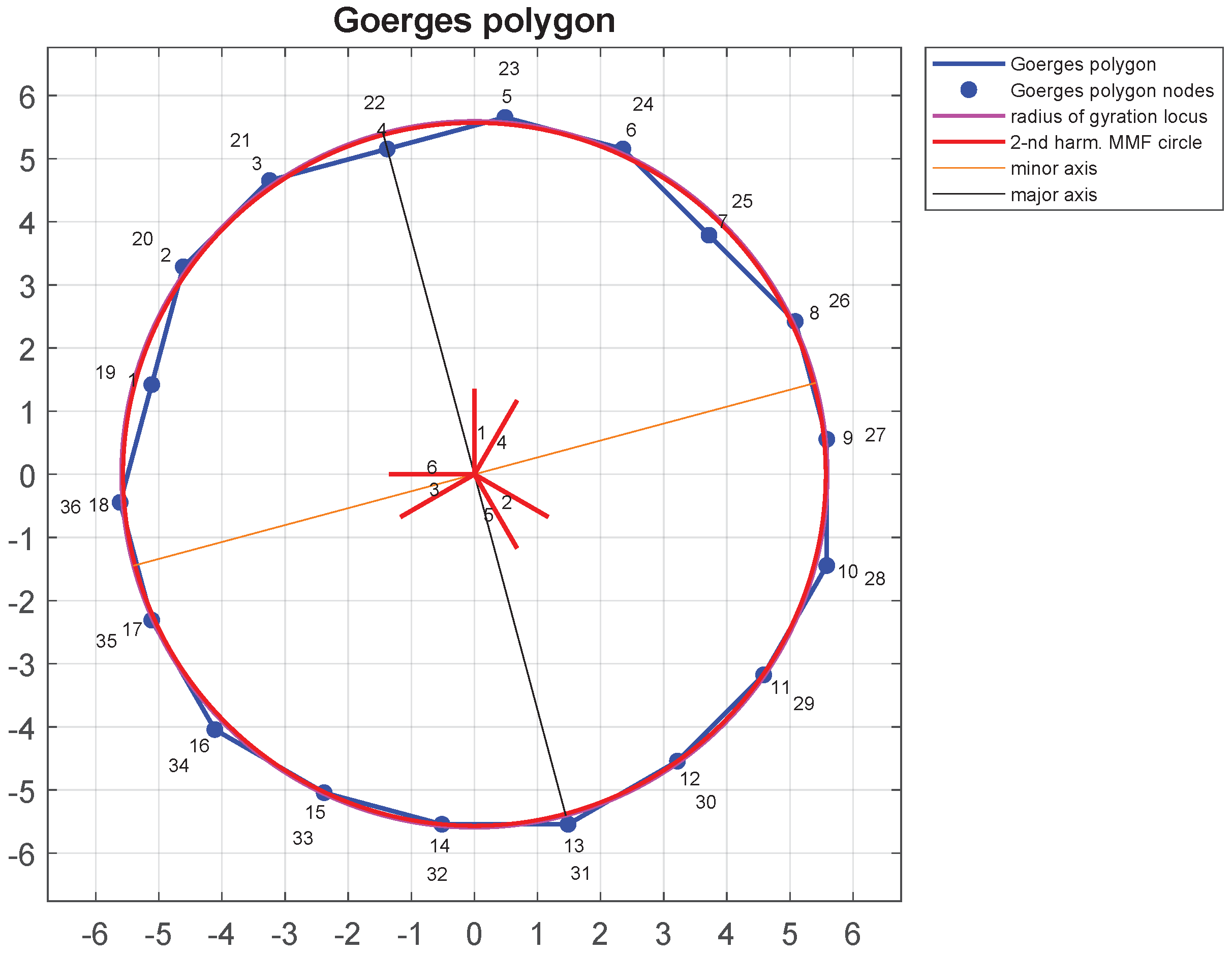

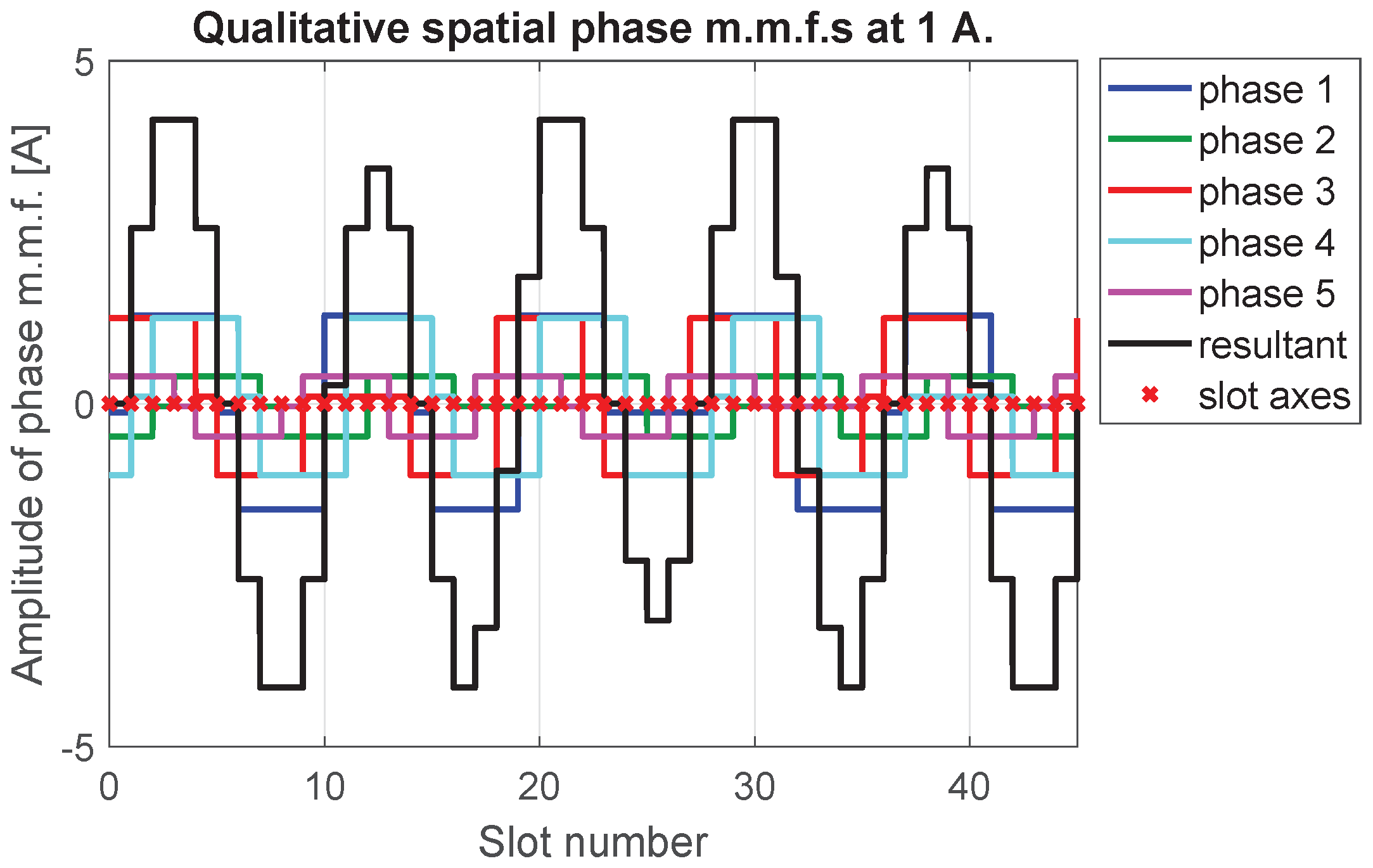

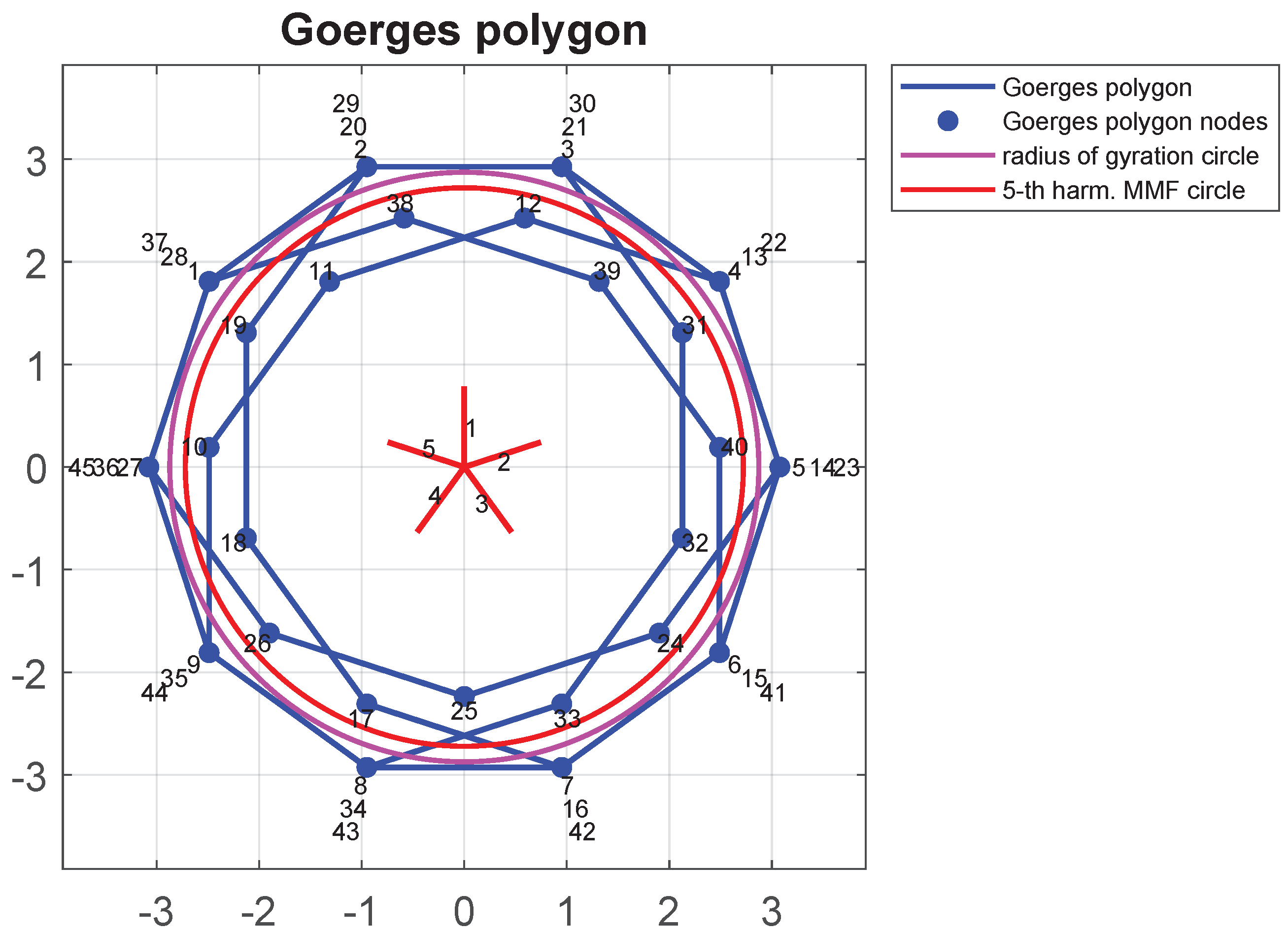

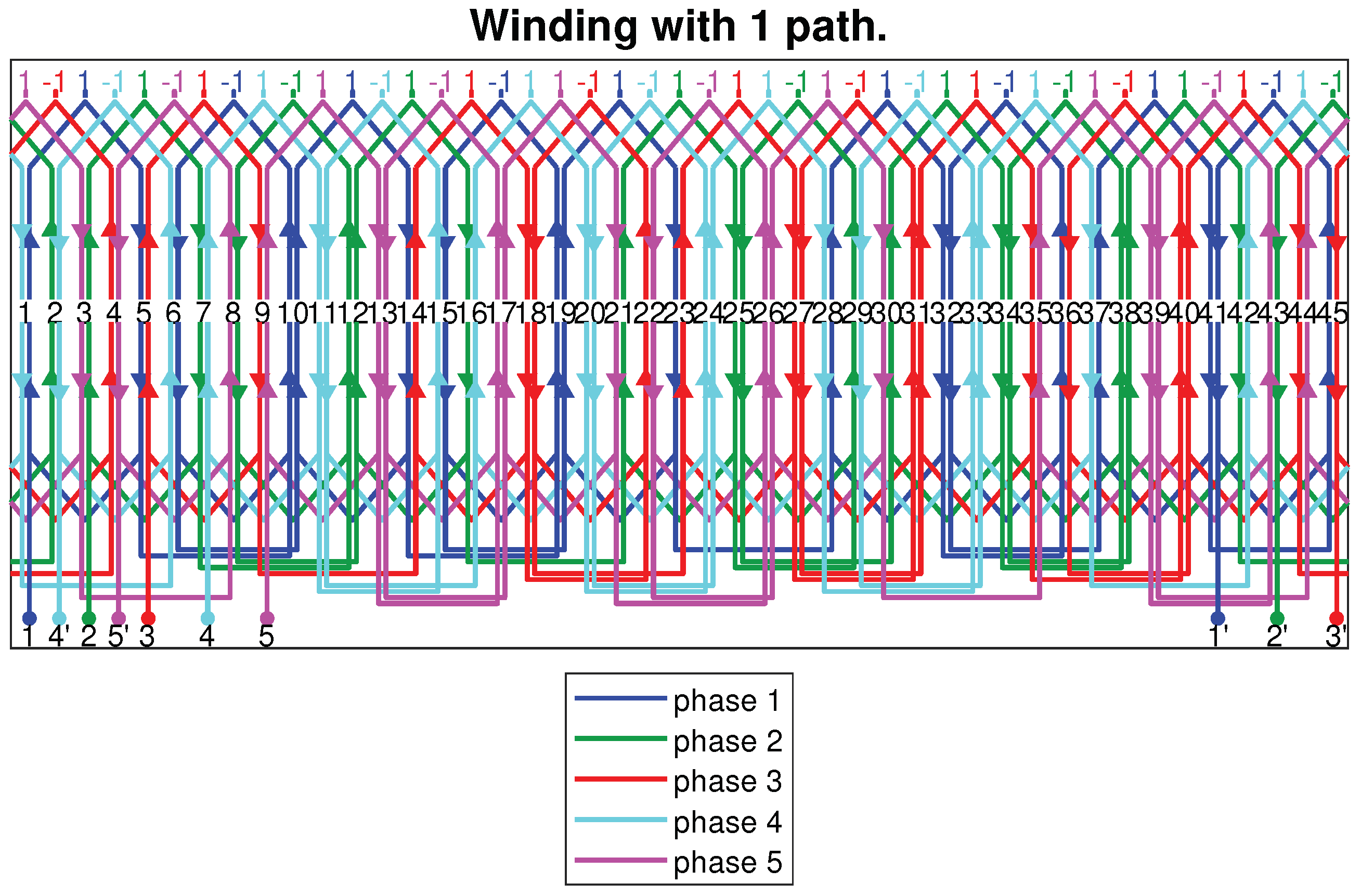

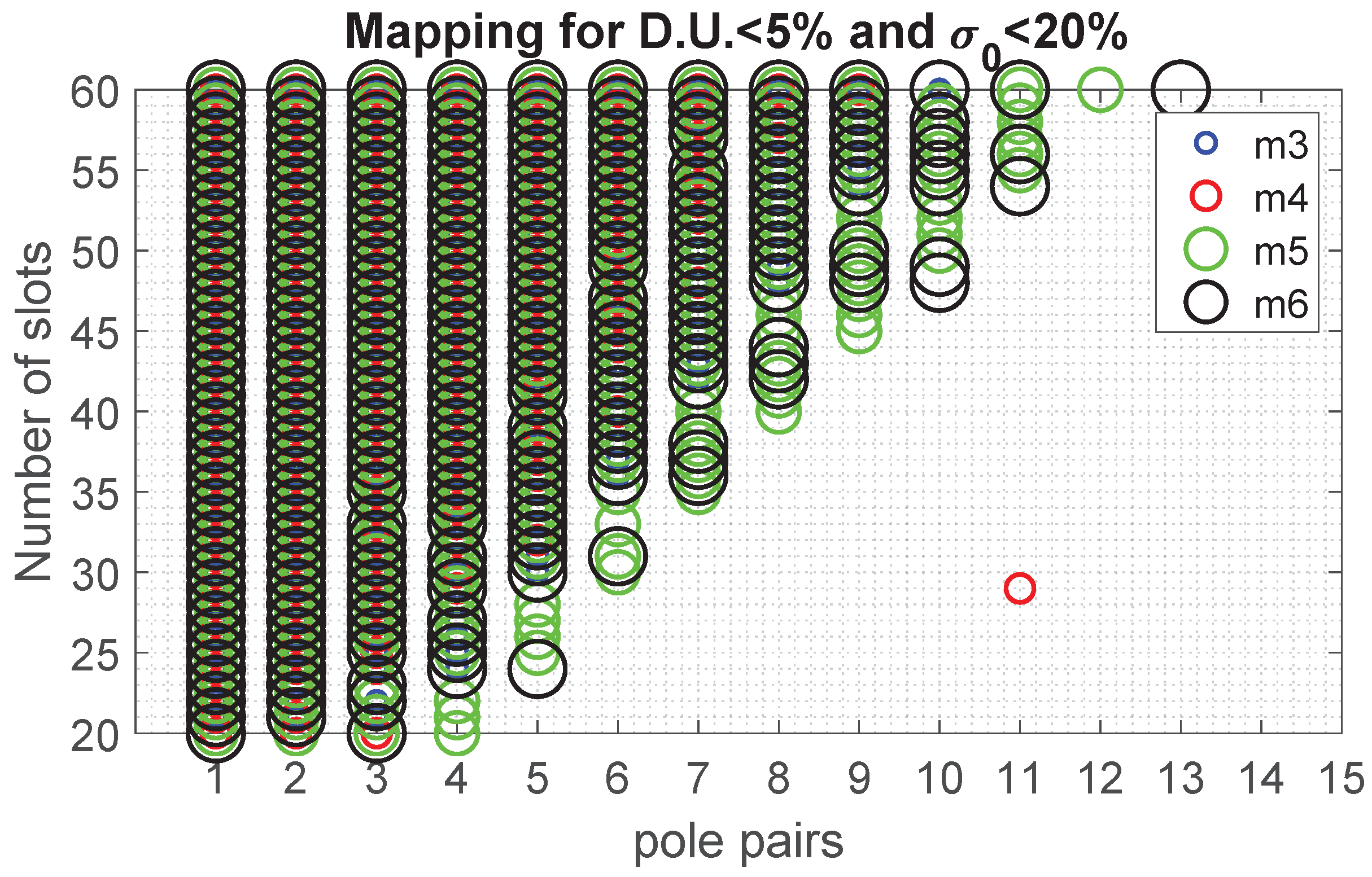

## 4. Results and Discussion

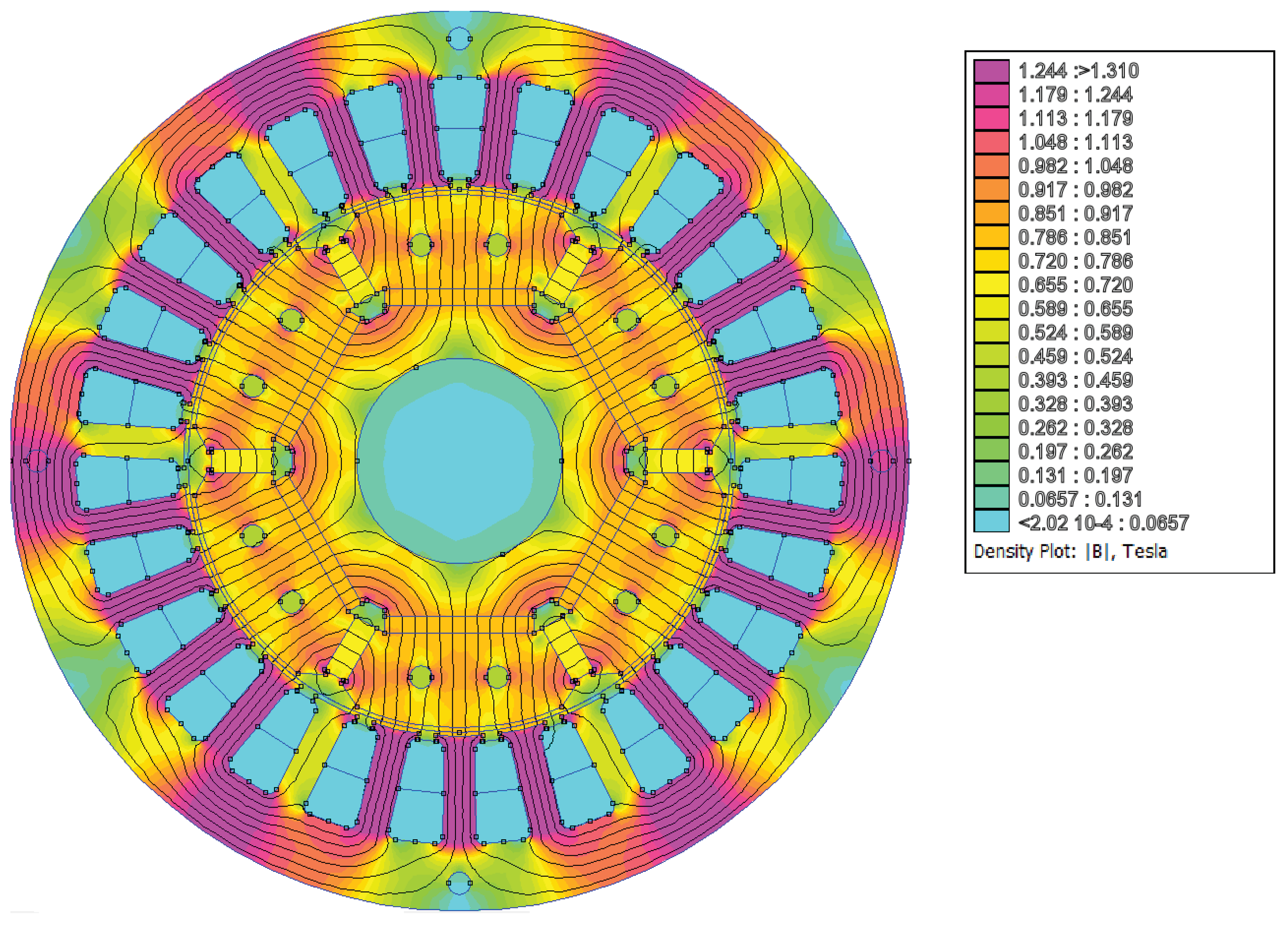

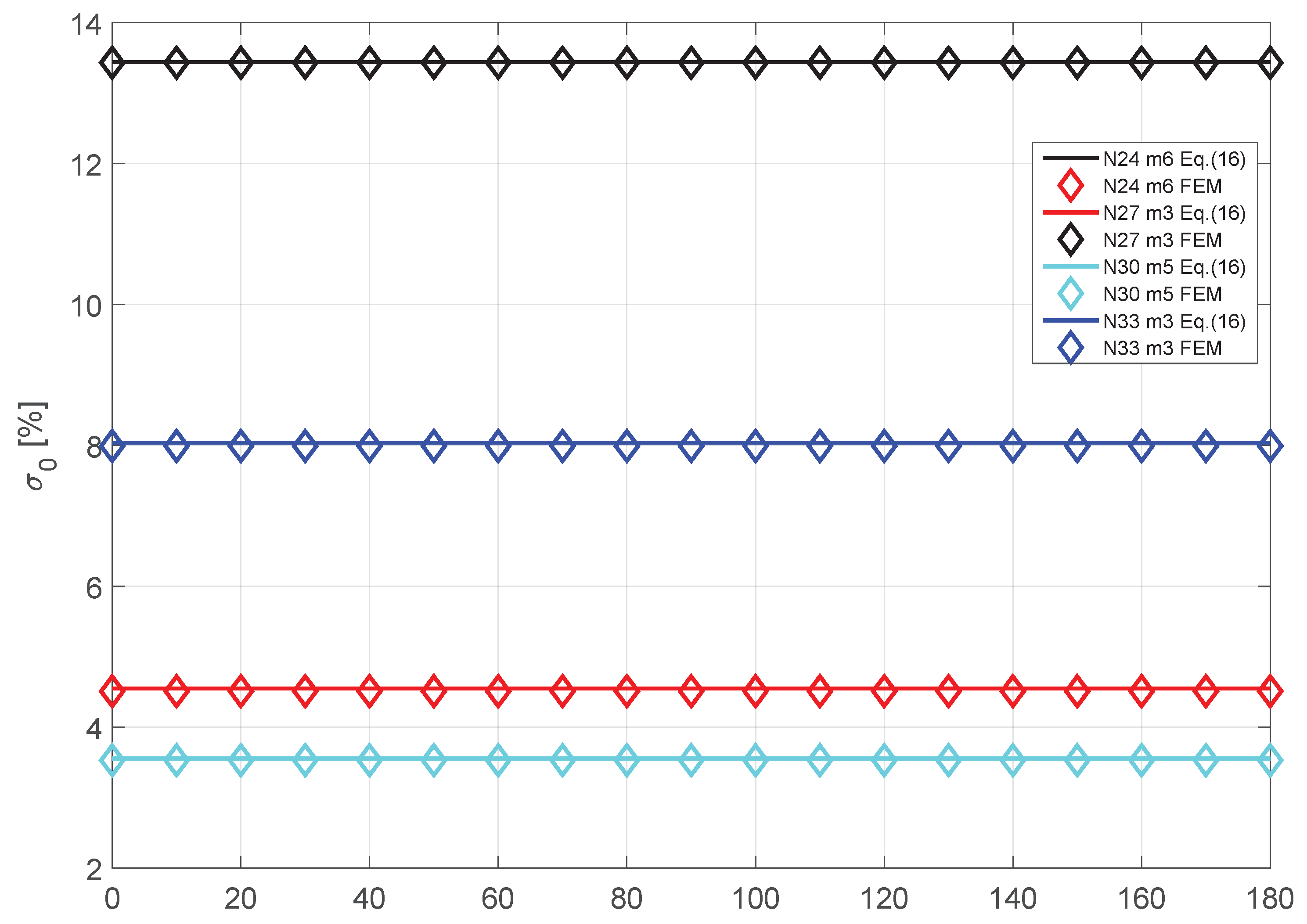

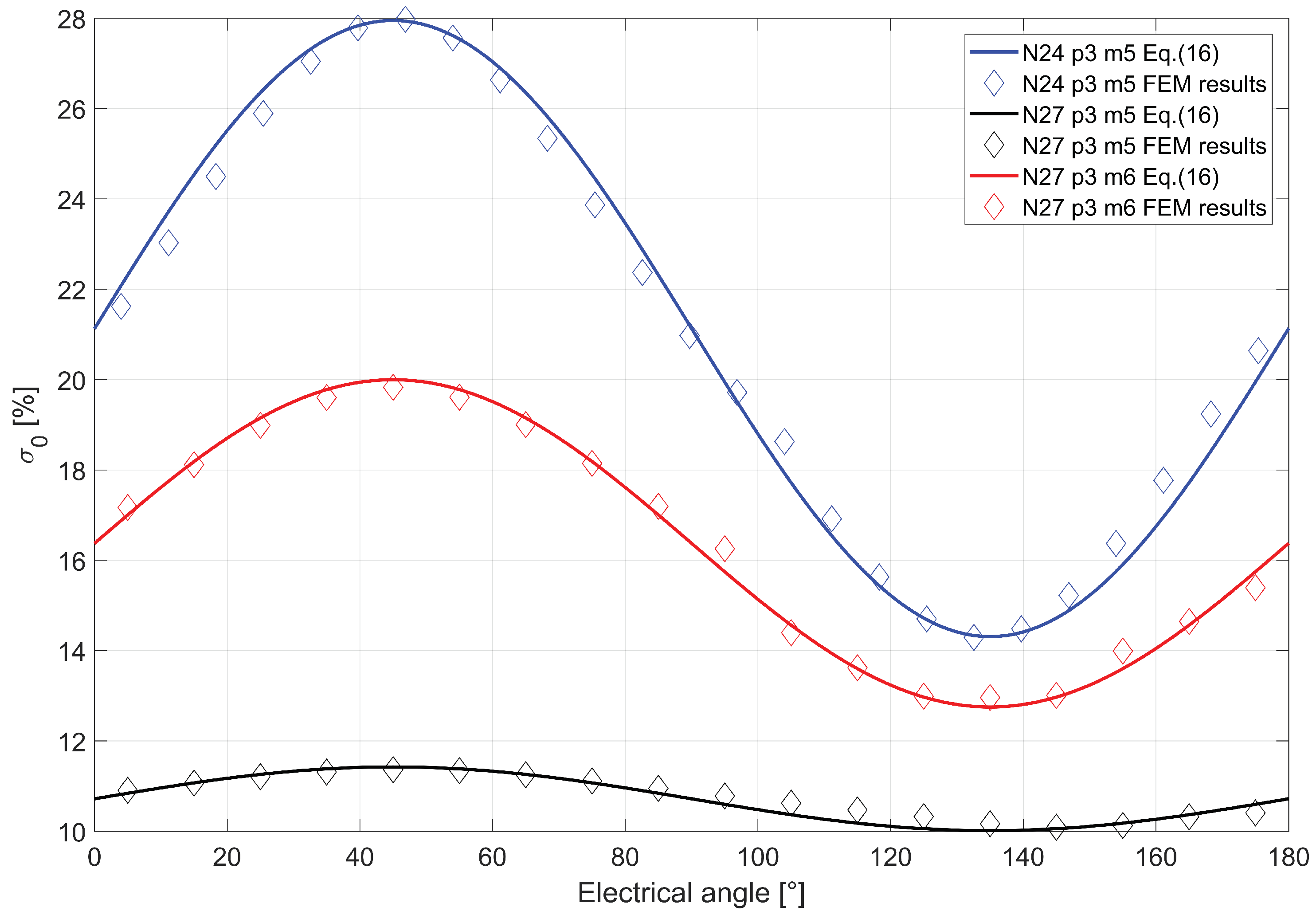

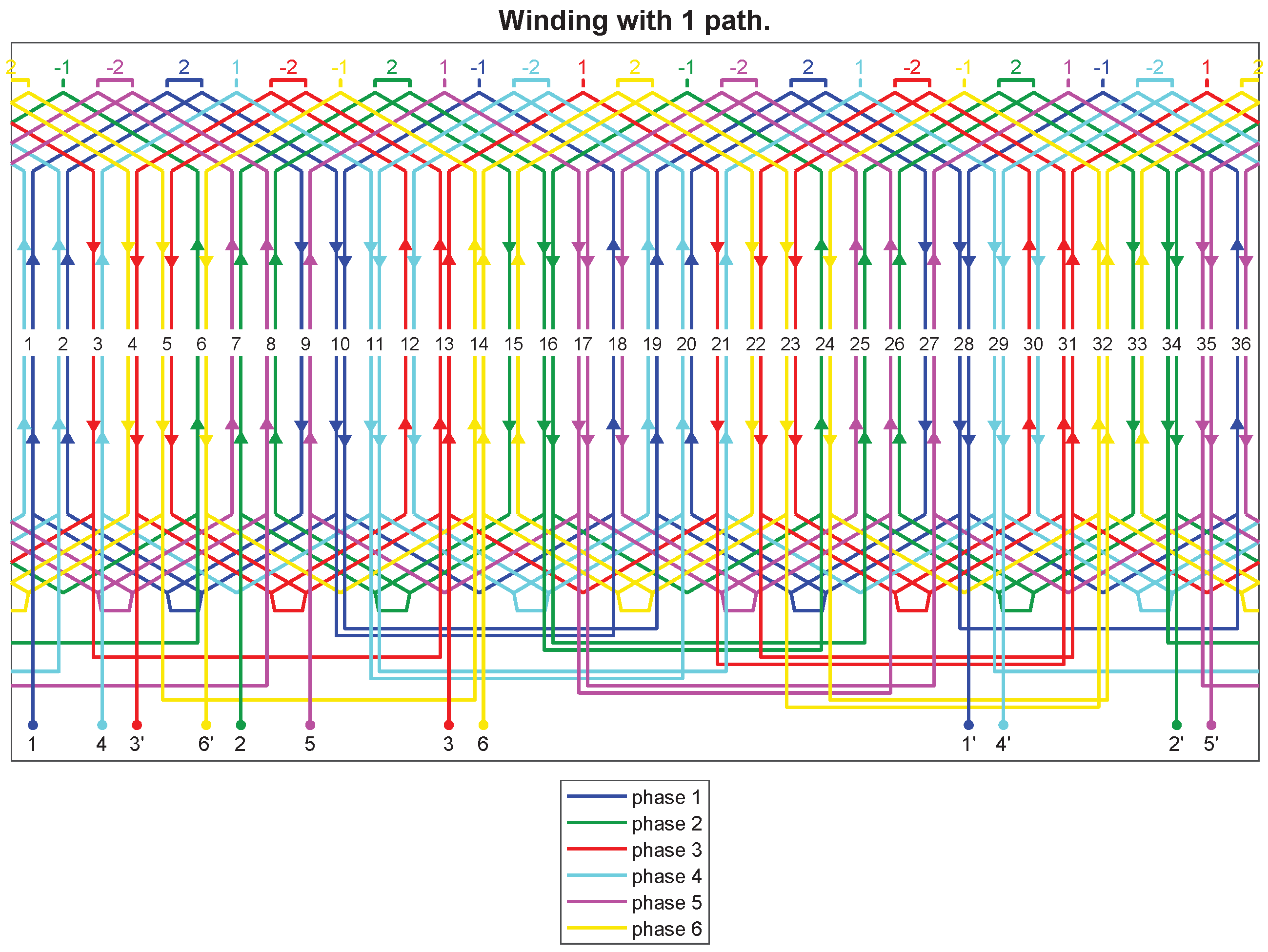

## 5. Finite-Element Validation

## 6. Conclusions

## Author Contributions

## Funding

## Conflicts of Interest

## References

- Barrero, F.; Duran, M.J. Recent Advances in the Design, Modeling, and Control of Multiphase Machines—Part I. IEEE Trans. Ind. Electron.
**2016**, 63, 449–458. [Google Scholar] [CrossRef] - Duran, M.J.; Barrero, F. Recent Advances in the Design, Modeling, and Control of Multiphase Machines—Part II. IEEE Trans. Ind. Electron.
**2016**, 63, 459–468. [Google Scholar] [CrossRef] - Liu, Y.; Niu, S.; Fu, W.N. A Novel Multiphase Brushless Power-Split Transmission System for Wind Power Generation. IEEE Trans. Magn.
**2016**, 52, 1–7. [Google Scholar] [CrossRef] - Levi, E. Multiphase Electric Machines for Variable-Speed Applications. IEEE Trans. Ind. Electron.
**2008**, 55, 1893–1909. [Google Scholar] [CrossRef] - Demir, Y.; Aydin, M. A Novel Asymmetric and Unconventional Stator Winding Configuration and Placement for a Dual Three-Phase Surface PM Motor. IEEE Trans. Magn.
**2017**, 53, 1–5. [Google Scholar] [CrossRef] - Demir, Y.; Aydin, M. A Novel Dual Three-Phase Permanent Magnet Synchronous Motor With Asymmetric Stator Winding. IEEE Trans. Magn.
**2016**, 52, 1–5. [Google Scholar] [CrossRef] - Caruso, M.; Di Tommaso, A.O.; Miceli, R.; Rizzo, R. The use of slightly asymmetrical windings for rotating electrical machines. Int. Trans. Electr. Energy Syst.
**2018**, 28, e2569. [Google Scholar] [CrossRef] - Caruso, M.; Di Tommaso, A.O.; Ferraris, L.; Miceli, R.; Viola, F. Finite-element performance comparison of IPMSMs with unsymmetrical double-layer windings. In Proceedings of the 2017 Twelfth International Conference on Ecological Vehicles and Renewable Energies (EVER), Monte Carlo, Monaco, 11–13 April 2017; pp. 1–6. [Google Scholar] [CrossRef]
- Cistelecan, M.V.; Cosan, B.; Popescu, M.D. Analysis and Design Criteria for Fractional Unbalanced Windings of Three-phase Motors. In Proceedings of the 6th International Symposium on Advanced Electromechanical Motion Systems—ELECTROMOTION 2005, Lausanne, Switzerland, 27–29 September 2005; pp. 1–5. [Google Scholar] [CrossRef] [Green Version]
- Melcescu, L.; Cistelecan, M.; Craiu, O.; Cosan, H. A new 4/6 pole-changing double layer winding for three phase electrical machines. In Proceedings of the 2010 XIX International Conference on Electrical Machines (ICEM), Rome, Italy, 6–8 September 2010; pp. 1–6. [Google Scholar] [CrossRef]
- Müller, G.; Vogt, K.; Ponick, B. Berechnung Elektrischer Maschinen, 6th ed.; Elektrische Maschinen, Wiley-VCH Verlag GmbH & Co. KGaA: Weinheim, Germany, 2008. [Google Scholar]
- Kouchih, D.; Boumalha, N.; Tadjine, M.; Boucherit, M.S. New approach for the modeling of induction machines operating under unbalanced power system. Int. Trans. Electr. Energy Syst.
**2016**, 26, 1832–1846. [Google Scholar] [CrossRef] - Caruso, M.; Di Tommaso, A.O.; Marignetti, F.; Miceli, R.; Ricco Galluzzo, G. A General Mathematical Formulation for Winding Layout Arrangement of Electrical Machines. Energies
**2018**, 11, 446. [Google Scholar] [CrossRef] [Green Version] - Caruso, M.; Tommaso, A.O.D.; Giangrasso, L.; Marignetti, F.; Miceli, R.; Rizzo, R. Differential Leakage Factor in Electrical Machines Equipped with Asymmetrical Multiphase Windings: A General Investigation. In Proceedings of the 2019 Fourteenth International Conference on Ecological Vehicles and Renewable Energies (EVER), Monte-Carlo, Monaco, 8–10 May 2019; pp. 1–7. [Google Scholar] [CrossRef]
- Tommaso, A.O.D.; Genduso, F.; Miceli, R. A New Software Tool for Design, Optimization, and Complete Analysis of Rotating Electrical Machines Windings. IEEE Trans. Magn.
**2015**, 51, 1–10. [Google Scholar] [CrossRef] - Caruso, M.; Di Tommaso, A.O.; Miceli, R.; Rizzo, R. Computer-aided analysis and design procedure for rotating induction machine magnetic circuits and windings. IET Electr. Power Appl.
**2018**, 12, 885–893. [Google Scholar] [CrossRef] - Richter, R. Die Induktionsmaschinen, 2rd ed.; Elektrische Maschinen, Birkhäuser: Basel, Switzerland; Stuttgart, Germany, 1954; Volume 4, p. 691. [Google Scholar]
- Huang, X.; Du, Q.; Hu, M. A novel exact and universal approach for calculating the differential leakage related to harmonic waves in AC electric motors. IEEE Trans. Energy Convers.
**2004**, 19, 1–6. [Google Scholar] [CrossRef] - Di Tommaso, A.O.; Genduso, F.; Miceli, R.; Ricco Galluzzo, G. An Exact Method for the Determination of Differential Leakage Factors in Electrical Machines with Non-Symmetrical Windings. IEEE Trans. Magn.
**2016**, 52, 1–9. [Google Scholar] [CrossRef] - Caruso, M.; Di Tommaso, A.O.; Genduso, F.; Miceli, R.; Ricco Galluzzo, G. A General Mathematical Formulation for the Determination of Differential Leakage Factors in Electrical Machines with Symmetrical and Asymmetrical Full or Dead-Coil Multiphase Windings. IEEE Trans. Ind. Appl.
**2018**, 54, 5930–5940. [Google Scholar] [CrossRef] [Green Version] - Müller, G.; Ponick, B. Theorie Elektrischer Maschinen, 6th ed.; Elektrische Maschinen, Wiley-VCH Verlag GmbH & Co. KGaA: Weinheim, Germany, 2009. [Google Scholar]
- Hruska, K.; Sokol, M. Advanced numeric tooth winding analyses. In Proceedings of the 2012 15th International Symposium Mechatronika, Prague, Czech Republic, 5–7 December 2012; pp. 1–7. [Google Scholar]
- Kron, A.W.; Bopp, K. Beitrag zur praktischen Berechnung des Koeffizienten der doppeltverketteten Streuung. Arch. Elektrotechnik
**1953**, 41, 136–142. [Google Scholar] [CrossRef] - Cistelecan, M.; Melcescu, L.; Cosan, H.; Popescu, M. Induction motors with changeable pole windings in the ratio 1:4. In Proceedings of the 2011 International Aegean Conference on Electrical Machines and Power Electronics and 2011 Electromotion Joint Conference (ACEMP), Istanbul, Turkey, 8–10 September 2011; pp. 781–786. [Google Scholar] [CrossRef]
- Di Tommaso, A.O.; Genduso, F.; Miceli, R. A novel improved matlab-based software for the electric and magnetic analysis and design of rotating electrical machines. In Proceedings of the 2015 Tenth International Conference on Ecological Vehicles and Renewable Energies (EVER), Monte-Carlo, Monaco, 31 March–2 April 2015; pp. 1–7. [Google Scholar]
- Caruso, M.; Di Tommaso, A.O.; Marignetti, F.; Miceli, R.; Galluzzo, G.R. A general procedure for the construction of Gorges polygons for multi-phase windings of electrical machines. In Proceedings of the 2018 Thirteenth International Conference on Ecological Vehicles and Renewable Energies (EVER), Monte Carlo, Monaco, 10–12 April 2018; pp. 1–7. [Google Scholar]

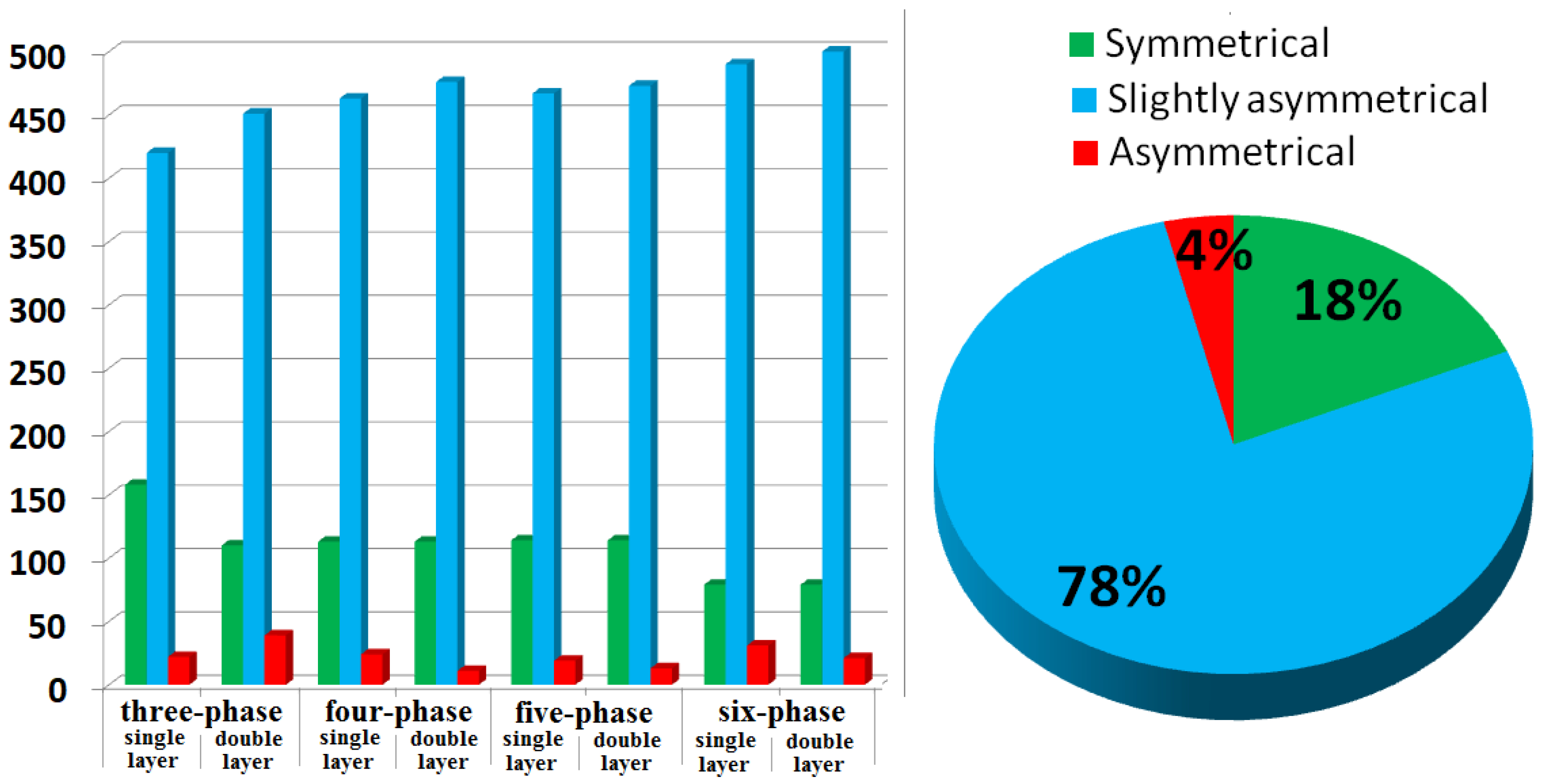

**Figure 1.**Graphical summary for the symmetrical, slightly asymmetrical and asymmetrical winding configurations.

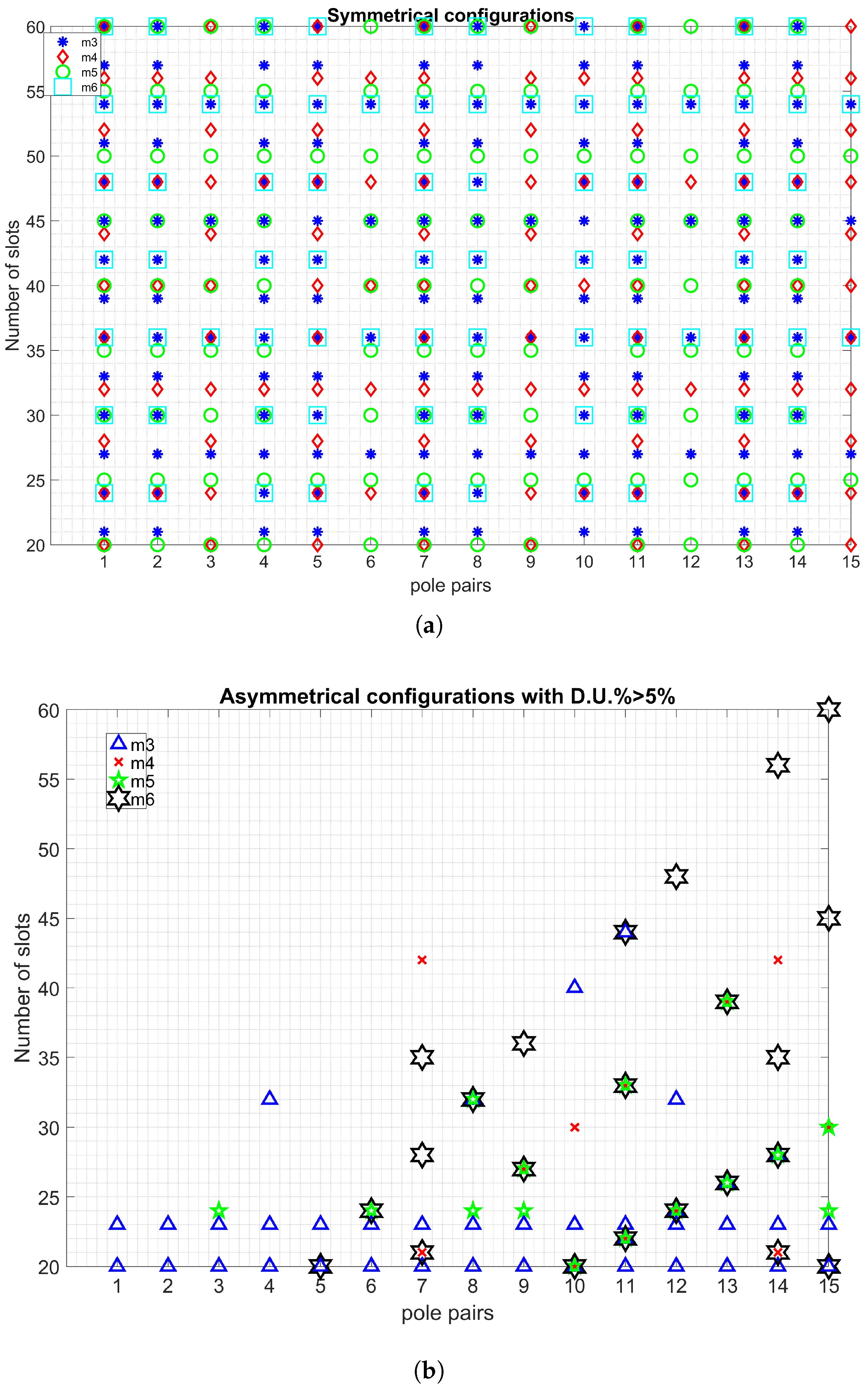

**Figure 2.**Mapping, for $m=3\xf76$, of the (

**a**) symmetrical configurations and (

**b**) asymmetrical configurations with $D.U.\%$ > 5%.

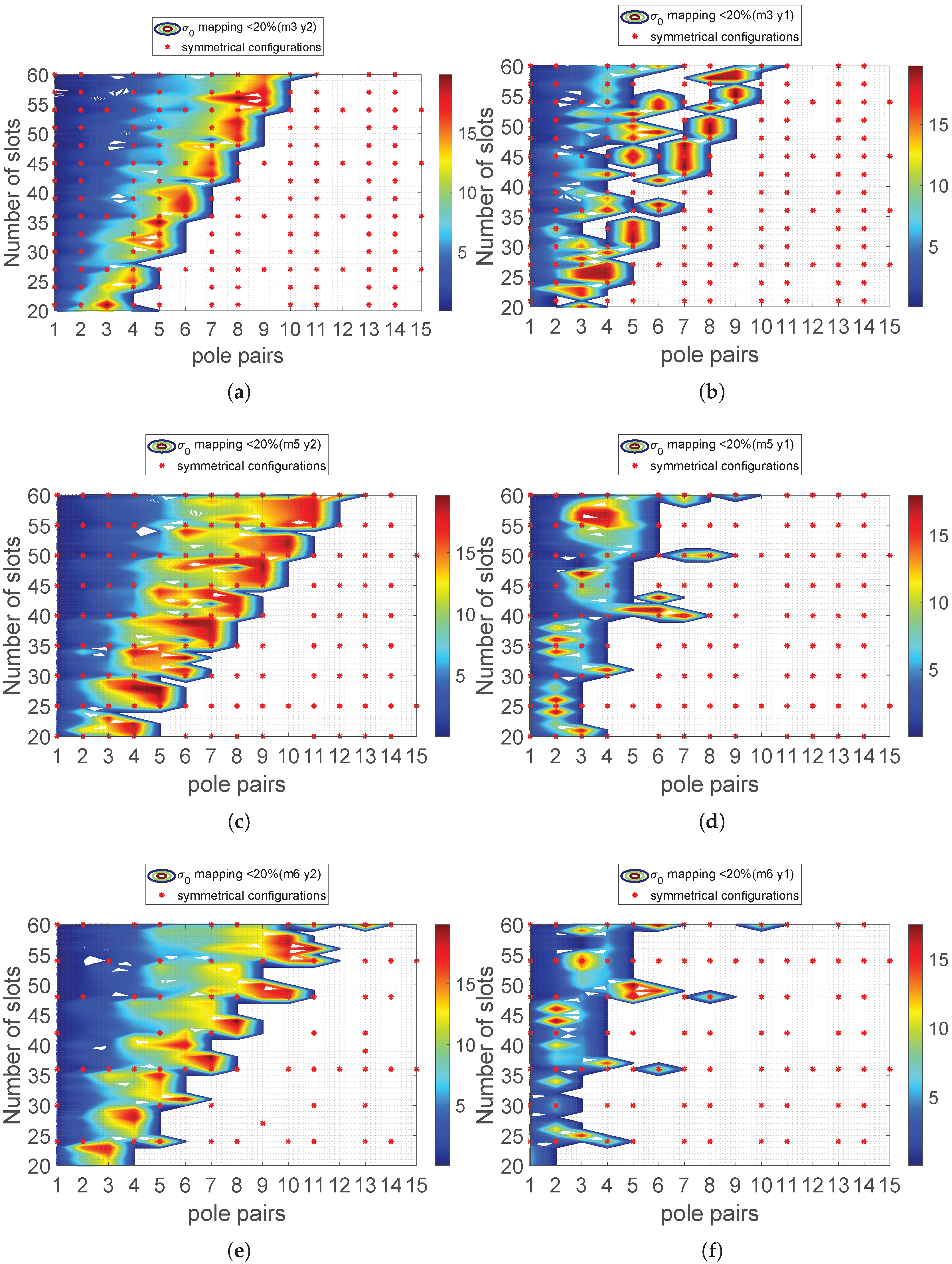

**Figure 3.**Mapping of the leakage factors for all the proposed combinations: (
