Screening Life Cycle Assessment of Tall Oil-Based Polyols Suitable for Rigid Polyurethane Foams
Abstract
:1. Introduction
- TOFA epoxidation using ion exchange resin [38];
- chemical synthesis of TOFA based bio-polyols, their characterization and chemical structure and development of rigid PU foam thermal insulation from the said bio-polyols and their characterization (published by our group’s researcher, Kirpluks et al.) [37].
- Screening LCA of bio-polyol synthesis method (present paper).
2. Materials and Methods

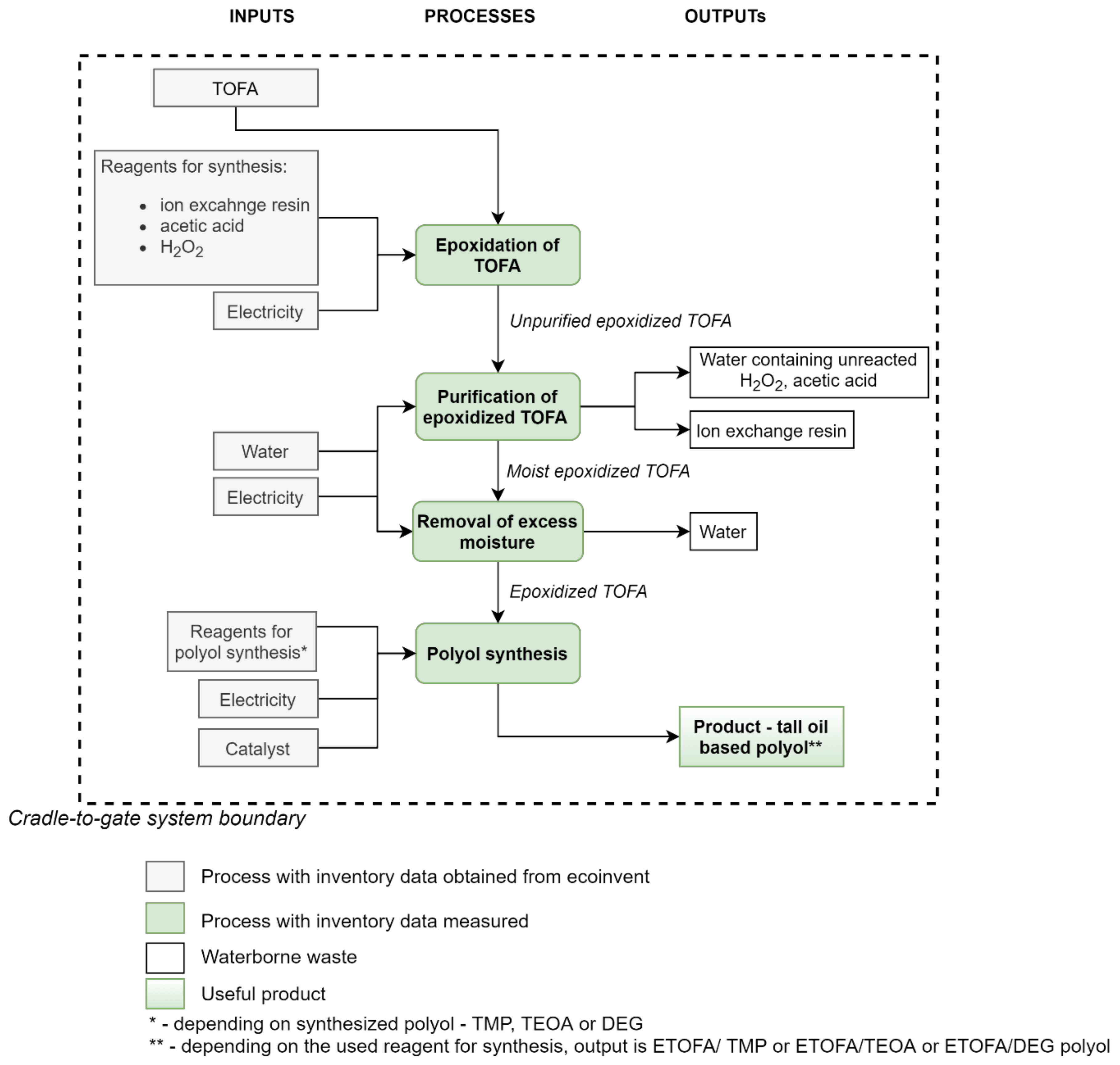

2.1. Description of the Production Processes
2.1.1. Step 1: TOFA Epoxidation
2.1.2. Step 2: Bio-Polyol Synthesis
2.1.3. Characterization of the Developed TOFA Based Bio-Polyols
2.2. Goal and Scope Definition
2.3. Life Cycle Inventory, Limitations and Assumptions
- The production of the catalyst LiOCl4 was not available in the Ecoinvent v3.5, NaOCl4 used as a proxy for LiOCl4.
- The production of polyfunctional TMP is not available in the Ecoinvent v3.5. The production of TMP is assumed to be similar to the production of other polyols [40]. Pentaerythritol was used as a proxy.
- The production of the ion exchange resin Amberlite IR-120 H was not available in the Ecoinvent v3.5, cation exchange resin dataset was used as a proxy.
- The potential environmental impacts of chemical‘s packaging materials are not included and are assumed to be negligible.
- The transportation of raw materials to the production site is not considered. These operations are deemed marginal, indicating that transport aspects of the chemical industry are minor to the LCA analysis as a whole [41].
2.4. Life Cycle Impact Assessment
3. Results and Discussion

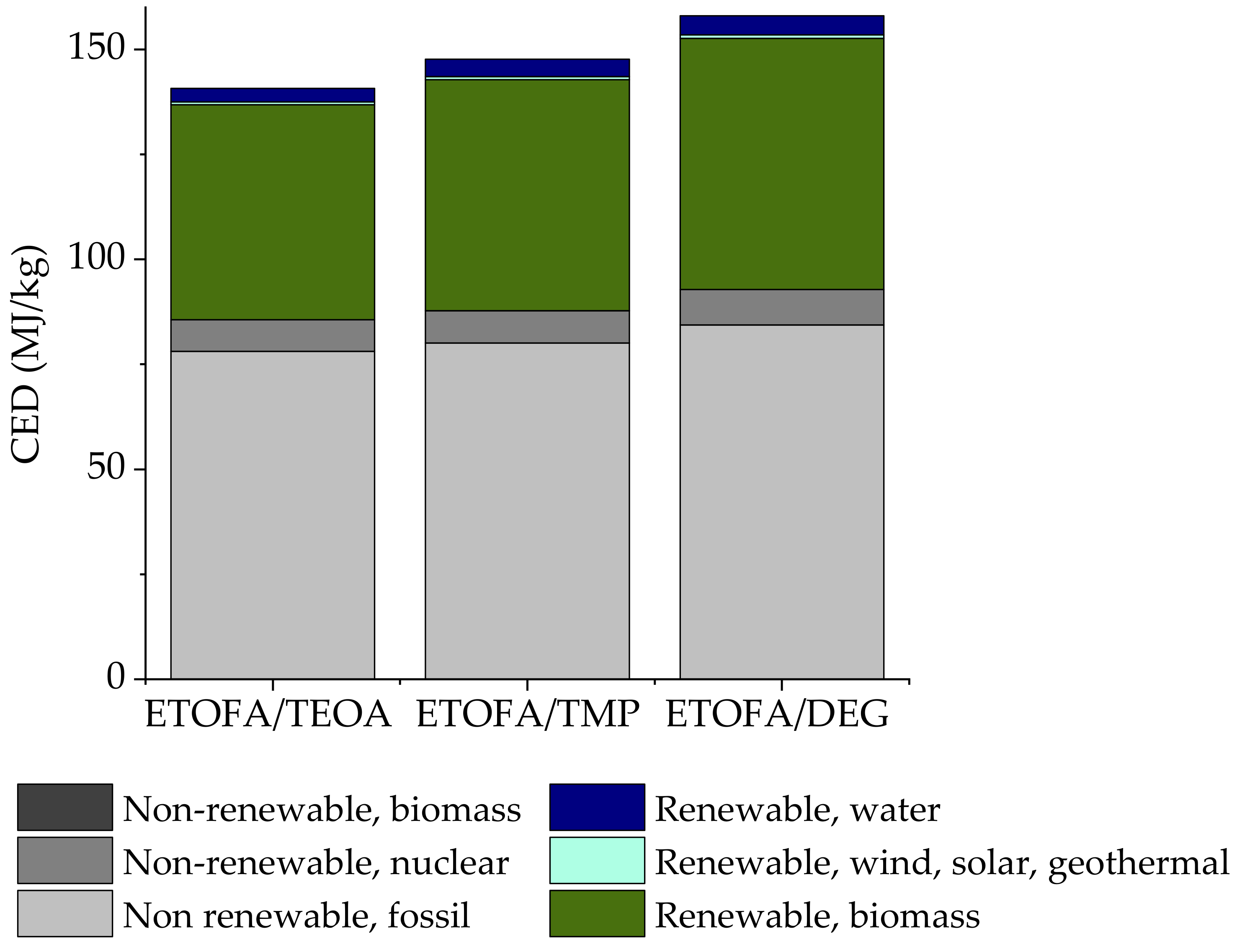

3.1. CED as a Screening Impact Indicator

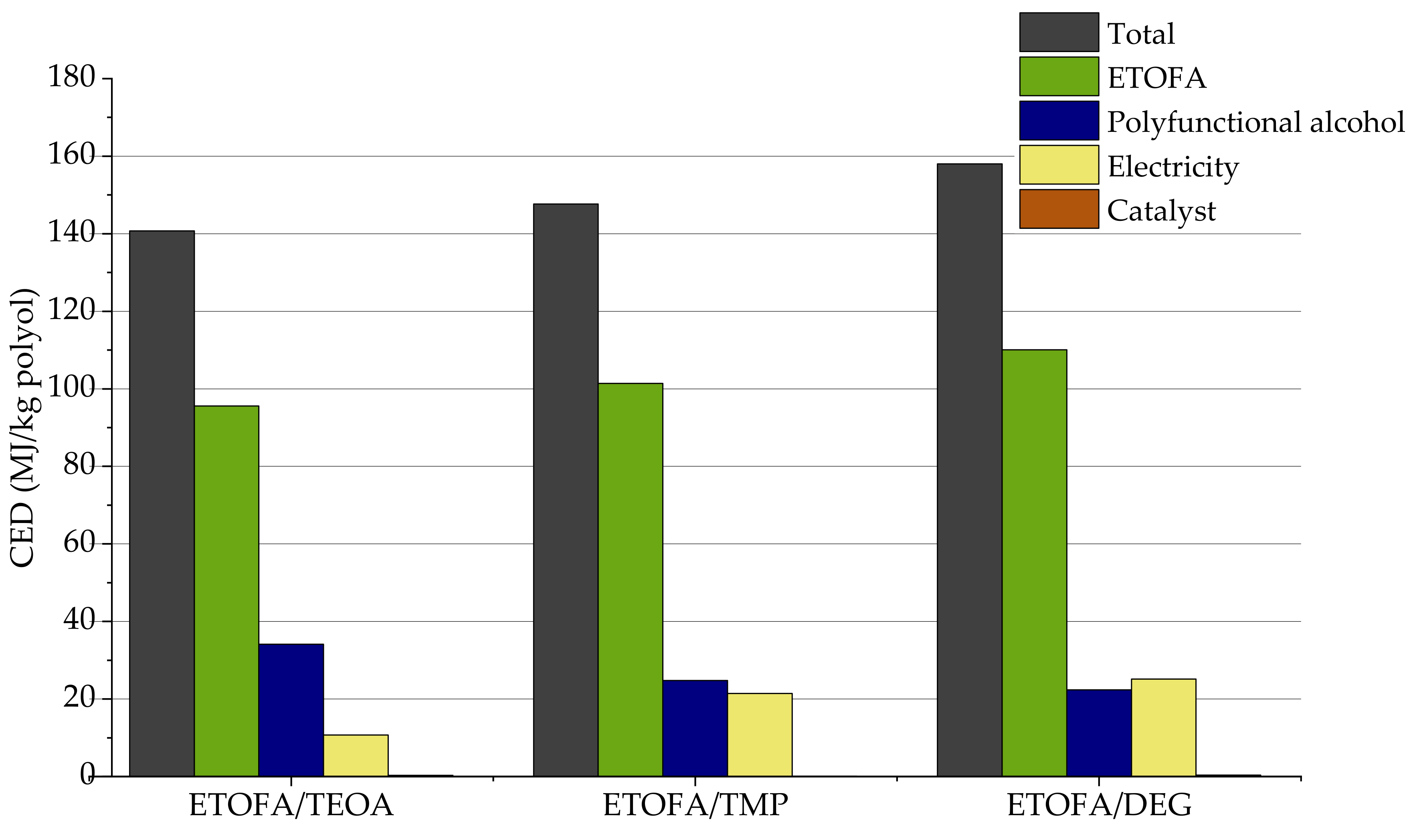

- ETOFA/TEOA: 67.9% is contributed to ETOFA, 24.2% to TEOA, 7.6% to electricity and 0.2% to catalyst;
- ETOFA/TMP: 68.7% is contributed to ETOFA, 16.8% to TMP proxy, 14.5% to electricity and 0.03% to catalyst;
- ETOFA/DEG: 69.7% is contributed to ETOFA, 15.9% to DEG, 23.6% to electricity and 0.2% to catalyst.

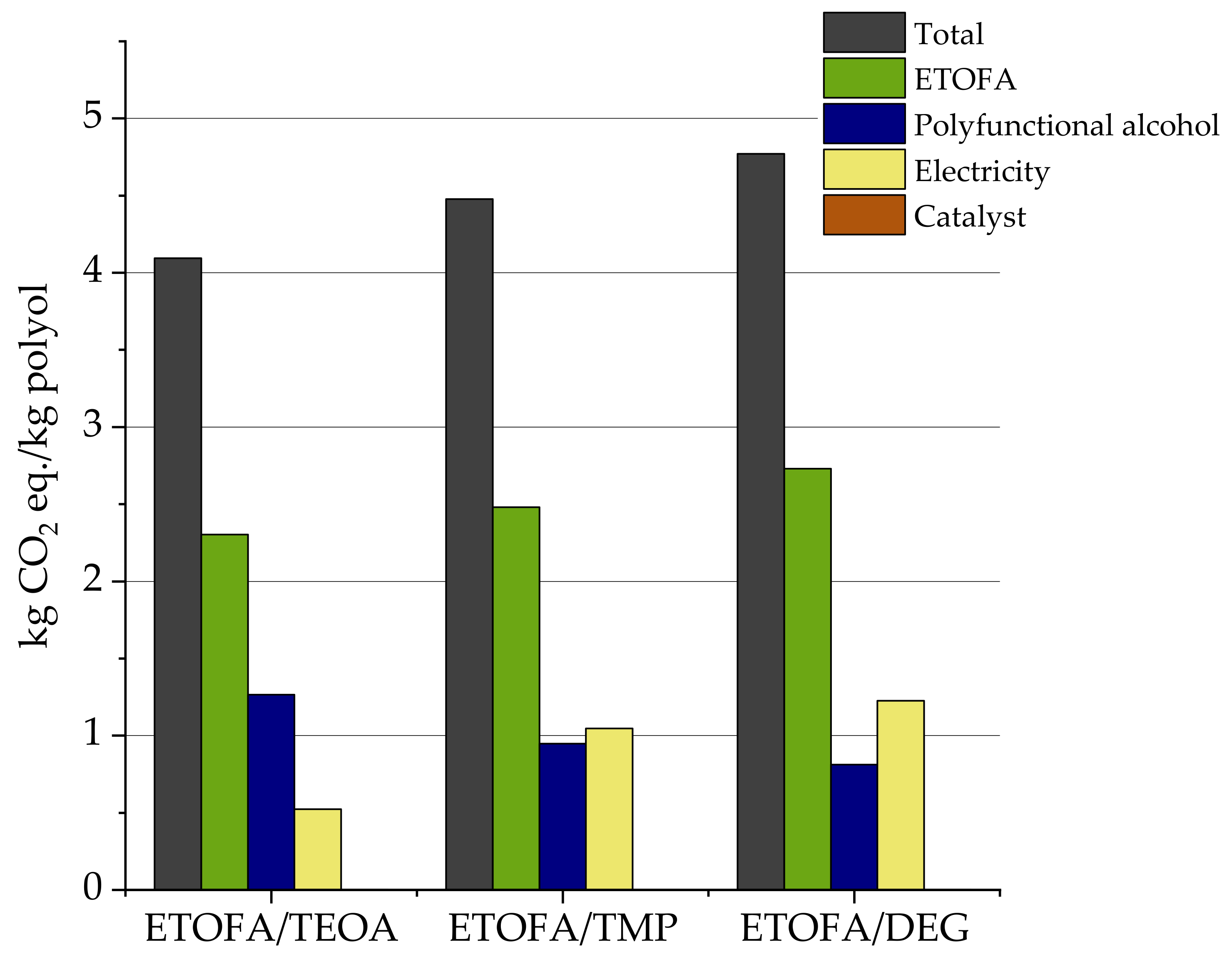

3.2. Life-Cycle Impact Assessment: IPCC 2013 GWP 100a
3.3. Life-Cycle Impact Assessment: ReCiPe 2016 Endpoint (H) V1.03/World (2010) H/A
4. Conclusions
- the bio-based feedstock was the main environmental hot-spot in the bio-polyol production process;
- the other large environmental hot-spots are the used polyfunctional alcohols for the ring-opening and the use of electricity for the bio-polyol synthesis;
- the impact of catalyst is negligible;
- the efforts to improve the environmental performance of bio-polyols should be put on the production phase of the ETOFA.
Author Contributions
Funding
Conflicts of Interest
References
- Dotan, A. Biobased Thermosets. In Handbook of Thermoset Plastics; Dodiuk, H., Goodman, S.H., Eds.; William Andrew: Norwich, NY, USA, 2013; pp. 577–622. [Google Scholar]
- Patel, M.; Bastioli, C.; Marini, L.; Würdinger, E. Life-cycle Assessment of Bio-based Polymers and Natural Fiber Composites. Biopolym. Online 2005. [Google Scholar] [CrossRef]
- Philp, J.C.; Ritchie, R.J.; Guy, K. Biobased plastics in a bioeconomy. Trends Biotechnol. 2013, 31, 65–67. [Google Scholar] [CrossRef] [PubMed]
- Saharan, B.S.; Deepansh, A.; Deepansh, S. Bioplastics-For Sustainable Development: A Review. Int. J. Microb. Resour. Technol. 2012, 1, 11–23. [Google Scholar]
- Álvarez-Chávez, C.R.; Edwards, S.; Moure-Eraso, R.; Geiser, K. Sustainability of bio-based plastics: General comparative analysis and recommendations for improvement. J. Clean. Prod. 2012, 23, 47–56. [Google Scholar] [CrossRef]
- Hauschild, M.Z.; Rosenbaum, R.K.; Olsen, S.I. Life Cycle Assessment: Theory and Practice; Hauschild, M.Z., Rosenbaum, R.K., Olsen, S., Eds.; Springer International Publishing: Cham, Switzerland, 2017; ISBN 9783319564753. [Google Scholar]
- Ronzon, T.; Lusser, M.; Klinkenber, M.; Landa, L.; Sanchez Lopez, L.; M’Barek, R.; Hadjamu, G.; Belward, A.; Camia, A.; Giuntoli, J.; et al. JRC Scientific and Policy Report. Bioeconomy Report 2016. EUR 28468 EN. Available online: https://publications.jrc.ec.europa.eu/repository/bitstream/JRC103138/kjna28468enn.pdf (accessed on 17 October 2018).
- ISO 14040 International Standard. Environmental Management—Life Cycle Assessment—Principles and Framework; ISO: Geneva, Switzerland, 2006; p. 20. [Google Scholar]
- ISO 14044 International Standard. Environmental Management—Life Cycle Assessment—Requirements and Guidelines; ISO: Geneva, Switzerland, 2006; p. 46. [Google Scholar]
- Tischner, U.; Schmincke, E.; Rubik, F.; Prosler, M. (Eds.) How to Do Ecodesign? A Guide for Environmentally and Economically Sound Design; Art Books Intl Ltd: Berlin, Germany, 2000. [Google Scholar]
- Rudin, A.; Choi, P. Biopolymers. In The Elements of Polymer Science & Engineering; Academic Press: Waltham, MA, USA; Oxford, UK, 2013; Chapter 13; pp. 521–535. ISBN 9780123821782. [Google Scholar]
- Ionescu, M. Chemistry and Technology of Polyols for Polyurethane; Smithers Rapra Press: Shropshire, UK, 2008; ISBN 978-1859575017. [Google Scholar]
- Petrovic, Z.S. Polyurethanes from vegetable oils. Polym. Rev. 2008, 48, 109–155. [Google Scholar] [CrossRef]
- Akindoyo, J.O.; Beg, M.D.H.; Ghazali, S.; Islam, M.R.; Jeyaratnam, N.; Yuvaraj, A.R. Polyurethane types, synthesis and applications-a review. RSC Adv. 2016, 6, 114453–114482. [Google Scholar] [CrossRef] [Green Version]
- Villasmil, W.; Fischer, L.J.; Worlitschek, J. A review and evaluation of thermal insulation materials and methods for thermal energy storage systems. Renew. Sustain. Energy Rev. 2019, 103, 71–84. [Google Scholar] [CrossRef]
- Sharmin, E.; Zafar, F. Polyurethane: An Introduction. In Polyurethane; Zafar, F., Ed.; InTech: London, UK, 2012; pp. 3–16. [Google Scholar]
- Badri, K.H.; Ahman, S.; Zakaria, S. The production of a high-functionality RBD palm kernel-based polyester polyol. J. Appl. Polym. Sci. 2001, 81, 384–389. [Google Scholar] [CrossRef]
- Petrović, Z.S.; Yang, L.; Zlatanić, A.; Zhang, W.; Javni, I. Network Structure and Properties of Polyurethanes from Soybean Oil. J. Appl. Polym. Sci. 2007, 105, 2717–2727. [Google Scholar] [CrossRef]
- Prociak, A.; Malewska, E.; Kurańska, M.; Bąk, S.; Budny, P. Flexible polyurethane foams synthesized with palm oil-based bio-polyols obtained with the use of different oxirane ring opener. Ind. Crops Prod. 2018, 115, 69–77. [Google Scholar] [CrossRef]
- Stirna, U.; Fridrihsone, A.; Lazdiņa, B.; Misane, M.; Vilsone, D. Biobased Polyurethanes from Rapeseed Oil Polyols: Structure, Mechanical and Thermal Properties. J. Polym. Environ. 2013, 21, 952–962. [Google Scholar] [CrossRef]
- Yadav, S.; Zafar, F.; Hasnat, A.; Ahmad, S. Poly (urethane fatty amide) resin from linseed oil-A renewable resource. Prog. Org. Coat. 2009, 64, 27–32. [Google Scholar] [CrossRef]
- Desroches, M.; Escouvois, M.; Auvergne, R.; Caillol, S.; Boutevin, B. From vegetable oils to polyurethanes: Synthetic routes to polyols and main industrial products. Polym. Rev. 2012, 52, 38–79. [Google Scholar] [CrossRef] [Green Version]
- Loebel, O. Thermal Insulation Materials Made of Rigid Polyurethane Foam; Federation of European Rigid Polyurethane Foam Associations: Belgium, Brussels, 2012; Volume 1. [Google Scholar]
- Tan, S.G.; Chow, W.S. Biobased epoxidized vegetable oils and its greener epoxy blends: A review. Polym. Plast. Technol. Eng. 2010, 49, 1581–1590. [Google Scholar] [CrossRef]
- Jalil, M.J.; Azmi, I.S.; Mohammad Daud, A.R. An Overview of Epoxidation of Vegetable Oils with Peracid-Reaction Mechanism. Recent Innov. Chem. Eng. Formerly Recent Patents Chem. Eng. 2017, 10. [Google Scholar] [CrossRef]
- Milchert, E.; Malarczyk-Matusiak, K.; Musik, M. Technological aspects of vegetable oils epoxidation in the presence of ion exchange resins: A review. Polish J. Chem. Technol. 2016, 18, 128–133. [Google Scholar] [CrossRef] [Green Version]
- Mungroo, R.; Pradhan, N.C.; Goud, V.V.; Dalai, A.K. Epoxidation of canola oil with hydrogen peroxide catalyzed by acidic ion exchange resin. J. Am. Oil Chem. Soc. 2008, 85, 887–896. [Google Scholar] [CrossRef]
- BASF Solutions from the Nature—Sovermol®. Available online: https://www.basf.com/cn/en/products/paint-coating-industry/sovermol.html (accessed on 25 July 2019).
- NEUKAPOL Polyols. Available online: http://www.altropol.de/en/produkte/neukapol-polyole/ (accessed on 17 October 2018).
- Nivapol. Available online: http://www.nivapol.com/en/products/ (accessed on 17 October 2018).
- PolyLabs. Available online: http://www.polylabs.eu/en/about-us (accessed on 17 October 2018).
- Vandeputte Oleo Polyfunctional polyester polyols. Available online: http://www.vandeputte.com/en/linseed-linseeds__239__329.aspx (accessed on 17 October 2018).
- Vertellus–Polycin® Polyols. Available online: http://www.vertellus.com/products/case/polycin-polyols (accessed on 17 October 2018).
- Carus, M.; Dammer, L. Food or Non-Food: Which Agricultural Feedstocks Are Best for Industrial Uses? Ind. Biotechnol. 2013, 9, 171–176. [Google Scholar] [CrossRef]
- Demirbas, A. Methylation of wood fatty and resin acids for production of biodiesel. Fuel 2011, 90, 2273–2279. [Google Scholar] [CrossRef]
- Cashman, S.A.; Moran, K.M.; Gaglione, A.G. Greenhouse Gas and Energy Life Cycle Assessment of Pine Chemicals Derived from Crude Tall Oil and Their Substitutes. J. Ind. Ecol. 2016, 20, 1108–1121. [Google Scholar] [CrossRef] [Green Version]
- Kirpluks, M.; Vanags, E.; Abolins, A.; Michalowski, S.; Fridrihsone, A.; Cabulis, U. High Functionality Bio-Polyols from Tall Oil and Rigid Polyurethane Foams Formulated Solely Using Bio-Polyols. Materials 2020, 13, 1985. [Google Scholar] [CrossRef] [PubMed]
- Abolins, A.; Kirpluks, M.; Vanags, E.; Fridrihsone, A.; Cabulis, U. Tall Oil Fatty Acid Epoxidation Using Homogenous and Heterogeneous Phase Catalysts. J. Polym. Environ. 2020. [Google Scholar] [CrossRef]
- Fridrihsone, A.; Romagnoli, F.; Kirsanovs, V.; Cabulis, U. Life Cycle Assessment of vegetable oil based polyols for polyurethane production. J. Clean. Prod. 2020, 266, 121403. [Google Scholar] [CrossRef]
- Ekman, A.; Börjesson, P. Life cycle assessment of mineral oil-based and vegetable oil-based hydraulic fluids including comparison of biocatalytic and conventional production methods. Int. J. Life Cycle Assess. 2011, 16, 297–305. [Google Scholar] [CrossRef]
- Moussa, H.I.; Elkamel, A.; Young, S.B. Assessing energy performance of bio-based succinic acid production using LCA. J. Clean. Prod. 2016, 139, 761–769. [Google Scholar] [CrossRef]
- Weiss, M.; Haufe, J.; Carus, M.; Brandão, M.; Bringezu, S.; Hermann, B.; Patel, M.K. A Review of the Environmental Impacts of Biobased Materials. J. Ind. Ecol. 2012, 16. [Google Scholar] [CrossRef]
- Pawelzik, P.; Carus, M.; Hotchkiss, J.; Narayan, R.; Selke, S.; Wellisch, M.; Weiss, M.; Wicke, B.; Patel, M.K. Critical aspects in the life cycle assessment (LCA) of bio-based materials—Reviewing methodologies and deriving recommendations. Resour. Conserv. Recycl. 2013, 73, 211–228. [Google Scholar] [CrossRef]
- Huijbregts, M.A.J.; Hellweg, S.; Frischknecht, R.; Hendriks; Harrie, W.M.; Hungerbühler, K.; Hendriks, A.J. Cumulative Energy Demand As Predictor for the Environmental Burden of Commodity Production. Environ. Sci. Technol. 2010, 44, 2189–2196. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Huijbregts, M.; Rombouts, L.; Hellweg, S.; Frischknecht, R.; Hendriks, A.; Van de Meent, D.; Ragas, A.; Reijnders, L.; Struijs, J. Is Cumulative Fossil Energy Demand a Useful Indicator for the Environmental Performance of Products? Environ. Sci. Technol. 2006, 40, 641–648. [Google Scholar] [CrossRef] [Green Version]
- Arvidsson, R.; Svanstrom, M. A Framework for Energy Use Indicators and Their Reporting in Life Cycle Assessment. Integr. Environ. Assess. Manag. 2015, 12, 429–436. [Google Scholar] [CrossRef] [Green Version]
- Curran, M.A. Life Cycle Assessment Handbook; Scrivener Publishing LLC: Beverly, MA, USA; John Wiley & Sons, Inc: Hoboken, NJ, USA, 2012; ISBN 9781118099728. [Google Scholar]
- Letcher, T.M. Why do we have global warming. In Managing Global Warming? Letcher, T.M., Ed.; Elsevier: London, UK; Academic Press: San Diego, CA, USA, 2019; pp. 3–15. ISBN 9780128141045. [Google Scholar]
- Willem, P.N.; Cooper, C.J. Implications of fossil fuel constraints on economic growth and global warming. Energy Policy 2009, 37, 166–180. [Google Scholar] [CrossRef]
- Ecoinvent Centre. Ecoinvent Database (Version 3.5). [Cut-Off System Model]. Retrieved from Simapro Software Version 9.0. Dataset. Tall Oil Refinery Operation, Global. 2016. Available online: https://www.ecoinvent.org/database/older-versions/ecoinvent-35/ecoinvent-35.html (accessed on 30 August 2018).
Polyol | OH Value, mg KOH/g | Viscosity (25 °C), mPa·s | Acid Value, mg KOH/g | wH2O, % | Density (20 °C), g/cm3 | fn | Mn | TOFA Content in Bio-Polyol, % |
---|---|---|---|---|---|---|---|---|
ETOFA/TMP | 390 ± 15 | 77,000 ± 1000 | 7 ± 2 | <0.1 | 1.056 | 9.3 | 1264 | 62.2 |
ETOFA/DEG | 260 ± 10 | 1060 ± 40 | 5 ± 2 | <0.1 | 1.039 | 5.8 | 1854 | 67.9 |
ETOFA/TEOA | 500 ± 15 | 7400 ± 100 | 3 ± 2 | <0.5 | 1.047 | 7.9 | 888 | 59.5 |
Inputs | Unit | ETOFA/TMP | ETOFA/TEOA | ETOFA/DEG | Comments/Data Source |
---|---|---|---|---|---|
ETOFA | kg | 0.69 | 0.66 | 0.76 | TOFA dataset from Ecoinvent v3.5 |
Catalyst | kg | 0.0035 | 0.0033 | 0.0038 | NaOCl4 used as a proxy for LiOCl4 |
Polyfunctional alcohol Pentaerythritol | kg | 0.41 | - | - | Used as a proxy for TMP |
Polyfunctional alcohol TEOA | kg | - | 0.44 | - | |
Polyfunctional alcohol DEG | kg | - | - | 0.36 | |
Electricity | kWh | 1.62 | 0.81 | 1.90 | |
Outputs | |||||
TOFA based bio-polyol | kg | 1 | 1 | 1 | |
Wastewater | kg | 0.05 | 0.05 | 0.05 | Negligible |
