A Power Loss Decrease Method Based on Finite Set Model Predictive Control for a Motor Emulator with Reduced Switch Count

School of Automation, Central South University, Changsha 410083, China
*
Author to whom correspondence should be addressed.
Energies 2019, 12(24), 4647; https://doi.org/10.3390/en12244647
Received: 7 October 2019 / Revised: 2 December 2019 / Accepted: 4 December 2019 / Published: 6 December 2019

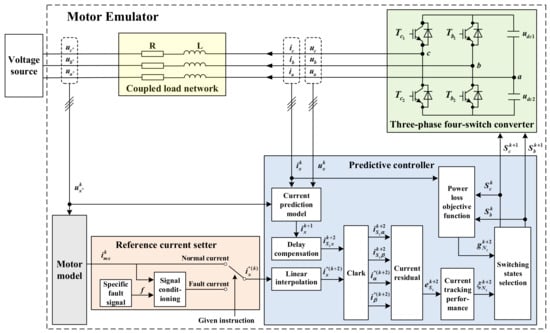

This paper presents a power loss decrease method based on finite set model predictive control (FSMPC) with delay compensation for a motor emulator with reduced switch count. Specifically, the topology and mathematical model of the proposed motor emulator with reduced switch count are firstly built. Secondly, in light of given instructions, the normal or fault reference current of the motor emulator is set by a reference current setter. Then delay compensation is applied for the predictive current model to calculate the current residual generated by each switch control signal, and the current tracking performance under actions of two adjacent switch control signals is evaluated for each sector. Finally, a switch power loss objective function is defined, then the two adjacent switch control signals that generate the lowest switch power loss are selected for the next second instant, which minimizes the power loss of the motor emulator with ensuring satisfied current tracking performance. Simulation and experimental results show the feasibility and effectiveness of the proposed method. View Full-Text
Keywords: motor emulator; power loss; current tracking; finite set model predictive control motor emulator; power loss; current tracking; finite set model predictive control
Show Figures

Graphical abstract

MDPI and ACS Style

Qin, R.; Yang, C.; Tao, H.; Peng, T.; Yang, C.; Chen, Z. A Power Loss Decrease Method Based on Finite Set Model Predictive Control for a Motor Emulator with Reduced Switch Count. Energies 2019, 12, 4647.
