# Performance Analysis of Permanent Magnet Motors for Electric Vehicles (EV) Traction Considering Driving Cycles

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

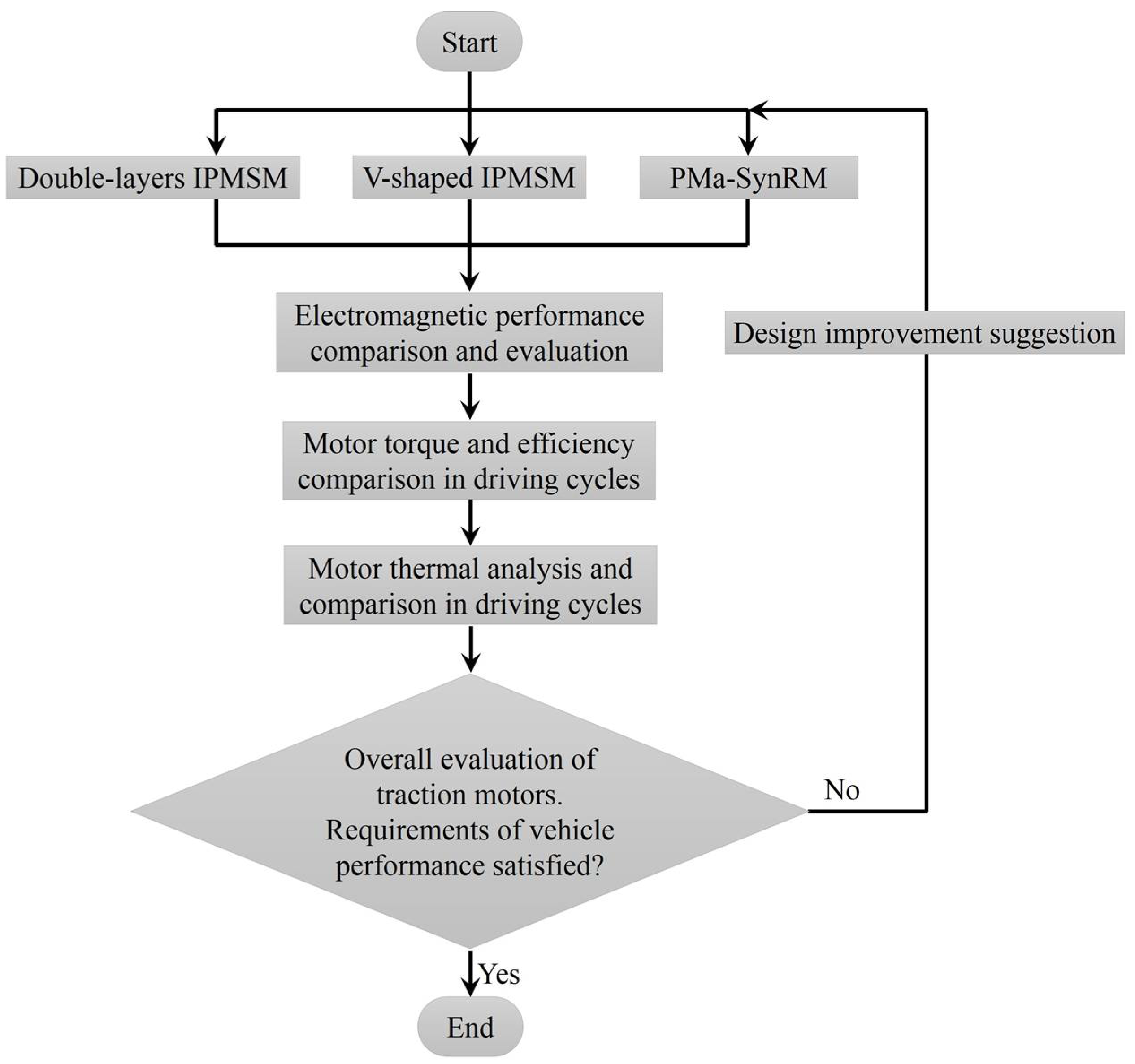

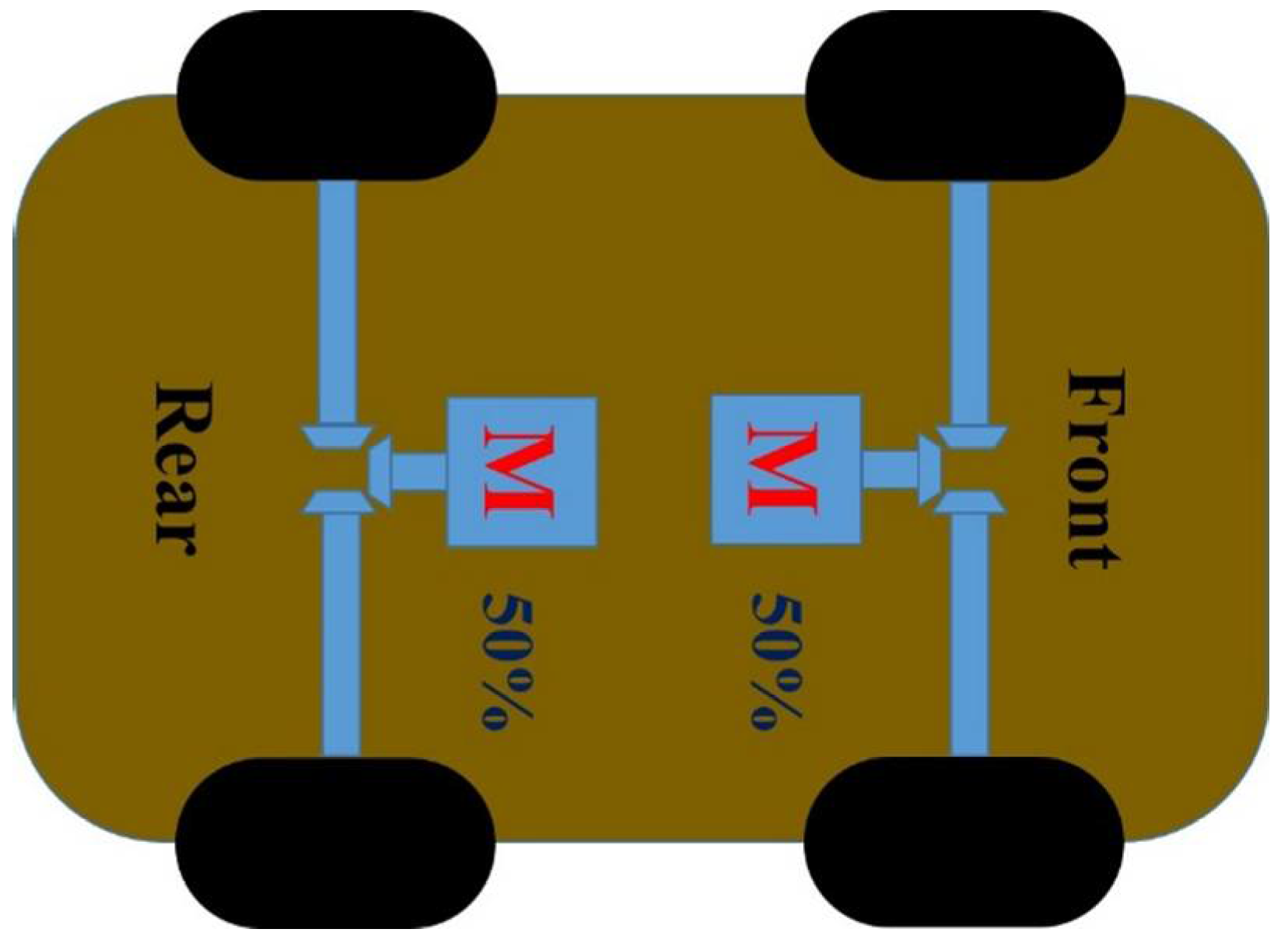

## 2. Target Traction Motors and EV

- (a)
- output power: greater or equal to 10 kW (this makes a total power of 20 kW for the EVs. Explained later);
- (b)
- torque density: greater or equal to 30 Nm/L;
- (c)
- maximum current density: 16–17 A
_{rms}/mm^{2}; - (d)
- outer stator diameter: 160 mm;
- (e)
- air gap: 0.5 mm;
- (f)
- number of slots: 36;
- (g)
- winding configuration: distributed winding; and,
- (h)
- efficiency: greater or equal to 95%.

_{r}) and coercive force (H

_{c}) of 1.2 T and 915 kA/m, respectively.

## 3. Theoretical Background

_{s}and I

_{s_max}are armature current and the maximum current provided by the inverter, respectively; I

_{d}and I

_{q}are d- and q-axis currents, respectively; L

_{d}and L

_{q}are d- and q-axis inductances, respectively; p is number of pole pair; λ

_{m}is PM flux linkage; ω

_{s}is rotor speed; V

_{s_max}is maximum phase voltage; and, V

_{DC}is battery voltage applied to the inverter.

_{s_max}is maximum rotor speed.

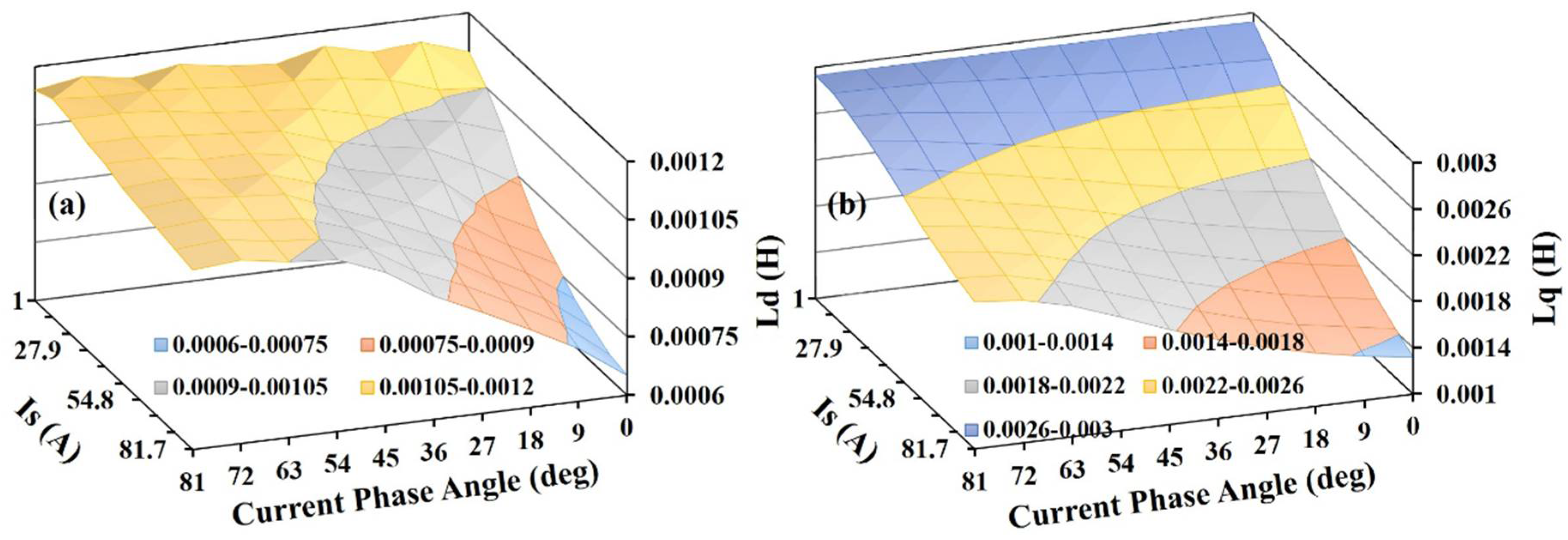

_{m}), and this indicates an increase of d-axis inductance and reluctance torque referring to Equation (4) for IPMSMs [22]. For the two types of motors, the output torque can be calculated by [6]:

_{d}and λ

_{q}are, respectively, d- and q-axis flux linkage, p is number of pole pair, I

_{d}and I

_{q}are, respectively, d- and q-axis currents excitations.

_{m}is preferred for low induced BEMF at high speed. In contrast, a large value is desirable for high torque and high efficiency. Therefore, the PMa-SynRMs may require higher total electric loading than that for IPMSMs to achieve the same torque that is required.

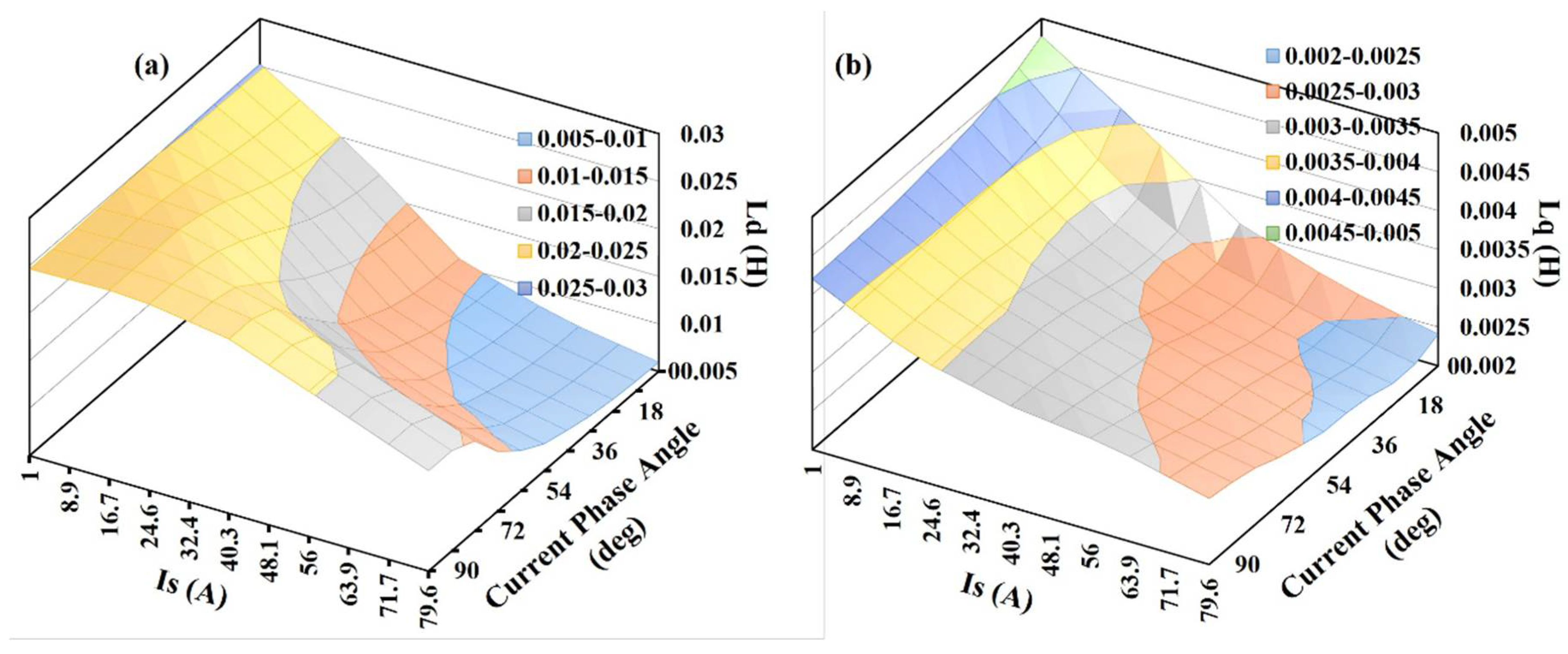

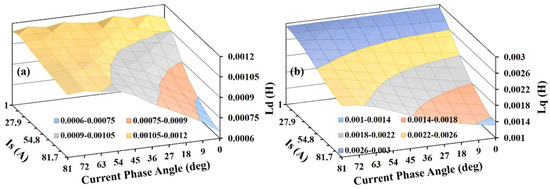

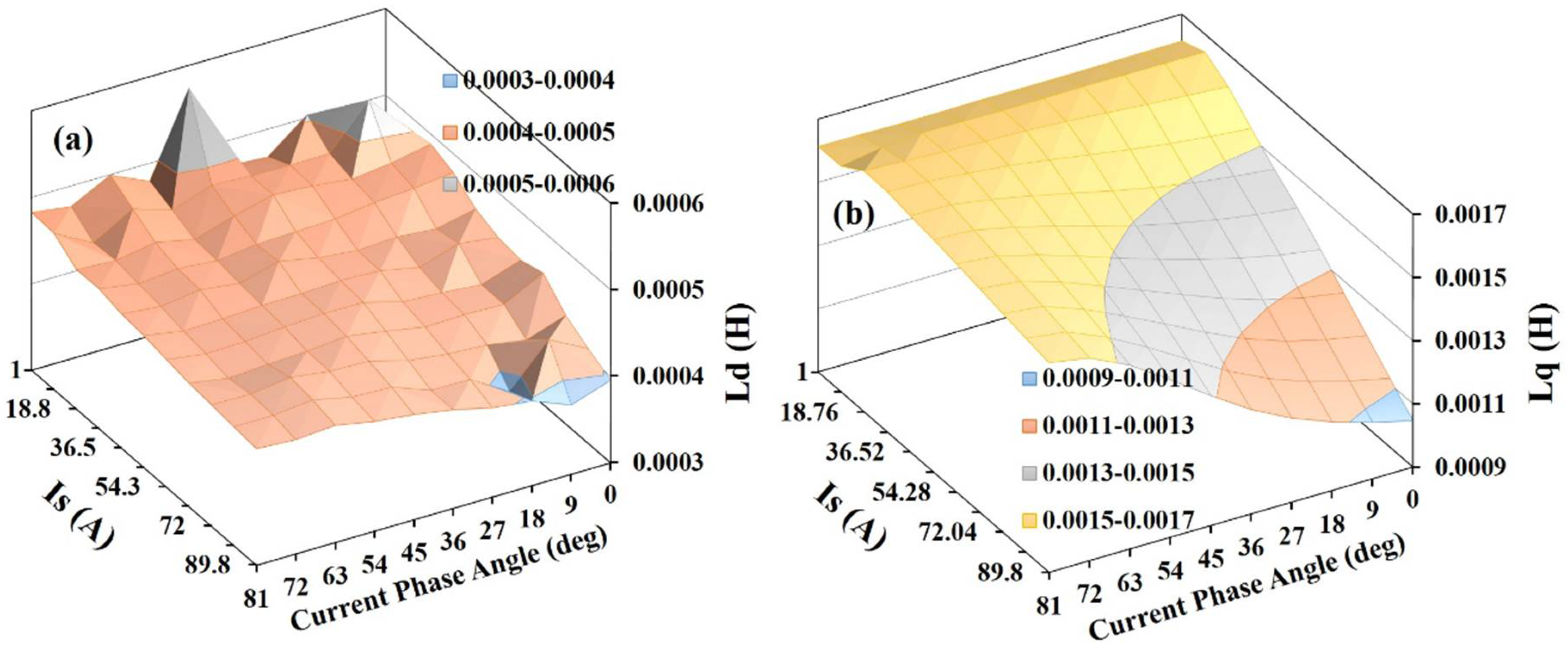

## 4. Performance Evaluation of Traction Motors

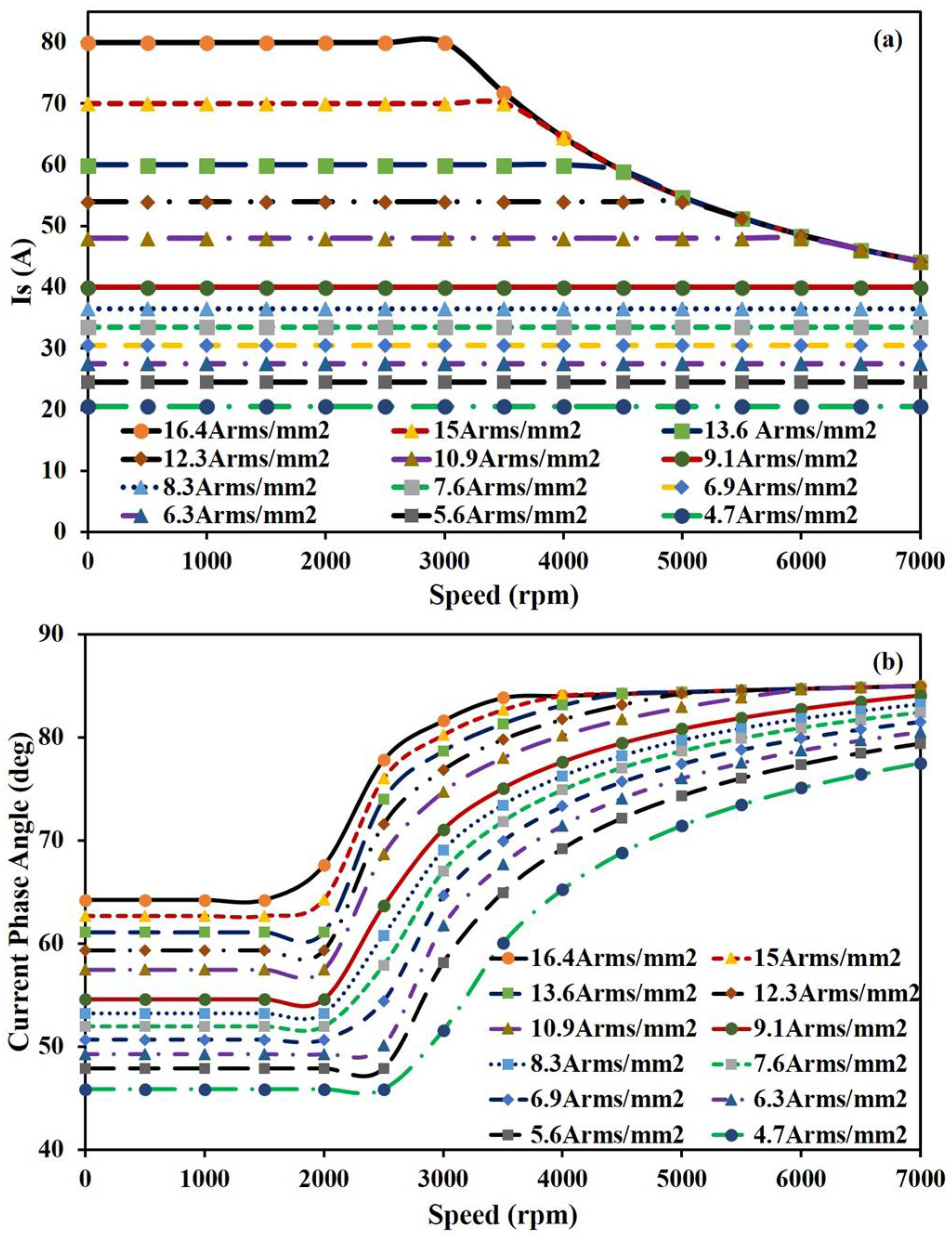

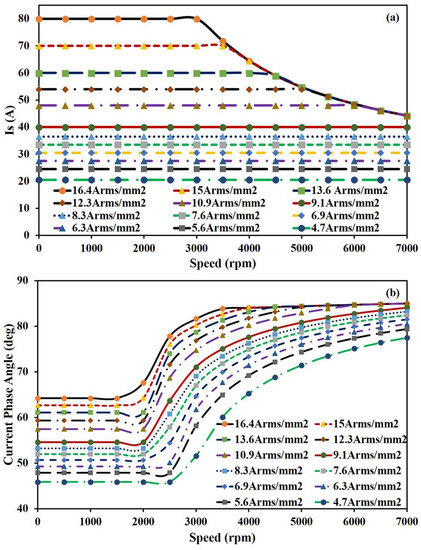

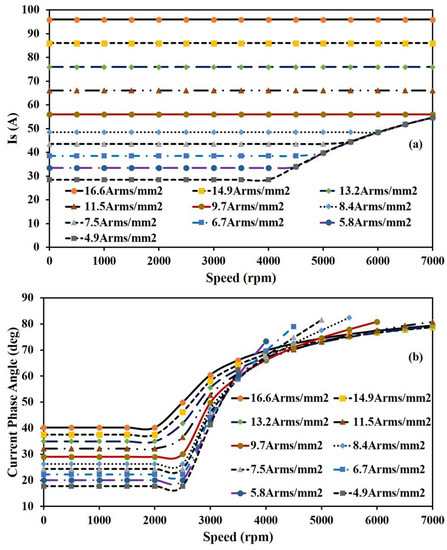

_{rms}/mm

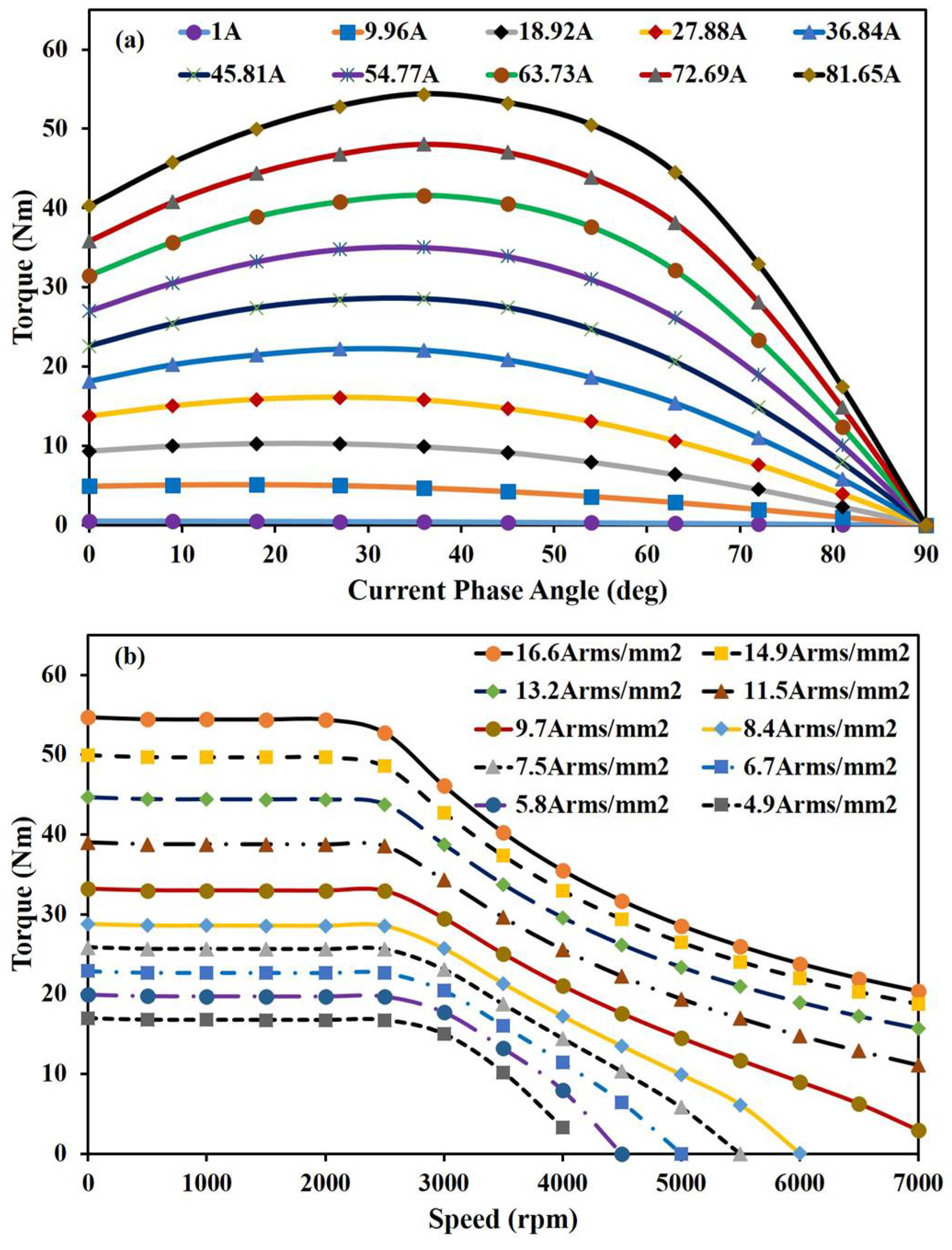

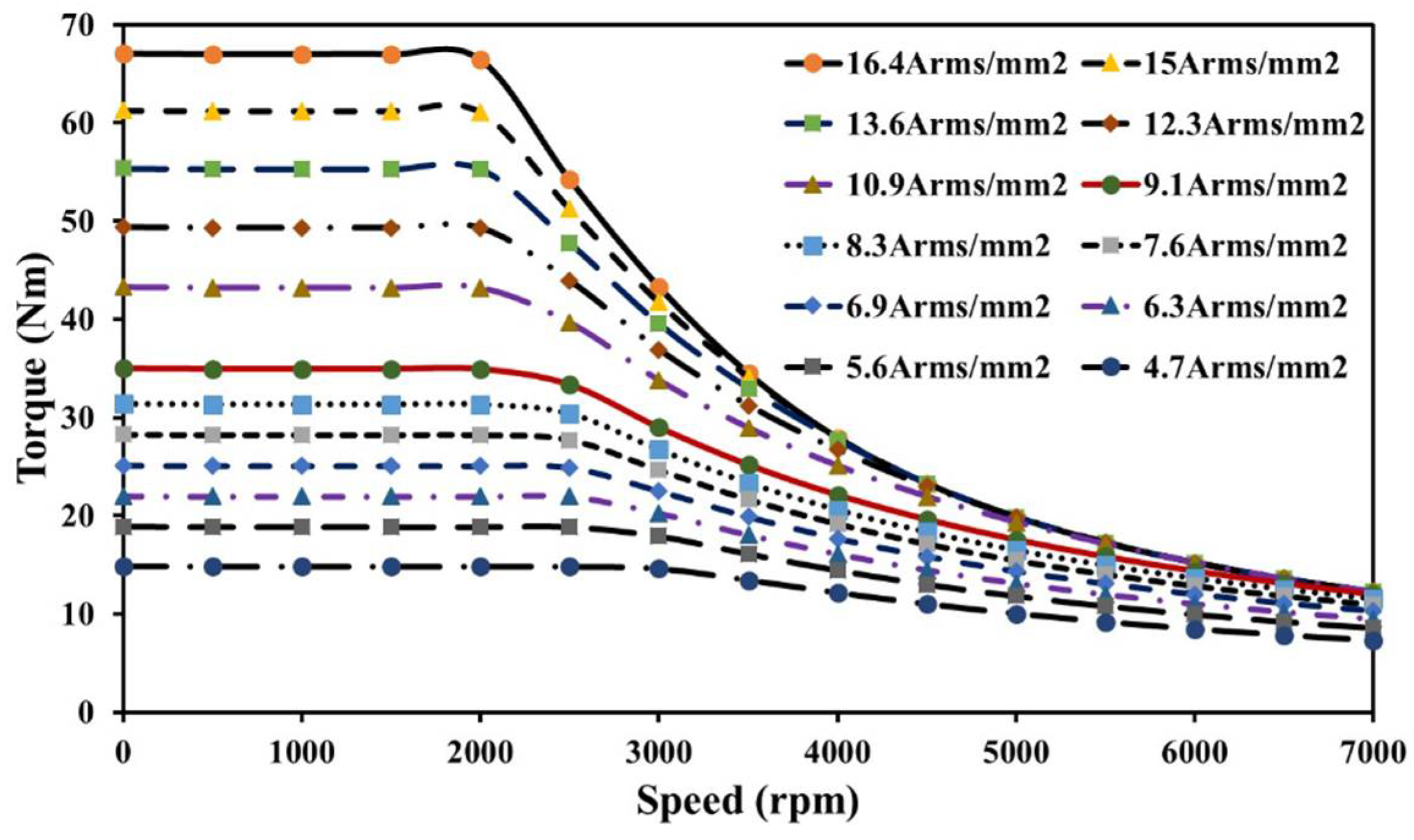

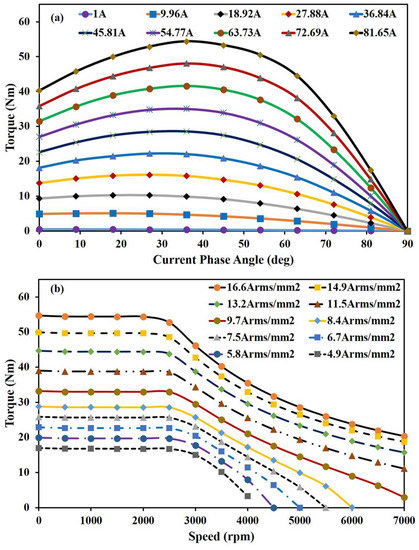

^{2}), for the cases beyond which a wide speed range can be reached with the voltage limit. Beyond the base speed, the armature current is maintained and the current phase angle is increased for flux weakening until the maximum speed. Note that the base speed depends on the voltage or the power limit. High armature current would also lead to a low base speed. Figure 10 shows that the IPMSM hits the voltage limit at a base speed of 2500 rpm (achievable base speed), an armature current of 54.8 A, and a current density of 9.7 A

_{rms}/mm

^{2}without force cooling. Nevertheless, the speed range of the IPMSM can be enhanced if better cooling is used so that more current can be input to improve the torque at high speed.

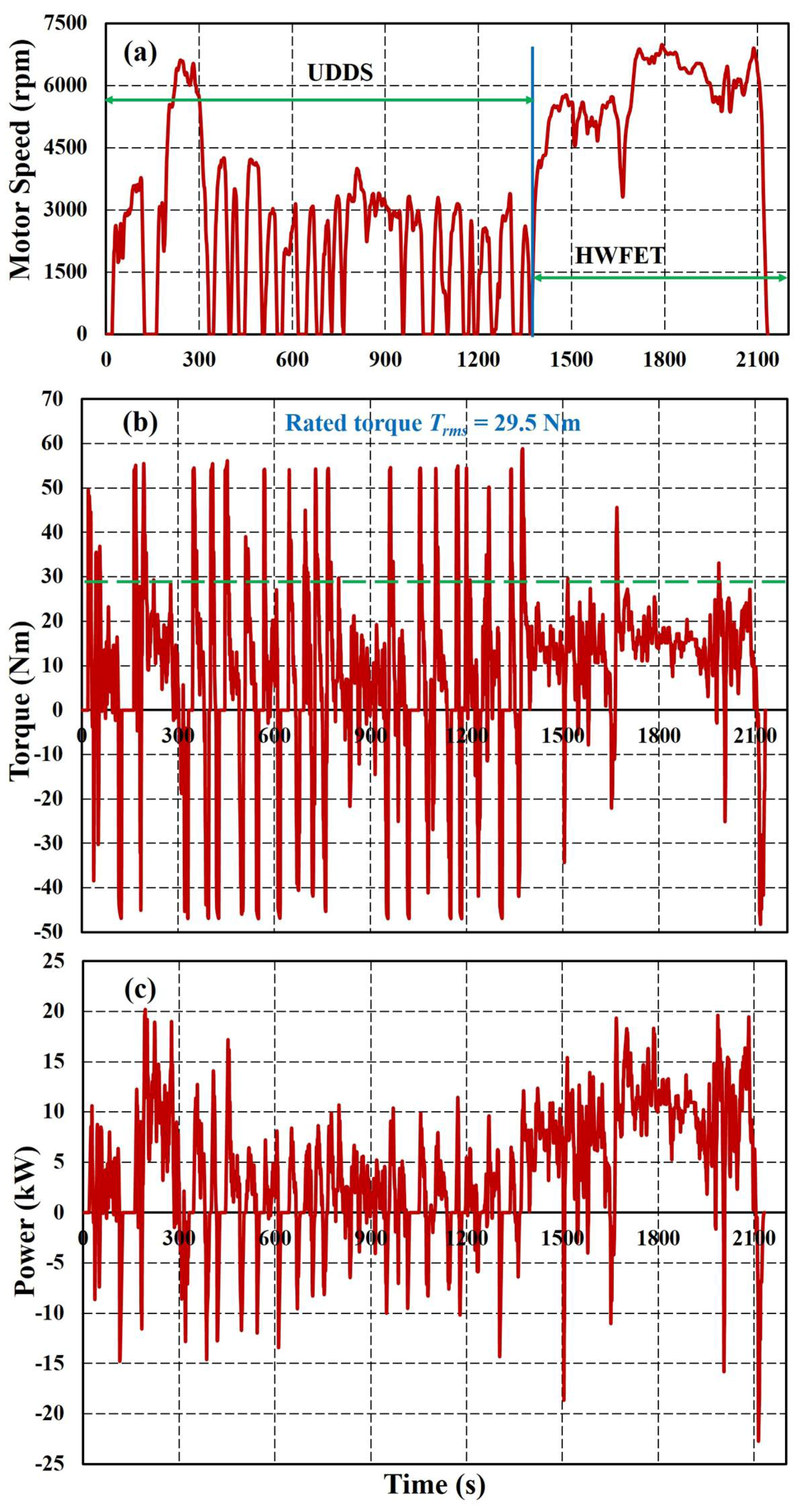

## 5. Driving Cycle Applications

_{cycle}is the time period of the entire driving cycle and T(t) is the instantaneous torque.

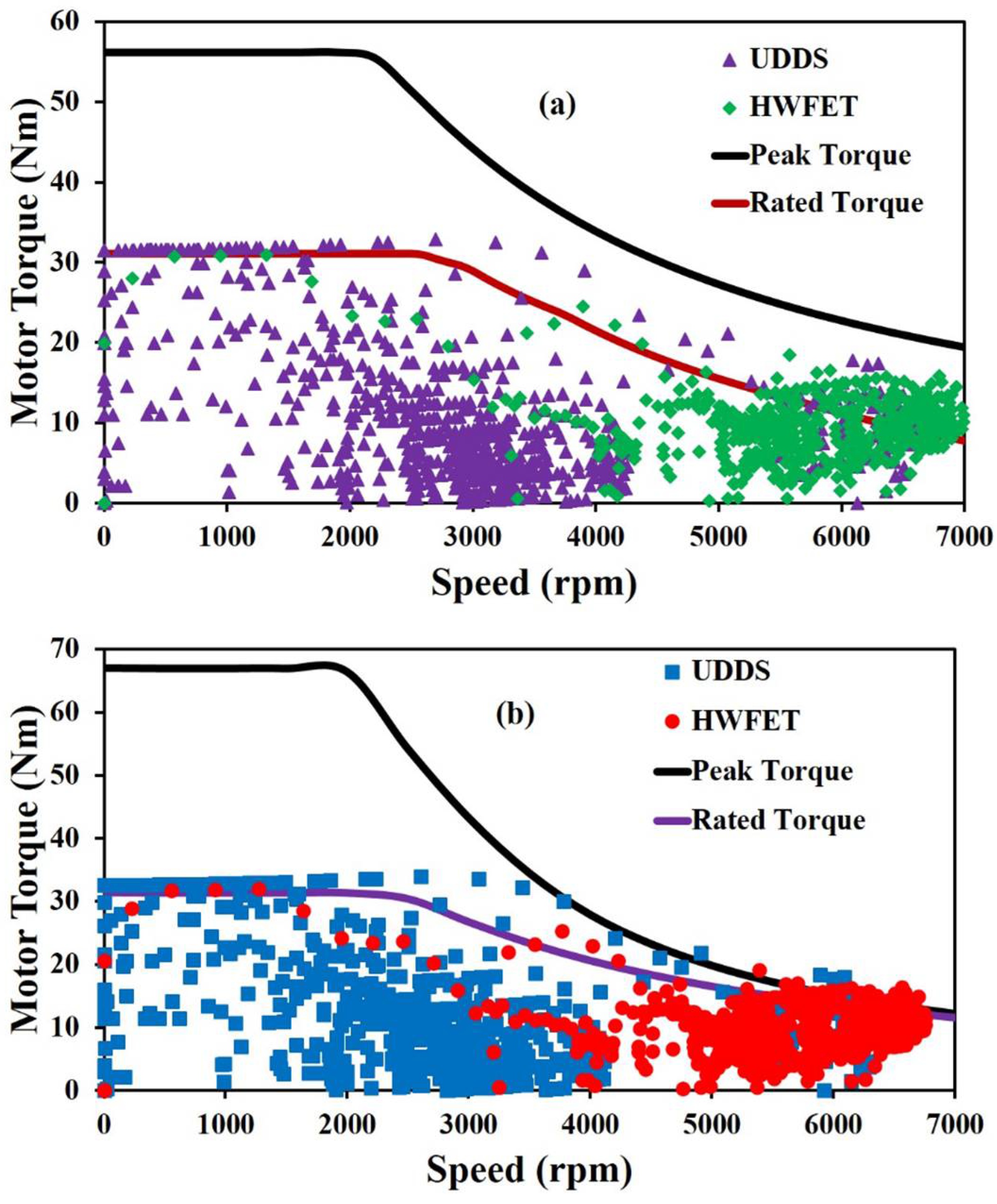

## 6. Comparison of Motor Performance in Driving Cycles

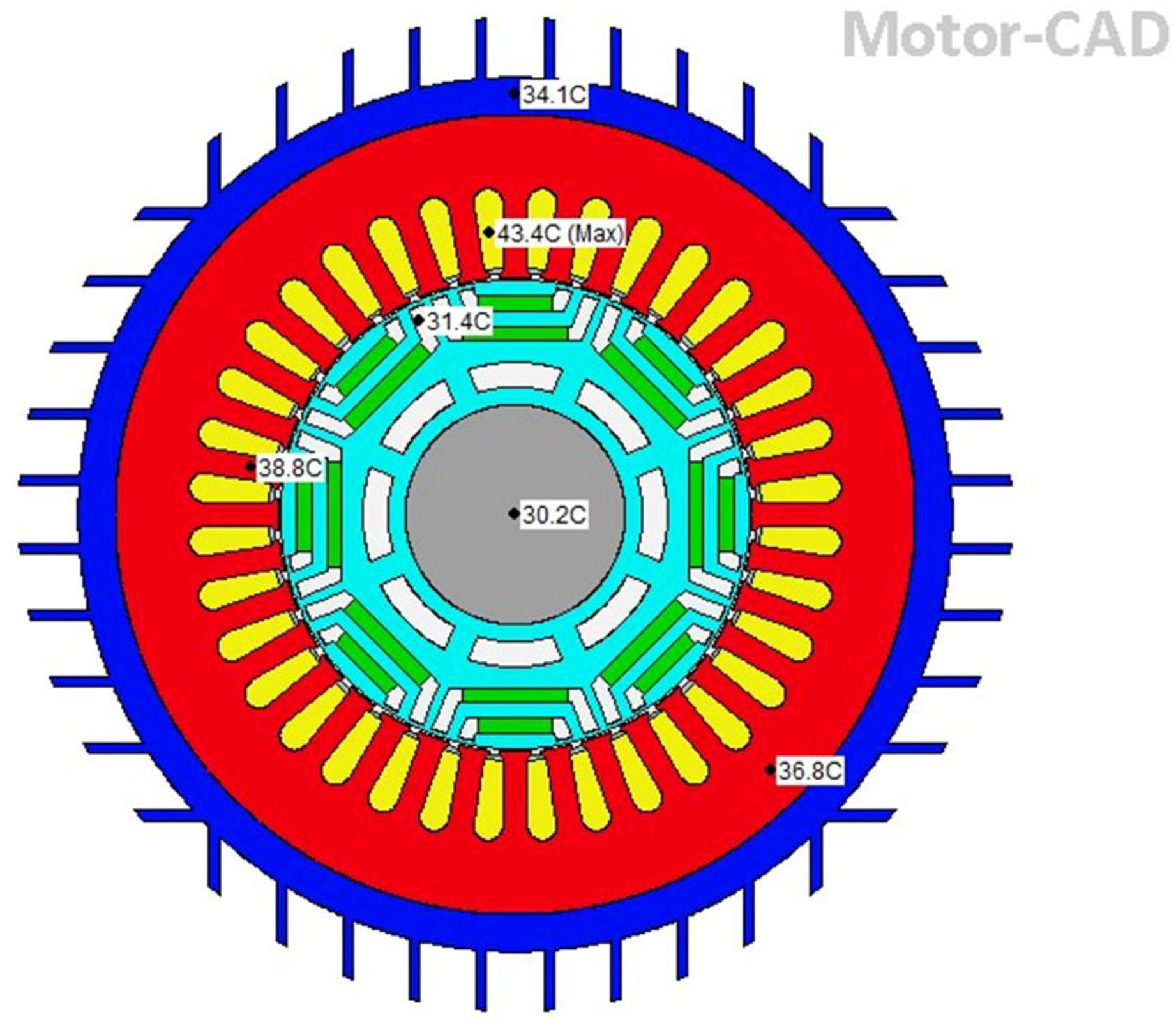

## 7. Thermal Analysis with Driving Cycle

_{rms}/mm

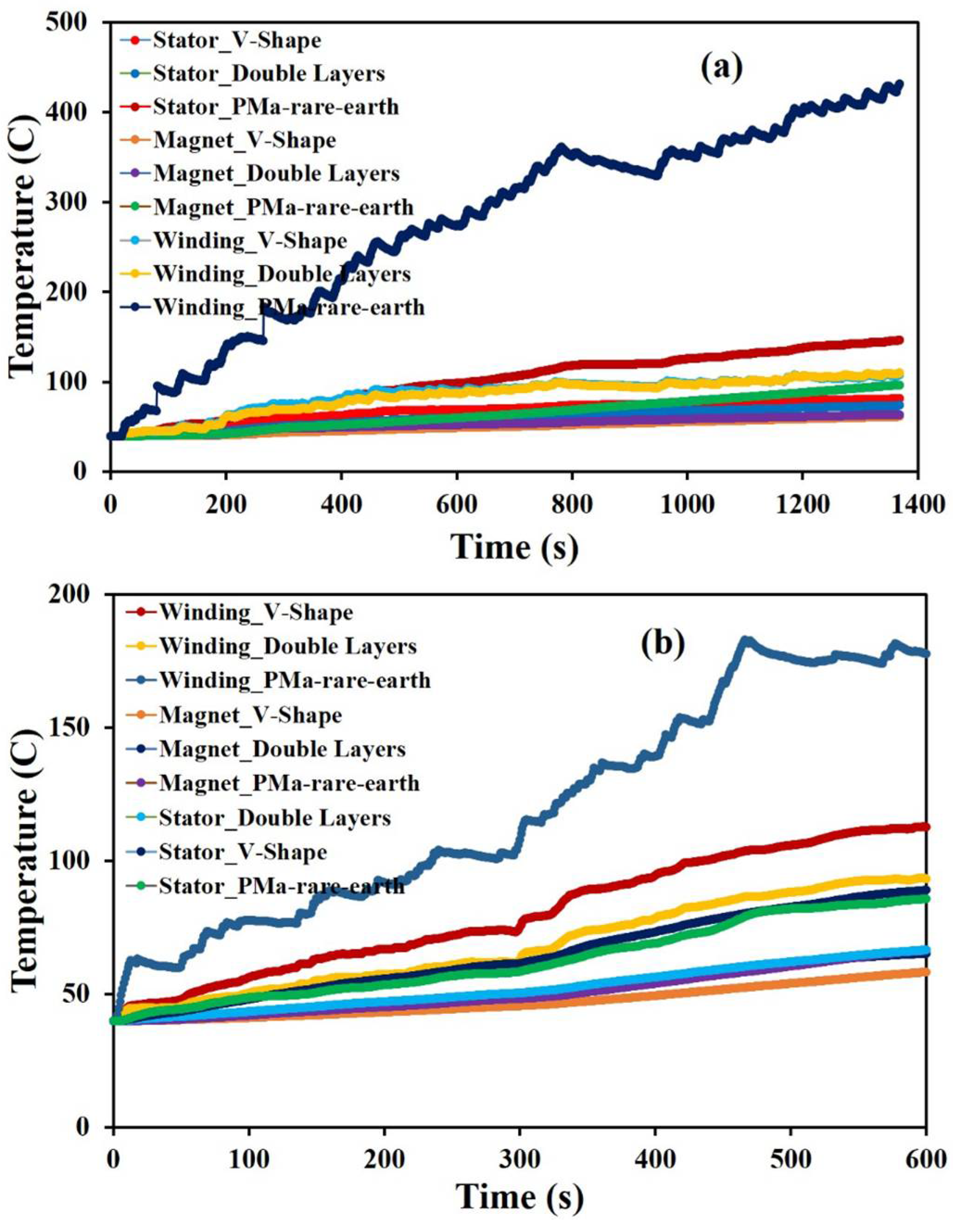

^{2}for peak torque). This is because the phase resistance of the PMa-SynRM is double that of the IPMSMs. Therefore, the PMa-SynRM can only operate about 4 min at the peak condition and about 26 min at the rated condition, while the IPMSM can achieve 8 and 40 min, respectively. Also, the high winding temperature of the PMa-SynRM leads to the high magnet temperature, as shown in Figure 18. The above analysis can also be verified by the simulation results with the driving cycles, as shown in Figure 20, where the winding temperature of the PMa-SynRM is higher than that of IPMSM, and therefore, the IPMSMs can operate more safely than the PMa-SynRM for the driving cycles.

## 8. Discussions

- -
- The IPMSMs possess the benefit of high PM flux linkage, low armature current, and current angle to reach the maximum torque. Meanwhile, the torque of PMa-SynRM is almost derived from the armature current. Therefore, a higher armature current and current angle are applied in order to generate the maximum torque for PMa-SynRM.
- -
- The PMa-SynRM can achieve very high speed at low armature current because the reluctance torque and saliency ratio are higher than that of IPMSMs. In addition, the PMa-SynRM has a higher efficiency at high speed than that of IPMSMs. This is the advantage of PMa-SynRM for high speed application.
- -
- To produce the same power as the IPMSMs, the PMa-SynRM should be designed with a higher motor volume than that of the IPMSM. Moreover, higher electrical loading is needed for the PMa-SynRM, and this can lead to temperature rise that limits the operating range.
- -
- The IPMSMs are more advantageous in urban driving because of their higher performance and efficiency at lower speed.
- -
- The PMa-SynRM is more suitable than the IPMSM in the highway driving cycle in terms of efficiency. However, the design should be improved by slightly increasing the PM amount so that the winding temperature can be brought down and the torque at high speed can be enhanced. This indicates a better design would lie between the two types of motors that are presented in this paper in terms of PM amount that is employed or sharing between the PM and reluctance torques. Moreover, better cooling may be necessary.

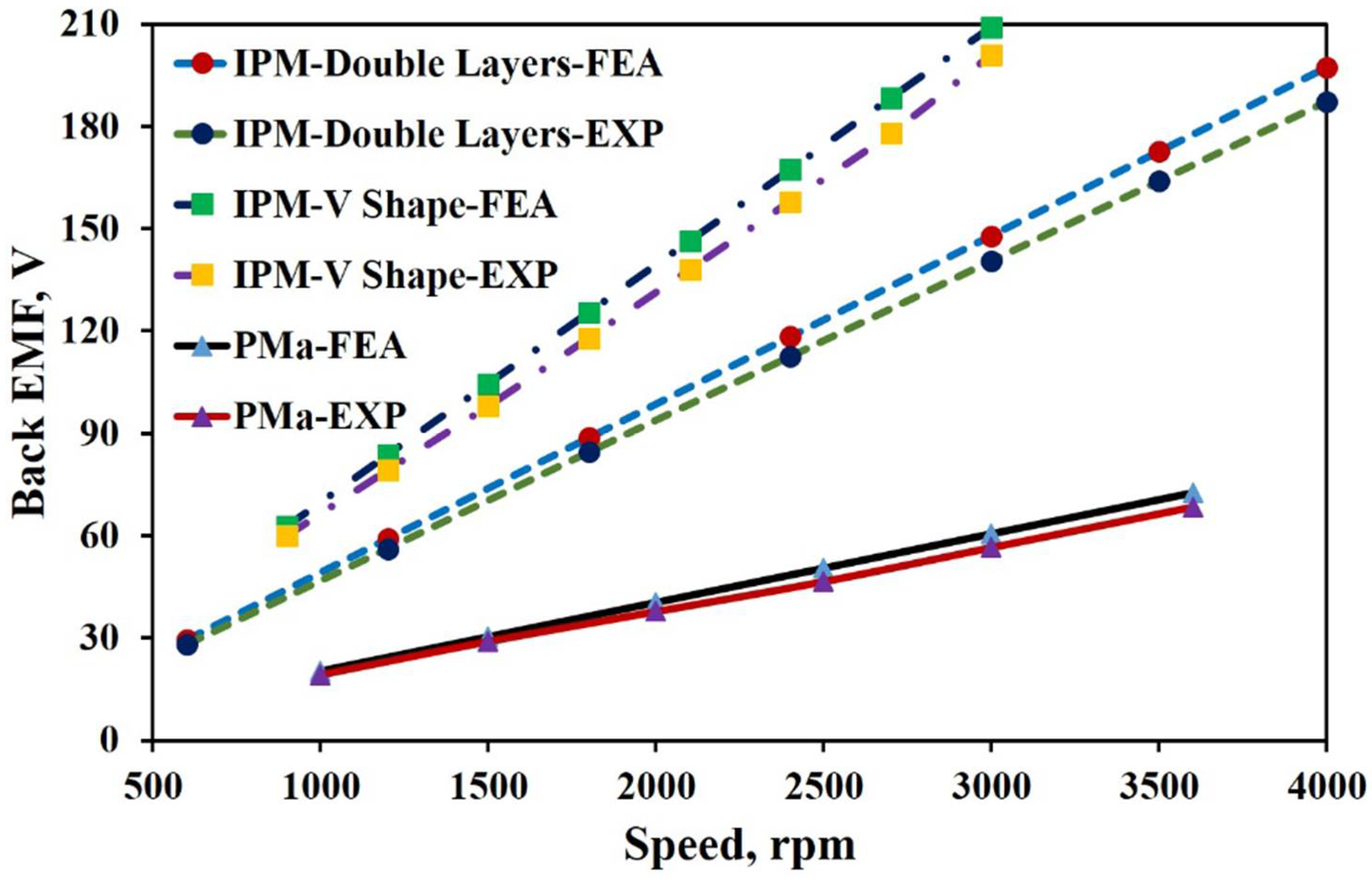

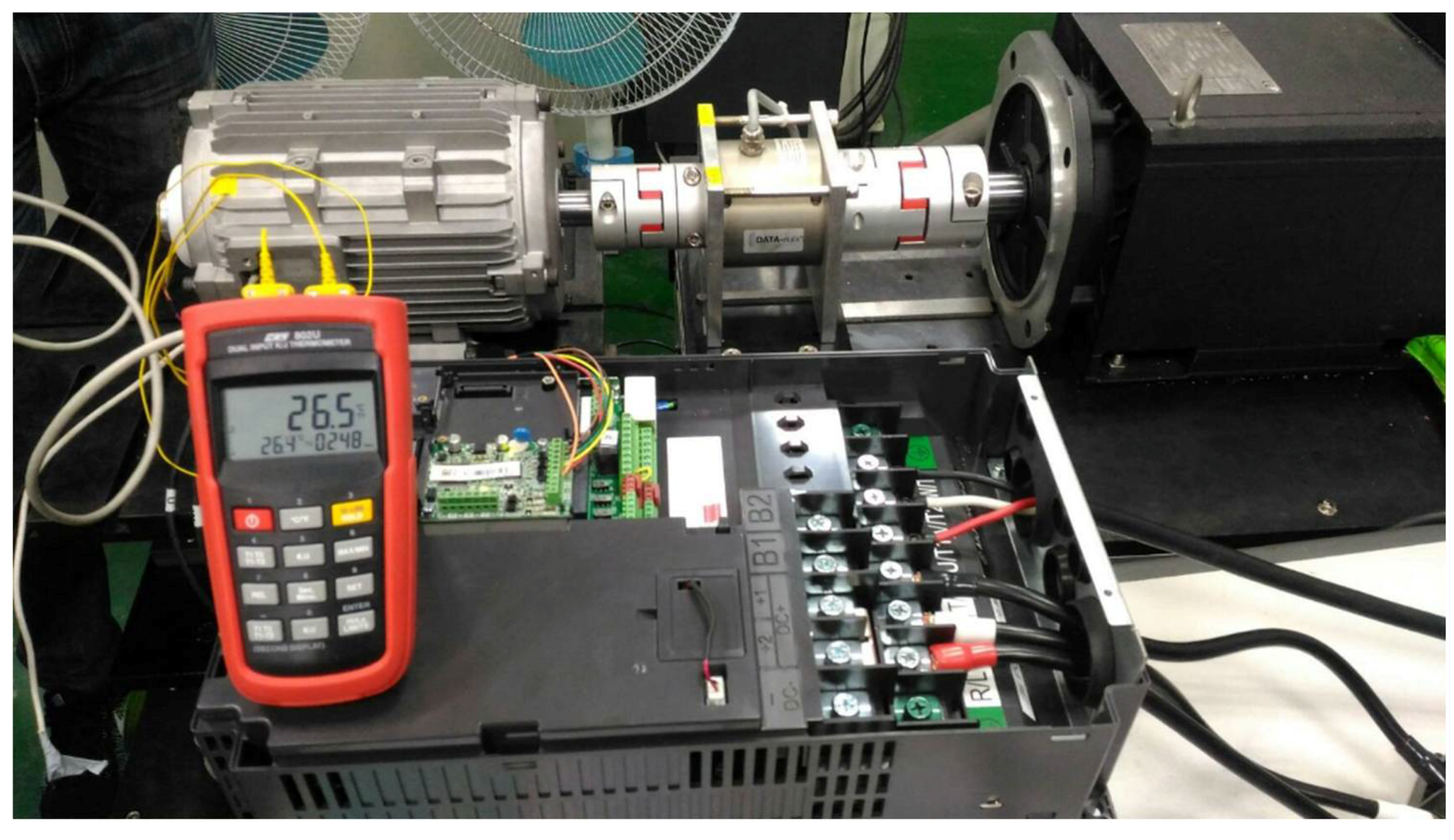

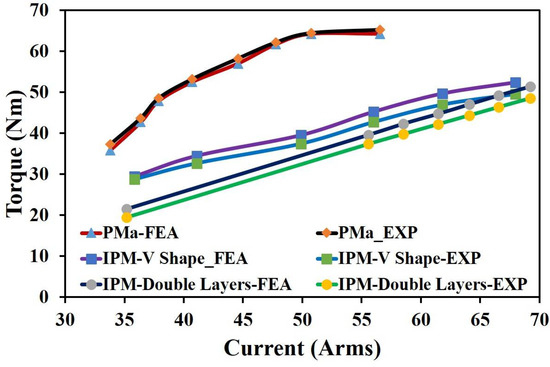

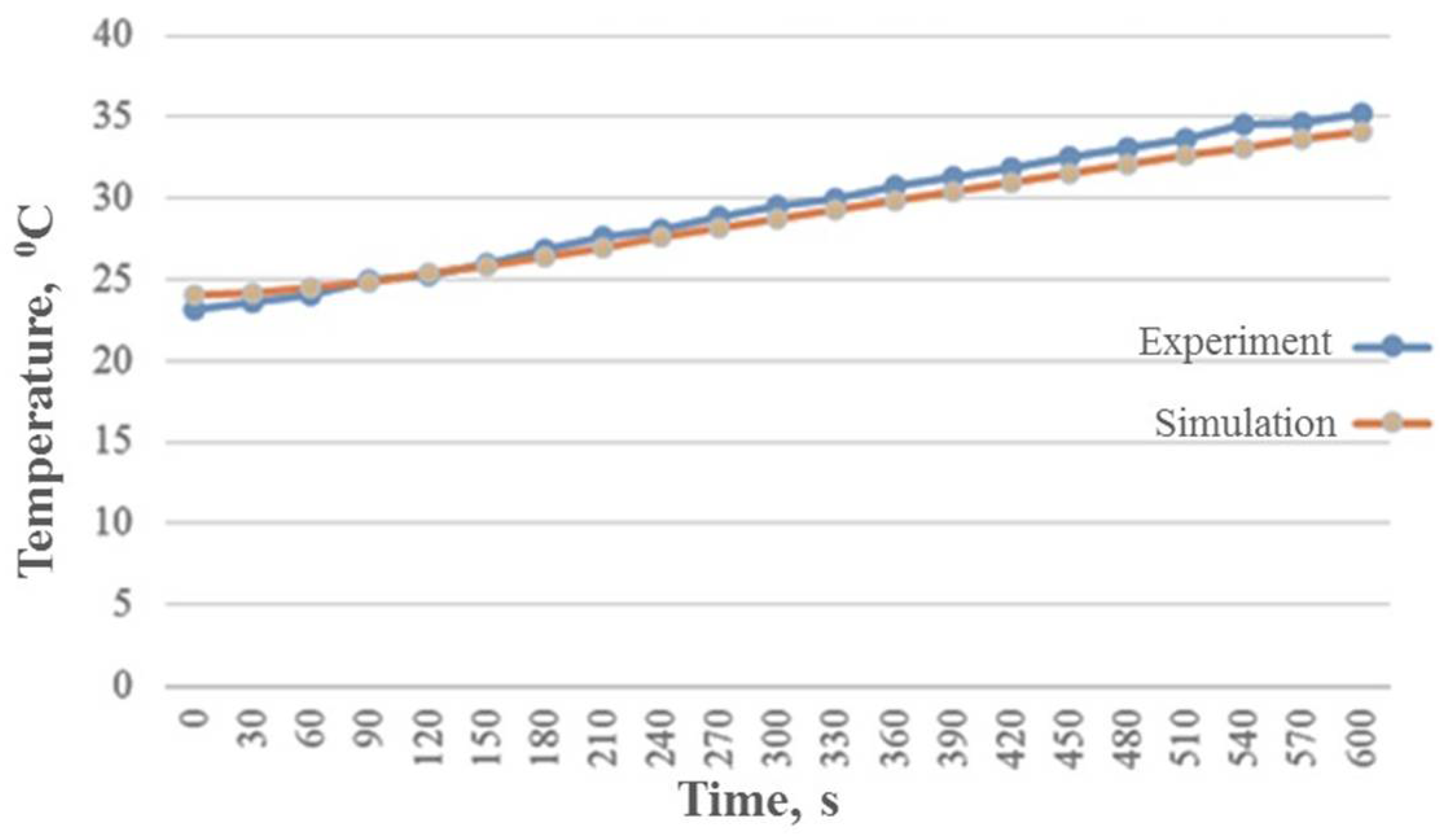

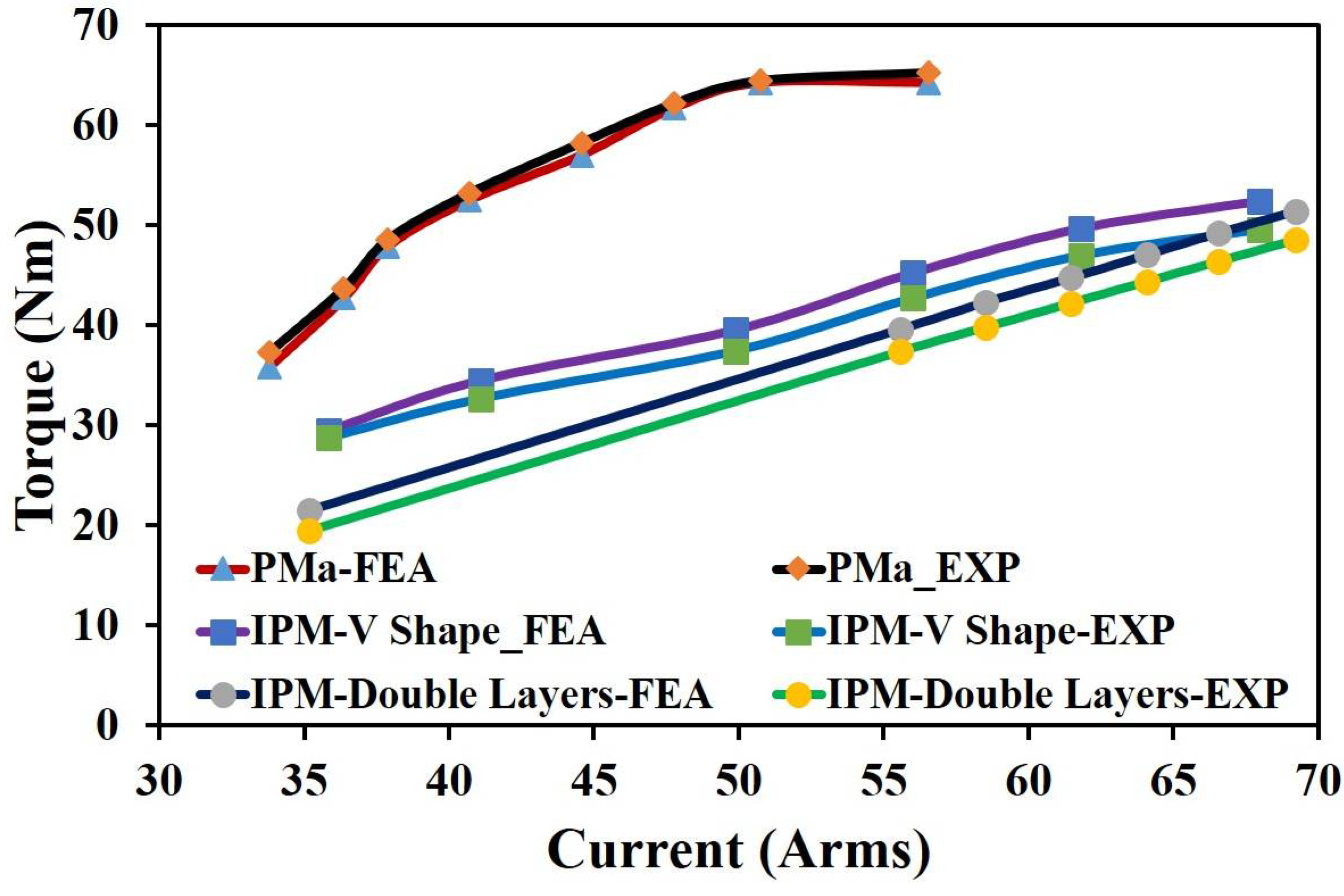

## 9. Experiments

## 10. Conclusions

## Author Contributions

## Acknowledgments

## Conflicts of Interest

## References

- Ruiwu, C.; Chris, M.; Ming, C. Quantitative Comparison of Flux-Switching Permanent-Magnet Motors with Interior Permanent Magnet Motor for EV, HEV, and PHEV Applications. IEEE Trans. Magn.
**2012**, 48, 2374–2384. [Google Scholar] [CrossRef] - Won, H.; Hong, Y.K.; Lee, W.; Choi, M. Roles of coercivity and remanent flux density of permanent magnet in interior permanent magnet synchronous motor (IPMSM) performance for electric vehicle applications. AIP Adv.
**2018**, 8. [Google Scholar] [CrossRef] - Mounir, Z.; Mohamed, B.; Demba, D. Electric Motor Drive Selection Issues for HEV Propulsion Systems: A Comparative Study. IEEE Trans. Veh. Technol.
**2006**, 55, 1756–1764. [Google Scholar] [CrossRef] [Green Version] - Wu, W.; Zhu, X.; Quan, L.; Du, Y.; Xiang, Z.; Zhu, X. Design and Analysis of a Hybrid Permanent Magnet Assisted Synchronous Reluctance Motor Considering Magnetic Saliency and PM Usage. IEEE Trans. Appl. Supercond.
**2018**, 28, 1–6. [Google Scholar] [CrossRef] - Huynh, T.A.; Hsieh, M.-F. Comparative Study of PM-Assisted SynRM and IPMSM on Constant Power Speed Range for EV Applications. IEEE Trans. Magn.
**2017**, 53, 1–6. [Google Scholar] [CrossRef] - Wang, J.; Yuan, X.; Kais, A. Design Optimization of a Surface-Mounted Permanent-Magnet Motor with Concentrated Windings for Electric Vehicle Applications. IEEE Trans. Veh. Technol.
**2013**, 62, 1053–1064. [Google Scholar] [CrossRef] - Degano, M.; Carraro, E.; Bianchi, N. Robust Optimization of a Traction PMASR Motor according to a Given Driving Cycles. In Proceedings of the IEEE International Conference on Electrical Machines (ICEM), Berlin, Germany, 2–5 September 2014; pp. 270–276. [Google Scholar] [CrossRef]
- Carraro, E.; Morandin, M.; Bianchi, N. Traction PMASR Motor Optimization according to a Given Driving Cycle. IEEE Trans. Ind. Appl.
**2016**, 52, 209–216. [Google Scholar] [CrossRef] - Nguyen, P.H.; Hoang, E.; Gabsi, M. Performance Synthesis of Permanent-Magnet Synchronous Machines during the Driving Cycle of a Hybrid Electric Vehicle. IEEE Trans. Veh. Technol.
**2011**, 60, 1991–1997. [Google Scholar] [CrossRef] - Sarigiannidis, A.G.; Beniakar, M.E.; Kladas, A.G. Fast Adaptive Evolutionary PM Traction Motor Optimization Based on Electric Vehicle Drive Cycle. IEEE Trans. Veh. Technol.
**2017**, 66, 5762–5774. [Google Scholar] [CrossRef] - Sarigiannidis, A.G.; Beniakar, M.E.; Kakosimos, P.E.; Kladas, A.G. Performance Evaluation and Thermal Analysis of Interior Permanent Magnet Traction Motor over a Wide Load Range. In Proceedings of the IEEE International Conference on Electrical Machines (ICEM), Lausanne, Switzerland, 4–7 September 2016; pp. 2662–2668. [Google Scholar] [CrossRef]
- Yang, Y.P.; Shih, G.Y. Optimal Design of an Axial-Flux Permanent-Magnet Motor for an Electric Vehicle Based on Driving Scenarios. Energies
**2016**, 9, 285. [Google Scholar] [CrossRef] - Gu, W.; Zhu, X.-Y.; Li, Q.; Yi, D. Design and Optimization of Permanent Magnet Brushless Machines for Electric Vehicle Applications. Energies
**2015**, 8, 13996–14008. [Google Scholar] [CrossRef] - Glowacz, A.; Glowacz, Z. Diagnosis of the three-phase induction motor using thermal imaging. Infrared Phys. Technol.
**2017**, 81, 7–16. [Google Scholar] [CrossRef] - Glowacz, A.; Glowacz, Z. Diagnostics of stator faults of the single-phase induction motor using thermal images, MoASoS and selected classifiers. Measurement
**2016**, 93, 86–93. [Google Scholar] [CrossRef] - United States Environmental Protection Agency, EPA Emission Standards for Light-Duty Vehicles and Trucks. Available online: https://www.epa.gov/emission-standards-reference-guide/epa-emission-standards-light-duty-vehicles-and-trucks (accessed on 30 April 2018).
- Liu, X.; Chen, H.; Zhao, J.; Belahcen, A. Research on the Performances and Parameters of Interior PMSM Used for Electric Vehicles. IEEE Trans. Ind. Electron.
**2016**, 63, 3533–3545. [Google Scholar] [CrossRef] - Liu, C.T.; Chung, H.Y.; Lin, S.Y. On the electromagnetic steel selections and performance impact assessments of synchronous reluctance motors. IEEE Trans. Ind. Appl.
**2017**, 53, 2569–2577. [Google Scholar] [CrossRef] - Huynh, T.A.; Hsieh, M.-F. Performance Evaluation of Interior Permanent Magnet Motors Using Thin Electrical Steels. IEEJ J. Ind. Appl.
**2017**, 6, 422–428. [Google Scholar] [CrossRef] - Yuan, X.; Wang, J. Torque Distribution Strategy for a Front- and Rear-Wheel-Driven Electric Vehicle. IEEE Trans. Veh. Technol.
**2012**, 61, 3365–3374. [Google Scholar] [CrossRef] - Soong, W.L.; Ertugrul, N. Field weakening performance of interior permanent magnet motors. IEEE Trans. Ind. Appl.
**2002**, 38, 1251–1258. [Google Scholar] [CrossRef] - Guglielmi, P.; Boazzo, B.; Armando, E.; Pellegrino, G.; Vagati, A. Permanent-magnet minimization in PM-assisted synchronous reluctance motors for wide speed range. IEEE Trans. Ind. Appl.
**2013**, 49, 31–41. [Google Scholar] [CrossRef]

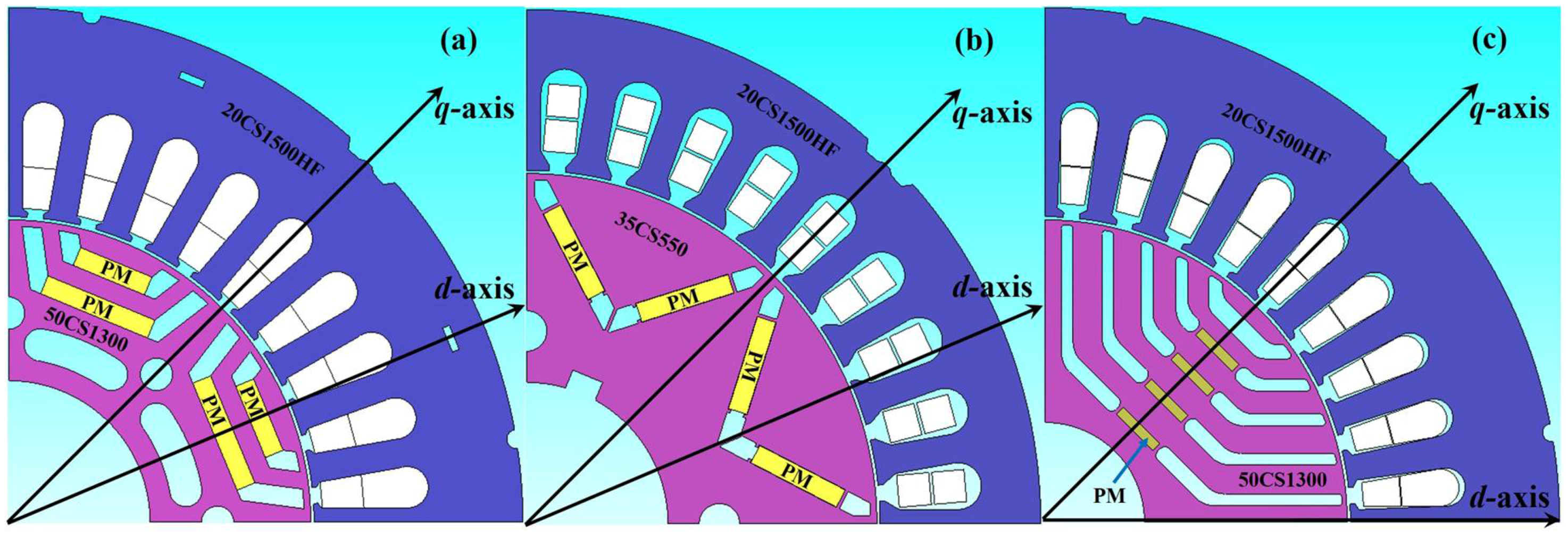

**Figure 1.**Traction motors using rare-earth permanent magnet (PM): (

**a**) double-layers interior permanent magnet synchronous machines (IPMSM). Rotor material: 50CS1300. Stator material: 25CS1500HF; (

**b**) V-shaped IPMSM. Rotor material: 35CS550. Stator material: 25CS1500HF; and, (

**c**) PM-assisted synchronous reluctance motors (PMa-SynRM). Rotor material: 50CS1300. Stator material: 25CS1500HF. Permanent magnet: NdFeB-N35H, B

_{r}= 1.2T @ 20 °C, H

_{c}= 915 kA/m. All of the cases are distributed windings.

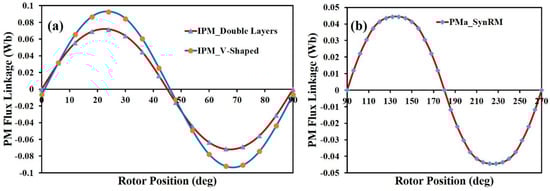

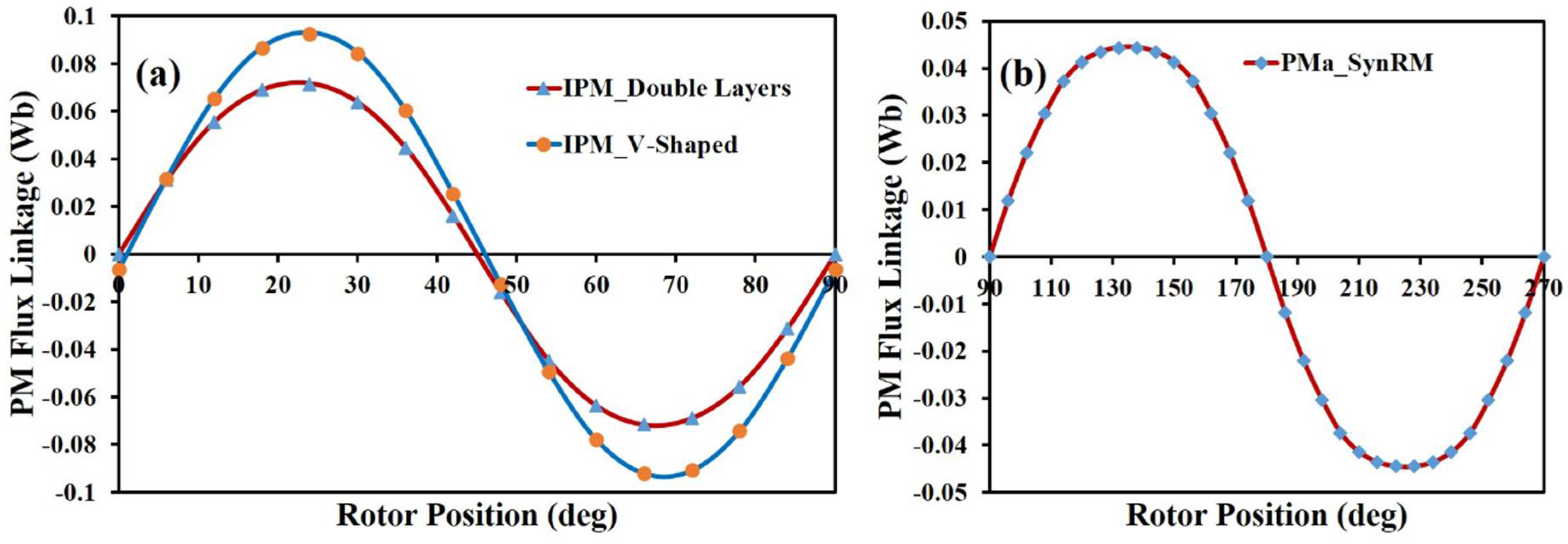

**Figure 4.**Comparison of PM flux linkage of IPMSM and PMa-SynRM: (

**a**) IPMSM and (

**b**) PMa-SynRM. Reference angle starts from q-axis.

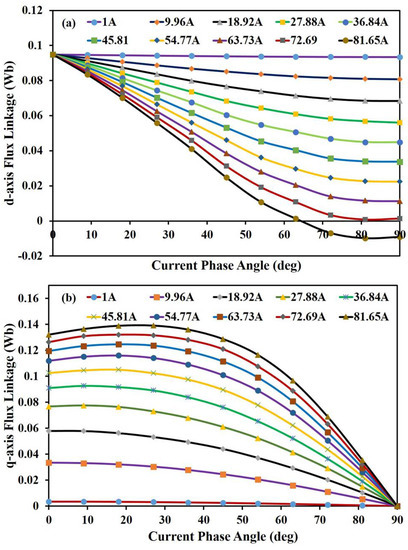

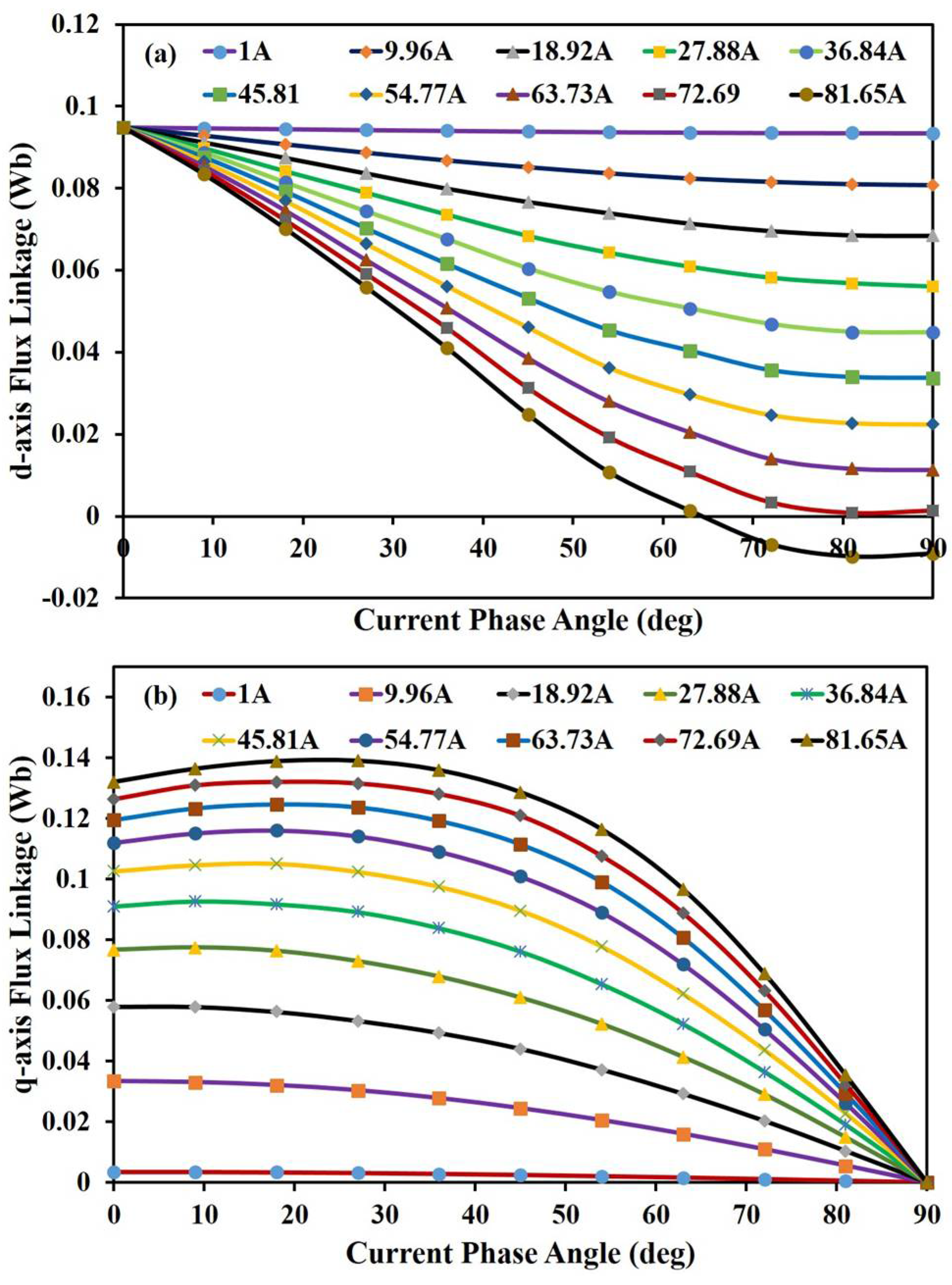

**Figure 8.**Flux linkage variations on (

**a**) d- and (

**b**) q-axis of IPMSM with respect to current and current angle.

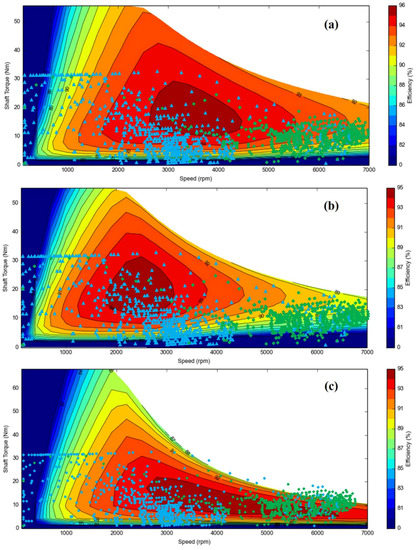

**Figure 15.**Efficiency map of IPMSMs and PMa-SynRM over the driving cycles: (

**a**) double layers magnet IPMSM, (

**b**) v-shaped magnets IPMSM, and (

**c**) PMa-SynRM.

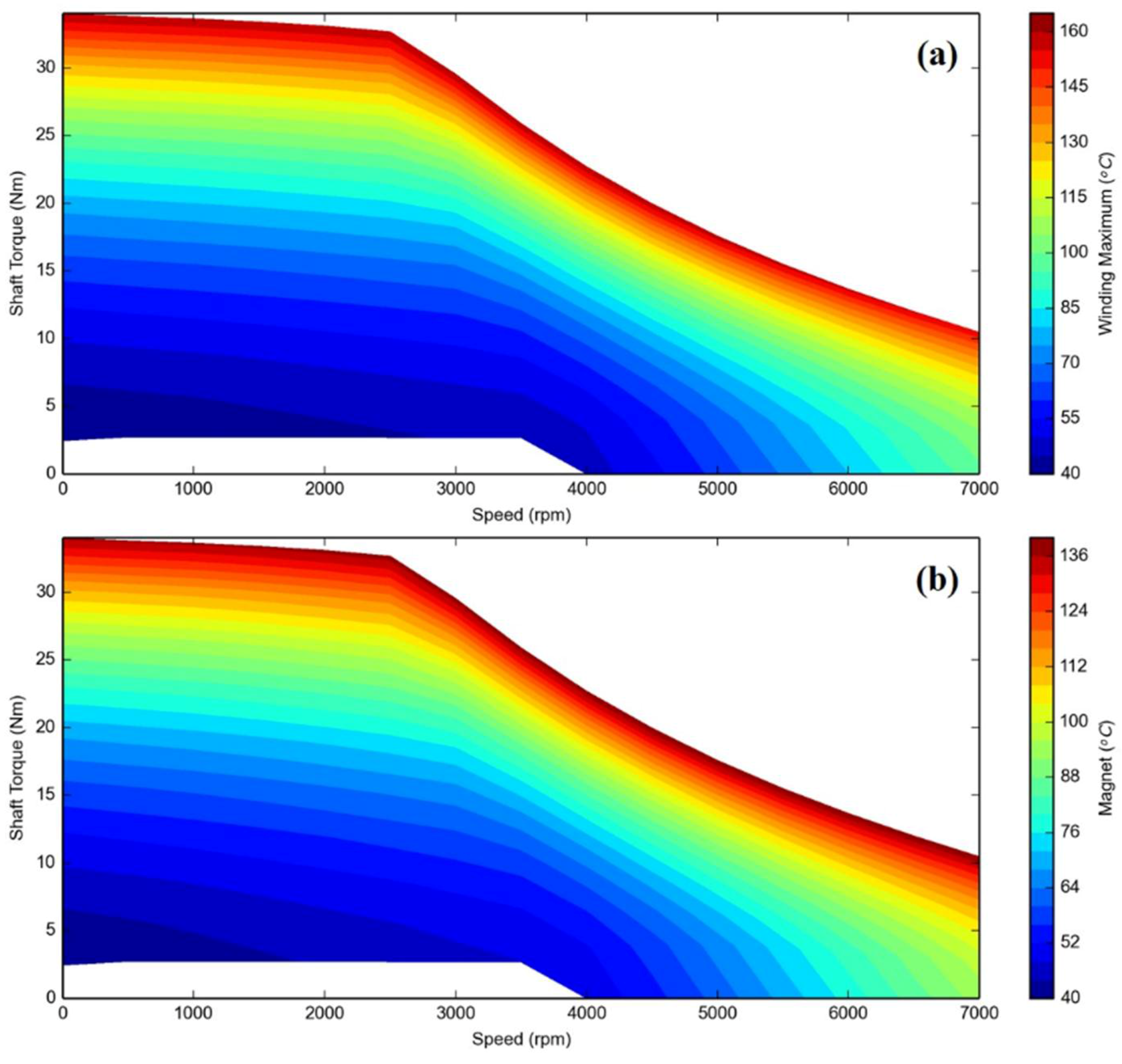

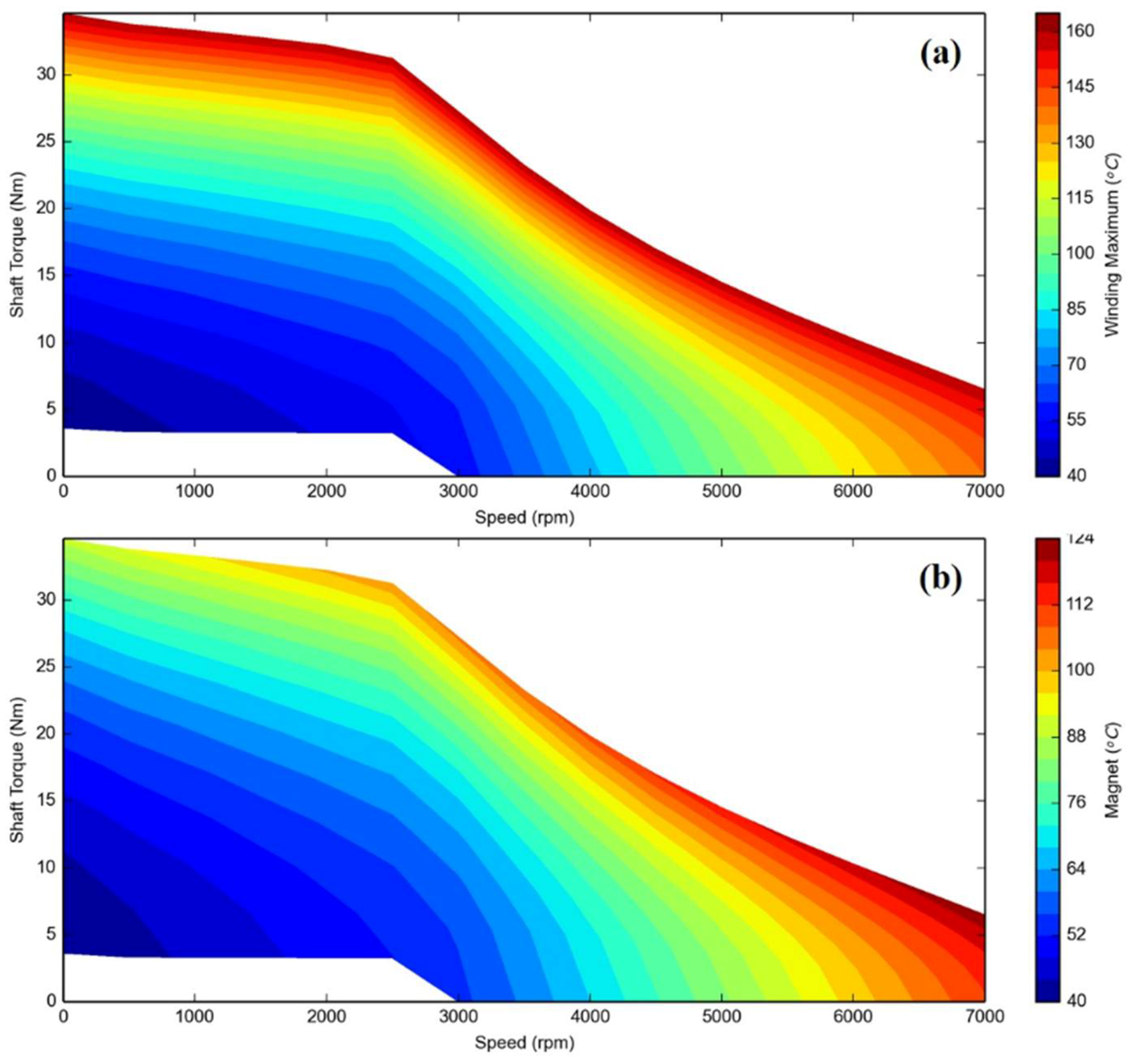

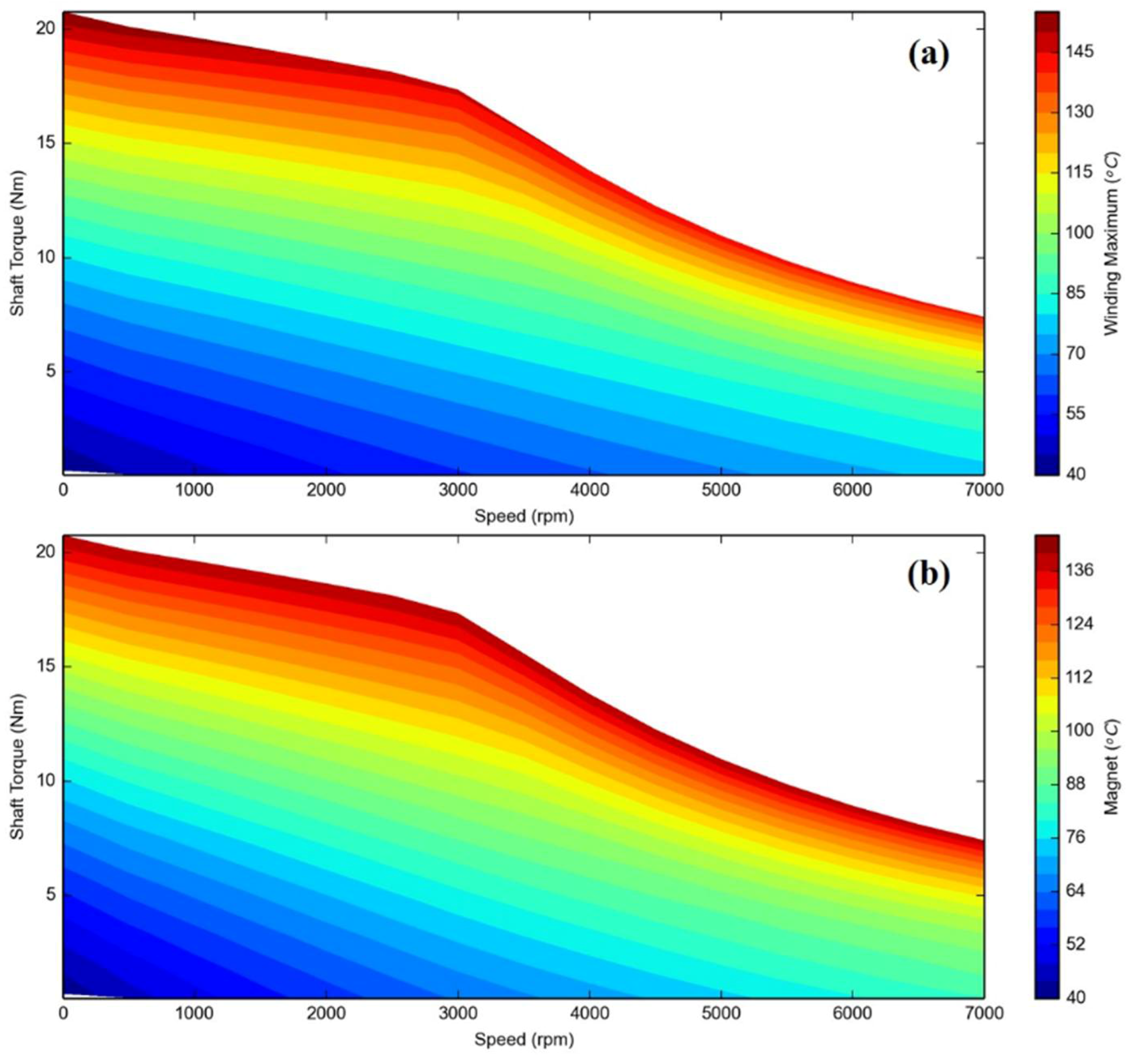

**Figure 16.**The temperature distribution profiles for (

**a**) winding and (

**b**) magnet of double-layer IPMSM.

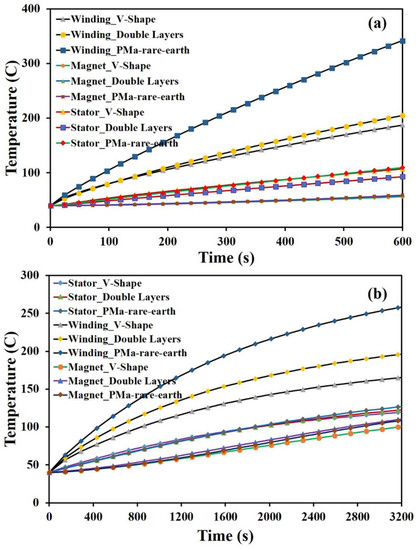

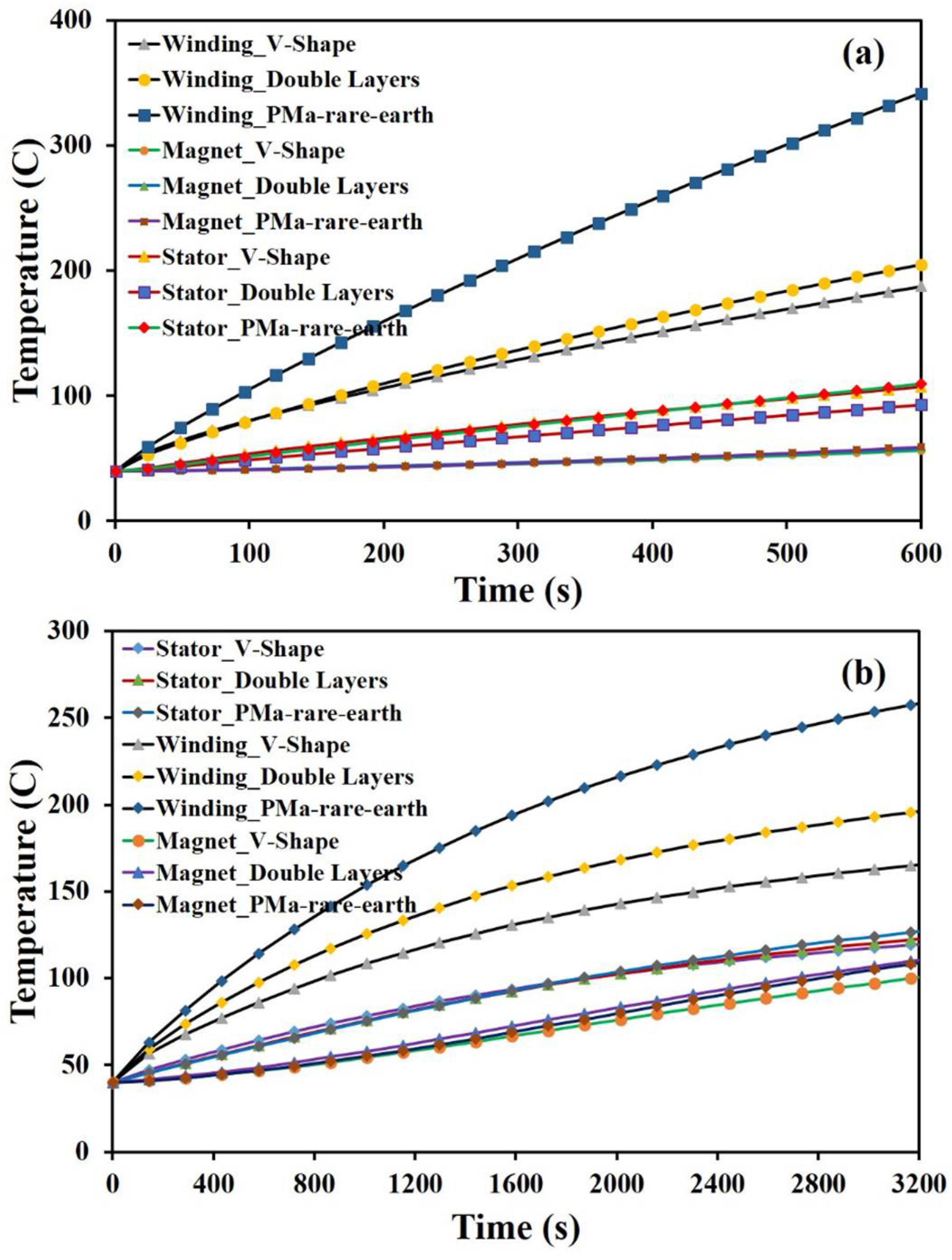

**Figure 19.**The temperature rise for winding and magnet: (

**a**) peak; and, (

**b**) rated/continuous operations.

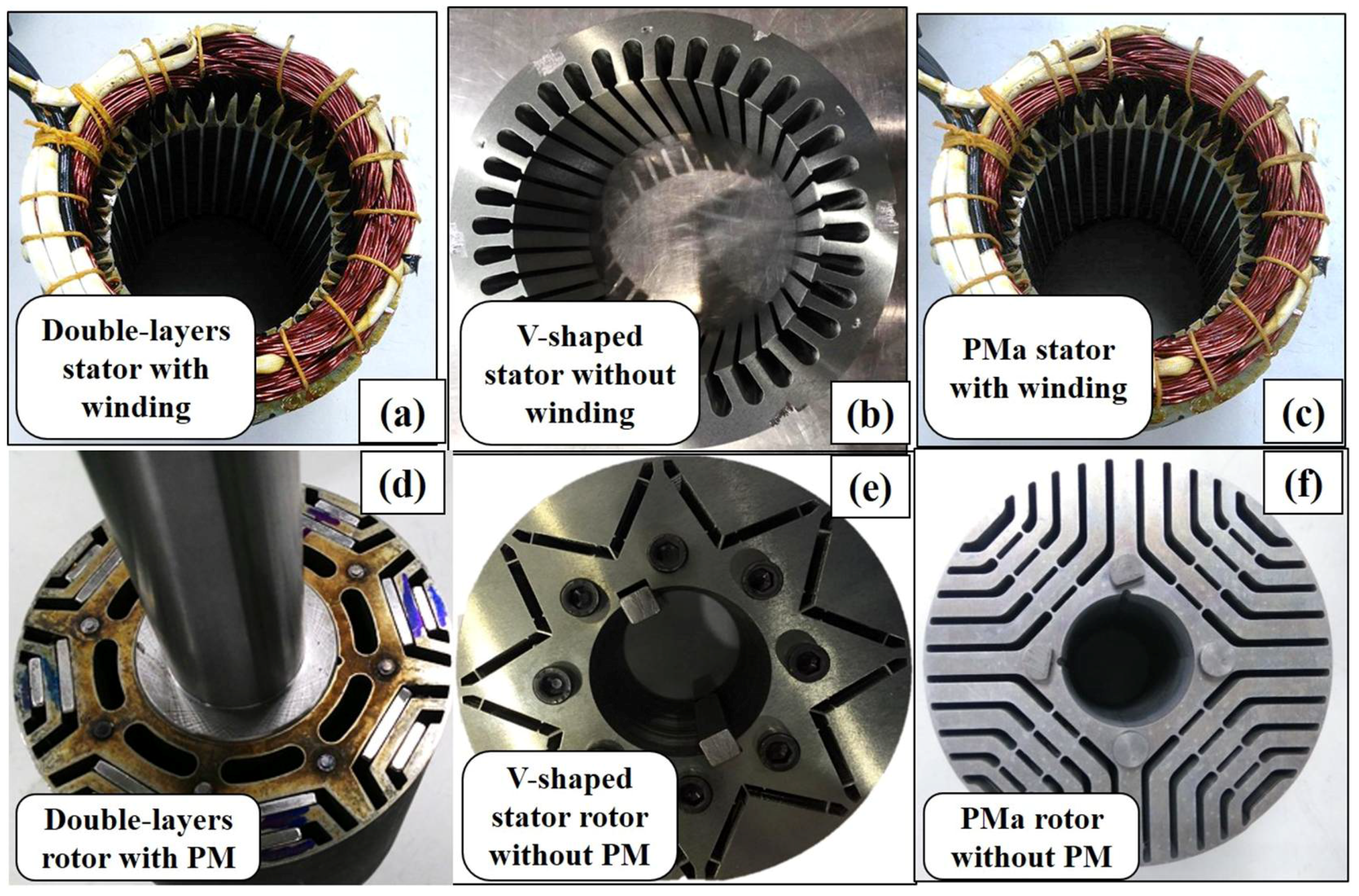

**Figure 21.**Prototypes of IPMSMs and PMa-SynRM: (

**a**) stator of double-layers IPMSM with winding, (

**b**) stator of V-Shaped IPMSM without winding, (

**c**) stator of PMa-SynRM with winding, (

**d**) rotor of double-layers IPMSM with PM, (

**e**) rotor of V-shaped IPMSM without PM, and (

**f**) rotor of PMa-SynRM without PM.

**Figure 23.**Torque-power vs speed curve at rated condition: (

**a**) double layers IPMSM, (

**b**) V-Shaped IPMSM, and (

**c**) PMa-SynRM.

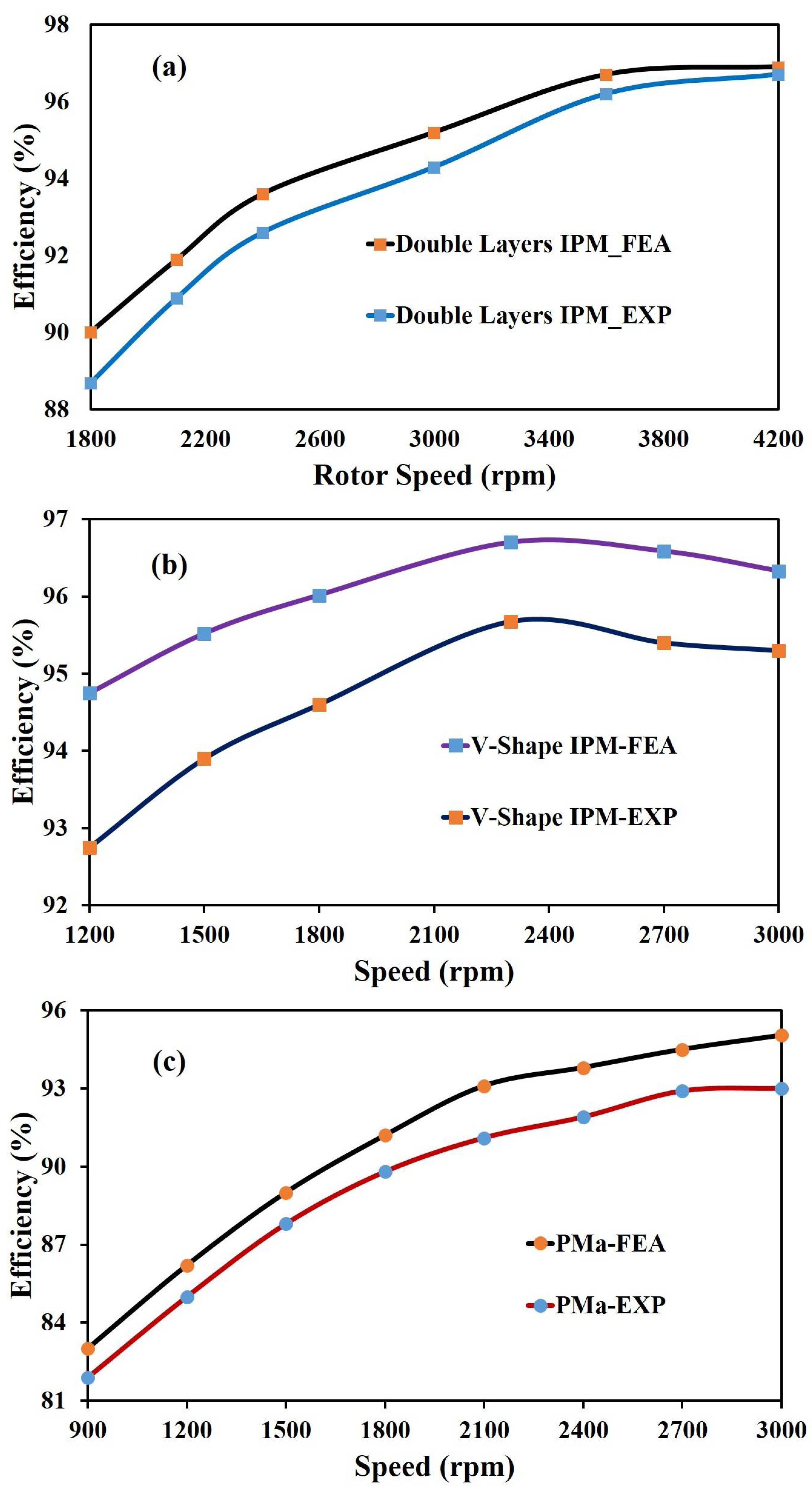

**Figure 24.**Efficiency vs speed curve at rated condition: (

**a**) double layers IPMSM, (

**b**) V-Shaped IPMSM, and (

**c**) PMa-SynRM.

Parameter (Unit) | Double Layers | V-Shaped | PMa-SynRM |
---|---|---|---|

Max. power (kW) | 10 | 10 | 10 |

Max. torque (Nm) | 56 | 56 | 65 |

Max. speed (rpm) | 7000 | 7000 | 7000 |

Rated power (kW) | 6.6 | 6.6 | 6.6 |

Rated torque (Nm) | 30 | 30 | 30 |

Base speed @ maximum torque (rpm) | ≥1800 | ≥1800 | ≥1500 |

Base speed @ rated torque (rpm) | ≥2100 | ≥2100 | ≥2100 |

No. of slots | 36 | 36 | 36 |

No. of poles | 8 | 8 | 4 |

No. of turns | 4 | 5 | 6 |

Max. current (A) | 110 | 100 | 80 |

Outer rotor diameter (mm) | 94 | 109 | 94 |

Stack length (mm) | 86 | 90 | 120 |

Coil pitch | 4 | 3 | 9 |

PM amount per pole (mm^{3}) | 7740 | 8100 | 5760 |

Current density @ rated torque (A/mm^{2}) | 8.3 | 8.3 | 8.3 |

Parameter (Unit) | Value |
---|---|

Radius of wheels (m) | 0.265 |

Vehicle mass (kg) | 950 |

Mass correction coefficient | 1.04 |

Gravitational acceleration (m/s^{2}) | 9.8 |

Rolling resistance coefficient | 0.011 |

Air mass density (kg/m^{3}) | 1.225 |

Aerodynamic drag coefficient | 0.4 |

Vehicle frontal area (m^{2}) | 2.14 |

Differential gear ratio | 7 |

Battery pack nominal voltage (V) | 310 |
