Energies 2018, 11(10), 2669; https://doi.org/10.3390/en11102669

A Joint Planning Method for Substations and Lines in Distribution Systems Based on the Parallel Bird Swarm Algorithm

1
Economic & Technology Research Institute, State Grid Shandong Electric Power Company, Jinan 250021, China
2
School of Electrical Engineering, Zhejiang University, Hangzhou 310027, China
3
State Grid Shandong Electric Power Research Institute, Jinan 250002, Shandong, China
*
Author to whom correspondence should be addressed.
Received: 16 September 2018 / Revised: 28 September 2018 / Accepted: 30 September 2018 / Published: 8 October 2018
(This article belongs to the Section Electrical Power and Energy System)
Full-Text   |   PDF [2143 KB, uploaded 9 October 2018]   |

Abstract

Reasonable distribution network planning schemes can not only improve the power quality and power supply capacity of the power system, but also increase the economic benefits and welfare of the whole society. In this work, a bi-level optimization model is proposed for the joint planning of substations and lines in looped urban distribution systems. The upper-level model aims to address the substation locating and sizing problem, whereas the lower-level model the network planning problem. Both the substations directly supplying power to a load and the contralateral substations that act as backup power source to the load are considered in the bi-level model. In order to solve the bi-level planning model which is mathematically mixed integer programing and with plenty of continuous and discrete variables, the bird swarm algorithm is improved and applied based on the idea of parallel computing of big data theory. Simulations on actual planning problems are employed to verify the effectiveness of the proposed bi-level distribution network planning model and the parallel bird swarm algorithm. View Full-Text
Keywords: distribution network planning; bi-level optimization; bird swarm algorithm; master-slave architecture distribution network planning; bi-level optimization; bird swarm algorithm; master-slave architecture
Figures

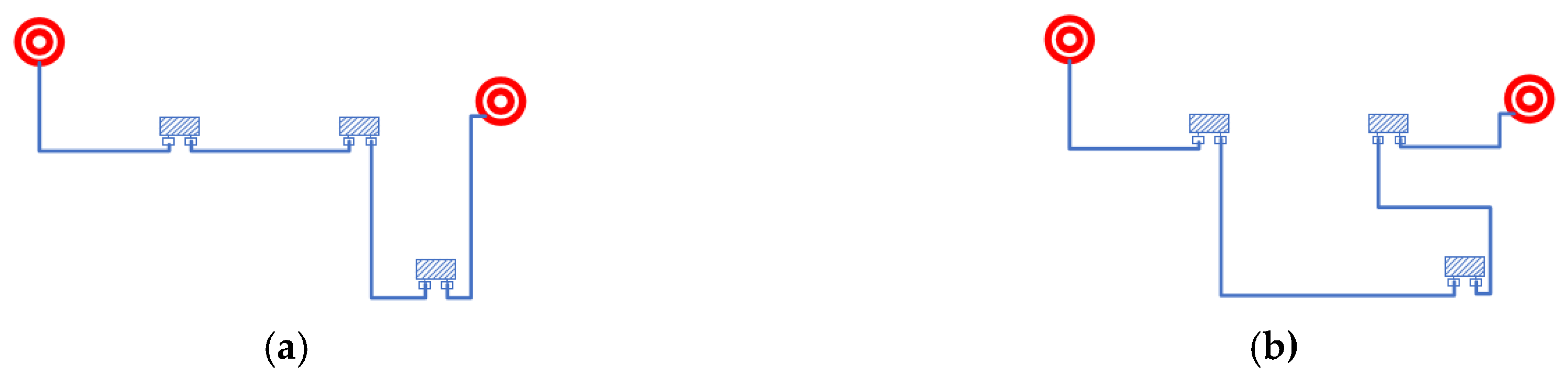

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Wu, K.; Li, K.; Liang, R.; Ma, R.; Zhao, Y.; Wang, J.; Qi, L.; Liu, S.; Han, C.; Yang, L.; Huang, M. A Joint Planning Method for Substations and Lines in Distribution Systems Based on the Parallel Bird Swarm Algorithm. Energies 2018, 11, 2669.
