Numerical Investigation of the Chemical Effect and Inhibition Effect Improvement of C₃H₂F₃Br (2-BTP) Using the Perfectly Stirred Reactor Model

Abstract

The overall chemical rate and chemical effect of CF₃Br, 2-BTP and 2-BTP/CO₂ with hydrocarbon flames are calculated using the perfectly stirred reactor (PSR) model. The chemical effects of CF₃Br with CH₄/air flames always inhibit combustion. The chemical saturation concentration of CF₃Br in stoichiometric and lean (Φ = 0.6) CH₄/air flames at 298 K and 1 bar is roughly 2.5% and 0.8%, respectively. The overall chemical rate of 2-BTP with moist C₃H₈/air flames is always less than the uninhibited condition and fluctuates with sub-inerting agent additions. The net chemical effect variation of 2-BTP is more complicated than experimented and calculated flame speeds with 2-BTP added to lean hydrocarbon flames. There are negative chemical effects (chemical combustion effects) with certain sub-inerting 2-BTP concentrations (0.015 ≤ Xa ≤ 0.034), which result in the experimented unwanted combustion enhancement in lean moist C₃H₈/air flames. CO₂ can obviously improve the inhibition effect of 2-BTP in lean moist C₃H₈/air flames, driving negative chemical effects (enhance combustion) into positive chemical effects (inhibit combustion) with lean moist C₃H₈/air flames. No enhanced combustion would occur with the blends (2-BTP/CO₂) when CO₂ addition is larger than 4% in Φ = 0.6 moist C₃H₈/air flames at 298 K and 1 bar.

1. Introduction

Numerous efforts have been made to develop new halon alternatives due to the Montreal Protocol of banning the effective fire suppressant CF₃Br. As one of the most promising halon alternatives, CF₃CBrCH₂ (2-BTP) has a double bond, which can be decomposed into inhibiting species (mostly Br, HBr and CF₃) as CF₃Br [1]. The double bond lowers both global warming potential (GWP) and ozone depletion potential (ODP) but increases flammability at the same time [2]. The inhibition effectiveness of 2-BTP is comparable with CF₃Br, and more efficient than that of hydrofluorocarbon (HFCs). However, many researchers found the unwanted promotion effect caused by 2-BTP added to lean hydrocarbon air flames.

2-BTP failed the US Federal Aviation Administration (FAA) aerosol can test (FAA-ACT) [3] and caused overpressure rise when added in sub-inerting concentrations. In subsequent studies, many numerical and experimental investigations have been performed aiming at further understanding the properties of 2-BTP. Linteris et al. simulated the conditions of the FAA-ACT test and found that the high pressure rise with added 2-BTP only occurred when a large fraction of the available oxidizer in the chamber was consumed, corresponding to the agent added to lean fuel-air [4]. Babushok et al. studied the combustion properties of halogenated fire suppressants [5] and calculated that approximate peak burning velocities of the pure 2-BTP-air flames were 1.15 cm/s, 2.15 cm/s, and 3.5 cm/s for initial mixture temperatures of 300 K, 400 K, and 500 K, respectively [1]. Afterwards, Linteris et al. found when compressively preheated, 2-BTP/air mixture can support low-strain flames which are much more difficult to extinguish [6]. Pagliaro et al. measured the laminar burning velocity of 2-BTP experimentally. They found 2-BTP increases the maximum explosion pressure when added to lean mixtures for constant volume combustion [7]. They further identified that 2-BTP failed to reduce burning velocity effectively at lean conditions due to the fuel-components (C_xH_y) of the 2-BTP, which considerably shifted overall equivalence ratio φ_overall shift toward rich conditions [8]. Xu et al. used the counterflow technique to measure unstretched flame speeds and the extinction stretch rate of premixed and non-premixed hydrocarbon flames. They found 2-BTP to be less effective at reducing the flame speeds of the lean flames as compared to that of the rich flames [9].

Most previous studies have been concentrated on the determination of enhanced combustion effect of 2-BTP when added to lean hydrocarbon flames. Although some important results were obtained, many scientific issues remain unsolved in the understanding of the enhanced effect of 2-BTP on lean hydrocarbon flames, such as the intrinsic chemical and physical effects on flame inhibition. Additionally, the inhibition effectiveness improvement of 2-BTP in lean flames is useful in practice. In this study, perfectly stirred reactor (PSR) simulations are applied. In addition, the aim of the present study is to verify the enhanced combustion chemical effect when sub-inerting 2-BTP loading in lean flames. In addition, the chemical inhibition effect improvement of the binary mixtures of 2-BTP and CO₂ is examined.

2. Kinetic Mechanism

The kinetic mechanism of 2-BTP used in this study is assembled from sub-mechanisms available in the literature. The kinetic model consists of three sub-mechanisms. The first block is a high-temperature combustion reaction model of H₂/CO/C₁–C₄ compounds from Wang et al. [10]. The second block is the reactions of the C₁–C₃ NIST HFC mechanism [11,12], including modifications suggested in more recent work [4,5]. The third block is the chemical kinetic mechanism for 2-Bromo-3,3,3-trifluoropropene (2-BTP) [13]. The entire reaction mechanism for 2-BTP contains 198 species and 1656 elementary reactions.

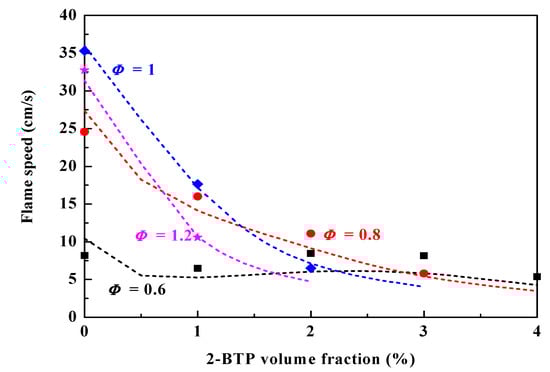

To validate the assembled kinetic mechanism, calculated laminar burning velocity is compared with experimental ones. The CHEMKIN-PRO [14] premixed code is used to calculate the laminar burning velocity, computations are carried out in a domain of 10 cm, the mesh resolution is progressively refined with final GRAD and CURV equal to 0.05, and grid points are about 500. Figure 1 depicts calculated laminar flame speed of CH₄/air mixtures at Φ = 0.6, 0.8, 1.0 and 1.2 with different 2-BTP additions at 298 K and 1 bar. The experimentally measured data from Pagliaro et al [8] are presented for comparison. The correlation between the model and the experiment is excellent for Φ = 1 and 1.2. The model predictions are within 10% of the experimental results. The model slightly over-predicts the flame speed for φ = 0.6 and 0.8. However, the discrepancy gradually diminishes when the agent-loading increases. In general, the predictive ability of the model is good for these conditions.

3. Numerical Approach Validation

3.1. PSR Model

There are kinetic limitations when using the equilibrium simulations to predict the explosive pressure in FAA-ACT test. However, PSR simulations cannot only understand kinetic limitations [6] but also evaluate inhibition effectiveness of different agents through overall reaction rate during blow-out [15]. The PSR model is a classical idealization of the combustion process in which both physical and chemical mechanisms of fire suppression can be considered. In PSR simulations, chemical equilibrium can be reached for a longer residence time, whereas chemical reactions can be extinguished (blown out) if residence time is below a critical value τ_chem [15,16]. In addition, the overall chemical rates ω_psr at extinction in the PSR can be calculated (ω_psr = 1/τ_chem) correspondingly. The overall chemical rates ω_psr have been correlated with inhibition effectiveness with the added suppressant; that is, the stronger agent with slower ω_psr at extinction [4,6].

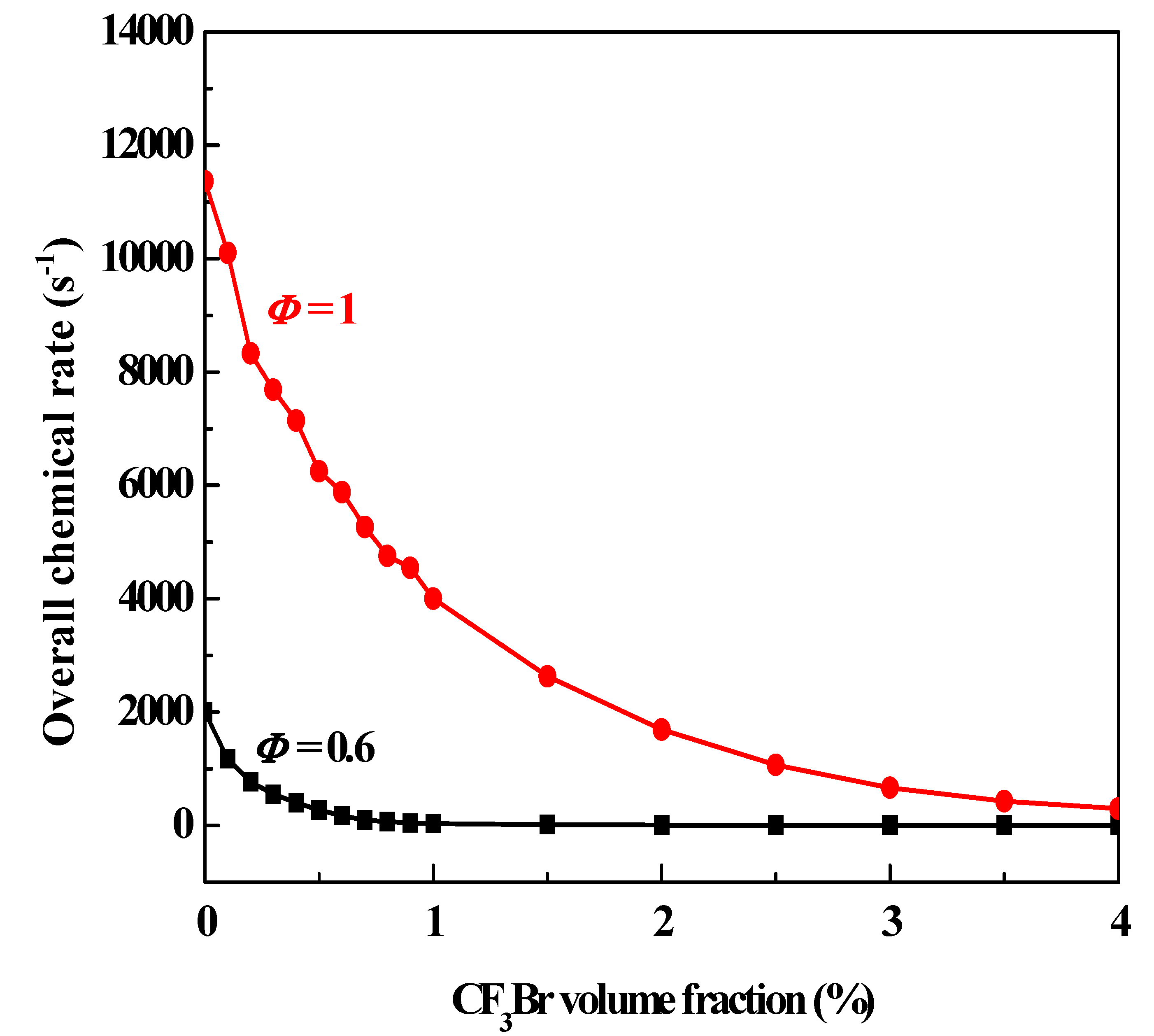

Premixed laminar burning velocity is the commonly used parameter for ranking various suppressants, as it can be both calculated and measured, for example, through a closed combustion vessel [17]. To verify the PSR model for suppressant ranking, the calculated overall chemical rates are compared with the laminar burning velocity with different agent added into hydrocarbon flames. A steady-state implementation of the PSR model is considered and neglects heat losses from the PSR to the surroundings. Figure 2 shows the overall chemical rate ω_psr at extinction in PSR as a function of CF₃Br volume fraction in stoichiometric and lean (Φ = 0.6) CH₄/air flames at 298 K and 1 bar. The curves perfectly mimic the calculated (Figure 6 in published work [1]) and experimented (Figure 12 in published work [8]) burning velocity of CH₄/air flames with added CF₃Br. Furthermore, the results can be obtained in a few minutes when using the PSR model, while hours of computation time are required for calculating the laminar burning velocity through premixed code. Thus, it can be inferred that the PSR model is more convenient for suppressant evaluation.

3.2. Chemical Saturation Effectiveness

In this study, the reduction in overall chemical rate when adding a suppressant into hydrocarbon flames is considered to be its overall inhibition effectiveness. All suppressants have a physical component to suppression. Meanwhile, a chemical suppressant has an additional chemical inhibition component that significantly increases effectiveness. The overall inhibition effectiveness of a suppressant consists of chemical effect and physical effect. The chemical and physical effect of a suppressant can be separated through artificially excluding chemical reactions containing the agent [18,19,20,21]. We introduced a virtual species, identified as “agent*” with the same thermodynamic and transport data as the agent. However, agent* does not participate in any reactions. In this way, the physical effect moiety of the agent can be attained. At the same time, the difference chemical rate between agent and agent* is the chemical effect moiety of the agent under the same conditions. The positive chemical effect value represents inhibit flames chemically, whereas the negative chemical effect value represents enhanced combustion chemically.

Table 1. The overall effect/chemical effect/physical effect of 3.5% CF₃Br added to stoichiometric CH₄/air flames at 298 K and 1 bar.

Chemical Rate of CH4/Air (s−1)	Chemical Rate of CH4/Air with CF3Br (s−1)	Chemical Rate of CH4/Air with CF3Br* (s−1)	Overall Inhibition Effect (s−1)	Physical Effect Yp (s−1)	Chemical Effect Yc (s−1)	Relative Physical Component	Relative Chemical Component
11,363	435	7692	10,929	3671	7258	33.60%	66.40%

shows the overall effect/chemical effect/physical effect of 3.5% CF₃Br added to stoichiometric CH₄/air flames at 298 K and 1 bar. The overall chemical rate of stoichiometric CH₄/air flames at 298 K and 1 bar is 11,363 s⁻¹, and it decreases to 435 s⁻¹ with 3.5% CF₃Br loading. Therefore, the overall inhibition effect of 3.5% CF₃Br is the reduction of overall chemical rate, equal to 10,925 s⁻¹. The overall chemical rate with virtual CF₃Br* is 7692 s⁻¹, so the physical effect (Y_p) of CF₃Br is the reduction of the overall chemical rate, equal to 3671 s⁻¹. The chemical effect (Y_c) of CF₃Br is the difference of overall effect and physical effect, equal to 7258 s⁻¹. The relative physical, $\frac{Y_p}{Y_p+Y_c}\times 100\%$ and chemical, $\frac{Y_c}{Y_p+Y_c}\times 100\%$ components of 3.5% CF₃Br in the stoichiometric CH₄/air flames are 33.6% and 66.4%, respectively. Noto [19] studied the laminar burning velocity reduction of stoichiometric CH₄/air flames with 3.5% CF₃Br and concluded physical and chemical effectiveness were 35% and 65%. The chemical effectiveness is slightly less than the present study, the discrepancy may attribute to the improved kinetic mechanism of CF₃Br.

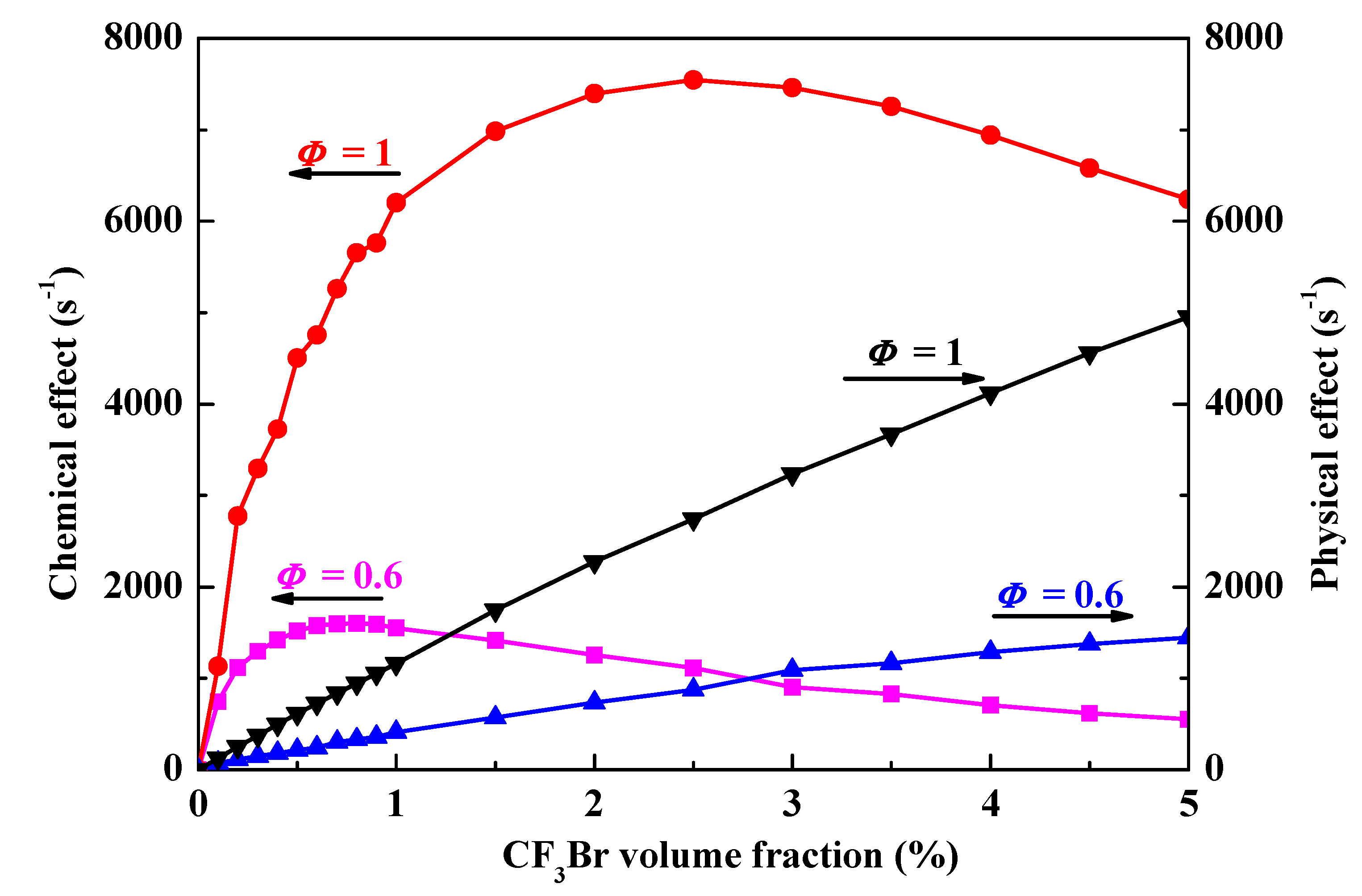

Figure 3 shows the chemical effect (left scale)/physical effect (right scale) as a function of CF₃Br volume fraction in stoichiometric and lean (Φ = 0.6) CH₄/air flames at 298 K and 1 bar through PSR model calculations. Both in stoichiometric and lean flames, the physical effects of CF₃Br increase monotonously and the chemical effects increase dramatically, followed by decreasing gradually as agent-loading. The chemical effects of CF₃Br with CH₄/air flames always inhibits the combustion since all the chemical effect values are positive.

There are two types of chemical suppressants: catalytic ones and non-catalytic ones. Catalytic suppressants reduce concentrations of flame radicals through a regenerative cycle in which one molecule of suppressant recombines several flame radicals, whereas non-catalytic chemical suppressants reduce concentrations of flame radicals by scavenging and are generally less effective [22]. All chemical suppressants exhibit saturation effects [18,19,21] when the reduction of reactive radicals reaches an equilibrium concentration and the additional chemical agents only leads to a thermal effect [23]. CF₃Br is a typical chemical suppressant with two chemical inhibiting moieties Br and CF₃, of which Br moiety is a catalytic suppressant and CF₃ moiety is a non-catalytic suppressant. As seen in Figure 3, chemical effect decreases after its saturation point with CF₃Br loading and the additional CF₃Br can be considered as an inert gas. The peak chemical effect value in Figure 3 corresponds to the saturation concentration of CF₃Br in a stoichiometric and lean (Φ = 0.6) CH₄/air flames at 298 K and 1 bar is roughly 2.5% and 0.8%, respectively. The saturation concentrations are consistent with previous research [1,19], and were calculated through reduction of laminar burning velocity.

4. Results and Discussion

4.1. Unwanted Chemical Combustion Enhancement of 2-BTP

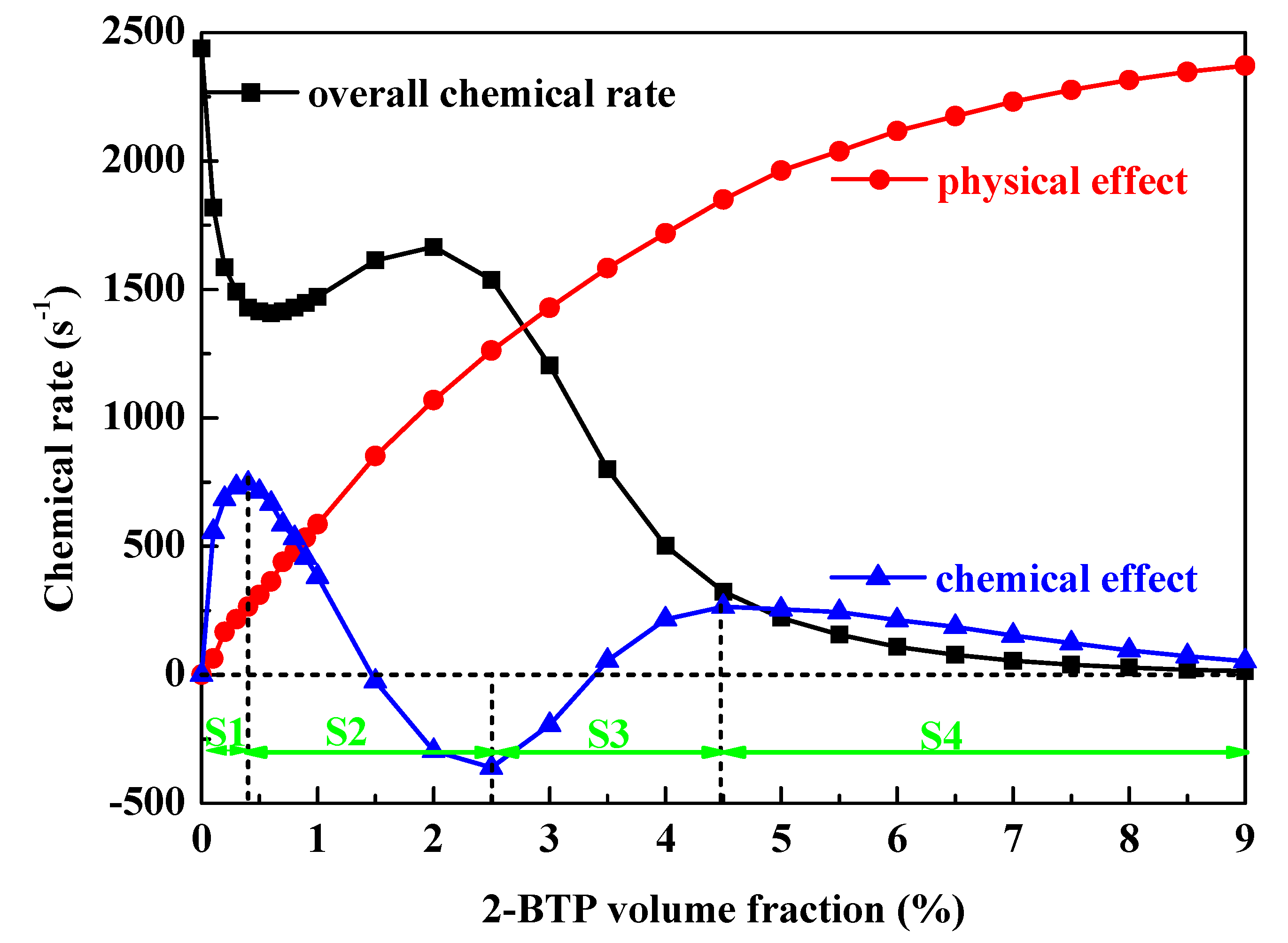

To further understand the unwanted combustion enhancement of 2-BTP observed in the FAA-ACT, chemical rates are calculated with various-concentration 2-BTP addition into lean hydrocarbon flames. C₃H₈/air mixtures at 100% R.H. can best approximate the adiabatic flame temperature and the hydrogen atom content of the total fuel-air mixture in the FAA-ACT [24]. A water vapor volume fraction of 0.025 in the O₂/N₂/H₂O mix corresponds to 100% R.H. at 21 °C. Figure 4 shows the calculated overall chemical rate/chemical effect/physical effect as a function of 2-BTP volume fraction in Φ = 0.6 moist C₃H₈/air flames at 298 K and 1bar in the PSR model. The overall chemical rate is always less than the uninhibited condition and fluctuates with sub-inerting agent additions, which are controlled by the competition between radical scavenging by the halogenated species (Br and F participate in chain-terminating reactions) and the additional heat release associated with the decomposition of 2-BTP in the lean environment [1]. To provide insight into unwanted experimented combustion enhancement, we have separated the physical and chemical effects of 2-BTP in Figure 4.

There are competitive chemical effects when adding 2-BTP to lean flames, including the enhanced effect of fuel-components (C_xH_y) and suppressive effect of bromine- and fluorine-containing compounds. It is unlikely to make the exact effectiveness clear, but the overall chemical effect value represents the competition result. The positive chemical effect value inhibits flame chemically, whereas the negative chemical effect value enhances combustion chemically. The larger positive chemical effect value accords to more reduction in overall chemical rate, and hence to stronger chemical inhibition effectiveness. The physical effect of 2-BTP increases monotonously but the chemical effect fluctuates obviously as agent-loading. The net chemical effect can be divided into four parts as in Figure 4. With 2-BTP addition, for S1 (0 ≤ Xa ≤ 0.004), the chemical effect increases sharply due to chemical inhibition from the bromine, and then for S2 (0.005 ≤ Xa ≤ 0.025), although fluorine-containing compounds increase in the radical pool but the heat release forms the agent reaction dominants, net chemical effect decrease, and for S3 (0.025 < Xa ≤ 0.045), with more inhibiting species of Br, HBr and CF₃, chemical inhibition effect dominants, finally, for S4 (Xa >0.045), chemical effect decreases as the saturation point is achieved. The net chemical effect variation is more complicated than experimented [7] and calculated [1] flame speeds, with 2-BTP adding to lean hydrocarbon flames. It is noted that for S2 and S3, the chemical effect is negative with certain (0.015 ≤ Xa ≤ 0.034) sub-inerting agent concentrations. It is speculated that the negative chemical effect contributes to the experimented unwanted combustion enhancement.

4.2. 2-BTP Inhibition Improvement by CO₂

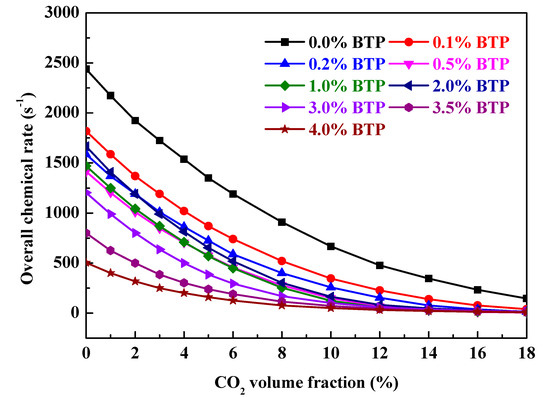

Saso et al. found inert gas (N₂ or CO₂) enhances the overall inhibition effectiveness of CF₃Br but slightly decreases that of CF₃H in stoichiometric CH₄/air flames [25]. Inert gases are effective at flame suppression through heat extraction and dilution of oxygen. That is, the Br catalytic cycle is enhanced and the inhibition of species CF₃ is suppressed as the flame temperature decreases. Since there is Br moiety in 2-BTP, there should be positive synergy between 2-BTP and inert gases. To demonstrate the synergistic effect of binary mixtures containing 2-BTP and CO₂, large amounts of computational experiments are performed. As discussed above, the negative chemical effect occurs with sub-inerting agent concentrations, overall chemical rates of the blend (various volume fraction CO₂ + a fixed volume fraction 2-BTP (0 ≤ Xa ≤ 0.04)) added into moist C₃H₈/air flames are calculated. Figure 5 shows the dependence of overall chemical rates on CO₂ volume fraction with a fixed 2-BTP adding to moist C₃H₈/air flames at 298 K and 1bar. As shown in Figure 5, the overall chemical rate decreases as the agent increases for all blend additions, which implies that adding CO₂ into 2-BTP improves the inhibition effect significantly. The physical effect always increases as CO₂ is added. To inspect chemical effect variation, Figure 6 shows the dependence of chemical effect on 2-BTP volume fraction with varying CO₂ addition in Φ = 0.6 moist C₃H₈/air flames at 298 K and 1bar.

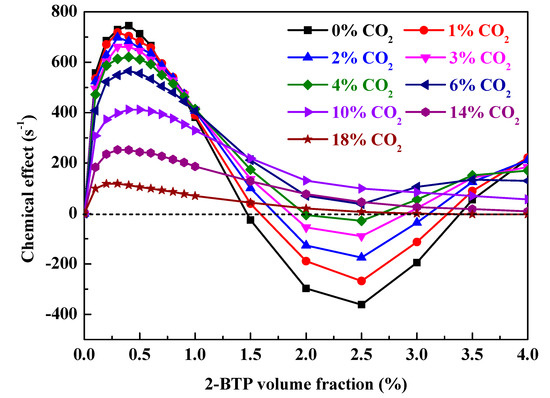

As shown in Figure 6, the chemical effect of the blend with various volume fractions of CO₂ mimics the chemical effect of 2-BTP in Figure 4. Under the competitive chemical effects of C_xH_y/Br/CF₃, the chemical effect of the blend first increases, then decreases, and finally increases with more agent addition. However, it should be noted that there are no negative chemical effects of 2-BTP when CO₂ addition is larger than 4%. That is, no enhanced combustion would occur with sub-concentration of 2-BTP with CO₂ addition larger than 4% in Φ = 0.6 moist C₃H₈/air flames at 298 K and 1bar.

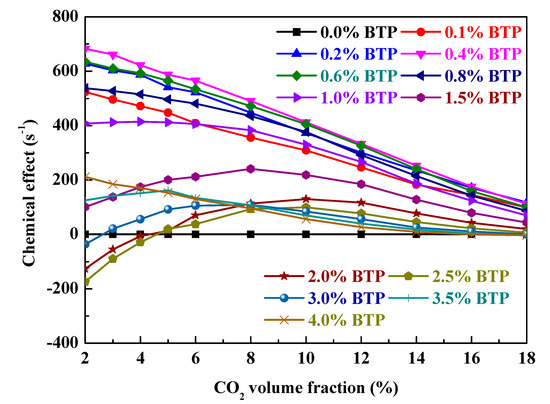

To assess the overall chemical effect variation of CO₂ addition, the replot of Figure 6 as the dependence of chemical effect on CO₂ volume fraction with varying 2-BTP addition in Φ = 0.6 moist C₃H₈/air flames at 298 K and 1 bar is shown in Figure 7. The chemical effects decrease monotonously with CO₂ addition for 0–0.6% 2-BTP, which may be due to the saturation point having been achieved. The chemical effects first increase then decrease with CO₂ addition for 0.7–4% 2-BTP, which implies that CO₂ significantly improves the chemical effect of 2-BTP at first and decreases it when saturated. In particular, for the negative chemical effect of sub-inerting 2-BTP concentrations (0.015 ≤ Xa ≤ 0.034), adding CO₂ obviously improves chemical inhibition effect, driving combustion enhancement into combustion inhibition.

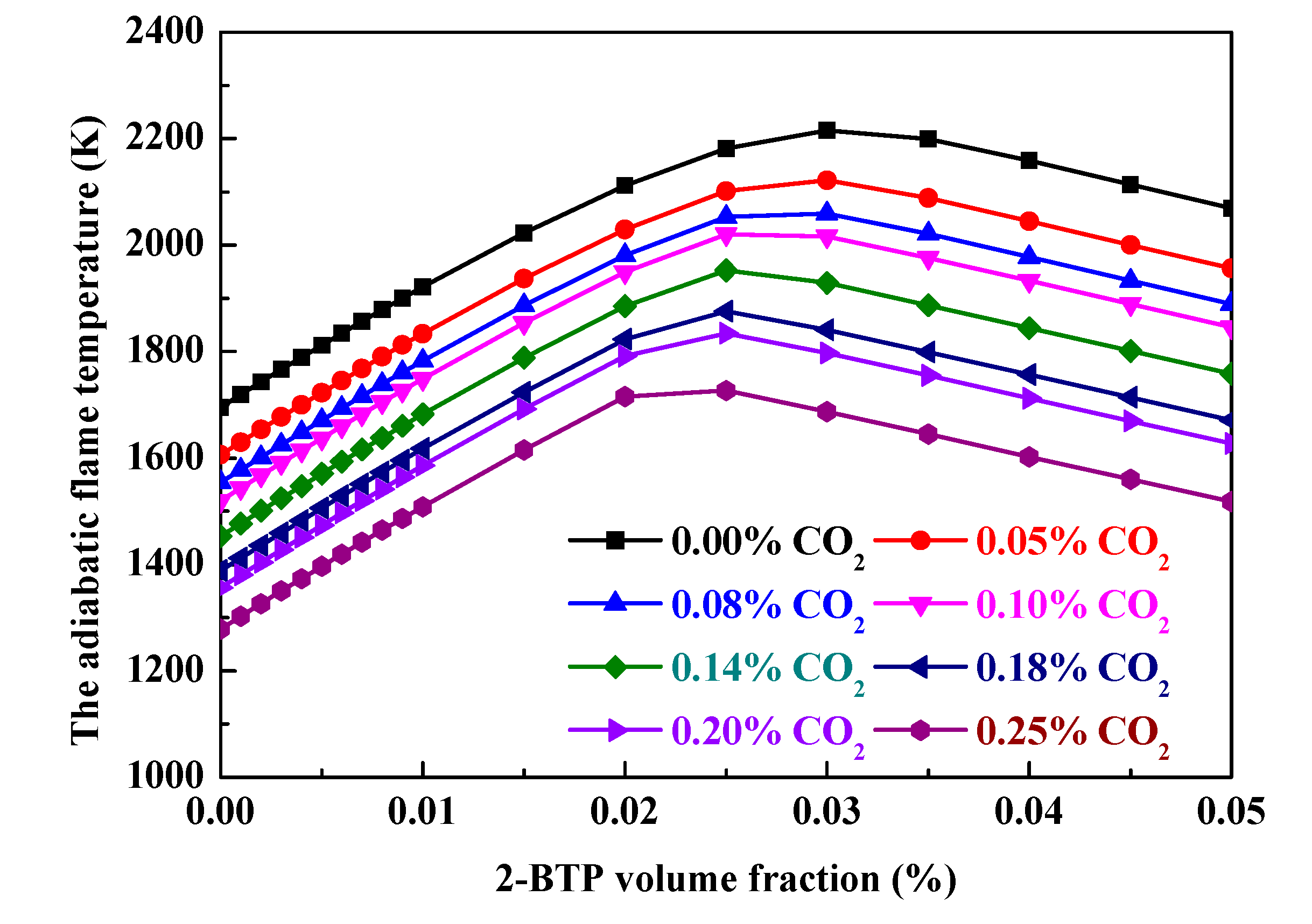

The adiabatic temperature is a further parameter for ranking various suppressants [17]. Figure 8 shows the dependence of adiabatic temperature on 2-BTP volume fraction with varying CO₂ addition in Φ = 0.6 moist C₃H₈/air flames at 298 K and 1 bar. The CHEMKIN-PRO [14] equilibrium calculation is used to calculate the adiabatic flame temperature and constant enthalpy; constant pressure solutions are obtained. It is found that the adiabatic flame temperature of C₃H₈/air is always less with the blend of 2-BTP and CO₂ than that with single 2-BTP. That is, the addition of CO₂ into 2-BTP could improve inhibition effectiveness of 2-BTP.

5. Conclusions

The aim of this study was to understand the enhanced chemical combustion effects of certain 2-BTP loadings on lean flames and the chemical inhibition effect improvement of the binary mixtures of 2-BTP and CO₂. The PSR model is used for calculating overall chemical rates. Compared with the premixed code, the PSR model is a time-saving method for evaluating suppressants with detailed physical and chemical mechanisms of fire suppression under consideration. The reduction in overall chemical rate is introduced to assess various suppressants. Chemical and physical effects of the agent are calculated respectively, and it is found that all chemical suppressants show chemical saturation effectiveness. That is, the chemical effect first increases as the agent increases, and when it reaches its saturation point, the chemical effect decreases as the agent further increases.

The calculated overall chemical rate of 2-BTP added into moist C₃H₈/air flames is always less than the uninhibited condition and fluctuates with sub-inerting agent additions. The physical effect of 2-BTP always inhibits the flame, whereas the chemical effect is complicated. The chemical effect of 2-BTP undergoes four stages under the competitive chemical effects of C_xH_y/Br/CF₃, of which bromine and fluorine-containing compounds participate in chain-terminating reactions to scavenge radicals and the additional heat release associated with the decomposition of 2-BTP in the lean environment. There is a negative chemical effect with certain sub-inerting agent concentrations (0.015 ≤ Xa ≤ 0.034), which result in the experimented unwanted combustion enhancement in moist C₃H₈/air flames.

All blend addition of CO₂ and 2-BTP improves the inhibition effect. CO₂ improves the Br catalytic cycle and depresses fluorine-containing and C_xH_y compounds involved in the reactions. The competition results indicate that CO₂ not only enlarges the physical effect of all 2-BTP concentrations, but also improves the chemical inhibition effect of certain 2-BTP concentrations in moist C₃H₈/air flames. The calculation reveals that no enhanced combustion would occur with sub-concentration of 2-BTP with CO₂ addition larger than 4% in Φ = 0.6 moist C₃H₈/air flames at 298 K and 1 bar, and CO₂ obviously improves the chemical inhibition effect of 2-BTP, driving combustion enhancement into combustion inhibition.

The calculation shows that the addition of CO₂ into 2-BTP could improve inhibition effectiveness of 2-BTP. The unwanted promotion effect caused by 2-BTP added to lean hydrocarbon air flames could be improved when a certain amount of CO₂ is added. In future work, experiments with a closed vessel will be used to further verify inhibition effectiveness of the blend of 2-BTP and CO₂.
