An Easy Iris Center Detection Method for Eye Gaze Tracking System

1
Intelligent Human-Machine Systems Lab, Northeastern University, Boston, MA 02115, USA
2
School of Life, Beijing Institute of Technology, Beijing 100811, China
3
School of Automation, Beijing Institute of Technology, Beijing 100811, China
J. Eye Mov. Res. 2015, 8(3), 1-20; https://doi.org/10.16910/jemr.8.3.5 (registering DOI)
Published: 23 October 2015

Abstract

:
Iris center detection accuracy has great impact on eye gaze tracking system performance. This paper proposes an easy and efficient iris center detection method based on modeling the geometric relationship between the detected rough iris center and the two corners of the eye. The method fully considers four states of iris within the eye region, i.e., center, left, right, and upper. The proposed active edge detection algorithm is utilized to extract iris edge points for ellipse fitting. In addition, this paper also presents a predicted edge point algorithm to solve the decrease in ellipse fitting accuracy, when part of the iris becomes hidden from rolling into a nasal or temporal eye corner. The evaluated result of the method on our eye database shows the global average accuracy of 94.3%. Compared with existing methods, our method achieves the highest iris center detection accuracy. Additionally, in order to test the performance of the proposed method in gaze tracking, this paper presents the results of gaze estimation achieved by our eye gaze tracking system.

Introduction

Eye gaze tracking plays an important role in communication between human and machine (Ferhat, Vilarino, & Sanchez, 2014). Eye gaze tracking systems developed in recent decades have been used in a lot of areas, such as studies of driver behavior (Flores, Armingol, & Esscalera, 2011), virtual reality (Duchowski, Shivashamkaraish, Rawls, Gramopadhye, Melloy, & Kanke, 2000), assistive devices for motor-disabled persons (Barea, Boquete, Mazo, & Lopez, 2002), human-robot interaction (Yu, Lin, Schmidt, Wang, & Wang, 2014; Yu, Wang, Lin, & Bai, 2014), human-machine collaborations (Cai & Lin, 2012), reading and scene perception (Liversedge, Meadmore, Corck-Adelman, Shih, & Pollatsek, 2011), neurology (Tseng, Cameron, Pari, Reynolds, Munoz, & Itti, 2012), and clinical research (Papageorgiou, Hardiess, Mallot, & Schiefer, 2012). Gaze tracking systems consist of two types: intrusive and non-intrusive. Intrusive systems require physical contact with the user. Contact manners mainly include contact lenses (Robinson, 1963), electrodes (Kaufman, Bandopadhay, & Shaviv, 1993), and head-mounted devices (Li, Winfield, & Parkhurst, 2005; Świrski, Bulling, & Dodgson, 2012). However, these contact manners are not very conformable for users. Nonintrusive systems are also known as remote gaze tracking systems. These systems do not anything attached to the user, so they are widely applied and researched by users.
In gaze tracking systems, tracker calibration establishes the relationship between gaze and objects users look at. The gaze is defined as the center of fovea projection into object space through the eye center (Oyster, 1999). Hence, the correct eye center position plays an important role in gaze calibration. To do this, eye trackers have adopted a 2-D mapping calibration method (Blignaut, 2013; Yu, Wang, Lin, & Bai, 2014).
Existing eye center detection methods can be briefly classified into two categories: pupil center detection (Beymer & Flickner, 2003; Li, Winfield, & Parkhurst, 2005; Świrski, Bulling, & Dodgson, 2012) and iris center detection. In general, pupil center detection is used in intrusive systems, though some non-intrusive gaze tracking systems also implement pupil center detection. The technique often depends on near infrared light (IR). Using IR light, light with a wavelength outside the visible spectrum, makes detecting the pupil easy while avoiding user distraction. However, the use of IR imaging techniques in outdoor scenarios during daytime is very restricted due to ambient IR illumination (Sigut & Sidha, 2011). During operation the pupil changes in size and wobbles during saccades. This variability causes issues with data quality (Kimmel, Mammo, Newsome, 2012; Nyström, Hooge, Holmqvist, 2013; Hooge, Nyström, Cornelissen, & Holmqvist, 2015). The iris center detection is widely used in non-intrusive systems. The method often works under visible light, which is not as sensitive to the IR light in the environment. With the above background, the usefulness of iris detection becomes much more evident.
In general, the iris region gray intensity is lower than that of the surrounding anatomy. Furthermore, the contrast on the edge between the sclera and iris is higher, so iris center detection can take advantage of this cue to easily determine iris center. Here, we present some existing iris center detection methods which have successfully worked for gaze tracking. Sigut and Sidha (2011) developed an eye gaze tracking system which adopted the iris center detection method called the ICCR (Iris Center Cornea Reflection). The bright spot on the eye created by a 5-W Halogen lamp was first detected as a base point for iris contour extraction, and the Canny edge detector was applied to the eye gray image in order to obtain the iris edge image in binary mode. Then a distance filter was used to eliminate edge points too close or too far from the base point. Lastly, a RANSAC algorithm was used to extract the iris edge points for iris contour fitting. Wang, Sung, and Venkateswarlu (2005) adopted a threshold value to automatically segment the iris from the sclera on a binary image. The edges of the image were obtained by the Canny operator. Lastly, an edge following technique was used to find the longest vertical edges on the image for iris contour fitting using an ellipse fitting algorithm.
Mohammadi and Raie (2012) proposed a novel algorithm for iris center location. The Canny operator was first used to produce the human eye edge image with a fixed threshold value. Then, the split points were removed using limited change of slope in an ellipse. Lastly, a SVM classifier was used to select some of the segments as iris parts and merged them together for iris edge ellipse fitting. Zhang, Zhang, and Chang (2001) also utilized the Canny operator to create an edge image. Then a horizontal template edge operator was run to detect the two longest vertical edges of the iris. Lastly, a CMP-RANSAC algorithm was adopted in order to remove the noise edges and left edges for ellipse fitting. The method was more effective than morphological operator methods. Torricelli, Conforto, Schmid, and Alesio (2008) proposed a method based on Sobel operator for iris edge detection. Relative to the Canny operator, although it resulted to be more robust to light changes, a very high number of edges were detected within the eye image, making the discrimination of the correct iris edge very difficult. With the Sobel operator a lower number of edges were detected.
Sirohey, Rosenfeld, and Duric (2002) used a semicircular annulus template with one-third of the eye length as iris radius to detect the iris edge contour on the image. The most number of edge pixels contained in the annulus was regarded as the iris edge points. In addition, Perez, Lazcano, and Estevez (2007) proposed a similar method, which created generic templates to detect the iris.
However, eyelids always cover parts of the iris, making iris edge extraction difficult. Additionally, because the eyeball is an active structure, iris edge detection methods need to consider different states of the iris within the eye region, i.e., center, left, right, and upper, as shown in Figure 1. Here, we did not consider the down state, because the eyeball is hard to complete when the iris is underneath the lower eyelid. In general, iris center detection depends on the extraction of iris edge points precisely. As for upper state, although upper edges of iris are occluded by upper eyelid, lower left and right edges can still be kept well. The iris center position is determined by the contour elliptical fitting. Through experiment, when left and right edge points of iris are obtained, the corresponding ellipse can easily be obtained. However, if the human eyes gaze at objects on the left and right periphery of the screen, iris edges closer to eye corners would be hidden. In this case, it is hard to obtain the correct ellipse fitting with obtained points from one side of the iris edge. At the same time, through the above lit-erature review, existing algorithms seldom consider the two cases. Hence, this paper presents an easy and efficient iris center detection method to solve this problem.

Proposed Method

The procedure of proposed iris center detection method consists of two parts: features detection and iris edge detection, as shown in Figure 2.
The feature detection starts from an original eye image, and then three steps are performed for detecting rough iris center and two eye corners, respectively.
Firstly, histogram equalization is used for enhancing eye image contrast. Under visible light the gray intensity of eye images is darker, and necessary details can be hidden in the dark areas, as shown in Figure 3a. Hence, through pre-processing of histogram equalization, the dynamic range of image grey intensity should be large enough for iris edge detection, as shown in Figure 3b.
Secondly, we use a hybrid projection function (HPF) (Zhou & Geng, 2004) to estimate rough iris center of the eye. In general, the image projection function can be used to detect the boundary of different image regions. The most commonly used projection function is integral projection function (IPF). However, IPF cannot capture the variation of the image well. Then, a variance projection was proposed (Feng & Yuen, 2001), which is usually more sensitive to the variation in the image than IPF. In order to obtain higher accuracy in rough iris center, Zhou and Geng (2004) presented a new projection function, i.e. combining IPF and VPF, known as HPF. The performance of HPF in rough iris center detection indicated that combination IPF and VPF could be more powerful than sole IPF or VPF. Some examples of successful rough iris center detection are shown in Figure 4. Additionally, through the experiments, we found the offset was smaller between the true and the rough iris center. The results help to the selection of iris edges (See next section).
Thirdly, two search windows are created on eye images for detecting nasal and temporal eye corners using the method proposed by Torrricelli, Conforto, Schmod, and Alesio (2008). For the nasal corner, the search window was created over the inner area of the eye. Within the window, the most lateral pixel of the binary image was considered as the estimated nasal corner. For the temporal corner, the search window was created over the external area of the eye. Ten-level quantization was used to the image within the window. By eliminating the brighter levels, the external extremity of eye corner would be considered as the temporal eye corner. Some examples of successful eye corner detection are shown in Figure 5.
For iris edge detection, the aim is to extract correct edge points for determining the true iris center. In the following sections, we will give the procedure of the proposed iris edge detection. All eye images used in our paper are extracted from our eye database (see Eye Database Setup section).

Selection of Iris Edges

According to features detection, after obtaining the rough iris center and two eye corners, we take advantage of the information to detect the iris edge.
As the Introduce section described, the eye is an active structure, so the iris can roll into the two eye corners when human eyes gaze at objects on the left and right periphery of the screen. In this case, the left or right edge will be hidden. This section first creates a model to determine which edges belonging to the iris should be detected.
The model is based on a distance ratio between the detected rough iris center and eye corners. In general, eye corners are stable features and often used as fixed points relative to iris center for calculating eye gaze in some tracking systems (Zhu & Yang, 2002; Wang & Venkateswarlu, 2002; Wang, Sung, & Venkateswarlu, 2005). Hence, the distance between two eye corners are almost unchanged when eye corners are detected accurately.
Figure 6 shows three iris states within the eye region, i.e. at three different positions: left, center, and right. If the iris rolls into the nasal and temporal eye corners, the edges of the iris closer to eye corner will be hidden. In this case, the best detection method is to extract the apparent iris edge on the other side. Hence, we design a ideal model to estimate which iris edges need to be extracted. Here, the right eye is chosen as an example for model description. In Figure 6, the point Pr and point Pl represent nasal and temporal corners of the right eye, respectively. The length of Euclidean Distance D between Pr and Pl can be calculated by the following formulation:
Jemr 08 00015 i001
The point Pc represents the rough iris center. Here, we assume Pc is an ideal iris center, i.e. true iris center, in order to establish the modeling. The dr is used to represent the length of distance between the cross point, which is Pc perpendicular to PrPl and the point Pr. The dl is used to represent the length of distance between the cross point, which is Pc perpendicular to PlPr and the point Pl. ∠PcPrPl is represented as α and ∠PcPlPr is represented as β. According to the geometries shown in Figure 6, dr and dl can be achieved by the formulations:
Jemr 08 00015 i002
Jemr 08 00015 i003
According to distances dr and dl, the distance ratio Rt can be defined as follows:
Jemr 08 00015 i004
In Figure 7, the distance between two eye corners can be equally divided into four segments. The length of the distance of each segment can be expressed as a relative constant, dR cons = 0.25. Because the offset between the rough and the true iris center is smaller, we can adopt the relative constant to set threshold values of right and left iris edges, i.e. Ter and Tel, in order to determine which edges should be extracted from the iris region, as follows:
Jemr 08 00015 i005
Jemr 08 00015 i006
According to threshold values, we give the decision criterion for selection of iris edge. The SEdge represents which edges belonged to iris that needs to be detected. It can be represented as follows:
Jemr 08 00015 i007
where SRE represents the right edge of the iris, SLE represents the left edge of the iris, and SRLE represents both edges (right and left) of the iris. The SEdge is marked with blue lines in Figure 7. In the next subsection, we will complete the detection algorithm to obtain SEdge.

Extraction of Iris Edges

The edge of the iris can be split into four parts by two lines between two eye corners and the rough iris center, as shown in Figure 8b. Here, the left edge of the iris is taken as an example to describe the algorithm. We need to first determine search angles. The upper and lower limbus of the iris are usually occluded by eyelids. The intersection of the iris and eyelids creates the angles ϕ and φ with respect to horizontal, as shown in Figure 8a. Daugman (1993) proposed the angular arc of contour was restricted in search range by two opposing 90 cones, i.e. ϕ + φ = 90. In (Sankowski, Grabowski, Napieralska, Zubert, & Napieralski, 2010), the search range was increased slightly into ϕ = 45 and φ = 60. According to examining the frontal faces from the AR Face database, Torricelli, Conforto, Schmid, and Alesio (2008) found the average value for angles ϕ and φ were 50 and 70, respectively. Through analysis of the eye structure in our eye database, we found the maximum angles were ϕ = 80 and φ = 85, respectively. Hence, the search angles λ and γ can be defined as the following (The left arc of iris is used as an example):
Jemr 08 00015 i008
Jemr 08 00015 i009
Here, the search arc marked with the blue arrow labeled 1 in Figure 8b is used as an example for the description of the iris edge detection algorithm. Other search arcs are similar to this. The proposed detection method is similar to the method in (Zhang, Zhang, & Chang, 2001), which based on 1D line search along normal vector at each point of the contour, but there are three different aspects. Firstly, the detection method in (Zhang, Zhang, & Chang, 2001) was run on the binary image while our method dealt with the gray image. Secondly, the initial search line radius was not predefined in our search. Thirdly, a simple template was not used for edge detection in our research.
The proposed 1D edge search method can be depicted in Figure 10b. The contour of the iris consists of a number of points which are placed at the same degree interval Δθ. The line between eye corner and rough iris center is designated as the initial search line. Firstly, the initial point marked with the black circular point in Figure 10b is detected along the initial search line using the line integral ratio.
Before detecting the initial point, we need to use a smooth filter with size 7 × 7 along the search line to smooth the peripheral region corresponding to each pixel along the initial search line, as shown in Figure 10a. The reason for that is there are many highlights produced by natural (visible) lights on the iris. Usually, the size of some highlights is larger, so we need to eliminate those in order to avoid inference when detecting the initial point. The smoothed filter takes advantage of more pixels (within a smoothed window) to eliminate the fluctuations of pixels and complete the noise cancellation. Certainly, we also can directly operate on the whole eye image with smoothed filter. However, experimentation showed that this increased computational cost.
Then, we will detect the initial point Pinit along smoothed initial search line. The line integral is calculated within L1 marked by a green rectangle and L2 marked by red rectangle ranges, as shown in Figure 10c. The ratio K between two line integrals in discrete form is shown as follows:
Jemr 08 00015 i010
Figure 9 shows that the location of the initial point is located at the maximum ratio. Although a difference could also be used in initial point detection on the initial search line, we found that this may achieve a worse result. Firstly, sometimes within eye corner regions gray intensity is lower than that of the iris. Hence, we might obtain a bigger difference within the eye corner region than on the iris. Secondly, the highlights with larger size could not be eliminated well with a smooth filter. In this case, we could obtain two edge points with dark-to-light, one produced by the highlight, and another produced by the actual edge point. Thus, those would impact the result of initial point detection. As for line integrals, it computes pixel sum within a certain range on the initial search line, through experiment, this method avoided the above cases effectively.
Next, a search range, which is marked with two blue search arcs in Figure 10b, is built according to the initial point. The length of the line between initial point Pinit and rough iris center Pc is used as initial search radius rinit. Hence, the initial search range Rs is defined as [rinitδ, rinit + δ ].

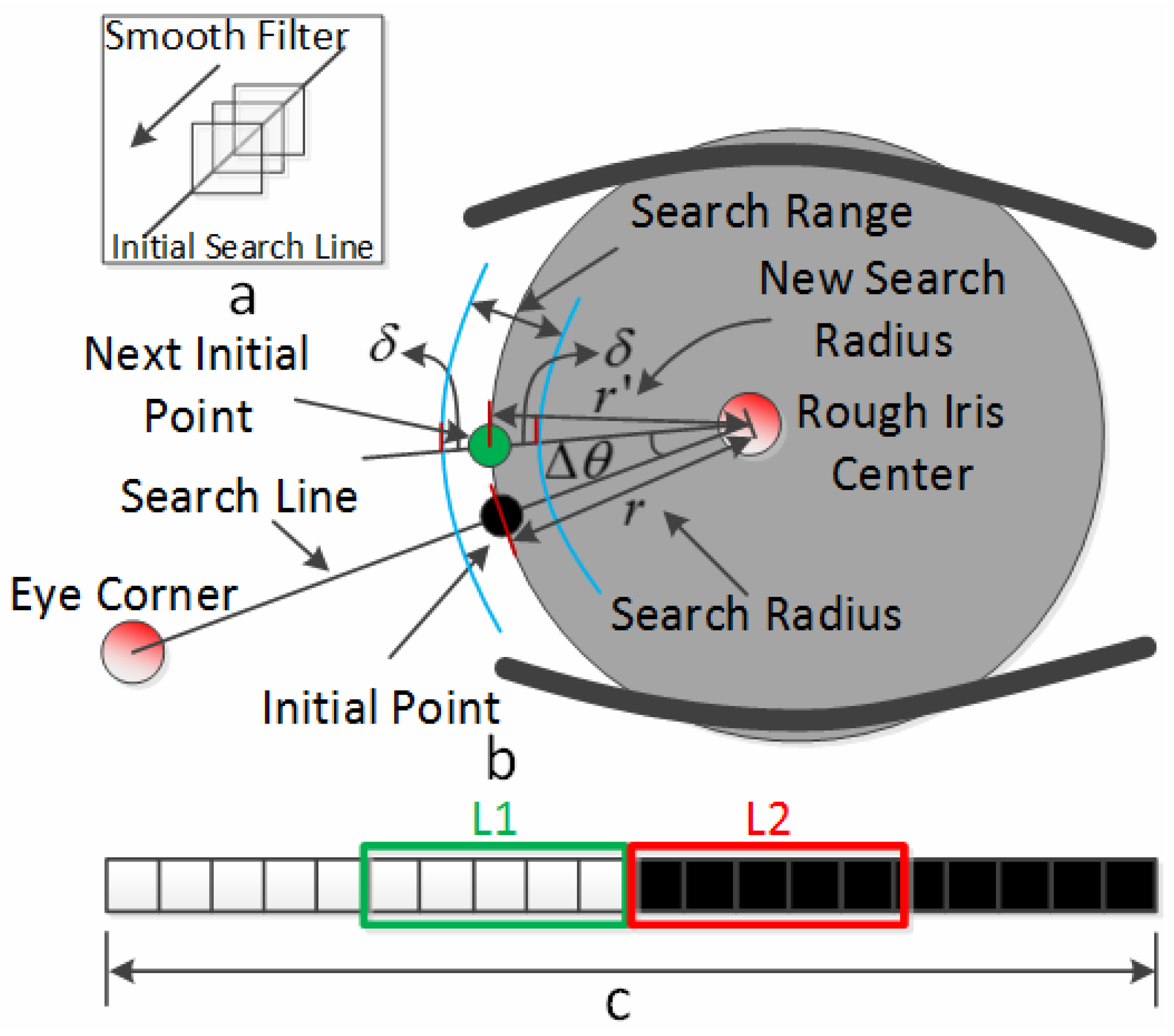

Figure 10. (a) shows a smooth filter moving along the initial search line for removing highlights on iris region. (b) shows the schematic diagram of the detection method of iris edge. (c) shows two sliding windows marked with red and green rectangles for the calculation of the line integral ratio between them to determine the initial point.
Figure 10. (a) shows a smooth filter moving along the initial search line for removing highlights on iris region. (b) shows the schematic diagram of the detection method of iris edge. (c) shows two sliding windows marked with red and green rectangles for the calculation of the line integral ratio between them to determine the initial point.
Jemr 08 00015 g010
Within the search range, the next edge point will be detected using a gradient edge detection algorithm. It is used as a new initial point, which is marked with a green circular point in Figure 10b. Lastly, the new search radius r' can be achieved in terms of new edge point. In other words, the edge location of the previously detected point is utilized to determine the initial position of next point and the search range (also called active search range) is determined by previous detected point.
Through the iris edge extraction method depicted above, we could achieve iris edge points, as shown in Figure 11a. However, it failed in certain regions. Many error points, i.e. noise points marked with red elliptic regions, were detected, since the grey intensity of parts of eyelid and eyelash are similar to those of iris, and some bright reflection spots are created by visible lights on the iris.

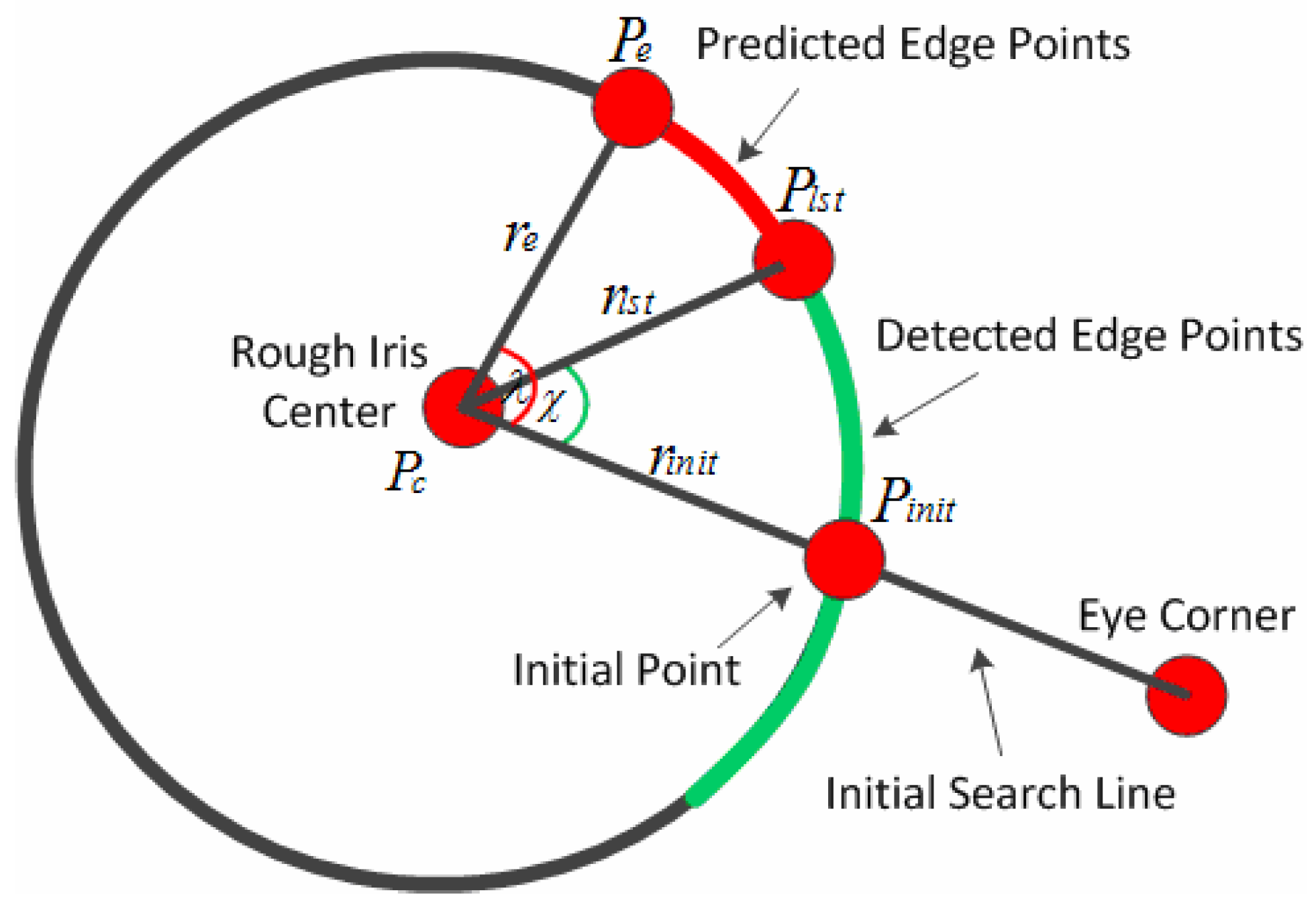

In order to solve this problem, we proposed an active edge detection algorithm. In Figure 11c, the iris edge points (Marked with green points) should be on the real iris edge corresponding to the green arc line. The red points are assumed as noise points. The yellow points are obtained according to the former radius in terms of the depicted method above.
The algorithm iterates through all the edge points. We first need to set a threshold value Terr as a cease condition for the algorithm, where Terr is the number of error edge points happening continually. Because noisy points are either inside or outside the iris edge, a Threshold is set to compare with the distance between current and former radius, i.e. |ri+1ri|. Additionally, according to the positive and negative values for ri+1ri, we can determine the moving direction of the search arc. If the length is larger than Threshold and ri+1ri is positive, the search range Rs would move little distance Δδ toward the rough iris. If ri+1ri is negative, the search range Rs would move little distance Δδ in the opposite direction with respect to rough iris center. If the length is smaller than Threshold, the search range Rs is not changed. Here, we take the left upper edge labeled with 1 in Figure 8b as an example to depict active edge detection algorithm. The Pseudocode of the algorithm is presented in Appendix A. The result of the iris edges extraction is shown in Figure 11b, the noise points are removed by Algorithm1 well.

True Iris Center Detection

Once the iris edge points were detected, the iris center can be found. A common approach is to use the Hough transform to fit a circle to the detected points (Dobes, Martinek, Skoupil, Dobesova, & Pospisil, 2006; Matsumoto & Zelinsky, 2000). However, the projection of the iris on the image will always be an ellipse, except when the eye is pointed directly at the camera. In our research, the extracted contour points are further refined using a direct least square ellipse fitting algorithm (Fitzgibbon, Pilu, & Fisher, 1999). Additionally, the number of iris edge points extracted by Algorithm1 is less than 6 pixel points, making the ellipse fitting fail. In this case, the subpixel edge detection method (Zhu & Yang, 2002) is essential for correctness of fitting. An example of ellipse fitting for iris edge is shown in Figure 12.
However, we found that the ellipse fitting algorithm could not always achieve a good result of finding the iris center on the condition of the iris rolled into nasal and temporal eye corners through the experiment. We assume that the edge of ellipse shape consists of two sides split by the minor axis. If more edge points on the two sides are detected and their distribution is uniform, the shape of ellipse fitting is tending towards correct, such as the states of iris on the center and upper regions of the eye. For another two cases, edge points on one side of ellipse are only used for fitting, although edge points are perfectly detected by the Algorithm1 as shown in Figure 13a. Figure 13b shows the performance of ellipse fitting is not ideal. This case can be justified by the fact that no edge points tend to the upper and lower vertex of true ellipse and distribution of edge points detected are not uniform. In order to achieve high accuracy of ellipse fitting, we proposed an algorithm of predicted edge points.
Here, we take the iris’ right upper edge as an example to describe this algorithm, as shown in Figure 14. Firstly, the last edge point Plst is taken from detected edge points array. Then, the Euclidean Distance rlst between Plst and rough iris center position Pc, i.e. rlst = ‖PlstPc‖, is computed. Thirdly, compared initial radius distance rinit to rlst, i.e. rlstrinit. If the result is positive, the predicted edge points tend towards the direction of the rough iris center. Or else, the direction is toward to the opposite direction with respect to rough iris center. Lastly, predicted edge points Pe will be achieved. The Pseudocode of the algorithm is presented in Appendix B.
Figure 13c shows the detection result with the Algorithm2, the red points (Marked within red elliptic regions) represent predicted iris edge points. The detected and predicted points are used for ellipse fitting. The last result is shown in Figure 13d. We can clearly observe that the ellipse fitting performance achieved by Algorithm1 and Algorithm2 is better than the performance of ellipse fitting only with detected edge points.

Experimental Results

The evaluation of our method is carried out on our eye database. The evaluation criterion of iris center detection is given first. Then, the iris center detection results are achieved using the proposed algorithm in this paper. Lastly, comparison of iris center detection results with the existing methods is presented.

Eye Database Setup

Twenty subjects from different regions of China, such as Beijing, Jiangsu, Henan, Shanxi, Inner Mongolia, etc., ten female and ten male, aged from 23-31 years, took part in the experiment. All had normal (without glasses) vision. Each subject was asked to sit in front of the computer screen, the distance between subjects and screen is 60cm.
Then, we captured the subject's face image using our developed software. During face image capture, we asked subjects to move their head slightly in order to make different facial poses. At the same time, we controlled the visible lights open or close, making different illumination environment. It is noting that we did not crop subjects' face images from recording video, but cropped images from real-time video stream. In other words, subjects were asked to complete several eye motions, such as look at center, left, right, and up, in the processing we pressed button to record a face image frame from the real-time stream. Each subject contributed to more than 400 face images. After image acquisition, we used the rectangle region with size 240×120 pixels, which could cover the eye image well, to crop 4800 eye images on the faces by manual. The iris state images within eye region include 1200 center state, 1200 left state, 1200 right state, and 1200 upper state, respectively. The image acquisition system can be seen in Gaze Tracking Test Section.

Measurement

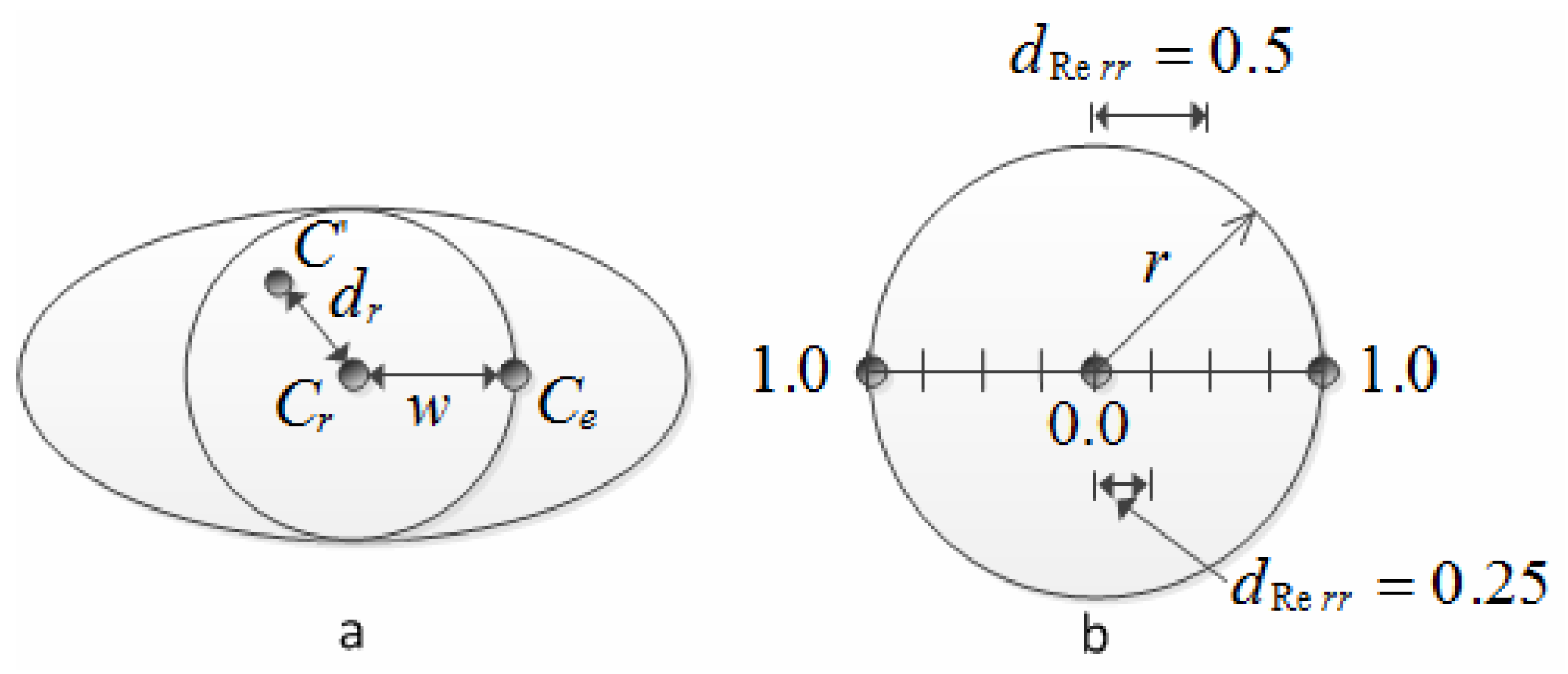

In order to evaluate true iris center detection accuracy, we proposed an evaluation criterion by modifying a relative error measure proposed by Jesorsky, Kirchberg, and Frischolz (2001).
Firstly, the iris center position is extracted manually as the expected iris center, denoted as Cr. Secondly, the iris center of eye is estimated by proposed algorithm is denoted as C '. Thirdly, an iris edge point extracted manually is denoted as Ce. Those positions are depicted in Figure 15a. Lastly, the relative error dRerr is defined as:
Jemr 08 00015 i011
where dr is the distance between the expected iris center and the corresponding estimated iris center. The Euclidean distance ‖CeCr‖ is defined as ‖w‖.
The threshold value T is defined for determining detection correctness. In Figure 15b, the line between true iris center and an iris edge point is divided into four segments, each segment is 0.25. If the dRerr is less than T (dRerr < T ), the iris center detection is considered to be correct. When dRerr = 1, dr might reach the distance of half the width of one iris from the expected eye center position to an edge point of iris, namely the circle with a radius of r = 1, as shown in Figure 15b. Here, we could not easily point out which relative thresholds T were defined as a correct threshold, but we considered the closer between estimated iris center and truth iris center, the higher correct detection rate. In this paper, the true iris center of eye is considered as the region with a radius of r = 0.15, namely the threshold value T is less than 0.15.

Evaluation of Iris Center Detection

This section shows quantitatively the accuracy of our proposed method for different T corresponding to the four states of the iris, i.e. center, left, right and upper, within eye region.
Firstly, the iris often stays within the center region of the eye. In this case, the left and right edges of the iris are clearly visible. Thus, we observed that the proposed method achieved highest accuracy in four states, as shown in Figure 16a. The accuracy of the proposed method is up to 99% when T =0.15.
Secondly, the right edge of iris would be hidden (nasal or temporal corner corresponding to left or right eye), when the iris rolls into the right corner of the eye. Thanks to the algorithm of iris predicted edge points, our proposed method with T = 0.05 can be up to 74.21%, as shown in Figure 16c.
Thirdly, when the eye looked in the upward direction, the upper edge of iris would be hidden under the upper eyelid of eye. In general, this case is easier to handle than the second case, because enough points on the lower edge of both sides of the iris can still be obtained for ellipse fitting. Figure 16d shows the accuracy result is better than the second case. Especially, the accuracy is just 6.9% lower than the first case when T =0.05
Lastly, when the iris rolled into the left corner of the eye, the left edge of the iris would be hidden. This case is similar to the second one. Its accuracy is little lower than in the second case, as shown in Figure 16b. According to our analysis, individual differences on eye images, such as different illuminations and different eye sizes existing in eye pictures, made this result.

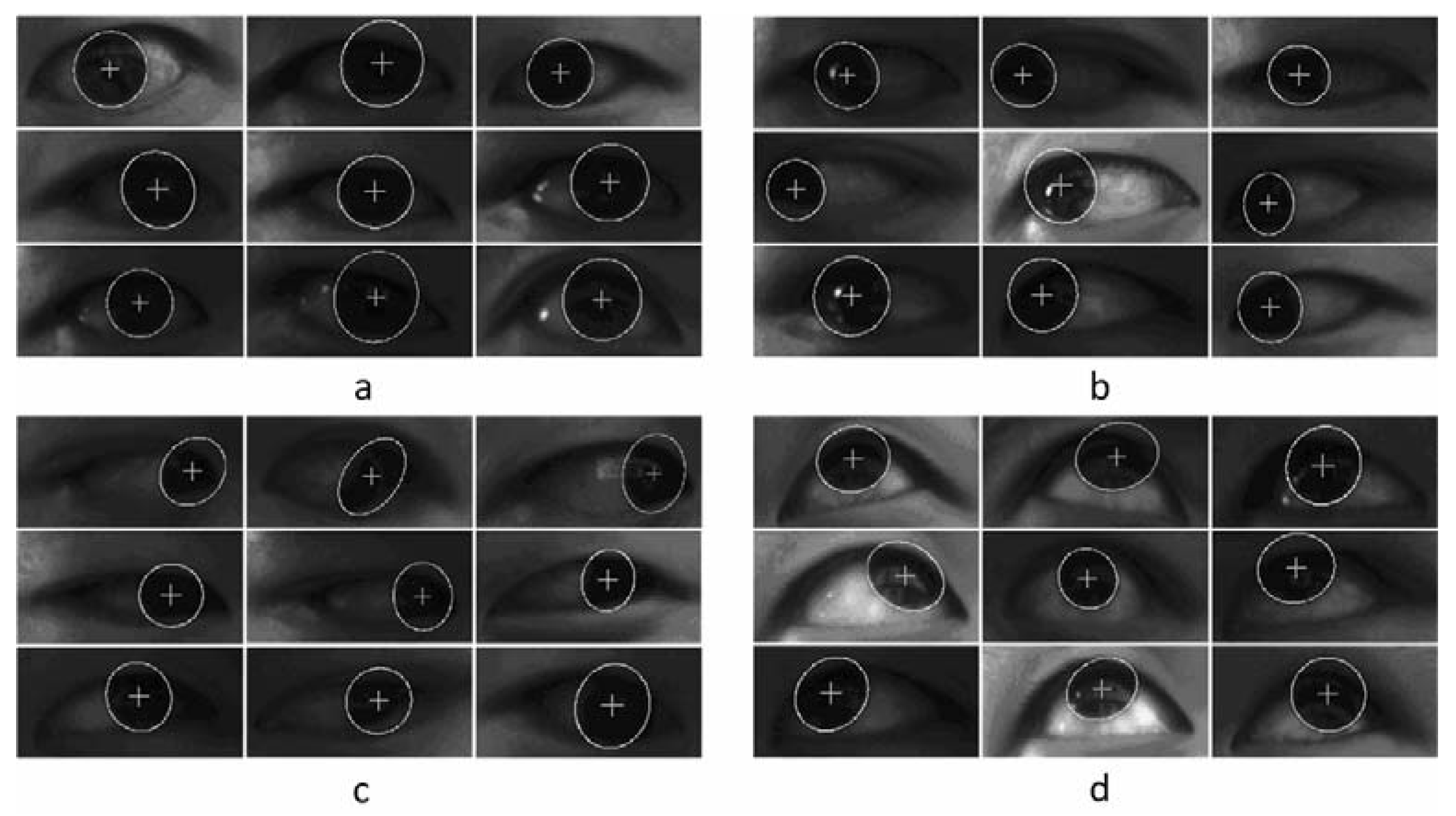

Figure 17 shows some successful examples of iris center detection corresponding to the four iris states within eye regions.

Comparison With Other Methods

The method has been compared with other existing methods that were discussed in the Introduction section. Those picking methods, i.e. (Zhang, Zhang, & Chang, 2001) (M2), (Wang, Sung, & Venkateswarlu, 2005) (M3), (Torricelli, Conforto, Schmid, & Alesio, 2008) (M4), (Sigut & Sidha, 2011) (M5), and (Perez, Lazcano, & Estevez, 2007) (M6), were successfully used for iris center detetcion in the eye tracking system. All methods run on the images from our eye database and adopt the proposed measurement to estimate accuracy of iris center detection. In Figure 18a to Figure 18d, it is clear that the performance of our proposed method (M1) achieved the highest accuracy compared with other methods.
As for methods M2, M3, and M5, the Canny operator was used to detect the edge of the iris. M5 used the reflection point (Glint) as a reference point to create a distance filter to eliminate unwanted pixels on edge image of eye. However, our method did not adopt an auxiliary light source. Hence, in our research, the nasal corner was taken as a reference point to replace the reflection point. Methods M4 and M5 took advantage of horizontal template operators and edge following technique as the manners of iris edge detection. However, when the iris rolled into two eye corners, the performance of M4 and M5 would weaken significantly. As shown in Figure 18b and Figure 18c, the accuracies are lower than others with T = 0.05.
For the center state, because iris edges on both sides are apparent, high accuracies are obtained by all methods. It also proved that enough detected edge points and distribution uniformly on two sides of the iris could enhance the accuracy of fitting. But we found that method M6 has low accuracy with T = 0.05, as shown in Figure 18a and Figure 18d, the reason is possibly inappropriate parameter selection of face size through the experimemt analysis.
The average accuracies of the four states are given in Table 1, where our proposed method achieves highest accuracies of 84.12%, 91.1%, and 94.3% versus other methods when T ≤ 0.05, T ≤ 0.1 and T ≤ 0.15. For comparative methods selected by our research, the accuracy of method M5 is 6.27% lower than our method for T ≤ 0.05. M6 achieves highest accuracies of 89% and 92.48% corresponding to T ≤ 0.1 and T ≤ 0.15 except our method, respectively. It’s worth nothing that the detection accuracy of Canny operator is lower than method M6. The reason is that Sobel operator made less noise edges than Canny operator when processing eye images. Hence, the accuracy of ellipse fitting achieved by Sobel operator is higher than by Canny operator. The same conclusion was also presented by Perez, Lazcano, & Estevez (2007).

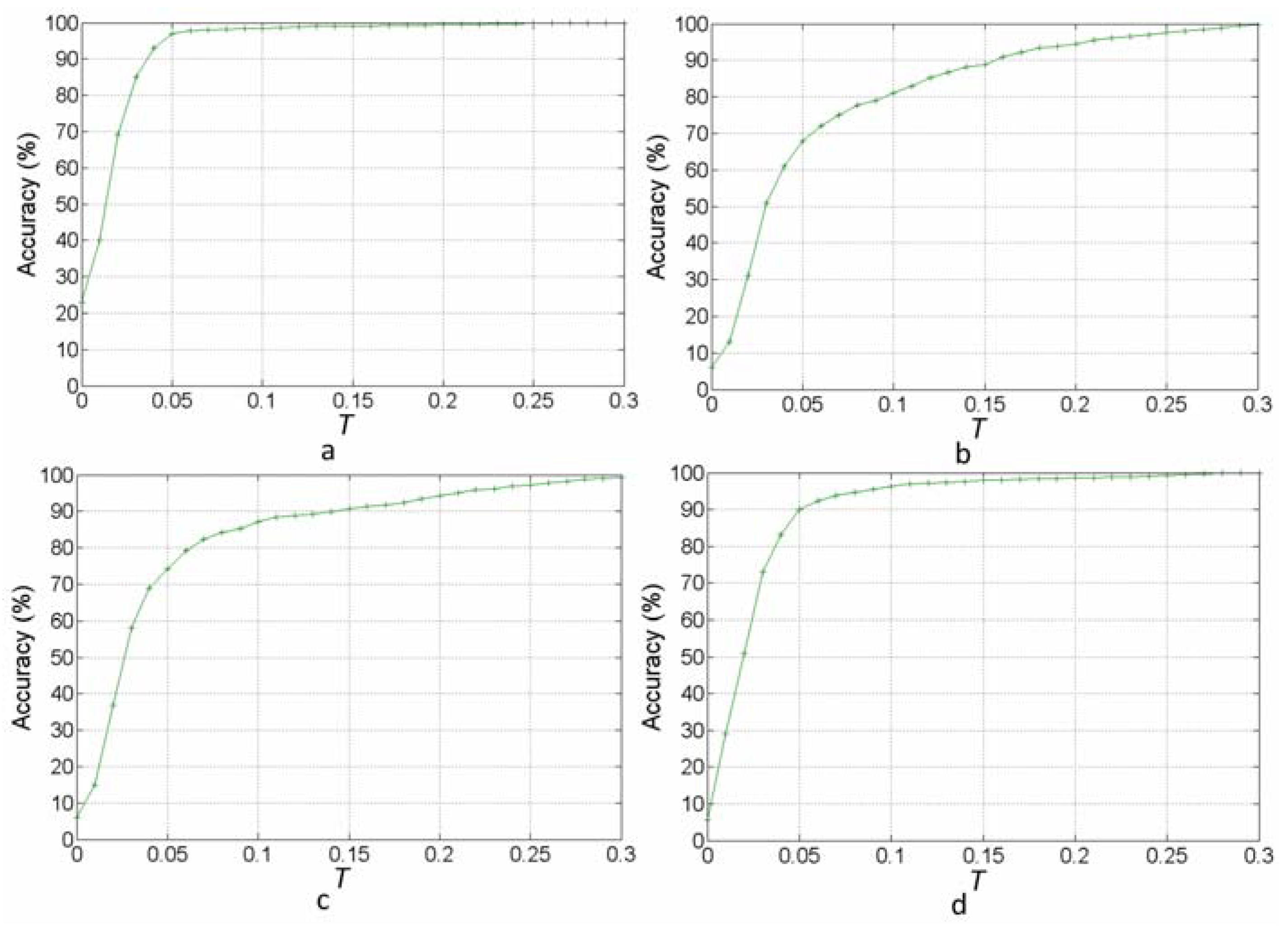

Figure 19 shows the distribution of relative errors for all methods, i.e. the histogram of relative error value dRerr, as they were defined in (11). The range of each value has been quantized to 1200 bins. Table 2 gives the summary statistics of the mean and standard deviation of the relative error corresponding to the four states of iris within eye region. The average value of our proposed method for four states is 0.043±0.004, that is, the mean maximum error dr for the iris center is only 4.3% of the actual iris center and an edge point. Compared with other existing methods, the proposed method achieves minimum relative error. Especially, as for left and right states of the iris, the mean values are 0.062 and 0.055, i.e. the mean relative errors are 6.2% and 5.5% of the actual iris center and an edge point, respectively. The results show the proposed algorithms can deal with the left and right states of the iris well.

Gaze Tracking Test

In order to test the performance of the proposed iris center detection method, we use it in our eye gaze tracking system. Firstly, the setup of gaze tracking system and experimental procedure are described. Then, we compare the gaze estimation results obtained by our method with methods M2~M6 presented in last section.

System Description

The gaze system adopts a Gigabit Ethernet camera produced by the German Basler corporation. The type of the camera is scA1390-17gc with a resolution of 1390×1038 pixels, and it can capture 17 images per second. The lens is a product of the Japan Computer company with Cmount interface installed and a 2/3" interlaced CCD imaging sensor. The focal length is 16mm.
The system software consists of two parts: image processing and gaze estimation. The image processing contains eye and iris center detection. The template matching method is used for locating eye regions (Yu, Wang, Lin, & Bai, 2014). The gaze estimation is used to build the mapping relationship between eye feature information and gaze regard points. The system software was written using the NI Labview 2011 and Labview vision development toolkit 2011.

Experimental Procedure

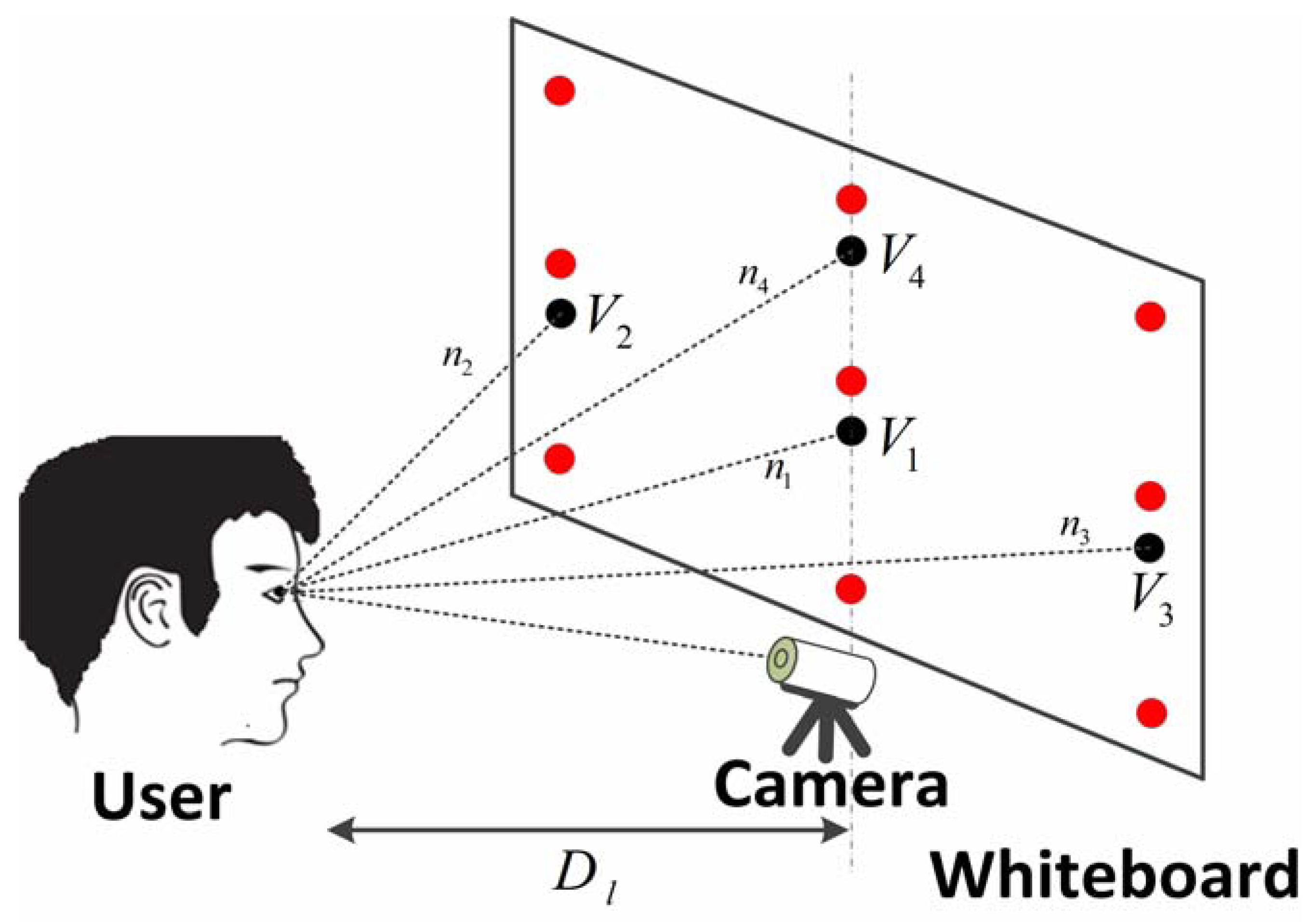

The experimental setup is shown in Figure 20. The size of whiteboard is 100cm (horizontal) × 60cm (vertical). Nine red points are represented as gaze calibration points. Four black points located at center, left, right and upper positions (V1, V2, V3, and V4) on the whiteboard are defined as test points (target points). The space coordinates of all points with respect to the whiteboard are known. The camera is placed between the user and the whiteboard. The distance Dl between the subject and the whiteboard is 60cm. The four lines of sight, n1, n2, n3, and n4, correspond to the target points, V1, V2, V3, and V4.
In our research, because no auxiliary light source was to produce a glint (reference point) on the iris, the nasal corner was taken as a reference point to replace it. Ten subjects from different regions of China (Different subjects in Eye Database Setup subsection), four female and six male, aged from 21-32 years, took part in the experiment. All had normal (without glasses) vision. The experiment was completed in our laboratory.
Before the start of each trail, a calibration procedure was required as follows. Subjects were asked to fixate on each calibration point and corresponding iris center and nasal eye corner coordinates were recorded, allowing the calibration algorithm to calculate the points of gaze on the screen. Here, we used a second-order polynomial function for gaze estimation, as follows:
Jemr 08 00015 i012
where (sx, sy ) is screen coordinates, (vx, vy ) is the vector between the nasal eye corner and the iris center. The a0 ~ a5 and b0 ~ a5 are the unknowns.
However, the calibration method is very sensitive to head motion. Thus, the subjects were asked to keep his or her head still (no head motion) relative to the camera in order to achieve good performance when subjects gazed at each point on the whiteboard. At the same time, the position of nasal eye corner can also remain stable nearly.

Gaze Estimation

In the following, the accuracy has been calculated in terms of mean and standard deviation of the gaze error eg between the true observed and the estimated positions. It is commonly expressed in angular degrees Alg according to the following equation:
Jemr 08 00015 i013

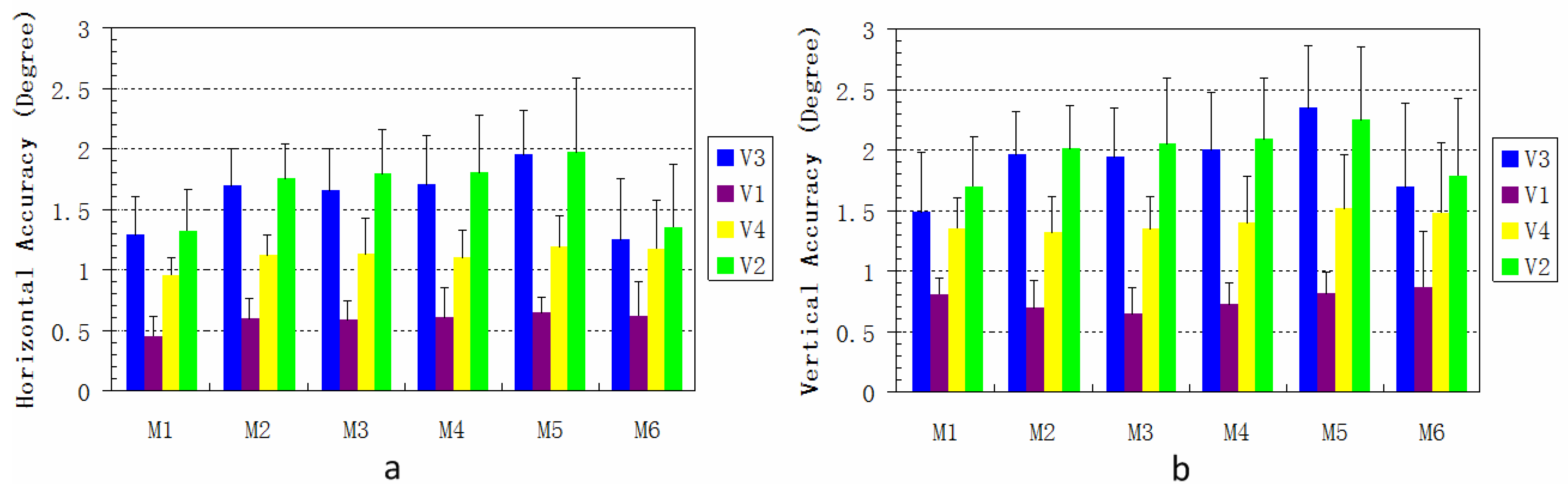

The results of the gaze estimation of the subjects #3 and #7 are shown in Figure 21. Table 3 gives the average accuracy of gaze estimation of 10 subjects corresponding to four target points, respectively. The global mean accuracy is approximately 0.99° in horizontal direction and 1.33° in vertical direction with a standard deviation 0.23° and 0.33°, respectively. We found that the accuracy in horizontal direction is higher than in vertical direction. The fact that part of the limbus is occluded by the eyelids results in a decrease in accuracy in vertical direction. It is also fair to remark that the gaze accuracies on right and left target points, i.e. V2 and V3, show a significant decrease. As for the two cases, the iris happen left and right states within the eye region. The average accuracies of 1.49° and 1.70° are achieved in horizontal and vertical directions, respectively.
Additionally, we compared the performance of our method with methods M2~M6 presented in last section. Those iris detection methods were used in our eye gaze tracking system. Figure 22 shows our proposed method achieves better performance compared with other methods. Especially, the accuracies of gaze estimation on left and right target points achieved by method M1 are significantly higher than others, it also evident that the algorithm of predicted edge points of iris has a certain effect on enhancing the accuracy of gaze tracking. Table 4 shows the global accuracies of all methods in horizontal and vertical directions. As for method M6, it also achieves higher accuracy of gaze tracking. On the one hand, left and right states of iris within eye regions achieve higher accuracies of gaze tracking, as shown in Figure 22. On the other hand, it is likely to achieve better accuracies of true iris center. (See Experimental Results section).

Discussion

Existing eye center detection methods used in eye trackers have two categories: pupil center detection and iris center detection. The pupil center detection method generally depends on near infrared light (IR). Because the pupil is much more apparent and easily tracked under IR light, and IR is not visible, the light does not distract the user when shone upon. However, the use of IR imaging techniques in outdoor scenarios during daytime is very restricted due to ambient IR illumination. Hence, it gives some limitations in certain applied fields.
Furthermore, in order to improve the performance of the pupil extraction task, a technique which is called the brightand dark-pupil effect is used in the eye tracker. The effect produces a high-contrast image of the pupil. The bright pupil is created by the on-axis light sources and the dark pupil is created by the off-axis light sources. The onand off-axis are relative to the camera axis. Then the brightand dark-pupil images are produced by a light controller which controls the light on or off, and the alternate frequency is the same as the image frame frequency of the video camera. The image differencing technique is used for the pupil extraction. The technique is that a difference image is calculated from the alternating bright and dark pupil images, and the high-contrast pupil image is left by removing the most same background (Morimoto, Koons, Amir, & Flickner, 2000).
However, the technique has two disadvantages. One is the artifact image. The artifact image is mainly produced by two reasons. Firstly, the image differencing technique with on- and off-axis lights source produces artifact images, which remove a portion of the pupil and corrupt the identified contour between the iris and pupil. Secondly, interframe motion of gaze tracking images also produces artifact images, which is created by misaligning the bright and dark pupil images. It distorts the extracted pupil contour. The detailed knowledge about the artifacts images can be found in (Hennessey, Noureddin, & Lawrence, 2008). Another is the additional hardware device for the brightand dark-pupil effect. It makes the eye gaze tracking system more complicated during the setup and the building cost higher. Also, it is hard to build an eye tracker for some researchers with less knowledge about the hardware.
Additionally, the pupil changes in size and wobbles during the saccades. This variability can cause issues with data quality (Drewes, Masson, & Montagnini, 2012; Drewes, Montagnini, & Masson, 2011). However, the iris center detection method often works under visible light. Visible light is not as sensitive to the IR light in the outdoor environment. The eye tracker with iris center detection method need less hardware devices and the cost of this type is cheaper than eye tracker with brightand dark-pupil technique. In general, that eye tracker includes a camera, a computer and a visible light. At the same time, the iris size is stable compared with pupil size. With the above background, the usefulness of iris detection becomes much more evident.
However, because the eyeball can move freely within eye region, the iris edge detection method needs to consider different states of the iris, i.e. center, left, right, and upper, as shown in Figure 1. Especially, if the human eyes gaze at objects on the left and right periphery of the screen, iris edges closer to eye corners would be hidden, i.e. the eyeball rolls into the nasal or temporal eye corner. In this case, we just obtain iris edge points on the uncovered iris edge, i.e. one side of the iris. Thus, it is hard to obtain the correct ellipse fitting with the detected points.
Although many eye gaze tracking systems based on iris center detection method, such as (Zhang, Zhang, & Chang, 2001), (Wang, Sung, & Venkateswarlu, 2005), (Perez, Lazcano, & Estevez, 2007), (Torricelli, Conforto, Schmid, & Alesio, 2008), and (Sigut & Sidha, 2011), were proposed by researchers, they seldom consider the states of eyeball within the eye region. Thus, as for gaze tracking in wide range, those systems are not ideal.
According to the discussion above, this paper presents an easy and efficient iris center detection method which considers the effect on accuracy of iris center detection for different states of iris within eye region. The proposed iris center detection method shows high positioning accuracy on eye images from our eye database and gaze estimation in our gaze tracking system. However, our proposed methods still have some uncertainties for iris edge detection. That has been proven to come from two reasons.
The first reason refers to the eye feature detection, namely the error positioning of rough iris center and eye corners. The successful run of our proposed method is based on a low false detection rate of each step. In other words, if the first step is not accurate, the following detection may be failed. Fortunately, the accuracy of the rough iris center and eye corners is higher through experimental results. However, the problem still existed in our eye gaze tracking system.
The second source of inaccuracy is that, in some extreme cases, if the gaze is directed towards the very lowest part of the camera, the eye can become semi-closed or closed. The proposed method does not achieve a high accuracy in iris center detection and eye gaze tracking due to occlusions from the eyelids and significant changes in iris shape.

Conclusion

An easy and efficient iris center detection method for eye gaze tracking system is presented in our paper. The method is based on modeling the geometric relationship between detected rough iris center and two eye corners and proposed active edge detection algorithm. The proposed method can automatically judge which iris edges need to be detected and extract iris edge points without any edge operators. Because the eyeball is an active structure, the iris often rolls into nasal and temporal eye corners. In this case, the part of the iris edge is hidden, making edge extraction of iris difficulty. Hence, this paper presents a predicted edge points algorithm to enhance the accuracy of ellipse fitting. The evaluated results show the global average accuracy of 94.30% for four states of the iris within eye region when T ≤ 0.05 and mean maximum error for the iris center is only 4.3% of the actual iris center and an edge point. Also, compared with other existing methods, our method achieves the highest iris center detection accuracy.
The proposed iris center detection method has been used in our gaze tracking system. The achieved average accuracies of gaze estimation for the four states of the iris are 0.99° in horizontal direction and 1.33° in vertical direction, respectively. Compared with other iris center detection methods, the proposed method enhanced the globe average accuracy of gaze tracking. Future efforts will be devoted to development and optimization of our method used in eye gaze tracking system. Especially, as for the two problems in Discussion section, we need to find better solutions. In addition, the gaze tracking system will be used in human-robot interaction and gaze gesture research fields. As for human-robot interaction research, the gaze tracking system can work outdoors to control agents, such as Drone and robotic vehicles, using eye gaze.

Acknowledgements

This work has been financially supported by Program of the National "985" Project -Phase III of Beijing Institute of Technology, China Scholarship Council (No. 201306030055), U.S. National Science Foundation (NSF) through the grant No. 0954579 and No. 1333524. The suggestions from the anonymous reviewers are greatly acknowledged. Special thanks also go to the participants who have participated in this work.

Appendix A

Jemr 08 00015 i014

Appendix B

Jemr 08 00015 i015

References

  1. Barea, R.; Boquete, L.; Mazo, M.; Lopez, E. System for Assisted Mobility Using Eye Movement Based on Electrooculography. IEEE Transactions on Neural Systems and Rehabilitation Engineering 2002, 10(4), 209–218. [Google Scholar]
  2. Beymer, D.; Flickner, M. Shifts in reported gaze position due to changes in pupil size: ground truth and compensation. In: Proceedings of IEEE Computer Society Conference on Computer Vision and Pattern Recognition, New York, NY, USA; 2003; pp. 451–458. [Google Scholar]
  3. Blignaut, P. J. Mapping the pupil-glint vector to gaze coordinates in a simple video-based eye tracker. Journal of Eye Movement Research 2013, 7(1), 1–11. [Google Scholar] [CrossRef]
  4. Cai, H.; Lin, Y. Coordinating Cognitive Assistance With Cognitive Engagement Control Approaches in Human-Machine Collaboration. IEEE Transactions on Systems, Man, and Cybernetics, Part A, Systems and Humans 2012, 42(2), 286–294. [Google Scholar]
  5. Daugman, J. G. High confidence visual recognition of persons by a test of statistical independence. IEEE Transactions on Pattern Analysis and Machine Intelligence 1993, 15(11), 1148–1161. [Google Scholar]
  6. Dobes, M.; Martinek, D.; Skoupil, Z.; Dobesova, J.; Pospisil, J. Human eye localization using the modified Hough transform. Optik 2006, 117(10), 468–473. [Google Scholar] [CrossRef]
  7. Duchowski, A. T.; Shivashamkaraish, V.; Rawls, T.; Gramopadhye, A. K.; Melloy, B. J.; Kanke, B. Binocular eye tracking in virtual reality for inspection training. In Proceedings of the symposium on Eye tracking research & applications ETRA'00, New York, USA; 2000; pp. 89–96. [Google Scholar]
  8. Ferhat, O.; Vilarino, F.; Sanchez, F. J. A cheap portable eye-tracker solution for common steups. Journal of Eye Movement Research 2014, 7(3), 1–10. [Google Scholar] [CrossRef]
  9. Feng, G. C.; Yuen, P. C. Multi-cues eye detection on grey intensity image. Pattern Recognition 2001, 34(5), 1033–1046. [Google Scholar] [CrossRef]
  10. Flores, M. J.; Armingol, M. J.; Esscalera, A. D. Driver Drowsiness Detection System under Infrared Illumination for the Intelligent vehicle. IET Intelligent Transport Systems 2011, 5(4), 241–251. [Google Scholar] [CrossRef]
  11. Fitzgibbon, A.; Pilu, M.; Fisher, R. Direct least square fitting of ellipse. IEEE Transactions on Pattern Analysis and Machine Intelligence 1999, 21(5), 476480. [Google Scholar] [CrossRef]
  12. Hennessey, C.; Noureddin, B.; Lawrence, P. Fixation Precision in High-Speed Noncontact EyeGaze Tracking. IEEE Transactions on Systems, Man, and Cybernetics Part B, Cybernetics 2008, 38(2), 289–298. [Google Scholar]
  13. Hooge, I.; Nyström, M.; Cornelissen, T.; Holmqvist, K. The art of braking: Post saccadic oscillations in the eye tracker signal decrease with increasing saccade size. Vision Research 2015, 112, 55–67. [Google Scholar] [CrossRef] [PubMed]
  14. Jesorsky, J.; Kirchberg, K. J.; Frischolz, W. Robust Face Detection Using the Hausdorff Distance. In: Third International Conference on Audioand Video-based Biometric Person Authentication, Halmstad, Sweden; 2001; pp. 90–95. [Google Scholar]
  15. Kimmel, D.; Mammo, D.; Newsome, W. Tracking the eye non-invasively: simultaneous comparison of the scleral search coil and optical tracking techniques in the macaque monkey. Frontiers in Behavioral Neuroscience 2012, 6(49), 312–331. [Google Scholar] [CrossRef]
  16. Li, D.; Winfield, D.; Parkhurst, D. J. Starburst: A hybrid algorithm for video-based eye tracking combining feature-based and model-based approaches. IEEE Computer Society Conference on CVPR Workshops, San Diego, CA, USA; 2005; p. 79. [Google Scholar]
  17. Li, D.; Winfield, D.; Parkhurst, D. J. Starburst: A hybrid algorithm for video-based eye tracking combining feature-based and model-based approaches. IEEE Computer Society Conference on CVPR Workshops, San Diego, CA, USA; 2005; p. 79. [Google Scholar]
  18. Liversedge, S. P.; Meadmore, K.; Corck-Adelman, D.; Shih, S.; Pollatsek, A. Eye movements and memory for objects and their locations. Studies of Psychology and Behavior 2011, 9(1), 7–14. [Google Scholar]
  19. Matsumoto, A.; Zelinsky, A. An algorithm for Real-time stero vision implementation of head pose and gaze direction measurement. In: Fourth IEEE International Conference on Automatic Face and Gesture Recognition, Grenoble, France; 2000; pp. 499–504. [Google Scholar]
  20. Mohammadi, M. R.; Raie, A. Robust PoseInvariant Eye Gaze Estimation Using Geometrical Features of Iris and Pupil Images. In: 20th Iranian Conference on Electrical Engineering, Tehran, Iran; 2012; pp. 593–598. [Google Scholar]
  21. Morimoto, H. C.; Koons, D.; Amir, A.; Flickner, M. Pupil detection and tracking using multiple light sources. Image Vision and Computing 2000, 18(4), 331–335. [Google Scholar] [CrossRef]
  22. Nyström, M.; Hooge, I.; Holmqvist, K. Postsaccadic oscillations in eye movement data recorded with pupil-based eye trackers reflect motion of the pupil inside the iris. Vision Research 2013, 11, 59–66. [Google Scholar] [CrossRef] [PubMed]
  23. Oyster, C. W. The Human Eye: Structure and Function; Sinauer Associates: Sunderland, MA, 1999. [Google Scholar]
  24. Papageorgiou, E.; Hardiess, G.; Mallot, H. A.; Schiefer, U. Gaze patterns predicting successful collision avoidance in patients with homonymous visual field defects. Vision Research 2012, 65(15), 25–37. [Google Scholar] [CrossRef] [PubMed]
  25. Perez, C. A.; Lazcano, V. A.; Estevez, P. A. Real-Time Iris Detection on Coronal-Axis-Rotated Faces. IEEE Transactions on Systems, Man, and Cybernetics, Part C, Application and Reviews 2007, 37(5), 971–978. [Google Scholar] [CrossRef]
  26. Robinson, D. A. A method of measuring eye movements using a scleral search coil in magnetic field. IEEE Transactions on Biomedical Engineering 1963, 10(4), 137–145. [Google Scholar]
  27. Sankowski, W.; Grabowski, K.; Napieralska, M.; Zubert, A.; Napieralski, A. Reliable algorithm for iris segmentation in eye image. Image and Vision Computing 2010, 28(2), 231–237. [Google Scholar] [CrossRef]
  28. Sigut, J.; Sidha, S. A. Iris Center Corneal Reflection Method for Gaze Tracking Using Visible Light. IEEE Transactions on Biomedical Engineering 2011, 58(2), 411–419. [Google Scholar]
  29. Sirohey, S. A.; Rosenfeld, A.; Duric, Z. A. A method of detecting and tracking irises and eyelids in video. Pattern Recognition 2002, 35(6), 1389–1401. [Google Scholar] [CrossRef]
  30. Świrski, L.; Bulling, A.; Dodgson, N. Robust real-time pupil tracking in highly off-axis images. In Proceedings of the Symposium on Eye Tracking Research and Applications, New York, NY, USA; 2012; pp. 173–176. [Google Scholar]
  31. Torricelli, D.; Conforto, S.; Schmid, M.; Alesio, T. A. A neural-based remote eye gaze tracker under natural head motion. Computer Methods and Programs in Biomedicine 2008, 92(1), 66–78. [Google Scholar] [CrossRef]
  32. Tseng, P.; Cameron, I. G. M.; Pari, G.; Reynplds, J. N.; Munoz, D. P.; Itti, L. High-throughput classification of clinical populations from natural viewing eye movements. Journal of Neurology 2012, 260(1), 275284. [Google Scholar] [CrossRef]
  33. Wang, J.; Venkateswarlu, R. Study on Eye Gaze Estimation. IEEE Transactions on Systems, Man, and Cybernetics, Part B, Cybernetics 2002, 32(3), 332–350. [Google Scholar]
  34. Wang, J.; Sung, E.; Venkateswarlu, R. Estimating the eye gaze from one eye. Computer Vision and Image Understanding 2005, 98(1), 83–103. [Google Scholar] [CrossRef]
  35. Yu, M.; Lin, Y.; Schmidt, D.; Wang, X.; Wang, Y. Human-robot interaction based on gaze gestures for the drone teleoperation. Journal of Eye Movement Research 2014, 7(4), 1–14. [Google Scholar] [CrossRef]
  36. Yu, M.; Wang, X.; Lin, Y.; Bai, X. Gaze Tracking System for Teleoperation. 26th Chinese Control and Decision Conference, Changsha, China; 2014; pp. 4617–4622. [Google Scholar]
  37. Zhang, W.; Zhang, T.; Chang, S. Eye gaze estimation from the elliptical features of one iris. Optical Engineering 2001, 50(4), 047003–047003-9. [Google Scholar] [CrossRef]
  38. Zhou, Z.; Geng, X. Projection functions for eye detection. Pattern Recognition 2004, 37(5), 1049–1056. [Google Scholar] [CrossRef]
  39. Zhu, J.; Yang, J. Subpixel Eye Gaze Tracking. In: Fifth IEEE International Conference on Automatic Face and Gesture Recognition, Washington, DC, USA; 2002; pp. 124–129. [Google Scholar]

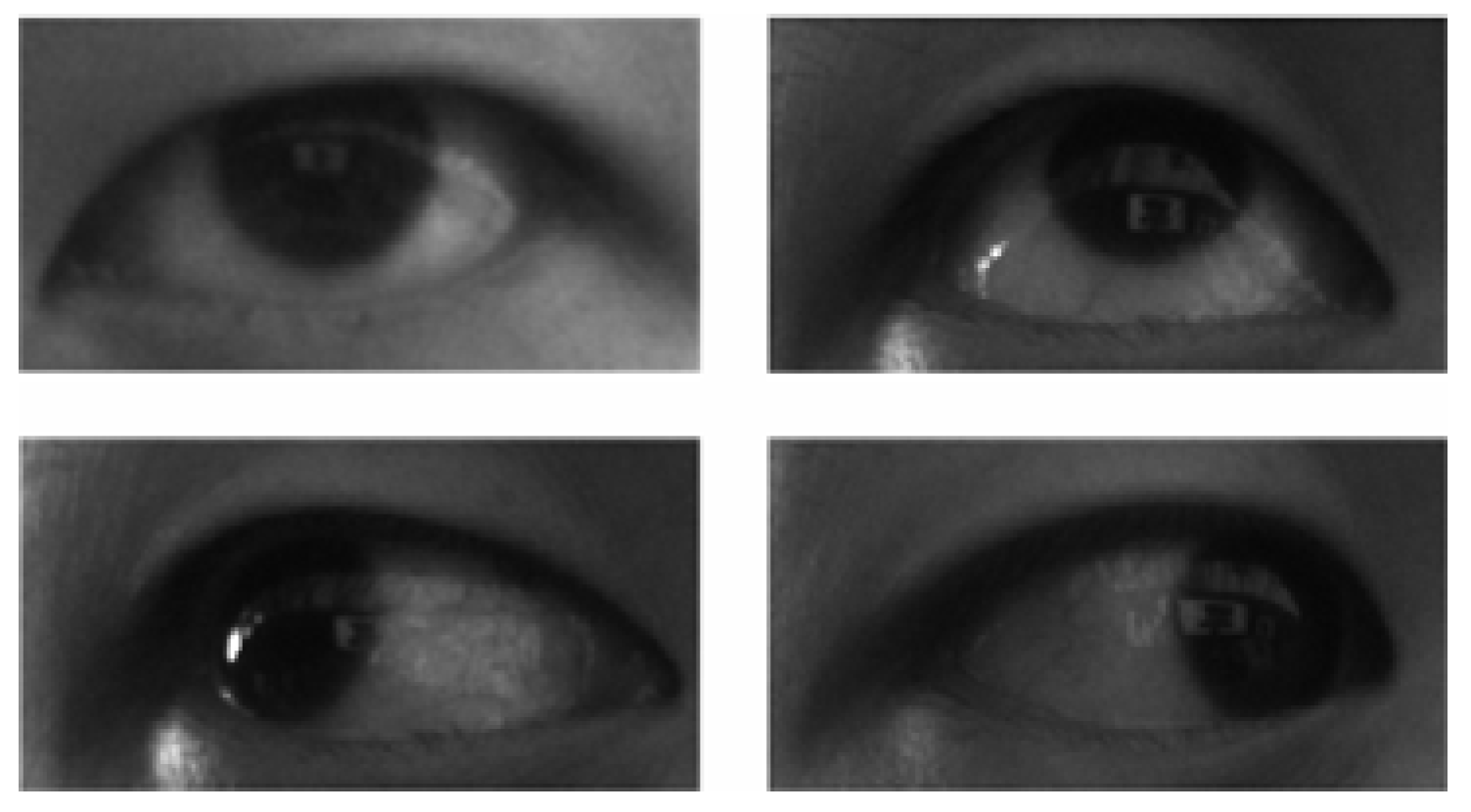

Figure 1. Four states of iris within the eye region.
Figure 1. Four states of iris within the eye region.
Jemr 08 00015 g001

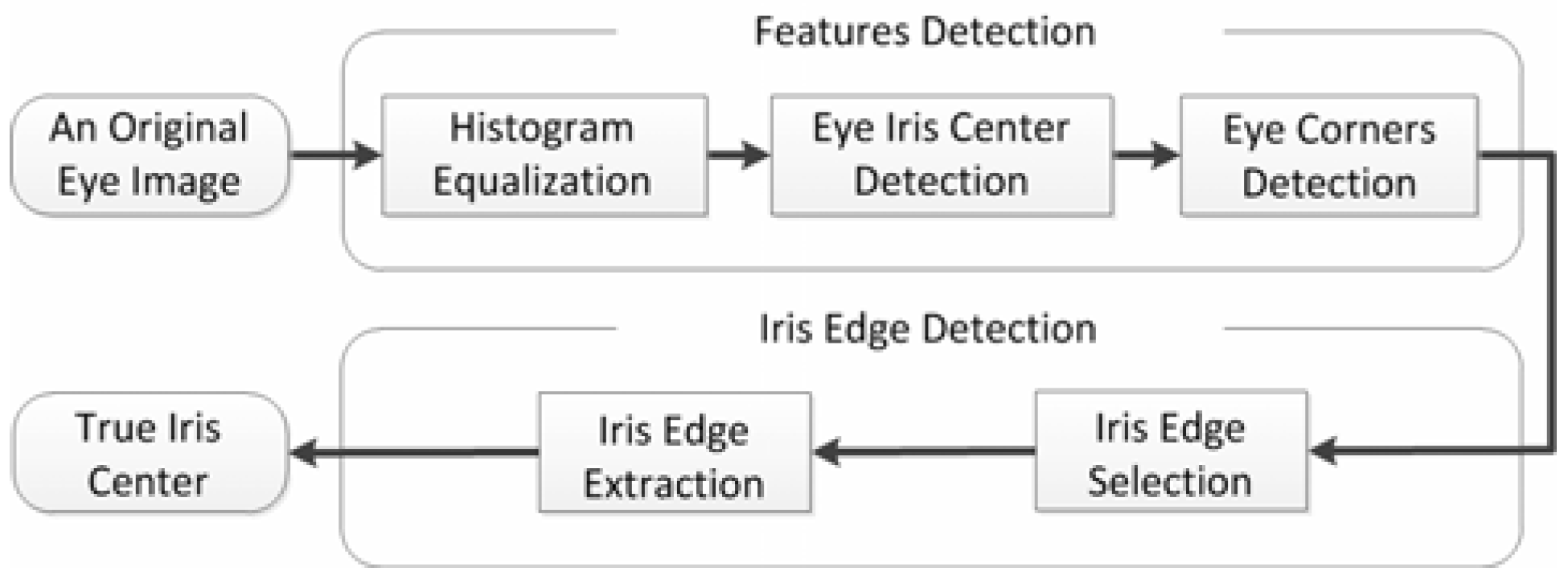

Figure 2. The procedure of iris center detection method.
Figure 2. The procedure of iris center detection method.
Jemr 08 00015 g002

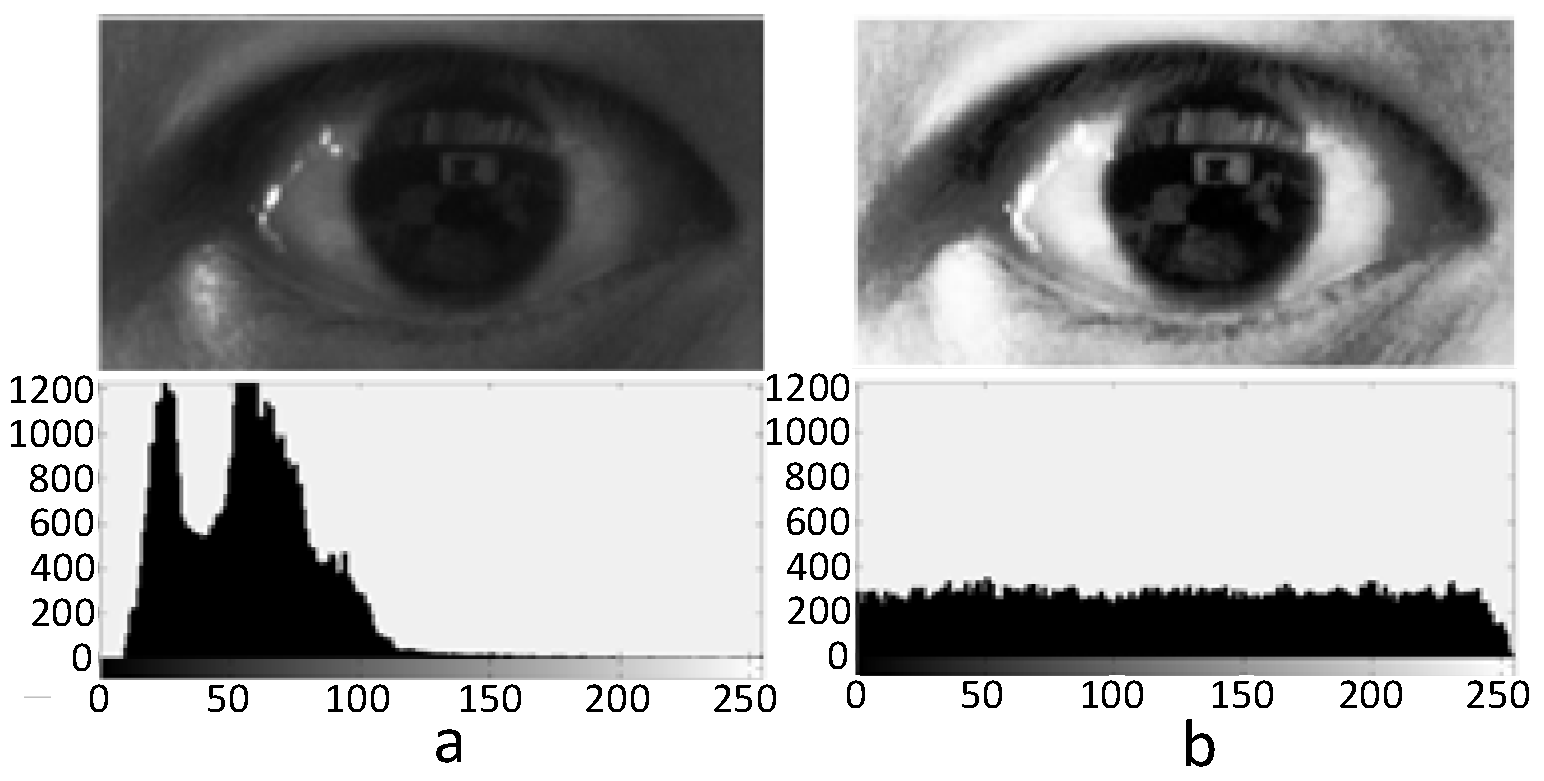

Figure 3. (a) shows the human eye image and gray histogram, (b) shows the human eye image with histogram equalization and gray histogram.
Figure 3. (a) shows the human eye image and gray histogram, (b) shows the human eye image with histogram equalization and gray histogram.
Jemr 08 00015 g003

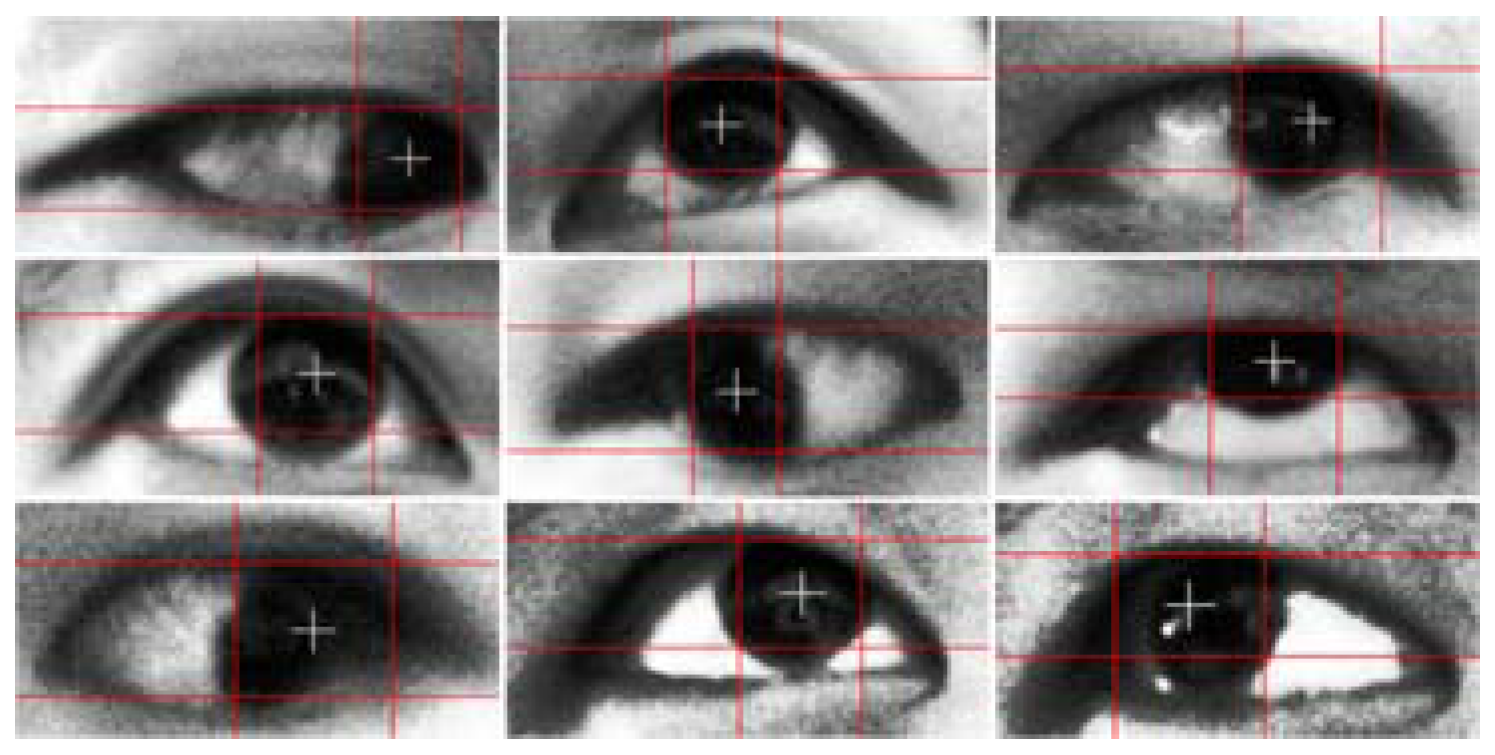

Figure 4. Results of successful rough iris center detection on eye database.
Figure 4. Results of successful rough iris center detection on eye database.
Jemr 08 00015 g004

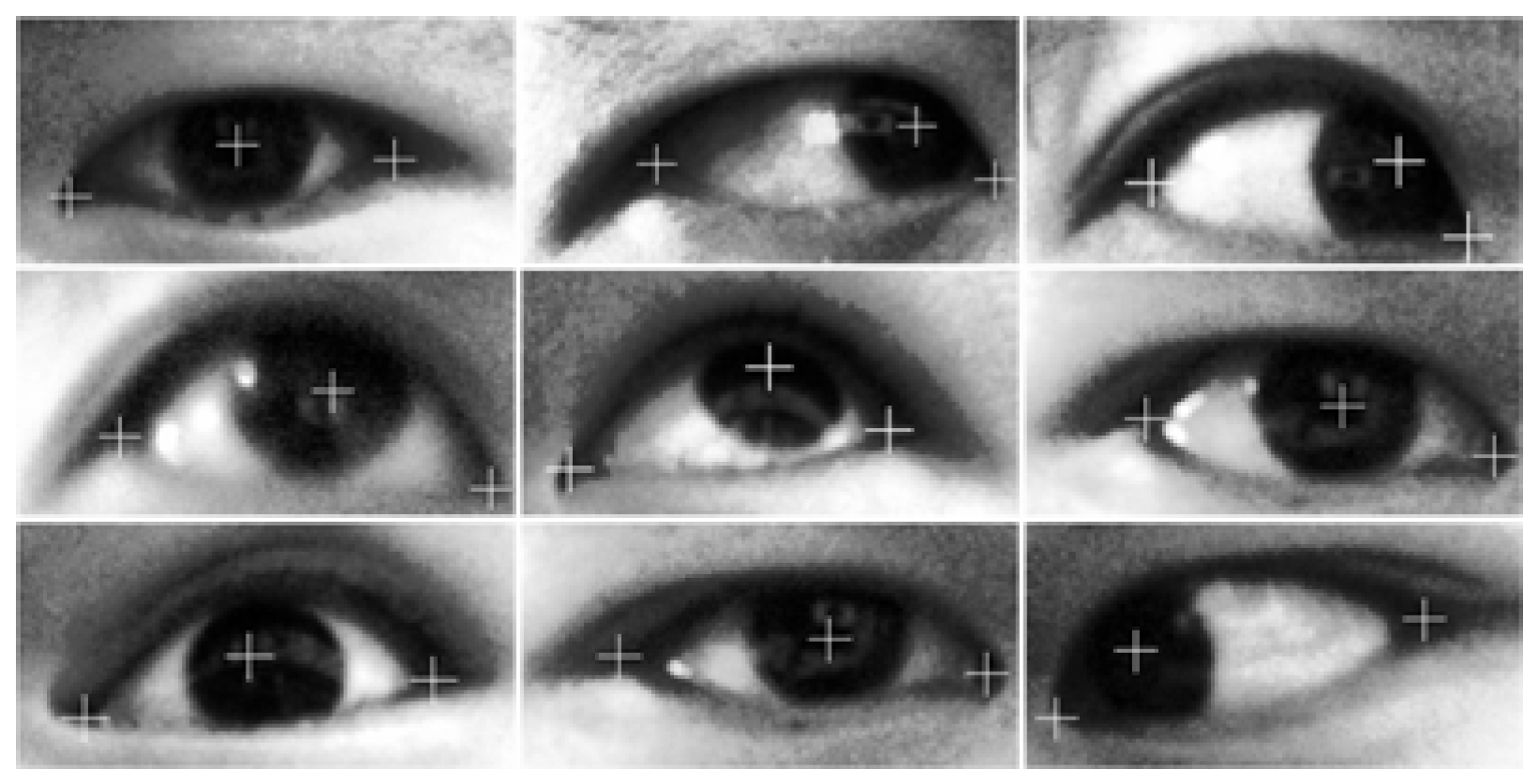

Figure 5. Results of successful eye corners detection on eye database.
Figure 5. Results of successful eye corners detection on eye database.
Jemr 08 00015 g005

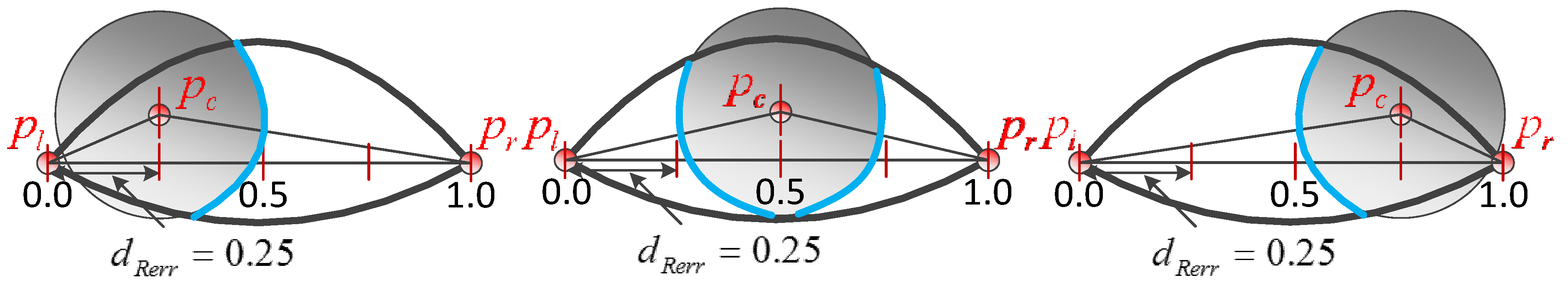

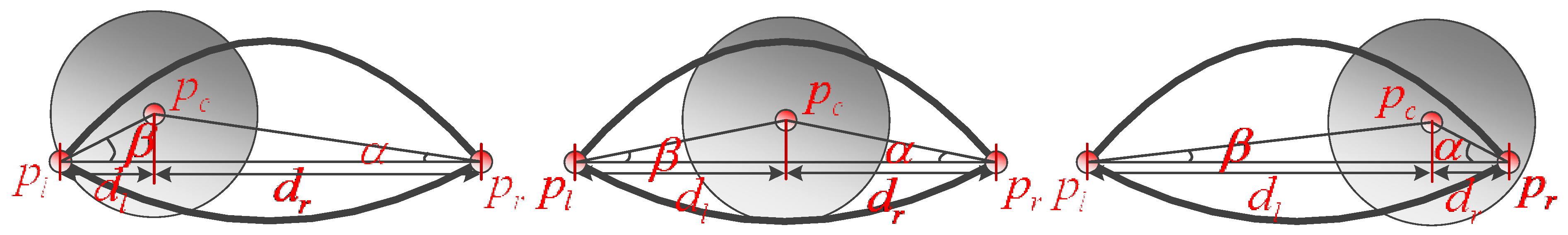

Figure 6. Three states of iris within eye region and geometrical relationship between the eye corners and the ideal iris centre.
Figure 6. Three states of iris within eye region and geometrical relationship between the eye corners and the ideal iris centre.
Jemr 08 00015 g006
Figure 7. Iris edge marked with blue arc lines need to be detected according to the geometrical relationship of the position between the eye corners and the ideal iris centre.
Figure 7. Iris edge marked with blue arc lines need to be detected according to the geometrical relationship of the position between the eye corners and the ideal iris centre.
Jemr 08 00015 g007

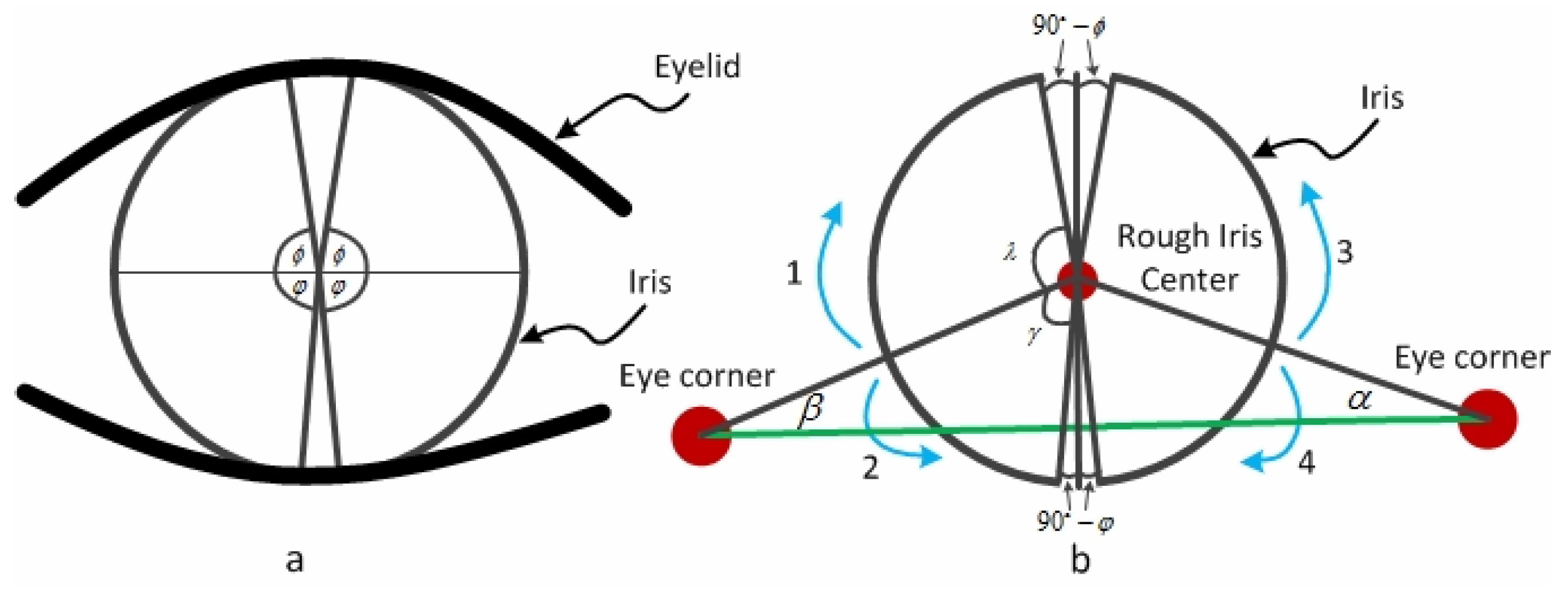

Figure 8. (a) shows angels φ and ϕ considered for the iris edge detection ranges free from eyelids occlusion. (b) shows directions of iris edge detection marked with four blue arrows labeled 1, 2, 3 and 4. λ and γ represent the search angels between initial search line (See Figure 10b) and maximum search boundaries.
Figure 8. (a) shows angels φ and ϕ considered for the iris edge detection ranges free from eyelids occlusion. (b) shows directions of iris edge detection marked with four blue arrows labeled 1, 2, 3 and 4. λ and γ represent the search angels between initial search line (See Figure 10b) and maximum search boundaries.
Jemr 08 00015 g008

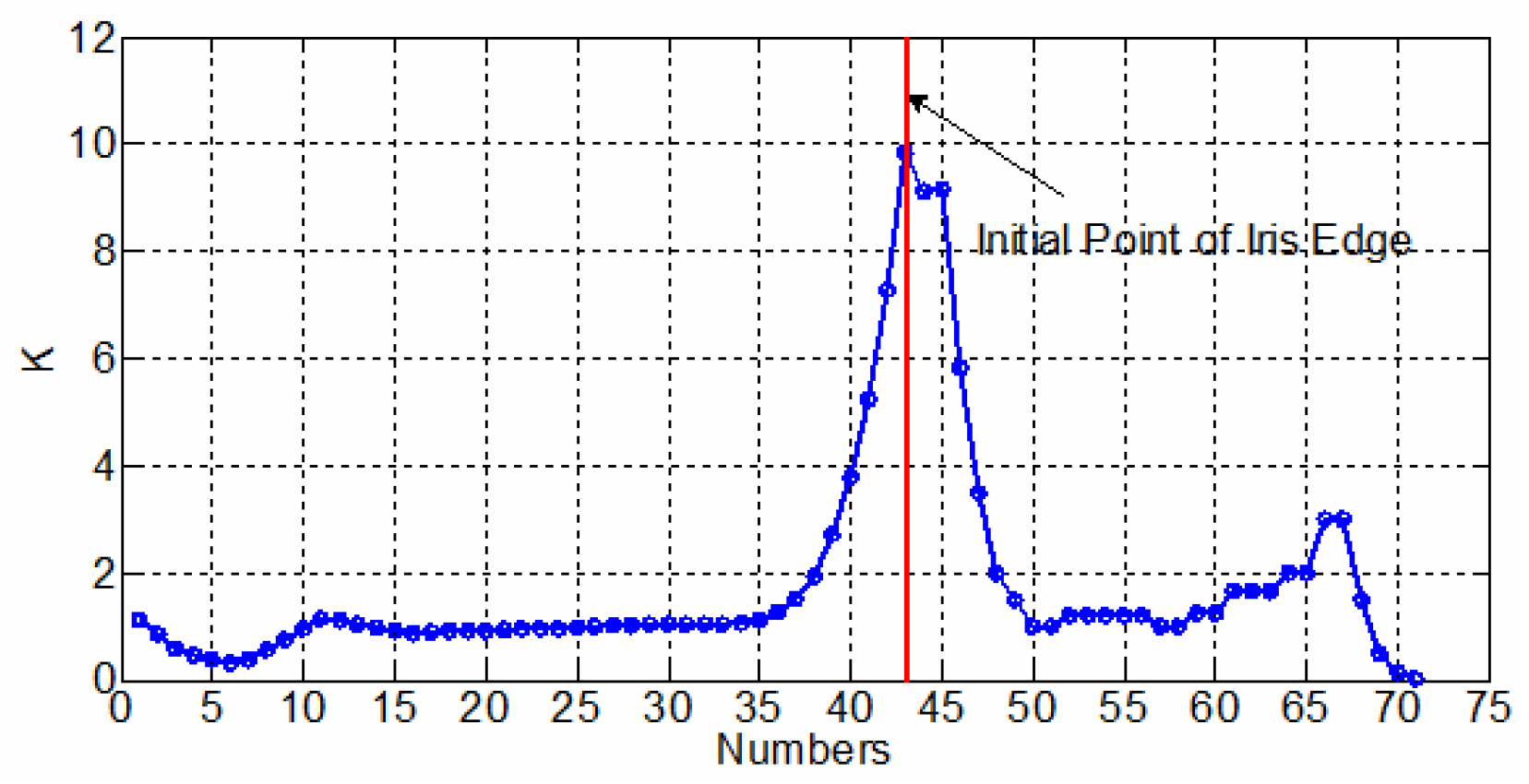

Figure 9. The ratio of line integral along the initial search line.
Figure 9. The ratio of line integral along the initial search line.
Jemr 08 00015 g009

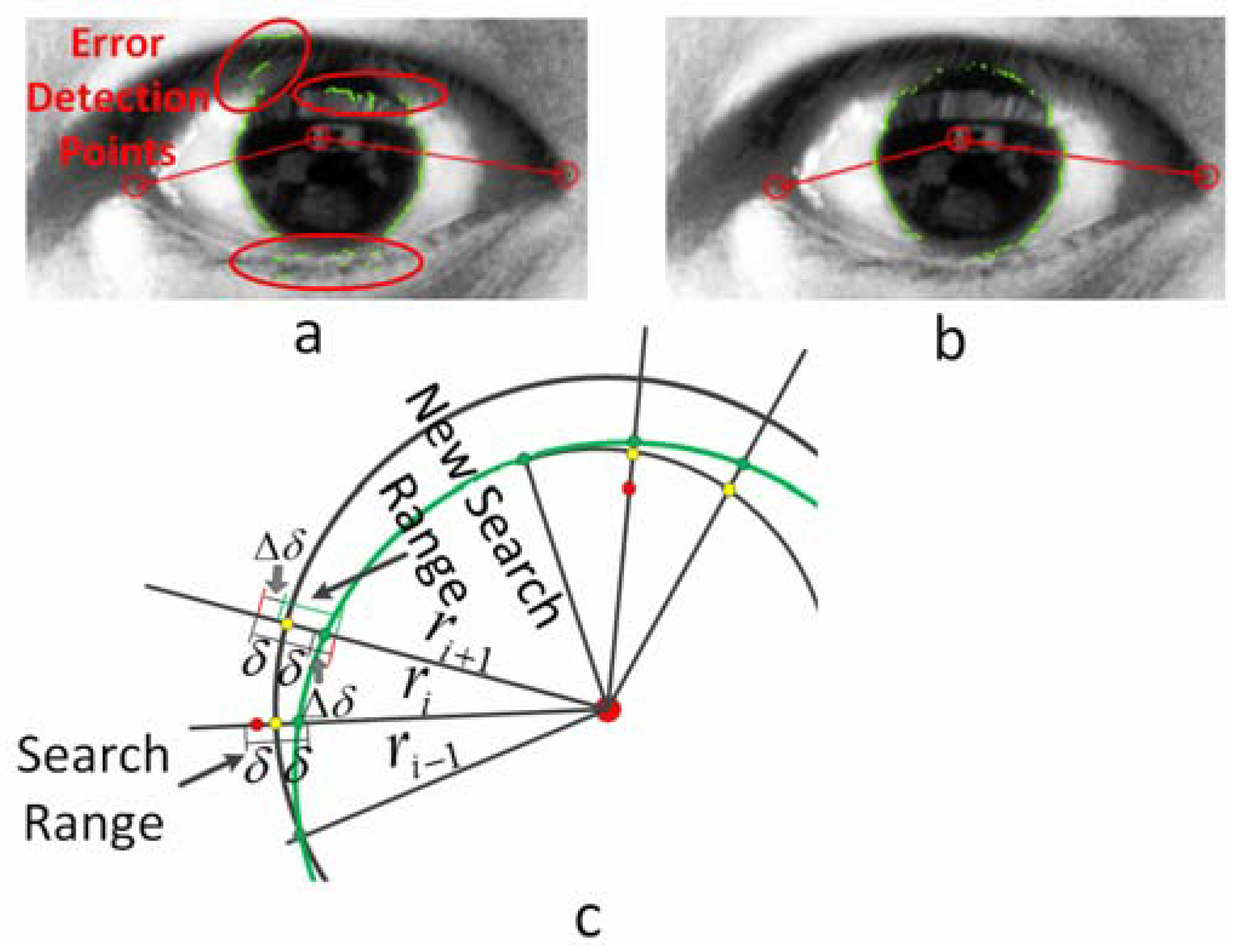

Figure 11. (a) shows detection result of edge points of iris. (b) shows detection result of edge points with the predicted edge points algorithm. (c) shows schematic diagram for Iris Edge Detection Algorithm1.
Figure 11. (a) shows detection result of edge points of iris. (b) shows detection result of edge points with the predicted edge points algorithm. (c) shows schematic diagram for Iris Edge Detection Algorithm1.
Jemr 08 00015 g011

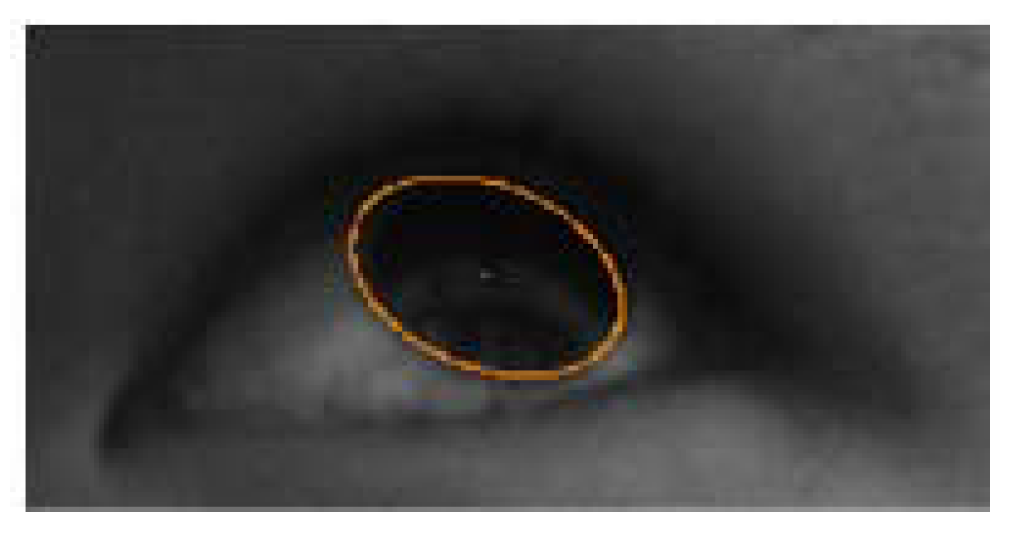

Figure 12. An Example of ellipse fitting for iris edge.
Figure 12. An Example of ellipse fitting for iris edge.
Jemr 08 00015 g012

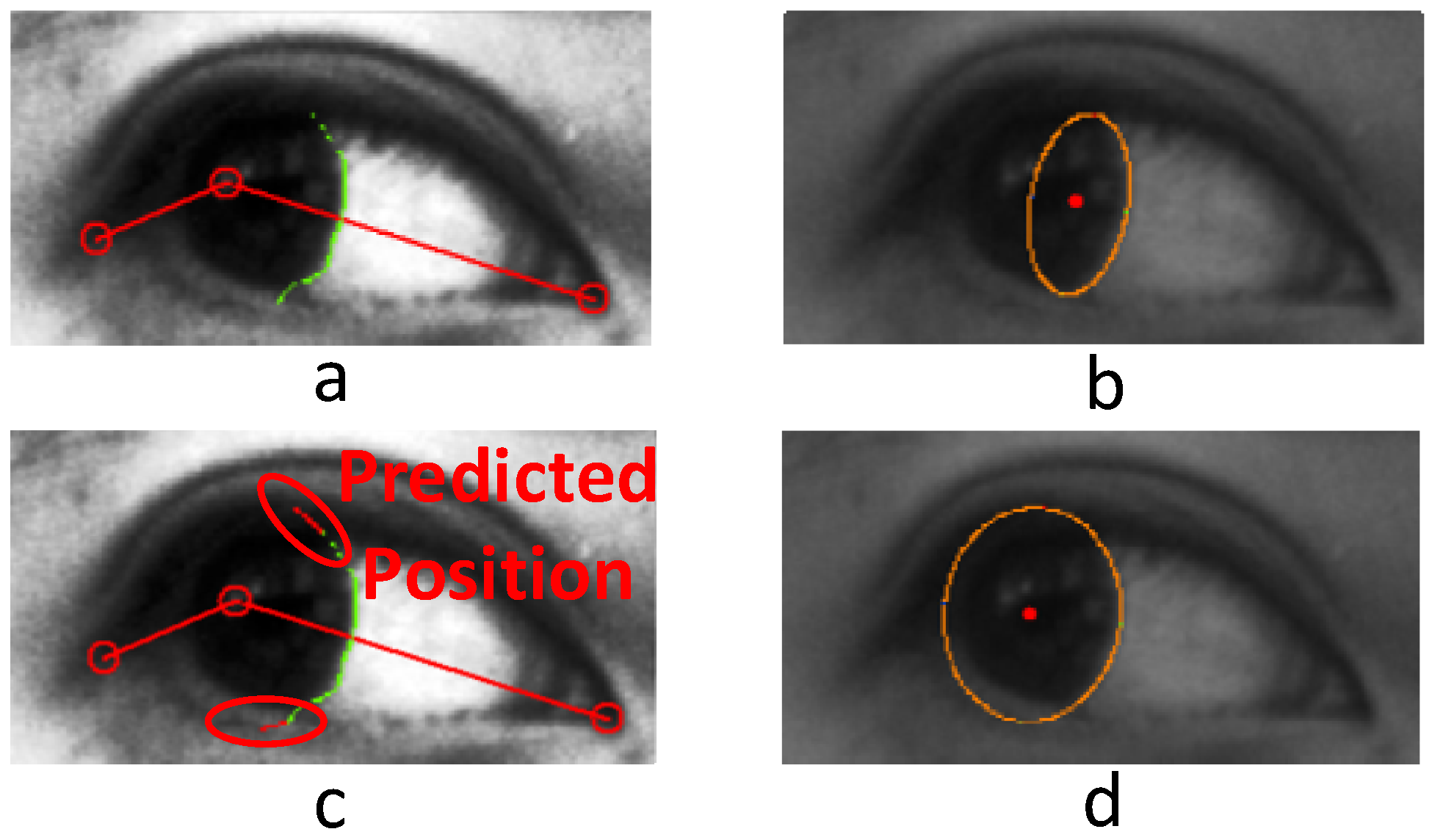

Figure 13. (a) and (b) show the edge points with Algorithm1 and are used for ellipse fitting. (c) shows the predicted edge points with Algorithm2. (d) shows the final result of ellipse fitting with detected and predicted edge points.
Figure 13. (a) and (b) show the edge points with Algorithm1 and are used for ellipse fitting. (c) shows the predicted edge points with Algorithm2. (d) shows the final result of ellipse fitting with detected and predicted edge points.
Jemr 08 00015 g013
Figure 14. The schematic diagram for Predicted Edge Points Detection Algorithm2.
Figure 14. The schematic diagram for Predicted Edge Points Detection Algorithm2.
Jemr 08 00015 g014
Figure 15. The model of one iris on the eye.
Figure 15. The model of one iris on the eye.
Jemr 08 00015 g015
Figure 16. The distribution functions of relative error against accuracy of our proposed method with respect to true iris center. (a) Center, (b) Left, (c) Right, (d) Upper.
Figure 16. The distribution functions of relative error against accuracy of our proposed method with respect to true iris center. (a) Center, (b) Left, (c) Right, (d) Upper.
Jemr 08 00015 g016
Figure 17. Successful examples of iris center detection corresponding to four states: (a) Center, (b) Left, (c) Right, (d) Upper.
Figure 17. Successful examples of iris center detection corresponding to four states: (a) Center, (b) Left, (c) Right, (d) Upper.
Jemr 08 00015 g017

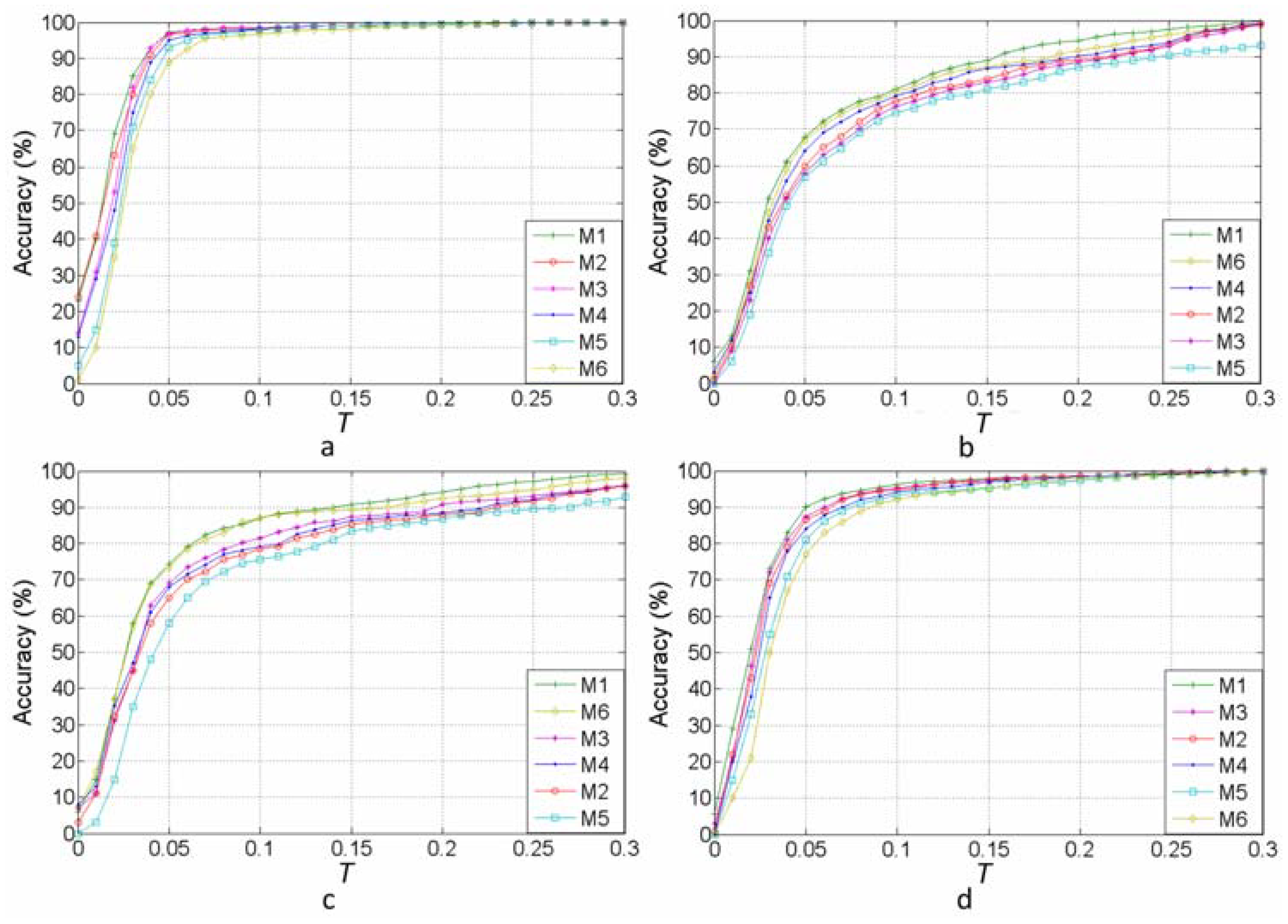

Figure 18. The distribution functions of relative error against accuracy of six methods (M1, M2, M3, M4, M5, and M6) with respect to true iris center. (a) Center, (b) Left, (c) Right, (d) Upper.
Figure 18. The distribution functions of relative error against accuracy of six methods (M1, M2, M3, M4, M5, and M6) with respect to true iris center. (a) Center, (b) Left, (c) Right, (d) Upper.
Jemr 08 00015 g018

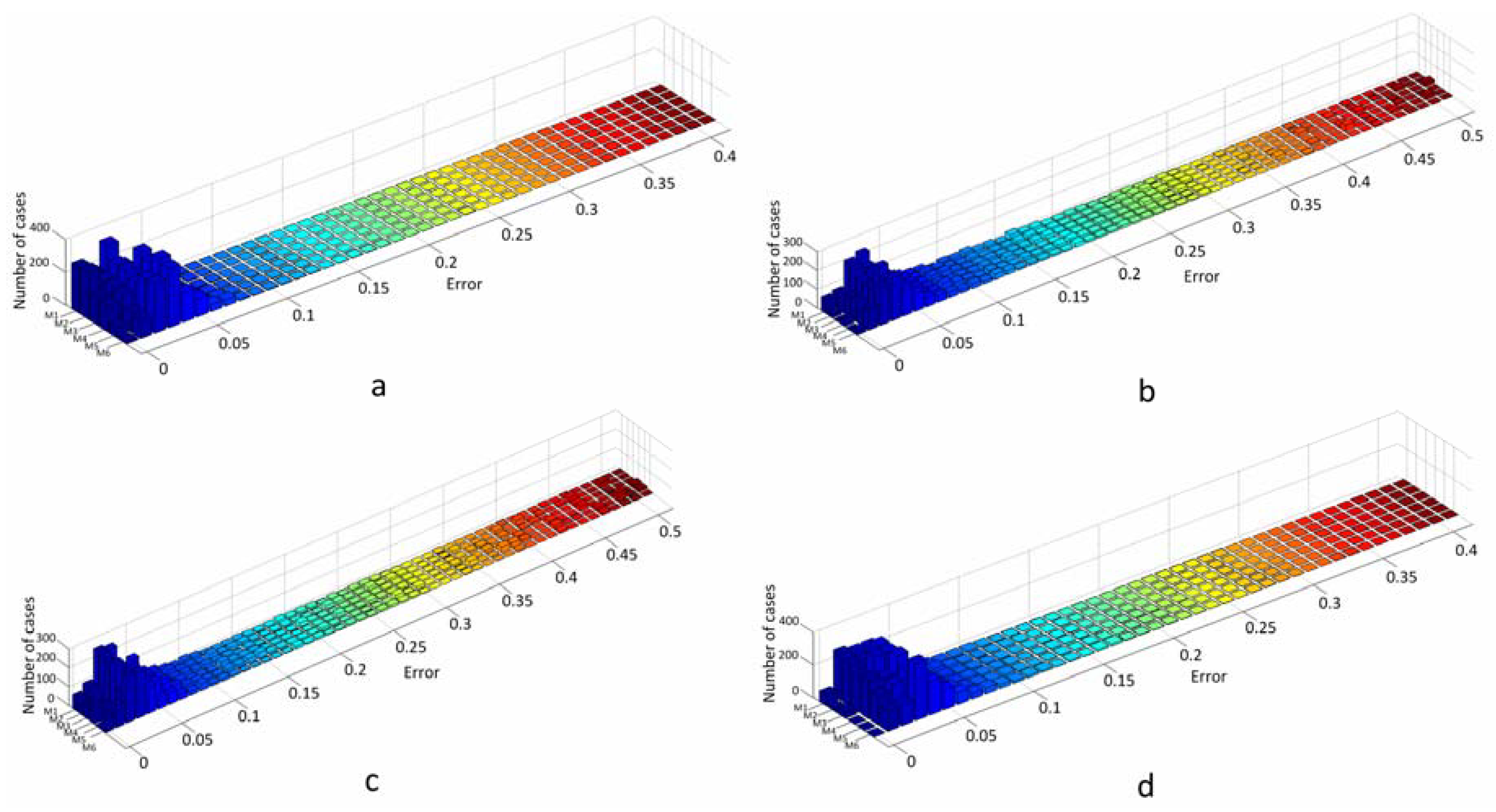

Figure 19. The distribution of error for iris center localization with six methods (M1, M2, M3, M4, M5, and M6). (a) Center, (b) Left, (c) Right, (d) Upper.
Figure 19. The distribution of error for iris center localization with six methods (M1, M2, M3, M4, M5, and M6). (a) Center, (b) Left, (c) Right, (d) Upper.
Jemr 08 00015 g019
Figure 20. Experimental setup.
Figure 20. Experimental setup.
Jemr 08 00015 g020

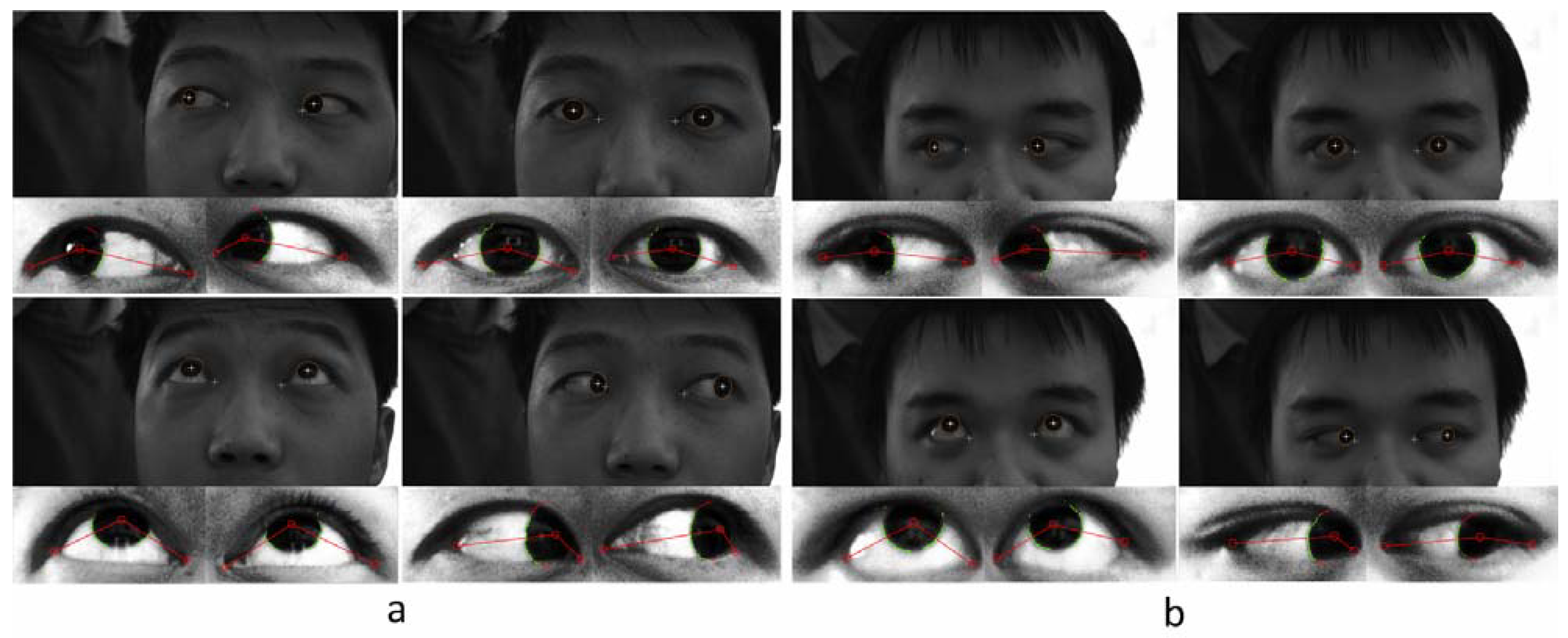

Figure 21. Estimated eye gaze for the four target points: V1, V2, V3, and V4. (a) Subject #3, (b) Subject #7.
Figure 21. Estimated eye gaze for the four target points: V1, V2, V3, and V4. (a) Subject #3, (b) Subject #7.
Jemr 08 00015 g021
Figure 22. Histograms of mean and standard deviation of the error in degrees for methods M1~M6 corresponding to the four target points: V1, V2, V3, and V4. (a) Horizontal Accuracy, (b) Vertical Accuracy.
Figure 22. Histograms of mean and standard deviation of the error in degrees for methods M1~M6 corresponding to the four target points: V1, V2, V3, and V4. (a) Horizontal Accuracy, (b) Vertical Accuracy.
Jemr 08 00015 g022
Table 1. Comparison accuracy versus relative error.
Table 1. Comparison accuracy versus relative error.
MethodAccuracy
( T ≤ 0.05 )
Accuracy
( T ≤ 0.1 )
Accuracy
( T ≤ 0.15 )
M184.12%91.10%94.30%
M277.05%87.35%91.34%
M377.85%87.93%91.98%
M477.75%87.63%92.30%
M572.25%85.35%89.73%
M676.63%89.00%92.48%
Table 2. The summary statistics of mean and standard deviation of relative error for iris center localization.
Table 2. The summary statistics of mean and standard deviation of relative error for iris center localization.
MethodCenterLeftRightUpperMean
M10.021±0.0010.062±0.0060.055±0.0060.032±0.0010.043±0.004
M20.023±0.0010.085±0.0190.111±0.0260.037±0.0020.064±0.012
M30.026±0.0010.101±0.0010.080±0.0140.035±0.0020.061±0.005
M40.028±0.0010.077±0.0110.095±0.0200.040±0.0020.060±0.009
M50.033±0.0010.105±0.0210.133±0.0330.044±0.0030.079±0.015
M60.038±0.0020.067±0.0070.064±0.0100.049±0.0030.055±0.006
Table 3. Average accuracy in horizontal and vertical directions.
Table 3. Average accuracy in horizontal and vertical directions.
Jemr 08 00015 t001
Table 4. Compared globe average accuracy in horizontal and vertical directions obtained by our method with M2~M6.
Table 4. Compared globe average accuracy in horizontal and vertical directions obtained by our method with M2~M6.
Jemr 08 00015 t002

Share and Cite

MDPI and ACS Style

Yu, M.; Lin, Y.; Schmidt, D.; Tang, X.; Wang, X.; Xu, J.; Guo, Y. An Easy Iris Center Detection Method for Eye Gaze Tracking System. J. Eye Mov. Res. 2015, 8, 1-20. https://doi.org/10.16910/jemr.8.3.5

AMA Style

Yu M, Lin Y, Schmidt D, Tang X, Wang X, Xu J, Guo Y. An Easy Iris Center Detection Method for Eye Gaze Tracking System. Journal of Eye Movement Research. 2015; 8(3):1-20. https://doi.org/10.16910/jemr.8.3.5

Chicago/Turabian Style

Yu, Mingxin, Yingzi Lin, David Schmidt, Xiaoying Tang, Xiangzhou Wang, Jing Xu, and Yikang Guo. 2015. "An Easy Iris Center Detection Method for Eye Gaze Tracking System" Journal of Eye Movement Research 8, no. 3: 1-20. https://doi.org/10.16910/jemr.8.3.5

APA Style

Yu, M., Lin, Y., Schmidt, D., Tang, X., Wang, X., Xu, J., & Guo, Y. (2015). An Easy Iris Center Detection Method for Eye Gaze Tracking System. Journal of Eye Movement Research, 8(3), 1-20. https://doi.org/10.16910/jemr.8.3.5

Article Metrics

Back to TopTop
