1. Introduction
Colon adenocarcinoma (COAD) poses a significant global health challenge due to its high incidence and mortality rates. Advances in treatment modalities have not substantially improved the 5-year survival rate, particularly in advanced or metastatic cases [
1,
2,
3]. The pathogenesis of COAD involves complex interactions between genetic mutations, epigenetic alterations, and environmental factors, disrupting key oncogenic pathways and molecules [
4]. Thus, identifying new molecular targets in COAD is important for developing targeted therapies and improving patient outcomes.
SHC SH2-domain binding protein 1 (SHCBP1) is a highly conserved scaffold protein that plays a crucial role in transmembrane receptor signaling [
5]. It is widely expressed in human tissues, modulating signaling pathways and participating in various physiological and pathological processes [
6]. SHCBP1 has been implicated in tumor progression in several cancers, including gastric [
7,
8], liver [
9], pancreatic [
10], esophageal [
11], bladder [
12], and breast cancer [
13,
14]. Notably, previous studies have generated both global and conditional Shcbp1 knockout mice and found that loss of Shcbp1 did not cause obvious defects in T-cell development; moreover, Shcbp1-deficient mice were viable and fertile. However, Shcbp1 deficiency reduced disease severity and improved survival in an experimental autoimmune encephalomyelitis model, suggesting that SHCBP1 may be dispensable for normal development but functionally relevant under pathological conditions [
15]. Nevertheless, the expression patterns, functional mechanisms, and biological functions of SHCBP1 in COAD remain inadequately characterized.
In the present study, we investigated SHCBP1 in COAD through two complementary components. The first component focused on expression profiling, prognostic and methylation assessment, bioinformatic characterization, and functional validation in vitro and in vivo. The second component consisted of exploratory computational analyses, including predicted interaction network analysis and structure-based virtual screening, with the aim of generating hypotheses for future mechanistic and pharmacological studies. Our findings support an association between SHCBP1 and COAD cell proliferation and tumor growth, while the virtual screening analysis provides preliminary candidates for future pharmacological evaluation.
2. Materials and Methods
2.1. Study Framework
The work reported here is presented in two complementary components with different evidentiary scopes. The first component comprised expression, prognostic, methylation, co-expression, and functional analyses, together with experimental validation in vitro and in vivo. The second component comprised exploratory computational analyses, including predicted protein interaction modeling and structure-based virtual screening. The computational component was intended for hypothesis generation only and was not experimentally validated in the present study.
2.2. Analysis of Public Databases

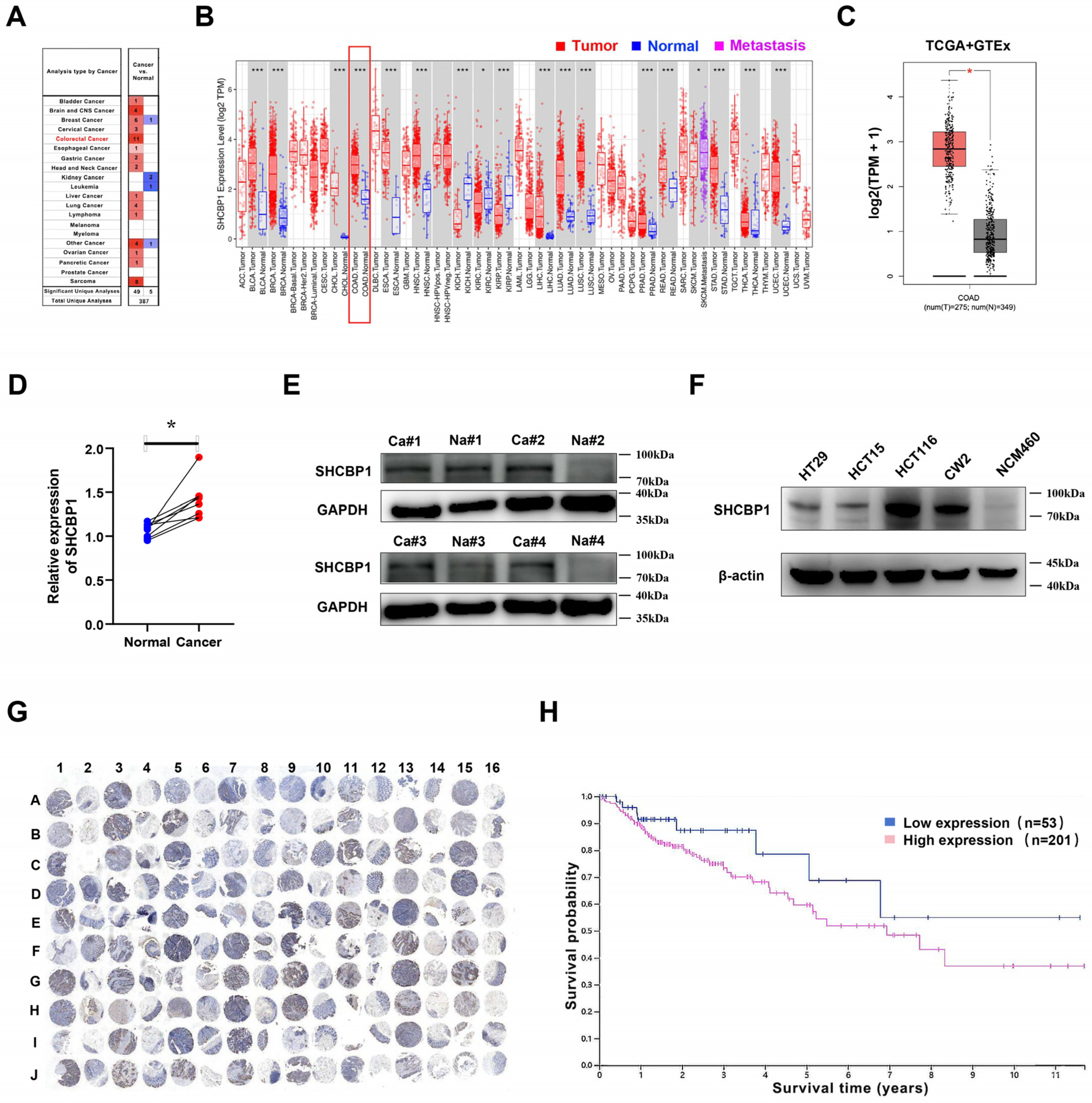

To explore the
SHCBP1 expression and prognostic value in COAD, we conducted analyses utilizing publicly available databases, including ONCOMINE (
https://www.oncomine.org) [
16], TIMER (
https://cistrome.shinyapps.io/timer/, accessed on 13 May 2026) [
17], GEPIA2 (
http://gepia2.cancer-pku.cn) [
18] and the Human Protein Atlas [
19] (The FPKM cutoff was set as 3.03) databases (
https://www.proteinatlas.org). The UALCAN database (
http://ualcan.path.uab.edu) was used to assess the

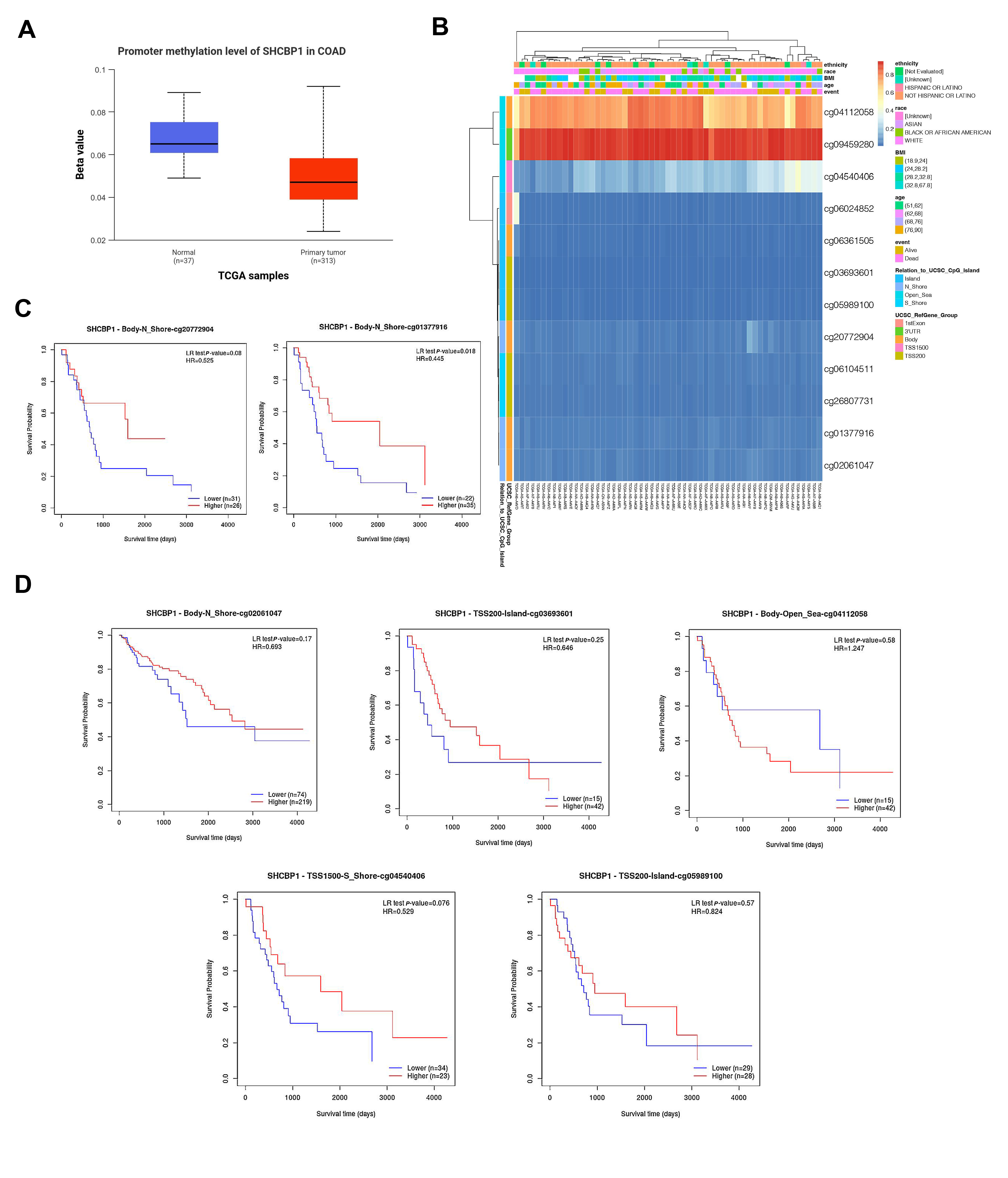

SHCBP1 promoter methylation patterns in cancerous and normal tissues. Methylation sites and prognostic implications of
SHCBP1 were identified using MethSurv database (CpG sites were selected from the HM450K array in COAD samples) (
https://biit.cs.ut.ee/methsurv/, accessed on 13 May 2026) [
20,
21]. The
SHCBP1 co-expression profiles were obtained from the LinkedOmics database (
http://www.linkedomics.org) and visualized as volcano plots and heatmaps [
22]. These co-expressed genes were then used for Gene Ontology (GO) and Kyoto Encyclopedia of Genes and Genomes (KEGG) enrichment analyses. Additionally, GeneMANIA (
https://genemania.org) [
23] and STRING (
https://cn.string-db.org) databases [
24] were used to construct the protein–protein interaction (PPI) network and identify potential interaction partners of SHCBP1. Detailed URLs and versions are listed in
Supplementary Table S1. Because these databases differ in cohort composition, normalization pipelines, and sample sizes, the results were interpreted as convergent supportive evidence rather than strictly interchangeable measurements.
2.3. Cell Culture and Lentiviral Infections
The NCM460, HT29, HCT15, HCT116, and CW2 cell lines were obtained from the American Type Culture Collection (Manassas, VA, USA) or Procell (Wuhan, China). These cell lines were, respectively, cultured in McCoy’s 5A, RPMI-1640, or DMEM medium, supplemented with 10% heat-inactivated fetal bovine serum and 50 U/mL penicillin/streptomycin solution, in a humidified incubator at 37 °C with 5% CO
2. For lentiviral infections, specific shRNA sequences (
Table S2) were individually cloned into the pLKO.1-puro vector (Addgene plasmid No. 8453) following a standard protocol. 293T cells in 10 cm dishes were transfected with psPAX2 (3 μg), pMD2.G (9 μg), and the gene knockdown plasmid (12 μg). Lentiviral supernatants collected 48 h post-transfection were filtered through a 0.45 µm strainer (Corning, NY, USA) and used to transduce target cells. At 72 h post-infection, cultures were switched to complete medium containing 2 μg/mL puromycin, refreshed every 48 h for 7 days. Cells were harvested directly for RT-qPCR and Western blot validation. Among the tested COAD cell lines, HCT116 cells were selected for most functional experiments because they showed relatively high SHCBP1 expression and stable transduction efficiency in our preliminary experiments.
2.4. Patients and Samples
Human colon adenocarcinoma tissue microarray sections (HColA160CS01), which comprised 80 paired tumor and adjacent normal tissue samples, were obtained from Shanghai Outdo Biotech Co., Ltd. (Shanghai, China). Ethical approval for the study protocols was granted by the company’s Ethics Committee under the approval ID: SHYJS-CP-170108. Paired COAD tumor tissues and adjacent non-tumor tissues were collected from patients who underwent surgical resection at our institution. All tissue samples were obtained with informed consent and were handled in accordance with institutional ethical regulations. Fresh tissue specimens were immediately frozen in liquid nitrogen and stored at −80 °C until use.
2.5. Real-Time qPCR
Total RNA was extracted using the TRIzol reagent, and subsequently reverse-transcribed to cDNA employing the PrimeScriptTM 1st Strand cDNA Synthesis Kit (Thermo Fisher Scientific, Waltham, MA, USA). Real-time qPCR was performed using a SYBR Green PCR kit (Applied Biosystems, Carlsbad, CA, USA) according to the manufacturer’s instructions. Relative gene expression was calculated using the 2
−ΔΔCt method. Primer details for SHCBP1 and GAPDH are available in
Table S2.
2.6. Western Blot
Cell lysates were prepared with RIPA buffer, and protein concentrations were determined using the BCA Protein Assay Kit (Beyotime, Shanghai, China). Subsequently, 20 µg of each sample underwent SDS-PAGE on a 10% gel for protein separation, followed by transfer to a 0.45 µm PVDF membrane (Millipore, Burlington, MA, USA). The membrane was blocked with 5% non-fat dry milk in TBST (Tris-buffered saline with Tween-20) for 1 h at room temperature and then probed with primary antibodies specific to the target proteins overnight at 4 °C. Following TBST washes, the membrane was exposed to the appropriate HRP-conjugated secondary antibody for 2 h at room temperature. Protein bands were visualized using an enhanced chemiluminescence detection system (Pierce Biotech, Rockford, IL, USA) and imaged with the Chemi Doc Imaging System. The primary antibodies utilized were as follows: SHCBP1 (1:200, Cat No. 68647-1-Ig, Proteintech, Rosemont, IL, USA); β-actin (1:20,000, Cat No. 66009-1-Ig, Proteintech, Rosemont, IL, USA); GAPDH (1:50,000, Cat No. 60004-1-Ig, Proteintech, Rosemont, IL, USA). All Western blot experiments were performed in triplicate to ensure reproducibility of the results. The blots shown are representative images from one of the replicates.
2.7. Immunohistochemistry (IHC) Staining
Tissue sections (6 µm) fixed in formalin and embedded in paraffin were deparaffinized, rehydrated, and underwent antigen retrieval in citrate buffer (pH 6.0) using microwave heating. Following blocking with 5% BSA, sections were exposed to primary antibodies overnight at 4 °C, then treated with HRP-conjugated secondary antibodies. Immunostaining was visualized using a DAB kit (Beyotime, Shanghai, China), counterstained with hematoxylin, and mounted for examination under a light microscope. The final IHC scores were determined based on the intensity of immunostaining and the percentage of positive cells. Specifically, scores ranging from 0 to 7 were considered indicative of low expression, while scores from 8 to 12 were categorized as high expression. Additionally, the staining procedure and the interpretation of results were independently evaluated by two pathologists to ensure accuracy and consistency.
2.8. Co-Expression and Functional Enrichment Analyses

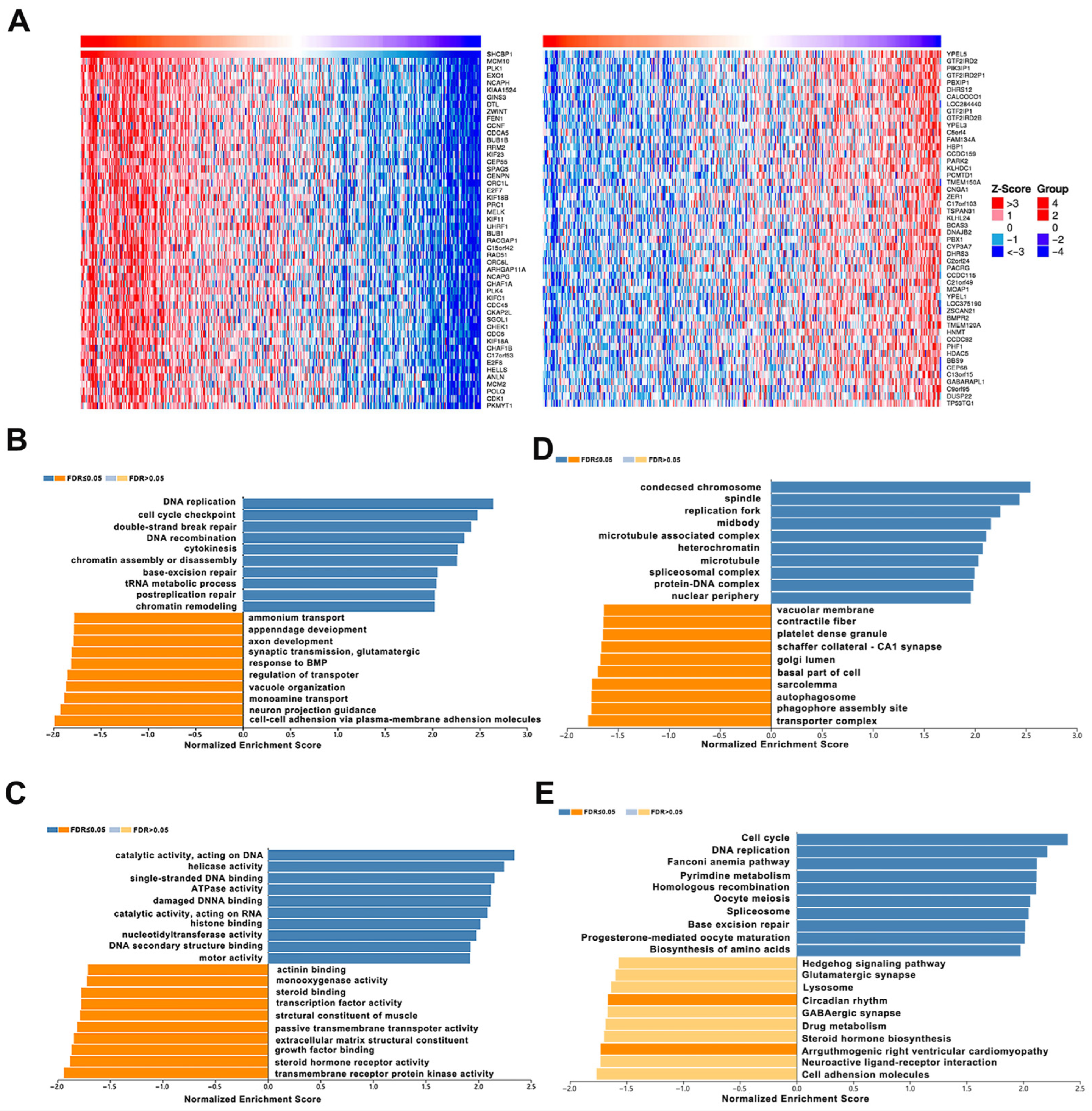

SHCBP1-associated genes in COAD were identified using the LinkedOmics (
http://www.linkedomics.org) database. Genes positively or negatively correlated with SHCBP1 expression were ranked according to the correlation coefficient and statistical significance. The top co-expressed genes were visualized as heatmaps and volcano plots. These gene sets were then subjected to GO and KEGG enrichment analyses to explore biological processes and pathways potentially associated with SHCBP1.
2.9. Molecular Docking Analysis

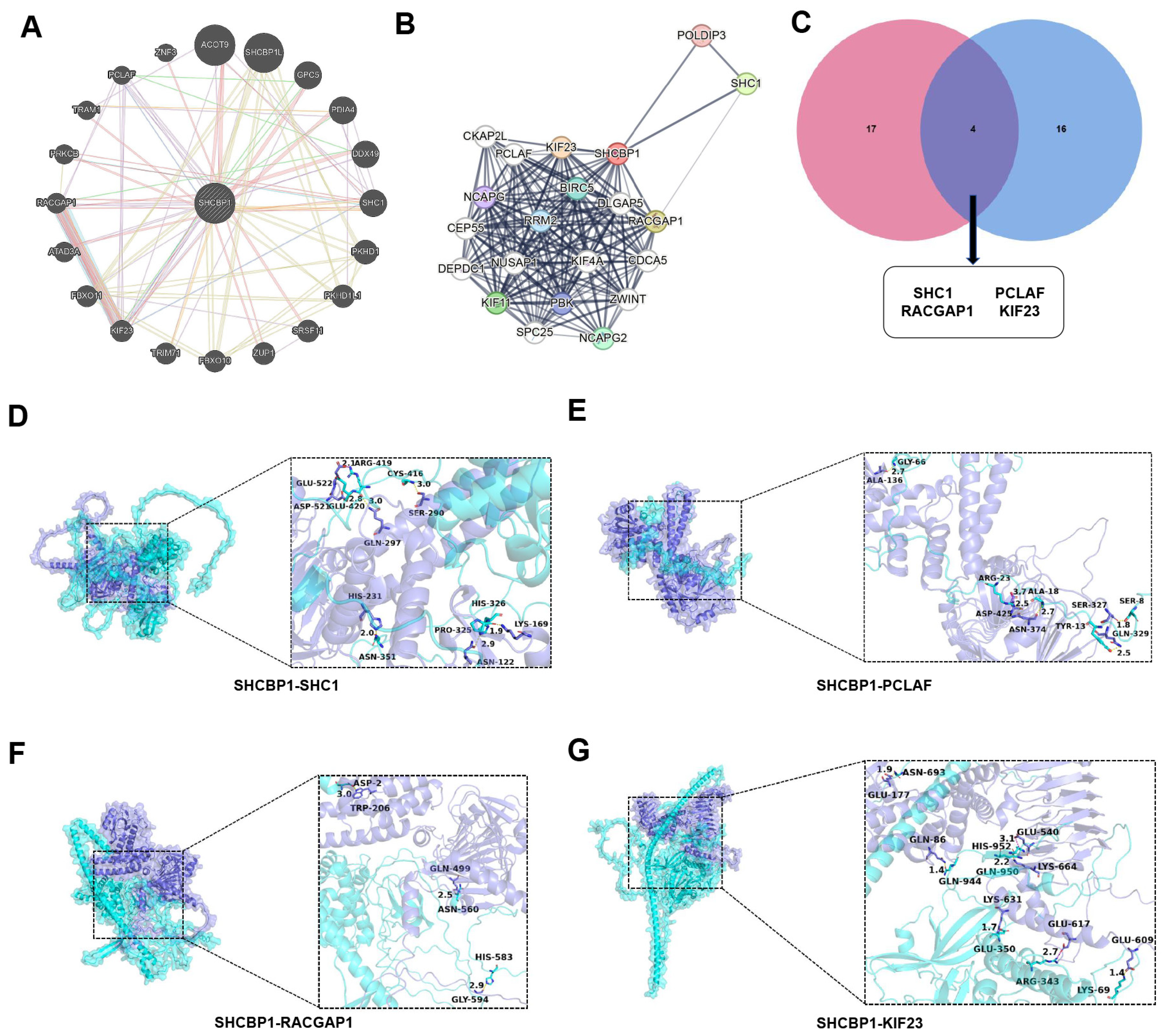

Potential SHCBP1-associated proteins were identified using the GeneMANIA (
https://genemania.org) and STRING (
https://cn.string-db.org) databases. Overlapping candidates from these platforms were selected for further structural exploration. Molecular docking analysis was conducted using the predicted structures of SHCBP1, SHC1, PCLAF, RACGAP1, and KIF23 generated by AlphaFold (
https://alphafold.ebi.ac.uk/, accessed on 13 May 2026). Protein preparation, which included the removal of water molecules and addition of polar hydrogens, was performed using AutoDockTools-1.5.7 (MGLTools, The Scripps Research Institute, La Jolla, CA, USA) [
24]. Protein-protein docking was then carried out via the Docking Web Server (
http://hdock.phys.hust.edu.cn/) [
25,
26], and the resulting interactions were visualized with PyMOL 2.5.4 (Schrödinger, LLC, New York, NY, USA). These analyses were used to provide structural hypotheses regarding potential SHCBP1-associated interactions rather than direct evidence of binding.
2.10. Cell Counting Kit-8 (CCK-8) Assay
Cell proliferation and viability were assessed quantitatively using the CCK-8 assay. Specifically, cells were seeded at a density of 5000 cells per well in 96-well plates and allowed to adhere for 24 h. The CCK-8 reagent (Beyotime, Shanghai, China) was then introduced into each well at a final concentration of 10%. After a 3 h incubation at 37 °C, the absorbance at 450 nm was recorded using a Bio-Rad microplate reader (Bio-Rad Laboratories, Inc., Hercules, CA, USA). The optical density (OD) directly correlated with cell viability, and the proliferation rate was determined by comparing OD values at distinct time points.
2.11. EdU Assay
Cells were seeded in a 12-well plate obtained with an EDU kit (Beyotime, Shanghai, China) and then mixed with the 2× EDU working solution in medium, followed by incubation in a humidified incubator at 37 °C under 5% CO2. Afterward, the cells were rinsed thrice and fixed using 4% paraformaldehyde, then washed again thrice with a permeabilization solution (Beyotime, Shanghai, China). The reaction solution was made as per the manufacturer’s guidelines and applied to the cells. Subsequently, the cells were stained with the DAPI solution and observed under the fluorescence microscope (Zeiss, Oberkochen, Germany) or flow cytometry (Beckman Coulter, Mumbai, MA, USA).
2.12. Colony Formation Assay
Cells were seeded at a low density of 2000 cells/mL in 6-well culture plates and cultured in complete medium for 14 days. Following this, the cells were fixed with 4% paraformaldehyde for 10 min and stained with 0.1% crystal violet (Beyotime, Shanghai, China) for 15 min. Subsequently, individual colonies consisting of at least 50 cells were counted manually.
2.13. Subcutaneous Tumor Model
Five-week-old female BALB/c nude mice were purchased from GemPharmatech Co., Ltd. (Nanjing, China). After arrival, animals were acclimatized for 7 days in an SPF barrier facility (12 h light/dark cycle, 22 ± 2 °C, 50–60% humidity) with ad libitum access to sterilized food and water. The experimental unit was an individual animal. Subcutaneous xenografts were established by injecting 3 × 105 HCT116 cells (sh-NC or sh-SHCBP1) in 0.1 mL PBS into the right axilla region. Mice were randomly allocated to two groups (sh-NC and sh-SHCBP1), with 5 mice in each group. No formal a priori sample size calculation was performed; the sample size was determined based on our previous experience with similar xenograft experiments and consideration of animal welfare. Tumor size was monitored twice weekly using a vernier caliper, and tumor volume V = (L × W2)/2, where L represents the long axis and W represents the short axis of the tumor. The primary outcome measure was tumor volume. Outcome assessment, including tumor measurement, was performed by investigators blinded to group allocation. A study protocol including the research question, key design features, and analysis plan was prepared before the study and registered with the institutional animal ethics committee as part of the animal ethics application. Sixteen days post-implantation, the mice were euthanized, and the tumor tissues were excised for further measurement and analysis. No predefined inclusion or exclusion criteria were established for animals or data points, and no animals, experimental units, or data points were excluded from the analysis. Euthanasia was performed via CO2 asphyxiation followed by cervical dislocation. Throughout the experiment, no animals exceeded the established tumor burden limits, and all humane endpoints (including tumor ulceration, weight loss exceeding 20%, and impaired mobility) were strictly enforced. All animal procedures were approved by the Institutional Animal Care and Use Committee of the Affiliated Provincial Hospital of Anhui Medical University (approval No. 2025-N(A)-015, approved on January 2025) and were conducted in accordance with applicable institutional guidelines.
2.14. Structure-Based Virtual Screening

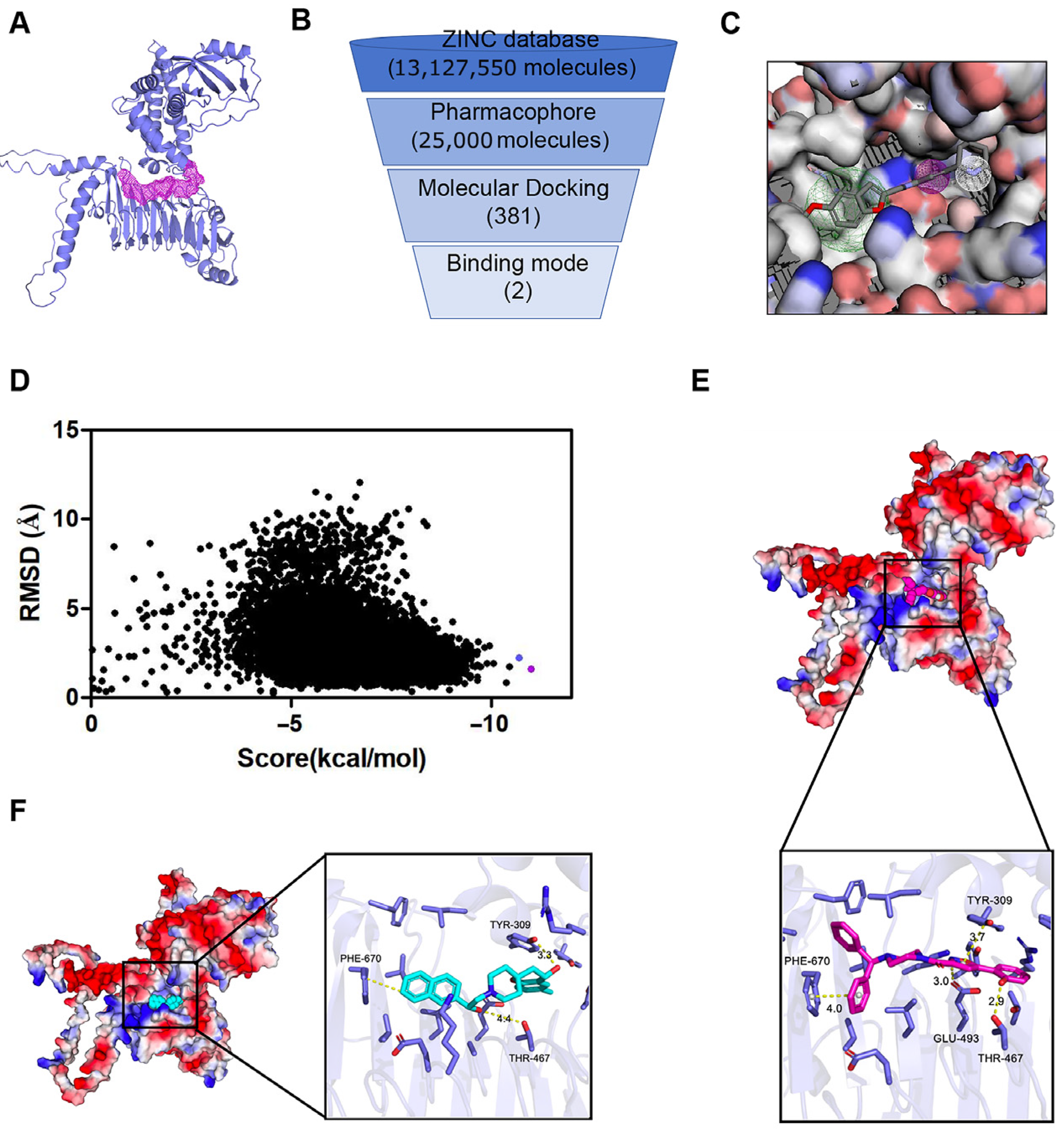

The AlphaFold algorithm predicted the 3D structure of SHCBP1, and DoGSite identified potential small-molecule binding sites with druggability scores > 0.8. Based on the selected pocket, a pharmacophore model was generated and applied to the ZINC database to filter candidate compounds [
27]. A total of 13,127,550 compounds from the ZINC database were initially considered. After pharmacophore-based filtering, the candidate set was reduced to 25,000 compounds for docking evaluation. Molecular docking was then performed to estimate binding affinity, and compounds with docking scores < −8.5 kcal/mol. were retained for further ranking. In total, 381 compounds met this criterion. The top-ranked candidates were visualized in PyMOL, including amino acid residues within 0.5 nm of the predicted binding site and the electrostatic surface properties of the pocket. This virtual screening workflow was intended as an exploratory, hypothesis-generating analysis to identify putative SHCBP1-binding compounds for future experimental validation rather than to establish validated inhibitors.
2.15. Statistical Analysis
Statistical analyses were performed using SPSS 21.0 (IBM Corp., Armonk, NY, USA) and GraphPad Prism 8.0 (GraphPad Software, San Diego, CA, USA). Unless otherwise specified, all in vitro experiments were independently repeated at least three times, and quantitative data are presented as mean ± standard deviation (SD). Paired two-tailed Student’s
t-tests were used for comparisons between matched COAD tissues and adjacent non-tumor tissues. Unpaired two-tailed Student’s
t-tests were used for comparisons between two independent groups, including cell-based and xenograft experiments. Comparisons among multiple groups were analyzed using one-way analysis of variance (ANOVA) followed by Tukey’s post hoc test, where appropriate. Associations between categorical variables were analyzed using the chi-square test. Kaplan–Meier survival curves were compared using the log-rank test. For xenograft experiments, longitudinal tumor growth curves were analyzed using two-way repeated-measures ANOVA with Geisser–Greenhouse correction to account for within-animal correlations over time. Where appropriate, multiple comparisons between groups at individual time points were performed using Sidak’s post hoc test. A two-sided
p value < 0.05 was considered statistically significant. Detailed
p values for the main statistical comparisons are provided in
Supplementary Table S3.
4. Discussion
Despite advancements in multidisciplinary treatments, including surgery, chemotherapy, and immunotherapy, the prognosis for COAD remains unfavorable, with stagnant overall survival rates [
25]. Therefore, identifying novel molecular markers associated with tumor progression may help improve prognostic evaluation and provide a basis for future targeted therapeutic development. SHCBP1 has increasingly been recognized as a cancer-related protein associated with proliferation-related signaling and cell-cycle regulation in several malignancies [
5]. However, its precise role and clinical relevance in COAD pathogenesis remain poorly understood.
In the present study, we combined experimentally supported biological analyses with exploratory in silico analyses to investigate the potential role of SHCBP1 in COAD. The main conclusions of the study are supported by expression analyses, tissue-level validation, and functional experiments, whereas the interaction-network and virtual-screening results should be interpreted as hypothesis-generating findings that require further validation. Within this framework, our results showed that SHCBP1 was upregulated in COAD tissues and associated with poorer prognosis, suggesting potential clinical relevance in this disease context. It should be noted that the survival analyses were based primarily on publicly available datasets with limited clinical annotation. Therefore, the observed association between SHCBP1 expression and patient outcome may have been influenced by additional factors such as treatment, mutation status, or disease stage, and does not establish SHCBP1 as an independent prognostic factor. To explore a possible basis for SHCBP1 upregulation, we further examined its methylation status [
26]. Our analyses showed that SHCBP1 promoter methylation was reduced in COAD tissues compared with normal tissues, and hypomethylation at specific CpG sites was associated with worse patient survival. These findings suggest that epigenetic dysregulation may contribute, at least in part, to SHCBP1 overexpression in COAD.
Bioinformatic analyses further indicated that SHCBP1-associated gene networks were enriched in “DNA replication,” “Cell cycle” and proliferation-related processes. In addition, interaction-network and docking analyses suggested several proteins that may be functionally associated with SHCBP1. Among them, the interaction between SHCBP1 and SHC1 has been reported previously, whereas the associations with PCLAF, RACGAP1, and KIF23 remain computationally inferred in the present study [
27]. Notably, PCLAF, RACGAP1, and KIF23 have all been implicated in cell division and proliferation [
28,
29,
30]. Structural docking analyses supported the plausibility of these predicted associations and provided a preliminary basis for future mechanistic investigation.

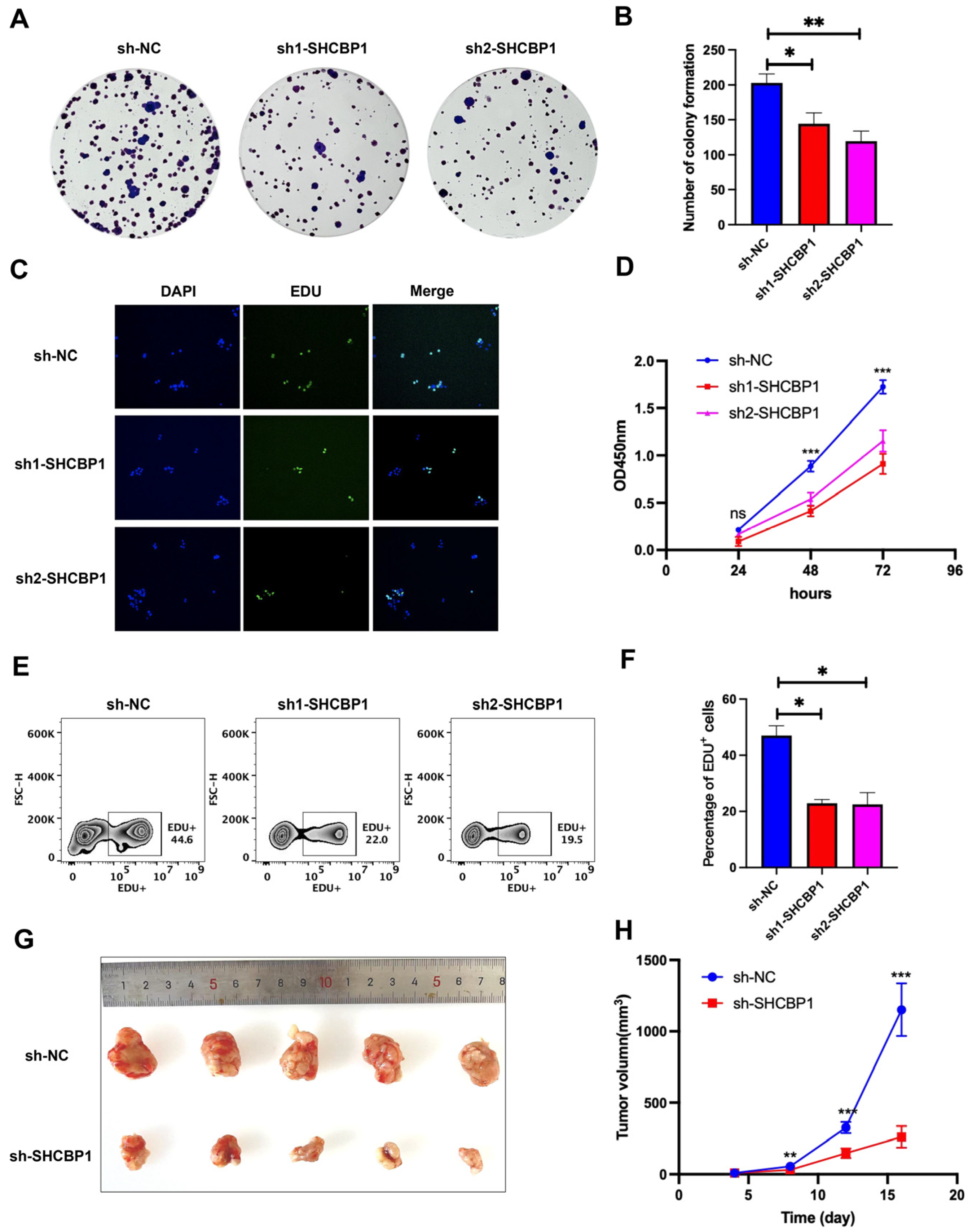

Functionally, our in vitro and in vivo results support a role for SHCBP1 in promoting tumor cell proliferation and tumor growth. In HCT116 cells, SHCBP1 knockdown reduced colony formation, EdU incorporation, and cell growth, and also suppressed xenograft tumor growth. These findings are consistent with the enrichment results and support the biological relevance of SHCBP1 in the HCT116 COAD model.
We also performed structure-based virtual screening as an exploratory extension of the biological findings to examine whether SHCBP1 may have tractable binding pockets for future drug-development studies. This analysis was retained to provide a preliminary computational perspective on the targetability of SHCBP1, but it does not constitute experimental evidence of inhibitor activity or direct binding. Using this workflow, we prioritized several candidate compounds, among which ZINC00020137678 and ZINC00012293622 showed favorable predicted docking scores within the selected SHCBP1 pocket. These observations provide initial in silico leads for future biochemical and pharmacological evaluation.
Several limitations of this study should be acknowledged. First, the methylation findings were derived primarily from public databases and were not independently validated in an external patient cohort. These analyses are exploratory in nature and should be interpreted with caution, and the observations do not constitute definitive mechanistic evidence. Second, the SHCBP1-associated proteins predicted through bioinformatic analyses and structural docking, including SHC1, PCLAF, RACGAP1, and KIF23, remain bioinformatically inferred candidates and require direct experimental validation using approaches such as co-immunoprecipitation or related biochemical assays. Third, although enrichment analysis, interaction prediction, and docking analyses suggested possible SHCBP1-related pathways and molecular associations, these findings remain inferential and do not establish direct mechanistic links. Fourth, the functional role of SHCBP1 was examined mainly in a single COAD cell line (HCT116), which may limit the generalizability of the observed phenotypes across genetically diverse COAD models. Finally, the compounds prioritized by virtual screening remain preliminary in silico candidates with predicted SHCBP1-binding potential and have not yet been validated by biochemical binding assays, cell-based functional assays, or toxicity assessments.
