Photoprotective Substances Derived from Marine Algae

by
Ratih Pangestuti
1,
Evi Amelia Siahaan
2 and
Se-Kwon Kim
3,*
1
Research Center for Oceanography, Indonesian Institute of Sciences (LIPI), Jakarta 14430, Indonesia
2
Research and Development Division of Marine Bio-Industry, Indonesian Institute of Sciences (LIPI), West Nusa Tenggara 83552, Indonesia
3
Department of Marine Life Science, College of Ocean Science and Technology, Korea Maritime and Ocean University, Busan 606-791, Korea
*
Author to whom correspondence should be addressed.
Mar. Drugs 2018, 16(11), 399; https://doi.org/10.3390/md16110399
Submission received: 4 October 2018 / Revised: 18 October 2018 / Accepted: 18 October 2018 / Published: 23 October 2018
(This article belongs to the Special Issue Anti-Photoagaing and Photo-Protective Compounds from Marine Organisms)
Browse Figures
Versions Notes

Abstract

:
Marine algae have received great attention as natural photoprotective agents due to their unique and exclusive bioactive substances which have been acquired as an adaptation to the extreme marine environment combine with a range of physical parameters. These photoprotective substances include mycosporine-like amino acids (MAAs), sulfated polysaccharides, carotenoids, and polyphenols. Marine algal photoprotective substances exhibit a wide range of biological activities such as ultraviolet (UV) absorbing, antioxidant, matrix-metalloproteinase inhibitors, anti-aging, and immunomodulatory activities. Hence, such unique bioactive substances derived from marine algae have been regarded as having potential for use in skin care, cosmetics, and pharmaceutical products. In this context, this contribution aims at revealing bioactive substances found in marine algae, outlines their photoprotective potential, and provides an overview of developments of blue biotechnology to obtain photoprotective substances and their prospective applications.

Graphical Abstract

1. Introduction

The ocean covers more than 70% of the Earth’s surface and represents an enormous resource of biodiversity. Marine organisms have adapted excellently to extreme environmental conditions with a range of physical parameters, such as pH, high salt concentration, low or high temperature, high-pressure, low nutrient availability, and low or high sun exposure [1]. The wide diversity in the biochemical composition of marine organisms provides an excellent reservoir to explore functional materials, many of which are rare or absent in other taxonomic groups. Large numbers of studies have demonstrated health-benefit effects of marine-derived functional materials [2,3].
Marine algae are one of the most extensively studied marine organisms. These marine organisms have attracted special interest because they are good sources of nutrients and functional materials. Many studies have reported biological activities, including antioxidant, anti-cancer, anti-hypertension, hepatoprotective, immunomodulatory, and neuroprotective activity. Marine algae are already used in a wide range of foods, supplements, pharmaceuticals, and cosmetics and are often claimed to have beneficial effects on human health. One particular interesting feature in marine algae is their richness in photoprotective substances. Marine algae found in intertidal shores to a depth of 150 m are highly exposed to ultraviolet (UV) radiation. Therefore, to counteract and minimize photodamage induced by high UV radiation, photoprotective substances such as mycosporine-like amino acids (MAAs), sulfated polysaccharides, carotenoids, and polyphenols were synthesized [4]. These substances can be used for photoprotection to provide the skin with adequate protection against ultraviolet B (UVB) and ultraviolet A (UVA)-induced photodamage (Figure 1) [5].
Present approaches on the isolation and recovery of photoprotective substances from marine algae have been rapidly developing. Not only limited to organic solvent extraction, novel environmental friendly extraction and separation techniques, such as enzyme-assisted extraction (EAE), ultrasound assisted extraction (UAE), microwave assisted extraction (MAE), supercritical carbon dioxide (SC–CO2) and subcritical water extraction (SWE), have recently been applied to the development of photoprotective substances derived from marine algae. The recovery yield of photoprotective substances from marine algae depends on the technology applied and the marine algae species. In addition, the isolation process applied also affects photoprotective activity. Hence, this contribution focuses on photoprotective substances reported in marine algae. The most relevant studies on the photoprotective substances found in marine algae as well as their biological roles and photoprotective activity are discussed. Additionally, an overview of the developments of blue biotechnology and potential applications is also provided.

2. Photoprotective Substances Derived from Marine Algae

2.1. Sulfated Polysaccharides

Marine algae are considered as the most important source of non-animal sulfated polysaccharides, and chemical structures of these polymers differ according to class and species of algae [6,7]. Carrageenan and fucoidan are the major sulfated polysaccharides found in red and brown algae, respectively. Carrageenans are widely used in food, pharmacy, dairy, and cosmetic products due to the unique physical functional properties, such as thickening, gelling, emulsifying, and stabilizing properties [8]. These sulfated polysaccharides have been considered as safe additives for many commercial products in many countries. In addition to their unique physical functions, carrageenan composition in cosmetic and skin care products has often been found with antioxidant, tonifying, cleaning, hydrating, and revitalizing bioactivities. Recently, photoprotective effects of carrageenan (kappa, iota and lambda) in UVB-induced human keratinocytes (HaCaT) cells have been reported [9]. Carrageenan has shown significant protection against the detrimental effects of UVB-induced apoptosis in HaCaT cells and has decreased the release of reactive oxygen species (ROS). The accumulation of excess ROS has been related to skin diseases including skin aging and cancers. Therefore, antioxidants are usually viewed as preventive agents against UV-related skin diseases. We assumed that the photoprotective activity of carrageenan may also correlate to their immunomodulatory properties. Carrageenan has been known as an immunomodulator, which induces the expression of cyclooxygenase-2 (COX-2) and the release of prostaglandin-E2 (PGE2) [10]. Based on an in vivo experiment in SKH-1 hairless mice, Tripp et al. (2003) suggested that COX-2 expression is an important factor for keratinocyte survival and proliferation after acute UV irradiation. Inhibition of COX-2 expression has been demonstrated to reduce epidermal keratinocytes proliferation [11]. Taken together, it may be hypothesized that immunomulatory activities and ROS scavenging activities of carrageenan might play an important role in their photoprotective mechanisms. The addition of carrageenan to a broad spectrum of skin care and cosmetic products might decrease UV-induced photodamage compared with sunscreen alone.
Fucoidan is the most commonly sulfated polysaccharide isolated from brown algae. In general, these linier polysaccharides have a backbone of α-linked l-fucose residues with various substitutions. Fucoidan structures and bioactivities are different among brown algae species [12]. Recent findings have reported the photoprotective activity of fucoidan isolated from brown algae including Ecklonia cava, Undaria pinnatifida, Costaria costata, and Fucus evanescens [13,14,15,16,17,18,19]. The photoprotective activity of fucoidan has been determined in UVB-irradiated human dermal fibroblast and mice models. Most studies report that the photoprotective activity of fucoidan is mediated through the suppression of matrix metalloproteinase-1 (MMP-1) activity. MMP-1 is a major enzyme implicated in the collagen damage and photoaging of UV-irradiated human skin. More precisely, these sulfated polysaccharides downregulate the expressions of NF-κB, which, in turn, diminish MMP-1 expression. Recently, it was reported that topical applications of low-molecular-weight fucoidan have stronger photoprotective activity than high-molecular-weight fucoidan [14]. The rationale for this is that low-molecular-weight fucoidan is mostly absorbed before irradiation. This low-molecular-weight fucoidan seems to be involved in photoprotective effects rather than UV filtering effects.
Photoprotective activity in orally administered fucoidan, in addition to topical applications, has been reported. This information on the bioavailability of fucoidan might have stimulated further research on the relationship between the oral administration of fucoidan and their bioavailability, mode of action, and potency in skin care and cosmetic products.

2.2. Carotenoids

Carotenoids are natural pigments found in all photosynthetic organisms (including plants, algae, and cyanobacteria) and some non-photosynthetic archaea, bacteria, fungi, and animals [20]. These photosynthetic pigments consist of two classes of molecules: carotenes and xanthophylls. Carotenoids play an important role in photosynthetic light-harvesting complexes; they absorb the solar spectrum in the blue-green region and transfer the energy to chlorophylls [21]. Furthermore, carotenoids also act as a photoprotector in photosynthetic organisms. Many studies have reported a strong correlation between increased UVB irradiation and carotenoid accumulation in terrestrial and marine plants [22,23]. As an example, Hupel et al. (2011) demonstrated that UVB irradiation increased the carotenoid contents in brown algae Pelvetia canaliculata.
Photoprotective effects of fucoxanthin (Figure 2) derived from marine brown algae against UVB-induced photoaging have been reported [24]. Photoprotective activity of fucoxanthin has been determined by various in vitro and in vivo methods such as comet assay, human dermal fibroblast, and hairless mice irradiation. ROS scavenging activity is mainly considered to be a mechanism of action underlying the photoprotective activity of fucoxanthin [25,26,27]. Carotenoids, including fucoxanthin, are known as a singlet oxygen quencher. These photosynthetic pigments mitigate the harmful effects associated with UV irradiation by dissipating the excess energy as heat and returns to the initial ground state. Recently, fucoxanthin has been demonstrated to stimulate filaggrin promoter activity in UV-induced sunburn [28]. Filaggrin is a UV-sensitive gene that reflects the state of the skin damage. This stimulation of a UV-sensitive gen promotor by fucoxanthin suggested that other protective mechanisms of fucoxanthin might be exerted by the promotion of skin barrier formation through the induction of UV-sensitive gene expression.
Photoprotection mechanisms of fucoxanthin might also be achieved by oral administration. It has been shown that photodamage on the skin or eyes can be protected by biological compounds in tissues, which come from nutritional sources via the bloodstream. Stahl and Sies (2012) reported the concentration of carotenoids in human skin and demonstrated that there are considerable differences in the patterns in each skin layer. As an example, high concentrations of carotenoids are found in the skin of the forehead, the palm of the hand, and dorsal skin. Meanwhile, lower concentrations are found in the skin of the arm and the back of the hand of the human body [29]. In the human body, fucoxanthin absorption strongly depends on a number of factors, including the amount and type of dietary lipids consumed, the stability of the matrix to which the carotenoid is bound, and additional dietary factors such as dietary fiber. The esterified fucoxanthin is likely to be incorporated into the lipid core in chylomicron and carried into a variety of tissues, including the skin [30].
Recently, it has been reported that skimmed milk is an excellent food matrix for fucoxanthin application in terms of stability and bioavailability [31]. An in vivo pharmacokinetic study with a single oral administration of fucoxanrhin fortified in skimmed milk showed the highest absorption of fucoxanthinol and amarouciaxanthin A (two prime metabolites of fucoxanthin). Considering the potency of fucoxanthin as a photoprotective substance, further research studies are needed in order to verify photoprotective mechanisms of fucoxanthin oral consumption and the bioavailability of fucoxanthin (and its derivatives) in human skin.

2.3. Mycosporine Like Amino Acids

Mycosporine-like amino acids (MAAs) are low-molecular-weight, water-soluble molecules with maximum absorption bands in the UV spectrum between 310 and 360 nm. These molecules can be found in cyanobacteria, phytoplankton, lichens, gorgonians, cnidarians, sponges, shrimp, sea urchins, starfish, clams, ascidians, and marine algae. Most of the MAA-producing marine algae are red algae, followed by brown and green algae, respectively [32]. The type and accumulation of MAAs in marine algae varied based on season, climate, depth, and environmental variables (i.e., salinity, temperature, and nutrient availability) [33]. Unlike photosynthetic pigments, MAAs were invoked to function as passive shielding substances by dissipating the absorbed radiation energy in the form of harmless heat without generating photochemical reactions. In the organisms, MAAs not only function as “nature’s sunscreen compounds” but also serve as antioxidant molecules scavenging toxic oxygen radicals [34]. Up to now, more than 30 different chemical structures of MAAs have been elucidated. Table 1 present major MAAs identified from marine red algae.
MAAs have been reported as the strongest UVA-absorbing compounds in nature [42]. These low-molecular-weight molecules have gained considerable attention as highly active photoprotective candidates. Among other MAAs, porphyra-334 has been extensively studied. Daniel et al. (2004) reported that cream with 0.005% MAAs containing porphyra-334 can neutralize photodamage of UVA as efficiently as a cream with 1% synthetic UVA filters and 4% UVB filters [42]. In addition, porphyra-334 has been demonstrated to suppress ROS formation and downregulate the expression of MMP-1 and -13 on human dermal fibroblast following UVA irradiation. No adverse side effects have been reported from the treatment of porphyra-334 at concentration ≤200 μM on human skin fibroblasts. The formulation of porphyra-334 has been reported to increase photoprotective activity of sunscreen formula [41]. MAAs protect the skin cell due to their ability to disperse the harmful UV into heat that dissipates into the surroundings without forming reactive photoproducts. In addition, MAAs have also been reported as strong antioxidant molecules [40]. Hence, MAAs derived from marine algae can be recommended as photoprotective materials for skin care products.

2.4. Polyphenolic Compounds

Polyphenolic compounds are a class of secondary metabolites with diverse biological functions. These bioactive substances are divided into several classes according to the number of phenol rings and structural elements that bind these rings to one another [43]. The three main groups of polyphenols are phenolic acids, flavonoids, and tannins. Marine algae-derived polyphenols have been investigated for their photoprotective activities. Dieckol, phloroglucinol, fucofuroeckol-A, and triphlorethol-A (Figure 3) isolated from marine brown algae exhibited prominent protective effect against photodamage induced by UVB radiation, as demonstrated in many studies [44,45,46,47,48]. In order to understand the cellular and molecular photoprotective mechanisms of phloroglucinol, Piao and his colleagues developed it in UVB-irradiated mice and a HaCaT cell model. Phloroglucinol (10 μM) scavenged free radical and protects macromolecules damage in UVB-irradiated HaCaT cells [49]. In addition, phloroglucinol treatment significantly inhibited the UVB-induced upregulation of MMP-1 and phosphorylation of mitogen-activated protein kinases (MAPK) and activator protein-1 (AP-1) binding to the MMP-1 promoter [50]. Phloroglucinol has been demonstrated to be safe and effective when applied in the mouse skin irradiated with UVB [51]. Photoprotective activity of phloroglucinol is shown in Figure 4. The findings confirm the effectiveness of phloroglucinol as potential cosmeceutical leads for the formulations of sun-protective lotions and creams.
Polyphenols are bioactive substances characterized by the presence of more than one phenolic group (a hydroxyl group bound to an aromatic ring). Based on several reports, we assumed that their photoprotection activity is strongly correlated with their radical scavenging activity. The hydroxyl (–OH) group bound to the aromatic ring acts as an electron donor, giving it to a free radical or other reactive species. This underlies the inhibition of ROS and ROS-mediated damage on macromolecules, which in turn inhibit the activation of the signal transduction pathways such as the MAPK signaling pathway.
As mentioned in the many scientific reports, polyphenolic compounds represent an interesting class of active substance in the protection of UV-light-induced skin damage. Up to a certain concentration, marine algal-polyphenol did not exert any toxic effect, anticipating its potential use as a safe photoprotector that can be utilized in skin care products.

2.5. Marine Algae Extracts and Fractions

Extraction of active components from plant materials is the first and most important step in the development of photoprotective substances. Marine algae have been extracted with various solvents and investigated for their photoprotective effects (Table 2). Guinea et al. (2012) investigated the photoprotective potential of 21 commercial marine red and brown algae originated from Chile, Spain, South Africa, Argentina, Ireland, and Tonga. Compared to other extracts, two marine red algae Macrocystis pyrifera and Porphyra columbina exhibited the highest photoprotective activity [52]. Many studies have reported that certain species of marine algae can protect the skin against UVB-induced photoaging and damage due to antioxidant properties and their UV absorbing capacity. In addition, the photoprotection of marine algae extract has been correlated with MAAs and polyphenol constituents. As an example, Porphyra yezoensis extract showed photoprotective activity on the UVB-exposed HaCaT cells and human keratinocytes. The Porphyra yezoensis extract showed absorbance spectrum characteristics of MAAs in red algae and contained high phenolic compounds [53]. Polyphenolic compounds are generally more soluble in polar organic solvents, so organic solvents such as ethanol and methanol can be considered as effective extractants of polyphenolic components from marine algae. Supporting this hypothesis, aqueous extract of marine green algae (Halimeda incrassate) and red algae (Bryothamnion triquetrum) showed no photoprotective activity in UVC-irradiated plasmids [54].
Synthetic UV filters are used in skin care products to prevent photodamage and skin cancer. However, UV filters still have to be complemented by other compounds to make sun protection skin care more efficient to photodamage and skin photoaging. The combination of Porphyra umbilicalis extracts and Ginkgo biloba has been demonstrated to improve the photoprotective performance of sunscreens, which then prevent UV-induced photodamage [55]. Thus, marine algae can be considered potent materials for an effective photoprotective formulation with anti-aging properties. Photoprotective activity of marine red and brown algae have been characterized in many studies; however, up to now very little attention has been given to unraveling photoprotective substances from marine green algae.

3. The Development of Photoprotective Compounds-Derived from Marine Algae

Organic solvent extraction is the most common technique to isolate photoprotective substances from marine algae. Extraction conditions, such as temperature, sample-to-solvent ratios, and extraction time, must then be adjusted in order to optimize the extraction process. Organic solvent such as ethanol, methanol, acetone, and ethyl acetate can be used for the extraction of photoprotective substances [15]. However, in the last few decades, the volume of solvents used in the chemical process is extremely concerning. Organic solvents are a major contributor to the overall toxicity potential associated with many industrial processes and to the waste generation of chemical industries. The disposal of excessive solvent to the environment significantly contributes to the release of greenhouse gases and other emissions [66]. Both academic and industrial researchers have therefore focused on minimizing solvent consumption through the development of solvent-free processes. Environmentally friendly “blue biotechnologies” such as EAE, UAE, MAE, SC–CO2, and SWE have been demonstrated as potential technologies to obtain photoprotective compounds from marine algae. Table 3 shows advantages and disadvantages of blue biotechnologies to obtain photoprotective substances from marine algae.

3.1. Enzyme-Assisted Extraction

The EAE technique has been widely used to improve the extraction efficiency of bioactive substances from terrestrial plants. On the contrary, the application of the EAE method to extract photoprotective substances from marine algae has rarely been reported. The EAE allows preparation of bioactive substances from marine green, brown, and red algae [67]; however, physico-chemical conditions of the reaction media, such as temperature, pH of the protein solution, and enzyme ratios, must then be adjusted in order to optimize the activity of the enzyme. Proteolytic enzymes from different sources such as microbes, plants, and animals can be used for the hydrolysis process of marine algae [68]. Crude polysaccharide from the brown algae Ecklonia cava has been recovered by using EAE. Lyophilized E. cava was ground and sieved to obtain a smaller particle size, and this produced higher extraction yields. Hence, in addition to physic-chemical conditions of reaction media, surface areas of the sample is another important factor in the EAE process [69]. Recently, it was reported that the EAE process increases antioxidant activity of fucoidan from marine brown algae Cystoseira trinodis [70]. Alternative extraction conditions such as EAE can be successfully employed in order to degrade marine algae tissues on the basis of the recovery of bioactive compounds with a considerably high yield.

3.2. Ultrasound Assisted Extraction and Microwave Assisted Extraction

The established extraction technology that can be used to isolate photoprotective substances from marine algae is MAE and UAE. Both are energy input-assisted extraction methods and have been used to isolate bioactive substance from terrestrial plant material for many years [71]. MAE involves the heating process of a solution in contact with a sample using microwave energy. Different from classical heating, microwaves heat the sample simultaneously without heating the vessel. Therefore, the solution reaches its boiling point very rapidly, leading to very short extraction times [72]. The high recovery of fucoidans derived from Ascophyllum nodosum by MAE has been reported [73]. The MAE of fucoidan from Ascophyllum nodosum at 90 °C has a similar composition, molecular weight, and reducing power than native fucoidan extracted by the conventional method. It is assumed that the sulfate contents were only affected to the extraction temperature of fucoidan. In addition to MAE, UAE has also been reported to improve the yield of fucoidan with antioxidant activities from marine brown algae, Sargassum muticum [74]. The UAE principle is based on the waves migrating through a medium inducing pressure variations. Notably, considering that the energy input of MAE and UAE can exceed the energy level required for the cleavage of the sulfate esters, it is recommended that the necessary energy input be temporarily exerted during the extraction process to avoid any structural alterations to the sulfated polysaccharide [72].

3.3. Supercritical Carbon Dioxide

Recently, scientists and industrialists have paid a great deal of attention to the application of SC–CO2 fluid (Figure 5), a hydrophobic and environmentally friendly medium, as an alternative to conventional organic solvent extraction [75]. SC–CO2 is a promising method for the recovery of photoprotective substances from marine algae, which can be carried out under mild operating conditions. The SC–CO2 process offers new opportunities for the solution of separation problems as it is a nontoxic, nonflammable, inexpensive, and clean solvent [76]. The higher carotenoids yield from Saccharina japonica and Sargassum horneri obtained by SC–CO2 as compared to the conventional extraction has been reported [77]. The solvating capacity of SC–CO2 fluid can be controlled by manipulating pressure and temperature to give suitable selectivity. Therefore, the temperature and pressure applied greatly affected the carotenoids solvating power of SC–CO2 and hence the yield of carotenoids. Co-solvent has also been demonstrated to increase the yield of bioactive substances from marine algae [78,79]. As an example, Roh et al. (2008) and Conde et al. (2014) reported that the use of ethanol as co-solvent in the SC–CO2 process increases phenolic and fucoxanthin yield from marine brown algae, Undaria pinnatifida, and Sargassum muticum, respectively. More recently, sunflower oil has been shown to improve the extraction yield of carotenoids and fucoxanthin from Saccharina japonica [80].

3.4. Subcritical Water Extraction

The SWE process is an environmentally clean technique that can be used to recover photoprotective substances from marine algae. During SWE, water is maintained in the subcritical state, between its boiling point (100 °C and 0.10 MPa) and critical point (374 °C and 22 MPa), where it remains as a liquid due to the high pressure [81]. High yield of fucoidan and carrageenan extracted by SWE has been demonstrated [82,83]. Generally, the SWE process increases the yield of bioactive substances and their biological activities. However, lower physical properties such as gelling and viscosity were also observed; these might be due to the degradation of polysaccharidea in higher temperature. The SWE process can be used, in addition to recovering photoprotective substances, to modify the structure of those substances. Meillisa et al. (2015) demonstrated structure modification of alginate from Saccharina japonica by SWE. Considering the blue extraction technique, SCE exhibits a number of advantages over conventional organic solvent extraction. The important advantages of this method include its simplicity, reduced extraction time, lower cost of the extracting agent, and its environmental friendliness.

4. Conclusions and Future Prospects of Photoprotective Substances from Marine Algae

Marine algae are the subject of increasing interest for their potential as a source of bioactive substances in cosmetics industries for several reasons. First, these marine organisms are considered as the fastest growing organisms on Earth. Extensively available marine areas are potential areas for marine algae aquaculture. Moreover, marine algae aquaculture techniques of commercial species (i.e., Eucheuma cottonii, Laminaria japonica, Ecklonia cava, Gracilaria sp.) have developed rapidly in the last decades. Marine algae can be found from tropical, cold-temperate areas to polar areas. This great number of biodiversity can be seen as a potential field for the blue exploration of marine algae. In addition, marine algae have exhibited unique chemical structures unlike those found in terrestrial counterparts. These organisms are viewed as “natural and healthy” by many people, and this promotes a positive response for consumers, who often regard natural and nontoxic entities. Many species of marine algae have been used as extracts in cosmetics, and there is no restriction for cosmetic use. Hence, marine algae may be considered a consumer-friendly source of skin care and cosmetic products that may be used for photoprotection. However, the health claims of photoprotective substances derived from marine algae that have been reported by many studies are mostly acquired only through in vitro and in vivo studies, so comprehensive studies on the mode of photoprotective action, biological consequences, and possible side effects have to be conducted in order to use those functional materials as skin care and cosmetic products. Photoprotective activity of orally administered bioactive substances from marine algae has also been reported. These findings reveal the potential of the development of photoprotective supplements and/or pharmaceuticals derived from marine algae.
The use of blue biotechnologies to recover photoprotective substances is becoming very important since the volume of solvents used in the chemical process is extremely concerning. Further, advances in molecular biology and aquaculture technologies such as Integrated Multi Trophic Aquaculture (IMTA) and Recirculating Aquaculture systems (RAS) are important to bridge the gap between the challenges pertaining to the exploitation of marine algae. Particularly, the aquaculture techniques of many brown algae species still remains a challenge and are necessary for the sustainable use of marine algal metabolites and for reduced production cost. Collectively, we predict that extensive application of marine algae in skin care, cosmetics, and pharmaceuticals with advanced photoprotective benefits is not a distant prospect.

Author Contributions

Design and writing—review and editing: R.P., E.A.S. and S.-K.K.

Funding

This article received no external funding.

Acknowledgments

The authors would like to thank National Research Foundation (NRF) Republic of Korea and Indonesian Institute of Science (LIPI) Republic of Indonesia for the LIPI-NRF Postdoctoral Fellowship Award (2017–2018). The authors also acknowledge the Research Center for Oceanography LIPI, Pukyong National University, and Marine Bioprocess Research Centers for all the support.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Kim, S.K.; Mendis, E. Bioactive compounds from marine processing byproducts-a review. Food Res. Int. 2006, 39, 383–393. [Google Scholar] [CrossRef]
  2. Pangestuti, R.; Kim, S.-K. Bioactive peptide of marine origin for the prevention and treatment of non-communicable diseases. Mar. Drugs 2017, 15, 67. [Google Scholar] [CrossRef] [PubMed]
  3. Siahaan, E.A.; Pangestuti, R.; Munandar, H.; Kim, S.-K. Cosmeceuticals properties of sea cucumbers: Prospects and trends. Cosmetics 2017, 4, 26. [Google Scholar] [CrossRef]
  4. Pallela, R.; Na-Young, Y.; Kim, S.-K. Anti-photoaging and photoprotective compounds derived from marine organisms. Mar. Drugs 2010, 8, 1189–1202. [Google Scholar] [CrossRef] [PubMed]
  5. Kim, S.-K.; Pangestuti, R. Biological Properties of Cosmeceuticals Derived from Marine Algae; CRC Press: Boca Raton, FL, USA, 2011; pp. 191–200. [Google Scholar]
  6. Costa, L.; Fidelis, G.; Cordeiro, S.; Oliveira, R.; Sabry, D.; Câmara, R.; Nobre, L.; Costa, M.; Almeida-Lima, J.; Farias, E. Biological activities of sulfated polysaccharides from tropical seaweeds. Biomed. Pharmacother. 2010, 64, 21–28. [Google Scholar] [CrossRef] [PubMed]
  7. Wijesekara, I.; Pangestuti, R.; Kim, S.-K. Biological activities and potential health benefits of sulfated polysaccharides derived from marine algae. Carbohydr. Polym. 2010, 84, 14–21. [Google Scholar] [CrossRef]
  8. Pangestuti, R.; Kim, S.-K. Biological activities of carrageenan. Adv. Food Nutr. Res. 2014, 72, 113–124. [Google Scholar] [PubMed]
  9. Thevanayagam, H.; Mohamed, S.M.; Chu, W.-L. Assessment of UVB-photoprotective and antioxidative activities of carrageenan in keratinocytes. J. Appl. Phycol. 2014, 26, 1813–1821. [Google Scholar] [CrossRef]
  10. Nantel, F.; Denis, D.; Gordon, R.; Northey, A.; Cirino, M.; Metters, K.M.; Chan, C.C. Distribution and regulation of cyclooxygenase 2 in carrageenan induced inflammation. Br. J. Pharmacol. 1999, 128, 853–859. [Google Scholar] [CrossRef] [PubMed]
  11. Tripp, C.S.; Blomme, E.A.; Chinn, K.S.; Hardy, M.M.; LaCelle, P.; Pentland, A.P. Epidermal COX-2 induction following ultraviolet irradiation: Suggested mechanism for the role of COX-2 inhibition in photoprotection. J. Investig. Dermatol. 2003, 121, 853–861. [Google Scholar] [CrossRef] [PubMed]
  12. Pangestuti, R.; Kim, S.-K. Marine-derived bioactive materials for neuroprotection. Food Sci. Biotechnol. 2013, 22, 1–12. [Google Scholar] [CrossRef]
  13. Moon, H.J.; Park, K.S.; Ku, M.J.; Lee, M.S.; Jeong, S.H.; Imbs, T.I.; Zvyagintseva, T.N.; Ermakova, S.P.; Lee, Y.H. Effect of Costaria costata fucoidan on expression of matrix metalloproteinase-1 promoter, mRNA, and protein. J. Nat. Prod. 2009, 72, 1731–1734. [Google Scholar] [CrossRef] [PubMed]
  14. Kim, Y.-I.; Oh, W.-S.; Song, P.; Yun, S.; Kwon, Y.-S.; Lee, Y.; Ku, S.-K.; Song, C.-H.; Oh, T.-H. Anti-Photoaging Effects of Low Molecular-Weight Fucoidan on Ultraviolet B-Irradiated Mice. Mar. Drugs 2018, 16, 286. [Google Scholar] [CrossRef] [PubMed]
  15. Hyun, Y.J.; Piao, M.J.; Ko, M.H.; Lee, N.H.; Kang, H.K.; Yoo, E.S.; Koh, Y.S.; Hyun, J.W. Photoprotective effect of Undaria crenata against ultraviolet B-induced damage to keratinocytes. J. Biosci. Bioeng. 2013, 116, 256–264. [Google Scholar] [CrossRef] [PubMed]
  16. Maruyama, H.; Tamauchi, H.; Kawakami, F.; Yoshinaga, K.; Nakano, T. Suppressive effect of dietary fucoidan on proinflammatory immune response and MMP-1 expression in UVB-irradiated mouse skin. Planta Med. 2015, 81, 1370–1374. [Google Scholar] [PubMed]
  17. Moon, H.J.; Lee, S.R.; Shim, S.N.; Jeong, S.H.; Stonik, V.A.; Rasskazov, V.A.; Zvyagintseva, T.; Lee, Y.H. Fucoidan inhibits UVB-induced MMP-1 expression in human skin fibroblasts. Biol. Pharm. Bull. 2008, 31, 284–289. [Google Scholar] [CrossRef] [PubMed]
  18. Moon, H.J.; Lee, S.H.; Ku, M.J.; Yu, B.C.; Jeon, M.J.; Jeong, S.H.; Stonik, V.A.; Zvyagintseva, T.N.; Ermakova, S.P.; Lee, Y.H. Fucoidan inhibits UVB-induced MMP-1 promoter expression and down regulation of type I procollagen synthesis in human skin fibroblasts. Eur. J. Dermatol. 2009, 19, 129–134. [Google Scholar] [PubMed]
  19. Ku, M.-J.; Lee, M.-S.; Moon, H.-J.; Lee, Y.-H. Protective Effects of Fucoidan against UVB-Induced Oxidative Stress in Human Skin Fibroblasts. J. Life Sci. 2010, 20, 27–32. [Google Scholar] [CrossRef] [Green Version]
  20. Concepcion, M.R.; Avalos, J.; Bonet, M.L.; Boronat, A.; Gomez-Gomez, L.; Hornero-Mendez, D.; Limon, M.C.; Meléndez-Martínez, A.J.; Olmedilla-Alonso, B.; Palou, A. A global perspective on carotenoids: Metabolism, biotechnology, and benefits for nutrition and health. Prog. Lipid Res. 2018, 70, 62–93. [Google Scholar] [CrossRef] [PubMed]
  21. Hashimoto, H.; Sugai, Y.; Uragami, C.; Gardiner, A.T.; Cogdell, R.J. Natural and artificial light-harvesting systems utilizing the functions of carotenoids. J. Photochem. Photobiol. C 2015, 25, 46–70. [Google Scholar] [CrossRef] [Green Version]
  22. Shen, J.; Jiang, C.; Yan, Y.; Liu, B.; Zu, C. Effect of increased UV-B radiation on carotenoid accumulation and total antioxidant capacity in tobacco (Nicotiana tabacum L.) leaves. Genet. Mol. Res. 2017, 16, 1. [Google Scholar] [CrossRef] [PubMed]
  23. Hupel, M.; Lecointre, C.; Meudec, A.; Poupart, N.; Gall, E.A. Comparison of photoprotective responses to UV radiation in the brown seaweed Pelvetia canaliculata and the marine angiosperm Salicornia ramosissima. J. Exp. Mar. Biol. Ecol. 2011, 401, 36–47. [Google Scholar] [CrossRef]
  24. Heo, S.-J.; Jeon, Y.-J. Protective effect of fucoxanthin isolated from Sargassum siliquastrum on UV-B induced cell damage. J. Photochem. Photobiol. B 2009, 95, 101–107. [Google Scholar] [CrossRef] [PubMed]
  25. Urikura, I.; Sugawara, T.; Hirata, T. Protective effect of fucoxanthin against UVB-induced skin photoaging in hairless mice. Biosci. Biotechnol. Biochem. 2011, 75, 757–760. [Google Scholar] [CrossRef] [PubMed]
  26. Liu, Y.; Liu, M.; Zhang, X.; Chen, Q.; Chen, H.; Sun, L.; Liu, G. Protective effect of fucoxanthin isolated from Laminaria japonica against visible light-induced retinal damage both in vitro and in vivo. J. Agric. Food Chem. 2016, 64, 416–424. [Google Scholar] [CrossRef] [PubMed]
  27. Chen, S.-J.; Lee, C.-J.; Lin, T.-B.; Liu, H.-J.; Huang, S.-Y.; Chen, J.-Z.; Tseng, K.-W. Inhibition of Ultraviolet B-Induced Expression of the Proinflammatory Cytokines TNF-α and VEGF in the Cornea by Fucoxanthin Treatment in a Rat Model. Mar. Drugs 2016, 14, 13. [Google Scholar] [CrossRef] [PubMed]
  28. Matsui, M.; Tanaka, K.; Higashiguchi, N.; Okawa, H.; Yamada, Y.; Tanaka, K.; Taira, S.; Aoyama, T.; Takanishi, M.; Natsume, C. Protective and therapeutic effects of fucoxanthin against sunburn caused by UV irradiation. J. Pharmacol. Sci. 2016, 132, 55–64. [Google Scholar] [CrossRef] [PubMed]
  29. Stahl, W.; Sies, H. β-Carotene and other carotenoids in protection from sunlight. Am. J. Clin. Nutr. 2012, 96, 1179S–1184S. [Google Scholar] [CrossRef] [PubMed]
  30. Pangestuti, R.; Kim, S.-K. Biological activities and health benefit effects of natural pigments derived from marine algae. J. Funct. Foods 2011, 3, 255–266. [Google Scholar] [CrossRef]
  31. Mok, I.-K.; Lee, J.K.; Kim, J.H.; Pan, C.-H.; Kim, S.M. Fucoxanthin bioavailability from fucoxanthin-fortified milk: In vivo and in vitro study. Food Chem. 2018, 258, 79–86. [Google Scholar] [CrossRef] [PubMed]
  32. Carreto, J.I.; Carignan, M.O. Mycosporine-like amino acids: relevant secondary metabolites. Chemical and ecological aspects. Mar. Drugs 2011, 9, 387–446. [Google Scholar] [CrossRef] [PubMed]
  33. Peinado, N.K.; Abdala Díaz, R.T.; Figueroa, F.L.; Helbling, E.W. Ammonium and UV radiation stimulate the accumulation of mycosporine like amino acids in Porphyra Columbina (Rhodophyta) from Patagonia, Argentina. J. Phycol. 2004, 40, 248–259. [Google Scholar] [CrossRef]
  34. Oren, A.; Gunde-Cimerman, N. Mycosporines and mycosporine-like amino acids: UV protectants or multipurpose secondary metabolites? FEMS Microbiol. Lett. 2007, 269, 1–10. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Barceló-Villalobos, M.; Figueroa, F.L.; Korbee, N.; Álvarez-Gómez, F.; Abreu, M.H. Production of mycosporine-like amino acids from Gracilaria vermiculophylla (Rhodophyta) cultured through one year in an Integrated Multi-Trophic Aquaculture (IMTA) system. Mar. Biotechnol. 2017, 19, 246–254. [Google Scholar] [CrossRef] [PubMed]
  36. Gacesa, R.; Lawrence, K.P.; Georgakopoulos, N.D.; Yabe, K.; Dunlap, W.C.; Barlow, D.J.; Wells, G.; Young, A.R.; Long, P.F. The mycosporine-like amino acids porphyra-334 and shinorine are antioxidants and direct antagonists of Keap1-Nrf2 binding. Biochimie 2018, 154, 35–44. [Google Scholar] [CrossRef] [PubMed]
  37. Hartmann, A.; Murauer, A.; Ganzera, M. Quantitative analysis of mycosporine-like amino acids in marine algae by capillary electrophoresis with diode-array detection. J. Pharm. Biomed. Anal. 2017, 138, 153–157. [Google Scholar] [CrossRef] [PubMed]
  38. Navarro, N.P.; Figueroa, F.L.; Korbee, N. Mycosporine-like amino acids vs carrageenan yield in Mazzaella laminarioides (Gigartinales; Rhodophyta) under high and low UV solar irradiance. Phycologia 2017, 56, 570–578. [Google Scholar] [CrossRef]
  39. Ryu, J.; Park, S.-J.; Kim, I.-H.; Choi, Y.H.; Nam, T.-J. Protective effect of porphyra-334 on UVA-induced photoaging in human skin fibroblasts. Int. J. Mol. Med. 2014, 34, 796–803. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  40. Yoshiki, M.; Tsuge, K.; Tsuruta, Y.; Yoshimura, T.; Koganemaru, K.; Sumi, T.; Matsui, T.; Matsumoto, K. Production of new antioxidant compound from mycosporine-like amino acid, porphyra-334 by heat treatment. Food Chem. 2009, 113, 1127–1132. [Google Scholar] [CrossRef]
  41. Bhatia, S.; Sharma, K.; Namdeo, A.G.; Chaugule, B.; Kavale, M.; Nanda, S. Broad-spectrum sun-protective action of Porphyra-334 derived from Porphyra vietnamensis. Pharmacogn. Res. 2010, 2, 45. [Google Scholar] [CrossRef] [PubMed]
  42. Daniel, S.; Cornelia, S.; Fred, Z. UV-A sunscreen from red algae for protection against premature skin aging. Cosmet. Toilet. Manuf. Worldw. 2004, 129, 139–143. [Google Scholar]
  43. Ignat, I.; Volf, I.; Popa, V.I. A critical review of methods for characterisation of polyphenolic compounds in fruits and vegetables. Food Chem. 2011, 126, 1821–1835. [Google Scholar] [CrossRef] [PubMed]
  44. Heo, S.-J.; Ko, S.-C.; Cha, S.-H.; Kang, D.-H.; Park, H.-S.; Choi, Y.-U.; Kim, D.; Jung, W.-K.; Jeon, Y.-J. Effect of phlorotannins isolated from Ecklonia cava on melanogenesis and their protective effect against photo-oxidative stress induced by UV-B radiation. Toxicol. In Vitro 2009, 23, 1123–1130. [Google Scholar] [CrossRef] [PubMed]
  45. Ko, S.-C.; Cha, S.-H.; Heo, S.-J.; Lee, S.-H.; Kang, S.-M.; Jeon, Y.-J. Protective effect of Ecklonia cava on UVB-induced oxidative stress: In vitro and in vivo zebrafish model. J. Appl. Phycol. 2011, 23, 697–708. [Google Scholar] [CrossRef]
  46. Kang, K.A.; Zhang, R.; Piao, M.J.; Ko, D.O.; Wang, Z.H.; Lee, K.; Kim, B.J.; Shin, T.; Park, J.W.; Lee, N.H. Inhibitory effects of triphlorethol-A on MMP-1 induced by oxidative stress in human keratinocytes via ERK and AP-1 inhibition. J. Toxicol. Environ. Health Part A 2008, 71, 992–999. [Google Scholar] [CrossRef] [PubMed]
  47. Piao, M.J.; Zhang, R.; Lee, N.H.; Hyun, J.W. Protective effect of triphlorethol-A against ultraviolet B-mediated damage of human keratinocytes. J. Photochem. Photobiol. B 2012, 106, 74–80. [Google Scholar] [CrossRef] [PubMed]
  48. Vo, T.S.; Kim, S.-K.; Ryu, B.; Ngo, D.H.; Yoon, N.-Y.; Bach, L.G.; Hang, N.T.N.; Ngo, D.N. The Suppressive Activity of Fucofuroeckol-A Derived from Brown Algal Ecklonia stolonifera Okamura on UVB-Induced Mast Cell Degranulation. Mar. Drugs 2018, 16, 1. [Google Scholar] [CrossRef] [PubMed]
  49. Kim, K.C.; Piao, M.J.; Cho, S.J.; Lee, N.H.; Hyun, J.W. Phloroglucinol protects human keratinocytes from ultraviolet B radiation by attenuating oxidative stress. Photodermatol. Photoimmunol. Photomed. 2012, 28, 322–331. [Google Scholar] [CrossRef] [PubMed]
  50. Piao, M.J.; Zhang, R.; Lee, N.H.; Hyun, J.W. Phloroglucinol attenuates ultraviolet B radiation-induced matrix metalloproteinase-1 production in human keratinocytes via inhibitory actions against mitogen-activated protein kinases and activator protein-1. Photochem. Photobiol. 2012, 88, 381–388. [Google Scholar] [CrossRef] [PubMed]
  51. Piao, M.J.; Ahn, M.J.; Kang, K.A.; Kim, K.C.; Zheng, J.; Yao, C.W.; Cha, J.W.; Hyun, C.L.; Kang, H.K.; Lee, N.H. Phloroglucinol inhibits ultraviolet B radiation-induced oxidative stress in the mouse skin. Int. J. Radiat. Biol. 2014, 90, 928–935. [Google Scholar] [CrossRef] [PubMed]
  52. Guinea, M.; Franco, V.; Araujo-Bazán, L.; Rodríguez-Martín, I.; González, S. In vivo UVB-photoprotective activity of extracts from commercial marine macroalgae. Food Chem. Toxicol. 2012, 50, 1109–1117. [Google Scholar] [CrossRef] [PubMed]
  53. Kim, S.; You, D.H.; Han, T.; Choi, E.-M. Modulation of viability and apoptosis of UVB-exposed human keratinocyte HaCaT cells by aqueous methanol extract of laver (Porphyra yezoensis). J. Photochem. Photobiol. B 2014, 141, 301–307. [Google Scholar] [CrossRef] [PubMed]
  54. Sánchez-Lamar, Á.; González-Pumariega, M.; Fuentes-León, F.; Vernhes Tamayo, M.; Schuch, A.P.; Menck, C.F. Evaluation of Genotoxic and DNA Photo-Protective Activity of Bryothamnion triquetrum and Halimeda incrassata Seaweeds Extracts. Cosmetics 2017, 4, 23. [Google Scholar] [CrossRef]
  55. Mercurio, D.; Wagemaker, T.; Alves, V.; Benevenuto, C.; Gaspar, L.; Campos, P.M. In vivo photoprotective effects of cosmetic formulations containing UV filters, vitamins, Ginkgo biloba and red algae extracts. J. Photochem. Photobiol. B 2015, 153, 121–126. [Google Scholar] [CrossRef] [PubMed]
  56. Boulho, R.; Le Roux, J.; Le Quémener, C.; Audo, G.; Bourgougnon, N.; Bedoux, G. Fractionation of UV-B absorbing molecules and of free radical scavenging compounds from Solieria chordalis by using centrifugal partition chromatography. Phytochem. Lett. 2017, 20, 410–414. [Google Scholar] [CrossRef]
  57. Kim, H.M.; Lee, D.E.; Park, S.D.; Kim, Y.T.; Kim, Y.J.; Jeong, J.W.; Lee, J.-H.; Jang, S.S.; Chung, D.K.; Sim, J.-H. Preventive effect of fermented Gelidium amansii and Cirsium japonicum extract mixture against UVB-induced skin photoaging in hairless mice. Food Sci. Biotechnol. 2014, 23, 623–631. [Google Scholar] [CrossRef]
  58. Hyun, Y.J.; Piao, M.J.; Kim, K.C.; Zheng, J.; Yao, C.W.; Cha, J.W.; Kang, H.K.; Yoo, E.S.; Koh, Y.S.; Lee, N.H. Photoprotective effect of a Polyopes affinis (Harvey) Kawaguchi and Wang (Halymeniaceae)-derived ethanol extract on human keratinocytes. Trop. J. Pharm. Res. 2014, 13, 863–871. [Google Scholar] [CrossRef]
  59. Bedoux, G.; Hardouin, K.; Marty, C.; Taupin, L.; Vandanjon, L.; Bourgougnon, N. Chemical characterization and photoprotective activity measurement of extracts from the red macroalga Solieria chordalis. Bot. Mar. 2014, 57, 291–301. [Google Scholar] [CrossRef]
  60. Piao, M.J.; Kang, H.K.; Yoo, E.S.; Koh, Y.S.; Kim, D.S.; Lee, N.H.; Hyun, J.W. Photo-protective effect of Polysiphonia morrowii Harvey against ultraviolet B radiation-induced keratinocyte damage. J. Korean Soc. Appl. Biol. Chem. 2012, 55, 149–158. [Google Scholar] [CrossRef]
  61. Piao, M.J.; Hyun, Y.J.; Oh, T.-H.; Kang, H.K.; Yoo, E.S.; Koh, Y.S.; Lee, N.H.; Suh, I.S.; Hyun, J.W. Chondracanthus tenellus (Harvey) hommersand extract protects the human keratinocyte cell line by blocking free radicals and UVB radiation-induced cell damage. In Vitro Cell. Dev. Biol.-Anim. 2012, 48, 666–674. [Google Scholar] [CrossRef] [PubMed]
  62. Piao, M.J.; Hyun, Y.J.; Cho, S.J.; Kang, H.K.; Yoo, E.S.; Koh, Y.S.; Lee, N.H.; Ko, M.H.; Hyun, J.W. An ethanol extract derived from Bonnemaisonia hamifera scavenges ultraviolet B (UVB) radiation-induced reactive oxygen species and attenuates UVB-induced cell damage in human keratinocytes. Mar. Drugs 2012, 10, 2826–2845. [Google Scholar] [CrossRef] [PubMed]
  63. Kim, A.D.; Piao, M.J.; Hyun, Y.J.; Kang, H.K.; Suh, I.S.; Lee, N.H.; Hyun, J.W. Photo-protective properties of Lomentaria hakodatensis yendo against ultraviolet B radiation-induced keratinocyte damage. Biotechnol. Bioprocess Eng. 2012, 17, 1223–1231. [Google Scholar] [CrossRef]
  64. Song, J.H.; Piao, M.J.; Han, X.; Kang, K.A.; Kang, H.K.; Yoon, W.J.; Ko, M.H.; Lee, N.H.; Lee, M.Y.; Chae, S. Anti-wrinkle effects of Sargassum muticum ethyl acetate fraction on ultraviolet B-irradiated hairless mouse skin and mechanistic evaluation in the human HaCaT keratinocyte cell line. Mol. Med. Rep. 2016, 14, 2937–2944. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  65. Piao, M.J.; Yoon, W.J.; Kang, H.K.; Yoo, E.S.; Koh, Y.S.; Kim, D.S.; Lee, N.H.; Hyun, J.W. Protective Effect of the Ethyl Acetate Fraction of Sargassum muticum Against Ultraviolet B–Irradiated Damage in Human Keratinocytes. Int. J. Mol. Sci. 2011, 12, 8146–8160. [Google Scholar] [CrossRef] [PubMed]
  66. Cseri, L.; Razali, M.; Pogany, P.; Szekely, G. Organic Solvents in Sustainable Synthesis and Engineering. Green Chem. 2017, 513–553. [Google Scholar]
  67. Heo, S.-J.; Park, E.-J.; Lee, K.-W.; Jeon, Y.-J. Antioxidant activities of enzymatic extracts from brown seaweeds. Bioresour. Technol. 2005, 96, 1613–1623. [Google Scholar] [CrossRef] [PubMed]
  68. Kim, S.; Wijesekara, I. Development and biological activities of marine-derived bioactive peptides: A review. J. Funct. Foods 2010, 2, 1–9. [Google Scholar] [CrossRef]
  69. Athukorala, Y.; Kim, K.-N.; Jeon, Y.-J. Antiproliferative and antioxidant properties of an enzymatic hydrolysate from brown alga, Ecklonia cava. Food Chem. Toxicol. 2006, 44, 1065–1074. [Google Scholar] [CrossRef] [PubMed]
  70. Hifney, A.F.; Fawzy, M.A.; Abdel-Gawad, K.M.; Gomaa, M. Upgrading the antioxidant properties of fucoidan and alginate from Cystoseira trinodis by fungal fermentation or enzymatic pretreatment of the seaweed biomass. Food Chem. 2018, 269, 387–395. [Google Scholar] [CrossRef] [PubMed]
  71. Camel, V. Microwave-assisted solvent extraction of environmental samples. TrAC Trends Anal. Chem. 2000, 19, 229–248. [Google Scholar] [CrossRef]
  72. Hahn, T.; Lang, S.; Ulber, R.; Muffler, K. Novel procedures for the extraction of fucoidan from brown algae. Process Biochem. 2012, 47, 1691–1698. [Google Scholar] [CrossRef]
  73. Yuan, Y.; Macquarrie, D. Microwave assisted extraction of sulfated polysaccharides (fucoidan) from Ascophyllum nodosum and its antioxidant activity. Carbohydr. Polym. 2015, 129, 101–107. [Google Scholar] [CrossRef] [PubMed]
  74. Flórez-Fernández, N.; López-García, M.; González-Muñoz, M.J.; Vilariño, J.M.L.; Domínguez, H. Ultrasound-assisted extraction of fucoidan from Sargassum muticum. J. Appl. Phycol. 2017, 29, 1553–1561. [Google Scholar] [CrossRef]
  75. Haq, M.; Chun, B.-S. Characterization of phospholipids extracted from Atlantic salmon by-product using supercritical CO 2 with ethanol as co-solvent. J. Clean. Prod. 2018, 178, 186–195. [Google Scholar] [CrossRef]
  76. Haq, M.; Ahmed, R.; Cho, Y.-J.; Chun, B.-S. Quality Properties and Bio-potentiality of Edible Oils from Atlantic Salmon By-products Extracted by Supercritial Carbon Dioxide and Conventional Methods. Waste Biomass Valorization 2017, 8, 1953–1967. [Google Scholar] [CrossRef]
  77. Sivagnanam, S.P.; Yin, S.; Choi, J.H.; Park, Y.B.; Woo, H.C.; Chun, B.S. Biological properties of fucoxanthin in oil recovered from two brown seaweeds using supercritical CO2 extraction. Mar. Drugs 2015, 13, 3422–3442. [Google Scholar] [CrossRef] [PubMed]
  78. Roh, M.K.; Uddin, M.S.; Chun, B.S. Extraction of fucoxanthin and polyphenol from Undaria pinnatifida using supercritical carbon dioxide with co-solvent. Biotechnol. Bioprocess Eng. 2008, 13, 724–729. [Google Scholar] [CrossRef]
  79. Conde, E.; Moure, A.; Domínguez, H. Supercritical CO2 extraction of fatty acids, phenolics and fucoxanthin from freeze-dried Sargassum muticum. J. Appl. Phycol. 2015, 27, 957–964. [Google Scholar] [CrossRef]
  80. Saravana, P.S.; Getachew, A.T.; Cho, Y.-J.; Choi, J.H.; Park, Y.B.; Woo, H.C.; Chun, B.S. Influence of co-solvents on fucoxanthin and phlorotannin recovery from brown seaweed using supercritical CO2. J. Supercrit. Fluids 2017, 120, 295–303. [Google Scholar] [CrossRef]
  81. Meillisa, A.; Siahaan, E.A.; Park, J.-N.; Woo, H.-C.; Chun, B.-S. Effect of subcritical water hydrolysate in the brown seaweed Saccharina japonica as a potential antibacterial agent on food-borne pathogens. J. Appl. Phycol. 2013, 25, 763–769. [Google Scholar] [CrossRef]
  82. Gereniu, C.R.N.; Saravana, P.S.; Chun, B.-S. Recovery of carrageenan from Solomon Islands red seaweed using ionic liquid-assisted subcritical water extraction. Sep. Purif. Technol. 2018, 196, 309–317. [Google Scholar] [CrossRef]
  83. Saravana, P.S.; Tilahun, A.; Gerenew, C.; Tri, V.D.; Kim, N.H.; Kim, G.-D.; Woo, H.-C.; Chun, B.-S. Subcritical water extraction of fucoidan from Saccharina japonica: optimization, characterization and biological studies. J Appl. Phycol. 2018, 30, 579–590. [Google Scholar] [CrossRef]
Marinedrugs 16 00399 g001 550

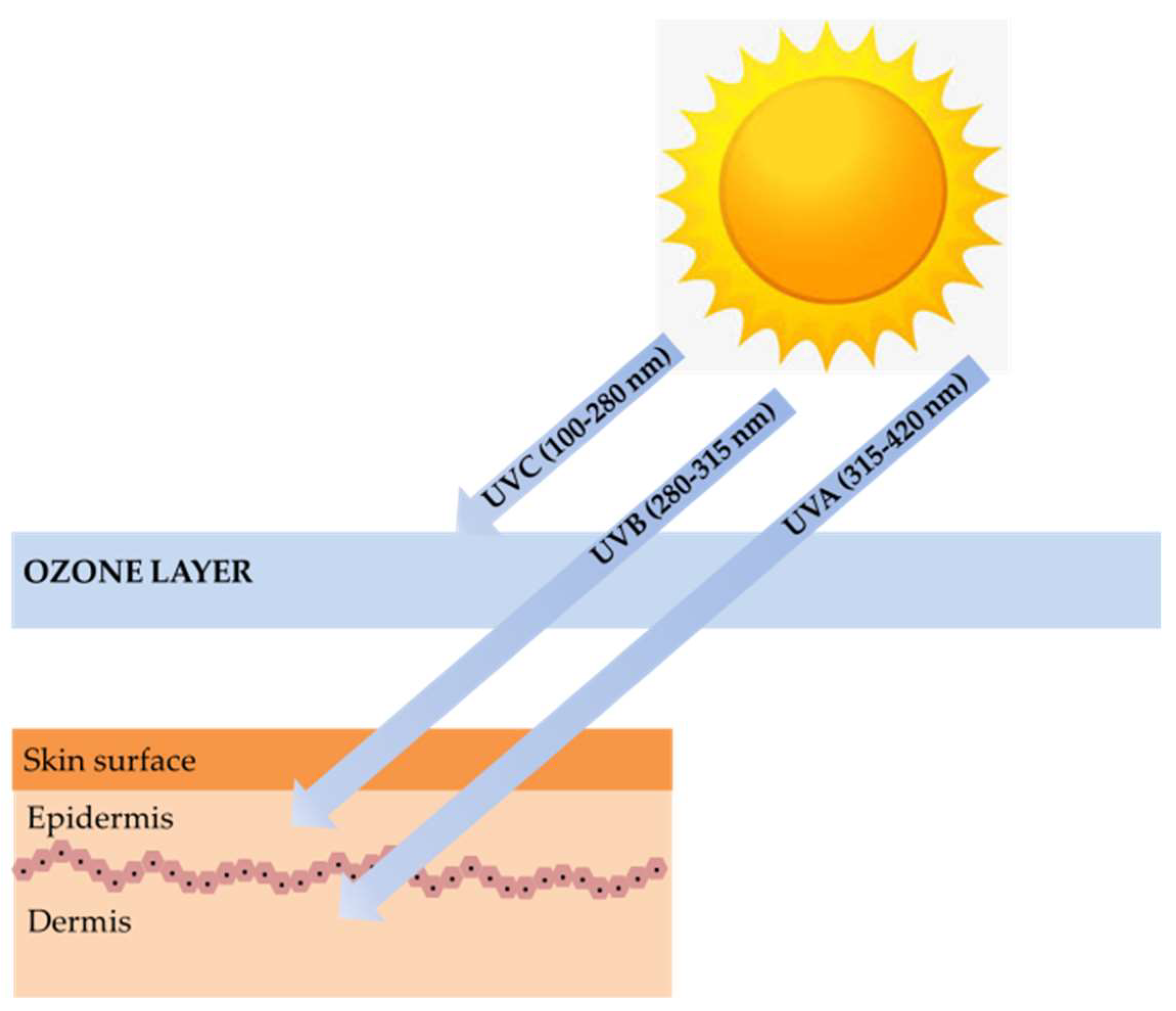

Figure 1. The ultraviolet (UV)-induced photodamage.
Figure 1. The ultraviolet (UV)-induced photodamage.
Marinedrugs 16 00399 g001
Marinedrugs 16 00399 g002 550

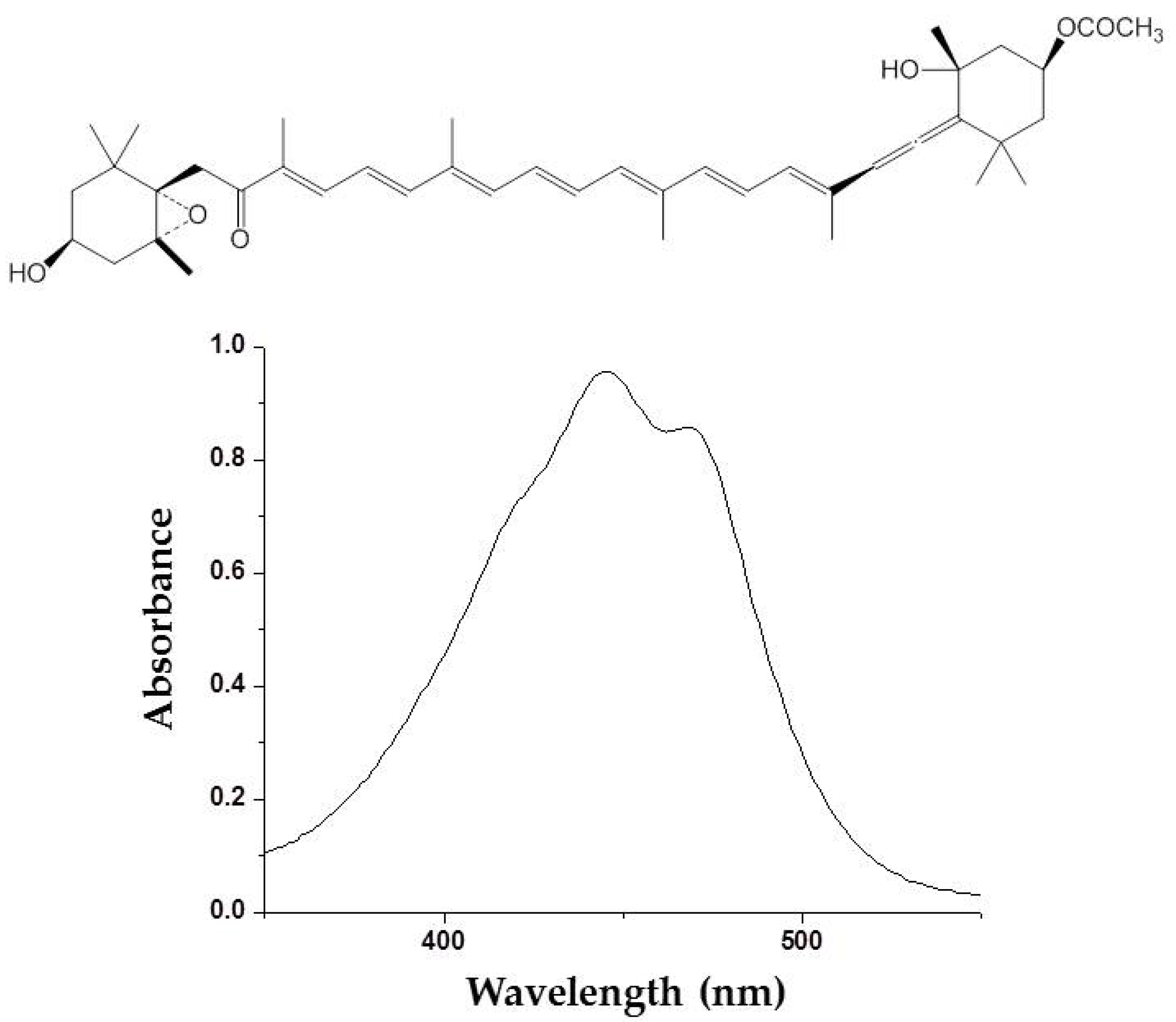

Figure 2. Molecular structure and ultraviolet (UV) absorption spectra of fucoxanthin from brown algae.
Figure 2. Molecular structure and ultraviolet (UV) absorption spectra of fucoxanthin from brown algae.
Marinedrugs 16 00399 g002
Marinedrugs 16 00399 g003 550

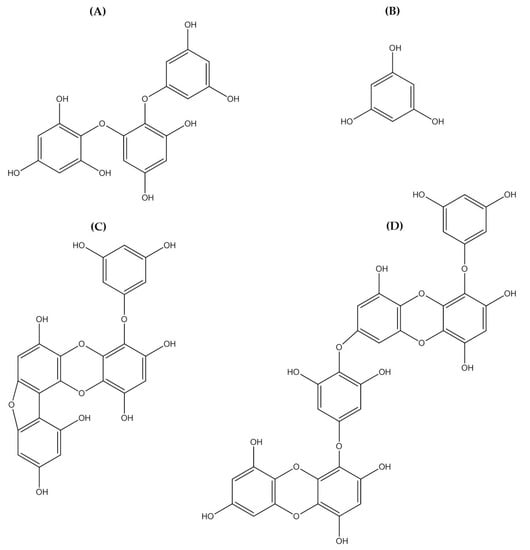

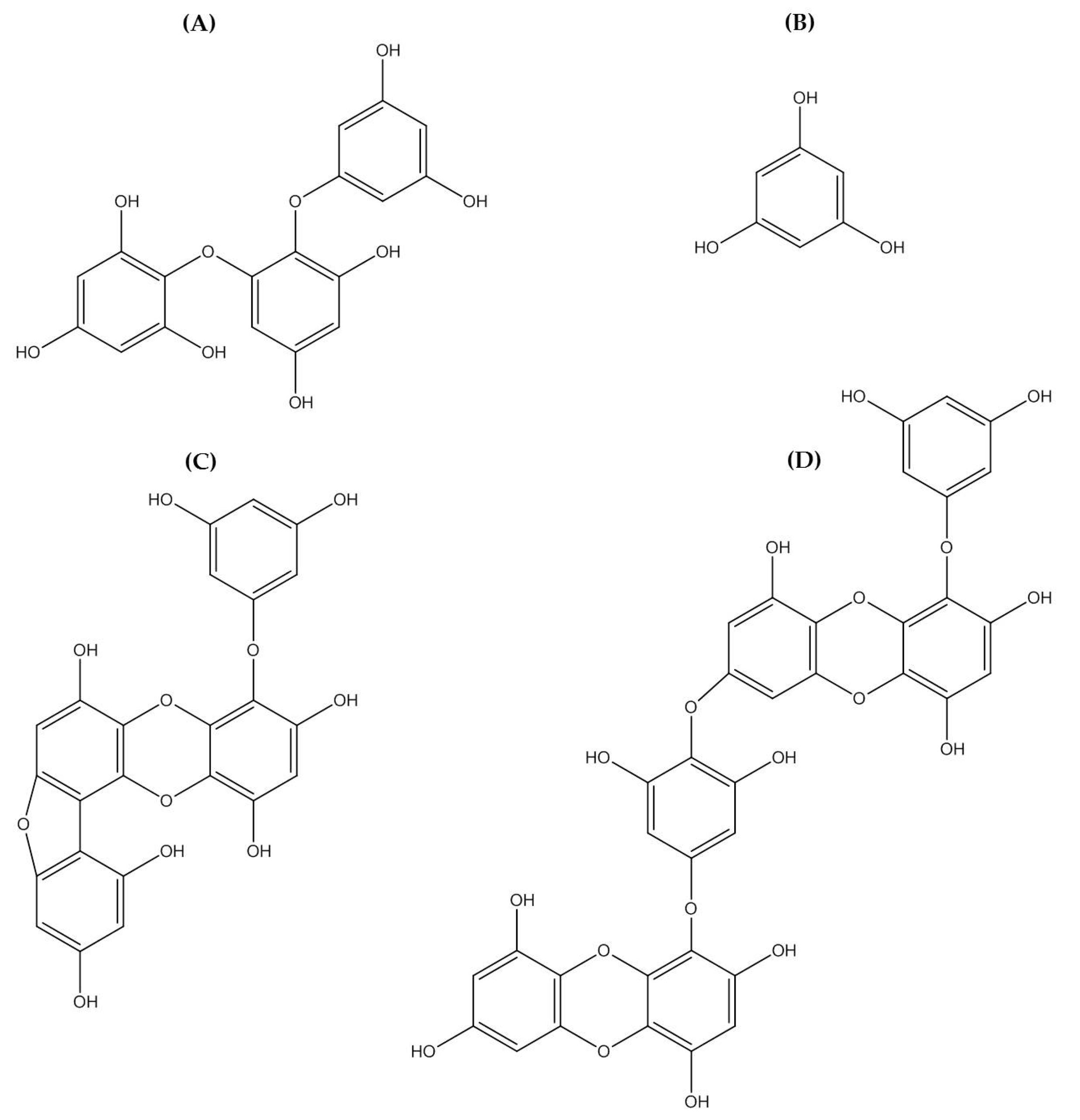

Figure 3. Chemical structure photoprotective polyphenol isolated from marine brown algae. Triphlorethol-A (A), phloroglucinol (B), fucofuroeckol-A (C), and dieckol (D).
Figure 3. Chemical structure photoprotective polyphenol isolated from marine brown algae. Triphlorethol-A (A), phloroglucinol (B), fucofuroeckol-A (C), and dieckol (D).
Marinedrugs 16 00399 g003
Marinedrugs 16 00399 g004 550

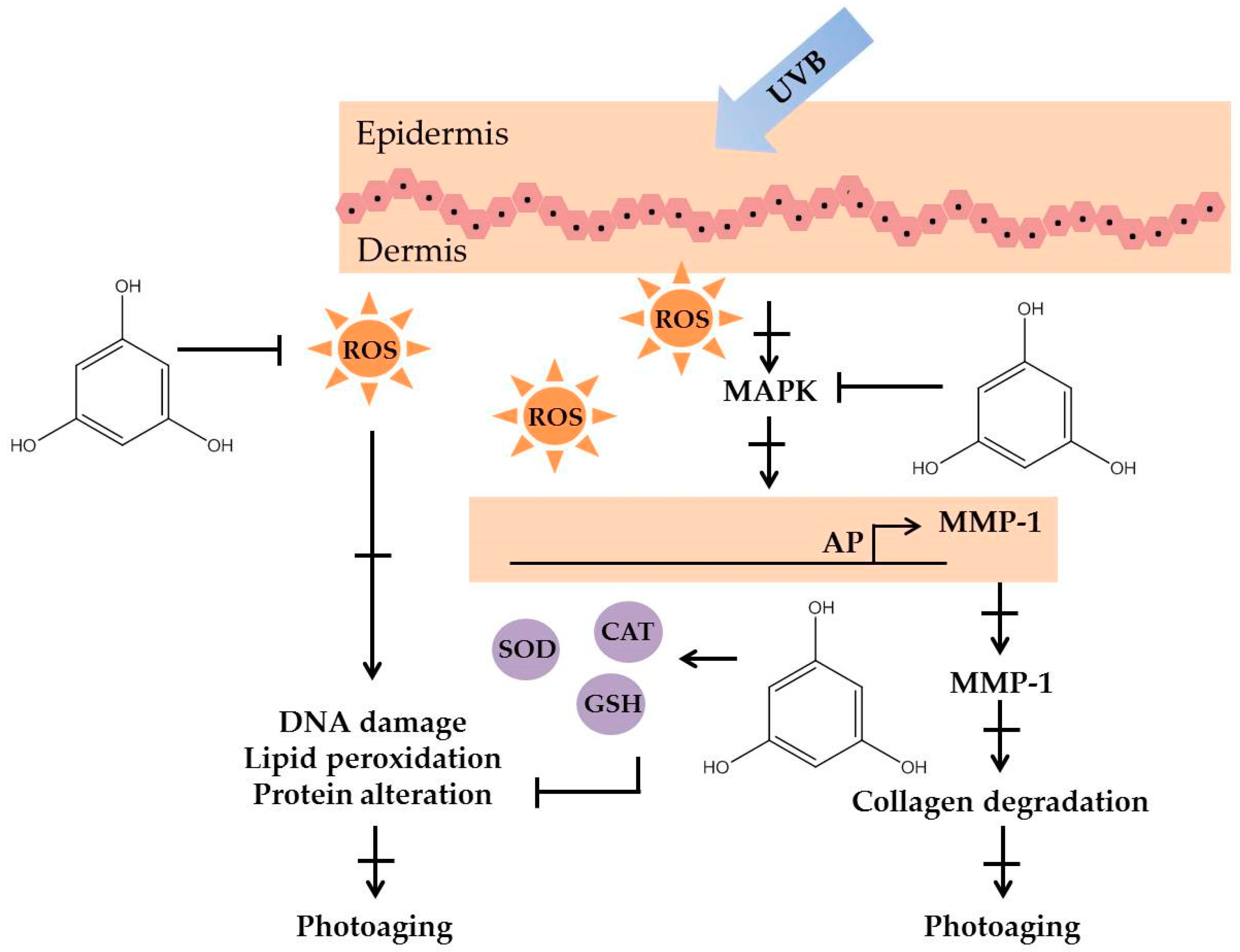

Figure 4. The photoprotective mechanism of phloroglucinol derived from marine algae.
Figure 4. The photoprotective mechanism of phloroglucinol derived from marine algae.
Marinedrugs 16 00399 g004
Marinedrugs 16 00399 g005 550

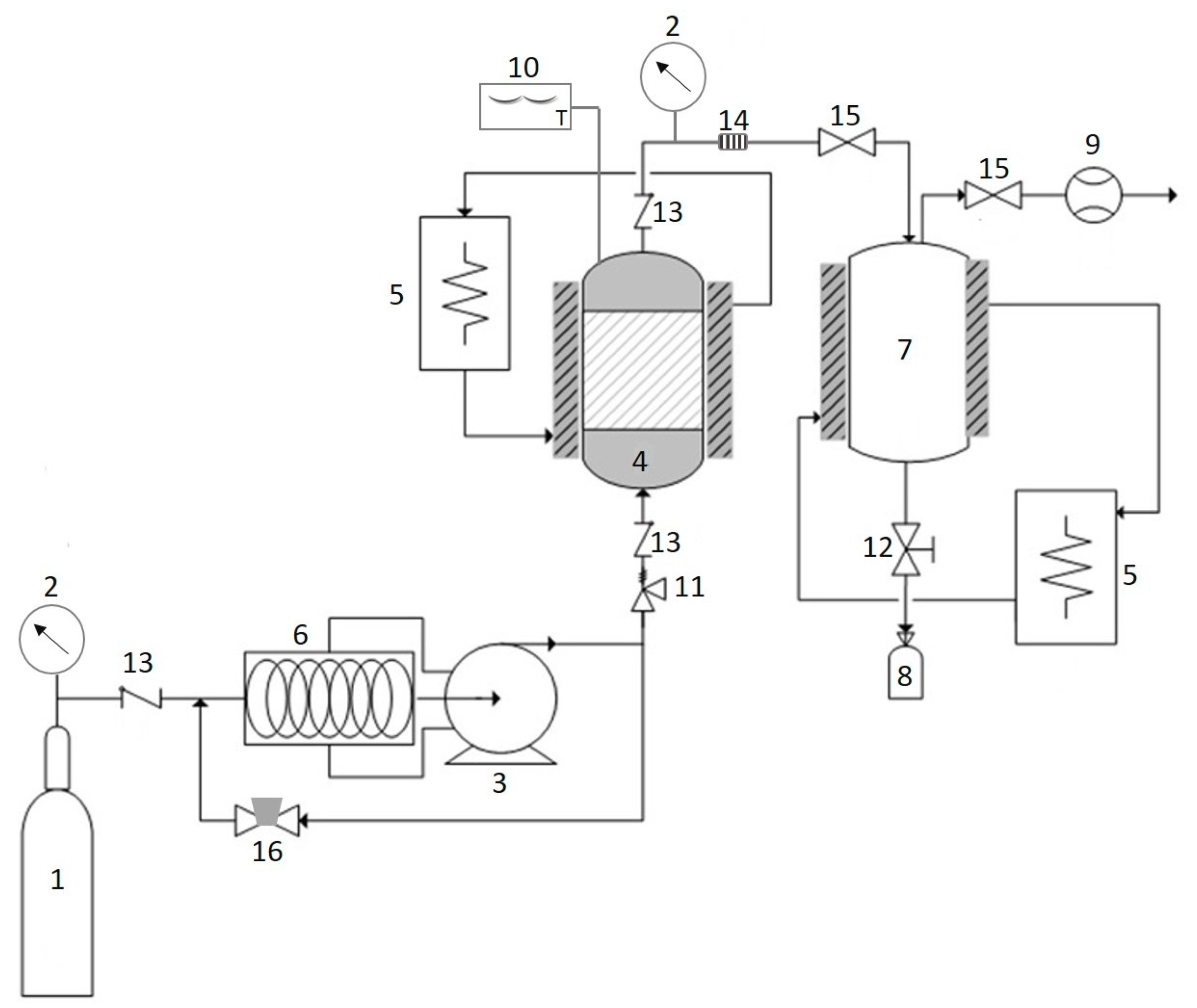

Figure 5. Schematic diagram of SC–CO2. The CO2 tank (1); pressure gauge (2); high pressure pump (3); extractor (4); heat exchanger (5); chiller (6); separator (7); sample collector (8); flow meter (9); digital thermometer (10); safety valve (11); needle valve (12); check valve (13); filter (14); metering valve (15); back pressure regulator (16).
Figure 5. Schematic diagram of SC–CO2. The CO2 tank (1); pressure gauge (2); high pressure pump (3); extractor (4); heat exchanger (5); chiller (6); separator (7); sample collector (8); flow meter (9); digital thermometer (10); safety valve (11); needle valve (12); check valve (13); filter (14); metering valve (15); back pressure regulator (16).
Marinedrugs 16 00399 g005
Table
Table 1. Mycosporines-Like amino acids (MAAs) identified in marine algae.
Table 1. Mycosporines-Like amino acids (MAAs) identified in marine algae.
Mycosporine-like Amino AcidsMarine AlgaeReference
Shinorine
Marinedrugs 16 00399 i001		Gloiopeltis fucatas; Mazzaella sp.; Gracilaria vermiculophylla; Palmaria palmata; Porphyra sp.; Porphyra umbilicalis[35,36,37]
Palythine
Marinedrugs 16 00399 i002		Gloiopeltis fucatas; Mazzaella sp.; Gracilaria vermiculophylla; Palmaria palmata; Porphyra sp.; Porphyra umbilicalis[35,36,37,38]
Porphyra-334
Marinedrugs 16 00399 i003		Gracilaria vermiculophylla; Palmaria palmata; Porphyra sp.; Porphyra umbilicalis; Poprphyra yezoensis; Porphyra vietnamensis[35,37,38,39,40,41]
Asterina-330
Marinedrugs 16 00399 i004		Gracilaria vermiculophylla[35,38]
Mycosporine-glycine
Marinedrugs 16 00399 i005 		Mazzaella laminarioides[38]
Table
Table 2. Summary of photoprotective effects of marine algae extracts.
Table 2. Summary of photoprotective effects of marine algae extracts.
ClassSpeciesOriginExtract/FractionActivityReference
Red algaeSolieria chordalisFranceMeOH extract/CPC fractionation
n-heptane/EtOAc//MeOH/dW (19/1//19/1; v/v)		UVB absorption & free radical scavenging activity[56]
Porphyra umbilicalisFranceCosmetic formula (5% extract)Protect UV-radiated skin from erythema [55]
Porphyra yezoensisKoreaEtOH extract (80%)/chloroform/MeOH/dW (2/1/0.9)Modulate viability of UVB-exposed HaCaT [53]
Gelidium amansiiKoreaMeOH extract and fermentationProtect skin photoaging in Hairless Mice induced by UVB [57]
Polyopes affinisKoreaEtOH extractInhibit UVB-induced ROS in HaCaT [58]
Solieria chordalisFranceEtOAc extractProtect synthetic chlorophyll solution from UVB[59]
Polysiphonia morrowiiKoreaEtOH extract (80%)Protect HaCaT from UVB-induced cell damage[60]
Chondracanthus tenellusKoreaEtOH extract (80%)Protect HaCaT from UVB-induced cell damage[61]
Bonnemaisonia hamiferaKoreaEtOH extract (80%)Protect HaCaT from UVB-induced cell damage and inhibit ROS[62]
Lomentaria hakodatensisKoreaEtOH extract (80%)Protect HaCaT from UVB-induced cell damage [63]
Macrocystis pyriferaArgentinaAce extractUVB protection on zebrafish embryo[52]
Porphyra columbinaArgentinaAce extractUVB protection on zebrafish embryo[52]
Brown algaeSargassum muticumKoreaEtOAc fractionInhibits wrinkle formation in UVB-induced mice (in vivo)[64]
Sargassum muticumKoreaEtOAc fractionUVB irradiated human keratinocytes (in vitro)[65]
Undaria crenataKoreaEtOH extract (80%)Protect HaCaT from UVB-induced cell damage [15]
Lessonia vadosaArgentinaAce extractUVB protection on zebrafish embryo[52]
Lessonia nigrescensChileAce extractUVB protection on zebrafish embryo[52]
Ecklonia maximaSouth AfricaAce extractUVB protection on zebrafish embryo[52]
Durvillaea antarcticaChileAce extractUVB protection on zebrafish embryo[52]
Fucus vesiculosusSpainAce extractUVB protection on zebrafish embryo[52]
Saccharina latissimaSpainAce extractUVB protection on zebrafish embryo[52]
Ascophyllum nodosumIrelandAce extractUVB protection on zebrafish embryo[52]
Table
Table 3. Technologies for the recovery of photoprotective substances from marine algae.
Table 3. Technologies for the recovery of photoprotective substances from marine algae.
TechniquesAdvantageDisadvantageTarget Photoprotective Substances
Organic solventEasy to operateEnvironmental waste
Cost of organic solvent
Clean up step needed		Carotenoids, Phenolics, MAAs, Sulfated Polysaccharides, Extracts
EAENo harmful solvents
High yield
Mild process		Extracted substances required further process
Cost of the enzymes
Optimization of enzymatic process
Clean up step needed		Extracts, Sulfated Polysaccharides
UAE & MAEReduce extraction time
Low solvent		High power consumption
Scaling up is difficult
Clean up step needed		Sulfated Polysaccharides
SC–CO2Reduce extraction time
Simple process
Environmental friendly
Low operating temperatures (40–60 °C)
Clean final product
Low solvent		Cost of the installations
Required special manpower
Optimization process		Carotenoids (i.e., fucoxanthin);
SWEReduce extraction time
Simple process
Environmental friendly
High yield
Low solvent		Cost of the installations
Clean up step needed
Elevated temperatures 		Sulfated polysaccharides
(i.e., carrageenan; fucoidan); polyphenols

Share and Cite

MDPI and ACS Style

Pangestuti, R.; Siahaan, E.A.; Kim, S.-K. Photoprotective Substances Derived from Marine Algae. Mar. Drugs 2018, 16, 399. https://doi.org/10.3390/md16110399

AMA Style

Pangestuti R, Siahaan EA, Kim S-K. Photoprotective Substances Derived from Marine Algae. Marine Drugs. 2018; 16(11):399. https://doi.org/10.3390/md16110399

Chicago/Turabian Style

Pangestuti, Ratih, Evi Amelia Siahaan, and Se-Kwon Kim. 2018. "Photoprotective Substances Derived from Marine Algae" Marine Drugs 16, no. 11: 399. https://doi.org/10.3390/md16110399

APA Style

Pangestuti, R., Siahaan, E. A., & Kim, S. -K. (2018). Photoprotective Substances Derived from Marine Algae. Marine Drugs, 16(11), 399. https://doi.org/10.3390/md16110399

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
