Article

Synthesis and Antiproliferative Evaluation of 3-Chloroazetidin-2-ones with Antimitotic Activity: Heterocyclic Bridged Analogues of Combretastatin A-4

1
Department of Pharmaceutical Chemistry, College of Pharmacy, King Abdulaziz University, Jeddah 21589, Saudi Arabia
2
School of Pharmacy and Pharmaceutical Sciences, Trinity College Dublin, Trinity Biomedical Sciences Institute, 152-160 Pearse Street, Dublin 2, DO2R590 Dublin, Ireland
3
Molecular Design Group, School of Biochemistry and Immunology, Trinity College Dublin, Trinity Biomedical Sciences Institute, 152-160 Pearse Street, Dublin 2, DO2R590 Dublin, Ireland
4
School of Biochemistry and Immunology, Trinity College Dublin, Trinity Biomedical Sciences Institute, 152-160 Pearse Street, Dublin 2, DO2R590 Dublin, Ireland
5
School of Chemistry, Trinity College Dublin, 2 DO2R590 Dublin, Ireland
*
Author to whom correspondence should be addressed.
Co-First Authors: contributed equally to the work.
Pharmaceuticals 2021, 14(11), 1119; https://doi.org/10.3390/ph14111119
Submission received: 14 October 2021 / Revised: 27 October 2021 / Accepted: 28 October 2021 / Published: 31 October 2021
(This article belongs to the Special Issue Antiviral Drugs 2021)

Abstract

:
Antimitotic drugs that target tubulin are among the most widely used chemotherapeutic agents; however, the development of multidrug resistance has limited their clinical activity. We report the synthesis and biological properties of a series of novel 3-chloro-β-lactams and 3,3-dichloro-β-lactams (2-azetidinones) that are structurally related to the tubulin polymerisation inhibitor and vascular targeting agent, Combretastatin A-4. These compounds were evaluated as potential tubulin polymerisation inhibitors and for their antiproliferative effects in breast cancer cells. A number of the compounds showed potent activity in MCF-7 breast cancer cells, e.g., compound 10n (3-chloro-4-(3-hydroxy-4-methoxy-phenyl)-1-(3,4,5-trimethoxyphenyl)azetidin-2-one) and compound 11n (3,3-dichloro-4-(3-hydroxy-4-methoxyphenyl)-1-(3,4,5-trimethoxyphenyl)-azetidin-2-one), with IC50 values of 17 and 31 nM, respectively, and displayed comparable cellular effects to those of Combretastatin A-4. Compound 10n demonstrated minimal cytotoxicity against non-tumorigenic HEK-293T cells and inhibited the in vitro polymerisation of tubulin with significant G2/M phase cell cycle arrest. Immunofluorescence staining of MCF-7 cells confirmed that β-lactam 10n caused a mitotic catastrophe by targeting tubulin. In addition, compound 10n promoted apoptosis by regulating the expression of pro-apoptotic protein BAX and anti-apoptotic proteins Bcl-2 and Mcl-1. Molecular docking was used to explore the potential molecular interactions between novel 3-chloro-β-lactams and the amino acid residues of the colchicine binding active site cavity of β-tubulin. Collectively, these results suggest that 3-chloro-2-azetidinones, such as compound 10n, could be promising lead compounds for further clinical anti-cancer drug development.

Graphical Abstract

1. Introduction

Microtubules play an essential role in many cellular functions, such as cell division and mitosis, and are investigated as attractive drug targets in anti-cancer chemotherapy. Many structurally diverse compounds that interfere with microtubule dynamics and spindle formation have been identified. Microtubule-targeting agents (MTAs) have an important role as cancer chemotherapy drugs, e.g., taxol, which stabilises microtubules, and the vinca alkaloids vincristine, vinblastine and vinorelbine, which inhibit the formation of microtubules in the mitotic spindle [1]. These drugs arrest cells in the G2/M phase of the cell cycle and effectively target and disrupt mitosis. However, the clinical application of MTAs is restricted by their severe adverse effects [2]. Recent developments in antibody–drug conjugates (ADCs) have resulted in the introduction of effective MTAs for therapeutic use, e.g., ado-trastuzumab emtansine (T-DM1, Kadcyla®), comprised of the humanised anti-HER2 IgG1 trastuzumab linked to the anti-mitotic agent, mertansine [3].
MTAs that interact with the following primary tubulin binding sites have been identified: the vinca alkaloid, laulimalide, paclitaxel, epothilone, maytansine, rhizoxin, pironetin, PM060184 [4], colchicine 1a and other sites (Figure 1) [5]. Ravelli reported the first structural description of DAMA-colchicine 1b binding in tubulin in 2004 [6]. To date, the structures of many diverse ligands complexed at the colchicine binding site of tubulin have been characterised using X-ray crystallography. Colchicine is not in clinical use as a drug in cancer treatment due to its narrow therapeutic index [7]. Many structural modifications of colchicine are reported in vitro with the objective of lowering colchicine toxicity [8,9], while the various colchicine binding site ligands, such as combretastatin A-4 2a, are an extensively investigated group of MTAs, with several currently in clinical trials. In addition, molecules such as CA-4 that bind to the colchicine site have been intensively investigated as vascular-targeting agents (VTAs) [10].

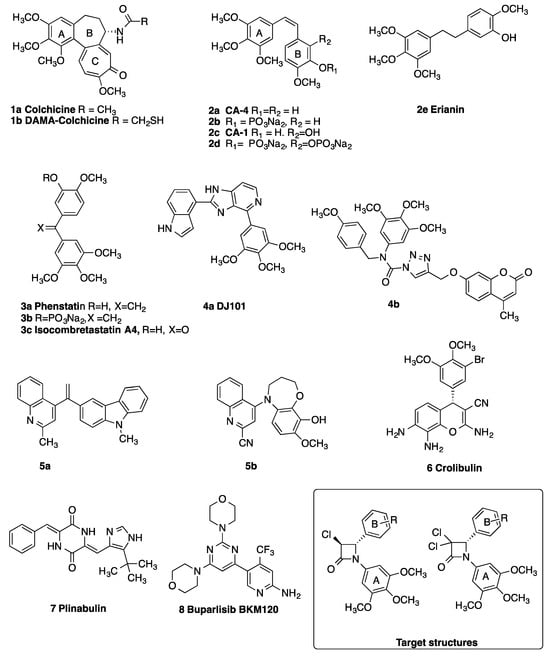

The stilbene combretastatin A-4 (CA-4) 2a isolated in 1989 by Pettit from the bark of the South African Bush tree Combretum caffrum [11] has provided a scaffold structure for the extensive investigation of structure-activity relationships in the stilbene series. CA-4P (fosbretabulin 2b, Figure 1), a water-soluble phosphate prodrug of CA-4 is in phase II/III clinical trials, either alone or in combination with chemotherapeutic agents such as cisplatin [12,13]. Potent anti-vascular properties have also been demonstrated for CA-1(2c) and the related phosphate prodrug (2d), OXi4503 (Figure 1) [10,14]. The bibenzyl compound erianin 2e is a novel apoptosis-inducing anti-angiogenic agent [15]. The synthetic benzophenone phenstatin 3a and phosphate prodrug 3b show potent cytotoxic activity in cancer cells together with microtubule-destabilising activity [16], while the isoCombretastatin 3c, a stable non-natural isomer of CA-4, shows equivalent anti-cancer properties to CA-4 [17].
To prevent the cis-trans isomerisation associated with the storage, metabolism and administration of CA-4 [18,19], bridging heterocyclic analogues of CA-4 have been developed with the objective of restricting the cis configuration and optimising the solubility and bioactivity. Examples of diverse carbocyclic and heterocyclic ring systems have been reported, which replace the alkene of CA-4, constrain the aryl rings A and B in a cis configuration and demonstrate useful microtubule targeting and anti-cancer activity [20,21]. Many diverse heterocyclic compounds related in structure to colchicine have been identified as MTAs and some examples are illustrated in Figure 1. DJ101 4a, a novel metabolically stable indolylimidazopyridine containing the 3,4,5-trimethoxyphenyl substituent characteristic of colchicine and CA-4, depolymerises microtubules and is effective against a broad panel of metastatic melanomas and is effective in overcoming P-gp-mediated multidrug resistance (MDR) [22].
Trimethoxyphenyl-1,2,3-triazole hybrids, such as 4b, containing the coumarin fragment, inhibit human gastric MGC803 cancer cell growth, induce G2/M phase arrest by down-regulating the expression of CDK1, promote apoptosis by regulating Death Receptor 5 (DR5) and the Bcl-2 family of proteins and inhibit tubulin polymerisation by interacting with the colchicine site [23]. The quinaldinyl-iso-carbazolyl compound 5a is more active than CA-4 1a and isoCA-4 3c against A549, lung adenocarcinoma epithelial cells [24]. The novel benzoxazepine 5b, related in structure to isoCA-4 3c, displays significant cytotoxicity against HCT116 and K562 cancer cell lines, and inhibits tubulin polymerisation and induces G2/M arrest (Figure 1) [25]. The 4-aryl-4H-chromene Crolibulin 6 binds to the colchicine-binding site on beta-tubulin and has undergone a Phase I/II clinical trial for anaplastic thyroid cancer [26]. The crystal structure of tubulin complexed with crolibulin 6 has been determined [27] and revealed that the chromene moiety of crolibulin adopts a similar position as the B and C rings of colchicine, while not containing the characteristic 3,4,5-trimethoxyphenyl ring. Although it is more deeply buried in β-tubulin, it is closer to some hydrophobic amino acids than colchicine.
It is interesting to observe that the orally active diketopiperazine plinabulin 7 selectively targets and binds to the colchicine-binding site of tubulin [28], blocks tumour growth [29] and provides early protection against severe neutropenia induced by chemotherapy in patients with advanced NSCLC (Figure 1) [30]. BKM120 (Buparlisib) 8 is one of the most advanced phosphoinositide 3-kinase (PI3K) inhibitors for the treatment of cancer, but it has been shown to also interfere with microtubule polymerisation as an off-target effect [31]. Although considerable progress has been achieved in the discovery of targeted cancer therapies, both innate and acquired mechanisms of resistance are commonly observed for many successful cancer drugs [32].
We have reported the synthesis, antiproliferative and tubulin-binding effects of a series of 2-azetidinones (β-lactams), containing the structural features of CA-4, while retaining the necessary cis configuration of Rings A and B [33,34]. β-Lactam compounds containing aryl and heterocycles such as thiophene located at C-3 were found to be particularly effective [35,36,37]. In addition, both the anti-angiogenic and anti-migratory effects observed in MDA-MB-231 breast adenocarcinoma cells suggest a potential anti-metastatic role for these compounds [38]. We have identified the β-lactam heterocycle as a potential scaffold for the development of new anti-tumour agents and wished to establish the structural requirements for substituents at C-3.
The anti-cancer activity of structurally diverse monocyclic β-lactam compounds has been previously reported [39,40,41,42,43,44,45,46]. Chiral azetidin-2-ones were designed as non-isomerisable CA-4 analogues disrupting tubulin polymerisation, inducing cellular apoptosis and suppressing angiogenesis [47,48,49]. 3-Hydroxy-1,4-diaryl-2-azetidinones induce apoptosis, with the activation of AMP-activated protein kinase (AMPK) in colon cancer [50], while 3-methoxy-β-lactams show a significant decrease in AKT kinase activity, a cell survival pathway identified in breast cancer [51]. Piperazine modified azetidinone derivatives suppress proliferation and migration in human cervical cancer HeLa cells [52]. Interestingly, 1,3-disubstituted cyclobutane-containing analogues of combretastatin A4 were evaluated for their cytotoxic properties in human cancer cell lines HepG2 (hepatocarcinoma) and SK-N- DZ (neuroblastoma) [53]. Although β-lactam antibiotics such as penicillins and cephalosporins are best known for their antibacterial activities [54], antimicrobial [55,56], antifungal [57,58] and anti-filarial [59] activities have also been demonstrated for monocyclic β-lactams.
We now report a series of novel 3-chloro-2-azetidinone and 3,3-dichloro-2-azetidinone compounds with an interesting profile, particularly in triple negative breast cancer, which could be considered for potential development as tubulin destabilising agents in preclinical studies of breast cancer (see Figure 1, target structures). A library of 1,4-diarylazetidin-2-ones that contain halogen substituents chloro, dichloro or bromo at C-3 was prepared for evaluation. The β-lactam ring forms a rigid scaffold for the hydrophobic CA-4 aryl rings A and B required for interaction with the colchicine binding site of tubulin. The effect of these C-3 halogen substituents on the biological activity of these compounds when the cis configuration (Rings A and B) is constrained into the 4-membered azetidin-2-one ring structure was investigated. The synthesis of the phosphate ester prodrugs of the most potent 3-chloro-1,4-diarylazetidin-2-one was also examined, to increase the potential bioavailability of the compound. The introduction of this halogen substituent at C-3 also allowed us to examine potential structure-activity relationships for the series, and to rationalise the effect of the introduction of the C-3 chlorine on the interaction with the colchicine binding site. We have now investigated a new series of novel 3-halo-2-azetidinone compounds with an improved biochemical profile, e.g., in triple negative breast cancer for potential development in the treatment of breast cancer as tubulin destabilising agents. These novel heterocyclic structures were further investigated for their effects on cell viability, cell cycle and tubulin polymerisation in MCF-7 breast cancer cells.

2. Results and Discussion

2.1. Chemistry

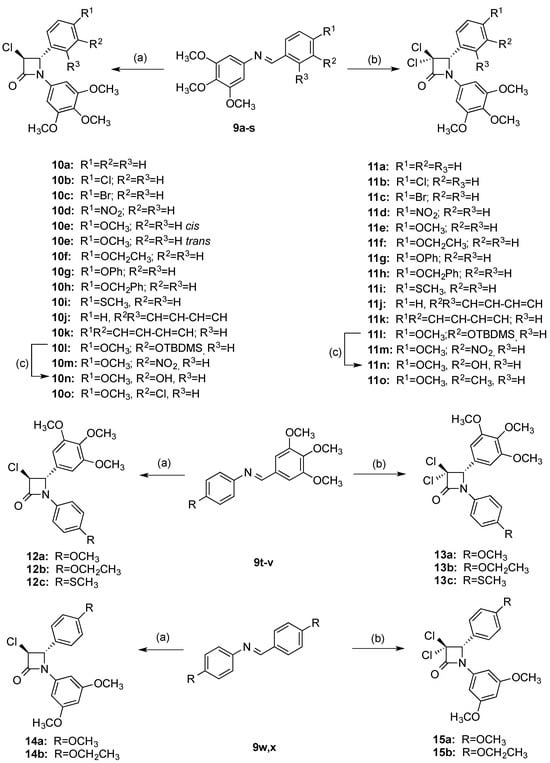

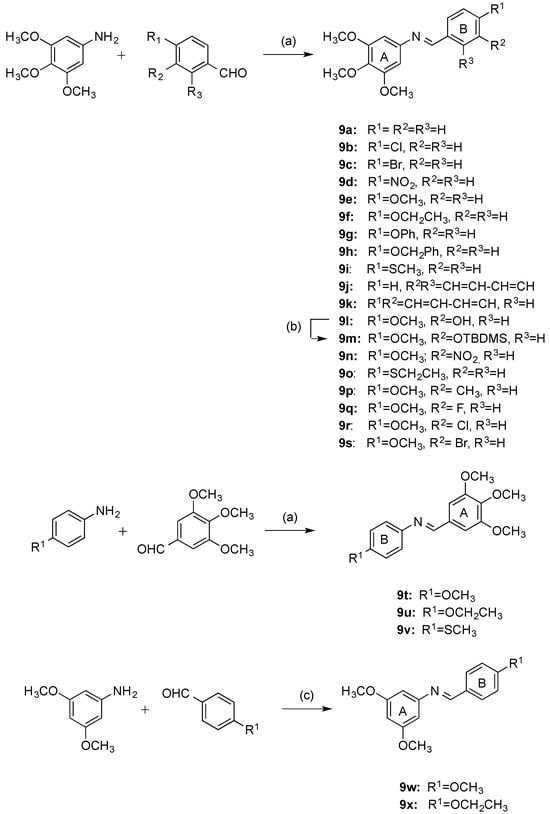

The azetidinones required for the present study were prepared using the Staudinger ketene-imine cycloaddition reaction. The imines 9a9s were obtained using a condensation reaction of the 3,4,5-trimethoxyaniline with the appropriately substituted benzaldehyde, Scheme 1. The silyl ether compound 9m was initially obtained by a reaction of 9l with tertbutyldimethylsilyl chloride (TBDMSCl) in a 78% yield; however, a cleaner silyl ether product 9m was obtained if the protection was carried out first on 3-hydroxy-4-methoxybenzaldehyde (94%). 3-((tert-Butyldimethylsilyl)oxy)-4-methoxybenzaldehyde was then reacted with 3,4,5-trimethoxyaniline to afford the protected imine 9m in a 76% yield. The silyl ether was removed under mild conditions at a later stage in the synthetic route without the degradation of the β-lactam ring. The compounds 9a9s contain a 3,4,5-trimethoxyaryl ring at N-1, present in ring A of CA-4, together with a second aryl ring positioned at the C-4 position of the β-lactam ring containing various substituents (Ring B). Alternative approaches were investigated for the preparation of the 3,5-dimethoxyphenyl substituted imines 9w and 9x to optimise the yield and purity of the product, e.g., use of isopropanol as a solvent, and sulfuric acid, benzoic acid or boric acid as a catalyst. However, optimum yields for compounds 9w and 9x (97 and 85%, respectively) were obtained when these reactions were carried out in aqueous conditions and at an ambient temperature for less than one hour, Scheme 1 [60]. Imines 9t9v were prepared using a condensation reaction of the 3,4,5-trimethoxybenzaldehyde with the appropriately substituted anilines and allowed for the positioning of the 3,4,5-trimethoxyaryl Ring A at C-4 of the β-lactam. Imines 9w and 9x are designed to replace the 3,4,5-trimethoxyaryl Ring A with the alternative 3,5-dimethoxyphenyl substitution. This substitution pattern is characteristic of stilbenes such as resveratrol (3,4′,5-trihydroxystilbene) identified as having therapeutic and chemopreventive roles in colorectal and skin cancers [61,62], and is also present in the related stilbenes pinosylvin, isorhapontigenin, pterostilbene [63,64], which also elicit anti-cancer properties. The structure of the imine 9o was confirmed using X-ray crystallography (Figure 2 and Table 1) showing the E configuration of the imine with an N1-C2 bond length of 1.280(2) Å. The torsion angle between the N=C-C-phenyl ring was determined as −175.33°, while the torsion angel for the C=N-C- phenyl ring was −34.4°. The packing structure assumed by the products was centrosymmetric and monoclinic.
The Staudinger reaction ([2+2] ketene–imine cycloaddition reaction) is a versatile method for the synthesis of 2-azetidinones. Ketenes are usually formed in situ by a reaction of acyl halides with tertiary amines. However, 2-azetidinones are also directly accessible from imines and carboxylic acids via mixed anhydrides [65], using activating agents such as methoxymethylene-N,N-dimethyliminium salt, [66], the Vilsmeier reagent, the Mukaiyama reagent and triphosgene [67]. 3-Chloro-3-thioaryl-β-lactams, obtained by the chlorination of 3-thioaryl-β-lactams with sulfuryl chloride, are reported as suitable substrates for Lewis acid catalysed nucleophilic substitution reactions [68]. In the present work, the Staudinger reaction of the imines 9a9k and 9m9s with chloroacetyl chloride in the presence of triethylamine (Scheme 2) afforded the β-lactam products 10am and 10o as racemic mixtures in yields of 3–57%. Compound 10l was also obtained in a reaction of the imine 9l with chloroacetic acid with triphosgene as the acid activating agent. Deprotection of the silyl ether 10l with TBAF afforded the phenolic product 10n. Low yields in some of the Staudinger reactions were due to the degradation of the imine commonly observed in these reaction mixtures.
The additional 3-chloro-β-lactam products 12a12c, 14a and 14b were also obtained in a similar Staudinger reaction of the appropriate imines 9t9v, 9w and 9x with chloroacetyl chloride. The coupling constant for H-3 and H-4 of the azetidinone ring is generally useful in the identification of the stereochemistry of 2-azetidinones, with J3,4 usually of 4–6 Hz for the cis and J3,4 1–2 Hz for the trans stereoisomers. The structural assignment of 3-monochloro β-lactam 10n was particularly interesting for the assignments of H-3 and H-4 protons of the β-lactam compound. Two doublet signals were observed in the 1H NMR spectrum for H-4 and H-3 at δ 4.61 and 4.89 ppm, respectively (J3,4 = 1.52 Hz), which confirmed the trans isomer assignment) and were more downfield due to the adjacent electron withdrawing chlorine substituent. In the 13C NMR spectrum of 10n, the corresponding C3 and C4 carbons of β-lactam appeared at 62.67 (C3) and 65.63 (C4) ppm, respectively, with the characteristic signal of carbonyl group of the β-lactam at δ 160.22 ppm. The compounds were isolated exclusively as the trans isomer; the only exception was compound 10e, where both the trans and cis compounds were obtained (trans:cis ratio 1.9:1; J3,4 = 5.00 Hz cis, J3,4 = 2 Hz trans).

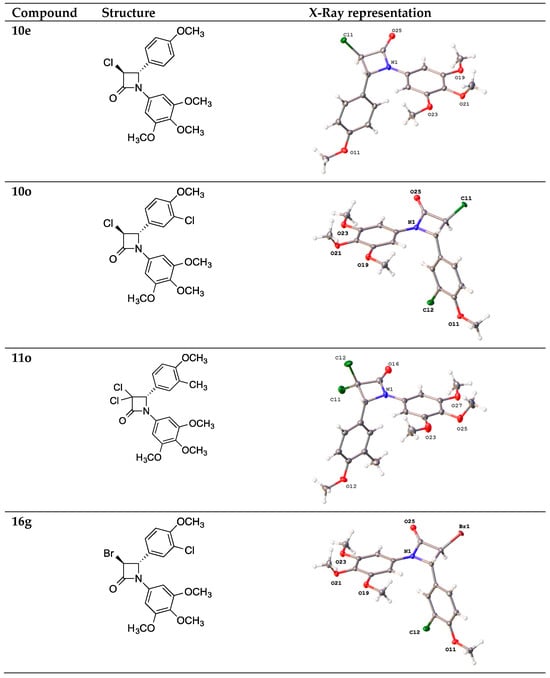

Single crystal X-ray analysis was obtained for compounds 10e and 10o (recrystallised from dichloromethane/n-hexane), and the crystal structure is shown in Figure 3. The crystal data and structure refinement for the 3-chloro compounds 10e and 10o are displayed in Table 1 and Table 2. The trans stereochemistry for compounds 10e and 10o was confirmed from the X-ray crystal structures. The aryl rings at N-1 (Ring A) and C-4 are in a non-coplanar cis-like arrangement, while the phenyl ring at C4 (Ring B) and the 3-chloro substituent are in a trans configuration on opposite sides of the β-lactam ring. For compound 10e, the distance between the centroid of ring A and ring B is ~5.2 Å, while the distance between ring B and the chloro group is ~5.0 Å. For compounds 10e and 10o, the torsional angle value ring B/C was calculated as 116.0(1)° and 112.0(3)°, respectively, which is consistent with the small trans coupling constant observed in the 1H NMR spectrum of 2.00 and 2.20 Hz, respectively, for H3/H4 in these compounds. The β-lactam C=O bond lengths are 1.2122(18) Å and 1.2122(19) Å for compounds 10e and 10o, respectively, which is consistent with the data previously reported for the carbonyl bond length of monocyclic β-lactams of 1.217(3) Å [69] and 1.207(2) Å [70]. The torsional angles (Ring A/B) observed for compounds 10e and 10o were calculated to be 60.7(2)° and 62.7(2)°, respectively; these values are slightly greater than the corresponding torsional angles for Ring A/B of 55° and 53° reported in DAMA-colchicine and CA-4, respectively [6,71]. The numbers in parentheses refer to the second crystallographically independent molecule in the asymmetric unit.
As an extension to this study, a further series of 3,3-dichloro-β-lactams (11a11o, 13ac, 15a, 15b) with similar substituents in rings A and B as that described for the 3-chloro β-lactams was prepared (Scheme 2). The phenolic product 11n was obtained by treating the silyl ether 11l with TBAF. The compounds were obtained in moderate yields (27–63%), apart from compounds 15a and 15b (with 3,5-dimethoxy substitution pattern in the aryl A ring), which were isolated in low yields, 13 and 7%, respectively. When comparing the 3,3-dichloro-β-lactams with the mono chloro β-lactam compounds, the 1H NMR spectrum for the 3,3-dichloro β-lactam compound 11n is relatively simple; the characteristic signal for 3,3-dichloro β-lactam compounds appeared as a singlet for the H4 proton at δ 5.39 ppm and it is further downfield than in the corresponding 10n because of the electron withdrawing properties of the two chlorine atoms. In the 13C NMR spectrum, the high resonance signals at δ 83.68 and 73.54 ppm were assigned to C3 (with the dichloro substituent) and C4, respectively, while the resonances for C3 and C4 were observed at 62.67 (C3) and 65.63 (C4) ppm in the 3-monochloro compound 10n. The X-ray crystal structure and data for the 3,3-dichloro β-lactam compound 11o are presented in Figure 3 and Table 1 and show that rings A and B (located at N-1 and C-4 of the β-lactam ring) are not coplanar, with a torsional angle of 68.9° (see Table 2). A significant difference in the distances from the centroid of ring B to each of the two C3 chloro substituents (3.7 Å and 5.4 Å) was observed. This may be relevant in rationalising the differences in the antiproliferative activity observed for the monochloro and dichloro-β-lactam compounds.
As the 3-chloro-β-lactams exhibited an excellent antiproliferative profile, a further series of related 3-bromo β-lactams was investigated by using the Staudinger procedure with bromoacetyl chloride (Scheme 3). The preparation of 3-bromo β-lactams using bromoacetyl bromide [72], bromination of 3-azetidinone [48] and a ring expansion of aziridines with triphenylphosphine/NBS or triphenylphosphine dibromide has been reported [73]. The 3-bromo β-lactams (16a16i) were initially obtained as a mixture with corresponding 3-chloro-β-lactams in a ratio of 1:2 in most cases in yields of 5–31%, due to the halogen exchange with the chlorinated solvent (dichloromethane), following purification by either recrystallisation or from the gradient column chromatography. The presence of the trans isomer of 3-bromo-β-lactam 16a was confirmed from the 1H NMR spectrum that shows H-3 at δ 5.05 and H-4 at δ 4.65 (J 1.96 Hz) (in comparison, H-3 and H-4 of the 3-chloro β-lactam 10e were observed at δ 4.95 and δ 4.63, J 2.00 Hz). The phenolic product 16j was obtained by treating the silyl ether 19i with TBAF. The asymmetric synthesis of 16j (3S,4S) was previously reported [48]. The X-ray crystal structure and data for the 3-bromo-β-lactam compound 16g (Figure 3, Table 1) again demonstrates that rings A and B (located at N-1 and C-4 of the β-lactam ring) are not coplanar (see Table 2) with Ring A/B having a torsional angle of 62.7(2)°, and Ring B/C(β-lactam) having a torsional angle value of 110.3°.

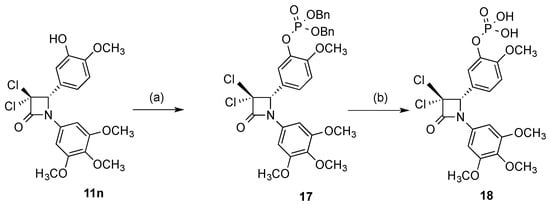

To improve the solubility and bioavailability of the compounds, the phenol 11n was selected for phosphate ester prodrug preparation. The esterification of the phenol 11n with dibenzyl phosphite using diisopropylethylamine and dimethylaminopyridine afforded dibenzyl phosphate β-lactam ester 17 (Scheme 4). The subsequent hydrogenation of 17 with a palladium/carbon catalyst removed the dibenzyl protecting groups to afford the phosphate ester 18 in a 75% yield, while the β-lactam ring remained intact.
HPLC stability studies at three different pH systems were performed on a representative compound 16a to determine the stability at acidic pH 4, pH 7.4 and basic pH 9 (acid pH found in the stomach, basic found in the intestine and pH 7.4 in the plasma). The compound was stable at these buffered pH systems with a half-life of 18 h (pH 4), 20 h (pH 9) and 22 h (pH 7.4).

2.2. Biochemical Results

2.2.1. Activity of β-Lactam Compounds in MCF-7 Human Breast Cancer Cell Line

The antiproliferative potential of the β-lactams 10ao, 11ao, 12ac, 13ac, 18, 14a, 14b, 15a, 15b and 16ah was initially evaluated in the CA-4 sensitive oestrogen receptor positive MCF-7 human breast cancer cell line. CA-4 was used as the control compound in the assay (Table 3), together with β-lactam compounds that we had previously reported [34,74]. The IC50 value obtained for CA-4 (0.0039 μM for MCF-7) is in good agreement with reported values [75]. The introduction of the halogen substituent at C-3 was examined in an effort to investigate the effect on the activity of this substituent, and subsequently optimising the cytotoxic effects against MCF-7 human breast cancer cells. The most potent analogues in MCF-7 cells were further screened in the MDA-MB-231, Hs578T and Hs578Ts(i)8 triple negative breast cancer cell lines, multiple myeloma (U266), acute myeloid leukaemia (HL60) and colon cancer (HT-29 and SW480) cell lines using the AlamarBlue assay. Compounds were initially assessed for antiproliferative activity in MCF-7 cells to determine the structure–activity relationship for these halogenated compounds and to identify the most potent compounds to progress for further investigation.
In the series of compounds with 3-chloro substituent 10ao, a number of varied substituents were introduced at C-4 of Ring B, while retaining the 3,4,5-trimethoxy substitution for Ring A usually present in many colchicine binding-site type ligands [19]. The introduction of nitro (10d), chloro (10b) and bromo (10c) at C-4 of Ring B resulted in increased activity when compared with the unsubstituted 10a, with the 4-methoxy 10e and 4-thiomethyl 10i showing excellent potency (IC50 34 and 73 nM, respectively [74]). The cis isomer of 10e demonstrated a nine-fold reduction in activity (IC50 0.317 μM) when compared with the trans isomer (IC50 34 nM). The bulkier 4-phenoxy 10g and 4-benzyloxy 10h substituents resulted in significantly reduced activity (IC50 64.07 and 59.91 μM, respectively). Interestingly, the 2-naphthyl 10k was much more potent (IC50 0.20 μM) than the 1-naphthyl compound 10j (IC50 14.66 μM), possibly due to the steric interference by the 1-naphthyl at the colchicine binding site, while the 2-naphthyl was more easily accommodated. Compounds 10m and 10o, with an additional substituent at the meta position of B ring (10m nitro and 10o chloro), retained moderate activity with IC50 values of 3.088 and 0.433 μM, respectively.
The most potent compound in this series was identified as 10n, with the characteristic CA-4 3-hydroxy-4-methoxyphenyl Ring B substitution (IC50 = 0.017 μM), which compares favourably with CA-4 (IC50 0.004 μM). Analysis of the results from the 3,3-dichloro compound series 11an showed that the compounds displayed a similar SAR profile to the 3-chloro compounds but with reduced potency, with compounds 11e, 11f, 11i, 11k and 11m displaying IC50 values in the range 0.119–0.353 μM. The most potent compound in this series was identified as 11n, again with the characteristic CA-4 3-hydroxy-4-methoxyphenyl Ring B substitution (IC50 = 0.031 μM). Interestingly, the prodrug 18 (the phosphate ester of the phenol 11n) retained potent activity with IC50 = 0.077 μM. The introduction of the 3,4,5-trimethoxyaryl ring A at C-4 of the β-lactam in both the 3-chloro and 3,3-dichloro series (compounds 12ac, 13ac) resulted in significant decrease in activity, e.g., compound 10e (IC50 = 0.034 μM (trans) and 0.317 μM (cis)) compared with 12a (IC50 = 14.81 μM). The poor activity of compounds 12ac and 13ac where the 3,4,5-trimethoxyphenyl group A is located at C-4 could be due to the bulkiness of Ring A, which is unable to fit correctly in the target binding pocket of tubulin, in agreement with previous reports findings [33].
In compounds 14a, 14b, 15a and 15b, the 3,5-dimethoxyaryl ring is located at N-1 of β-lactam and replaces the usual 3,4,5-trimethoxyaryl ring A. Compound 14b with the para OEt substituent in Ring B produces a remarkably better antiproliferative effect (IC50 = 0.045 μM) than the para OMe for both 3-chloro and 3,3-dichloro compounds. 14b was identified as of particular interest and only slightly less potent than the corresponding 3,4,5-trimethoxy analogue 10e (IC50 = 0.034 μM). The 3,4,5-trimethoxy substituted A Ring of CA-4 plays an important role in inhibiting tubulin polymerisation, confirmed by the crystal structure of CA-4 in tubulin [19]. It is interesting to see that the removal of the 4-methoxy group results in the retention of activity in the 3,5-dimethoxyaryl ring A compound 14b. The introduction of the 3-bromo substituent to replace the chloro at C-3 of the β-lactam resulted in a significant reduction in the antiproliferative effect of the compounds in the series, e.g., comparing compound 16a (IC50 = 0.579 μM) with the corresponding 3-chloro compound 10e (IC50 = 0.034 μM) resulted in a 17-fold decrease in activity.
The physicochemical properties and metabolic stability of the panel of compounds synthesised were evaluated to probe into the drug-relevant properties (see Supplementary Information Tables S1 and S2 for Tier 1 profiling screen). The physicochemical properties of the compounds complied with the Lipinski’s rule of five, thus ensuring a good lipophilic–hydrophilic balance and adequate membrane permeability. Most of the compounds followed Lipinski and Veber rules, i.e., molecular weight ranges from 347 to 457, hydrogen bond acceptor range between four and nine, hydrogen bond donor range between zero and two, lipophilicity (AlogP) appeared in the range 2.67–4.76 (apart from the 4-naphthyl compound 11k, AlogP 5.84) and the number of rotatable bonds in the range 5–8. The calculated TPSA was between 48 and 130 Å2, which suggested good intestinal absorption. The pharmacokinetics results indicate that these compounds satisfy the criteria for good drug likeness parameters and good bioavailability. The compounds were free from alerts for Pan Assay Interfering substances (PAINS) [76] and are predicted to have excellent drug-like properties (e.g., metabolic stability, permeability, blood–brain barrier partition, plasma protein binding and human intestinal absorption properties), which encouraged us to perform further in vitro studies.

2.2.2. Antiproliferative Activity of Selected β-Lactam Compounds in the MDA-MB-231, Hs578T and Hs578Ts(i)8 Triple Negative Breast Cancer Cell Lines

Selected β-lactam compounds were next evaluated in the triple negative cell line MDA-MB-231 (Table 4). A total of 10–15% of breast cancers are classified as triple-negative breast cancers (TNBC) and include any breast cancer that does not express the genes for oestrogen and progesterone receptors (ER/PR) and HER2. In addition, MDA-MB-231 cells possess mutant p53. These cancers are difficult to treat since they are generally not responsive to hormone therapies such as the selective oestrogen receptor modulator (SERM) tamoxifen, or aromatase inhibitors such as anastrozole, or to the monoclonal antibody Herceptin, which targets the HER2 receptor. There are fewer treatment options available for TNBC compared with ER+, PR+ and HER2+ breast cancers and the prognosis is poorer [77,78]. The 3,3-dichloro-β-lactam 11n (with 3-hydroxy-4-methoxyphenyl Ring B substitution) was identified as the most potent with IC50 = 0.0316 μM, similar to the IC50 value of 0.031 μM obtained for 11n in the MCF-7 cell line. This result compares very favourably with the result obtained for CA-4 in the MDA-MB-231 cell line (IC50 = 0.043 μM), and is in good agreement with the reported values for CA-4 in this line [79]. The 3-chloro-β-lactam 10e (with 4-methoxphenyl Ring B) was found to have slightly less activity in the MDA-MB-231 cells (IC50 = 0.0686 μM) but retain a comparable potency in the MCF-7 cell line (IC50 = 0.034 μM). The 4-ethoxyphenyl compound 10f was also impressive in MDA-MB-231 cells with IC50 = 0.078 μM, while compounds 10k, 11e and 11f were less active than in the MCF-7 cell lines with IC50 values of 0.205, 0.297 and 0.389 μM, respectively.
Compound 10e was further evaluated in the triple-negative Hs578T breast cancer cell line together with its isogenic subclone Hs578Ts(i)8 cells. Hs578Ts(i)8 cells are three-fold more invasive than the parental cell line (Hs578T) and 2.5-fold more migratory. Hs578Ts(i)8 cells display enhanced invasive properties with 30% more CD44+/CD24-/low cells. They show an increased capacity to proliferate, migrate, invade through the extracellular matrix and produce tumours in nude mice [80]. Compound 10e demonstrated significant anti-proliferative activity at nanomolar concentrations in Hs578T cells (IC50 124 nM) with increased potency in the invasive Hs578Ts(i)8 cells (IC50 = 61 nM). These results compared favourably with CA-4 (IC50 = 8 nM in Hs578T and 20 nM in Hs578Ts(i)8 cells) and indicated the potential ability of the compound to inhibit tumour invasion and angiogenesis, which are characteristic features of tumour growth and metastasis in aggressive breast cancers.

2.2.3. Antiproliferative Activity of Selected β-Lactam Compounds in Multiple Myeloma (U266), Acute Myeloid Leukaemia (HL60) and Colon Cancer (HT-29 and SW480) Cell Lines

Compounds 10n and 10e were next evaluated for antiproliferation in multiple myeloma (U266) cells. Multiple myeloma, also known as plasma cell myeloma, is a malignant haematological disease characterised by the proliferation of clonal plasma cells predominantly in the bone marrow. U266 cells are considered to be the least sensitive multiple myeloma cells to nucleoside drug cladribine compared to RPMI8226 and MM1.S cells [81]. Compounds 10n and 10e as well as CA-4, demonstrated potent antiproliferative activity in the nanomolar range, with an IC50 value of 77 nM for the 3-chloro compound 10e (with 4-methoxyphenyl Ring B substitution) and a more potent result for the 3-chloro analogue (with 3-hydroxy-4-methoxyphenyl Ring B substitution) 10n, with IC50 = 31 nM, which compares favourably with CA-4 (IC50 = 35 nM) in this cell line, Table 5. These results demonstrated the sensitivity of U266 cells toward CA-4 and its 3-chloroazetidinone analogues 10e and 10n.
The 3-chloro β-lactam 10n was next evaluated in the HL-60 cell line (acute myeloid leukaemia), the colon adenocarcinoma cell line SW480 and also in the HT-29 human colorectal adenocarcinoma cell line. 10n demonstrated a potent effect with IC50 values of 10, 37 and 631 nM, respectively, that compared favourably with the IC50 values for CA-4 we obtained in these cell lines of 2 nM (HL-60), 3 nM (SW480) and 4.165 mM (HT-29), respectively (Table 5) and are in agreement with the reported values for CA-4 in MCF-7 and human breast cancer and leukaemia cell lines [74,82,83]. The corresponding values for 10e in these cell lines were 161 nM (HL-60), 55 nM (SW480) and 135 nM (HT-29). The 3,3-dichloro β-lactam 11n was slightly less potent than 10n in these cell lines with IC50 values of 16 nM (HL-60), 44 nM (SW480) and 941 nM (HT-29), respectively. These results are interesting as the control drug CA-4 (IC50 value of 4.165 μM) is much less active than compounds 10n and 11n in the chemoresistant HT-29 cell line. This effect may be due to the inactivation of CA-4 by glucuronidation in HT-29 cells, as previously reported [74]. SW480 colon cells expressed low levels of the UDP-glucuronosyltransferase (UGT) protein compared to expression levels in HT-29 cells. The 3-bromoazetidinones 16a-h and 16j demonstrated significantly less potent activity in the SW480 colon cancer cells, with 16a, 16b and 16j being the most effective with a 52, 50 and 48% inhibition of cell viability when evaluated at a 10 μM concentration, Table 3. The antiproliferative results for the most potent compound 10n in cell lines MCF-7, HL-60, SW480, HT-29, HL-60 and U266 are summarised in Table 5, together with the lead compound 10e and CA-4.

2.2.4. NCI Cell Line Screening for β-Lactam Compounds 10e, 11n and 16d

The novel 3-haloazetidinone compounds 10e, 11n and 16d were selected by NCI for further biological evaluation in the NCI 60 cell line screen following an initial Tier 1 profiling screen [84]. The results obtained for the 3-haloazetidinone compounds 10e, 11n and 16d in the NCI 60 cancer cell line screening (GI50 values, five doses) are shown in Table 6. (GI50 is the concentration of the compound required to produce 50% of the maximal inhibition of cell proliferation.) The compounds showed broad-spectrum antiproliferative activity against leukaemia, non-small cell lung, colon, CNS, melanoma, ovarian, renal, breast and prostate cancer cell lines and confirmed the results obtained with compounds 10e, 11n and 16d in MCF-7 cells in our laboratory with GI50 values of 34, 31 and 44 nM, respectively. The mean GI50 values over the full 60 cell line panel for compounds 10e and 11n of 74.13 and 53.70 nM, respectively, compare very favourably with CA-4 (GI50 value 99 nM), while the mean GI50 value for the 3-bromo 16d is 407 nM. The 3,3-dichloroazetidinone CA-4 analogue 11n displayed potent activity in the NCI screen, with a mean GI50 value of 53.7 nM for all the NCI cell lines tested; these values were in the sub-micromolar range for all the cell lines tested except for the breast cancer cell line T-47D, where the progesterone receptors are not regulated by estradiol [85]. For compound 11n, the GI50 values obtained were below 100 nM for 43 of the cell lines investigated. Compound 11n was particularly effective against the non-small cell lung (GI50 value 16.4–46.4 nM), CNS (GI50 value 19.9–51.4 nM), prostate (GI50 value 35.3–35.9 nM) cancer cell lines and also in the breast cancer cell lines tested (22.6–42.8 nM) apart from T-47D. The mean LC50 values (concentration required to kill 50% of the cells) over 60 cell lines for the potent compounds 10e and 11n were 91.20 and 83.18 μM, respectively (Table 7), and were greater than 100 μM in all but one cell line for 10e and greater than 100 μM in all but four cell lines examined for compound 11n, indicating low toxicity and suggesting that these compounds may be suitable for therapeutic development.
From the results obtained above, it is apparent that the inclusion of the chloro substituent on the β-lactam scaffold (as in compound 10n) results in greater antiproliferative effects in the MCF-7 cell line (IC50 = 0.0175 μM) than the corresponding 3,3-dichloro compound (11n) (IC50 = 0.031 μM). By comparison, the introduction of a 3-bromo substituent on the β-lactam scaffold resulted in decreased antiproliferative activity, e.g., compound 16a (IC50 = 0.579 μM) compared with the corresponding 3-chloro compound 10e (IC50 = 0.034 μM). The antiproliferative activity of the most potent β-lactam compounds 10e, 10n and 11n may be correlated to the logP values for some compounds (see Table 3 and Supplementary Information, Tables S1 and S2). The most potent 3-chloro compound 10n (IC50 = 0.0175 μM) has a lower logP (2.666) when compared to the 3,3-dichloro compound 11n (IC50 = 0.031 μM) (logP 3.85); and the 3-bromo compound 16a (IC50 = 0.579 μM) (logP 3.543) has a higher logP value when compared with the corresponding 3-chloro compound 10e (IC50 = 0.034 μM) logP = 3.40, suggesting that compounds with higher logP values displayed poorer activity. However, 3-chloro-4-(2-naphthyl) compound 10k (IC50 = 0.20 μM) and 3,3-dichloro-4-(2-naphthyl) compound 11k (IC50 = 0.322 μM) retained potency, although with higher logP values (4.66 and 5.84, respectively). Interestingly, the 2-naphthyl 10k was much more potent (IC50 = 0.20 μM) than the 1-naphthyl compound 10j (IC50 = 14.66 μM), both with the same logP value (4.66); a similar trend was observed in 3,3-dichloro-1-naphthyl compounds 11j (IC50 = 7.990 μM) and 2-naphthyl compound 11k (IC50 = 0.322 μM), which is possibly related to the steric difficulty in accommodating the 1-naphthyl ring at the colchicine binding site, whereas the 2-naphthyl ring is a better substitute for the 3,4,5-trimethoxyaryl ring A. This effect is also reported for the 1- and 2-naphthyl analogues of CA-4 [86].
The GI50, TGI and LC50 results of β-lactams 10e, 11n and 16d are summarised in Table 7. The COMPARE algorithm was used to compare the GI50 and TGI results for compounds 10e, 11n and 16d with compounds of a known mechanism of action in the NCI Standard Agents Database (Table S3, Supplementary information) and allows correlations in drug sensitivities and molecular targets for biologically active compounds. The highest correlations for potent compounds 10e and 11n were obtained for tubulin-targeting agents, including the clinically used vinca alkaloids vincristine sulfate and vinblastine sulfate, together with maytansine. ADC T-DM1 contains an analogue mertansine conjugated with trastuzumab and is used in the treatment of metastatic HER-2 positive breast cancer [3].

2.2.5. Antiproliferative Activity of β-Lactam Compound 10n in Non-Carcinogenic Human Cells

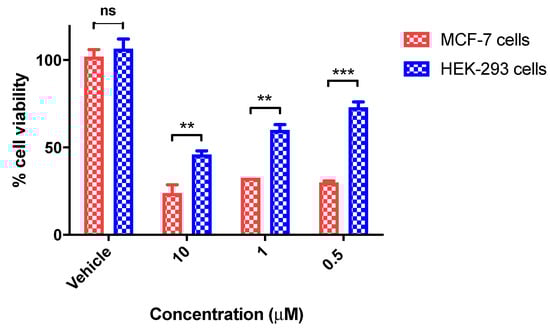

The toxicity and selectivity of 10n towards normal cells was investigated in the non-tumourigenic cell line HEK-293T (normal human epithelial embryonic kidney cells). The cell viability of HEK-293T cells was significantly higher than MCF-7 cells following treatment with concentrations of 10n of 10, 1 and 0.5 μM for 72 h (Figure 4). The IC50 value of 10n in HEK-293 cells (5.5 μM) compared favourably with that observed against the MCF-7 cell line (IC50 = 17.5 nM), demonstrating that β-lactam 10n was less toxic to human normal cells than cancer cells. These data suggested the compound 10n could be developed as a broad-spectrum anti-cancer agent with lower cytotoxicity to normal cells compared with MCF-7 cancer cells. The cytotoxic effect of selected 3-chloro-β-lactams 10e, 10f, 10i, 10n and 3,3-dichloro-β-lactams 11e and 11n in MCF-7 cells was initially determined using the lactate dehydrogenase (LDH) assay [87]. The 3-chloro-β-lactams produced low cytotoxicity (at 10 μM) over 24 h with 5, 4 and 3% cell death, for compounds 10e, 10f and 10i, respectively, while the 3,3-dichloro compound 11e demonstrated increased cytotoxicity (10%). Compound 10n (3-hydroxy-4-methoxyphenyl Ring B), which was the most potent compound in the cell proliferation assays, resulted in increased cytotoxicity (17% cell death), while the similarly substituted 3,3-dichloro compound 11n displayed lower cytotoxicity of an 8% cell death in this assay. CA-4 (positive control) resulted in a 12% cell death at 10 μM.

2.2.6. β-Lactam Compound 10n Induces Cell Cycle Arrest and Apoptosis in MCF-7 Cells

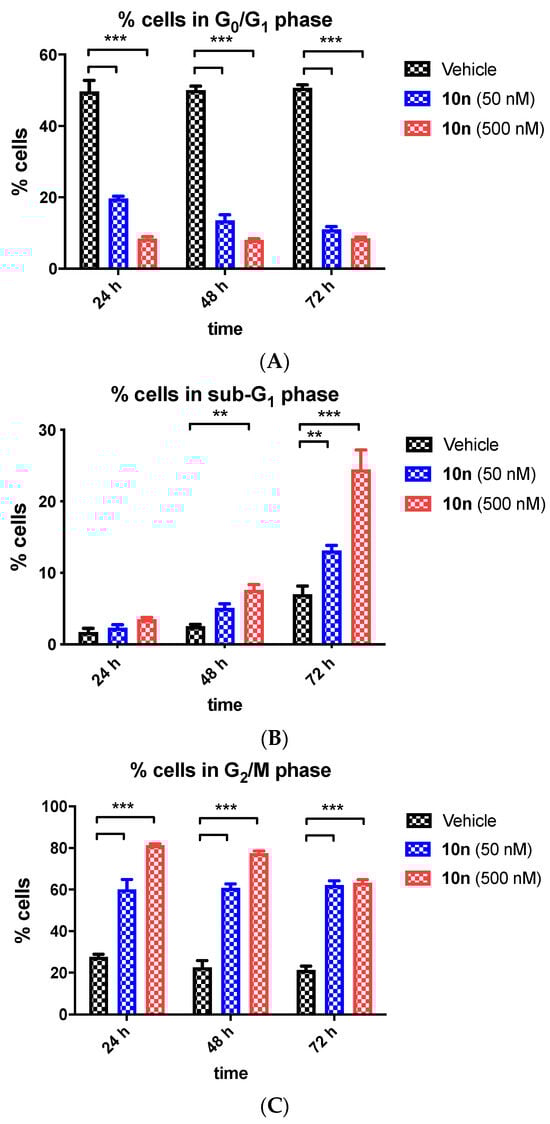

To further investigate the mechanism of action of the novel β-lactam compounds synthesised, the effect of β-lactam compound 10n was investigated on the cell cycle profile of MCF-7 cells. Flow cytometry and propidium iodide (PI) staining facilitate the quantification of the percentage of cells in each phase of the cell cycle (Figure 5). The values obtained for the percentage of cells in G0/G1, sub-G1 (indicative of apoptosis) and the G2/M phases of the cell cycle were quantified (at 50 and 500 nM concentrations) and at three time points (24, 48 and 72 h), as shown in Figure 5. The percentage of cells in the G2/M phase (81.3% (24 h), 77.5 (48 h) and 63.4% (72 h)) following treatment with sample 10n (500 nM) was substantially greater than for the control sample treated with the vehicle (21–27%). The observed induction of G2/M cell cycle arrest suggests that compound 10n is an inhibitor of tubulin polymerisation. The percentage of cells undergoing apoptosis (sub-G1) increases at all three time points to 25% at 72 h (500 nM) compared to the basal apoptosis level of 7% observed with the vehicle ethanol at 72 h. The percentage of cells in the G0G1 phase was observed at 8.5% (500 nM), while the untreated cells were 50.7% at 72 h, indicating that the cells are coming out of the G0G1 phase and are undergoing G2/M followed by apoptosis. Similar effects on the cell cycle of MCF-7 cells were observed for the control drug CA-4 with a significant increase in the percentage of cells in G2M arrest (52%, 100 nM) with an increase in apoptosis (sub-G1) (9.4%) [88]. In summary, compound 10n was found to induce G2/M arrest in MCF-7 cells in a time dependent manner, followed by apoptosis.

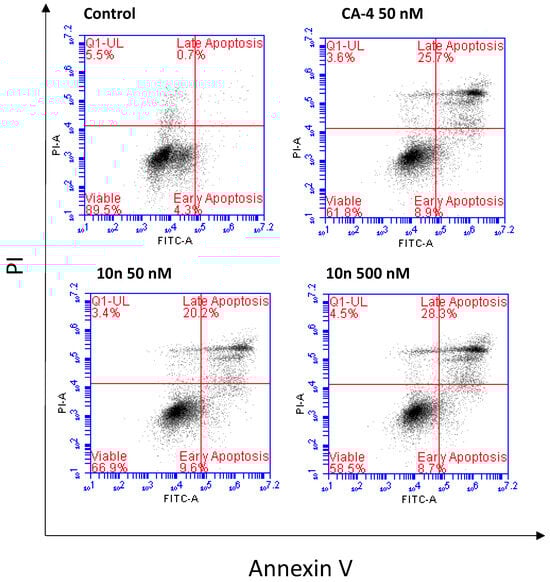

To further investigate the effects of compound 10n on the induction of cellular apoptosis, MCF-7 cells were treated with compound 10n for 48 h and then stained with Annexin V-fluorescein isothiocyanate (FITC)/propidium iodide (PI). Following analysis using flow cytometry, differentiation between live cells (annexin-V/PI), early apoptotic cells (annexin- V+/PI), late apoptotic cells (annexin-V+/PI+) and necrotic cells (annexin-V/PI+) is possible with dual staining with Annexin-V and PI, see Figure 6. Compound 10n induced both early and late apoptosis in MCF-7 cells in a concentration-dependent manner when compared to the untreated control cells (Figure 6). When MCF-7 cells were treated with 10n, the total apoptotic cells (Annexin V-stained positive cells) increased in a dose-dependent manner from 29.8% at 50 nM to 37% at 500 nM. In contrast, only 5.0% of the total apoptotic cells were detected in the control cells (0.1% ethanol (v/v) treated sample). In comparison, the Annexin V-stained positive cells (total apoptotic) cells for CA-4 were determined as 34.6% in MCF-7 cells at 50 nM, as shown in Figure 6. These results demonstrated that compound 10n induced cell apoptosis in MCF-7 breast cancer cells.

2.2.7. Effects of Compound 10n on Tubulin Polymerisation in MCF-7 Cells

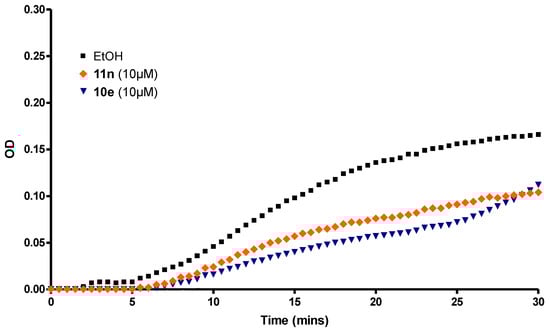

The tubulin binding activities of potent compounds 10e and 11n evaluated in MCF-7 cells were carried out using a tubulin polymerisation assay kit from Cytoskeleton (BK006P) [89]. In this assay, light is scattered by microtubules to an extent that is proportional to the concentration of the microtubule polymer. The compounds were tested at 10 µM concentration with purified and unpolymerised tubulin. The results for the selected β-lactam compounds are shown in Table 8. The initial assay performed established the effects of compounds 10e and 11n on tubulin polymerisation for 30 min (Figure 7, Table 8). Ethanol and CA-4 (2a) were used as a vehicle and a positive control, respectively. CA-4 is one of the most effective anti-tubulin natural products. Both compounds 10e and 11n showed moderate tubulin polymerisation inhibition effects, although they were less effective than CA-4. When evaluated at a 10 µM concentration, the 3-chloro and 3,3-dichloro compounds reduced the Vmax value for the rate of tubulin polymerisation 1.7-fold for compound 11n and 1.8-fold for compound 10e, whereas CA-4 induced a 6.3-fold reduction (Figure 7, Table 8 and Supplementary Information Figure S1). In general, the tubulin polymerisation inhibition activities of selected compounds depend on the substitutions at the C-3 and C-4 position of β-lactam core. The compounds with chloro and dichloro substituents at the C-3 position, such as 10e and 11n, exhibited moderate tubulin polymerisation inhibition and demonstrated some correlation with the antiproliferative effects of these compounds.
Subsequently, the effect of the representative compound 10n on the organisation of microtubule cytoskeleton of MCF-7 cells was also determined by confocal microscopy using an anti-tubulin antibody (Figure 8). As expected, the MCF-7 cells exhibited a well-organised microtubular network (stained green) when treated with the vehicle control (0.1% ethanol). The MCF-7 cell nuclei (stained blue) were also clearly observed (Figure 8A). In contrast, the fibrous microtubule structures were disorganised, and their densities were also significantly reduced by treating the MCF-7 cells with compound 10n. The paclitaxel-treated sample (Figure 8C) showed the hyper-polymerisation of tubulin, while the extensive depolymerisation of tubulin was demonstrated in the CA-4-treated sample Figure 8B. Cells treated with the β-lactam compound 10n (0.05, 0.1 and 0.5 μM) displayed a disorganised microtubule network with similar effects to CA-4, together with multinucleation (Figure 8D–F). The treatment of MCF-7 breast cancer cells with CA-4 tubulin-targeting agents has been reported to result in the formation of multiple micronuclei and mitotic catastrophes [90,91,92]. These immunofluorescence studies for the visualisation of the microtubule network in MCF-7 cells confirmed that compound 10n could directly inhibit the tubulin polymerisation.

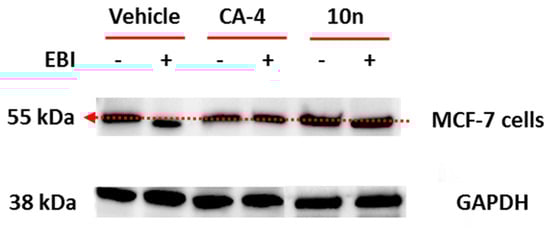

A colchicine-site binding assay was performed to evaluate the interaction of compound 10n at the colchicine binding site of tubulin using N,N-ethylenebis(iodoacetamide) (EBI) [93,94]. EBI crosslinks the Cys-239 and Cys-354 residues of the colchicine binding site of β-tubulin, alkylating the sulfhydryl group of cysteine. This covalent EBI adduct occupies the colchicine binding site of β-tubulin and can be detected using Western blotting as it appears at a lower position than tubulin, indicating that Cys239 and Cys354 amino acids of β-tubulin are crosslinked with EBI. Microtubule targeting compounds binding at the colchicine site, e.g., colchicine and CA-4, prevent the formation of the β-tubulin-EBI adduct. MCF-7 cells were treated with 10n (10 μM) or CA-4 (10 μM), followed by EBI (100 μM). Control samples (ethanol 0.1% (v/v)) indicated the formation of the β-tubulin-EBI adduct at a slightly lower position (Figure 9). Tubulin EBI adduct formation was inhibited in the MCF-7 cells treated with CA-4 and 10n, indicating that both CA-4 and 10n bind to the colchicine binding site of tubulin. These tubulin polymerisation inhibitors act on the colchicine site of tubulin and compete with EBI to bind the colchicine binding site and hinder the cross-linking of EBI with β-tubulin.

2.2.8. Effects of Compound 10n on Expression Levels of Apoptosis-Associated Proteins Bax, Bcl-2 and Mcl-1 in MCF-7 Cells

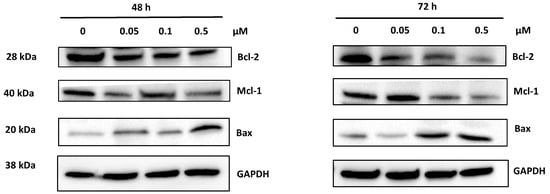

The effects of compound 10n on the expression of the pro-apoptotic protein Bax and anti-apoptotic proteins Bcl-2 and Mcl-1 were next investigated using Western blot analysis. The Bcl-2 family of proteins controls and regulates the intrinsic or mitochondrial apoptotic pathway. Pro- and anti-apoptotic members of the Bcl-2 family can oligomerise at the mitochondrial outer membrane to regulate permeabilization, which is a central event in the intrinsic apoptotic pathway. The pro-apoptotic protein Bax, together with Bak, is a key member of the Bcl-2 family and is a core regulator of the intrinsic pathway of apoptosis [95]. Western blot analysis (Figure 10) demonstrated that the expression level of pro-apoptotic protein Bax was upregulated in a dose-dependent manner in MCF-7 cells after treatment with compound 10n (0.05, 0.1 and 0.5 μM) for 48 or 72 h.
The apoptosis regulating proteins Bcl-2 and Mcl-1 were next investigated. The anti-apoptotic or pro-survival Bcl-2 protein is also a member of the Bcl-2 family. It prevents the release of a pro-apoptotic AIF (apoptosis inducing factor) and cytochrome c from the mitochondria into the cytoplasm [96] and prevents apoptosis by sequestering caspases (apoptosis promoters). The level of the anti-apoptotic protein Bcl-2 was downregulated in a dose-dependent manner after treating MCF-7 cells with compound 10n (0.05, 0.1 and 0.5 μM) for 48 or 72 h. (Figure 9). Mcl-1 protein (an induced myeloid leukaemia cell differentiation protein) is another key anti-apoptotic member of the Bcl-2 family and is localised in the mitochondrial outer membrane [97]. It binds and sequesters the pro-apoptotic Bax/Bak proteins and, thus, prevents the release of cytochrome c [98]. Overexpression of the anti-apoptotic factors Mcl-1, Bcl-2 and Bcl-xL in acute myeloid leukaemia [99] and acute lymphocytic leukaemia [100] may be associated dysregulation of apoptosis. The level of the anti-apoptotic protein Mcl-1 was downregulated in a dose-dependent manner after treating MCF-7 cells with compound 10n (0.05, 0.1 and 0.5 μM) for 48 or 72 h. (Figure 10). Apoptosis can be triggered by a reduction in the expression levels of Mcl-1 and Bcl-2 (e.g., by drug treatment). The increase in the percentage of cells observed in the sub-G1 peak, together with the flow cytometry analysis of Annexin V/PI-stained cells support the pro-apoptotic mechanism of action proposed for these compounds (Figure 5 and Figure 6).

2.3. Computational Modelling of β-Lactam Compounds 10n, 11n and 14b

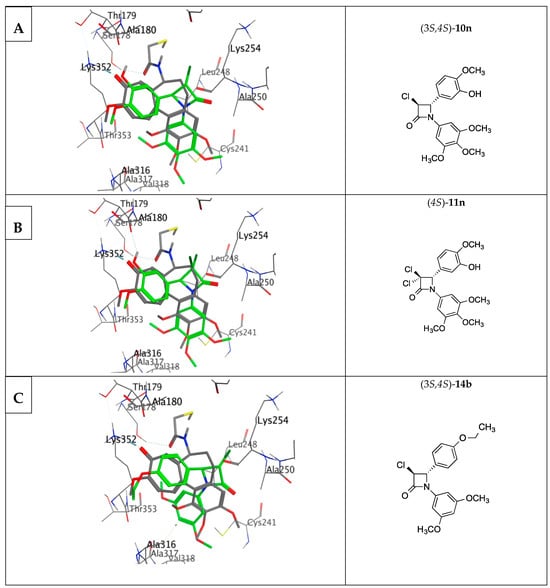

Computational docking calculations using MOE 2019.01 [101] were undertaken on both enantiomers of the potent compounds trans-3-chloro-1-(3,4,5-trimethoxyphenyl)-β-lactam 10n, 3,3-dichloro-1-(3,4,5-trimethoxyphenyl)-β-lactam 11n together with the 3-chloro-1-(3,5-dimethoxyphenyl)-β-lactam 14b, using the X-ray structure of bovine tubulin co-crystallised with N-deacetyl-N-(2-mercaptoacetyl)-colchicine (DAMA-colchicine) 1SA0 [6], Figure 11. 1H NMR analysis determined that only the trans isomers of the compounds 10n and 14b were isolated; therefore, we modelled only the 3S,4S and 3R,4R enantiomeric pairs. In all cases, the S,S enantiomers were more highly ranked than the corresponding R,R enantiomeric pair; therefore, only they will be discussed. All trimethoxy compounds overlaid their B-rings on the C-ring of DAMA-colchicine (forming HBA interactions with Lys352), co-located the 3,4,5-trimethoxyphenyl substituted A-rings and were able to position the halogens in an open region of the tubulin binding site at the monomer interface. The predicted affinity ranking from best ranked to worst was 10nSS, 14bSS, 11nS, 10nRR, 11nR and 14bRR. Generating conformers with OMEGA [1,2] and running docking with FRED [3] also gave the same preference for SS over RR enantiomers. Docking studies are not ideal for studying changes in cellular efficacy associated with different halogen substituents. While the SS enantiomer of the dimethoxy analogue 14b presented a comparable binding mode to other analogues in the tubulin site, it did not overlap fully with DAMA-colchicine (Figure 11, Panel C). The lack of a hydroxy group in Ring B of 14b to potentially hydrogen bond with Lys352 and the added steric bulk, resulting from the substitution of 4-methoxy with 4-ethoxy on the B-ring, forced the molecule deeper into the binding site, resulting in the less favourable docking scores. The increase in lipophilicity could also decrease the cell permeability of 14b, causing a slight loss in efficacy against MCF-7 cells. Figure 11 illustrates the best ranked binding pose of each compound, showing the shared binding mode across the analogues.

3. Materials and Methods

3.1. Chemistry

All chemicals were commercially purchased and were used without further purification unless otherwise indicated. Solvents were either purchased dry or purified by distillation in accordance with literature methods. Dichloromethane was dried by distillation from calcium hydride prior to use. Tetrahydrofuran (THF) was distilled immediately prior to use from Na/Benzophenone under nitrogen. Toluene was dried by distillation from calcium hydride and stored on activated molecular sieves (4 Å). Melting points were determined on a Gallenkamp SMP 11 melting point apparatus and are uncorrected. Infra-red (IR) spectra were recorded as KBr discs, thin films on NaCl disk or ATR on a Perkin Elmer FT-IR Paragon 1000 spectrometer. 1H and 13C nuclear magnetic resonance (NMR) spectra were recorded at 20 °C on a Bruker DPX 400 spectrometer (400.13 MHz, 1H; 100.61 MHz, 13C) in CDCl3, DMSO-d6 or CD3OD by Dr. John O’Brien and Dr. Manuel Ruether in the School of Chemistry, Trinity College Dublin, with internal standard TMS. The chemical shifts are given in ppm relative to Me4Si as an internal reference, J values are given in Hz. High resolution mass spectrometry (HRMS) was obtained in the School of Chemistry by Dr Martin Feeney or the School of Pharmacy and Pharmaceutical Sciences by Mr Brian Talbot, Trinity College Dublin. HRMS was carried on in the positive ion mode on a liquid chromatography time-of flight mass spectrometer (Micromass LCT, Waters Ltd., Manchester, UK). The samples were introduced into the ion source by an LC system (Waters Alliance 2795, Waters Corporation, Milford, MA, USA) in acetonitrile:water (60:40% v/v) at 200 μL/min. A lock (reference) mass (m/z 556.2771) was used. High resolution mass spectrometry scans were also performed using Electrospray Ionisation operated in negative and positive ion modes on an LTQ/Orbitrap Discovery Mass Spectrometer, and samples were dissolved in CH3OH, with a mass accuracy of <±5 ppm. Low resolution mass spectra (LRMS) were obtained on a Hewlett-Packard 5973 MSD GC-MS system in electron impact (EI) mode. Thin layer chromatography was performed with Merck silica gel 60 TLC aluminium sheets using a fluorescent indicator visualising at 254 nm in UV. Merck Kiesegel 60 (particle size 0.040–0.063 mm) was used for flash column chromatography. Preparative chromatography was also carried out on a Biotage SP4 instrument. All products isolated were homogenous on TLC. Microwave experiments were performed with the Biotage Initiator and Discover CEM microwave synthesisers. Purity of the finial compounds was achieved using analytical high-performance liquid chromatography (HPLC) using a Waters 2487 Dual Wavelength Absorbance detector, Waters 1525 binary HPLC pump, Waters In-Line Degasser AF and Waters 717plus Autosampler, with a Varian Pursuit XRs C18 reverse phase 250 × 4.6 mm column and detection at 254 nm. Samples were analysed using acetonitrile (60%):water (40%) with 0.1% (v/v) TFA over 10 min and a flow rate of 1 mL/min. Imines 9a-9j, 9m9s, 11f, 11i, 12e, 12f and 12i were prepared as previously reported [34,35,74,102]. The details for the preparation of 3-azetidinones 10f, 10i, 10o, 11e, 11f, 11i and 11o were as previously reported [34,74] are provided in the Supplementary Information.

3.1.1. General Method 1A: PREPARATION of Imines with Ethanol as Solvent (9k, 9l, 9tv):

The appropriately substituted benzaldehyde (10 mmol) and corresponding substituted aniline (10 mmol) were heated at reflux in ethanol (40 mL) for 4 h. The reaction solvent was then reduced to approximately 10 mL in vacuo and the reaction mixture was allowed to stand for 12 h. The precipitated product was filtered and then recrystallised from ethanol.

2-Methoxy-5-[(3,4,5-trimethoxyphenylimino)methyl]phenol (9k)

Compound 9k was prepared using the general method IA above and was obtained from 3-hydroxy-4-methoxybenzaldehyde and 3,4,5-trimethoxyaniline as a pale-yellow solid; yield: 89%, 2.82 g, Mp. 134 °C [33]. IR Vmax (KBr) 1613 (C=N), 3347 (OH) cm−1. 1H NMR (400 MHz, CDCl3): δ 3.83 (s, 3H, -OCH3), 3.92 (s, 6H, -OCH3), 3.98 (s, 3H, -OCH3), 5.72 (s, 1H, -OH), 6.49 (s, 2H, H2′, H6′), 6.95 (d, 1H, J = 8.52 Hz, H5′’), 7.39 (dd, J = 1.48 Hz, 8.28, 1H, H6′’), 7.54 (d, J = 1.48 Hz, 1H, H2′’), 8.38 (s, 1H, CH=N). 13C NMR (100 MHz, CDCl3): δ 55.61, 55.67, 60.58 (-OCH3), 97.96 (C2, C6), 109.87 (C5′’), 113.31 (C2′’), 121.85 (C6′’), 129.49 (C1′’), 136 (C4′), 145.51 (C3′’), 147.71 (C1′), 153.08 (C4′’), (C3′, C5′), 158.72 (CH=N). HRMS: found 318.1353 [M + H]+; C17H20NO5 requires 318.1341.

[3-(Tert-butyldimethylsilanyloxy)-4-methoxybenzylidene](3,4,5-trimethoxyphenyl)amine (9l)

To a solution of the imine 9k (5 mmol) and tert-butyldimethylsilyl chloride (6 mmol) in anhydrous DCM (40 mL) under a nitrogen atmosphere, DBU (8 mmol) was added dropwise via a syringe. Stirring under nitrogen was continued until starting material had disappeared as monitored by TLC over 2–4 h (eluent, 50:50 hexane/ethyl acetate). Upon completion, the reaction was diluted with dichloromethane (50 mL). The reaction mixture was washed with water (2 × 100 mL), 0.1 M HCl aq (2 × 50 mL) and saturated NaHCO3 solution (2 × 50 mL) and dried over Na2SO4. The solvent was removed under reduced pressure to yield the protected Schiff base, which was used for β-lactam synthesis without further purification; yield: 78%, 1.68 g, amber oil [36]. IR Vmax (film) 1585 cm−1 (C=N). 1H NMR (400 MHz, CDCl3): δ 0.20 (s, 6H, -tBDMSi), 1.03 (s, 9H, -tBDMSi), 3.77 (s, 3H, -OCH3), 3.81 (s, 6H, -OCH3), 3.89 (s, 3H, -OCH3), 5.94 (s, 2H, H2′, H6′), 6.48 (s, 1H, H5′’), 6.92 (1H, d, J = 8.52 Hz, H2′’), 7.46 (1H, m, H6′’) and 8.35 (1H, s, imine). 13C NMR (100 MHz, CDCl3): δ -5.67, 18.07, 25.26 (–tBDMSi), 54.99, 55.64, 60.62 (–OCH3), 92.12 (C2′, C6′), 110.96 (C5′’), 119.74 (C2′’), 123.42 (C6′’), 128.95 (C1′’), 144.50 (C4′), 144.87 (C3′’), 147.94 (C1′), 153.06 (C3′, C5′), 153.40 (C4′’), 158.82 (C=N). HRMS: found 431.2127 [M]+; C23H33NO5Si requires 431.2128.

(E)-N-(4-Methoxyphenyl)-1-(3,4,5-trimethoxyphenyl)methanimine (9t)

Compound 9t was prepared using the general method IA above from 4-methoxyaniline and 3,4,5-trimethoxy benzaldehyde as pale-yellow crystals; yield: 70%, Mp. 115 °C [103] (HPLC: 95%). IR Vmax (ATR): 1622.8 (C=N) cm−1. 1H NMR (400 MHz, CDCl3): δ 3.85 (s, 6H, OCH3), 3.90 (s, 6H, OCH3), 6.96 (d, J = 8.03 Hz, 2H, ArH), 7.18 (s, 2H, ArH), 7.26 (d, J = 8.03 Hz, 2H, ArH), 8.40 (s, 1H, CH=N). 13C NMR (100 MHz, CDCl3): δ 55.0, 55.8, 60.6, 105.1, 106.2, 113.9, 116.2, 131.4, 140.3, 153.0, 157.6 (imine, HC=NC), 161.9. HRMS: found 324.1198 [M + Na]+; C17H19NNaO4 requires 324.1212.

(E)-N-(4-Ethoxyphenyl)-1-(3,4,5-trimethoxyphenyl)methanimine (9u)

Compound 9u was synthesised using the general method IA above and was obtained from 4-ethoxyaniline and 3,4,5-trimethoxybenzaldehyde as yellow crystals; yield: 82%, Mp: 98 °C [103] (HPLC: 99%). IR Vmax (ATR): 1636.4 cm−1 (C=N). 1H NMR (400 MHz, CDCl3): δ 1.41 (t, J = 7.02 Hz, 3H, OCH2CH3), 3.89 (s, 3H, OCH3), 3.93 (s, 6H, OCH3), 4.04 (q, J = 6.71 Hz, 2H, OCH2CH3), 6.86–6.94 (m, 2H, ArH), 7.12 (s, 2H, ArH), 7.16–7.22 (m, 2H, ArH), 8.35 (s, 1H, CH=N). 13C NMR (100 MHz, CDCl3): δ 14.85, 56.21, 60.94, 63.66, 97.31, 105.49, 114.93, 122.10, 132.00, 140.64, 153.47, 157.57 (imine, HC=NC), 157.79. HRMS: found 338.1364 [M + Na]+; C18H21NNaO4 requires 338.1368.

(E)-N-(4-(Methylthio)phenyl)-1-(3,4,5-trimethoxyphenyl)methanimine (9v)

Compound 9v was synthesised using the general method IA above and was obtained from 4-methylthioaniline and 3,4,5-trimethoxybenzaldehyde as yellow crystals; yield: 92%, Mp. 112 °C [103]. IR Vmax (ATR): 1677.8 cm−1 (C=N). 1H NMR (400 MHz, CDCl3): δ 2.48 (s, 3H, SCH3), 3.86 (s, 3H, OCH3), 3.96 (s, 6H, OCH3), 7.14 (d, J = 8.54 Hz, 2H, ArH), 7.23–7.28 (m, 2H, ArH), 7.12 (s, 2H, ArH), 8.33 (s,1H, CH=N). 13C NMR (100 MHz, CDCl3): δ 16.34, 56.23, 60.96, 105.71, 121.50, 127.66, 131.69, 135.80, 140.95, 149.17, 153.49, 159.18 (imine, HC=NC). HRMS: found 340.0994 [M + Na]+; C17H19NNaO3S requires 340.0983.

3.1.2. General Method IB: Schiff Base Preparation with Water as a Solvent (9w, 9x)

The appropriately substituted benzaldehyde (10 mmol) and corresponding substituted aniline (10 mmol) were stirred in water (7 mL) for 30 min. The organic compound was extracted with DCM and the reaction mixture was dried over anhydrous sodium sulfate before the solvent was removed under reduced pressure.

(E)-N-(3,5-Dimethoxyphenyl)-1-(4-methoxyphenyl)methanimine (9w)

Compound 9w was prepared using the general method IB above and was obtained from 4-methoxybenzaldehyde and 3,5-dimethoxyaniline as an oil [50]; yield: 97%, IR Vmax (ATR): 1592.2 cm−1 (C=N). 1H NMR (400 MHz, CDCl3): δ 3.79 (s, 6H, OCH3), 3.84 (s, 3H, OCH3), 6.30–6.36 (m, 3H, ArH), 6.95 (d, J = 7.93 Hz, 2H, ArH), 7.81 (d, J = 7.93 Hz, 2H, ArH), 8.35 (s, 1H, CH=N). 13C NMR (100 MHz, CDCl3): δ 55.37, 55.52, 97.92, 98.97, 114.15, 114.26, 129.00, 130.54, 131.92, 154.52, 159.83 (HC=NC). HRMS: calculated for C16H18NO3 [M + H]+ 272.1287; found 272.1289.

(E)-N-(3,5-Dimethoxyphenyl)-1-(4-ethoxyphenyl)methanimine (9x)

Compound 9w was prepared using the general method IB above and was obtained from 4-ethoxybenzaldehyde and 3,5-dimethoxyaniline as an oil; yield: 85%. IR Vmax (ATR): 1597.6 cm−1 (C=N). 1H NMR (400 MHz, CDCl3): δ 1.43 (t, J = 7.02 Hz, 3H, OCH2CH3), 3.80 (s, 6H, OCH3), 4.09 (q, J = 7.12 Hz, 2H, OCH2CH3), 6.22–6.44 (m, 3 H, ArH), 6.90–7.00 (m, 2H, ArH), 7.80 (m, J = 8.55 Hz, 2H, ArH), 8.35 (s, 1H, CH=N). 13C NMR (100 MHz, CDCl3): δ 14.71, 55.40, 63.64, 97.90, 98.97, 114.64, 130.55, 153.22, 159.93 (HC=NC). HRMS: calculated for C17H20NO3 [M + H]+ 286.1443; found 286.1456.

3.1.3. General Method II: Preparation of 3-Chloroazetidin-2-ones, 3,3-Dichloroazetidin-2-ones, 3-Bromoazetidin-2-ones (10ao, 11ao, 12ac, 13ac, 14a, 14b, 15a, 15b, 16ah)

To a stirring, refluxing solution of the imine (5 mmol) and triethylamine (6 mmol) in anhydrous dichloromethane (40 mL), a solution of chloro- or dichloroacetyl chloride (6 mmol) in anhydrous dichloromethane (10 mL) was injected dropwise through a rubber septum over 45 min under nitrogen. The reaction was refluxed for 5 h, and at retained at 20 °C overnight under nitrogen. The reaction mixture was washed with water (2 × 100 mL); the organic layer was dried over anhydrous sodium sulfate and the solvent was then removed under reduced pressure. The crude product was purified using flash chromatography over silica gel (eluent 4:1 n-hexane: ethyl acetate).

3-Chloro-1-(3,4,5-trimethoxyphenyl)-4-phenylazetidin-2-one (10a)

Compound 10a was prepared as described in the general method II above from imine 9a and chloroacetyl chloride; yield: 8%, 135 mg, brown oil (HPLC: 100%). IR (NaCl, film) Vmax: 2983, 2684, 1764 (C=O, β-lactam), 1601, 1507, 1235, 1127 cm−1. 1H NMR (400 MHz, CDCl3): δ 3.71 (s, 6H, OCH3), 3.79 (s, 3H, OCH3), 4.67 (br s, 1H, H4), 4.99 (br s, 1H, H3), 6.54 (s, 2H, H2′ H6′), 7.40–7.46 (m, 5H, H2′’ H3′’ H4′’ H5′’ H6′’). 13C NMR (100 MHz, CDCl3): δ 55.58, 60.52 (OCH3), 62.63 (C3), 65.97 (C4), 94.74 (C2′, C6′), 125.74 (C2′’, C6′’), 129.06 (C3′’, C5′’), 129.19 (C4′’), 132.46 (C4′), 134.52 (C1′), 134.65 (C1′’), 153.10 (C3′, C5′), 160.15 (C2). HRMS: found 370.0822 [M + Na]+; C18H1835ClNO4Na requires 370.0822.

3-Chloro-4-(4-chlorophenyl)-1-(3,4,5-trimethoxyphenyl)azetidin-2-one (10b)

Compound 10b was prepared as described in the general method II above from imine 9b and chloroacetyl chloride; yield: 9%, 169 mg, brown oil. IR (NaCl, film) Vmax: 2605, 2498, 1766 (C=O, β-lactam), 1595, 1506, 1235, 1127 cm−1. 1H NMR (400 MHz, CDCl3): δ 3.73 (s, 6H, OCH3), 3.78 (s, 3H, OCH3), 4.61 (d, 1H, J = 1.48 Hz, H4), 4.98 (d, 1H, J = 2.00 Hz, H3), 6.51 (s, 2H, H2′ H6′), 7.35 (d, J = 8.52 Hz, 2H, H3′’ H5′’), 7.43 (d, J = 8.56 Hz, 2H, H2′’ H6′’). 13C NMR (100 MHz, CDCl3): δ 55.64, 60.51 (OCH3), 62.56 (C3), 65.16 (C4), 94.72 (C2′, C6′), 127.03 (C2′’, C6′’), 129.32 (C3′’, C5′’), 132.19 (C4′’), 133.05 (C4′), 134.84 (C1′), 135.12 (C1′’), 153.19 (C3′, C5′), 159.84 (C2). HRMS: found 404.0449 [M + Na]+; C18H1735Cl2NO4Na requires 404.0432.

4-(4-Bromophenyl)-3-chloro-1-(3,4,5-trimethoxyphenyl)azetidin-2-one (10c)

Compound 10c was prepared as described in the general method II above from imine 9c and chloroacetyl chloride; yield: 9%, 192 mg, brown oil (HPLC: 97.5%). IR (NaCl, film) Vmax: 2606, 2499, 1766 (C=O, β-lactam), 1591, 1506, 1235, 1128 cm−1. 1H NMR (400 MHz, CDCl3): δ 3.74 (s, 6H, OCH3), 3.79 (s, 3H, OCH3), 4.61 (br s, 1H, H4), 4.97 (br s, 1H, H3), 6.51 (s, 2H, H2′ H6′), 7.29 (d, J = 8.52 Hz, 2H, H2′’ H6′’), 7.59 (d, J = 8.56 Hz, 2H, H3′’ H5′’). 13C NMR (100 MHz, CDCl3): δ 55.67, 60.52 (OCH3), 62.49 (C3), 65.23 (C4), 94.72 (C2′, C6′), 123.25 (C4′’), 127.28 (C2′’, C6′’), 132.17 (C4′), 132.29 (C3′’, C5′’), 133.57 (C1′), 134.87 (C1′’), 153.20 (C3′, C5′), 159.83 (C2). HRMS: found 447.9915 [M + Na]+; C18H1780Br35ClNO4Na requires 447.9927.

3-Chloro-1-(3,4,5-trimethoxyphenyl)-4-(4-nitrophenyl)azetidin-2-one (10d)

Compound 10d was prepared as described in the general method II above from imine 9d and chloroacetyl chloride; yield: 7%, 142 mg, yellow oil (HPLC: 97.5%). IR (NaCl, film) Vmax: 2606, 2499, 1768 (C=O, β-lactam), 1603, 1507, 1235, 1128 cm−1. 1H NMR (400 MHz, CDCl3): δ 3.74 (s, 6H, OCH3), 3.79 (s, 3H, OCH3), 4.65 (d, J = 2.00 Hz, 1H, H4), 5.13 (br s, 1H, H3), 6.49 (s, 2H, H2′ H6′), 7.61 (d, J = 8.52 Hz, 2H, H2′’ H6′’), 8.33 (d, J = 9.04 Hz, 2H, H3′’ H5′’). 13C NMR (100 MHz, CDCl3): δ 55.73, 60.54 (OCH3), 62.42 (C3), 64.71 (C4), 94.72 (C2′, C6′), 124.33 (C2′’, C6′’), 126.64 (C3′’, C5′’), 131.85 (C4′), 135.19 (C1′), 141.60 (C4′’), 148.17 (C1′’), 153.36 (C3′, C5′), 159.29 (C2). HRMS: found 415.0672 [M + Na]+; C18H1735ClN2O6Na requires 415.0673.

Cis-3-chloro-1-(3,4,5-trimethoxyphenyl)-4-(4-methoxyphenyl) azetidin-2-one (10e cis)

Compound 10e cis was prepared as described in the general method II above from imine 9e and chloroacetyl chloride; yield: 4%, 97 mg, brown oil. IR (NaCl, film) Vmax: 2944, 2605, 1762 (C=O, β-lactam), 1601, 1508, 1240, 1127 cm−1. 1H NMR (400 MHz, CDCl3): δ 3.74 (s, 6H, OCH3), 3.79 (s, 3H, OCH3), 3.84 (s, 3H, OCH3), 5.03 (d, J = 5.02 Hz, 1H, H4), 5.36 (d, J = 5.00 Hz, 1H, H3), 6.57 (s, 2H, H2′ H6′), 6.86 (d, J = 8.52 Hz, 2H, H3′’ H5′’), 7.03 (d, J = 9.04 Hz, 2H, H2′’ H6′’). 13C NMR (100 MHz, CDCl3): δ 54.75, 55.16, 60.21 (OCH3), 60.73 (C3), 63.66 (C4), 94.75 (C2′, C6′), 113.78 (C3′’, C5′’), 126.09 (C2′’, C6′’), 131.51 (C4′), 131.90 (C1′’), 134.31 (C1′), 153.06 (C3′, C5′), 159.95 (C4′’), 161.01 (C2). HRMS: found 578.1107 [M + H]+; C19H2135ClNO5 requires 378.1108.

Trans-3-chloro-1-(3,4,5-trimethoxyphenyl)-4-(4-methoxyphenyl) azetidin-2-one (10e trans)

Compound 10e trans was also isolated as described in the general method II above from imine 9e and chloroacetyl chloride; yield: 8%, 181 mg, brown oil [74]. IR (NaCl, film) Vmax: 2954, 2603, 1772 (C=O, β-lactam), 1681, 1507, 1235, 1126 cm−1. 1H NMR (400 MHz, CDCl3): δ 3.72 (s, 6H, OCH3), 3.78 (s, 3H, OCH3), 3.84 (s, 3H, OCH3), 4.63 (d, J = 2.00 Hz, 1H, H4), 4.95 (d, J = 2.00 Hz, 1H, H3), 6.54 (s, 2H, H2′ H6′), 6.96 (d, J = 8.52 Hz, 2H, H3′’ H5′’), 7.33 (d, J = 9.04 Hz, 2H, H2′’ H6′’). 13C NMR (100 MHz, CDCl3): δ 54.95, 55.60, 60.51 (OCH3), 62.73 (C3), 65.66 (C4), 94.78 (C2′, C6′), 114.38 (C3′’, C5′’), 127.09 (C2′’, C6′’), 131.56 (C4′), 132.50 (C1′’), 134.61 (C1′), 153.08 (C3′, C5′), 160.05 (C4′’), 160.29 (C2). HRMS: found 378.1104 [M + H]+; C19H2135ClNO5 requires 378.1108.

3-Chloro-1-(3,4,5-trimethoxyphenyl)-4-(4-phenoxyphenyl)azetidin-2-one (10g)

Compound 10g was prepared as described in the general method II above from imine 9g and chloroacetyl chloride; yield: 8%, 178 mg, brown oil. IR (NaCl, film) Vmax: 2982, 2682, 1764 (C=O, β-lactam), 1692, 1585, 1506, 1127 cm−1. 1H NMR (400 MHz, CDCl3): δ 3.75 (s, 6H, OCH3), 3.80 (s, 3H, OCH3), 4.66 (d, J = 1.52 Hz, 1H, H4), 4.98 (br s, 1H, H3), 6.55 (s, 2H, H2′ H6′), 7.02–7.07 (m, 4H, H2′’ H6′’ H2′’’ H6′’’), 7.16–7.20 (m, H4′’’), 7.36–7.40 (m, 4H, H2′’ H6′’ H3′’’ H5′’’). 13C NMR (100 MHz, CDCl3): δ 55.63, 60.53 (OCH3), 62.69 (C3), 65.51 (C4), 94.82 (C2′, C6′), 118.72 (C2′’’, C6′’’), 119.00 (C3′’, C5′’), 123.66 (C4′’’), 127.28 (C2′’, C6′’), 128.77 (C4′), 129.52 (C3′’’, C5′’’), 132.40 (C1′), 134.73 (C1′’), 153.13 (C3′, C5′), 155.76 (C4′’), 158.23 (C1′’’), 160.14 (C2). HRMS: found 462.1099 [M + Na]+; C24H2235ClNO5Na requires 462.1084.

4-(4-Benzyloxyphenyl)-3-chloro-1-(3,4,5-trimethoxyphenyl)azetidin-2-one (10h)

Compound 10h was prepared as described in the general method II above from imine 9h and chloroacetyl chloride; yield: 3%, 70 mg, colourless solid (HPLC: 100.0%), Mp 96–98 °C. IR (KBr) Vmax: 2944, 1761 (C=O, β-lactam), 1597, 1508, 1237, 1127 cm−1. 1H NMR (400 MHz, CDCl3): δ 3.72 (s, 6H, OCH3), 3.79 (s, 3H, OCH3), 4.64 (d, J = 2.00 Hz, 1H, H4), 4.94 (br s, 1H, H3), 5.10 (s, 2H, OCH2Ar), 6.54 (s, 2H, H2′ H6′), 7.02–7.05 (m, H3′’ H5′’), 7.28–7.45 (m, 7H, H2′’ H6′’ H2′’’ H3′’’ H4′’’ H5′’’ H6′’’). 13C NMR (100 MHz, CDCl3): δ 55.60, 60.52 (OCH3), 62.71 (C3), 65.66 (C4), 69.64 (-OCH2Ar), 94.79 (C2′, C6′), 115.32 (C3′’, C5′’), 126.62 (C4′), 126.99 (C2′’, C6′’), 127.12 (C2′’’, C6′’’), 127.74 (C4′’’), 128.22 (C3′’’, C5′’’), 132.50 (C1′’), 134.62 (C1′), 135.93 (C1′’’), 153.08 (C3′, C5′), 159.17 (C4′’), 160.27 (C2). HRMS: found 476.1233 [M + Na]+; C25H2435ClNO5Na requires 476.1241.

3-Chloro-1-(3,4,5-trimethoxyphenyl)-4-(naphthalen-1-yl)azetidin-2-one (10j)

Compound 10j was prepared as described in the general method II above from imine 9j and chloroacetyl chloride; yield: 12%, 244 mg, brown oil (HPLC: 95.5%). IR (NaCl, film) Vmax: 2604, 2498, 1763 (C=O, β-lactam), 1597, 1506, 1235, 1126 cm−1. 1H NMR (400 MHz, CDCl3): δ 3.71 (s, 6H, OCH3), 3.82 (s, 3H, OCH3), 4.64 (d, J = 1.52 Hz, 1H, H4), 5.81 (br s, 1H, H3), 6.65 (s, 2H, H2′ H6′), 7.40–8.21 (m, 7H, H2′’ H3′’ H4′’ H5′’ H6′’ H7′’ H8′’). 13C NMR (100 MHz, CDCl3): δ 55.74, 60.56 (OCH3), 62.35 (C3), 63.01 (C4), 94.94 (C2′, C6′), 122.22, 122.85, 124.89, 126.09, 126.91, 128.83, 129.09, 129.87, 132.89, 133.48 (C4′), 133.62 (C1′), 134.81 (C1′’), 153.25 (C3′, C5′), 160.24 (C2). HRMS: found 420.0992 [M + Na]+; C22H2035ClNO4Na requires 420.0979.

3-Chloro-1-(3,4,5-trimethoxyphenyl)-4-(naphthalen-2-yl)azetidin-2-one (10k)

Compound 10k was prepared as described in the general method II above from imine 9k and chloroacetyl chloride; yield: 9%, 185 mg, brown oil. IR (NaCl, film) Vmax: 2981, 2676, 1764 (C=O, β-lactam), 1621, 1507, 1235, 1127 cm−1. 1H NMR (400 MHz, CDCl3): δ 3.68 (s, 6H, OCH3), 3.77 (s, 3H, OCH3), 4.73 (d, J = 1.52 Hz, 1H, H4), 5.17 (d, J = 1.48 Hz, 1H, H3), 6.60 (s, 2H, H2′ H6′), 7.45–7.95 (m, 7H, H2′’ H3′’ H4′’ H5′’ H6′’ H7′’ H8′’). 13C NMR (100 MHz, CDCl3): δ 55.61, 60.51 (OCH3), 62.66 (C3), 66.13 (C4), 94.78 (C2′, C6′), 122.21, 125.60, 126.61, 127.48, 127.53, 129.32, 131.91, 132.56, 132.76 (C4′), 133.25 (C1′’), 134.72 (C1′), 153.14 (C3′, C5′), 160.21 (C2). HRMS: found 420.0990 [M + Na]+; C22H2035ClNO4Na requires 420.0979.

3-Chloro-4-(4-methoxy-3-nitrophenyl)-1-(3,4,5-trimethoxyphenyl) azetidin-2-one (10m)

Compound 10m was prepared as described in the general method II above from imine 11n and chloroacetyl chloride; yield: 10%, 140 mg, yellow solid, Mp 93–95 °C. IR (KBr) Vmax: 2944, 2667, 1764 (C=O, β-lactam), 1614, 1533, 1506, 1236, 1127 cm−1. 1H NMR (400 MHz, CDCl3): δ 3.76 (s, 6H, OCH3), 3.79 (s, 3H, OCH3), 4.00 (s, 3H, OCH3), 4.64 (d, J = 2.00 Hz, 1H, H4), 5.01 (d, J = 1.48 Hz, 1H, H3), 6.51 (s, 2H, H2′ H6′), 7.16–7.19 (m, 1H, H2′’), 7.55–7.58 (m, 1H, H6′’), 7.93 (d, J = 2.00 Hz, 1H, H5′’). 13C NMR (100 MHz, CDCl3): δ 55.71, 55.75, 60.53 (OCH3), 62.47 (C3), 64.37 (C4), 94.37 (C2′, C6′), 114.27 (C5′’), 123.41 (C2′’), 126.78 (C4′), 130.93 (C6′’), 131.88 (C1′), 132.25 (C1′’), 134.87 (C3′’), 152.95 (C3′, C5′), 153.32 (C4′’), 163.30 (C2). HRMS: found 445.0777 [M + Na]+; C19H1935ClN2O7Na requires 445.0778.

3-Chloro-4-(3-hydroxy-4-methoxy-phenyl)-1-(3,4,5-trimethoxyphenyl)azetidin-2-one (10n)

A solution of the chloroacetic acid (1 mmol) and triphosgene (0.5 mmol) in dry DCM (10 mL) was refluxed under N2. After 30 min, triethylamine (1.5 mmol, 0.21 mL) was added, followed by the dropwise addition of the imine 9m (0.5 mmol) dissolved in dry DCM (15 mL) over 30 min. The reaction mixture was heated at reflux for a further 6 h and then cooled, washed with water (20 mL) and saturated NaHCO3 (2 × 20 mL) and brine (10 mL). The solution was then dried over anhydrous sodium sulfate and the solvent was removed under reduced pressure. The product 10l was isolated using flash column chromatography over silica gel. To a stirring solution of the protected β-lactam product 10l (5 mmol), under N2 and 0 °C in dry conditions, THF was added dropwise in 1.5 equivalents of a 1.0 M tert-butylammonium fluoride (t-BAF) solution in hexanes (5 mmol). The resulting solution was stirred at 0 °C until the reaction was completed by TLC, then diluted with ethyl acetate (75 mL), washed with 0.1 M HCl (100 mL) and extracted with ethyl acetate (2 × 25 mL). All organic layers were washed with H2O (100 mL), and saturated brine (100 mL), then dried over anhydrous sodium sulphate. The solvent was removed under reduced pressure to yield the product that was purified using flash chromatography over silica gel (eluent, 4:1 n-hexane: ethyl acetate). Yield: 34%, 668 mg, brown oil. IR (NaCl film Vmax): 1770 cm−1(C=O), 3417 cm−1(OH). 1H NMR (400 MHz, CDCl3): δ 3.74 (s, 6H, OCH3), 3.78 (s, 3H, OCH3), 3.92 (s, 3H, OCH3), 4.61 (d, 1H, H4), 4.89 (d, J3,4 = 1.52 Hz, 1H, H3), 5.81 (s, 1H, OH), 6.56 (s, 2H, H2′, H6′), 6.87–6.95 (m, 3H, H2′’, H5′’, H6′’). 13C NMR (100 MHz, CDCl3): δ 55.59, 55.63, 60.51 (OCH3), 62.67 (C3), 65.63 (C4), 94.81 (C2′, C6′), 110.61 (C2′’), 111.58 (C5′’), 117.72 (C6′’), 127.52 (C4′), 132.50 (C1′), 134.63 (C1′’), 146.04 (C3′’), 147.00 (C4′’), 153.08 (C3′, C5′), 160.22 (C2). HRMS: found 416.0897 [M + Na]+; C19H21ClNO6Na requires 416.0877.

3,3-Dichloro-1-(3,4,5-trimethoxyphenyl)-4-phenylazetidin-2-one (11a)

Compound 11a was prepared as described in the general method II above from imine 9a and dichloroacetyl chloride; yield: 31%, 597 mg, yellow solid, Mp 80–81 °C (HPLC: 100.0%). IR (KBr) Vmax: 2943, 2605, 2498, 1780 (C=O, β-lactam), 1594, 1506, 1239, 1127 cm−1. 1H NMR (400 MHz, CDCl3): δ 3.72 (s, 6H, OCH3), 3.80 (s, 3H, OCH3), 5.50 (s, 1H, H4), 6.55 (s, 2H, H2′ H6′), 7.35–7.47 (m, 5H, H2′’ H3′’ H4′’ H5′’ H6′’). 13C NMR (100 MHz, CDCl3): δ 55.66, 60.53 (OCH3), 73.83 (C4), 83.45 (C3), 95.35 (C2′, C6′), 127.37 (C2′’, C6′’), 128.53 (C3′’, C5′’), 129.61 (C4′’), 131.07 (C4′), 131.40 (C1′), 135.22 (C1′’), 153.19 (C3′, C5′), 157.82 (C2). HRMS: found 404.0433 [M + Na]+; C18H1735Cl2NO4Na requires 404.0432.

3,3-Dichloro-4-(4-chlorophenyl)-1-(3,4,5-trimethoxyphenyl)azetidin-2-one (11b)

Compound 11b was prepared as described in the general method II above from imine 9b and dichloroacetyl chloride; yield: 31%, 635 mg, brown solid, Mp 150–153 °C (HPLC: 99.7%). IR (KBr) Vmax: 2942, 2605, 2498, 1781 (C=O, β-lactam), 1594, 1506, 1238, 1123 cm−1. 1H NMR (400 MHz, CDCl3): δ 3.74 (s, 6H, OCH3), 3.81 (s, 3H, OCH3), 5.48 (s, 1H, H4), 6.53 (s, 2H, H2′ H6′), 7.30 (d, J = 8.56 Hz, 2H, H3′’ H5′’), 7.45 (d, J = 8.52 Hz, 2H, H2′’ H6′’). 13C NMR (100 MHz, CDCl3): δ 55.74, 60.55 (OCH3), 73.08 (C4), 83.31 (C3), 95.30 (C2′, C6′), 128.64 (C2′’, C6′’), 128.90 (C3′’, C5′’), 129.69 (C4′’), 131.14 (C4′), 135.42 (C1′), 135.67 (C1′’), 153.29 (C3′, C5′), 157.58 (C2). HRMS: found 438.0049 [M + Na]+; C18H1635Cl3NO4Na requires 438.0043.

4-(4-Bromophenyl)-3,3-dichloro-1-(3,4,5-trimethoxyphenyl)azetidin-2-one (11c)

Compound 11c was prepared as described in the general method II above from imine 9c and dichloroacetyl chloride; yield: 39%, 872 mg, yellow solid, Mp 150–152 °C (HPLC: 98.7%). IR (KBr) Vmax: 2978, 2605, 2498, 1782 (C=O, β-lactam), 1592, 1506, 1240, 1128 cm−1. 1H NMR (400 MHz, CDCl3): δ 3.75 (s, 6H, OCH3), 3.81 (s, 3H, OCH3), 5.47 (s, 1H, H4), 6.53 (s, 2H, H2′ H6′), 7.24 (d, J = 8.00 Hz, 2H, H2′’ H6′’), 7.61 (d, J = 7.52 Hz, 2H, H3′’ H5′’). 13C NMR (100 MHz, CDCl3): δ 55.75, 60.56 (OCH3), 73.13 (C4), 83.20 (C3), 95.29 (C2′, C6′), 123.88 (C4′’), 128.88 (C2′’, C6′’), 130.21 (C4′), 131.13 (C1′), 131.85 (C3′’, C5′’), 135.42 (C1′’), 153.29 (C3′, C5′), 157.57 (C2). HRMS: found 481.9561 [M + Na]+; C18H1680Br35Cl2NO4Na requires 481.9537.

3,3-Dichloro-1-(3,4,5-trimethoxyphenyl)-4-(4-nitrophenyl)azetidin-2-one (11d)

Compound 11d was prepared as described in the general method II above from imine 9d and dichloroacetyl chloride; yield: 44%, 932 mg, yellow solid, Mp 116–118 °C (HPLC: 95.5%). IR (KBr) Vmax: 2944, 2605, 2498, 1784 (C=O, β-lactam), 1596, 1506, 1346, 1127 cm−1. 1H NMR (400 MHz, CDCl3): δ 3.75 (s, 6H, OCH3), 3.81 (s, 3H, OCH3), 5.62 (s, 1H, H4), 6.51 (s, 2H, H2′ H6′), 7.56 (d, J = 7.52 Hz, 2H, H2′’ H6′’), 8.34 (d, J = 8.52 Hz, 2H, H3′’ H5′’). 13C NMR (100 MHz, CDCl3): δ 55.80, 60.55 (OCH3), 72.52 (C4), 83.02 (C3), 95.26 (C2′, C6′), 123.81 (C2′’, C6′’), 128.29 (C3′’, C5′’), 130.80 (C4′), 135.74 (C1′), 138.21 (C4′’), 148.42 (C1′’), 153.45 (C3′, C5′), 157.10 (C2). HRMS: found 449.0272 [M + Na]+; C18H1635Cl2N2O6Na requires 449.0283.

3,3-Dichloro-1-(3,4,5-trimethoxyphenyl)-4-(4-phenoxyphenyl)azetidin-2-one (11g)

Compound 11g was prepared as described in the general method II above from imine 9g and dichloroacetyl chloride; yield: 24%, 576 mg, grey solid (HPLC: 99.8%). Mp. 82–84 °C. IR (KBr) Vmax: 2942, 1779 (C=O, β-lactam), 1697, 1588, 1506, 1230, 1128 cm−1. 1H NMR (400 MHz, CDCl3): δ 3.75 (s, 6H, OCH3), 3.81 (s, 3H, OCH3), 5.48 (s, 1H, H4), 6.56 (s, 2H, H2′ H6′), 7.05–7.07 (m, 4H, H2′’ H6′’ H2′’’ H6′’’), 7.16–7.20 (m, 1H, H4′’’), 7.30–7.41 (m, 4H, H3′’ H5′’ H3′’’ H5′’’). 13C NMR (100 MHz, CDCl3): δ 55.71, 60.55 (OCH3), 73.44 (C4), 83.64 (C3), 95.44 (C2′, C6′), 117.99 (C2′’’, C6′’’), 119.20 (C3′’, C5′’), 123.77 (C4′’’), 125.23 (C4′), 128.97 (C2′’, C6′’), 129.53 (C3′’’, C5′’’), 131.33 (C1′), 135.30 (C1′’), 153.22 (C3′, C5′), 155.55 (C4′’), 157.84 (C1′’’), 158.63 (C2). HRMS: found 496.0679 [M + Na]+; C24H2135Cl2NO5Na requires 496.0694.

4-(4-Benzyloxyphenyl)-3,3-dichloro-1-(3,4,5-trimethoxyphenyl) azetidin-2-one (11h)

Compound 11h was prepared as described in the general method II above from imine 9h and dichloroacetyl chloride; yield: 26%, 626 mg, yellow oil. IR (NaCl, film) Vmax: 2605, 2498, 1778 (C=O, β-lactam), 1599, 1503, 1241, 1128 cm−1. 1H NMR (400 MHz, CDCl3): δ 3.73 (s, 6H, OCH3), 3.81 (s, 3H, OCH3), 5.11 (s, 2H, OCH2Ar), 5.46 (s, 1H, H4), 6.56 (s, 2H, H2′ H6′), 7.06 (d, J = 7.52 Hz, 2H, H3′’ H5′’), 7.30 (d, J = 7.52 Hz, 2H, H2′’ H6′’), 7.36–7.44 (m, 5H, H2′’’ H3′’’ H4′’’ H5′’’ H6′’’). 13C NMR (100 MHz, CDCl3): δ 55.69, 60.53 (OCH3), 69.65 (OCH2Ar), 73.60 (C4), 83.78 (C3), 95.41 (C2′, C6′), 114.78 (C3′’, C5′’), 127.04, 127.11 (C2′’, C6′’), 127.77 (C4′’’), 127.73, 127.77 (C2′’’, C6′’’), 128.21, 128.85 (C3′’’, C5′’’), 131.44 (C4′), 135.19 (C1′’), 135.90 (C1′), 142.69 (C1′’’), 153.17 (C3′, C5′), 157.94 (C4′’), 159.55 (C2). HRMS: found 488.1026 [M + H]+; C25H2435Cl2NO5, requires 488.1032.

3,3-Dichloro-1-(3,4,5-trimethoxyphenyl)-4-(naphthalen-1-yl)azetidin-2-one (11j)

Compound 11j was prepared as described in the general method II above from imine 9j and dichloroacetyl chloride; yield: 32%, 691 mg, yellow solid, Mp. 146–148 °C (HPLC: 98.4%). IR (KBr) Vmax: 2949, 1780 (C=O, β-lactam), 2593, 1505, 1235, 1127 cm−1. 1H NMR (400 MHz, CDCl3): δ 3.73 (s, 6H, OCH3), 3.84 (s, 3H, OCH3), 6.25 (s, 1H, H4), 6.66 (s, 2H, H2′ H6′), 7.32–8.16 (m, 7H, H2′’ H3′’ H4′’ H5′’ H6′’ H7′’ H8′’). 13C NMR (100 MHz, CDCl3): δ 55.84, 60.58 (OCH3), 71.19 (C4), 83.37 (C3), 95.53 (C2′, C6′), 122.40, 124.60, 124.64, 126.07, 126.98, 127.04, 128.83, 129.63, 130.72, 131.85 (C4′), 133.30 (C1′), 135.39 (C1′’), 153.32 (C3′, C5′), 157.99 (C2). HRMS: found 454.0605 [M + Na]+; C22H1935Cl2NO4Na requires 454.0589.

3,3-Dichloro-1-(3,4,5-trimethoxyphenyl)-4-(naphthalen-2-yl)azetidin-2-one (11k)

Compound 11k was prepared as described in the general method II above from imine 9k and dichloroacetyl chloride; yield: 35%, 764 mg, yellow solid, Mp. 164–166 °C (HPLC: 96.6%). IR (KBr) Vmax: 2983, 2693, 1779 (C=O, β-lactam), 1694, 1594, 1506, 1239, 1126 cm−1. 1H NMR (400 MHz, CDCl3): δ 3.70 (s, 6H, OCH3), 3.80 (s, 3H, OCH3), 5.68 (s, 1H, H4), 6.61 (s, 2H, H2′ H6′), 7.41–7.59 (m, 3H, H2′’ H5′’ H6′’), 7.89–7.95 (m, 4H, H3′’ H4′’ H7′’ H8′’). 13C NMR (100 MHz, CDCl3): δ 55.70, 60.53 (OCH3), 74.00 (C4), 83.56 (C3), 95.38 (C2′, C6′), 123.82, 126.47, 126.82, 127.35, 127.49, 127.79, 128.51, 128.68, 131.52, 132.49 (C4′), 133.48 (C1′’), 135.30 (C1′), 153.25 (C3′, C5′), 157.91 (C2). HRMS: found 454.0588 [M + Na]+; C22H1935Cl2NO4Na requires 454.0589.

3,3-Dichloro-4-(4-methoxy-3-nitrophenyl)-1-(3,4,5-trimethoxyphenyl) azetidin-2-one (11m)

Compound 11m was prepared as described in the general method II above from imine 9n and dichloroacetyl chloride; yield: 17%, 391 mg, colourless solid, Mp. 117–119 °C. IR (KBr) Vmax: 2943, 1781 (C=O, β-lactam), 1614, 1597, 1505, 1238, 1126 cm−1. 1H NMR (400 MHz, CDCl3): δ 3.77 (s, 6H, OCH3), 3.81 (s, 3H, OCH3), 4.03 (s, 3H, OCH3), 5.50 (s, 1H, H4), 6.53 (s, 2H, H2′ H6′), 7.19 (d, J = 9.04 Hz, 1H, H2′’), 7.49–7.52 (m, 1H, H6′’), 7.92 (d, J = 1.48 Hz, 1H, H5′’). 13C NMR (100 MHz, CDCl3): δ 55.85, 56.32, 60.55 (OCH3), 72.28 (C4), 83.44 (C3), 95.38 (C2′, C6′), 113.71 (C5′’), 123.53 (C4′), 124.97 (C2′’), 130.82 (C1′), 132.70 (C6′’), 135.68 (C1′’), 139.12 (C3′’), 153.41 (C3′, C5′), 153.62 (C4′’), 157.39 (C2). HRMS: found 479.0367 [M + Na]+; C19H1835Cl2N2O7Na requires 479.0389.

3,3-Dichloro-4-(3-hydroxy-4-methoxyphenyl)-1-(3,4,5-trimethoxyphenyl)azetidin-2-one (11n)

(i) To a stirring, refluxing solution of the protected TBDMS imine 9m (5 mmol) and triethylamine (6 mmol) in anhydrous dichloromethane (40 mL), a solution of the dichloroacetyl chloride (6 mmol) in anhydrous dichloromethane (10 mL) was added over 45 min under nitrogen. The reaction heated at reflux during the 5 h and retained at room temperature for 16 h under nitrogen, until the starting material had disappeared as monitored by TLC (eluent, 50:50 n-hexane: ethyl acetate). The reaction mixture was washed with water (2 × 100 mL). The organic layer was dried over anhydrous Na2SO4, and the solvent was then removed under reduced pressure. The crude product was purified using flash chromatography over silica gel (eluent: n-hexane: ethyl acetate, 4:1) to afford the product 11l as an oil that was used immediately in the following reaction. (ii) To a stirring solution of the protected β-lactam 11l (5 mmol), under N2 and 0 °C in dry conditions, THF was added dropwise in 1.5 equivalents of a 1.0 M tert-butylammonium fluoride (t-BAF) solution in hexanes (5 mmol). The resulting solution was stirred at 0 °C until reaction was complete, as verified by TLC. The reaction mixture was diluted with ethyl acetate (75 mL) and washed with 0.1 M HCl (100 mL). The aqueous layer was further extracted with ethyl acetate (2 × 25 mL). All organic layers were collected and washed with water (100 mL), and saturated brine (100 mL) and dried over an anhydrous sodium sulphate. The solvent was removed under reduced pressure to yield the product that was purified using flash chromatography over silica gel (eluent, 4:1 n-hexane: ethyl acetate). Yield: 28%, 600 mg, colourless oil. IR (NaCl, film) Vmax: 3396 (OH), 1782 (C=O, β-lactam), 1595, 1508, 1234, 1123 cm−1. 1H NMR (400 MHz, CDCl3): δ 3.74 (s, 6H, OCH3), 3.79 (s, 3H, OCH3), 3.93 (s, 3H, OCH3), 5.39 (s, 1H, H4), 6.56 (s, 2H, H2′ H6′), 6.85–6.91 (m, 3H, H2′’ H5′’ H6′’). 13C NMR (100 MHz, CDCl3): δ 55.51, 55.70, 60.52 (OCH3), 73.54 (C4), 83.68 (C3), 95.42 (C2′, C6′), 110.19 (C5′’), 113.35 (C2′’), 119.43 (C6′’), 120.54 (C4′), 123.99 (C1′), 131.45 (C1′’), 145.50 (C3′’), 147.33 (C4′’), 153.16 (C3′, C5′), 157.91 (C2). HRMS: found 428.0653 [M + H]+; calculated for C19H20Cl2NO6, 428.0668.

3-Chloro-1-(4-methoxyphenyl)-4-(3,4,5-trimethoxyphenyl)azetidin-2-one (12a)

Compound 12a was synthesised using the general method II above from imine 9t and chloroacetyl chloride to afford the product as an orange powder; yield: 59%, Mp. 101–102 °C (HPLC: 96%). IR (NaCl, film) Vmax: 2604, 2498, 1758 (C=O, β-lactam), 1598, 1503, 1246, 1126 cm−1. 1H NMR (400 MHz, CDCl3): δ 3.78 (s, 3H, OCH3), 3.84 (s, 6H, OCH3), 3.86 (s, 3H, OCH3), 4.63 (d, J = 1.48 Hz, 1H, H4), 4.90 (d, J = 2.00 Hz, 1H, H3), 6.56 (s, 2H, H2′’ H6′’), 6.83 (d, J = 9.04 Hz, 2H, H3′ H5′), 7.27 (d, J = 9.04 Hz, 2H, H2′ H6′). 13C NMR (100 MHz, CDCl3): δ 54.99, 55.81, 60.44 (OCH3), 62.80 (C3), 65.97 (C4), 102.31 (C2′’, C6′’), 113.98 (C3′, C5′), 118.46 (C2′, C6′), 129.79 (C1′), 130.12 (C4′’), 138.17 (C1′’), 153.64 (C3′’, C5′’), 156.29 (C4′), 159.81 (C2). HRMS: found 400.0928 [M + Na]+; C19H2035ClNO5Na requires 400.0928.

3-Chloro-1-(4-ethoxyphenyl)-4-(3,4,5-trimethoxyphenyl)azetidin-2-one (12b)

Compound 12b was synthesised using the general method II above from imine 9u and chloroacetyl chloride to afford the product as a creamy powder; yield: 45%, Mp: 113–115 °C (HPLC: 84%), IR Vmax: (ATR): 1759.5 (C=O) cm−1. 1H NMR (400 MHz, CDCl3): δ 1.33–1.38 (m, 3H, OCH2CH3), 3.80 (s, 6H, OCH3), 3.83 (s, 3H, OCH3), 3.92 (d, J = 3.66 Hz, 2H, OCH2CH3), 4.59 (d, J = 1.83 Hz, 1H, H4), 4.85 (d, J = 1.83 Hz, 1H, H3), 6.52 (s, 2H, ArH), 6.78 (d, J = 9.16 Hz, 2H, ArH), 7.22 (d, J = 8.54 Hz, 2H, ArH). 13C NMR (100 MHz, CDCl3): δ 14.73, 56.24, 60.85, 63.24, 66.39, 102.81, 106.70, 114.97, 118.88, 121.97, 130.57, 154.07, 156.13, 160.17 (C2, C=O). HRMS: found 414.1080 [M + Na]+; C20H2235ClNNaO5 requires 414.1084.

3-Chloro-1-(4-(methylthio)phenyl)-4-(3,4,5-trimethoxyphenyl) azetidin-2-one (12c)

Compound 12c was synthesised using the general method II above from imine 19v and chloroacetyl chloride to afford the product as orange powder; yield: 50%, Mp: 101–103 °C. IR Vmax: (ATR): 1760.6 (C=O) cm−1. 1H NMR (400 MHz, CDCl3): δ 2.42 (s, 3H, SCH3), 3.80 (s, 6H, OCH3), 3.83 (s, 3H, OCH3), 4.60 (d, J = 1.83 Hz, 1 H, H4), 4.87 (d, J = 2.44 Hz, 1H, H3), 6.52 (s, 2H, ArH), 7.13–7.17 (m, 2H, ArH), 7.20–7.24 (m, 2H, ArH). 13C NMR (100 MHz, CDCl3): δ 16.17, 56.27, 60.85, 63.22, 66.39, 102.77, 106.71, 118.03, 120.68, 127.59, 130.31, 134.89, 154.13, 160.53 (C2, C=O). HRMS: found 416.0701 [M + Na]+; C19H2035ClNNaO4S requires 416.0699.

3,3-Dichloro-4-(3,4,5-trimethoxyphenyl)-1-(4-methoxyphenyl)azetidin-2-one (13a)

Compound 13a was prepared as described in the general method II above from imine 9t and dichloroacetyl chloride; yield: 18%, 379 mg, yellow solid, Mp. 64–66 °C (HPLC: 100%). IR (KBr) Vmax: 2605, 2498, 1778 (C=O, β-lactam), 1691, 1592, 1508, 1250, 1127 cm−1. 1H NMR (400 MHz, CDCl3): δ 3.79 (s, 3H, OCH3), 3.83 (s, 6H, OCH3), 3.89 (s, 3H, OCH3), 5.39 (s, 1H, H4), 6.51 (s, 2H, H2′’ H6′’), 6.86 (d, J = 8.00 Hz, 2H, H3′ H5′), 7.29 (d, J = 8.04 Hz, 2H, H2′ H6′). 13C NMR (100 MHz, CDCl3): δ 55.02, 55.81, 60.48 (OCH3), 73.86 (C4), 83.70 (C3), 104.26 (C2′’, C6′’), 114.10 (C3′, C5′), 118.98 (C2′, C6′), 126.59 (C1′), 128.69 (C4′’), 138.56 (C1′’), 153.18 (C3′’, C5′’), 156.77 (C4′), 157.51 (C2). HRMS: found 434.0535 [M + Na]+; C19H1935Cl2NO5Na requires 434.0538.

3,3-Dichloro-1-(4-ethoxyphenyl)-4-(3,4,5-trimethoxyphenyl)azetidin-2-one (13b)

Compound 13b was synthesised using the general method II above from imine 9u and dichloroacetyl chloride to afford the product as a brown powder; yield: 25%, Mp: 133–134 °C. IR Vmax: (ATR): 1774.5 (C=O) cm−1. 1H NMR (400 MHz, CDCl3): δ 1.37 (t, J = 7.02 Hz, 3 H, OCH2CH3), 3.79 (s, 6 H, OCH3), 3.86 (s, 3 H, OCH3), 3.97 (q, J = 6.71 Hz, 2 H, OCH2CH3), 5.34 (s, 1 H, H4), 6.47 (s, 2 H, ArH), 6.77–6.84 (m, 2 H, ArH), 7.23–7.25 (m, 2 H, ArH). 13C NMR (100 MHz, CDCl3): δ 14.29, 55.44, 56.25, 60.88, 74.31, 81.62, 104.77, 114.54, 119.39, 127.00, 129.15, 153.61, 157.22, 159.65 (C2, C=O). HRMS: found 448.0676 [M + Na]+; C20H2135Cl2NNaO5 requires 448.0694.

3,3-Dichloro-1-(4-(methylthio)phenyl)-4-(3,4,5-trimethoxyphenyl) azetidin-2-one (13c)

Compound 13c was synthesised using the general method II above from imine 9v and dichloroacetyl chloride to afford the product as brown solid; yield: 47%, Mp: 117–119 °C (HPLC: 98%), IR Vmax: (ATR): 1771.9 (C=O) cm−1. 1H NMR (400 MHz, CDCl3): δ 2.43 (s, 3H, SCH3), 3.79 (s, 6H, OCH3), 3.86 (s, 3H, OCH3), 5.36 (s, 1H, H4), 6.47 (s, 2H, ArH), 7.18 (s, 2H, ArH), 7.23 (s, 2H, ArH). 13C NMR (100 MHz, CDCl3): δ 15.98, 56.28, 60.89, 74.28, 83.63, 104.73, 118.51, 126.77, 127.41, 133.11, 135.91, 139.17, 153.67, 158.19 (C2, C=O). HRMS: found 450.0320 [M + Na]+; C19H1935Cl2NNaO4S requires 450.0310.

3-Chloro-1-(3,5-dimethoxyphenyl)-4-(4-methoxyphenyl)azetidin-2-one (14a)

Compound 14a was synthesised using the general method II above from imine 9w and chloroacetyl chloride to afford the product as yellow powder; yield: 8%, Mp: 93–94 °C, IR Vmax (ATR): 1751.3 (C=O) cm−1. 1H NMR (400 MHz, CDCl3): δ 3.65 (s, 6H, OCH3), 3.71 (s, 3H, OCH3), 4.45 (s, 1H, H4), 4.68 (s, 1H, H3), 6.11–6.20 (m, 1H, ArH), 6.43 (d, J = 1.83 Hz, 2H, ArH), 6.80 (d, J = 8.54 Hz, 2H, ArH), 7.28 (s, 2H, ArH). 13C NMR (100 MHz, CDCl3): δ 56.45, 60.67, 63.45, 66.36, 95.22, 115.56, 126.95, 127.88, 132.13, 135.10, 153.52, 158.77, 160.55 (C2, C=O). HRMS: calculated for C18H1935ClNO4 [M + H]+ 348.1003; found 348.1000.

3-Chloro-1-(3,5-dimethoxyphenyl)-4-(4-ethoxyphenyl)azetidin-2-one (14b)

Compound 14b was synthesised using the general method II above from imine 9x and chloroacetyl chloride to afford the product as an oil; yield: 20%, Mp: 129–130 °C, IR Vmax (ATR): 1753.6 (C=O) cm−1. 1H NMR (400 MHz, CDCl3): δ 1.39 (t, J = 6.71 Hz, 3H, OCH2CH3), 3.68 (s, 6H, OCH3), 4.01 (q, J = 7.12 Hz, 2H, OCH2CH3), 4.55 (s, 1H, H4), 4.88 (s, 1H, H3), 6.13–6.23 (m, 1H, ArH), 6.45 (d, J = 1.83 Hz, 2H, ArH), 6.89 (d, J = 8.54 Hz, 2H, ArH), 7.27 (s, 2H, ArH). 13C NMR (100 MHz, CDCl3): δ 14.33, 56.45, 60.67, 63.45, 66.36, 95.22, 115.56, 126.95, 127.88, 132.13, 135.10, 153.52, 158.77, 160.55 (C2, C=O). HRMS: calculated for C19H2035ClNNaO4 [M + Na]+ 384.0979; found 384.0992.

3,3-Dichloro-1-(3,5-dimethoxyphenyl)-4-(4-methoxyphenyl)azetidin-2-one (15a)

Compound 15a was synthesised using method II above from imine 9w and dichloroacetyl chloride to afford the product as yellow oil; yield: 13% (HPLC: 95%), IR Vmax (ATR): 1774.6 (C=O) cm−1. 1H NMR (400 MHz, CDCl3): δ 3.71 (s, 6H, OCH3), 3.82 (s, 3H, OCH3), 5.40 (s, 1H, H4), 6.24 (t, J = 2.14 Hz, 1H, ArH), 6.48 (d, J = 2.44 Hz, 2H, ArH), 6.93 (d, J = 9.16 Hz, 2H, ArH), 7.23 (d, J = 8.54 Hz, 2H, ArH). 13C NMR (100 MHz, CDCl3): δ 55.30, 55.43, 74.03, 83.43, 96.75, 97.64, 114.32, 123.41, 129.11, 137.46, 158.67, 160.75 (C2, C=O). HRMS: calculated for C18H1735Cl2NNaO4 [M + Na]+ 404.0432; found 404.0428.

3,3-Dichloro-1-(3,5-dimethoxyphenyl)-4-(4-ethoxyphenyl)azetidin-2-one (15b)

Compound 15b was synthesised using method II above from imine 9x and dichloroacetyl chloride to afford the product as a brown oil; yield: 7% (HPLC: 96%), IR Vmax (ATR): 1772.4 (C=O) cm−1. 1H NMR (400 MHz, CDCl3): δ 1.40 (t, J = 6.71 Hz, 3H, OCH2CH3), 3.69 (s, 6H, OCH3), 4.02 (q, J = 7.32 Hz, 2H, OCH2CH3), 5.38 (s, 1H, H4), 6.20–6.25 (m, 1H, ArH), 6.47 (s, 2H, ArH), 6.90 (m, J = 8.55 Hz, 2H, ArH), 7.21 (m, J = 8.54 Hz, 2H, ArH). 13C NMR (100 MHz, CDCl3): δ 14.74, 55.41, 63.52, 74.06, 84.24, 96.74, 97.63, 114.75, 123.18, 129.08, 137.47, 158.67, 160.15 (C2, C=O). HRMS: calculated for C19H1935Cl2NNaO4 [M + Na]+ 418.0589; found 418.0574.

3-Bromo-4-(4-methoxyphenyl)-1-(3,4,5-trimethoxyphenyl)azetidin-2-one (16a)

Compound 16a was synthesised from imine 9e and bromoacetyl chloride using the general method II above and afford a product as a red oil; yield: 11% (HPLC: 100%). IR Vmax: (ATR): 1757.1 (C=O) cm−1. 1H NMR (400 MHz, CDCl3): δ 3.66 (s, 6 H, OCH3), 3.71 (s, 3 H, OCH3), 3.77 (s, 3 H, OCH3), 4.65 (d, J = 1.96 Hz, 1 H, H4), 5.05 (d, J = 1.96 Hz, 1 H, H3), 6.48 (s, 2 H, ArH), 6.89 (m, J = 8.71 Hz, 2H, ArH), 7.27 (m, J = 8.71 Hz, 2H, ArH). 13C NMR (100 MHz, CDCl3): δ 49.91, 55.33, 56.00, 60.51, 66.14, 95.34, 114.79, 127.54, 131.44, 132.85, 135.07, 153.46, 160.47, 170.54 (C2, C=O). HRMS: found 444.0452 [M + Na]+; C19H2079BrNaNO5 requires 444.0423.

3-Bromo-4-(4-ethoxyphenyl)-1-(3,4,5-trimethoxyphenyl)azetidin-2-one (16b)

Compound 16b was prepared from imine 9f and bromoacetyl chloride using the general method II above and afforded the product as an oil; yield: 31% (HPLC: 95%). IR Vmax (ATR): 1735.6 (C=O) cm−1. 1H NMR (400 MHz, CDCl3): δ 1.31 (t, J = 6.84 Hz, 3H, OCH2CH3), 3.70 (s, 3H, OCH3), 3.79 (s, 6H, OCH3), 4.02 (q, 2H, J = 6.61 Hz, OCH2CH3), 4.86 (d, J = 1.66 Hz, 1H, H4), 4.95 (d, J = 1.66 Hz, 1 H, H3), 6.44 (s, 2H, ArH), 6.84 (d, J = 8.71 Hz, 2H, ArH), 7.23 (d, J = 8.71 Hz, 2H, ArH). 13C NMR (100 MHz, CDCl3): δ 14.30, 49.78, 55.91, 60.59, 63.54, 66.17, 95.36, 115.24, 126.35, 127.55, 132.79, 135.39, 159.82, 161.10, 170.46 (C2, C=O). HRMS: found 458.0550 M+H]+; C20H2279BrNaNO5 requires 458.0579.

3-Bromo-4-(4-(methylthio)phenyl)-1-(3,4,5-trimethoxyphenyl)azetidin-2-one (16c)

Compound 16c was prepared from imine 9i and bromoacetyl chloride following the general method II above to afford the product as an oil; yield: 30% (HPLC: 100%). IR Vmax (ATR): 1757.9 (C=O) cm−1. 1H NMR (400 MHz, CDCl3): δ 2.42 (s, 3H, SCH3), 3.65 (s, 3H, OCH3), 3.85 (s, 6H, OCH3), 4.56 (d, J = 1.66 Hz, 1H, H4), 4.90 (d, J = 1.66 Hz, 1H, H3), 6.46 (s, 2 H, ArH), 7.19–7.23 (m, 2 H, ArH), 7.24 (s, 2H, ArH). 13C NMR (100 MHz, CDCl3): δ 15.28, 49.70, 56.05, 60.88, 66.90, 95.36, 126.61, 127.34, 131.14, 132.70, 135.13, 140.76, 153.49, 170.39 (C2, C=O). HRMS: found 460.0165 [M + Na]+; C19H2079BrNaNO4S requires 460.0194.

3-Bromo-4-(4-(ethylthio)phenyl)-1-(3,4,5-trimethoxyphenyl)azetidin-2-one (16d)

Compound 16d was prepared following the general method II above from imine 9o and bromoacetyl chloride to afford the title product as a brown oil; yield: 22% (HPLC: 97%). IR Vmax (ATR): 1760.1 (C=O) cm−1. 1H NMR (400 MHz, CDCl3): δ 1.10 (t, J = 7.46 Hz, 3H, SCH2CH3), 2.78 (q, J = 7.46 Hz, 2H, SCH2CH3), 3.61 (s, 3H, OCH3), 3.68 (s, 6H, OCH3), 4.03 (d, J = 1.66 Hz, 1H, H4), 4.89 (d, J = 1.66 Hz, 1H, H3), 6.43 (s, 2H, ArH), 7.17 (s, 2H, ArH), 7.76 (s, 2H, ArH). 13C NMR (100 MHz, CDCl3): δ 15.26, 26.86, 49.53, 55.98, 60.83, 62.74, 66.06, 95.39, 126.67, 128.74, 131.67, 132.64, 135.06, 139.16, 153.43, 171.04 (C2, C=O). HRMS: found 474.0378 [M + Na]+; C20H2279BrNaNO4S requires 474.0351.

3-Bromo-4-(4-methoxy-3-methylphenyl)-1-(3,4,5-trimethoxyphenyl) azetidin-2-one (16e)

Compound 16e was prepared using the general procedure II above from imine 9p, and bromoacetyl chloride to afford the product as an oil; yield: 29% (HPLC: 95%). IR Vmax (ATR): 1758.6 (C=O) cm−1. 1H NMR (400 MHz, CDCl3): δ 2.12 (s, 3H, CH3), 3.62 (s, 3H, OCH3) 3.67 (s, 6H, OCH3), 3.73 (s, 3H, OCH3), 4.53 (d, J = 1.66 Hz, 1H, H4), 4.83 (d, J = 1.66 Hz, 1H, H3), 6.47 (s, 2H, ArH), 6.76 (s, 1H, ArH), 7.08 (s, 1H, ArH), 7.12 (s, 1H, ArH). 13C NMR (100 MHz, CDCl3): δ 15.42, 49.23, 56.31, 61.73, 68.49, 99.02, 115.72, 123.12, 125.50, 130.65, 134.41, 135.27, 136.86, 153.03, 156.78, 170.49 (C2, C=O). HRMS: found 436.0764 [M + H]+; C20H2379BrNO5 requires 436.0760.

3-Bromo-4-(3-fluoro-4-methoxyphenyl)-1-(3,4,5-trimethoxyphenyl) azetidin-2-one (16f)

Compound 16f was prepared using the general procedure II above from imine 9q, and bromoacetyl chloride to afford the product as an oil; yield: 25%; (HPLC: 96%). IR Vmax (ATR): 1760.2 (C=O) cm−1. 1H NMR (400 MHz, CDCl3): δ 3.77 (s, 3H, OCH3), 3.81 (s, 9H, OCH3), 4.56 (d, J = 1.66 Hz, 1H, H4), 4.87 (d, J = 1.66 Hz, 1H, H3), 6.47 (s, 2H, ArH), 7.14 (m, 3H, ArH). 13C NMR (100 MHz, CDCl3): δ 49.73, 55.56, 56.71, 60.88, 65.49, 95.29, 113.31, 114.15, 122.33, 127.52, 132.64, 135.25, 148.56, 151.46, 153.57, 171.32 (C2, C=O). HRMS: found 462.0340 [M + H]+; C19H1979BrFNaNO5 requires 462.0328.

3-Bromo-4-(3-chloro-4-methoxyphenyl)-1-(3,4,5-trimethoxyphenyl) azetidin-2-one (16g)

Compound 16g was prepared using the general procedure II above from 9r and bromoacetyl chloride to afford the product as yellow oil; yield: 29% (HPLC: 100%). IR Vmax (ATR): 1759.6 (C=O) cm−1. 1H NMR (400 MHz, CDCl3): δ 3.71 (s, 3H, OCH3), 3.66 (s, 6H, OCH3), 3.84 (s, 3H, OCH3), 4.57 (d, J = 2.07 Hz, 1H, H4), 4.86 (d, J = 2.07 Hz, 1H, H3), 6.46 (s, 2H, ArH), 6.92 (s, 1H, ArH), 7.22 (s, 1H, ArH), 7.36 (s, 1H, ArH). 13C NMR (100 MHz, CDCl3): δ 49.73, 56.06, 56.23, 60.87, 65.34, 95.30, 112.61, 123.55, 125.68, 128.02, 132.63, 135.23, 136.55, 152.86, 156.27, 160.47 (C2, C=O). HRMS: found 478.0016 [M + Na]+; C19H1979Br35ClNaNO5 requires 478.0033.

3-Bromo-4-(3-bromo-4-methoxyphenyl)-1-(3,4,5-trimethoxyphenyl) azetidin-2-one (16h)

Compound 16h was prepared using the general procedure II above from imine 9s, and bromoacetyl chloride to afford the product as brown oil; yield: 20% (HPLC: 100%). IR Vmax (ATR): 1758.9 (C=O) cm−1. 1H NMR (400 MHz, CDCl3): δ 3.78 (s, 3H, OCH3), 3.84 (s, 6H, OCH3), 4.05 (s, 3H, OCH3), 4.57 (d, J = 1.66 Hz, 1 H, H4), 4.86 (d, J = 1.66 Hz, 1H, H3), 6.46 (s, 2H, ArH), 6.88 (s, 1H, ArH), 6.84 (s, 1H, ArH), 7.54 (s, 1H, ArH). 13C NMR (100 MHz, CDCl3): δ 55.13, 56.23, 60.54, 66.43, 100.18, 112.36, 114.51, 126.04, 132.21, 134.78, 136.55, 137.60, 154.63, 156.32, 170.70 (C2, C=O). HRMS: found 521.9500 [M + Na]+; C19H1979Br2NaNO5 requires 521.9528.

3-Bromo-4-(3-(tert-butyldimethylsilyl)-4-methoxyphenyl)-1-(3,4,5-trimethoxyphenyl)azetidin-2-one (16i)

Compound 16i was prepared using the general procedure II above from protected TBDMS imine 9m (2 mmol) and bromoacetyl chloride (6 mmol). The product was isolated as a red oil; 50 mg, yield: 5%, HPLC: 98%. IR Vmax (ATR): 1760.02cm−1 (C=O, β-lactam). 1H NMR (400 MHz, CDCl3) δ ppm 0.04 (s, 6 H, Si-CH3), 0.88 (s, 9 H, CH3), 3.65 (s, 3 H, OCH3), 3.71 (s, 6 H, OCH3), 4.57 (d, J = 2.07 Hz, 1 H H4), 4.84 (d, J = 2.07 Hz, 1 H, H3), 6.48 (s, 2 H, H2′, H6′), 6.77 (s, 1 H, H5′’), 6.84 (s, 1 H, H6′’), 6.92 (s, 1 H, H2′’). 13C NMR (101 MHz, CDCl3) δ ppm -1.5 (Si-CH3), 25.54 (CH3), 30.64 (Si-C-CH3), 49.81 (C3) 55.96, 60.88, 66.04 (OCH3), 95.33 (C2′, C6′), 112.41 (C5′’), 119.89 (C3′’), 126.98 (C6′’), 127.25 (C2′’), 132.79 (C4′), 132.98 (C1′’), 134.98 (C1′’), 153.43 (C3′, C5′), 160.91 (C4′’), 170.39 (C2, C=O). HRMS: [M + H]+ calculated for C25H35BrNO5Si, 536.1468; found 536.1456.

3-Bromo-4-(3-hydroxy-4-methoxyphenyl)-1-(3,4,5-trimethoxyphenyl) azetidin-2-one (16j)

Compound 16i was deprotected with tert-butylammonium fluoride (t-BAF) using the method as described above for compound 10n to afford the product as a red oil; 32%, 13 mg, HPLC: 100%. IR Vmax (ATR): 3502.80, 1719.42 cm−1 (OH, C=O β-lactam). 1H NMR (400 MHz, CDCl3) δ ppm 3.70 (s, 3 H, OCH3), 3.89 (s, 9 H, OCH3), 4.58 (d, J = 2.07 Hz, 1 H, H4), 4.86 (d, J = 2.07 Hz, 1 H, H3), 6.27 (s, 1 H, OH ), 6.52 (s, 2 H, H5′’, H6′’), 6.87 (d, J = 4.98 Hz, 1 H, H5′’) 6.92 (d, J = 2.07 Hz, 1 H, H6′’) 6.96 (s, 1 H, H2′’). 13C NMR (100 MHz, CDCl3) δ ppm 49.67 (C3), 56.07, 60.46 (OCH3), 63.65 (C4), 95.36 (C2′, C6′), 111.09 (C5′’), 113.19 (C2′’), 118.14 (C6′’), 125.48 (C4′), 132.90 (C1′), 137.23 (C1′’), 146.48 (C3′’), 146.68 (C4′’), 153.51 (C3′, C5′), 176.45 (C2, C=O). HRMS: [M + H]+ calculated for C19H21BrNO6, 438.0554; found 438.0546.

3.1.4. 5-(3,3-Dichloro-1-(3,4,5-trimethoxyphenyl)-4-oxoazetidin-2-yl)-2-methoxyphenyl dibenzyl phosphate (17)

Carbon tetrachloride (85 mmol) was added to a solution of phenol 11n (17 mmol) in acetonitrile (100 mL cooled to 0 °C). The resulting solution was stirred for 10 min, then diisopropylethylamine (35 mmol) and dimethylaminopyridine (1.7 mmol) were added, followed by a dropwise addition of dibenzyl phosphate (24.5 mmol). When the reaction was complete, 0.5 M KH2PO4 (aq) was added, and the mixture was allowed to warm to room temperature. An ethyl acetate extract (3×50 mL) was washed with saturated sodium chloride solution (100 mL) followed by water (100 mL) and the mixture was dried using anhydrous sodium sulfate. The solvent was reduced in vacuo and the product was isolated using flash column chromatography over silica gel (eluent, n-hexane: ethyl acetate gradient). Yield: 66%, 326 mg, brown oil. IR (NaCl, film) Vmax: 2945, 1748 (C=O, β-lactam), 1605, 1507, 1321 (P=O), 1237 cm−1. 1H NMR (400 MHz, CDCl3): δ 3.72 (s, 6H, OCH3), 3.78 (s, 3H, OCH3), 3.83 (s, 3H, OCH3), 5.12–5.18 (m, 4H (OCH2Ph)2), 5.36 (s, 1H, H4), 6.53 (s, 2H, H2′, H6′), 6.96–7.19 (m, 3H, H2′’, H5′’, H6′’), 7.31–7.36 (m, 10H, Ar-H). 13C NMR (100 MHz, CDCl3): δ 55.52, 55.72, 60.52 (OCH3), 69.57, 69.60, 69.65 (OPO(OCH2Ph)2), 73.04 (C4), 83.57 (C3), 95.36 (C2′, C6′), 112.27 (C5′’), 120.87 (C2′’), 124.82 (C6′’), 127.42, 127.53, 128.17, 128.20, 128.27, 131.27 (C4′), 134.93, 135.00, 135.27, 139.40, 151.48, 153.22 (C3′, C5′), 157.77 (C2). HRMS: found 710.1107 [M + Na]+; C33H3235Cl2NO9PNa requires 710.1089.

3.1.5. 5-(3,3-Dichloro-1-(3,4,5-trimethoxyphenyl)-4-oxoazetidin-2-yl)-2-methoxyphenyl dihydrogen phosphate (18)

The dibenzylphosphate ester 17 (2 mmol) was dissolved in ethanol:ethyl acetate (50 mL; 1:1 mixture) and hydrogenated over 1.2 g of 10% palladium on carbon until reaction was complete, as monitored by TLC (approximately 3 h). The catalyst was filtered, the solvent was reduced in vacuo and the product isolated using flash column chromatography over silica gel (eluent, n-hexane: ethyl acetate gradient). Yield: 75%, 213 mg, brown oil. IR (NaCl, film) Vmax: 3429 (OH), 1778 (C=O, β-lactam), 1298 (P=O), 1240, 1128 cm−1. 1H NMR (400 MHz, CDCl3): δ 3.66 (s, 9H, OCH3), 3.73 (s, 3H, OCH3), 5.45 (s, 1H, H4), 6.52 (s, 2H, H2′, H6′), 6.88–7.38 (m, 3H, H2′’, H5′’ H6′’). 13C NMR (100 MHz, CDCl3): δ 55.48, 55.72, 60.46 (OCH3), 72.86 (C4), 83.48 (C3), 95.52 (C2′, C6′), 112.12 (C5′’), 120.79 (C2′’), 124.22 (C6′’), 127.86 (C4′), 131.16 (C1′), 135.05 (C1′’), 140.03 (C3′’), 151.08 (C4′’), 153.10 (C3′, C5′), 157.79 (C2). HRMS: found 506.0200 [M-H]; C19H1935Cl2NO9P requires 506.0174.

3.2. Stability Study for Compound 16a

A stability study for compound 16a was performed by analytical HPLC using a Symmetry® column (C18, 5 mm, 4.6 × 150 mm), a Waters 2487 Dual Wavelength Absorbance detector, a Waters 1525 binary HPLC pump and a Waters 717 plus Autosampler (Waters Corporation, Milford, MA, USA). Samples were detected at λ 254 nm using acetonitrile (70%)/water (30%) as the mobile phase over 15 min and a flow rate of 1 mL/min. A stock solution of the compound was prepared using 10 mg of compound 16a in 10 mL of mobile phase (1 mg/mL). A calibration curve was prepared using a solution of 0.5, 0.25, 0.125, 0.0625, 0.03125, 0.015625 and 0.0078 mg/mL. (i) Stability of 16a in phosphate buffers: Phosphate buffers at pH values 4, 7.4 and 9 were prepared according to the British Pharmacopoeia 2020. A total of 300 µL of stock solution (1 mg/mL ACN) for 16a was added to a vial containing 9.7 mL of buffer, mixed and pre-heated to 37°C. A total of 1 mL of the solution was added to the HPLC glass vial and 10 µL was injected, followed by hourly injections for a 24-h period. Samples were withdrawn and analysed at time intervals of t = 0 min, 5 min, 30 min, 60 min and hourly for 24 h. The analysis was performed in triplicate. (ii) Thermal stability: 16a (1 mg) was placed in a vial (for the solution, 1 mL of stock solution was used) at 60 °C for 4 h on a heating block. The sample was then cooled, diluted with ACN and analysed using HPLC. (iii) Photostability study: A solution of compound 16a (1 mL of the stock solution) was placed in a vial and exposed to UV light for 4 h. The sample was directly analysed using HPLC. (iv) Stability in acidic condition: The stock solutions (0.8 mL) of 16a were placed in a vial and HCl (0.1 M, 0.2 mL) was added. The vial was vortexed to ensure a homogeneous mixture and left to stand at room temperature. A sample from the vial was taken and neutralised with NaOH (0.1 M, 0.2 mL) every hour for 4 h. Once neutralised, the samples were analysed using HPLC. (v) Stability of 16a in basic (alkaline) conditions: The stock solution (0.8 mL) was placed in a vial and NaOH (0.1 M, 0.2 mL) was added. The vial was vortexed to ensure a homogeneous mixture and left to stand at room temperature. A sample from the vial was neutralised with HCl (0.1 M, 0.2 mL) every hour for the 4 h. Once neutralised, the samples were analysed using HPLC. (vi) Stability of 16a in oxidising conditions: The stock solution (0.8 mL) was placed in a vial and H2O2 (3%, 0.2 mL) was added. The vial was vortexed to ensure a homogeneous mixture and left to stand for 4 h at room temperature. A sample from the vial was taken every hour over 4 h and analysed using HPLC.

3.3. Biochemical Evaluation of Activity

All biochemical assays were performed in triplicate on at least three independent occasions for the determination of mean values reported. All the reagents including foetal bovine serum (FBS) and cell culture growth medium (MEM, DMEM and RPMI-1640) were purchased from BD Biosciences. CA-4 was purchased from Sigma Aldrich.

3.3.1. Cell Culture

The human breast carcinoma cell line MCF-7 was purchased from the European Collection of Animal Cell Cultures (ECACC). Triple negative breast cancer Hs578T cells and its invasive variant Hs578Ts(i)8 were a kind gift from Dr. Susan McDonnell, School of Chemical and Bioprocess Engineering, University College Dublin. U266 cells were a gift from Dr. Tony McElligott, School of Medicine, St James’s Hospital, Trinity College Dublin. HT-29 cells were purchased from the European Collection of Cell Cultures (originating from a human adenocarcinoma of the colon). The human breast carcinoma cell line MDA-MB-231 and the HL-60 cells derived from a patient with acute myeloid leukaemia were both obtained from ECACC (Salisbury, UK). The SW-480 cells were a kind gift from Dr. Brian Flood, School of Biochemistry and Immunology, Trinity College Dublin. HEK-293T (normal epithelial embryonic kidney cells) were cultured in Dulbecco’s Modified Eagle’s Medium (DMEM) with GlutaMAXTM-I in the absence of non-essential amino acids. Human breast cancer MCF-7 cells and multiple myeloma U266 cells were cultured in Minimum Essential Media (MEM) with GlutaMAX™-I, supplemented with 1% (v/v) non-essential amino acids, 10% 2(v/v) foetal bovine serum (FBS) and 1% (v/v) penicillin/streptomycin 5000 U/mL. MDA-MB-231 cells were maintained in DMEM supplemented with 10% (v/v) foetal bovine serum, 2 mM L-glutamine and 100 μg/mL penicillin/streptomycin (complete medium). Colon cancer HT-29 and SW-480 and triple negative breast cancer Hs578T and its invasive variant Hs578T8i were cultured in DMEM with GlutaMAX™-I, with the same supplement in the absence of non-essential amino acids. Leukaemia HL-60 cancer cells were cultured in Roswell Park Memorial Institute Media (RPMI-1640) with GlutaMAX™-I, supplemented with 10% FCS media, and 100 μg/mL penicillin/streptomycin as above. Cell numbers were monitored using a haemocytometer. Cell culture flasks were incubated in a humidified incubator (5% CO2/95% air) at 37 °C. All cell lines were sub-cultured three times per week with trypsinisation using TrypLE Express (1X) required for adherent cell lines.

3.3.2. Cell Viability Assay

A stock solution of each β-lactam compound was prepared (10 mM) and serial 100× dilutions were made with ethanol for compounds to have working dilutions of 1 nM, 10 nM, 100 nM, 500 nM, 1µM, 5 µM, 10 µM and 50 µM. CA-4 was dissolved in ethanol to obtain a 10 mM stock solution. All stock solutions and serial dilution in ethanol/DMSO were stored at -20 °C. All cells were seeded at a density of 2.5 × 104 cells/mL in a 96-well plate (200 μL per well). The cells were incubated in a 95% O2/5% CO2 atmosphere at 37 °C for 24 h, then treated with test compound (2 μL of stock solutions per 200-microlitre well) in ethanol to obtain a concentration range of 1 nM–200 μM for the study. The plates were then re-incubated for a further 72 h. Control wells contained an equivalent volume of the vehicle ethanol or DMSO (1% v/v). MTT cell viability assay: The culture medium was removed, and the cells were washed with phosphate buffered saline (PBS, 100 mL). MTT (dissolved in PBS, 50 mL) was added to obtain a final concentration of MTT (1 mg/mL). Cells were incubated at 37 °C for 3 h in the dark. Solubilisation was commenced by the addition of DMSO (200 mL) and the cells were maintained at 20 °C in the dark for 20 min before reading the absorbance to ensure complete colour diffusion. The absorbance value of control cells (no added compound) was set to 100% cell viability and absorbance versus cell density per well was determined to assess cell viability using Graph-Pad Prism software. AlamarBlue cell viability assay: Cells were seeded in 96-well plates (e.g., MCF-7, 5 × 103 cells/well) and (HT-29 cells, 1 × 103 cells/well) and (HL-60 cells, 1 × 104 cells/well) with a total volume per well of 200 µL. After 24 h, cells were treated in triplicate with serial dilutions of CA-4 or β-lactam analogues (0.001–100 μM), medium alone or vehicle (1% ethanol (v/v)). Ethanol or DMSO were used as vehicle control and cells were treated with no more than 1% ethanol (v/v) or 0.1% DMSO in all experiments. Cell proliferation for cells was analysed using the AlamarBlue assay (Invitrogen Corp.) following the manufacturer’s instructions. After 72 h, AlamarBlue (10% (v/v) (20 μL)) was added to each well and plates were incubated in the dark at 37 °C for 3–5 h. The blank consisted of the appropriate medium (according to cell type) with the addition of AlamarBlue. Plates were analysed on the 96-well fluorimeter Spectramax Gemini plate reader with excitation at 530 nm and emission at 590 nm using a SOFTmax Pro version 4.9 (Molecular Devices, Sunnyville, C.A) software package and the percentage viability relative to vehicle control was recorded. Results were plotted using GraphPad Prism 5 software and analysed using a non-liner, sigmoidal dose response curve to determine the relative IC50 values. All assays were performed in triplicate for the determination of mean values reported.

3.3.3. Lactate Dehydrogenase Assay for Cytotoxicity

The cytotoxicity of selected compounds was determined using the CytoTox 96 non-radioactive cytotoxicity assay (Promega Corporation, Madison, WI, USA) [104]. Briefly, MCF-7 cells were seeded in a 96-well plate (200 μL per well), at a density of 2.5 × 104 cells/mL, and incubated for 24 h. The cells were then treated with selected β-lactam compounds as described above for the cell viability assay. After 72 h, ‘lysis solution (10X)’ (20 μL) was added to the plate and incubated for a further 1 hr to ensure 100% death. Supernatant (50 μL) was removed from each well to a 96-well plate. Reconstituted ‘CytoTox 96® Reagent (50 μL) was added to each well and the plate was placed in the dark at 20 °C for 30 min. ‘Stop solution’ (50 μL) was added to each well and the samples were analysed at 490 nm using a Dynatech MR5000 plate reader. The percentage cell death at 10 μM was calculated.

3.3.4. Cell Cycle Analysis

Flow cytometric analysis was used to determine DNA level in any given cell that had been stained with propidium iodide (PI) [105]. In this experiment, adherent and detached cells were collected by trypsinisation and centrifuged at 800× g for 15 min. Cells were then washed three times with ice-cold PBS and fixed with slow addition of ice-cold 70% ethanol overnight at −20 °C. The cells were then centrifuged (800× g) for 15 min; the pellet was re-suspended in PBS (400 µL) and transferred to LP5 FACS tubes. Cells were then stained with PI (50 μg/mL), containing DNase-free RNase A (50 μg/mL) at 37 °C for 30 min, which degrades any double-strand RNA. The DNA content of the cells (10,000 cells/experimental group) was analysed by flow cytometry at 488 nm using a FACSCalibur flow cytometer (BD Biosciences, San Jose, CA, USA). Results were presented as mean ± SEM. The statistical analysis of experimental data was performed using the program Prism GraphPad 5. A two-way ANOVA (Bonferroni post-test) was used to test for statistical significance (**, p < 0.05, ***, p < 0.001). A value of p < 0.05 was considered to be significant.

3.3.5. Annexin V/PI Apoptotic Assay

The Annexin V/Propidium Iodide (PI) assay was used to detect both early- and late-stage apoptosis using flow cytometry, as previously reported [34]. Early apoptosis is detected by the presence of phosphatidylserine (PS) on the outer surface of the cell membrane. PS is a phospholipid normally found on the cytoplasmic surface of the cell membrane. In apoptosis, PS is translocated to the outer surface of the cell membrane, and is exposed to the extracellular environment [106]. MCF-7 cells were seeded in 6-well plates (1 × 105 cells/mL) and treated with either vehicle (0.1% (v/v) EtOH), CA-4 (50 nM) or β-lactam compound 10n (50 and 500 nM) for 48 h. Cells were then analysed using flow cytometry. Cells were first washed in 1X binding buffer (20X binding buffer: 0.1 M HEPES, pH 7.4; 1.4 M NaCl; 25 mM CaCl2 diluted in dH2O) and treated for 30 min on ice in Annexin V-containing binding buffer (1:100) in the dark. Cells were washed in binding buffer and then re-suspended in PI-containing binding buffer (1:1000). Samples were analysed without delay using the BD Accuri flow cytometer and the data analysed with GraphPad Prism software.

3.3.6. In Vitro Tubulin Polymerisation Assay

The assembly of purified bovine tubulin was monitored using a kit, BK006, purchased from Cytoskeleton Inc. (Denver, CO, USA) [89] as we have previously reported [34]. Briefly, purified bovine brain tubulin (>99%, 3 mg/mL) in a buffer (80 mM PIPES (pH 6.9), 0.5 mM EGTA, 2 mM MgCl2, 1 mM GTP and 10% glycerol) was incubated at 37 °C in the presence of either vehicle (2% (v/v) ddH2O) or β-lactam compounds 10e and 11n (10 µM). A reference control experiment with CA-4 was also used (See Supplementary information). Light was scattered proportionally, dependent on the concentration of polymerised microtubules in the sample. Tubulin assembly was monitored turbidimetrically at 37 °C in a Spectramax 340 PC spectrophotometer (Molecular Devices, Sunnyvale, CA, USA) at 340 nm. The absorbance was measured at 30-s intervals for 60 min.

3.3.7. Colchicine Binding-Site Assay

The assay was performed as we have previously reported [74]. N,N′-Ethylene-bis(iodoacetamide) (EBI) (Santa Cruz Biotechnology) was dissolved in ethanol (100 μM). MCF-7 cells were seeded at a density of 5 × 104 cells/well in 6-well plates and incubated overnight. Cells were treated with vehicle control (ethanol (0.1% v/v)), colchicine or CA-4 and selected β-lactam compound (all 10 μM) for 2 h. After this time, selected wells were treated with EBI (100 μM) for 1.5 h. Following treatment, cells were twice washed with ice-cold PBS and lysed by addition of Laemmli buffer. Samples were separated by SDS-PAGE, transferred to polyvinylidene difluoride (PVDF) membranes, and probed with β-tubulin antibodies (Sigma Aldrich, Milwaukee, WI, USA) as previously described [74,93].

3.3.8. Immunofluorescence Assay

Confocal microscopy was used to study the effects on MCF-7 cytoskeleton following treatment with compound 10n following the protocols previously reported [34]. For each experiment, all images were collected on the same day using identical parameters. MCF-7 cells were seeded (1 × 105 cells/mL) on eight chamber glass slides. Cells were either untreated or treated with vehicle (1% ethanol (v/v)), CA-4 (0.05 µM), Paclitaxel (1 μM) and β-lactam compound 10n at 0.05, 0.1 and 0.5 μM concentrations for 16 h. The cells were then gently washed in PBS, fixed for 30 min with 100% ice-cold MeOH. Cells were washed three times in PBS for 10 min and then permeabilised in 0.5% Triton X-100. The cells were subsequently washed in PBS containing 0.1% Tween (PBST), blocked in bovine serum albumin (5%) diluted in PBST. Cells were then incubated with a mouse monoclonal anti-α-tubulin−FITC antibody (clone DM1A) (1:200) for 2 h at 20 °C. Following washes in PBST, cells were incubated with Alexa Fluor 488 dye (1:500) for 1 h at 20 °C. Following further washes in PBST, the cells were mounted in Ultra Cruz Mounting Media, which contained 4,6-diamino-2-phenolindol dihydrochloride (DAPI). The images were photographed using Leica SP8 confocal microscopy with Leica application suite X software. Experiments were performed on three independent occasions.

3.3.9. Western Blot Analysis

MCF-7 cells were seeded at a density of 1 × 105 cells/flask in T25 flasks. After 48 h, whole cell lysates were prepared from untreated cells or cells treated with vehicle control (Ethanol, 0.1% v/v) or compound 10n (0.05, 0.1 and 0.5 μM). MCF-7 cells were harvested in RIPA buffer supplemented with protease inhibitors (Roche Diagnostics), phosphatase inhibitor cocktail 2 (Sigma-Aldrich, St. Louis, MI, USA), and phosphatase inhibitor cocktail 3 (Sigma-Aldrich). Equal quantities of protein (as determined using a BCA assay) were resolved by SDS-PAGE (12%) followed by transfer to PVDF membranes. Membranes were blocked for 1 h using 5% bovine serum albumin/TBST then incubated in the relevant primary antibodies at 4 °C overnight. Membranes were washed with TBST, incubated in horseradish peroxidase conjugated secondary antibody for 1 h at room temperature and washed again. Western blot analysis, using antibodies directed against Bcl-2 (1:500) (Millipore), BAX (1:1000) (Millipore) or Mcl-1 (1:1000) (Millipore), was followed by incubation with a horseradish peroxidase-conjugated anti-mouse antibody [1:2000] (Promega, Madison, WI, USA). Blots were probed with anti-GAPDH antibody (1:5000) (Millipore) to confirm equal loading. Proteins were detected using enhanced chemiluminescent Western blot detection (Clarity Western ECL substrate) (Bio Rad) on the ChemiDoc MP System (Bio Rad). Experiments were performed on two independent occasions.

3.4. X-ray Crystallography

Data for samples 9o, 10o/16g and 11o were collected on a Bruker APEX DUO using Mo Kα radiation (λ = 0.71073 Å). Each sample was mounted on a MiTeGen cryoloop and data was collected at 100(2) K using an Oxford Cobra cryosystem. Bruker APEX software [107] was used to collect and reduce data, determine the space group and solve and refine the structures. Absorption corrections were applied using SADABS [108]. Data for 10e were collected on a Rigaku Saturn 724 (Mo Kα radiation, λ = 0.71073 Å) equipped with a Rigaku X-Stream low temperature device. The sample was mounted on a Hampton cryoloop and data were collected at 93(2) K. Data were measured using 0.3° scans per frame for 20 s. A total of 852 frames were collected with a final resolution of 0.77 Å. Data reduction and correction for Lorenz, polarisation and absorption were performed using the CrystalClear software. Absorption corrections were applied using REQAB (Rigaku Inc., 2007). Structures 10o/16g and 11o were solved with the SHELXT structure solution program [109] using Intrinsic Phasing and 9o and 10e with SHELXS with direct methods. All were refined using Least Squares method on F2 with SHELXL. All non-hydrogen atoms were refined anisotropically. Hydrogen atoms were assigned to calculated positions using a riding model with appropriately fixed isotropic thermal parameters. Molecular graphics were generated using OLEX2 [110]. In the structure of 10o, the halogen substituted 3 position on the lactam ring was modelled between Cl and Br with 75:25% of each, respectively. The occupancy was freely refined then fixed. C-Cl and C-Br distances were restrained (DFIX) and the atomic displacement of both halides was also constrained (EADP). In 11o, the 4 substituent, the Me(OMe)Ph ring, was modelled in two locations with restraints (SADI) and constraints (EADP). The refined occupancies of each moiety were 81:19%. Crystallographic data for the structures in this paper have been deposited with the Cambridge Crystallographic Data Centre as supplementary publication nos. 2077515-2077518. Copies of the data can be obtained, free of charge, on application to CCDC, 12 Union Road, Cambridge CB2 1EZ, UK (fax: +44-(0)1223-336033 or e-mail: [email protected]).

3.5. Computational Procedure for Molecular Docking

The 1SA0 X-ray structure of bovine tubulin co-crystallised with N-deacetyl-N-(2-mercaptoacetyl)-colchicine (DAMA-colchicine) was downloaded from the PDB website [6]. A UniProt Align analysis confirmed a 100% sequence identity between human and bovine β tubulin. The crystal structure was prepared using QuickPrep (minimised to a gradient of 0.001 kcal/mol/Å), Protonate 3D, Residue pKa and Partial Charges protocols in MOE 2019 with the MMFF94x force field. Compounds 10n, 11n and 14b were drawn in MOE, saved as an mdb and processed in MOE [101]. Both trans enantiomers of the compounds 10n, 11n and 14b were examined. For each compound, MMFF94x partial charges were calculated, and each was minimised to a gradient of 0.001 kcal/mol/Å. Default parameters were used for docking except that 300 poses were sampled for each compound and the top 50 docked poses were retained for subsequent analysis. Default settings of OMEGA [111,112] were used to generate 50 conformers of each compound prior to running rigid docking with FRED [113], included in the OEDocking suite [111].

4. Conclusions

Microtubule-targeting drugs such as taxanes and vinca alkaloids are very effective therapeutic agents in the treatment of various types of cancers. Interestingly, the antiviral activity of the bis-indole microtubule targeting drug sabizabulin (VERU-111) against SARS CoV-2 was recently reported [114]. Sabizabulin binds to tubulin and disrupts the intracellular transport of the SARS CoV-2 virus; it also demonstrates an effective anti-inflammatory effect. In this work, a novel series of heterocyclic combretastatin CA-4 compounds based on the β-lactam scaffold were designed and synthesised as tubulin-targeting agents. All the novel compounds were initially evaluated in the MCF-7 breast cancer cell line and of particular interest were compounds 10e, 10n and 11n, which displayed antiproliferative activity in the nanomolar range, e.g., 10e (IC50 = 34 nM), 10n (IC50 = 17.5 nM) and 11n (IC50 = 31 nM) in MCF-7 cells. These compounds were identified for further studies to provide a better understanding of their mechanism of action in breast cancer cells. Minimal cytotoxicity was observed on the treatment of the most potent compound 10n in the non-tumourigenic cell line HEK-293T, demonstrating the selectivity of the compounds toward cancer cells. The compounds were evaluated in the NCI 60 cancer cell line panel and demonstrated significant antiproliferative activity at nanomolar concentrations in a range of human cancer cell lines. Cell cycle analysis of compound 10n in MCF-7 cells demonstrated that this compound induces G2/M arrest and apoptotic cell death. The induction of apoptosis in MCF-7 cells by compound 10n was confirmed using flow cytometric analysis of Annexin V/PI-stained cells. An alteration of the expression levels of apoptosis-related proteins Bax, Bcl-2 and Mcl-1 in MCF-7 cells was shown using Western blot analysis. To examine whether the antiproliferative activities might be related to the depolymerisation of tubulin, the inhibitory effects of compounds 10e and 11n on tubulin polymerisation were confirmed with the suppression of in vitro tubulin polymerisation. The tubulin depolymerisation effects of compound 10n were confirmed when MCF-7 cells treated with the β-lactam 10n displayed a disorganised microtubule network with similar multinucleation effects to CA-4. Tubulin EBI-adduct formation was inhibited in MCF-7 cells treated with 10n, indicating an interaction with the colchicine binding site of tubulin. Our data strongly indicate that this class of β-lactams represent interesting lead molecules with the potential for a design of potent microtubule-targeting agents and further clinical anti-cancer drug development.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/ph14111119/s1: Table S1: Tier-1 Profiling Screen of Selected 3-chloroazetidinones, 3,3-dichloroazetidinones and related compounds; Table S2: ADMET and Lipinski Properties for Selected 3-chloroazetidinones, 3,3-dichloroazetidinones and related compounds; Table S3: Standard COMPARE Analysis of compounds 10e, 11n and 16d; Table S4: Cell cycle analysis of MCF-7 cells following treatment with 10n. Figure S1: Effect of control compound CA-4 on tubulin polymerization in vitro; Figures S2–S21: 1H NMR and 13C NMR spectra.

Author Contributions

Conceptualisation, T.F.G., S.W., A.M.M. and M.J.M.; formal analysis, S.W., A.M.M., B.T., T.M., S.M.N., D.F., N.M.O., T.F.G. and M.J.M.; funding acquisition, A.M.M. and M.J.M.; investigation, S.W., T.F.G., A.M.M., S.M.N., D.F. and M.F.K.: methodology, S.W., A.M.M., D.F., B.T. and S.M.N.; supervision, M.J.M. and D.M.Z.; writing—original draft, M.J.M., S.W. and A.M.M.; writing—review and editing, M.J.M., A.M.M., N.M.O., D.M.Z. and D.F. All authors have read and agreed to the published version of the manuscript.

Funding

The research conducted in this publication was jointly funded by the Irish Research Council under grant number GOIPD/2020/615 (MFK), a postgraduate research scholarship from King Abdulaziz University (KAU), Ministry of 1871 Higher Education, Kingdom of Saudi Arabia (Ref. IRKA1001; AMM) and by Postgraduate research scholarships from Trinity College Dublin (S.W., T.F.G.).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data sharing not applicable.

Acknowledgments

The Trinity Biomedical Sciences Institute (TBSI) is supported by a capital infrastructure investment from Cycle 5 of the Irish Higher Education Authority’s Programme for Research in Third Level Institutions (PRTLI). A postgraduate research scholarship from King Abdulaziz University (KAU), Ministry of Higher Education, Saudi Arabia (Ref. IRKA1001; AMM) and the Irish Re-search Council grant number GOIPD/2020/615 (MFK) are gratefully acknowledged. This study was also co-funded under the European Regional Development and Trinity College Dublin post-graduate research award (SW and TFG). We thank Gavin McManus for assistance with confocal microscopy, Barry Moran for assistance with flow cytometry and Gabriela Duffy Morales for syn-thetic and analytical contribution. We thank John O’Brien and Manuel Ruether for NMR spectra. D.F. thanks the software vendors for their continuing support of academic research efforts, in particular the contributions of the Chemical Computing Group, Biovia and OpenEye Scientific. The support and provisions of Dell Ireland, the Trinity Centre for High Performance Computing (TCHPC) and the Irish Centre for High-End Computing (ICHEC) are also gratefully acknowl-edged.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

ADCAntibody-drug conjugate
ATRAttenuated total reflection
CA-4Combretastatin A-4
DAMAN-deacetyl-N-(2-mercaptoacetyl)colchicine
DBU1,8-Diazabicyclo[5.4.0]undec-7-ene
DCMDichloromethane
DEPTDistortionless Enhancement by Polarisation Transfer
DMEMDulbecco’s Mod
DMSODimethylsulfoxide
ECACCEuropean Collection of Animal Cell Cultures
EGFREpidermal growth factor receptor
EREstrogen receptor
FACSFluorescence activated cell sorting
FBSFoetal bovine serum
GI5050% Growth inhibitory concentration
HER2Human epidermal growth factor receptor 2
HDBCHormone-dependent breast cancer
HRHormone receptor
IC50Half-maximal inhibitory concentration
LC50Median lethal concentration
MDRMultidrug resistant
MEMMinimum essential media
MTAMicrotubule-targeting agent
NCINational Cancer Institute
NMRNuclear magnetic resonance
NSCLCNon-small-cell lung cancer
PBSPhosphate buffered saline
PBSTPhosphate buffered Saline with Tween® 20
PIPropidium iodide
PIK3Phosphatidylinositol-4,5-Bisphosphate 3-Kinase
PRProgesterone receptor
SERMSelective estrogen receptor modulator
t-BAFtert-Butylammonium fluoride
TBDMSCltertButyldimethylsilyl chloride
TGITotal growth inhibitory concentration
THFTetrahydrofuran
TLCThin layer chromatography
TNBCTriple-negative breast cancer
TPSATopological polar surface area
VDAVascular targeting agent

References

  1. Steinmetz, M.O.; Prota, A.E. Microtubule-Targeting Agents: Strategies to Hijack the Cytoskeleton. Trends Cell Biol. 2018, 28, 776–792. [Google Scholar] [CrossRef]
  2. Kaul, R.; Risinger, A.L.; Mooberry, S.L. Microtubule-Targeting Drugs: More than Antimitotics. J. Nat. Prod. 2019, 82, 680–685. [Google Scholar] [CrossRef]
  3. Khongorzul, P.; Ling, C.J.; Khan, F.U.; Ihsan, A.U.; Zhang, J. Antibody–Drug Conjugates: A Comprehensive Review. Mol. Cancer Res. 2019, 18, 3–19. [Google Scholar] [CrossRef] [Green Version]
  4. Prota, A.E.; Bargsten, K.; Díaz, J.F.; Marsh, M.; Cuevas, C.; Liniger, M.; Neuhaus, C.; Andreu, J.M.; Altmann, K.-H.; Steinmetz, M.O. A new tubulin-binding site and pharmacophore for microtubule-destabilizing anticancer drugs. Proc. Natl. Acad. Sci. USA 2014, 111, 13817–13821. [Google Scholar] [CrossRef] [Green Version]
  5. Guo, H.; Li, X.; Guo, Y.; Zhen, L. An overview of tubulin modulators deposited in protein data bank. Med. Chem. Res. 2019, 28, 927–937. [Google Scholar] [CrossRef]
  6. Ravelli, R.; Gigant, B.; Curmi, P.A.; Jourdain, I.; Lachkar, S.; Sobel, A.; Knossow, M. Insight into tubulin regulation from a complex with colchicine and a stathmin-like domain. Nature 2004, 428, 198–202. [Google Scholar] [CrossRef]
  7. Slobodnick, A.; Shah, B.; Krasnokutsky, S.; Pillinger, M.H. Update on colchicine, 2017. Rheumatology 2018, 57, i4–i11. [Google Scholar] [CrossRef] [Green Version]
  8. Gracheva, I.A.; Shchegravina, E.S.; Schmalz, H.-G.; Beletskaya, I.P.; Fedorov, A.Y. Colchicine Alkaloids and Synthetic Analogues: Current Progress and Perspectives. J. Med. Chem. 2020, 63, 10618–10651. [Google Scholar] [CrossRef]
  9. Majcher, U.; Klejborowska, G.; Kaik, M.; Maj, E.; Wietrzyk, J.; Moshari, M.; Preto, J.; Tuszynski, J.A.; Huczyński, A. Synthesis and Biological Evaluation of Novel Triple-Modified Colchicine Derivatives as Potent Tubulin-Targeting Anticancer Agents. Cells 2018, 7, 216. [Google Scholar] [CrossRef] [Green Version]
  10. Greene, L.M.; Meegan, M.J.; Zisterer, D.M. Combretastatins: More than just vascular targeting agents? J. Pharmacol. Exp. Ther. 2015, 355, 212–227. [Google Scholar] [CrossRef]
  11. Pettit, G.R.; Singh, S.B.; Hamel, E.; Lin, C.M.; Alberts, D.S.; Garcia-Kendal, D. Isolation and structure of the strong cell growth and tubulin inhibitor combretastatin A-4. Cell. Mol. Life Sci. 1989, 45, 209–211. [Google Scholar] [CrossRef]
  12. Chase, D.M.; Chaplin, D.J.; Monk, B.J. The development and use of vascular targeted therapy in ovarian cancer. Gynecol. Oncol. 2017, 145, 393–406. [Google Scholar] [CrossRef] [Green Version]
  13. Grisham, R.; Ky, B.; Tewari, K.S.; Chaplin, D.J.; Walker, J. Clinical trial experience with CA-4P anticancer therapy: Focus on efficacy, cardiovascular adverse events, and hypertension management. Gynecol. Oncol. Res. Pract. 2018, 5, 1. [Google Scholar] [CrossRef] [Green Version]
  14. Karatoprak, G.; Akkol, E.K.; Genç, Y.; Bardakci, H.; Yücel, C.; Sobarzo-Sánchez, E. Combretastatins: An Overview of Structure, Probable Mechanisms of Action and Potential Applications. Molecules 2020, 25, 2560. [Google Scholar] [CrossRef] [PubMed]
  15. Zhang, Y.; Zhang, Q.; Wei, F.; Liu, N. Progressive study of effects of erianin on anticancer activity. OncoTargets Ther. 2019, 12, 5457–5465. [Google Scholar] [CrossRef] [Green Version]
  16. Pettit, G.R.; Toki, B.; Herald, D.L.; Verdier-Pinard, P.; Boyd, M.R.; Hamel, E.; Pettit, R.K. Antineoplastic Agents. 379. Synthesis of Phenstatin Phosphate. J. Med. Chem. 1998, 41, 1688–1695. [Google Scholar] [CrossRef]
  17. Hamze, A.; Alami, M.; Provot, O. Developments of isoCombretastatin A-4 derivatives as highly cytotoxic agents. Eur. J. Med. Chem. 2020, 190, 112110. [Google Scholar] [CrossRef]
  18. Aprile, S.; Del Grosso, E.; Tron, G.C.; Grosa, G. In vitro metabolism study of combretastatin A-4 in rat and human liver mi-crosomes. Drug Metab. Dispos. 2007, 35, 2252–2261. [Google Scholar] [CrossRef] [Green Version]
  19. Gaspari, R.; Prota, A.E.; Bargsten, K.; Cavalli, A.; Steinmetz, M.O. Structural Basis of cis - and trans -Combretastatin Binding to Tubulin. Chem 2017, 2, 102–113. [Google Scholar] [CrossRef] [Green Version]
  20. McLoughlin, E.C.; O’Boyle, N.M. Colchicine-binding site inhibitors from chemistry to clinic: A review. Pharmaceuticals 2020, 13, 8. [Google Scholar] [CrossRef] [Green Version]
  21. La Regina, G.; Coluccia, A.; Naccarato, V.; Silvestri, R. Towards modern anticancer agents that interact with tubulin. Eur. J. Pharm. Sci. 2019, 131, 58–68. [Google Scholar] [CrossRef] [PubMed]
  22. Arnst, K.E.; Wang, Y.; Hwang, D.-J.; Xue, Y.; Costello, T.; Hamilton, D.; Chen, Q.; Yang, J.; Park, F.; Dalton, J.T.; et al. A Potent, Metabolically Stable Tubulin Inhibitor Targets the Colchicine Binding Site and Overcomes Taxane Resistance. Cancer Res. 2017, 78, 265–277. [Google Scholar] [CrossRef] [Green Version]
  23. Fu, D.-J.; Li, P.; Wu, B.-W.; Cui, X.-X.; Zhao, C.-B.; Zhang, S.-Y. Molecular diversity of trimethoxyphenyl-1,2,3-triazole hybrids as novel colchicine site tubulin polymerization inhibitors. Eur. J. Med. Chem. 2019, 165, 309–322. [Google Scholar] [CrossRef]
  24. Naret, T.; Khelifi, I.; Provot, O.; Bignon, J.; Levaique, H.; Dubois, J.; Souce, M.; Kasselouri, A.; Deroussent, A.; Paci, A.; et al. 1,1-Diheterocyclic Ethylenes Derived from Quinaldine and Carbazole as New Tubulin-Polymerization Inhibitors: Synthesis, Metabolism, and Biological Evaluation. J. Med. Chem. 2018, 62, 1902–1916. [Google Scholar] [CrossRef]
  25. Khelifi, I.; Pecnard, S.; Bernadat, G.; Bignon, J.; Levaique, H.; Dubois, J.; Provot, O.; Alami, M. Synthesis and Anticancer Properties of Oxazepines Related to Azaisoerianin and IsoCoQuines. ChemMedChem 2020, 15, 1571–1578. [Google Scholar] [CrossRef]
  26. A Phase i/ii Trial of Crolibulin (epc2407) Plus Cisplatin in Adults with Solid Tumors with a Focus on Anaplastic Thyroid Cancer (atc). Available online: https://clinicaltrials.gov/ct2/show/nct01240590 (accessed on 14 September 2021).
  27. Zhang, Z.; Wang, C.; Ma, L.; Jiang, X.; Wu, C.; Wang, Y.; Jiang, Y.; Zheng, W.; Yang, Y.; Ma, Y.; et al. Molecular mechanism of crolibulin in complex with tubulin provides a rationale for drug design. Biochem. Biophys. Res. Commun. 2019, 511, 381–386. [Google Scholar] [CrossRef]
  28. Wang, Y.; Zhang, H.; Gigant, B.; Yu, Y.; Wu, Y.; Chen, X.; Lai, Q.; Yang, Z.; Chen, Q.; Yang, J. Structures of a diverse set of colchicine binding site inhibitors in complex with tubulin provide a rationale for drug discovery. FEBS J. 2015, 283, 102–111. [Google Scholar] [CrossRef]
  29. Tonra, J.R.; Lloyd, G.K.; Mohanlal, R.; Huang, L. Plinabulin ameliorates neutropenia induced by multiple chemotherapies through a mechanism distinct from G-CSF therapies. Cancer Chemother. Pharmacol. 2019, 85, 461–468. [Google Scholar] [CrossRef] [Green Version]
  30. Blayney, D.W.; Zhang, Q.; Feng, J.; Zhao, Y.; Bondarenko, I.; Vynnychenko, I.; Kovalenko, N.; Nair, S.; Ibrahim, E.; Udovista, D.P.; et al. Efficacy of plinabulin vs pegfilgrastim for prevention of chemotherapy-induced neutropenia in adults with non-small cell lung cancer: A phase 2 randomized clinical trial. JAMA Oncol. 2020, 6, e204429. [Google Scholar] [CrossRef]
  31. Bohnacker, T.; Prota, A.E.; Beaufils, F.; Burke, J.E.; Melone, A.; Inglis, A.J.; Rageot, D.; Sele, A.M.; Cmiljanovic, V.; Cmiljanovic, N.; et al. Deconvolution of buparlisib’s mechanism of action defines specific pi3k and tubulin inhibitors for therapeutic intervention. Nat. Commun. 2017, 8, 14683. [Google Scholar] [CrossRef] [Green Version]
  32. Ward, R.A.; Fawell, S.; Floc’H, N.; Flemington, V.; McKerrecher, D.; Smith, P.D. Challenges and Opportunities in Cancer Drug Resistance. Chem. Rev. 2020, 121, 3297–3351. [Google Scholar] [CrossRef]
  33. O’Boyle, N.M.; Carr, M.; Greene, L.M.; Bergin, O.; Nathwani, S.M.; McCabe, T.; Lloyd, D.G.; Zisterer, D.M.; Meegan, M.J. Synthesis and Evaluation of Azetidinone Analogues of Combretastatin A-4 as Tubulin Targeting Agents. J. Med. Chem. 2010, 53, 8569–8584. [Google Scholar] [CrossRef] [PubMed]
  34. Malebari, A.M.; Fayne, D.; Nathwani, S.M.; O’Connell, F.; Noorani, S.; Twamley, B.; O’Boyle, N.M.; O’Sullivan, J.; Zisterer, D.M.; Meegan, M.J. Beta-lactams with antiproliferative and antiapoptotic activity in breast and chemoresistant colon cancer cells. Eur. J. Med. Chem. 2020, 189, 112050. [Google Scholar] [CrossRef] [PubMed]
  35. Wang, S.; Malebari, A.M.; Greene, T.F.; O’Boyle, N.M.; Fayne, D.; Nathwani, S.M.; Twamley, B.; McCabe, T.; Keely, N.O.; Zisterer, D.M.; et al. 3-Vinylazetidin-2-Ones: Synthesis, Antiproliferative and Tubulin Destabilizing Activity in MCF-7 and MDA-MB-231 Breast Cancer Cells. Pharmaceuticals 2019, 12, 56. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Carr, M.; Greene, L.M.; Knox, A.J.; Lloyd, D.G.; Zisterer, D.M.; Meegan, M.J. Lead identification of conformationally restricted beta-lactam type combretastatin analogues: Synthesis, antiproliferative activity and tubulin targeting effects. Eur. J. Med. Chem. 2010, 45, 5752–5766. [Google Scholar] [CrossRef]
  37. O’Boyle, N.M.; Greene, L.M.; Bergin, O.; Fichet, J.-B.; McCabe, T.; Lloyd, D.G.; Zisterer, D.M.; Meegan, M.J. Synthesis, evaluation and structural studies of antiproliferative tubulin-targeting azetidin-2-ones. Bioorganic Med. Chem. 2011, 19, 2306–2325. [Google Scholar] [CrossRef] [PubMed]
  38. Nathwani, S.M.; Hughes, L.; Greene, L.M.; Carr, M.; O’Boyle, N.M.; McDonnell, S.; Meegan, M.J.; Zisterer, D.M. Novel cis-restricted beta-lactam combretastatin A-4 analogues display anti-vascular and anti-metastatic properties in vitro. Oncol. Rep. 2013, 29, 585–594. [Google Scholar] [CrossRef] [Green Version]
  39. Fu, D.J.; Zhang, Y.F.; Chang, A.Q.; Li, J. Beta-lactams as promising anticancer agents: Molecular hybrids, structure activity relationships and potential targets. Eur. J. Med. Chem. 2020, 201, 112510. [Google Scholar] [CrossRef]
  40. Elmeligie, S.; Taher, A.T.; Khalil, N.A.; El-Said, A.H. Synthesis and cytotoxic activity of certain trisubstituted azetidin-2-one derivatives as a cis-restricted combretastatin A-4 analogues. Arch. Pharmacal Res. 2016, 40, 13–24. [Google Scholar] [CrossRef]
  41. Banik, I.; Becker, F.F.; Banik, B.K. Stereoselective synthesis of beta-lactams with polyaromatic imines: Entry to new and novel anticancer agents. J. Med. Chem. 2003, 46, 12–15. [Google Scholar] [CrossRef]
  42. Yang, Z. Synthesis and In Vitro Biological Activity Evaluation of the Derivatives of Combretastatin A-4. Lett. Drug Des. Discov. 2006, 3, 544–546. [Google Scholar] [CrossRef]
  43. Borazjani, N.; Sepehri, S.; Behzadi, M.; Jarrahpour, A.; Rad, J.A.; Sasanipour, M.; Mohkam, M.; Ghasemi, Y.; Akbarizadeh, A.R.; Digiorgio, C.; et al. Three-component synthesis of chromeno beta-lactam hybrids for inflammation and cancer screening. Eur. J. Med. Chem. 2019, 179, 389–403. [Google Scholar] [CrossRef] [PubMed]
  44. Chimento, A.; Sala, M.; Gomez-Monterrey, I.M.; Musella, S.; Bertamino, A.; Caruso, A.; Sinicropi, M.S.; Sirianni, R.; Puoci, F.; Parisi, O.I.; et al. Biological activity of 3-chloro-azetidin-2-one derivatives having interesting antiproliferative activity on human breast cancer cell lines. Bioorganic Med. Chem. Lett. 2013, 23, 6401–6405. [Google Scholar] [CrossRef]
  45. Meenakshisundaram, S.; Manickam, S.; Vinayagam, V. Synthesis, antibacterial and anticancer activity of novel bisazetidinones. J. Chem. Pharm. Res. 2016, 8, 733–742. [Google Scholar]
  46. Mohamadzadeh, M.; Zarei, M. Anticancer activity and evaluation of apoptotic genes expression of 2-azetidinones containing anthraquinone moiety. Mol. Divers. 2020, 1–11. [Google Scholar] [CrossRef]
  47. Zhou, P.; Liu, Y.; Zhou, L.; Zhu, K.; Feng, K.; Zhang, H.; Liang, Y.; Jiang, H.; Luo, C.; Liu, M.; et al. Potent antitumor activities and structure basis of the chiral beta-lactam bridged analogue of combretastatin A-4 binding to tubulin. J. Med. Chem. 2016, 59, 10329–10334. [Google Scholar] [CrossRef]
  48. Zhou, P.; Liang, Y.; Zhang, H.; Jiang, H.; Feng, K.; Xu, P.; Wang, J.; Wang, X.; Ding, K.; Luo, C.; et al. Design, synthesis, biological evaluation and cocrystal structures with tubulin of chiral b-lactam bridged combretastatin a-4 analogues as potent antitumor agents. Eur. J. Med. Chem. 2018, 144, 817–842. [Google Scholar] [CrossRef] [PubMed]
  49. Tang, H.; Cheng, J.; Liang, Y.; Wang, Y. Discovery of a chiral fluorinated azetidin-2-one as a tubulin polymerisation inhibitor with potent antitumour efficacy. Eur. J. Med. Chem. 2020, 197, 112323. [Google Scholar] [CrossRef] [PubMed]
  50. Tripodi, F.; Pagliarin, R.; Fumagalli, G.; Bigi, A.; Fusi, P.; Orsini, F.; Frattini, M.; Coccetti, P. Synthesis and Biological Evaluation of 1,4-Diaryl-2-azetidinones as Specific Anticancer Agents: Activation of Adenosine Monophosphate Activated Protein Kinase and Induction of Apoptosis. J. Med. Chem. 2012, 55, 2112–2124. [Google Scholar] [CrossRef] [PubMed]
  51. Geesala, R.; Gangasani, J.K.; Budde, M.; Balasubramanian, S.; Vaidya, J.R.; Das, A. 2-Azetidinones: Synthesis and biological evaluation as potential anti-breast cancer agents. Eur. J. Med. Chem. 2016, 124, 544–558. [Google Scholar] [CrossRef]
  52. Khanam, R.; Kumar, R.; Hejazi, I.I.; Shahabuddin, S.; Meena, R.; Jayant, V.; Kumar, P.; Bhat, A.R.; Athar, F. Piperazine clubbed with 2-azetidinone derivatives suppresses proliferation, migration and induces apoptosis in human cervical cancer hela cells through oxidative stress mediated intrinsic mitochondrial pathway. Apoptosis Int. J. Program. Cell Death 2018, 23, 113–131. [Google Scholar] [CrossRef] [PubMed]
  53. Malashchuk, A.; Chernykh, A.V.; Hurmach, V.V.; Platonov, M.O.; Onopchenko, O.; Zozulya, S.; Daniliuc, C.G.; Dobrydnev, A.V.; Kondratov, I.S.; Moroz, Y.S.; et al. Synthesis, biological evaluation, and modeling studies of 1,3-disubstituted cyclobu-tane-containing analogs of combretastatin A4. J. Mol. Struct. 2020, 1210, 128025. [Google Scholar] [CrossRef]
  54. Fisher, J.F.; Mobashery, S. Beta-lactams against the fortress of the gram-positive staphylococcus aureus bacterium. Chem. Rev. 2021, 121, 3412–3463. [Google Scholar] [CrossRef] [PubMed]
  55. Deep, A.; Kumar, P.; Narasimhan, B.; Lim, S.M.; Ramasamy, K.; Mishra, R.K.; Mani, V. 2-azetidinone derivatives: Synthesis, antimicrobial, anticancer evaluation and qsar studies. Acta Pol. Pharm. 2016, 73, 65–78. [Google Scholar]
  56. Mishra, M.K.; Singh, V.N.; Ahmad, K.; Sharma, S. Synthesis and antimicrobial activities of some novel diastereoselective monocyclic cis-beta-lactams using 2-ethoxycarbonyl DCPN as a carboxylic acid activator. Mol. Divers 2020, 25, 2073–2087. [Google Scholar] [CrossRef]
  57. Mohamadzadeh, M.; Zarei, M.; Vessal, M. Synthesis, in vitro biological evaluation and in silico molecular docking studies of novel beta-lactam-anthraquinone hybrids. Bioorg. Chem. 2020, 95, 103515. [Google Scholar] [CrossRef]
  58. Walsh, O.; Meegan, M.; Prendergast, R.; Al Nakib, T. Synthesis of 3-acetoxyazetidin-2-ones and 3-hydroxyazetidin-2-ones with antifungal and antibacterial activity. Eur. J. Med. Chem. 1996, 31, 989–1000. [Google Scholar] [CrossRef]
  59. Chhajed, S.S.; Manisha, P.; Bastikar, V.; Animeshchandra, H.; Ingle, V.; Upasani, C.; Wazalwar, S.S. Synthesis and molecular modeling studies of 3-chloro-4-substituted-1-(8-hydroxy-quinolin-5-yl)-azetidin-2-ones as novel anti-filarial agents. Bioorganic Med. Chem. Lett. 2010, 20, 3640–3644. [Google Scholar] [CrossRef] [PubMed]
  60. Bhagat, S.; Sharma, N.; Chundawat, T.S. Synthesis of Some Salicylaldehyde-Based Schiff Bases in Aqueous Media. J. Chem. 2012, 2013, 1–4. [Google Scholar] [CrossRef] [Green Version]
  61. Ahmadi, R.; Ebrahimzadeh, M.A. Resveratrol—A comprehensive review of recent advances in anticancer drug design and development. Eur. J. Med. Chem. 2020, 200, 112356. [Google Scholar] [CrossRef]
  62. Elshaer, M.; Chen, Y.; Wang, X.J.; Tang, X. Resveratrol: An overview of its anti-cancer mechanisms. Life Sci. 2018, 207, 340–349. [Google Scholar] [CrossRef]
  63. Pecyna, P.; Wargula, J.; Murias, M.; Kucinska, M. More than Resveratrol: New Insights into Stilbene-Based Compounds. Biomolecules 2020, 10, 1111. [Google Scholar] [CrossRef]
  64. Chen, R.-J.; Kuo, H.-C.; Cheng, L.-H.; Lee, Y.-H.; Chang, W.-T.; Wang, B.-J.; Wang, Y.-J.; Cheng, H.-C. Apoptotic and Nonapoptotic Activities of Pterostilbene against Cancer. Int. J. Mol. Sci. 2018, 19, 287. [Google Scholar] [CrossRef] [Green Version]
  65. Cooke, E.P.; Walsh, O.M.; Meegan, M.J. Reaction of mixed anhydrides with imines: Synthesis of 7-halogeno- and 7-azido-5-thia-1-azabicyclo[4.2.0]octan-8-ones and 7-halogeno- and 7-azido-5-oxa-1-azabicyclo[4.2.0]octan-8-ones. J. Chem. Res. Synop. 1994, 26, 470–471. [Google Scholar] [CrossRef]
  66. Jarrahpour, A.Z.; Zarei, M. Efficient one-pot synthesis of 2-azetidinones from acetic acid derivatives and imines using methox-ymethylene-n,n-dimethyliminium salt. Tetrahedron 2010, 66, 5017–5023. [Google Scholar] [CrossRef]
  67. Deketelaere, S.; Van Nguyen, T.; Stevens, C.V.; D’Hooghe, M. Synthetic approaches toward monocyclic 3-amino-beta-lactams. ChemistryOpen 2017, 6, 301–319. [Google Scholar] [CrossRef]
  68. Pandey, S.; Thakur, A.; Reshma; Bari, S.S.; Thapar, R. Studies towards synthesis and Lewis acid catalysed functionalization of 3-(4′-substitutedphenylthio)-azetidin-2-ones. J. Chem. Sci. 2020, 132, 1–11. [Google Scholar] [CrossRef]
  69. Spek, A.L.; Van Der Steen, F.H.; Jastrzebski, J.T.B.H.; Van Koten, G. trans-3-Amino-1-methyl-4-phenyl-2-azetidinone, C10H12N2O. Acta Crystallogr. Sect. C Cryst. Struct. Commun. 1994, 50, 1933–1935. [Google Scholar] [CrossRef]
  70. Kabak, M.; Senoz, H.; Elmali, A.; Adar, V.; Svoboda, I.; Dusek, M.; Fejfarova, K. Synthesis and X-ray crystal structure deter-mination of N-p-methylphenyl-4-benzoyl-3,4-diphenyl-2-azetidinone. Crystallogr. Rep. 2010, 55, 1220–1222. [Google Scholar] [CrossRef]
  71. Lara-Ochoa, F.; Espinosa-Pérez, G. A new synthesis of combretastatins A-4 and AVE-8062A. Tetrahedron Lett. 2007, 48, 7007–7010. [Google Scholar] [CrossRef]
  72. Casadei, M.A.; Inesi, A.; Moracci, F.M.; Occhialini, D. Electrochemical studies on b-lactams. Part 4. Electroacetylation of b-lactams. Tetrahedron 1989, 45, 6885–6890. [Google Scholar] [CrossRef]
  73. Decamps, S.; Sevaille, L.; Ongeri, S.; Crousse, B. Access to novel functionalized trifluoromethyl beta-lactams by ring expansion of aziridines. Org. Biomol. Chem. 2014, 12, 6345–6348. [Google Scholar] [CrossRef] [PubMed]
  74. Malebari, A.M.; Greene, L.M.; Nathwani, S.M.; Fayne, D.; O’Boyle, N.M.; Wang, S.; Twamley, B.; Zisterer, D.M.; Meegan, M.J. Beta-lactam analogues of combretastatin a-4 prevent metabolic inactivation by glucuronidation in chemoresistant HT-29 colon cancer cells. Eur. J. Med. Chem. 2017, 130, 261–285. [Google Scholar] [CrossRef]
  75. Su, M.; Huang, J.; Liu, S.; Xiao, Y.; Qin, X.; Liu, J.; Pi, C.; Luo, T.; Li, J.; Chen, X.; et al. The anti-angiogenic effect and novel mechanisms of action of Combretastatin A-4. Sci. Rep. 2016, 6, 28139. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  76. Baell, J.B.; Nissink, J.W.M. Seven Year Itch: Pan-Assay Interference Compounds (PAINS) in 2017—Utility and Limitations. ACS Chem. Biol. 2017, 13, 36–44. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  77. Yao, H.; He, G.; Yan, S.; Chen, C.; Song, L.; Rosol, T.J.; Deng, X. Triple-negative breast cancer: Is there a treatment on the horizon? Oncotarget 2017, 8, 1913–1924. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  78. Cipriano, C.; Mesquita, A. Emerging Therapeutic Drugs in Metastatic Triple-Negative Breast Cancer. Breast Cancer Basic Clin. Res. 2021, 15. [Google Scholar] [CrossRef] [PubMed]
  79. Ma, M.; Sun, L.; Lou, H.; Ji, M. Synthesis and biological evaluation of Combretastatin A-4 derivatives containing a 3’-O-substituted carbonic ether moiety as potential antitumor agents. Chem. Central J. 2013, 7, 179. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  80. Hughes, L.; Malone, C.; Chumsri, S.; Burger, A.M.; McDonnell, S. Characterisation of breast cancer cell lines and establishment of a novel isogenic subclone to study migration, invasion and tumourigenicity. Clin. Exp. Metastasis 2008, 25, 549–557. [Google Scholar] [CrossRef]
  81. Ma, J.; Wang, S.; Zhao, M.; Deng, X.-S.; Lee, C.-K.; Yu, X.-D.; Liu, B. Therapeutic potential of cladribine in combination with STAT3 inhibitor against multiple myeloma. BMC Cancer 2011, 11, 255. [Google Scholar] [CrossRef] [Green Version]
  82. Sengmany, S.; LeGall, E.; LeJean, C.; Troupel, M.; Nedelec, J. Straightforward three-component synthesis of diarylmethylpi-perazines and 1,2-diarylethylpiperazines. Tetrahedron 2007, 63, 3672–3681. [Google Scholar] [CrossRef]
  83. He, J.; Zhang, M.; Tang, L.; Liu, J.; Zhong, J.; Wang, W.; Xu, J.-P.; Wang, H.-T.; Li, X.-F.; Zhou, Z.-Z. Synthesis, Biological Evaluation, and Molecular Docking of Arylpyridines as Antiproliferative Agent Targeting Tubulin. ACS Med. Chem. Lett. 2020, 11, 1611–1619. [Google Scholar] [CrossRef] [PubMed]
  84. National Cancer Institute. Biological Testing Branch. Available online: dtp.Cancer.Gov (accessed on 15 September 2021).
  85. Yu, S.; Kim, T.; Yoo, K.H.; Kang, K. The T47D cell line is an ideal experimental model to elucidate the progesterone-specific effects of a luminal A subtype of breast cancer. Biochem. Biophys. Res. Commun. 2017, 486, 752–758. [Google Scholar] [CrossRef] [PubMed]
  86. Medarde, M.; Maya, A.B.; Pérez-Melero, C. Review ArticleNaphthalene Combretastatin Analogues: Synthesis, Cytotoxicity and Antitubulin Activity. J. Enzym. Inhib. Med. Chem. 2004, 19, 521–540. [Google Scholar] [CrossRef]
  87. Smith, S.M.; Wunder, M.B.; Norris, D.A.; Shellman, Y.G. A Simple Protocol for Using a LDH-Based Cytotoxicity Assay to Assess the Effects of Death and Growth Inhibition at the Same Time. PLoS ONE 2011, 6, e26908. [Google Scholar] [CrossRef] [PubMed]
  88. O’Boyle, N.M.; Carr, M.; Greene, L.M.; Keely, N.; Knox, A.; McCabe, T.; Lloyd, D.; Zisterer, D.M.; Meegan, M.J. Synthesis, biochemical and molecular modelling studies of antiproliferative azetidinones causing microtubule disruption and mitotic catastrophe. Eur. J. Med. Chem. 2011, 46, 4595–4607. [Google Scholar] [CrossRef]
  89. Cytoskeleton. Available online: www.Cytoskeleton.Com/tubulin-resources (accessed on 15 September 2021).
  90. Vitale, I.; Antoccia, A.; Cenciarelli, C.; Crateri, P.; Meschini, S.; Arancia, G.; Pisano, C.; Tanzarella, C. Combretastatin CA-4 and combretastatin derivative induce mitotic catastrophe dependent on spindle checkpoint and caspase-3 activation in non-small cell lung cancer cells. Apoptosis 2006, 12, 155–166. [Google Scholar] [CrossRef]
  91. O’Boyle, N.M.; Ana, G.; Kelly, P.M.; Nathwani, S.M.; Noorani, S.; Fayne, D.; Bright, S.A.; Twamley, B.; Zisterer, D.M.; Meegan, M.J. Synthesis and evaluation of antiproliferative microtubule-destabilising combretastatin A-4 piperazine conjugates. Org. Biomol. Chem. 2019, 17, 6184–6200. [Google Scholar] [CrossRef]
  92. Mc Gee, M.M. Targeting the Mitotic Catastrophe Signaling Pathway in Cancer. Mediat. Inflamm. 2015, 2015, 1–13. [Google Scholar] [CrossRef] [Green Version]
  93. Fortin, S.; Lacroix, J.; Côté, M.-F.; Moreau, E.; Petitclerc, E.C.; Gaudreault, R. Quick and Simple Detection Technique to Assess the Binding of Antimicrotubule Agents to the Colchicine-Binding Site. Biol. Proced. Online 2010, 12, 113–117. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  94. Zhu, T.; Wang, S.-H.; Li, D.; Wang, S.-Y.; Liu, X.; Song, J.; Wang, Y.-T.; Zhang, S.-Y. Progress of tubulin polymerization activity detection methods. Bioorganic Med. Chem. Lett. 2021, 37, 127698. [Google Scholar] [CrossRef]
  95. Pena-Blanco, A.; Garcia-Saez, A.J. Bax, bak and beyond—Mitochondrial performance in apoptosis. FEBS J. 2018, 285, 416–431. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  96. Kale, J.; Osterlund, E.J.; Andrews, D. BCL-2 family proteins: Changing partners in the dance towards death. Cell Death Differ. 2017, 25, 65–80. [Google Scholar] [CrossRef] [Green Version]
  97. Yamaguchi, R.; Lartigue, L.; Perkins, G. Targeting Mcl-1 and other Bcl-2 family member proteins in cancer therapy. Pharmacol. Ther. 2018, 195, 13–20. [Google Scholar] [CrossRef] [PubMed]
  98. Thomas, L.W.; Lam, C.; Edwards, S.W. Mcl-1; the molecular regulation of protein function. FEBS Lett. 2010, 584, 2981–2989. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  99. Wei, Y.; Cao, Y.; Sun, R.; Cheng, L.; Xiong, X.; Jin, X.; He, X.; Lu, W.; Zhao, M. Targeting bcl-2 proteins in acute myeloid leu-kemia. Front. Oncol. 2020, 10, 584974. [Google Scholar] [CrossRef] [PubMed]
  100. McBride, A.; Houtmann, S.; Wilde, L.; Vigil, C.; Eischen, C.M.; Kasner, M.; Palmisiano, N. The Role of Inhibition of Apoptosis in Acute Leukemias and Myelodysplastic Syndrome. Front. Oncol. 2019, 9, 192. [Google Scholar] [CrossRef] [Green Version]
  101. Chemical Computing Group Inc. Molecular Operating Environment (MOE); Version 2019.01; Chemical Computing Group Inc.: Montreal, QC, Canada, 2019. [Google Scholar]
  102. Greene, T.F.; Wang, S.; Greene, L.M.; Nathwani, S.M.; Pollock, J.K.; Malebari, A.M.; McCabe, T.; Twamley, B.; O’Boyle, N.M.; Zisterer, D.M.; et al. Synthesis and biochemical evaluation of 3-phenoxy-1,4-diarylazetidin-2-ones as tubulin-targeting anti-tumor agents. J. Med. Chem. 2016, 59, 90–113. [Google Scholar] [CrossRef]
  103. Cushman, M.; Nagarathnam, D.; Gopal, D.; Chakraborti, A.K.; Lin, C.M.; Hamel, E. Synthesis and evaluation of stilbene and dihydrostilbene derivatives as potential anticancer agents that inhibit tubulin polymerization. J. Med. Chem. 1991, 34, 2579–2588. [Google Scholar] [CrossRef]
  104. Promega Corporation, Cytotox 96® Non-Radioactive Cytotoxicity Assay. Promega Cytotox 96 Non-Radioactive Cytotoxicity Assay Protocol. 2016. Available online: worldwide.Promega.Com/products/cell-health-assays/cell-viability-and-cytotoxicity-assays/cytotox-96-non_radioactive-cytotoxicity-assay/?Catnum=g1780 (accessed on 14 September 2021).
  105. Riccardi, C.; Nicoletti, I. Analysis of apoptosis by propidium iodide staining and flow cytometry. Nat. Protoc. 2006, 1, 1458–1461. [Google Scholar] [CrossRef]
  106. Vermes, I.; Haanen, C.; Reutelingsperger, C. Flow cytometry of apoptotic cell death. J. Immunol. Methods 2000, 243, 167–190. [Google Scholar] [CrossRef]
  107. Bruker Apex v2014. Bruker AXS Inc.: Madison, WI, USA.
  108. Sheldrick, G.M. SADABS. Bruker AXS Inc.: Madison, WI, USA; University of Göttingen: Göttingen, Germany, 2014. [Google Scholar]
  109. Sheldrick, G.M. Crystal structure refinement withSHELXL. Acta Crystallogr. Sect. C Struct. Chem. 2015, 71, 3–8. [Google Scholar] [CrossRef] [PubMed]
  110. Dolomanov, O.V.; Bourhis, L.J.; Gildea, R.; Howard, J.A.K.; Puschmann, H. OLEX2: A complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 2009, 42, 339–341. [Google Scholar] [CrossRef]
  111. Omega 4.1.0.2: Openeye Scientific Software Inc. Available online: www.Eyesopen.Com (accessed on 14 September 2021).
  112. Hawkins, P.C.D.; Skillman, A.G.; Warren, G.L.; Ellingson, B.A.; Stahl, M.T. Conformer Generation with OMEGA: Algorithm and Validation Using High Quality Structures from the Protein Databank and Cambridge Structural Database. J. Chem. Inf. Model. 2010, 50, 572–584. [Google Scholar] [CrossRef]
  113. McGann, M. FRED Pose Prediction and Virtual Screening Accuracy. J. Chem. Inf. Model. 2011, 51, 578–596. [Google Scholar] [CrossRef] [PubMed]
  114. Sabizabulin for COVID-19. Available online: https://verupharma.com/pipeline/sabizabulin-for-covid-19/ (accessed on 29 September 2021).
Figure 1. Colchicine (1a), DAMA-Colchicine 1b, Combretastatins 2a2d, erianin 2e, phenstatins 3a, 3b, isocombretastatin 3c, colchicine binding site inhibitors 4a (DJ101), 4b, quinolines 5a, 5b, Crolibulin 6, Plinabulin 7, Buparlisib BKM120 8 and target β-lactam structures.
Figure 1. Colchicine (1a), DAMA-Colchicine 1b, Combretastatins 2a2d, erianin 2e, phenstatins 3a, 3b, isocombretastatin 3c, colchicine binding site inhibitors 4a (DJ101), 4b, quinolines 5a, 5b, Crolibulin 6, Plinabulin 7, Buparlisib BKM120 8 and target β-lactam structures.
Pharmaceuticals 14 01119 g001
Scheme 1. Synthesis of imines 9ax. Reagents and conditions: (a) EtOH, conc. H2SO4, reflux, 4 h (70–92%); (b) TBDMSCl, DBU, CH2Cl2, 20 °C (78%); (c) H2O, 30 min, 20 °C (85–97%).
Scheme 1. Synthesis of imines 9ax. Reagents and conditions: (a) EtOH, conc. H2SO4, reflux, 4 h (70–92%); (b) TBDMSCl, DBU, CH2Cl2, 20 °C (78%); (c) H2O, 30 min, 20 °C (85–97%).
Pharmaceuticals 14 01119 sch001
Figure 2. ORTEP representation of the X-ray crystal structure of compound 9o with the thermal ellipsoids set at 50% probability.
Figure 2. ORTEP representation of the X-ray crystal structure of compound 9o with the thermal ellipsoids set at 50% probability.
Pharmaceuticals 14 01119 g002
Scheme 2. Synthesis of β-lactams 10ao, 11ao, 12ac, 13ac, 14ab and 15ab. Reagents and conditions: (a) (i) ClCH2COCl, triethylamine, CH2Cl2, reflux, 5 h (10ao, 3–57%; 12ac, 45–59%; 14ab, 8–20%) or (ii) ClCH2COCl, triphosgene, CH2Cl2, reflux, 6 h (10n, 34%); (b) Cl2CHCOCl, triethylamine, CH2Cl2, reflux, 5 h (11ao, 17–63%; 13ac, 18–47%; 15ab, 7–13%); (c) TBAF, dry THF, 0 °C, 30 min (28–34%).
Scheme 2. Synthesis of β-lactams 10ao, 11ao, 12ac, 13ac, 14ab and 15ab. Reagents and conditions: (a) (i) ClCH2COCl, triethylamine, CH2Cl2, reflux, 5 h (10ao, 3–57%; 12ac, 45–59%; 14ab, 8–20%) or (ii) ClCH2COCl, triphosgene, CH2Cl2, reflux, 6 h (10n, 34%); (b) Cl2CHCOCl, triethylamine, CH2Cl2, reflux, 5 h (11ao, 17–63%; 13ac, 18–47%; 15ab, 7–13%); (c) TBAF, dry THF, 0 °C, 30 min (28–34%).
Pharmaceuticals 14 01119 sch002
Scheme 3. Synthesis of β-lactams 16a-i. Reagents and conditions: (a) BrCH2COCl, toluene, reflux, 5 h (5–31%); (b) TBAF, dry THF, 0 °C, 30 min (32%).
Scheme 3. Synthesis of β-lactams 16a-i. Reagents and conditions: (a) BrCH2COCl, toluene, reflux, 5 h (5–31%); (b) TBAF, dry THF, 0 °C, 30 min (32%).
Pharmaceuticals 14 01119 sch003
Scheme 4. Synthesis of phosphate prodrug 18. Reagents and conditions: (a) dibenzyl phosphate, DIPEA, DMAP, CCl4, CH3CN, -10–20 °C, 3h. (66%); (b) H2/Pd/C, ethanol-ethyl acetate, 1:1, 3 h, 20 °C (75%).
Scheme 4. Synthesis of phosphate prodrug 18. Reagents and conditions: (a) dibenzyl phosphate, DIPEA, DMAP, CCl4, CH3CN, -10–20 °C, 3h. (66%); (b) H2/Pd/C, ethanol-ethyl acetate, 1:1, 3 h, 20 °C (75%).
Pharmaceuticals 14 01119 sch004
Figure 3. ORTEP representation of the X-ray crystal structure of compounds 10e, 10o, 11o and 16g with heteroatoms labelled and thermal ellipsoids set at 50% probability. Structure 11o shows the majority occupied disordered 4-methoxyphenyl moiety (81% occupied). For structures 10o and 16g, the 3 position is substituted by both chloride (75%) and bromide (25%); distances restrained, and atomic displacement constrained.
Figure 3. ORTEP representation of the X-ray crystal structure of compounds 10e, 10o, 11o and 16g with heteroatoms labelled and thermal ellipsoids set at 50% probability. Structure 11o shows the majority occupied disordered 4-methoxyphenyl moiety (81% occupied). For structures 10o and 16g, the 3 position is substituted by both chloride (75%) and bromide (25%); distances restrained, and atomic displacement constrained.
Pharmaceuticals 14 01119 g003
Figure 4. Effect of compound 10n on the viability of MCF-7 cells and non-tumorigenic HEK-293T cells. Cells were grown in 96-well plates and treated with compound 10n at 0.5, 1 and 10 μM for 72 h. Cell viability was expressed as a percentage of vehicle control (ethanol 1% (v/v)) treated cells and was measured using an AlamarBlue assay (average of three independent experiments). Two-Way ANOVA (Bonferroni post-test) was used to test for statistical significance (**, p < 0.05, ***, p < 0.001).
Figure 4. Effect of compound 10n on the viability of MCF-7 cells and non-tumorigenic HEK-293T cells. Cells were grown in 96-well plates and treated with compound 10n at 0.5, 1 and 10 μM for 72 h. Cell viability was expressed as a percentage of vehicle control (ethanol 1% (v/v)) treated cells and was measured using an AlamarBlue assay (average of three independent experiments). Two-Way ANOVA (Bonferroni post-test) was used to test for statistical significance (**, p < 0.05, ***, p < 0.001).
Pharmaceuticals 14 01119 g004
Figure 5. Compound 10n cells induced G2/M arrest followed by apoptosis in a time dependent manner in MCF-7 cells. (A) % of cells in G0/G1 phase, (B) % of cells in sub-G1 phase and (C) % of cells in G2/M phase. Cells were treated with either vehicle control (v) (0.1% ethanol (v/v)) or compound 10n (50 and 500 nM) for 24, 48 or 72 h. Cells were then fixed, stained with PI and analysed using flow cytometry. Cell cycle analysis was performed on histograms of gated counts per DNA area (FL2-A). The number of cells with <2 N (sub-G1), 2 N (G0/G1) and 4 N (G2/M) DNA content was determined with CellQuest software. Values represent the mean ± SEM for three separate experiments. Two-Way ANOVA (Bonferroni post-test) was used to test for statistical significance (**, p < 0.05; ***, p < 0.001).
Figure 5. Compound 10n cells induced G2/M arrest followed by apoptosis in a time dependent manner in MCF-7 cells. (A) % of cells in G0/G1 phase, (B) % of cells in sub-G1 phase and (C) % of cells in G2/M phase. Cells were treated with either vehicle control (v) (0.1% ethanol (v/v)) or compound 10n (50 and 500 nM) for 24, 48 or 72 h. Cells were then fixed, stained with PI and analysed using flow cytometry. Cell cycle analysis was performed on histograms of gated counts per DNA area (FL2-A). The number of cells with <2 N (sub-G1), 2 N (G0/G1) and 4 N (G2/M) DNA content was determined with CellQuest software. Values represent the mean ± SEM for three separate experiments. Two-Way ANOVA (Bonferroni post-test) was used to test for statistical significance (**, p < 0.05; ***, p < 0.001).
Pharmaceuticals 14 01119 g005
Figure 6. Compound 10n induced apoptosis in MCF-7 breast cancer cells at 48 h. MCF-7 breast cancer cells were treated with 10n (50 and 500 nM) or CA-4 (50 nM) or control vehicle (0.1% ethanol (v/v)). The percentage of apoptotic cells was determined by staining with Annexin V-FITC and propidium iodide (PI). In each panel, the upper left quadrant shows only PI cells that are necrotic, while the lower left quadrant shows cells that are negative for both PI and Annexin V-FITC. The upper right quadrant shows both Annexin/PI positive, which are in late apoptosis/necrosis, while the lower right quadrant shows Annexin positive cells that are in the early apoptotic stage. Cells treated with CA-4 (50 nM) and 10n (50 and 500 nM) and control cells at 48 h are shown, respectively. Values represent the mean of three independent experiments.
Figure 6. Compound 10n induced apoptosis in MCF-7 breast cancer cells at 48 h. MCF-7 breast cancer cells were treated with 10n (50 and 500 nM) or CA-4 (50 nM) or control vehicle (0.1% ethanol (v/v)). The percentage of apoptotic cells was determined by staining with Annexin V-FITC and propidium iodide (PI). In each panel, the upper left quadrant shows only PI cells that are necrotic, while the lower left quadrant shows cells that are negative for both PI and Annexin V-FITC. The upper right quadrant shows both Annexin/PI positive, which are in late apoptosis/necrosis, while the lower right quadrant shows Annexin positive cells that are in the early apoptotic stage. Cells treated with CA-4 (50 nM) and 10n (50 and 500 nM) and control cells at 48 h are shown, respectively. Values represent the mean of three independent experiments.
Pharmaceuticals 14 01119 g006
Figure 7. Tubulin polymerisation assay for compounds 10e and 11n. Compounds 10e and 11n induce depolymerisation of tubulin in vitro. Effect of compounds 10e and 11n on in vitro tubulin polymerisation: compounds 10e and 11n (10 µM concentration) were first mixed with purified bovine tubulin in a 96-well plate on ice. Purified bovine tubulin and GTP were mixed in a 96-well plate at 37 °C. Ethanol (1% v/v) was used as a vehicle control. The final concentration of bovine tubulin was 3 mg/mL and glycerol was 10%. After placing the plate into a 37 °C incubator, the effect on tubulin assembly (OD—optical density) was monitored in a Spectramax 340 PC spectrophotometer for 30 min at 37 °C and 340 nm in 30 s intervals. Percentage inhibition of polymerisation was recorded for each reaction. The results represent the mean for three separate experiments performed in duplicate.
Figure 7. Tubulin polymerisation assay for compounds 10e and 11n. Compounds 10e and 11n induce depolymerisation of tubulin in vitro. Effect of compounds 10e and 11n on in vitro tubulin polymerisation: compounds 10e and 11n (10 µM concentration) were first mixed with purified bovine tubulin in a 96-well plate on ice. Purified bovine tubulin and GTP were mixed in a 96-well plate at 37 °C. Ethanol (1% v/v) was used as a vehicle control. The final concentration of bovine tubulin was 3 mg/mL and glycerol was 10%. After placing the plate into a 37 °C incubator, the effect on tubulin assembly (OD—optical density) was monitored in a Spectramax 340 PC spectrophotometer for 30 min at 37 °C and 340 nm in 30 s intervals. Percentage inhibition of polymerisation was recorded for each reaction. The results represent the mean for three separate experiments performed in duplicate.
Pharmaceuticals 14 01119 g007
Figure 8. Compound 10n depolymerises the microtubule network of MCF-7 breast cancer cells. Cells were treated with (A) vehicle control (0.1% ethanol (v/v)), (B) CA-4 (50 nM), (C) paclitaxel (1 μM) and compound 10n, (D) (0.05 μM), (E) (0.1 μM) and (F) (0.5 μM) for 16 h. Cells were fixed in ice-cold methanol and stained with mouse monoclonal anti-α-tubulin–FITC antibody (clone DM1A) (green), Alexa Fluor 488 dye and counterstained with DAPI (blue). Images were obtained with Leica SP8 confocal microscopy with Leica application suite X software. Representative confocal micrographs of three separate experiments are shown. Scale bar indicates 25 μm.
Figure 8. Compound 10n depolymerises the microtubule network of MCF-7 breast cancer cells. Cells were treated with (A) vehicle control (0.1% ethanol (v/v)), (B) CA-4 (50 nM), (C) paclitaxel (1 μM) and compound 10n, (D) (0.05 μM), (E) (0.1 μM) and (F) (0.5 μM) for 16 h. Cells were fixed in ice-cold methanol and stained with mouse monoclonal anti-α-tubulin–FITC antibody (clone DM1A) (green), Alexa Fluor 488 dye and counterstained with DAPI (blue). Images were obtained with Leica SP8 confocal microscopy with Leica application suite X software. Representative confocal micrographs of three separate experiments are shown. Scale bar indicates 25 μm.
Pharmaceuticals 14 01119 g008
Figure 9. Effects of compound 10n on the inhibition of the bisthioalkylation of Cys239 and Cys354 of β-tubulin by N,N′-ethylene-bis(iodoacetamide) (EBI) in MCF-7 cells. MCF-7 was treated with vehicle control (ethanol 0.1% (v/v)), CA-4 and 10n (10 μM) for 2 h; selected samples were then treated with EBI (100 μM) for an additional 1.5 h. Cells were harvested, lysed and analysed using sedimentation and Western blotting for β-tubulin and β-tubulin-EBI adducts. Results are indicative of two separate experiments, performed independently. To confirm equal protein loading, each membrane was stripped and re-probed with a GAPDH antibody.
Figure 9. Effects of compound 10n on the inhibition of the bisthioalkylation of Cys239 and Cys354 of β-tubulin by N,N′-ethylene-bis(iodoacetamide) (EBI) in MCF-7 cells. MCF-7 was treated with vehicle control (ethanol 0.1% (v/v)), CA-4 and 10n (10 μM) for 2 h; selected samples were then treated with EBI (100 μM) for an additional 1.5 h. Cells were harvested, lysed and analysed using sedimentation and Western blotting for β-tubulin and β-tubulin-EBI adducts. Results are indicative of two separate experiments, performed independently. To confirm equal protein loading, each membrane was stripped and re-probed with a GAPDH antibody.
Pharmaceuticals 14 01119 g009
Figure 10. Effects of compound 10n on expression of pro-apoptotic protein Bax and anti-apoptotic proteins Bcl-2 and Mcl-1 in MCF-7 cells. MCF-7 cells were treated with either vehicle control (ethanol, 0.1% v/v) or with compound 10n (0.05, 0.1 and 0.51 μM) for 48 or 72 h. After the required time, the cells were then harvested and separated using SDS PAGE to detect the level of the pro-apoptotic protein Bax and anti-apoptotic proteins Bcl-2 and Mcl-1. Results are representative of two separate experiments performed independently. To confirm equal protein loading, each membrane was stripped and re-probed with a GAPDH antibody.
Figure 10. Effects of compound 10n on expression of pro-apoptotic protein Bax and anti-apoptotic proteins Bcl-2 and Mcl-1 in MCF-7 cells. MCF-7 cells were treated with either vehicle control (ethanol, 0.1% v/v) or with compound 10n (0.05, 0.1 and 0.51 μM) for 48 or 72 h. After the required time, the cells were then harvested and separated using SDS PAGE to detect the level of the pro-apoptotic protein Bax and anti-apoptotic proteins Bcl-2 and Mcl-1. Results are representative of two separate experiments performed independently. To confirm equal protein loading, each membrane was stripped and re-probed with a GAPDH antibody.
Pharmaceuticals 14 01119 g010
Figure 11. Overlay of the X-ray structure of tubulin co-crystallised with DAMA-colchicine (PDB entry 1SA0) on the best ranked docked poses of the S enantiomers of the three studied beta-lactams: (A) 10n, (B) 11n and (C) 14b. Ligands are rendered as tube and amino acids as line. Tubulin amino acids and DAMA-colchicine are coloured by atom type: carbon = grey, hydrogen = white, oxygen = red, nitrogen = blue, sulphur = yellow, bromine = dark red, chlorine = dark green. The beta-lactams are depicted with a green backbone. The atoms are coloured by element type, Key amino acid residues are labelled, and multiple residues are hidden to enable a clearer view.
Figure 11. Overlay of the X-ray structure of tubulin co-crystallised with DAMA-colchicine (PDB entry 1SA0) on the best ranked docked poses of the S enantiomers of the three studied beta-lactams: (A) 10n, (B) 11n and (C) 14b. Ligands are rendered as tube and amino acids as line. Tubulin amino acids and DAMA-colchicine are coloured by atom type: carbon = grey, hydrogen = white, oxygen = red, nitrogen = blue, sulphur = yellow, bromine = dark red, chlorine = dark green. The beta-lactams are depicted with a green backbone. The atoms are coloured by element type, Key amino acid residues are labelled, and multiple residues are hidden to enable a clearer view.
Pharmaceuticals 14 01119 g011
Table 1. Crystal Data and Structure Refinement Details for compounds 9o, 10e, 10o/16g and 11o.
Table 1. Crystal Data and Structure Refinement Details for compounds 9o, 10e, 10o/16g and 11o.
Identification Code9o10e10o/16g11o
CCDC number2077515207751620775172077518
Empirical formulaC18H21NO3SC19H20ClNO5C19H19Br0.25Cl1.75NO5C20H21Cl2NO5
M (g/mol)331.42377.81423.37426.28
T (K)100(2)93(2)100(2)100(2)
Crystal Systemmonoclinicmonoclinicmonoclinicorthorhombic
SGP21/cP21/nP21/nPbca
a (Å)12.3686(4)10.138(2)10.3414(3)11.2765(7)
b (Å)10.1330(3)9.840(2)10.0786(3)12.5130(6)
c (Å)13.8346(5)18.357(4)17.9994(6)27.9482(15)
α (°)90909090
β (°)100.7347(12)95.46(3)96.2023(15)90
γ (°)90909090
V3)1703.56(10)1822.9(6)1865.04(10)3943.6(4)
Z4448
Dcalc (g/cm3)1.2921.3771.5081.436
μ (mm−1)0.2040.2390.8790.361
F(000)704.0792.0874.01776.0
Crystal size (mm3)0.162 × 0.08 × 0.050.320 × 0.280 × 0.2600.38 × 0.36 × 0.120.38 × 0.06 × 0.05
RadiationMo Kα (λ = 0.71073)Mo Kα (λ = 0.71073)Mo Kα (λ = 0.71073)Mokα (λ = 0.71073)
Reflections collected54356165962060711396
Independent reflections3907
Rint = 0.0396
Rsigma = 0.0188
4026
Rint = 0.0226
Rsigma = 0.0175
4649
Rint = 0.0439
Rsigma = 0.0369
3614
Rint = 0.0534
Rsigma = 0.0648
Data/restraints/parameters3907/0/2124026/0/2354649/8/2513614/1/246
Goodness-of-fit on F2 (S)1.0491.0791.0361.078
Final R indexes (I ≥ 2σ (I)) *R1 = 0.0430,
wR2 = 0.1126
R1 = 0.0364,
wR2 = 0.0877
R1 = 0.0313,
wR2 = 0.0741
R1 = 0.0525,
wR2 = 0.1026
Final R indexes (all data)R1 = 0.0565,
wR2 = 0.1207
R1 = 0.0373,
wR2 = 0.0882
R1 = 0.0441,
wR2 = 0.0795
R1 = 0.0779,
wR2 = 0.1126
Largest diff. peak/hole/e Å−30.66/−0.550.35/−0.250.35/−0.380.30/−0.45
* R1 =  ||Fo| − |Fc||/ |Fo|, wR2 = [ w(Fo2 − Fc2)2/ w(Fo2)2]1/2.
Table 2. X-ray Crystallographic Data for β-lactams 10e, 10o, 11o and 16g.
Table 2. X-ray Crystallographic Data for β-lactams 10e, 10o, 11o and 16g.
Compound Pharmaceuticals 14 01119 i001Ring Plane
Normal
AB Angle (°)
Ring Plane
Normal
BC Angle (°)
Ring Plane
Normal
AC Angle (°)
Ring A to Central
Torsion (°) a
Ring B to Central
Torsion (°) b
Ring AB
Torsion
(°) c
Ring BC
Torsion
(°) d
10eR1=Cl, R3=R3=H81.20(5)71.33(6)20.68(6)−24.7(2)168.6(1)−60.7(2)116.0(1)
10oR1=R3=Cl, R2=H 91.49(5)80.74(7)159.88(6)27.8(2)−156.7(1)62.7(2)−112.0(3)
11oR1=R2=Cl, R3=CH391.7(1)103.7(1)17.3(1)−15.3(4)160.6(4)−68.9(4)139.5(3)
16gR1=Br, R2=H, R3=Cl91.49(5)80.74(7)159.88(6)27.8(2)−156.7(1)62.7(2)−110.3(4)
a C18-C13-N1-C2, C18-C13-N1-C2, C22-C17-N1-C2, C18-C13-N1-C2; b C10-C5-C4-N1, C10-C5-C4-N1, C10-C5-C4-N1, C10-C5-C4-N1; c C13-N1-C4-C5, C13-N1-C4-C5, C12-N1-C4-C5, C13-N1-C4-C5; d C5-C4-C3-Cl1, C5-C4-C3-Cl1, C5-C4-C3-Cl1, C5-C4-C3-Br1 for 10e, 10o, 11o and 16g, respectively.
Table 3. Antiproliferative activity of β-lactam compounds 10ao, 11ao, 12ac, 13ac, 14a, 14b, 15a, 15b, 16aj, 18 and CA-4 in MCF-7 cells.
Table 3. Antiproliferative activity of β-lactam compounds 10ao, 11ao, 12ac, 13ac, 14a, 14b, 15a, 15b, 16aj, 18 and CA-4 in MCF-7 cells.
Compound aCompound Number IC50, µM
(MCF-7, 72 h) b,f
LogP e
Pharmaceuticals 14 01119 i00210aR1=R2=R3=H23.450 ± 2.803.48
10bR1=Cl, R2=R3=H1.298 ± 0.174.20
10cR1=Br, R2=R3=H0.506 ± 0.114.35
10dR1=NO2. R2=R3=H4.366 ± 0.613.23
10e cisR1=OCH3, R2=R3=H(cis)0.317 ± 0.043.40
10e trans gR1=OCH3, R2=R3=H(trans)0.034 ± 0.0043.40
10f gR1=OCH2CH3, R2=R3=H0.130 ± 0.0173.93
10gR1=OC6H5, R2=R3=H64.070 ± 7.305.58
10hR1=OCH2C6H5, R2=R3=H59.910 ± 6.995.17
10igR1=SCH3, R2=R3=H0.073 ± 0.0044.04
10jR2R3=CH=CH-CH=CH, R1=H 14.660 ± 2.264.66
10kR1R2=CH=CH-CH=CH, R3=H0.202 ± 0.0154.66
10mR1=OCH3, R2=NO2, R3=H3.088 ± 0.413.17
10nR1=OCH3, R2=OH, R3=H0.0175 ± 0.0092.67
10o hR1=OCH3, R2=Cl, R3=H0.433 ± 0.0504.03
Pharmaceuticals 14 01119 i00311aR1=R2=R3=H37.220 ± 3.214.67
11bR1=Cl, R2=R3=H12.830 ± 1.085.38
11cR1=Br, R2=R3=H18.160 ± 1.835.53
11dR1=NO2, R2=R3=H61.640 ± 7.614.41
11e gR1=OCH3, R2=R3=H0.119 ± 0.0124.59
11f gR1=OCH2CH3, R2=R3=H0.164 ± 0.0155.11
11gR1=OC6H5, R2=R3=H62.310 ± 10.26.77
11hR1=OCH2C6H5, R2=R3=H36.340 ± 3.686.35
11i gR1=SCH3, R2=R3=H0.291 ± 0.0305.23
11jR2R3=CH=CH-CH=CH, R1=H 7.990 ± 0.705.84
11kR1R2=CH=CH-CH=CH, R3=H0.322 ± 0.045.84
11mR1=OCH3, R2=NO2, R3=H0.353 ± 0.044.35
11nR1=OCH3, R2=OH, R3=H0.031 ± 0.0043.85
11o hR1=OCH3, R2=CH3, R3=H0.747 ± 0.0605.09
18R1=OCH3, R2=OP(O)(OH)2, R3=H0.077 ± 0.012.80
Pharmaceuticals 14 01119 i00412aR1=OCH3,14.810 ± 1.583.40
12bR1=OCH2CH325% (10 μM) c3.93
12cR1=SCH310% (10 μM) c4.04
Pharmaceuticals 14 01119 i00513aR1=OCH345.9 ± 6.734.59
13bR1=OCH2CH3,40% (10 μM)c5.11
13cR1=SCH3,20% (10 μM)c5.23
Pharmaceuticals 14 01119 i00614aR1=OCH30.680 ± 0.1604.11
14bR1=OCH2CH30.045 ± 0.014.64
Pharmaceuticals 14 01119 i00715aR1=OCH36.612 ± 2.005.29
15bR1=OCH2CH30.273 ± 0.010 i5.82
Pharmaceuticals 14 01119 i00816aR1=OCH3, R2=H0.579 ± 0.030 i3.54
16bR1=OCH2CH3, R2=H1.144 ± 0.300 i4.07
16cR1= SCH3, R2=H0.613 ± 0.040 i4.18
16dR1=SCH2CH3, R2=H1.100 ± 0.1 i4.71
16eR1=OCH3, R2= CH30.525 ± 0.034.04
16fR1=OCH3, R2=F0.390 ± 0.03 i3.63
16gR1=OCH3, R2=Cl0.472 ± 0.20 i4.16
16hR1=OCH3, R2=Br0.620 ± 0.040 i4.32
16jR1=OCH3, R2=OH40% (10 μM) c,i2.80
Pharmaceuticals 14 01119 i0092aCA-40.0039 ± 0.00032 d3.32
a 3-Chloro and 3-bromo-β-lactam compounds are trans isomers except where specifically indicated. One enantiomer only is shown. b IC50 values are half maximal inhibitory concentrations required to block the growth stimulation of MCF-7 cells. Values represent the mean ± SEM (error values × 10−6) for at least three experiments performed in triplicate. c IC50 values were not calculated; the percentage shown is the inhibition of cell viability at a concentration of 10 μM unless otherwise indicated. d The IC50 value obtained for CA-4 (0.0039 μM for MCF-7) is in good agreement with the reported values, Ref 74. e clogP values calculated from ChemBioDraw 13.0. f Lactate Dehydrogenase assay: % cell lysis at compound concentration of 10 μM following treatment of the cells, 3a (12%), 10e (5%), 10j (4%), 10i (3%), 10n (17%), 11e (10%) and 11n (8%) using LDH assay kit from Promega, Ref 104. g Ref 75. h Ref 34. i SW480 Cell viability: 16a (52%), 16b (50%), 16c (32%), 16d (22%), 16e (40%), 16f (42%), 16g (38%), 16h (26%) and 16j (48%); percentage shown is the inhibition of cell viability at a concentration of 10 μM.
Table 4. Antiproliferative Effects of Selected β-Lactam Compounds in MDA-MB-231 Human Breast Cancer Cells.
Table 4. Antiproliferative Effects of Selected β-Lactam Compounds in MDA-MB-231 Human Breast Cancer Cells.
Compound NumberAntiproliferative Activity a,b
IC50 (µM)
MDA-MB-231, 72 h
10e0.0686
10f0.078 ± 0.008
10k0.205 ± 0.034
11e0.297 ± 0.04
11f0.389 ± 0.05
11n0.0316
CA-4 c0.043
a IC50 values are half maximal inhibitory concentrations required to block the growth stimulation of MDA-MB-231 cells. Values represent the mean (SEM) for three experiments performed in triplicate. b The results for compounds 10e and 11n of antiproliferative activity against MDA-MB-231 were from NCI. c The IC50 values obtained for CA-4 2a in this assay are 0.043 μM for MDA-MB-231 and is in good agreement with the reported values for 2a using the MTT assay on MDA-MB-231 breast cancer cell lines (see Ref 79).
Table 5. Antiproliferative effects of selected β-lactam compounds 10e, 10n and 11n in MCF-7 human breast, HL-60 leukaemia, U266 multiple myeloma, SW480 and HT-29 colon cancer cell lines.
Table 5. Antiproliferative effects of selected β-lactam compounds 10e, 10n and 11n in MCF-7 human breast, HL-60 leukaemia, U266 multiple myeloma, SW480 and HT-29 colon cancer cell lines.
CompoundMCF-7
IC50 (μM) a
HL-60
IC50 (μM) a
U266
IC50 (μM) a
SW480
IC50 (μM) a
HT-29
IC50 (μM) a
10e0.056 ± 0.0070.161 ± 0.0200.077 ± 0.020.055 ± 0.0040.135 ± 0.060
10n0.017 ± 0.0090.010 ± 0.0080.031 ± 0.010.037 ± 0.0050.631 ± 0.030
11n0.031 ± 0.0040.016 ± 0.005nd c0.044 ± 0.0080.941 ± 0.060
CA-40.0039 ± 0.00032 b0.0019 ± 0.00050.035 ± 0.010.003 ± 0.00084.165 ± 0.1
a IC50 values are half maximal inhibitory concentrations required to block the growth stimulation of MCF-7, HL-60, U266, SW480 and HT-29 cells. Values represent the mean (SEM error values 10−6) for three experiments performed in triplicate at 72 h. b The IC50 value obtained for CA-4 in this assay is in good agreement with the reported value (see refs 75, 82, 83). c nd: not determined.
Table 6. Antitumour Evaluation of compounds 10e, 11n and 16d in NCI-60 cell line screen a.
Table 6. Antitumour Evaluation of compounds 10e, 11n and 16d in NCI-60 cell line screen a.
Cell Line Compound 10eCompound 11nCompound 16d
GI50 (μM) b,cGI50 (μM) b,dGI50 (μM) b,e,j
NSC Lung CancerA549/ATCC0.07850.03820.598
EKVX0.06940.04640.639
HOP-620.05380.03500.336
HOP-92Nd fNd f0.443
NCI-H2260.05570.03683.11
NCI-H230.03120.02420.478
NCI-H332M0.962Nd f7.37
NCI-H4600.3060.03540.539
NCI-H5520.02070.01640.158
Colon CancerCOLO2050.04922.910.230
HCT-29980.08040.05340.673
HCT-1160.03970.03280.222
HCT-150.05040.03830.210
HT290.02922.780.351
KM120.03930.03180.202
SW-6200.04320.03760.236
CNS CancerSF-2680.1580.05141.18
SF2950.02540.03870.0870
SF539Nd fNd f0.161
SNB-190.07460.04570.440
SNB-750.03820.01990.509
U2510.03700.03250.345
Prostate cancerPC-30.04410.03530.297
DU-1450.04460.03590.349
MelanomaLOX IMV10.06760.04150.834
MALME-3M0.08840.068511.3
M140.03960.03130.128
MDA-MB-4350.02260.02020.0377
SK-MEL-20.04500.03160.484
SK-MEL-280.06960.06291.94
SK-MEL-50.03120.02250.0861
UACC-25723.30.15814.3
UACC-620.05180.04220.0972
IGROV10.05800.04450.0630
OVCAR-30.02410.02440.109
Ovarian CancerOVCAR-40.1060.07411.43
OVCAR-50.08060.3120.431
OVCAR-8Nd fNd f0.403
NCI/ADR-RES0.03530.02650.125
SK-OV-30.1820.02540.392
786-00.06940.04120.340
A4980.02710.02260.103
ACHN0.09710.0511Nd f
Renal CancerCAKI-10.1220.126Nd f
RXF 3930.02710.03000.170
SN12C0.08370.04460.925
TK-100.09220.12614.3
UO-310.06440.08210.342
MCF-70.03430.03100.0447
Breast CancerMDA-MB-231/ATCC0.06860.03160.488
HS 578T0.05530.04280.229
BT-5490.1740.03970.525
T-47D15.811.616.9
MDA-MB-4680.05080.02260.154
MID GI50 g0.07410.05370.407
MID TGI h23.410.710.0
MID LC50 i81.391.283.2
a Data obtained from NCI in vitro human tumour cell screen 5 dose assay. b GI50 is the molar concentration of the compound causing a 50% inhibition of growth of the tumour cells; c NSC 762040; d NSC 762041; e NSC 792961; f Nd: Not determined; g MID GI50: MG-MID Full panel mean-graph mid-point; h TGI (total growth inhibition) TGI is the mean concentration required to completely inhibit the growth of all cells over the total NCI 60 cell line panel; i LC50 is the mean concentrations required to kill 50% of the cells over the total NCI 60 cell line panel in the assay. j GI50 values determined in leukaemia cell lines for compound 16d are CCRF-CEM (0.278), HL-60(TB) (0.214), K-562 (0.0545), MOLT-4 (0.347), RPMI-8226 (0.361) and SR (0.0765) μM.
Table 7. Summary of NCI 60 cell line screening results for selected compounds.
Table 7. Summary of NCI 60 cell line screening results for selected compounds.
Compound NCI Ref. NoStructureGI50
(nM) a
TGI (µM) bLC50
(µM) a
10eD-762040 Pharmaceuticals 14 01119 i01074.1310.7291.20
11nD-762041 Pharmaceuticals 14 01119 i01153.7010.0083.18
16dS-792961 Pharmaceuticals 14 01119 i01240723.4481.28
2a CA-4D-613729 Pharmaceuticals 14 01119 i01399.3010.3085.50
a GI50 and LC50 are the concentrations required to inhibit the growth and kill 50% of the cells in the assay, respectively. b TGI is the concentration required to completely inhibit the growth of all cells.
Table 8. Inhibition of tubulin polymerisation for compounds 10e, 11n and CA-4 and their corresponding IC50 values in MCF-7 and MDA-MB-231 breast cancer cells.
Table 8. Inhibition of tubulin polymerisation for compounds 10e, 11n and CA-4 and their corresponding IC50 values in MCF-7 and MDA-MB-231 breast cancer cells.
Compound
Number
MCF-7
IC50 (µM) a
MDA-MB-231
IC50 (µM) a
Vmax at 10 µM (mOD/min) bFold-Reduction c
10e0.034 ± 0.0040.06860.00391.8
11n0.031 ± 0.0050.03160.00411.7
CA-40.0039 ± 0.000320.0430.00226.3
a IC50 values are the compound concentration required to inhibit cell proliferation by 50%. Data are expressed as the mean ± S.E.M. from the dose–response curves of at least three independent experiments performed in triplicate. b The Vmax values at 10 µM (mOD/min) for the vehicle ethanol is 0.0069. c Fold inhibition of tubulin polymerisation was calculated using Vmax value for each reaction.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Malebari, A.M.; Wang, S.; Greene, T.F.; O’Boyle, N.M.; Fayne, D.; Khan, M.F.; Nathwani, S.M.; Twamley, B.; McCabe, T.; Zisterer, D.M.; et al. Synthesis and Antiproliferative Evaluation of 3-Chloroazetidin-2-ones with Antimitotic Activity: Heterocyclic Bridged Analogues of Combretastatin A-4. Pharmaceuticals 2021, 14, 1119. https://doi.org/10.3390/ph14111119

AMA Style

Malebari AM, Wang S, Greene TF, O’Boyle NM, Fayne D, Khan MF, Nathwani SM, Twamley B, McCabe T, Zisterer DM, et al. Synthesis and Antiproliferative Evaluation of 3-Chloroazetidin-2-ones with Antimitotic Activity: Heterocyclic Bridged Analogues of Combretastatin A-4. Pharmaceuticals. 2021; 14(11):1119. https://doi.org/10.3390/ph14111119

Chicago/Turabian Style

Malebari, Azizah M., Shu Wang, Thomas F. Greene, Niamh M. O’Boyle, Darren Fayne, Mohemmed Faraz Khan, Seema M. Nathwani, Brendan Twamley, Thomas McCabe, Daniela M. Zisterer, and et al. 2021. "Synthesis and Antiproliferative Evaluation of 3-Chloroazetidin-2-ones with Antimitotic Activity: Heterocyclic Bridged Analogues of Combretastatin A-4" Pharmaceuticals 14, no. 11: 1119. https://doi.org/10.3390/ph14111119

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
