Open AccessArticle

Bactericidal and In Vitro Cytotoxicity of Moringa oleifera Seed Extract and Its Elemental Analysis Using Laser-Induced Breakdown Spectroscopy

1
Department of Biophysics, Institute for Research & Medical Consultations (IRMC), Imam Abdulrahman Bin Faisal University, Dammam 31441, Saudi Arabia
2
Department of Physics, College of Science, Imam Abdulrahman Bin Faisal University, Dammam 31441, Saudi Arabia
3
Department of Epidemic Diseases Research, Institute for Research & Medical Consultations (IRMC), Imam Abdulrahman Bin Faisal University, Dammam 31441, Saudi Arabia
4
Department of Stem Cell Research, Institute for Research & Medical Consultations (IRMC), Imam Abdulrahman Bin Faisal University, Dammam 31441, Saudi Arabia
5
Department of Physics, Laser Research Group, King Fahd University of Petroleum & Minerals, Box 372, Dhahran 31261, Saudi Arabia
6
Department of Pharmaceutical Chemistry, College of Clinical Pharmacy, Imam Abdulrahman Bin Faisal University, Dammam 31441, Saudi Arabia
7
Department of Nanomedicine Research, Institute for Research & Medical Consultations (IRMC), Imam Abdulrahman Bin Faisal University, Dammam 31441, Saudi Arabia
*
Authors to whom correspondence should be addressed.
Pharmaceuticals 2020, 13(8), 193; https://doi.org/10.3390/ph13080193
Received: 9 July 2020 / Revised: 6 August 2020 / Accepted: 7 August 2020 / Published: 13 August 2020
(This article belongs to the Special Issue Novel Antibacterial Agents)

Abstract

In the current study, we present the correlation between the capability of laser-induced breakdown spectroscopy (LIBS) to monitor the elemental compositions of plants and their biological effects. The selected plant, Moringa oleifera, is known to harbor various minerals and vitamins useful for human health and is a potential source for pharmaceutical interventions. From this standpoint, we assessed the antibacterial and in vitro cytotoxicity of the bioactive components present in Moringa oleifera seed (MOS) extract. Detailed elemental analyses of pellets of MOSs were performed via LIBS. Furthermore, the LIBS outcome was validated using gas chromatography–mass spectrometry (GC-MS). The LIBS signal was recorded, and the presence of the essential elements (Na, Ca, Se, K, Mg, Zn, P, S, Fe and Mn) in the MOSs were examined. The bactericidal efficacy of the alcoholic MOS extract was examined against Escherichia coli (E. coli) and Staphylococcus aureus(S. aureus) by agar well diffusion (AWD) assays and scanning electron microscopy (SEM), which depicted greater inhibition against Gram-positive bacteria. The validity and DNA nuclear morphology of human colorectal carcinoma cells (HCT-116) cells were evaluated via an MTT assay and DAPI staining. The MTT assay results manifested a profoundly inhibitory action of MOS extract on HCT116 cell growth. Additionally, MOS extracts produced inhibitory action in colon cancer cells (HCT-116), whereas no inhibitory action was seen using the same concentrations of MOS extract on HEK-293 cells (non-cancerous cells), suggesting that MOS extracts could be non-cytotoxic to normal cells. The antibacterial and anticancer potency of these MOS extracts could be due to the presence of various bioactive chemical complexes, such as ethyl ester and D-allose and hexadecenoic, oleic and palmitic acids, making them an ideal candidate for pharmaceutical research and applications.
Keywords: antibacterial; anticancer; GC-MS; LIBS; Moringa oleifera; seed extract antibacterial; anticancer; GC-MS; LIBS; Moringa oleifera; seed extract

1. Introduction

Traditional herbalists throughout the globe have emphasized the role of plants used as remedies to treat different diseases, like inflammation and bacterial infections [1]. Enormous research is being carried out, where plants are being tested for active compounds that have antibacterial, antifungal and anticancer activities [2,3]. One such plant is Moringa oleifera Lam. (MOL), which originates mainly from Africa, Asia and South America [4,5]. The moringa leaves and fruits are considered as vegetables in the Philippines, Thailand, India and Pakistan [6]. Recently, sundry countries (Mexico, Caribbean islands, Hawaii and Cambodia) have begun planting it for its plentiful health benefits and nutritional value in addition to its medicinal importance [7,8]. Moringa fruits and leaves have various biological applications in addition to being enriched with vitamins, minerals, and proteins. The WHO recommends using MOL as a food because of its superior nutritional values for human health [6]. It is a well-known fact that Moringa plants (leaves and fruits) were grown as for skin sanitation, an energy source and also to relieve tension [8,9]. Innumerable reports have discovered that MOL has numerous significant merits, such as antioxidant, antimicrobial, anticancer, anti-inflammatory, antiulcer, antihypertensive, anti-urolithic, anti-asthmatic, antidiabetic, analgesic, anti-aging, diuretic, cardiovascular, hepatoprotective, hypoglycemic and immunomodulatory characteristics [10,11,12,13]. The hypotensive, antibacterial and anticancer efficacies of the MOL leaves and fruits are due to the presence of sundry distinctive chemical compounds (benzyl glucosinolate, niazimicin, benzyl iso-thiocyanate complexes and pterygospermin) in their structure [11]. Several methods have been improved to extract the initial contents from MOL plants for the production of food supplements and medicines (with natural organic components) and the determination of their other health benefits. Extraction procedures based on pressurized liquid, ultrasound, microwaves and supercritical fluid have been introduced [14,15,16,17].
Nevertheless, all extraction mechanisms experience several restrictions in terms of using a large amount of harmful organic solvents, sample production proceedings and cost [13]. To get better results, LIBS has emerged as an efficient approach for the identification and quantification of elemental compositions from different medicinal plant extractions. Over the past decade, the LIBS method has broadly been exploited for analyzing chemical elements existing in diverse kinds of specimens. This analytical method has distinguishing properties, like cost effectiveness, real-time measurement, sensitivity, rapidity and in situ elemental analysis [18,19,20]. Additionally, this type of analysis is easy, eco-friendly and is less complicated when preparing the sample. It is known that intensive sample treatments frequently produce erroneous results due to the presence of contaminants and loss-related effects. Thus, the LIBS technique can accurately disclose the identity of various medicinal plants in a scientific manner. In addition, most edible plants consist of proteins, vitamins and minerals, which possess immense benefits to health [21,22].
The purpose of the study is to analyze the presence of different elements in Moringa oleifera seed (MOS) extracts by using the LIBS approach and to examine the biological activities of MOS extracts by evaluating the antibacterial and anticancer potencies.

2. Results

2.1. Qualitative Analysis of MOS Using LIBS

The laser-induced breakdown spectroscopy (LIBS) spectra (Figure 1) of the MOS extract were recorded in the range of 200 to 800 nm. For the detection of the major elements, the spectra were recorded from different spots of the pellets and by scanning at a 50 nm wavelength range each time. In order to reduce the background noise and to enhance the LIBS signal intensity, LIBS parameters, including the delay times (delay between the incident laser pulse and the recording of spectra), the number of accumulations and laser energies, were optimized prior to the application of the LIBS setup for MOS sample analysis. The recorded LIBS spectra of the MOSs comprised various significant spectral peaks of the atomic and ionic lines (with varying intensities) related to the abundance of elements present in the tested MOS samples. Based on the NIST database, the recorded spectral lines were identified and classified in terms of the characteristic elements present in the MOSs, suggesting their significant role towards antibacterial and anticancer activities. Clearly, the measured LIBS spectra (Figure 1) exhibited the presence of vital elements such as Ca, K, Mg, P, S, Fe, Mn, Zn, Na and Se in MOS samples.
Table 1 presents the LIBS signal intensities of the spectral transition lines corresponding to various detected elements in MOSs. In accordance with the Boltzmann distribution, the intensities of the LIBS spectral lines have a direct relationship with the elemental contents (concentration) present in MOSs [23,24]. This correlation was attained by considering the intensity ratio of the detected elemental lines with that of the C line taken as the reference (247.8 nm). The achieved intensity ratios of the elements Ca, K, Mg, P, S, Fe, Mn, Zn, Na and Se were in the ranges of 2.7–1.7, 1.2–1.4, 0.9, 1.1, 1.1, 1.1–0.9, 1.0, 0.9, 1.2 and 1.1, respectively, which were consistent with those reported in the literature [16].

2.2. Volatile Content Analyses of MOS using GC-MS

The GC-MS analyses of the Moringa oleifera seed (MOS) showed the presence of 114 volatile complexes with diverse chemical groups: fatty acids, esters, ketones, alcohols, aldehydes, and hydrocarbons. Table 2 shows the retention times and Figure 2 displays the percentage composition of all the identified chemical compounds in MOS. The main types were oleic acid (22.53%), 2-3-di-hydroxy-propyl (13.48%), 9-octa-decenoic acid (Z), 2-3-di-hydroxy-propyl ester (11.35%), docosenamide (6.04%), ethyl oleate (6.03%), 1-3-propanediol, 2-ethyl-2-(hydroxyl-methyl) (5.52%), oleic anhydride (3.96%), 2-propanone and 1-1-dimethoxy (3.86%). These MOSs contain fatty acids and their ester derivatives (65.45%), alcohols (9.4%), nitrogen compounds (9.09%), ketones (5.34%) and aldehydes (2.88%). To form esters, fatty acids and alcohols in plants may undergo esterification.

2.3. In vitro Cytotoxic Activity of MOS

The cell viability of the MOS extract-treated HCT-116 cells was evaluated using an MTT assay after 48 h. The percentage of cell viability of the MOS extract-treated HEK-293 and HCT-116 cells was determined. The MTT assay examined the percentage of cell viability. The number of viable cells present in the control group was compared with the MOS-treated cells. In Figure 3, we show that cancer cells (control group, without MOS treatment) showed 100% cell viability, whereas cancer cells treated with MOS extract showed a significant decrease, which suggests that MOS extract could induce a significant drop in the viability of cancerous cells compared to control ones (without treatment using the MOS extract).
The average viability of the MOS extract-treated cancer cells at various concentrations showed quite encouraging outcomes, with p < 0.01. The specificity of the MOS extract in the concentration range of 30 to 100 µg/mL on normal cells was inspected using MTT assays after treatment for 48 h (Figure 4). When MOS extract was tested on normal cells (HEK-293), we found no inhibitory action.
The MOS extract showed content-dependent specificity when the data were taken from three replications. A Student’s t-test was used to understand the difference between the two treated groups and the results are presented as the mean ± standard deviation (SD).

2.4. Nuclear Breakdown of MOS Extract-Treated Cancerous Cells

Figure 5 illustrates the MOS extract-treated and untreated cell morphology that was imaged using confocal scanning microscopy (CSM). The MOS extract-treated cancer cells exhibited stronger inhibitory action (Figure 5A) than the control sample (Figure 5B). The CMS images of the nuclear cell morphology of both control (untreated) and MOS extract-treated (66 µg/mL) samples after stained by DAPI showed a substantial loss (nuclear disintegration) because of the treatments.
It was deduced that the MOS extract has strong anti-cancerous activities in colon cancer cells (as supported by the GC-MS analysis).

2.5. Antibacterial Efficacy of MOS Extract

The antibacterial potency of the MOS extract was assessed on Gram-negative and Gram-positive bacteria using the AWD method, wherein the inhibited areas due to antibacterial action around the inoculated wells were measured. This zone of inhibition was produced by the diffusion of the active chemical constituents present in the MOS extract. These results confirm the impact of the MOS extract on S. aureus and E. coli. Interestingly, the MOS extract was found to produce better antibacterial action in S. aureus bacteria than E. coli.
In Figure 6, the MOS extract shows concentration-dependent inhibition of S. aureus bacteria, with inhibition zones ranging from 18 to 24 mm. On the other hand, the inhibition zones of E. coli were found to range from 6 to 20 mm. The maximum and minimum inhibition zone diameters were acquired with the corresponding extract contents of 250 and 50 µg/mL (Figure 6 and Figure 7). No inhibition was observed in E.coli with 50 µg/mL, whereas a higher concentration showed inhibition of the bacteria.
The morphological changes in bacteria treated with MOS were studied using SEM. The untreated cells of E. coli were seen as regular rod-shaped cells with smooth cell surfaces (Figure 8a). The E. coli subjected to treatment with MOS appeared as damaged cells (Figure 8b) and the cell number also showed a reduction with a significant alteration of the cell wall and membrane. Similarly, the treatment of S. aureus with MOS extract also showed significant morphological changes in the structure and number of cells (Figure 8d), whereas the control S. aureus cells appeared as regular cocci with intact cell surfaces (Figure 8c). The damaged cells lost their cellular integrity, which led to the death of bacterial cells.

3. Discussion

The LIBS and GC-MS techniques were utilized for the identification and quantitation of the elements existing in the MOS extract. For the first time, the anticancer and antibacterial activities of the MOS extract were assessed. Our results show the presence of diverse elements in MOSs, as confirmed by different methods. The GC-MS results of the MOS extract verified the existence of diverse anticancer and antimicrobial compounds. The spectra from different points on the surface of MOS pellets were examined by the LIBS method. The outcomes proved that MOSs are rich in different minerals that are useful to humans as food and medicine. Besides, the seeds have an influential role in antibacterial activity because of the availability of the following elements: K, Fe, P, Ca, Mg, S, Mn, Na, Se and Zn. It is clear that the amounts of Ca, K and Mg present in the MOSs were greater than the other elements. These results give evidence that MOSs are rich in different minerals, which are highly useful to humans as food supplements and medicine, indicating their remarkable impact in regulating the level of blood pressure, blood lipids, regulating the stomach function, protecting the liver, strengthening the bones, generating protein and enhancing the immunity of the human body [23,24,25]. Furthermore, the existence of Se in MOSs plays a vital role by protecting from fatal diseases like cancer, cardiovascular disease, cognitive decline, and thyroid disease. Moreover, these seeds exhibit a powerful antibacterial activity due to the presence of the detected elements, which is evidenced clearly by the antimicrobial studies conducted in this work.
The analysis of GC-MS of the MOSs showed the presence of 114 volatile complexes with diverse chemical groups: fatty acids, esters, ketones, alcohols, aldehydes, and hydrocarbons. To form esters, fatty acids and alcohols in plants may undergo esterification [19]. It has been reported that most of these compounds possess anticancer activities. In addition, palmitic acid shows selective cytotoxicity against human leukemic cells. The fatty acids also possess both antifungal and antibacterial activities. The omega-9 fatty acid was a detected primary complex (oleic acid) in the MOSs, which has numerous human health benefits (preventing ulcerative colitis and reducing blood pressure with remarkable antioxidant efficiency [26,27]). Therefore, GC-MS measurement proved the presence of numerous fatty acids and their related esters (cis-9-hexadecenoic acid (palmitoleic), oleic acid, octadecanoic (stearic) acids, n-hexadecenoic acid) and alcohols. It was reported that most of these compounds have anticancer activity. For example, D-allose inhibits cancer cell growth at G1 phase [17]. Palmitic acid has selective cytotoxicity against leukemic cells in humans. Fatty acids also have antifungal and antibacterial effects [28].
In the present study, the biological activities of MOS were evaluated. The cell viability of the MOS extract-treated (for 48 h) HCT-116 (cancer) cells was assessed via MTT assay. The viability status of the extract-treated HEK-293 (normal) and HCT-116 cells was determined. It was inferred that the MOS extract has strong anticancer activity in colon cancer cells. However, few reports done on MOS extract have shown that the enhanced anticancer activity of the extract correlated with the occurrence of high oleic acid and fatty acid contents [21]. Previously, it has been shown that Moringa plants (leaves and fruits) have been used for various applications, such as antioxidant, antimicrobial, anticancer, anti-inflammatory, antiulcer, antihypertensive, anti-urolithic, antidiabetic, anti-asthmatic, anti-aging, analgesic, diuretic, cardiovascular, hepatoprotective, hypoglycemic and immunomodulatory uses [22]. As per our knowledge, there is no information on whether Moringa leaf extract or seed extract cause any differential response in cancer cells. Nevertheless, it would be interesting to do a comparative study where the effects of Moringa seed and Moringa leaf extracts are examined in cancer cells. We have used HEK-293 (human embryonic kidney) cells as normal cells to compare the MOS anticancer activity to human colon cancer cell line HCT-116. The purpose was to check whether MOS extracts produce any cytotoxic effects in normal cells or not. In our studies, we have found that MOS extracts produce inhibitory action in colon cancer cells (HCT-116), whereas no inhibitory action was found using the same concentrations of MOS in HEK-293 cells (non-cancerous cells), which suggests that MOS extracts could be non-cytotoxic to normal cells.
MOS has 114 volatile complexes with diverse chemical groups: fatty acids, esters, ketones, alcohols, aldehydes and hydrocarbons. The hypotensive, antibacterial and anticancer efficacies of the MO leaves and fruits are due to presence of sundry distinctive chemical compounds (benzyl glucosinolate, niazimicin, benzyl iso-thiocyanate complexes and pterygospermin) in their structure [6]. Several methods have been improved to extract the initial contents from MOL plants for the production of food supplements medicines (with natural organic components) and the determination of their other health benefits. While we do not know the molecular mechanism of the anticancer activities of MOS extract in cancer cells, the role of the caspase signaling pathway cannot be ruled out in the process of programmed cell death. It would be interesting to study the different caspases, such as caspase-3 and caspase-9 in MOS extract-induced cell death.
The antimicrobial potency of the MOS extract was assessed in the Gram-negative and Gram-positive bacteria via AWD, wherein the inhibited areas around the inoculated wells were measured. Due to the occurrence of varying cell components, there is a discrepancy in the bactericidal action of the MOS extract for the two different types of test bacteria [29].
The study of morphogenesis using SEM showed that MOS extract affects the cell wall at the initial stage, and later penetrates and accumulates at the surface membrane. This leads to an interruption in the metabolic activities of bacterial cells and initiates cell death [30]. The present study illustrates that the MOS extract causes damage to the microbial cell surface, thereby causing significant antibacterial activity. The penetration of the extract into the bacterial cell alters the membrane integrity by structural alterations, the loss of membrane proteins, etc.
Natural compounds like fatty acids, esters, ketones, alcohols, aldehydes and hydrocarbons have been reported in a variety of plants [31]. The mechanisms of the antibacterial activities of such compounds is linked to their high affinity towards lipids due to their hydrophobic characteristics. Their antibacterial actions are evidently related to this lipophilic nature and to the bacterial membrane structure [32]. This leads the compounds to penetrate the cellular membrane of the microbial cell, which enhances the fluidity and permeability of membrane, alters the topology of membrane proteins and inflicts disruption in the respiration chain [33,34].
The present study indicated the presence of phenolic compounds and these are reported to disrupt the cell membrane, leading to the inhibition of cell metabolism causing the leakage of cellular content [35]. It has been found that phenolics inhibit processes associated with the cell membrane, for example, electron transport, ions, protein translocation, phosphorylation and other enzyme-dependent reactions. Therefore, the disturbed permeability of the cytoplasmic membrane may lead to cell death [36]. The interaction of plant bioactive compounds with bacterial cell membranes results in the inhibition of several Gram-positive and Gram-negative bacteria [37]. It has also been indicated that Gram-positive bacteria are more susceptible to the antibacterial action of natural compounds like fatty acids, esters, ketones, alcohols, aldehydes and hydrocarbons, compared to Gram-negative bacteria [38]. This is also concordant with the current study, owing to the fact that Gram-negative bacteria have an outer layer surrounding their cell wall, limiting the access of hydrophobic compounds.
Therefore, MOSs can serve as an antibacterial component that can be further studied and recommended as a potential antimicrobial and anticancer therapy. This natural source can be further evaluated and upgraded for pharmaceutical application.

4. Materials and Procedures

4.1. Seed Assembly and Extract Preparation

All the extracts used in this study were prepared from good quality MOSs procured from a place where they are naturalized, Dammam in Saudi Arabia (originally imported from India). The seeds, without a shell, were crushed to obtain fine powder, followed by compression to get pellets. Figure 9a–c shows different steps of sample production for detailed analysis with the LIBS technique. Diversified ratios of the MOS powder between 5–25 g was mingled with 220 mL of ethanol and were stirred for 5 h, then the MOS solutions were filtered and put into a rotary evaporator to get a dry powder. The samples (MOSs) were subjected to GC-MS and anticancer activity and antibacterial activity tests.

4.2. LIBS Setup

Figure 10 depicts the modified LIBS setup that was employed to determine the chemical constituents (elemental compositions) present in the MOS specimens. A quadrupled Q-switched Nd:YAG pulse laser (QUV-266-5) with an energy of 30 mJ, a pulse width of 8 ns, a 266 nm wavelength and a 20 Hz repetition rate was used with a UV convex lens of focal length 30 mm to focus the pulses onto the MOS pellets (which acted as the target) to ablate them. A plasma plume was generated when the target was ablated by the laser source. The emitted plasma was detected/collected using a fiber optic system positioned at 45° and the other end (500 mm) was connected to a spectrometer (Andor SR 500i-A) via grating with approximately 1200 lines per mm. An automated sample holder able to move across the plane was used to mount the pellet to avoid the formation of crusts on the surface of the target as a result of several laser pulses on the sample. The spectrum was recorded by an Intensified charge-coupled device (ICCD) camera (Model iStar 320T, 690 × 255 pixels with delay time setting at 300 ns) and data were transferred to an interfaced online computer (PC).

4.3. GC-MS Measurements

GC-MS (Shimadzu GC-2010 Plus) was applied for the analysis of ethanol MOS extracts that were provided by a split/splitless auto-injector (AOC-20i series) and coupled to a QP2010 Ultra single quadrupole instrument. The secession with GC was accomplished by using an Rxi-5MS fused silica capillary column (Restek, USA) with 30 m long, 0.25 mm wide and 100 µm thick films. The temperature was raised at a constant rate (5 °C/min) from the initial 60 °C (retained for 0.5 min) up to a final 280 °C (kept for 5 min). The temperature of the inlet was 270 °C (in the splitless mode) and helium (used as carrier gas of purity 99.99%) was blown through the MS transfer line (280 °C) at a 1 mL/min rate. The electron impact modes were used to operate the ion source (70 eV of energy at 250°C) and the mass spectrum (full scan) was recorded in the range of 33–550 m/z. The spectrum values were gained by regulating the GC-MS and via a GC-MS solution. The compounds of emanated volatiles were disclosed by means of the NIST-11 and WILEY-9 libraries and by calculating the relative area of each compound.

4.4. Anticancer Activity of MOS Extract

4.4.1. In Vitro Cell Viability and Cell Culture Assay

As already mentioned, the anticancer activities of the MOS extract were evaluated by treating HCT-116 and normal (HEK-293) human cell lines. The cells were obtained from Dr. Khaldoon M. Alsamman, College of Applied Medical Science, Imam Abdulrahman Bin Faisal University, Dammam, Saudi Arabia. First, cells were cultured in 96 well-plates according to the earlier specified method. Dulbecco’s modified Eagle’s medium (DMEM), supplemented with other reagents (selenium chloride, fetal bovine serum, L-glutamine and antibiotics), was added to the plates for cell growth [29,30].
The cells were treated with varying concentrations of MOS extracts (30–100 µg/mL) for 48 h, whereas in the control, no MOS extract was added. Equal concentrations of a solvent, dimethyl sulfoxide (DMSO) were used in both the control and MOS-treated samples. After 48 h, an MTT assay was performed for 4 h (Molecules, Wellington, New Zealand). Afterward, the growth medium was removed from the plates and (DMSO) was added to every well so the MTT formed formazan crystal. Then, the wells containing the cell cultures were checked at a wavelength of 570 nm via a micro-plate reader (Bio-Rad Labs., Boston, MA, USA). Finally, the recorded readings were analyzed through inbuilt software (Version 5.0, GraphPad Prism) and the statistical significance was studied via ANOVA tests.

4.4.2. Nuclear Staining via DAPI

The cells were treated with MOS extract (at 0.066 µg/mL) for 48 h and, in the control group, no MOS extract was added. The effects of MOS extract on cell nuclei were estimated with DAPI staining. Cold paraformaldehyde (4%) was used to pretreat the cells, which were then washed with 0.1% of Triton X-100 made from phosphate-buffered saline (PBS). At the same time, both the control and MOS- treated cells were stained using PBS with DAPI of 1.0 μg/mL concentration followed by rinsing with X-100 (0.1%). Cell morphologies of both cells (control and the treated) were analyzed via (CSM) (CSM-Zeiss, Frankfurt, Germany).

4.5. Antimicrobial Activity Assessment of MOS Extract

The effect of MOS extract on antibacterial efficacy at 50, 100, 150, 200 and 250 µg/mL against the E. coli ATCC35218 and S. aureus ATCC29213 strains was assessed using the AWD method. The inoculum was made from fresh bacteria grown overnight at 37 °C using nutrient broth (NB). This was followed by the preparation of inoculum to 0.5 McFarland standard and 100 µL of inoculum were disseminated over the surface of Mueller–Hinton agar (MHA) plates and dried in an aseptic environment. Next, the inoculated plates (6 mm) were punched using a sterile cork-borer. From the prepared extract, around 50 μL were added to the wells and further kept at 37 °C for an overnight incubation. Thereafter, the bacterial inhibition zone diameter over the entire well was recorded to evaluate the inhibition by the MOS extracts [29].

4.6. Antimicrobial Activity Assessment of MOS Extract Using SEM

The effect of MOS extract was additionally studied to investigate the structural damage caused to the selected bacteria by using SEM. The adjusted bacterial cell density, as described above, was treated with 250 µg/mL MOS for overnight incubation. The assay was carried out as per the protocol described by Rehman et.al [29].

4.7. Statistical Analysis

In the present study, cell viability data are presented as mean (±) standard deviation (SD), which were obtained from three independent experimental repeats. One-way ANOVA followed by Dunnett’s post hoc test with GraphPad Prism software version 5.0 (GraphPad Software, Inc., La Jolla, CA, USA) was done for the statistical analysis. p < 0.05 was considered to indicate a statistically significant difference.

5. Conclusions

The LIBS and GC-MS techniques were used to identify and quantify the elemental compositions of MOS extract. The antibacterial and antiproliferative effectiveness of the MOS extracts was evaluated. The LIBS spectra revealed the presence of various nutritional elements in the MOSs that are important for health. The GC-MS analysis reconfirmed the presence of several bioactive compounds in the MOS extract. The MTT assay and DAPI staining showed a significant impact of the MOS extract on the inhibition of the growth of the HCT-116 cells and the insignificant inhibitory action of the extract on the HEK-293 cells, indicating the excellent specificity of the extracts towards the cancer cells. The MOS extracts showed strong antibacterial activity in terms of the growth inhibition and morphogenic changes against S. aureus compared to E. coli, owing to their cell wall differences. Therefore, it is established that MOS extract can be a prospective antibacterial and anticancer agent for functional pharmaceutical formulations.

Author Contributions

M.A.G. conceptualized and designed the study; R.K.A., M.A.A., S.R. and F.A.K. carried out the experiments and prepared all the figures; M.A.A., S.R., A.M. and F.A.K. wrote the manuscript; S.R., M.A.A., M.A.G., F.A.K. and A.B. revised and finalized the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Shale, T.L.; Stirk, W.A.; van Staden, J. Screening of medicinal plants used in Lesotho for anti-bacterial and anti-inflammatory activity. J. Ethnopharmacol. 1999. [Google Scholar] [CrossRef]
  2. Macéé, S.R.H.; Truelstrup, H.L. Anti-bacterial activity of phenolic compounds against Streptococcus pyogenes. Medicines 2017, 4, 25. [Google Scholar] [CrossRef]
  3. Nakhjavan, M.; Palethorpe, H.M.; Tomita, Y.; Smith, E.; Price, T.G.; Yool, A.J.; Pei, V.J.; Townsend, A.R.; Hardingham, G.H. Stereoselective anti-cancer activities of ginsenoside rg3 on triple negative breast cancer cell models. Pharmaceuticals 2019, 12, 117. [Google Scholar] [CrossRef]
  4. Khor, K.Z.; Lim, V.; Moses, E.J.; Samad, N.A. The in Vitro and in Vivo Anticancer Properties of Moringa oleifera. Evid.-based Complement. Altern. Med. 2018, 2018, 14. [Google Scholar] [CrossRef]
  5. Oduro, I.; Ellis, W.O.; Owusu, D. Nutritional potential of two leafy vegetables: Moringa oleifera and Ipomoea batatas leaves. Sci. Res. Essays 2008, 3, 57–60. [Google Scholar] [CrossRef]
  6. Vergara-Jimenez, M.; Almatrafi, M.M.; Fernandez, M.L. Bioactive components in Moringa oleifera leaves protect against chronic disease. Antioxidants 2017, 6, 91. [Google Scholar] [CrossRef]
  7. Natarajan, S.; Joshi, J.A. Characterisation of moringa (Moringa oleifera Lam.) genotypes for growth, pod and seed characters and seed oil using morphological and molecular markers. Vegetos 2015, 28, 64–71. [Google Scholar] [CrossRef]
  8. Stohs, S.J.; Hartman, M.J. Review of the safety and efficacy of Moringa oleifera. Phytother. Res. 2015, 29, 796–804. [Google Scholar] [CrossRef]
  9. Retta, N.; Awoke, T.; Mekonnen, Y. Comparison of total phenolic content, free radical scavenging potential and anti-hyperglycemic condition from leaves extract of Moringa stenopetala and Moringa oliefera. Ethiop. J. Public Heal. Nutr. 2019, 1, 20–27. [Google Scholar]
  10. El-Hack, M.E.A.; Alagawany, M.; Elrys, A.S.; Desoky, E.-S.M.; Tolba, H.M.N.; Elnahal, A.S.M.; Elnesr, S.S.; Swelum, A.A. Effect of forage moringa oleifera l. (moringa) on animal health and nutrition and its beneficial applications in soil, plants and water purification. Agriculture (Switzerland) 2018, 8, 145. [Google Scholar] [CrossRef]
  11. Ferreira, P.M.P.; Farias, D.F.; Oliveira, J.T.D.A.; Carvalho, A.D.F.U. Moringa oleifera: Bioactive compounds and nutritional potential. Revista de Nutricao 2008, 21. [Google Scholar] [CrossRef]
  12. Anwar, F.; Zafar, S.N.; Rashid, U. Characterization of Moringa oleifera seed oil from drought and irrigated regions of Punjab, Pakistan. Grasasy Aceites 2006. [Google Scholar] [CrossRef]
  13. Silva, M.O.; Camacho, F.P.; Ferreira-Pinto, L.; Giufrida, W.M.; Vieira, A.M.S.; Visentaine, J.V.; Vedoy, D.R.L. Cardozo-Filho, L. Extraction and phase behaviour of Moringa oleifera seed oil using compressed propane. Can. J. Chem. Eng. 2016, 94, 2195–2201. [Google Scholar] [CrossRef]
  14. Gondal, M.A.; Hussain, T.; Yamani, Z.H.; Baig, M.A. Detection of heavy metals in Arabian crude oil residue using laser induced breakdown spectroscopy. Talanta 2006, 69, 1072–1078. [Google Scholar] [CrossRef] [PubMed]
  15. Sabsabi, M.; Cielo, P. Quantitative analysis of aluminum alloys by Laser-induced breakdown spectroscopy and plasma characterization. Appl. Spectrosc. 1995, 49. [Google Scholar] [CrossRef]
  16. Zhao, S.; Zhang, D. An experimental investigation into the solubility of Moringa oleifera oil in supercritical carbon dioxide. J. Food Eng. 2014. [Google Scholar] [CrossRef]
  17. Yamaguchi, F.; Takata, M.; Kamitori, K.; Ninaka, M.; Dong, Y.; Tokuda, M. Rare sugar D-allose induces specific up-regulation of TXNIP and subsequent G1 cell cycle arrest in hepatocellular carcinoma cells by stabilization of p27kip1. Int. J. Oncol. 2008, 32, 377–385. [Google Scholar] [CrossRef]
  18. Sharma, S.; Shukla, N.; Bharti, A.S.; Uttam, K.N. Simultaneous Multielemental Analysis of the Leaf of Moringa oleifera by Direct Current Arc Optical Emission Spectroscopy. Natl. Acad. Sci. Lett. 2018, 41, 65–68. [Google Scholar] [CrossRef]
  19. Osuntokun, O.T.; Yusuf-Babatunde, M.A.; Fasila, O.O. Components and Bioactivity of Ipomoea batatas (L.) (Sweet Potato) Ethanolic Leaf Extract. Asian J. Adv. Res. Rep. 2020, 10, 10–26. [Google Scholar] [CrossRef]
  20. Welch, R.; Tietje, A. Investigation of Moringa oleifera leaf extract and its cancer-selective antiproliferative properties. J. South. Carolina Acad. Sci. 2017, 15, 4. [Google Scholar]
  21. Menendez, J.; Lupu, R. Mediterranean Dietary Traditions for the Molecular Treatment of Human Cancer: Anti-Oncogenic Actions of the Main Olive Oils Monounsaturated Fatty Acid Oleic Acid (18:1n-9). Curr. Pharm. Biotechnol. 2006. [Google Scholar] [CrossRef]
  22. Fahey, J. Moringa oleifera: A Review of the Medical Evidence for Its Nutritional, Therapeutic, and Prophylactic Properties. Part 1. Trees Life J. 2005, 10, 602–608. [Google Scholar] [CrossRef]
  23. Zhong, J.; Wang, Y.; Yang, R.; Liu, X.; Yang, Q.; Qin, X. The application of ultrasound and microwave to increase oil extraction from Moringa oleifera seeds. Ind. Crops Prod. 2018, 120, 1–10. [Google Scholar] [CrossRef]
  24. Rai, A.; Mohanty, B.; Bhargava, R. Experimental modeling and simulation of supercritical fluid extraction of Moringa oleifera seed oil by carbon dioxide. Chem. Eng. Commun. 2017, 204, 957–964. [Google Scholar] [CrossRef]
  25. Belo, Y.N.; Al-Hamimi, S.; Chimuka, L.; Turner, C. Ultrahigh-pressure supercritical fluid extraction and chromatography of Moringa oleifera and Moringa peregrina seed lipids. Anal Bioanal Chem. 2019, 411, 3685–3693. [Google Scholar] [CrossRef]
  26. Almessiere, M.A.; Altuwiriqi, R.; Gondal, M.A.; AlDakheel, R.K.; Alotaibi, H.F. Qualitative and quantitative analysis of human nails to find correlation between nutrients and vitamin D deficiency using LIBS and ICP-AES. Talanta 2018, 185, 61–70. [Google Scholar] [CrossRef]
  27. Mehta, S.; Rai, P.K.; Rai, N.K.; Rai, A.K.; Bicanic, D.; Watal, G. Role of Spectral Studies in Detection of Antibacterial Phytoelements and Phytochemicals of Moringa oleifera. Food Biophys. 2011. [Google Scholar] [CrossRef]
  28. Pasquini, C.; Cortez, J.; Silva, L.M.C.; Gonzaga, F.B. Laser induced breakdown spectroscopy. J. Braz. Chem. Soc. 2007, 18, 463–512. [Google Scholar] [CrossRef]
  29. Rehman, S.; Asiri, S.M.; Khan, F.A.; Jermy, B.R.; Ravinayagam, V.; Alsalem, Z.; Jindan, R.A.; Qurashi, A. Biocompatible Tin Oxide Nanoparticles: Synthesis, Antibacterial, Anticandidal and Cytotoxic Activities. ChemistrySelect 2019, 4, 4013–4017. [Google Scholar] [CrossRef]
  30. Rehman, S.; Asiri, S.M.; Khan, F.A.; Jermy, B.R.; Ravinayagam, V.; Alsalem, Z.; Jindan, R.A.; Qurashi, A. Anticandidal and In Vitro Anti-Proliferative Activity of Sonochemically synthesized Indium Tin Oxide Nanoparticles. Sci. Rep. 2020. [Google Scholar] [CrossRef]
  31. Chávez-González, M.L.; Rodríguez-Herrera, R.; Aguilar, C.N. Essential Oils: A Natural Alternative to Combat Antibiotics Resistance. A Natural Alternative to Combat Antibiotics Resistance. Antibiot. Resist. Mech. New Antimicrob. Approaches 2016, 11, 227–235. [Google Scholar]
  32. Paduch, R.; Kandefer-Szerszeń, M.; Trytek, M.; Fiedurek, J. Terpenes: Substances useful in human healthcare. Arch. Immunol. et Ther. Exp. 2007, 55, 27–315. [Google Scholar] [CrossRef]
  33. Bajpai, V.K.; Baek, K.H.; Kang, S.C. Control of Salmonella in foods by using essential oils: A review. Food Res. Int. 2012, 45, 722–734. [Google Scholar] [CrossRef]
  34. Friedly, E.C.; Crandall, P.G.; Ricke, S.C.; Roman, M.; O’Bryan, C.; Chalova, V.I. In vitro antilisterial effects of citrus oil fractions in combination with organic acids. J. Food Sci. 2009, 74, M67–M72. [Google Scholar] [CrossRef]
  35. Trombetta, D.; Castelli, F.; Sarpietro, M.G.; Venuti, V.; Cristani, M.; Daniele, C.; Saija, A.; Mazzanti, G.; Bisignano, G. Mechanisms of antibacterial action of three monoterpenes. Antimicrob. Agents Chemother. 2005. [Google Scholar] [CrossRef]
  36. Nithyanand, P.; Shafreen, R.M.B.; Muthamil, S.; Murugan, R.; Pandian, S.K. Essential oils from commercial and wild Patchouli modulate Group A Streptococcal biofilms. Ind. Crops Prod. 2015, 69, 1–492. [Google Scholar] [CrossRef]
  37. Tajkarimi, M.M.; Ibrahim, S.A.; Cliver, D.O. Antimicrobial herb and spice compounds in food. Food Control 2010, 21, 1199–1218. [Google Scholar] [CrossRef]
  38. Calo, J.R.; Crandall, P.G.; O’Bryan, C.A.; Ricke, S.C. Essential oils as antimicrobials in food systems—A review. Food Control 2015, 54, 111–119. [Google Scholar] [CrossRef]

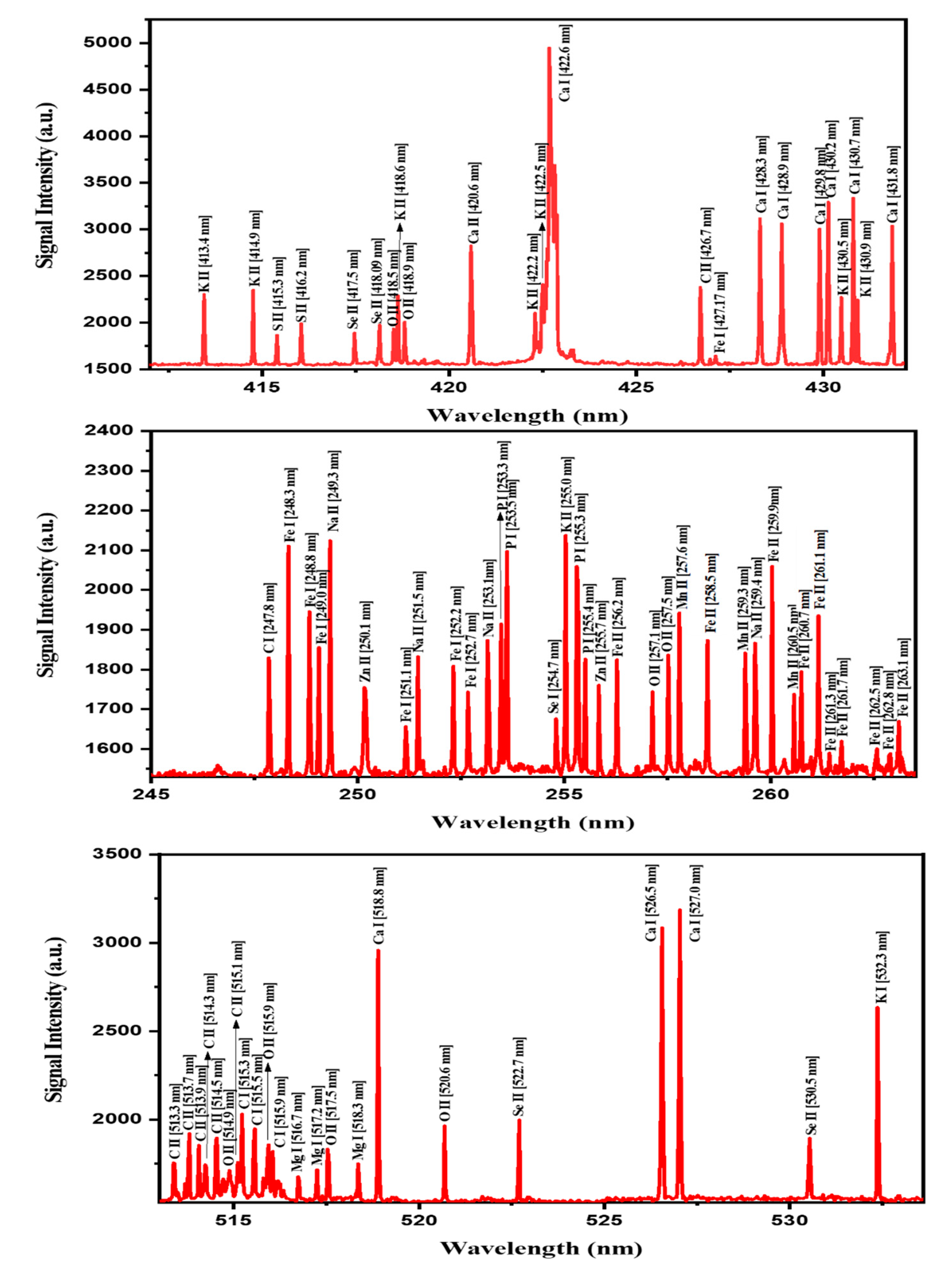

Figure 1. LIBS emission line spectra of various elements recorded in the wavelength range of 245–537 nm of MOS. The signature lines for different vital minerals present in MOSs are indicated in the figure.
Figure 1. LIBS emission line spectra of various elements recorded in the wavelength range of 245–537 nm of MOS. The signature lines for different vital minerals present in MOSs are indicated in the figure.
Pharmaceuticals 13 00193 g001

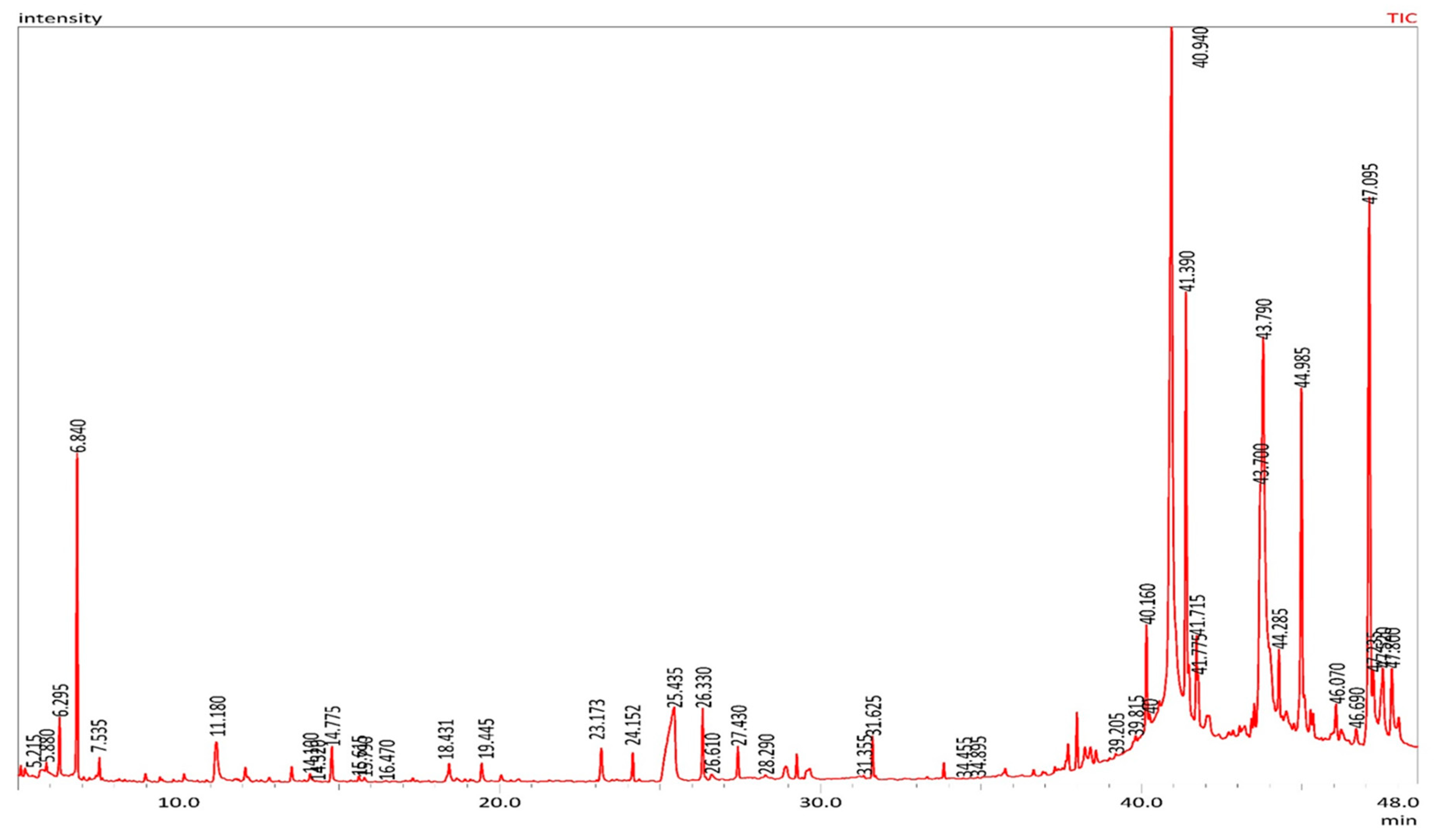

Figure 2. GC-MS chromatograph of MOS.
Figure 2. GC-MS chromatograph of MOS.
Pharmaceuticals 13 00193 g002

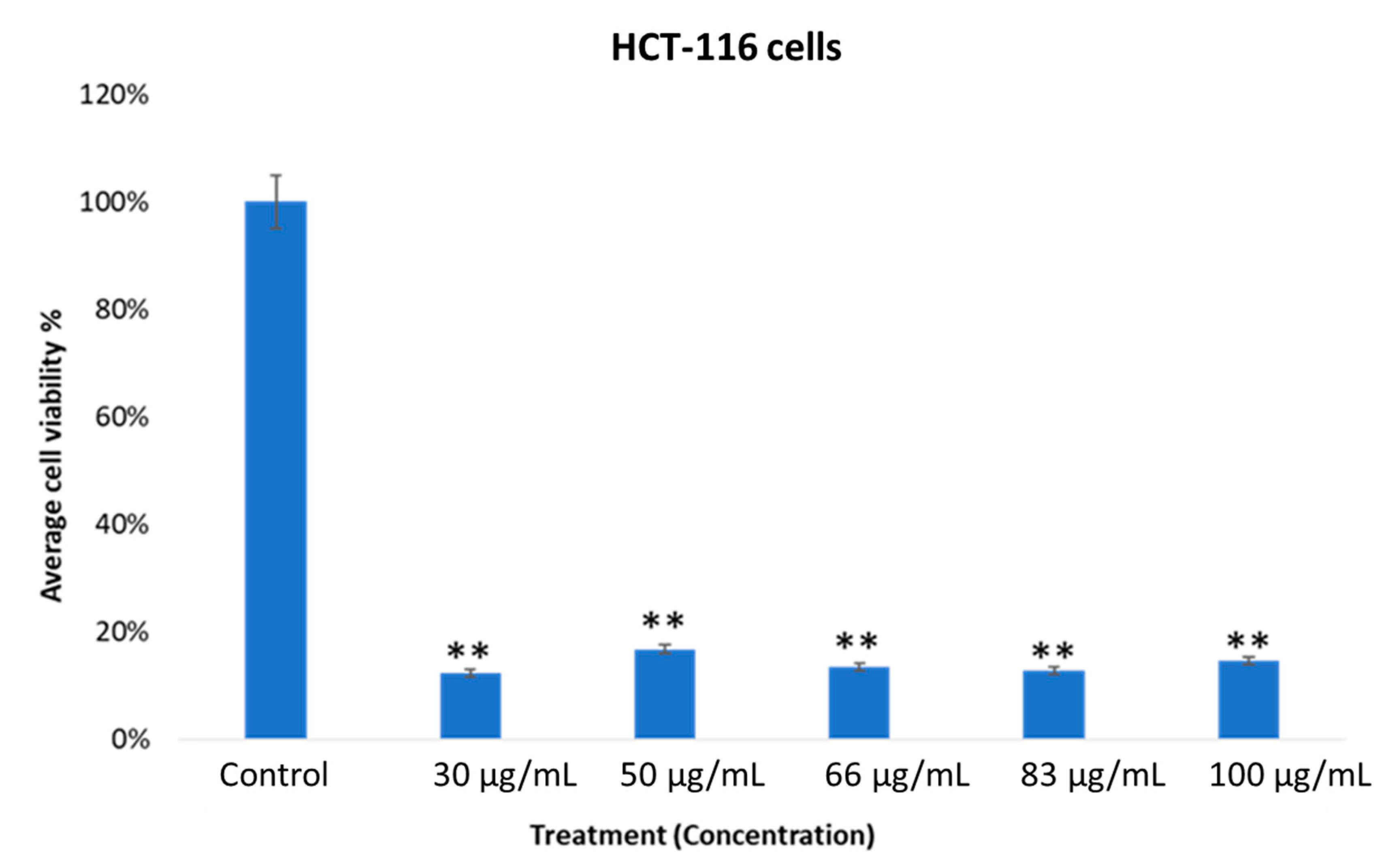

Figure 3. Effect of MOS extract on colon cancer cells (HCT-116) after treatment for 48 h with different concentrations. The average cell viability was calculated by MTT assay (** p < 0.01).
Figure 3. Effect of MOS extract on colon cancer cells (HCT-116) after treatment for 48 h with different concentrations. The average cell viability was calculated by MTT assay (** p < 0.01).
Pharmaceuticals 13 00193 g003

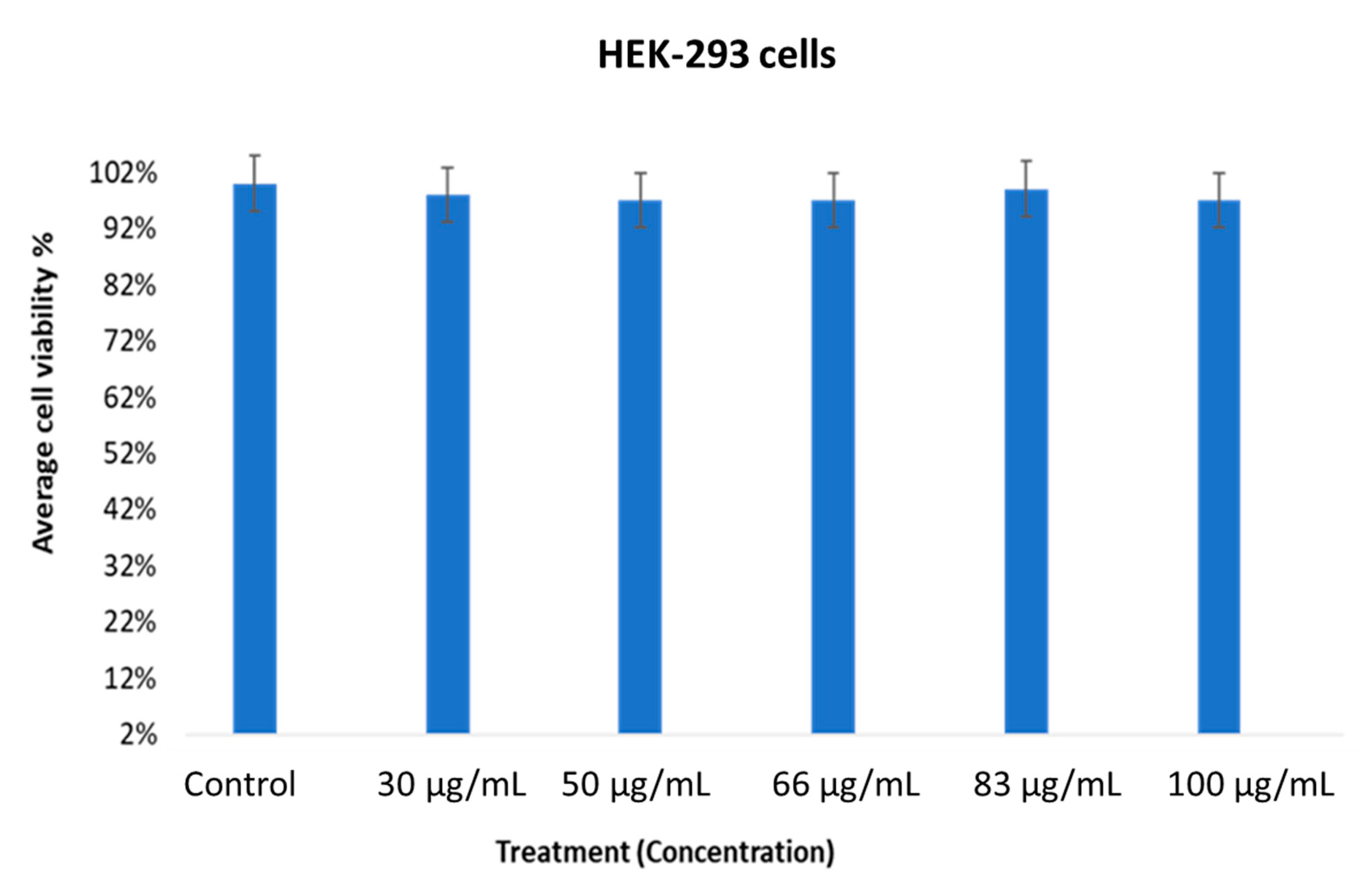

Figure 4. Effect of MOS extract on normal cells (HEK-293) after treatment for 48 h treated different concentrations. The average cell viability was calculated by MTT assay.
Figure 4. Effect of MOS extract on normal cells (HEK-293) after treatment for 48 h treated different concentrations. The average cell viability was calculated by MTT assay.
Pharmaceuticals 13 00193 g004
Figure 5. Confocal staining by DAPI. (A) The HCT-116 cells (non-treated) and (B) HCT-116 cells treated with MOS (66 µg/mL), 200× magnifications.
Figure 5. Confocal staining by DAPI. (A) The HCT-116 cells (non-treated) and (B) HCT-116 cells treated with MOS (66 µg/mL), 200× magnifications.
Pharmaceuticals 13 00193 g005
Figure 6. Agar well diffusion (AWD) plates showing the inhibition zones. (A) S. aureus and (B) E. coli. 1: 50 µg/mL, 2: 100 µg/mL, 3: 150 µg/mL, 4: 200 µg/mL, 5: 250 µg/mL of MOS, 6: Control (DH2O).
Figure 6. Agar well diffusion (AWD) plates showing the inhibition zones. (A) S. aureus and (B) E. coli. 1: 50 µg/mL, 2: 100 µg/mL, 3: 150 µg/mL, 4: 200 µg/mL, 5: 250 µg/mL of MOS, 6: Control (DH2O).
Pharmaceuticals 13 00193 g006

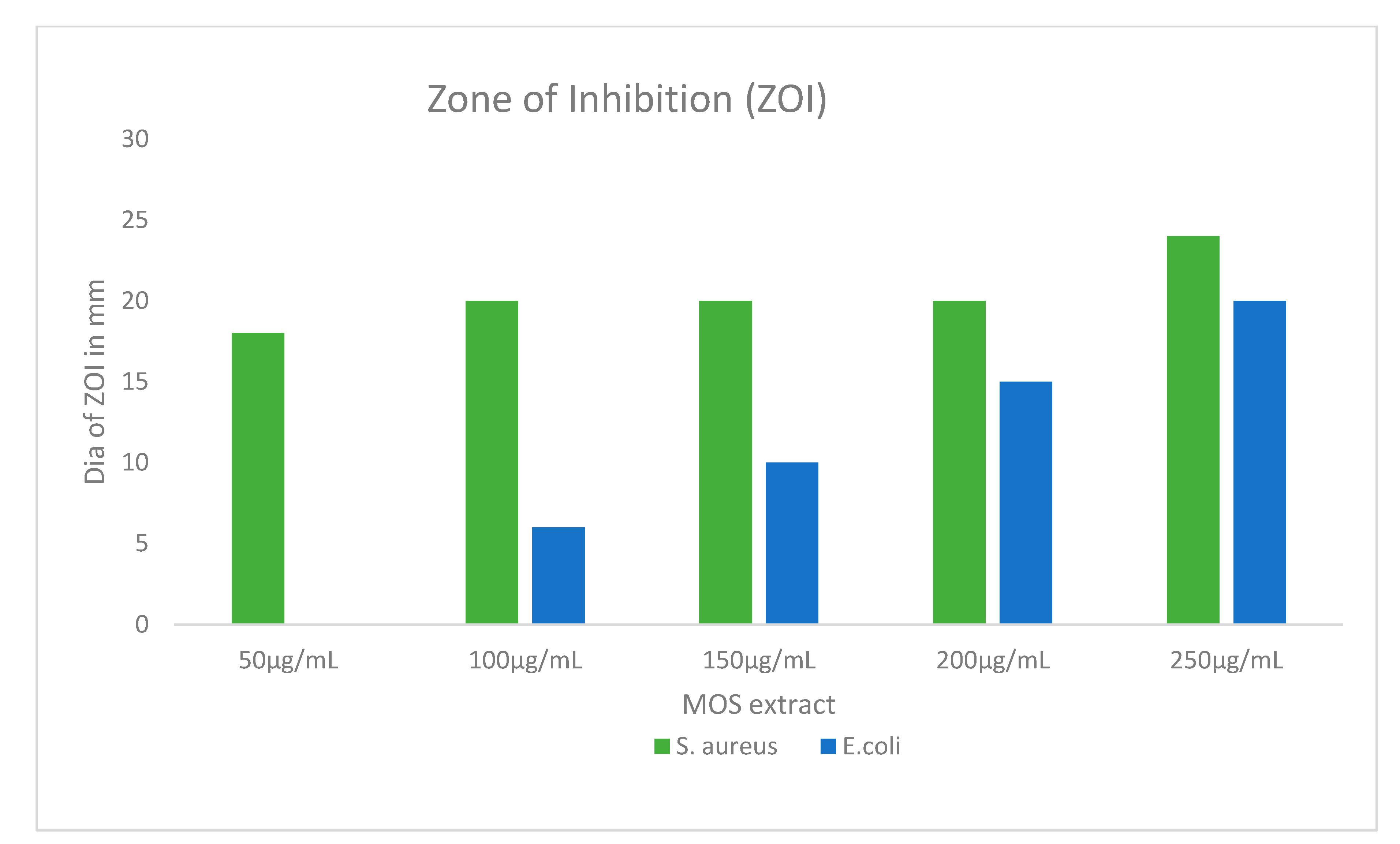

Figure 7. The graphical illustration of the zones of inhibition in millimeters (mm) examined in both S. aureus and E. coli after treatment using different concentrations of MOS extract. Data are the means ± SD of three different experiments.
Figure 7. The graphical illustration of the zones of inhibition in millimeters (mm) examined in both S. aureus and E. coli after treatment using different concentrations of MOS extract. Data are the means ± SD of three different experiments.
Pharmaceuticals 13 00193 g007
Figure 8. SEM micrographs for the study of morphogenesis by MOS extract. (a) E. coli cells (non-treated) and (b) treated E. coli cells, (c) S. aureus cells (non-treated) and (d) treated S. aureus cells.
Figure 8. SEM micrographs for the study of morphogenesis by MOS extract. (a) E. coli cells (non-treated) and (b) treated E. coli cells, (c) S. aureus cells (non-treated) and (d) treated S. aureus cells.
Pharmaceuticals 13 00193 g008
Figure 9. Pictorial view of the pelletization of Moringa oleifera seed samples, showing: (a) as-purchased Moringa oleifera seeds, (b) Moringa oleifera seeds without coat, (c) pelletized seed sample.
Figure 9. Pictorial view of the pelletization of Moringa oleifera seed samples, showing: (a) as-purchased Moringa oleifera seeds, (b) Moringa oleifera seeds without coat, (c) pelletized seed sample.
Pharmaceuticals 13 00193 g009

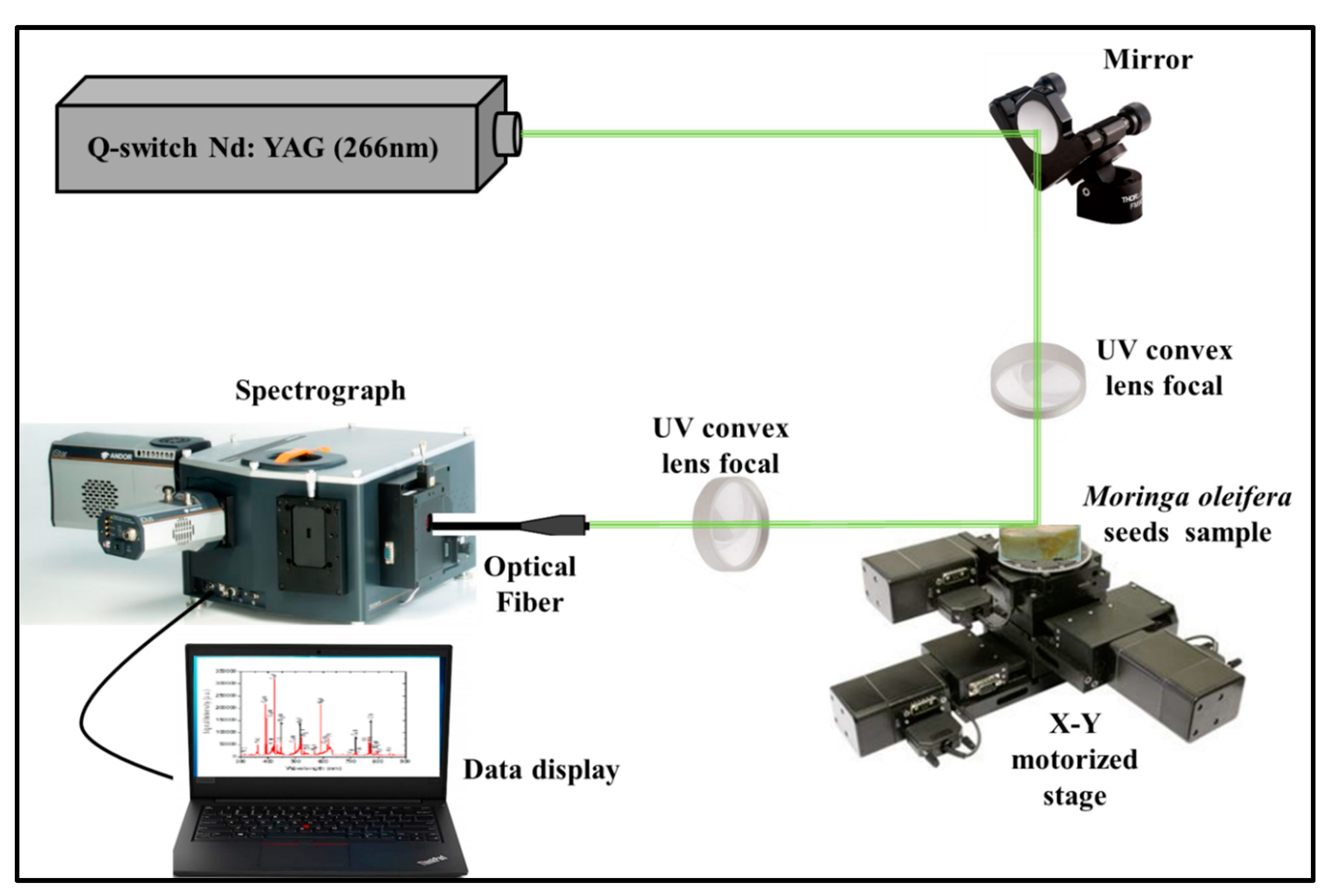

Figure 10. Schematic illustration of the LIBSsetup employed for the detection of vital elements present in MOS.
Figure 10. Schematic illustration of the LIBSsetup employed for the detection of vital elements present in MOS.
Pharmaceuticals 13 00193 g010
Table 1. The detection of spectral lines of the different elements present in MOS by using our LIBS system.
Table 1. The detection of spectral lines of the different elements present in MOS by using our LIBS system.
Name of ElementWavelength (nm)Transition ConfigurationLIBS Signal Intensity (arbitrary unit(a.u.))
Ca422.63p6 4s2 1S0→3p6 4s 4p 114960.9
518.83p6 4s 4p 11→3p6 4s 5d 1D22967.1
527.03p6 3d 4s 3D3→>3p6 3d 4p 323196.3
Fe248.33d6 4s2 5D4→3d6 (5D) 4s 4p (1P°) 552114.1
252.23d6 4s2 5D4→3d6 (5D) 4s 4p (1P°) 541810.1
259. 93d6 (5D) 4s 6D9/2→3d6 (5D) 4p 69/22061.9
K414.93p5 3d30→3p5 4p 3D12347.6
430.53p5 3d32→3p5 4p 1D22270.9
532.33p6 4p21/2→3p6 8s 2S1/22639.7
Mg518.33s 3p 323s 4s 3S11753.5
Mn259.33d5 (6S) 4s 7S3→3d5 (6S) 4p (73)1843.9
Na249.32s2 2p5 3s 11→2s2 2p5 3p 1S02128.4
251.52s2 2p5 3p 3S1→2s2 2p5 (21/2) 3d 2[→]°21834.7
P253.53s2 3p3 23/2→3s2 3p2 (3P) 4s 2P3/22100.0
255.33s2 3p3 21/2→3s2 3p2 (3P) 4s 2P1/22032.1
S416.23s2 3p2 (3P) 4p 47/2→3s2 3p2 (3P) 4d 4F9/21987.8
Se418.094s2 4p2 (3P) 5p 47/2→4s2 4p2 (3P) 5d 4F9/21969.7
522.74s2 4p2 (3P) 5s 4P5/2→4s2 4p2 (3P) 5p 47/22002.0
Zn250.13d10 4p 21/2→3d10 5s 2S1/21751.4
255.73d10 4p 23/2→3d10 5s 2S1/21762.3
C426.72s2 3d 2D5/2→2s2 4f 27/22379.0
247.82s2 2p2 1S0→2s2 2p 3s 111831.6
O418.92s2 2p2 (1D) 3p 27/2→2s2 2p2 (1D) 3d 2G9/22003.4
Table 2. Volatile compounds identified in MOS using GC-MS analysis.
Table 2. Volatile compounds identified in MOS using GC-MS analysis.
No.CompoundsRTPeak area (%)
Esters
1Propanoic acid, 2-oxo-, methyl ester6.2930.76
2Acetic acid, ethoxyhydroxy-, ethyl ester7.0430.04
3Diethoxymethyl acetate12.8270.09
42-Propenoic acid, 2-methyl-, 2-hydroxypropyl ester13.1340.02
56,9,12-Octadecatrienoic acid, phenylmethyl ester, (Z,Z,Z)-17.7970.01
6Cyclopentanecarboxylic acid, 4-tridecyl ester19.1790.03
71-Cyclohexene-1-carboxylic acid, 2,6,6-trimethyl-, methyl ester20.0580.13
8Hexanoic acid, 4-hexadecyl ester28.2910.07
9Phthalic acid, diethyl ester29.5680.14
102-Propenoic acid, pentadecyl ester31.6250.59
11Acetic acid, 3,7,11,15-tetramethyl-hexadecyl ester33.6270.02
12Phthalic acid, dibutyl ester35.6920.07
13Phthalic acid, diisobutyl ester35.7600.15
14Palmitoleic acid, methyl ester36.2850.03
15Pentadecanoic acid, 13-methyl-, methyl ester36.6420.09
169-Hexadecenoic acid, ethyl ester37.6520.15
17Hexadecanoic acid, ethyl ester (Ethyl palmitate)37.9930.78
18Heptadecanoic acid, ethyl ester38.4160.46
19Propanoic acid, 3-mercapto-, dodecyl ester38.5880.25
209-Octadecenoic acid, methyl ester, (E)- (Methyl elaidate)40.1591.52
21Oleic acid, methyl ester (Methyl oleate)40.2550.15
22l-(+)-Ascorbic acid 2,6-dihexadecanoate40.5610.10
23Ethyl oleate41.3896.03
24Octadecanoic acid, ethyl ester (Ethyl stearate)41.7740.53
259-octadecenyl ester (Oleyl oleate)43.5160.34
262,3-dihydroxypropyl elaidate43.79413.48
279-Octadecenoic acid, 1,2,3-propanetriyl ester44.2870.90
28Docosanoic acid, ethyl ester45.2730.37
29Oleoyl chloride46.0660.65
309-Octadecenoic acid (Z)-, 2,3-dihydroxypropyl ester47.09911.35
31Glycidol stearate47.5221.76
32Hexadecanoic acid, 2-hydroxy-1-(hydroxymethyl)ethyl ester47.8031.57
Alcohols
331,4-Cyclohexanediol, trans-7.2240.02
341,2-Propanediol, 3-methoxy-7.4300.05
35Ethanol, 2,2-diethoxy-7.5350.31
361,2,4-Butanetriol9.4960.04
37Glycerin11.1801.35
381-Butanol, 4-(ethylthio)-11.7420.02
39Methoxyacetaldehyde diethyl acetal11.8830.02
401-Dodecanol18.4310.48
411-Tetradecanol24.1520.42
421,3-Propanediol, 2-ethyl-2-(hydroxymethyl)-25.4445.52
431-Tridecanol26.3311.06
443-Hexadecanol31.3480.05
453-Heptadecanol35.5610.06
Aldehydes
46Butanal, 3-hydroxy-8.3750.00
47Heptanal10.0060.02
48Octanal12.5670.04
49Nonanal15.7900.09
502-Methyl-oct-2-enedial20.6110.04
51Undecanal23.5210.02
52Tridecanal34.4550.01
5310-Octadecenal37.4180.09
549-Octadecenamide37.5510.09
55cis-9-Hexadecenal38.2410.55
56cis-13-Octadecenal47.2281.92
Ketones
572-Propanone, 1,1-dimethoxy-6.8413.86
582-Butanone8.1510.03
59Dihydroxyacetone8.9690.14
601,2-Cyclopentanedione10.1720.14
612-Propanone, 1-(1,3-dioxolan-2-yl)-10.8670.04
621,3-Dioxol-2-one,4,5-dimethyl-13.5280.28
632-Heptanol, 5-ethyl-14.3060.01
642-Methyl-4-octanone16.4660.03
652-Pentanone, 3,4-epoxy-18.9250.03
661-Oxa-spiro[4.5]deca-6,9-diene-2,8-dione37.0060.05
67Z-11-Pentadecenol39.2090.05
68Cyclopentadecanone, 2-hydroxy-39.8220.13
69Cyclopentadecanone 43.4300.21
702-Tetradecanone46.6910.34
Acids
71Acetic acid, (acetyloxy)-5.8840.18
72Butanoic acid, 3-hydroxy-10.5940.03
73Octanoic acid17.4210.03
74Nonanoic acid20.3630.02
75n-Hexadecanoic acid (Palmitic acid)37.3050.05
76Oleic acid40.94322.53
Furans and lactones
77Furfural7.6240.02
782(5H)-Furanone9.8400.04
792-Hydroxy-gamma-butyrolactone12.0810.23
802,5-Dimethyl-4-hydroxy-3(2H)-furanone14.0990.19
811,2-Ethanediol, 1-(2-furanyl)19.0960.03
825-Hydroxymethylfurfural19.4450.36
833-Deoxy-d-mannoic lactone28.9240.52
Nitrogen-containing compounds
84N,N-Dimethylaminoethanol5.2160.12
851,3,5-Triazine-2,4,6-triamine14.7780.68
86Acetic acid, 2-(N-methyl-N-phosphonatomethyl)amino-15.6170.11
871-Heptadecanamine18.6670.07
88Nonanamide23.0340.02
89Dodecanamide (Lauryl amide)33.3310.04
90Tetradecanamide (Myristic amide)37.7170.44
91Hexadecanamide (Palmitic amide)41.7181.26
92Docosenamide44.9876.04
93Nonadecanamide45.3520.32
Sulfur-containing compounds
94Sulfurous acid, cyclohexylmethyl hexadecyl ester23.1730.67
Hydrocarbons
951-Butene, 4,4-diethoxy-2-methyl-9.4250.07
961-Methyl-2-octylcyclopropane12.1710.07
972-Trifluoroacetoxytridecane13.9230.03
98trans-2,3-Epoxynonane23.6420.03
992-Heptafluorobutyroxypentadecane23.8870.04
1001,2-Epoxyundecane24.0160.02
101Heptacosane24.3570.03
1021-Heptadecene29.2620.33
103Octadecane, 1,1’-[(1-methyl-1,2-ethanediyl)bis(oxy)]bis-29.4260.01
1041-Nonadecene33.8470.22
Pyrans
105Tetrahydro-4H-pyran-4-ol17.0740.03
1064H-Pyran-4-one, 2,3-dihydro-3,5-dihydroxy-6-methyl-17.1980.02
Others
1075,6-Dihydroxypiperazine-2,3-dione dioxime8.3200.02
108Tetraethyl silicate11.8070.04
109Silanediol, dimethyl-, diacetate17.3000.07
110D-Allose26.6090.19
111Phenol, 2,4-bis(1,1-dimethylethyl)-27.4300.51
112Oxirane, hexadecyl-34.8980.02
113Ethyl iso-allocholate36.9360.06
114Oleic anhydride43.7003.96
RT: Retention time in minutes.
Back to TopTop
