TRPV1 Inhibits the Ventilatory Response to Hypoxia in Adult Rats, but Not the CO2-Drive to Breathe

by
Luis Gustavo A. Patrone
1,
Jaime B. Duarte
1,
Kênia Cardoso Bícego
1,
Alexandre A. Steiner
2,
Andrej A. Romanovsky
3 and
Luciane H. Gargaglioni
1,*
1
Department of Animal Morphology and Physiology, Faculty of Agricultural and Veterinarian Sciences, UNESP at Jaboticabal, Rod. Prof. Paulo Donato Castellane s/n, Jaboticabal SP 14870-000, Brazil
2
Department of Immunology, Institute of Biomedical Sciences, University of Sao Paulo, Sao Paulo 05508-090, Brazil
3
Thermoregulation and Systemic Inflammation Laboratory (FeverLab), Trauma Research, St. Joseph’s Hospital and Medical Center, Phoenix, AZ 85013, USA
*
Author to whom correspondence should be addressed.
Pharmaceuticals 2019, 12(1), 19; https://doi.org/10.3390/ph12010019
Submission received: 25 October 2018 / Revised: 27 November 2018 / Accepted: 7 December 2018 / Published: 24 January 2019
(This article belongs to the Special Issue Transient Receptor Potential (TRP) Channels in Drug Discovery: Unlocking the Potential)
Browse Figures
Versions Notes

Abstract

:
Receptors of the transient receptor potential (TRP) channels superfamily are expressed in many tissues and have different physiological functions. However, there are few studies investigating the role of these channels in cardiorespiratory control in mammals. We assessed the role of central and peripheral TRPV1 receptors in the cardiorespiratory responses to hypoxia (10% O2) and hypercapnia (7% CO2) by measuring pulmonary ventilation ( V ˙ E ), heart rate (HR), mean arterial pressure (MAP) and body temperature (Tb) of male Wistar rats before and after intraperitoneal (AMG9810 [2.85 µg/kg, 1 mL/kg]) or intracebroventricular (AMG9810 [2.85 µg/kg, 1 µL] or AMG7905 [28.5 μg/kg, 1 µL]) injections of TRPV1 antagonists. Central or peripheral injection of TRPV1 antagonists did not change cardiorespiratory parameters or Tb during room air and hypercapnic conditions. However, the hypoxic ventilatory response was exaggerated by both central and peripheral injection of AMG9810. In addition, the peripheral antagonist blunted the drop in Tb induced by hypoxia. Therefore, the current data provide evidence that TRPV1 channels exert an inhibitory modulation on the hypoxic drive to breathe and stimulate the Tb reduction during hypoxia.

1. Introduction

Breathing is a vital behavior that is generated by a medullary region, called the preBötzinger Complex (preBötC), and is regulated by a complex system that depends on chemical feedback of the carotid body (peripheral chemoreceptors) and central chemoreceptors [1,2,3]. Hypoxia and hypercapnia are potent chemical stimuli to the respiratory system, which, in turn, is modulated by many neurotransmitters and receptors, including the transient receptor potential (TRP) channels [4,5].
The TRP superfamily consists of a large number of nonselective cation channels that are activated by several stimuli, including heat, acid, pressure, shear stress, mechanical stretch, oxidative stress, phospholipids, etc. [4,6,7,8]. TRPC1/3/4/5 and 6 channels are expressed in the carotid chemosensory pathway [9], and also contribute to acid sensing in a respiratory chemosensitive nucleus [4], suggesting that these channels can be involved in the ventilatory response to hypoxia and hypercapnia. Of interest here are the vanilloid-1 (TRPV1) channels, which are capsaicin-sensitive, heat-sensitive, and proton-activated calcium channels that have a significant role in thermoregulation in response to changes in environmental and body temperatures [10,11,12]. TRPV1 receptors are widely expressed in peripheral and central locations, including the dorsal horn of the spinal cord [13], the brainstem and forebrain [14,15,16,17,18]. The expression of these receptors in regions such as the preBötC, parafacial respiratory region, locus coeruleus, nucleus of solitary tract [19,20,21], and also in petrosal neurons innervating carotid body glomus cells [22], suggests a role in the control of breathing and chemoreception.
Supporting the role of TRPV1 channels in respiratory modulation, bath application of capsaicin (TRPV1 agonist) in the medulla of a brainstem-spinal cord preparation has many effects on the respiratory center, including potent (but transient) inhibitory and subsequent excitatory effects on the respiratory rhythm and the periodical augmentation of the inspiratory burst pattern [20]. More recently, Barrett et al. [23] demonstrated that peripheral activation of TRPV1 receptors by piperine in neonatal rats prior to heat exposure enhances the ventilatory response to hyperthermia, which is attenuated by the TRPV1 antagonist, AMG9810. Nevertheless, no studies have assessed the participation of these channels in breathing control in unanesthetized adult rats.
Emerging evidence also supports the role of the TRPV1 as an important regulator of cardiovascular function, having a protective role against cardiovascular injury [24]. In agreement, Sun et al. [25] showed that TRPV1 is expressed along the entire baroreceptive afferent pathway. Blockade of TRPV1 receptors significantly blunts the baroreflex and decreases the maximum gain of baroreflex function in the high blood pressure range, indicating that TRPV1-expressing baroreceptive afferents are important for the feedback control of blood pressure stability [25].
TRPV1 antagonists have been considered a novel tool for pharmacological manipulation of pain. AMG9810 is a selective and competitive TRPV1 antagonist of capsaicin activation and blocks all known modes of TRPV1 activation, including protons, heat and endogenous ligands, anandamide, N-arachidonyl dopamine and oleoyldopamine [26], whereas AMG7905 is a potent blocker of the capsaicin mode and potent potentiator of the proton mode of TRPV1 activation [27,28], and possibly of the heat mode [27]. However, as side effect these drugs can cause hyperthermia associated with increased thermogenesis and skin vasoconstriction [10,29,30,31] or, in some cases, hypothermia [28]. Nevertheless, it is still unclear if the TRPV1 channels have effects on cardiorespiratory control in basal, hypoxic and hypercapnic conditions. Therefore, in the present study, we used a pharmacological approach, where intracerebral and peripheral injections of the TRPV1 antagonists were used to investigate the role of TRPV1 in cardiorespiratory control in unanesthetized adult rats.

2. Results

2.1. Effect of icv Injection of AMG9810 and AMG7905 on V ˙ E , MAP, HR and Tb in Normocapnic and Hypercapnic Conditions

In room air conditions, microinjection of AMG9810 and AMG7905 had no effect on, MAP or HR (Figure 1 and Figure 2A). Hypercapnia induced a progressive increase in ventilation in all animals (effect of time: p < 0.001; Figure 1), with no difference among groups.
MAP and HR were not affected by microinjection of TRPV1 antagonists in hypercapnic conditions. In addition, hypercapnia did not influence cardiovascular variables (Figure 2A).
Under normocapnia and hypercapnia, neither vehicle nor AMG9810 or AMG7905 microinjection affected Tb (Figure 2B).

2.2. Effect of icv Injection of AMG9810 and AMG7905 on V ˙ E , MAP, HR and Tb in Normoxic and Hypoxic Conditions

Hypoxia caused an increase in in all animals (effect of time: p < 0.001; Figure 3); however, the hypoxic ventilatory response was significantly more pronounced in the animals that received central injection of AMG9810 at 45, 50 and 60 min of hypoxic exposure (effect of treatment: p < 0.05; Figure 3), due to a higher fR (effect of treatment: p < 0.01; Figure 3). Central AMG7905 did not change the hypoxic ventilatory response.
MAP and HR were not affected by microinjection of TRPV1 antagonists in hypoxic conditions. In addition, hypoxia did not significantly influence cardiovascular variables (Figure 4A). Hypoxia caused a similar decrease in Tb in all groups (p < 0.001; Figure 4B).

2.3. Effect of Intraperitoneal Injection of AMG9810 on V ˙ E , MAP, HR and Tb in Normocapnic and Hypercapnic Conditions

During normocapnia, intraperitoneal injection of AMG9810 did not affect V ˙ E , MAP, HR or Tb (Figure 5 and Figure 6A,B). Hypercapnia caused an increase in ventilation in all groups (effect of time: p < 0.001; Figure 5), with no difference between groups. Hypercapnia did not change MAP, HR or Tb, and intraperitoneal injection of a TRPV1 antagonist did not significantly affect cardiovascular variables or Tb in hypercapnic conditions (Figure 6A,B).

2.4. Effect of Intraperitoneal Injection of AMG9810 on V ˙ E , MAP, HR and Tb in Normoxic and Hypoxic Conditions

Hypoxia caused an increase in in all animals (effect of time: p < 0.001; Figure 7); however, the hypoxic ventilatory response was significantly more pronounced in the animals that received peripheral injection of AMG9810 at 30, 35, 40, 45, 50, and 60 min of hypoxic exposure (effect of treatment: p < 0.02; Figure 7), due to a higher VT (effect of treatment: p < 0.03; Figure 7).
MAP and HR were not affected by peripheral injection of a TRPV1 antagonist in hypoxic conditions. Additionally, hypoxia did not alter the cardiovascular variables (Figure 8A).
Hypoxia caused a decrease in Tb (effect of time: p < 0.001) that was attenuated by intraperitoneal injection of AMG9810 at 35, 40, 45, 50 and 60 min of hypoxic exposure (effect of treatment: p < 0.04; Figure 8B). Additionally, these effects of TRPV1 antagonism may be better evidenced in Figure 9, in which the values of V ˙ E by Tb are plotted under normoxic (20 min after ip injection, 5 min before hypoxia) and hypoxic (5–35 min of hypoxia) conditions. It is possible to observe an increase in ventilation, which achieves a plateau, while Tb continues to decrease in the vehicle group. On the other hand, in the AMG9810 group, ventilation increases more, achieving higher levels without any further decrease in Tb.

2.5. Effect of icv and Intraperitoneal Injection of AMG9810 on Blood Gases and pH in Normoxic, Normocapnic, Hypercapnic and Hypoxic Conditions

Exposure of vehicle- and TRPV1 antagonist-injected groups to 7% CO2 caused a similar significant increase in PaCO2 (p < 0.001) and PaO2 (p < 0.001) and a decrease in pHa (p < 0.001) (Table 1A). None of the experimental conditions had any significant effect on plasma HCO3– (Table 1A).
PaO2, PaCO2 and HCO3– decreased (p < 0.05) and arterial pH increased (p < 0.05) during hypoxia in all groups, compared to normoxic conditions (Table 1B and Table 2). Peripheral or central TRPV1 antagonist injection did not change blood gases, pH or HCO3–.

3. Discussion

Several studies have reported the role of TRPV1 on thermoregulation and nociception; however, none has addressed the influence of this channel on ventilatory and cardiovascular responses to hypoxia and hypercapnia in unanesthetized rats. Our results indicate that central and peripheral TRPV1 receptors play an important role in regulating breathing and body temperature during hypoxia, since antagonism with AMG9810 caused a significant increase in ventilation and attenuation of Tb reduction under hypoxic exposure. Nevertheless, we found that TRPV1 receptors do not participate in cardiorespiratory control during room air and hypercapnic conditions.
In the current study, both central and peripheral administration of AMG9810 or central AMG7905 did not change ventilation or cardiovascular parameters during room air conditions, suggesting that TRPV1 receptors may have no tonic role in cardiorespiratory control. The TRPV1 channel is a polymodal signal detector that can be activated by heat, protons, and chemical ligands, such as capsaicin [27,31,32,33]. In fact, capsaicin acting on the preBötC causes release of glutamate and depletion of substance P, interrupting the respiratory rhythm in neonatal rat slices [34]. More recently, Tani et al. [20], using brainstem-spinal cord preparations from newborn rats, demonstrated that capsaicin caused a transient decrease, followed by an increase, in respiratory nerve activity. The excitatory phase was partially blocked by AMG9810 (10 μM), whereas the initial inhibitory effect was not suppressed by the TRPV1 antagonist. The authors found a cessation of breathing after capsaicin application only when the parafacial nucleus was not present in the preparation. Our study is the first to demonstrate in unanesthetized adult rats that the TRPV1 channel may not play a role in breathing regulation during basal conditions.
In the current study, hypercapnia promoted an increase in ventilation (Figure 1) and respiratory acidosis (Table 1A). As TRPV1 channels have H+ sensitivity [31,35], administration of a TRPV1 antagonist would result in a reduced hypercapnic ventilatory response. However, no difference in CO2 ventilatory response was observed among groups, suggesting a lack of TRPV1 involvement in the CO2-drive to breathe, at least at this level of respiratory acidosis (pH ~ 7.3). Indeed, previous studies have demonstrated that TRPV1 is activated by pH ≤ 6 [35,36,37]. It is possible that other channels are involved in the modulation of the central chemoreflex, at least in a more physiological pH range. In fact, TRPC4 and TRPC5 are activated at pH 7.5–6.5 [38,39], and TRPC5 mediates the stimulatory effect of hypercapnia on locus coeruleus neurons, a central CO2/pH chemosensitive area [4].
Regarding the hypoxic challenge, 10% inspired O2 promoted an increase in ventilation in the vehicle-, AMG9810- and AMG7905-treated groups as a result of an increase in VT and fR. Central and peripheral injection of AMG9810 increased the hypoxic ventilatory response, compared to the vehicle- and AMG7905-treated groups. Since AMG9810 injection increased ventilation only during hypoxic exposure and not during normoxia or hypercapnia, our data suggest that central and peripheral TRPV1 channels exert a specific inhibitory modulation on the ventilatory response to lower O2 situations. Interestingly, previous studies have demonstrated an attenuated hypoxic ventilatory in adult rats treated with 50 mg/kg of capsaicin neonatally [40,41]. According to the authors, the blunted hypoxic response in the capsaicin-treated rats could be due to either degeneration of unmyelinated carotid body afferents and/or depletion of substance P from the carotid body. However, a more recent study has demonstrated that central and peripheral chemoreceptors chemosensitivity was not decreased by neonatal capsaicin treatment (25 mg/kg) in lambs [42]. According to the authors, the differences observed between the studies might be due to the fact that unmyelinated fibers and SP are less important within the afferent pathway leading from carotid body to respiratory neurons in sheep than in rodents.
In the current study, the enhanced hypoxic ventilatory response was only observed with AMG9810, and not with AMG7905, injection. Since AMG7905 is less specific and do not block endogenous ligands of cannabinoid on TRPV1 receptors, the absence of response with the central injection of AMG7905 suggest that the results obtained with the antagonist AMG9810 during hypoxia is not mediated by cannabinoid ligands. Therefore, it is possible that the activation of all modes of the TRPV1 channel are needed to inhibit the hypoxic drive to breath, as demonstrated also by the action of AMG9810 as an antihyperalgesic drug [26]. Since both intraperitoneal and icv application of AMG9810 promoted 41% and 24% increases in the ventilatory response to hypoxia, respectively, it is difficult to distinguish whether the effect is central or peripheral. In this context, Gavva et al. [43] reported that small amounts of even some peripherally restricted TRPV1 antagonists do cross the blood brain barrier; therefore, we cannot completely rule out that peripherally-injected AMG9810 is acting centrally. In this regard, it is well known that TRPV1 receptors are present in brainstem medullary neurons, and also the carotid body [20,22], and both sites can contribute to the enhanced hypoxic ventilatory response. Interestingly, central AMG9810 potentiates the hypoxic drive to breathe, mainly acting on respiratory frequency, whereas peripheral AMG9810 increased tidal volume. These differences may be related to the fact that peripheral AMG9810 is acting mainly on the carotid body, whereas central AMG9810 is acting on brainstem areas that control breathing frequency, suggesting peripheral and central actions of TRPV1 channels on breathing control during low O2 conditions. In agreement with this hypothesis, Smith and Mills [44] suggested that the carotid body mostly drives VT; therefore, peripheral TRPV1 antagonism is possibly increasing the sensitivity of peripheral chemoreceptors. Previously, Roy et al. [22] have demonstrated that TRPV1 receptors in the carotid body chemosensory afferents are mainly responsible for the anandamide and heat sensitivity of the carotid body.
Regarding Tb, TRPV1 antagonists can cause hyper or hypothermia, depending on the activation mode upon which they act. As previously cited, AMG9810 is a polymodal TRPV1 antagonist that blocks all three modes of TRPV1 activation (proton, heat and capsaicin) [28] and causes hyperthermia by disinhibiting thermogenesis and skin vasoconstriction. Previous studies suggested that the ability of TRPV1 antagonists to cause hyperthermia relays to their potency to block TRPV1 activation by protons [33], especially within the abdominal cavity [29]. In contrast, since the hyperthermic effect is due to blockade of the proton mode, AMG7905 normally causes hypothermia because of its potentiation of the proton mode [28]. In the current study, none of the antagonists affected Tb in basal conditions. Regarding AMG7905, the lack of effect must be related to the site of injection (central), since this antagonist acts mainly in the abdominal cavity [28] to cause hypothermia. As for AMG9810, the dose used peripherally could be too low to cause hyperthermia (2.85 µg/kg) compared to other studies [28,33]. Notwithstanding, this dose was sufficient to attenuate the drop in Tb caused by hypoxia, similar to how too low doses of TRPV1 antagonists attenuate or prevent anesthesia-associated hypothermia [45]. Considering a CSF volume of 90 μL in an adult rat [46] and that 3 mM of AMG9810 in the current study is totally diluted in this volume, the final concentration would be 0.032 mM, which is 405 times the IC50 for in vitro capsaicin inhibition (79 × 10−6 mM) [10]. If the same calculation is applied for AMG7905 (20 mM), the final CSF concentration would be 0.22 mM, which is 5.600 times higher than the IC50 for in vitro capsaicin inhibition [27]. The possibility of total dilution in CSF could be happened, considering a CSF flow is 2 µL/min [47] and that the ventilatory responses to hypoxia were only observed 40 min after drug injection.
It is well established that hypoxia reduces Tb by reducing heat production—which involves a decreasing of the hypothalamic thermogenic threshold [48]—and increasing heat loss and cold-seeking behavior [49,50,51,52]. Such evidence supports the idea of the hypoxia-induced Tb drop as a regulated phenomenon [48,50,52,53,54,55]. The increase in hypoxic ventilatory response after peripheral application of AMG9810 was higher (41%) compared to central (24%) injection, which, at least in part, possibly involves a smaller reduction of Tb during a hypoxic challenge (Figure 9). Taken together our data indicate that the activation of TRPV1 receptors not only induces a drop in Tb, but also inhibits the energetically costly hyperventilation during hypoxia exposure, responses that are considered protective during low O2 situations [52,53,54,55].
In conclusion, the present results provide evidence that central and peripheral TRPV1 receptors play an important inhibitory modulation on breathing and body temperature during hypoxia, suggesting a protective role during low O2 situations, reducing energetically expensive responses, such as the hypoxic ventilatory response, but it does not play a role in cardiovascular regulation, at least with the doses used in the present study.

4. Materials and Methods

4.1. Animals

Experiments were performed on unanesthetized adult male Wistar rats, weighing 300–350 g. The animals had free access to water and food, and were housed in a temperature-controlled chamber maintained at 24–26 °C (ALE 9902001; Alesco Ltd.a., Monte Mor, SP, Brazil) with a 12:12 h light:dark cycle (lights on at 6:30 a.m.). The study was conducted in compliance with the guidelines of the National Council for the Control of Animal Experimentation (CONCEA, MCT, Belo Horizonte Area, Brazil) and with the approval of the local Animal Care and Use Committee (CEUA, FACV-UNESP Jaboticabal; Protocol: 06585/14).

4.2. Surgeries and Microinjection

All surgical procedures were performed under anesthesia with 100 mg/kg of ketamine (Union National Pharmaceutical Chemistry S/A, Embu-Guaçu, SP, Brazil) and 10 mg/kg of xylazine (Laboratories Calier S/A, Barcelona, Spain), administered intraperitoneally (i.p.).
Seven days before the experiments, the head was shaved, and the skin was sterilized with betadine solution and alcohol. Then, a guide cannula (0.7 mm o.d. and 15 mm in length) was intracerebroventricularly (icv) implanted in the fourth ventricle (4V), using the following coordinates: 11.9 mm caudal from bregma, at the midline, and 7.4 mm ventral to the surface of the skull [56]. The displacement of the meniscus in a water manometer ensured correct positioning of the cannula in the 4V. The cannula was attached to the bone using stainless steel screws and acrylic cement. A tight-fitting stylet was kept inside the guide cannula to prevent occlusion. Postoperatively, animals were treated with antibiotic (enrofloxacin, 10 mg/kg, intramuscular) and analgesic (flunixin meglumine, 2.5 mg/kg, subcutaneous) agents.
One day before the experiments, rats underwent two surgeries under tribromoethanol anesthesia administered intraperitoneally (10 mL/kg). First, a catheter [PE-10 connected to PE-50 (Clay Adams, Parsippany, NJ, USA)] was inserted into the abdominal aorta through the femoral artery to measure pulsatile arterial pressure and blood gases. The catheter was tunneled subcutaneously and exteriorized through the back of the neck. On the following day, this catheter was connected to the pressure transducer in a way that allowed free movement of the rat. The pulsatile arterial pressure was measured using a pressure transducer (TSD 104A, Biopac Systems, Santa Barbara, CA, USA) connected to an amplifier (DA 100C, Biopac Systems). Heart rate (HR) and mean arterial pressure (MAP) were quantified from the pulsatile arterial pressure records using the same system (MP100 ACE, Biopac Systems). For body temperature (Tb) measurements, a temperature datalogger (SubCue Data Loggers, Calgary, AB, Canada) was implanted in the abdominal cavity through a midline laparotomy. The datalogger was programmed to acquire data every 5 min. These temperature values were used to calculate pulmonary ventilation.
A 5-μL Hamilton syringe and a dental injection needle (200 μm o.d., Mizzy, Reno, NV-USA) connected to a PE-10 tube was used to perform the microinjections into the 4V of unanesthetized rats. A volume of 1 µL of vehicle or drug solution was injected over a period of 20 s, and the needle was removed from the guide cannula after an additional 30 s to avoid reflux. All injections were performed using a microinjector machine (model 310, Stoelting CO., Wood Dale, IL, USA). For ip injections, the volume was established according to the animal’s body weight (1 mL/kg), and the injection was performed over a period of 15 s.

4.3. Drugs and Gas Mixture

TRPV1 antagonists used, AMG9810 and AMG7905, were purchased from Enzo Life Sciences (Farmingdale, NY, USA) and Glixx Laboratories (Hopkinton, MA, USA), respectively.
AMG9810 (2.85 µg/kg) was applied centrally (1 µL) and intraperitoneally (1 mL/kg), and AMG7905 was only injected centrally (28.5 µg/kg, 1 µL) to verify possible nonspecific interaction by cannabinoid ligands. Both antagonists were dissolved in dimethyl sulfoxide 50% (DMSO).
The hypercapnic (7% CO2, 21% O2, balanced with N2) and hypoxic (10% O2, balanced with N2) gas mixture was purchased from White Martins Gases Industriais Ltd.a (Sertãozinho, SP, Brazil).

4.4. Determination of Pulmonary Ventilation

Measurements of pulmonary ventilation ( V ˙ E ) were performed using the whole body plethysmography method, based on the technique described by Drorbaugh and Fenn [57] and used previously by our group [58,59,60]. In brief, freely-moving rats were kept in a 5-L chamber ventilated with room air or a hypercapnic gas mixture containing 7% CO2 (White Martins, Sertãozinho, Brazil) or a hypoxic gas mixture containing 10% O2 (White Martins). The flow rate of the inflow gas into the animal chamber was monitored by a flowmeter (model 822-13-OV1-PV2-V4, Sierra Instruments, Monterey, CA, USA). During the measurements, the flow was interrupted, and the chamber was sealed for approximately 2 min; the pressure oscillations due to ventilation were monitored by a differential pressure transducer (TSD 160A, Biopac Systems). The signals were fed into a pre-amplifier (DA 100C, Biopac Systems), passed through an analog-to-digital converter, and digitized on a microcomputer equipped with data acquisition software (MP100A-CE, Biopac Systems). The sampling frequency was 200 Hz. The results were analyzed using data analysis software (LabChart Software, version 7.3; ADInstruments, Sydney, Australia). Tidal volume (VT) and respiratory frequency (fR) were calculated to estimate ventilation per breath. VT was calculated using an appropriate formula [57,61]. The calibration for volume was obtained during each experiment by injecting 1 mL of air into the animal chamber.

4.5. Blood Gases and pH Measurements

Blood gases, pH and bicarbonate were measured in the following groups: icv—DMSO (room air, hypercapnia and hypoxia), AMG9810 (room air, hypercapnia and hypoxia); ip—DMSO (room air and hypoxia), AMG9810 (room air and hypoxia). For pH, blood gases and bicarbonate measurements, two drops of blood were sampled for immediate analyses of arterial pH (pHa), arterial carbon dioxide partial pressure (PaCO2), arterial oxygen partial pressure (PaO2) and plasma bicarbonate (HCO3–). These samples were transferred to an EG7+ cartridge to be read in an i-STAT blood gas portable analyzer (i-STAT Analyzer, Abbott Laboratories, Libertyville Township, IL, USA).

4.6. Experimental Protocol

Seven days after stereotaxic surgery, the animals were placed in a chamber (5 L) and Tb was continuously measured using the “dataloggers”. The chamber was initially ventilated with room air (21% O2) for a period of acclimatization of at least 30 min, and then two measurements of ventilation and MAP were performed and blood was collected for measurements of pH and blood gases. The animals were then given icv injection of the vehicle or TRPV1 channel antagonist (AMG9810 or AMG7905). After microinjection, the animals were maintained in normoxic normocapnia for 20 min. Cardiorespiratory measurements were performed at 2, 5, 10, 15, 20 min after microinjection. Twenty minutes after microinjection, the second set of measurements of blood gases and pH were performed. After 25 min of normoxic normocapnia, the chamber was ventilated with another gas mixture, hypercapnia (7% CO2, 21% O2, balanced with N2) or hypoxia (10% O2, equilibrated with N2) for another 35 min. Cardiorespiratory measurements were performed at 30, 35, 40, 45, 50 and 60 min after microinjection and blood gases and pH were measured at 60 min, at the end of the hypoxic or hypercapnic challenges. Finally, the rat was returned to normoxic normocapnia for 30 min to recover baseline ventilation and blood pressure. After returning to baseline, the last measurement was performed at 90 min. Hypoxia and hypercapnia were performed in different animals.
To verify if the effect of the AMG9810 was central or peripheral, another group of animals received intraperitoneal injection of the drug (2.85 µg/kg, 1 mL/kg). The same measurements for V ˙ E , HR, MAP and Tb were performed. Blood was collected at the same moment as central injection for blood gases and pH measurements.

4.7. Data Processing and Analysis

The results were reported as mean ± SEM. Cardiorespiratory variables were calculated using 2-min intervals of respiratory and pulsatile arterial pressure recordings when the animals were quiet and presenting no body movements. The respiratory, cardiovascular, thermal and blood gas variables were compared between vehicle and TRPV1 antagonist groups across the time points by two-way repeated measures ANOVA, followed by Tukey’s test used for multiple comparisons. A p value of <0.05 was considered to be statistically significant.

Author Contributions

L.G.A.P., L.H.G., A.A.S. and A.A.R. conceived and designed the experiments. L.G.A.P. and J.B.D. performed the experiments. L.G.A.P., J.B.D., L.H.G. and K.C.B. analyzed the data. L.G.A.P., L.H.G., A.A.S., K.C.B. and A.A.R. wrote a draft of and edited the manuscript.

Funding

The study was supported by grants from Fundação de Amparo à Pesquisa do Estado de São Paulo (FAPESP 2016/24577-3 to L. H. Gargaglioni), Conselho Nacional de Desenvolvimento Científico e Tecnológico (CNPq 310293/2015-4 to L. H. Gargaglioni). L. G. Patrone received graduate fellowships from Coordenação de Aperfeiçoamento de Pessoal de Nível Superior (CAPES) and FAPESP (2017/05318-0). J. Bizarri received fellowship from FAPESP (2015/24785-2).

Acknowledgments

This study was part of the activities developed by Luis Gustavo Patrone during his PhD at the Joint Graduate Program in Physiological Sciences (PIPGCF) from UFSCar/UNESP. We thank Euclides Roberto Secato for his excellent technical assistance.

Conflicts of Interest

None declared.

References

  1. Heymans, C.; Bouckaert, J.J. Sinus caroticus and respiratory reflexes: I. Cerebral blood flow and respiration. Adrenaline apnoea. J. Physiol. 1930, 69, 254–266. [Google Scholar] [CrossRef] [PubMed]
  2. Loeschcke, H.H. Central chemosensitivity and the reaction theory. J. Physiol. 1982, 332, 1–24. [Google Scholar] [CrossRef] [PubMed]
  3. Ballantyne, D.; Scheid, P. Central chemosensitivity of respiration: A brief overview. Respir. Physiol. 2001, 129, 5–12. [Google Scholar] [CrossRef]
  4. Cui, N.; Zhang, X.; Tadepalli, J.S.; Yu, L.; Gai, H.; Petit, J.; Pamulapati, R.T.; Jin, X.; Jiang, C. Involvement of TRP channels in the CO2 chemosensitivity of locus coeruleus neurons. J. Neurophysiol. 2011, 105, 2791–2801. [Google Scholar] [CrossRef] [PubMed]
  5. Kim, I.; Fite, L.; Donnelly, D.F.; Kim, J.H.; Carroll, J.L. Possible Role of TRP Channels in Rat Glomus Cells. Adv. Exp. Med. Biol. 2015, 860, 227–232. [Google Scholar]
  6. Romanovsky, A.A. Thermoregulation: Some concepts have changed. Functional architecture of the thermoregulatory system. Am. J. Physiol. Regul. Integr. Comp. Physiol. 2007, 292, R37–R46. [Google Scholar] [CrossRef] [PubMed]
  7. Wang, H.; Siemens, J. TRP ion channels in thermosensation, thermoregulation and metabolism. Temperature 2015, 2, 178–187. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  8. Yue, Z.; Xie, J.; Yu, A.S.; Stock, J.; Du, J.; Yue, L. Role of TRP channels in the cardiovascular system. Am. J. Physiol. Heart Circ. Physiol. 2015, 308, H157–H182. [Google Scholar] [CrossRef]
  9. Buniel, M.C.F.; Schilling, W.P.; Kunze, D.L. Distribution of transient receptor potential channels in the rat carotid chemosensory pathway. J. Comp. Neurol. 2003, 464, 404–413. [Google Scholar] [CrossRef]
  10. Romanovsky, A.A.; Almeida, M.C.; Garami, A.; Steiner, A.A.; Norman, M.H.; Morrison, S.F.; Nakamura, K.; Burmeister, J.J.; Nucci, T.B. The Transient Receptor Potential Vanilloid-1 Channel in Thermoregulation: A Thermosensor It Is Not. Pharmacol. Rev. 2009, 61, 228–261. [Google Scholar] [CrossRef] [Green Version]
  11. Romanovsky, A.A. Skin temperature: Its role in thermoregulation. Acta Physiol. 2014, 210, 498–507. [Google Scholar] [CrossRef]
  12. Díaz-Franulic, I.; Caceres-Molina, J.; Sepulveda, R.V.; Gonzalez-Nilo, F.; Latorre, R. Structure-Driven Pharmacology of Transient Receptor Potential Channel Vanilloid 1. Mol. Pharmacol. 2016, 90, 300–308. [Google Scholar] [CrossRef] [PubMed]
  13. Szallasi, A.; Blumberg, P.M. Characterization of vanilloid receptors in the dorsal horn of pig spinal cord. Brain Res. 1991, 547, 335–338. [Google Scholar] [CrossRef]
  14. Tóth, A.; Boczán, J.; Kedei, N.; Lizanecz, E.; Bagi, Z.; Papp, Z.; Édes, I.; Csiba, L.; Blumberg, P.M. Expression and distribution of vanilloid receptor 1 (TRPV1) in the adult rat brain. Mol. Brain Res. 2005, 135, 162–168. [Google Scholar] [CrossRef] [PubMed]
  15. Kauer, J.A.; Gibson, H.E. Hot flash: TRPV channels in the brain. Trends Neurosci. 2009, 32, 215–224. [Google Scholar] [CrossRef] [PubMed]
  16. Edwards, J.G. TRPV1 in the central nervous system: Synaptic plasticity, function, and pharmacological implications. Prog. Drug Res. 2014, 68, 77–104. [Google Scholar]
  17. Zhao, Q.; Wang, W.; Wang, R.; Cheng, Y. TRPV1 and neuropeptide receptor immunoreactivity and expression in the rat lung and brainstem after lung ischemia-reperfusion injury. J. Surg. Res. 2016, 203, 183–192. [Google Scholar] [CrossRef] [PubMed]
  18. Kumar, S.; Singh, O.; Singh, U.; Goswami, C.; Singru, P.S. Transient receptor potential vanilloid 1-6 (Trpv1-6) gene expression in the mouse brain during estrous cycle. Brain Res. 2018, 1701, 161–170. [Google Scholar] [CrossRef] [PubMed]
  19. Mezey, E.; Tóth, Z.E.; Cortright, D.N.; Arzubi, M.K.; Krause, J.E.; Elde, R.; Guo, A.; Blumberg, P.M.; Szallasi, A. Distribution of mRNA for vanilloid receptor subtype 1 (VR1), and VR1-like immunoreactivity, in the central nervous system of the rat and human. Proc. Natl. Acad. Sci. USA 2000, 97, 3655–3660. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  20. Tani, M.; Kotani, S.; Hayakawa, C.; Lin, S.-T.; Irie, S.; Ikeda, K.; Kawakami, K.; Onimaru, H. Effects of a TRPV1 agonist capsaicin on respiratory rhythm generation in brainstem-spinal cord preparation from newborn rats. Pflugers Arch. 2017, 469, 327–338. [Google Scholar] [CrossRef]
  21. Mohammed, M.; Madden, C.J.; Andresen, M.C.; Morrison, S.F. Activation of TRPV1 in nucleus tractus solitarius reduces brown adipose tissue thermogenesis, arterial pressure, and heart rate. Am. J. Physiol. Regul. Integr. Comp. Physiol. 2018, 315, R134–R143. [Google Scholar] [CrossRef] [PubMed]
  22. Roy, A.; Mandadi, S.; Fiamma, M.-N.; Rodikova, E.; Ferguson, E.V.; Whelan, P.J.; Wilson, R.J.A. Anandamide modulates carotid sinus nerve afferent activity via TRPV1 receptors increasing responses to heat. J. Appl. Physiol. 2012, 112, 212–224. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Barrett, K.T.; Roy, A.; Rivard, K.B.; Wilson, R.J.A.; Scantlebury, M.H. Vagal TRPV1 activation exacerbates thermal hyperpnea and increases susceptibility to experimental febrile seizures in immature rats. Neurobiol. Dis. 2018, 119, 172–189. [Google Scholar] [CrossRef] [PubMed]
  24. Hollis, M.; Wang, D.H. Transient receptor potential vanilloid in blood pressure regulation. Curr. Opin. Nephrol. Hypertens. 2013, 22, 170–176. [Google Scholar] [CrossRef] [PubMed]
  25. Sun, H.; Li, D.-P.; Chen, S.-R.; Hittelman, W.N.; Pan, H.-L. Sensing of blood pressure increase by transient receptor potential vanilloid 1 receptors on baroreceptors. J. Pharmacol. Exp. Ther. 2009, 331, 851–859. [Google Scholar] [CrossRef] [PubMed]
  26. Gavva, N.R.; Tamir, R.; Klionsky, L.; Norman, M.H.; Louis, J.-C.; Wild, K.D.; Treanor, J.J.S. Proton activation does not alter antagonist interaction with the capsaicin-binding pocket of TRPV1. Mol. Pharmacol. 2005, 68, 1524–1533. [Google Scholar] [CrossRef] [PubMed]
  27. Lehto, S.G.; Tamir, R.; Deng, H.; Klionsky, L.; Kuang, R.; Le, A.; Lee, D.; Louis, J.-C.; Magal, E.; Manning, B.H.; et al. Antihyperalgesic effects of (R,E)-N-(2-hydroxy-2,3-dihydro-1H-inden-4-yl)-3-(2-(piperidin-1-yl)-4-(trifluoromethyl)phenyl)-acrylamide (AMG8562), a novel transient receptor potential vanilloid type 1 modulator that does not cause hyperthermia in rats. J. Pharmacol. Exp. Ther. 2008, 326, 218–229. [Google Scholar] [CrossRef]
  28. Garami, A.; Pakai, E.; McDonald, H.A.; Reilly, R.M.; Gomtsyan, A.; Corrigan, J.J.; Pinter, E.; Zhu, D.X.D.; Lehto, S.G.; Gavva, N.R.; et al. TRPV1 antagonists that cause hypothermia, instead of hyperthermia, in rodents: Compounds’ pharmacological profiles, in vivo targets, thermoeffectors recruited and implications for drug development. Acta Physiol. 2018, 223. [Google Scholar] [CrossRef]
  29. Steiner, A.A.; Turek, V.F.; Almeida, M.C.; Burmeister, J.J.; Oliveira, D.L.; Roberts, J.L.; Bannon, A.W.; Norman, M.H.; Louis, J.-C.; Treanor, J.J.S.; et al. Nonthermal Activation of Transient Receptor Potential Vanilloid-1 Channels in Abdominal Viscera Tonically Inhibits Autonomic Cold-Defense Effectors. J. Neurosci. 2007, 27, 7459–7468. [Google Scholar] [CrossRef] [Green Version]
  30. Gavva, N.R.; Treanor, J.J.; Garami, A.; Fang, L.; Surapaneni, S.; Akrami, A.; Alvarez, F.; Bak, A.; Darling, M.; Gore, A.; et al. Pharmacological blockade of the vanilloid receptor TRPV1 elicits marked hyperthermia in humans. Pain 2008, 136, 202–210. [Google Scholar] [CrossRef]
  31. Alawi, K.M.; Aubdool, A.A.; Liang, L.; Wilde, E.; Vepa, A.; Psefteli, M.-P.; Brain, S.D.; Keeble, J.E. The sympathetic nervous system is controlled by transient receptor potential vanilloid 1 in the regulation of body temperature. FASEB J. 2015, 29, 4285–4298. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Caterina, M.J.; Schumacher, M.A.; Tominaga, M.; Rosen, T.A.; Levine, J.D.; Julius, D. The capsaicin receptor: A heat-activated ion channel in the pain pathway. Nature 1997, 389, 816–824. [Google Scholar] [CrossRef] [PubMed]
  33. Jordt, S.-E.; Tominaga, M.; Julius, D. Acid potentiation of the capsaicin receptor determined by a key extracellular site. Proc. Natl. Acad. Sci. USA 2000, 97, 8134–8139. [Google Scholar] [CrossRef] [Green Version]
  34. Morgado-Valle, C.; Feldman, J.L. Depletion of substance P and glutamate by capsaicin blocks respiratory rhythm in neonatal rat in vitro. J. Physiol. 2004, 555, 783–792. [Google Scholar] [CrossRef] [PubMed]
  35. Garami, A.; Shimansky, Y.P.; Pakai, E.; Oliveira, D.L.; Gavva, N.R.; Romanovsky, A.A. Contributions of different modes of TRPV1 activation to TRPV1 antagonist-induced hyperthermia. J. Neurosci. 2010, 30, 1435–1440. [Google Scholar] [CrossRef] [PubMed]
  36. Tominaga, M.; Caterina, M.J.; Malmberg, A.B.; Rosen, T.A.; Gilbert, H.; Skinner, K.; Raumann, B.E.; Basbaum, A.I.; Julius, D. The cloned capsaicin receptor integrates multiple pain-producing stimuli. Neuron 1998, 21, 531–543. [Google Scholar] [CrossRef]
  37. Kollarik, M.; Ru, F.; Undem, B.J. Acid-sensitive vagal sensory pathways and cough. Pulm. Pharmacol. Ther. 2007, 20, 402–411. [Google Scholar] [CrossRef] [Green Version]
  38. Semtner, M.; Schaefer, M.; Pinkenburg, O.; Plant, T.D. Potentiation of TRPC5 by protons. J. Biol. Chem. 2007, 282, 33868–33878. [Google Scholar] [CrossRef]
  39. Kim, M.J.; Jeon, J.-P.; Kim, H.J.; Kim, B.J.; Lee, Y.M.; Choe, H.; Jeon, J.-H.; Kim, S.J.; So, I. Molecular determinant of sensing extracellular pH in classical transient receptor potential channel 5. Biochem. Biophys. Res. Commun. 2008, 365, 239–245. [Google Scholar] [CrossRef]
  40. Bond, S.M.; Cervero, F.; McQueen, D.S. Influence of neonatally administered capsaicin on baroreceptor and chemoreceptor reflexes in the adult rat. Br. J. Pharmacol. 1982, 77, 517–524. [Google Scholar] [CrossRef]
  41. De Sanctis, G.T.; Green, F.H.; Remmers, J.E. Ventilatory responses to hypoxia and hypercapnia in awake rats pretreated with capsaicin. J. Appl. Physiol. 1991, 70, 1168–1174. [Google Scholar] [CrossRef] [PubMed]
  42. Diaz, V.; Arsenault, J.; Praud, J.P. Consequences of capsaicin treatment on pulmonary vagal reflexes and chemoreceptor activity in lambs. J. Appl. Physiol. 2000, 89, 1709–1718. [Google Scholar] [CrossRef] [PubMed]
  43. Gavva, N.R.; Bannon, A.W.; Hovland, D.N.; Lehto, S.G.; Klionsky, L.; Surapaneni, S.; Immke, D.C.; Henley, C.; Arik, L.; Bak, A.; et al. Repeated Administration of Vanilloid Receptor TRPV1 Antagonists Attenuates Hyperthermia Elicited by TRPV1 Blockade. J. Pharmacol. Exp. Ther. 2007, 323, 128–137. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Smith, P.G.; Mills, E. Restoration of reflex ventilatory response to hypoxia after removal of carotid bodies in the cat. Neuroscience 1980, 5, 573–580. [Google Scholar] [CrossRef]
  45. Garami, A.; Ibrahim, M.; Gilbraith, K.; Khanna, R.; Pakai, E.; Miko, A.; Pinter, E.; Romanovsky, A.A.; Porreca, F.; Patwardhan, A.M. Transient Receptor Potential Vanilloid 1 Antagonists Prevent Anesthesia-induced Hypothermia and Decrease Postincisional Opioid Dose Requirements in Rodents. Anesthesiology 2017, 127, 813–823. [Google Scholar] [CrossRef]
  46. Pardridge, W.M. Drug transport in brain via the cerebrospinal fluid. Fluids Barriers CNS 2011, 8, 7. [Google Scholar] [CrossRef] [Green Version]
  47. Davson, H. The Cerebrospinal Fluid. In Handbook of Neurochemistry; Springer: Boston, MA, USA, 1969; pp. 23–48. [Google Scholar]
  48. Tattersall, G.J.; Milsom, W.K. Hypoxia reduces the hypothalamic thermogenic threshold and thermosensitivity. J. Physiol. 2009, 587, 5259–5274. [Google Scholar] [CrossRef] [Green Version]
  49. Gautier, H.; Bonora, M.; Schultz, S.A.; Remmers, J.E. Hypoxia-induced changes in shivering and body temperature. J. Appl. Physiol. 1987, 62, 2477–2484. [Google Scholar] [CrossRef]
  50. Barros, R.C.; Zimmer, M.E.; Branco, L.G.; Milsom, W.K. Hypoxic metabolic response of the golden-mantled ground squirrel. J. Appl. Physiol. 2001, 91, 603–612. [Google Scholar] [CrossRef]
  51. Tattersall, G.J.; Milsom, W.K. Transient peripheral warming accompanies the hypoxic metabolic response in the golden-mantled ground squirrel. J. Exp. Biol. 2003, 206, 33–42. [Google Scholar] [CrossRef] [Green Version]
  52. Bicego, K.C.; Barros, R.C.H.; Branco, L.G.S. Physiology of temperature regulation: Comparative aspects. Comp. Biochem. Physiol. A Mol. Integr. Physiol. 2007, 147, 616–639. [Google Scholar] [CrossRef] [PubMed]
  53. Wood, S.C. Interactions Between Hypoxia and Hypothermia. Annu. Rev. Physiol. 1991, 53, 71–85. [Google Scholar] [CrossRef] [PubMed]
  54. Wood, S.C. Oxygen as a modulator of body temperature. Braz. J. Med. Biol. Res. Rev. Bras. Pesqui. Med. Biol. 1995, 28, 1249–1256. [Google Scholar]
  55. Steiner, A.A.; Branco, L.G.S. Hypoxia-Induced Anapyrexia: Implications and Putative Mediators. Annu. Rev. Physiol. 2002, 64, 263–288. [Google Scholar] [CrossRef] [PubMed]
  56. Paxinos, G.; Watson, C. The Rat Brain in Stereotaxic Coordinates; Elsevier: Amsterdam, The Netherlands, 2007; ISBN 9780080475134. [Google Scholar]
  57. Drorbaugh, J.E.; Fenn, W.O. A barometric method for measuring ventilation in newborn infants. Pediatrics 1955, 16, 81–87. [Google Scholar] [PubMed]
  58. Biancardi, V.; Bícego, K.C.; Almeida, M.C.; Gargaglioni, L.H. Locus coeruleus noradrenergic neurons and CO2 drive to breathing. Pflügers Arch. Eur. J. Physiol. 2008, 455, 1119–1128. [Google Scholar] [CrossRef] [PubMed]
  59. De Carvalho, D.; Bícego, K.C.; de Castro, O.W.; da Silva, G.S.F.; Garcia-Cairasco, N.; Gargaglioni, L.H. Role of neurokinin-1 expressing neurons in the locus coeruleus on ventilatory and cardiovascular responses to hypercapnia. Respir. Physiol. Neurobiol. 2010, 172, 24–31. [Google Scholar] [CrossRef] [PubMed]
  60. Patrone, L.G.A.; Bícego, K.C.; Hartzler, L.K.; Putnam, R.W.; Gargaglioni, L.H. Cardiorespiratory effects of gap junction blockade in the locus coeruleus in unanesthetized adult rats. Respir. Physiol. Neurobiol. 2014, 190, 86–95. [Google Scholar] [CrossRef] [PubMed]
  61. Patrone, L.G.A.; Biancardi, V.; Marques, D.A.; Bícego, K.C.; Gargaglioni, L.H. Brainstem catecholaminergic neurones and breathing control during postnatal development in male and female rats. J. Physiol. 2018, 596, 3299–3325. [Google Scholar] [CrossRef]
Pharmaceuticals 12 00019 g001 550

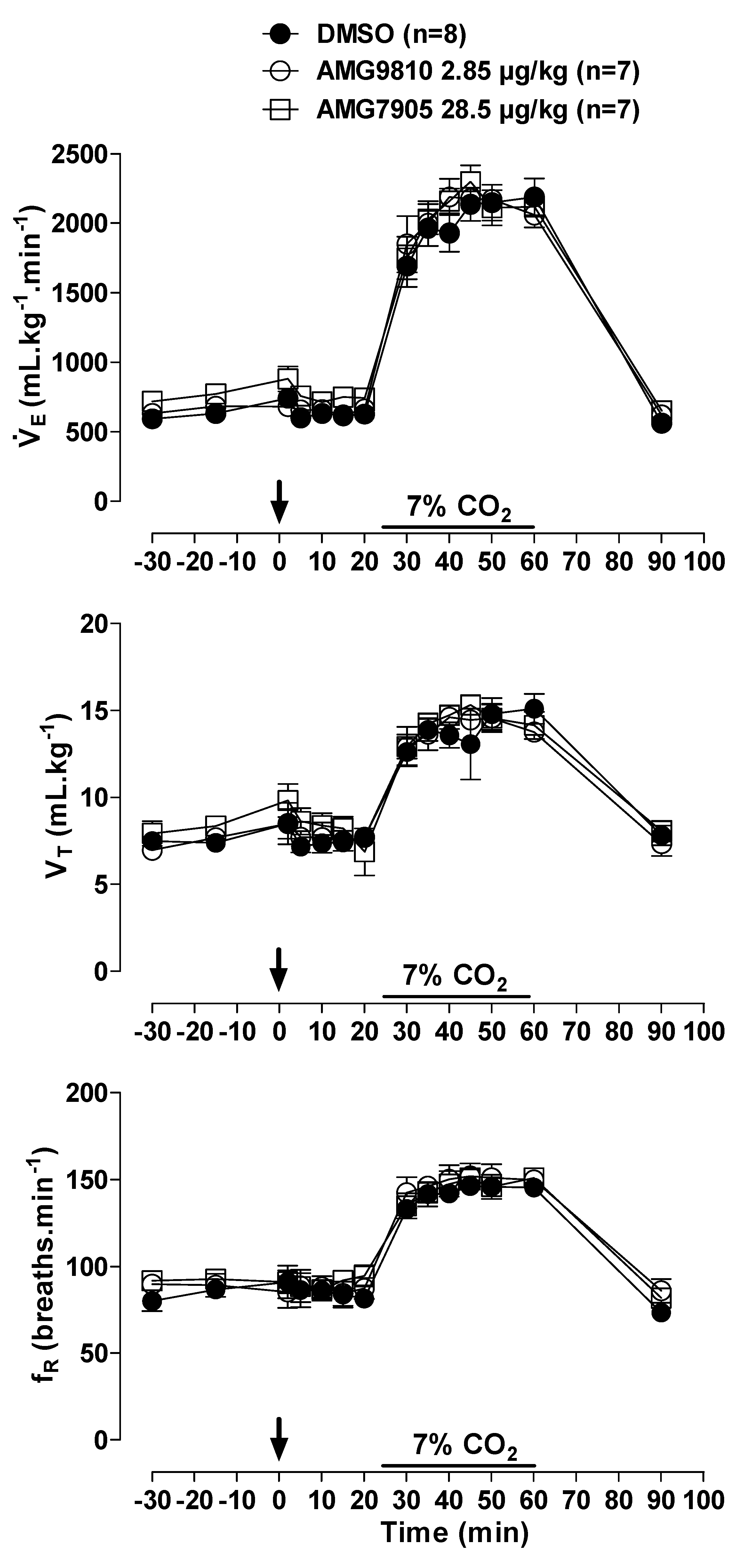

Figure 1. Effects of intracerebroventricular (icv) microinjection of vehicle (DMSO), AMG9810 (TRPV1 antagonist—2.85 µg/kg, 1 µL) and AMG7905 (TRPV1 antagonist—28.5 µg/kg, 1 µL) on ventilation ( V ˙ E ), tidal volume (VT) and respiratory frequency (fR) of rats during normocapnia and hypercapnia (7% CO2). The arrow indicates the time of the microinjection. The hypercapnia duration is represented by a horizontal line on the graph. Values are expressed as mean ± S.E.M.
Figure 1. Effects of intracerebroventricular (icv) microinjection of vehicle (DMSO), AMG9810 (TRPV1 antagonist—2.85 µg/kg, 1 µL) and AMG7905 (TRPV1 antagonist—28.5 µg/kg, 1 µL) on ventilation ( V ˙ E ), tidal volume (VT) and respiratory frequency (fR) of rats during normocapnia and hypercapnia (7% CO2). The arrow indicates the time of the microinjection. The hypercapnia duration is represented by a horizontal line on the graph. Values are expressed as mean ± S.E.M.
Pharmaceuticals 12 00019 g001
Pharmaceuticals 12 00019 g002 550

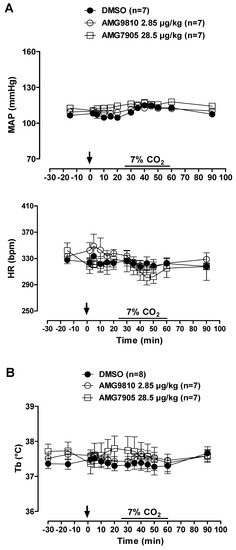

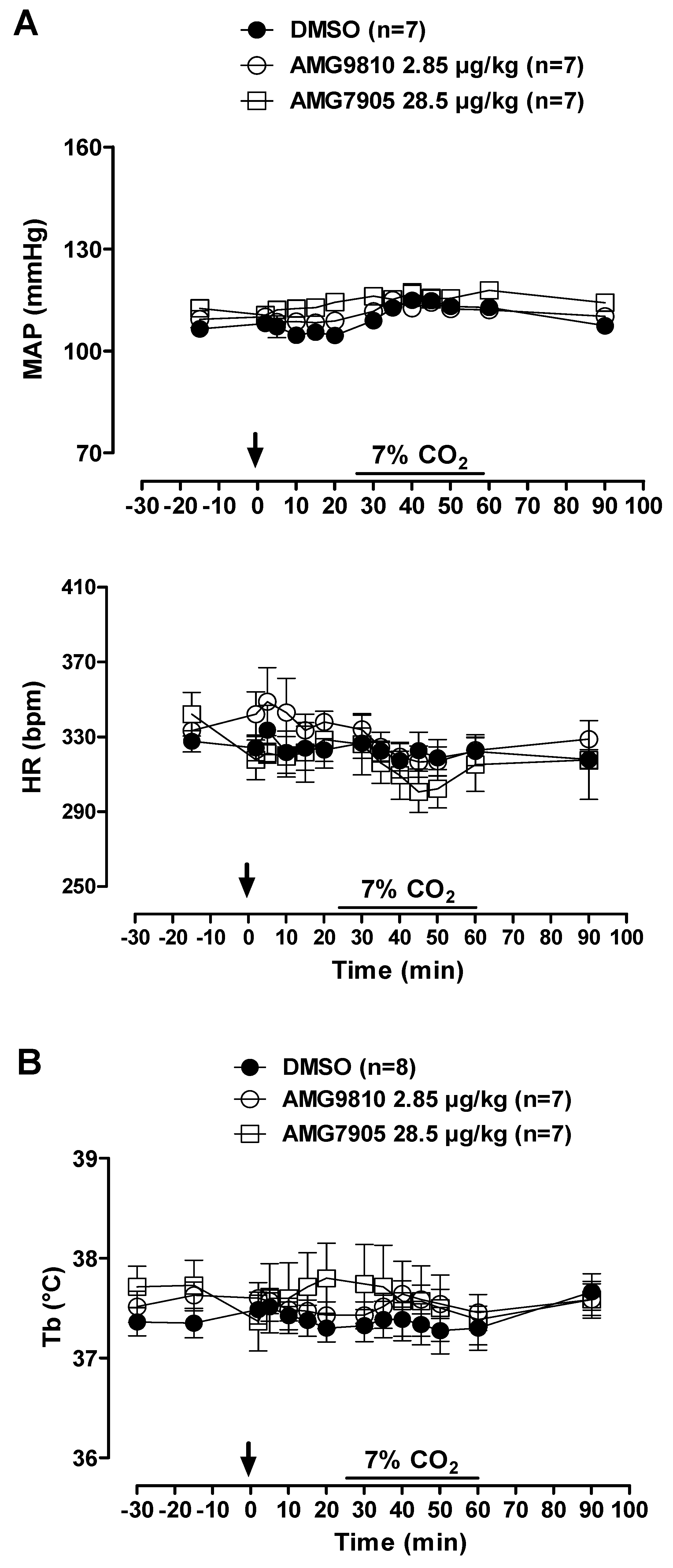

Figure 2. Effects of intracerebroventricular (icv) microinjection of vehicle (DMSO), AMG9810 (TRPV1 antagonist—2.85 µg/kg, 1 µL) and AMG7905 (TRPV1 antagonist—28.5 µg/kg, 1 µL) on (A) mean arterial pressure (MAP) and heart rate (HR) and (B) body temperature (Tb) of rats during normocapnia and hypercapnia (7% CO2). The arrow indicates the time of the microinjection. The hypercapnia duration is represented by a horizontal line on the graph. Values are expressed as mean ± S.E.M.
Figure 2. Effects of intracerebroventricular (icv) microinjection of vehicle (DMSO), AMG9810 (TRPV1 antagonist—2.85 µg/kg, 1 µL) and AMG7905 (TRPV1 antagonist—28.5 µg/kg, 1 µL) on (A) mean arterial pressure (MAP) and heart rate (HR) and (B) body temperature (Tb) of rats during normocapnia and hypercapnia (7% CO2). The arrow indicates the time of the microinjection. The hypercapnia duration is represented by a horizontal line on the graph. Values are expressed as mean ± S.E.M.
Pharmaceuticals 12 00019 g002
Pharmaceuticals 12 00019 g003 550

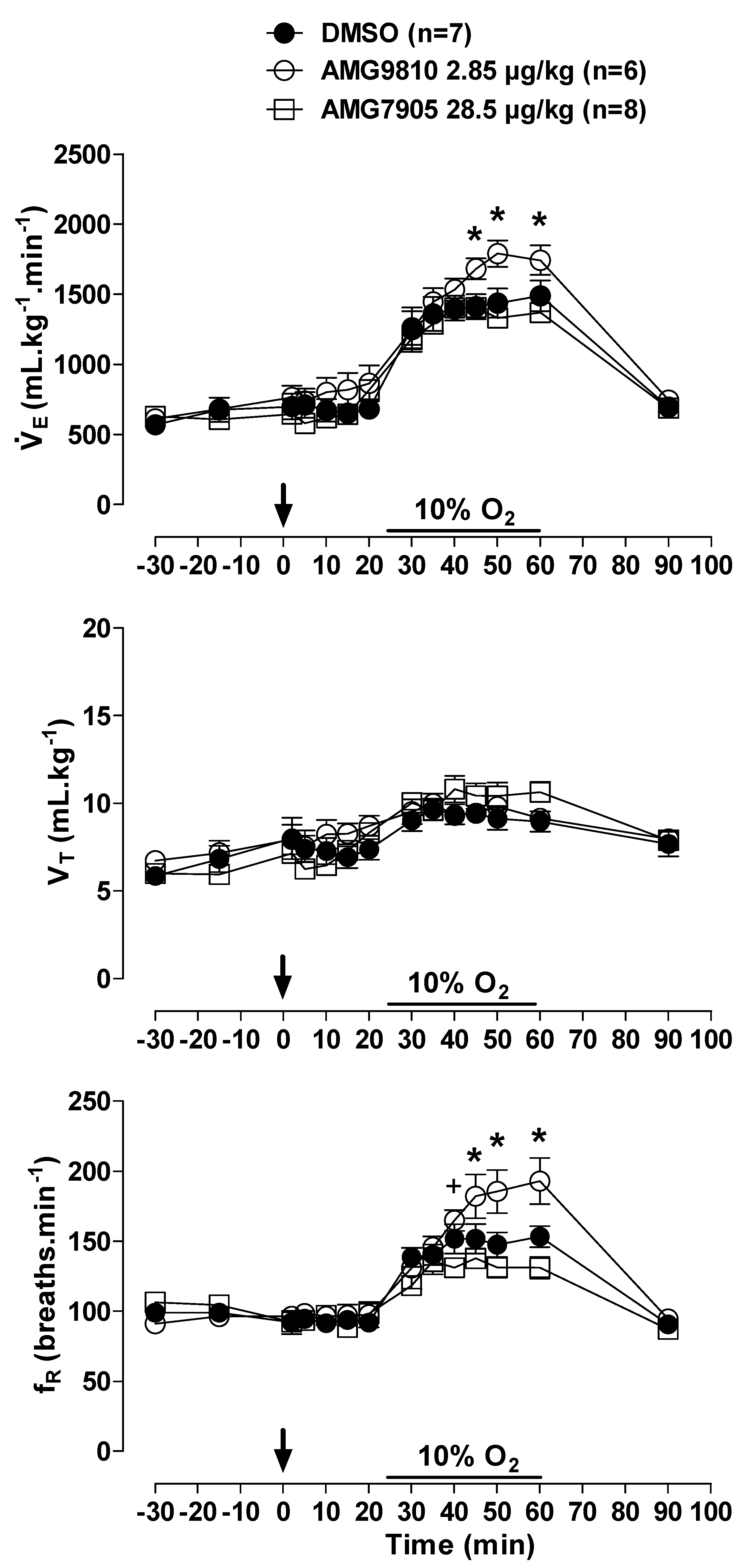

Figure 3. Effects of intracerebroventricular (icv) microinjection of vehicle (DMSO), AMG9810 (TRPV1 antagonist—2.85 µg/kg, 1 µL) and AMG7905 (TRPV1 antagonist—28.5 µg/kg, 1 µL) on ventilation ( V ˙ E ), tidal volume (VT) and respiratory frequency (fR) of rats during normoxia and hypoxia (10% O2). The arrow indicates the time of the microinjection. The hypoxia duration is represented by a horizontal line on the graph. Values are expressed as mean ± S.E.M. * Significant differences between AMG9810 with vehicle and AMG7905 groups. +Significant difference between AMG7905 and AMG9810 groups.
Figure 3. Effects of intracerebroventricular (icv) microinjection of vehicle (DMSO), AMG9810 (TRPV1 antagonist—2.85 µg/kg, 1 µL) and AMG7905 (TRPV1 antagonist—28.5 µg/kg, 1 µL) on ventilation ( V ˙ E ), tidal volume (VT) and respiratory frequency (fR) of rats during normoxia and hypoxia (10% O2). The arrow indicates the time of the microinjection. The hypoxia duration is represented by a horizontal line on the graph. Values are expressed as mean ± S.E.M. * Significant differences between AMG9810 with vehicle and AMG7905 groups. +Significant difference between AMG7905 and AMG9810 groups.
Pharmaceuticals 12 00019 g003
Pharmaceuticals 12 00019 g004 550

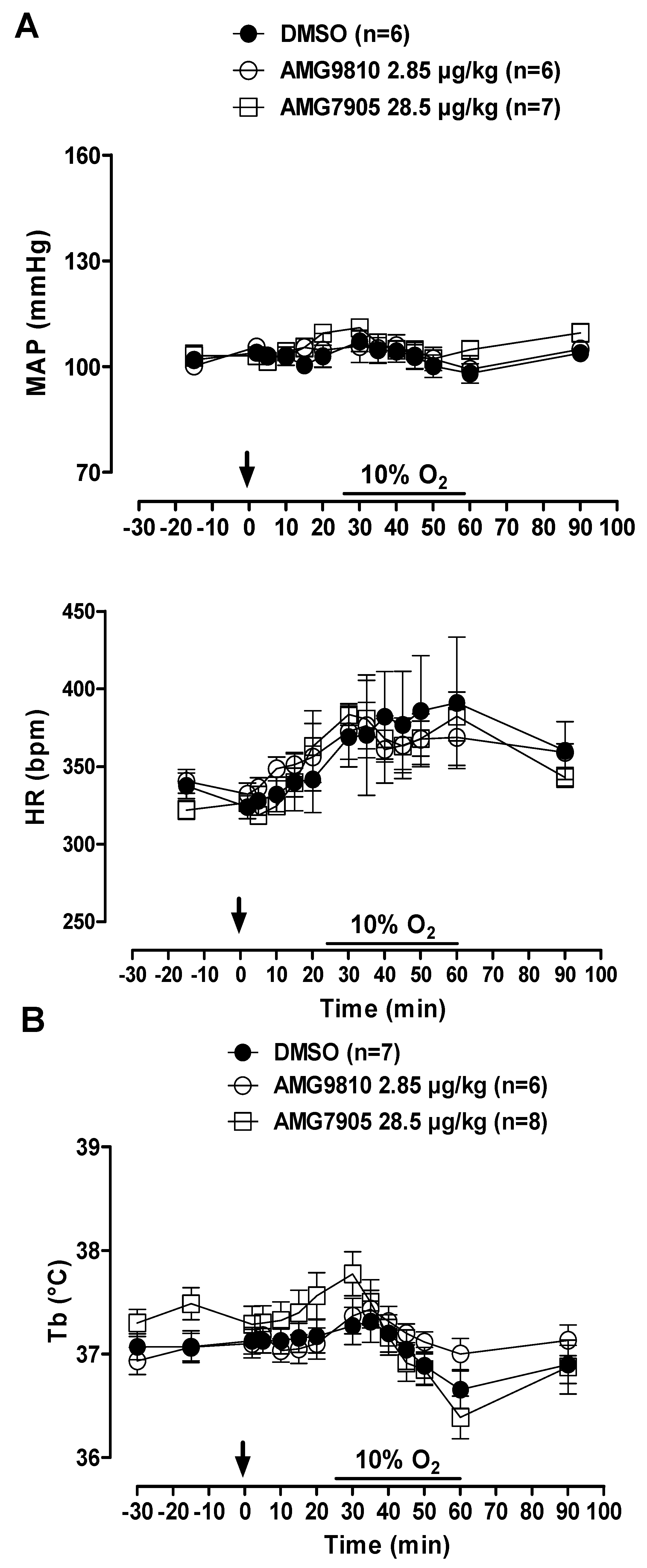

Figure 4. Effects of intracerebroventricular (icv) microinjection of vehicle (DMSO), AMG9810 (TRPV1 antagonist—2.85 µg/kg, 1 µL) and AMG7905 (TRPV1 antagonist—28.5 µg/kg, 1 µL) on (A) mean arterial pressure (MAP) and heart rate (HR) and (B) body temperature (Tb) of rats during normoxia and hypoxia (10% O2). The arrow indicates the time of the microinjection. The hypoxia duration is represented by a horizontal line on the graph. Values are expressed as mean ± S.E.M.
Figure 4. Effects of intracerebroventricular (icv) microinjection of vehicle (DMSO), AMG9810 (TRPV1 antagonist—2.85 µg/kg, 1 µL) and AMG7905 (TRPV1 antagonist—28.5 µg/kg, 1 µL) on (A) mean arterial pressure (MAP) and heart rate (HR) and (B) body temperature (Tb) of rats during normoxia and hypoxia (10% O2). The arrow indicates the time of the microinjection. The hypoxia duration is represented by a horizontal line on the graph. Values are expressed as mean ± S.E.M.
Pharmaceuticals 12 00019 g004
Pharmaceuticals 12 00019 g005 550

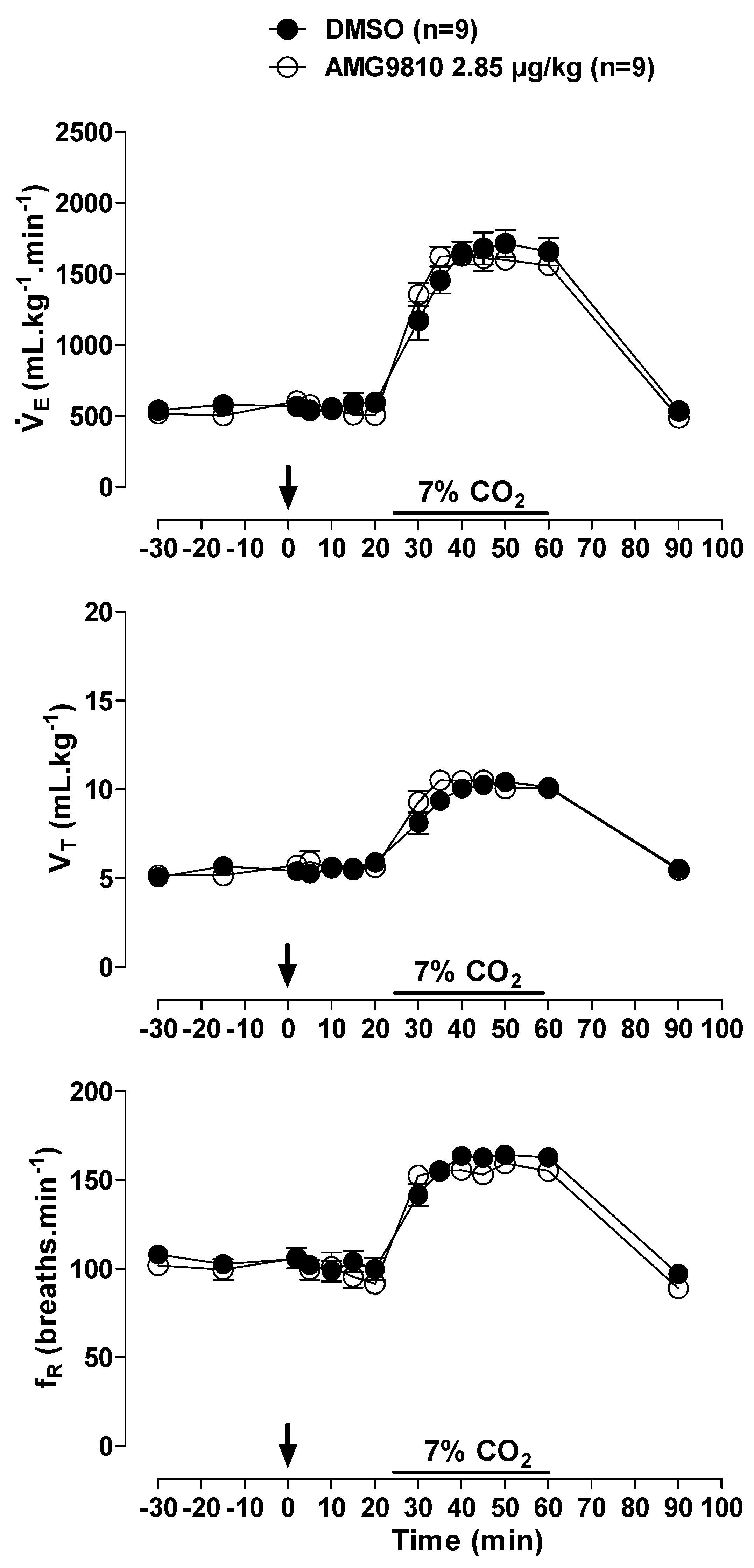

Figure 5. Effects of intraperitoneal (ip) injection of vehicle (DMSO) and AMG9810 (TRPV1 antagonist—2.85 µg/kg, 1 mL/kg) on ventilation ( V ˙ E ), tidal volume (VT) and respiratory frequency (fR) of rats during normocapnia and hypercapnia (7% CO2). The arrow indicates the time of the microinjection. The hypercapnia duration is represented by a horizontal line on the graph. Values are expressed as mean ± S.E.M.
Figure 5. Effects of intraperitoneal (ip) injection of vehicle (DMSO) and AMG9810 (TRPV1 antagonist—2.85 µg/kg, 1 mL/kg) on ventilation ( V ˙ E ), tidal volume (VT) and respiratory frequency (fR) of rats during normocapnia and hypercapnia (7% CO2). The arrow indicates the time of the microinjection. The hypercapnia duration is represented by a horizontal line on the graph. Values are expressed as mean ± S.E.M.
Pharmaceuticals 12 00019 g005
Pharmaceuticals 12 00019 g006 550

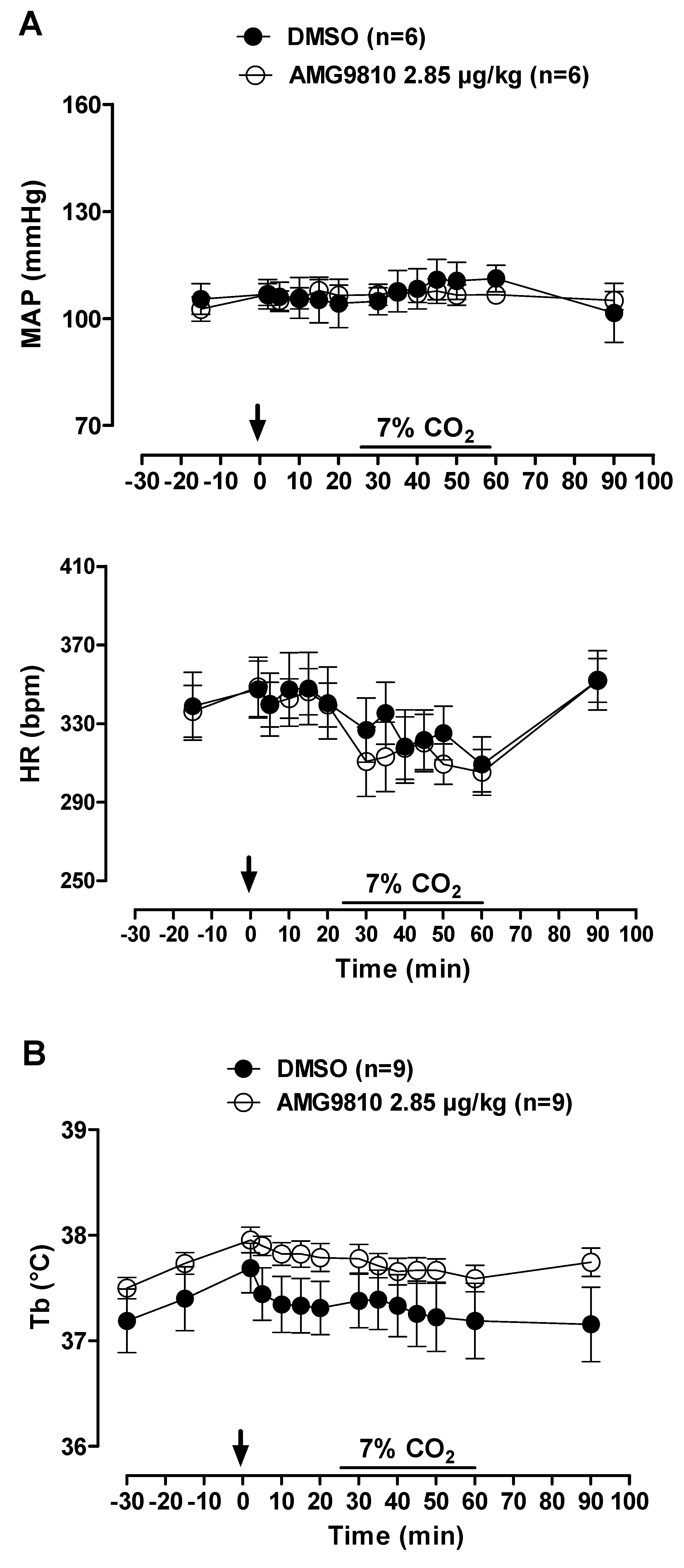

Figure 6. Effects of intraperitoneal (ip) injection of vehicle (DMSO) and AMG9810 (TRPV1 antagonist—2.85 µg/kg, 1 mL/kg) on (A) mean arterial pressure (MAP) and heart rate (HR) and (B) body temperature (Tb) of rats during normocapnia and hypercapnia (7% CO2). The arrow indicates the time of the microinjection. The hypercapnia duration is represented by a horizontal line on the graph. Values are expressed as mean ± S.E.M.
Figure 6. Effects of intraperitoneal (ip) injection of vehicle (DMSO) and AMG9810 (TRPV1 antagonist—2.85 µg/kg, 1 mL/kg) on (A) mean arterial pressure (MAP) and heart rate (HR) and (B) body temperature (Tb) of rats during normocapnia and hypercapnia (7% CO2). The arrow indicates the time of the microinjection. The hypercapnia duration is represented by a horizontal line on the graph. Values are expressed as mean ± S.E.M.
Pharmaceuticals 12 00019 g006
Pharmaceuticals 12 00019 g007 550

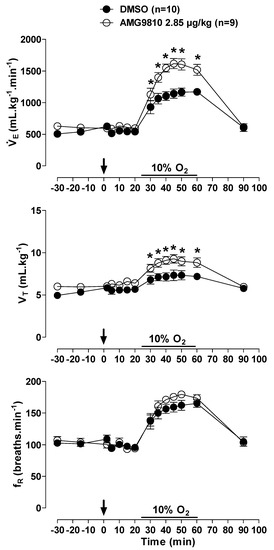

Figure 7. Effects of intraperitoneal (ip) injection of vehicle (DMSO) and AMG9810 (TRPV1 antagonist—2.85 µg/kg, 1 mL/kg) on ventilation ( V ˙ E ), tidal volume (VT) and respiratory frequency (fR) of rats during normoxia and hypoxia (10% O2). The arrow indicates the time of the microinjection. The hypoxia duration is represented by a horizontal line on the graph. Values are expressed as mean ± S.E.M. * Significant difference between vehicle and AMG9810 groups.
Figure 7. Effects of intraperitoneal (ip) injection of vehicle (DMSO) and AMG9810 (TRPV1 antagonist—2.85 µg/kg, 1 mL/kg) on ventilation ( V ˙ E ), tidal volume (VT) and respiratory frequency (fR) of rats during normoxia and hypoxia (10% O2). The arrow indicates the time of the microinjection. The hypoxia duration is represented by a horizontal line on the graph. Values are expressed as mean ± S.E.M. * Significant difference between vehicle and AMG9810 groups.
Pharmaceuticals 12 00019 g007
Pharmaceuticals 12 00019 g008 550

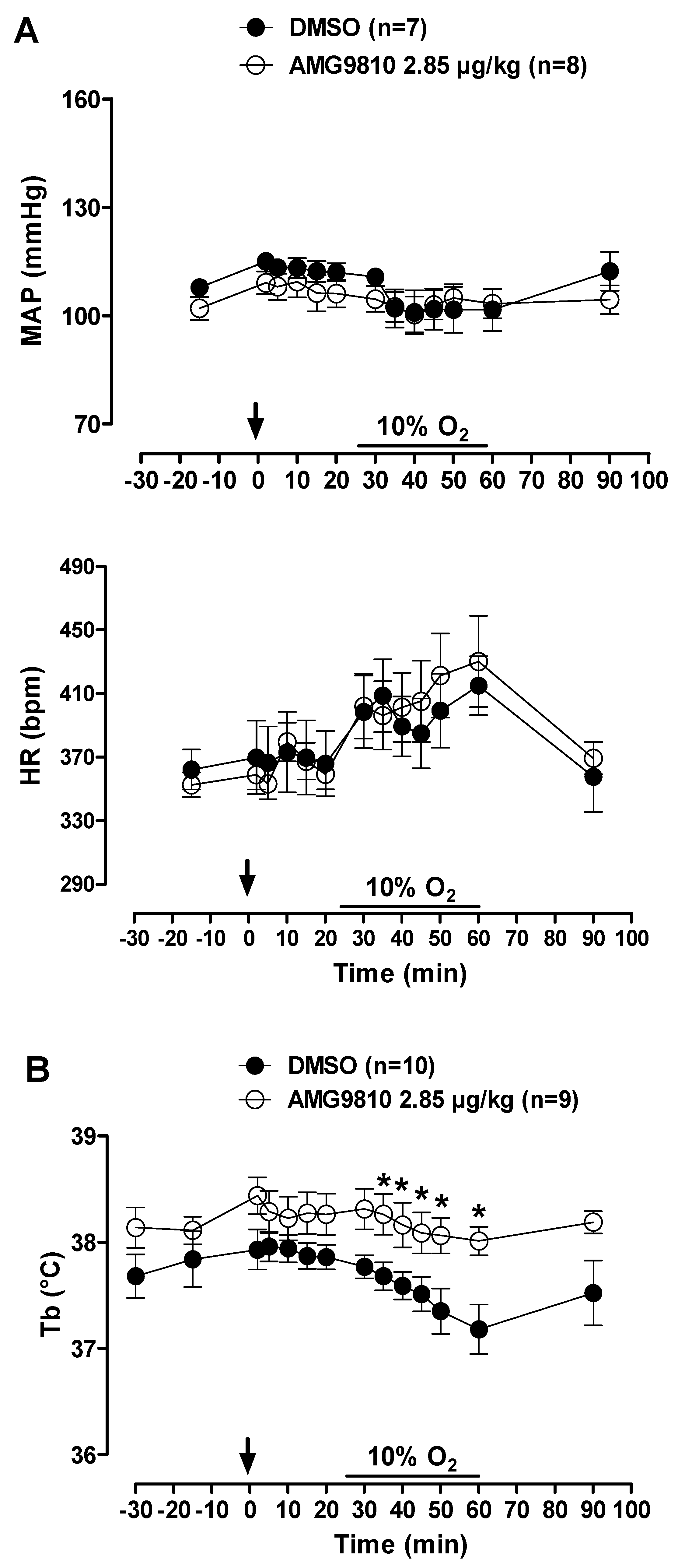

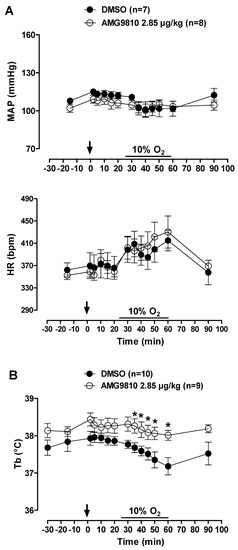

Figure 8. Effects of intraperitoneal (ip) injection of vehicle (DMSO) and AMG9810 (TRPV1 antagonist—2.85 µg/kg, 1 mL/kg) on (A) mean arterial pressure (MAP) and heart rate (HR) and (B) body temperature (Tb) of rats during normoxia and hypoxia (10% O2). The arrow indicates the time of the microinjection. The hypoxia duration is represented by a horizontal line on the graph. Values are expressed as mean ± S.E.M. * Significant difference between vehicle and AMG9810 groups.
Figure 8. Effects of intraperitoneal (ip) injection of vehicle (DMSO) and AMG9810 (TRPV1 antagonist—2.85 µg/kg, 1 mL/kg) on (A) mean arterial pressure (MAP) and heart rate (HR) and (B) body temperature (Tb) of rats during normoxia and hypoxia (10% O2). The arrow indicates the time of the microinjection. The hypoxia duration is represented by a horizontal line on the graph. Values are expressed as mean ± S.E.M. * Significant difference between vehicle and AMG9810 groups.
Pharmaceuticals 12 00019 g008
Pharmaceuticals 12 00019 g009 550

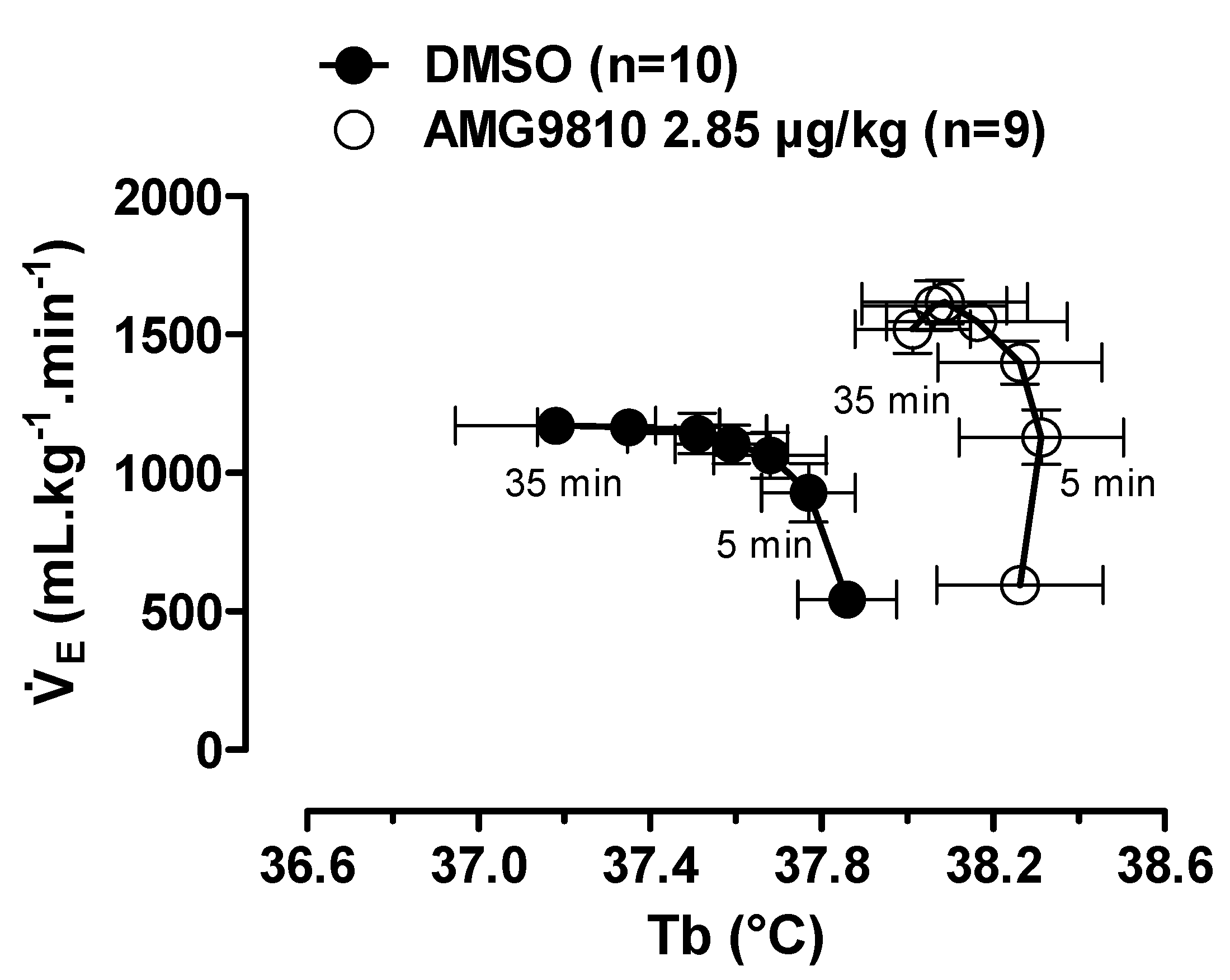

Figure 9. Relationship between pulmonary ventilation ( V ˙ E ; data from Figure 7) and body temperature (Tb; data from Figure 8B) in rats treated with vehicle (DMSO) or AMG9810 (TRPV1 antagonist—2.85 µg/kg, 1 mL/kg). The direction of time is shown with arrows, and the times corresponding to the earliest (5 min) and latest (35 min) hypoxia exposure data points are indicated. Values are expressed as mean ± S.E.M.
Figure 9. Relationship between pulmonary ventilation ( V ˙ E ; data from Figure 7) and body temperature (Tb; data from Figure 8B) in rats treated with vehicle (DMSO) or AMG9810 (TRPV1 antagonist—2.85 µg/kg, 1 mL/kg). The direction of time is shown with arrows, and the times corresponding to the earliest (5 min) and latest (35 min) hypoxia exposure data points are indicated. Values are expressed as mean ± S.E.M.
Pharmaceuticals 12 00019 g009
Table
Table 1. Values of arterial pH (pHa), arterial carbon dioxide partial pressure (PaCO2), arterial oxygen partial pressure (PaO2) and plasma bicarbonate (HCO3–) of Wistar rats in vehicle (DMSO)- and AMG9810 (2.85 µg/kg)-treated groups before microinjection (b.m.), at the end of 20 min of normocapnia or normoxia after microinjection (a.m.) and at the end of hypercapnia (A) or hypoxia (B) exposure after microinjection (a.m.).
Table 1. Values of arterial pH (pHa), arterial carbon dioxide partial pressure (PaCO2), arterial oxygen partial pressure (PaO2) and plasma bicarbonate (HCO3–) of Wistar rats in vehicle (DMSO)- and AMG9810 (2.85 µg/kg)-treated groups before microinjection (b.m.), at the end of 20 min of normocapnia or normoxia after microinjection (a.m.) and at the end of hypercapnia (A) or hypoxia (B) exposure after microinjection (a.m.).
ADMSO (n = 7)AMG9810 (n = 7)
Normocapnia
(b.m.)		Normocapnia
(a.m.)		Hypercapnia
(a.m.)		Normocapnia
(b.m.)		Normocapnia
(a.m.)		Hypercapnia
(a.m.)
pHa 7.44 ± 0.017.43 ± 0.017.30 ± 0.01 *7.44 ± 0.017.43 ± 0.017.28 ± 0.01 *
PaCO2 (mmHg)27.2 ± 1.426.4 ± 1.542.0 ± 1.8 *26.8 ± 1.325.3 ± 1.438.2 ± 0.8 *
PaO2 (mmHg)78.3 ± 1.980.1 ± 1.6110.0 ± 1.3 *76.0 ± 1.679.0 ± 1.4110.3 ± 1.9 *
HCO3−18.7 ± 1.517.6 ± 1.220.9 ± 1.118.2 ± 1.116.9 ± 0.918.0 ± 0.7
BDMSO (n = 7)AMG9810 (n = 6)
Normoxia
(b.m.)		Normoxia
(a.m.)		Hypoxia
(a.m.)		Normoxia
(b.m.)		Normoxia
(a.m.)		Hypoxia
(a.m.)
pHa 7.44 ± 0.017.44 ± 0.017.58 ± 0.01 **7.46 ± 0.017.44 ± 0.017.58 ± 0.01 **
PaCO2 (mmHg) 29.3 ± 2.125.9 ± 0.814.8 ± 0.5 **28.4 ± 1.426.1 ± 0.713.7 ± 0.5 **
PaO2 (mmHg)69.0 ± 2.276.0 ± 1.528.7 ± 1.2 **72.8 ± 2.178.8 ± 2.231.1 ± 1.3 **
HCO3− 20.3 ± 1.818.3 ± 0.814.1 ± 0.3 **20.0 ± 0.917.8 ± 0.613.0 ± 0.4 **
* Means statistical difference between the time before microinjection and at the end of hypercapnia exposure after microinjection in the same group. ** Means statistical difference between the time before microinjection and at the end of hypoxia exposure after microinjection in the same group.
Table
Table 2. Values of arterial pH (pHa), arterial carbon dioxide partial pressure (PaCO2), arterial oxygen partial pressure (PaO2) and plasma bicarbonate (HCO3–) of Wistar rats in vehicle (DMSO)- and AMG9810 (2.85 µg/kg)-treated groups before microinjection (b.m.), at the end of 20 min of normoxia after microinjection (a.m.) and at the end of hypoxia exposure after microinjection (a.m.).
Table 2. Values of arterial pH (pHa), arterial carbon dioxide partial pressure (PaCO2), arterial oxygen partial pressure (PaO2) and plasma bicarbonate (HCO3–) of Wistar rats in vehicle (DMSO)- and AMG9810 (2.85 µg/kg)-treated groups before microinjection (b.m.), at the end of 20 min of normoxia after microinjection (a.m.) and at the end of hypoxia exposure after microinjection (a.m.).
DMSO (n = 3)AMG9810 (n = 4)
Normoxia
(b.m.)		Normoxia
(a.m.)		Hypoxia
(a.m.)		Normoxia
(b.m.)		Normoxia
(a.m.)		Hypoxia
(a.m.)
pHa7.46 ± 0.017.47 ± 0.017.65 ± 0.02 *7.43 ± 0.017.46 ± 0.017.60 ± 0.02 *
PaCO2 (mmHg)38.6 ± 2.236.9 ± 2.118.6 ± 1.4 *35.4 ± 2.736.7 ± 1.314.0 ± 1.1 *
PaO2 (mmHg)75.6 ± 2.276.3 ± 0.830.1 ± 1.0 *70.5 ± 3.479.0 ± 3.632.7 ± 1.2 *
HCO3− 27.8 ± 1.727.2 ± 1.217.6 ± 1.8 *23.1 ± 2.228.9 ± 0.913.1 ± 0.6 *
* Means statistical difference between the time before microinjection and at the end of hypoxia exposure after microinjection in the same group.

Share and Cite

MDPI and ACS Style

Patrone, L.G.A.; Duarte, J.B.; Bícego, K.C.; Steiner, A.A.; Romanovsky, A.A.; Gargaglioni, L.H. TRPV1 Inhibits the Ventilatory Response to Hypoxia in Adult Rats, but Not the CO2-Drive to Breathe. Pharmaceuticals 2019, 12, 19. https://doi.org/10.3390/ph12010019

AMA Style

Patrone LGA, Duarte JB, Bícego KC, Steiner AA, Romanovsky AA, Gargaglioni LH. TRPV1 Inhibits the Ventilatory Response to Hypoxia in Adult Rats, but Not the CO2-Drive to Breathe. Pharmaceuticals. 2019; 12(1):19. https://doi.org/10.3390/ph12010019

Chicago/Turabian Style

Patrone, Luis Gustavo A., Jaime B. Duarte, Kênia Cardoso Bícego, Alexandre A. Steiner, Andrej A. Romanovsky, and Luciane H. Gargaglioni. 2019. "TRPV1 Inhibits the Ventilatory Response to Hypoxia in Adult Rats, but Not the CO2-Drive to Breathe" Pharmaceuticals 12, no. 1: 19. https://doi.org/10.3390/ph12010019

APA Style

Patrone, L. G. A., Duarte, J. B., Bícego, K. C., Steiner, A. A., Romanovsky, A. A., & Gargaglioni, L. H. (2019). TRPV1 Inhibits the Ventilatory Response to Hypoxia in Adult Rats, but Not the CO2-Drive to Breathe. Pharmaceuticals, 12(1), 19. https://doi.org/10.3390/ph12010019

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
