Defect Detection for Metal Shaft Surfaces Based on an Improved YOLOv5 Algorithm and Transfer Learning
Abstract
:1. Introduction
- We add a CBAM attention mechanism to improve the model’s expression effect and detection effect.
- The original PANet feature fusion framework in the YOLOv5 neck network is replaced with the BiFPN module.
- We use the transfer learning method to reduce the dependence of the training process on large samples.
- All of these new features were tested and validated on the defect dataset of the metal shaft surface, and the conclusions confirmed the algorithm’s feasibility.
2. Related Work
2.1. Defect Detection Method Based on Traditional Machine Vision
2.2. Defect Detection Method Based on Deep Learning
3. Proposed Method

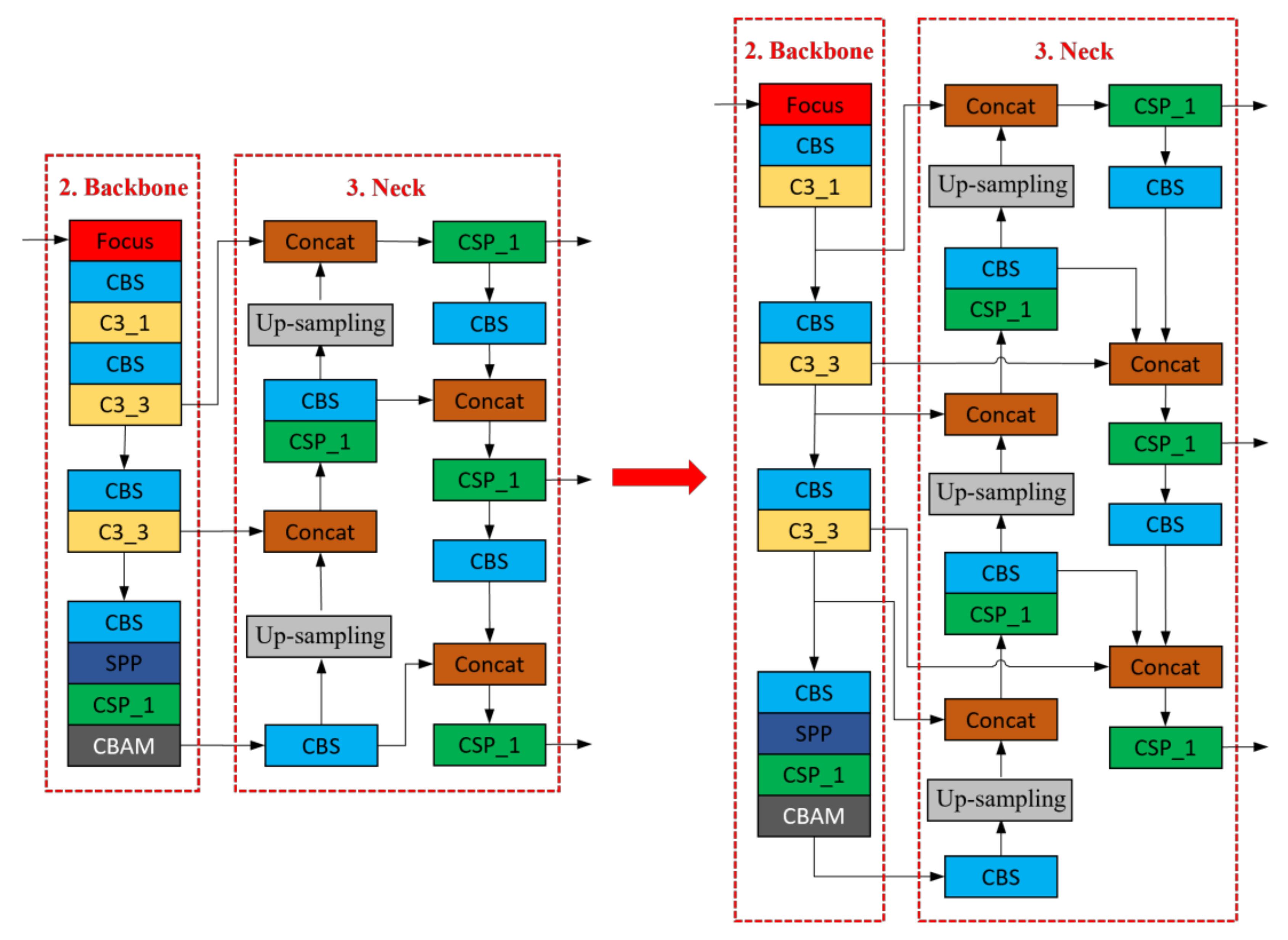

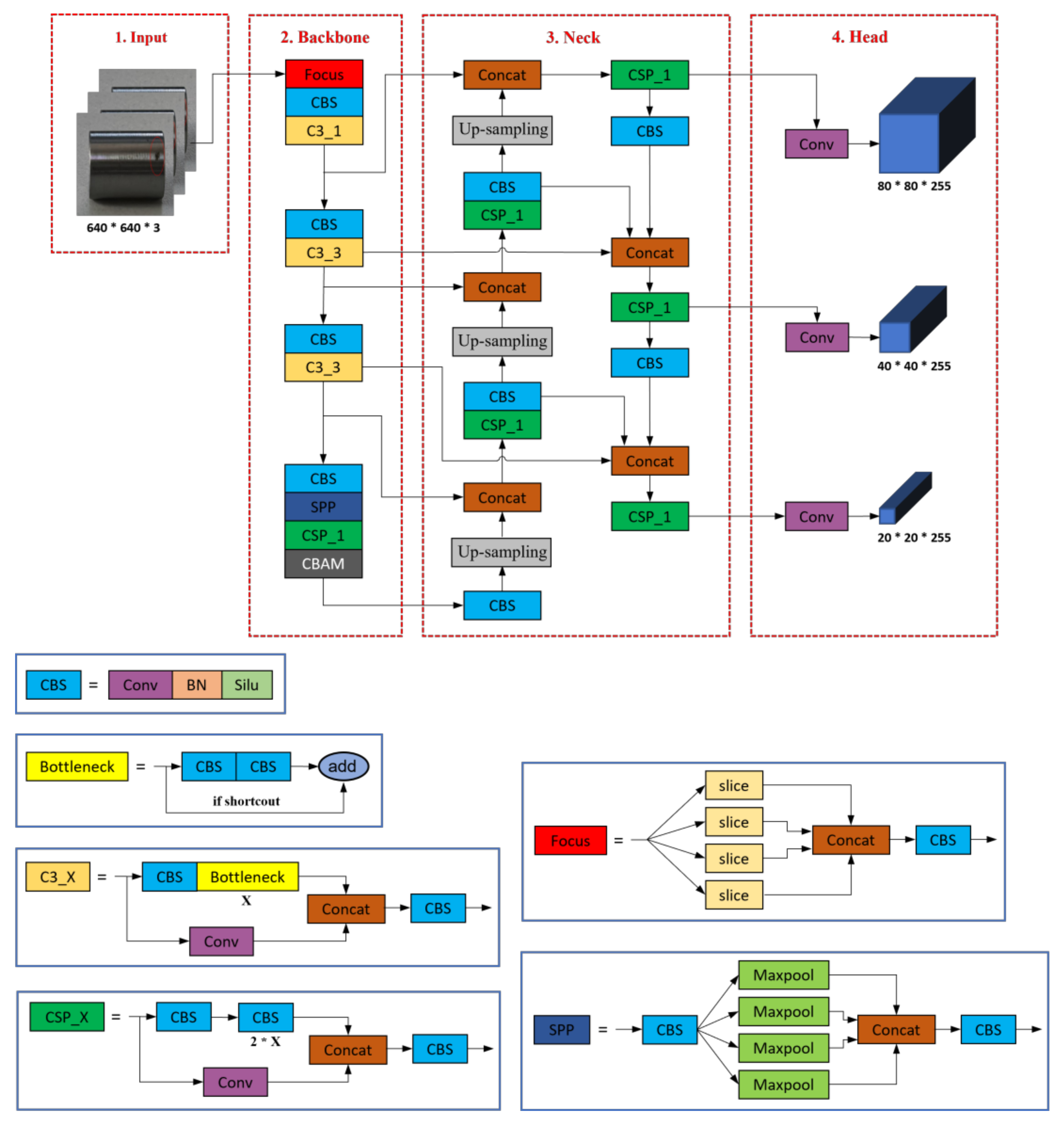

3.1. Network Architecture

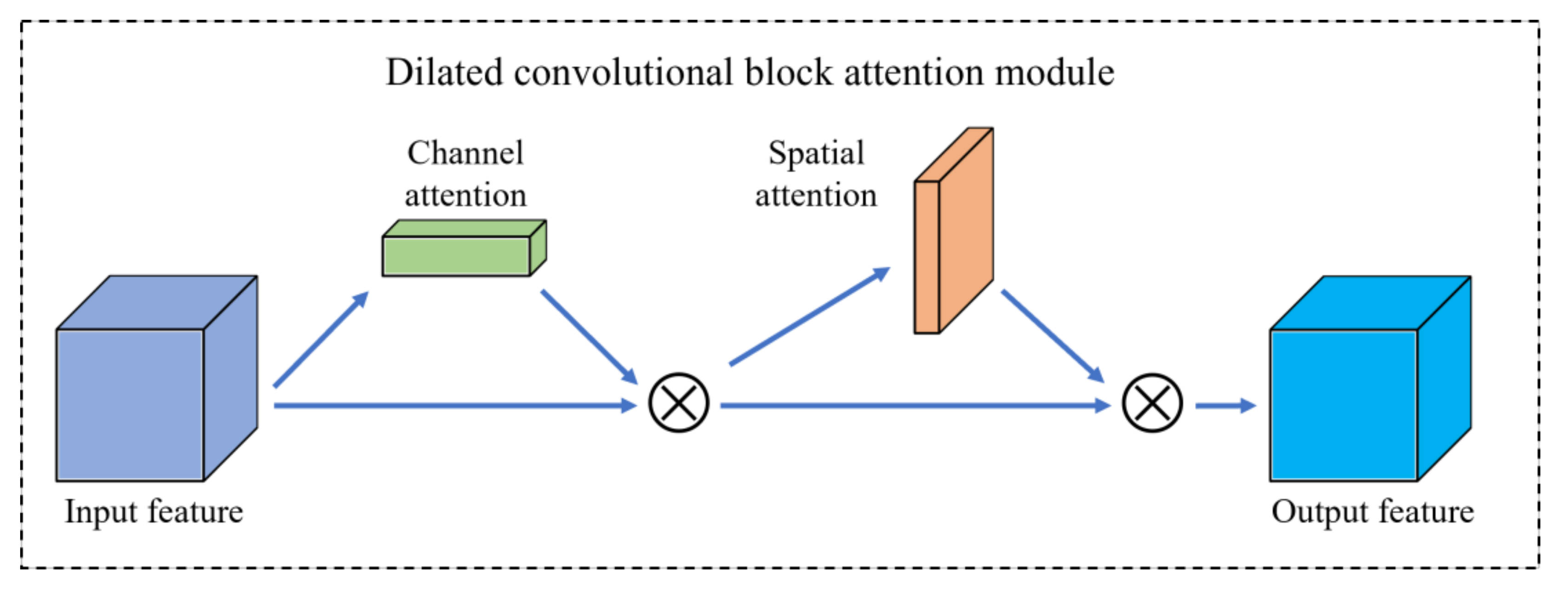

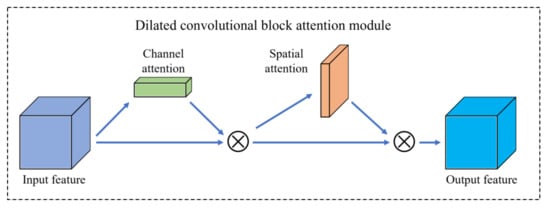

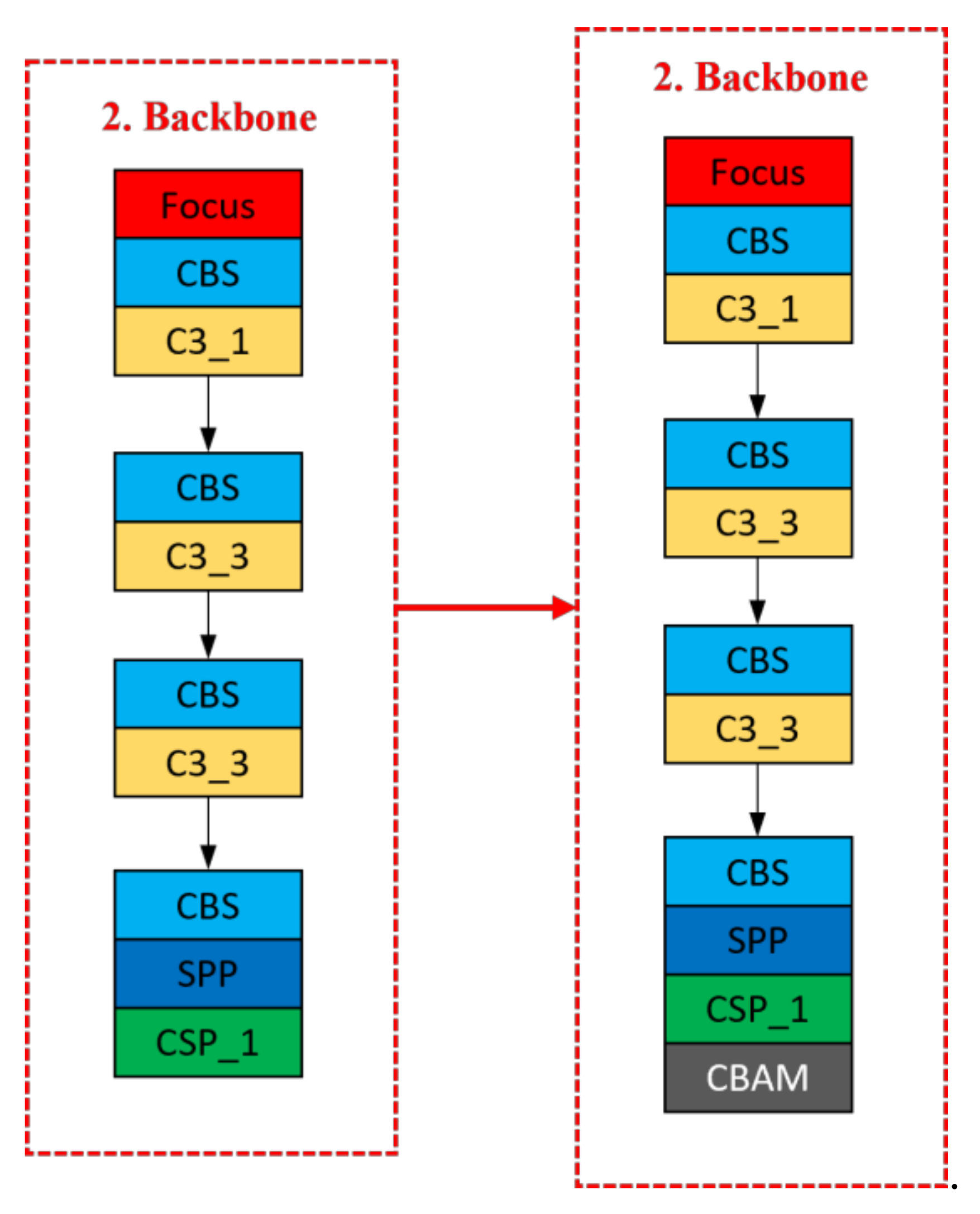

3.2. Extended CBAM Mixed Attention Module
3.2.1. Channel Attention Module
3.2.2. Spatial Attention Module

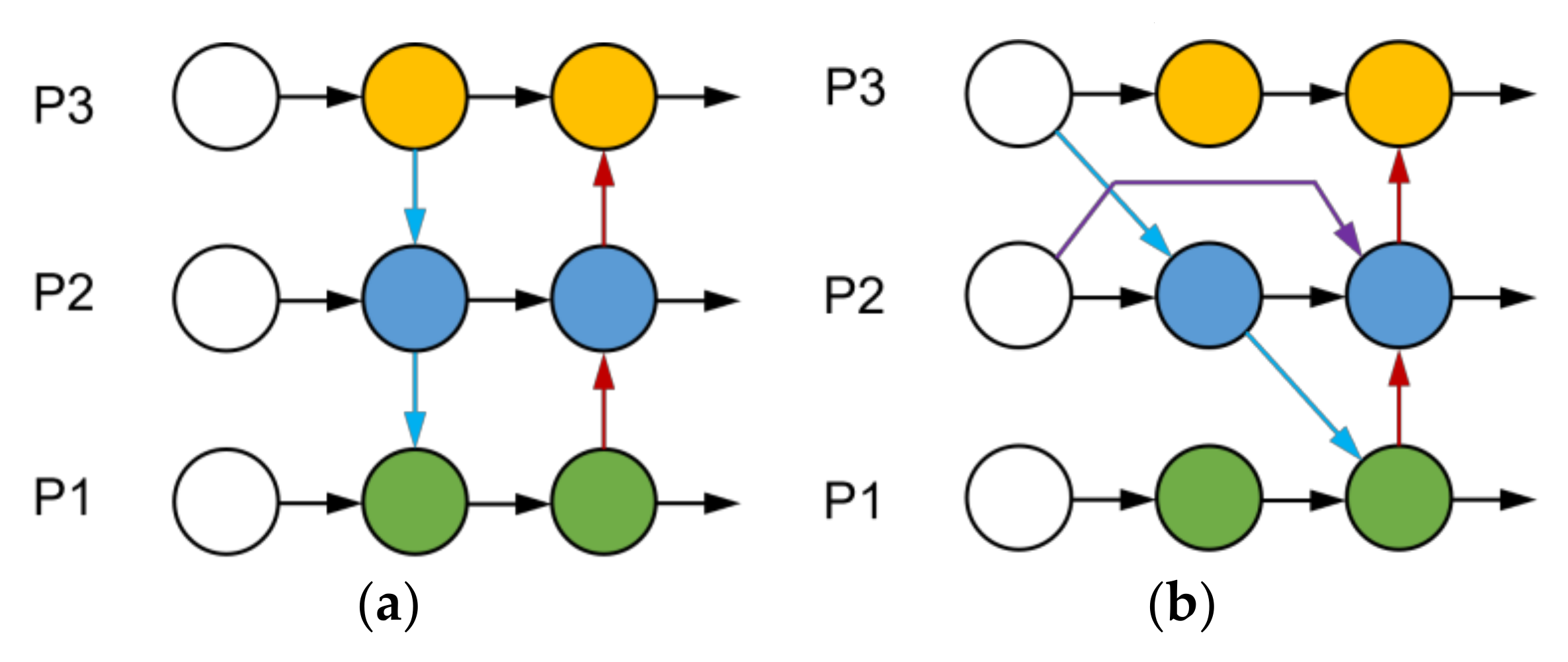

3.3. BiFPN Characteristic Pyramid

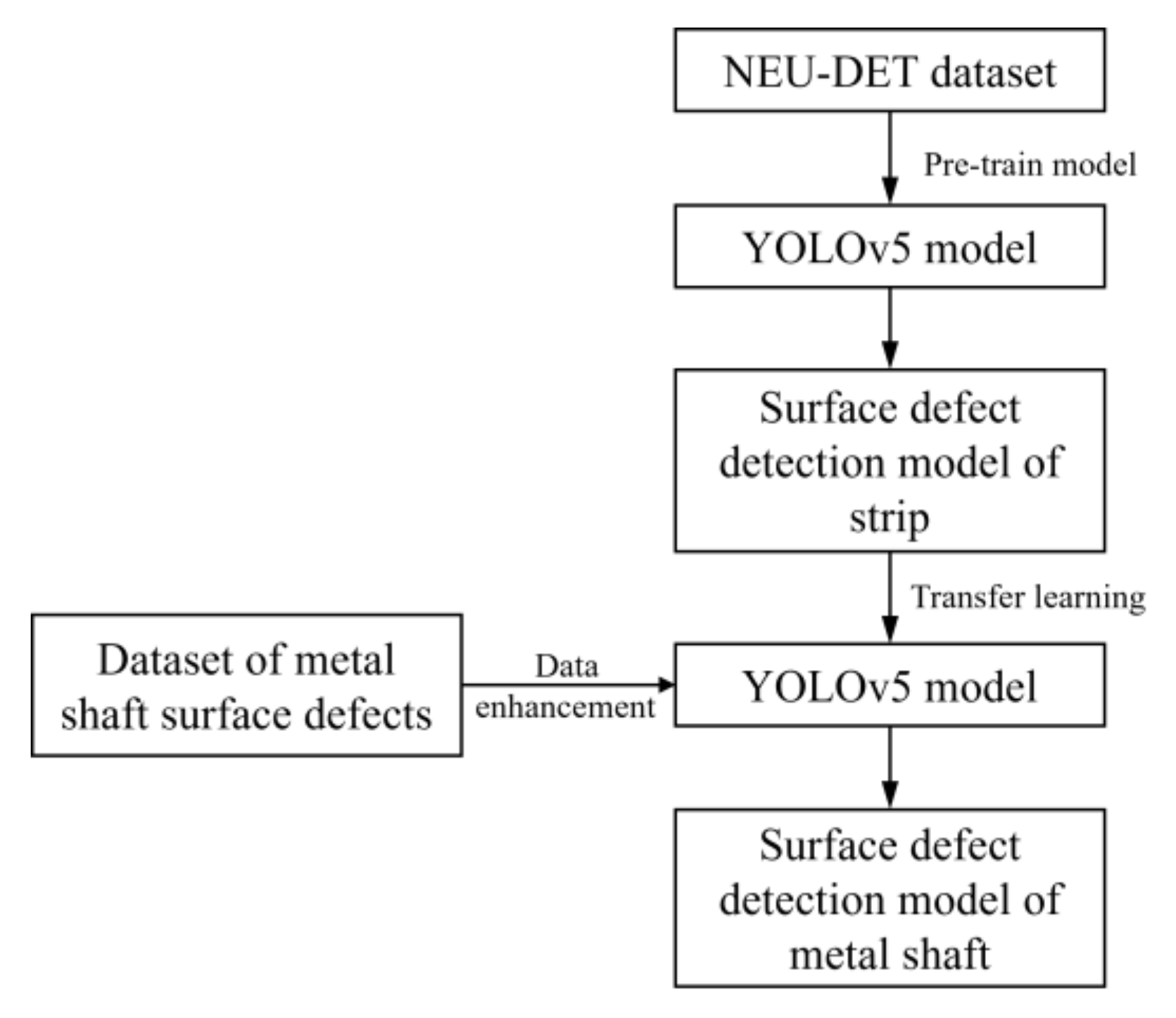

3.4. Transfer Learning
4. Experiments Results and Analysis

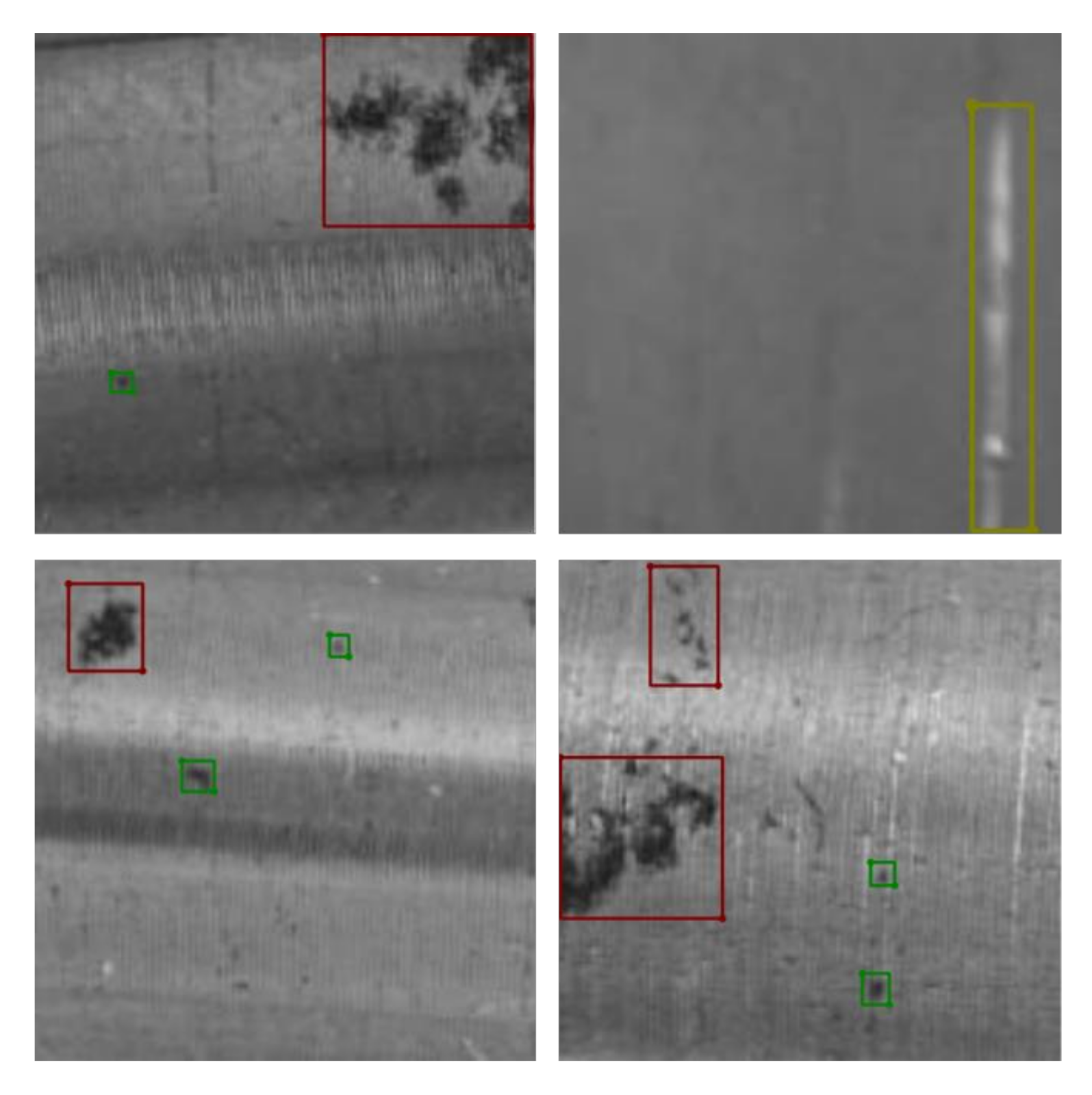

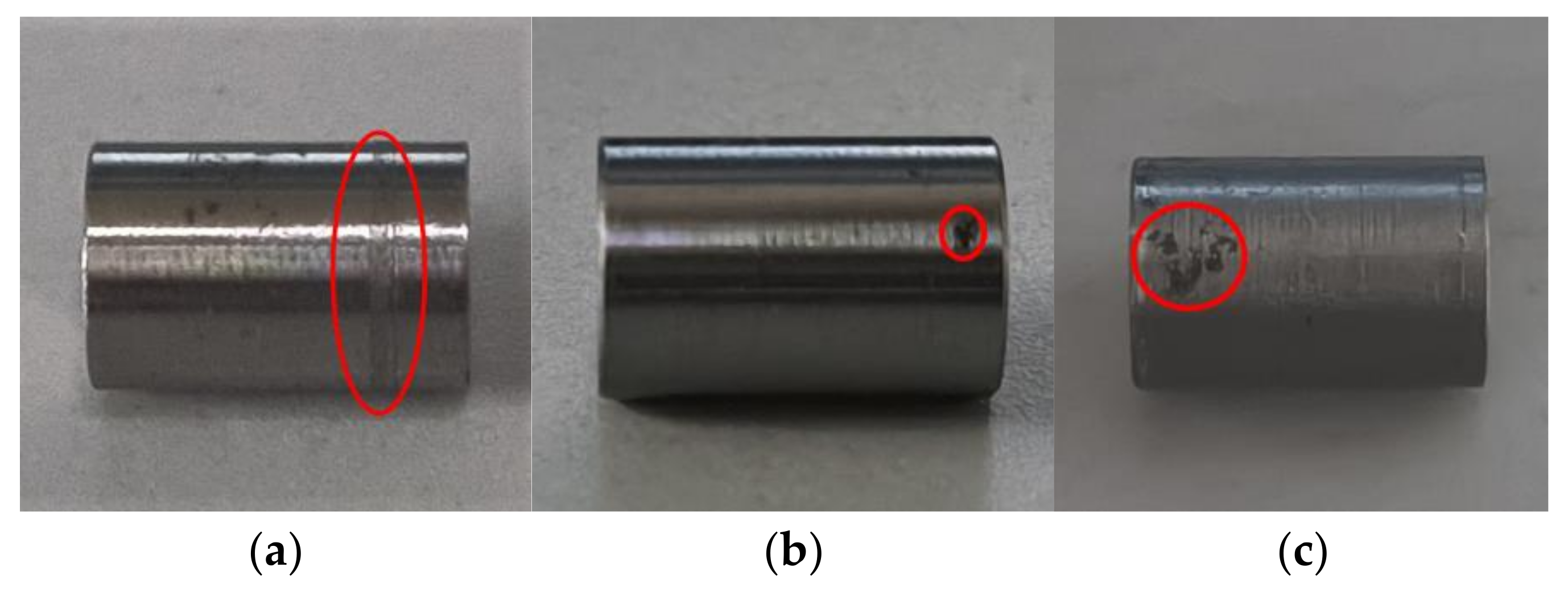

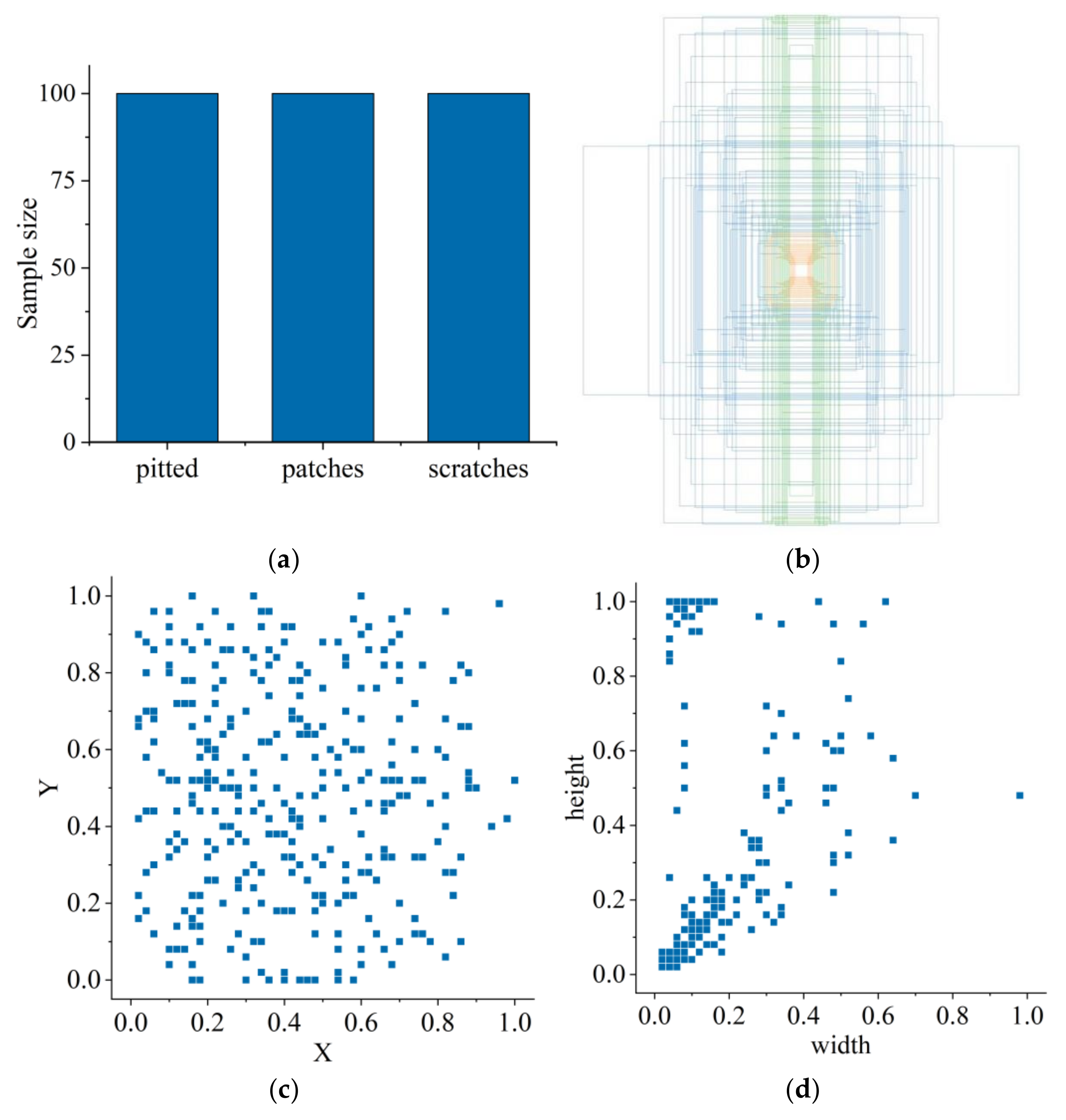

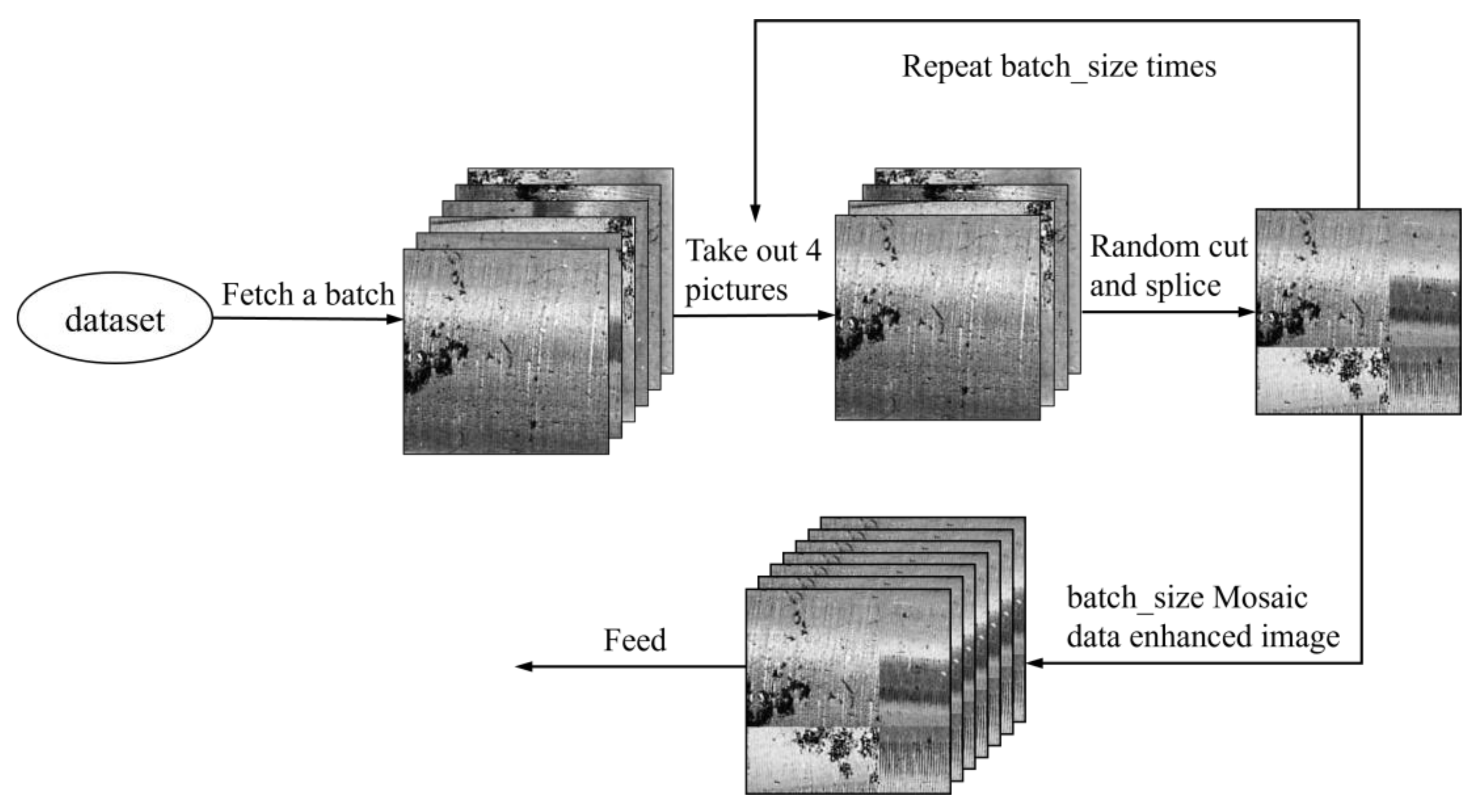

4.1. Data Preparation
4.2. Experiment and Parameter Determination

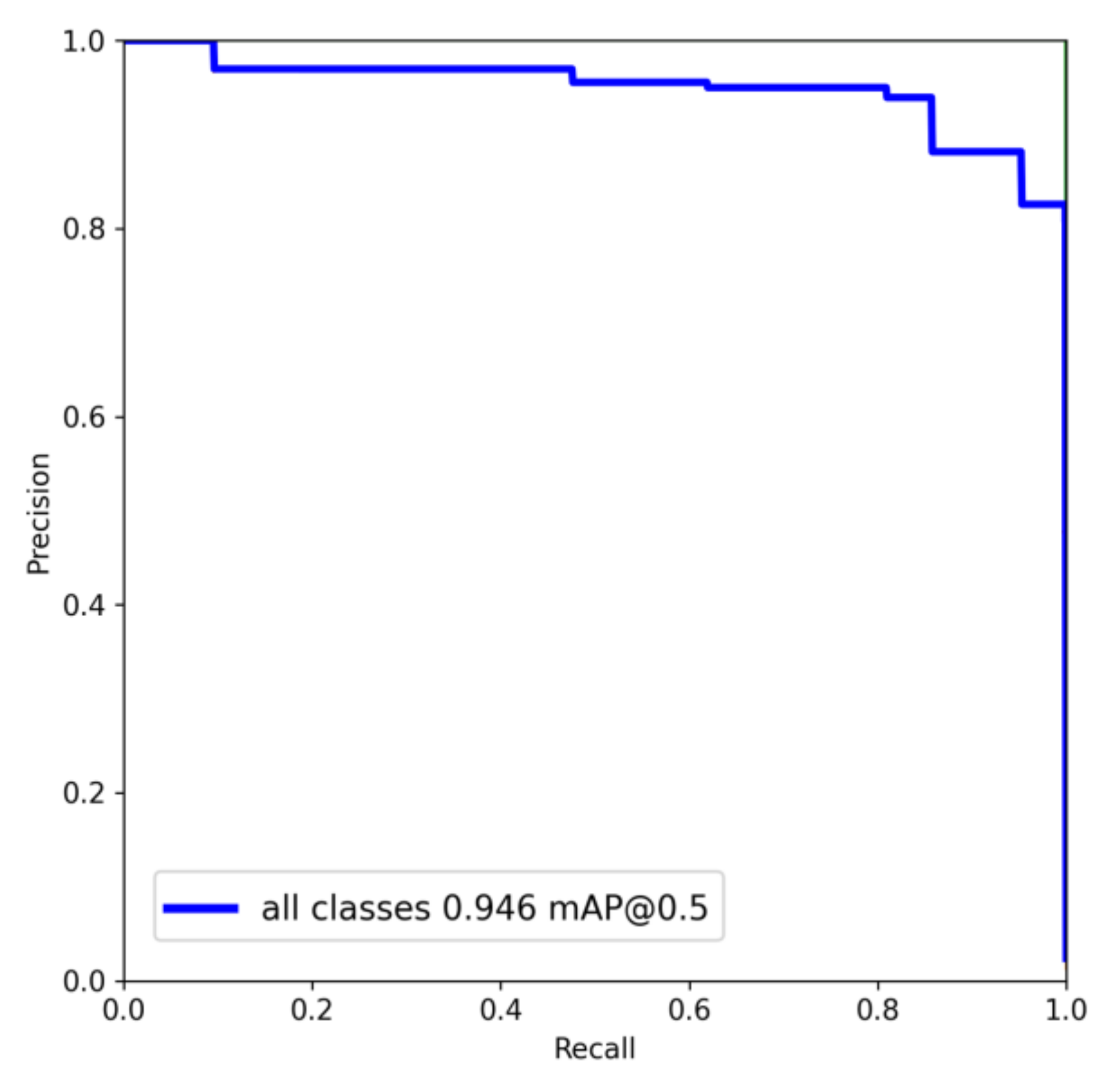

4.3. Network Evaluation

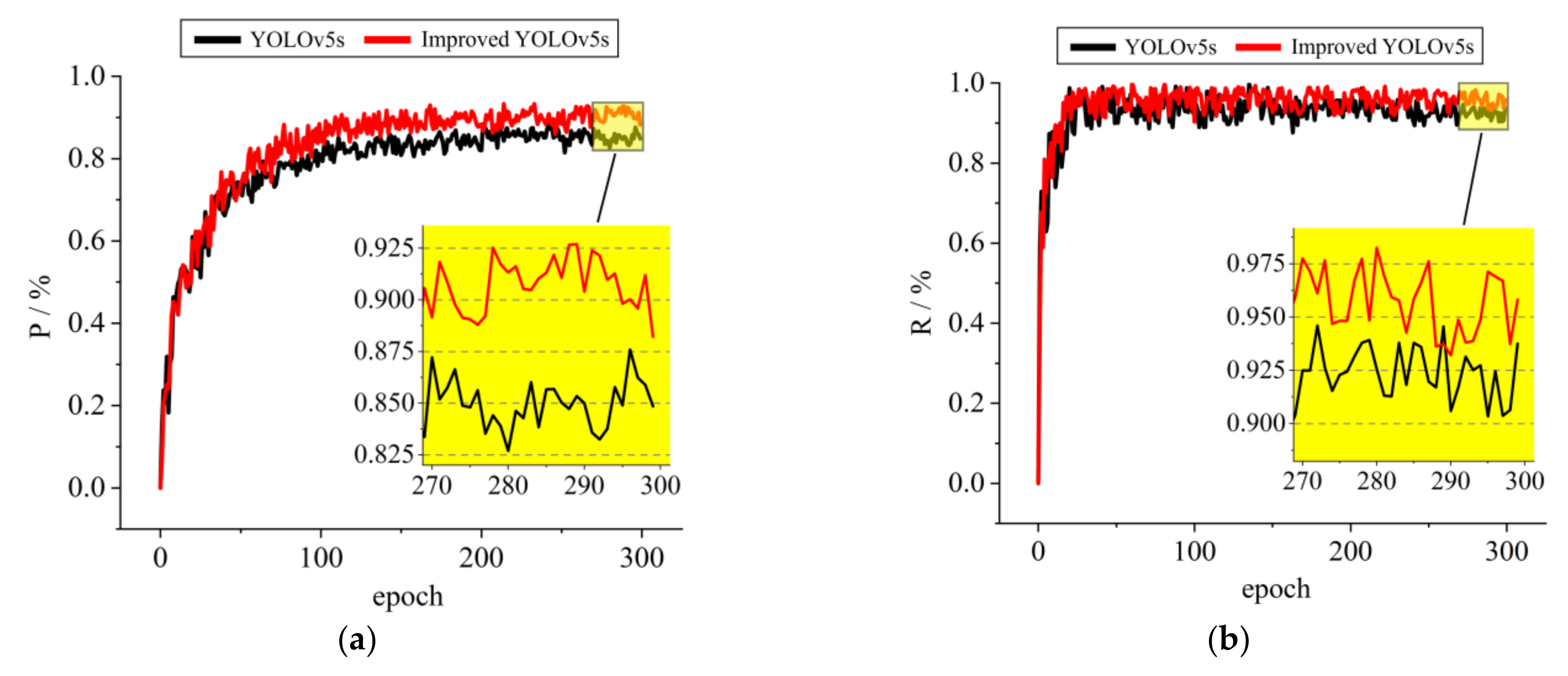

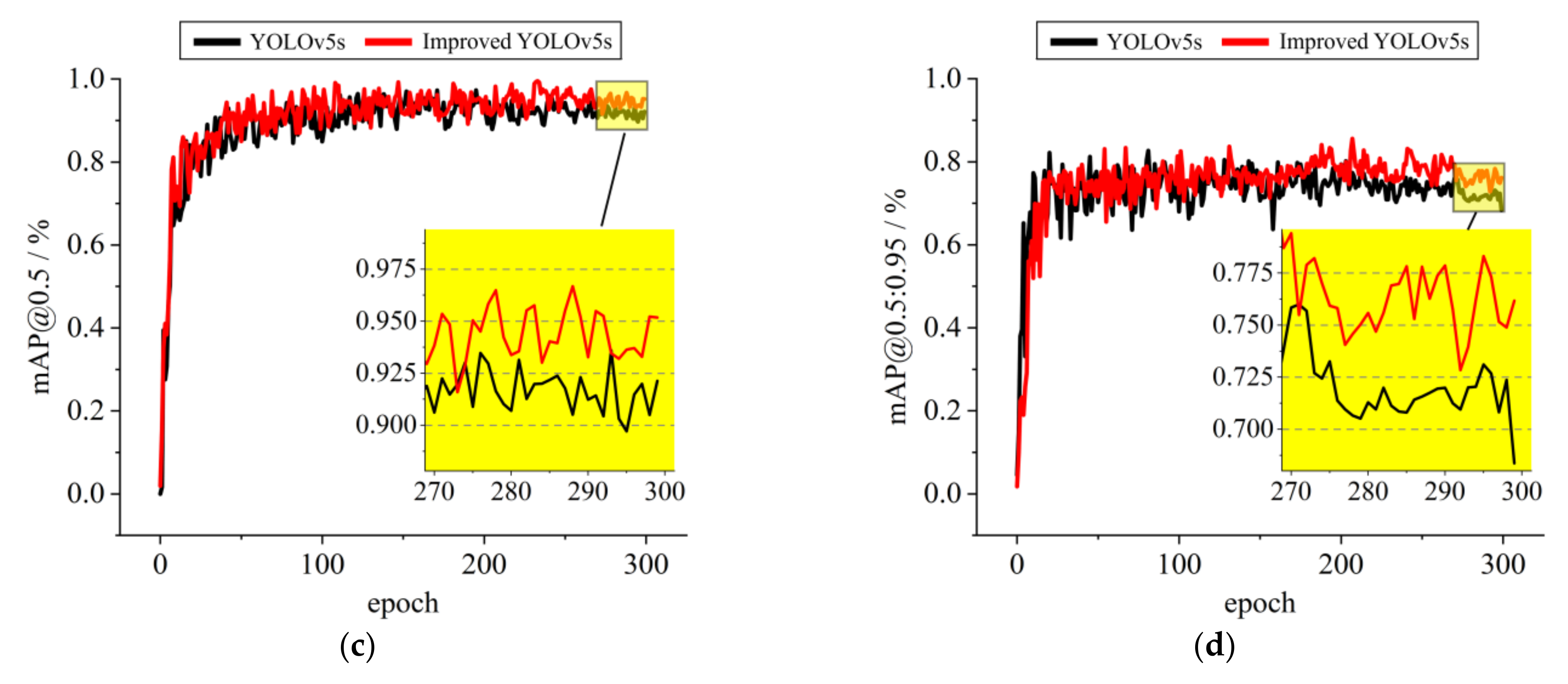

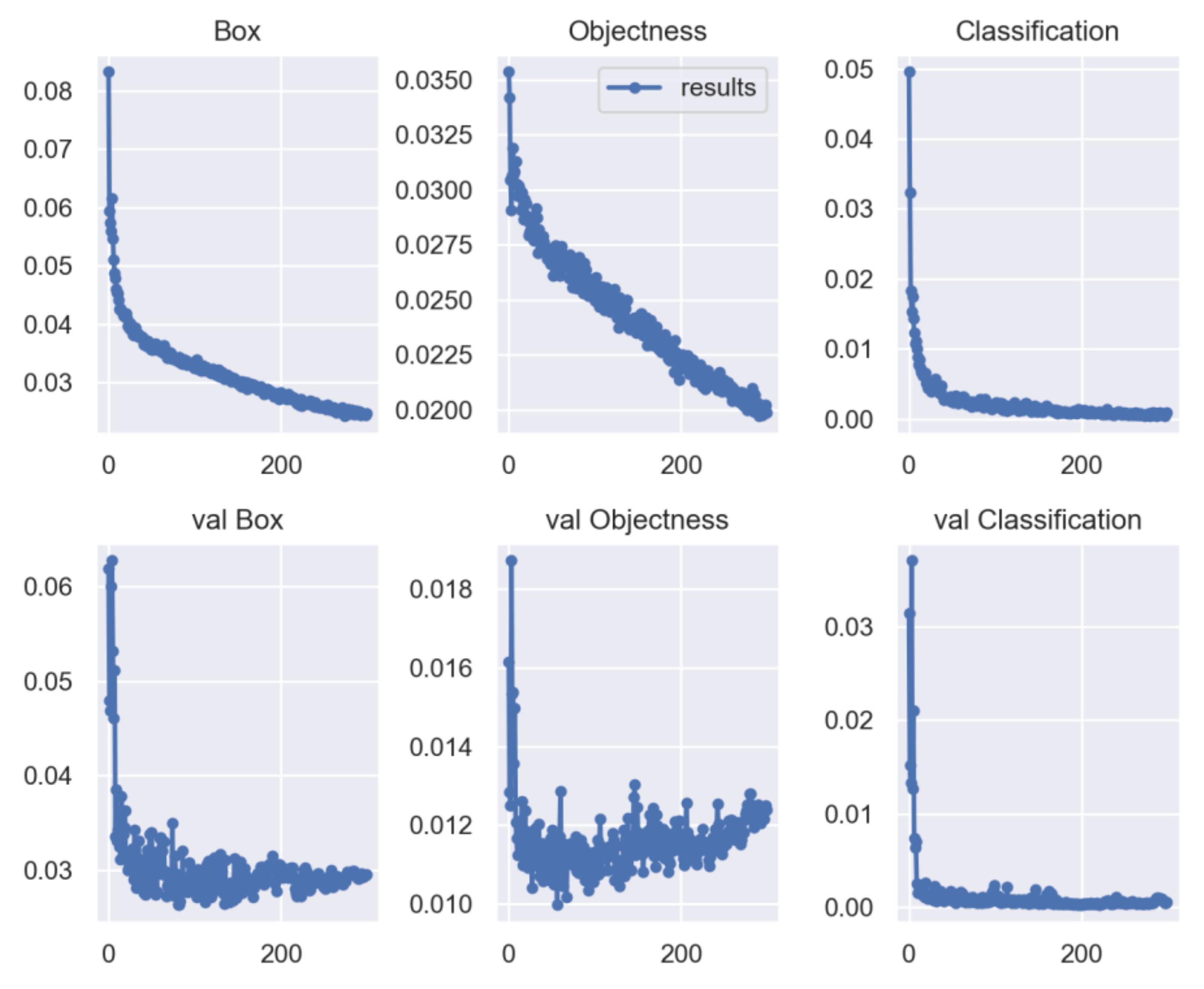

4.4. Performance Analysis of the Improved YOLOv5
4.5. Ablation Experiments
4.6. Comparison with Other Networks

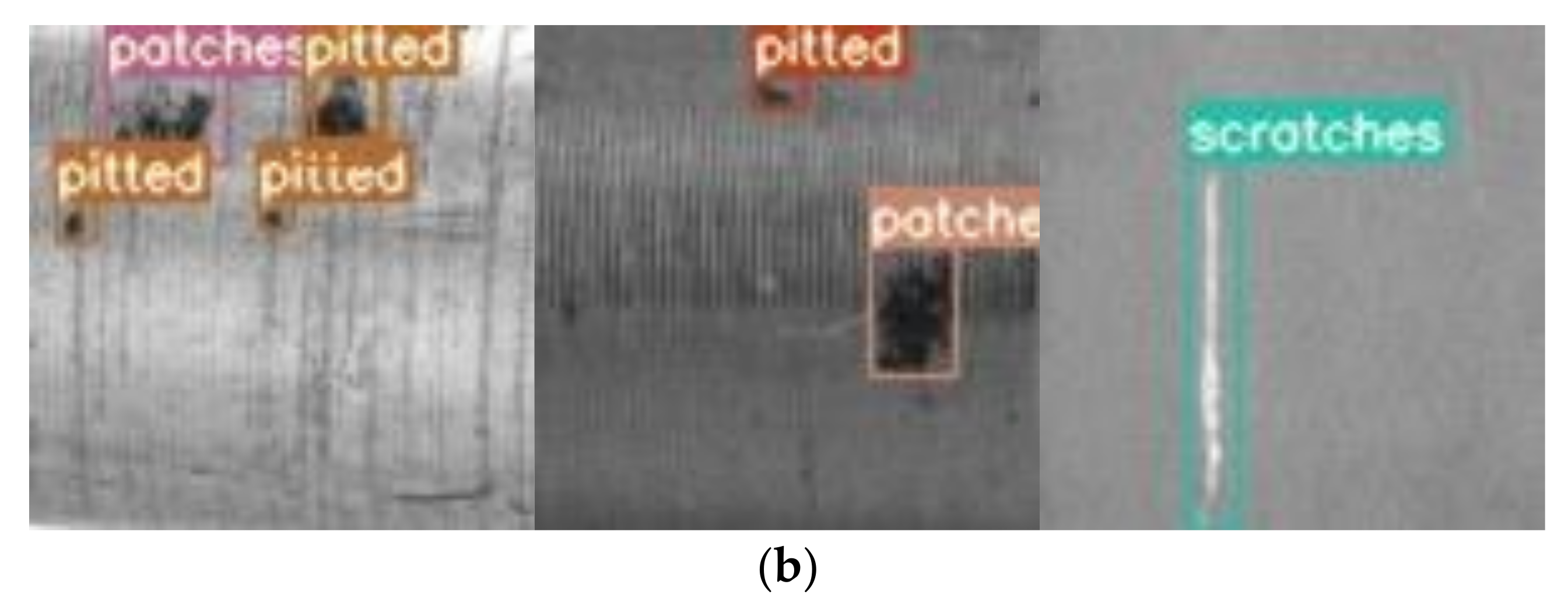

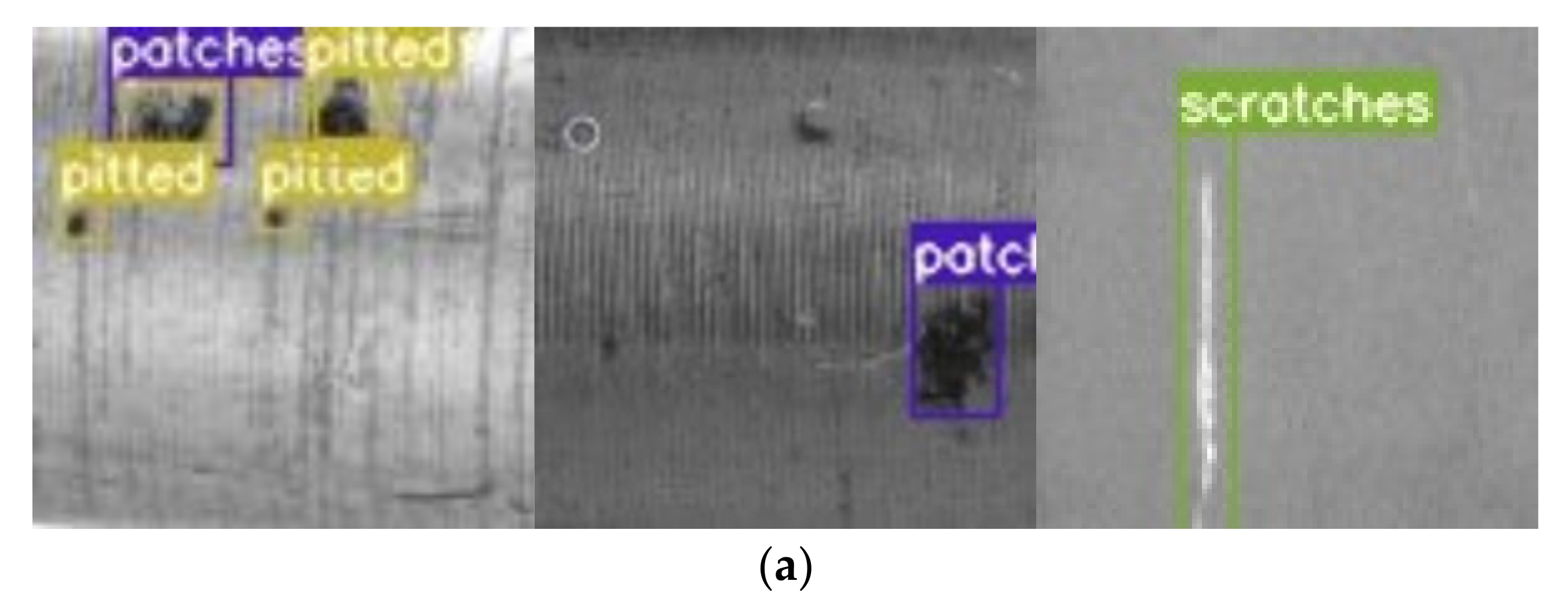

4.7. Test Result
5. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
