Comparison of AlN vs. SIO2/LiNbO3 Membranes as Sensitive Elements for the SAW-Based Acceleration Measurement: Overcoming the Anisotropy Effects

Department of Laser Measuring and Navigation Systems, Saint Petersburg Electrotechnical University, 5 Prof. Popov Str., 197376 Saint Petersburg, Russia
*
Author to whom correspondence should be addressed.
Sensors 2020, 20(2), 464; https://doi.org/10.3390/s20020464
Received: 19 November 2019 / Revised: 25 December 2019 / Accepted: 11 January 2020 / Published: 14 January 2020
(This article belongs to the Section Electronic Sensors)

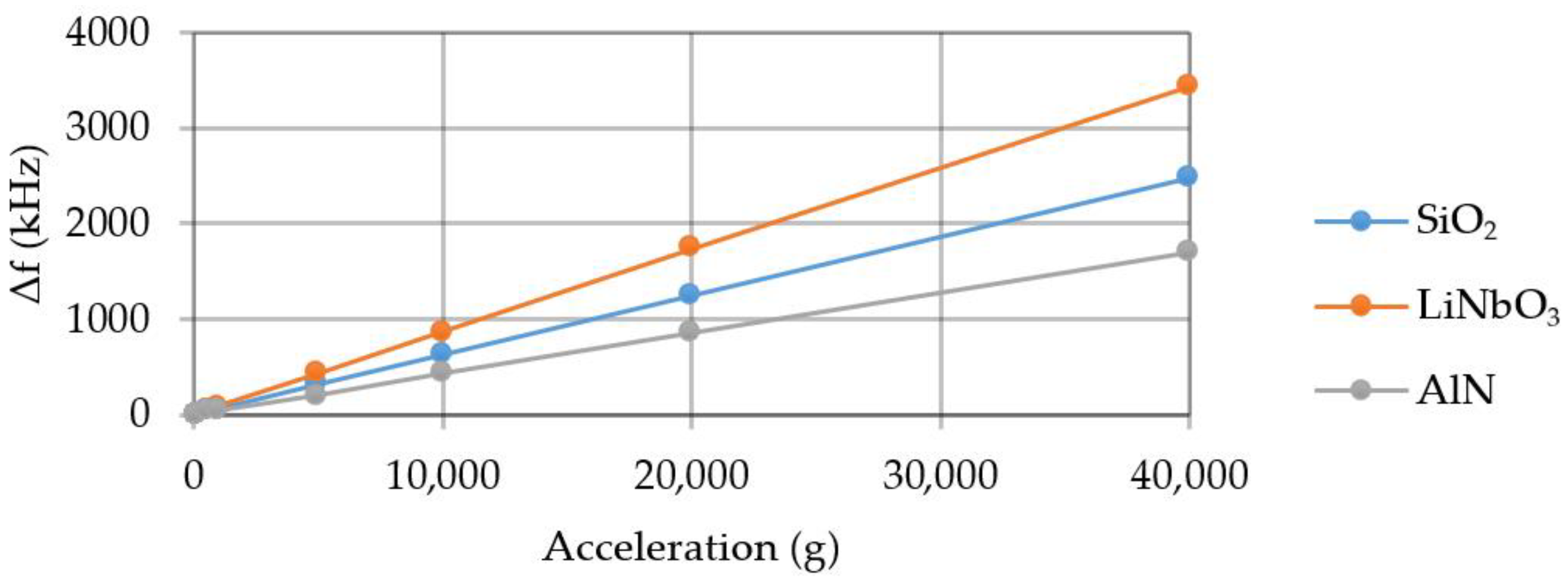

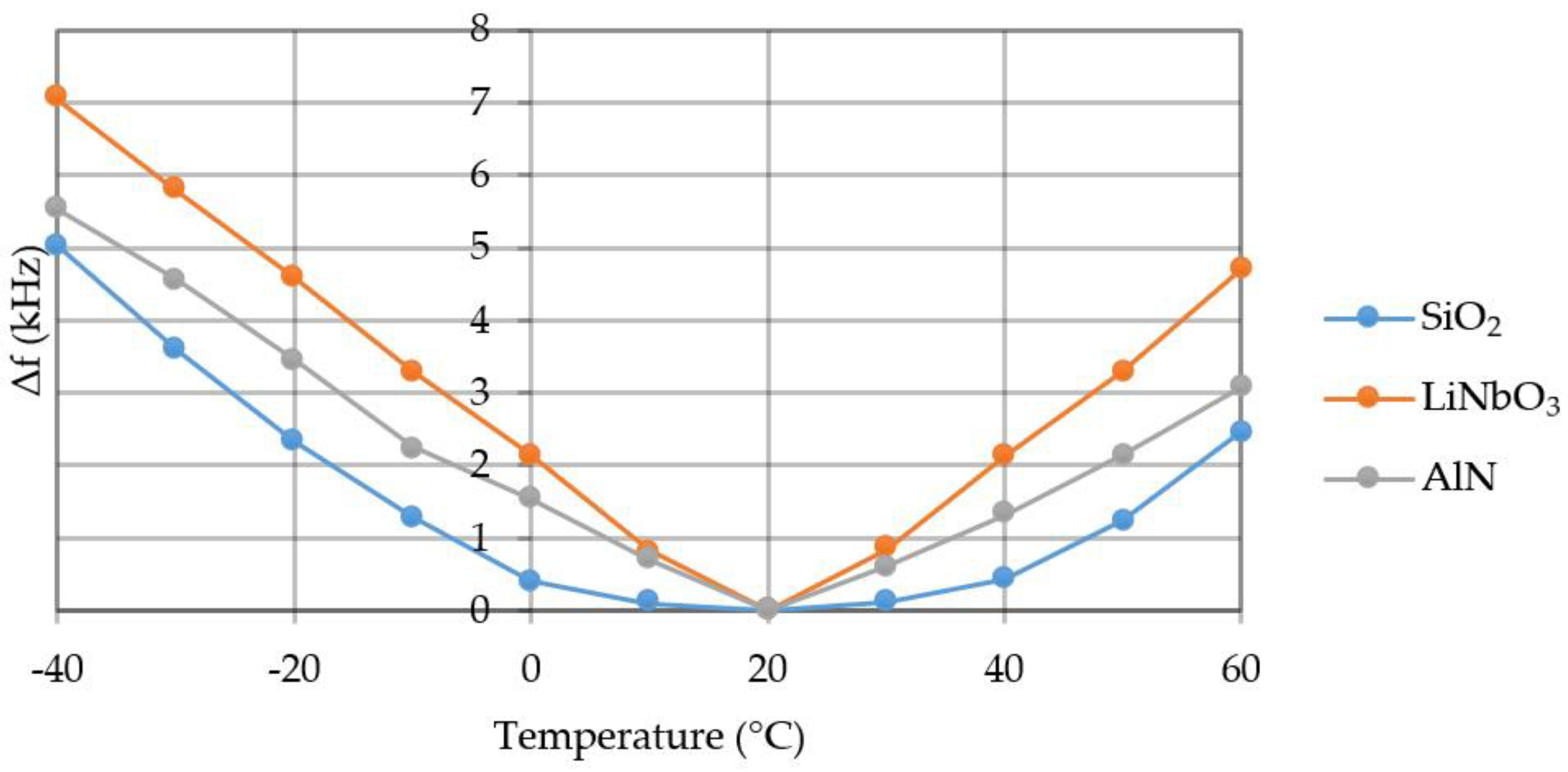

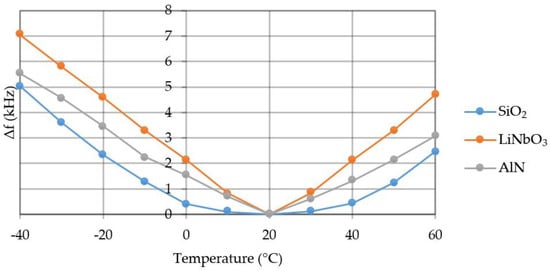

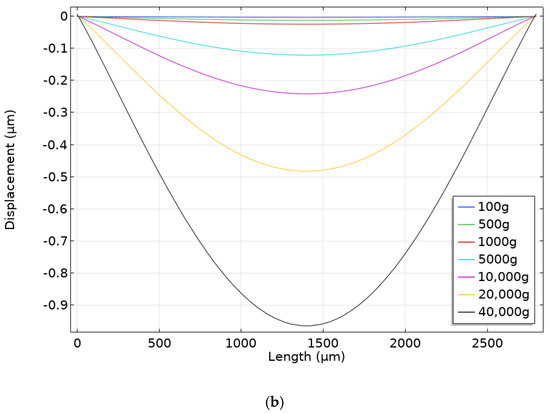

We propose the use of aluminum nitride (AlN) membranes acting as sensitive elements for the surface acoustic wave (SAW)-based acceleration measurement. The proposed solution is compared against existing prototypes based on the use of quartz (SiO2)/lithium niobate (LiNbO3) membranes that are characterized by extensive anisotropic properties. Using COMSOL Multiphysics 5.4 computer simulations we show explicitly that sensitive elements based on less anisotropic AlN membranes overcome both the low sensitivity limitations of SiO2 and low temperature stability of LiNbO3. Moreover, AlN membranes exhibit nearly double the robustness against irreversible mechanical deformations when compared against SiO2, which in turn allows for further 1.5-fold sensitivity enhancement over LiNbO3 based sensors. Taking into account their acceptable frequency characteristics, we thus believe that the AlN membranes are a good candidate forsensitive elements especially for high acceleration measurements. View Full-Text

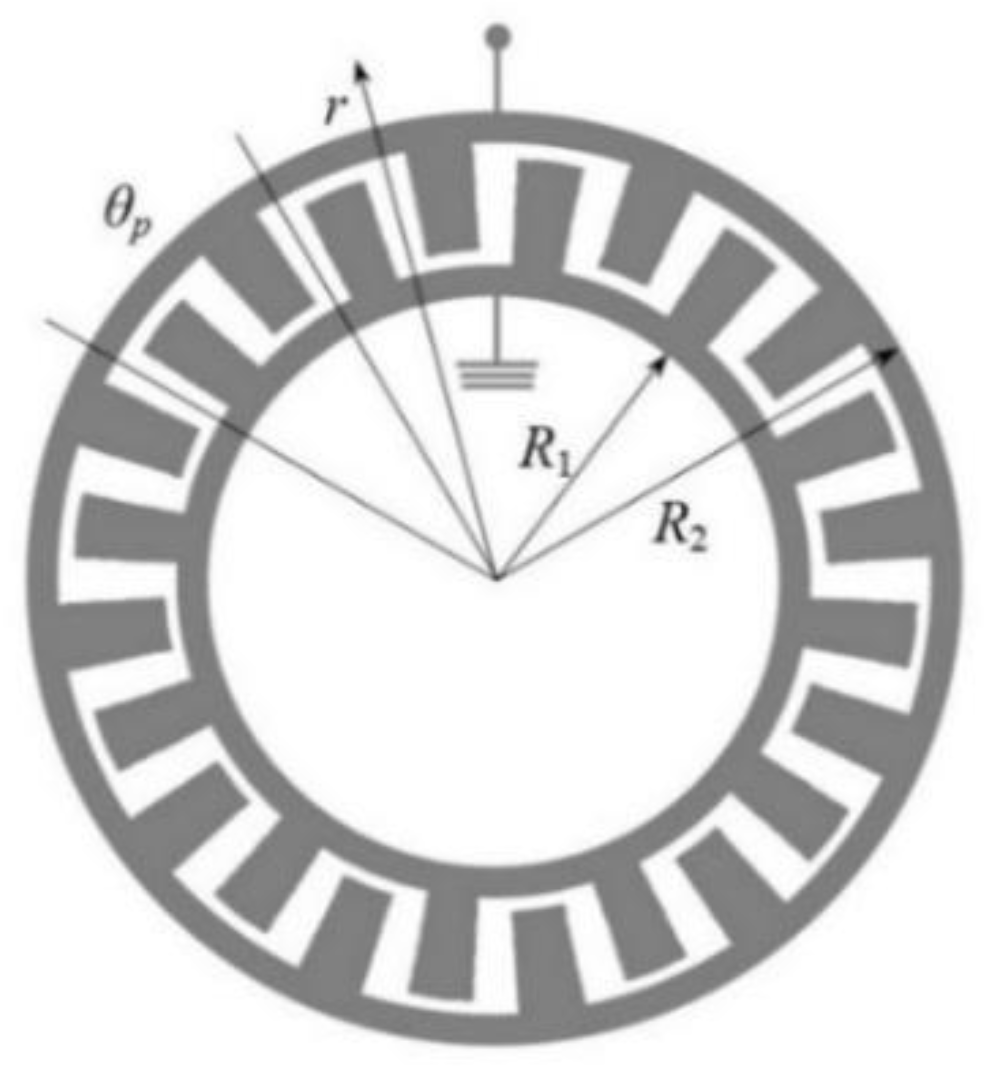

Keywords: SAW-sensor; SAW-resonator; acceleration measurements; ring-shaped design; stress strained state SAW-sensor; SAW-resonator; acceleration measurements; ring-shaped design; stress strained state
Show Figures

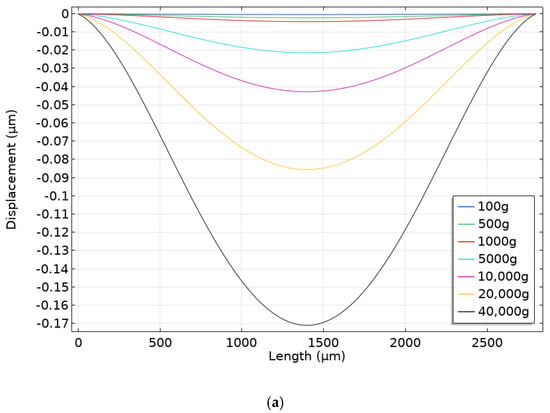

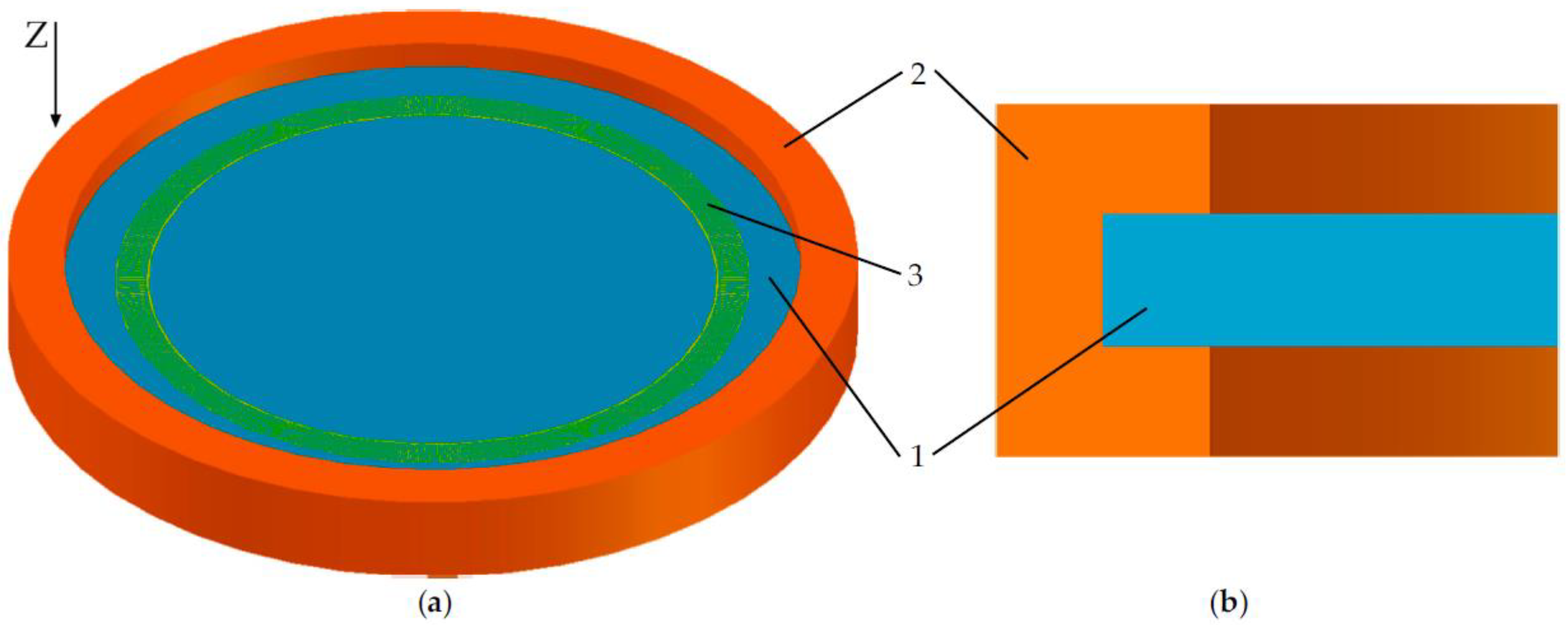

Figure 1

MDPI and ACS Style

Yu. Shevchenko, S.; A. Mikhailenko, D.; Markelov, O.A. Comparison of AlN vs. SIO2/LiNbO3 Membranes as Sensitive Elements for the SAW-Based Acceleration Measurement: Overcoming the Anisotropy Effects. Sensors 2020, 20, 464.
