Photon-Detection-Probability Simulation Method for CMOS Single-Photon Avalanche Diodes

Institute of Electronics, National Chiao Tung University, Hsinchu 30010, Taiwan
*
Author to whom correspondence should be addressed.
Sensors 2020, 20(2), 436; https://doi.org/10.3390/s20020436
Received: 26 November 2019 / Revised: 9 January 2020 / Accepted: 9 January 2020 / Published: 13 January 2020

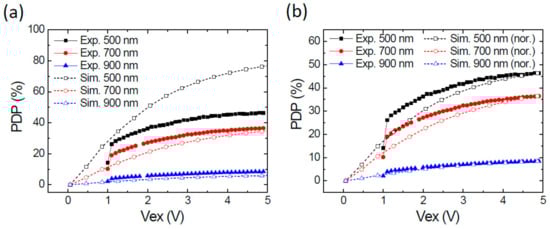

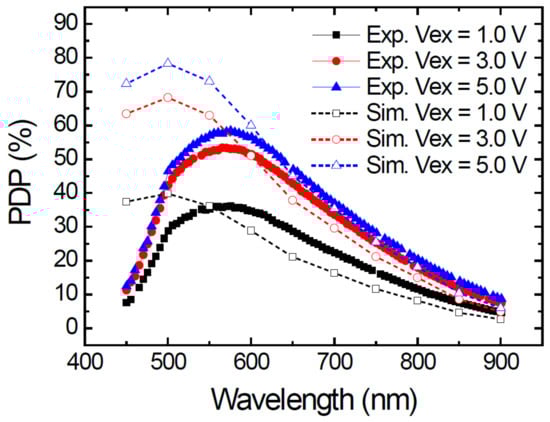

Single-photon avalanche diodes (SPADs) in complementary metal-oxide-semiconductor (CMOS) technology have excellent timing resolution and are capable to detect single photons. The most important indicator for its sensitivity, photon-detection probability (PDP), defines the probability of a successful detection for a single incident photon. To optimize PDP is a cost- and time-consuming task due to the complicated and expensive CMOS process. In this work, we have developed a simulation procedure to predict the PDP without any fitting parameter. With the given process parameters, our method combines the process, the electrical, and the optical simulations in commercially available software and the calculation of breakdown trigger probability. The simulation results have been compared with the experimental data conducted in an 800-nm CMOS technology and obtained a good consistence at the wavelength longer than 600 nm. The possible reasons for the disagreement at the short wavelength have been discussed. Our work provides an effective way to optimize the PDP of a SPAD prior to its fabrication. View Full-Text
Keywords: single-photon avalanche diode (SPAD); photon-detection probability; CMOS technology single-photon avalanche diode (SPAD); photon-detection probability; CMOS technology
Show Figures

Figure 1

MDPI and ACS Style

Hsieh, C.-A.; Tsai, C.-M.; Tsui, B.-Y.; Hsiao, B.-J.; Lin, S.-D. Photon-Detection-Probability Simulation Method for CMOS Single-Photon Avalanche Diodes. Sensors 2020, 20, 436.
