Open AccessArticle
Sensors 2017, 17(7), 1655; https://doi.org/10.3390/s17071655

Multifunctional Water Sensors for pH, ORP, and Conductivity Using Only Microfabricated Platinum Electrodes

1
Department of Chemical Engineering, University of Michigan, Ann Arbor, MI 48109, USA
2
Masco Corporation, Taylor, MI 48180, USA
3
Department of Engineering Science, University of Oxford, Oxford OX1 3PJ, UK
4
Department of Biomedical Engineering, University of Michigan, Ann Arbor, MI 48109, USA
*
Author to whom correspondence should be addressed.
Received: 4 April 2017 / Revised: 23 June 2017 / Accepted: 28 June 2017 / Published: 19 July 2017
(This article belongs to the Special Issue Microfluidic Sensors and Control Devices)
Full-Text   |   PDF [1605 KB, uploaded 21 July 2017]   |

Abstract

Monitoring of the pH, oxidation-reduction-potential (ORP), and conductivity of aqueous samples is typically performed using multiple sensors. To minimize the size and cost of these sensors for practical applications, we have investigated the use of a single sensor constructed with only bare platinum electrodes deposited on a glass substrate. The sensor can measure pH from 4 to 10 while simultaneously measuring ORP from 150 to 800 mV. The device can also measure conductivity up to 8000 μS/cm in the range of 10 °C to 50 °C, and all these measurements can be made even if the water samples contain common ions found in residential water. The sensor is inexpensive (i.e., ~$0.10/unit) and has a sensing area below 1 mm2, suggesting that the unit is cost-efficient, robust, and widely applicable, including in microfluidic systems. View Full-Text
Keywords: micro-fabrication; ORP sensor; pH sensor; conductivity sensor; water safety micro-fabrication; ORP sensor; pH sensor; conductivity sensor; water safety
Figures

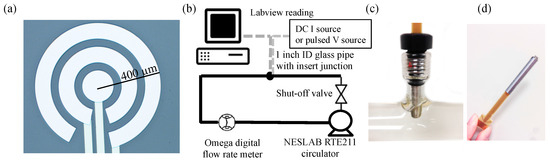

Figure 1
