Multiplexed Electrochemical Immunosensors for Clinical Biomarkers

Departamento de Química Analítica, Facultad de CC. Químicas, Universidad Complutense de Madrid, E-28040 Madrid, Spain
Author to whom correspondence should be addressed.
Sensors 2017, 17(5), 965;
Received: 9 March 2017 / Revised: 10 April 2017 / Accepted: 24 April 2017 / Published: 27 April 2017
(This article belongs to the Special Issue Electrochemical Immunosensors)


Management and prognosis of disease requires the accurate determination of specific biomarkers indicative of normal or disease-related biological processes or responses to therapy. Moreover since multiple determinations of biomarkers have demonstrated to provide more accurate information than individual determinations to assist the clinician in prognosis and diagnosis, the detection of several clinical biomarkers by using the same analytical device hold enormous potential for early detection and personalized therapy and will simplify the diagnosis providing more information in less time. In this field, electrochemical immunosensors have demonstrated to offer interesting alternatives against conventional strategies due to their simplicity, fast response, low cost, high sensitivity and compatibility with multiplexed determination, microfabrication technology and decentralized determinations, features which made them very attractive for integration in point-of-care (POC) devices. Therefore, in this review, the relevance and current challenges of multiplexed determination of clinical biomarkers are briefly introduced, and an overview of the electrochemical immunosensing platforms developed so far for this purpose is given in order to demonstrate the great potential of these methodologies. After highlighting the main features of the selected examples, the unsolved challenges and future directions in this field are also briefly discussed.

1. Introduction

Most diseases have more than one marker associated with their incidence. Although a single biomarker can be used to diagnose a health disorder, there are issues in which this cannot accurately predict their occurrence. Measuring panels of biomarkers offers a more powerful approach to early detection of diseases and monitoring the responses of patients to therapy [1]. Moreover, the simultaneous determination of several biomarkers can minimize false negatives and false positives in clinical diagnoses more prone to occur when measuring a single molecule. To address this multianalyte detection, progress has been made to develop multiplexed biosensors capable of detecting simultaneously various targets then providing more accurate data for diagnosis and monitoring. In fact, in the last years, the availability of multiplexed biosensors has emerged as a valuable tool for detection and prognosis of some diseases, especially cancer.
Despite their sensitivity and commercial availability, conventional protein detection methods such as enzyme-linked immunosorbent assays (ELISAs), often take many hours to complete and usually only apply to one protein at a time. Therefore, more rapid, multiplexed methods also compatible with 7portable instrumentation are needed for point-of-care (POC) and surgical applications to improve the early and reliable personalized clinical diagnosis and thus the therapy efficiency. In this sense, electrochemical biosensors are characterized by inherent properties such as high sensitivity, portability, ease to use, simplicity of signals recording, and cost-effectiveness [2]. These advantages extend also to multiplexed systems [3] which are uniquely positioned to provide faster, point of care (POC) devices to detect biomarkers for clinical diagnosis [4]. This type of biosensor technology relies on multiple transductors and/or detection tags that act independently for each specific analyte [5]. In the particular case of multiplexed electrochemical immunosensors, they possess additional advantages related with improved detection efficiency, with detection limits reaching levels as low as units of femtograms per milliliter [6], reduced sample volume, versatility, and reliability, providing, in addition, good precision and reproducibility [7] and short time for analysis [8]. Electrochemical detection of panels of multiple proteins constitutes a suitable approach to early and more reliable detection of diseases and translation to personalized diagnostics [9]. However, more investigation is required since solutions to increase the number of analytes measured using a single device and a small sample volume of untreated complex samples (i.e., a drop of whole blood or tissue lysate), are highly demanded [4].
The construction of multilabeled immunoprobe platforms implies the need for discrimination between the signals corresponding to each analyte from the multiple antigen-antibody reactions [10]. This objective can be achieved by designing platforms through two different approaches: using multielectrode arrays where each immunoreagent is attached to each electrode, or by means of barcode configurations involving a unique electrode platform and different electroactive labels with dissimilar electrochemical properties for each analyte. Multi-electrode arrays need more complex electrochemical instrumentation since they usually consist of several sensing surfaces provided with individual reference and auxiliary electrodes and an independent n-channel electrochemical workstation. As advantages, these configurations use a single label, and “cross-talk” between the adjacent transduction elements is prevented [11]. On the other hand, the barcode approach makes use of distinct electroactive labels capable of generating appropriate and distinguishable signals at different potentials. A distinctive advantage is that the electrochemical responses can be monitored in a single amperometric or voltammetric scan [12,13,14]. However, “cross-talk” is a potential drawback if the detection potentials of the different redox tags are not sufficiently separated.
In both cases, solid carbon or metal electrodes usually modified with highly conductive substrates such as graphene or carbon nanotubes, and/or nanostructured with materials showing high ability for biomolecules adsorption (gold nanoparticles (AuNPs), chitosan) are used for immobilization of immunoreagents. In addition, as it will be shown below, some configurations of multiplexed electrochemical immunosensors involve the use of magnetic particles where the immunoreagent and signal tags for each analyte are immobilized outside the electrode. Furthermore, singular configurations of current great interest such as those using easily accessible and low-cost paper electrodes (PWEs) [15], and microfluidic systems [16,17] should be mentioned.
The most important features of recently reported multiplexed immunosensors for electrochemical detection of biomarkers have been summarized in Table 1 and Table 2. The main analytical characteristics of the methods developed for the simultaneous determination of biomarkers involving electrochemical immunosensors constructed with electrode arrays are given in Table 1 (refs. [7,8,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32]). Since cancer is a major threat of global health, growing demand exists for the development of reliable devices for the detection of this disease, and therefore, most of the proposed designs are devoted to cancer markers. In addition, the relatively few designs described for the detection of cardiac biomarkers and other clinically relevant molecules are also considered. Furthermore, Table 2 summarizes the multiplexed immunosensors reported so far involving barcode configurations (refs. [6,12,13,14,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51,52,53,54,55,56,57,58,59]). In the next sections we will focus not only on this type of biomarkers but also in those involved in cardiovascular diseases. Other clinically relevant species such as cytokines and hormones implied in inflammation processes and metabolic disorders are also reviewed.

2. Multiplexed Electrochemical Immunosensors Involving Electrode Arrays

Electrochemical immunosensors constructed with electrode arrays (summarized in Table 1) are commonly fabricated with screen-printed electrodes (SPEs) containing two or more individual elements [60]. SPEs possess advantages derived not only from the good electrical properties, but also from the possibility to be fabricated with different materials and to be drawn in diverse geometries. Moreover, the small size of SPEs contributes to the great potential they have for POC tests, since allow sizing reduction of the electrochemical instrumentation down to small pocket-size devices. These disposable electrodes, characterized also by the low fabrication cost and the possibility for mass production [61], can be utilized with most of commercially available instruments using the most common electrochemical techniques: amperometry and differential pulse, or square wave voltammetry. Benchtop and portable instruments equipped with USB plugs, laptops or palm devices provided by various companies (PalmSens, DropSens and others) can be used for specific applications of immunosensors constructed with SPEs interfaced with personal computers or hand held devices such as smart phones. Furthermore, low-cost and friendly user platforms are currently available and easily customized, as well as coupled with electrochemical multi-arrays.
Most of the immunoassays used for multiplexed analysis are sandwich-type, frequently involving carrier tags attached to the secondary antibody. These labels fulfill the mission of amplifying the electrochemical response then providing a high sensitivity. A representative example of such configurations is the electrochemical immunoassay, integrating an enzyme amplification strategy, developed for the simultaneous determination of phosphorylated p53 at Ser392 (phospho-p53392), Ser15 (phospho-p5315), Ser46 (phospho-p5346), and total p53 (Figure 1). The tumor suppressor p53 protein plays a critical role in regulating cell growth and DNA repair processes. However, once stimulated, the phosphorylation of p53 on several amino acid residues would be increased, which may directly result in tumor development [62]. Serine 15 in human p53 is specially phosphorylated by ionizing radiation and UV which may damage the DNA repair process [63] whereas phosphorylation at serine 392 may be involved in human breast tumor and ovarian neoplasms [64]. Thus, these specific phosphorylation sites of p53 are useful biomarkers of diseases. The multiplexed platform was constructed by immobilization of the different capture antibodies on each of four working electrodes. Moreover, gold nanorods were used as nanocarriers for co-immobilization of HRP and detection antibodies. An interesting characteristic of this design is the application of electric-field driving to accelerate the transport of the charged antigens and HRP conjugates to the electrode surface. The electrochemical responses were obtained from the sandwich-type immunoreactions by the reduction of the oxidized thionine which is produced by HRP in the presence of H2O2. Detection limits ranged between 5 and 30 pM [8].

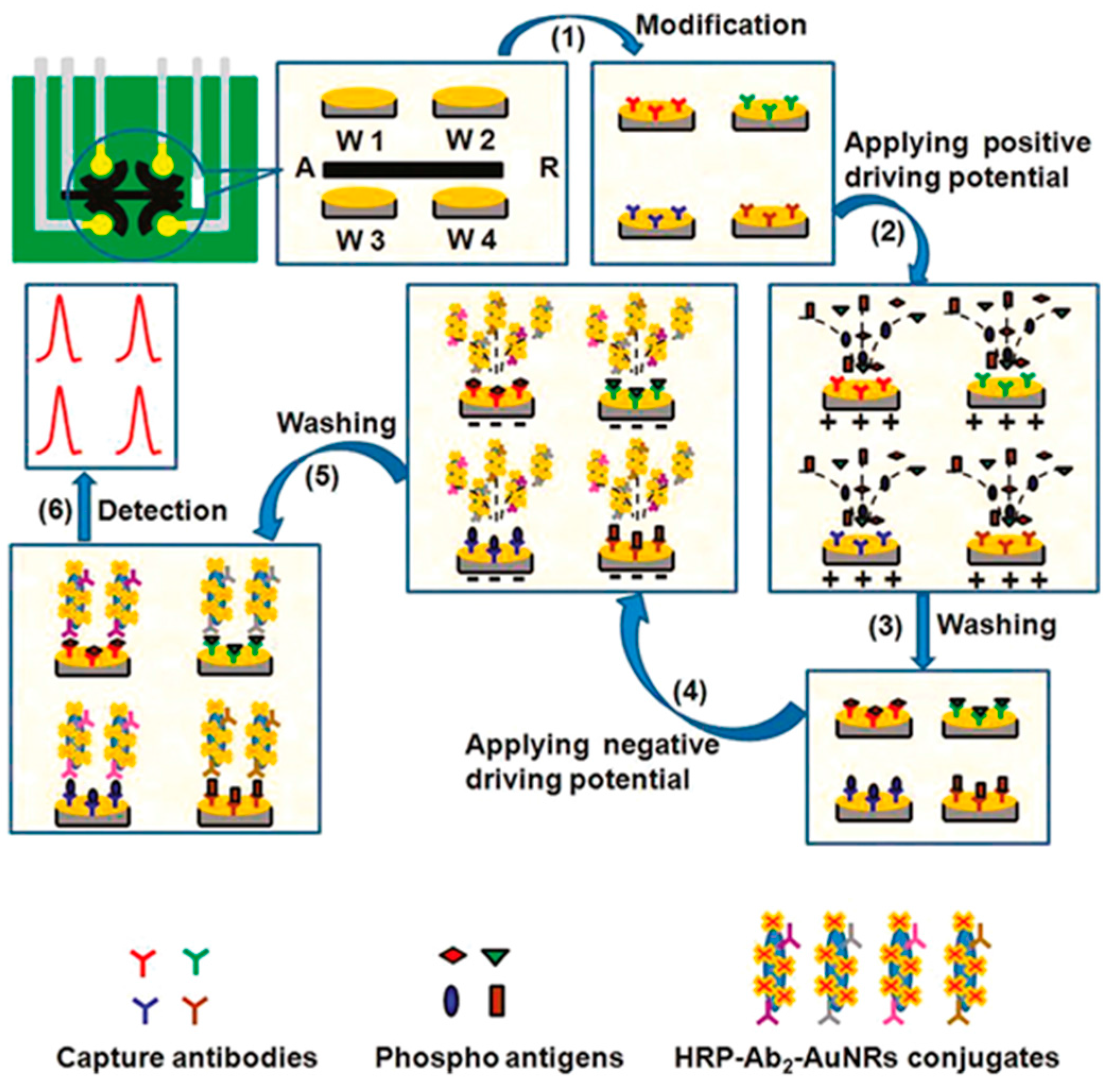

A multiplexing electrochemical immunosensor was developed for the detection of prostate specific antigen (PSA) and interleukin 8 (IL-8) cancer related proteins by using a disposable screen-printed carbon electrode (SPCE) array with 16 elements as the detection platform, and a multi-labeled nanoprobe prepared by loading HRP and goat anti-rabbit IgG onto multiwalled carbon nanotubes (MWCNTs). The large number of HRP molecules on the carbon nanotubes allowed a high sensitivity to be obtained with LOD values of a few pg·mL−1 for both analytes [18] PSA was also determined along with prostate specific membrane antigen (PSMA) and interleukin-6 (IL-6) using a flexible polydimethylsiloxane slice deposited with 8 × 8 nano-Au film electrodes. Primary antibodies were linked with magnetic beads (Ab1-MBs) and immobilized on nano-Au film electrodes by application of a magnetic field. The secondary antibodies were conjugated with HRP and AuNPs and, upon the sandwich immunoassay implementation, electrochemical signals were obtained from H2O2 reduction [19].
Metal nanoparticles have largely demonstrated their usefulness as electrocatalytic elements for improving the selectivity and sensitivity of electrochemical detections. In this context, mesoporous metallic structures possess unique properties due to the presence of interconnected hollow channels that facilitate mass transport and enhance electron conductivity. An illustrative example related with multiplexing applications involves the use of mesoporous platinum nanoparticles (MPtNPs) which exhibit high electrocatalytic activity toward H2O2 reduction. Using MPtNPs as non-enzymatic labels for the secondary antibodies, a sandwich-type immunosensor array was constructed for carbohydrate antigen 125 (CA125), carbohydrate antigen 153 CA153) and carcinoembryonic antigen (CEA) tumor markers by covalent immobilization of capture antibodies onto a triple graphene modified-SPCE. The electrochemical measurements were recorded by differential pulse voltammetry after addition of H2O2 providing cathodic peaks with a high sensitivity and reproducibility [20].

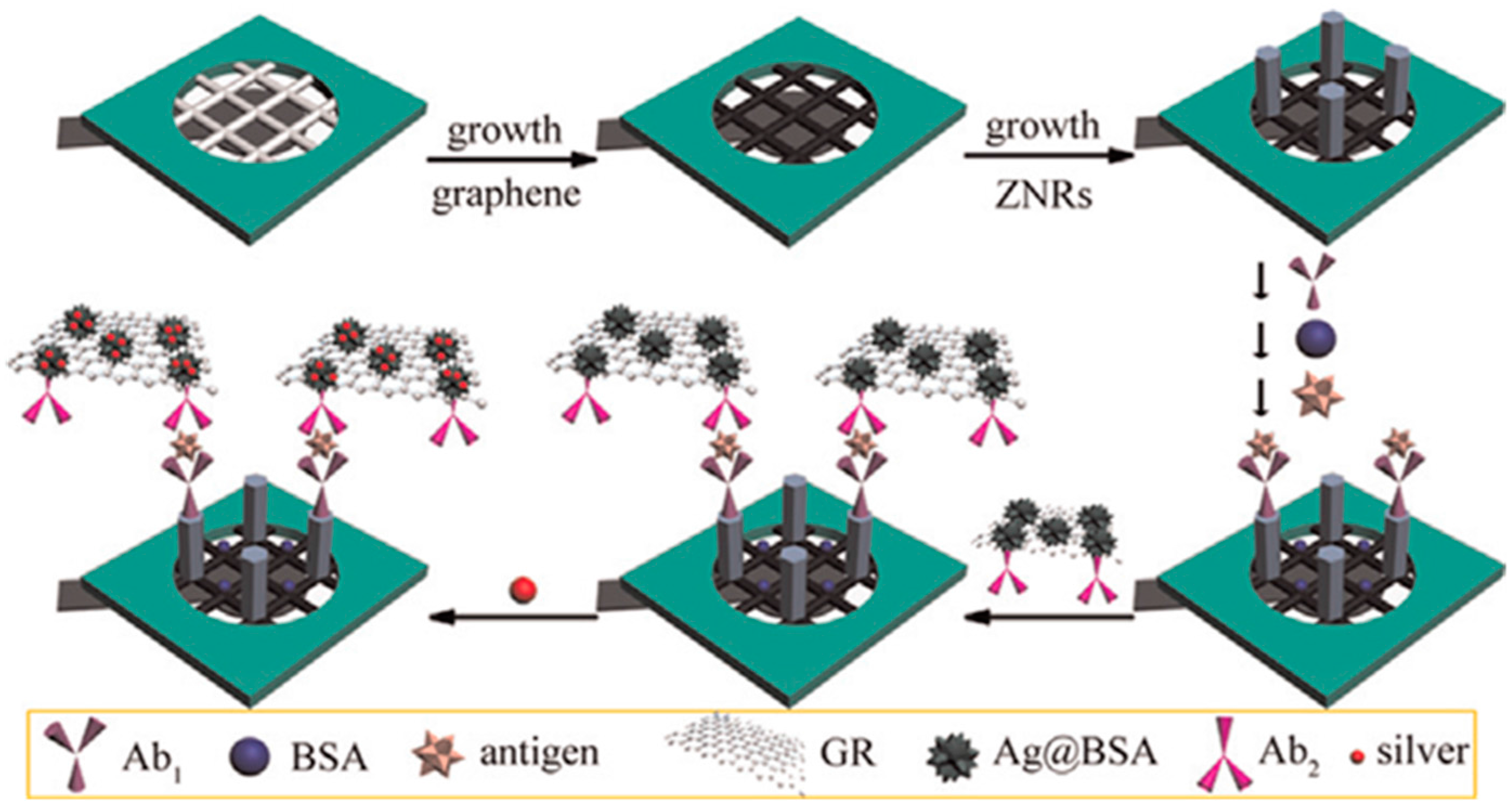

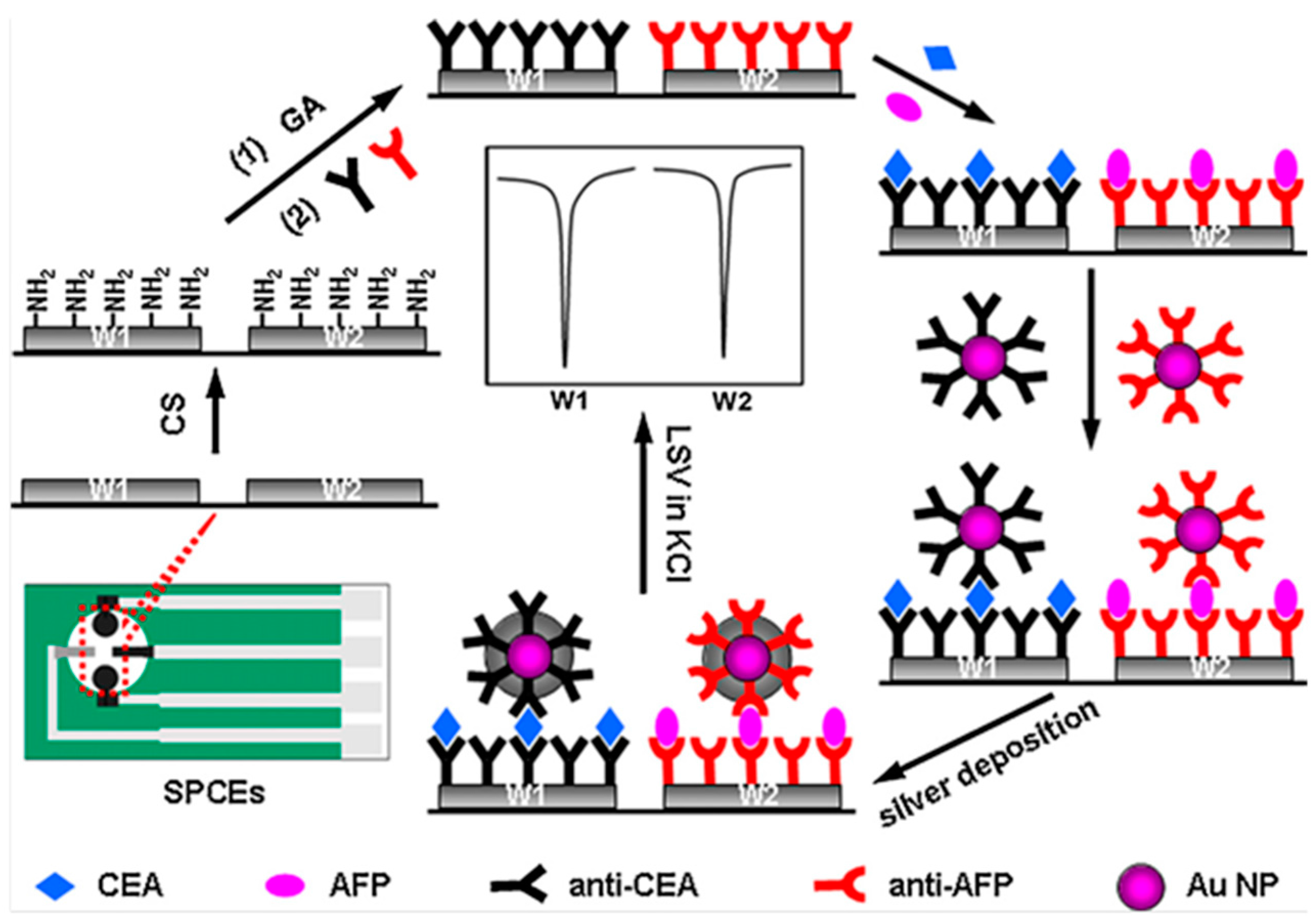

Various multiplexed configurations imply stripping analysis of silver nanoparticles (AgNPs) which are characterized by a low oxidation potential and facile stripping conditions which make them easily detected. However, few works using AgNPs tags have been reported due to their limited stability in saline buffer and the tedious synthetic procedure [65]. An example is the immunosensor array constructed for the determination of CEA and α-fetoprotein (AFP) by immobilizing the capture antibodies onto chitosan modified SPCEs and preparation of a sandwich-type configuration with AuNPs-functionalized secondary antibodies (Figure 2). The electrochemical detection was carried out through silver deposition induced onto AuNPs and measuring silver re-dissolution currents by anodic stripping voltammetry. A deposition time of 4 min under dark was selected for silver followed by rinsing with water and linear sweep voltammetry in 1.0 M KCl solution. The peak at positive potential (+0.04 V approximately) at each working electrode of a dual SPCE allowed detection of both antigens simultaneously with no interference from dissolved oxygen [21]. Same authors prepared a similar immunosensor in which CEA and AFP capture antibodies were immobilized in the same manner and trace tags consisting of streptavidin-functionalized AgNPs/MWCNTs conjugates were used for further linkage of biotinylated detection antibodies. Through a sandwich-type immunoreaction and additional silver deposition, the stripping responses provided a high sensitivity with detection limits down to 0.093 (CEA) and 0.061 (AFP) pg·mL−1 [22].
Another interesting configuration is that reported by Ge et al. [23] where a multiplexed immunosensor array composed by three screen-printed graphite electrodes modified with graphene and AuNPs was employed for immobilizing the capture antibodies for CA153, CA125 and CEA. Sandwich-type immunoassays were implemented on each electrode using alkaline phosphatase (AP)-labeled secondary antibodies functionalized onto a graphene/gold cluster, and 3-indoxyl phosphate (3-IP) as the enzyme substrate. In the presence of silver ions, the hydrolysis of 3-IP catalyzed by AP produced an indoxyl intermediate able to provoke silver metal deposition. The stripping responses measured by linear sweep voltammetry were linearly related to the logarithm value of each biomarker in a wide concentration range (see Table 1). Bioconjugates of streptavidin onto carbon nanohorns modified with AuNPs (Strept-AuNPs-CNHs) were also used as signal tags to induce silver enhancement for signal amplification. The immunosensor array was prepared on disposable SPCEs and applied to the determination of AFP and CEA tumor markers. Through a sandwich-type immunoreaction and biotin-streptavidin affinity reaction, the tags were captured on the immunoconjugates and silver deposition was induced. This method provided LOD values of 0.024 pg·mL−1 and 0.032 pg·mL−1 for AFP and CEA, respectively [7].
Estrogens exhibit an interesting tissue selective action of great biomedical importance in searching the optimal therapeutics for prevention and treatment of breast cancer and other diseases [66,67]. Research involving estrogen and progesterone receptors (ER and PR) has helped to implement them as key targets in the treatment of tumors, providing insights into the mechanism for their activation and inhibition [68]. Clinical data indicated that the ER+/PR- breast tumors are less responsive to endocrine therapy than ER+/PR+ tumors [69]. Therefore, the levels of both receptors have a great interest as a prognostic and predictive factor, becoming this determination a standard practice in the management of this neoplasm. With this objective, a multiplexed magneto-immunosensor using dual SPCEs was implemented for ERα and PR determination in cell lysates. Carboxylated magnetic microbeads were used for immobilization of the respective antibodies and sandwich-type immunoassays involving biotinylated antibodies and streptavidin-HRP conjugates were performed. After magnetic capturing of the immunocomplexes onto the electrode surfaces, amperometric detection was carried out upon addition of H2O2 in the presence of hydroquinone. This multiplexed immunosensor was successfully validated by discrimination of raw lysate of two types of metastatic breast cancer cells (MCF-7 and MDA-MB-436) with significantly different ERα/PR expression levels [24].

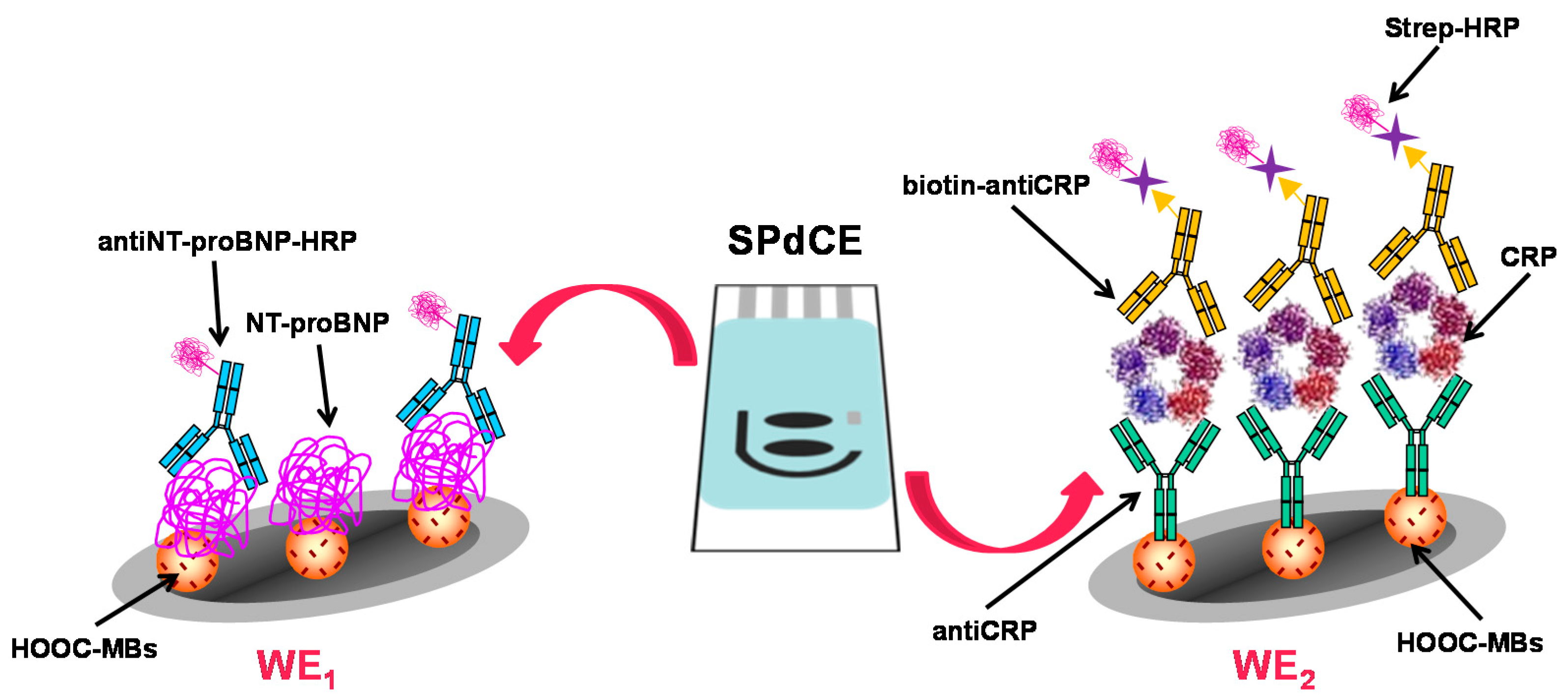

As Table 1 shows, multiplexed immunosensors for the determination of cardiac markers are still very scarce. Among the various protein biomarkers for monitoring of heart diseases, cardiac troponins (cTnT, cTnI) or myoglobin (Mb) concentrations in serum remain elevated after the occurrence of an acute myocardial infarction (AMI), while early markers such as cardiac reactive protein (CRP) and both B-type natriuretic peptide (BNP) and N-terminal ProBNP show rising concentrations on the occurrence of symptoms of systemic inflammation. Both types of biomarkers have significant value in diagnosis and prognosis of cardiac disease [25,70]. In an interesting paper, Esteban Fernández de Ávila et al. [26] proposed the first multiplexed configuration for NT-proBNP and CRP consisting of a magnetic microparticles-based immunosensing platform involving carboxylic acid-modified magnetic beads for covalent immobilization of NT-proBNP antigen anti-CRP specific capture antibodies (Figure 3). The quantification of both analytes was performed by indirect competitive and sandwich-type immunoassays, respectively, using HRP-labeled tracers. The electrochemical detection at dual SPCEs allowed the achievement of simultaneous independent amperometric readout for each cardiac biomarker. The developed methodology achieved very low detection limits of 0.47 ng·mL−1 for both analytes. The usefulness of the magnetoimmunosensor was evaluated by analysis of an international standard for CRP serum spiked with NT-proBNP. Importantly, this method allowed matching the clinically relevant concentration ranges for both cardiac biomarkers using the same electrode platform, and the whole multiplexed immunoassay could be completed in 1 h approximately.
Integration of sensors into a lab-on-a-chip offers advantages such as low cost through wafer-scale fabrication, simple electrochemical detection, low sample volume and multiplexing capability, along with improved sensitivity and specificity. A representative example of this strategy was recently reported by Gupta et al. [25]. They prepared an immunosensing array configuration consisting of a multielectrode sensor chip containing nine identical, electrically isolated, microelectrodes arranged in a 3 × 3 design where the specific immunoreagents were immobilized. The resulting immunosensor was applied to the simultaneous determination of CRP, cTnI and Mb by immobilization of the respective antibodies using carbodiimide chemistry. Differential pulse voltammetry was used to measure the decreases in current responses from ferrocyanide solutions as increased the concentration of each antigen. The usefulness of the developed device was evaluated by measuring complex protein mixtures prepared at concentration levels ranging between 0.05 and 5 μg·mL−1 (CRP and Mb), and from 0.02 to 2 μg·mL−1 (cTnI). Another immunosensor for direct analysis of fingerprick blood was prepared with an integrated chip and applied to the simultaneous determination of three cardiac biomarkers: cTnT, creatine kinase MM (CK-MM), and creatine kinase MB (CK-MB). A silicon nanowire (SiNW) array sensor chip and a filtration chip for plasma separation from blood were used. The specific antibodies were immobilized onto SiNW chips after treatment with APTES and glutaraldehyde, and measurements were obtained by the resistance changes caused by the specific binding, calculated from gradient of the current-voltage curves registered with the chip immersed in PBS buffer solutions in the absence and in presence of each antigen. A low detection limit of 1 pg·mL−1 for the three cardiac biomarkers from 2 μL blood was attained in 45 min [27].
Cytokines are proteins of low molecular weight strongly associated with the immuno system [71]. They play critical roles in control of cell replication, apoptosis, chemically-induced tissue damage repair, inflammatory processes, and also in cancer development and progression [72]. Due to their usefulness as biomarkers in numerous diseases, the design of immunosensors for the determination of these proteins is currently of great interest. However, there are virtually no immunosensors for their simultaneous determination. In a recent article, an electrochemical platform for the simultaneous detection of the cytokines interleukin-1β (IL-β1) and factor necrosis tumor α (TNF-α) was proposed. IL-1β is a pro-inflammatory cytokine involved in immune processes and chronic neurodegenerative diseases such as Alzheimer [73]. Furthermore, the role of TNF-α is critical in many diseases including rheumatoid arthritis [74] or cancer [75]. Biological activities of both cytokines have been reported to be synergistic and overlapping. For example, these proteins are considered good biomarkers to predict side effects of cancer therapy such as oral mucositis [76] and for the detection of periodontal diseases [77]. With the aim to perform the simultaneous determination of TNF-α and IL-1β, a multiplexed electrochemical immunosensor using dual SPCEs modified with 4-carboxyphenyl-functionalized double-walled carbon nanotubes (HOOC-Phe- DWCNTs) was constructed. Capture antibodies were immobilized onto HOOC-Phe-DWCNTs/SPCEs in an oriented form making using of the commercial polymeric coating Mix&Go™. Sandwich type immunoassays were implemented with amperometric signal amplification through the use of poly-HRP streptavidin conjugates. Calibration plots with ranges of linearity extending between 0.5 and 100 pg·mL−1 and from 1 to 200 pg·mL−1 for IL-1β and TNF-α, respectively, were obtained with limits of detection of 0.38 pg·mL−1 (IL-1β) and 0.85 pg·mL−1 (TNF-α). The dual immunosensor was validated by application to the simultaneous determination of both cytokines in human serum spiked at clinically relevant concentration levels and in real saliva samples [28]. Related with cytokines determination, Baraket et al. [29] prepared an electrochemical immunosensor using silicon chip technology for real time detection of various interleukins: IL-1β, IL-10, and IL-6 which were secreted in acute stages of inflammation. The chip was fabricated with eight gold microelectrodes through electrically addressable diazonium-functionalized antibodies and monitoring of the immunocomplexes formation by electrochemical impedance spectroscopy (EIS) which allowed the simultaneous detection of the analytes in a 1–15 pg·mL−1 concentration range.

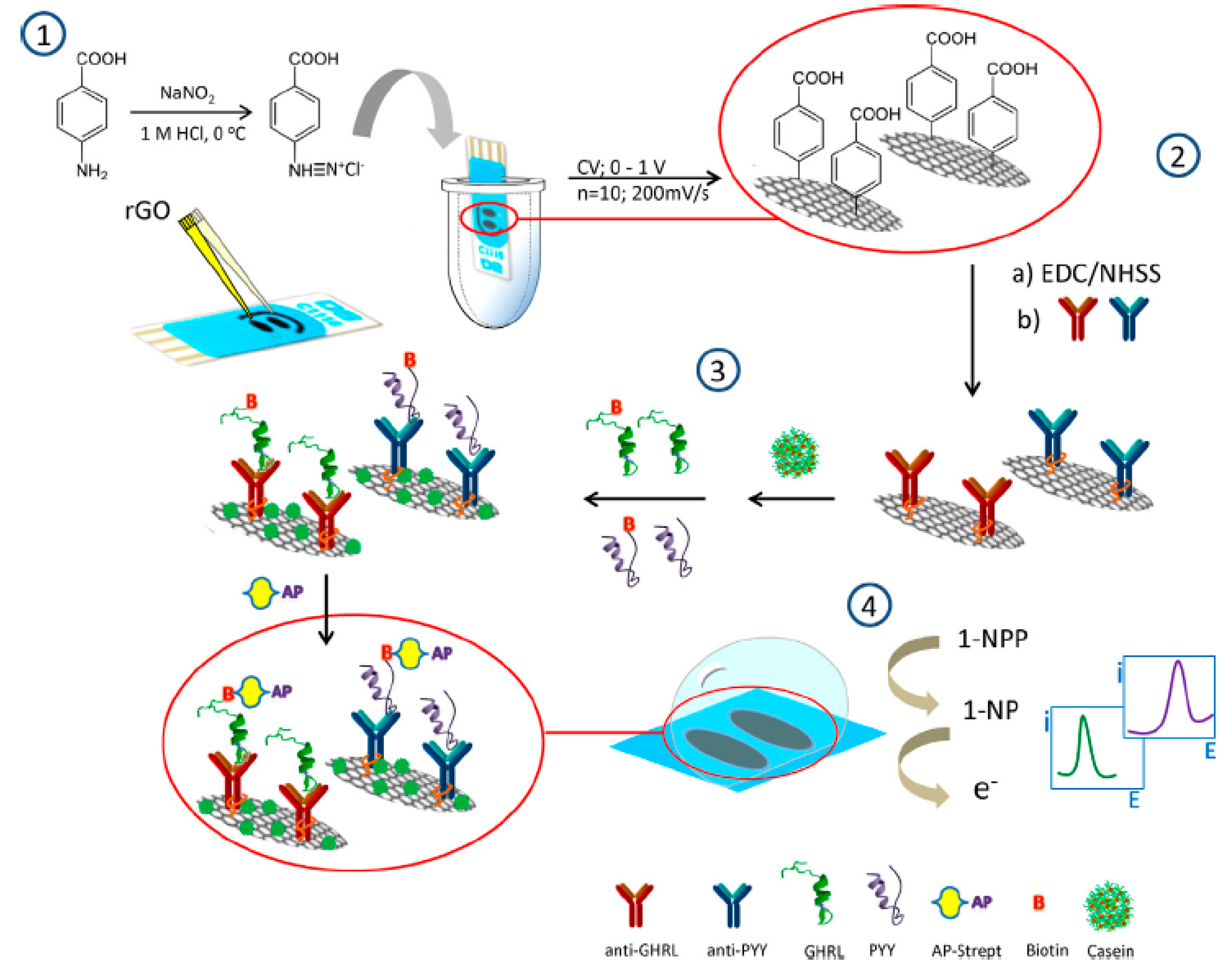

Peptide YY (PYY) is a gut hormone primarily released from endocrine cells of the distal digestive tract which plays an important role in regulating food intake and energy balance, and is related to diabetes type 2 and insulin resistance [78]. Ghrelin (GHRL) is an acylated peptide secreted in the stomach with growth-hormone-releasing function that acts as a stimulant of motor activity and appetite suppression (orexigen effect) in the regulation of energy homeostasis [79]. Concentrations of these hormones have been found to be elevated in anorexic patients, while lower levels appear in obese subjects. Taking into account the interest of knowing the amount of both PYY and GHRL in biological fluids, a method for the simultaneous determination of both hormones in human serum and saliva was implemented by means of an electrochemical immunosensor in which dual screen-printed carbon electrodes modified with reduced graphene oxide (rGO) were used as scaffolds for the immobilization of the corresponding capture antibodies. Grafting diazonium salt of 4-amino-benzoic acid (4-ABA) on rGO/dual SPCEs was performed (Figure 4). This treatment, based on the covalent attachment of aryl radical onto the carbon surface provides compact and stable monolayers that can be further used to obtain specific functionalities [80]. Competitive immunoassays were employed and the electrochemical responses monitoring the affinity reactions were obtained by differential pulse voltammetry (DPV) upon addition of 1-naphthyl phosphate (1-NPP). Under the optimized working conditions, linear current vs. log [hormone] plots extending between 10−3 and 100 ng·mL−1 GHRL and from 10−4 to 10 ng·mL−1 PYY were obtained [30].
The diagnosis of Cushing’s syndrome [81] is one of the most challenging problems in clinical endocrinology. Different levels of adrenocorticotropin (ACTH) and cortisol concentrations can be found in serum or urine depending on the type of Cushing’s syndrome, primary adrenal tumors or hyperplasia. Therefore, the development of analytical methods able to provide multiplexed determination of both hormones should help to perform a faster classification of the patients as well as an easier diagnosis of this kind of diseases. With this objective, Moreno-Guzmán et al. [31] prepared a dual electrochemical immunosensor for the multiplexed determination of ACTH and cortisol. The strategy employed in this work involved the immobilization of the immunoreagents through the use of a boronic acid derivative which interacts with sugars to form cyclic boronate esters at room temperature [82]. This kind of binding reaction successfully achieved the orientation of antibody molecules onto the electrode surface [83]. The corresponding ACTH and cortisol antibodies were immobilized on aminophenylboronic acid-modified dual SPCEs and competitive immunoassays involving biotinylated ACTH and alkaline phosphatase labeled streptavidin, or alkaline phosphatase labeled cortisol were implemented. Calibration plots were obtained by DPV with ranges of linearity between 0.1–500 ng·mL−1 cortisol and 5.0 × 10−5–0.1 ng·mL−1 ACTH. Moreover, the usefulness of the dual immunosensor was demonstrated by analyzing certified human serum samples with good recoveries.
Celiac disease (CD) is a gluten-induced autoimmune enteropathy characterized by the presence of antibodies against gliadin (AGA) and anti-tissue transglutaminase (anti-tTG) which are the specific serological biomarkers of the disease. A disposable electrochemical immunosensor for the simultaneous detection of IgA and IgG type AGA and anti-tTG antibodies in real patient’s samples was prepared using dual SPCEs modified with MWCNTs and AuNPs. The immunosensing strategy implied the interaction of the respective human antibodies with gliadin and tTG specific antigens immobilized on the nanostructured electrode surface followed by addition of anti-H-IgA-AP or anti-H-IgG-AP, respectively, and a mixture solution of 3-indoxyl phosphate (3-IP) and AgNO3. Under these experimental conditions, and as commented above [60], the hydrolysis of 3-IP catalyzed by AP produced an indoxyl intermediate able to provoke silver metal deposition that allowed to develop an anodic stripping method for the sensitive determination of the antibodies [32].

3. Multiplexed Electrochemical Immunosensors Using Barcode Configurations

As was commented in the Introduction section, the use of a single electrode for the preparation of multiplexed immunosensor configurations presents the relevant advantages of simplicity, lower cost, and the possibility of obtaining the various analytical responses in a single recording. Problems derived from the mutual interference or overlapping of the electrochemical signals (“cross-reactivity”) may be avoided using as labels redox probes with differentiate electrochemical behavior tagging the immunoconjugates prepared on the same electrode platform. As it will be shown below, in some cases, the developed configurations require the application of a physical barrier for separation in order to obtain independent responses for the analytes. As Table 2 shows, all the methods described so far have been developed for the simultaneous detection of multiple tumor markers.
Prussian Blue (PB) [33,34,35], toluidine blue (TB) [33], ferrocene [34,36,37] or ferrocene carboxylic acid (Fca) [6,38] , thionine (THI) [6,12,35,36,37,38] and anthraquinone (AQ) [6], have been used as carrier tags and redox mediators to prepare immunoconjugates for distinguishable detection in various configurations. These model electroactive compounds have demonstrated to serve as compatible redox probes providing well-defined and independent electrochemical responses with sufficient peak potentials separation to carry out the detection of the analytical signals corresponding to each analyte biomarker. Since the electrochemical behavior of these redox species depends on the pH value, optimization of this variable is essential to attain improved selectivity. An illustrative example is the work reported by Chen et al. [33] who prepared an electrochemical immunosensor with a sandwich-format for the simultaneous determination of CEA and AFP using carboxylated graphene nanosheets conjugated with TB or PB and anti-CEA or anti-AFP secondary antibodies, respectively. The detection pH was optimized because of the influence of this variable not only on the current and potential values of each redox probe but also on the stability and activity of antibodies and antigens. In this example, a pH value of 6.5 was selected. The corresponding capture antibodies were immobilized onto a glassy carbon electrode modified with chitosan (Chit) and AuNPs. The simultaneous detection of CEA and AFP was performed within a linear range of 0.5–60 ng·mL−1 for both analytes by measuring the DPV reduction peak currents of the redox probes. These same authors prepared also a similar configuration for AFP and CEA using functionalized Chit composites with the capture antibodies immobilized in the same manner mentioned above. The signal tags were fabricated by immobilizing PB or Fc onto Chit following by absorbing AuNPs to immobilize labeled anti-AFP and anti-CEA, respectively. As in the previous work, sandwich-type immunoassays were employed for the simultaneous detection of AFP and CEA by measuring DPV electrochemical responses of the redox labels [34]. Compared with the previous paper [33], this latter strategy allowed obtaining calibration plots with wider linear ranges and slightly lower limits of detection for both biomarkers. These improvements were attributed to the use of Chit-AuNPs composites which combine the large amount of active sites for immobilizing capture antibodies with the high capacity of AuNPs for promotion of the electron transfer. A similar configuration was also proposed by Feng et al. [35] for the same analytes using AuNPs decorated-rGO-carried PB or THI as the label tags. Interestingly, capture antibodies were immobilized onto a GCE modified with a hierarchically aloe-like gold microstructure (HAG) which was prepared by electropolymerization of aniline onto an rGO/GCE followed by AuNPs deposition. This sensing interface provided good biocompatibility and large effective area which greatly enhanced the immobilization of primary antibodies and, through a sandwich-type immunoassay, allowed the simultaneous detection of CEA and AFP within a linear range of 0.6–80 ng·mL−1 by DPV measurement of the reduction currents of PB and THI, respectively.

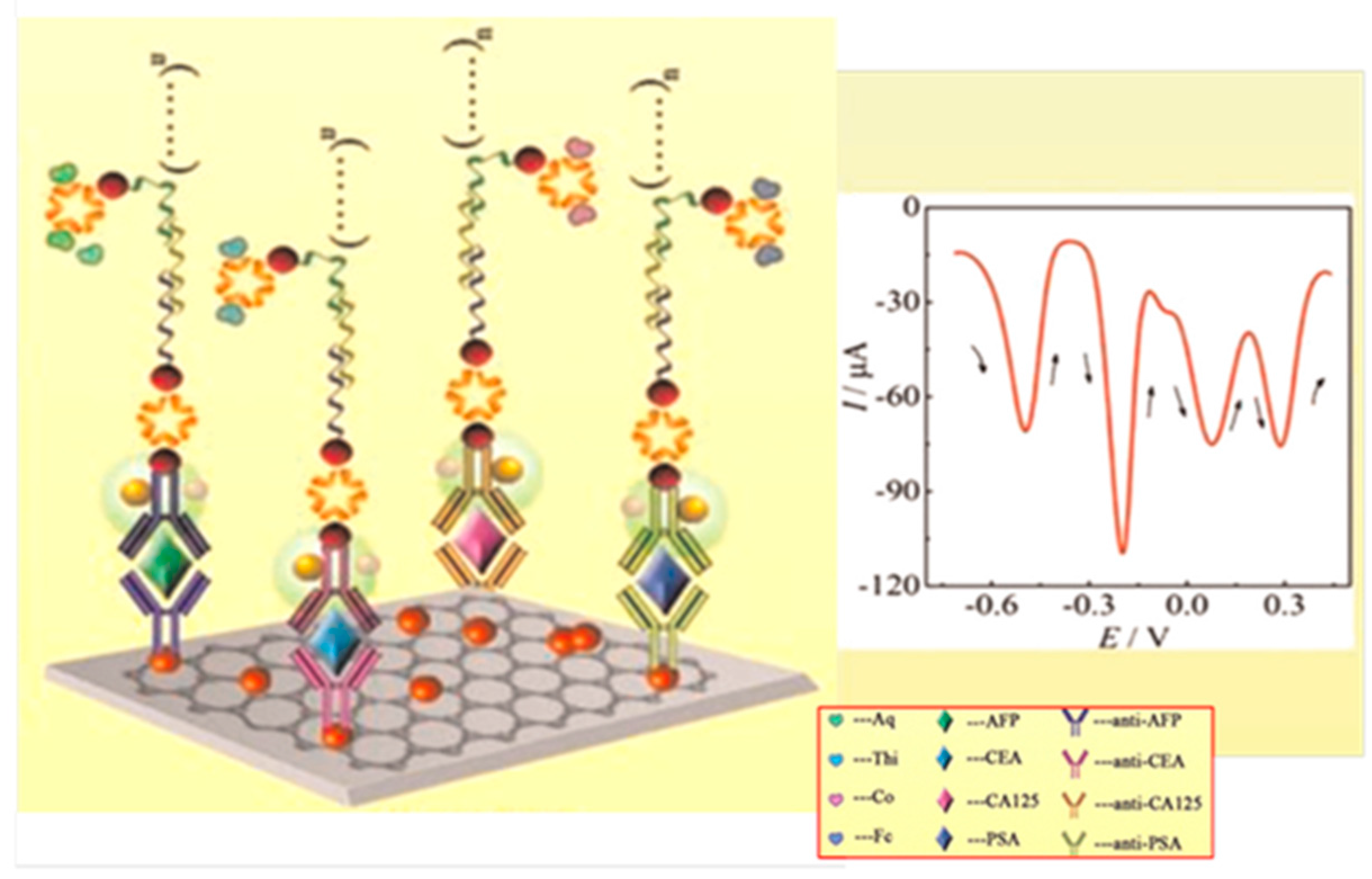

In an original and interesting configuration, four cancer biomarkers, CEA, AFP, CA125 and PSA were used as target compounds in the development of a multiplexed sandwich-type electrochemical immunosensor involving the immobilization of the corresponding antibodies onto a graphene/AuNPs hybrid film deposited onto a GCE. Biotinylated secondary antibodies (Biotin-Ab2) were immobilized by gold magnetic nanomaterials (AuNPs/SiO2-Fe3O4) and streptavidin was used to connect Biotin-Ab2 with biotinylated oligonucleotides chains added to trigger hybridization chain reaction so as to form long dsDNA containing abundant biotins and react with Strept-labeled redox probes. As Figure 5 shows, AQ, Fca, THI and Co(bpy)33+ were the electroactive labels so that the resulting Ab2 bioconjugates, plenty of redox probes, could provide sensitive independent responses for the analytes. At the optimal experimental conditions, the immunosensor allowed the simultaneous determination of the four biomarkers in a wide range of concentrations, and provided very low limits of detection (see Table 2). Moreover, cross-reactivity studies revealed that deviations in DPV currents ranging between 1.5 and 2.2% were found for the determination of one biomarker in the presence of the others at concentrations up to 40 times higher [6].
The use of nanoparticles functionalized with each specific label tag constitutes a useful strategy for obtaining sensitive and selective responses for the detection of multiple biomarkers. For example, THI and Fca were incorporated onto mesoporous Fe3O4 NPs for the preparation of carrier tags for the simultaneous determination of squamous cell carcinoma associated antigen (SCC-Ag) and CEA. The magnetic nanomaterial can immobilize a high loading of electrochemical redox probes and secondary antibodies and promote the electron transfer, the resulting redox probes providing two well-separated peaks by DPV. An additional amplification of the electrochemical responses was obtained by using a conducting polymer, poly[3-(1,10-dimethyl-4-piperidino methylene)thiophene-2,5-diylchloride] (PDPMT-Cl), as a modifier of the electrode surface. This material is characterized by the good chemical and thermal stability together with the high biocompatibility and electrical conductivity. The resulting PDPMT-Cl/GCE was prepared by dropping a dispersion of the polymer in chitosan and used for immobilization of the capture antibodies. Sandwich immunoassays were performed by using secondary antibodies conjugated with the magnetic carrier tags and provided wide linear ranges with detection limits of 4 pg·mL−1 and 5 pg·mL−1 for SCC-Ag and CEA,respectively [38].
In addition to the direct measurement of the redox probes responses, other immunosensor platforms take advantage of the electrocatalytic activity of such electroactive compounds toward the electrochemical reactions of H2O2 mediated by HRP. Signal variations related with such process have also been used for biomarkers quantification. For example, a multiplexed immunosensor with catalytic amplification was proposed using cactus-like MnO2 functionalized-nanoporous gold (NPG-MnO2) to immobilize HRP and THI or Fc as the redox probes for the simultaneous detection of CA15-3 and CA125, respectively (Figure 6). The synergy between the electrocatalytic effects of NPG and MnO2 nanoparticles yielded a highly conductive composite easily modified with secondary antibodies to serve as efficient signal tags with good bioactivity for clinical diagnosis [37].
An electrochemical immunosensor for simultaneous determination of CEA and AFP was prepared using THI and Fc covalently conjugated on anti-AFP and anti-CEA antibodies, respectively, to act as electrochemical tags. The resulting conjugates were co-immobilized on a AuNPs/GCE, and HRP was immobilized onto the modified electrode. Once the immunocomplexes were formed, the active center of the immobilized HRP was partially inhibited with the subsequent decrease in the enzyme activity for reduction of H2O2. This immunosensor enabled the simultaneous determination of AFP and CEA within a dynamic range between 0.01 and 50 ng·mL-1 and the same detection limit, 0.01 ng·mL−1, for both target compounds [36].
Yang et al. [12] prepared an original multiplexed immunosensor combining multi-label strategy and multi-spot assay with an array electrode for the simultaneous detection of six biomarkers for hepatocellular carcinoma (HCC). As Figure 7 shows, each electrode surface allowed the determination of two target proteins. The reference and counter electrodes are surrounded by four AuNPs/GCE working electrodes. AQ and THI were used for preparation of the carrier tags for the determination in pairs of AFP and APT (abnormal prothrombin), DCP (des-c-carboxyprothrombin) and AFP-L3 (lens culinaris (LCA)-reactive fraction of AFP), and γ-GT (γ-glutamyltranspeptidase) and AFU (α-L-fucosidase), by conjugation onto graphene nanosheets modified with Pt-Pd bimetallic nanoparticles. In the presence of H2O2, the electrocatalytic effect of both the electroactive compounds and the nanoparticles contributed to achieve well separated DPV responses with a high sensitivity.
Cyclodextrin−thionine−graphene (CD-THI-G) and cyclodextrin−ferrocene−graphene (CD-Fc-G) nanostructures were synthesized and employed for labeling of HRP-anti-AFP and HRP-anti-CEA conjugates, respectively. Using a sandwich-type assay format involving immobilization of the capture antibodies onto CD-G-modified GCE, two separate cathodic peaks corresponding to the catalytic effect of HRP toward the reduction of H2O2 in the presence of thionine and ferrocene were recorded. Under the optimal conditions, the multiplexed immunoassay enabled the simultaneous determination of CEA and AFP with wide working ranges of 0.001–60 ng·mL−1 AFP and 0.003–40 ng·mL−1 CEA, with detection limits of 0.5 and 0.8 pg·mL−1, respectively [39].
Electroactive compounds such as PB and THI can also be used as coatings of electrode surfaces to provide direct electrochemical responses which are dependent on biomolecules loading. This alternative can be employed for the preparation of multiplexed immunosensors if separate zones with a different coating each are fabricated. An example is the use of indium tin oxide (ITO) sheets as working electrodes for simultaneous determination of CEA and AFP.
Coatings of rGO/THI/AuNPs and rGO/PB/AuNPs onto the ITO surface were prepared with electrode slides separated lengthways into two uniform parts using insulation glue thus avoiding the cross-talk between the two portions. Anti-CEA and anti-AFP were immobilized onto the respective coatings, and the immunosensing detection was made in a single voltammogram by monitoring the decrease in the currents of PB and THI due to the formation of the antibody-antigen immuno complexes. This method enabled the simultaneous determination of CEA and AFP with linear working ranges of 0.01–300 ng·mL−1 [40]. A similar configuration was prepared with fluorine tin oxide (FTO) sheets coated with tryptophan and caffeic acid-based resin (TCCR) microspheres decorated with AuNPs and TB or PB. The resulting surface contained a lot of amino and hydroxy groups suitable as immobilization sites for the capture antibodies and facilitated the electron transfer. Simultaneous detection of CEA and neuron specific enolase (NSE) was performed by prepared two separated slides by means of an insulating glue, and measuring the decreasing in TB or PB corresponding currents caused by the immunocomplexes formation. Such decreases are directly related to each biomarker concentration within a linear range from 0.2 to 25 ng·mL−1 for both CEA and NSE [41].
An electrochemical immunosensor for the simultaneous detection of phosphorylated proteins phospho-p5315 and phospho-p53392 was constructed using different apoferritin-templated metal phosphates: cadmium (ATCP) and lead (ATLP). These metallic phosphates were modified with SiO2 and AuNPs, and conjugated with the corresponding detection antibodies (Ab21 and Ab22) to be used as distinguishable signal reporters and detection sensitivity enhancers. Furthermore, magnetic Fe3O4 nanoparticles functionalized with phospho-p5315 and phospho-p53392 capture antibodies were also prepared and employed to specifically interact with the antigens to form sandwich-type immunoconjugates with the resulting ATCP/SiO2@Au/p5315 -Ab21 and ATLP/SiO2@Au/p53392-Ab22. The distinguishable current responses were obtained by electrochemical detection of cadmium and lead ions after dissolution with acid using square wave voltammetry (SWV). Linear relationships between the measured peak currents and the concentration of phospho-p5315 and phosphor-p53392 were obtained over the 0.1–20 ng·mL−1 and 0.05–20 ng·mL−1 ranges, respectively [42]. Another interesting work makes use of Cd2+ and Pb2+ apoferritins for the construction of an electrochemical multiplexed immunosensor for the simultaneous determination of AFP and CEA. ApoCd2+ and ApoPb2+ were immobilized onto graphene/AuNPs hybrids followed by the incorporation of the corresponding antibodies. Separately, dual-template magnetic molecularly imprinted polymers (MMIPs) were fabricated by coating Fe3O4 NPs with poly(dopamine) and used for capturing AFP and CEA antigens and further immunocomplexation with the respective graphene/AuNPs/ApoM2+-Ab conjugates (Figure 8). Using a bismuth film-deposited modified GCE, the electrochemical measurements were obtained in weakly acidic solutions by SW anodic stripping voltammetry of Cd and Pb after application of a deposition potential of −1.2 V vs. Ag/AgCl for 120 s. This method enabled the simultaneous determination of AFP and CEA in a single run with wide dynamic ranges of 0.001–5 ng·mL−1 [43].
B-cell lymphoma 2 (Bcl-2) and Bcl-2-associated X protein (Bax) are useful biomarkers to monitor de apoptosis of tumor cells. With the objective of obtaining simultaneous information of the levels of both species in biological samples, Zhou et al. [44] prepared recently a simple dual-signal-labeled electrochemical immunosensor involving the use of rGO as the substrate deposited onto a GCE to immobilize the antibodies for further capturing the target antigens. The signal probes used in this configuration were CdSeTe@CdS quantum dots (QDs) and Ag nanoclusters (AgNCs) incorporated to mesoporous silica nanospheres by means of poly(ethylene imine) (PEI) or poly- (diallyldimethylammonium chloride) (PDDA), on which the secondary anti-Bcl-2 and anti-Bax antibodies, respectively, were immobilized. After the antigens were sandwiched between both antibody conjugates, the electrode was immersed into an acidic solution in order to dissolve the probes and, after Hg2+ addition, a deposition potential of −1.1 V vs. SCE for 12 min was applied. SWV was used to record the stripping voltammetric scans where the oxidation peaks of Cd (−0.8 V) and Ag (+0.3 V) were employed to quantify the corresponding biomarkers. The large difference between the peak potentials indicated the absence of cross-reactivity between the probes. Moreover, a detection limit of 0.5 fmol was achieved for both proteins. Interestingly, the immunosensor was applied to investigate Bcl-2 and Bax expressions from nilotinib-treated chronic myeloid leukemia K562 cells, and to evaluate the drug effect through the Bax/Bcl-2 ratio.

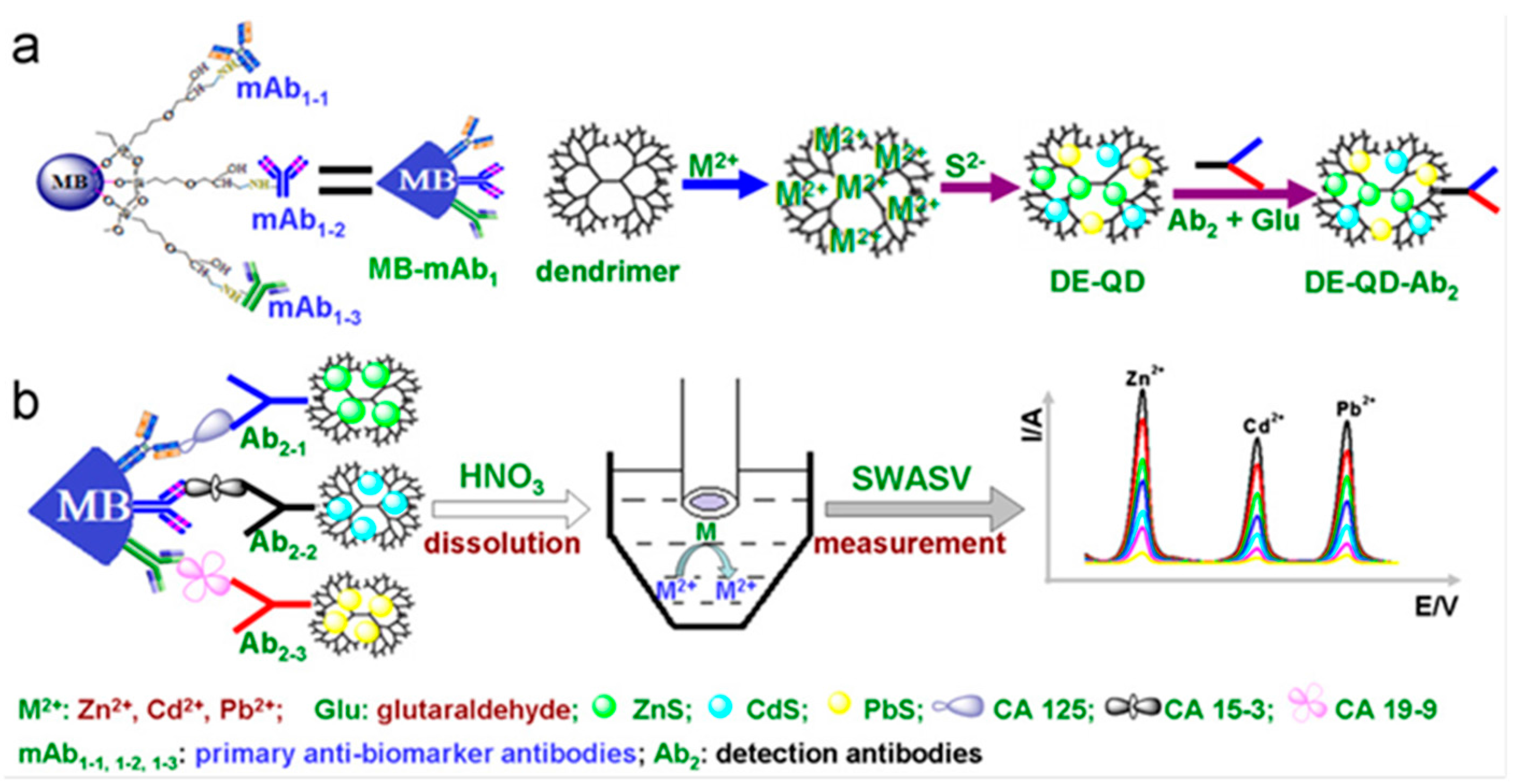

Stripping voltammetry was also used for the simultaneous determination of CA125, CA15-3 and CA19-9 cancer biomarkers with an immunosensor fabricated with PAMAM dendrimer-metal sulfide quantum dots as the distinguishable signal tags. Tri-functionalized magnetic beads were employed as the support for immobilization of capture antibodies. The signal tags were prepared by precipitation of the corresponding sulfide into a mixture solution containing each metal and PAMAM, where the ions are coordinative linked to the amino groups of the dendrimer. The multiplexed determination of the analytes was performed by a sandwich-type immunoassay using anodic stripping voltammetry of cadmium, zinc, and lead upon these were released by acid from the nanolabels. A GCE modified with an in situ prepared mercury film was used to record the voltammograms. Figure 9 shows as the peak potentials appear sufficiently separated making the individual quantification in a mixture of biomarkers possible [13].

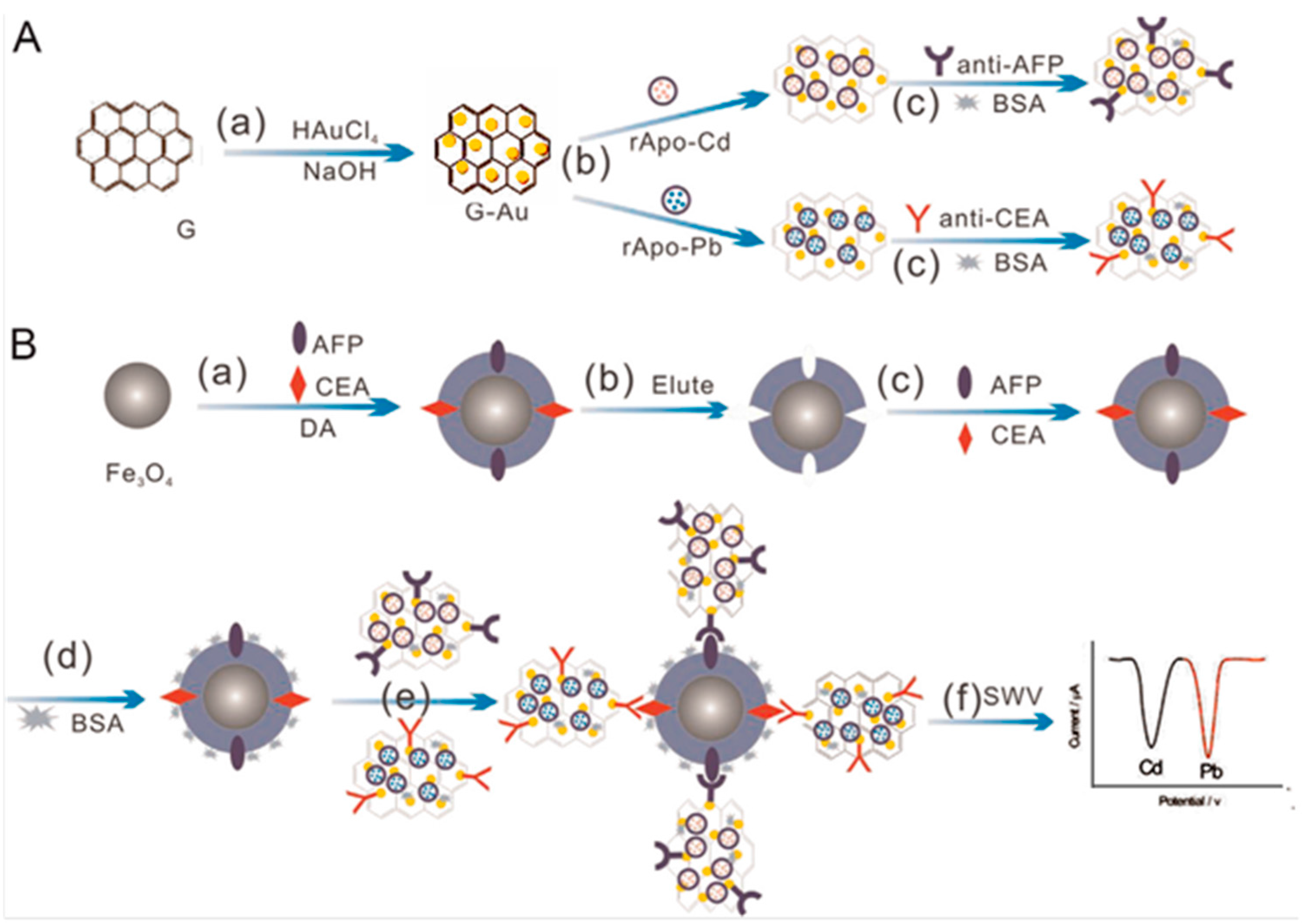

Ordered mesoporous carbon (OMC) is characterized by the high specific surface area and the large pore volume [84]. By incorporation of metals confined in the ordered matrix, the resulting materials (OMC-M) constitute useful structures with application as nanoprobes in electrochemical immunoassay. Fang et al. [45] prepared well-dispersed uniform metallic Zn and Cd nanocrystallites incorporated to OMC and the resulting OMC-Zn (or -Cd) were conjugated with the secondary antibodies and used as signal probes in the preparation of a multiplexed immunosensor for the determination of AFP and human epidermal growth factor receptor type-2 (HER-2). A GCE modified with MWCNTs and Chit was used as the electrode platform for immobilization of the capture antibodies and further interaction with the respective antigen. Sandwich configurations with the corresponding OMC-M conjugate were implemented and DPV was used for determining both antigens by measuring the oxidation peak currents. The method allowed low limits of detection of 0.6 and 0.35 pg·mL−1, for AFP and HER-2, respectively, to be obtained.
Voltammetic stripping analysis was also used for the determination of three cancer biomarkers, AFP, CEA and CA19-9 in a single run by employing CdS, PbS and Au nanoparticles to prepare the electrochemically distinguishable signal tags. Commercial Envision polymer containing numerous secondary antibodies and HRP was used for signal amplification after loading the detection antibodies and nanoparticles. The capture antibodies were immobilized onto a single magnetic bead and, once the immunocomplexes with the corresponding antigen were formed, sandwich-type immunoconjugates were prepared by interaction with the respective Envision-NP-secondary antibody. A microcell provided by a glassy carbon microelectrode was used to carry out the voltammetric analysis. Anodic stripping by DPV after application of an accumulation potential of −1.2 V for 120 s was used for quantification of AFP and CEA upon dissolution of the corresponding CdS and PbS in acidic medium. Cathodic stripping by DPV was used to determine CA19-9 by application of a constant potential of +1.3 V for 30 s [46].
Another strategy for the preparation of signal tags with well-differentiated electrochemical behavior consists in the complexation of metallic ions to the modified surface of metal nanoparticles. For example, Cd2+ and Cu2+ complexed with amino-capped platinum porous nanoparticles (PtPNPs) were conjugated with anti-CEA and anti-AFP antibodies, respectively, and used as distinguishable signal tags for capturing antigens. An ionic-liquid-modified GCE was used as the electrode substrate for immobilization of capture antibodies and a sandwich-type immunoassay was implemented after complexation with the antigens and interaction with the as prepared signal tags. Voltammetric responses were recorded by DPV with no need for acid dissolution or application of any potential, and the peak heights of each voltammetric signal corresponded with the concentration of each antigen [14]. A similar method was proposed for the preparation of AuNPs-anti-AFP-Pb2+ or AuNPs-anti-CEA-Cu2+ labels with the ions linked to each conjugate by the amino groups of the protein. In this case, the capture antibodies were immobilized onto a GCE modified with Chit/AuNPs and glutaraldehyde, and sandwich-type immunoassays were performed for the determination of AFP and CEA. Interestingly, in this configuration, the potential values of the reduction peaks obtained by DPV exhibited a difference of 500 mV [47]. These same biomarkers were also determined with another immunosensor using MWCNTs/AuNPs-Ab2 with linked Cd2+ or Pb2+ as the electroactive labels. SWV was used for quantification of the analytes obtaining similar detection values than the previous method (see Table 2) but smaller peak separation for the voltammetric peaks [48].

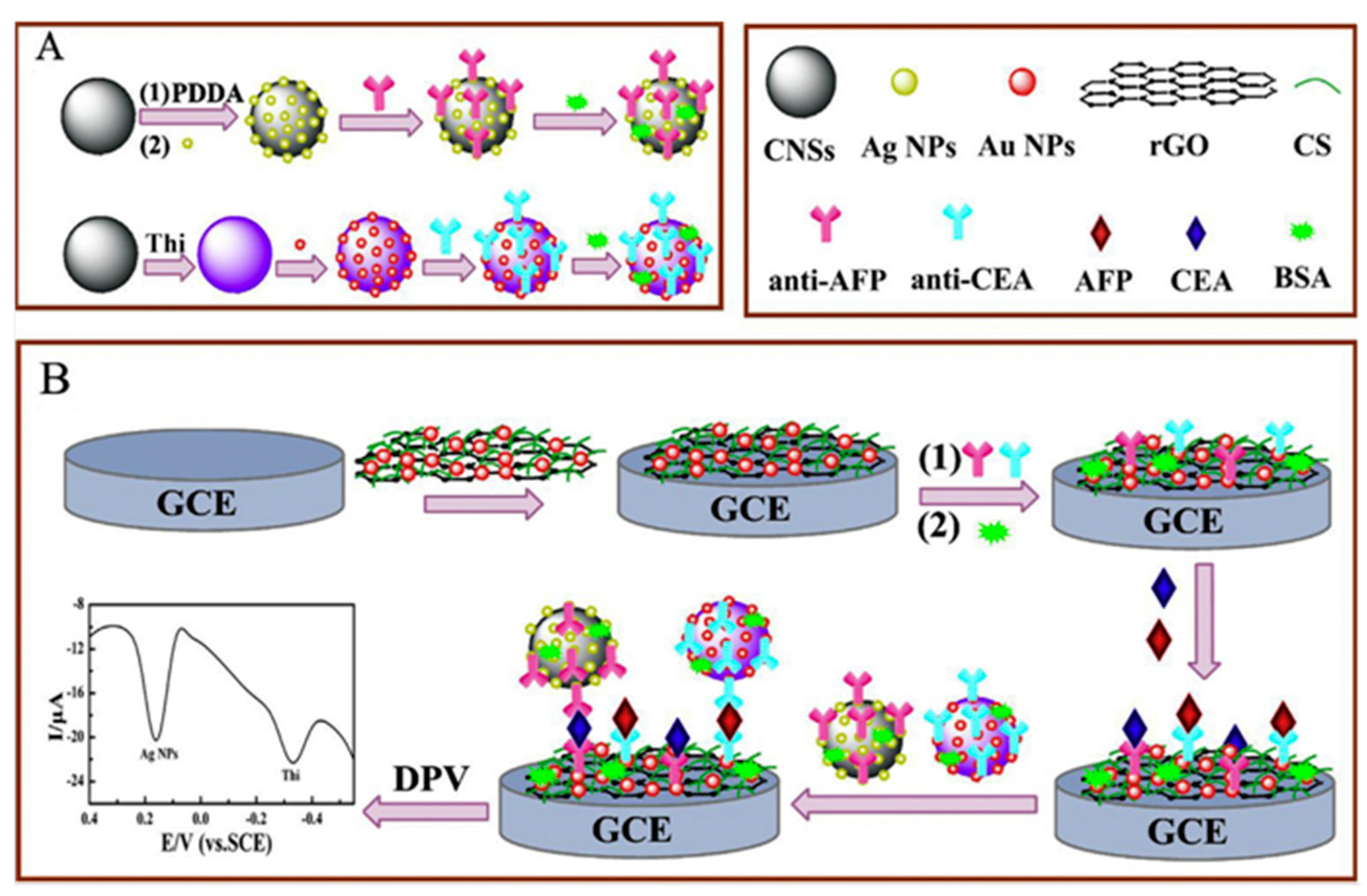

Carbon nanospheres (CNSs) have demonstrated to be an excellent material for the immobilization of signal probes and biomolecules. Among its advantages, it is worth mentioning the presence of abundant reactive oxygen functional groups, the adsorption capability to organic and inorganic materials, and the biocompatibility. In addition, important properties of these particles such as their shape, size, and surface characteristics may be tuned by a careful control of the synthesis experimental conditions [85]. They are usually obtained by hydrothermal carbonization of carbohydrates by applying methods requiring long periods of time [86], but the duration of treatment can be shortened significantly using microwave assisted procedures.
An interesting example of the application of this nanomaterial for the preparation of multiplexed electrochemical immunosensors is the use of CNSs coated with AgNPs or AuNPs and THI for immobilization of secondary antibodies, for detection of CEA and AFP. An electrode surface was prepared involving modification of a GCE with AuNPs/reduced graphene oxide (rGO) nanocomposites for assembling capture antibodies. In the presence of both proteins, two labels were attached onto the surface of the rGO/AuNPs nanocomposites via a sandwich immunoreaction. As Figure 10 shows, when recording DP voltammograms with the resulting immunosensor, two distinguishable peaks appeared at +0.16 V (corresponding to Ag NPs) and at −0.33 V (corresponding to THI). The great peak potential difference found between the peaks (close to 500 mV), demonstrated that both biomarkers could simultaneously detected in a single run [49].
A carbon gold nanocomposite (CGN) was prepared by a simple procedure through microwave-assisted carbonization of glucose to obtain CNSs and deposition of AuNPs. Taking advantage of the high adsorption ability of CGN toward organic compounds such as THI or 2,3-diaminophenazine (DAP) and metallic ions such as Cd2+, the corresponding hybrids were prepared and used to form immunoconjugates with anti-CEA, anti-PSA and anti-AFP secondary antibodies, respectively. Sandwich-type immunosensors for the simultaneous determination of the corresponding antigens were prepared by immobilizing the capture antibodies through electrostatic adsorption onto a GCE modified with a liquid ionic, graphene and poly(sodium-p-styrene sulfonate) (PSS). The respective immunoassays yielded three separate SW voltammetric signals. The resulting configuration allowed the determination of CEA, PSA and AFP in a single voltammetric scan with linear ranges between 0.01 and 100 ng·mL−1 and LOD values of 2.7, 4.8 and 3.1 pg·mL−1, respectively [50]. TiO2 nanoparticles have shown to be an efficient material for biosensor applications [87]. Besides the good biocompatibility, high reactivity and low cost, this nanomaterial is characterized by good conductivity, electrocatalytic activity [88], and the ability for immobilization of biomolecules. These properties were exploited by Wang et al. [51] to prepare a multiplexed immunosensor in which a nanohybrid composed of Nafion and TiO2 acted as a matrix for immobilization of immunoreagents and label tags. The antigens CA19-9 and CA15-3 were used as target compounds. Upon immobilization of the respective antibodies, the conjugates were labeled with methylene blue (MB) (CA19-9) or Co(dcbpy)32+ complex (with dcbpy = 2,2’-bipyridine-4,4’-dicarboxylate) (CA15-3),. The resulting conjugates, anti-CA19-9-Nafion/TiO2/MB and anti-CA15-3-Nafion/TiO2/Co(dcbpy)32+ were used to implement a sandwich-type immunoassay by means of the capture antibodies immobilized onto a gold electrode modified with gold nanoparticles. This immunosensor allowed a separation of the redox probes DPV peak potentials of 300 mV, allowing the determination of biomarkers at concentrations between 5 and 100 U·mL−1 (CA19-9), and from 1 to 100 U·mL−1 (CA15-5), with a good sensitivity for both proteins.
Polymer-nanoparticles composites have also been used for the preparation of multiplexed electrochemical immunosensors. These materials are of facile synthesis, and possess advantages such as the adjustable conductivity and proccessability. An interesting example is the synthesis of two types of redox-active polymer/AuNPs nanocomposites which were successfully used to fabricate a multiplexed electrochemical immunosensor for CEA and AFP biomarkers. Poly-(o-phenylene-diamine)(POPD)/AuNPs and poly(vinylferrocene-2-aminothiophenol) (poly(VFc-ATP))/AuNPs composites were synthesized at room temperature from the respective monomers using HAuCl4 as the oxidant. The resulting conjugated polymer/AuNPs showed an excellent redox-activity, good biocompatibility and stability. A simple immunoassay protocol was designed with the redox-active nanocomposites as the electroactive probes upon immobilization of anti-CEAandanti-AFP, and a gold electrode modified with poly(2-aminothiophenol) (PATP)used as the platform for immobilizing the capture antibodies. After implementing a sandwich-type immunoassay, DPV voltammograms were recorded and the independent pair of oxidation peaks characteristic of the polymers appearing at −0.43 V (PODP) and +0.2 V (VFc-ATP) were observed. The electrochemical immunosensor enabled the simultaneous monitoring of AFP and CEA in a wide linear range of 0.01–100 ng·mL−1 with detection limits of 0.006 ng·mL−1 for CEA and 0.003 ng·mL−1 for AFP [52].

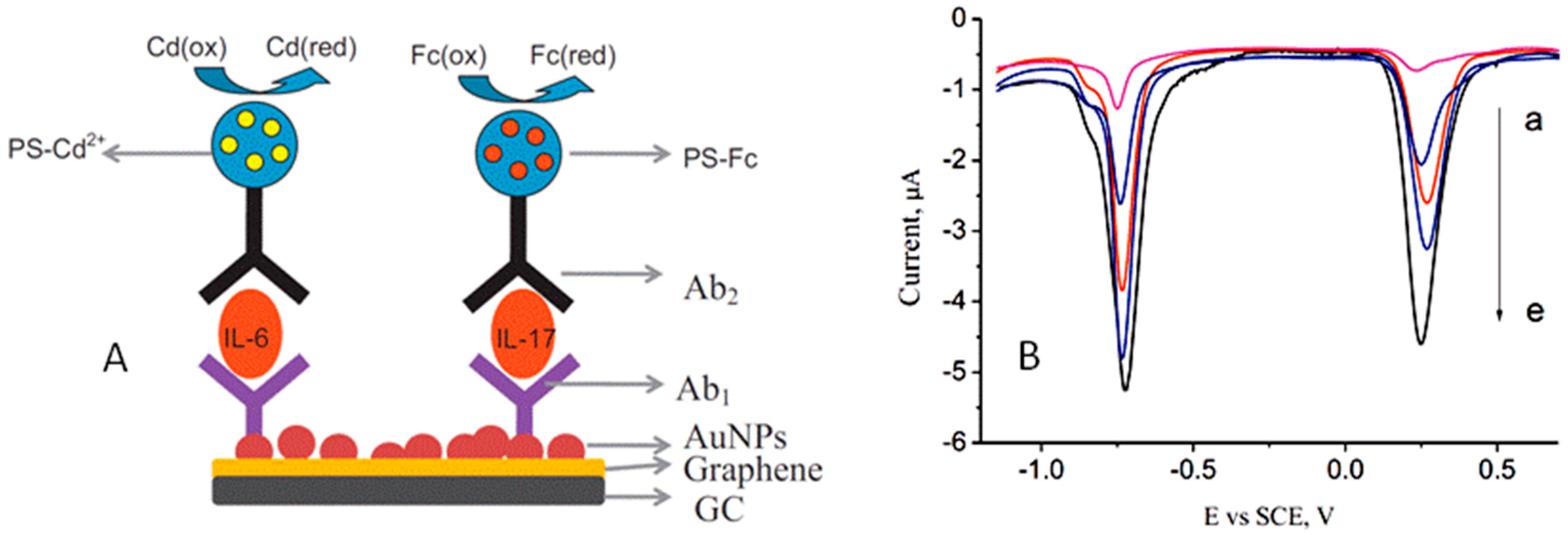

Interleukins 6 and 17 (IL-6 and IL-17) are cytokines secreted by T-cells acting as mediators in the stimulation of the immune response. They are involved in a variety of biological processes [89,90] including cancer diseases. There is evidence for IL-6 in the relationship with colorectal cancer and tumour necrosis [91] and also it has been found that IL-17 might be a pivotal cytokine involved in tumor progression of non-small cell lung cancer (NSCLC) [92]. A multiplexed electrochemical immunosensor was developed for ultrasensitive detection of both interleukins by immobilization of the specific detection antibodies and two different tags to polystyrene spheres (PSs). For this purpose, Cd2+ and Fc were selected as the electroactive labels, and the detection of biomarkers was performed by SWV after dissolving each PS conjugate with tetrahydrofuran (THF). Figure 11 shows as the immunosensing configuration provided voltammetric responses with a high peak potential difference. Moreover, the significant amount of electrochemical tags incorporated into PS greatly enhanced the sensitivity, with detection limits of of 0.5 and 1 pg·mL−1 for IL-6 and IL-17, respectively [53].
In addition to the immunosensors discussed so far, Table 2 summarizes analytical information for other multiplexed immunosensing designs using labels of graphene sheets tagged with THI, Co(bpy)33+ and Fc redox probes for the determination of AFP, CEA and streptococcussuis serotype 2 (SS2) [54], or AuNPs-modified Prussian blue (or nickel hexacyanoferrates) for PSA and free PSA [55], as well as liposomes with encapsulated ascorbic acid (AA) and uric acid (AU) for monitoring neuron-specific enolase (NSE) and pro-gastrin-releasing peptide (ProGRP), two biomarkers for small cell lung cancer [56]. Other recent methods used alginates of Cd, Pb and Cd for the determination of AFP, CEA and PSA by DPV [57], or Cd and Pb apoferritins for the stripping voltammetric detection of AFP and CEA by SWV [58], and metal ions-doped chitosan poly(acrylic) nanospheres for determining four cancer biomarkers, CEA, CA19-9, CA125 and CA242, in a single voltammetric run [59].

4. Microfluidic Devices

Microfluidics has evolved as a powerful tool to be used in fundamental and applied biomedical research [93]. In 2005, Heinemann et al. [94] published one of the pioneer articles regarding the application of microfluidics in electrochemical immunoassay [16]. Since then, the advantageous properties of microfluidic devices such as the small working volumes, short assay times and high sensitivity has promoted the development of immunosensors coupled to the use of this emerging technology. In the particular case of multiplexed immunoassays, few methods have been published so far. A relevant example is the electrochemical system developed by Zhou et al. [95] for the simultaneous detection of cTnI and CRP cardiac markers using a poly-(dimethylsiloxane)-AuNPs composite microfluidic chip. In this method, CdTe and ZnSe QDs were conjugated with the different antibodies and, upon the implementation of the immunoassays, SW anodic stripping voltammetry at a carbon fiber microelectrode was used to detect the metal ions dissolved from the QDs in a microchannel via flow injection mode.
A microfluidic electrochemical immunoassay was also reported for multiplexed detection of PSA and IL-6 in serum. It was based on the off-line capture of analytes by heavily-HRP labeled magnetic particles-antibody bioconjugates, and attachment of the capture antibodies to a chip with eight electrodes modified with glutathione-decorated AuNPs. Once the antibodies were immobilized onto the electrodes, a dispersion of the magnetic particles with the captured analytes was injected into the microfluidic chamber, and when it was filled, the flow was stopped during a time for incubation to allow that antigens were captured by the antibodies on the electrodes. After washing the system, a mixture of H2O2 and hydroquinone was injected into the microfluidic device and the amperometric responses were measured. The detection limits attained with this method were as low as 0.23 pg·mL−1 for PSA and 0.30 pg·mL−1 for IL-6 in diluted serum. Importantly, this immunosensor could measure both biomarkers in serum of prostate cancer patients in a total assay time of 1.15 h [16].
A flow-through multiplexed immunoassay was designed for simultaneous electrochemical determination of CEA and AFP using magnetic graphene nanosheets with immobilized capture antibodies as immunosensing probes, and multifunctional nanogold hollow microspheres (GHS) with encapsulated HRP-THI and HRP-Fc as distinguishable signal tags. A sandwich-type immunoassay was employed for the online detection of CEA and AFP by coupling a flow-through detection cell with an external magnet. The multiplexed method can pull antibodies bound to magnetic nanoparticles from one laminar flow path to another by applying a local magnetic field gradient, and selectively remove them from flowing biological fluids without any washing steps. Figure 12 shows as the assay involved the catalytic reduction of H2O2 at the various peak potentials in the presence of the corresponding mediators. The method enabled the simultaneous monitoring of AFP and CEA in a single run through wide working ranges of 0.01–200 ng·mL−1 for AFP and 0.01–80 ng·mL−1 for CEA [17].
Paper is an attractive substrate for the fabrication of microfluidic devices since it is a low cost and abundant material, disposable and biodegradable, and easy to manipulate and to be chemically modified [96]. Microfluidic paper-based analytical devices (μ-PADs) were firstly proposed by Whitesides et al. [97] combining the simplicity and portability of paper strip tests and the capacity of lab-on-a-chip devices for multiplexed analysis [98]. The reported configurations of electrochemical immunosensors using μ-PADs technology for the simultaneous determination of biomarkers are mainly based on patterned paper where small volumes of fluids run by capillary action. Moreover, they incorporate nanomaterials for enhancing the sensing probe immobilization as well as the sensitivity of detection. Furthermore, the origami approach has been demonstrated to be an adequate method for construct these configurations, existing various examples of multiplexed immunoassays using this technique. For example, a 3D microfluidic electrochemical origami immunosensor was developed for the simultaneous detection of CA125 and CA19-9 biomarkers. It utilized cuboid silver-modified paper working electrodes as sensor platform and Ag+ or Cu2+-coated nanoporous silver-chitosan as labels. Cuboid silver, acting as a model biocompatible nanomaterial with large surface area, high conductivity and absorption capability, was grown on the cellulose fibers surface from AgNPs seeds. The determination of both markers was carried out by SW voltammetric responses of metallic ions allowing dynamic linear ranges of over four orders of magnitude with detection limits down to 0.02 and 0.04 mU·mL−1 , respectively [99].
Sun et al. [100] prepared a microfluidic paper-based analytical device (μ-PAD) in which rGO was used to modify the cellulose fibers. ZnO nanorods, with a large surface-to-volume ratio and abundant sites for capturing biomolecules, were employed to immobilize the specific antibodies (Figure 13). Sandwich immunoassays were implemented for the detection of three target analytes, HCG, PSA and CEA, using composites of rGO and flower-like Ag@BSA nanoparticles, with a high electrocatalytic effect toward H2O2 reduction, as the signal labels conjugated with the secondary antibodies. After the immunocomplexes formation, the amperometric current was generated from the addition of H2O2 further amplified by the promoted deposition of silver. This method provided good linear relationships between the currents and the logarithm values of the analyte concentrations in the range of 0.002–120 mI UmL−1 for HCG, 0.001–110 ng·mL−1 for PSA, and 0.001–100 ng·mL−1 for CEA, and was successfully applied to the analysis of clinical serum samples.
Despite the social relevance and current demand, electrochemical multiplexed immunosensors have not yet been widely used for the detection of infectious diseases. Indeed only one method has been found in the literature regarding the simultaneous determination of antibodies against human immunodeficiency (HIV) and hepatitis C (HCV) viruses in serum using a paper-based immunosensing platform. It consisted of an electrochemical microfluidic paper-based array containing eight screen printed electrodes. To capture the target antibodies, the corresponding antigens were immobilized onto the working electrodes modified with 3-amino-propyl dimethyl-ethoxysilane (APDES) and glutaraldehyde. Once the immunocomplex was formed, IgG labeled with alkaline phosphatase was added, and the interaction was monitored by addition of p-aminophenylphosphate. The electrochemical detection was performed using amperometry, and the limits of detection achieved were of 300 and 750 pg·mL−1, for HIV and HCV, respectively. This immunosensing platform was applied to the analysis of serum samples with good results [101].

5. General Conclusions and Future Prospects

Multiplexed electrochemical immunosensors continue to evolve with improved sensitivity to develop new analytical strategies and applications for biomarkers determination. However, they still have a long way ahead before coming a competitive technology for development of point-of-care diagnostic testers. Most common approaches are prepared from platforms of a single electrode in barcode design, and applied to dual-analyte monitoring. However, only few devices have detected three or more markers. In this context, the design of new distinguishable species involving nanomaterials and/or electroactive probes which would produce more than two independent electrochemical signals, is a matter of concern. Related to cancer biomarkers, the possibility of measure panels of proteins is a desirable objective to provide faster and more accurate diagnostics. Although the number of multiplexed electrochemical immunosensors for these species has greatly increased in the last three years, however, the novel designs are usually applied to the same biomarkers, so that there are several immunosensors for the most common, AFP, CEA and PSA, and very few or none for other important protein biomarkers. Indeed the identification and clinical validation of new and reliable biomarkers signatures will be compulsory for these attractive multiplexing electrochemical biosensing platforms find wide applicability also for other relevant diseases apart from cancer such as inflammatory processes, cardiovascular, autoimmune and degenerative diseases. Moreover, since the biomarkers panel identified could comprise biomarkers with high differences in the threshold levels, additional efforts should be focused in developing strategies suitable to determine simultaneously biomarkers at very different concentration levels.
The overall data available in the literature on recent multiplexed immunosensing configurations demonstrate the adequate performance of label-free electrochemical immunosensors, where nanomaterials play a fundamental role, both as a mean for biomolecules immobilization and to take advantage of their catalytic activity for different processes. In addition, microfluidics continues to emerge as an attractive technology to achieve automation of immunoassay methods, decreasing the analysis times and paving the way for the development of POCs testing devices.
However, it is worth to mention also that despite the tremendous progress made these last years in the development and application on ultrasensitive immunosensing platforms for multiplexed determination of clinical biomarkers, none has crossed the technological valley of death to successful commercialization. Many times the validation of the electrochemical immunosensors developed is limited to doped biological samples such as blood, serum, saliva and urine or to a very limited number of real samples, which is not enough to ensure their reliable validation. In this sense, a better communication between the end users of the devices and the scientists who develop the methodologies and the availability of samples for large case studies will play major roles in the exhaustive validation of these devices. Clinical validation using minimally treated real samples and exhaustive comparison with other current methodologies will be required to ensure the transition from research laboratories to the market and for their implementation as a POC devices. Additional efforts to guarantee appropriate functionality after transportation and during storage will be crucial also to accelerate their commercialization as clinical diagnosis/prognosis routine tools.
Despite these formidable challenges to address, the attractive properties of these multiplexed electrochemical immunosensing devices make them extremely promising for improving the reliability and quickness of diagnostics and therapy monitoring, leading to more rapid clinical decision making and corresponding reductions in patient stress and healthcare costs. This will assured them a privileged place in the future clinical field.


Financial support of the CTQ2015-70023-R and CTQ2015-64402-C2-1-R (Spanish Ministerio de Economía y Competitividad Research Projects) and S2013/MT3029 (NANOAVANSENS Program from the Comunidad de Madrid) are gratefully acknowledged.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Munge, B.S.; Stracensky, T.; Gamez, K.; DiBiase, D.; Rusling, J.F. Multiplex immunosensor arrays for electrochemical detection of cancer biomarker proteins. Electroanalysis 2016, 28, 2644–2658. [Google Scholar] [CrossRef]
  2. Wang, J. Electrochemical biosensors: Towards point-of-care cancer diagnostics. Biosens. Bioelectron. 2006, 21, 1887–1892. [Google Scholar] [CrossRef] [PubMed]
  3. Chandra, P. Miniaturized multiplex electrochemical biosensor in clinical bioanalysis. J. Bioanal. Biomed. 2013, 5, e122. [Google Scholar]
  4. Rusling, J.F. Multiplexed electrochemical protein detection and translation to personalized cancer diagnostics. Anal. Chem. 2013, 85, 5304–5310. [Google Scholar] [CrossRef] [PubMed]
  5. Gubala, V.; Klein, R.; Templeton, D.M.; Schwenk, M. Immunodiagnosis and immunosensor design. Pure Appl. Chem. 2014, 86, 1539–1571. [Google Scholar] [CrossRef]
  6. Zhu, Q.; Chai, Y.; Zhuo, Y.; Yuan, R. Ultrasensitive simultaneous detection of four biomarkers based on hybridization chain reaction and biotin–streptavidin signal amplification strategy. Biosens. Bioelectron. 2015, 68, 42–48. [Google Scholar] [CrossRef] [PubMed]
  7. Zhao, C.; Wu, J.; Ju, H.; Yan, F. Multiplexed electrochemical immunoassay using streptavidin/nanogold/carbon nanohorn as a signal tag to induce silver deposition. Anal. Chim. Acta 2014, 847, 37–43. [Google Scholar] [CrossRef] [PubMed]
  8. Du, D.; Wang, J.; Lu, D.; Dohnalkova, A.; Lin, Y. Multiplexed electrochemical immunoassay of phosphorylated proteins based on enzyme-functionalized gold nanorod labels and electric field-driven acceleration. Anal. Chem. 2011, 83, 6580–6585. [Google Scholar] [CrossRef] [PubMed]
  9. Wan, Y.; Su, Y.; Zhu, X.; Liu, G.; Fan, C. Development of electrochemical immunosensors towards point of care diagnostics. Biosens. Bioelectron. 2013, 47, 1–11. [Google Scholar] [CrossRef] [PubMed]
  10. Ma, Z.; Liu, N. Design of immunoprobes for electrochemical multiplexed tumor marker detection. Expert Rev. Mol. Diagn. Early online 2015, 15, 1–9. [Google Scholar]
  11. Kokkinos, C.; Economou, A.; Prodromidis, M.I. Electrochemical immunosensors: Critical survey of different architectures and transduction strategies. TrAC Trends Anal. Chem. 2016, 79, 88–105. [Google Scholar] [CrossRef]
  12. Yang, Z.H.; Zhuo, Y.; Chai, Y.Q.; Yuan, R. High throughput immunosenor based on multi-label strategy and a novel array electrode. Sci. Rep. 2014, 4, 4747. [Google Scholar] [CrossRef] [PubMed]
  13. Tang, D.; Hou, L.; Niessner, R.; Xu, M.; Gao, Z.; Knopp, D. Multiplexed electrochemical immunoassay of biomarkers using metal sulfide quantum dot nanolabels and trifunctionalized magnetic beads. Biosens. Bioelectron. 2013, 46, 37–43. [Google Scholar] [CrossRef] [PubMed]
  14. Wang, Z.; Liu, N.; Ma, Z. Platinum porous nanoparticles hybrid with metal ions as probes for simultaneous detection of multiplex cancer biomarkers. Biosens. Bioelectron. 2014, 53, 324–329. [Google Scholar] [CrossRef] [PubMed]
  15. Delaney, J.L.; Hogan, C.F.; Tian, J.F.; Shen, W. Electrogenerated chemiluminescence detection in paper-based microfluidic sensors. Anal. Chem. 2011, 83, 1300–1306. [Google Scholar] [CrossRef] [PubMed]
  16. Chikkaveeraiah, B.V.; Mania, V.; Patel, V.; Gutkind, J.S.; Rusling, J.F. Microfluidic electrochemical immunoarray for ultrasensitive detection of two cancer biomarker proteins in serum. Biosens. Bioelectron. 2011, 26, 4477–4483. [Google Scholar] [CrossRef] [PubMed]
  17. Tang, J.; Tang, D.; Niessner, R.; Chen, G.; Knopp, D. Magneto-controlled graphene immunosensing platform for simultaneous multiplexed electrochemical immunoassay using distinguishable signal tags. Anal. Chem. 2011, 83, 5407–5414. [Google Scholar] [CrossRef] [PubMed]
  18. Wan, Y.; Deng, W.; Su, Y.; Zhu, X.; Peng, C.; Hu, H.; Peng, H.; Song, S.; Fan, C. Carbon nanotube-based ultrasensitive multiplexing electrochemical immunosensor for cancer biomarkers. Biosens. Bioelectron. 2011, 30, 93–99. [Google Scholar] [CrossRef] [PubMed]
  19. Liu, J.; Lu, C.-Y.; Zhou, H.; Xu, J.-J.; Chen, H.-Y. Flexible gold electrode array for multiplexed immunoelectrochemical measurement of three protein biomarkers for prostate cancer. ACS Appl. Mater. Interfaces 2014, 6, 20137–20143. [Google Scholar] [CrossRef] [PubMed]
  20. Cui, Z.; Wu, D.; Zhang, Y.; Ma, H.; Li, H.; Du, B.; Wei, Q.; Ju, H. Ultrasensitive electrochemical immunosensors for multiplexed determination using mesoporous platinum nanoparticles as nonenzymatic labels. Anal. Chim. Acta 2014, 807, 44–50. [Google Scholar] [CrossRef] [PubMed]
  21. Lai, G.; Wang, L.; Wu, J.; Ju, H.; Yan, F. Electrochemical stripping analysis of nanogold label-induced silver deposition for ultrasensitive multiplexed detection of tumor markers. Anal. Chim. Acta 2012, 721, 1–6. [Google Scholar] [CrossRef] [PubMed]
  22. Lai, G.; Wu, J.; Ju, H.; Yan, F. Streptavidin-functionalized silver-nanoparticle-enriched carbon nanotube tag for ultrasensitive multiplexed detection of tumor markers. Adv. Funct. Mater. 2011, 21, 2938–2943. [Google Scholar] [CrossRef]
  23. Ge, S.; Yu, F.; Ge, L.; Yan, M.; Yu, J.; Chen, D. Disposable electrochemical immunosensor for simultaneous assay of a panel of breast cancer tumor markers. Analyst 2012, 137, 4727–4733. [Google Scholar] [CrossRef] [PubMed]
  24. Eletxigerra, U.; Martinez-Perdiguero, J.; Merino, S.; Barderas, R.; Ruiz-Valdepeñas Montiel, V.; Villalonga, R.; Pingarrón, J.M.; Campuzano, S. Electrochemical magnetoimmunosensor for progesterone receptor determination. Application to the simultaneous detection of estrogen and progesterone breast-cancer related receptors in raw cell lysates. Electroanalysis 2016, 28, 1787–1794. [Google Scholar] [CrossRef]
  25. Gupta, R.K.; Pandya, R.; Sieffert, T.; Meyyappan, M.; Koehne, J.E. Multiplexed electrochemical immunosensor for label-free detection of cardiac markers using a carbon nanofiber array chip. J. Electroanal. Chem. 2016, 773, 53–62. [Google Scholar] [CrossRef]
  26. Esteban-Fernández de Ávila, B.; Escamilla-Gómez, V.; Lanzone, V.; Campuzano, S.; Pedrero, M.; Compagnone, D.; Pingarrón, J.M. Multiplexed determination of amino-terminal pro-B type natriuretic peptide and C-reactive protein cardiac biomarkers in human serum at a disposable electrochemical magnetoimmunosensor. Electroanalysis 2014, 26, 254–261. [Google Scholar] [CrossRef]
  27. Zhang, G.-J.; Luo, Z.H.H.; Huang, M.J.; Ang, J.J.; Kang, T.G.; Ji, H. An integrated chip for rapid, sensitive, and multiplexed detection of cardiacbiomarkers from fingerprick blood. Biosens. Bioelectron. 2011, 28, 459–463. [Google Scholar] [CrossRef] [PubMed]
  28. Sánchez-Tirado, R.; Salvo, C.; González-Cortés, A.; Yáñez-Sedeño, P.; Langa, F.; Pingarrón, J.M. Electrochemical immunosensor for simultaneous determination of interleukin-1 beta and tumor necrosis factor alpha in serum and salivausing dual screen printed electrodes modified with functionalized double-walled carbon nanotubes. Anal. Chim. Acta 2017, 959, 66–73. [Google Scholar] [CrossRef] [PubMed]
  29. Baraket, A.; Lee, M.; Zine, N.; Trivella, M.G.; Zabala, M.; Bausells, J.; Sigaud, M.; Jaffrezic-Renault, N.; Errachid, A. A fully integrated electrochemical BioMEMS fabrication process for cytokine detection: Application for heart failure. Proc. Eng. 2014, 87, 377–379. [Google Scholar] [CrossRef]
  30. Martínez-García, G.; Agüí, L.; Yáñez-Sedeño, P.; Pingarrón, J.M. Multiplexed electrochemical immunosensing of obesity-related hormones at grafted graphene-modified electrodes. Electrochim. Acta 2016, 202, 209–215. [Google Scholar] [CrossRef]
  31. Moreno-Guzmán, M.; González-Cortés, A.; Yáñez-Sedeño, P.; Pingarrón, J.M. Multiplexed ultrasensitive determination of adreno-corticotropinand cortisol hormones at a dual electrochemical immunosensor. Electroanalysis 2012, 24, 1100–1108. [Google Scholar] [CrossRef]
  32. Neves, M.M.P.S.; González-García, M.B.; Delerue-Matos, C.; Costa-García, A. Multiplexed electrochemical immunosensor for detection of celiac disease serological markers. Sens. Actuators B Chem. 2013, 187, 33–39. [Google Scholar] [CrossRef]
  33. Chen, X.; Jia, X.; Han, J.; Ma, J.; Man, Z. Electrochemical immunosensor for simultaneous detection of multiplex cancer biomarkers based on graphene nanocomposites. Biosens. Bioelectron. 2013, 50, 356–361. [Google Scholar] [CrossRef] [PubMed]
  34. Chen, X.; Ma, Z. Multiplexed electrochemical immunoassay of biomarkers using chitosan nanocomposites. Biosens. Bioelectron. 2014, 5, 343–349. [Google Scholar] [CrossRef] [PubMed]
  35. Feng, D.; Li, L.; Han, X.; Fang, X.; Li, X; Zhang, Y. Simultaneous electrochemical detection of multiple tumor markers using functionalized graphene nanocomposites as non-enzymatic labels. Sens. Actuators B Chem. 2014, 201, 360–368. [Google Scholar] [CrossRef]
  36. Lai, W.Q.; Zhuang, J.Y.; Tang, J.; Chen., G.N.; Tang, D.P. One-step electrochemical immunosensing for simultaneous detection of two biomarkers using thionine and ferrocene as distinguishable signal tags. Microchim. Acta 2012, 178, 357–365. [Google Scholar] [CrossRef]
  37. Zhang, Y.; Li, L.; Lu, J.; Ge, L.; Ge, S.; Yan, M.; Song, X.; Yu, J. Triple catalysis amplification strategy for simultaneous multiplexed electrochemical immunoassays based on cactus-like MnO2 functionalized nanoporous gold. Sens. Actuators B Chem. 2013, 186, 545–549. [Google Scholar] [CrossRef]
  38. Zhang, X.; Ren, X.; Cao, W.; Li, Y.; Du, B.; Wei, Q. Simultaneous electrochemical immunosensor based on water-soluble polythiophene derivative and functionalized magnetic material. Anal. Chim. Acta 2014, 845, 85–91. [Google Scholar] [CrossRef] [PubMed]
  39. Li, Q.F.; Tang, D.P.; Lou, F.M.; Yang, X.M.; Chen, G.N. Simultaneous electrochemical multiplexed immunoassay of biomarkers based on multifunctionalized graphene nanotags. Chem. Electro. Chem. 2014, 1, 441–447. [Google Scholar] [CrossRef]
  40. Jia, X.; Liu, Z.; Liu, N.; Ma, Z. A label-free immunosensor based on graphene nanocomposites for simultaneous multiplexed electrochemical determination of tumor markers. Biosens. Bioelectron. 2014, 53, 160–166. [Google Scholar] [CrossRef] [PubMed]
  41. Lu, W.; Tao, L.; Wang, Y.; Cao, Z.; Ge, J.; Dong, J.; Qian, W. An electrochemical immunosensor for simultaneous multiplexed detection of two lung cancer biomarkers using Au nanoparticles coated resin microspheres composed of L-tryptophan and caffeic acid. Ionics 2015, 21, 1141–1152. [Google Scholar] [CrossRef]
  42. Ge, X.; Zhang, A.; Lin, Y.; Du, D. Simultaneous immunoassay of phosphorylated proteins based on apoferritin templated metallic phosphates as voltammetrically distinguishable signal reporters. Biosens. Bioelectron. 2016, 80, 201–207. [Google Scholar] [CrossRef] [PubMed]
  43. Wang, D.; Gan, N.; Zhang, H.; Li, T.; Qiao, L.; Cao, Y.; Su, X.; Jiang, S. Simultaneous electrochemical immunoassay using graphene–Au grafted recombinant apoferritin-encoded metallic labels as signal tags and dual-template magnetic molecular imprinted polymer as capture probes. Biosens. Bioelectron. 2015, 65, 78–82. [Google Scholar] [CrossRef] [PubMed]
  44. Zhou, S.; Wang, Y.; Zhu, J.J. Simultaneous detection of tumor cell apoptosis regulators Bcl-2 and Bax through a dual-signal-marked electrochemical immunosensor. ACS Appl. Mater. Interfaces 2016, 8, 7674–7682. [Google Scholar] [CrossRef] [PubMed]
  45. Fang, Y.; Huang, X.; Zeng, Q.; Wang, L. Metallic nanocrystallites-incorporated ordered mesoporous carbon as labels for a sensitive simultaneous multianalyte electrochemical immunoassay. Biosens. Bioelectron. 2015, 73, 71–78. [Google Scholar] [CrossRef] [PubMed]
  46. Wang, D.; Gan, N.; Zhou, J.; Xiong, P.; Cao, Y.; Li, T.; Pan, D.; Jiang, S. Signal amplification for multianalyte electrochemical immunoassay with bidirectional stripping voltammetry using metal-enriched polymer nanolabels. Sens. Actuators B Chem. 2014, 197, 244–253. [Google Scholar] [CrossRef]
  47. Xu, T.; Jia, X.; Chen, X.; Man, Z. Simultaneous electrochemical detection of multiple tumor markers using metal ions tagged immunocolloidal gold. Biosens. Bioelectron. 2014, 56, 174–179. [Google Scholar] [CrossRef] [PubMed]
  48. Feng, D.; Li, L.; Zhao, J.; Zhang, Y. Simultaneous electrochemical detection of multiple biomarkers using gold nanoparticles decorated multiwall carbon nanotubes as signal enhancers. Anal. Biochem. 2015, 482, 48–54. [Google Scholar] [CrossRef] [PubMed]
  49. Li, L.; Feng, D.; Zhang, Y. Simultaneous detection of two tumor markers using silver and gold nanoparticles decorated carbon nanospheres as labels. Anal. Biochem. 2016, 505, 59–65. [Google Scholar] [CrossRef] [PubMed]
  50. Xu, T.; Liu, N.; Yuan, J.; Ma, Z. Triple tumor markers assay based on carbon–gold nanocomposite. Biosens. Bioelectron. 2015, 70, 161–166. [Google Scholar] [CrossRef] [PubMed]
  51. Wang, G.; Qing, Y.; Shan, J.; Jin, F.; Yuan, R.; Wang, D. Cation-exchange antibody labeling for simultaneous electrochemical detection of tumor markers CA15-3 and CA19-9. Microchim. Acta 2013, 180, 651–657. [Google Scholar] [CrossRef]
  52. Liu, Z.; Rong, Q.; Ma, Z.; Han, H. One-step synthesis of redox-active polymer/Au nanocomposites for electrochemical immunoassay of multiplexed tumor markers. Biosens. Bioelectron. 2015, 65, 307–313. [Google Scholar] [CrossRef] [PubMed]
  53. Li, T.; Shu, B.; Jiang, B.; Ding, L.; Qi, H.; Yang, M.; Qu, F. Ultrasensitive multiplexed protein biomarker detection based on electrochemical tag incorporated polystyrene spheres as label. Sens. Actuators B Chem. 2013, 186, 768–773. [Google Scholar] [CrossRef]
  54. Zhu, Q.; Chai, Y.; Yuan, R.; Zhuo, Y.; Han, J.; Li, Y.; Liao, N. Amperometric immunosensor for simultaneous detection of three analytes in one interface using dual functionalized graphene sheets integrated with redox-probes as tracer matrixes. Biosens. Bioelectron. 2013, 43, 440–445. [Google Scholar] [CrossRef] [PubMed]
  55. Han, J.; Zhuo, Y.; Chai, Y.; Yuan, R.; Zhang, W.; Zhu, Q. Simultaneous electrochemical detection of multiple tumor markers based on dual catalysis amplification of multi-functionalized onion-like mesoporous graphene sheets. Anal. Chim. Acta 2012, 746, 70–76. [Google Scholar] [CrossRef] [PubMed]
  56. Zhong, Z.; Peng, N.; Qing, Y.; Shan, J.; Li, M.; Guan, W.; Dai, N.; Gu, X.; Wang, D. An electrochemical immunosensor for simultaneous multiplexed detection of neuron-specific enolase and pro-gastrin-releasing peptide using liposomes as enhancer. Electrochim. Acta 2011, 56, 5624–5629. [Google Scholar] [CrossRef]
  57. Wang, Z.; Liu, N.; Feng, F.; Ma, Z. Synthesis of cadmium, lead and copper alginate nanobeads as immunosensing probes for the detection of AFP, CEA and PSA. Biosens. Bioelectron. 2015, 70, 98–105. [Google Scholar] [CrossRef] [PubMed]
  58. Wang, D.; Li, T.; Gan, N.; Zhang, H.; Long, N.; Hua, F.; Cao, Y.; Jiang, Q.; Jiang, S. Electrochemical coding for multiplexed immunoassays of biomarkers based on bio-based polymer-nanotags. Electrochim. Acta 2015, 163, 238–245. [Google Scholar] [CrossRef]
  59. Rong, Q.; Feng, F.; Ma, Z. Metal ions doped chitosan–poly(acrylic acid) nanospheres: Synthesis and their application in simultaneously electrochemical detection of four markers of pancreatic cancer. Biosens. Bioelectron. 2016, 75, 148–154. [Google Scholar] [CrossRef] [PubMed]
  60. Rama, E.C.; Costa-García, A. Screen-printed electrochemical immunosensors for the detection of cancer and cardiovascular biomarkers. Electroanalysis 2011, 28, 1700–1715. [Google Scholar] [CrossRef]
  61. Arduini, F.; Micheli, L.; Moscone, D.; Palleschi, G.; Piermarini, S.; Ricci, F.; Volpe, G. Electrochemical biosensors based on nanomodified screen-printed electrodes: Recent applications in clinical analysis. TrAC Trends Anal. Chem. 2016, 79, 114–126. [Google Scholar] [CrossRef]
  62. Bode, A.M.; Dong, Z. Post-translational modification of p53 in tumorigenesis. Nat. Rev. Cancer 2002, 4, 793–805. [Google Scholar] [CrossRef] [PubMed]
  63. Sakaguchi, K.; Herrera, J.E.; Saito, S.; Miki, T.; Bustin, M.; Vassilev, A.; Anderson, C.W.; Appela, E. DNA damage activates p53 through a phosphorylation-acetylation cascade. Genes Dev. 2013, 12, 2831–2841. [Google Scholar] [CrossRef]
  64. Bar, J.; Moskovits, J.; Oren, M. Involvement of stromal p53 in tumor-stroma interactions. Semin. Cell Dev. Biol. 2009, 21, 47–54. [Google Scholar] [CrossRef] [PubMed]
  65. Lee, J.S.; Lytton-Jean, A.K.R.; Hurst, S.J.; Mirkin, C.A. Silver nanoparticle-oligonucleotide conjugates based on DNA with triple cyclic disulfide moieties. Nano Lett. 2007, 7, 2112–2115. [Google Scholar] [CrossRef] [PubMed]
  66. Russo, J.; Russo, I.H. The role of estrogen in the initiation of breast cancer. J. Steroid Biochem. Mol. Biol. 2006, 102, 89–96. [Google Scholar] [CrossRef] [PubMed]
  67. Katzenellenbogen, B.S.; Katzenellenbogen, J.A. Estrogen receptor transcription and transactivation Estrogen receptor alpha and estrogen receptor beta: Regulation by selective estrogen receptor modulators and importance in breast cancer. Breast Cancer Res. 2000, 2, 335–344. [Google Scholar] [CrossRef] [PubMed]
  68. Ellmann, S.; Sticht, H.; Thiel, F.; Beckmann, M.W.; Strock, R.; Strissel, P.L. Estrogen and progesterone receptors: from molecular structures to clinical targets. Cell Mol. Life Sci. 2009, 66, 2405–2426. [Google Scholar] [CrossRef] [PubMed]
  69. Kim, H.-J.; Cui, X.; Hilsenbeck, S.G.; Lee, A.V. Progesterone receptor loss correlates with human epidermal growth factor receptor 2 overexpression in estrogen receptor-positive breast cancer. Clin. Cancer Res. 2006, 12, 1013s–1018s. [Google Scholar] [CrossRef] [PubMed]
  70. Yang, Z.; Zhou, D.M. Cardiac markers and their point-of-care testing for diagnosis of acute myocardial infarction. Clin. Biochem. 2006, 39, 771–780. [Google Scholar] [CrossRef] [PubMed]
  71. Liu, G.; Qi, M.; Hutchinson, M.R.; Yang, G.; Goldys, E.M. Recent advances in cytokine detection by immunosensing. Biosens. Bioelectron. 2016, 79, 810–821. [Google Scholar] [CrossRef] [PubMed]
  72. Stenken, J.A.; Poschenrieder, A.J. Bioanalytical chemistry of cytokines—A review. Anal. Chim. Acta 2015, 853, 95–115. [Google Scholar] [CrossRef] [PubMed]
  73. Shaftel, S.S.; Griffin, W.S.T.; O’Banion, M.K. The role of interleukin-1 in neuroinflammation and Alzheimer disease: An evolving perspective. J. Neuroinflam. 2008, 5, 7–11. [Google Scholar] [CrossRef] [PubMed]
  74. Feldmann, M.; Brennan, F.M.; Maini, R.N. Role of cytokines in rheumatoid arthritis. Annu. Rev. Immunol. 1996, 14, 397–440. [Google Scholar] [CrossRef] [PubMed]
  75. Palladino, M.A.; Bahjat, F.R.; Theodorakis, E.A.; Moldawer, L.L. Anti-TNF-[alpha] therapies: The next generation. Nat. Rev. Drug Discov. 2003, 2, 736–746. [Google Scholar] [CrossRef] [PubMed]
  76. Krause, C.E.; Otieno, B.A.; Bishop, G.W.; Phadke, G.; Choquette, L.; Lalla, R.V.; Peterson, D.E.; Rusling, J.F. Ultrasensitive microfluidic array for serum proinflammatory cytokines and C-reactive protein to assess oral mucositis risk in cancer patients. Anal. Bioanal. Chem. 2015, 407, 7239–7243. [Google Scholar] [CrossRef] [PubMed]
  77. Gomes, F.I.F.; Aragao, M.G.B.; Barbosa, F.C.B.; Bezerra, M.M.; Pinto, V.D.P.T.; Chaves, H.V. Inflammatory cytokines interleukin-1β and tumour necrosis factor-α-novel biomarkers for the detection of periodontal diseases: A literature review. J. Oral Maxillofac. Res. 2016, 7, e2. [Google Scholar] [CrossRef] [PubMed]
  78. Wong, I.P.; Baldock, P.A.; Herzog, H. Gastrointestinal peptides and bone health. Curr. Opin. Endocrinol. Diabetes Obes. 2010, 17, 44–50. [Google Scholar] [CrossRef] [PubMed]
  79. Hill, B.R.; de Souza, M.J.; Wagstaff, D.A.; Williams, N.I. The impact of weight loss on the 24-h profile of circulating peptide YY and its association with 24-h ghrelin in normal weight premenopausal women. Peptides 2013, 49, 81–90. [Google Scholar] [CrossRef] [PubMed]
  80. Verma, P.; Maire, P.; Novak, P. Concatenation of electrochemical grafting with chemical or electrochemical modification for preparing electrodes with specific surface functionality. Electrochim. Acta 2011, 56, 3555–3561. [Google Scholar] [CrossRef]
  81. John, M.; Lila, A.R.; Bandgar, T.; Menon, P.S.; Shah, N.S. Diagnostic efficacy of midnight cortisol and midnight ACTH in the diagnosis and localisation of Cushing’s syndrome. Pituitary 2010, 13, 48–53. [Google Scholar] [CrossRef] [PubMed]
  82. Abad, J.; Vélez, M.; Santamaría, C.; Guisan, J.; Matheus, P.; Vázquez, L.; Gazaryan, I.; Gorton, L.; Gibson, T.; Fernández, V. Immobilization of peroxidase glycoprotein on gold electrodes modified with mixed epoxy-boronic acid monolayers. J. Am. Chem. Soc. 2002, 124, 12845–12853. [Google Scholar] [CrossRef] [PubMed]
  83. Ho, J.A.; Hsu, W.A.; Liao, W.C.; Chiu, J.K.; Chen, M.L.; Chang, H.C.; Li, C.C. Ultrasensitive electrochemical detection of biotin using electrically addressable site-oriented antibody immobilization approach via aminophenyl boronic acid. Biosens. Bioelectron. 2011, 26, 1021–1027. [Google Scholar] [CrossRef] [PubMed]
  84. Lin, M.L.; Lo, M.Y.; Mou, C.Y. PtRu nanoparticles supported on ozone-treated mesoporous carbon thin film as highly active anode materials for direct methanol fuel cells. J. Phys. Chem. C 2009, 113, 16158–16168. [Google Scholar] [CrossRef]
  85. Du, D.; Zou, Z.X.; Shin, Y.S.; Wang, J.; Wu, H.; Engelhard, M.H.; Liu, J.; Aksay, I.A.; Lin, Y.H. Sensitive immunosensor for cancer biomarker based on dual signal amplification strategy of graphene sheets and multienzyme functionalized carbon nanospheres. Anal. Chem. 2010, 82, 2989–2995. [Google Scholar] [CrossRef] [PubMed]
  86. Hu, B.; Wang, K.; Wu, L.; Yu, S.H.; Antonietti, M.; Titirici, M.M. Engineering carbon materials from the hydrothermal carbonization process of biomass. Adv. Mater. 2010, 22, 813–828. [Google Scholar] [CrossRef] [PubMed]
  87. Ensafi, A.A.; Nasr-Esfahani, P.; Heydari-Bafrooei, E.; Rezaei, B. Redox targeting of DNA anchored to MWCNTs and TiO2 nanoparticles dispersed in polydialyldimethylammonium chloride and chitosan. Coll. Surf. B Biointerfaces 2014, 121, 99–105. [Google Scholar] [CrossRef] [PubMed]
  88. Bavykin, D.V.; Milsom, E.V.; Marken, F.; Kim, D.H.; Marsh, D.H.; Riley, J.; Walsh, F.C.; El-Abiary, K.H.; Lapkin, A.A. A novel cation-binding TiO2 nanotube substrate for electro- and bioelectro-catalysis. Electrochem. Commun. 2005, 7, 1050–1058. [Google Scholar] [CrossRef]
  89. Suthaus, J.; Adam, N.; Groetzinger, J.; Scheller, J.; Rose-John, S. Viral interleukin-6: Structure, pathophysiology and strategies of neutralization. Eur. J. Cell Biol. 2011, 90, 495–504. [Google Scholar] [CrossRef] [PubMed]
  90. Ding, H.-S.; Yang, J.; Yang, J.; Ding, J.-W.; Chen, P.; Zhu, P. Interleukin-17 contributes to cardiovascular diseases. Mol. Biol. Rep. 2012, 39, 7473–7478. [Google Scholar] [CrossRef] [PubMed]
  91. Guthrie, G.J.K.; Roxburgh, C.S.D.; Horgan, P.G.; McMillan, D.C. Does interleukin-6 link explain the link between tumour necrosis, local and systemic inflammatory responses and outcome in patients with colorectal cancer? Cancer Treat. Rev. 2013, 39, 89–96. [Google Scholar] [CrossRef] [PubMed]
  92. Li, Q.; Han, Y.; Fei, G.; Ren, T.; Liu, Z. IL-17 promoted metastasis of non-small-cell lung cancer cells. Immunol. Lett. 2012, 148, 144–150. [Google Scholar] [CrossRef] [PubMed]
  93. Giri, B.; Pandey, B.; Neupane, B.; Ligler, F.S. Signal amplification strategies for microfluidic immunoassays. TrAC Trends Anal. Chem. 2016, 79, 326–334. [Google Scholar] [CrossRef]
  94. Bange, A.; Halsall, H.B.; Heinemann, W.R. Microfluidic immunosensor systems. Biosens. Bioelectron. 2005, 20, 2488–2503. [Google Scholar] [CrossRef] [PubMed]
  95. Zhou, F.; Lu, M.; Wang, W.; Bian, Z.-P.; Zhang, J.-R.; Zhu, J.-J. Electrochemical immunosensor for simultaneous detection of dual cardiac markers based on a poly(dimethylsiloxane)-gold nanoparticles composite microfluidic chip: A proof of principle. Clin. Chem. 2010, 56, 1701–1707. [Google Scholar] [CrossRef] [PubMed]
  96. Bruzewicz, D.A.; Reches, M.; Whitesides, G.M. Low-cost printing of poly(dimethylsiloxane) barriers to define microchannels in paper. Anal. Chem. 2008, 80, 3387–3392. [Google Scholar] [CrossRef] [PubMed]
  97. Martinez, W.; Phillips, S.T.; Wiley, B.J.; Gupta, M.; Whitesides, G.M. FLASH: A rapidmethod for prototyping paper-based microfluidic devices. Lab Chip 2008, 8, 2146–2150. [Google Scholar] [CrossRef] [PubMed]
  98. Hasanzadeh, M.; Shadjouc, N. Electrochemical and photoelectrochemical nano-immunosensing using origami paper based method. Mater. Sci. Eng. C 2016, 61, 979–1001. [Google Scholar] [CrossRef] [PubMed]
  99. Li, W.; Li, L.; Ge, S.; Song, X.; Ge, L.; Yan, M.; Yu, J. Multiplex electrochemical origami immunodevice based on cuboid silver-paper electrode and metal ions tagged nanoporous silver–chitosan. Biosens. Bioelectron. 2014, 56, 167–173. [Google Scholar] [CrossRef] [PubMed]
  100. Sun, G; Zhang, L; Zhang, Y; Yang, H; Ma, C; Ge, S; Yan, M; Yu, J; Song, X. Multiplexed enzyme-free electrochemical immunosensor based on ZnO nanorods modified reduced graphene oxide-paper electrode and silver deposition-induced signal amplification strategy. Biosens. Bioelectron. 2015, 71, 30–36. [Google Scholar] [CrossRef] [PubMed]
  101. Zhao, C.; Liu, X. A portable paper-based microfluidic platform for multiplexed electrochemical detection of human immunodeficiency virus and hepatitis C virus antibodies in serum. Biomicrofluidics 2016, 10, 024119. [Google Scholar] [CrossRef] [PubMed]
Figure 1. Multiplexed electrochemical immunoplatform for the simultaneous determination of phosphorylated p53 at Ser392 (phospho-p53392), Ser15 (phospho-p5315), Ser46 (phospho-p5346), and total p53 using electric field-driving and multi-enzyme labeling amplification. Reprinted from Ref. [8] with permission.
Figure 1. Multiplexed electrochemical immunoplatform for the simultaneous determination of phosphorylated p53 at Ser392 (phospho-p53392), Ser15 (phospho-p5315), Ser46 (phospho-p5346), and total p53 using electric field-driving and multi-enzyme labeling amplification. Reprinted from Ref. [8] with permission.
Sensors 17 00965 g001
Figure 2. Scheme of the preparation and functioning of a multiplexed immunosensor for the determination of CEA and AFP involving stripping voltammetry of Ag catalytically deposited by gold nanolabels. Reprinted from Ref. [21] with permission.
Figure 2. Scheme of the preparation and functioning of a multiplexed immunosensor for the determination of CEA and AFP involving stripping voltammetry of Ag catalytically deposited by gold nanolabels. Reprinted from Ref. [21] with permission.
Sensors 17 00965 g002
Figure 3. Schematic display of the disposable dual magnetoimmunosensor prepared for the determination of NT-proBNP and CRP. Reprinted from Ref. [26] with permission.
Figure 3. Schematic display of the disposable dual magnetoimmunosensor prepared for the determination of NT-proBNP and CRP. Reprinted from Ref. [26] with permission.
Sensors 17 00965 g003
Figure 4. Scheme of the different steps involved in the preparation and functioning of the dual GHRL and PYY immunosensors. Reprinted from Ref. [30] with permission.
Figure 4. Scheme of the different steps involved in the preparation and functioning of the dual GHRL and PYY immunosensors. Reprinted from Ref. [30] with permission.
Sensors 17 00965 g004
Figure 5. Schematic illustration of the fundamentals for the preparation of a sandwich-type immunosensor for the simultaneous detection of four cancer biomarkers, CEA, AFP, CA125 and PSA. Inset shows an example of the DPV recorded voltammogram. Modified from Ref. [6] with permission.
Figure 5. Schematic illustration of the fundamentals for the preparation of a sandwich-type immunosensor for the simultaneous detection of four cancer biomarkers, CEA, AFP, CA125 and PSA. Inset shows an example of the DPV recorded voltammogram. Modified from Ref. [6] with permission.
Sensors 17 00965 g005

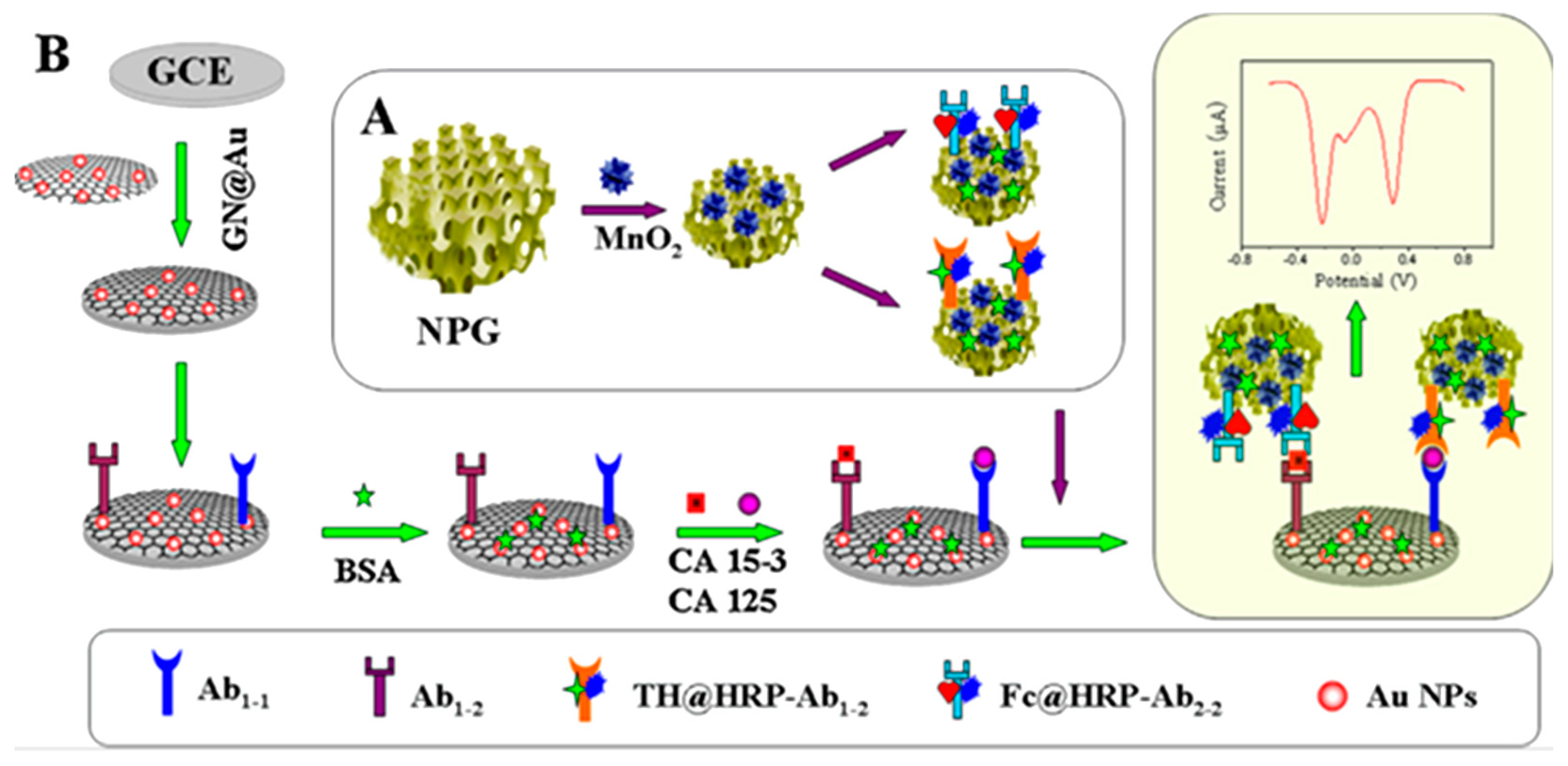

Figure 6. Schematic illustration of the fabrication procedure of the immunosensor developed for CA15-3 and CA125 using NPG-MnO2 and THI or Fc as the redox probes. (A) Functionalization of NPG with cactus-like MnO2; (B) Steps involved in the preparation of the immunosensor. Reprinted from Ref. [37] with permission.
Figure 6. Schematic illustration of the fabrication procedure of the immunosensor developed for CA15-3 and CA125 using NPG-MnO2 and THI or Fc as the redox probes. (A) Functionalization of NPG with cactus-like MnO2; (B) Steps involved in the preparation of the immunosensor. Reprinted from Ref. [37] with permission.
Sensors 17 00965 g006

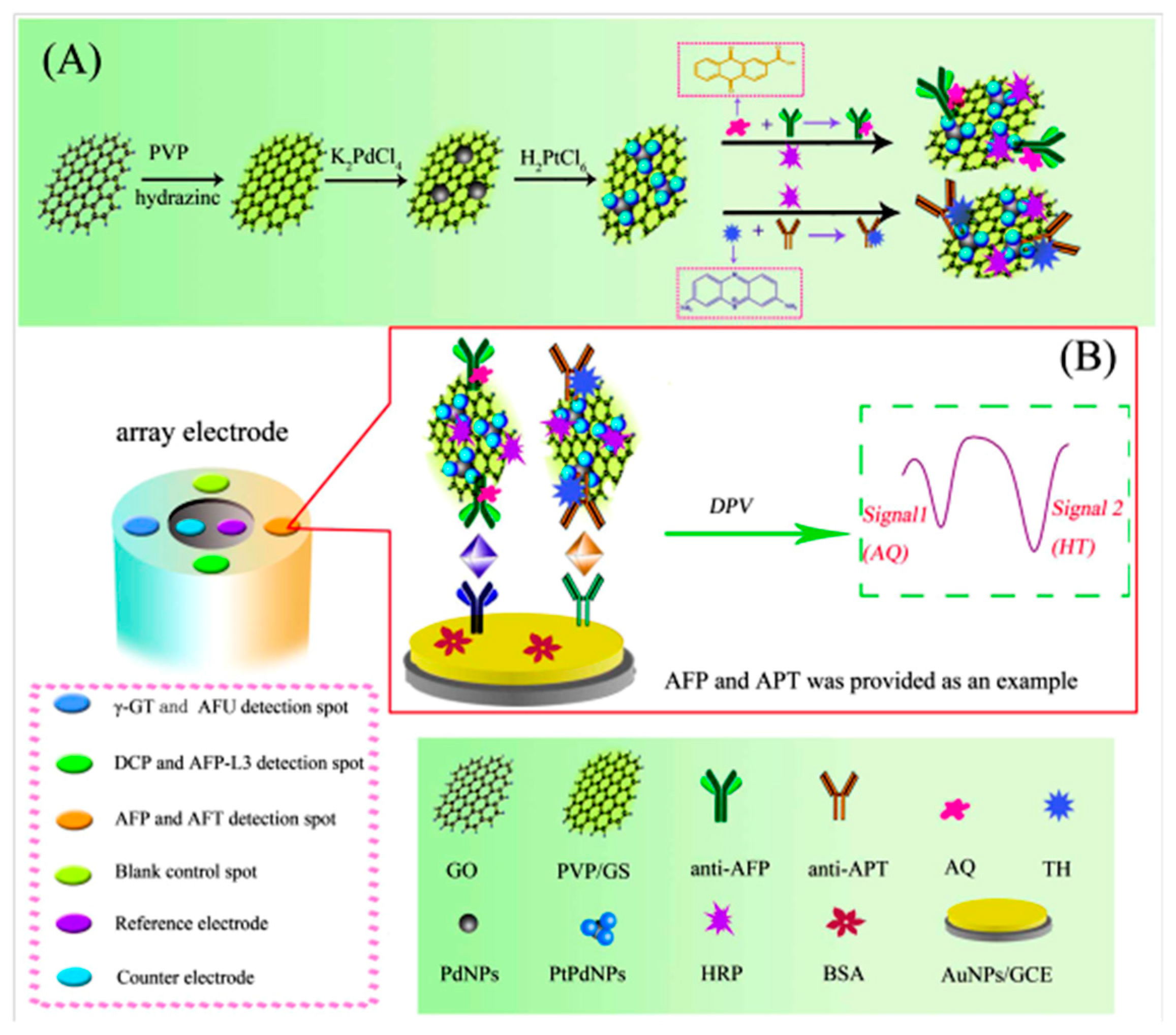

Figure 7. Preparation of HRP/PtPd/GS labeled redox probe branched antibodies (A). (B) Stepwise immunosensor fabrication process and DPV electrochemical responses. Reprinted from Ref. [12] with permission.
Figure 7. Preparation of HRP/PtPd/GS labeled redox probe branched antibodies (A). (B) Stepwise immunosensor fabrication process and DPV electrochemical responses. Reprinted from Ref. [12] with permission.
Sensors 17 00965 g007
Figure 8. Scheme of the multiplexed electrochemical immunosensor for the simultaneous determination of AFP and CEA. Preparation of signal tags (A); preparation of MMIP and capture of AFP and CEA antigens followed by immunocomplexation and electrochemical detection (B). Reprinted from [43] with permission.
Figure 8. Scheme of the multiplexed electrochemical immunosensor for the simultaneous determination of AFP and CEA. Preparation of signal tags (A); preparation of MMIP and capture of AFP and CEA antigens followed by immunocomplexation and electrochemical detection (B). Reprinted from [43] with permission.
Sensors 17 00965 g008
Figure 9. Multiplexed stripping voltammetric immunoassay using dendrimer-metal sulfide QD nanolabels (DE-QD) and tri-functionalized magnetic beads for the simultaneous determination of CA125, CA15-3 and CA19-9 cancer biomarkers: (a) preparation process and (b) measurement principle. Reprinted from [13] with permission.
Figure 9. Multiplexed stripping voltammetric immunoassay using dendrimer-metal sulfide QD nanolabels (DE-QD) and tri-functionalized magnetic beads for the simultaneous determination of CA125, CA15-3 and CA19-9 cancer biomarkers: (a) preparation process and (b) measurement principle. Reprinted from [13] with permission.
Sensors 17 00965 g009
Figure 10. Multiplexed electrochemical immunosensors for detection of CEA and AFP using CNSs coated with AgNPs or AuNPs and THI for immobilization of secondary antibodies. Preparation of immunoprobes (A). Immunosensor fabrication procedure and recorded voltammetric signals (B). Reprinted from [49] with permission.
Figure 10. Multiplexed electrochemical immunosensors for detection of CEA and AFP using CNSs coated with AgNPs or AuNPs and THI for immobilization of secondary antibodies. Preparation of immunoprobes (A). Immunosensor fabrication procedure and recorded voltammetric signals (B). Reprinted from [49] with permission.
Sensors 17 00965 g010
Figure 11. (A) Scheme of the electrochemical immunosensor constructed for the simultaneous determination of IL-6 and IL-17 using two different tags to polystyrene spheres and Cd2+ and Fc as the electroactive labels. (B) SW voltammograms recorded for the simultaneous detection of (a–e) 5, 50, 100, 500 and 1000 pg·mL−1 IL-6 (left) and IL-17 (right). Repinted from Ref. [53] with permission.
Figure 11. (A) Scheme of the electrochemical immunosensor constructed for the simultaneous determination of IL-6 and IL-17 using two different tags to polystyrene spheres and Cd2+ and Fc as the electroactive labels. (B) SW voltammograms recorded for the simultaneous detection of (a–e) 5, 50, 100, 500 and 1000 pg·mL−1 IL-6 (left) and IL-17 (right). Repinted from Ref. [53] with permission.
Sensors 17 00965 g011
Figure 12. Scheme of the multiplexed electrochemical immunoassay for CEA and AFP using magnetic graphene nanosheets with immobilized capture antibodies as immunosensing probes, and multifunctional nanogold hollow microspheres (GHS) with encapsulated HRP-THI and HRP-Fc as distinguishable signal tags. Figure shows also some of the voltammograms recorded. Reprinted from Ref. [17] with permission.
Figure 12. Scheme of the multiplexed electrochemical immunoassay for CEA and AFP using magnetic graphene nanosheets with immobilized capture antibodies as immunosensing probes, and multifunctional nanogold hollow microspheres (GHS) with encapsulated HRP-THI and HRP-Fc as distinguishable signal tags. Figure shows also some of the voltammograms recorded. Reprinted from Ref. [17] with permission.
Sensors 17 00965 g012
Figure 13. Fabrication process of the paper electrode-based immunosensor exemplified for one analyte. Reprinted from Ref. [100] with permission.
Figure 13. Fabrication process of the paper electrode-based immunosensor exemplified for one analyte. Reprinted from Ref. [100] with permission.
Sensors 17 00965 g013
Table 1. Multiplexed electrochemical immunosensors involving electrode arrays.
Table 1. Multiplexed electrochemical immunosensors involving electrode arrays.
ElectrodesLabelAnalyteImmunoassayTechniqueLinear RangeLODSampleRef.
Cancer biomarkers
GA/Chit/SPAuEs (2WEs)Strept/AuNPs/CNHsAFP
Ag deposition
LSASV0.1–1000 pg·mL−10.024 pg·mL−1 AFP
0.032 pg·mL−1 CEA
SPAuEs (4WEs)AuNRs-HRPphospho-p53392
total p53
Sandwich-type; detection of H2O2/THISWV0.01–20 nM p53392
0.05–20 nM p5315
0.1–50 nM p5346
0.05–20 nM total p53
5 pM p53392
20 pM p5315
30 pM p5346
10 pM total p53
carboxylated-SPCEs (16WEs)HRP-MWCNTsPSA
detection of TMB
amperometry5–4000 pg·mL−1 PSA
8–1000 pg·mL−1 IL-8
5 pg·mL−1 PSA
8 pg·mL−1 IL-8
AuNPs film/PDMS (8 × 8 WEs)HRP/AuNRsPSA; PSMA;
detection of H2O2
amperometry0.1–10 ng·mL−1 PSA
0.005–1 ng·mL−1 IL-6
0.8–400 PSMA
0.1 ng·mL−1 PSA
0.005 ng·mL−1 IL-6
0.8 ng·mL−1 PSMA
G/SPCEs (3WEs)M-PtNPsCA125, CA153, CEASandwich-type;
detection of H2O2
DPV0.05–20 U·mL−1 CA125;
0.008–24 U·mL−1 CA153;
0.02–20 24 U·mL−1 CEA
0.002 U·mL−1;
0.001 U·mL−1; 7.0 pg·mL−1
Ag deposition
LSASV0.005–5.0 ng·mL−13.5 pg·mL−1 CEA
3.9 pg·mL−1 AFP
Ag deposition
LSASV0.1–5000 pg·mL−10.093 pg·mL−1 CEA
0.061 pg·mL−1AFP
AuNPs/G/SPCEs (3WEs)AP-AuCs/GCA153, CA125, CEASandwich-type; addition of 3-IP and Ag depositionLSASV0.005–50 U·mL−1 CA 153
0.001–100 U·mL−1 CA 125
0.004–200 U·mL−1 CEA
0.0015 U·mL−1 CA 153
0.00034 U·mL−1 CA 125
0.0012 U·mL−1 CEA
SPCEs (2WEs)Strept-HRPERα
Sandwich-type magnetoimmuno-sensor; detection of H2O2/HQamperometry73–1500 pg·mL−1 (PR)22 pg·mL−1 (PR)cell lysates[24]
Cardiac biomarkers
CNF microE chip (3 × 3)-CRP, cTNI, MbDirect; detection of Fe(CN)64−DPV--serum[25]
HOOC-MBs/SPCEs (2WEs)HRPNT-proBNP CRPCompetitive ( NT-pro BNP); sandwich-type (CRP); detection of H2O2 in presence of TMBamperometry2.5–504 ng·mL−1 NT-proBNP
2–100 ng·mL−1 CRP
0.47 ng·mL−1serum[26]
SiNW array-cTnT, CK-MM, CK-MBDirect assayResistance changes caused by specific binding1 pg·mL−1–10 ng·mL−11 pg·mL−1 (2 μL blood 45 min)blood[27]
Other clinical biomarkers
HOOC-Phe-DWCNTs/SPCEs (2WEs)poly-HRP-StreptIL-1β
detection of H2O2 in the presence of HQ
amperometry0.5–100 pg·mL−1 IL-1β
1–200 pg·mL−1 TNF-α
0.38 pg·mL−1 IL-1β
0.85 pg·mL−1 TNF-α
Au microE chip (8WEs)-IL-1β, IL-10, IL-6Direct; detection of Fe(CN)63−/4−EIS1–15 pg·mL−1--[29]
Sandwich-type; addition of 1-NPPDPV10−3–100 ng·mL−1 GHRL
10−4–10 ng·mL−1 PYY
1.0 pg·mL−1 GHRL
0.02 pg·mL−1 PYY
serum saliva[30]
SPCEs (2WEs)Strept-APcortisol
Sandwich-type; addition of 1-NPPDPV0.1–500 ng·mL−1 cortisol
5.0 × 10−5–0.1 ng·mL−1 ACTH
37 pg·mL−1 cortisol
0.04 pg·mL−1 ACTH
AuNPs/MWCNTs/SPCEs (2WEs)APIgA and IgG type AGA
Sandwich-type; addition of 3-IP and Ag depositioncyclic-ASVup to 100 U mL−12.45 U·mL−1 tTG IgA
2.95 U·mL−1 tTG IgG
Abbreviations: AFP, alpha fetoprotein; AP, alkaline phosphatase; AuNRs, gold nanorods; BSA, bovine serum albumin; CA125, CA153, carbohydrate antigen 123 or 153; CEA, carcinoembryonic antigen; Chit, chitosan; CNF, carbon nanofiber; DPV, differential pulse voltammetry; EIS, electrochemical impedance spectrospocy; ERα, estrogen receptor α; G, graphene; GA, glutaraldehyde; GHRL, ghrelin; hCG, human chorionic gonadotropin; HRP, horse-raddish peroxidase; IL, interleukin; 3-IP, 3-indoxyl phosphate; ITO, indium tin oxide electrode; LSASV, linear sweep-anodinc stripping voltammetry; MPtNPs, mesoporous platinum nanoparticles; 1-NPP, 1-naphthylphosphate; PB, Prussian blue; PDMS, polydimethylsiloxane; PSA, prostate specific antigen; PSMA, prospate specific membrane antigen; PWE, paper working electrode; PYY, peptide YY; rGO, reduced graphene oxide; SPAuEs, screen-printed gold electrodes; SPCEs, screen-printed carbon electrodes; Strept, streptavidin; TB, toluidine blue; TCCRMSs, tryptophan and caffeic acid-based resin; THI, thionine;.TMB, 3,3’,5,5’-tetramethylbenzidine; TNF-α, tumor necrosis factor alfa; WE, working electrode; ZNRs, zinc oxide nanorods.
Table 2. Multiplexed electrochemical immunosensors using barcode configurations.
Table 2. Multiplexed electrochemical immunosensors using barcode configurations.
ElectrodeLabelAnalyteImmunoassayTechniqueLinear RangeLODSampleRef.
Cancer biomarkers
G/Au/GCETHI (or Co or Fc or AQ)-Strept-Biotin-dsDNA/Strept-Biotin-Ab2/AuNPs/SiO2/Fe3O4CEA, CA125, PSA, AFPSandwich-type; direct detection after conjugationDPV0.2–600 pg·mL−1 CEA;
0.2–1000 pg·mL−1 CA125;
0.2–800 pg·mL−1 PSA;
0.2–800 pg·mL−1 AFP
48 fg·mL−1 CEA;
77 fg·mL−1 CA125;
60 fg·mL−1 PSA;
62 fg·mL−1AFP
AuNPs/GCEPVP/GS/PtPdNPs/HRP/AQ PVP/GS/PtPdNPs/HRP/THIAFP, APT; DCP, AFP-L3, γ-GT, AFUSandwich-type; addition of H2O2DPV0.025–5.0 ng·mL−1 AFP;
0.024–9.6 ng·mL−1 APT;
0.032–3.2 UL−1 DCP;
0.024–2.4 ng·mL−1 AFP-L3;
1.0–9.5UL−1 γ-GT;
1.2–9.0 UL−1 AFU
0.008 ng·mL−1 AFP;
0.0082 ng·mL−1 APT;
0.01UL−1 DCP;
0.008 ng·mL−1 AFP-L3;
0.33 UL−1 γ-GT;
0.4 UL−1 AFU
GCE (Hg)PAMAM-CdS (or ZnS, or PbS)CA125
Sandwich-type; direct detection of Cd, Zn and AgSWASV0.01–50 U·mL−10.005 U·mL−1serum[13]
Sandwich-type; reduction of metal ionsDPV0.05–200 ng·mL−10.05 ng·mL−1 AFP
0.002 ng·mL−1 CEA
CEA; AFPSandwich-type; direct detectionDPV0.5–60 ng·mL−10.1 ng·mL−1 (CEA)
0.05 ng·mL−1 (AFP)
CEA; AFPSandwich-type; direct detectionDPV0.05–100 ng·mL−10.02 ng·mL−1 (CEA)
0.03 ng·mL−1 (AFP)
HAG/PANI/rGO/GCEAuNPs/rGO/PB; AuNPs/rGO/PDDA/THICEA; AFPSandwich-type; direct detectionDPV0.6–80 ng·mL−10.12 ng·mL−1 (CEA)
0.08 ng·mL−1 (AFP)
Direct assay after addition of H2O2DPV0.01–50 ng·mL−10.01 ng·mL−1serum[36]
Sandwich-type; addition of H2O2SWV0.01–50 U·mL−13.5 mU·mL−1 (CA-153)
4.1 mU·mL−1(CA-125)
Sandwich; direct detectionDPV0.01–10 ng·mL−14 pg·mL−1 (SCC-Ag)
5 pg·mL−1 (CEA)
Sandwich-type with HRP-Ab2 and H2O2 detectionDPV0.003–40 ng·mL−1 CEA
0.001–60 ng mL−1 AFP
0.8 pg·mL−1 CEA
0.5 pg·mL−1 AFP
Direct detection of of THI or PBSWV0.01–300 ng·mL−10.650 pg·mL−1 CEA
0.885 pg·mL−1 AFP
Direct; detection of TB or PBSWV2–25 ng·mL−10.11 ng·mL−1 CEA
0.08 ng·mL−1 NSE
p5315, p53392Sandwich-type;
detection of metals
SWV1–20 ng·mL−1 (p5315)
0.5–20 ng·mL−1 (p53392)
0.5 ng·mL−1 (p5315)
0.2 ng·mL−1 (p53392)
GCE (Bi)G/AuNPs-r-Apo-Cd
Sandwich-type; detection of metalsSWASV0.001–5 ng·mL−10.3 pg·mL−1 AFP;
0.35 pg·mL−1 CEA
Ag NCs
Sandwich-type; direct detection of Cd and AgSWASV1–250 ng·mL−10.5 fmolleukemiaK562 cells[44]
Sandwich-type; oxidation of metal ionsDPV0.001–150 ng·mL−10.6 pg·mL−1 AFP
0.35 pg·mL−1 HER-2
GCEEnvisionTM-CdS (or PbS or AuNPs)AFP
Sandwich-type; detection of metalsDPASV
0.001–50 ng·mL−1 AFP; CEA;
0.005–100 ng·mL−1 CA19-9
0.02 pg·mL−1 AFP;
0.05 pg·mL−1 CEA;
0.3 pg·mL−1 CA19-9
Sandwich-type; reduction of metal ionsDPV0.01–50 ng·mL−14.6 pg·mL−1 CEA
3.0 pg·mL−1 AFP
Sandwich-type; reduction of metal ionsSWV0.01–60 ng·mL−13.0 pg·mL−1 CEA
4.5 pg·mL−1 AFP
Sandwich-type; direct detectionDPV0.01–80 ng·mL−12.8 pg·mL−1 CEA
3.5 pg·mL−1 AFP
Sandwich-type; direct detectionSWV0.01–100 ng·mL−12.7 pg·mL−1 CEA
4.8 pg·mL−1 PSA
3.1 pg·mL−1 AFP
AuNPs/AuETiO2/Nf- Co(dcbpy)32+
TiO2/Nf- MB
Sandwich-type; direct detectionDPV5–100 U·mL−1 CA15-3
1–100 U·mL−1 CA19-9
0.3 UmL−1 CA15-3
1.6 UmL−1 CA19-9
Sandwich-type; direct detectionDPV0.01–100 ng·mL−10.003 ng·mL−1 AFP
0.006 ng·mL−1 CEA
Sandwich-type; direct detectionSWV1–1000 pg·mL−1 IL-6
2–1000 pg·mL−1 IL-17
0.5 pg·mL−1
1 pg
Protein A/Nafion/GCEGS/AuNPs-THI
(or Cobpy)33+ or Fc)
direct detection
DPV0.016–50 ng·mL−1 AFP
0.010–50 ng·mL−1CEA
0.012–50 ng·mL−1 AFP
5.4 pg·mL−1 AFP
2.8 pg·mL−1 CEA
4.2 pg·mL−1 AFP
Sandwich-type; AA-P additionDPV0.02–10 ng·mL−1 fPSA
0.01–50 ng·mL1 PSA
6.7 pg·mL1
3.4 pg·mL1
MWCNTs/GCEAA liposome
UA liposome
Sandwich-type, direct detectionLSV50–1000 pg·mL−15.0 pg·mL−1 NSE
100 pg·mL−1 ProGRP
AuNPs/IL/rGO/GCECd (or Pb or Cu) AlgNBsAFP
direct detection
DPV0.01–100 ng·mL−10.01 ng·mL−1AFP
0.0086 ng·mL−1CEA
0.0075 ng·mL−1PSA
GCE (Bi)PLL/AuNPs/Cd-Apo (or Pb-Apo)AFP
direct detection
ASSWV0.01–50 ng·mL−14 pg·mL−1serum[58]
Chit/AuNPs/GCEGA/Chit/pAA NSs-Cu2+ (or Cd2+ or Zn2+)CEA
direct detection
SWV0.1–100 ng·mL−1 CEA
1–150 U·mL−1 CA 19-9, CA125,CA242
0.02 ng·mL−1 CEA
0.4 U·mL−1 CA19-9
0.3 U·mL−1 CA125
0.4 U·mL−1 CA242
Abbreviations: AA, ascorbic acid; AA-P, ascorbic acid 2-phosphate; ACTP, apoferritin templated cadmium phosphates; AFP, alpha fetoprotein; AFP-L3, lens culinaris (LCA)-reactive fraction of AFP; AFU, alpha-L-fucosidase; AgNCs, silver nanoclusters; Alg, alginate; Apo, apoferritin; APT, abnormal prothrombin; ATLP, apoferritin templated lead phosphates; AU, uric acid; Bax, Bcl-2 associated X protein; Bcl, B-cell lymphoma; CEA, Chit, chitosan; CGN, carbon-gold nanocomposite; CGS, carboxyl graphene nanosheet; CNS, carbon nanospheres; DCP, des-c-carboxy prothrombin; Fc. ferrocene; fPSA, free-prostate specific antigen; FTO, fluorine-doped tin oxide; G, graphene; γ-GT, γ-glutamyltranspeptidase; GCE, glassy carbon electrode; O-GS, onion-like graphene sheet; HER-2, human epidermal growth factor receptor type-2; HRP, horse-raddish peroxidase; IL, ionic liquid; NPG, nanoporous gold; NSE, neuron-specific enolase; OMC, ordered mesoporous carbon; pAA, polyacrylic acid; PATP, poly(2-aminothiophenol); PB, Prussian blue; PDPMT-Cl, poly(3-(1,1-o-dimethyl-4-piperidine-methylene)thiophene-2,5-diylchloride); PEI, polyethyleneimine; PLL, poly-L-lysine; POPD, poly(o-phenylenediamine); ProGRP, pro-gastrin-releasing peptide; PTCA, 3,4,9,10-perylenetetracarboxylic acid; SS2, streptococcus suis serotype 2; TB, toluidine blue; TCCMRSs, tryptophan and caffeic acid-based resin microspheres; TB, toluidine blue; THI, thionine; UA, uric acid; VFc-ATP, vinyl ferrocene-2-aminothiophenol.

Share and Cite

MDPI and ACS Style

Yáñez-Sedeño, P.; Campuzano, S.; Pingarrón, J.M. Multiplexed Electrochemical Immunosensors for Clinical Biomarkers. Sensors 2017, 17, 965.

AMA Style

Yáñez-Sedeño P, Campuzano S, Pingarrón JM. Multiplexed Electrochemical Immunosensors for Clinical Biomarkers. Sensors. 2017; 17(5):965.

Chicago/Turabian Style

Yáñez-Sedeño, Paloma, Susana Campuzano, and José M. Pingarrón. 2017. "Multiplexed Electrochemical Immunosensors for Clinical Biomarkers" Sensors 17, no. 5: 965.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
