Sensors 2016, 16(8), 1246;

A Fluidically Tunable Metasurface Absorber for Flexible Large-Scale Wireless Ethanol Sensor Applications

School of Electrical and Electronics Engineering, College of Engineering, Chung-Ang University, 221 Heukseok-dong, Dongjak-gu, Seoul 156-756, Korea
Author to whom correspondence should be addressed.
Academic Editors: Amine Miled and Jesse Greener
Received: 13 June 2016 / Revised: 23 July 2016 / Accepted: 2 August 2016 / Published: 6 August 2016
(This article belongs to the Special Issue Microfluidics-Based Microsystem Integration Research)
Full-Text   |   PDF [3804 KB, uploaded 6 August 2016]   |

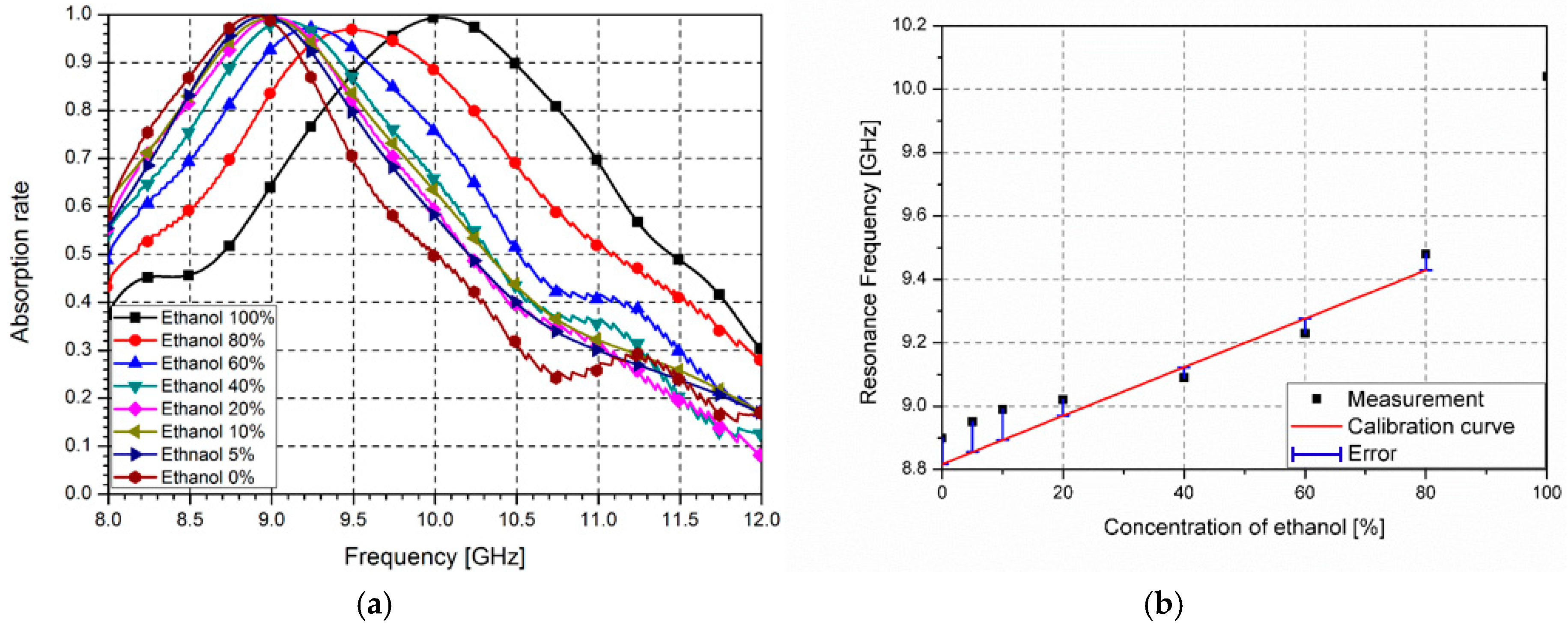

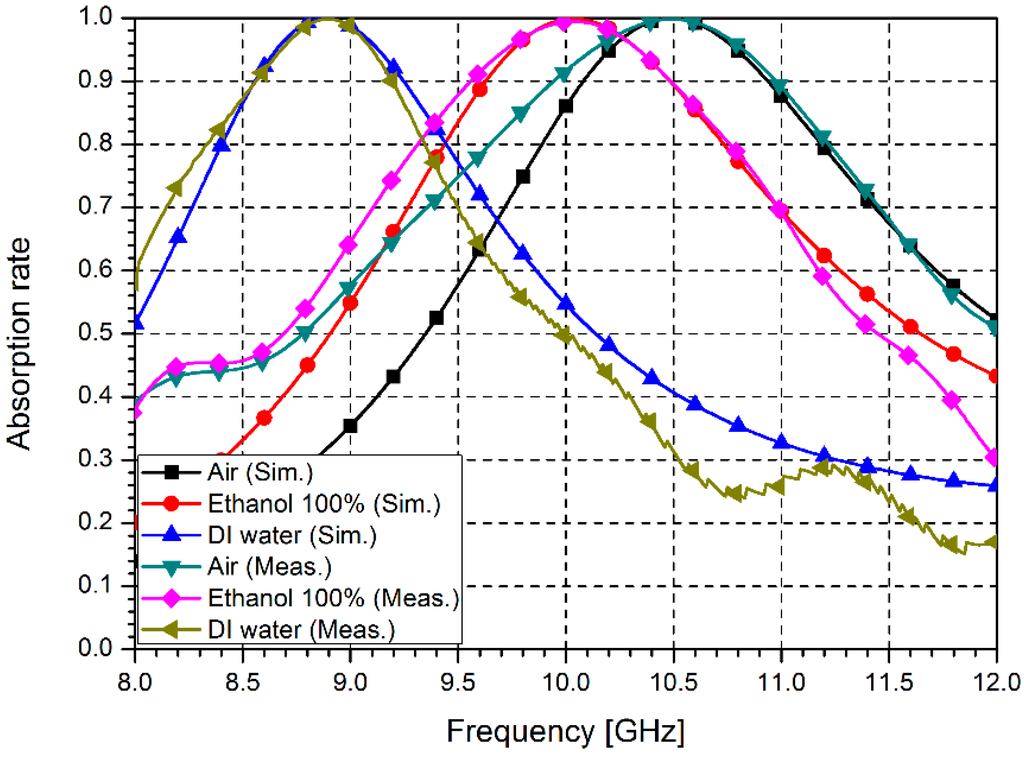

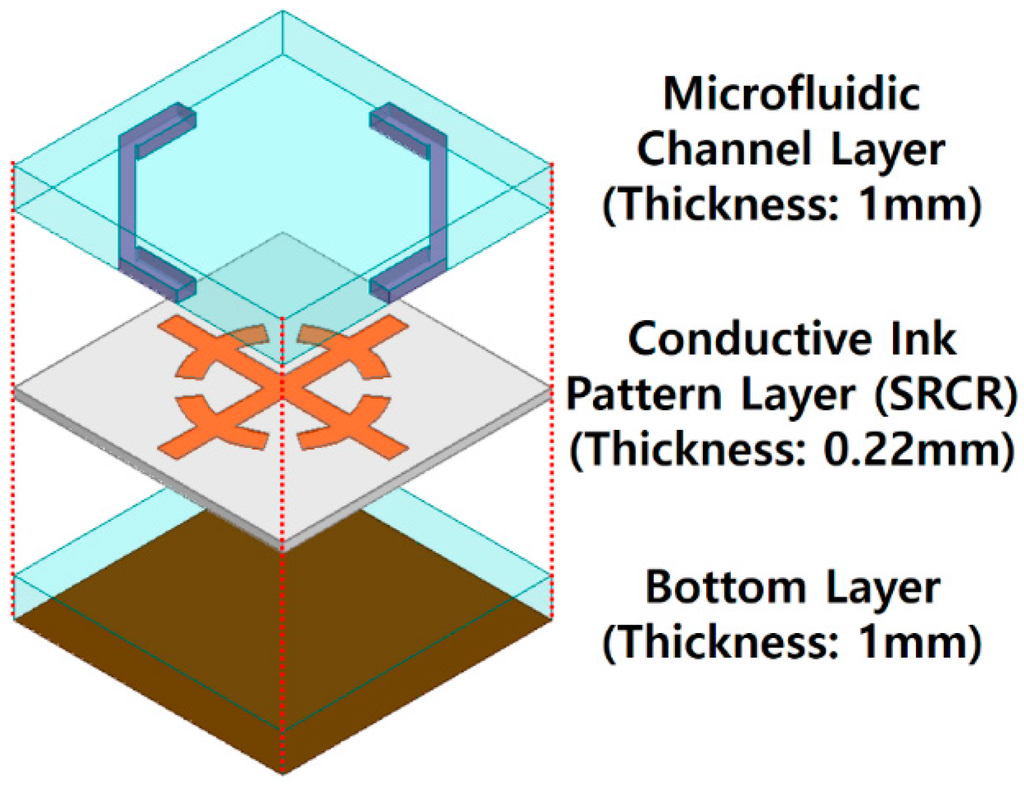

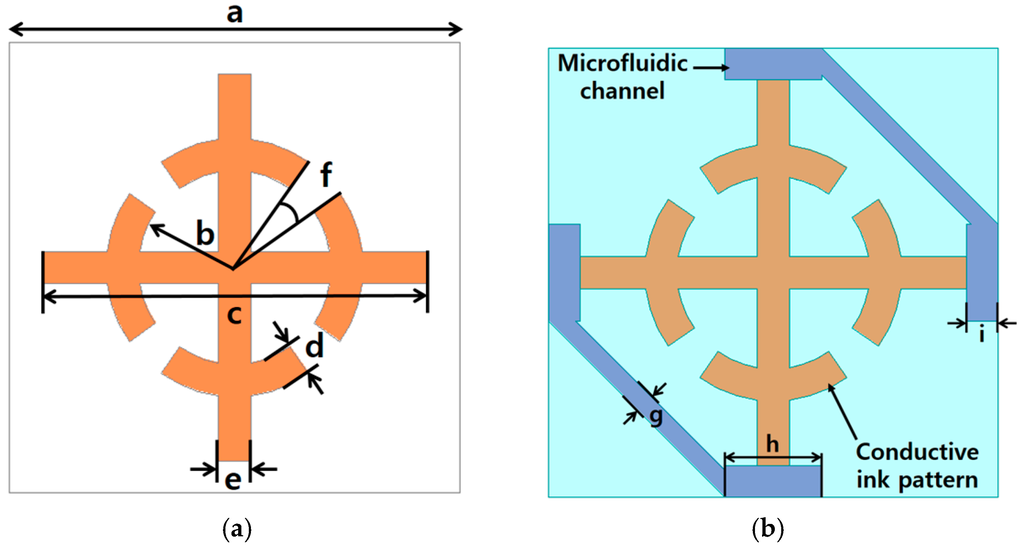

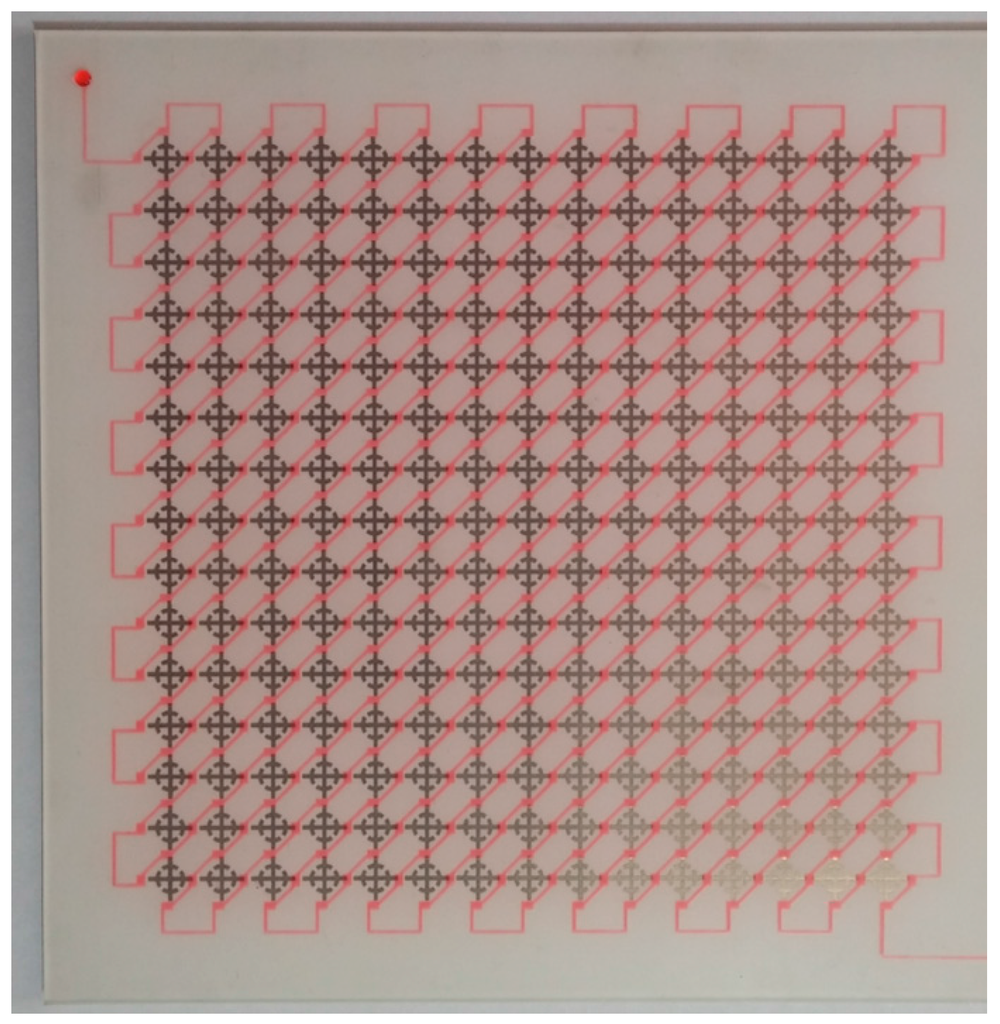

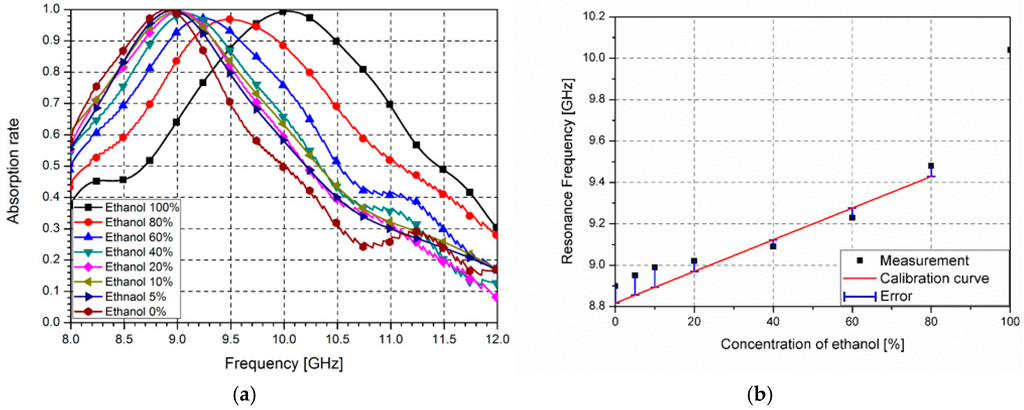

In this paper, a novel flexible tunable metasurface absorber is proposed for large-scale remote ethanol sensor applications. The proposed metasurface absorber consists of periodic split-ring-cross resonators (SRCRs) and microfluidic channels. The SRCR patterns are inkjet-printed on paper using silver nanoparticle inks. The microfluidic channels are laser-etched on polydimethylsiloxane (PDMS) material. The proposed absorber can detect changes in the effective permittivity for different liquids. Therefore, the absorber can be used for a remote chemical sensor by detecting changes in the resonant frequencies. The performance of the proposed absorber is demonstrated with full-wave simulation and measurement results. The experimental results show the resonant frequency increases from 8.9 GHz to 10.04 GHz when the concentration of ethanol is changed from 0% to 100%. In addition, the proposed absorber shows linear frequency shift from 20% to 80% of the different concentrations of ethanol. View Full-Text
Keywords: metamaterial; metasurface; absorber; microfluidics; wireless sensor metamaterial; metasurface; absorber; microfluidics; wireless sensor

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
