Ethyl 11a,12-Dihydrobenzo[b]benzo[5,6][1,4]oxazino[2,3-e][1,4]oxazine-5a(6H)-carboxylate

Abstract

The 11a,12-dihydrobenzo[b]benzo[5,6][1,4]oxazino[2,3-e][1,4]oxazine heterocyclic system has been used in the construction of heteropropellanes, which attracted much attention not only on the possible modification of drugs, but also for novel materials with unusual and important physical properties. In this communication, the reaction of ethyl 2-(hydroxyimino)propanoate 1 with disulfur dichloride and o-aminophenol, which gave ethyl 11a,12-dihydrobenzo[b]benzo[5,6][1,4]oxazino[2,3-e][1,4]oxazine-5a(6H)-carboxylate in moderate yield, was described. The structure of the newly synthesized compound was established by means of elemental analysis, high resolution mass-spectrometry, ¹H, ¹³C NMR and IR spectroscopy, mass-spectrometry and X-ray analysis.

1. Introduction

Disulfur dichloride is a well-known and frequently used sulfurating agent [1,2]. Sometimes it may act as oxidizing agent as well, giving compounds without additional sulfur atoms [3]. It was discovered that by the reaction of substituted acetoximes, including ethyl 2-(hydroxyimino)propanoate, with S₂Cl₂ 4-substituted 1,2,3-dithiazolium salts are formed, which by treatment with oxygen, sulfur and nitrogen nucleophiles afforded 1,2,3-dithiazole 5-ones, 5-thiones and 5-phenylimines, respectively [4]. Recently it was found that, when o-aminophenol was added in the final step, 2-((4-aryl(hetaryl)-5H-1,2,3-dithiazol-5-ylidene)amino)phenols were isolated, although in low yield [5]. Herein, we report the synthesis of previously unknown ethyl 11a,12-dihydrobenzo[b]benzo[5,6][1,4]oxazino[2,3-e][1,4]oxazine-5a(6H)-carboxylate, which unexpectedly formed in the reaction of ethyl 2-(hydroxyimino)propanoate with disulfur dichloride and o-aminophenol.

2. Results and Discussion

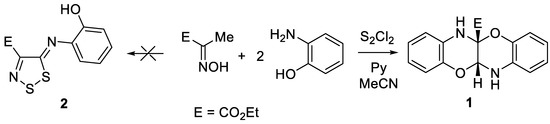

Continuing the study of ethyl 2-(hydroxyimino)propanoate reactivity, it was treated with S₂Cl₂, pyridine in MeCN followed by addition of o-aminophenol. Unexpectedly, a new compound, 1, a yellow solid C₁₇H₁₆N₂O_4, was being formed instead of the expected ethyl 5-((2-hydroxyphenyl)imino)-5H-1,2,3-dithiazole-4-carboxylate, 2. According to NMR, mass and elemental analysis data compound 1 is formally a product in which two aminophenol molecules are cross-linked by two carbon atoms of ethyl 2-(hydroxyimino)propanoate. Structure 1 was finally proven by X-ray analysis as ethyl 11a,12-dihydrobenzo[b]benzo[5,6][1,4]oxazino[2,3-e][1,4]oxazine-5a(6H)-carboxylate (Scheme 1).

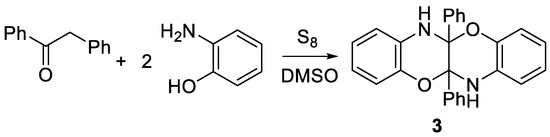

It was assumed that ethyl 2-(hydroxyimino)propanoate may be dezoximated by S₂Cl₂ to ethyl 2-oxopropanoate and then reacted with sulfur containing species, such as S₂Cl₂ or S₈, formed in this reaction, and o-aminophenol to give benzoxazinobenzoxazine 1. Similar transformation was described for 1,2-diphenylethan-1-one oxime (PhCH₂C(O)Ph) with the formation of 5a,11a-diphenyl-5a,6,11a,12-tetrahydrobenzo[b]benzo[5,6][1,4]oxazino[2,3-e][1,4]oxazine 3 (Scheme 2) [6].

We checked this possibility and found that ethyl 2-oxopropanoate did not react with S₂Cl₂ and o-aminophenol. Therefore, the role of ethyl 2-(hydroxyimino)propanoate is crucial for the formation of oxazinooxazine 1, and it is necessary to find another mechanistic explanation for this reaction. So, the mechanism of this transformation is still unclear and requires further investigation.

The structure of oxazinooxazine 1 was confirmed by means of elemental analysis, high resolution mass-spectrometry, ¹H, ¹³C NMR and IR spectroscopy, mass-spectrometry and X-ray analysis (Figure 1) (see Supplementary Materials).

In conclusion, the synthesis of previously unknown ethyl 11a,12-dihydrobenzo[b]benzo[5,6][1,4]oxazino[2,3-e][1,4]oxazine-5a(6H)-carboxylate 1 from ethyl 2-(hydroxyimino)propanoate and disulfur dichloride was developed. The described experimental procedure may serve as an efficient basis for the synthesis of other fused oxazinooxazines. Fused with benzene rings, oxazinooxazines are important heterocyclic scaffold in the construction of heteropropellanes: structurally interesting propeller-like molecules with application in material sciences and medicinal chemistry [7].

3. Experimental Section

3.1. General Information

The solvents and reagents were purchased from commercial sources and used as received. Elemental analysis was performed on a 2400 Elemental Analyzer (Perkin Elmer Inc., Waltham, MA, USA). Melting point was determined on a Kofler hot-stage apparatus and is uncorrected. ¹H were taken with a Bruker AM-300 machine (Bruker AXS Handheld Inc., Kennewick, WA, USA) (at frequencies of 300.1) and ¹³C NMR spectra were taken with a Bruker DRX-500 machine (Bruker AXS Handheld Inc., Kennewick, WA, USA) (125.8 MHz) in DMSO-d₆ solution, with TMS as the standard. J values are given in Hz. MS spectrum (EI, 70 eV) was obtained with a Finnigan MAT INCOS 50 instrument (Hazlet, NJ, USA). IR spectrum was measured with a Bruker “Alpha-T” instrument in KBr pellet. High-resolution MS spectrum was measured on a Bruker micrOTOF II instrument (Bruker Daltonik Gmbh, Bremen, Germany) using electrospray ionization (ESI). The measurement was performed in a positive ion mode (interface capillary voltage: 4500 V) or in a negative ion mode (3200 V); mass range was from m/z 50 to m/z 3000 Da; external or internal calibration was performed with Electrospray Calibrant Solution (Fluka). Syringe injection was used for solutions in acetonitrile, methanol, or water (flow rate 3 L/min^–1). Nitrogen was applied as a dry gas; interface temperature was set at 180 °C.

Crystal structure determination was performed in the Department of Structural Studies of Zelinsky Institute of Organic Chemistry, Moscow. X-ray diffraction data were collected at 100 K on a Bruker Quest D8 diffractometer (Bruker Corporation, Germany) equipped with a Photon-III area-detector (graphite monochromator, shutterless φ- and ω-scan technique), using Mo K_α-radiation (0.71073 Å). The intensity data were integrated by the SAINT program and were corrected for absorption and decay using SADABS [8]. The structure was solved by direct methods using SHELXS-2013 and refined on F² using SHELXL-2018. All non-hydrogen atoms were refined with individual anisotropic displacement parameters. The positions of all hydrogen atoms were found from the electron density-difference map; these atoms were refined with individual isotropic displacement parameters. Cambridge Crystallographic Data Centre contains the supplementary crystallographic data for this paper No. CCDC 2012896. These data can be obtained free of charge via http://www.ccdc.cam.ac.uk/conts/retrieving.html (or from the CCDC, 12 Union Road, Cambridge CB2 1EZ, UK; Fax: +44 1223 336033; E-mail: [email protected]).

3.2. Synthesis of Ethyl 11a,12-Dihydrobenzo[b]benzo[5,6][1,4]oxazino[2,3-e][1,4]oxazine-5a(6H)-carboxylate 1

Pyridine (0.24 mL, 3 mmol) was added dropwise at 0–5 °C to a stirred solution of ethyl 2-(hydroxyimino)propanoate (1 mmol) and sulfur monochloride (0.16 mL, 2 mmol) in acetonitrile (10 mL) under inert atmosphere of argon. The mixture was stirred at 0 °C for 15–40 min. Then o-aminophenol (109 mg, 1 mmol) was added, the mixture was stirred at 0 °C for 30 min, and followed by addition of pyridine (0.16 mL, 2 mmol). The reaction mixture was stirred at room temperature for 2 h; filtered and solvents were evaporated. The residue was separated by column chromatography (Silica gel Merck 60, light petroleum and then light petroleum–CH₂Cl₂ mixtures). Yield 32 mg (11.2%), white crystals, mp 189–191 °C. R_f = 0.56 (CH₂Cl₂). IR (KBr), ν, cm⁻¹: 3405 (N-H), 3360 (N-H), 3058, 2968, 2929, 2861, 1892, 1743, 1601, 1500, 1431, 1305, 1285, 1261, 1228, 1146, 1113, 1051, 998, 967, 931, 884, 832, 782, 750, 703, 611, 578, 537, 507, 460. ¹H NMR (ppm, J/Hz): δ 6.94–6.75 (m, 8H, Ar), 5.51 (br s, 1H), 5.12 (d, 2H, NH, J = 9.17), 4.30–4.23 (m, 2H, CH₂), 1.27 (t, 3H, CH₃, J = 7.15). ¹³C NMR (ppm): δ 166.8, 141.9, 141.4, 128.7, 128.2, 122.6, 122.5, 121.3, 121.1, 117.2, 116.9, 115.6, 115.4, 110.4, 76.5, 63.0, 14.0. MS (EI, 70 Ev), m/z (I, %): 312 (M⁺, 100), 286 (10), 239 (24), 214 (13), 205 (76), 191 (11), 168 (20), 159 (11), 144 (12), 131 (19), 120 (61), 97 (9). HRMS (ESI-TOF): calcd for C₁₇H₁₆N₂O₄ [M + H]⁺ 313.1183; found m/z 313.1186. Anal. calcd. for C₁₇H₁₆N₂O₄: C, 65.38; H, 5.16; N, 8.97; found: C, 65.24; H, 5.02; N, 9.16%.

Crystallographic data are given in

Table 1. Crystal data and structure refinement for compound 1.

Empirical Formula	C17H16N2O4
Formula weight	312.32
Temperature	100(2) K
Wavelength	0.71073 Å
Crystal system	Orthorhombic
Space group	P212121
Unit cell dimensions	a = 5.5972(2) Å b = 15.0183(6) Å c = 16.7717(6) Å
Volume	1409.84(9) Å3
Z	4
Density (calculated)	1.471 g/cm3
Absorption coefficient	0.106 mm−1
F(000)	656
Crystal size	0.59 × 0.10 × 0.09 mm3
Theta range for data collection	2.712 to 33.155°
Reflections collected	34967
Independent reflections	5372 [R(int) = 0.0477]
Completeness to theta = 25.242°	99.8%
Absorption correction	Semi-empirical from equivalents
Max. and min. transmission	0.8499 and 0.8299
Refinement method	Full-matrix least-squares on F2
Data/restraints/parameters	5372/0/272
Goodness-of-fit on F2	1.040
Final R indices [I > 2sigma(I)]	R1 = 0.0345, wR2 = 0.0855
R indices (all data)	R1 = 0.0423, wR2 = 0.0914
Absolute structure parameter	−0.2(3)
Largest diff. peak and hole	0.384 and −0.201 e·Å−3

.
