Facile Synthesis of 2D/2D Ti2C3/ZnIn2S4 Heterostructure for Enhanced Photocatalytic Hydrogen Generation

School of Chemical Sciences & Technology, Yunnan Province Engineering Research Center of Photocatalytic Treatment of Industrial Wastewater, School of Materials and Energy, Yunnan University, Kunming 650091, China
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2023, 24(4), 3936; https://doi.org/10.3390/ijms24043936
Submission received: 2 February 2023 / Revised: 10 February 2023 / Accepted: 13 February 2023 / Published: 15 February 2023

Abstract

:
ZnIn2S4, a novel two-dimensional visible light-responsive photocatalyst, has attracted much attention in the photocatalytic evolution of H2 under visible light irradiation due to its attractive intrinsic photoelectric properties and geometric configuration. However, ZnIn2S4 still has severe charge recombination, which results in moderate photocatalytic performance. Herein, we report the successful synthesis of 2D/2D ZnIn2S4/Ti3C2 nanocomposites by a facile one-step hydrothermal method. The efficiency of the nanocomposites in photocatalytic hydrogen evolution under visible light irradiation was also evaluated for different ratios of Ti3C2, and the optimal photocatalytic activity was achieved at 5% Ti3C2. Importantly, the activity was significantly higher than that of pure ZnIn2S4, ZnIn2S4/Pt, and ZnIn2S4/graphene. The enhanced photocatalytic activity is mainly due to the close interfacial contact between Ti3C2 and ZnIn2S4 nanosheets, which amplifies the transport of photogenerated electrons and enhances the separation of photogenerated carriers. This research describes a novel approach for the synthesis of 2D MXenes for photocatalytic hydrogen production and expands the utility of MXene composite materials in the fields of energy storage and conversion.

1. Introduction

As a kind of sustainable clean energy, hydrogen energy has great application potential in solving the problem of energy shortage. Fujishima and Honda were the first to split water into H2 and O2 via a titania (TiO2) electrode in 1972 [1]. Since then, semiconductor photocatalytic hydrogen production has been purposefully pursued due to its potential applications in the production of clean hydrogen energy [2,3]. However, the application of photocatalysis is limited by the absorption of sunlight, the efficiency of charge separation, and the interfacial catalytic reaction [4].
One strategy to improve the photocatalytic activity is through the development and use of two-dimensional (2D) nanocrystallization of semiconductor photocatalytic materials. These materials offer larger specific surface area with more active sites, while the ultra-thin nano layer can shorten the carrier transport distance and facilitate its migration to the catalyst surface. ZnIn2S4 is a promising photocatalytic H2 generation photocatalyst due to its desirable band gap in the visible light region [5,6]. In general, ZnIn2S4 shows two different crystal phases of hexagonal lattice and cubic lattice. A large number of previous reports indicated that hexagonal phases had better stability and higher photocatalytic activity. Most often, flake structures have been observed in the morphology of hexagonal ZnIn2S4 due to the stacking of S-Zn-S-In-S-In-S layers [7,8,9,10]. Advantageously, the unique structure of 2D ZnIn2S4 nanosheets decreases the diffusion distance of electrons and improves the separation of photoinduced charges, while a large number of exposed surface atoms can provide rich active sites [11].
However, due to the low separation efficiency and migration capacity of photoexcited charge carriers, the photocatalytic activity of pure ZnIn2S4 is insufficient [12,13]. Over the years, numerous efforts have been made to improve ZnIn2S4, such as doping with metal ions [14,15], combination with semiconductor [16], construction of heterojunction [17], coupling cocatalyst [18], etc. The construction of 2D/2D heterostructures can form more charge transfer channels, which is conducive to the spatial separation and migration of carriers [19,20]. Therefore, the assembly of new heterostructures is considered an effective strategy to improve the photocatalytic performance of ZnIn2S4.
Ti3C2 MXene, as a new 2D material, has attracted extensive attention in photocatalysis because of its special metallic conductivity. Ti3C2 is rich in hydrophilic functional groups (-OH, -O, -F) on the surface, which is favorable for composites with semiconductor photocatalytic materials. A sufficiently positive Fermi level (0.71 eV vs. NHE) of Ti3C2 is conducive to the transfer of photoelectrons from semiconductors to Ti3C2, as well as the effective separation of electron–hole pairs. Recently, it has been reported that ZnIn2S4 nanosheets were grown in situ on Ti3C2 nanosheets to form a sandwich-like hierarchical heterostructure [21]. The unique hierarchical structure confers the system with superior photoexcited charge transport ability, which further accelerates photoexcited charge separation.
In this study, 2D/2D ZnIn2S4/Ti3C2 nanocomposites were successfully prepared by a simple one-step hydrothermal method, and the photocatalytic performance of the composites with different ratios of Ti3C2 was evaluated in the visible light region. The photocatalytic activity reached the maximum for a mass ratio of 5% Ti3C2, and it was significantly higher than that of pure ZnIn2S4, ZnIn2S4/Pt, and ZnIn2S4/graphene. The enhanced photocatalytic activity is mainly due to the close interfacial contact between Ti3C2 and ZnIn2S4 nanosheets, which accelerates the transport of photoelectrons and increases the separation of photogenerated carriers.

2. Results

2.1. Characterizations

XRD was used to determine the crystalline phases of the samples, as shown in Figure 1. Notably, the largest diffraction peak for the (104) plane of Ti3AlC2, which was at 39.0°, disappeared after HF treatment, indicating the removal of Al layers of Ti3AlC2 [22]. In addition, the diffraction peaks of the (002) plane at 9.4° and the (004) plane at 19.1° shifted to lower degrees and become broader, which was ascribed to increase in the interlayer spacing of Ti3C2 [23]. This can also be evidenced by SEM images of Ti3C2 (Figure 2b). Compared with Ti3AlC2 (Figure 2a), Ti3C2 has an obviously layered microstructure. These results confirmed the successful transformation of Ti3AlC2 into layered Ti3C2.
ZnIn2S4/Ti3C2 nanocomposites were synthesized via a facile one-step hydrothermal method. The mass ratio of ZnIn2S4 to Ti3C2 was varied to determine the optimal composition, and mass ratios of 2 wt.%, 5 wt.%, 10 wt.%, 20 wt.%, and 50 wt.% corresponded to samples ZIST-2, ZIST-5, ZIST-10, ZIST-20, and ZIST-50, respectively. Figure 3 presents the XRD patterns of ZnIn2S4/Ti3C2 composites with different Ti3C2 content, and the ZnIn2S4/Ti3C2 composites had similar diffraction peaks to that of hexagonal ZnIn2S4 [18]. In addition, no obvious diffraction peaks of Ti3C2 were found in the XRD patterns of the composites, indicating the limited amount and weak diffraction intensity of Ti3C2. Meanwhile, no diffraction peak of TiO2 was found, which suggested Ti3C2 will not transform into TiO2 at 150 °C. Therefore, the temperature for sample synthesis is feasible in this work.
SEM and TEM were used to observe the morphologies of the samples. The pure ZnIn2S4 had a 3D hierarchical flower-like structure self-assembled by 2D nanosheets (Figure 4) according to previous reports [24,25]. The SEM images of ZnIn2S4/Ti3C2 composites (ZIST-5) showed ultrathin nanosheets of ZnIn2S4 densely populating the surface of the layered Ti3C2 (Figure 5a). It can be clearly observed that ZnIn2S4 is an outer layer closely attached to the of surface Ti3C2, which is the inner layer in Figure 5b. Ti3C2 retains an integrated lamellar structure in the TEM images (Figure 5c) of ZnIn2S4/Ti3C2. Lattice spacing of 0.32 nm and lattice fringes of 0.26 nm were determined in the HRTEM image of ZnIn2S4/Ti3C2, corresponding to the (102) plane of hexagonal ZnIn2S4 [18] and the (010) plane of Ti3C2, respectively [26]. These results indicate that ZnIn2S4 nanosheets were anchored on Ti3C2 rather than simply mixed.
Next, the surface chemistry of the photocatalyst was investigated by XPS. As shown in Figure 6, a weak signal was observed in the Ti 2p spectrum of ZIST-5, which is mainly due to the existence of Ti3C2 in the inner layer of the sample and its content is too low. With the increase in Ti3C2 content, the Ti 2p signal becomes stronger. When the mass ratio of Ti3C2 reaches 50% of ZnIn2S4 (ZIST-50), four peaks at 454.9, 459.2, 461.8, and 464.8 eV were observed in the Ti 2p spectrum, correlating with Ti-O 2p1/2, Ti-C 2p1/2, Ti-O 2p3/2, and Ti-C 2p3/2, respectively [27]. Ti-O is unlikely to be attributable to TiO2, because it can be seen from XRD that Ti3C2 will not transform into TiO2 under the reaction conditions of preparing ZnIn2S4/Ti3C2. Ti-O is formed during the preparation of Ti3C2 due to the substitution of O or OH for Tx in Ti3C2Tx [28]. Consistent with the Ti 2p spectrum, the C1s peak at 281.6 eV was assigned to Ti-C, and its intensity increased with increasing Ti3C2 content (Figure 7). Moreover, compared with pure ZnIn2S4, the Zn 2p and In 3d peaks in the XPS spectra of ZnIn2S4/Ti3C2 shifted towards higher binding energies, while the S 2p peak shifted to lower binding energy. These changes suggest a strong electronic interaction between Ti3C2 and ZnIn2S4 (Figure 8, Figure 9 and Figure 10).
DRS was used to measure the light harvesting capability of the photocatalyst samples. A clear red shift was exhibited for the ZnIn2S4/Ti3C2 nanocomposites, and their absorption in the visible light region was significantly enhanced compared with pure ZnIn2S4 (Figure 11). As the Ti3C2 content increased, the absorption intensity of ZnIn2S4/Ti3C2 gradually increased due to the full-spectrum absorption of dark Ti3C2 [23]. Because of the high efficiency of photothermal conversion of Ti3C2 [22], it is possible to activate the catalyst by converting the light energy into heat to promote the surface catalytic reaction [29].

2.2. Photocatalytic Activity

The photocatalytic performance of the samples was measured according to the hydrogen evolution from water under visible light irradiation (>420 nm). As expected, a significant enhancement in the photocatalytic activity for hydrogen evolution was observed upon loading of a small amount of Ti3C2 (Figure 12). When the mass ratio of Ti3C2 reaches 5% (ZIST-5), the best photocatalytic activity is obtained (2.6 mmol·g−1·h−1). However, with the further increase in Ti3C2 content, the photocatalytic activity gradually decreased. This may be due to an excess of Ti3C2 causing the composite materials to become too conductive. The result is the depression in charge separation efficiency over the composite [30]. In addition, the presence of Ti3C2 with a large amount of dark will also have a shading effect, which is not conducive to the light absorption of composite materials. In addition, the recyclability of ZIST-5 for photocatalytic hydrogen production was also evaluated. The cycling experiments show that the yield of hydrogen could still reach 2.4 mmol·g−1·h−1 after four cycles (Figure 13a). The XRD spectra show that the crystal structure of the recovered catalyst remains intact except for some weakening of crystallinity, indicating that it has excellent stability. For a comparison, the same proportions of Pt and graphene (5 wt.%) were loaded on ZnIn2S4, respectively. Under the same experimental conditions, ZnIn2S4/Pt and ZnIn2S4/graphene showed lower photocatalytic activities of 1.3 mmol·g−1·h−1 and 1.0 mmol·g−1·h−1 than of ZIST-5, respectively (Figure 14). These results indicate that ZIST-5 is a promising photocatalyst for photocatalytic hydrogen production.

3. Discussion

3.1. The Photoluminescence Spectra and Electrochemical Impedance Spectra

In order to further comprehend the role of Ti3C2 in improving the photocatalytic activity of ZnIn2S4, the photoluminescence (PL) spectra and electrochemical impedance spectra (EIS) were recorded. PL emission is generated by the recombination of electrons and holes; therefore, lower PL intensity indicates higher separation efficiency of photo-generated electron–hole pairs [30]. As shown in Figure 15, the PL spectra show that the main emission peaks of ZnIn2S4 and ZIST-5 appear at 537 nm, while the intensity of the emission peak of ZIST-5 is much weaker than that of ZnIn2S4. This suggests the heterogeneous junction formed between Ti3C2 and ZnIn2S4 can enhance the efficiency of photogenerated electron and hole separation. In photocurrent response spectra (Figure 16), ZIST-5 showed a higher photocurrent than ZnIn2S4 and, thus, more efficient separation and transportation of photoinduced charge carriers [31]. In the EIS Nyquist plot, a smaller arc radius indicates lower charge transfer resistance at the electrode surface and higher separation efficiency for electron–hole pairs [32]. In Figure 17, the arc radius of ZIST-5 is a little less than that of pure ZnIn2S4 in the darkness, suggesting that ZIST-5 has more effective separation of photogenerated charges. Under visible light irradiation, the arc radius of ZIST-5 and ZnIn2S4 significantly decreases compared with that of darkness, and ZIST-5 decreases more than that of ZnIn2S4. These results show that in ZIST-5, Ti3C2 acts as an electron acceptor to capture photoelectrons produced by ZnIn2S4 due to its good electrical conductivity. Moreover, it can increase the photocatalytic activity by effectively inhibiting photoinduced carrier recombination.

3.2. The Photocatalytic Mechanism

Based on the findings presented above, we propose the possible mechanism of the photocatalytic reaction for this system as shown in Scheme 1. Upon visible light irradiation, electrons (e) are excited from the valence band (VB) to the conduction band (CB) of the ZnIn2S4 semiconductor, creating holes (h+) in the VB. Electrons are transferred to the Ti3C2 nanosheets and accumulate. These electrons can effectively reduce H2O (or H+) to produce H2, and the accumulated (h+) in the VB of ZnIn2S4 react with S2−/SO32− as a regenerative reagent. The presence of Ti3C2 can serve as an excellent electron acceptor and mediator, with effective separation of holes and electrons. This results in a significant improvement in the photocatalytic activity.

4. Materials and Methods

4.1. Synthesis of Samples

All reagents were of analytical grade and used without further purification. Ti3AlC2 powder (>98 wt.% purity) was purchased from Beijing Lianli New Technology Co., Ltd., Beijing, China. By etching the Al layer of Ti3AlC2 with HF solution, Ti3C2 was obtained. In brief, 1 g Ti3AlC2 powder was slowly combined with 30 mL HF solution (content ≥ 40 wt.%, Xilong Chemical Co., Ltd., Shantou, China), and the mixture was stirred at room temperature for 72 h. The suspension was filtered and washed with deionized water several times, until neutral pH was achieved. The obtained Ti3C2 was dried under vacuum at 60 °C for 2 h.
Next, a hydrothermal reaction was employed to prepare the ZnIn2S4/Ti3C2 nanocomposites. An appropriate amount of Ti3C2 was dispersed in 70 mL of water by ultrasonication. To the Ti3C2 dispersion, ZnCl2 (0.136 g, 1 mmol, Tianjin Fengchuan Chemical Reagent Technology Co. Ltd., Tianjing, China) and excess L-cysteine were added, and the mixture was ultrasonicated. Subsequently, InCl3·4H2O (0.586 g, 2 mmol., Adamas Reagent Co. Ltd., Beijing, China) and thioacetamide (TAA, 0.300 g, 4 mmol., Sinopharm Chemical Reagent Co., Ltd., Shanghai, China) were added, and the solution was transferred to a 100 mL Teflon liner, sealed in a stainless steel autoclave, and heated at 150 °C for 5 h. The product was collected by centrifugation, washed several times with de-ionized water, and dried under vacuum at 60 °C for 12 h. The mass ratio of ZnIn2S4 to Ti3C2 was varied to determine the optimal composition, and mass ratios of 2 wt.%, 5 wt.%, 10 wt.%, 20 wt.%, and 50 wt.% corresponded to samples ZIST-2, ZIST-5, ZIST-10, ZIST-20, and ZIST-50, respectively.

4.2. Characterizations

Powder X-ray diffraction (XRD) data were collected using a Rigaku TTRAX III X-ray diffractometer (Rigaku D/max-3B, Tokyo, Japan) with Cu Kα radiation. A field emission scanning electron microscope (SEM) (FEIQuanta200FEG microscope, FEI, Eindhoven, The Netherlands) was used to examine the morphology of the sample. Transmission electron microscopy (TEM) and high-resolution transmission electron microscopy (HRTEM) images were obtained on a JEM-2100 microscope (JEOL, Tokyo, Japan). X-ray photoelectron spectroscopy (XPS) was performed on a K-Alpha XPS system (Thermo Fisher Scientific, Waltham, MA, USA) with a monochromatic Al Kα source. A Shimadzu UV-2600 photometer was used to record the UV–vis diffuse reflectance spectra (UV-vis DRS, Shimadzu, Kyoto, Japan), using BaSO4 as a reflectance standard. A PGSTAT 302N electrochemical analyzer (Metrohm, Herisau, Switzerland) was used to record the photocurrent response spectra and electrochemical impedance spectra (EIS) in a standard three-electrode system. The prepared samples were used as the working electrodes with an active area of ca. 0.25 cm2 on ITO conductive glass. Pt wire was the counter electrode, a standard calomel electrode was used as the reference electrode, and 0.5 M Na2SO4 aqueous solution was used as the electrolyte. A F-7000 fluorescence spectrophotometer (Hitachi, Tokyo, Japan) was used to record the photoluminescence (PL) spectra of powder samples at an excitation wavelength of 325 nm.

4.3. Photocatalytic H2 Generation

Photocatalytic H2 evolution experiments were conducted in a closed gas circulation and evacuation system fitted with a Pyrex glass window (LABSOLAR-H2I, Beijing Perfectlight Technology Co., Ltd., Beijing, China). In 100 mL of a mixed aqueous solution containing 0.05 M Na2SO3 (Xilong Scientific Co., Ltd., Shantou, China) and 0.05 M Na2S (Xilong Scientific Co., Ltd., Shantou, China), 20 mg of photocatalyst was suspended, and the suspension was irradiated with a 300 W Xe lamp (CEL-HXF300, China Education Au-light Co. Ltd., Beijing, China) equipped with a 420 nm cut-off filter. Using a circulating water bath, the solution was maintained at room temperature during the reaction. The concentration of H2 was directly detected by an on-line gas chromatograph (GC-9750, Chengdu Fuli Instrument Co., Ltd., Chengdu, China) equipped with a thermal conductivity detector (TCD).

5. Conclusions

In conclusion, a facile hydrothermal method was employed for the successful preparation of 2D/2D ZnIn2S4/Ti3C2 composite photocatalysts. The 2D/2D ZnIn2S4/Ti3C2 heterostructures showed excellent interface activity, ideal photoresponsivity properties, and high photogenerated carrier mobility. Our findings suggest Ti3C2 MXene has a unique synergistic effect on photocatalytic hydrogen production due to its unique two-dimensional structure, fast carrier migration rate, and ideal interfacial effect. The separation of photogenerated carriers and the transfer of photoelectrons to MXene nanosheets were significantly promoted by the incorporation of the heterojunction between ZnIn2S4 and Ti3C2. As a result, we observed a significant improvement in the photocatalytic activity. This work provides a novel synthetic method for the preparation of 2D MXene composite photocatalytic materials and expands the utility of these materials to energy storage and conversion applications.

Author Contributions

Conceptualization, Y.C. and J.W.; methodology, Y.G.; validation, C.W. and H.T.; formal analysis, L.J. and X.L.; data curation, X.L.; writing—original draft preparation, Y.C.; writing—review and editing, Y.C. and J.H.; project administration, Z.Y.; funding acquisition, Y.C. and J.W. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China (21773204, 22062026, 22062024), Yunnan Applied Basic Research Projects (202201AS070003, 202101AT070017), and the Yunnan High-Level Talents Training Support Program (YNWR-QNBJ-2020-093, YNWR-YLXZ-2019-002).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data available on request.

Acknowledgments

The authors thank the Advanced Analysis and Measurement Center of Yunnan University for the sample characterization.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Fujishima, A.; Honda, K. Electrochemical Photolysis of Water at a Semiconductor Electrode. Nature 1972, 238, 37–38. [Google Scholar] [CrossRef]
  2. Zhang, S.; Liu, Z.; Yan, W.; Guo, Z.; Ruan, M. Decorating non-noble metal plasmonic Al on a TiO2/Cu2O photoanode to boost performance in photoelectrochemical water splitting. Chin. J. Catal. 2020, 41, 1884–1893. [Google Scholar] [CrossRef]
  3. Liu, Z.; Wang, X. Efficient photoelectrochemical water splitting of CaBi6O10 decorated with Cu2O and NiOOH for improved photogenerated carriers. Int. J. Hydrogen Energy 2018, 43, 13276–13283. [Google Scholar] [CrossRef]
  4. Fang, G.; Liu, Z.; Han, C. Enhancing the PEC water splitting performance of BiVO4 co-modifying with NiFeOOH and Co-Pi double layer cocatalysts. Appl. Surf. Sci. 2020, 515, 146095. [Google Scholar] [CrossRef]
  5. Chen, Y.; Ge, H.; Wei, L.; Li, Z.; Yuan, R.; Liu, P.; Fu, X. Reduction degree of reduced graphene oxide (RGO) dependence of photocatalytic hydrogen evolution performance over RGO/ZnIn2S4 nanocomposites. Catal. Sci. Technol. 2013, 3, 1712–1717. [Google Scholar] [CrossRef]
  6. Wei, L.; Chen, Y.; Lin, Y.; Wu, H.; Yuan, R.; Li, Z. MoS2 as non-noble-metal co-catalyst for photocatalytic hydrogen evolution over hexagonal ZnIn2S4 under visible light irradiations. Appl. Catal. B 2014, 144, 521–527. [Google Scholar] [CrossRef]
  7. Shang, L.; Zhou, C.; Bian, T.; Yu, H.; Wu, L.-Z.; Tung, C.-H.; Zhang, T. Facile synthesis of hierarchical ZnIn2S4 submicrospheres composed of ultrathin mesoporous nanosheets as a highly efficient visible-light-driven photocatalyst for H2 production. J. Mater. Chem. A 2013, 1, 4552–4558. [Google Scholar] [CrossRef]
  8. Fang, F.; Chen, L.; Chen, Y.-B.; Wu, L.-M. Synthesis and Photocatalysis of ZnIn2S4 Nano/Micropeony. J. Phys. Chem. C 2010, 114, 2393–2397. [Google Scholar] [CrossRef]
  9. Huang, J.; Cheuk, W.; Wu, Y.; Lee, F.S.C.; Ho, W. Template-free synthesis of ternary sulfides submicrospheres as visible light photocatalysts by ultrasonic spray pyrolysis. Catal. Sci. Technol. 2012, 2, 1825–1827. [Google Scholar] [CrossRef]
  10. Chen, Z.; Li, D.; Zhang, W.; Chen, C.; Li, W.; Sun, M.; He, Y.; Fu, X. Low-Temperature and Template-Free Synthesis of ZnIn2S4 Microspheres. Inorg. Chem. 2008, 47, 9766–9772. [Google Scholar] [CrossRef]
  11. Yang, M.-Q.; Xu, Y.-J.; Lu, W.; Zeng, K.; Zhu, H.; Xu, Q.-H.; Ho, G.W. Self-surface charge exfoliation and electrostatically coordinated 2D hetero-layered hybrids. Nat. Commun. 2017, 8, 14224. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Shen, S.; Zhao, L.; Guo, L. Morphology, structure and photocatalytic performance of ZnIn2S4 synthesized via a solvothermal/hydrothermal route in different solvents. J. Phys. Chem. Solids 2008, 69, 2426–2432. [Google Scholar] [CrossRef]
  13. Bai, X.; Li, J. Photocatalytic hydrogen generation over porous ZnIn2S4 microspheres synthesized via a CPBr-assisted hydrothermal method. Mater. Res. Bull. 2011, 46, 1028–1034. [Google Scholar] [CrossRef]
  14. Shen, S.; Zhao, L.; Zhou, Z.; Guo, L. Enhanced Photocatalytic Hydrogen Evolution over Cu-Doped ZnIn2S4 under Visible Light Irradiation. J. Phys. Chem. C 2008, 112, 16148–16155. [Google Scholar] [CrossRef]
  15. Shen, S.; Zhao, L.; Guan, X.; Guo, L. Improving visible-light photocatalytic activity for hydrogen evolution over ZnIn2S4: A case study of alkaline-earth metal doping. J. Phys. Chem. Solids 2012, 73, 79–83. [Google Scholar] [CrossRef]
  16. Wang, Y.; Kong, X.; Jiang, M.; Zhang, F.; Lei, X. A Z-scheme ZnIn2S4/Nb2O5 nanocomposite: Constructed and used as an efficient bifunctional photocatalyst for H2 evolution and oxidation of 5-hydroxymethylfurfural. Inorg. Chem. Front. 2020, 7, 437–446. [Google Scholar] [CrossRef]
  17. Dang, X.; Xie, M.; Dai, F.; Guo, J.; Liu, J.; Lu, X. The in situ construction of ZnIn2S4/CdIn2S4 2D/3D nano hetero-structure for an enhanced visible-light-driven hydrogen production. J. Mater. Chem. A 2021, 9, 14888–14896. [Google Scholar] [CrossRef]
  18. Hao, M.; Deng, X.; Xu, L.; Li, Z. Noble metal Free MoS2/ZnIn2S4 nanocomposite for acceptorless photocatalytic semi-dehydrogenation of 1,2,3,4-tetrahydroisoquinoline to produce 3,4-dihydroisoquinoline. Appl. Catal. B 2019, 252, 18–23. [Google Scholar] [CrossRef]
  19. Zhao, Q.; Liu, Z.; Li, J.; Yan, W.; Ya, J.; Wu, X. Piezoelectric polarization assisted WO3/CdS photoanode improved carrier separation efficiency via CdS phase regulation. Int. J. Hydrogen Energy 2021, 46, 36113–36123. [Google Scholar] [CrossRef]
  20. Li, Y.; Liu, Z.; Li, J.; Ruan, M.; Guo, Z. An effective strategy of constructing a multi-junction structure by integrating a heterojunction and a homojunction to promote the charge separation and transfer efficiency of WO3. J. Mater. Chem. A 2020, 8, 6256–6267. [Google Scholar] [CrossRef]
  21. Zuo, G.; Wang, Y.; Teo, W.L.; Xie, A.; Guo, Y.; Dai, Y.; Zhou, W.; Jana, D.; Xian, Q.; Dong, W.; et al. Ultrathin ZnIn2S4 Nanosheets Anchored on Ti3C2TX MXene for Photocatalytic H2 Evolution. Angew. Chem. Int. Ed. 2020, 59, 11287–11292. [Google Scholar] [CrossRef]
  22. Cao, S.; Shen, B.; Tong, T.; Fu, J.; Yu, J. 2D/2D Heterojunction of Ultrathin MXene/Bi2WO6 Nanosheets for Improved Photocatalytic CO2 Reduction. Adv. Funct. Mater. 2018, 28, 1800136. [Google Scholar] [CrossRef]
  23. Su, T.; Hood, Z.D.; Naguib, M.; Bai, L.; Luo, S.; Rouleau, C.M.; Ivanov, I.N.; Ji, H.; Qin, Z.; Wu, Z. 2D/2D heterojunction of Ti3C2/g-C3N4 nanosheets for enhanced photocatalytic hydrogen evolution. Nanoscale 2019, 11, 8138–8149. [Google Scholar] [CrossRef]
  24. Chen, Y.; Hu, S.; Liu, W.; Chen, X.; Wu, L.; Wang, X.; Liu, P.; Li, Z. Controlled syntheses of cubic and hexagonal ZnIn2S4 nanostructures with different visible-light photocatalytic performance. Dalton Trans. 2011, 40, 2607–2613. [Google Scholar] [CrossRef] [PubMed]
  25. Li, Y.; Cai, J.; Hao, M.; Li, Z. Visible light initiated hydrothiolation of alkenes and alkynes over ZnIn2S4. Green Chem. 2019, 21, 2345–2351. [Google Scholar] [CrossRef]
  26. Cai, T.; Wang, L.; Liu, Y.; Zhang, S.; Dong, W.; Chen, H.; Yi, X.; Yuan, J.; Xia, X.; Liu, C.; et al. Ag3PO4/Ti3C2 MXene interface materials as a Schottky catalyst with enhanced photocatalytic activities and anti-photocorrosion performance. Appl. Catal. B 2018, 239, 545–554. [Google Scholar] [CrossRef]
  27. Chen, R.; Wang, P.; Chen, J.; Wang, C.; Ao, Y. Synergetic effect of MoS2 and MXene on the enhanced H2 evolution performance of CdS under visible light irradiation. Appl. Surf. Sci. 2019, 473, 11–19. [Google Scholar] [CrossRef]
  28. Ran, J.; Gao, G.; Li, F.; Ma, T.; Du, A.; Qiao, S. Ti3C2 MXene co-catalyst on metal sulfide photo-absorbers for enhanced visible-light photocatalytic hydrogen production. Nat. Commun. 2017, 8, 13907. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  29. Lin, H.; Wang, X.; Yu, L.; Chen, Y.; Shi, J. Two-Dimensional Ultrathin MXene Ceramic Nanosheets for Photothermal Conversion. Nano Lett. 2017, 17, 384–391. [Google Scholar] [CrossRef] [PubMed]
  30. Su, T.; Hood, Z.D.; Naguib, M.; Bai, L.; Luo, S.; Rouleau, C.M.; Ivanoy, I.N.; Ji, H.; Qin, Z.; Wu, Z. Monolayer Ti3C2Tx as an Effective Co-catalyst for Enhanced Photocatalytic Hydrogen Production over TiO2. ACS Appl. Energy Mater. 2019, 2, 4640–4651. [Google Scholar] [CrossRef]
  31. Zhang, S.; Liu, X.; Liu, C.; Luo, S.; Wang, L.; Cai, T.; Zeng, Y.; Yuan, J.; Dong, W.; Pei, Y.; et al. MoS2 Quantum Dot Growth Induced by S Vacancies in a ZnIn2S4 Monolayer: Atomic-Level Heterostructure for Photocatalytic Hydrogen Production. ACS Nano 2018, 12, 751–758. [Google Scholar] [CrossRef] [PubMed]
  32. Li, Y.; Yin, Z.; Ji, G.; Liang, Z.; Xue, Y.; Guo, Y.; Tian, J.; Wang, X.; Cui, H. 2D/2D/2D heterojunction of Ti3C2 MXene/MoS2 nanosheets/TiO2 nanosheets with exposed (001) facets toward enhanced photocatalytic hydrogen production activity. Appl. Catal. B 2019, 246, 12–20. [Google Scholar] [CrossRef]

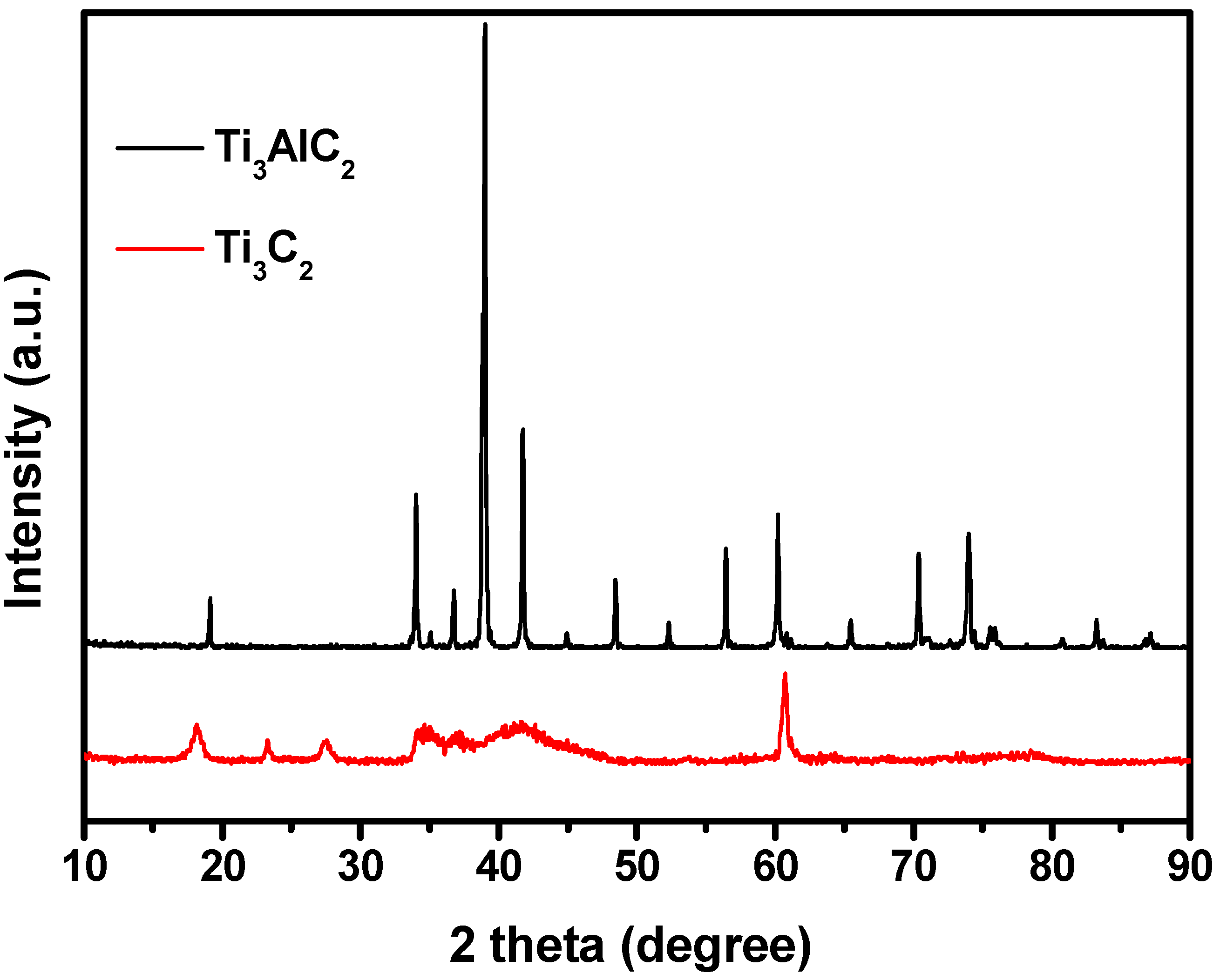

Figure 1. XRD patterns for Ti3AlC2 and obtained Ti3C2 by etching the Al layer of Ti3AlC2 with HF solution.
Figure 1. XRD patterns for Ti3AlC2 and obtained Ti3C2 by etching the Al layer of Ti3AlC2 with HF solution.
Ijms 24 03936 g001

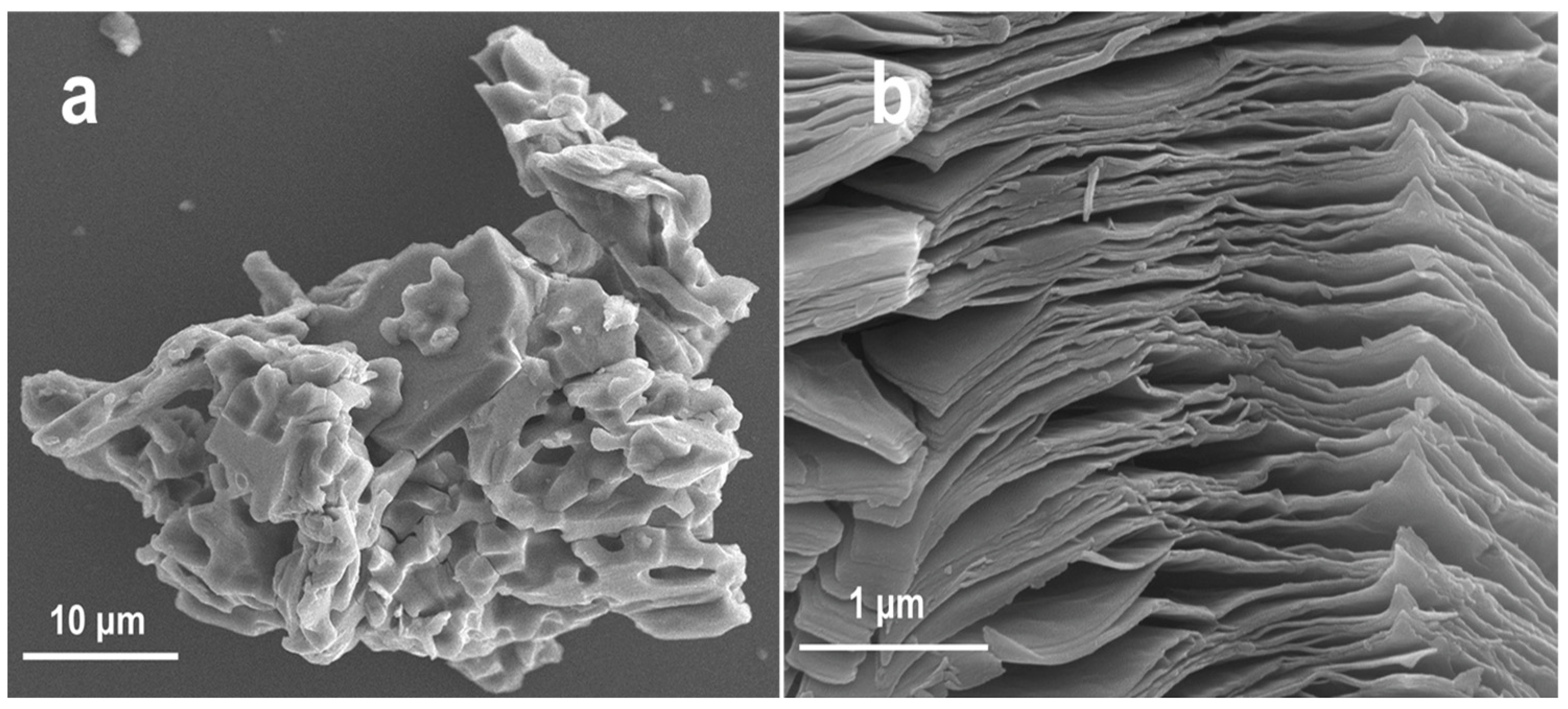

Figure 2. SEM images of (a) Ti3AlC2 and (b) obtained Ti3C2 by etching the Al layer of Ti3AlC2 with HF solution.
Figure 2. SEM images of (a) Ti3AlC2 and (b) obtained Ti3C2 by etching the Al layer of Ti3AlC2 with HF solution.
Ijms 24 03936 g002

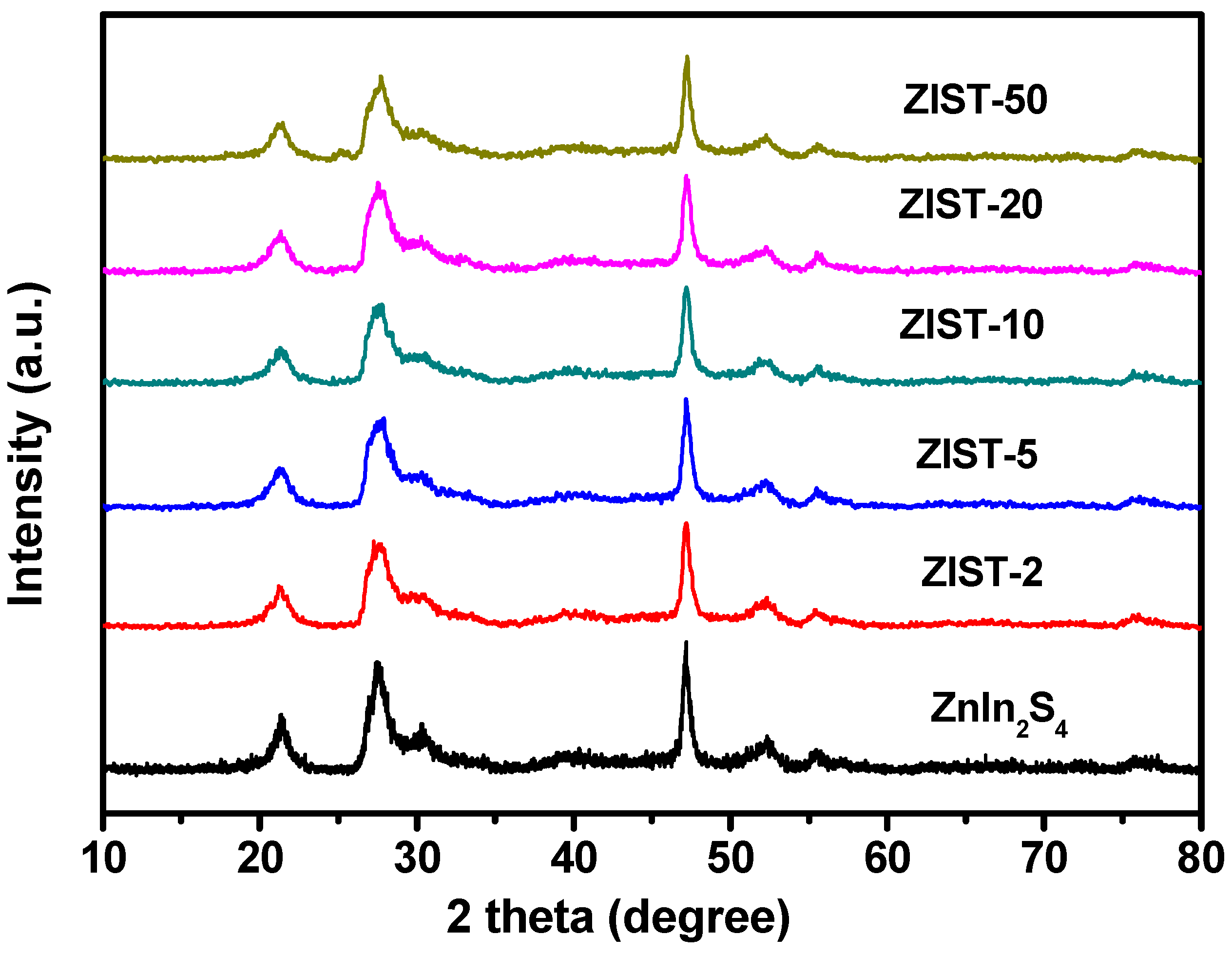

Figure 3. XRD patterns of ZnIn2S4/Ti3C2 composites with different Ti3C2 content.
Figure 3. XRD patterns of ZnIn2S4/Ti3C2 composites with different Ti3C2 content.
Ijms 24 03936 g003

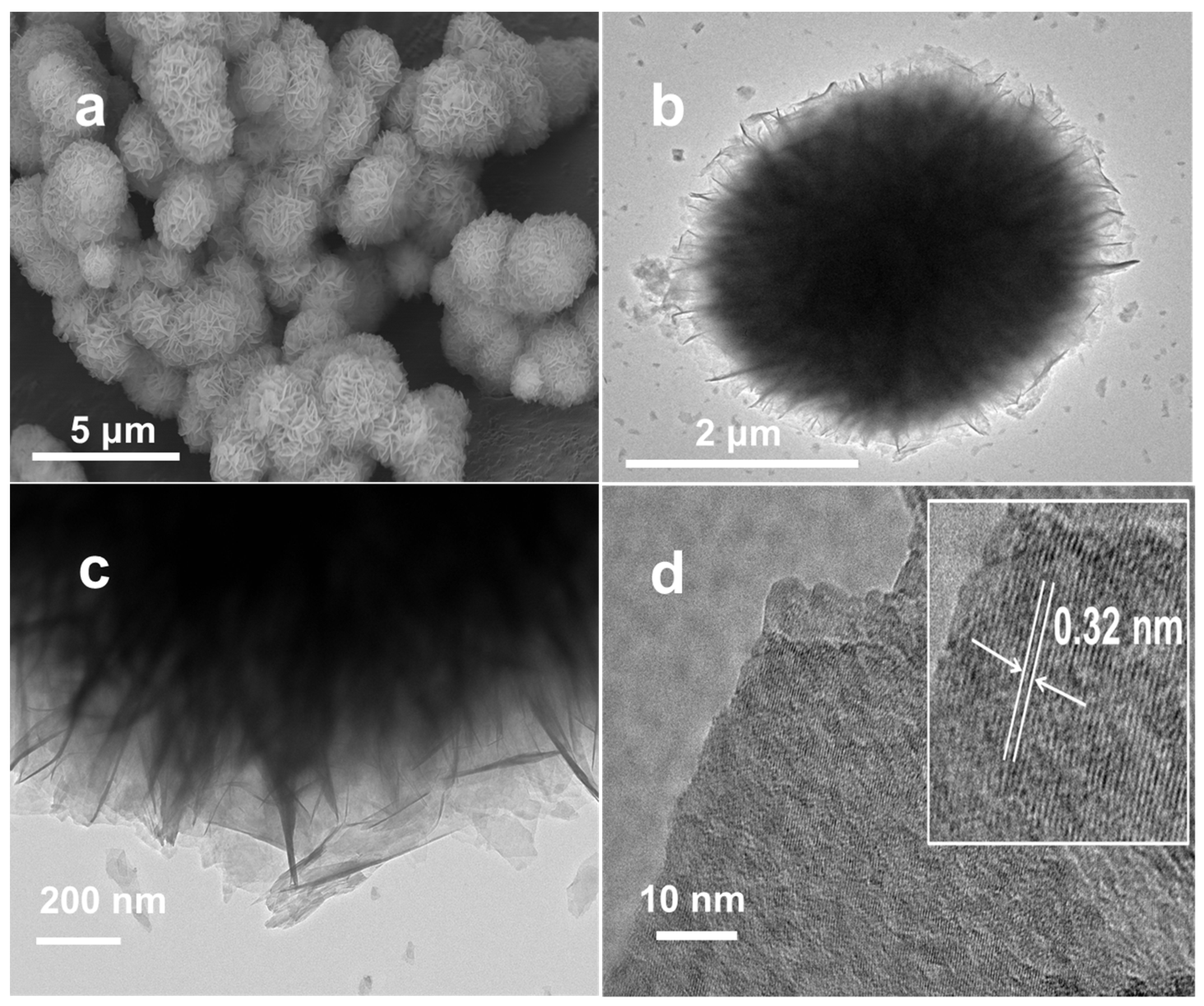

Figure 4. (a) Typical SEM and (b,c) TEM images of ZnIn2S4 at different magnifications, (d) and HRTEM image of ZnIn2S4 nanocrystallinity.
Figure 4. (a) Typical SEM and (b,c) TEM images of ZnIn2S4 at different magnifications, (d) and HRTEM image of ZnIn2S4 nanocrystallinity.
Ijms 24 03936 g004

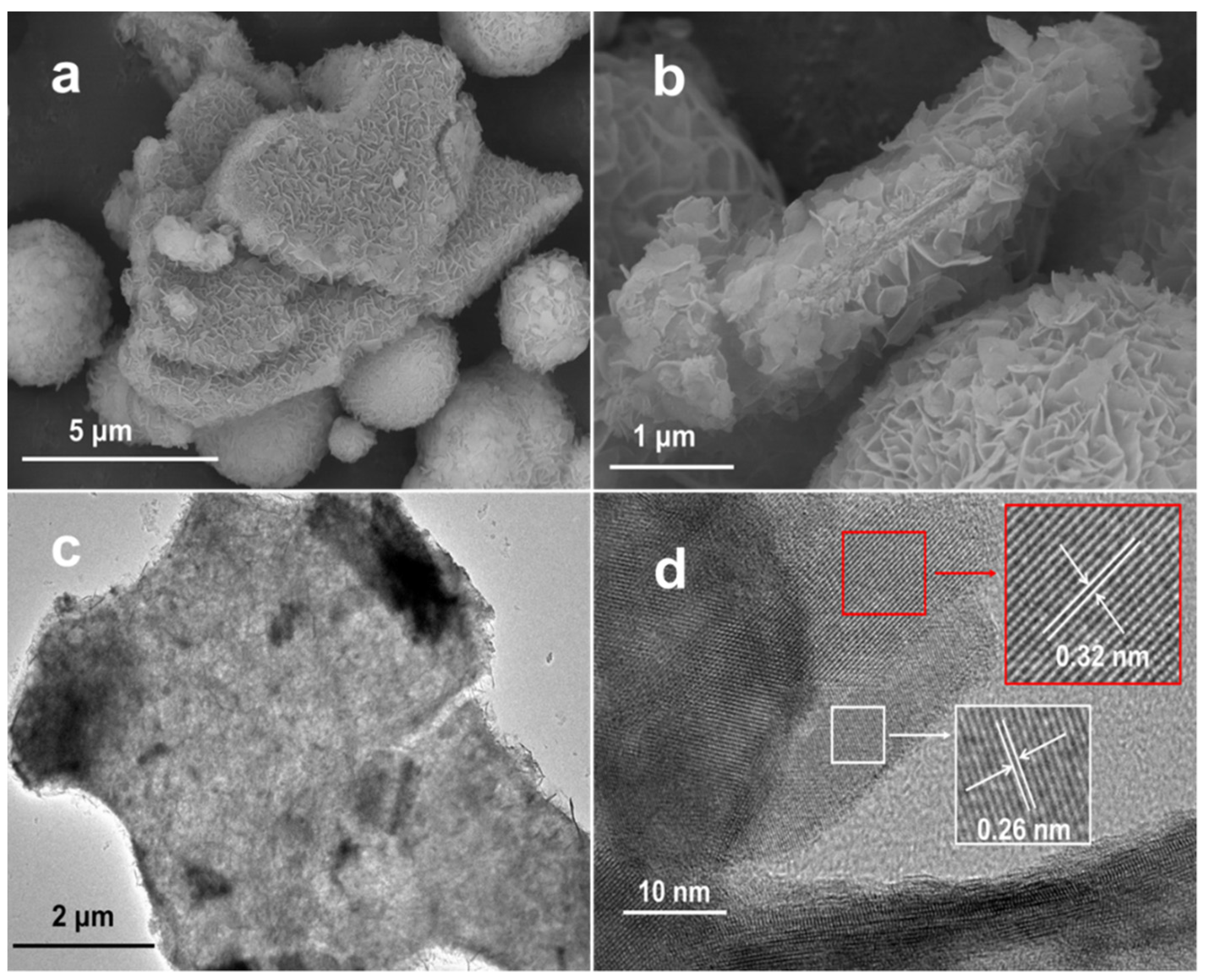

Figure 5. SEM images (a,b), (c) TEM, and (d) HRTEM images of ZnIn2S4/Ti3C2 composites (ZIST-5).
Figure 5. SEM images (a,b), (c) TEM, and (d) HRTEM images of ZnIn2S4/Ti3C2 composites (ZIST-5).
Ijms 24 03936 g005

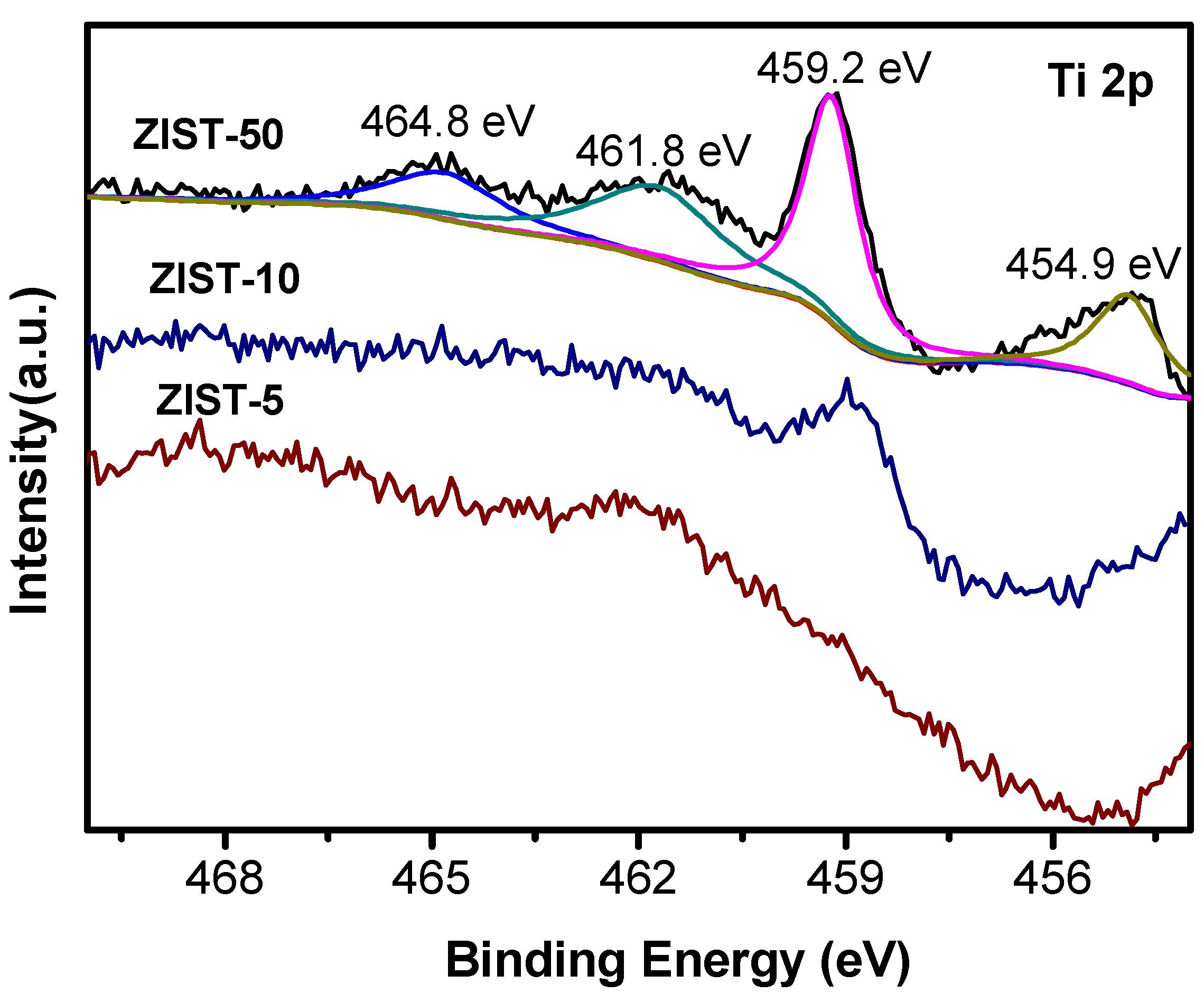

Figure 6. XPS Ti 2p spectra of ZnIn2S4/Ti3C2 composites with different Ti3C2 content.
Figure 6. XPS Ti 2p spectra of ZnIn2S4/Ti3C2 composites with different Ti3C2 content.
Ijms 24 03936 g006
Figure 7. XPS C 1s spectra of ZnIn2S4 and ZnIn2S4/Ti3C2 composites with different Ti3C2 content.
Figure 7. XPS C 1s spectra of ZnIn2S4 and ZnIn2S4/Ti3C2 composites with different Ti3C2 content.
Ijms 24 03936 g007

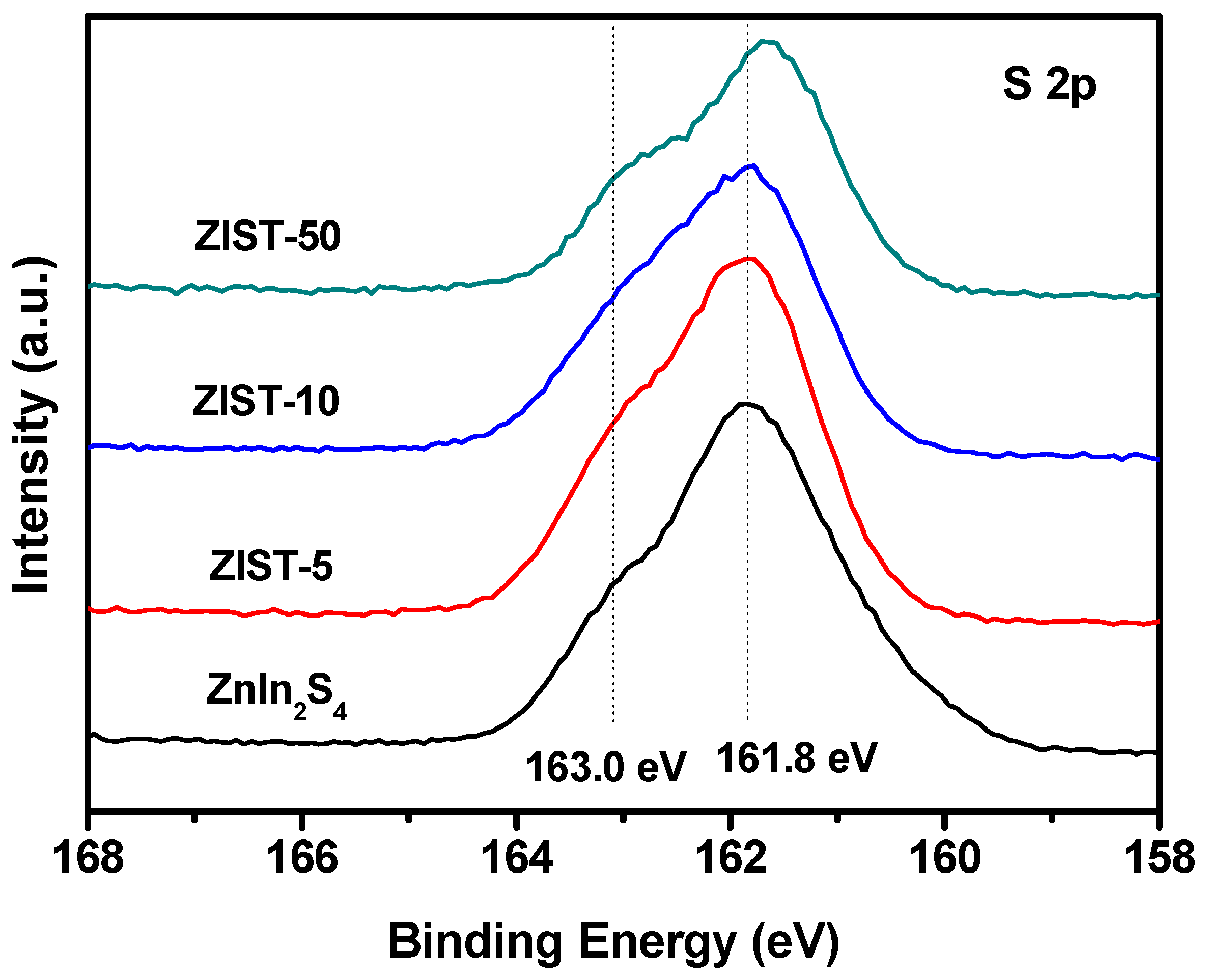

Figure 8. XPS S 2p spectra of ZnIn2S4 and ZnIn2S4/Ti3C2 composites with different Ti3C2 content.
Figure 8. XPS S 2p spectra of ZnIn2S4 and ZnIn2S4/Ti3C2 composites with different Ti3C2 content.
Ijms 24 03936 g008

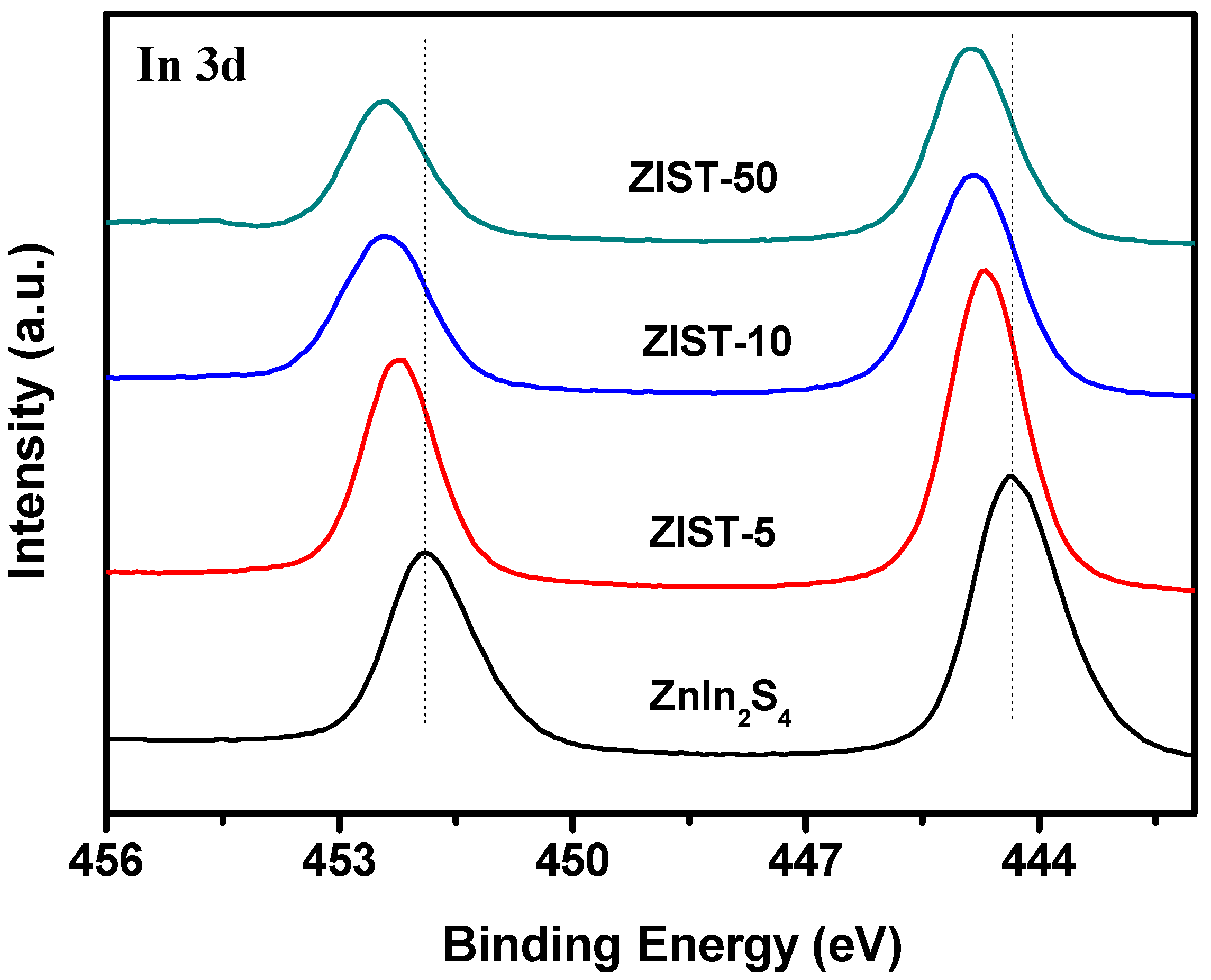

Figure 9. XPS In 3d spectra of ZnIn2S4 and ZnIn2S4/Ti3C2 composites with different Ti3C2 content.
Figure 9. XPS In 3d spectra of ZnIn2S4 and ZnIn2S4/Ti3C2 composites with different Ti3C2 content.
Ijms 24 03936 g009

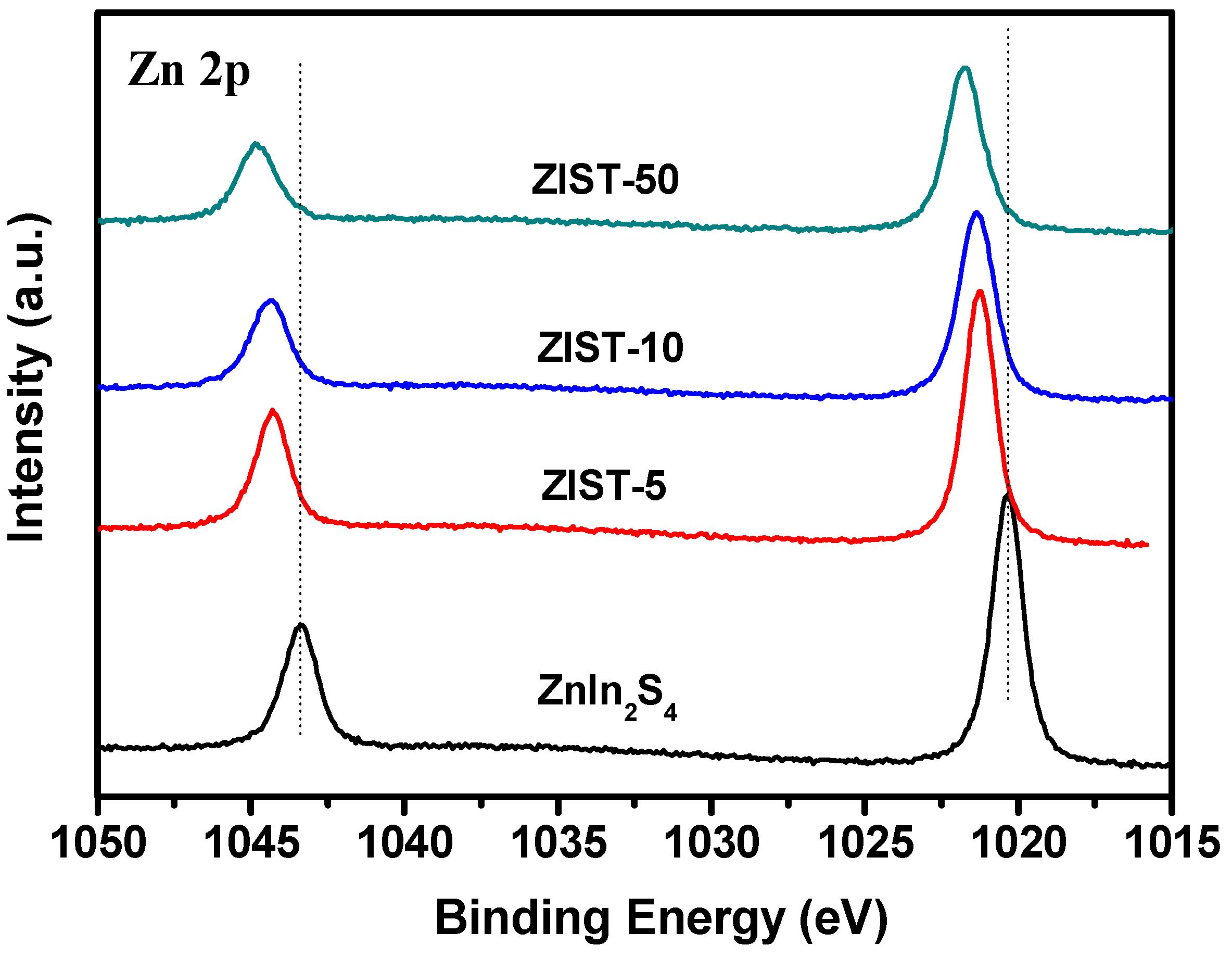

Figure 10. XPS Zn 2p spectra of ZnIn2S4 and ZnIn2S4/Ti3C2 composites with different Ti3C2 content.
Figure 10. XPS Zn 2p spectra of ZnIn2S4 and ZnIn2S4/Ti3C2 composites with different Ti3C2 content.
Ijms 24 03936 g010

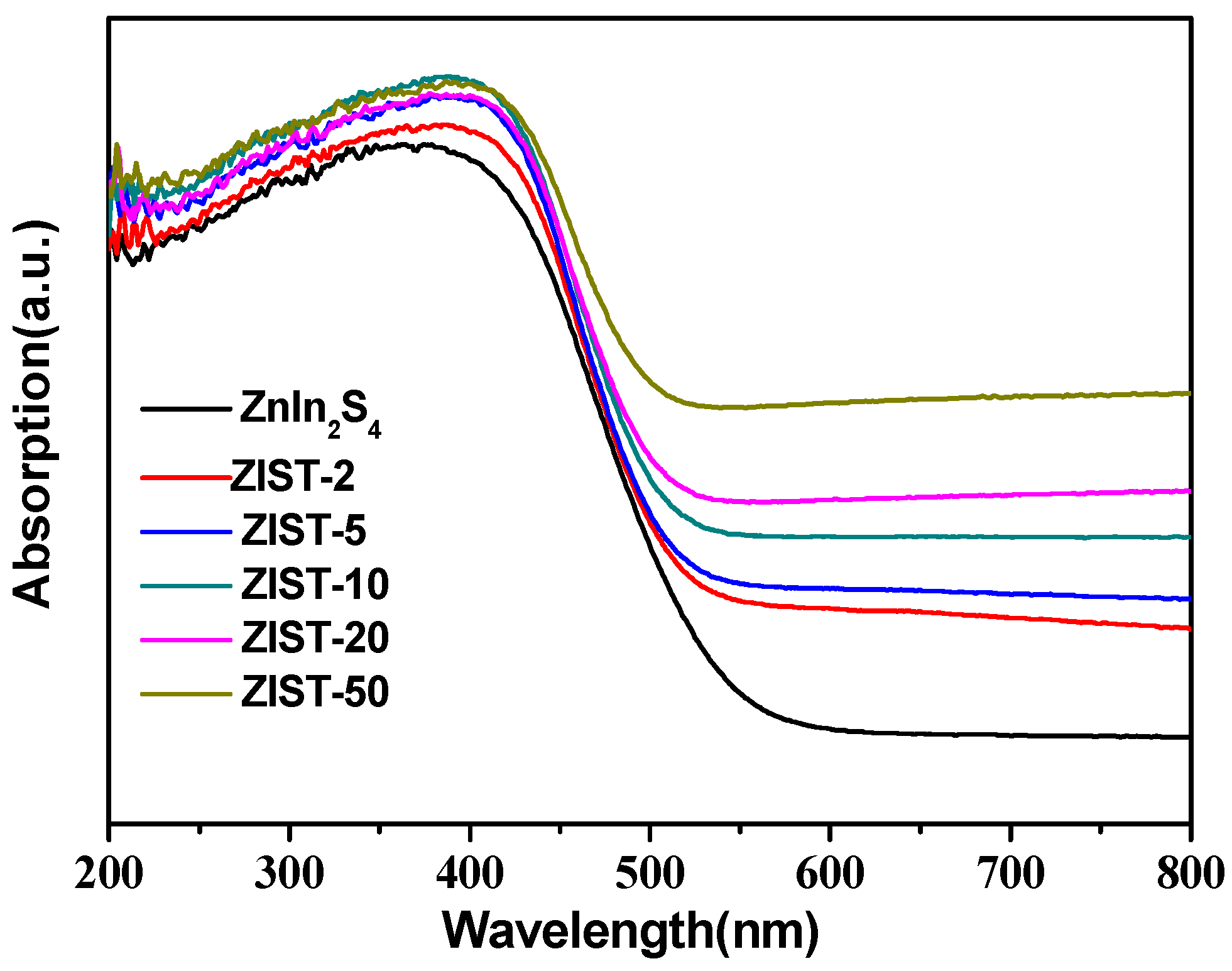

Figure 11. UV−vis DRS spectra of ZnIn2S4 and ZnIn2S4/Ti3C2 composites with different Ti3C2 content.
Figure 11. UV−vis DRS spectra of ZnIn2S4 and ZnIn2S4/Ti3C2 composites with different Ti3C2 content.
Ijms 24 03936 g011

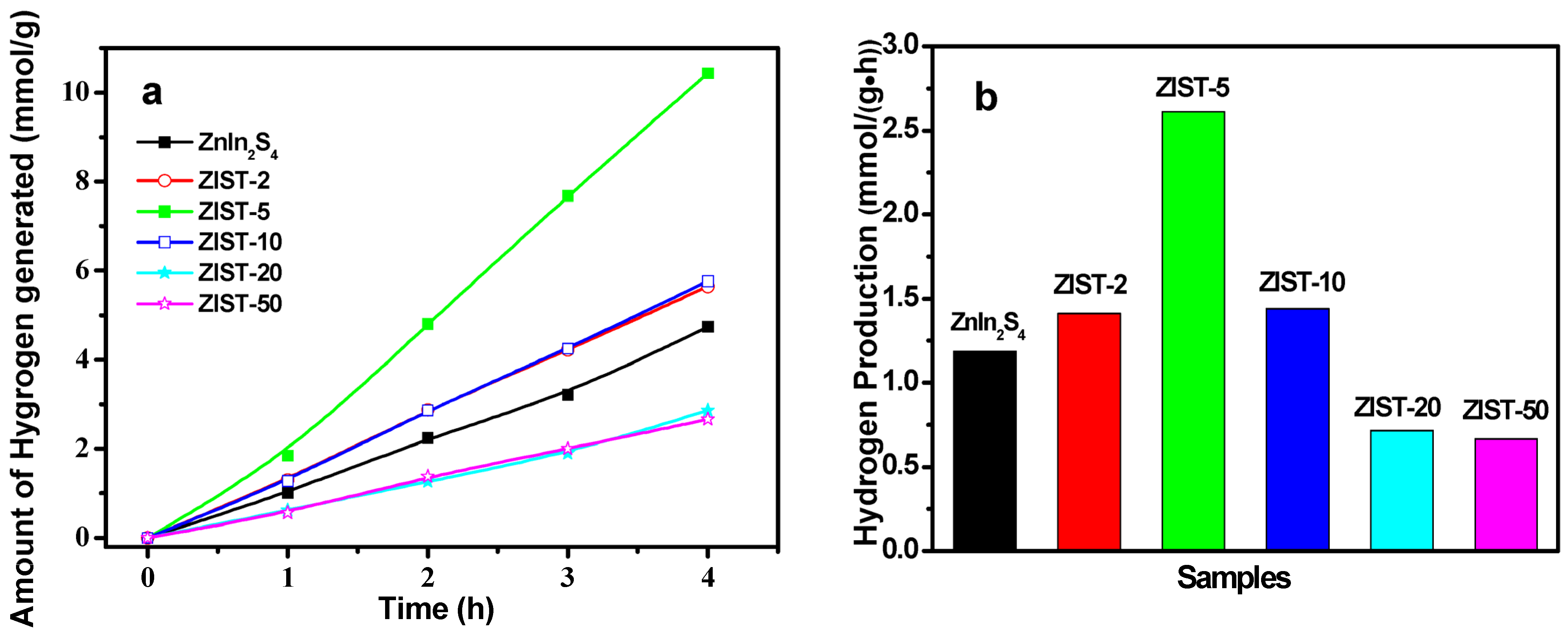

Figure 12. (a) Photocatalytic H2 evolution over ZnIn2S4 and ZnIn2S4/Ti3C2 composites with different Ti3C2 content under visible light irradiation. (b) Rate of H2 evolution of ZnIn2S4/Ti3C2 composites with different Ti3C2 content under visible light irradiation.
Figure 12. (a) Photocatalytic H2 evolution over ZnIn2S4 and ZnIn2S4/Ti3C2 composites with different Ti3C2 content under visible light irradiation. (b) Rate of H2 evolution of ZnIn2S4/Ti3C2 composites with different Ti3C2 content under visible light irradiation.
Ijms 24 03936 g012

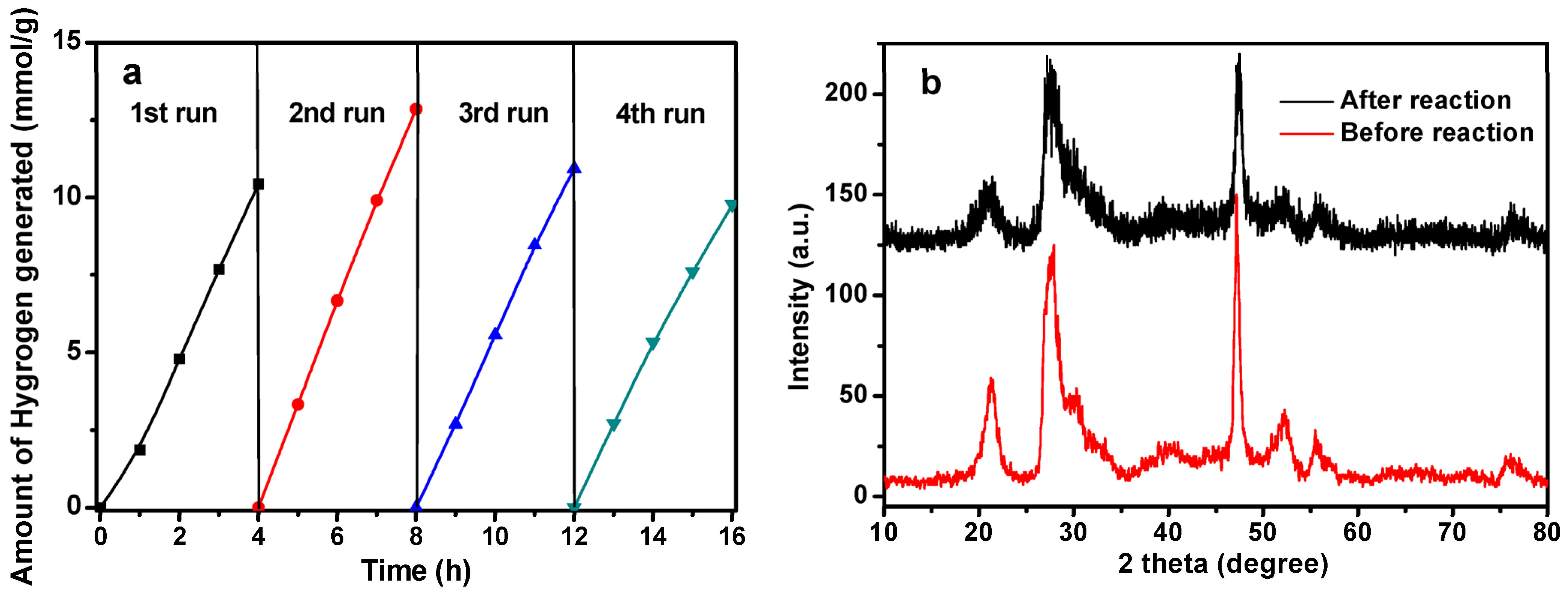

Figure 13. (a) Cycling tests of photocatalytic H2 production under visible light irradiation over ZIST-5. (b) XRD patterns for experimental ZIST-5 before and after the reaction.
Figure 13. (a) Cycling tests of photocatalytic H2 production under visible light irradiation over ZIST-5. (b) XRD patterns for experimental ZIST-5 before and after the reaction.
Ijms 24 03936 g013

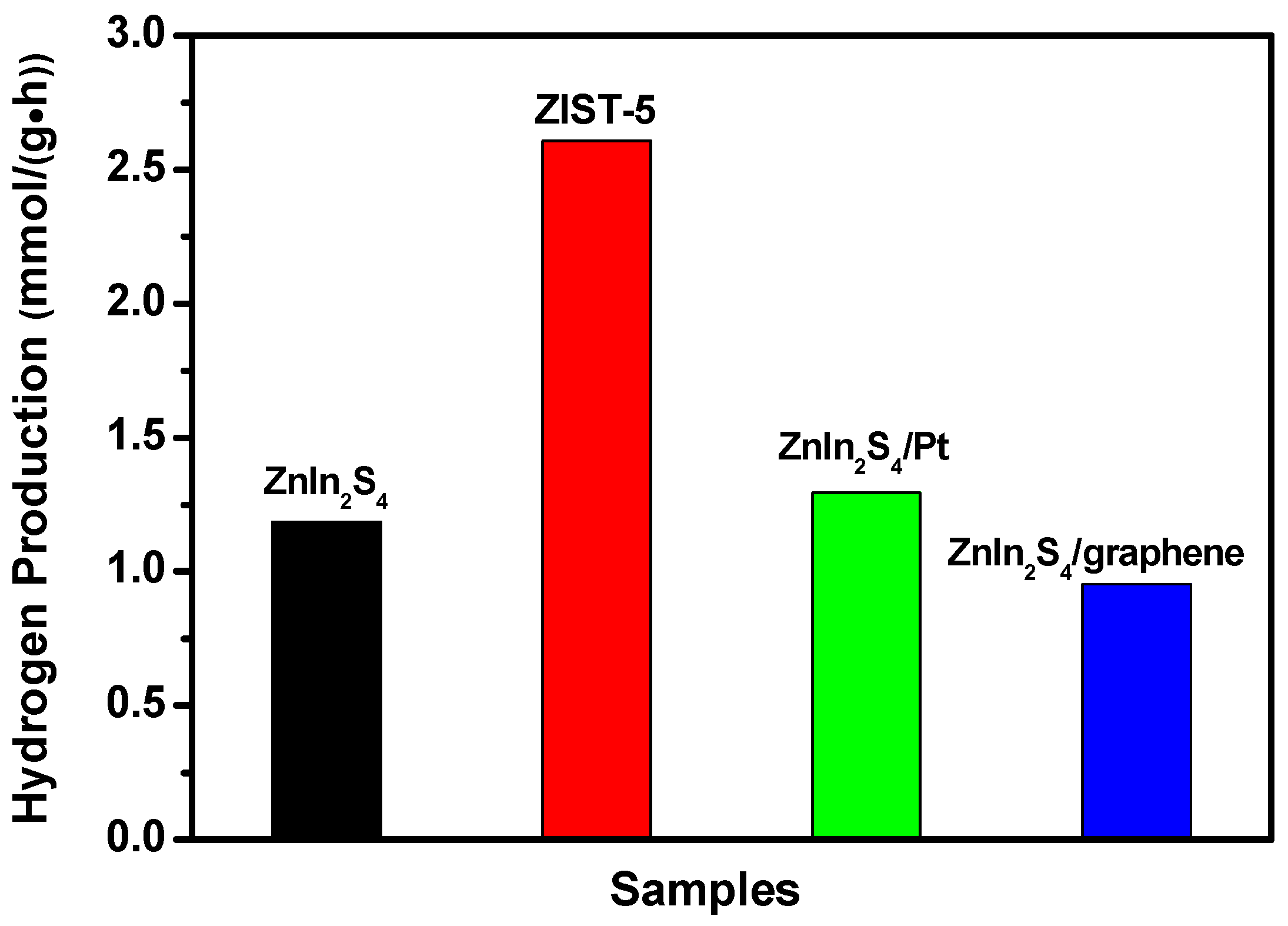

Figure 14. Rate of H2 evolution of ZnIn2S4, ZnIn2S4/Pt, ZnIn2S4/graphene, and ZIST-5 under visible light irradiation.
Figure 14. Rate of H2 evolution of ZnIn2S4, ZnIn2S4/Pt, ZnIn2S4/graphene, and ZIST-5 under visible light irradiation.
Ijms 24 03936 g014

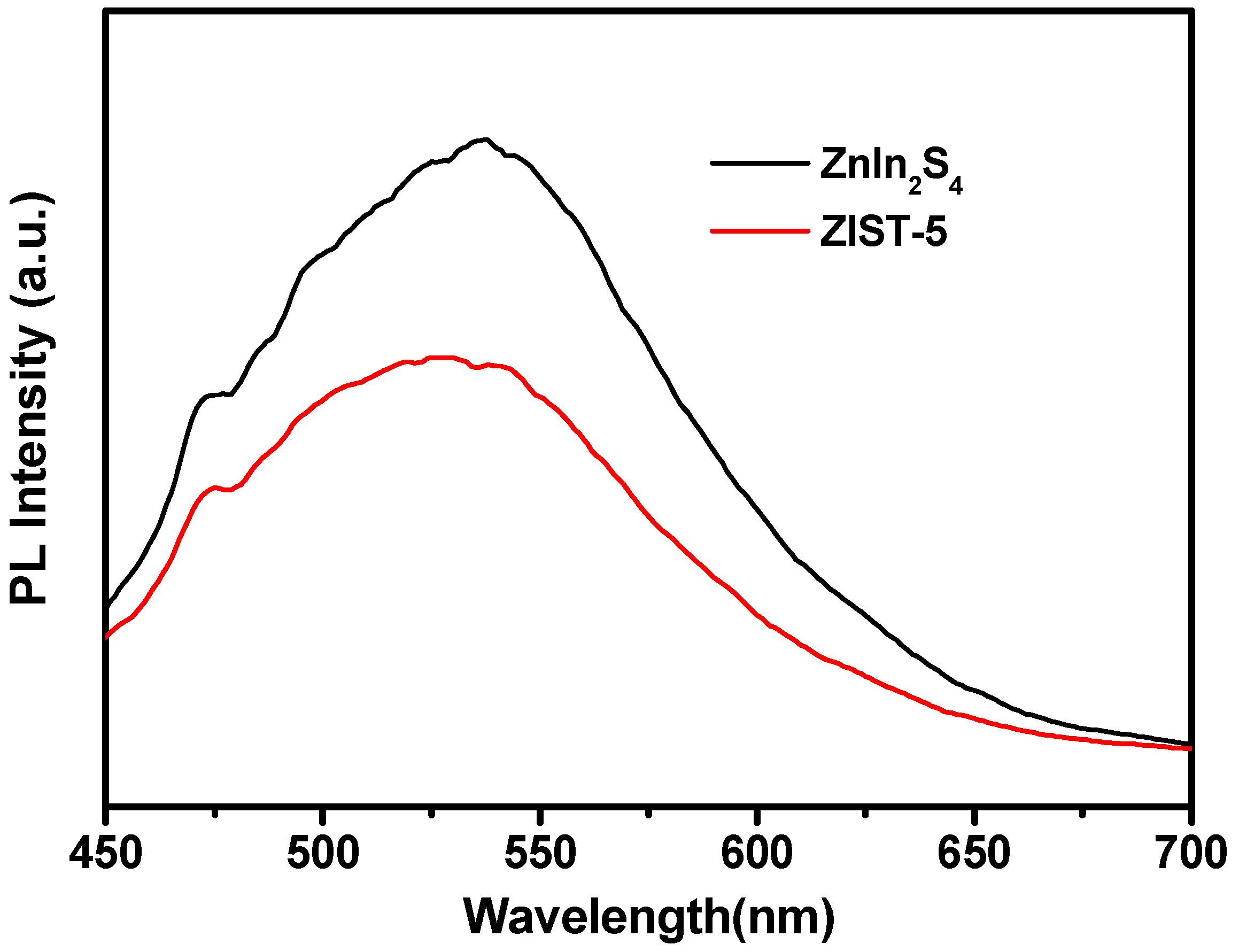

Figure 15. PL spectra of ZnIn2S4 and ZIST-5.
Figure 15. PL spectra of ZnIn2S4 and ZIST-5.
Ijms 24 03936 g015

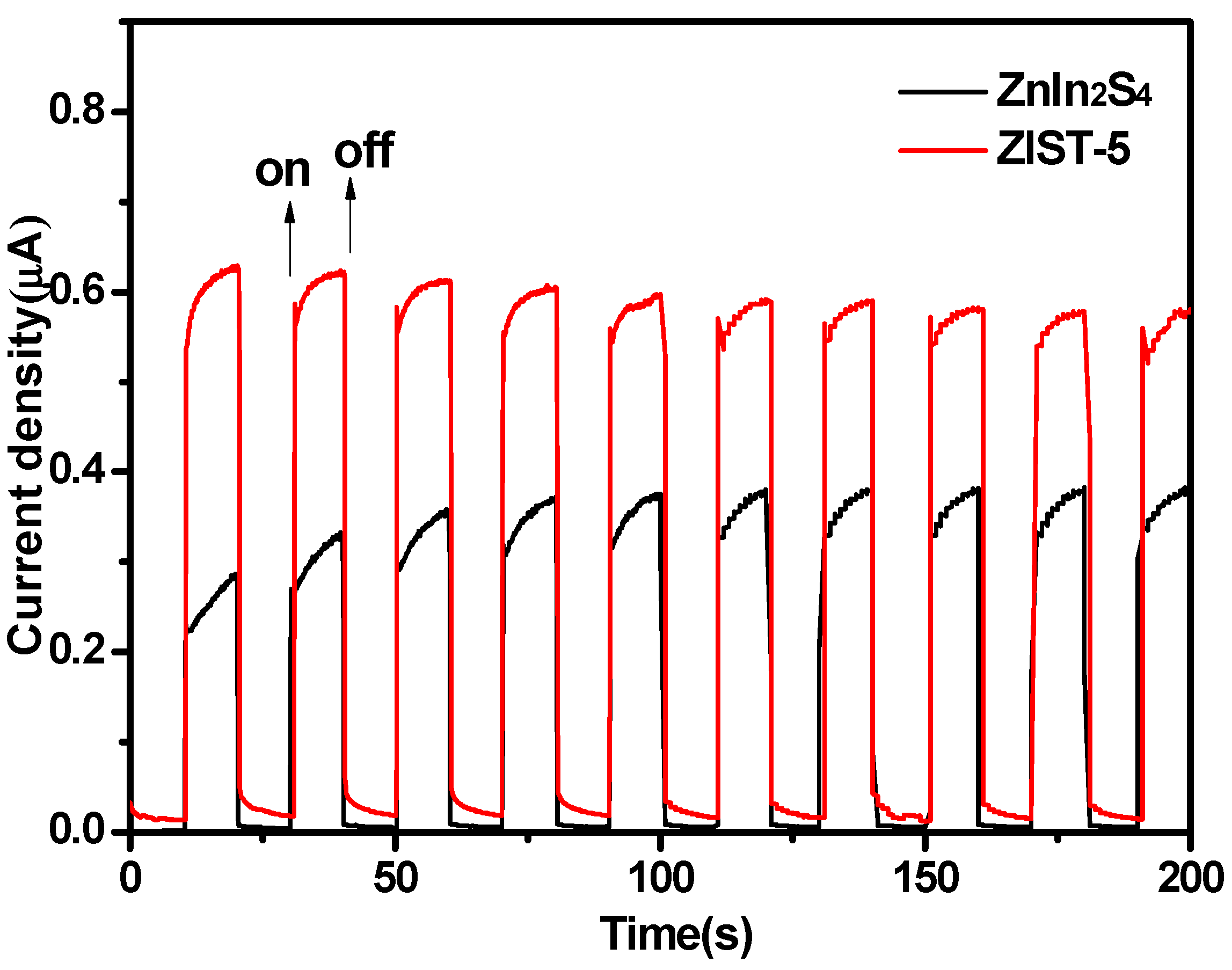

Figure 16. Transient photocurrent responses of ZnIn2S4 and ZIST-5 (300 W Xe lamp equipped with a 420 nm cut-off filter as a light source).
Figure 16. Transient photocurrent responses of ZnIn2S4 and ZIST-5 (300 W Xe lamp equipped with a 420 nm cut-off filter as a light source).
Ijms 24 03936 g016

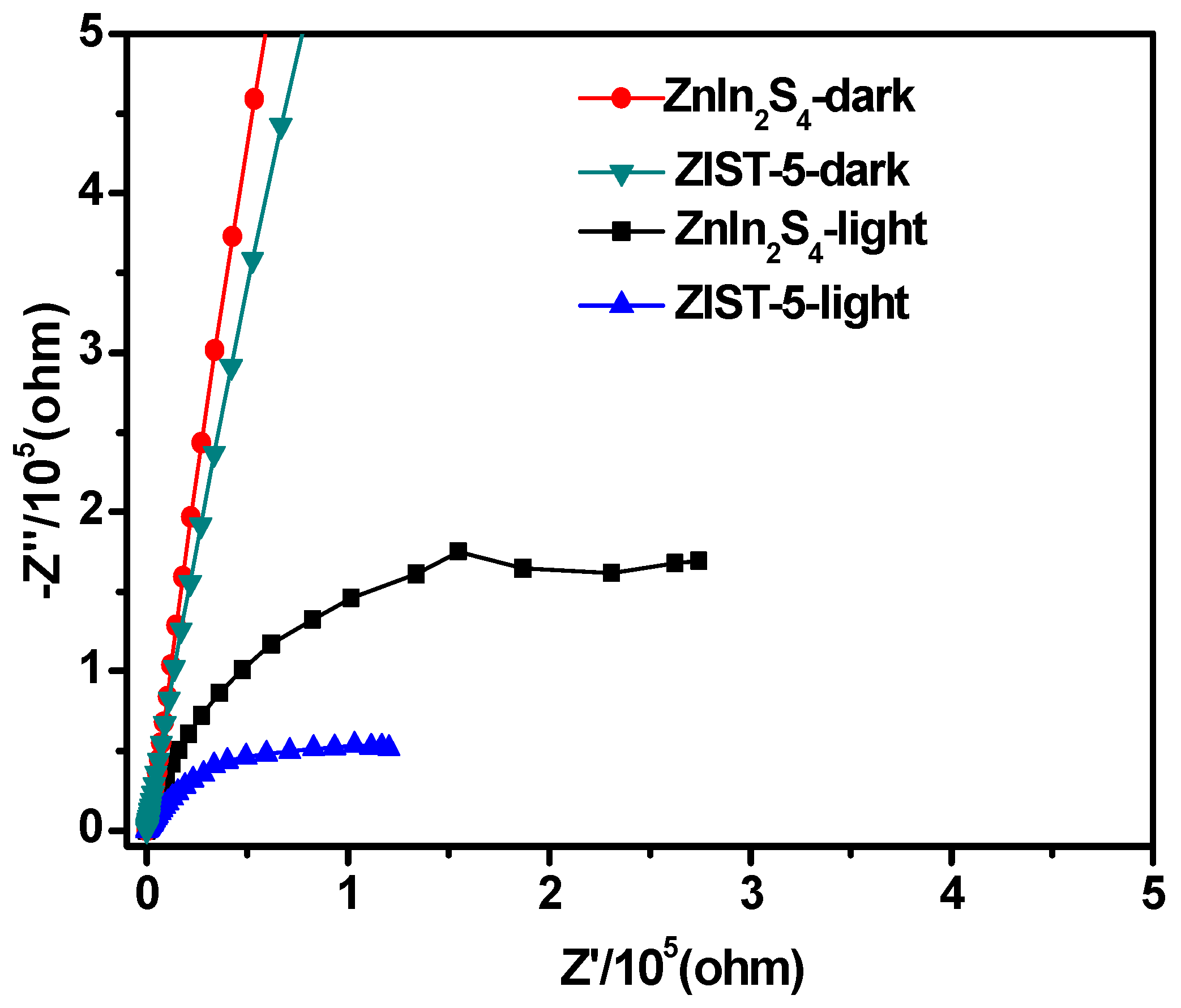

Figure 17. Nyquist plots of experimental impedance data for ZnIn2S4 and ZIST-5 in the frequency range of 4 MHz to 10 MHz using an AC bias of 0 V vs. Ag/AgCl without or with visible light irradiation (λ > 420 nm).
Figure 17. Nyquist plots of experimental impedance data for ZnIn2S4 and ZIST-5 in the frequency range of 4 MHz to 10 MHz using an AC bias of 0 V vs. Ag/AgCl without or with visible light irradiation (λ > 420 nm).
Ijms 24 03936 g017

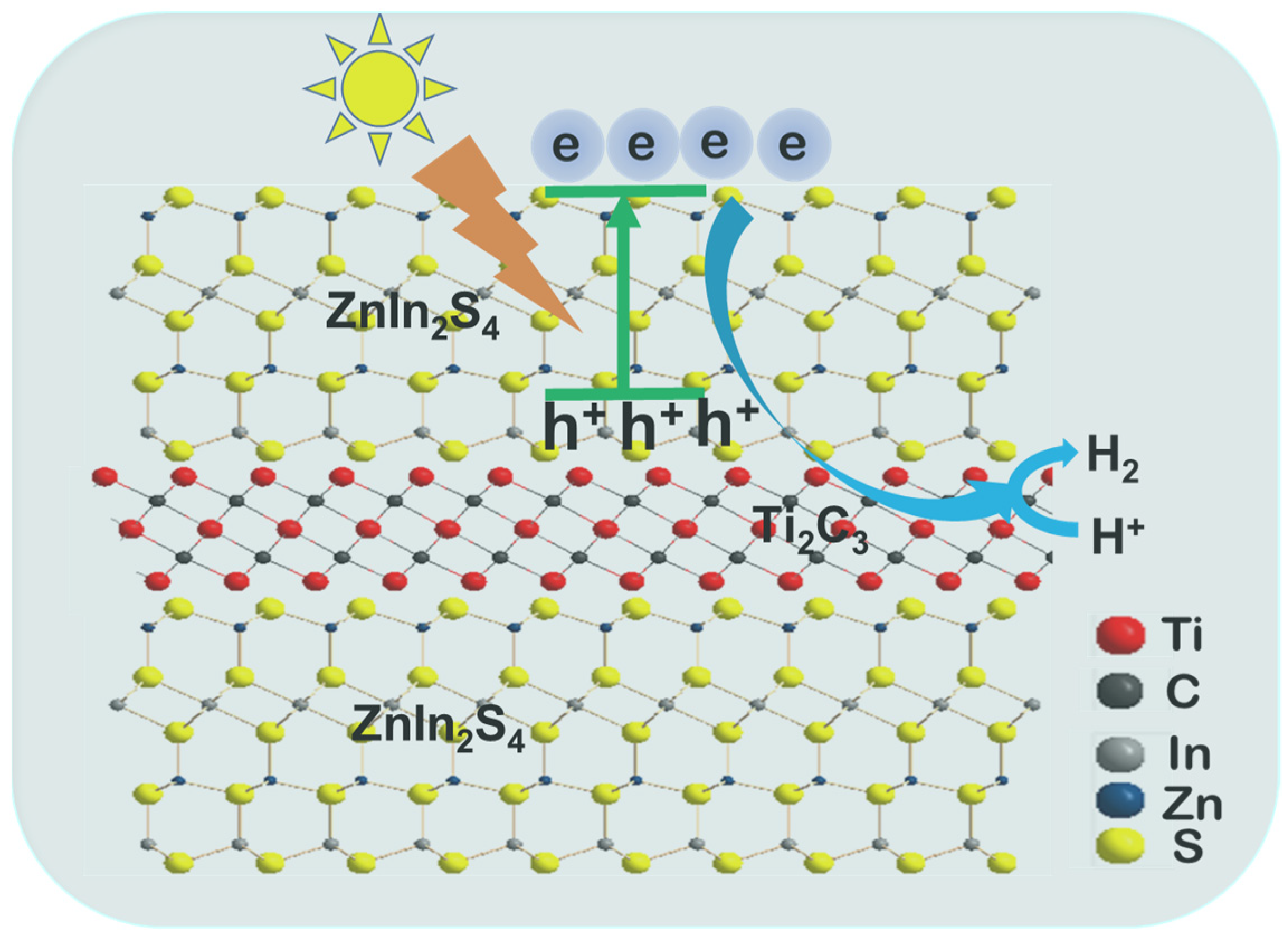

Scheme 1. Suggested mechanism for the photocatalysis of Ti2C3/ZnIn2S4 under visible light.
Scheme 1. Suggested mechanism for the photocatalysis of Ti2C3/ZnIn2S4 under visible light.
Ijms 24 03936 sch001
